LG DU-30LZ30 User manual

LCD
Colour Television
OWNER'S MANUAL
Please read this manual
carefully
before
operating your
set.
Retain it for future reference.
Record model number and serial number of the set.
See the label attached on the back cover and
quote
this infor-
mation to
your
dealer when
you require
service.
MODELS: DU-30LZ30
DU-37LZ30
DU-42LZ30
Internet Home
Page
:
http://www.lge.com
http://www.lg.ca
P/NO :
3828TUL275D(0406-REV00)
Printed in Korea

2

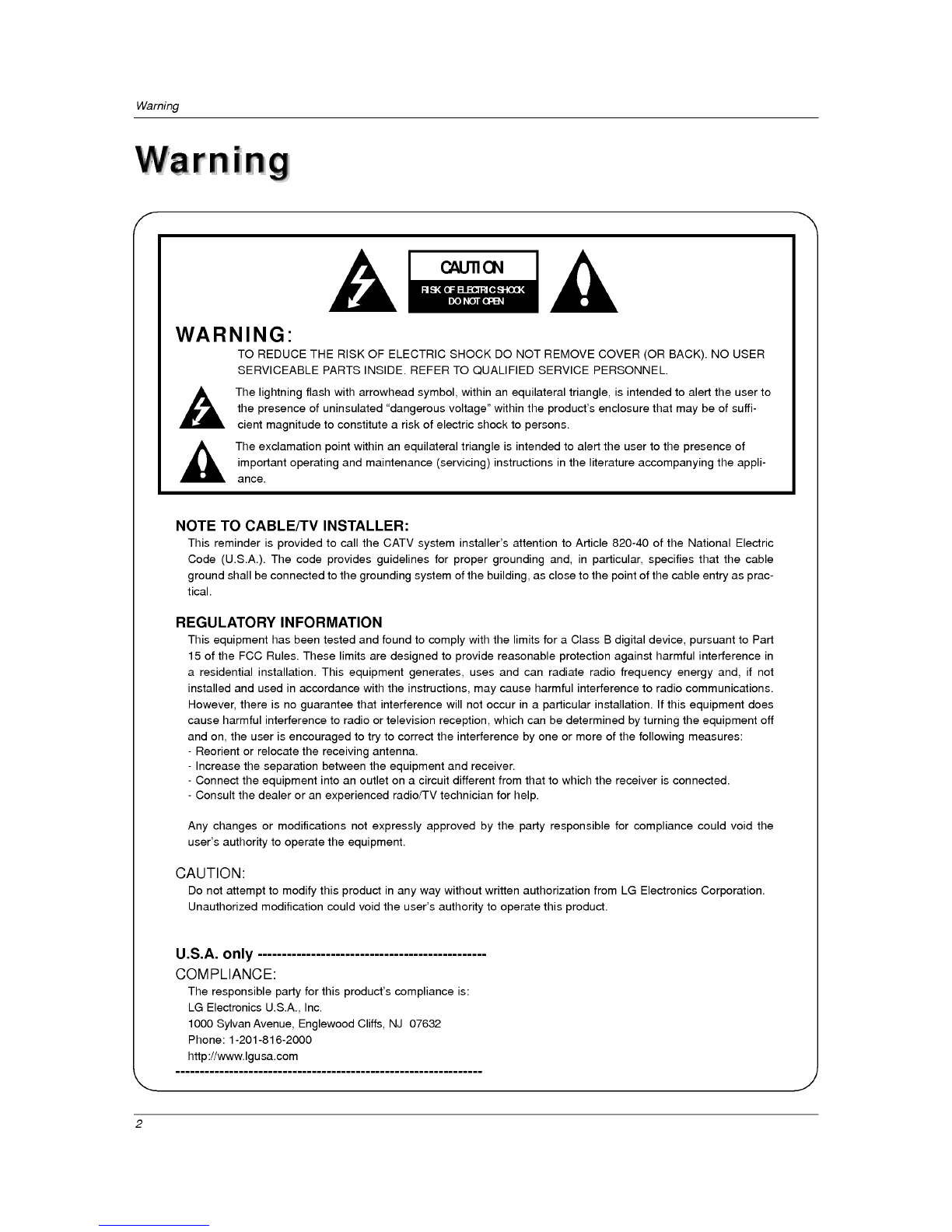

Warning
WARNING:
TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER
(OR BACK).
NO USER
SERVICEABLE PARTS INSIDE. REFER TO
QUALIFIED
SERVICE PERSONNEL.
The
lightning
flash with arrowhead
symbol,
within an
equilateral
triangle,
is intended to alert the user to
the
presence
of uninsulated
"dangerous voltage"
within the
product's
enclosure that
may
be of suffi-
cient
magnitude
to constitute a risk of electric shock to
persons.
The exclamation
point
within an
equilateral
triangle
is intended to alert the user to the
presence
of
important
operating
and maintenance
(servicing)
instructions in the literature
accompanying
the
appli-
ance.
NOTE TO CABLE/TV INSTALLER:
This reminder is
provided
to call the CATV
system
installer's attention to Article 820-40 of the National Electric
Code
(U.S.A.).
The code
provides
guidelines
for
proper
grounding
and,
in
particular, specifies
that the cable
ground
shall be connected to the
grounding
system
of the
building,
as close to the
point
of the cable
entry
as
prac-
tical.
REGULATORY INFORMATION
This
equipment
has been tested and found to
comply
with the limits for a Class B
digital
device,
pursuant
to Part
15 of the FCC Rules. These limits are
designed
to
provide
reasonable
protection
against
harmful interference in
a residential installation. This
equipment
generates,
uses and can radiate radio
frequency
energy
and,
if not
installed and used in accordance with the
instructions,
may
cause harmful interference to radio communications.
However,
there is no
guarantee
that interference will not occur in a
particular
installation. If this
equipment
does
cause harmful interference to radio or television
reception,
which can be determined
by
turning
the
equipment
off
and
on,
the user is
encouraged
to
try
to correct the interference
by
one or more of the
following
measures:
-
Reorient or relocate the
receiving
antenna.
-
Increase the
separation
between the
equipment
and receiver.
-
Connect the
equipment
into an outlet on a circuit different from that to which the receiver is connected.
-
Consult the dealer or an
experienced
radio/TV technician for
help.
Any
changes
or modifications not
expressly approved by
the
party responsible
for
compliance
could void the
user's
authority
to
operate
the
equipment.
CAUTION:
Do not
attempt
to
modify
this
product
in
any way
without written authorization from LG Electronics
Corporation.
Unauthorized modification could void the user's
authority
to
operate
this
product.
U.S.A.
only
-----------------------------------------------
COMPLIANCE:
The
responsible party
for this
product's compliance
is:
LG Electronics
U.S.A.,
Inc.
1000
Sylvan
Avenue,
Englewood
Cliffs,
NJ 07632
Phone: [phone]
http://www.lgusa.com
---------------------------------------------------------------
CAUTION
W
Warning
arning

3

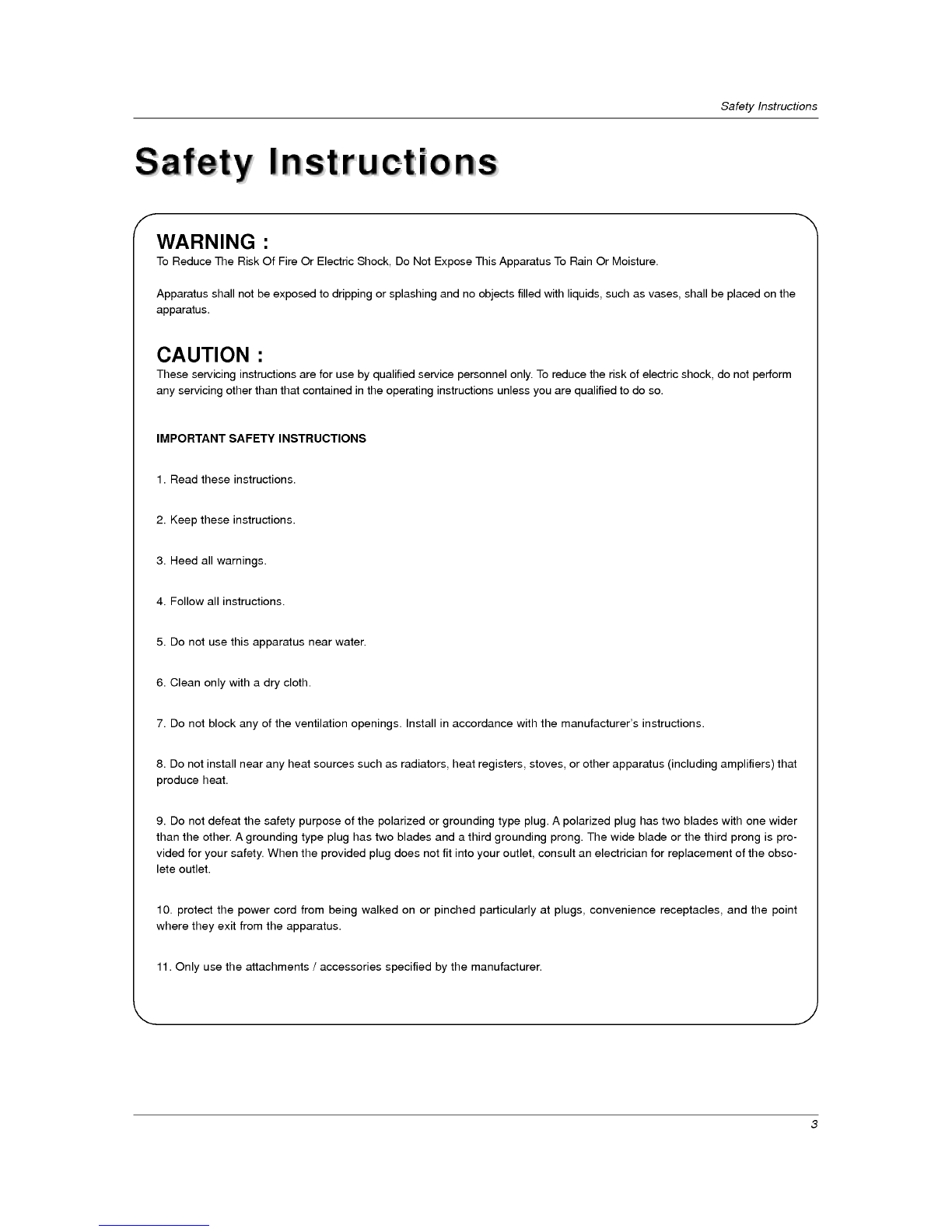

Safety
Instructions
WARNING
:
To Reduce The Risk Of Fire Or Electric
Shock,
Do Not
Expose
This
Apparatus
To Rain Or Moisture.
Apparatus
shall not be
exposed
to
dripping
or
splashing
and no
objects
filled with
liquids,
such as
vases,
shall be
placed
on the
apparatus.
CAUTION
:
These
servicing
instructions are for use
by qualified
service
personnel only.
To reduce the risk of electric
shock,
do not
perform
any
servicing
other than that contained in the
operating
instructions unless
you
are
qualified
to do so.
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2.
Keep
these instructions.
3. Heed all
warnings.
4. Follow all instructions.
5. Do not use this
apparatus
near water.
6. Clean
only
with a
dry
cloth.
7. Do not block
any
of the ventilation
openings.
Install in accordance with the manufacturer's instructions.
8. Do not install near
any
heat sources such as
radiators,
heat
registers,
stoves,
or other
apparatus
(including
amplifiers)
that
produce
heat.
9. Do not defeat the
safety purpose
of the
polarized
or
grounding
type
plug.
A
polarized
plug
has two blades with one wider
than the other. A
grounding
type
plug
has two blades and a third
grounding prong.
The wide blade or the third
prong
is
pro-
vided for
your safety.
When the
provided
plug
does not fit into
your
outlet,
consult an electrician for
replacement
of the obso-
lete outlet.
10.
protect
the
power
cord from
being
walked on or
pinched particularly
at
plugs,
convenience
receptacles,
and the
point
where
they
exit from the
apparatus.
11.
Only
use the attachments / accessories
specified by
the manufacturer.
Safety
Instructions
Safety
Instructions

4
Safety
Instructions
Safety
Instructions continued
Safety
Instructions continued
12. Use
only
with a
cart, stand,
tripod,
bracket,
or table
specified by
the
manufacturer,
or sold with the
apparatus.
When a
cart is
used,
use caution when
moving
the cart /
apparatus
combination to avoid
injury
from
tip-over.
13.
Unplug
this
apparatus
during lightning
storms or when unused for
long
periods
of time.
14. Refer all
servicing
to
qualified
service
personnel.
Servicing
is
required
when the
apparatus
has been
damaged
in
any
way,
such as
power supply
cord or
plug
is
damaged,
liquid
has been
spilled
or
objects
have fallen into the
apparatus,
the
apparatus
has been
exposed
to rain or
moisture,
does not
operate normally,
or has been
dropped.
On
Disposal
a. The fluorescent
lamp
used in this
product
contains a small amount of
mercury.
b. Do not
dispose
of this
product
with
general
household waste.
Disposal
of this
product
must be carried out in accordance to the
regulations
of
your
local
authority.

5

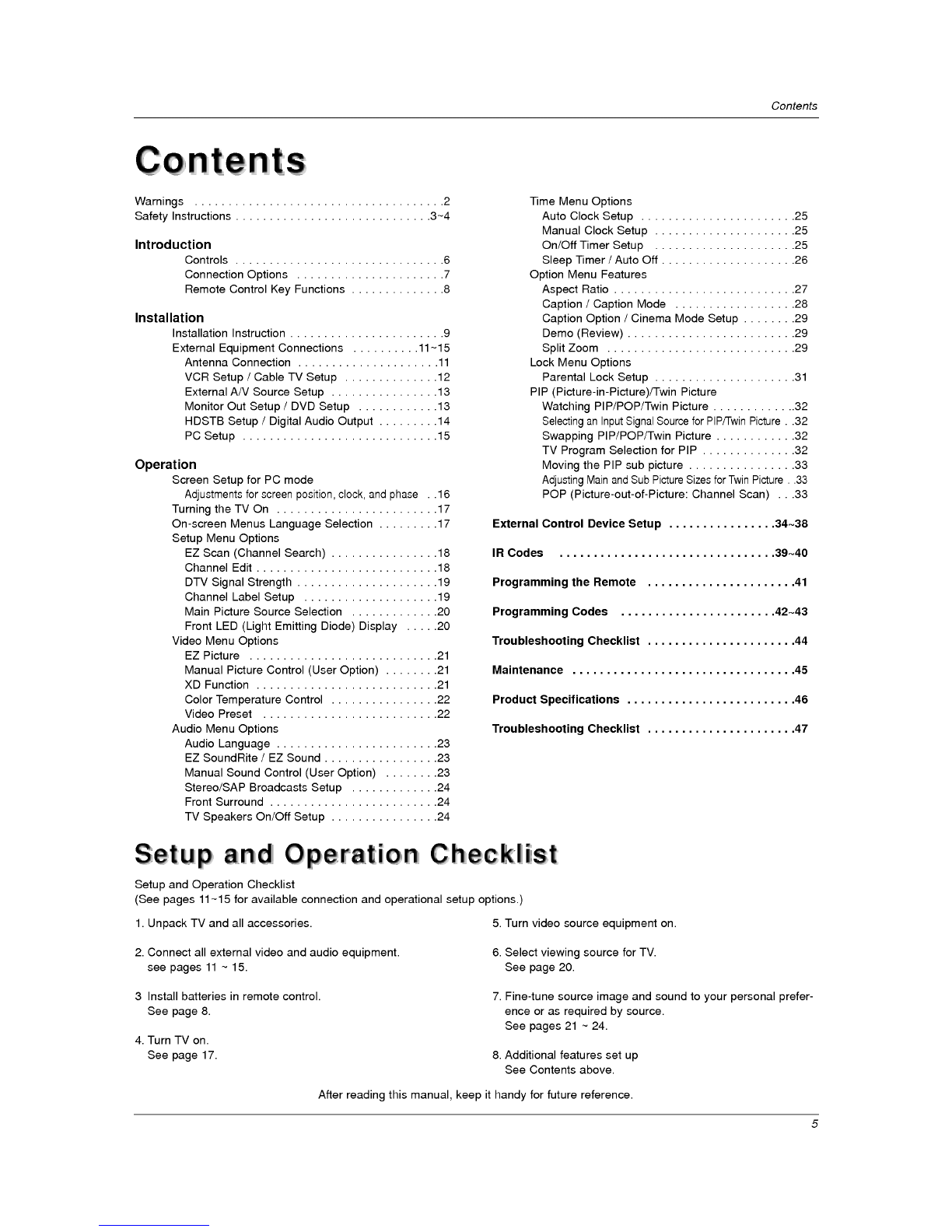

Contents
After
reading
this
manual,
keep
it
handy
for future reference.
Warnings.....................................2
SafetyInstructions.............................3~4
Introduction

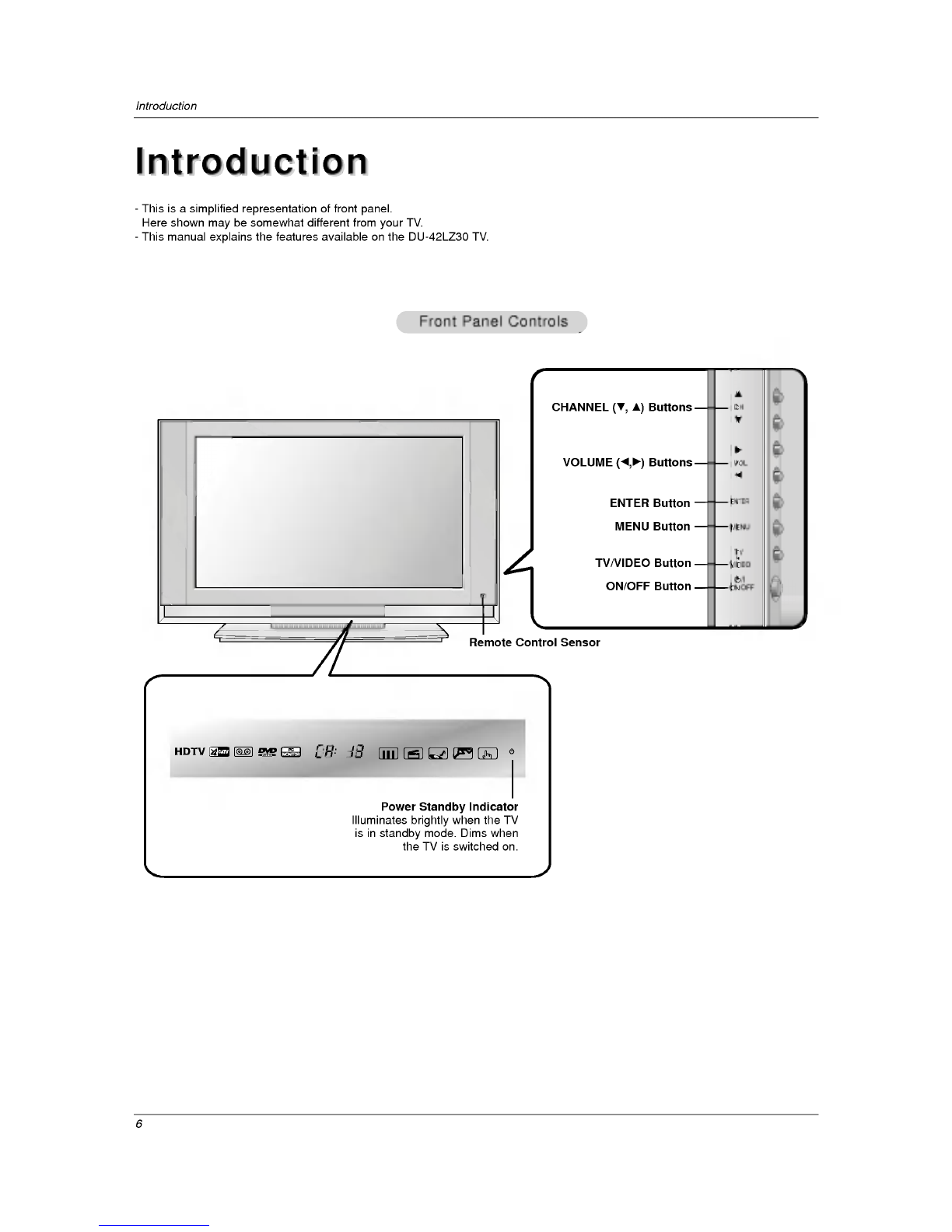

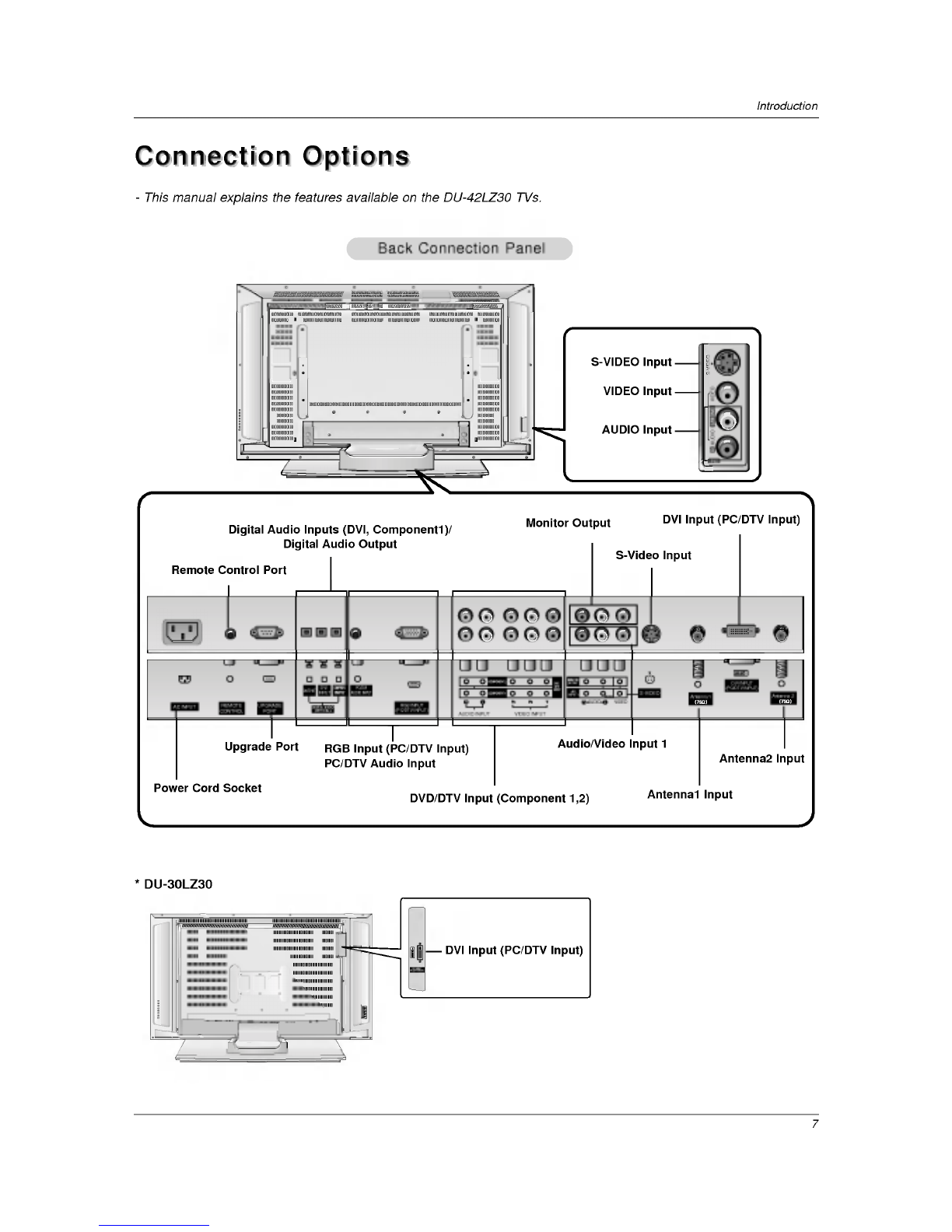

Controls...............................6
ConnectionOptions......................7
RemoteControlKeyFunctions.
. . . . . . . . . . . . .8
Installation

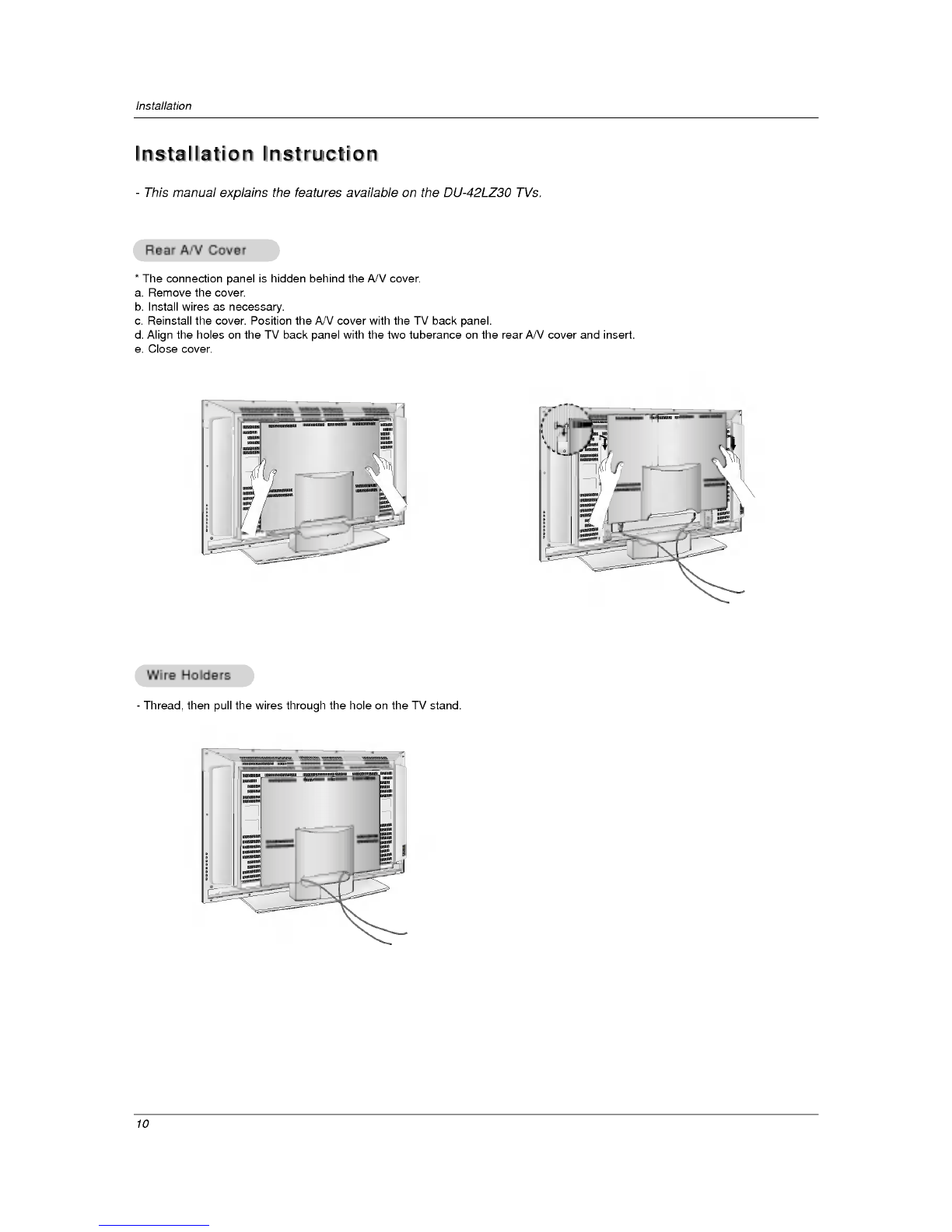

InstallationInstruction.......................9
External
Equipment
Connections . . . . . . . . . .11~15

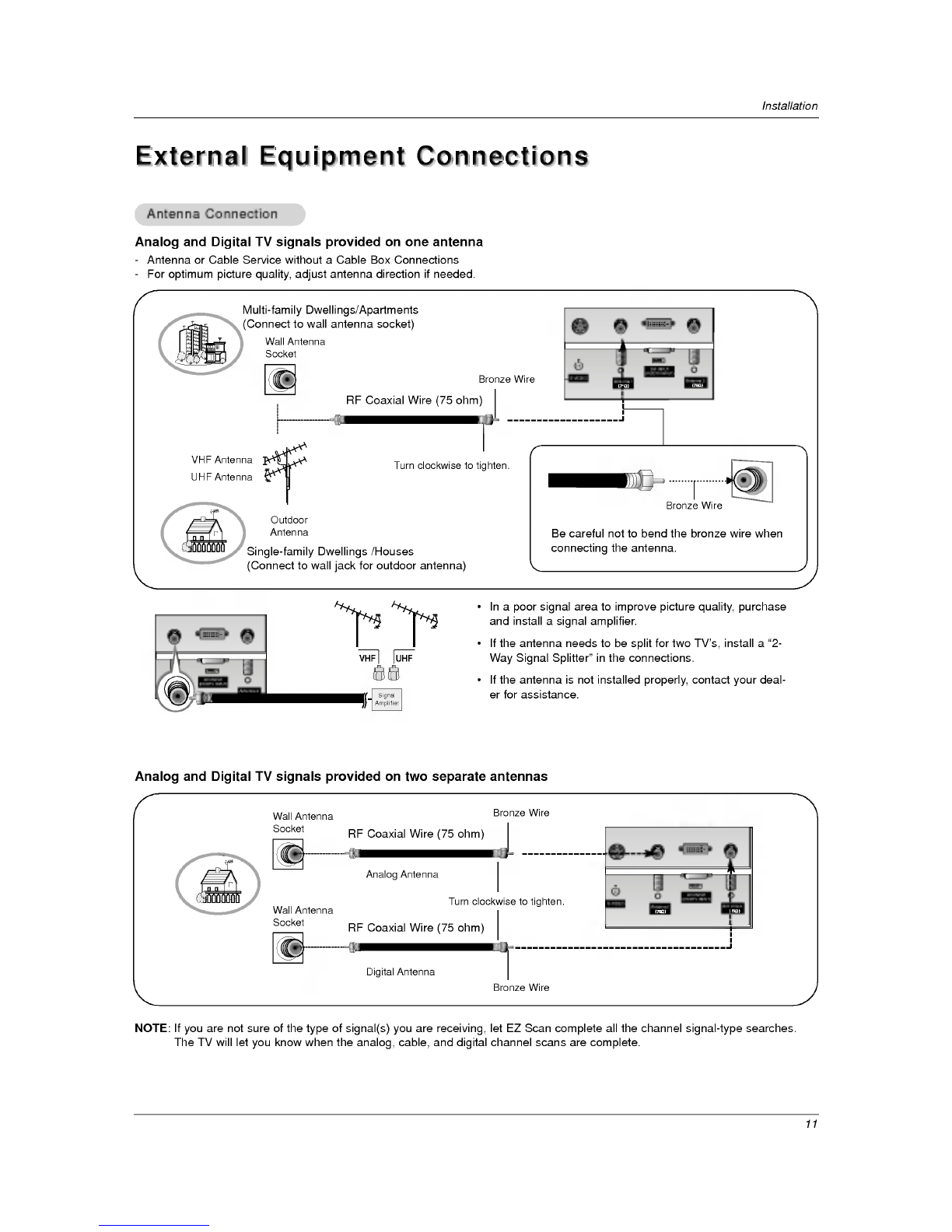

AntennaConnection.....................11

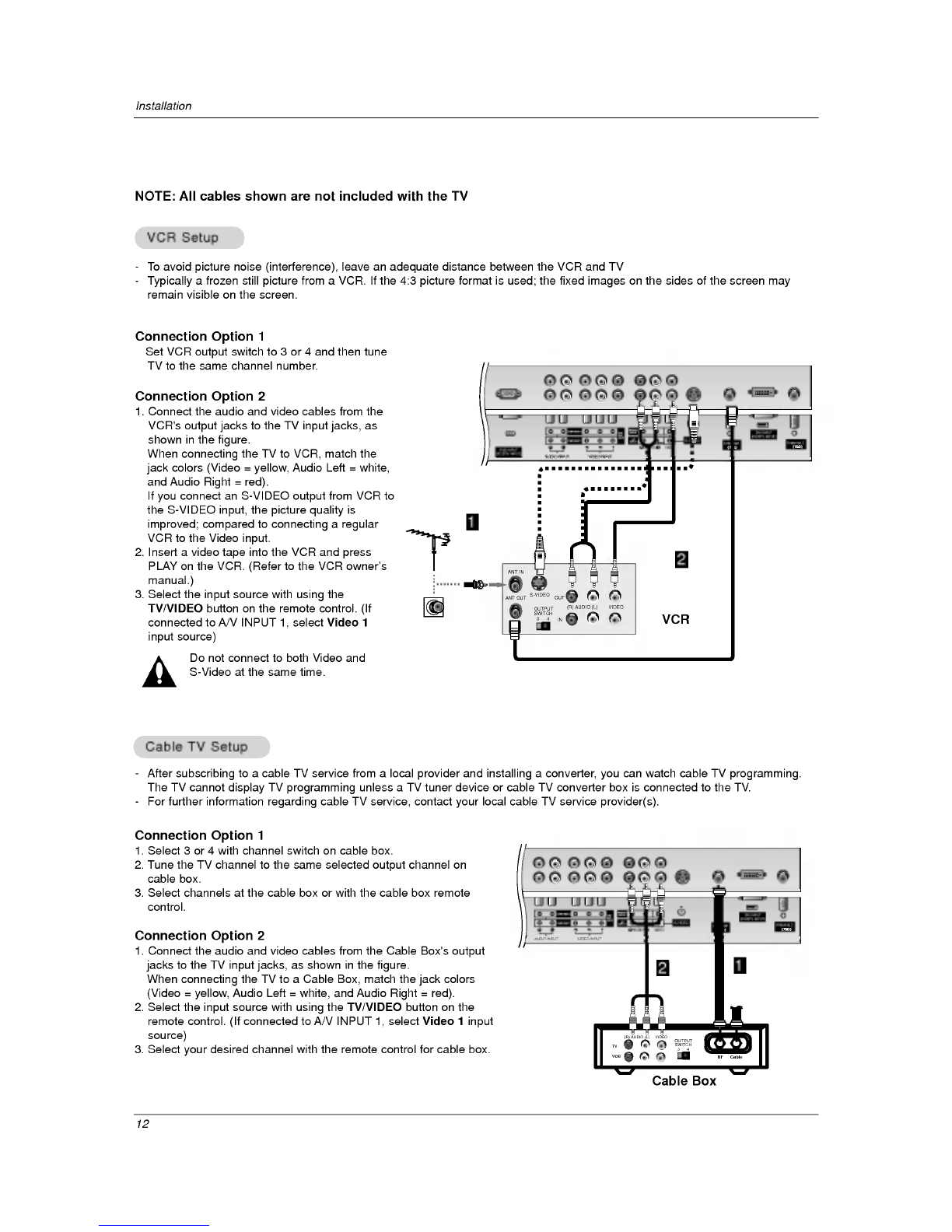

VCRSetup/CableTVSetup..............12
ExternalA/VSourceSetup................13
MonitorOutSetup/DVDSetup
. . . . . . . . . . . .13

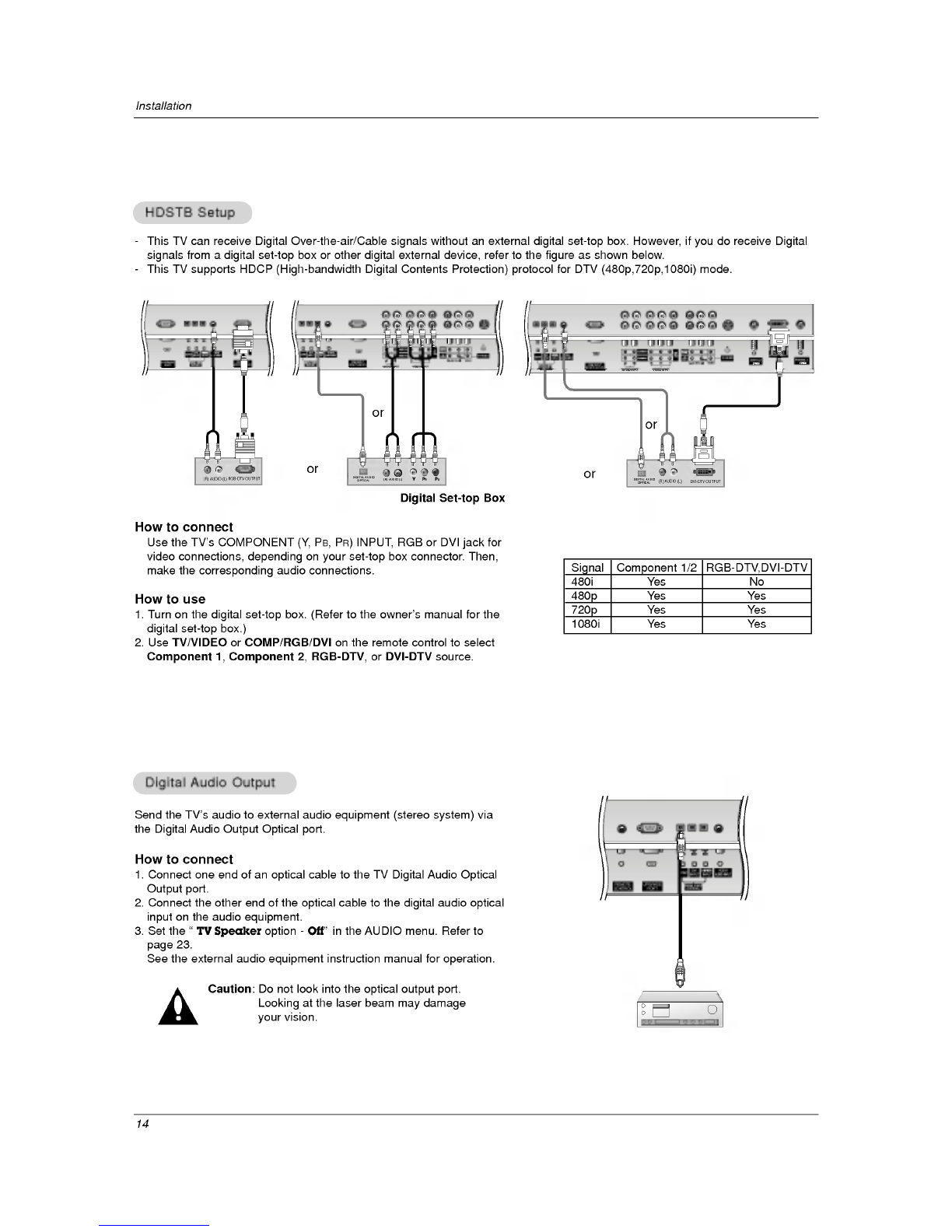

HDSTBSetup/DigitalAudioOutput
. . . . . . . . .14
PCSetup.............................15
Operation
Screen
Setup
for PC mode
Adjustments
for screen
position,
clock,
and
phase
. .16

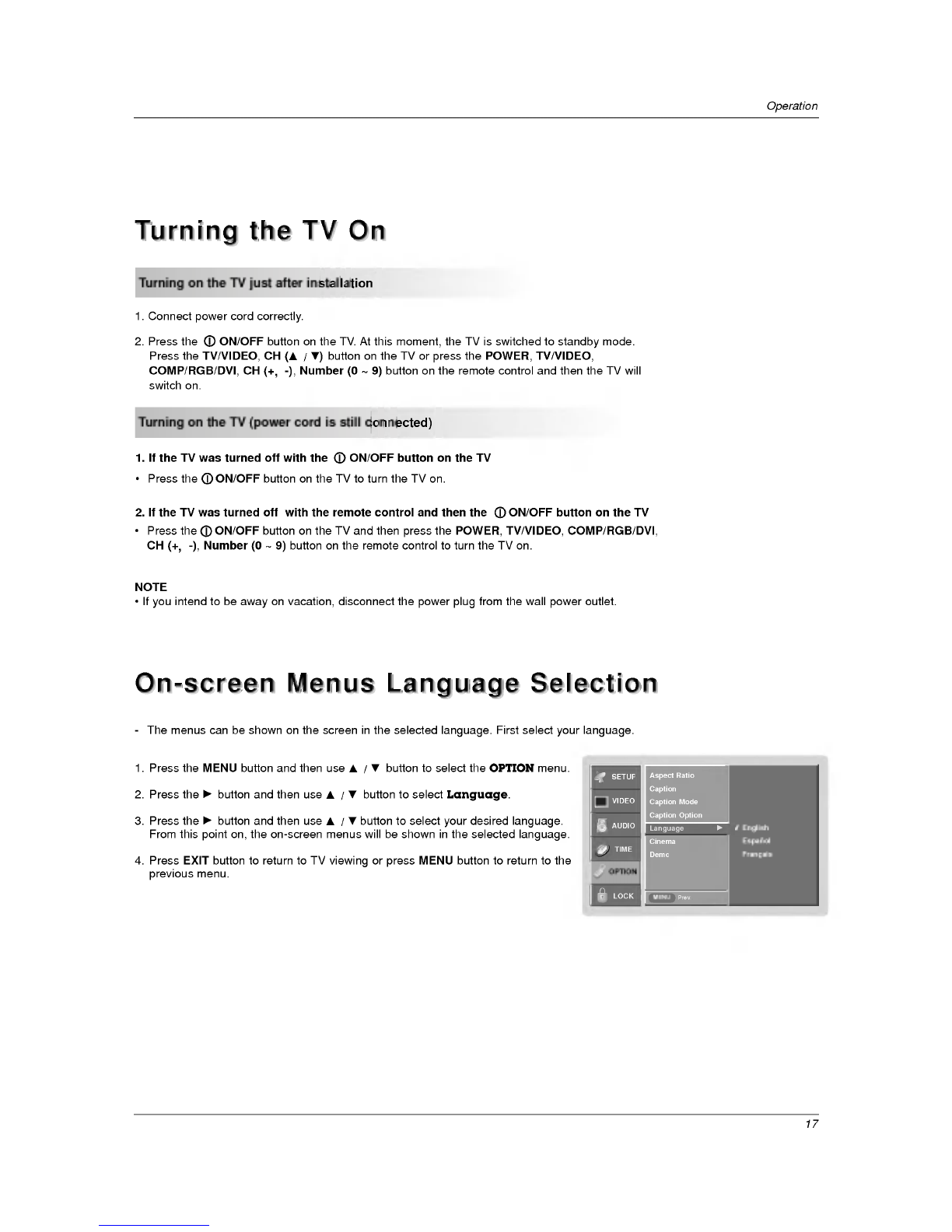

TurningtheTVOn........................17
On-screen Menus
Language
Selection . . . . . . . . .17
Setup
Menu
Options
EZScan(ChannelSearch)................18
ChannelEdit...........................18
DTVSignalStrength.....................19
ChannelLabelSetup....................19
MainPictureSourceSelection . . . . . . . . . . . . .20
Front LED
(Light Emitting
Diode) Display
. . . . .20
Video Menu
Options
EZPicture............................21
Manual Picture Control
(User Option)
. . . . . . . .21
XDFunction...........................21
ColorTemperatureControl................22
VideoPreset..........................22
Audio Menu
Options
AudioLanguage........................23
EZSoundRite/EZSound.................23
Manual Sound Control
(User Option)
. . . . . . . .23
Stereo/SAPBroadcastsSetup
. . . . . . . . . . . . .24
FrontSurround.........................24
TVSpeakersOn/OffSetup................24
Time Menu
Options
AutoClockSetup.......................25
ManualClockSetup.....................25
On/OffTimerSetup.....................25
SleepTimer/AutoOff....................26
Option
Menu Features
AspectRatio...........................27
Caption/CaptionMode..................28
CaptionOption/CinemaModeSetup.
. . . . . . .29
Demo(Review).........................29
SplitZoom............................29
Lock Menu
Options
ParentalLockSetup.....................31
PIP
(Picture-in-Picture)/Twin
WatchingPIP/POP/TwinPicture
....... .... ..32
Selecting
an
Input
Signal
Source for PIP/Twin Picture . .32
SwappingPIP/POP/TwinPicture
...... ..... .32
TVProgramSelectionforPIP.
. . . . . . . . . . . . .32
MovingthePIPsubpicture................33
Adjusting
Main and Sub Picture Sizes for Twin Picture . .33
POP
(Picture-out-of-Picture:
Channel
Scan)
. . .33
ExternalControlDeviceSetup.
. . . . . . . . . . . . . . .34~38
IRCodes................................39~40
ProgrammingtheRemote......................41
ProgrammingCodes.......................42~43
TroubleshootingChecklist......................44
Maintenance.................................45
ProductSpecifications.........................46
TroubleshootingChecklist......................47
Contents
Contents
Setup
and
Operation
Checklist
Setup
and
Operation
Checklist
Setup
and
Operation
Checklist
(See
pages
11~15 for available connection and
operational setup options.)
1.
Unpack
TV and all accessories.
2. Connect all external video and audio
equipment.
see
pages
11
~
15.
3 Install batteries in remote control.
See
page
8.
4. Turn TV on.
See
page
17.
5. Turn video source
equipment
on.
6. Select
viewing
source for TV.
See
page
20.
7. Fine-tune source
and sound to
your personal prefer-
ence or as
required by
source.
See
pages
21
~
24.
8. Additional features set
up
See Contents above.

6
Introduction
Introduction
Introduction
CH
VOL
ENTER
MENU
VIDEO
ON/OFF
TV
/I
TV/VIDEO
Button
VOLUME
(F,G)
Buttons
Power
Standby
Indicator
Illuminates
brightly
when the TV
is in
standby
mode. Dims when
the TV is switched on.
-
This is a
simplified representation
of front
panel.
Here shown
may
be somewhat different from
your
TV.
-
This manual
explains
the features available on the DU-42LZ30 TV.
Remote Control
Sensor
CHANNEL
(E, D)
Buttons
MENU
Button
ENTER
Button
ON/OFF
Button
Front Panel Controls
Front Panel Controls

7
Introduction
Connection
Options
Connection
Options
Antenna1
Antenna 2
S-VIDEO
REMOTE
CONTROL
UPGRADE
PORT
RGB INPUT
(PC/DTV INPUT)
DVI INPUT
(PC/DTV INPUT)
AC INPUT
AUDIO INPUT
AUDIO VIDEO
VIDEO INPUT
DIGITAL AUDIO
(OPTICAL)
COMPONENT 2
MONITOR
OUTPUT
A/V
INPUT1
(MONO)
DVD
/DTV
INPUT
COMPONENT 1
DVI
INPUT
PC/DVI
AUDIO INPUT
RL
R L
COMPONENT
INPUT
OUTPUT
S-VIDEO
IN2
VIDEO
L/MONO
AUDIO
R
Back Connection Panel
Back Connection Panel
Antenna1
Input
RGB
Input (PC/DTV Input)
PC/DTV Audio
Input
Digital
Audio
Inputs (DVI, Component1)/
Digital
Audio
Output
Audio/Video
Input
1
DVD/DTV
Input (Component 1,2)
Monitor
Output
Remote Control Port
S-Video
Input
DVI
Input (PC/DTV Input)
Antenna2
Input
Power Cord
Socket
Upgrade
Port
-
This manual
explains
the features available on the DU-42LZ30 TVs.
S-VIDEO
Input
VIDEO
Input
AUDIO
Input
DVI INPUT
(PC/DTV INPUT)
DVI
Input (PC/DTV Input)
*
DU-30LZ30

8
Introduction
-
When
using
the remote
control,
aim it at the remote control sensor on the TV.
LIGHT
TV/VIDEO
MODE
COMP/RGB/DVI
MUTE
SURF
VOL CH
INFO
SAP
RATIO
CC
MENU
SOUND VIDEO
EXIT
PLAY PAUSE STOP RECORD
PIP PIPCH- PIPCH+ PIPINPUT
FREEZE
ADJUST
ENTER
ZOOM SIGNAL SWAP
REW FF SKIP
POWER
TIMER
FLASHBK
LIGHT
Illuminates the remote control buttons.
TV/VIDEO
Selects:
DTV,
Analog,
Video1-2,
Component
1-2,
RGB-DTV
(or RGB-PC),
DVI-DTV
(or DVI-PC) input
sources.
COMP/RGB/DVI
Selects:
Component
1-2,
RGB-DTV
(or
RGB-
PC),
DVI-DTV
(or DVI-PC) input
sources.
NUMBER
buttons
DASH
Used to enter a
program
number for
multiple
program
channels such as
2-1,2-2,etc.
MUTE
Switches the sound on or off.
VCR/DVD BUTTONS
Control some video cassette recorders or
DVD
player ("RECORD"
button is not avail-
able for DVD
player).
RATIO
Changes
the
aspect
ratio.
MODE
Selects the remote
operating
mode:
TV,
VCR, DVD, CABLE,
HDSTB or AUDIO.
Select other
operating
modes,
for the
remote to
operate
external devices.
POWER
Turns
your
TV or
any
other
programmed
equipment
on or
off,
depending
on mode.
TIMER
Lets
you
select the amount of time before
your
TV turns itself off
automatically.
SURF
Use to scroll the Surf channel list.
CC
Select a closed
caption:
Off,
EZ
Mute,
and On.
FLASHBK
Tunes to the last channel viewed.
THUMBSTICK
(Up/Down/Left/Right/ENTER)
Allows
you
to
navigate
the on-screen
menus and
adjust
the
system
settings
to
your preference.
CHANNEL UP/DOWN
Selects available channels found
with EZ scan.
EXIT
Clears all on-screen
displays
and returns to
TV
viewing
from
any
menu.
VIDEO
Adjusts
the
factory preset picture
according
to the room.
VOLUME UP/DOWN
Increases/decreases the sound level.
SAP
Selects MTS sound:
Mono, Stereo,
and SAP.
Change
the audio
language
in DTV mode.
MENU
Brings
up
the main menu to the screen.
INFO
When
you watch
the
TV,
displays
information
on
top
of the screen. Not available in
Component
1-2,
RGB and DVI mode.
SOUND
Selects the sound
appropriate
for the
program's
character.
PIP
Switches between
PIP,
POP
(Picture-out-of-
Picture)
and Twin
modes.
PIPCH-/PIPCH+
Changes
to next
higher/lower
PIP channel.
PIP INPUT
Selects the
input
source for the sub
picture.
SWAP
Exchanges
the PIP/main
images.
FREEZE
Freezes the
currently-viewed picture.
Main
is frozen in PIP/Twin
picturre
mode.
ADJUST
Adjusts
screen
position,
clock,
and
phase
in PC mode.
ZOOM
Enlarges
the main
size.
SIGNAL
Displays
the
digital signal strength.
Installing
Batteries
?
Open
the
battery compartment
cover on the back side and install the batteries
matching
correct
polarity (+
with
+,
-
with
-).
?
Install two 1.5V AA batteries. Don't mix old or used batteries with new ones.
Replace
cover.
Remote Control
Key
Functions
Remote Control
Key
Functions

9
Installation
Installation
Installation
Owner's Manual
1.5V
1.5V
Batteries
Power Cord
LGHT
TV/VIDEO
MODE
COMP/RGBDVI
MUTE SURF
VOL CH
INFO
SAP RATIO
CC
MENU
SOUND VIDEO
EXT
PLAY PAUSE STOP RECORD
PIP PPCH- PPCH+ PIPINPUT
FREEZE
ADJUST
ENTER
ZOOM SGNAL SWAP
REW FF SKP
POWER
TIMER
FLASHBK
Remote Control
Ensure that the
following
accessories are included with
your plasma display.
If an
accessory
is
missing,
please
contact the dealer
where
you purchased
the
product.
4 inches
4 inches
4 inches 4 inches
2 inches
W Wall Mount: Horizontal installation
all Mount: Horizontal installation
For
proper
ventilation,
allow a clearance of 4" on each
side and 2" from the wall. Detailed installation instruc-
tions are available from your
dealer,
see the
optional
Wall
Mounting
Bracket Installation and
Setup
Guide.
4 inches
4 inches 4 inches
2 inches
Desktop
Pedestal Installation
Desktop
Pedestal Installation
For
proper
ventilation,
allow a clearance of 4" on each
side and the
top,
2.36" on the
bottom,
and 2" from the
wall. Detailed installation instructions are included in
the
optional Desktop
Stand Installation and
Setup
Guide available from
your
dealer.
D-sub 15
pin
Cable
Installation Instruction
Installation Instruction

10
Installation
W
W
ire Holders
ire Holders
-
Thread,
then
pull
the wires
through
the hole on the TV stand.
Rear
Rear
A/V Cover
A/V Cover
*
The connection
panel
is hidden behind the A/V cover.
a. Remove the cover.
b. Install wires as
necessary.
c. Reinstall the cover. Position the A/V cover with the TV back
panel.
d.
Align
the holes on the TV back
panel
with the two tuberance on the rear A/V cover and insert.
e. Close cover.
Installation Instruction
Installation Instruction
-
This manual
explains
the features available on the DU-42LZ30 TVs.

11
Installation
-
Antenna or Cable Service without a Cable Box Connections
-
For
optimum picture quality,
adjust
antenna direction if needed.
Antenna Connection
Antenna Connection
Analog
and
Digital
TV
signals provided
on one
antenna
NOTE: If
you
are not sure of the
type
of
signal(s)
you
are
receiving,
let EZ Scan
complete
all the channel
signal-type
searches.
The TV will let
you
know when the
analog,
cable,
and
digital
channel scans are
complete.
Analog
and
Digital
TV
signals provided
on
two
separate
antennas
?
In a
poor
signal
area to
improve picture quality, purchase
and install a
signal
amplifier.
?
If the antenna needs to be
split
for two
TV's,
install a "2-
Way
Signal
Splitter"
in the connections.
?
If the antenna is not installed
properly,
contact
your
deal-
er for assistance.
Antenna 2
DVI INPUT
(PC/DTV INPUT)
Signal
Amplifier
Antenna1
Antenna 2
S-VIDEO
DVI INPUT
(PC/DTV INPUT)
Multi-family
Dwellings/Apartments
(Connect
to wall antenna
socket)
Single-family Dwellings
/Houses
(Connect
to wall
jack
for outdoor
antenna)
Outdoor
Antenna
Wall Antenna
Socket
VHF Antenna
UHF Antenna
RF Coaxial Wire
(75 ohm)Bronze
Wire
Turn clockwise to
tighten.
Bronze Wire
Be careful not to bend the bronze wire when
connecting
the antenna.
Antenna1
Antenna 2
S-VIDEO
DVI INPUT
(PC/DTV INPUT)
Wall Antenna
Socket
RF Coaxial Wire
(75 ohm)
Analog
Antenna
Digital
Antenna
Bronze Wire
Bronze Wire
Turn clockwise to
tighten.
Wall Antenna
Socket
RF Coaxial Wire
(75 ohm)
External
Equipment
Connections
External
Equipment
Connections

12
Installation
NOTE: All cables shown are
not
included
with the
TV
-
To avoid
noise
(interference),
leave an
adequate
distance between the VCR and TV
-
Typically
a frozen still
from a VCR. If the 4:3
format is
used;
the fixed
images
on the sides of the screen
may
remain visible on the screen.
Connection
Option
1
Set VCR
output
switch to 3 or 4 and then tune
TV to the same channel number.
Connection
Option
2
1. Connect the audio and video cables from the
VCR's
output
jacks
to the TV
input
jacks,
as
shown in the
figure.
When
connecting
the TV to
VCR,
match the
jack
colors
(Video
=
yellow,
Audio Left
=
white,
and Audio
Right
=
red).
If
you
connect an S-VIDEO
output
from VCR to
the S-VIDEO
input,
the
picture quality
is
improved; compared
to
connecting
a
regular
VCR to the Video
input.
2. Insert a video
tape
into the VCR and
press
PLAY on the VCR.
(Refer
to the VCR owner's
manual.)
3. Select the
input
source with
using
the
TV/VIDEO button on the remote control.
(If
connected to A/V INPUT
1,
select Video 1
input source)
Do not connect to both Video and
S-Video at the same time.
VCR
Setup
VCR
Setup
Ante na1 Antenna 2
S-V EO
RGB INPUT
(PC/DTV INPUT)
DVI INPUT
(PC/DTV INPUT)
AUDIO INPUT
A DIO VIDE
VIDEO INPUT
COMPONENT 2
MONITOR
OUTPUT
A/V
INPUT1
(MONO)
DVD
/DTV
INPUT
COMPONENT 1
RL
R L
S-VIDEO
OUT
IN
(R)
AUDIO
(L)
VIDEO
34
OUTPUT
SWITCH
ANT OUT
ANT IN
-
After
subscribing
to a cable TV service from a local
provider
and
installing
a
converter,
you
can watch cable TV
programming.
The TV cannot
display
TV
programming
unless a TV tuner device or cable TV converter box is connected to the TV.
-
For further information
regarding
cable TV
service,
contact
your
local cable TV service
provider(s).
Connection
Option
1
1. Select 3 or 4 with channel switch on cable box.
2. Tune the TV channel to the same selected
output
channel on
cable box.
3. Select channels at the cable box or with the cable box remote
control.
Connection
Option
2
1. Connect the audio and video cables from the Cable Box's
output
jacks
to the TV
input
jacks,
as shown in the
figure.
When
connecting
the TV to a Cable
Box,
match the
jack
colors
(Video
=
yellow,
Audio Left
=
white,
and Audio
Right
=
red).
2. Select the
input
source with
using
the TV/VIDEO button on the
remote control.
(If
connected to A/V INPUT
1,
select Video 1
input
source)
3. Select
your
desired channel with the remote control for cable box.
Cable
Cable
TV
Setup
TV
Setup
A na1
Antenna2
S-VIDEO
DVI INPUT
(PC/DTV INPUT)
AUDIO INPUT
AUDIO VIDEO
VIDEO INPUT
COMPONENT 2
MONITOR
OUTPUT
A/V
INPUT1
MONO)
DVD
/DTV
INPUT
COMPONENT 1
RL
R
TV
VCR
RF Cable
(R)
AUDIO
(L)
VIDEO
34
OUTPUT
SWITCH
VCR
Cable Box
1
2
1

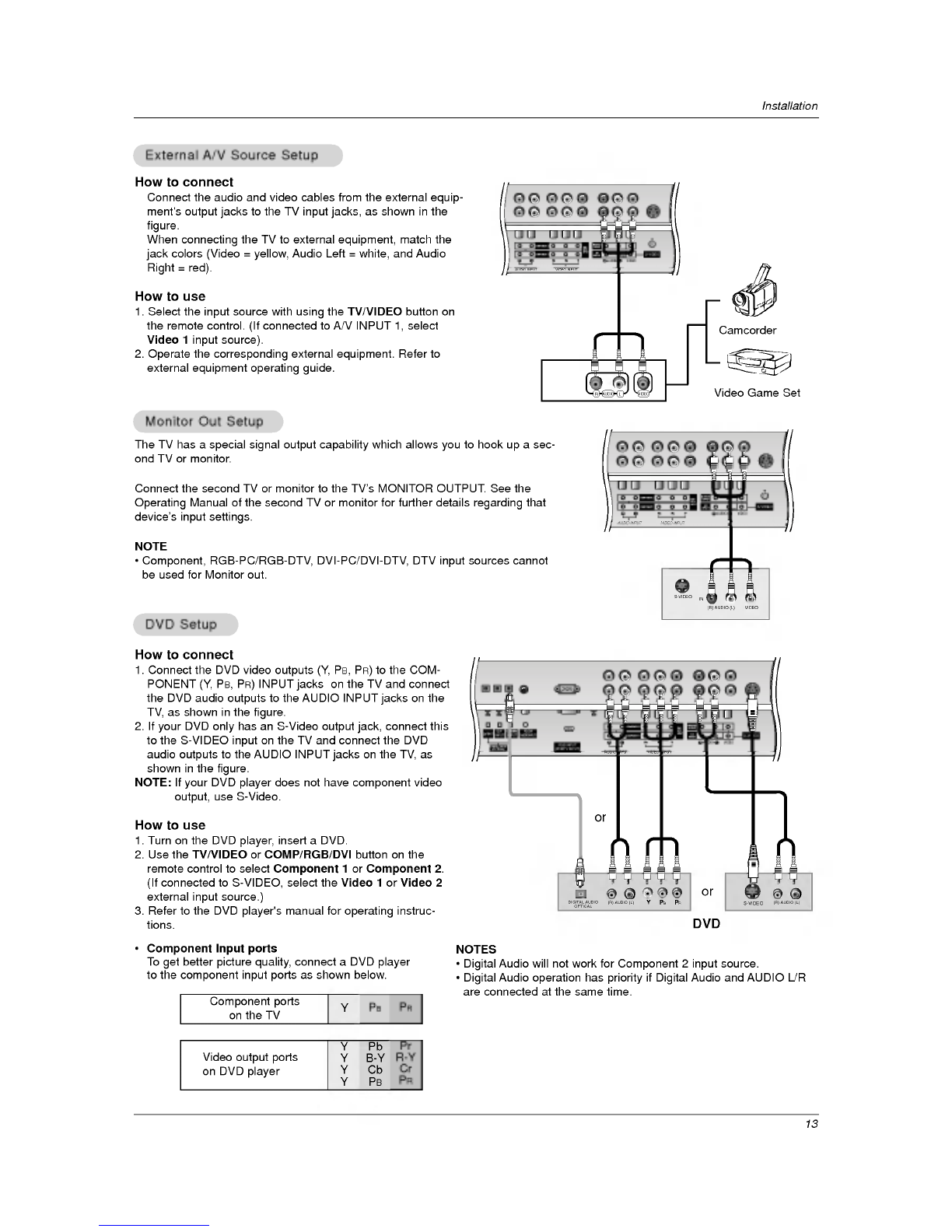

2

13
Installation
?
Component Input ports
To
get
better
picture quality,
connect a DVD
player
to the
component input ports
as shown below.
How
to connect
Connect the audio and video cables from the external
equip-
ment's
output
jacks
to the TV
input
jacks,
as shown in the
figure.
When
connecting
the TV to external
equipment,
match the
jack
colors
(Video
=
yellow,
Audio Left
=
white,
and Audio
Right
=
red).
How
to
use
1. Select the
input
source with
using
the TV/VIDEO button on
the remote control.
(If
connected to A/V INPUT
1,
select
Video 1
input source).
2.
Operate
the
corresponding
external
equipment.
Refer to
external
equipment
operating guide.
Component ports
on the TV
YPBPR
Video
output ports
on DVD
player
Y
Y
Y
Y
Pb
B-Y
Cb
PB
Pr
R-Y
Cr
PR
How
to connect
1. Connect the DVD video
outputs (Y,
PB,
PR)
to the COM-
PONENT
(Y,
PB,
PR)
INPUT
jacks
on the TV and connect
the DVD audio
outputs
to the AUDIO INPUT
jacks
on the
TV,
as shown in the
figure.
2. If
your
DVD
only
has an S-Video
output
jack,
connect this
to the S-VIDEO
input
on the TV and connect the DVD
audio
outputs
to the AUDIO INPUT
jacks
on the
TV,
as
shown in the
figure.
NOTE: If
your
DVD
player
does not have
component
video
output,
use S-Video.
How
to
use
1. Turn on the DVD
player,
insert a DVD.
2. Use the TV/VIDEO or COMP/RGB/DVI button on the
remote control to select
Component
1 or
Component
2.
(If
connected to
S-VIDEO,
select the Video 1 or Video 2
external
input source.)
3. Refer to the DVD
player's
manual for
operating
instruc-
tions.
External
External
A/V Source
Setup
A/V Source
Setup
DVD
Setup
DVD
Setup
S-VIDEO
AUDIO INPUT
AUDIO VIDEO
VIDEO INPUT
COMPONENT 2MONITOR
OUTPUT
A/V
INPUT1
MONO)
DVD
/DTV
INPUT
COMPONENT 1
RL
R L
RL
AUDIO VIDEO
S-VI EO
RGB INPUT
(PC/DTV INPUT)
AUDIO NPUT
A DIO VIDEO
VIDEO NPUT
DIGITAL AUDIO
(OPTICAL)
COMPONENT 2
MONITOR
OUTPUT
A/V
INPUT1
(MONO)
DVD
/DTV
INPUT
COMPONENT 1
DVI
INPUT
PC/DVI
AUDIO INPUT
RL R L
C PONENT1
I PUT
OUTPUT
B R (R)
AUDIO
(L)
DIGITAL AUDIO
OPTICAL
(R)
AUDIO
(L)
S-VIDEO
DVD
or
Camcorder
Video Game Set
The TV has a
special
signal
output capability
which allows
you
to hook
up
a sec-
ond TV or monitor.
Connect the second TV or monitor to the TV's MONITOR OUTPUT. See the
Operating
Manual of the second TV or monitor for further details
regarding
that
device's
input
settings.
NOTE
?
Component,
RGB-PC/RGB-DTV, DVI-PC/DVI-DTV,
DTV
input
sources cannot
be used for Monitor out.
NOTES
?
Digital
Audio will not work for
Component
2
input
source.
?
Digital
Audio
operation
has
priority
if
Digital
Audio and AUDIO L/R
are connected at the same time.
S-VIDEO
IN
(R)
AUDIO
(L)
VIDEO
S-VIDEO
AUDIO INPUT
AUDIO VIDEO
VIDEO INPUT
COMPONENT 2
MONITOR
OUTPUT
A/V
INPUT1
ONO)
DVD
/DTV
INPUT
COMPONENT 1
RL R
Monitor Out
Setup
Monitor Out
Setup
or

14
Installation
Send the TV's audio to external audio
equipment (stereo system)
via
the
Digital
Audio
Output Optical port.
How
to connect
1. Connect one end of an
optical
cable to the TV
Digital
Audio
Optical
Output port.
2. Connect the other end of the
optical
cable to the
digital
audio
optical
input
on the audio
equipment.
3. Set the
"
TV
Speaker
option
-
Off"
in the AUDIO menu. Refer to
page
23.
See the external audio
equipment
instruction manual for
operation.
Caution:
Do not look into the
optical output port.
Looking
at the laser beam
may
damage
your
vision.
Digital
Digital
Audio
Output
Audio
Output
-
This TV can receive
Digital
Over-the-air/Cable
signals
without an external
digital
set-top
box.
However,
if
you
do receive
Digital
signals
from a
digital
set-top
box or other
digital
external
device,
refer to the
figure
as shown below.
-
This TV
supports
HDCP
(High-bandwidth Digital
Contents
Protection) protocol
for DTV
(480p,720p,1080i)
mode.
How
to connect
Use the TV's COMPONENT
(Y,
PB,
PR)
INPUT,
RGB or DVI
jack
for
video
connections,
depending
on
your set-top
box connector.
Then,
make the
corresponding
audio connections.
How
to
use
1. Turn on the
digital
set-top
box.
(Refer
to the owner's manual for the
digital
set-top box.)
2. Use TV/VIDEO or COMP/RGB/DVI on the remote control to select
Component
1,
Component
2, RGB-DTV,
or DVI-DTV source.
HDSTB
Setup
HDSTB
Setup
UPGRADE
PORT
RG UT
(PC/D
PUT)
DIGITAL AUDIO
(OPTICAL)
DVI
INPUT
C/DVI
A IO INPUT
COMPONENT1
INPUT
OUTPUT
S-VIDEO
RGB INPUT
(PC/DTV
INPUT)
AUDIO NPUT
AUDIO VIDEO
VIDEO INPUT
DIGITAL AUDIO
(OPTICAL)
OMPONENT 2
MONITOR
OUTPUT
A/V
INPUT1
(MONO)
VD
DTV
PUT
COMPONENT 1
DVI
INPUT
PC/DVI
AUDIO INPUT
RL
R L
C ONENT1
I PUT
OUTPUT
B
R
(R)
AUDIO
(L)
(R)
AUDIO
(L)
RGB-DTV OUTPUT
DIGITAL AUDIO
OPTICAL
Antenna1
Antenna 2
S-VIDEO
RGB INPUT
(PC/DTV
INPUT)
DV UT
(PC/DT
INPUT)
AUDIO INPUT
AUDIO VIDEO
VIDEO INPUT
DIGIT L AUDIO
(OP CAL)
COMPONENT 2
MONITOR
OUTPUT
A/V
INPUT1
(MONO)
DVD
/DTV
INPUT
COMPONENT 1
DVI
PUT
PC/DVI
A IO INPUT
RL R L
COMPONENT1
INPUT
OUTPUT
(R)
AUDIO
(L)
DVI-DTV OUTPUT
DIGITAL AUDIO
OPTICAL
Digital Set-top
Box
or
or
or
or
REMOTE
CONTROL
UPGRADE
PORT
DIGITAL AUDIO
(OPTICAL)
DVI
INPUT
PC/DVI
AUDIO INPUT
COMPONENT1
INPUT
UTPUT
Signal
480i
480p
720p
1080i
Component
1/2
Yes
Yes
Yes
Yes
RGB-DTV,DVI-DTV
No
Yes
Yes
Yes

15
Installation
How
to connect
1. To
get
the best
picture quality,
adjust
the PC
graphics
card to
1024x768,
60Hz.
2. Use the TV's RGB INPUT or DVI
(Digital
Visual
Interface)
INPUT
port
for video
connections,
depending
on
your
PC connector.
?
If the
graphic
card on the PC does not
output
analog
and
digital
RGB
simultaneously,
connect
only
one of either RGB INPUT or DVI INPUT to
display
the PC on the TV.
?
If the
graphic
card on the PC does
output
analog
and
digital
RGB
simultaneously,
set the TV to
either RGB or
DVI;
(the
other mode is set to
Plug
and
Play automatically by
the
TV.)
3.
Then,
make the
corresponding
audio connections.
If
using
a sound
card,
adjust
the PC sound as
required.
How
to
use
1. Turn on the PC and the TV.
2. Turn on the
display by
pressing
the POWER button on the TV's remote control.
3. Select RGB-PC or DVI-PC
input
source in main
input option
of SETUP menu.
(Refer
to
P.20)
4. Check the
on
your
TV. There
may
be noise associated with the
resolution,
vertical
pattern,
contrast or
bright-
ness in PC mode. If noise is
present,
change
the PC mode to another
resolution,
change
the refresh rate to another
rate or
adjust
the
brightness
and contrast on the menu until the
is clear. If the refresh rate of the PC
graphic
card can not be
changed, change
the PC
graphic
card or consult the manufacturer of the PC
graphic
card.
NOTES:
?
Depending
on the
graphics
card,
DOS mode
may
not work if
you
use a DVI-I cable.
?
Avoid
keeping
a fixed
on the TV's screen for a
long
period
of time. The fixed
may
become
per-
manently imprinted
on the screen. Use the Orbiter screen saver when
possible.
?
The
synchronization input
form for Horizontal and Vertical
frequencies
is
separate.
PC
Setup
PC
Setup
Antenna1
Antenna 2
S-VIDEO
RGB PUT
(PC/D PUT)
DUT
PC/D NPU
AUDIO INPUT
AUDIO VIDEO
VIDEO INPUT
COMPONENT 2
MONITOR
OUTPUT
A/V
INPUT1
(MONO)
DVD
/DTV
INPUT
COMPONENT 1
RL R L
PC/DVI
AU IO NPUT
-
This TV
provides
Plug
and
Play capability,
meaning
that the PC
adjusts
automatically
to the TV's
settings.
The TV sends
config-
uration information
(EDID)
to the PC
using
the Video Electronics Standard Association
(VESA) Display
Data Channel
(DDC)
protocol.
-
The TV
perceives
640x480,
60Hz as DTV
480p
based on the PC
graphic
card.
card,
change
the screen
scanning
rate for the
graphic
card
accordingly.
Resolution
640x350
720x400
640x480
800x600
Horizontal
Frequency(KHz)
31.468
31.469
37.927
31.469
37.861
37.500
43.269
70.09
70.08
85.03
59.94
72.80
75.00
85.00
35.156
37.879
48.077
46.875
53.674
48.363
56.476
60.023
56.25
60.31
72.18
75.00
85.06
60.00
70.06
75.02
Vertical
Frequency(Hz)
Resolution
Horizontal
Frequency(KHz)
Vertical
Frequency(Hz)
1024x768
Monitor
Display Specifications
(RGB-PC
/ DVI-PC
Mode)

16
Operation
Operation
Operation
-
Be sure to select the RGB-PC/RGB-DTV source before
operation.
(For
RGB-DTV
input
source,
Position and Reset are
available.)
-
In DVI-PC and DVI-DTV
input
source,
settings
are not
adjustable.
-
You can
manually
adjust
picture position
and minimize
image shaking
for the PC
input
source.
1. Press the ADJUST button and then use D
/
E
button to select
POSITION,
CLOCK,
or
PHASE.
2. Press ENTER button and then use
D
/
E /
F
/
G
buttons to make
appropriate
adjustments.
?
The
PHASE
adjustment range
is -16
~
+16.
?
The
CLOCK
adjustment range
is -30
~
+30.
3. Press ENTER button.
Adjustment
for screen
Position, Clock,
and Phase
Adjustment
for screen
Position, Clock,
and Phase
Screen
Setup
for PC mode
Screen
Setup
for PC mode
1. Press the ADJUST button and then use D
/
E
button to select the
RESET
option.
2. Press ENTER button and then use
F
/
G
button to select
Yes
.
3. Press ENTER button.
Initializing (Reset
to
original factory values)
Initializing (Reset
to
original factory values)
-
To initialize the
adjusted
values
Close
POSITION
G
CLOCK
PHASE
RESET
Adjust
D
F
G
E
Close
POSITION
CLOCK
PHASE
RESET
G
Adjust
Initialize
Settings

17
Operation
On-screen Menus
Language
Selection
On-screen Menus
Language
Selection
T
Turning
the
TV
On
urning
the
TV
On
Turning
on
the
TV
just
after installation
Turning
on
the
TV
(power
cord is
still
connected)
1. Connect
power
cord
correctly.
2. Press the ON/OFF button on the TV. At this
moment,
the TV is switched to
standby
mode.
Press the
TV/VIDEO,
CH
(D
/
E)
button on the TV or
press
the
POWER, TV/VIDEO,
COMP/RGB/DVI,
CH
(+,
-),
Number
(0
~
9)
button on the remote control and then the TV will
switch on.
?
Press the ON/OFF button on the TV to turn the TV on.
1. If
the
TV was
turned
off
with the
ON/OFF
button
on
the
TV
2. If
the
TV was
turned
off
with the remote control
and
then the
ON/OFF
button
on
the
TV
?
Press the ON/OFF button on the TV and then
press
the
POWER, TV/VIDEO, COMP/RGB/DVI,
CH
(+,
-),
Number
(0
~
9)
button on the remote control to turn the TV on.
-
The menus can be shown on the screen in the selected
language.
First select
your
language.
1. Press the MENU button and then use D
/
E
button to select the
OPTION
menu.
2. Press the
G
button and then use D
/
E
button to select
Language.
3. Press the
G
button and then use D
/
E
button to select
your
desired
language.
From this
point
on,
the on-screen menus will be shown in the selected
language.
4. Press EXIT button to return to TV
viewing
or
press
MENU button to return to the
previous
menu.
NOTE
?
If
you
intend to be
away
on
vacation,
disconnect the
power
plug
from the wall
power
outlet.
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK
Prev.
Aspect
Ratio
Caption
Caption
Mode
Caption Option
Language
G
Cinema
Demo
English
Espanol
Francais
MENU

18
Operation
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK
Prev.
Select antenna
input,
press
MENU
Air
ANT1 ANT2
-
Automatically
finds all channels available
through
antenna or cable
inputs,
and stores them in
memory
on the channel list.
-
Run EZ Scan
again
after
any
Antenna/Cable connection
changes.
1. Press the MENU button and then use D
/
E
button to select the
SETUP
menu.
2. Press the
G
button and then use D
/
E
button to select EZ
Scan.
3. Press the
G
button and then use D
/
E
button to select antenna
input (Based
on
your
connections to antenna
1-2).
?
Analog/DTV
Air:
Watching
the
Over-the-air, cable,
and
digital
over-the-air
signals
via antenna 1
input port
?
Analog/DTV
Cable:
Watching
the
Over-the-air, cable,
and
digital
cable
signals
via antenna 1
input port
?
Analog+DTV
Air
(ANT2):
Watching
the
Over-the-air,
and cable
signal
via antenna 1
input port
and the
digital
over-the-air
signal
via antenna 2
input port
?
Analog/DTV
Cable
(ANT2):
Watching
the
Over-the-air,
and cable
signa
lvia antenna 1
input port
and the
digital
cable
signal
via antenna 2
input port
*
Cable Service Band Note: Select
STD=Standard,
HRC=HRC
Band,
or IRC=IRC Band.
(For
further band
information,
contact
your
cable service
provider.)
4. Press the ENTER button to
begin
the channel search.
Allow EZ Scan to
complete
the channel search
cycle
for
TV, CATV,
and DTV/CADTV.
EZ Scan
(Channel Search)
EZ Scan
(Channel Search)
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK
Prev.
EZ Scan
Ch.Edit
G
DTV
Signal
Ch. Label
Main
Input
Sub
Input
Front
Display
SET ID
Selection
(
G
or
)
leads
you
to the channel edit screen.
MENU
-
Create two different
types
of channel lists in
memory:
"Custom list" and "Surf"
(Favorite)
channel list" from the default channel list created from the EZ Scan
channel search.
-
A custom list can be created
by
toggling
each channel on or off with ENTER
button. Once a channel is
highlighted,
you
will be able to see whether the chan-
nel is
currently
added or deleted
by
referring
to the small window at the
top-left
corner of the screen. You can create
your
own Surfchannel list with
up
to 10
channels. It
appears
at the bottom-left corner of the screen. Use the SURF but-
ton on the remote control when a channel is
highlighted,
to add or delete the
channel from the Surf channel list.
-
You can create
your
SURF channel list from the channel list memorized from
EZ Scan.
-
CATV is available for 1-125 channel.
1. Press the MENU button and then use D
/
E
button to select the
SETUP
menu.
2. Press the
G
button and then use D
/
E
button to select
Ch.
Edit.
3. Press the
G
button. You will now see a screen filled with channel numbers and
a
preview picture.
4. Use D
/
E
/
F
/ Gbutton to select a channel and then use the ENTER button to
add or delete it. Press SURF to add the channel to the Surf List.
5. Press EXIT button to return to TV
viewing
or
press
MENU button to return to the
previous
menu.
Channel Edit
Channel Edit
Setup
Menu
Options
Setup
Menu
Options
Analog/DTV
Air
Analog/DTV
Cable
Analog+DTV Air(ANT2)
Analog+DTV Cable(ANT2)
Prev.
Select antenna
input,
press
MENU
Cable
ANT1 ANT2
Analog/DTV
Air
Analog/DTV
Cable
Analog+DTV Air(ANT2)
Analog+DTV Cable(ANT )
Prev.
Select antenna
input,
press
MENU
Cable Air
ANT1 ANT2
Analog/DTV
Air
Analog/DTV
Cable
Analog+DTV Air(ANT2)
Analog+DTV Cable(ANT2)
Prev.
Select antenna
input,
press
MENU
Air Cable
ANT1 ANT2
Analog/DTV
Air
Analog/DTV
Cable
Analog+DTV Air(ANT2)
Analog+DTV Cable(ANT2)
EZ Scan
Ch.Edit
DTV
Signal
Ch. Label
Main
Input
Sub
Input
Front
Display
SET ID
Select DTV cable
band,
press
1. STD
2. HRC
3. IRC

19
Operation
-
Reveals how
strong
your
DTV
signal is
and whether
you
need to
adjust
your
antenna or
digital
cable
input.
The
higher
the
signal strength,
the less
likely you
are to
experience picture
degradation.
-
Digital
DTV
Signals:
May
not be available in all
areas,
nor are broadcast on all
programs.
1. Press the SIGNAL button.
2. View the on-screen
signal strength
monitor to see the
quality
of the
signal being
received.
?
You can also check the DTV
Signal
strength
with the
SETUP
menu.
DTV
Signal Strength
DTV
Signal Strength
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK
Prev.
EZ Scan
Ch.Edit
DTV
Signal
Ch. Label
G
Main
Input
Sub
Input
Front
Display
SET ID
MENU
Selection
(
G
or
)
leads
you
to the channel
logo
screen.
-
Choose
preset
labels for
your
channels.
-
If a channel label is
provided
on the
signal
from the
broadcasting
station,
the TV
displays
a short name for a DTV chan-
nel
-
even if
you
didn't
preset
a label for the channel.
1. Press the MENU button and then use D
/
E
button to select the
SETUP
menu.
2. Press the
G
button and then use D
/
E
button to select
Ch.Label.
3. Press the
G
button. You will now see a screen filled with Labels and a
preview
screen.
4. Use the CH +/- button to select a channel to Label.
5. Use
D
/
E /
F
/
G
button to select the
appropriate
label for the
channel,
then
press
ENTER button to set the Label to
the selected channel.
6. Press EXIT button to return to TV
viewing
or
press
MENU button to return to the
previous
menu.
Channel Label
Setup
Channel Label
Setup

20
Operation
-
Illuminates
brightly
when the set is turned on. The LED
displays
current
TV status.
1. Press the MENU button and then use D
/
E
button to select the
SETUP
menu.
2. Press the
G
button and then use D
/
E
button to select
Front
Display.
3. Press the
G
button and then use D
/
E
button to select
Off, Dark, Normal,
and
Bright.
4. Press EXIT button to return to TV
viewing
or
press
MENU button to return to the
previous
menu.
Front LED
(Light Emitting Diode) Display
Front LED
(Light Emitting Diode) Display
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK
Prev.
EZ Scan
Ch.Edit
DTV
Signal
Ch. Label
Main
Input
Sub
Input
Front
Display
G
SET ID
Off
On
MENU
Setup
Menu
Options
continued
Setup
Menu
Options
continued
-
Changes
the
source so
you
can watch
your
off-air
TV,
cable
TV, VCR, DVD,
or
any
other devices that are connected to
your
TV.
1. Press the MENU button and then use D
/
E
button to select the
SETUP
menu.
2. Press the
G
button and then use D
/
E
button to select Main
Input.
3. Press the
G
button and then use
D
/
E button to select the source:
DTV,
Analog,
Video1, Video2,
Component1, Component2,
RGB-DTV
(or RGB-PC),
DVI-DTV
(or DVI-PC).
4. Press EXIT button to return to TV
viewing
or
press
MENU button to return to the
previous
menu.
Main Picture Source Selection
Main Picture Source Selection
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK
Prev.
EZ Scan
Ch.Edit
DTV
Signal
Ch. Label
Main
Input
G
Sub
Input
Front
Display
SET ID
DTV
Analog
Video1
Video2
Component1
Component2
RGB-DTV
DVI-DTV
MENU
