OWNER’S MANUAL
LED TV*
Please read this manual carefully before operating your set and retain
it for future reference.
* LG LED TV applies LCD screen with LED backlights.
UB82**
UB83**
www.lg.com
*MFL68484514*
P/NO : MFL68484514 (1406-REV01)
Printed in Korea

A-2 TABLE OF CONTENTS
TABLE OF CONTENTS
LANGUAGE LIST
English
Deutsch
Français
Italiano
Español
Português
Nederlands

 
COMMON
LANGUAGE
COMMON
B-1 SPECIFICATIONS
A-3 SETTING UP THE TV
A-3 Attaching the stand
A-5 Tidying cables

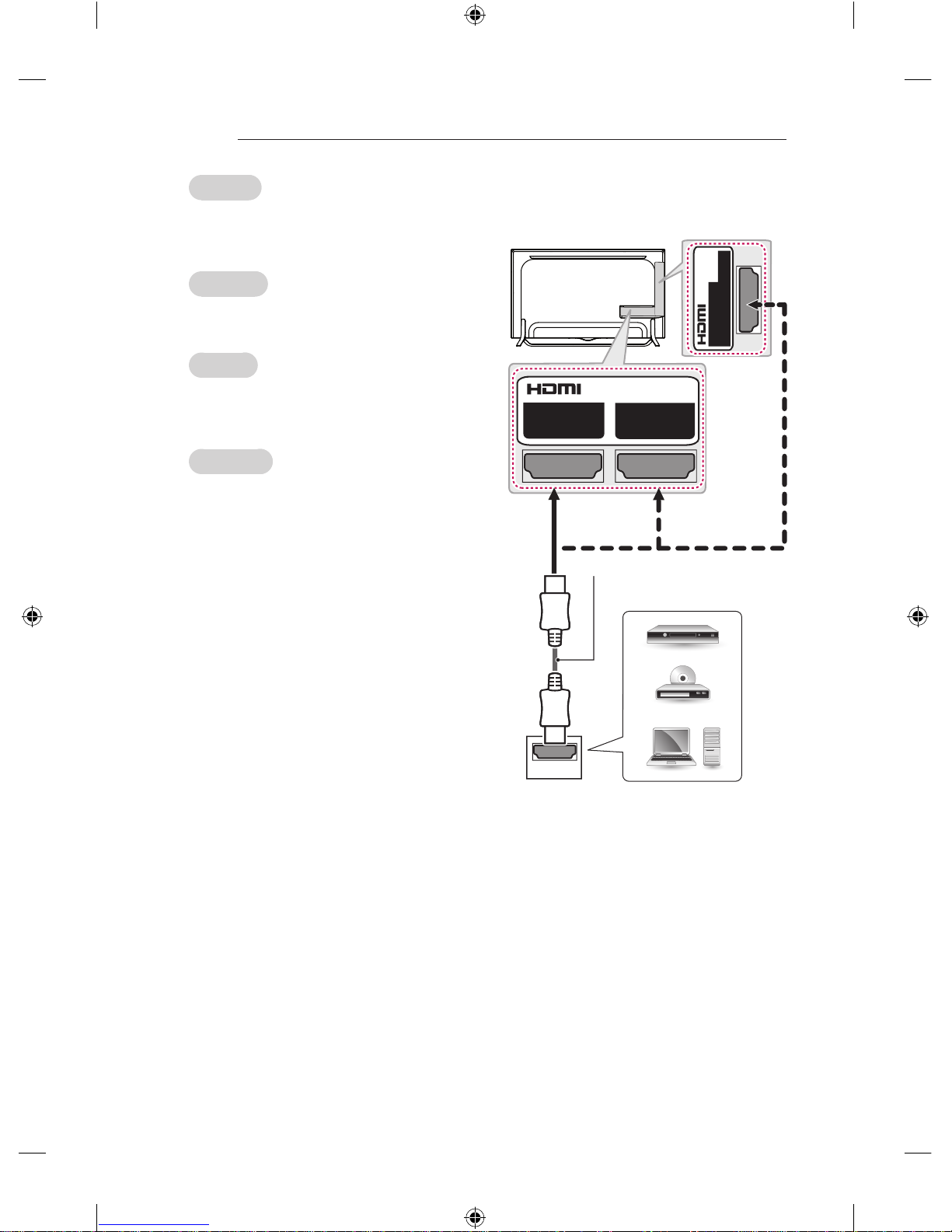

A-5 MAKING CONNECTIONS
A-5 Antenna connection
A-7 Satellite dish connection
A-8 HDMI connection
A-13 - ARC (Audio Return Channel)
A-14 Headphone connection

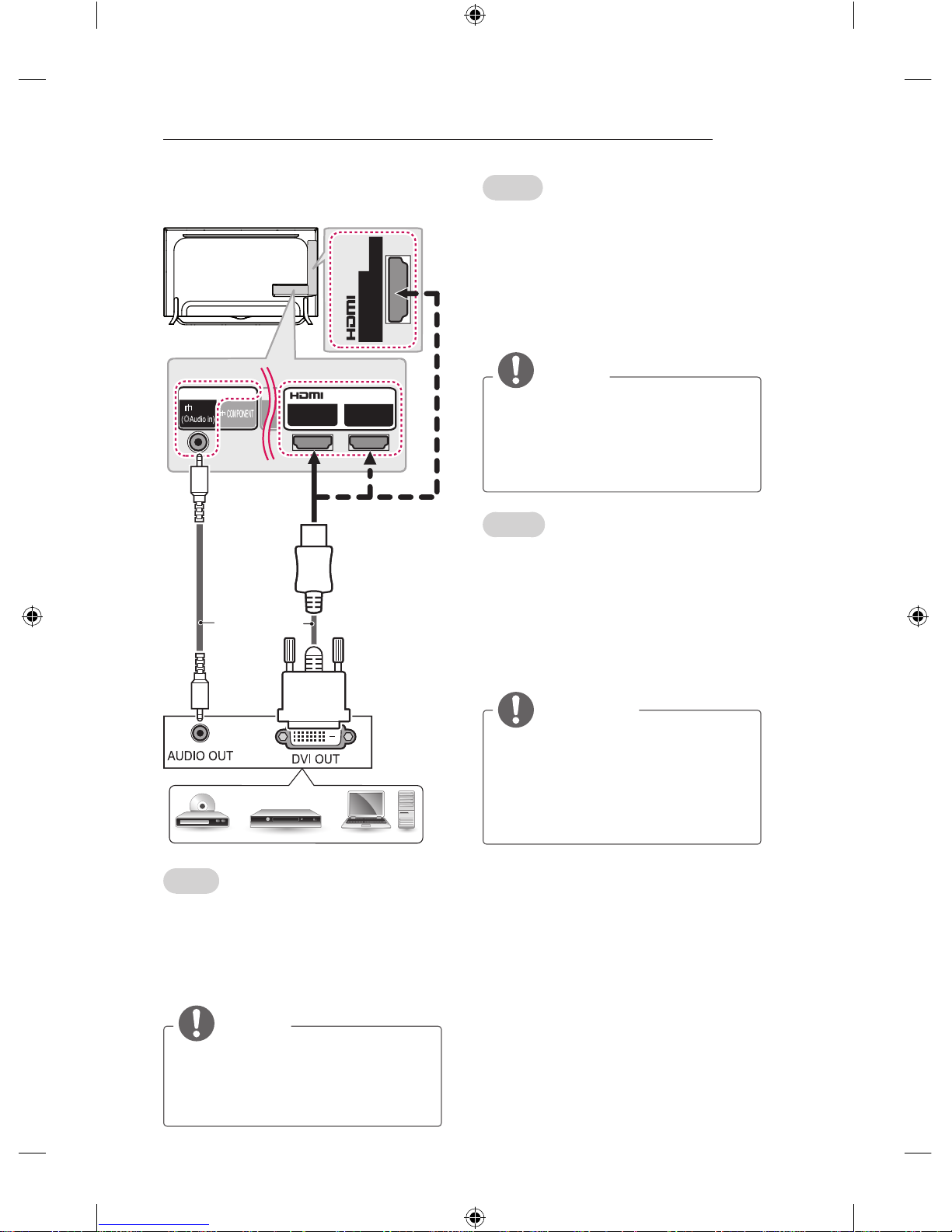

A-17 DVI to HDMI connection
A-19 Component connection
A-21 Composite connection
A-23 MHL connection
A-25 Audio connection
A-25 - Digital optical audio connection
A-28 USB connection
A-30 CI module connection
A-32 Euro Scart connection

A-3
SETTING UP THE TV
SETTING UP THE TV
Image shown may differ from your TV.

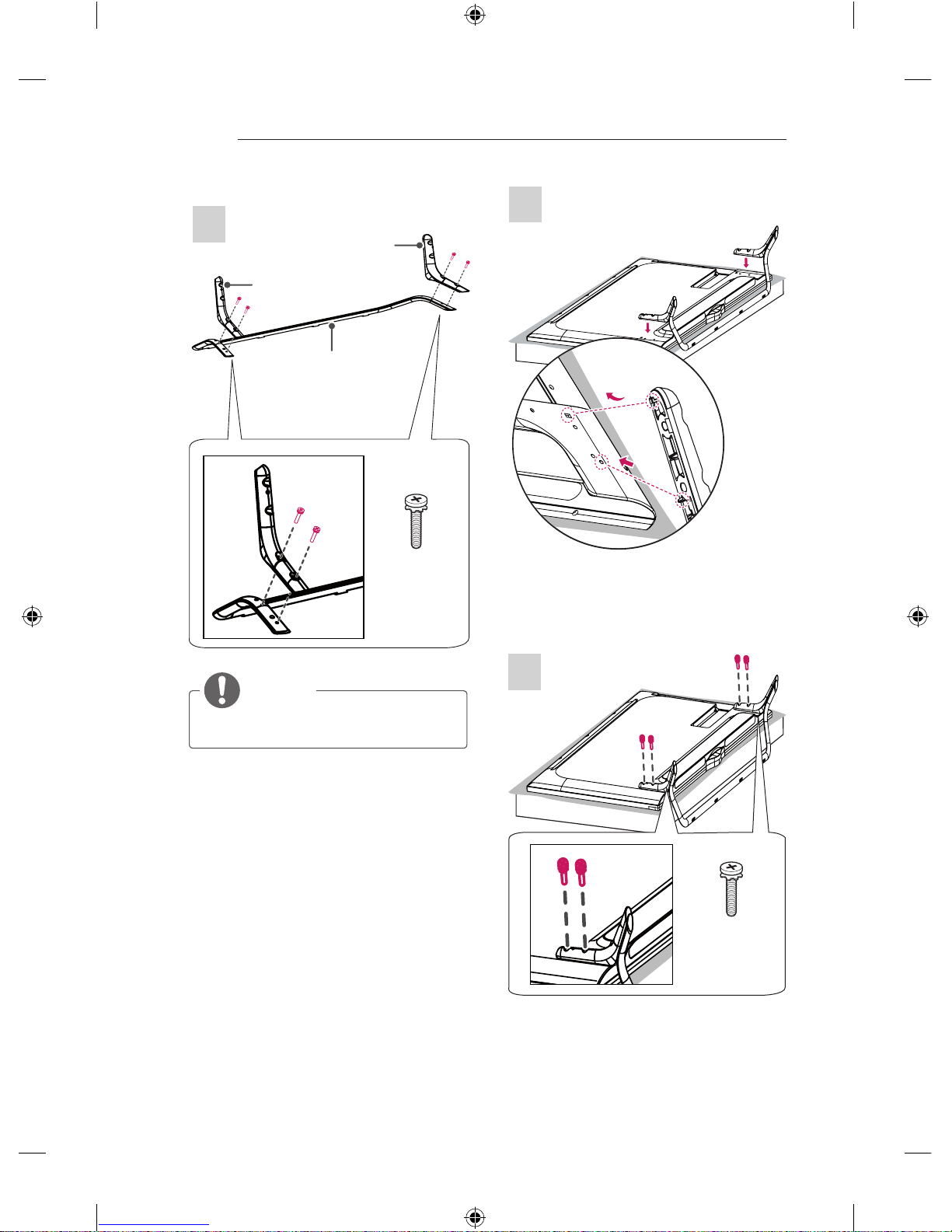

Attaching the stand
UB82**
A Stand Base
B Stand Base
1
2
1
1 Attach the stand to the TV using the upper
mounting hole on the back of the TV.
2 Attach the stand to the TV using the lower
connection on the back of the TV.
2
M4 x L20
4EA
UB83**-ZG
B stand base
A stand base
1
1
2
1 Attach the stand to the TV using the upper
mounting hole on the back of the TV.
2 Attach the stand to the TV using the lower
connection on the back of the TV.
2
M4 x L21
4EA

A-4 SETTING UP THE TV
UB83**-ZB
1
Stand Base
M4 x L20
4EA
Stand Body (R)
Stand Body (L)
NOTE
yBe sure to check the Stand Body (L), (R),
when installing on the stand base.
2
1
2
1 Attach the stand to the TV using the upper
mounting hole on the back of the TV.
2 Attach the stand to the TV using the lower
connection on the back of the TV.
3
M4 x L20
4EA

A-5
ENGLISH
SETTING UP THE TV / MAKING CONNECTIONS
MAKING CONNECTIONS
This section on MAKING CONNECTIONS mainly
uses diagrams for the UB83**-ZB models.
Antenna connection
IN
ANTENNA /
CABLE
(*Not Provided)
English
Connect the TV to a wall antenna socket with an
RF cable (75 ).
NOTE
yUse a signal splitter to use more than 2
TVs.
yIf the image quality is poor, install a signal
amplifier properly to improve the image
quality.
yIf the image quality is poor with an
antenna connected, try to realign the
antenna in the correct direction.
yAn antenna cable and converter are not
supplied.
ySupported DTV Audio: MPEG, Dolby
Digital, Dolby Digital Plus, HE-AAC
CAUTION
yWhen attaching the stand to the TV
set, place the screen facing down on a

screen from scratches.
yMake sure that the screws are inserted
correctly and fastened securely. (If they are
not fastened securely enough, the TV may
tilt forward after being installed.)
Do not use too much force and over tighten
the screws; otherwise screw may be
damaged and not tighten correctly.
NOTE
yRemove the stand before installing the TV
on a wall mount by performing the stand
attachment in reverse.

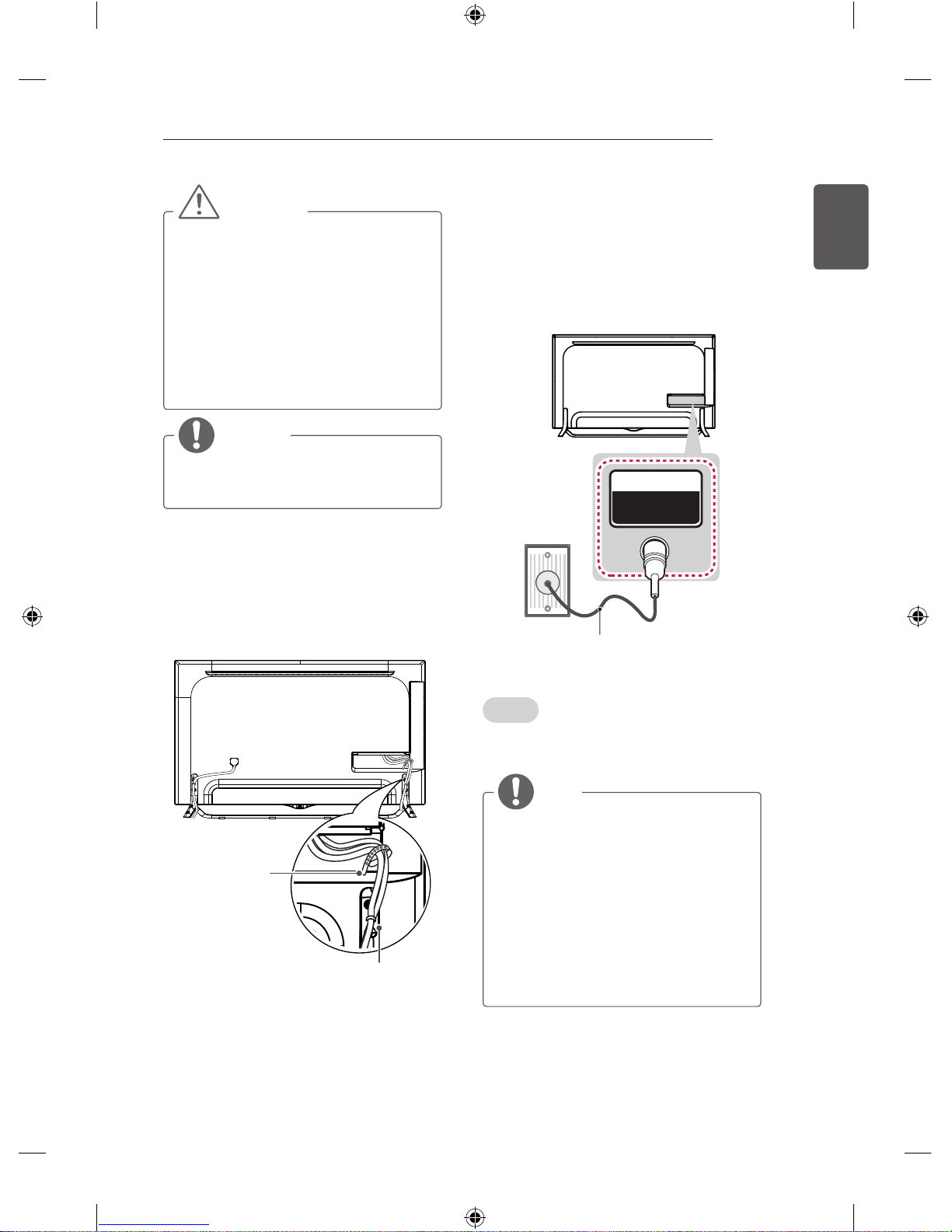

Tidying cables
Image shown may differ from your TV.
1 Gather and bind the cables with the Cable
Holder and the Cable Management.
2 Fix the Cable Management firmly to the TV.
Cable Holder
Cable management

A-6 MAKING CONNECTIONS
Italiano
Collegare il televisore all’antenna centralizzata

NOTA
yUtilizzare uno sdoppiatore del segnale
per usare più di 2 televisori.
ySe la qualità dell’immagine è scarsa,
installare correttamente un amplificatore
del segnale per migliorarla.
ySe la qualità dell’immagine è scarsa con
un’antenna collegata, provare a riallineare
l’antenna nella direzione corretta.
yIl cavo e il convertitore dell’antenna non
sono in dotazione.
yAudio DTV supportato: MPEG, Dolby
Digital, Dolby Digital Plus, HE-AAC
Español
Conecte la TV a una toma de pared de antena

NOTA
yEmplee un divisor de señal cuando
desee utilizar más de dos TV.
ySi la imagen es de poca calidad, instale
un amplificador de señal correctamente
para mejorar la calidad de imagen.
ySi la imagen es de poca calidad con una
antena conectada, intente volver a orientar
la antena en la dirección adecuada.
yNo se suministran el cable de antena ni
el conversor.
yAudio DTV admitido: MPEG, Dolby
Digital, Dolby Digital Plus, HE-AAC
Português
Ligue a TV a uma tomada de antena de parede

NOTA
yUtilize um separador de sinal se quiser
utilizar mais de 2 TVs.
ySe a qualidade de imagem for fraca,
instale um amplificador de sinal para
melhorar a qualidade de imagem.
ySe a qualidade de imagem for fraca
mesmo que tenha uma antena ligada, tente
orientar a antena para a direcção correcta.
yO cabo da antena e o conversor não são
fornecidos.
yÁudio DTV suportado: MPEG, Dolby
Digital, Dolby Digital Plus, HE-AAC
Deutsch
Schließen Sie das TV-Gerät mit einem HF-Kabel

HINWEIS
yBei Verwendung von mehr als 2
TV-Geräten verwenden Sie einen
Signalsplitter.
yIst das Bild schlecht, installieren Sie einen
Signalverstärker, um die Bildqualität zu
verbessern.
yWenn die Bildqualität bei
angeschlossener Antenne schlecht ist,
richten Sie die Antenne richtig aus.
yAntennenkabel und Wandler sind nicht im
Lieferumfang enthalten.
yUnterstützter DTV-Ton: MPEG, Dolby
Digital, Dolby Digital Plus, HE-AAC
Français
Connectez la TV à une prise d’antenne murale

REMARQUE
yUtilisez un séparateur de signaux pour
utiliser plus de deux téléviseurs.
ySi la qualité d’image est mauvaise,
installez correctement un amplificateur de
signaux pour l’améliorer.
ySi vous utilisez une antenne et que la
qualité d’image est mauvaise, essayez
de réaligner l’antenne dans la bonne
direction.
yLe câble et le convertisseur d’antenne ne
sont pas fournis.
yTechnologies audio TNT prises en
charge : MPEG, Dolby Digital, Dolby
Digital Plus, HE-AAC

A-7
MAKING CONNECTIONS
Nederlands

aan op een antenneaansluiting op de muur.
OPMERKING
yGebruik een signaalsplitter om meer dan
twee TV’s te gebruiken.
yAls de beeldkwaliteit slecht is, installeert
u een signaalversterker om de
beeldkwaliteit te verbeteren.
yAls de beeldkwaliteit slecht is terwijl een
antenne is aangesloten, probeert u de
antenne in de juiste richting te draaien.
yAntennekabel en converter worden niet
meegeleverd.
yOndersteunde DTV-audio: MPEG, Dolby
Digital, Dolby Digital Plus, HE-AAC




y


y


y



y

y
Dolby Digital, Dolby Digital Plus, HE-AAC



OPOMBA
y
uporabite razcepnik za signal.
y

signala.
y
anteno, usmerite anteno v ustrezno smer.
y
yPodprte oblike zvoka za DTV: MPEG,
Dolby Digital, Dolby Digital Plus, HE-AAC

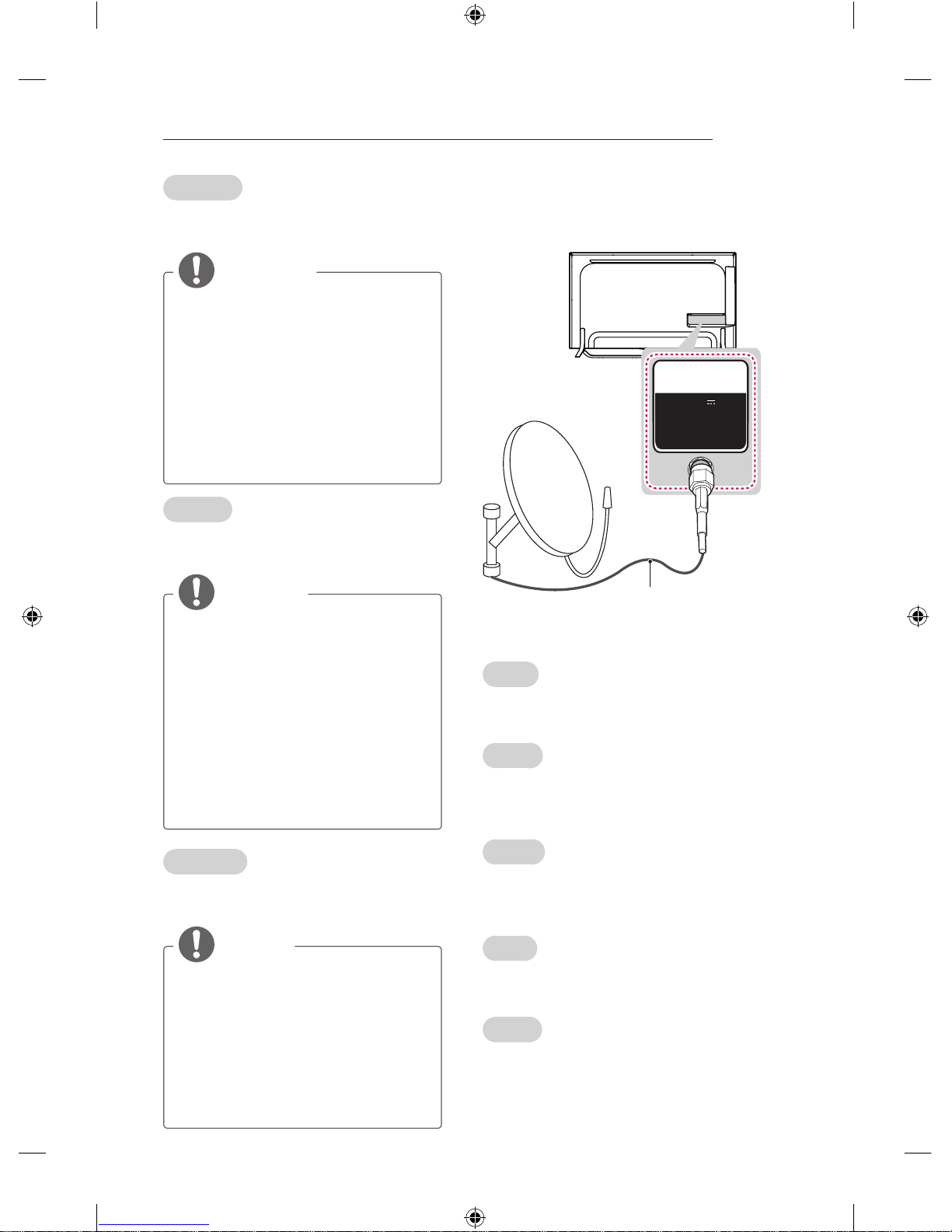

Satellite dish connection
(Only satellite models)
IN
13 / 18 V 700mA Max LNB IN
Satellite
IN
13 / 18 V
LNB IN
Satellite
700mA Max
(*Not Provided)
English
Connect the TV to a satellite dish to a satellite

Deutsch
Schließen Sie das TV-Gerät mit einem Satelliten-

an eine Satellitenbuchse an.
Français
Connectez la TV à une parabole satellite ou à
une prise satellite à l’aide d’un câble satellite RF

Italiano
Collegare la TV a un’antenna satellitare e a una

Español
Para conectar la TV a una antena parabólica,
enchufe un cable de RF de satélite a una toma de

