LG RZ-23LZ20 User manual

MONO DPM
STEREO
ST
DUAL
LCD TV
SERVICE MANUAL
CAUTION
BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
CHASSIS : ML-027C
MODEL : RZ-23LZ20
website:http://biz.LGservice.com
e-mail:http://www.LGEservice.com/techsup.html

- 2 -
CONTENTS
CONTENTS .............................................................................................. 2
PRODUCT SAFETY ..................................................................................3
SPECIFICATION........................................................................................4
DESCRIPTION OF CONTROLS .............................................................. 5
ADJUSTMENT INSTRUCTION .................................................................8
TROUBLE SHOOTING ............................................................................11

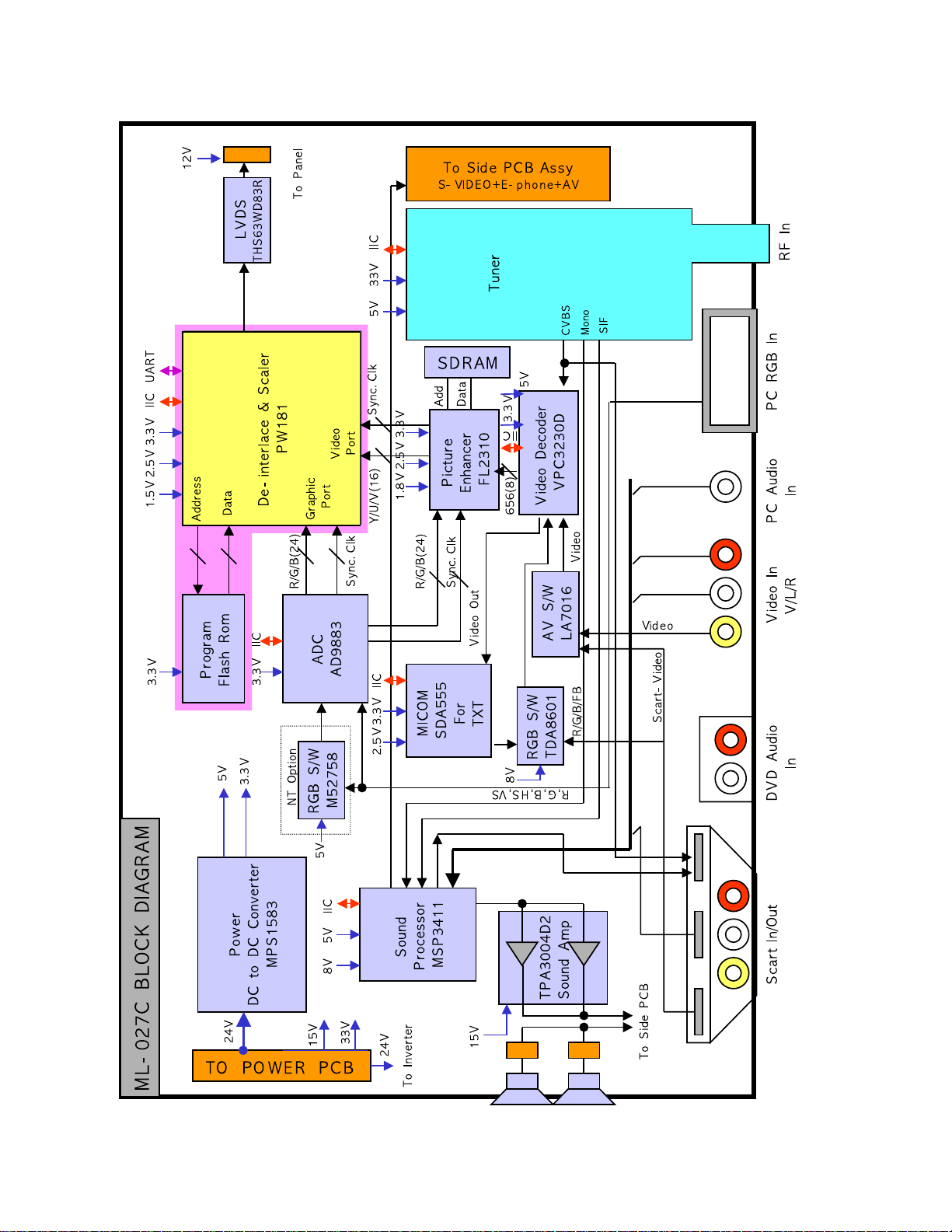

BLOCK DIAGRAM...................................................................................12

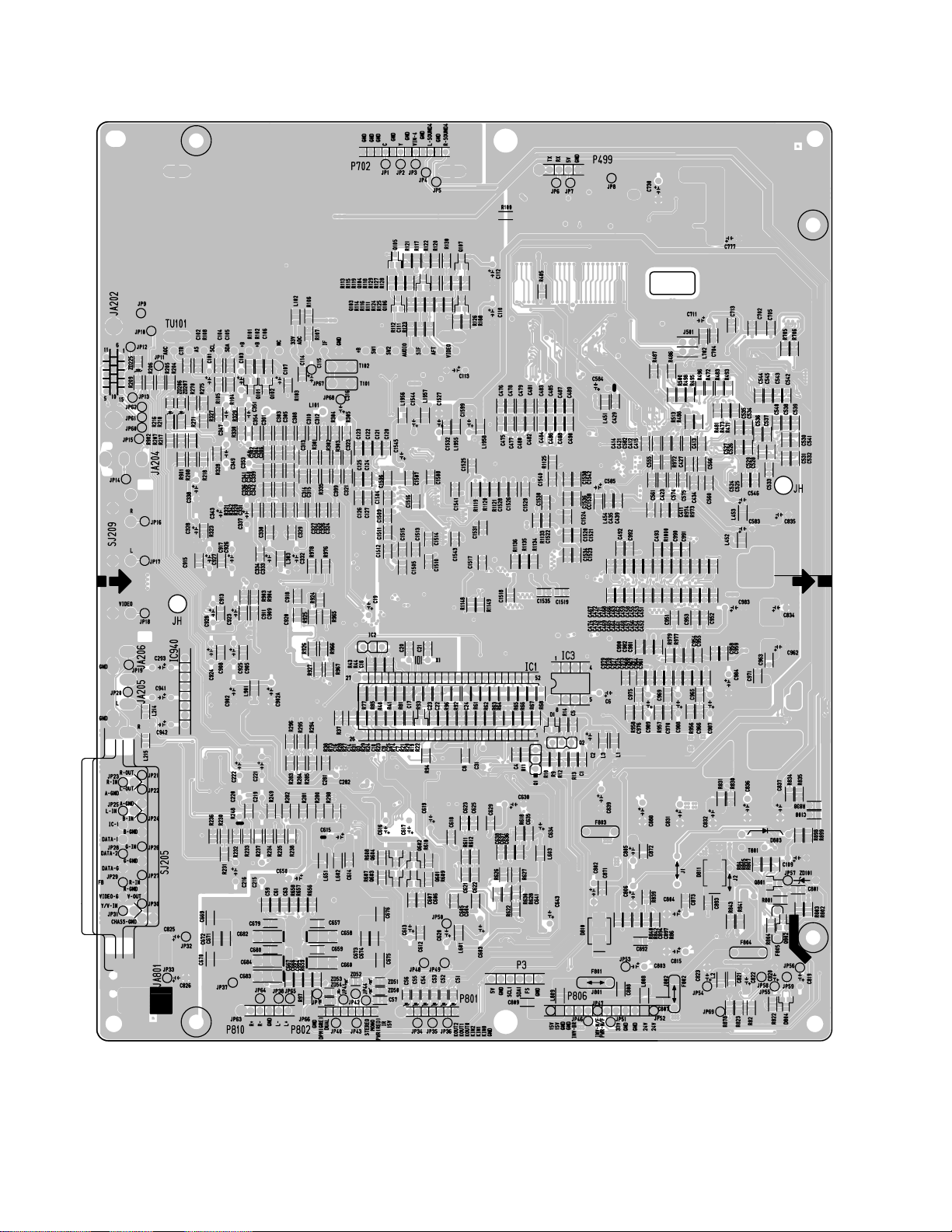

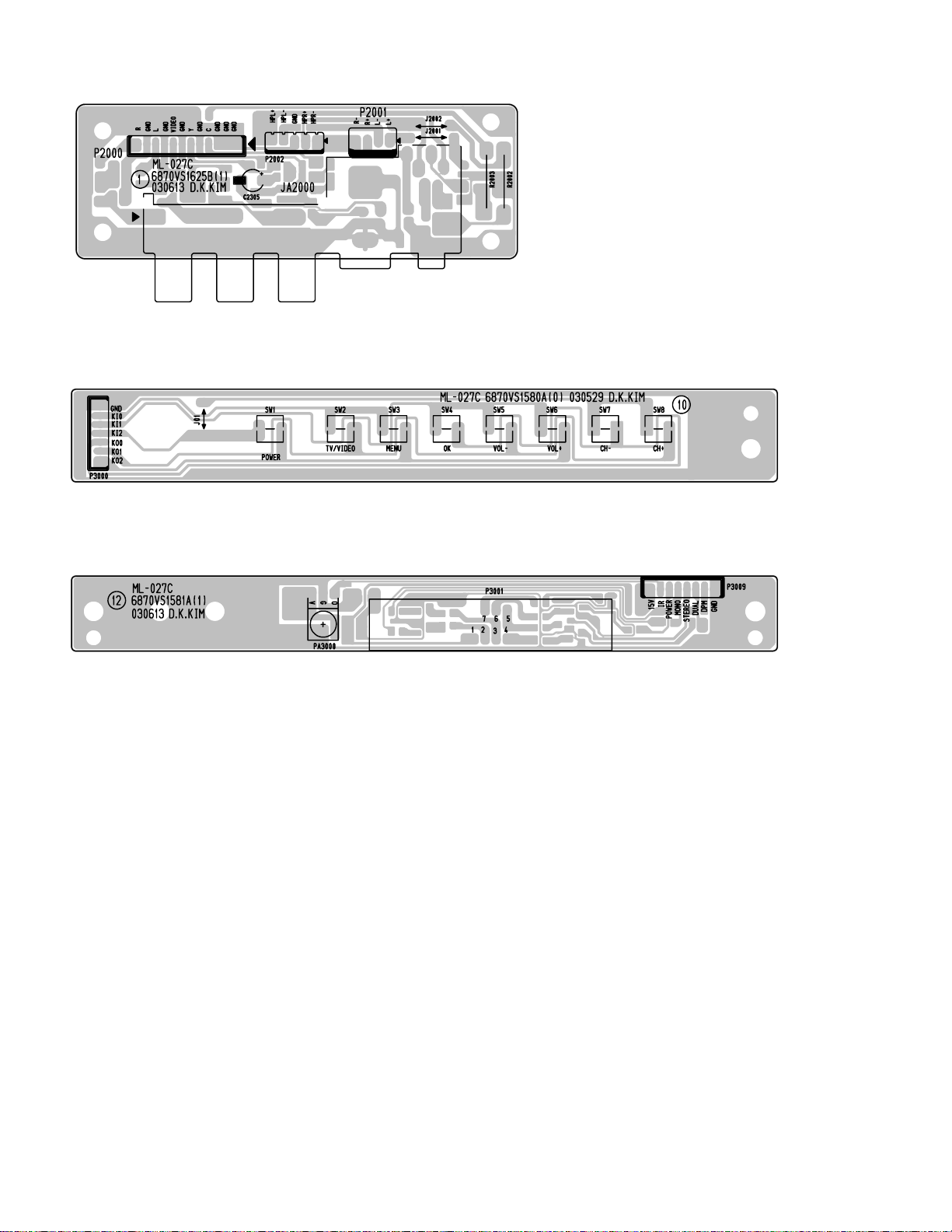

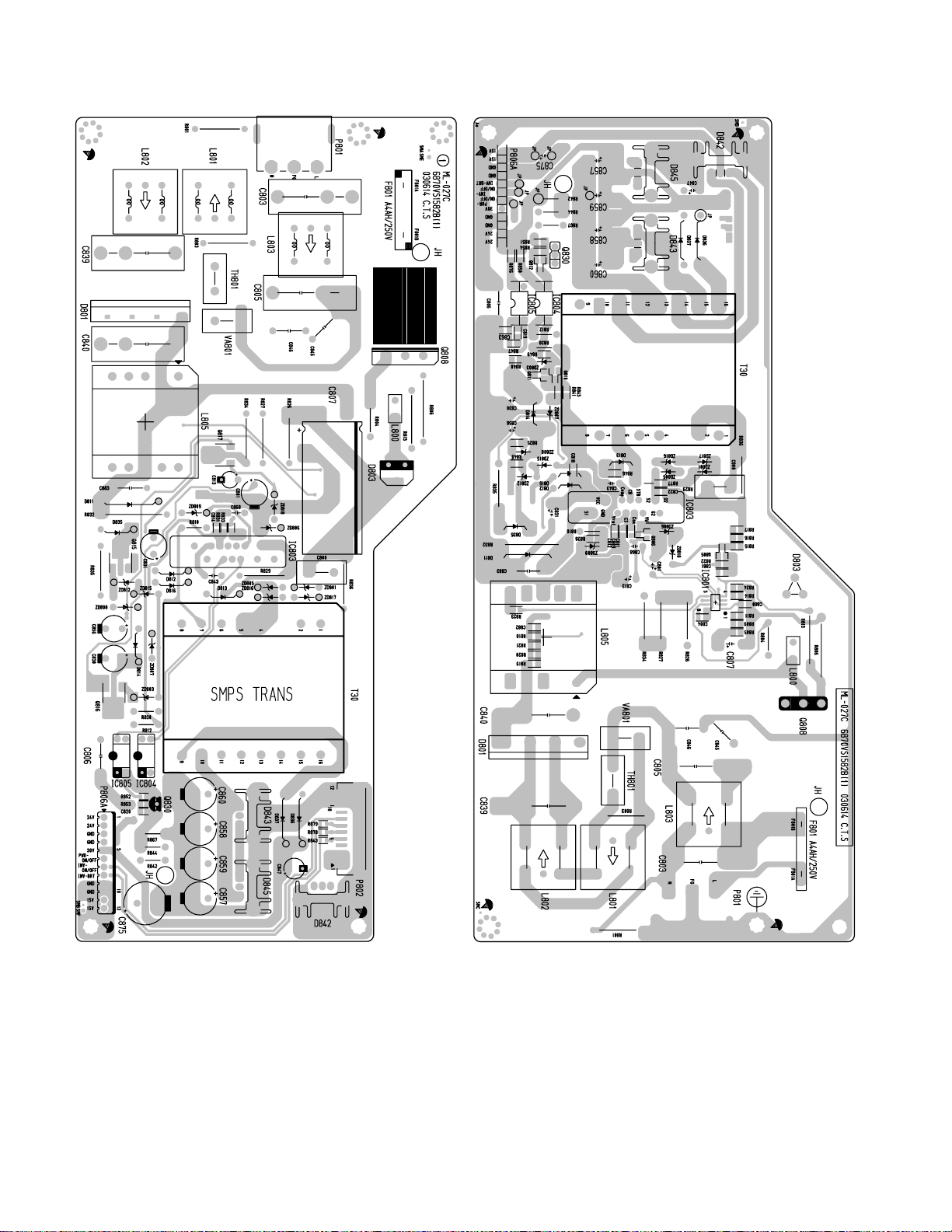

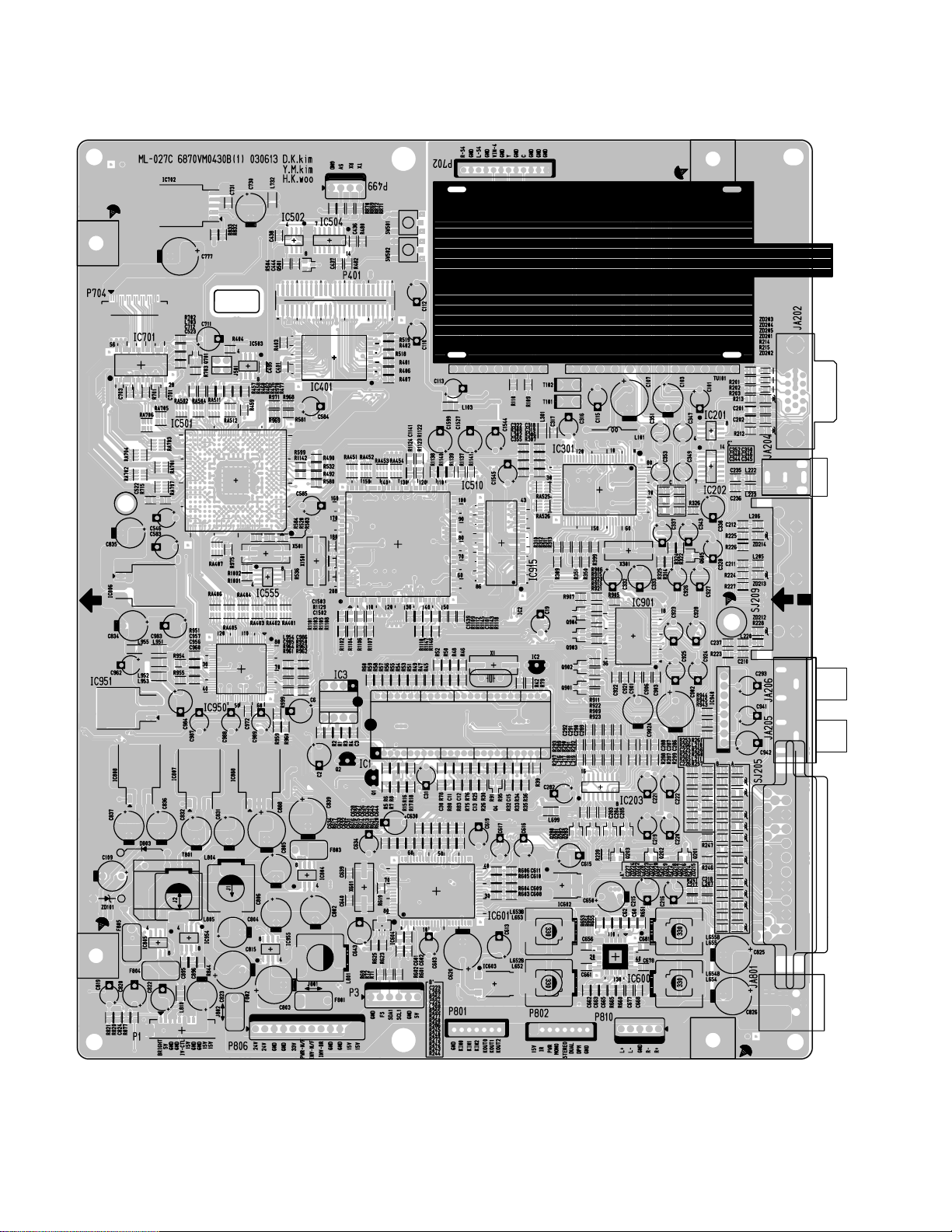

PRINTED CIRCUIT BOARD....................................................................13
WIRING DIAGRAM..................................................................................17
EXPLODED VIEW .................................................................................. 18
EXPLODED VIEW PARTS LIST..............................................................19
REPLACEMENT PARTS LIST ............................................................... 20
SVC. Sheet .................................................................................................

- 3 -
PRODUCT SAFETY
IMPORTANT SAFETY NOTICE
This manual was prepared for use only by properly trained audiovisual service
technicians. When servicing this product, under no circumstances should the
original design be modified or altered without permission from LG Electronics
Inc. All components should be replaced only with types identical to those in the
original circuit and their physical location, wiring, and lead dress must conform
to original layout upon completion of repairs. If any fuse (or Fusible Resistor) in
this TV receiver is blown, replace it only with the factory specified fuse type and
rating. When replacing a high wattage resistor (Oxide Metal Film Resistor, over
1W), keep the resistor 10mm away from PCB. Always keep wires away from
high voltage or high temperature parts.
Special components are also used to prevent shock and fire hazard.
These components are indicated by the letter “x” included in their component
designators and are required to maintain safe performance. No deviations are
allowed without prior approval by LG Electronis Inc. Service work should be
performed only after you are thoroughly familiar with these safety checks and
servicing guidelines.
Circuit diagrams may occasionally differ from the actual circuit used.
This way, implementation of the latest safety and performance improvement
changes into the set is not delayed until the new service literature is printed.
CAUTION: Do not attempt to modify this product in any way.
Never perform customized installations without manufacturer’s
approval.
Unauthorized modifications will not only void the warranty, but may
lead to property damage or user injury.
GENERAL GUIDANCE
An lsolation Transformer should always be used during the servicing
of a receiver whose chassis is not isolated from the AC power line. Use a
transformer of adequate power rating to protect against personal injury from
electrical shocks. It will also protect the receiver and its components from being
damaged by accidental shorts of the circuitry that may be inadvertently
introduced during the service operation.
Before returning the receiver to the customer, always perform an AC leakage
current check on the exposed metallic parts of the cabinet, such as antennas,
terminals, etc., to be sure the set is safe to operate
without damage of electrical shock.
LEAKAGE CURRENT COLD CHECK
(ANTENNA COLD CHECK)
With the instrument’s AC plug removed from AC source, connect an electrical
jumper across the two AC plug prongs. Place the AC switch in the on position,
connect one lead of ohm-meter to the AC plug prongs tied together, and touch
other ohm-meter lead in turn to each exposed metallic parts such as antenna
terminals, phone jacks, etc. If the exposed metallic part has a return path to the
chassis, the measured resistance should be between 1MΩand 5.2MΩ. When
the exposed metal has no return path to the chassis the reading must be
infinite. Any other abnormality that exists must be corrected before
the receiver is returned to the customer.
ELECTROSTATICALLY SENSITIVE DEVICES
Some semiconductor (solid-state) devices can be damaged easily by static
electricity. Such components commonly are called Electrostatically Sensitive
(ES) Devices. Examples of typical ES devices are integrated circuits and some
field-effect transistors and semiconductor “chip” components. The following
techniques should be used to help reduce the incidence of component damage
caused by static electricity.
1. Immediately before handling any semiconductor component or
semiconductor-equipped assembly, drain off any electrostatic charge on the
body by touching a known earth ground. Alternatively, obtain and wear a
commercially available discharging wrist strap device, which should be
removed for potential shock reasons prior to applying power to the unit under
test.
2. After removing an electrical assembly equipped with ES devices, place the
assembly on a conductive surface such as an ESD mat, to prevent
electrostatic charge buildup or exposure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.
4. Use only an anti-static solder removal device. Some solder removal devices
not classified as “anti-static” can generate electrical charges sufficient to
damage ES devices.
5. Do not use freon-propelled chemicals. These can generate electrical charge
sufficient to damage ES devices.
6. Do not remove a replacement ES device from its protective package until
immediately before you are ready to install it. (Most replacement ES devices
are packaged with leads electrically shorted together by conductive foam,
aluminum foil, or comparable conductive material.)
7. Immediately before removing the protective material from the leads of a
replacement ES device, touch the protective material to the chassis or circuit
assembly into which the device will be installed.
Caution: Be sure no power is applied to the chassis or circuit, and observe
all other safety precautions.
8. Minimize bodily motions when handling unpackaged replacement ES
devices. (Otherwise, seemingly harmless motion, such as the brushing
together of your clothing or the lifting of your foot from a carpeted floor, can
generate static electricity sufficient to damage an ES device.)

- 4 -
SPECIFICATIONS
Note : Specification and others are subject to change without notice for improvement.
OReceivable Broadcasting system:
PAL-B/G, D/K, I/I
SECAM-B/G, D/K/L/L’
ORF Input Channel:
VHF : E2 ~ E12
UHF : E21 ~ E69
CATV : S1 ~ S20
HYPER : S21 ~ S41
L/L’ : B,C,D(France)
OInput Voltage : AC 110-240V, 50/60Hz(NON-EU)
AC 100-240V, 50Hz(EU)
OPower consumption : Max 95W
Stand-by 3W
OTuning system :
FVS 100 Program
200 Program(Option)
OSpeaker impedance : 8 ohm
OExternal In/Output
Audio-In/Out : 0.5V ±0.1
Video-In/Out : 1Vpp ±0.15
R,G,B In:768 pixel(Vertical), 1280 pixel(Horizontal)
OFeature & Funtion
Teletext(TOP/FLOF/LIST 10 page)
Remocon(NEC code)
AV Input : 2(Side and Rear)
S- AV Input : 1(Side)
Component Input : 1(Rear-option)
PERI TV Connector : Full Scart 1(Rear option-EU)
RGB INput : 1(D-sub 15 pin)
D-Sub Audio Input : 1(Stereo)
2 Carrier Stereo : BG/DK
NICAM Stereo : BG/I/LL’
2 Carrier Dual : BG/DK
NICAM Dual : BG/I/LL’
MW(Multi Window) Mode
DW(Double Window) Mode
Film Mode
Progressive Scan
Motion Detection
Dolby Virture
Ez-PIP

DESCRIPTION OF CONTROLS
- 5 -
POWERMUTE
TV/AV TV/PC I/II
LIST
PR
PR
VOL OK
123
456
789
SSM PSM
0
VOL
EXIT MENU
ARC PIP TEXT
POSITION PIP INPUT TIME
SIZE
PIP SWAP MIX
STILL
PIP PR+
PIP PR
REVEAL
SCAN SLEEP
?
i M
All the functions can be controlled with the remote control handset.
Some functions can also be adjusted with the buttons on the side
panel of the set. Only the remote control handset supplied will oper-
ate this set.
Remote control handset
Before you use the remote control handset, please install the bat-
teries. See the next page.
1. MUTE
switches the sound on or off.
2. TV/AV
selects TV or AV monitor mode.
clears the menu from the screen.
switches the set on from standby.
3. LIST
displays the programme table.
4. EXIT
exits from each mode.
5. DD / EE(Programme Up/Down)
selects a programme or a menu item.
switches the set on from standby.
FF / GG (Volume Up/Down)
adjusts the volume.
adjusts menu settings.
OK
accepts your selection or displays the current mode.
6. NUMBER BUTTONS
switches the set on from standby and selects a programme.
7. SSM (Sound Status Memory)
recalls your preferred sound setting.
8. PIP BUTTONS (option)
PIP
switches the sub picture on or off.
PIP PR +/-
selects a programme for the sub picture.
PIP SWAP
alternates between main and sub picture.
PIP INPUT
selects the input mode for the sub picture.
SIZE
adjusts the sub picture size.
STILL
freezes motion of the sub picture.
POSITION
relocates the sub picture in up/down or left/right direction.
SCAN
switches on the programme scan mode through 3/12 sub pictures
and 9 main pictures.
9. ARC
select your desired picture format.
111
12
13
14
15
17
10
2
3
4
5
6
7
8
9
16

- 6 -
10. TV/PC
selects TV or PC monitor mode.
clears the menu from the screen.
switches the set on from standby.
11. POWER
switches the set on from standby or off to standby.
12. I/II
selects the language during dual language broadcast.
selects the sound output (option).
13. MENU
selects a menu.
14. PSM (Picture Status Memory)
recalls your preferred picture setting.
15. TELETEXT BUTTONS (option)
These buttons are used for teletext.
For further details, see the ‘Teletext’section.
16. PIP SWAP
returns to the previously viewed programme.
selects a favourite programme.
17. SLEEP
sets the sleep timer.
Note : If you turn on the TXT in PIP, some PIP keys, such as POSI-
TION, PIP INPUT or PIP PR +/- etc. will work as TXT keys.

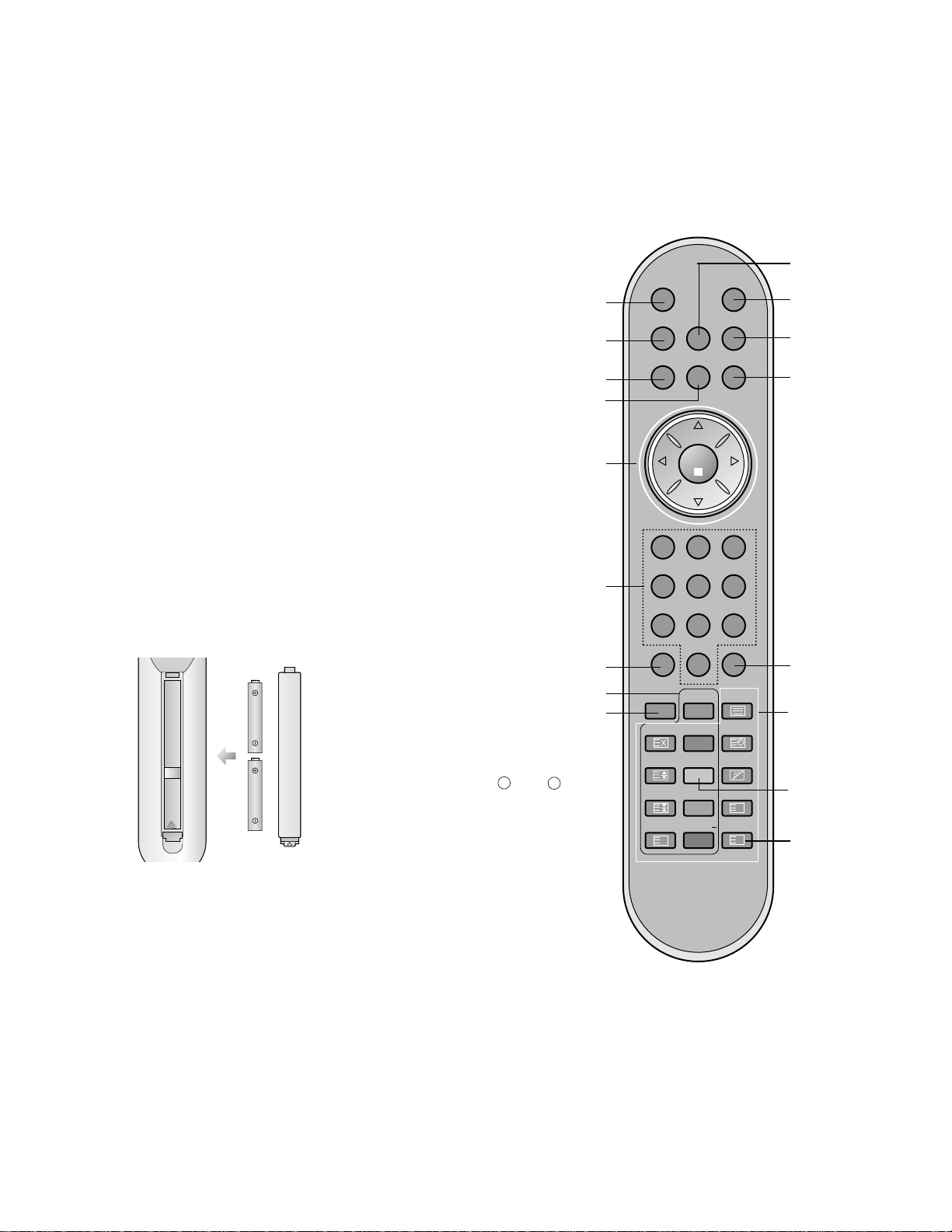

Battery installation
Note : To avoid damage from possible battery leakage, remove the
batteries if you do not plan to use the remote control handset for an
extended period of time.
POWERMUTE
TV/AV TV/PC I/II
LIST
PR
PR
VOL OK
123
456
789
SSM PSM
0
VOL
EXIT MENU
ARC PIP TEXT
POSITION PIP INPUT TIME
SIZE
PIP SWAP MIX
STILL
PIP PR+
PIP PR
REVEAL
SCAN SLEEP
?
i M
111
12
13
14
15
16
17
10
2
3
4
5
6
7
8
9
The remote control handset is pow-
ered by two AAA/Alkaline type bat-
teries. To load the batteries, turn
the remote control handset over
and open the battery compartment.
Install two batteries as indicated by
the polarity symbols ( and )
marked inside the compartment.
+
-

- 7 -
1. ON/OFF (rr/I)
switches the set on from standby or off to
standby.
Note : Power line lives even when the power
is off.
2. TV/AV/PC
selects TV, AV or PC monitor mode.
clears the menu from the screen.
switches the set on from standby.
3. MENU
selects a menu.
4. OK
accepts your selection or displays the current
mode.
5. FF / GG (Volume Up/Down)
adjusts the volume.
adjusts menu settings.
6. DD / EE(Programme Up/Down)
selects a programme or a menu item.
switches the set on from standby.
7. REMOTE CONTROL SENSOR
8. LED (Light Emitting Diode) DISPLAY
illuminates brightly when the set is switched on.
: POWER/STANDBY indicator
: MONO indicator
: STEREO indicator
: DUAL indicator
: DPM indicator
9. HEADPHONE SOCKET
Connect the headphone plug to this socket.
10. AUDIO/VIDEO IN SOCKETS (AV3)
Connect the audio/video out sockets of exter-
nal equipment to these sockets.
S-VIDEO/AUDIO IN SOCKETS (S-VIDEO)
Connect the video out socket of an S-VIDEO
VCR to the S-VIDEO socket.
Connects the audio out sockets of the S-
VIDEO VCR to the audio sockets as in AV3.
Side panel
MONO DPM
STEREO
ST
DUAL
VIDEO
AUDIO L / MONO
R
AV3
S-VIDEO
PR
VOL
MENU
OK
ON/OFF
TV
AV/PC
/ I
6
5
4
3
2
1
78
9
10
MONO
STEREO
ST
DUAL
DPM

- 8 -
1. Application Object
This instruction is for the application to the LCD TV.
2. Notes
(1) This set uses an adapter, so connect the adapter and the
set correctly before adjustment.
(2) The adjustment must be performed under the correct
sequence.
(3) The adjustment must be performed in the circumstance of
25!5cC of temperature and 65!10% of relative humidity if
there is no specific designation.
(4) The input voltage of the receiver must keep 100~220V,
50/60Hz in adjusting.
(5) The set must be operated for 15 minutes preliminarily
before adjustment if there is no specific designation.
[‘Heat Run’must be performed with the full white signal or TV
noise signal in the internal part of the set.
[ The time for ‘Heat Run’can be changed owing to production
plan.
3. PC Input Mode Adjustment
3-1. Required Test Equipment
(1) MSPG-925LTH or A pattern generator ;Gray pattern of 16
tones
(2) A adjustment communicator.
3-2. Preparation for Adjustment
(1) Perform ‘Heat Run’for more than 15 minutes in white
pattern.
(2) Connect the signal of pattern generator with LCD TV.
3-3. Auto Gray Adjustment
(1) Apply the gray signal of XGA(1024X768) 16 tones by
using MSPG-925LTH.
(2) In Service menu mode,adjust the Auto gay from 0 to 1 by
using Vol(+) button.
ADJUSTMENT INSTRUCTION

- 9 -
4. Position of Mode Adjustment
Timming chart of Receivable Mode * H[dot]/V[line]
Mode
H_Display
V_Display
V_Frequency
H_Total
H_Blanking
H_Sync
H_Polarity
H_Vp
H_Fp
H-Freq[KHz]
/Clk[MHz]
V_Total
V_Blanking
V_Sync
V_Polarity
V_Bp
V_Fp
VGA-60
640
480
60
800
160
96
NEG.
48
16
31.469
25.175
525
45
2
NEG
33
10
VGA-67
640
480
67
864
224
64
NEG.
96
64
35.0
30.24
525
45
3
NEG
39
3
VGA-75
640
480
75
840
200
64
NEG
120
16
37.5
31.5
500
20
3
NEG
16
1
VGA-85
640
480
82
832
192
56
NEG
80
56
43.269
36.0
509
29
3
NEG
25
1
SVGA-56
800
600
56
1024
224
72
POS
128
24
35.156
36.0
62.5
25
2
POS
22
1
SVGA-60
800
600
60
1056
256
128
POS
88
40
37.879
40.0
628
28
4
POS
23
1
SVGA-72
800
600
72
1040
240
120
POS
64
56
48.077
50.0
666
66
6
POS
23
37
Mode
H_Display
V_Display
V_Frequency
H_Total
H_Blanking
H_Sync
H_Polarity
H_Vp
H_Fp
H-Freq[KHz]
/Clk[MHz]
V_Total
V_Blanking
V_Sync
V_Polarity
V_Bp
V_Fp
SVGA-75
800
600
75
1056
256
80
POS
160
16
46.875
49.5
625
25
3
POS
21
1
SVGA-
85800
600
85
1048
248
64
POS
152
32
53.674
56.25
631
31
3
POS
27
1
XGA-60
1024
768
60
1344
320
136
NEG
136
160
48.363
65.0
806
38
6
NEG
29
3
XGA-70
1024
768
70
1328
304
136
NEG
144
24
56.476
75.0
806
38
6
NEG
29
3
XGA-75
1024
768
75
1312
288
96
POS
176
16
60.023
78.75
800
32
3
POS
28
1
XGA-85
1024
768
82
1376
352
96
POS
208
48
68.677
84.997
808
40
3
POS
36
1
WXGA-50
1280
768
50
1648
368
128
NEG
184
56
39.518
65.125
791
23
7
POS
15
1
WXGA-60
1280
768
60
1680
400
136
NEG
200
64
47.693
80.125
795
27
7
POS
19
1
WXGA-75
1280
768
75
1712
432
136
NEG
216
80
60.091
102.875
802
34
7
POS
26
1

5. EDID(The Extended Display Identification Data)
EDID Table
6. Option1 data
7. Option2 data
- 10 -
00
10
20
30
40
50
60
70
00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
00
00
14
81
01
01
26
00
FF
0B
50
40
01
01
30
32
FF
01
54
81
01
01
18
55
FF
01
BF
80
01
01
88
1E
FF
78
E8
01
01
01
36
46
FF
1F
80
01
01
01
00
0D
FF
17
31
10
01
01
0E
00
00
70
59
0E
01
01
C3
0A
30
E8
3B
01
F9
01
10
20
E5
C3
D9
01
15
01
00
20
D7
A0
45
01
01
64
00
20
3A
A3
59
01
01
19
1E
20
01
54
61
01
01
00
00
20
00
4C
59
01
01
40
00
20
00
97
71
01
01
41
00
00
00
24
59
01
01
00
FD
C8
Scart
A2 Ster
System
Top
I/II Save
TEXT
200PR
Option Code
0
1
0
1
0
1
0
1
0
1
0
1
0
1
2
3
Function Remark
100 Program
200 Program
TEXT Off
TEXT On
CH.Sound Non Memory
CH.Sound Memory
TOP OFF
TOP ON
SCART OFF
SCART ON
FM Stereo/Dual
FM Mono
GB/I/DK/M
GB/I/DK/L
Reserved
Reserved
OSD
Lang.
HDEV
VOL
ACMS
PIP Text
Option Code
0
1
0
1
0
1
0
1
0
1
2
3
4
Function Remark
PIP Text
PIP Text not display
ACMS On
ACMS Of
f
OFF
Middle Asia Vol On
HDEV Off
HDEV
ON
Eng.only
Eng/Deut/Fran/Ital/Esp
2
6(
EU5+Netherlands)
4
OSD
Lang.
Option Code
5
6
7
Function Remark
11
7
Reserved
8. Option3 data
TXT-Lan
CH+Aus
Mono
MD
SAve
IIC AFT
Option Code
0
1
0
1
0
1
0
1
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Function Remark
IIC AFT Off
IIC AFT On
MD Save On
MD Save Off
Mono Off
Mono On
OFF
China,Australia On
West EU
East EU1
Turky EU
East EU2
Cyrillic 1
Cyrillic 2
Cyrillic 3
TURK GRE 1
TURK GRE 2
TURK GRE 3
ARAB FRAN
ARAB ENG
ARAB HEB 1
ARAB HEB 2
FARSI ENG
FARSI FRA
FARSI ALL

1 No sound Defective Reset IC of IC604. 1) Check volume and speaker.
- Speaker Defective MSP3411 of IC601. - Sound comes out only when being inputted into Audio
- Earphone Defective B+(8V,5V) of IC603. L/R.
2) Check after replacing IC604.
3) Replace IC601.
4) Check and replace B+ of IC603.
2 Video color beat noise Earphone shield case being touched.
Check the mould of shield and SJ209, Replace shield case.
Soldering IC301 and IC510. Re-soldering
1 No screen Input error of inverter connector 1) Bend the pin legs of P1 connector -> recheck them
2) Check and repair F804.
P804 and P704 connector 1) Check and fix P704 connector
being slipped out 2) Check and fix the components at P704 LCD module
and at main board.
3) Check Pin21.
Cracked components and Check and repair tuner board and main board
soldering at tuner board
2 Dark screen 1) Defective LCD lamp 1) Replace the inverter
2) Defective inverter 2) Replace the LCD lamp
3) Input error of inverter connector 2) Check the connector input.
- 11 -
TROUBLESHOOTING
1. General Features
2. PC Mode
No. Symptom Cause Check Point
No. Symptom Cause Check Point
Check Point
1 Screen noise Clock or phase being 1) Resettig is needed according to the video card of each
not able to be adjusted. PC.
2) Horizontal noise : adjust phase until no horizontal
noise occurres.
3) Vertical noise : adjust clock in menu until no vertical
noise occurres.
2 Screen position error Screen position error 1) Play the Auto Configure in Menu.
horizontally or vertically 2) Adjust horizontal and vertical position until the screen
displayes normally.
3 Color beat noise Soldering D-SUB Jack of JA202 Recheck adn repair JA202,IC202
and IC202.
3. TV and external input
No. Symptom Cause

BLOCK DIAGRAM
- 12 -

- 13 -
PRINTED CIRCUIT BOARD
MAIN(TOP)

- 14 -
MAIN(BOTTOM)

- 15 -
POWER(TOP) POWER(BOTTOM)

- 16 -
SIDE AV
CONTROL
LED

- 17 -
WIRING DIAGRAM
LOCA NO.
JA202
P704
P499
P810
P3
P806
P801
P802
P702
P2001
P2001
P3000
P806A
P2000
P2002
P3009
PART NO.
6630G15E215
6631V12035C
366-932C
366-932D
366-932E
366-921L
366-169F
366-169G
6602V20005L
366-922C
366-922C
6631V20037G
387-A15B
6631V20014A
387-A05K
6631V20010F
DESCRIPTION
CONNECTOR (CIRC),D-SUB- KSD 15P 2.29MM KCN-DS-3-0054 (DIP TYPE)
CONNECTOR ASSEMBLY,20P 1.25MM 150MM H-H UL20276 AWG30 (JAE)FI-W21S (JAE)-FI-W21S
CONNECTOR (CIRC),WAFER 2.5MM 4P GIL-G LG CABLE S (STICK)
CONNECTOR (CIRC),WAFER 2.5MM 5P GIL-G LG CABLE S (STICK)
CONNECTOR (CIRC),WAFER 2.5MM 6P GIL-G LG CABLE S (STICK)
CONNECTOR (CIRC),WAFER 2.5MM 12P GIL-G LG CABLE .
CONNECTOR (CIRC),WAFER 2MM,7PIN,GIL-S¡–
CONNECTOR (CIRC),WAFER 2.0MM 8P GIL-S LG CABLE S
CONNECTOR (CIRC),WAFER 2.0MM 12P GIL-S LG CABLE STRAIGHT
CONNECTOR (CIRC),WAFER 2.5MM 4P GIL-G LG CABLE R/A (B TO C)
CONNECTOR (CIRC),WAFER 2.5MM 4P GIL-G LG CABLE R/A (B TO C)
CONNECTOR ASSEMBLY,7P 2.0MM 400MM H-B UL1061 AWG26 TWI (LGC)GIL-S (LGC)GIL-T NON
CONNECTOR ASSEMBLY,12P 2.5MM 150MM H-B UL1007 AWG26 GIL-G GIL-J NON
CONNECTOR ASSEMBLY,12P 2.0MM 100MM H-B UL1007 AWG26 GIL-S GIL-T NON
CONNECTOR ASSEMBLY,5P 2.5MM 600MM H-B UL 1007 AWG 26 GIL-G GIL-J NON
CONNECTOR ASSEMBLY,8P 2.0MM 350MM H-B UL1007 AWG26 TWI (LGC)GIL-S (LGC)GIL-T NON

- 18 -
EXPLODED VIEW
250
112
520
550
500
320
210
220
310
400
430
230
240
530
560
300
120
120
340
350
330
360
370
380
330

- 19 -
112 6306V23001A LCD MODULE, LC230W01-A2 TFT COLOR 23 WXGA LCD MODULE
120 6400GKTX01A SPEAKER, FULL-RANGE(GENERAL) 8OHM 7/12W 83DB OTHERS 34.5X71
210 4950V00151A METAL, SHIELD EGI RZ-23LZ20 REAR A/V
230 4810V00765A BRACKET, SIDE AV 20LA60/15LA60 ML012B HIPS 60HR AV3
240 4950V00142A METAL, SHIELD NON SIDE AV, 20LA60/15LA60
250 4950V00149A METAL, MAIN FRAME SBHG RZ-23LZ20
300 3091V00518A CABINET ASSEMBLY, RZ-23LZ20 NON ML027C .
310 5020V00781A BUTTON, CONTROL RZ-23LZ20 ABS 8KEY .
320 4950V00150A METAL, SHIELD SBHG RZ-23LZ20
330 4950V00157D METAL, HINGE ASSY SPCC(CR) RZ-23LZ20
340 4810V00767A BRACKET, STAND 20LA60 ML012B NON HINGE FRONT
350 4810V00768A BRACKET, STAND 20LA60 ML012B NON HINGE COVER
360 4810V00766A BRACKET, DECO 20LA60 ML012B NON STAND DECO.
370 4810V00769A BRACKET, STAND 20LA60 ML012B NON BASE
380 4950V00133A METAL, STAND BASE
400 3809V00359A BACK COVER ASSEMBLY, RZ-23LZ20 NON .
430 3500V00068A BOARD, AV RZ-23LZ20 ML027A COVER REAR
520 6871VMMQ77A PWB(PCB) ASSEMBLY,MAIN ML-027C MANUAL
530 6871VSMW11A PWB(PCB) ASSEMBLY,SUB CONT ML027C MANNUAL ASSY
540 6871VSMW07A PWB(PCB) ASSEMBLY,SUB POWER ML027C ASSY
550 6871VSMV40A PWB(PCB) ASSEMBLY,SUB A/V ML027C RZ-23LZ20 SIDE A/V ASSY
560 6871VSMW12A PWB(PCB) ASSEMBLY,SUB WINDO ML027C INDEX MANNUAL ASSY
EXPLODED VIEW PARTS LIST
No. PART NO. DESCRIPTION

SVC. SHEET : 3854VA0128A
