LG 47LX9500 User manual

LCD-DV Troubleshooting
47" Class Full HD 1080P
LCD TV (47" diagonally)
47LX9500
47LX9500
LED Backlights
1080P
Direct View LCD
Training
Published September 10
th
, 2010

September LCD TV 47LX9500
2
OUTLINE
OUTLINE
•T-CON/3D Board
•Switch Mode Power Supply
Preliminary Section:
Troubleshooting Section: Board Operation Troubleshooting of :
Contact Information, Preliminary Matters, Specifications,
LCD Overview, General Troubleshooting Steps,
Signal Distribution, Disassembly Instructions and Voltages
•Main Board
•Inverter Boards Main and Secondary (LED Backlight Drivers)
•Soft Touch Keys
Disassembly Section: Removal of Circuit Boards
•Ft Control Board
•Speakers

September LCD TV 47LX9500
3
47LX9500 LCD Direct View Display
Section 1
This Section will cover Contact Information and remind the Technician of Important
Safety Precautions for the Customers Safety as well as the Technician and the
Equipment.
Basic Troubleshooting Techniques which can save time and money sometimes can
be overlooked. These techniques will also be presented.
This Section will get the Technician familiar with the Disassembly, Identification and
Layout of the LCD Display Panel.
At the end of this Section the Technician should be able to Identify the Circuit Boards
and have the ability and knowledge necessary to safely remove and replace any
Circuit Board or Assembly.
Overview of Topics to be Discussed
Overview of Topics to be Discussed

September LCD TV 47LX9500
4
IMPORTANT SAFETY NOTICE
IMPORTANT SAFETY NOTICE
The information in this training manual is intended for use by persons possessing an adequate background in
electrical equipment, electronic devices, and mechanical systems. In any attempt to repair a major Product,
personal injury and property damage can result. The manufacturer or seller maintains no liability for the
interpretation of this information, nor can it assume any liability in conjunction with its use. When servicing this
product, under no circumstances should the original design be modified or altered without permission from LG
Electronics. Unauthorized modifications will not only void the warranty, but may lead to property damage or
user injury. If wires, screws, clips, straps, nuts, or washers used to complete a ground path are removed for
service, they must be returned to their original positions and properly fastened.
CAUTION
CAUTION
To avoid personal injury, disconnect the power before servicing this product. If electrical power is required for
diagnosis or test purposes, disconnect the power immediately after performing the necessary checks. Also be
aware that many household products present a weight hazard. At least two people should be involved in the
installation or servicing of such devices. Failure to consider the weight of an product could result in physical
injury.
Preliminary Matters (The Fine Print)
Preliminary Matters (The Fine Print)

September LCD TV 47LX9500
5
Today’s sophisticated electronics are electrostatic discharge (ESD) sensitive. ESD can weaken or damage
the electronics in a manner that renders them inoperative or reduces the time until their next failure.
Connect an ESD wrist strap to a ground connection point or unpainted metal in the product. Alternatively,
you can touch your finger repeatedly to a ground connection point or unpainted metal in the product. Before
removing a replacement part from its package, touch the anti-static bag to a ground connection point or
unpainted metal in the product. Handle the electronic control assembly by its edges only. When
repackaging a failed electronic control assembly in an anti-static bag, observe these same precautions.
Regulatory Information
Regulatory Information
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy, and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate
the receiving antenna; Increase the separation between the equipment and the receiver; Connect the
equipment to an outlet on a different circuit than that to which the receiver is connected; or consult the
dealer or an experienced radio/TV technician for help.
ESD Notice
ESD Notice
(Electrostatic Static Discharge)
(Electrostatic Static Discharge)

September LCD TV 47LX9500
6
Contact Information
Contact Information
Customer Service (and Part Sales) [phone]
Technical Support (and Part Sales) [phone]
USA Website (GSFS) http://gsfs-america.lge.com
Customer Service Website us.lgservice.com
Knowledgebase Website lgtechassist.com
LG Web Training lge.webex.com
LG CS Academy lgcsacademy.com
Published September 2010 by LG Technical Support and Training
LG Electronics Alabama, Inc.
201 James Record Road, Huntsville, AL, 35813.
32LG40, 32LH30, 37LH55, 42LG60, 42LG70, 42LH20, 42LH40, 42LH50, 42LH90, 42SL80,
47LG90, 47LH85, 47LX9500, 47LX9500
42PG20, 42PQ20, 42PQ30, 50PG20, 50PJ350, 50PK750, 50PS80, 50PS60, 60PK750,
60PS11, 60PS60, 60PS80
LCD-DV:
PLASMA:
Also available on the Plasma Page:
PDP Panel Alignment Handbook, Schematics with Bookmarks
Plasma Control Board ROM Update (Jig required)
Presentations with Audio/Video
and Screen Marks
New Training Materials on
New Training Materials on
the Learning Academy site
the Learning Academy site
http://136.166.4.200
New: Software Downloads
Technical Assistance

September LCD TV 47LX9500
7
Safety and Handling Regulations
1. Approximately 20 minute pre-run time is required before making any picture performance
adjustments from the Menu.
2. Refer to the Voltage/Current silk screening on the Switch Mode Power Supply.
3. C-MOS circuits are sensitive to static electricity.
Use caution when dealing with these IC and circuits.
4. Exercise care when making voltage and waveform checks to prevent costly short circuits
from damaging the unit.
5. Be cautious of lost screws and other metal objects to prevent a possible short in the
circuitry.
1. Check the appearance of the Replacement Panel and Circuit Boards for both physical
damage and part number accuracy.
2. Check the model label. Verify model names and board model matches.
3. Check details of defective condition and history. Example: Oscillator failure dead set, etc…
Checking Points to be Considered
LCD Direct View Overview
LCD Direct View Overview

September LCD TV 47LX9500
8
Basic Troubleshooting Steps
Basic Troubleshooting Steps
Define, Localize, Isolate and Correct
•Define Look at the symptom carefully and determine what circuits could be causing
the failure. Use your senses Sight, Smell, Touch and Hearing. Look for burned parts and
check for possible overheated components. Capacitors will sometimes leak dielectric material
and give off a distinct odor. Frequency of power supplies will change with the load, or listen for
relay closing etc. Observation of the front Power LED may give some clues.
•Localize After carefully checking the symptom and determining the circuits to be
checked and after giving a thorough examination using your senses the first check should
always be the DC Supply Voltages to those circuits under test. Always confirm the supplies
are not only the proper level but be sure they are noise free. If the supplies are missing check
the resistance for possible short circuits.
•Isolate To further isolate the failure, check for the proper waveforms with the
Oscilloscope to make a final determination of the failure. Look for correct Amplitude Phasing
and Timing of the signals also check for the proper Duty Cycle of the signals. Sometimes
“glitches” or “road bumps” will be an indication of an imminent failure.
•Correct The final step is to correct the problem. Be careful of ESD and make sure to
check the DC Supplies for proper levels. Make all necessary adjustments and lastly always
perform a Safety AC Leakage Test before returning the product back to the Customer.

September LCD TV 47LX9500
9
This section of the manual will discuss the specifications of the
47LX9500
LCD Direct View Display
47LX9500 PRODUCT INFORMATION SECTION
47LX9500 PRODUCT INFORMATION SECTION

September LCD TV 47LX9500
10
Wireless Media Box (Sold Separately)

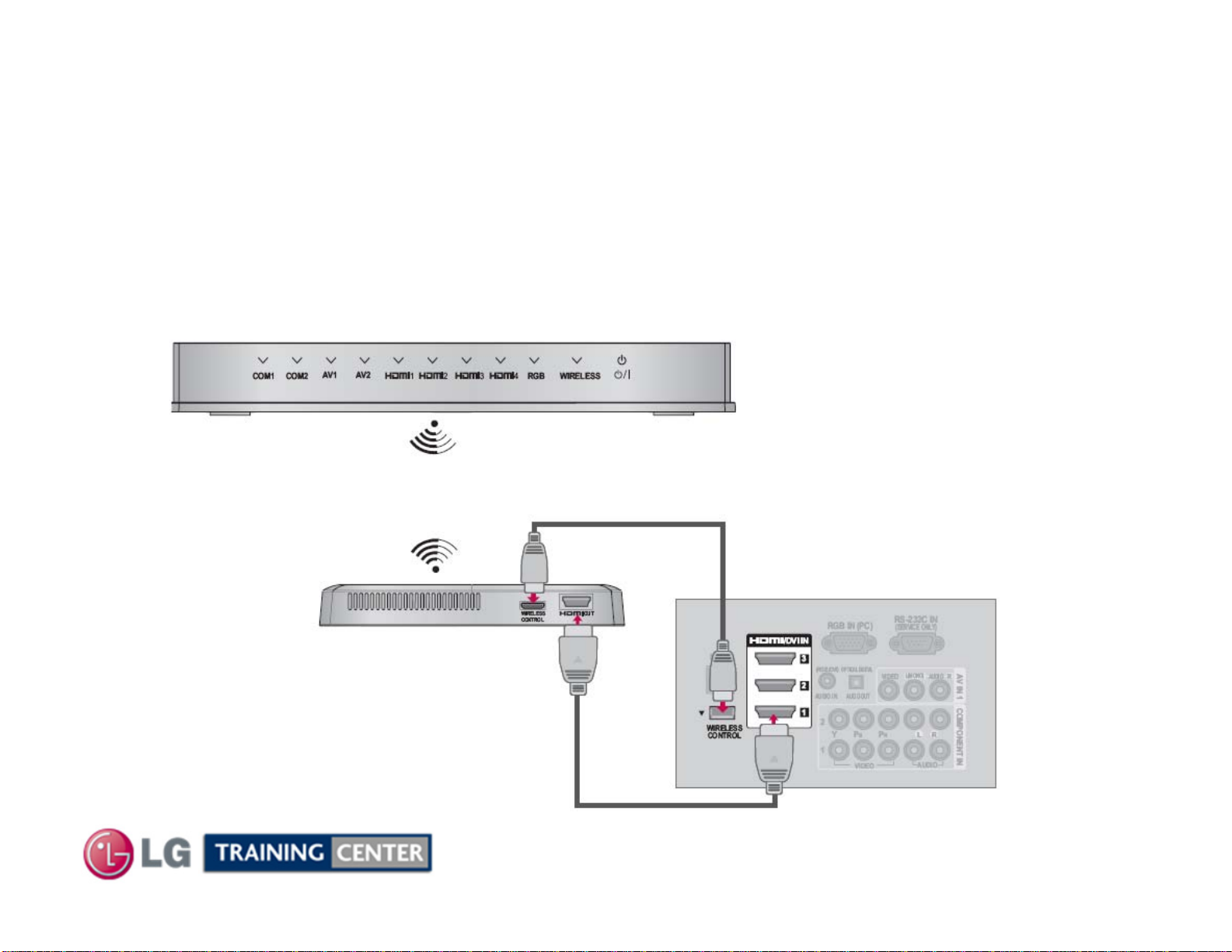

The Wireless Media box communicates to the television via a wireless receiver
called a “Dongle”. The Dongle attaches to the Television via two connections:
1. HDMI Cable from the Dongle to the TV to transfer Audio and Video Signals.
2. Wired Remote cable between the TV and Dongle for Control Functions.
Wireless Media Box
Wireless Media Box
Media Box
Wireless Receiver/Transmitter
“Dongle”
Attaches via Velcro to
the back of the set
Wired Remote to control the Media Box
HDMI
TV A/V Inputs

September LCD TV 47LX9500
11
Wireless LAN (Sold Separately)
Wireless LAN (DLNA Adaptor)
Wireless LAN (DLNA Adaptor)
Wireless Router
DLNA Adaptor
“Dongle”
Side A/V Inputs
1(DLNA: Digital Living Network Alliance)
Using the LG Wireless LAN for Broadband/1DLNA Adaptor, which is sold separately, allows the TV
to connect to a wireless LAN network. The DLNA adaptor attaches to the Television via either of
the two USB connections:

September LCD TV 47LX9500
12
Basic Specifications
Basic Specifications
Key TV Features
• INFINIA Series*
• 3D Ready
• Full LED Slim w/Local Dimming
• THX Certified Display
• NetCast™ Entertainment Access*
• (Wi-Fi® Ready)
• Wireless 1080p Ready*
• DLNA Certified®
• TruMotion 480Hz
• Full HD 1080p Resolution
• 10M:1 Dynamic Contrast Ratio
• Seamless Design
• Picture Wizard II
(Easy Picture Calibration)
• Smart Energy Saving
• Magic Motion Remote Control
• Easy Picture Calibration
• ENERGY STAR® Qualified
• XD Engine
• Intelligent Sensor
• AV Mode II (Cinema, Sports, Game)
• Clear Voice II
• ISFccc® Ready
• 24P Real Cinema
• USB 2.0 (JPEG, MP3, DivX HD)
• DivX® HD
• 4 HDMI™ V.1.4 Inputs
• SIMPLINK™ Connectivity
• Dolby® Digital 5.1 Decoder
• Infinite Sound

September LCD TV 47LX9500
13
Logo Familiarization Page 1 of 4
Logo Familiarization Page 1 of 4
New definition television. LG’s INFINIA TVs are redefining
home entertainment. Even beyond their jaw-dropping
design, they offer access to virtually unlimited
entertainment through broadband connectivity and
freedom with wireless HD capability.
You don’t have to take our word for it that this is an
amazing TV. To earn THX certification, our TV’s passed
more than 30 rigorous tests, ensuring you’re bringing an
uncompromised HD experience home - as the director
wanted it.
Entertainment on tap. NetCast Entertainment Access
brings the best Internet services direct to your TV—no
computer required. Instantly access movies and TV
shows, news and weather and the world’s largest library of
HD movies in 1080p.

September LCD TV 47LX9500
14
Logo Familiarization Page 2 of 4
Logo Familiarization Page 2 of 4
Invisible Speaker
Personally tuned by Mr. Mark Levinson for LG
TAKE IT TO THE EDGE newly introduces ‘Invisible Speaker’ system,
guaranteeing first class audio quality personally tuned by Mr. Mark
Levinson, world renowned as an audio authority. It provides Full Sweet
Spot and realistic sound equal to that of theaters with its Invisible
Speaker.
FULL HD RESOLUTION 1080P HD Resolution Pixels: 1920 (H) × 1080 (V)
Enjoy twice the picture quality of standard HDTV with almost double the pixel
resolution. See sharper details like never before. Just imagine a Blu-ray disc
or video game seen on your new LG Full HD 1080p TV.
HDMI (1.3 Deep Color) Digital multi-connectivity
HDMI (1.3 Deep color) provides a wider bandwidth (340MHz,
10.2Gbps) than that of HDMI 1.2, delivering a broader range of colors,
and also drastically improves the data-transmission speed.
AV Mode "One click" Cinema, THX Cinema, Sport, Game mode.
TAKE IT TO THE EDGE is a true multimedia TV with an AV Mode
which allows you to choose from 4 different modes of Cinema, Sports
and Game by a single click of a remote control.

September LCD TV 47LX9500
15
Logo Familiarization Page 3 of 4
Logo Familiarization Page 3 of 4
Clear Voice Clearer dialogue sound
Automatically enhances and amplifies the sound of the human voice
frequency range to provide high-quality dialogue when background
noise swells.
Save Energy, Save Money
Home electronic products use energy when they're off to power features like
clock displays and remote controls. Those that have earned the ENERGY STAR
use as much as 60% less energy to perform these functions, while providing the
same performance at the same price as less-efficient models. Less energy
means you pay less on your energy bill. Draws less than 1 Watt in stand by.
Save Energy, Save Money
It reduces the plasma display’s power consumption.
The default factory setting complies with the Energy Star requirements
and is adjusted to the comfortable level to be viewed at home.
(Turns on Intelligent Sensor).
TruMotion 480Hz
the world’s first “TruMotion 480Hz” panel, a combination of LG’s existing 240Hz
technology with a new “scanning backlight” capable of being rapidly switched on and
off. When combined with the 240Hz system it results in 480 images being displayed
per second. A higher refresh rate generally makes for smoother video and less blur,
especially in fast moving footage such as sports. Also bringing the response times
down to 4ms, and the controllable backlight leads to both improved contrast and,
when dimmed, energy savings.

September LCD TV 47LX9500
16
Logo Familiarization Page 4 of 4
Logo Familiarization Page 4 of 4
Wireless Ready
Wireless 1080p Connectivity lets you cut loose from messy wires and
still get a stunning Full HD picture. Disclaimer: Wireless media kit
required and sold separately.
Picture Wizard
Get easy self-calibration with on-screen reference points for key picture
quality elements such as black level, color, tint, sharpness and
backlight levels. Take the guesswork out of picture adjustments with
this simple-to-use feature. It's not actually magic, but it will sure seem
that way.
Seamless Design
You'll love the stunning picture while it's on and marvel at its
appearance while it's off. The display is a seamless, edge-to-edge
panel of glass over an ultra-slim, almost unnoticeable bezel. It's a
sleek, elegant, virtually border-free design that will appeal to even the
most refined sense of style.
Magic Motion Remote Control
With the wave of your hand, operate the onscreen menus using the
Magic Motion Remote.

September LCD TV 47LX9500
17

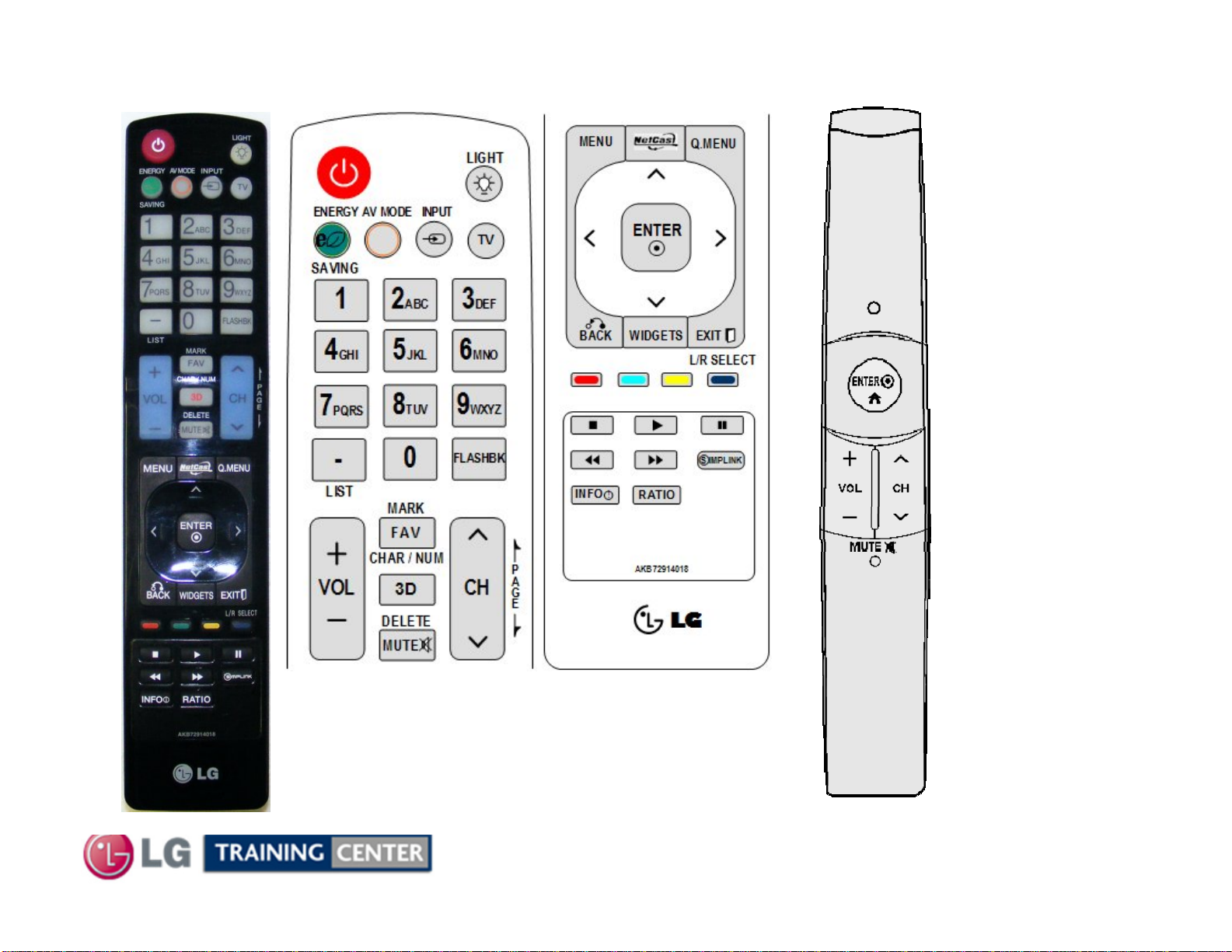

47LX9500 Remote Controls
47LX9500 Remote Controls
Magic Motion
Remote
AKB73035402
Remote AKB72914018
Top Half Bottom Half

September LCD TV 47LX9500
18
Accessing the Service Menu
Accessing the Service Menu
To access the Service Menu.
1) You must have either Service Remote.
p/n 105-201M or p/n MKJ39170828
2) Press “In-Start”
3) A Password screen appears.
4) Enter the Password.
Note: A Password is required to enter the
Service Menu. Enter; 0000
Note: If 0000 does not work use 0413.
MKJ39170828
105-201M

September LCD TV 47LX9500
19

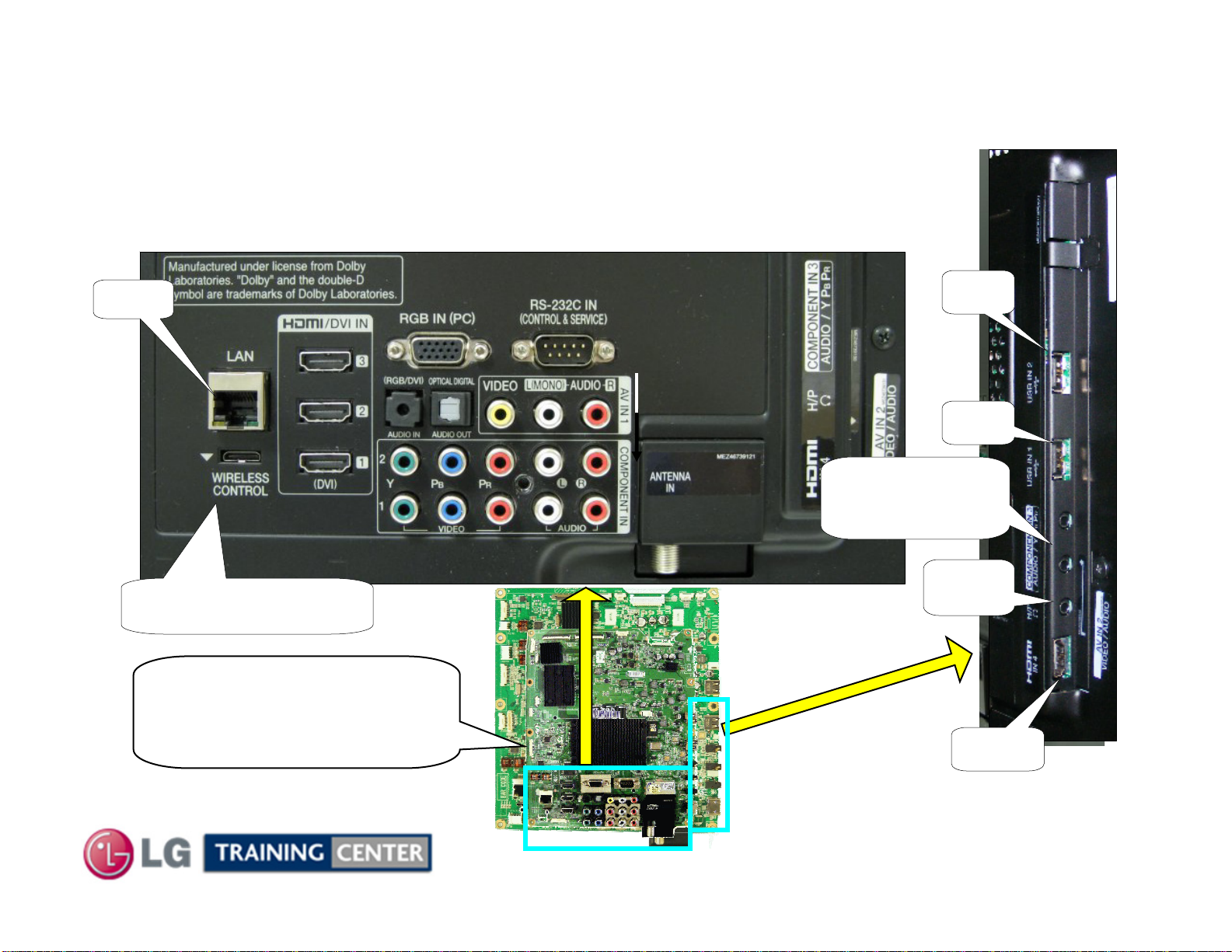

TV Rear Input / Output Jacks
TV Rear Input / Output Jacks
Rear In/Out Jacks
Side In/Out
MAIN BOARD
Rear and Side
Input/Output locations
USB1 or USB2 for Software
Upgrades, Wireless Dungle,
Music and Photos
USB 2
HDMI 4
USB 1
Component or
Composite
Video/Audio 3
LAN
Wireless Media Box
Remote Jack
Head
Phones

September LCD TV 47LX9500
20
Software Updates (New and Changed Functions)
Software Updates (New and Changed Functions)
A wireless Internet Connection will work for Automatic Software Downloads., however if there are
problems completing download, a Wired Internet Connection is preferred
For network setup assistance, press the
green button for the Simple Manual
With Software Update
Highlighted, Press Select
on Remote
Continue on next page

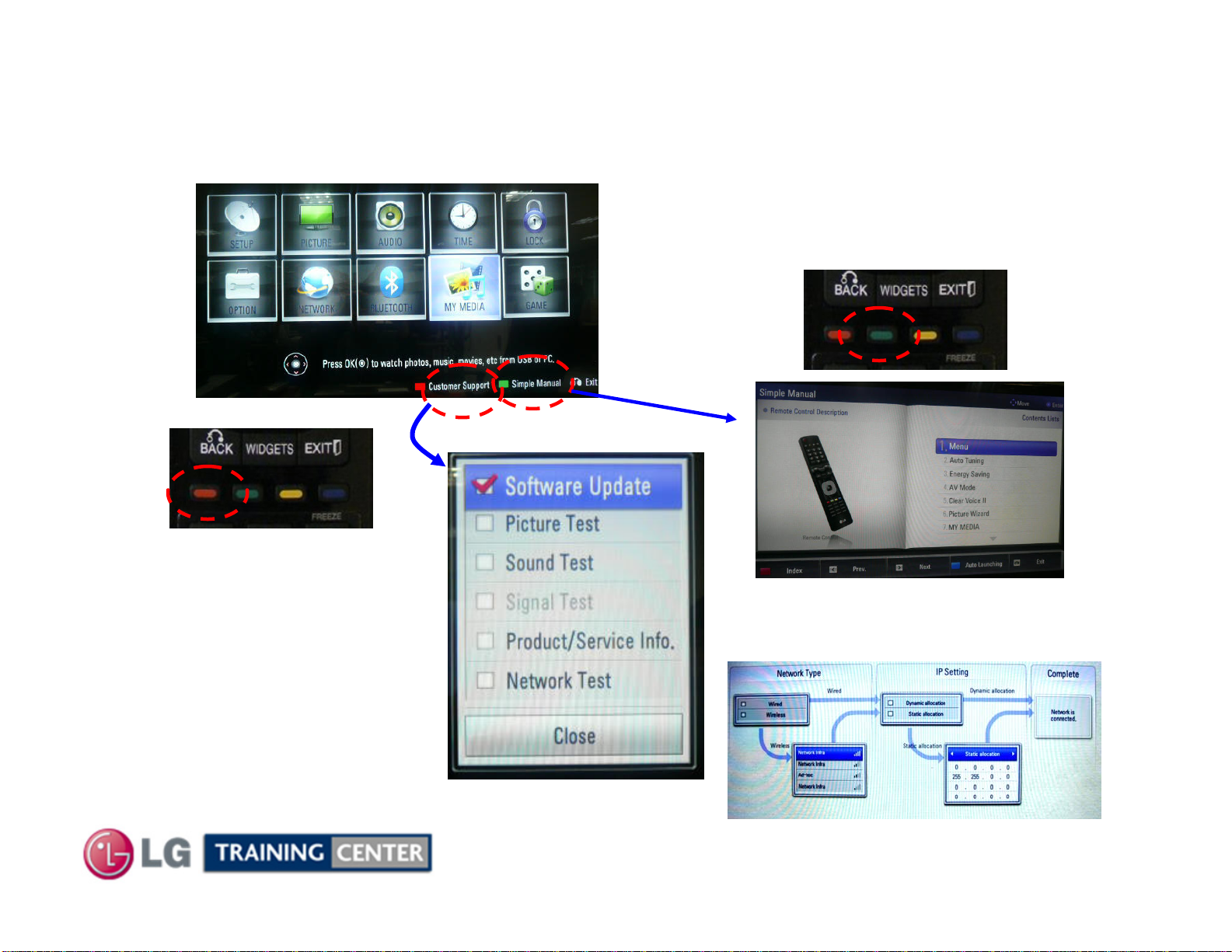

Bring up the Customer’s
Menu then Press the Red
button on Remote Scroll down to item 9 Network Connections
