LG UB80 User manual

www.lg.com
P/NO : MFL68484513(1504-REV02)
Printed in Korea
UB80**
UB82**
UB83**
UF695*
*MFL68484513*
OWNER’S MANUAL
LED TV*
*LG LED TV applies LCD screen with
LED backlights.
Please read this manual carefully before operating your set
and retain it for future reference.

A-2 TABLE OF CONTENTS
TABLE OF CONTENTS
LANGUAGE LIST
English
Italiano
COMMON
LANGUAGE
COMMON
B-1 SPECIFICATIONS
A-3 SETTING UP THE TV
A-3 Attaching the stand
A-5 Tidying cables
A-6 MAKING CONNECTIONS
A-6 Antenna connection
A-6 Satellite dish connection
A-7 HDMI connection
A-8 - ARC (Audio Return Channel)
A-9 Headphone connection
A-10 DVI to HDMI connection
A-11 Component connection
A-12 Composite connection
A-13 MHL connection
A-14 Audio connection
A-14 - Digital optical audio connection
A-15 USB connection
A-16 CI module connection
A-17 Euro Scart connection

A-3
SETTING UP THE TV
SETTING UP THE TV
Image shown may differ from your TV.
Attaching the stand
UB80**, UB82**, UF695*-ZB
A Stand Base
B Stand Base
1
2
1
1 Attach the stand to the TV using the upper
mounting hole on the back of the TV.
2 Attach the stand to the TV using the lower
connection on the back of the TV.
2
M4 x L20
4 EA
UB83**-ZG, UF695*-ZA
B stand base
A stand base
1
1
2
1 Attach the stand to the TV using the upper
mounting hole on the back of the TV.
2 Attach the stand to the TV using the lower
connection on the back of the TV.
2
M4 x L21
4 EA

A-4 SETTING UP THE TV
UB83**-ZB
1
Stand Base
M4 x L20
4 EA
Stand Body (R)
Stand Body (L)
NOTE
yBe sure to check the Stand Body (L), (R),
when installing on the stand base.
2
1
2
1 Attach the stand to the TV using the upper
mounting hole on the back of the TV.
2 Attach the stand to the TV using the lower
connection on the back of the TV.
3
M4 x L20
4 EA

A-5
SETTING UP THE TV
CAUTION
yWhen attaching the stand to the TV
set, place the screen facing down on a
FXVKLRQHGWDEOHRUÀDWVXUIDFHWRSURWHFWWKH
screen from scratches.
yMake sure that the screws are inserted
correctly and fastened securely. (If they are
not fastened securely enough, the TV may
tilt forward after being installed.)
Do not use too much force and over tighten
the screws; otherwise screw may be
damaged and not tighten correctly.
NOTE
yRemove the stand before installing the TV
on a wall mount by performing the stand
attachment in reverse.

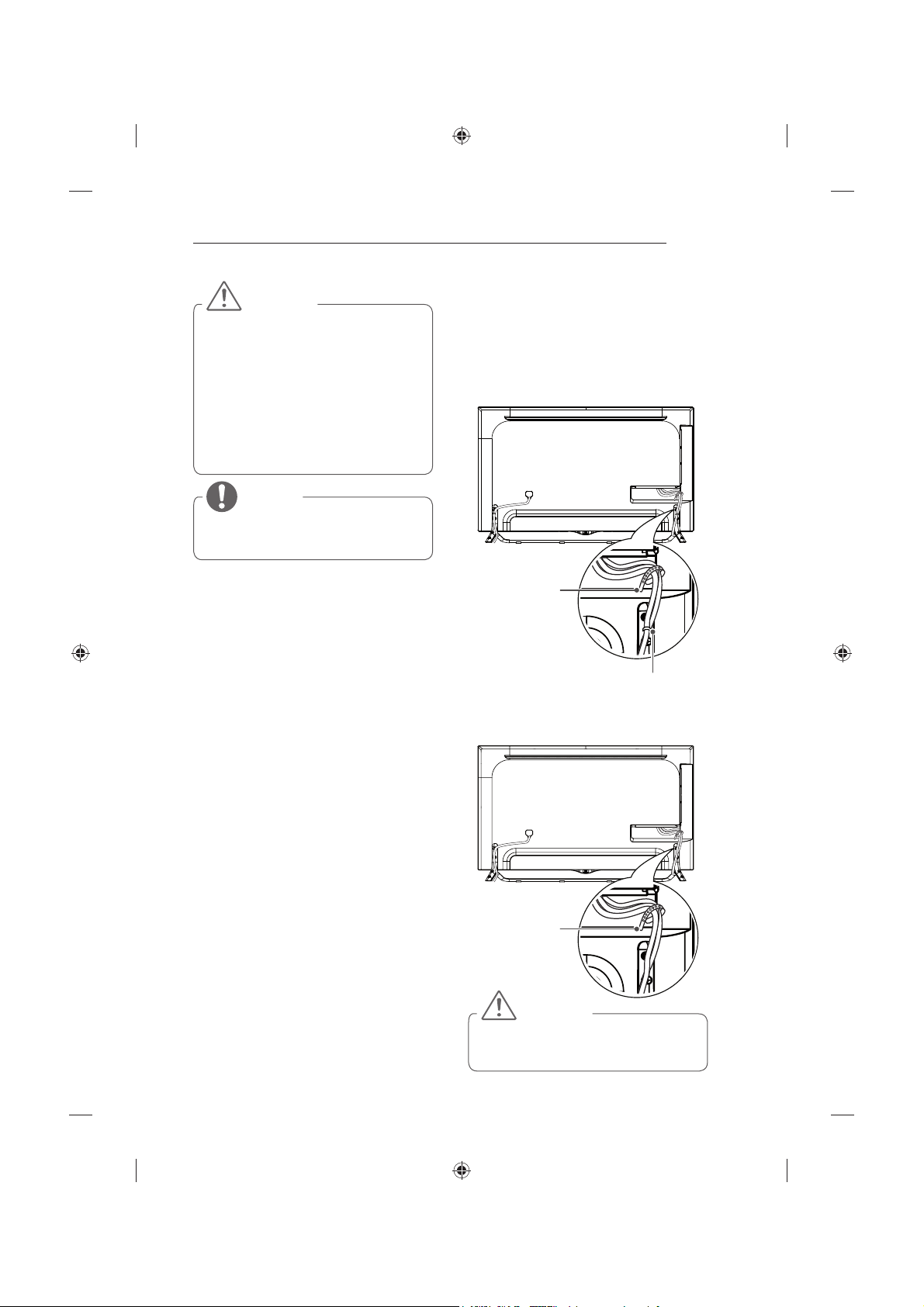

Tidying cables
Image shown may differ from your TV.
1 Gather and bind the cables with the Cable
Holder and the Cable Management.
2 Fix the Cable Management firmly to the TV.
(Only UB80**, UB82**, UB83**)
Cable Holder
Cable Management
1 Gather and bind the cables with the Cable
Holder.
(Only UF695*)
Cable Holder
CAUTION
yDo not move the TV by holding the cable
holder, as the cable holder may break, and
injuries and damage to the TV may occur.

A-6 MAKING CONNECTIONS
Italiano
Collegare il televisore all’antenna centralizzata
FRQXQFDYR5)
NOTA
yUtilizzare uno sdoppiatore del segnale
per usare più di 2 televisori.
ySe la qualità dell’immagine è scarsa,
installare correttamente un amplificatore
del segnale per migliorarla.
ySe la qualità dell’immagine è scarsa con
un’antenna collegata, provare a riallineare
l’antenna nella direzione corretta.
yIl cavo e il convertitore dell’antenna non
sono in dotazione.
yAudio DTV supportato: MPEG, Dolby
Digital, Dolby Digital Plus, HE-AAC
yQuesta TV non può ricevere direttamente
trasmissioni ULTRA HD (pixel 3840 x 2160)
perché non sono stati confermati i relativi
standard.
Satellite dish connection
(Only satellite models)
IN
13 / 18 V 700mA Max LNB IN
Satellite
IN
13 / 18 V
LNB IN
Satellite
700mA Max
(*Not Provided)
English
Connect the TV to a satellite dish to a satellite
socket with a satellite RF cable (75 ).
Italiano
Collegare la TV a un’antenna satellitare e a una
SUHVDVDWHOOLWDUHFRQXQFDYR5)VDWHOOLWDUH
MAKING CONNECTIONS
This section on MAKING CONNECTIONS mainly
uses diagrams for the UB83**-ZB models.

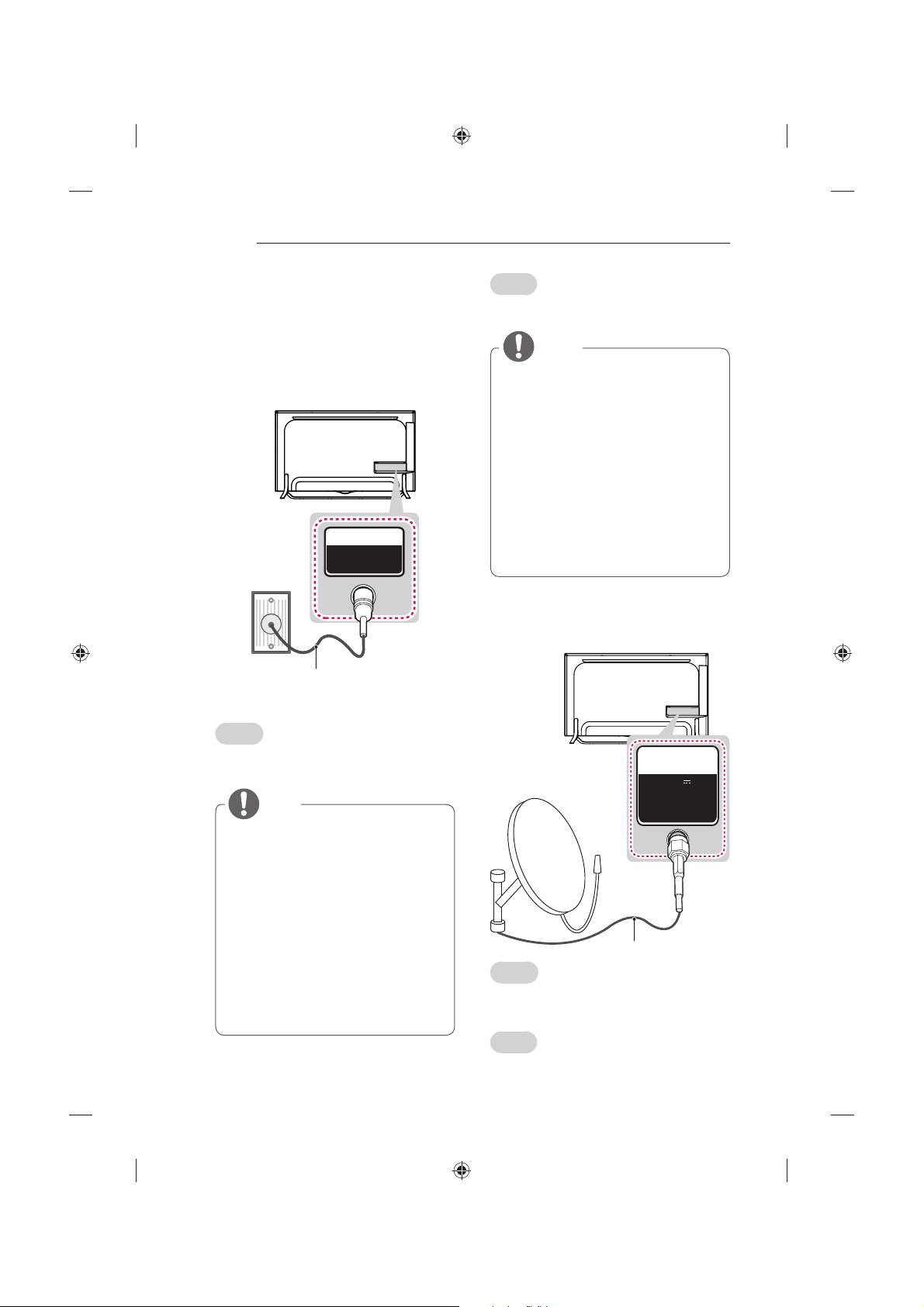

Antenna connection
IN
ANTENNA /
CABLE
(*Not Provided)
English
Connect the TV to a wall antenna socket with an
RF cable (75 ).
NOTE
yUse a signal splitter to use more than 2
TVs.
yIf the image quality is poor, install a signal
amplifier properly to improve the image
quality.
yIf the image quality is poor with an
antenna connected, try to realign the
antenna in the correct direction.
yAn antenna cable and converter are not
supplied.
ySupported DTV Audio: MPEG, Dolby
Digital, Dolby Digital Plus, HE-AAC
yThis TV cannot receive ULTRA HD
(3840 x 2160 pixels) broadcasts directly
because the related standards have not
been confirmed.

A-7
MAKING CONNECTIONS
HDMI connection
HDMI
/ DVI IN
(4K@60Hz)
2 (ARC)
1 (HDCP 2.2)
(4K@60Hz) /
DVI IN
3 (MHL)
DVD / Blu-Ray / HD Cable Box
/ HD STB / PC
(*Not Provided)
English
Transmits the digital video and audio signals
from an external device to the TV. Connect the
external device and the TV with the HDMI cable
as shown.
Choose any HDMI input port to connect. It does
not matter which port you use.
NOTE
yIt is recommended to use the TV with
the HDMI connection for the best image
quality.
yUse the latest High Speed HDMI™ Cable
with CEC (Customer Electronics Control)
function.
yHigh Speed HDMI™ Cables are tested
to carry an HD signal up to 1080p and
higher.
ySupported HDMI Audio format : Dolby
Digital (32 kHz, 44.1 kHz, 48 kHz),
DTS(44.1 kHz, 48 kHz), PCM (32 kHz,
44.1 kHz, 48 kHz, 96 kHz, 192 kHz)
4K @ 50/60 Hz Support Format
Resolution
Frame
rate
(Hz)
Colour Depth /
Chroma Sampling
3840 x 2160p
4096 x 2160p
50.00
59.94
60.00
8 bit / YCbCr 4:2:0

A-8 MAKING CONNECTIONS
Italiano
Il segnale digitale audio e video viene trasmesso
da un dispositivo esterno al televisore. Collegare il
dispositivo esterno e il televisore mediante il cavo
HDMI come mostrato nell’illustrazione di seguito.
Scegliere una porta di ingresso HDMI per il
collegamento. La scelta della porta è libera.
NOTA
ySi consiglia di utilizzare il televisore con
il collegamento HDMI per ottenere la
migliore qualità delle immagini.
yUtilizzare un cavo HDMI™ ad alta
velocità dotato dei requisiti più recenti
con funzione CEC (Customer Electronics
Control).
yI cavi HDMI™ ad alta velocità sono testati
per trasmettere un segnale HD fino a
1080p e superiore.
yFormato audio HDMI supportato : Dolby
Digital (32 kHz, 44,1 kHz, 48 kHz), DTS
(44,1 kHz, 48 kHz), PCM (32 kHz, 44,1
kHz, 48 kHz, 96 kHz, 192 kHz)
Formato supportato: 4K a 50/60 Hz
Risoluzione
Frequenza
fotogrammi
(Hz)
Intensità
di colore /
Campionamento
dei colori
3840 x 2160p
4096 x 2160p
50,00
59,94
60,00
8 bit / YCbCr 4:2:0
ARC (Audio Return Channel)
English
y An external audio device that supports
SIMPLINK and ARC must be connected
using HDMI (4K @ 60 Hz) / DVI IN 2
(ARC) port.
y When connected with a high-speed
HDMI cable, the external audio device
that supports ARC outputs optical SPDIF
without additional optical audio cable and
supports the SIMPLINK function.
Italiano
y Un dispositivo audio esterno che
supporta SIMPLINK e ARC deve essere
collegato tramite la porta HDMI (4K @ 60
Hz) / DVI IN 2 (ARC).
y Se si effettua il collegamento con un
cavo HDMI ad alta velocità, il dispositivo
audio esterno che supporta ARC
trasmette il segnale SPDIF senza il cavo
ottico aggiuntivo e supporta la funzione
SIMPLINK.

A-9
MAKING CONNECTIONS
Headphone connection
Headphone
OUT
EXT.SPEAKER
H/P
/
(*Not Provided)
English
Transmits the headphone signal from the TV to
an external device. Connect the external device
and the TV with the headphone as shown.
NOTE
yAUDIO menu items are disabled when
connecting a headphone.
yOptical Digital Audio Out is not available
when connecting a headphone.
yHeadphone impedance: 16 
yMax audio output of headphone: 0.627
mW to 1.334 mW
yHeadphone jack size: 0.35 cm
Italiano
&RQVHQWHODWUDVPLVVLRQHGHOVHJQDOHGHOOHFXI¿H
dalla TV a un dispositivo esterno. Collegare il
GLVSRVLWLYRHVWHUQRHOD79FRQOHFXI¿HFRPH
mostrato nell’illustrazione di seguito.
NOTA
y Le voci del menu AUDIO sono disabilitate
se sono collegate le cuffie.
y L’uscita audio ottica digitale non è
disponibile se sono collegate le cuffie.
y Impedenza cuffie: 16 
y 8VFLWDDXGLRPD[GHOOHFXI¿HGD
mW a 1,334 mW
y 'LPHQVLRQLMDFNSHUFXI¿DFP

A-10 MAKING CONNECTIONS

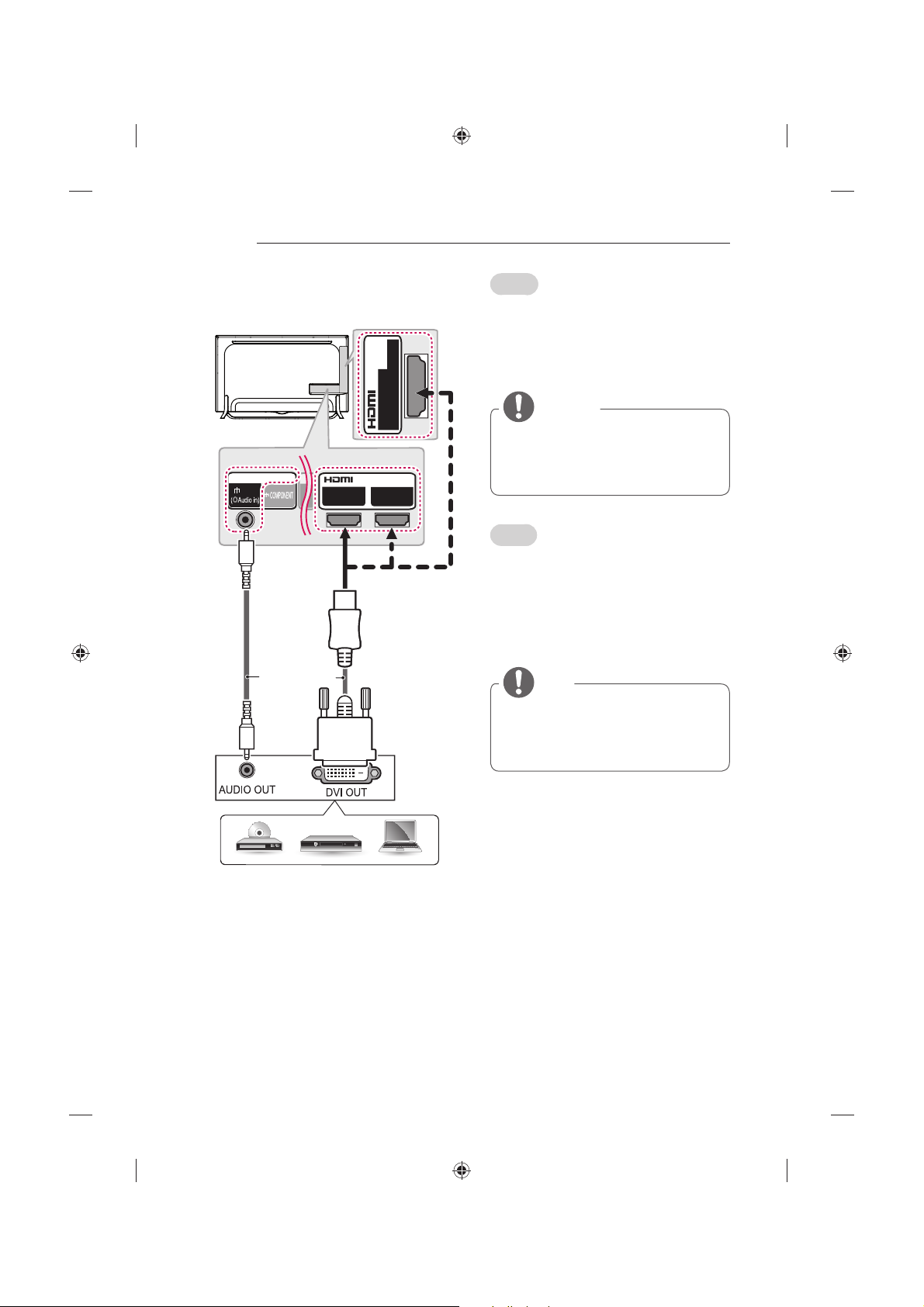

DVI to HDMI connection
IN
AV2
/
/
/ DVI IN
(4K@60Hz)
2 (ARC)
1 (HDCP 2.2)
(4K@60Hz)
/
DVI IN
3 (MHL)
DVD / Blu-Ray / HD Cable Box / HD STB / PC
(*Not Provided)
English
Transmits the digital video signal from an external
device to the TV. Connect the external device and
the TV with the DVI-HDMI cable as shown. To
transmit an audio signal, connect an audio cable.
Choose any HDMI input port to connect. It does
not matter which port you use.
NOTE
yDepending on the graphics card, DOS
mode may not work if a HDMI to DVI
Cable is in use.
yWhen using the HDMI/DVI cable, only
Single link is supported.
Italiano
Il segnale digitale video viene trasmesso da
un dispositivo esterno al televisore. Collegare
il dispositivo esterno e il televisore mediante il
cavo DVI-HDMI come mostrato nell’illustrazione
di seguito. Per trasmettere un segnale audio,
collegare un cavo audio.
Scegliere una porta di ingresso HDMI per il
collegamento. La scelta della porta è libera.
NOTA
yA seconda della scheda grafica in uso, la
modalità DOS potrebbe non funzionare
se si utilizza un cavo da HDMI a DVI.
yQuando si utilizza il cavo HDMI/DVI, è
supportata solo l’interfaccia Single link.
