LG 22LB4500-ZB User manual

Drawn Approved
Signature Yujin.Park Jongok.kim
MMM/DD/YYYY Jan/10/2014 Jan/10/2014
LB45-Z LG MFL68024513
PI (Eng/Ita) LB4500 (1402-REV01)
:LGEAK :LGEKR :LGERS
:LGEAZ :LGEMA :LGESY
:LGEEG :LGEMX :LGETH
:LGEIL :LGEND :LGEVN
:LGEIN :LGERA :LGEWR
:LGEAS
Checked
Jan/10/2014
Mira.Woo
:Part number
1. Model Description
Printing specification
Printed in Mexico
Printed in Poland
Printed in Kazakhstan
Printed in Brazil
:5. Language
:6. Number of pages
:Model name
:2nd, 3rd Suffix
:Brand name
:Product name
:1. Trim size (Format)
2. Printing colors
: • Cover
: • Inside
Printed in Korea
: • Inside
:4. Bindery
(Revision number)
2. Printing Specification
Rev. Number
MMM/DD/YYYY
64
148 mm x 210 mm (A5)
1 Color (Black)
1 Color (Black)
Uncoated, wood-free paper 60 g/㎡
Uncoated, wood-free paper 60 g/㎡
Saddle stitching
ENG/ITA (2)
3. Origin Notification
4. Changes
Printed in Mexico
Printed in Egypt
Printed in India
Printed in Algeria
3. Stock (Paper)
: • Cover
Additional standard information.
EKLE200389
Yujin Park
Feb/05/2014
Printed in Indonesia
Printed in Russia
Printed in Poland
Signature
Change Contents
ECO Number
N
O
T
E
“This part contains Eco-hazardous substances (Pb, Cd, Hg, Cr6+, PBB, PBDE, etc.) within LG standard level,
Details should be followed Eco-SCM management standard[LG(56)-A-2524].
Especially, Part should be followed and controlled the following specification.
(1) Eco-hazardous substances test report should be submitted when Part certification test and First Mass Production.
(2) Especially, Don’t use or contain lead(Pb) and cadmium(Cd) in ink.
Printed in China
Printed in China
Printed in Thailand
Printed in Vietnam
1
10
9
8
7
6
5
4
3
2
Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per LG LN661H 24"
(24LN661H) o cerca il tuo prodotto tra le migliori offerte di Televisori

Front
(Eng)
P/No. A-2 … … … … A-9 A-10
Front
(ENG)
2… … … … … 22
Front
(ITA)
2… … … … 25 Blank
Back
Cover
B-1 B-2 … … B-5 (Eng)
64 pages
:Total pages
:Part number
MFL68024513
Pagination sheet

www.lg.com
Please read this manual carefully before operating your set
and retain it for future reference.
LB45**
P/NO : MFL68024513 (1402-REV01)
Printed in Korea
OWNER’S MANUAL
LED TV*
* LG LED TV applies LCD screen with LED backlights.
*Mfl68024513*

TABLE OF CONTENTS
A-2
TABLE OF CONTENTS
A-3 SETTING UP THE TV
A-3 Attaching the stand
A-4 MAKING CONNECTIONS
A-4 Antenna connection
A-5 Satellite dish connection
A-5 Adapter connection
A-6 Euro Scart connection
A-7 Other connections
LANGUAGE LIST
English
Italiano
COMMON
LANGUAGE
COMMON
B-1 SPECIFICATIONS
B-4 REGULATORY

SETTING UP THE TV A-3
SETTING UP THE TV
Image shown may differ from your TV.
Attaching the stand
2
1
Stand Base
CAUTION
yWhen attaching the stand to the TV set, place
the screen facing down on a cushioned table or
at surface to protect the screen from scratches.

MAKING CONNECTIONS
A-4
Italiano
Collegare il televisore all’antenna centralizzata con
un cavo RF (75 Ω).
NOTA
yUtilizzare uno sdoppiatore del segnale per
usare più di 2 televisori.
ySe la qualità dell’immagine è scarsa,
installare correttamente un amplificatore del
segnale per migliorarla.
ySe la qualità dell’immagine è scarsa con
un’antenna collegata, provare a riallineare
l’antenna nella direzione corretta.
yIl cavo e il convertitore dell’antenna non sono in
dotazione.
yAudio DTV supportato: MPEG, Dolby Digital,
Dolby Digital Plus, HE-AAC
MAKING CONNECTIONS
This section on MAKING CONNECTIONS
mainly uses diagrams for the LB450U models.
Antenna connection
ANTENNA
/CABLE IN
(Not Provided)
English
Connect the TV to a wall antenna socket with an RF
cable (75 Ω).
NOTE
yUse a signal splitter to use more than 2 TVs.
yIf the image quality is poor, install a signal
amplifier properly to improve the image quality.
yIf the image quality is poor with an antenna
connected, try to realign the antenna in the
correct direction.
yAn antenna cable and converter are not
supplied.
ySupported DTV Audio: MPEG, Dolby Digital,
Dolby Digital Plus, HE-AAC

MAKING CONNECTIONS A-5
Satellite dish connection
(Only Satellite models)
13/18 V
700 mA Max
LNB IN
Satellite
(Not Provided)
English
Connect the TV to a satellite dish to a satellite socket
with a satellite RF cable (75 Ω).
Italiano
Collegare la TV a un’antenna satellitare e a una
presa satellitare con un cavo RF satellitare (75 Ω).
Adapter connection
DC-IN
or
AC-DC Adapter
DC-IN
AC-DC Adapter
English
CAUTION
yPlease be sure to connect the TV to the AC-DC
power adapter before connecting the TV’s power
plug to a wall power outlet.
Italiano
ATTENZIONE
yAssicurarsi di collegare la TV all’adattatore di
alimentazione CC prima di collegare la presa di
corrente della TV alla presa a muro.

MAKING CONNECTIONS
A-6
Italiano
Consente la trasmissione dei segnali audio e video
da un dispositivo esterno al televisore. Collegare il
dispositivo esterno e il televisore con il cavo Euro
Scart come mostrato nell’illustrazione di seguito.
Tipo di uscita
Modalità
di ingresso
corrente
AV1
(Uscita TV1)
TV digitale TV digitale
TV analogica TV analogica
Component, AV, HDMI
1 Uscita TV: uscite segnali TV analogica o TV
digitale.
NOTA
yI cavi Euro Scart devono essere schermati.
Euro Scart connection
(Not Provided)
English
Transmits the video and audio signals from an
external device to the TV set. Connect the external de-
vice and the TV set with the euro scart cable as shown.
Output Type
Current
input mode
AV1
(TV Out1)
Digital TV Digital TV
Analogue TV Analogue TV
Component, AV, HDMI
1 TV Out : Outputs Analogue TV or Digital TV
signals.
NOTE
yAny Euro scart cable used must be signal
shielded.

MAKING CONNECTIONS A-7

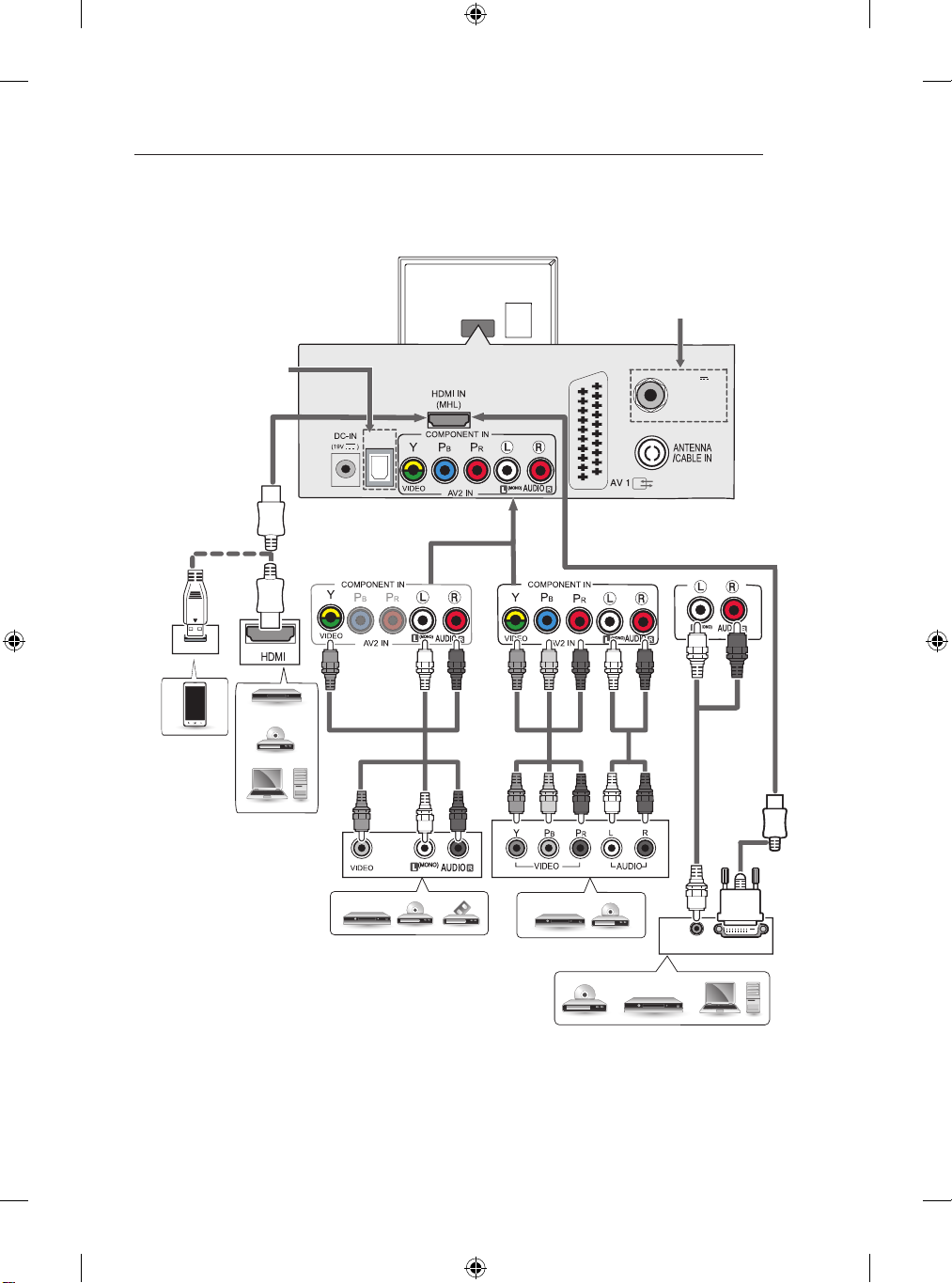

Other connections
R
R
(MONO)
L
R
(MONO)
L
(MONO)
L
DVI OUT
AUDIO OUT
(MONO)
L
LAN
13/18 V
700mA Max
LNB IN
Satellite
(MONO)
L
R
R
YELLOW
DVD / Blu-Ray /
HD Cable Box
DVD / Blu-Ray / HD Cable Box / PC
DVD / Blu-Ray / HD Cable Box / VCR
DVD / Blu-Ray / HD STB /
HD Cable Box / PC
Mobile
Phone
WHITE RED
WHITE
WHITE
RED
RED
RED
BLUE BLUE
GREENGREEN
RED
RED
WHITE
WHITE
RED
YELLOW
or
(Only satellite models)
(Only LAN PORT
models)

MAKING CONNECTIONS
A-8
USB / HDD1
Headphone
H / P
USB IN
PCMCIA
CARD SLOT

MAKING CONNECTIONS A-9
English
Connect your TV to external devices. For the best
picture and audio quality, connect the external device
and the TV with the HDMI cable as shown. Some
separate cable is not provided.
1 USB port supports 0.5A electric current.
If you need more electric current in case of HDD,
use the separate power adaptor.
Italiano
Collegare il TV ai dispositivi esterni. Per una migliore
qualità audio e delle immagini, collegare il dispositivo
esterno e il TV utilizzando il cavo HDMI come indicato
di seguito. Alcuni cavi separati non sono forniti con il
prodotto.
1 La porta USB supporta una corrente elettrica da
0,5 A. Se, nel caso di un'unità HHD, è necessaria
maggiore corrente, utilizzare un alimentatore di
corrente separato.
English
Connect various external devices to the TV and switch
input modes to select an external device. For more
information of external device’s connection, refer to the
manual provided with each device.
Available external devices are: HD receivers, DVD
players, VCRs, audio systems, USB storage devices,
PC, gaming devices, and other external devices.
NOTE
yThe external device connection may differ from
the model.
yConnect external devices to the TV regardless
of the order of the TV port.
yIf you record a TV programme on a DVD
recorder or VCR, make sure to connect the
TV signal input cable to the TV through a DVD
recorder or VCR. For more information of
recording, refer to the manual provided with the
connected device.
yRefer to the external equipment’s manual for
operating instructions.
yIf you connect a gaming device to the TV, use
the cable supplied with the gaming device.
yIn PC mode, there may be noise associated
with the resolution, vertical pattern, contrast or
brightness. If noise is present, change the PC
output to another resolution, change the refresh
rate to another rate or adjust the brightness and
contrast on the PICTURE menu until the picture
is clear.
yIn PC mode, some resolution settings may not
work properly depending on the graphics card.

MAKING CONNECTIONS
A-10
Italiano
Collegare diversi dispositivi esterni al televisore e
modicare la modalità di ingresso per selezionare
un dispositivo esterno. Per ulteriori informazioni sul
collegamento di un dispositivo esterno, consultare il
manuale fornito in dotazione con ciascun dispositivo.
È possibile collegare i seguenti dispositivi esterni:
ricevitori HD, lettori DVD, VCR, sistemi audio, perif-
eriche di archiviazione USB, PC, console per videogi-
ochi e altri dispositivi esterni.
NOTA
yIl collegamento del dispositivo esterno può
variare in base al modello.
yCollegare i dispositivi esterni al televisore
a prescindere dall’ordine della porta del
televisore.
ySe si registra un programma TV su un
registratore DVD o VCR, accertarsi di collegare
il cavo di ingresso del segnale al televisore
attraverso un registratore DVD o VCR. Per
ulteriori informazioni sulla registrazione,
consultare il manuale fornito in dotazione con il
dispositivo collegato.
yConsultare il manuale dell’apparecchiatura
esterna per le istruzioni operative.
ySe si collega una console per videogiochi alla
TV, utilizzare il cavo fornito con il dispositivo.
yIn modalità PC, possono essere presenti
interferenze relative alla risoluzione, schemi
verticali, contrasto o luminosità. In caso
di interferenze, modificare la modalità PC
impostando un’altra risoluzione o modificando
la frequenza di aggiornamento oppure regolare
luminosità e contrasto sul menu IMMAGINE
finché non si ottiene un’immagine nitida.
yA seconda della scheda grafica utilizzata,
alcune impostazioni di risoluzione potrebbero
non essere adatte alla modalità PC.

www.lg.com
Please read this manual carefully before operating your set
and retain it for future reference.
OWNER’S MANUAL
LED TV*
* LG LED TV applies LCD screen with LED backlights.

LICENSES / OPEN SOURCE SOFTWARE NOTICE
2
ENG
ENGLISH
LICENSES
Supported licenses may differ by model. For more information about licenses, visit www.lg.com.
Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol
are trademarks of Dolby Laboratories.
The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI logo are
trademarks or registered trademarks of HDMI Licensing LLC in the United States and
other countries.
ABOUT DIVX VIDEO: DivX®is a digital video format created by DivX, LLC, a subsidiary
of Rovi Corporation. This is an ofcial DivX Certied®device that has passed rigorous
testing to verify that it plays DivX video. Visit divx.com for more information and software
tools to convert your les into DivX video.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certied®device must be registered in
order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registra-
tion code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com
for more information on how to complete your registration.
“DivX Certied®to play DivX®video up to HD 1080p, including premium content.”
“DivX®, DivX Certied®and associated logos are trademarks of Rovi Corporation or its
subsidiaries and are used under license.”
“Covered by one or more of the following U.S. patents :
7,295,673; 7,460,668; 7,515,710; 7,519,274”
OPEN SOURCE SOFTWARE NOTICE
To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this product,
please visit http://opensource.lge.com.
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for
download.
LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing
such distribution (such as the cost of media, shipping and handling) upon email request to [email protected].
This offer is valid for three (3) years from the date on which you purchased the product.

ENGENGLISH
SAFETY INSTRUCTIONS 3
SAFETY INSTRUCTIONS
Please read these safety precautions carefully before using the product.
WARNING
yDo not place the TV and/or remote control in the following environments:
- A location exposed to direct sunlight
- An area with high humidity such as a bathroom
- Near any heat source such as stoves and other devices that produce heat
- Near kitchen counters or humidifiers where they can easily be exposed to steam
or oil
- An area exposed to rain or wind
- Near containers of water such as vases
Otherwise, this may result in fire, electric shock, malfunction or product deformation.
yDo not place the product where it might be exposed to dust.
This may cause a fire hazard.
yMains Plug is the TV connecting/disconnecting device to AC mains electric supply.
This plug must remain readily attached and operable when TV is in use.
yDo not touch the power plug with wet hands. Additionally, if the cord pin is wet or
covered with dust, dry the power plug completely or wipe dust off.
You may be electrocuted due to excess moisture.
yMake sure to connect Mains cable to compliant AC mains socket with Grounded
earth pin. (Except for devices which are not grounded on earth.) Otherwise
possibility you may be electrocuted or injured.
yInsert power cable plug completely into wall socket otherwise if not secured
completely into socket, fire ignition may break out.
yEnsure the power cord does not come into contact with hot objects such as a heater.
This may cause a fire or an electric shock hazard.
yDo not place a heavy object, or the product itself, on power cables.
Otherwise, this may result in fire or electric shock.

SAFETY INSTRUCTIONS
4
ENG
ENGLISH
yBend antenna cable between inside and outside building to prevent rain from flowing
in.
This may cause water damaged inside the Product and could give an electric shock.
yWhen mounting TV onto wall make sure to neatly install and isolate cabling from
rear of TV as to not create possibility of electric shock /fire hazard.
yDo not plug too many electrical devices into a single multiple electrical outlet.
Otherwise, this may result in fire due to over-heating.
yDo not drop the product or let it fall over when connecting external devices.
Otherwise, this may result in injury or damage to the product.
yKeep the anti-moisture packing material or vinyl packing out of the reach of children.
Anti-moisture material is harmful if swallowed. If swallowed by mistake, force the
patient to vomit and visit the nearest hospital. Additionally, vinyl packing can cause
suffocation. Keep it out of the reach of children.
yDo not let your children climb or cling onto the TV.
Otherwise, the TV may fall over, which may cause serious injury.
yDispose of used batteries carefully to ensure that a small child does not consume
them.
Please seek Doctor- Medical Attention immediately if child consumes batteries.
yDo not insert any metal objects/conductors (like a metal chopstick/cutlery/
screwdriver) between power cable plug and input Wall Socket while it is connected
to the input terminal on the wall. Additionally, do not touch the power cable right after
plugging into the wall input terminal. You may be electrocuted.
(Depending on model)
yDo not put or store inflammable substances near the product.
There is a danger of combustion/explosion or fire due to careless handling of the
inflammable substances.
yDo not drop metallic objects such as coins, hair pins, chopsticks or wire into the
product, or inflammable objects such as paper and matches. Children must pay
particular attention.
Electrical shock, fire or injury can occur. If a foreign object is dropped into the
product, unplug the power cord and contact the service centre.
yDo not spray water on the product or scrub with an inflammable substance (thinner
or benzene). Fire or electric shock accident can occur.

ENGENGLISH
SAFETY INSTRUCTIONS 5
yDo not allow any impact, shock or any objects to fall into the unit, and do not drop
anything onto the screen.
You may be injured or the product can be damaged.
yNever touch this product or antenna during a thunder or lighting storm.
You may be electrocuted.
yNever touch the wall outlet when there is leakage of gas, open the windows and
ventilate.
It may cause a fire or a burn by a spark.
yDo not disassemble, repair or modify the product at your own discretion.
Fire or electric shock accident can occur.
Contact the service centre for check, calibration or repair.
yIf any of the following occur, unplug the product immediately and contact your local
service centre.
- The product has been impacted by shock
- The product has been damaged
- Foreign objects have entered the product
- The product produced smoke or a strange smell
This may result in fire or electric shock.
yUnplug the TV from AC mains wall socket if you do not intend to use the TV for a
long period of time.
Accumulated dust can cause fire hazard and insulation deterioration can cause electric
leakage/shock/fire.
yApparatus shall not be exposed to dripping or splashing and no objects filled with
liquids, such as vases, shall be placed on the apparatus.
yDo not install this product on a wall if it could be exposed to oil or oil mist.
This may damage the product and cause it to fall.
CAUTION
yInstall the product where no radio wave occurs.
yThere should be enough distance between an outside antenna and power lines to
keep the former from touching the latter even when the antenna falls.
This may cause an electric shock.

SAFETY INSTRUCTIONS
6
ENG
ENGLISH
yDo not install the product on places such as unstable shelves or inclined surfaces. Also
avoid places where there is vibration or where the product cannot be fully supported.
Otherwise, the product may fall or flip over, which may cause injury or damage to the
product.
yIf you install the TV on a stand, you need to take actions to prevent the product from
overturning. Otherwise, the product may fall over, which may cause injury.
yIf you intend to mount the product to a wall, attach VESA standard mounting interface (optional parts) to
the back of the product. When you install the set to use the wall mounting bracket (optional parts), fix it
carefully so as not to drop.
yOnly use the attachments / accessories specified by the manufacturer.
yWhen installing the antenna, consult with a qualified service technician. If not
installed by a qualified technician, this may create a fire hazard or an electric shock
hazard.
yWe recommend that you maintain a distance of at least 2 to 7 times the diagonal
screen size when watching TV.
If you watch TV for a long period of time, this may cause blurred vision.
yOnly use the specified type of battery.
This could cause damage to the remote control.
yDo not mix new batteries with old batteries.
This may cause the batteries to overheat and leak.
yBatteries should not be exposed to excessive heat. For example, keep away from direct Sunlight , open
fireplace and electric heaters .
yDo not place non-rechargeable batteries in charging device.
yMake sure there are no objects between the remote control and its sensor.
ySignal from Remote Control can be interrupted due to external/internal lighting eg
Sunlight, fluorescent lighting.
If this occurs turn off lighting or darken viewing area.
yWhen connecting external devices such as video game consoles, make sure the
connecting cables are long enough.
Otherwise, the product may fall over, which may cause injury or damage the product.
yDo not turn the product On/Off by plugging-in or unplugging the power plug to the
wall outlet. (Do not use the power plug for switch.)
It may cause mechanical failure or could give an electric shock.

ENGENGLISH
SAFETY INSTRUCTIONS 7

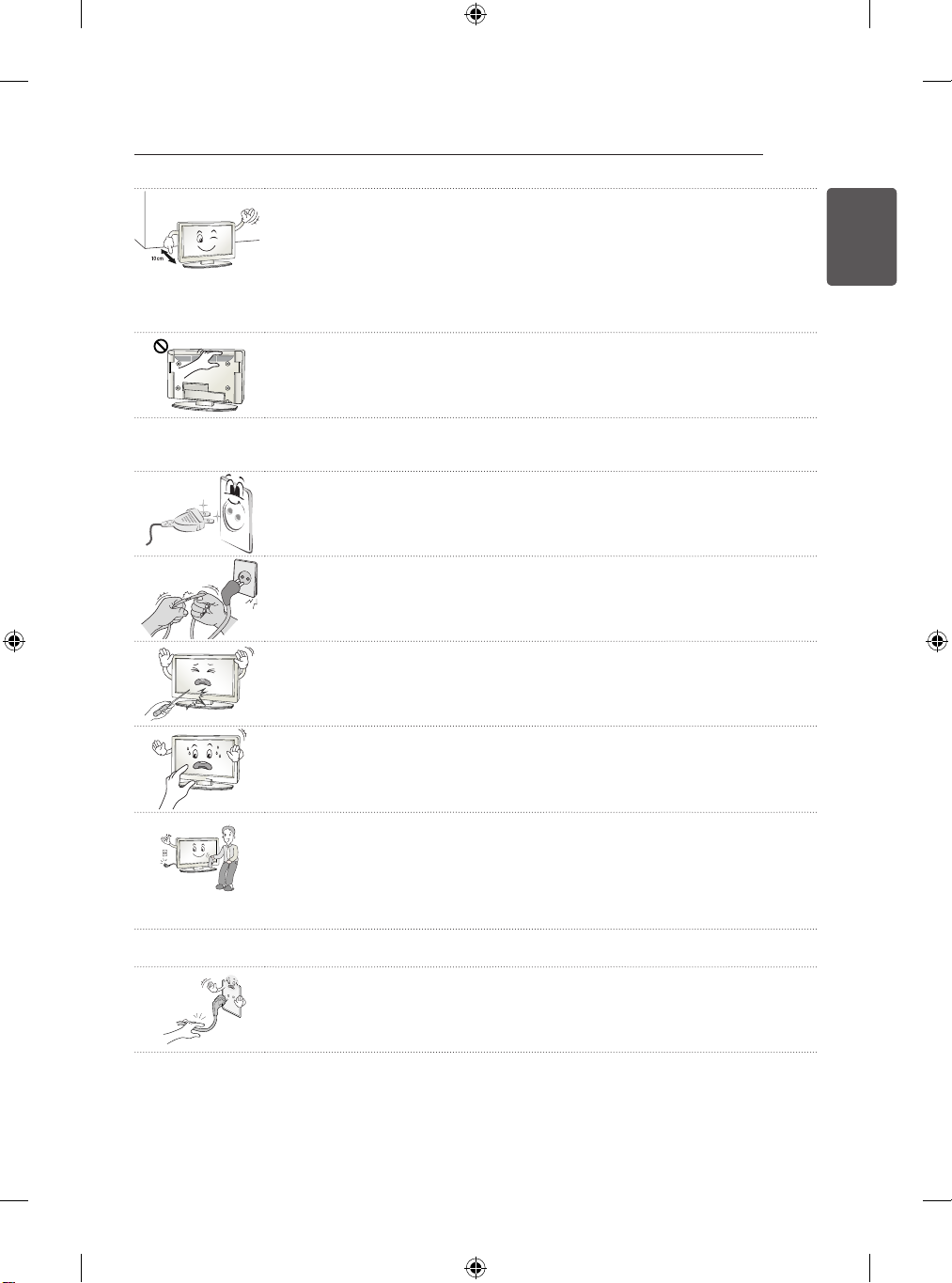

yPlease follow the installation instructions below to prevent the product from
overheating.
- The distance between the product and the wall should be more than 10 cm.
- Do not install the product in a place with no ventilation (e.g., on a bookshelf or in a
cupboard).
- Do not install the product on a carpet or cushion.
- Make sure the air vent is not blocked by a tablecloth or curtain.
Otherwise, this may result in fire.
yTake care not to touch the ventilation openings when watching the TV for long
periods as the ventilation openings may become hot. This does not affect the
operation or performance of the product.
yPeriodically examine the cord of your appliance, and if its appearance indicates damage or deterioration,
unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by
an authorized servicer.
yPrevent dust collecting on the power plug pins or outlet.
This may cause a fire hazard.
yProtect the power cord from physical or mechanical abuse, such as being twisted,
kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs,
wall outlets, and the point where the cord exits the appliance.
yDo not press strongly upon the panel with a hand or sharp object such as nail, pencil
or pen, or make a scratch on it, as it may cause damage to screen.
yAvoid touching the screen or holding your finger(s) against it for long periods of time.
Doing so may produce some temporary or permanent distortion/damage to screen.
yWhen cleaning the product and its components, unplug the power first and wipe it
with a soft cloth. Applying excessive force may cause scratches or discolouration.
Do not spray with water or wipe with a wet cloth. Never use glass cleaner, car or
industrial shiner, abrasives or wax, benzene, alcohol etc., which can damage the
product and its panel.
Otherwise, this may result in fire, electric shock or product damage (deformation,
corrosion or breakage).
yAs long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source
even if you turn off this unit by SWITCH.
yWhen unplugging the cable, grab the plug and unplug it, by pulling at the plug.
Don’t pull at the cord to unplug the power cord from the power board, as this could be
hazardous.

SAFETY INSTRUCTIONS
8
ENG
ENGLISH
yWhen moving the product, make sure you turn the power off first. Then, unplug the power
cables, antenna cables and all connecting cables.
The TV set or power cord may be damaged, which may create a fire hazard or cause
electric shock.
yWhen moving or unpacking the product, work in pairs because the product is heavy.
Otherwise, this may result in injury.
yContact the service centre once a year to clean the internal parts of the product.
Accumulated dust can cause mechanical failure.
yRefer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way, such as power supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been dropped.
yIf the product feels cold to the touch, there may be a small “flicker” when it is turned on.
This is normal, there is nothing wrong with product.
yThe panel is a high technology product with resolution of two million to six million pixels.
You may see tiny black dots and/or brightly coloured dots (red, blue or green) at a size
of 1 ppm on the panel. This does not indicate a malfunction and does not affect the
performance and reliability of the product.
This phenomenon also occurs in third-party products and is not subject to exchange or
refund.
yYou may find different brightness and colour of the panel depending on your viewing
position(left/right/top/down).
This phenomenon occurs due to the characteristic of the panel. It is not related with the
product performance, and it is not malfunction.
yDisplaying a still image (e.g., broadcasting channel logo, on-screen menu, scene from a video game) for
a prolonged time may cause damage to the screen, resulting in retention of the image, which is known as
image sticking. The warranty does not cover the product for image sticking.
Avoid displaying a fixed image on your television’s screen for a prolonged period (2 or more hours for LCD, 1
or more hours for Plasma).
Also, if you watch the TV at a ratio of 4:3 for a long time, image sticking may occur on the borders of the
panel.
This phenomenon also occurs in third-party products and is not subject to exchange or refund.
yGenerated Sound
“Cracking” noise: A cracking noise that occurs when watching or turning off the TV is generated by plastic
thermal contraction due to tempera-ture and humidity. This noise is common for products where thermal
deformation is required. Electrical circuit humming/panel buzzing: A low level noise is generated from a high-
speed switching circuit, which supplies a large amount of current to operate a product. It varies depend-ing
on the product.
This generated sound does not affect the performance and reliability of the product.
