LG 22TK420A User manual

LED TV
22TK420A
www.lg.com
AAA
X 4
(M4 X L10)
*MFL70381104*
(1711-REV00)
English Read Safety and Reference.
Français Lire le document Sécurité et référence.
Português Consulte o manual Segurança e referência.
ภาษาไทย อ่านคู่มือการใช้งานความปลอดภัยและการอ้างอิง
Tiếng Việt Đọc An toàn và Tham khảo.
Depending on model
Selon le modèle
Dependendo do modelo
ขึ้นอยู่กับรุ่น
Tùy theo kiểu sản phẩm
.

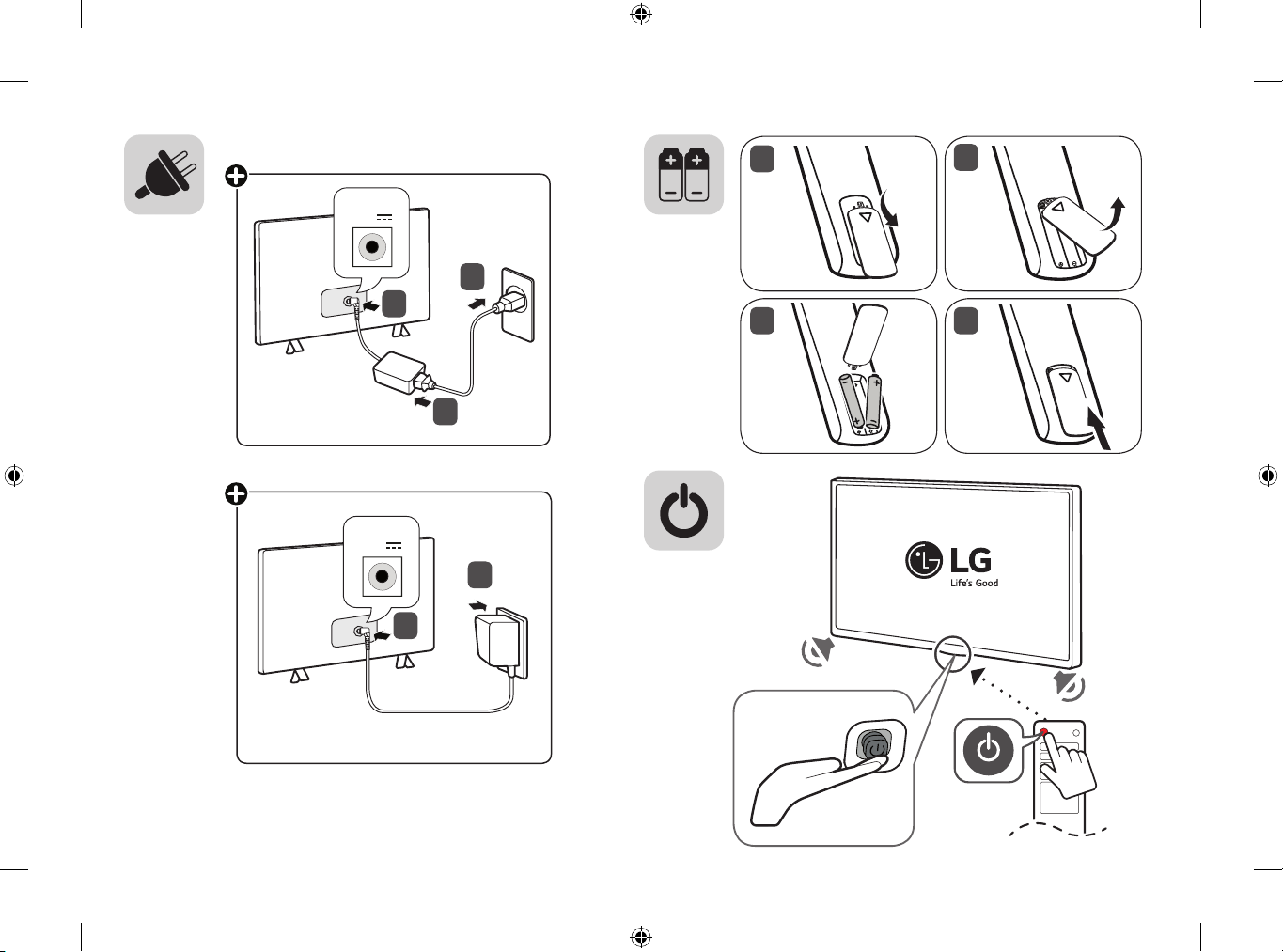

1 2

USB IN
5 V 0.5 A
HDMI IN
AUDIO OUT
RGB IN (PC)
AV IN
D
C
-I
N
(19 V )
ANTENNA
/CABLE IN
VIDEO L/MONO LR R
AUDIO AUDIO OUT
AUDIO IN
VIDEO LR
LR
AUDIO OUT
AV IN
VIDEO
VID
V
L/MONO R
AUDIO
USB IN
5 V 0.5 A
HDMI IN
AUDIO OUT
RGB IN (PC)
AV IN
D
C
-I
N
(19 V )
ANTENNA
/CABLE IN
VIDEO L/MONO LR R
AUDIO AUDIO OUT
AUDIO IN
VIDEO LR
LR
AUDIO OUT
AV IN
VIDEO
VID
V
L/MONO R
AUDIO

12
4
3
DC-IN
(19 V )
1
2
3
DC-IN
(19 V )
2
1

22TK420A
Copyright © 2017 LG Electronics Inc. All Rights Reserved.
*MFL69387006*
(1711-REV00)
Please read this manual carefully before operating your TV and retain it for
future reference.
www.lg.com
OWNER’S MANUAL
Safety and Reference
LED TV*
*Disclaimer
LG LED TVs are LCD TVs with LED backlighting.

ENGLISH
2
Service
Unplug the monitor from the wall outlet and refer servicing to
qualied service personnel when :
yThe power cord or plug is damaged or frayed.
yLiquid has been spilled into the monitor.
yThe monitor has been exposed to rain or water.
yThe monitor does not operate normally following the operating
instructions. Adjust only those controls that are covered in the
operating instructions. An improper adjustment of other controls
may result in damage and often requires extensive work by a
qualied technician to restore the monitor to normal operation.
yThe monitor has been dropped or the cabinet has been damaged.
yThe monitor exhibits a distinct change in performance.
ySnapping or popping from the monitor is continuous or frequent
while the monitor is operating. It is normal for some monitors to
make occasional sounds when being turned on or o, or when
changing video modes.
Do not attempt to service the monitor yourself, as opening or
removing covers may expose you to dangerous voltage or other
hazards. Refer all servicing to qualied service personnel.
Table of contents
3 Safety precautions
5 Licenses
5 Open source software notice information
6 Preparing
6 Lifting and moving the TV
7 Setting up the TV
7 Using the Joystick button
8 Mounting on a table
8 Mounting on a wall
9 Connections (notications)
10 Remote control
11 Watching TV
12 Entertainment
18 Customizing TV setting
20 Teletext
21 Maintenance
22 Troubleshooting
23 Specications
25 Environmental information

ENGLISH
3
Safety precautions
Please read these safety precautions carefully before using the
product.
WARNING
If you ignore the warning message, you may be seriously injured
or there is a possibility of accident or death.
CAUTION
If you ignore the caution message, you may be slightly injured or
the product may be damaged.
Precautions in installing the product
WARNING
yKeep away from heat sources like electrical heaters.
►Electrical shock, re, malfunction or deformation may occur.
yKeep the packing anti-moisture material or vinyl packing out of the
reach of children.
►Anti-moisture material is harmful if swallowed. If swallowed
by mistake, force the patient to vomit and visit the nearest
hospital. Additionally, vinyl packing can cause suocation.
Keep it out of the reach of children.
yDo not put heavy objects on the product or sit upon it.
►If the product collapses or is dropped, you may be injured.
Children must pay particular attention.
yDo not leave the power or signal cable unattended on the pathway.
►The passerby can falter, which can cause electrical shock, re,
product breakdown or injury.
yInstall the product in a neat and dry place.
►Dust or moisture can cause electrical shock, re or product
damage.
yIf you can smell smoke or other odors or hear a strange sound
unplug the power cord and contact the service center.
►If you continue to use without taking proper measures,
electrical shock or re can occur.
yIf you dropped the product or the case is broken, turn o the
product and unplug the power cord.
►If you continue to use without taking proper measures,
electrical shock or re can occur. Contact the service center.
yDo not drop an object on or apply impact to the product. Do not
throw any toys or objects on the product screen.
►It can cause injury to human, problem to product and damage
the display.
yDo not let the product fall or drop when connecting it with an
external device.
►This may cause injury and/or damage to the product.
yWhen connecting it with a game device, keep a distance of four
times as long as the diagonal measurement of the screen from the
device.
►If the product falls because of the short cable, this may cause
injury and/or damage to the product.
yLeaving a xed image on the screen for a long time may cause
damage to the screen and cause image burn-in.To use the product
for a long period of time, use a screen saver on the PC or utilize
the residual image prevention function on the product, and when
the product is not used, turn o the power. Burn-in and related
problems are not covered by the warranty on this product.
yDo NOT install this product on a wall where there is high risk of
exposure to oil fumes or mist.
►This may damage product and cause is to fail.
CAUTION
yMake sure the product ventilation hole is not blocked. Install the
product in a suitably wide place (more than 100 mm from the wall).
►If you install the product too close to the wall, it may be
deformed or re can break out due to internal heat.
yDo not block the ventilation hole of the product by a tablecloth or
curtain.
►The product can be deformed or re can break out due to
overheating inside the product.
yInstall the product on a at and stable place that has no risk of
dropping the product.
►If the product is dropped, you may be injured or the product
may be broken.
yInstall the product where no EMI occurs.
yKeep the product away from direct sunlight.
►The product can be damaged.
yIf you install the product in a place that does not meet the
recommended conditions, this may cause serious damage to the
product's picture quality, life cycle and appearance. Please check
with LG or a qualied installer before installing. This caution applies
to a place where there is an abundance of ne dust or oil mist,
chemical substances are used, the temperature is very high or low,
the humidity is very high, or the product is likely to remain turned
on for a long period of time (airport and train station), failure to do
so will invalidate the warranty.
yDo not install the product in an area with poor ventilation (e.g.on
a bookshelf, in a closet) or outside and avoid placing on cushions
or carpets.
yIn addition, do not install it where there are heating objects such as
lighting equipment.
Precautions to the AC adapter and
electrical power
WARNING
yIf water or any foreign substance goes inside the product (TV,
monitor, power cord, or AC adapter), disconnect the power cord
immediately and contact the service center.
►Otherwise, this may cause a re or electric shock due to
damage to the product.
yDo not touch the power plug or AC adapter with wet hands. If the
pins of the plug are wet or dusty, wipe and dry them before use.
►Otherwise, this may cause a re or electric shock.
yMake sure to completely insert the power cord into the AC adapter.
►If loosely connected, the poor connection may cause a re or
electric shock.

ENGLISH
4
yBe sure to use power cords and AC adapters provided or approved by
LG Electronics, Inc.
►The use of non-approved products may cause a re or electric
shock.
yWhen unplugging the power cord, always pull it by the plug. Do not
bend the power cord with excessive force.
►The power line can be damaged, which may cause electric
shock or re.
yBe careful not to step or place heavy objects (electronic appliances,
clothing, etc.) on the power cord or AC adapter. Be careful not to
damage the power cord or AC adapter with sharp objects.
►Damaged power cords may cause a re or electric shock.
yNever disassemble, repair or modify the power cord or AC adapter.
►This may cause a re or electric shock.
yMake sure to connect the power cable to the grounded current.
►You may be electrocuted or injured.
yUse the rated voltage only.
►The product can be damaged, or you may be electrocuted.
yIn the presence of thunder and lightning, never touch the power
cord and signal cable because it can be very dangerous.
►It can cause electric shock.
yDo not connect several extension cords, electrical appliances
or electrical heaters to a single outlet. Use a power bar with a
grounding terminal designed for exclusive use with the computer.
►A re can break out due to overheating.
yDo not touch the power plug with wet hands. Additionally, if the
cord pin is wet or covered with dust, dry the power plug completely
or wipe dust o.
►You may be electrocuted due to excess moisture.
yIf you don't intend to use the product for a long time, unplug the
power cable from the product.
►Covering dust can cause a re, or insulation deterioration can
cause electric leakage, electric shock or re.
yFix the power cable completely.
►If the power cable is not xed completely, a re can break out.
yDo not insert a conductor (like a metal chopstick) into one end
of the power cable while the other end is connected to the input
terminal on the wall. Additionally, do not touch the power cable
right after plugging into the wall input terminal.
►You may be electrocuted.
yThe AC Cord is the disconnecting device.
yPlease make sure the device is installed near the wall outlet to
which it is connected and that the outlet is easily accessible.
yAs long as this unit is connected to the AC wall outlet, it is not
disconnected from the AC power source even if the unit is turned o.
CAUTION
yBe sure to keep the outlet, AC adapter, and pins of the power plug
clean from dust and etc.
►This may cause a re.
yDo not unplug the power cord while the product is in use.
►Electrical shock can damage the product.
yUse only the power cord supplied with the unit. If you use another
power cord, make sure that it is certied by the applicable national
standards when not provided by the supplier. If the power cable is
faulty in any way, please contact the manufacturer or the nearest
authorized repair service provider for a replacement.
Precautions in moving the product
WARNING
yMake sure to turn o the product.
►You may be electrocuted or the product can be damaged.
yMake sure to remove all cables before moving the product.
►You may be electrocuted or the product can be damaged.
yMake sure the panel faces forward and hold it with both hands to
move. If you drop the product, the damaged product can cause
electric shock or re. Contact an authorized the service center for
repair.
yMake sure the product is turned o, unplugged and all cables
have been removed. It may take 2 or more people to carry larger
apparatus. Do not press against or put stress on the front panel of
the apparatus.
CAUTION
yDo not shock the product when moving it.
►You may be electrocuted or the product can be damaged.
yDo not dispose the product-packing box. Use it when you move.
Precautions in using the product
WARNING
yDo not disassemble, repair or modify the product at your own
discretion.
►Fire or electric shock accident can occur.
►Contact the service center for check, calibration or repair.
yWhen the display is to be left unattended for an extended period of
time, unplug it from the wall outlet.
yKeep the product away from water.
►Fire or electric shock accident can occur.
yDo not shock or scratch the front and sides of the screen with
metallic objects.
►Otherwise, it may cause damage to the screen.
yAvoid high temperatures and humidity.
CAUTION
yDo not put or store inammable substances near the product.
►There is a danger of explosion or re due to careless handling
of the inammable substances.
yWhen cleaning the product, unplug the power cord and scrub
gently with a soft cloth to prevent scratching. Do not clean with a
wet cloth or spray water or other liquids directly onto the product.
An electric shock may occur. (Do not use chemicals such as benzene,
paint thinners or alcohol)
yTake a rest from time to time to protect your vision.

ENGLISH
5
yKeep the product clean at all times.
yTake a comfortable and natural position when working with a
product to relax the muscles.
yTake a regular break when working with a product for a long time.
yDo not press strongly upon the panel with a hand or a sharp object
such as a nail, pencil or pen, or make a scratch on it.
yKeep the proper distance from the product.
►Your vision may be impaired if you look at the product too
closely.
ySet the appropriate resolution and clock by referring to the User’s
Guide.
►Your vision can be impaired.
yUse authorized detergent only when cleaning the product. (Do not
use benzene, thinner or alcohol.)
►Product can be deformed.
yDo not expose to dripping or splashing and do not place objects
lled with liquids, such as vases, cups, etc. on or over the apparatus
(e.g. on shelves above the unit).
yBatteries should not be exposed to excessive heat. For example,
keep away from direct sunlight, open replace and electric heaters.
yDo NOT place non-rechargeable batteries in charging device.
yUsing headsets (earphones) for a long time or listening loudly can
cause damage to your hearing.

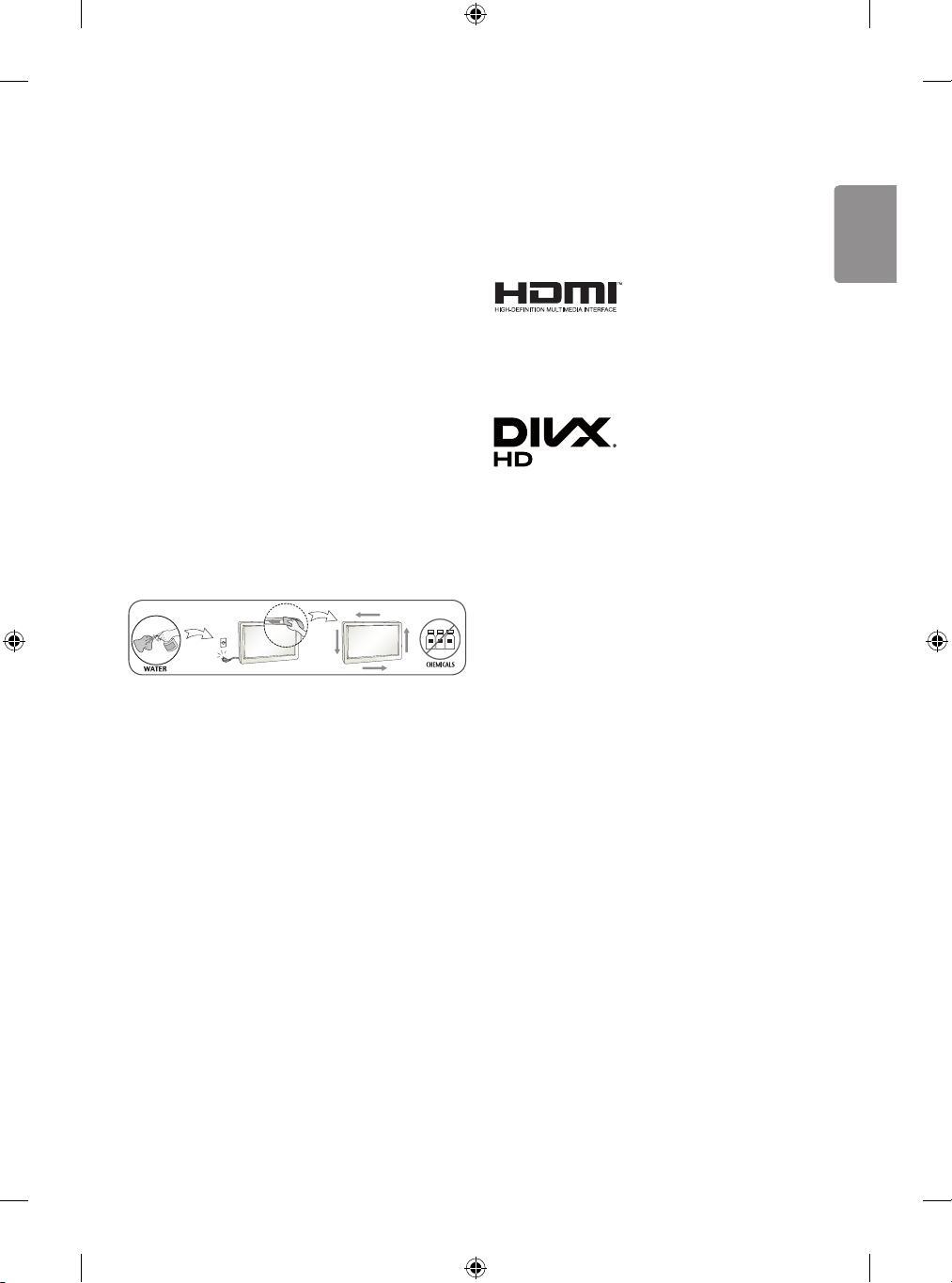

ySpray water onto a soft cloth 2 to 4 times, and use it to clean the
front frame; wipe in one direction only.Too much moisture may
cause staining.
yDo not use products using high voltage around the Monitor. (ex.
Electrical Swatter)
►Monitor may have malfunction as its electrical shock.
Mounting on a wall
yDo NOT install this product by yourself as you may injure yourself
or cause damage to product. Please contact Service personnel
authorised by Manufacturer.
Licenses
Supported licenses may dier by model. For more information about
licenses, visit www.lg.com.
Manufactured under license from Dolby Laboratories. Dolby, Dolby
Vision, Dolby Audio, Dolby Atmos, and the double-D symbol are
trademarks of Dolby Laboratories.
The terms HDMI and HDMI High-Denition Multimedia Interface,
and the HDMI Logo are trademarks or registered trademarks of
HDMI Licensing Administrator, Inc. in the United States and other
countries.
This DivX Certied® device has passed rigorous testing to ensure it
plays DivX® video.
To play purchased DivX movies, rst register your device at
vod.divx.com. Find your registration code in the DivX VOD section of
your device setup menu.
DivX Certied® to play DivX® video up to HD 1080p, including
premium content.
DivX®, DivX Certied® and associated logos are trademarks of DivX,
LLC and are used under license.
Covered by DivX Patents 7,295,673; 7,515,710; RE45,052; and
others available at [www.divx.com/patents]
Open source software
notice information
To obtain the source code under GPL, LGPL, MPL, and other open
source licenses, that is contained in this product, please visit http://
opensource.lge.com.
In addition to the source code, all referred license terms, warranty
disclaimers and copyright notices are available for download.
LG Electronics will also provide open source code to you on CD-ROM
for a charge covering the cost of performing such distribution (such
as the cost of media, shipping, and handling) upon email request to
opensourc[email protected].
This oer is valid for a period of three years after our last shipment of
this product.This oer is valid to anyone in receipt of this information.

ENGLISH
6
Preparing
NOTE
yImage shown may dier from yourTV.
yYour TV’s OSD (On Screen Display) may dier slightly from that
shown in this manual.
yThe available menus and options may dier from the input source
or product model that you are using.
yNew features may be added to thisTV in the future.
yTheTV can be placed in standby mode in order to reduce the power
consumption. And theTV should be turned o if it will not be
watched for some time, as this will reduce energy consumption.
yThe energy consumed during use can be signicantly reduced if the
level of brightness of the picture is reduced, and this will reduce the
overall running cost.
yThe items supplied with your product may vary depending upon
the model.
yProduct specications or contents of this manual may be changed
without prior notice due to upgrade of product functions.
yFor an optimal connection, HDMI cables and USB devices should
have bezels less than 10 mm thick and 18 mm width.
yUse an extension cable that supports USB 2.0 if the USB cable or
USB memory stick does not t into your TV’s USB port.
A
B
A
B
*A 10 mm
*B 18 mm
yUse a certied cable with the HDMI logo attached. If you do not use
a certied HDMI cable, the screen may not display or a connection
error may occur.
yRecommended HDMI cable types
-High-Speed HDMI®/TM cable
-High-Speed HDMI®/TM cable with Ethernet
CAUTION
yDo not use any unapproved items to ensure the safety and product
life span.
yAny damage or injuries caused by using unapproved items are not
covered by the manufacturer’s warranty.
ySome models have a thin lm attached on to the screen and this
must not be removed.

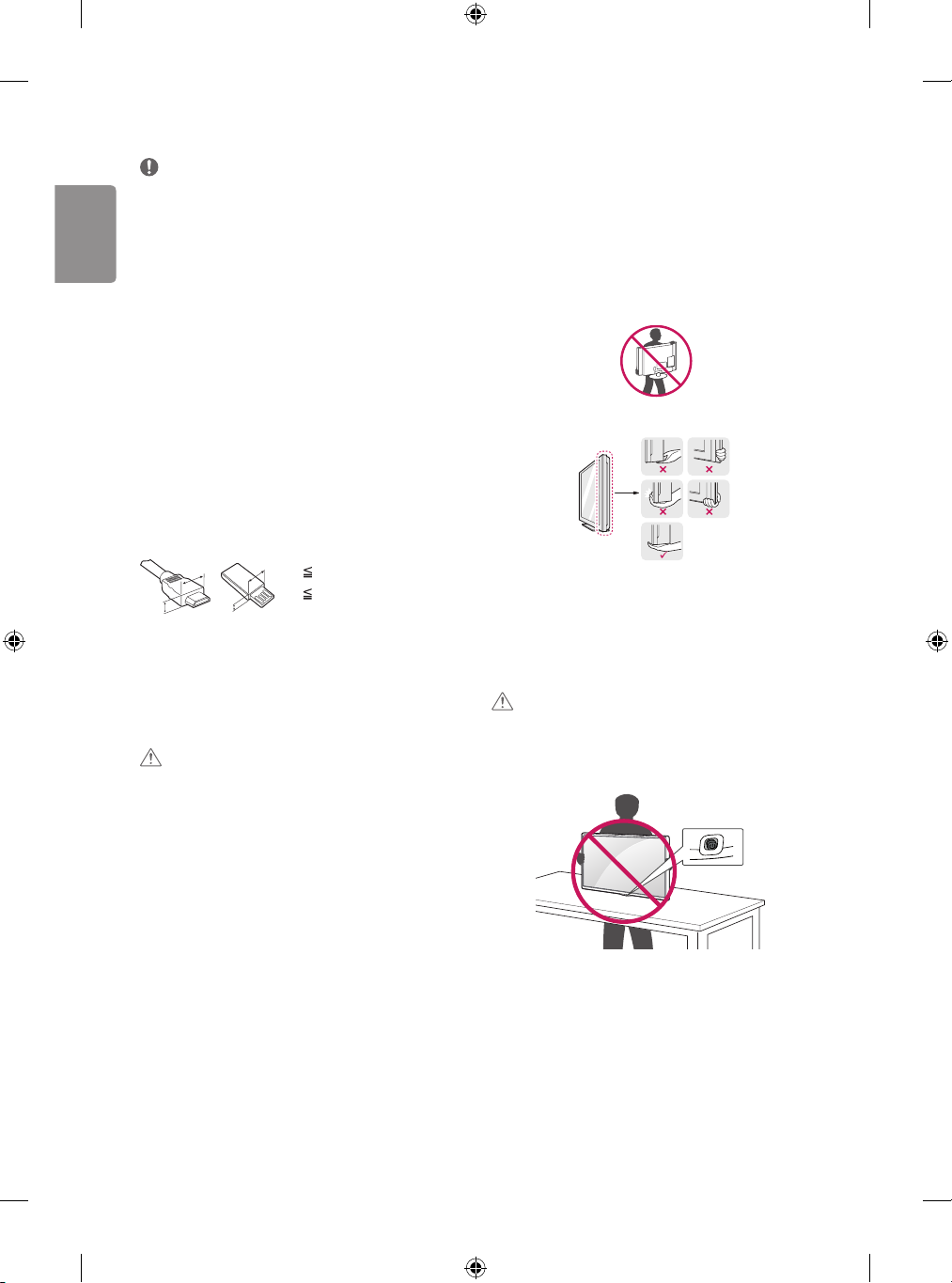

Lifting and moving the TV
Please note the following advice to prevent theTV from being
scratched or damaged and for safe transportation regardless of its
type and size.
yIt is recommended to move theTV in the box or packing material
that theTV originally came in.
yBefore moving or lifting theTV, disconnect the power cord and all
cables.
yWhen holding the TV, the screen should face away from you to
avoid damage.
yHold the top and bottom of theTV frame rmly. Make sure not to
hold the transparent part, speaker, or speaker grille area.
yWhen transporting the TV, do not expose the TV to jolts or excessive
vibration.
yWhen transporting the TV, keep theTV upright, never turn theTV
on its side or tilt towards the left or right.
yDo not apply excessive pressure to cause exing /bending of frame
chassis as it may damage screen.
CAUTION
yAvoid touching the screen at all times, as this may result in damage
to the screen.
yWhen handling the TV, be careful not to damage the protruding
joystick button.(depending on model)

ENGLISH
7
Setting up the TV
CAUTION
yDo not carry theTV upside-down by holding the stand body (or
stand base) as this may cause it to fall o, resulting in damage or
injury.

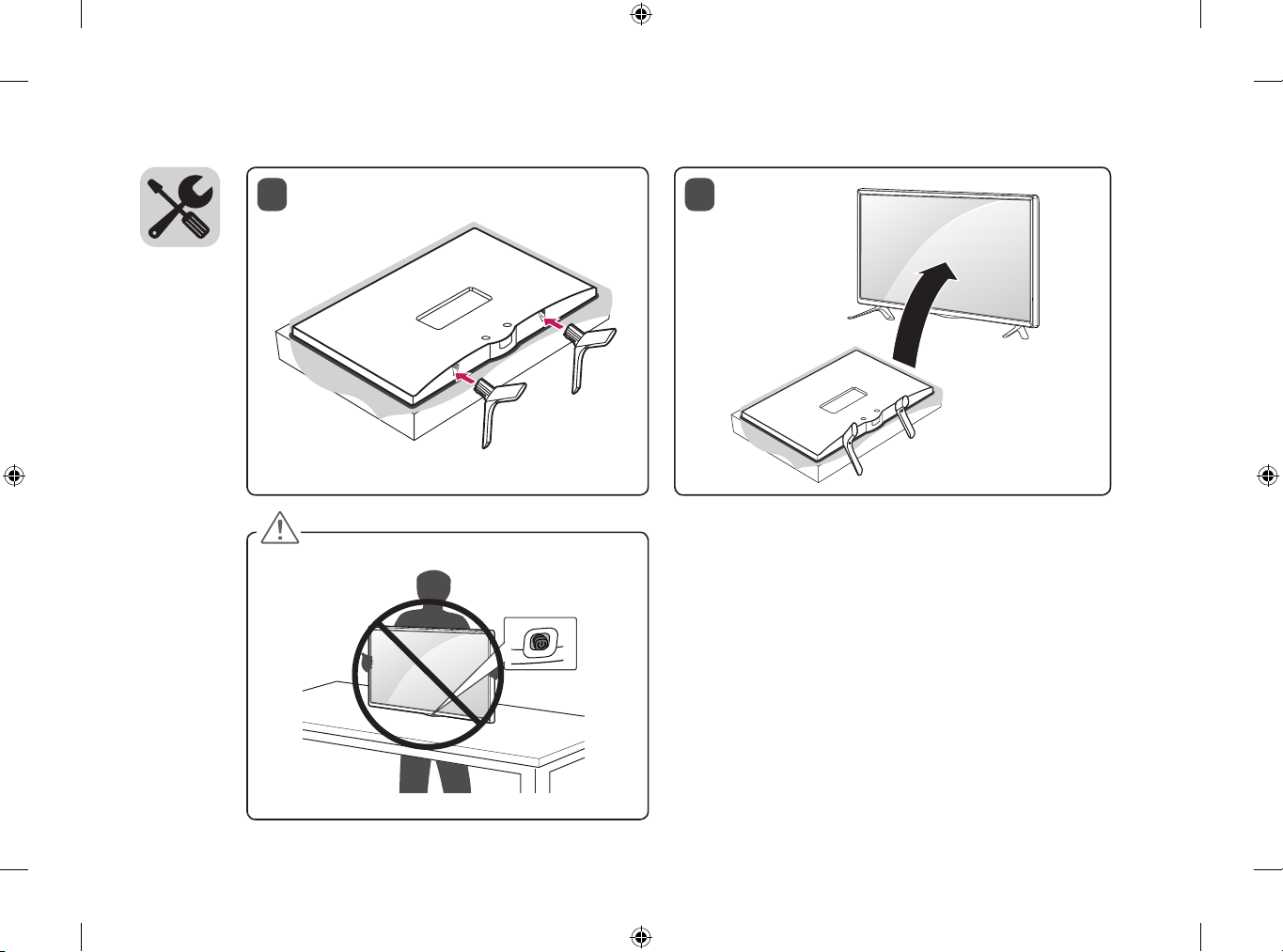

yWhen attaching the stand to theTV set, place the screen facing
down on a cushioned table or at surface to protect the screen from
scratches.
yWhen detaching the stand to theTV set, place the screen facing
down on a cushioned table or at surface to protect the screen from
scratches.
yDo not apply foreign substances (oils, lubricants, etc.) to the screw
parts when assembling the product. (Doing so may damage the
product.)
yIf you don`t fasten the screw tightly, TV will fall down and get
damaged.
yTighten the screws rmly to prevent the TV from tilting forward. Do
not over tighten.
yLift up the latch at the bottom of the stand base and detach the
stand base from theTV.

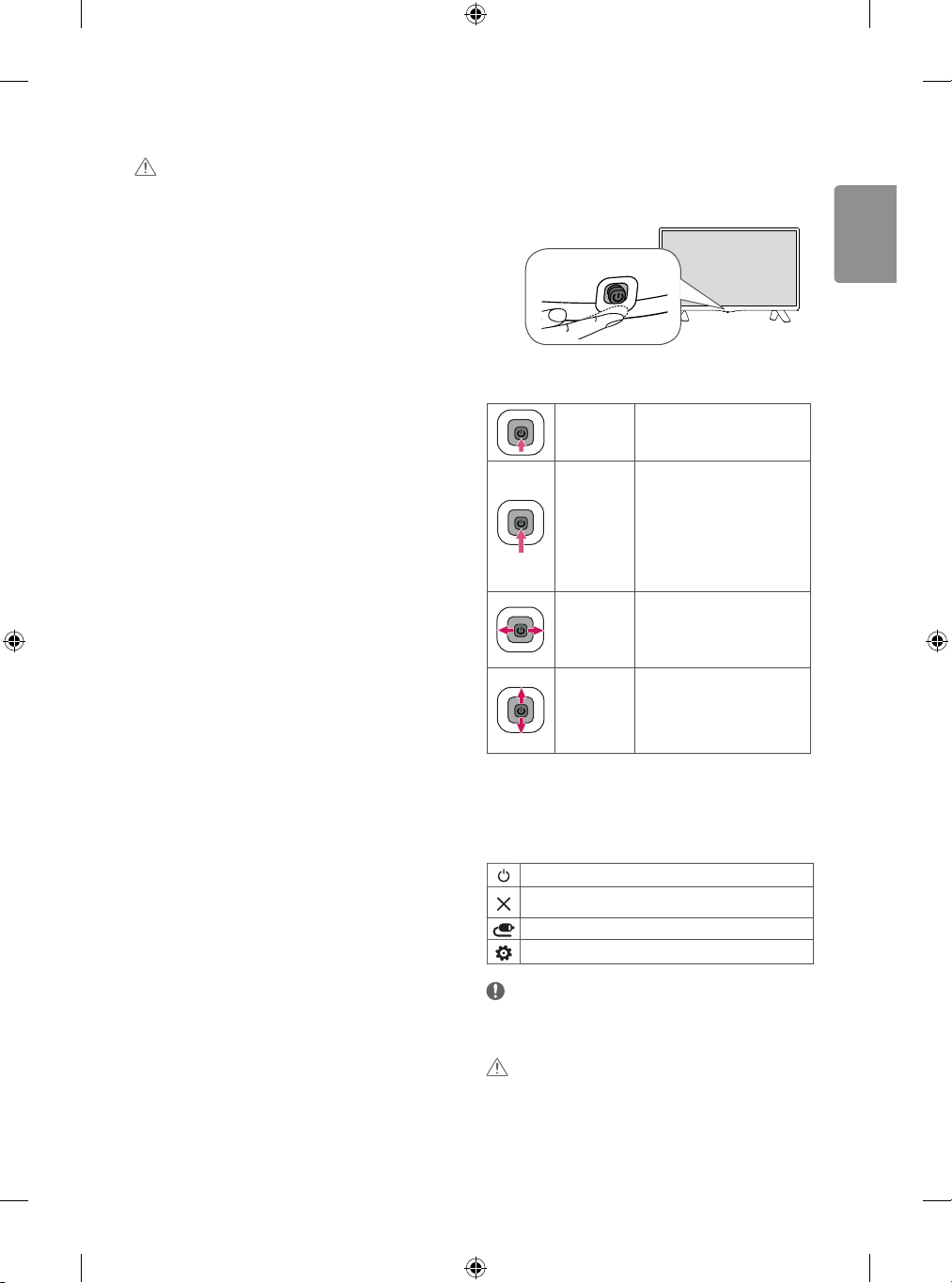

Using the Joystick button
You can operate the TV by pressing the button or moving the joystick
left, right, up, or down.
yImage shown may dier from yourTV.
Joystick Button
Basic Functions
Power On
When the TV is turned o, place
your nger on the joystick button
and press it once and release it.
Power O
When the TV is turned on, place
your nger on the joystick button
and press it once for a few seconds
and release it. (However, if the
Menu is on the screen, pressing and
holding the joystick button will let
you exit the Menu.)
Volume
Control
If you place your nger over the
joystick button and move it left or
right, you can adjust the volume
level you want.
Programmes
Control
If you place your nger over the
joystick button and move it up or
down, you can scrolls through the
saved programmes you want.
Adjusting the Menu
When the TV is turned on, press the joystick button one time.You can
adjust the menu items using the buttons.
Turns the power o.
Clears on-screen displays and returns toTV viewing.
Changes the input source.
Accesses the setting menu.
NOTE
yIf you press the joystick button rst, you may not be able to adjust
the volume level and saved programmes.
CAUTION
yWhen your nger over the joystick button and push it to the up,
down, left or right, be careful not to press the joystick button.

ENGLISH
8
Mounting on a table
yImage shown may dier from yourTV.
1 Lift and tilt the TV into its upright position on a table.
-Leave a 100 mm (minimum) space from the wall for proper
ventilation.
100 mm
100 mm
100 mm
100 mm
2 Connect the AC-DC Adapter and Power Cord to a wall outlet.
CAUTION
yDo not place the TV near or on sources of heat, as this may result in
re or other damage.
yPlease be sure to connect theTV to the AC/DC power adapter before
connecting the TV’s power plug to a wall power outlet.
Using the kensington security system
(This is not available for all models.)
yImage shown may dier from yourTV.
The Kensington security system connector is located at the rear of
the TV. For more information of installation and using, refer to the
manual provided with the Kensington security system or visit http://
www.kensington.com. Connect the Kensington security system cable
between the TV and a table.
NOTE
yThe Kensington security system is optional. You can obtain
additional accessories from most electronics stores.
Mounting on a wall
For proper ventilation, allow a clearance of 100 mm on each side and
from the wall. Detailed installation instructions are available from your
dealer, see the optional TiltWall Mounting Bracket Installation and
Setup Guide.
100 mm
100 mm
100 mm 100 mm
If you intend to mount the TV to a wall, attachWall mounting interface
(optional parts) to the back of the TV.
When you install theTV using the wall mounting interface (optional
parts), attach it carefully so it will not drop.
1 If you use a screw longer than standard, theTV might be damaged
internally.
2 If you use an improper screw, the product might be damaged and
drop from mounted position. In this case, LG Electronics is not
responsible for it.
Separate purchase
(Wall mounting bracket)
Model 22TK420A
Wall mount (A x B)
A
B75 x 75
Standard screw M4 x L10
Number of screws 4
Wall mount bracket (optional) RW120

ENGLISH
9
CAUTION
yMust use the enclosed screw in the box. (Depending on model)
yDisconnect the power rst, and then move or install the TV.
Otherwise electric shock may occur.
yIf you install theTV on a ceiling or slanted wall, it may fall and result
in severe injury. Use an authorized LG wall mount and contact the
local dealer or qualied personnel.
yDo not overtighten the screws as this may cause damage to the TV
and void your warranty.
yUse the screws and wall mounts that meet theVESA standard. Any
damages or injuries by misuse or using an improper accessory are
not covered by the manufacturer’s warranty.

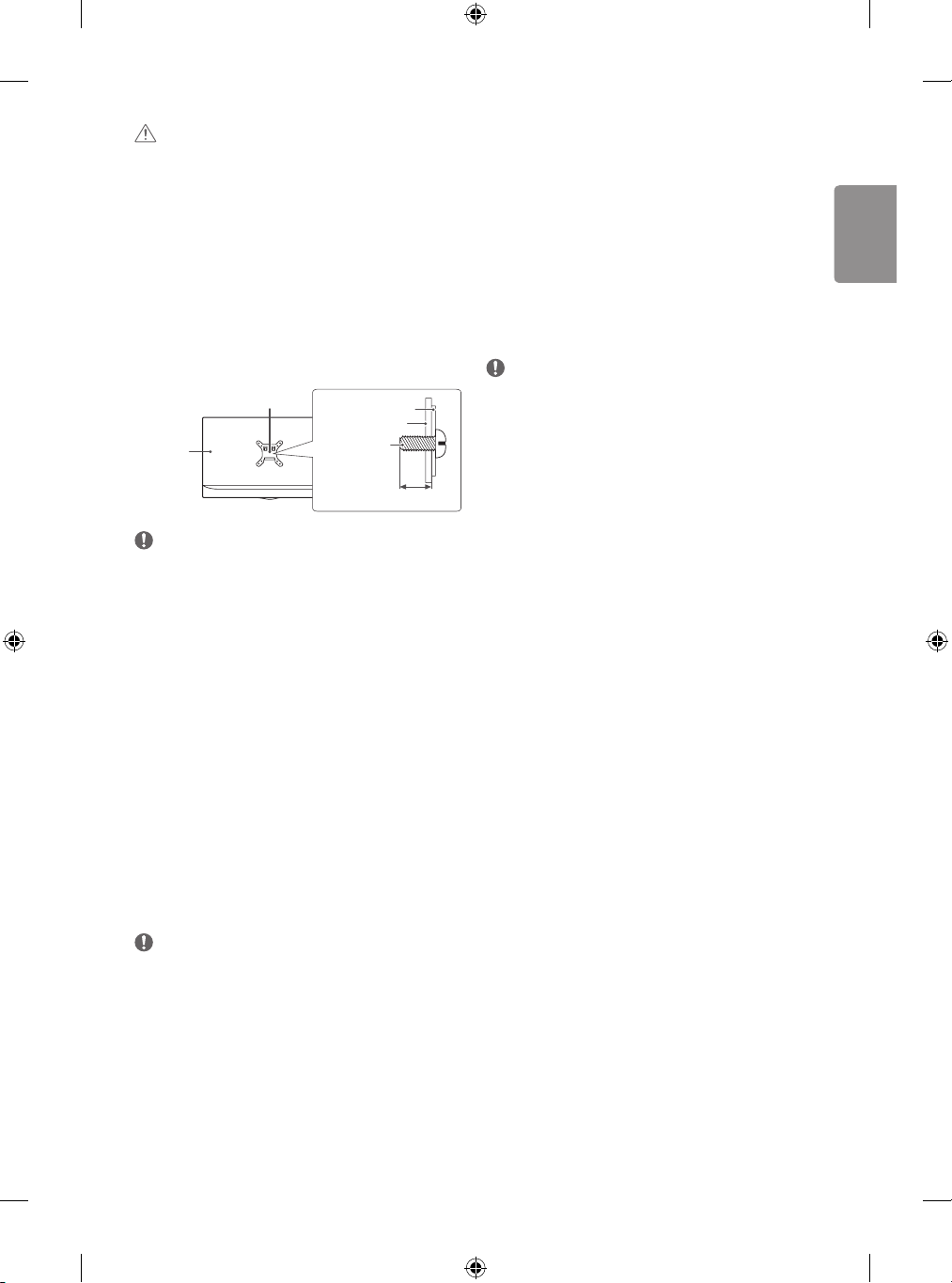

yScrew length from outer surface of back cover should be under 8
mm.
Wall mount Pad
Back Cover Standard screw
: M4 x L10
Wall mount Pad
Back Cover
Max. 8 mm
NOTE
yUse the screws that are listed on theVESA standard screw
specications.
yThe wall mount kit includes an installation manual and necessary
parts.
yThe wall mount bracket is optional.You can obtain additional
accessories from your local dealer.
yThe length of screws may dier depending upon the wall mount.
Make sure to use the proper length.
yFor more information, refer to the instructions supplied with the
wall mount.
Connections (notications)
Connect various external devices to theTV and switch input modes
to select an external device. For more information about an external
device’s connection, refer to the manual supplied with each device.
Available external devices are: HD receivers, DVD players, VCRs, audio
systems, USB storage devices, PC, camcorders or cameras and other
external devices.
NOTE
yThe external device connection may dier from the model.
yConnect external devices to theTV regardless of the order of the
TV port.
yIf you record aTV programme on a DVD recorder or VCR, make
sure to connect theTV signal input cable to the TV through a DVD
recorder or VCR. For more information of recording, refer to the
manual provided with the connected device.
yRefer to the external equipment’s manual for operating
instructions.
yIf you connect a gaming device to theTV, use the cable supplied
with the gaming device.
yIn PC mode, there may be noise associated with the resolution,
vertical pattern, contrast or brightness. If noise is present, change
the PC output to another resolution, change the refresh rate to
another rate or adjust the brightness and contrast on the PICTURE
menu until the picture is clear.
yIn PC mode, some resolution settings may not work properly
depending upon the graphics card.
Antenna connection
Connect the TV to a wall antenna socket with an RF cable (75 Ω)
(Not Provided).
NOTE
yUse a signal splitter to use more than 2 TVs.
yIf the image quality is poor, install a signal amplier properly to
improve the image quality.
yIf the image quality is poor with an antenna connected, try to
realign the antenna in the correct direction.
yAn antenna cable and converter are not supplied.

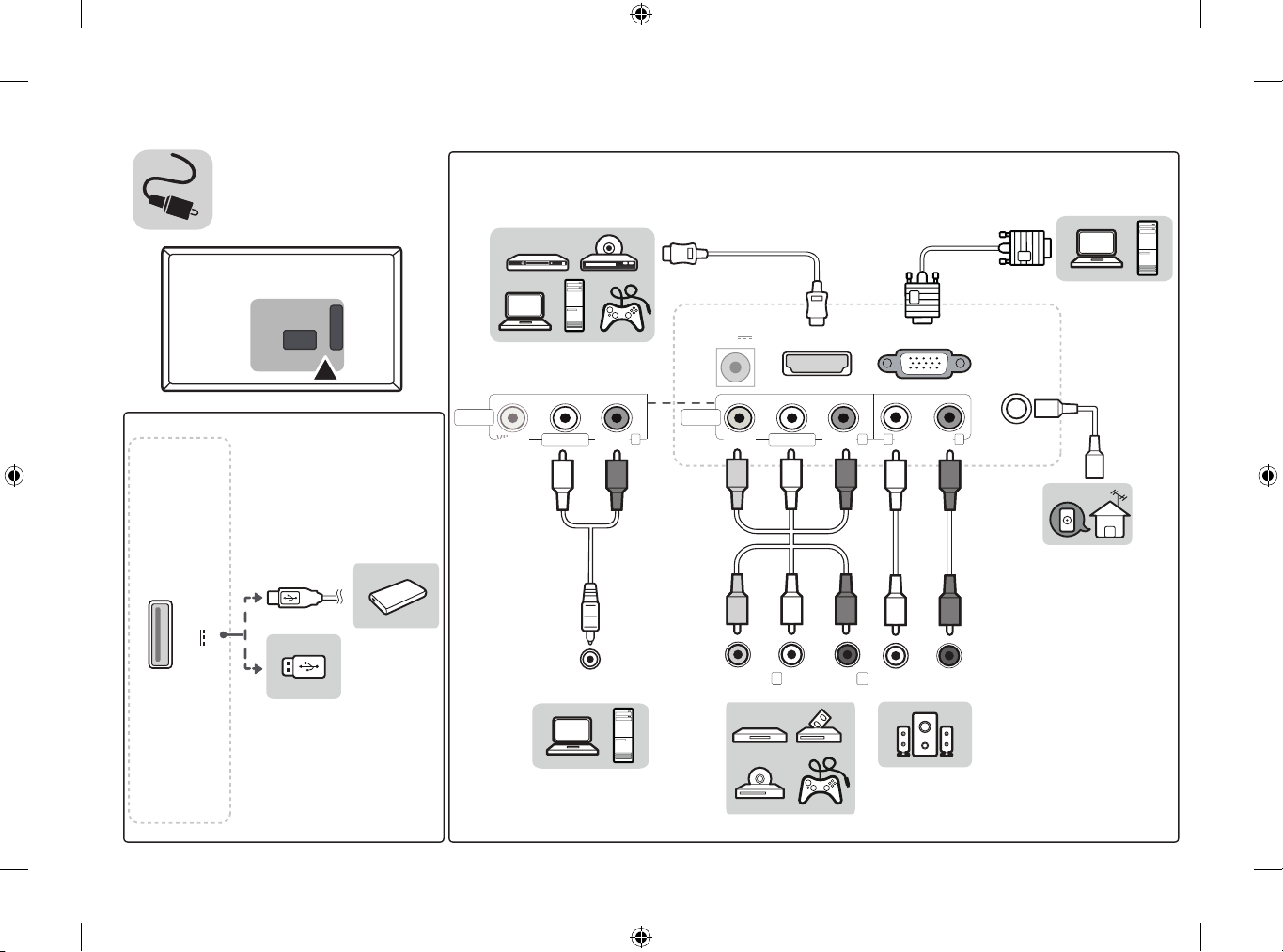

Other connections
Connect yourTV to external devices. For the best picture and audio
quality, connect the external device and the TV with the HDMI cable.
Some separate cable is not provided.
yUSB port supports 0.5 A electric current. If you need more electric
current in case of HDD, use the separate power adaptor.

ENGLISH
10
Remote control
The descriptions in this manual are based on the buttons on the
remote control. Please read this manual carefully and use theTV
correctly.
To install batteries, open the battery cover, replace batteries
(1.5 V AAA) matching the and ends to the label inside the
compartment, and close the battery cover. To remove the batteries,
perform the installation actions in reverse.
CAUTION
yDo not mix old and new batteries, as this may damage the remote
control.
yIn Analogue TV and some countries, some remote control buttons
may not work.
yThe remote control will not be included for all sales market.
Be sure to point the remote control at the remote control sensor on
the TV.
A
B
A
(Power) Turns the TV on or off.
Returns to theTV viewing from any mode.
Accesses the quick menus.
Changes the image mode.
Selects an AV mode.
Changes the input source.
B
Number buttons Enters numbers.
Accesses the saved programme list.
Returns to the previously viewed programme.
Adjusts the volume level.
Accesses your favourite programme list.
Selects the sound output.
Mutes all sounds.
Scrolls through the saved programmes.
Moves to the previous or next screen.
C
D
1
C
1Teletext buttons These buttons are used for teletext.
Accesses the main menus.
Navigation buttons (up/down/left/right) Scrolls through menus or
options.
Selects menus or options and confirms your input.
Returns to the previous level.
Clears all on-screen displays and returns toTV viewing.
D
(Control buttons) Controls the ENTERTAINMENT
menus.
, , , These access special functions in some menus.

ENGLISH
11
Watching TV
Turning the TV on for the rst time
When you turn theTV on for the rst time, the Initial setting screen
appears. Select a language and customize the basic settings.
1 Connect the power cord to a power outlet.The Power indicator
turns red and theTV switches to Standby mode.
2 In Standby mode, press the power button on the remote control or
local key to turn theTV on. The Initial setting screen appears if you
turn the TV on for the rst time.
yYou can also access Factory Reset by accessing OPTION in the
main menu.
3 Follow the on-screen instructions to customize yourTV settings
according to your preferences.
Menu Language Selects a language to display.
Mode Setting Selects Home Use for the home
environment.
Time Setting Sets the time.
Auto Tuning Scans and saves available
programmes automatically.
yTo display images in the best quality for your home environment,
select Home Use.
yStore Demo is suitable for the retail environment.
yIf you select Store Demo, any customized settings will switch back
to the default settings of Store Demo in 5 minutes.
4 When the basic settings are complete, press the .
yIf you do not complete the Initial setting, it will appear whenever
the TV turns on.
yDisconnect the power cord from the power outlet when you do not
use the TV for a long period of time.
5 To turn the TV o, press (Power) on the remote control.
Watching TV
1 In Standby mode, press (Power) to turn the TV on.
2 Press and select Antenna.
3 To turn the TV o, press (Power). The TV switches to Standby
mode.
Managing programmes
Automatically setting up programme
Use this to automatically nd and store all available programmes.
1 Press and the Navigation buttons to scroll to SETUP and
press .
2 Press the Navigation buttons to scroll to Auto Tuning and press
.
3 Press the Navigation buttons to scroll to Start and select
Start to begin auto tuning.The TV scans and saves available
programmes automatically.
4 When you return to the previous menu, press .
Manually setting up programme
Manual Tuning lets you manually tune and arrange the stations in
whatever order you desire.
1 Press and the Navigation buttons to scroll to SETUP.
2 Press the Navigation buttons to scroll to Manual Tuning.
3 Press the Navigation buttons to scroll to Storage.
4 Press the Navigation buttons or Number buttons to select the
desired programme number.
5 Press the Navigation buttons to scroll to System.
6 Press the Navigation buttons to scroll to TV Systems.
7 Press the Navigation buttons to scroll to Band.
8 Press the Navigation buttons to scroll to V/UHF or Cable.
9 Press the Navigation buttons to scroll to Channel.
10 Press the Navigation buttons and then select the desired
programme number with the Navigation buttons or Number
buttons.
11 Press the Navigation buttons to scroll to Search.
12 Press the Navigation buttons to scroll and start Searching.
13 Press the to store it.
14 When you return to the previous menu, press .
NOTE
yTo store another programme, repeat steps 3 to 13.
Assigning a station name
You can assign a station name with ve characters to each programme
number.
1 Press and the Navigation buttons to scroll to SETUP.
2 Press the Navigation buttons to scroll to Manual Tuning.
3 Press the Navigation buttons to scroll to Name.
4 Press the Navigation buttons to scroll to select the position and
make your choice of the second character, and so on. You can use
the alphabet A to Z, the number 0 to 9, +/ -, and blank and press
.
5 Press the to store it.
6 When you return to the previous menu, press .
Fine Tuning
Normally ne tuning is only necessary if reception is poor.
1 Press and the Navigation buttons to scroll to SETUP.
2 Press the Navigation buttons to scroll to Manual Tuning.
3 Press the Navigation buttons to scroll to Fine.
4 Press the Navigation buttons to ne tune for the best picture and
sound.
5 Press the to store it.
6 When you return to the previous menu, press .

ENGLISH
12

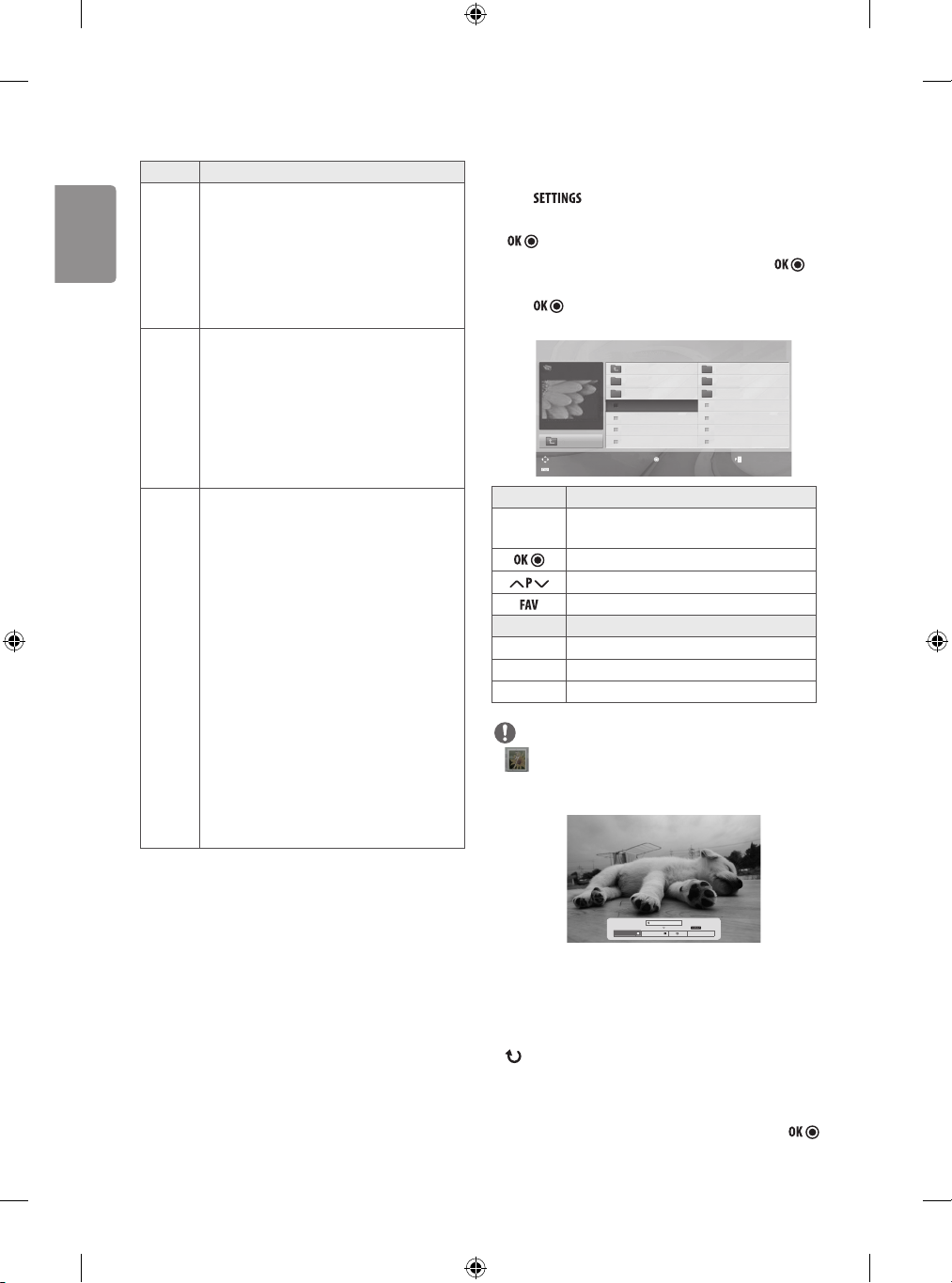

Editing your programme list
When a programme number is skipped, it means that you will be
unable to select it using button duringTV viewing. If you
wish to select the skipped programme, directly enter the programme
number with the NUMBER buttons or select it in the Programme edit
menu. This function enables you to skip the stored programmes.
1 Press and the Navigation buttons to scroll to SETUP.
2 Press the Navigation buttons to scroll to Programme Edit.
3 Edit programmes using the following buttons.
Button Description
Red button
Deletes a programme. Press the Red button
twice. The selected programme is deleted, all
the following programmes are shifted up one
position.
Yellow button Moves a programme. Press theYellow button
again to release this function.
Blue button
Selects a programme number to be skipped. Press
the Blue button again to release the skipped
programme.
4 When you return to the previous menu, press .
Selecting a programme on the programme list
1 Press to access the programme list.
2 Press the Navigation buttons to select to desired programme and
press .
3 When you return to the previous menu, press .
NOTE
yYou may nd some blue programmes.They have been set up to be
skipped by auto programming or in the programme edit mode.
ySome programmes with the programme number shown in the
programme list indicate there is no station name assigned.
Using additional options
Adjusting aspect ratio
Resize an image to view at its optimal size by pressing or
accessing Aspect Ratio in the PICTURE menu.
y16:9 :Resizes images to t the screen width.
yJust Scan :Displays video images in the original size without
removing parts of the edge of the image. (This function works in
HDMI Mode (720P/1080i/1080p).
yOriginal :When yourTV receives a wide screen signal it will
automatically change to the picture format broadcasted.
y4:3 :Resizes images to the previous standard 4:3.
y14:9 :You can view a picture format of 14:9 or a generalTV
programme in the 14:9 mode.The 14:9 screen is viewed in the same
way as in 4:3, but is moved to the up and down.
yZoom :Formats an image to t the screen width.The top and
bottom of the image may not appear.
yCinema Zoom 1 :Formats an image to the cinemascope ratio,
2.35:1. To change the ratio of the cinema zoom, press or and its
range is from 1 to 16.
NOTE
yThe available ratio varies depending on the input source.
yIf you select Just Scan, you may see image noises at the edge of the
original signal.
yIf you enlarge or reduce an image, the image may be distorted.
Changing AV modes
Each AV MODE has optimized image and sound settings.
Press repeatedly to select an appropriate mode.
yO : Changes to the previously customized settings.
yCinema :Uses the optimized image and sound settings for a
cinematic look.
yGame :Uses the optimized image and sound settings for fast
gaming.When playing a video game using PlayStation or Xbox.
It is recommended to use the Game mode. When in Game mode,
functions related to picture quality will be optimized for playing
games.
Using the input list
Selecting an input source
1 Press to access the input sources.The connected device
displays on each input source.
2 Press the Navigation buttons or input button to scroll to one of the
Input sources and press .
yAV :Watch video from a VCR or other external devices.
yRGB-PC :View a PC display on the screen. (Depending on model)
yHDMI :Watch video from a HTS or other high denition devices.
yAntenna :WatchTV over the air and cable broadcast.
Entertainment
(Depending on model)
yImage shown may dier from yourTV.
Connecting USB storage devices
CAUTION
yDo not turn the TV o or remove a USB storage device while the USB
storage device is connected to theTV, as this could result in loss of
les or damage to the USB storage device.
yBack up your les saved on a USB storage device frequently, as you
may lose or damage the les and this may be not covered by the
manufacturer’s warranty.
Connect USB storage devices (USB memory) to the TV and use
multimedia features. Connect a USB ash memory or USB memory
card reader to the TV. To disconnect a USB storage device, make sure to
end the connection properly to prevent damages to theTV or les.
1 Press to access the quick menus.
2 Press the Navigation buttons to scroll to Eject and press .
3 Disconnect the USB storage device only when the message says
that it is safe to remove.

ENGLISH
13
Tips for using USB storage devices
yOnly a USB storage device is recognizable.
yIf the USB storage device is connected through a USB hub, the
device is not recognizable.
yA USB storage device using an automatic recognition programme
may not be recognized.
yA USB storage device which uses its own driver may not be
recognized.
yThe recognition speed of a USB storage device may depend on each
device.
yPlease do not turn o the TV or unplug the USB device when
the connected USB storage device is working.When such device
is suddenly separated or unplugged, the stored les or the USB
storage device may be damaged.
yPlease do not connect the USB storage device which was articially
manoeuvred on the PC.The device may cause the product to
malfunction or fail to be played. Never forget to use only a USB
storage device which has normal music les, image les or movie
les.
yPlease use only a USB storage device which was formatted as a
FAT16, FAT32, NTFS le system.
yPlease connect a USB storage device with the cable oered by the
device maker.
ySome USB storage devices may not be supported or operated
smoothly.
yBe sure to back up important les since data stored in a USB
memory device may be damaged. We will not be responsible for
any data loss.
yIf a USB memory device is connected to a USB multi-card reader, its
volume data may not be detected.
yIf the USB memory device does not work properly, disconnect and
reconnect it.
yHow fast a USB memory device is detected diers from device to
device.
yThe recommended capacity is 1 TB or less for a USB external hard
disk and 32 GB or less for USB memory.
yAny device with more than the recommended capacity may not
work properly.
yUSB storage devices below USB 2.0 are supported as well. But they
may not work properly in the movie list.
yMaximum of 999 folders or les can be recognized under one folder.
yIf there are a lot of folders or les all within one folder, the device
may not be able to access these properly.
yFor external USB HDDs, it is recommended that you use devices
with a rated voltage of less than 5 V and a rated current of less
than 0.5 A.
Browsing les
Access the photo, music, or movie lists and browse les.
1 Connect a USB storage device.
2 Press to access the main menus.
3 Press the Navigation buttons to scroll to ENTERTAINMENT and
press .
4 Press Navigation buttons to scroll to PHOTO LIST, MUSIC LIST or
MOVIE LIST and press .
PHOTO LIST MUSIC LIST MOVIE LIST
PHOTO LIST Page 1/1 No Marked
Up Folder
KY101 04/03/2014
KY102 09/03/2014
JMJ002 11/27/2014
JMJ003 11/27/2014
JMJ004 11/27/2014
KY103 09/15/2014
KY104 10/12/2014
KY105 11/27/2014
JMJ005 11/27/2014
JMJ006 11/27/2014
JMJ007 11/27/2014
JMJ008 11/27/2014
Up Folder
GUU 11/27/2014
Drive A
3872x2592, 2604KB
Move
Mark
PopUp Menu Move Page
Exit
4
3
1
5
2
6
4
1
6
3
25
Move
Mark
PopUp Menu Move Page
Exit
Drive A
Page 1/1 No Marked
MUSIC LIST
Up Folder
Option
Title Duration
Move
Mark
PopUp Menu Move Page
Exit
Up Folder
Page 1/1 No Marked
MOVIE LIST
Drive A
4 folder(s), 2 le(s)
Top Folder
Drive A
Title Duration
3
1
5
4
2
6
No. Description
1Moves to the upper level folder.
2Preview: Displays the thumbnail/folder name of the le in
the selected folder.
3Current page/Total pages.
4Total number of marked les.
5Contents under the folder focused on 1.
6Available buttons on the remote control.

ENGLISH
14
Supported le format
Type Supported le format
Photo JPEG
Available size
Baseline : 64 pixel (W) x 64 pixel (H) - 15360 pixel (W)
x 8640 pixel (H) Progressive : 64 x 64 to 1024 x 768
yYou can play JPEG les only.
yNon-supported les are displayed in the form of
predened icon.
Music MP3
Bit rate : 32 kbps to 320 kbps
ySampling rate MPEG1 Layer3 : 32 kHz, 44.1 kHz,
48 kHz
ySampling rate MPEG2 Layer3 : 16 kHz, 22.05 kHz,
24 kHz
ySampling rate MPEG2.5 Layer3 : 8 kHz, 11.025 kHz,
12 kHz
Movie DAT,MPG,MPEG,VOB,AVI,DIVX,MP4,MKV,TS,TRP,TP,
ASF,WMV,FLV,RM,RMVB
Movie(*.mpg/*.mpeg/*dat/*.ts/*.trp/*.tp/*.vob/
*.mp4/*.mov/*.mkv/*.divx/*.avi/*.asf/*.wmv/
*.v/*.avi(motion-jpeg)/*.mp4(motion-jpeg)/
*.mkv(motion-jpeg)/*.rm/*.rmvb) supporting le
Video format : DivX 3.11, DivX4, DivX5, DivX6,
Xvid1.00, Xvid1.01, Xvid1.02, Xvid1.03, Xvid1.10 beta-
1/beta-2, Mpeg-1, Mpeg-2, Mpeg-4, H.264/AVC,VC1,
JPEG, Sorenson H.263
Audio format : Dolby Digital, Mpeg, MP3, LPCM,
ADPCM, WMA, AAC
Bit rate : within 32 kbps to 320 kbps(MP3)
External Subtitle format : *.smi/*.srt/
*.sub(MicroDVD,Subviewer1.0/2.0)/*.ass/*.ssa/
*.txt(TMPlayer)/*.psb(PowerDivX)
Internal Subtitle format : only XSUB (It is the
subtitle format used in DivX6 les)
Viewing photos
View image les saved in a USB storage device. The displays on the screen
may dier from the model.
1 Press to access the main menus.
2 Press the Navigation buttons to scroll to ENTERTAINMENT and press
.
3 Press Navigation buttons to scroll to Photo List and press .
4 Press the Navigation buttons to scroll to a folder/le you want and
press .
5 View photos by using the following menus/buttons.
PHOTO LIST Page 1/1 No Marked
Up Folder
KY101 04/03/2014
KY102 09/03/2014
JMJ002 11/27/2014
JMJ003 11/27/2014
JMJ004 11/27/2014
KY103 09/15/2014
KY104 10/12/2014
KY105 11/27/2014
JMJ005 11/27/2014
JMJ006 11/27/2014
JMJ007 11/27/2014
JMJ008 11/27/2014
Up Folder
GUU 11/27/2014
Drive A
3872x2592, 2604KB
Move
Mark
PopUp Menu Move Page
Exit
Button Description
Navigation
button
Scrolls through the les.
Views the highlighted le or enters the mark mode.
Moves to the previous or next page.
Enters the mark mode.
Menu Description
View Views the selected photo.
Mark All Selects all les.
Close Exits the Mark Mode.
NOTE
y: Non-supported les are displayed using this graphic.
6 The following options are available while viewing photos.
2/13 ꔋ
Option
Slideshow BGM Hide
ySlideshow :Starts or stops a slideshow with selected photos. If there
are no selected photos, all photos saved in the current folder display
during a slideshow. To set a slideshow speed, select Option.
yBGM :Turns the background music on or o. To set the background
music folder, select Option.
y(Rotate):Rotates photos clockwise (90°, 180°, 270°, 360°).
-The supported photo size is limited. You cannot rotate a photo if
the resolution of the rotated width is larger than the supported
resolution size.
yHide :Hides the option window. To display the options, press .

ENGLISH
15
Q.MENU options for photo list
1 Press . A pop-up window will appears.
2 Press the Navigation buttons to scroll to Set photo view. and
press .
3 Press the Navigation buttons to scroll to one of the following
options and press .
Set photo view.
ySlide Speed :Selects a slideshow speed (Fast, Normal, Slow).
yMusic Folder :Selects a music folder for the background music.
Set video.
Allows you to changeVideo presets.
Set audio.
Allows you to change Audio presets.
Listening to music
1 Press to access the main menus.
2 Press the Navigation buttons to scroll to ENTERTAINMENT and
press .
3 Press the Navigation buttons to scroll to Music List and press
.
4 Press the Navigation buttons to scroll to a folder/le you want and
press .
5 Play music by using the following menus/buttons.
Move
Mark
PopUp Menu Move Page
Exit
Drive A
Page 1/1 No Marked
MUSIC LIST
Up Folder
Option
Title Duration
Button Description
Navigation
button
Scrolls through the les.
Views the highlighted le or enters the mark
mode.
Moves to the previous or next page.
Enters the mark mode.
Menu Description
Play Plays the selected music le.
Play with
Displays photos during playback.
Mark All Selects all les.
Close Exits the Mark Mode.
6 Control playback by using the following buttons.
Button Description
Stops playback
Plays a music le
Pauses or resumes playback
Skips to the next le
Skips to the previous le
or When playing,
When you press the button, the previous
music le will be played.
When you press the button, the next music
le will be played.
When you press the button, only the music
will be stopped and the player will go to TV
viewing.
or
When using the or button during
playback a cursor indicating the position can
be played.
Q.MENU options for music list
Press . A pop-up window will appears.
Set audio.
Allows you to change Audio presets.
NOTE
yTheTV will not play copy protected les.
yIf the TV is not in use for some time during playback, the
information box as a screensaver will appear to prevent image burn.
To return to the Music list screen, press or .

ENGLISH
16
Viewing movies
1 Press to access the main menus.
2 Press the Navigation buttons to scroll to ENTERTAINMENT and
press .
3 Press the Navigation buttons to scroll to Movie List and press
.
4 Press the Navigation buttons to scroll to a folder/le you want and
press .
5 Play movie by using the following menus/buttons.
Move
Mark
PopUp Menu Move Page
Exit
Up Folder
Page 1/1 No Marked
MOVIE LIST
Drive A
4 folder(s), 2 le(s)
Top Folder
Drive A
Title Duration
Button Description
Navigation
button
Scrolls through the les.
Views the highlighted le or enters the mark
mode.
Moves to the previous or next page.
Enters the mark mode.
Menu Description
Play
Play the selected movie le. Once a movie le
nishes playing, the next selected one will be
played automatically.
Mark All Mark all movie les on the screen.
Close Exit the Mark Mode.
6 Control playback by using the following buttons.
Button Description
Stops the playback.
Plays a video.
Pauses or resumes the playback.
Scans forward in a le.
Scans backward in a le.
Show the Option menu.
Hide the menu on the full-sized screen.
Return to normalTV viewing.
Skips to specic points in a le during playback.The
time of a specic point will appear on the status bar. In
some les, this function may not work properly.
Tips for using playing video les
ySome user-created subtitles may not work properly.
ySome special characters are not supported in subtitles.
yHTML tags are not supported in subtitles.
ySubtitles in languages other than the supported languages are not
available.
yChanging font and colour in subtitles is not supported.
ySubtitles in languages other than one specied are not supported.
yVideo les with subtitle les of 1 MB or larger may not be played
properly.
yThe screen may suer temporary interruptions (image stoppage,
faster playback, etc.) when the audio language is changed.
yA damaged movie le may not be played correctly, or some player
functions may not be usable.
yMovie les produced with some encoders may not be played
correctly.
yIf the video and audio structure of recorded le is not interleaved,
either video or audio is outputted.
yHD videos with a maximum of 1920 x 1080 @ 25/30p or 1280 x 720
@ 50/60p are supported, depending on the frame.
yVideos with resolutions higher than 1920 x 1080 @ 25/30p or 1280
x 720 @ 50/60p may not work properly depending on the frame.
yMovie les other than the specied types and formats may not
work properly.
yMax bitrate of playable movie le is 20 Mbps. (only, Motion JPEG
: 10 Mbps)
yWe do not guarantee smooth playback of proles encoded level 4.1
or higher in H.264/AVC.
yDTS Audio codec is not supported.
yA movie le more than 30 GB in le size is not supported for
playback. The le size limit is dependent on the encoding
environment.
yA DivX movie le and its subtitle le must be located in the same
folder.
yA video le name and its subtitle le name must be identical for it
to be displayed.
yPlaying a video via a USB connection that doesn’t support high
speed may not work properly.
yFiles encoded with GMC (Global Motion Compensation) and Qpel
(Quarterpel Motion Estimation) may not be played.
yTrick Mode does not support other functions than if video les do
not have index information.
yVideo le names that contain special characters may not be
playable.
Video options
1 Press to access the pop-up menus.
2 Press the Navigation buttons to scroll to Set video play.,
Set video. or Set audio. and press .
