LG 32LB65 ZA Series User manual

www.lg.com
LED TV*
Please read this manual carefully before operating your set and retain
it for future reference.
* LG LED TVs are LCD TVs with
LED backlighting.
LB63** LB68** LB72** LB87**
LB65** LB69** LB73**
LB67** LB70** LB86**
OWNER S MANUAL
Click! User Guide
P/NO : MFL68027012(1407-REV03)
Printed in Korea
*MFL68027012*

A-2 TABLE OF CONTENTS
TABLE OF CONTENTS
A-3 SETTING UP THE TV
A-3 Attaching the stand

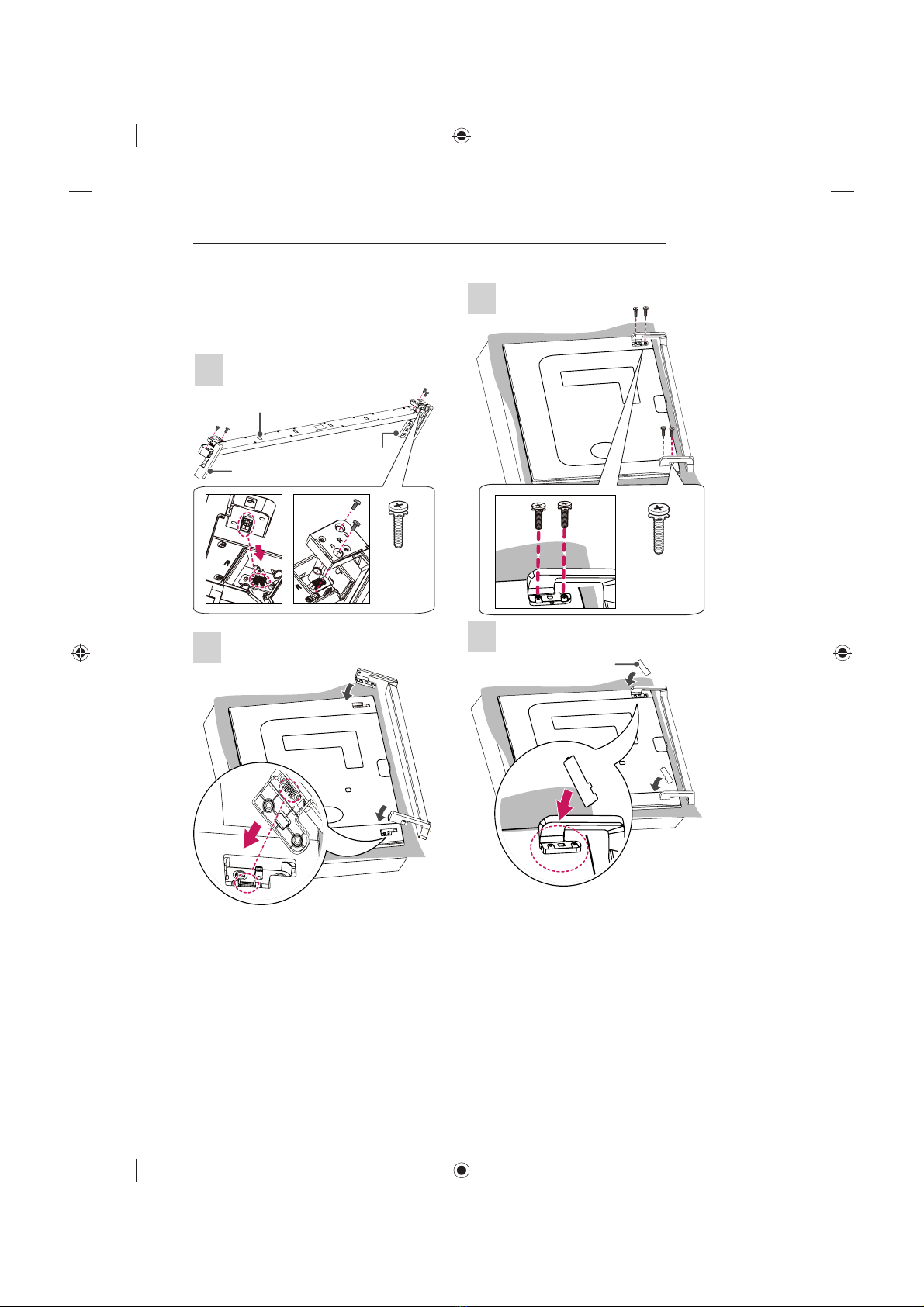

A-9 Attaching the Sound Bar Supporter

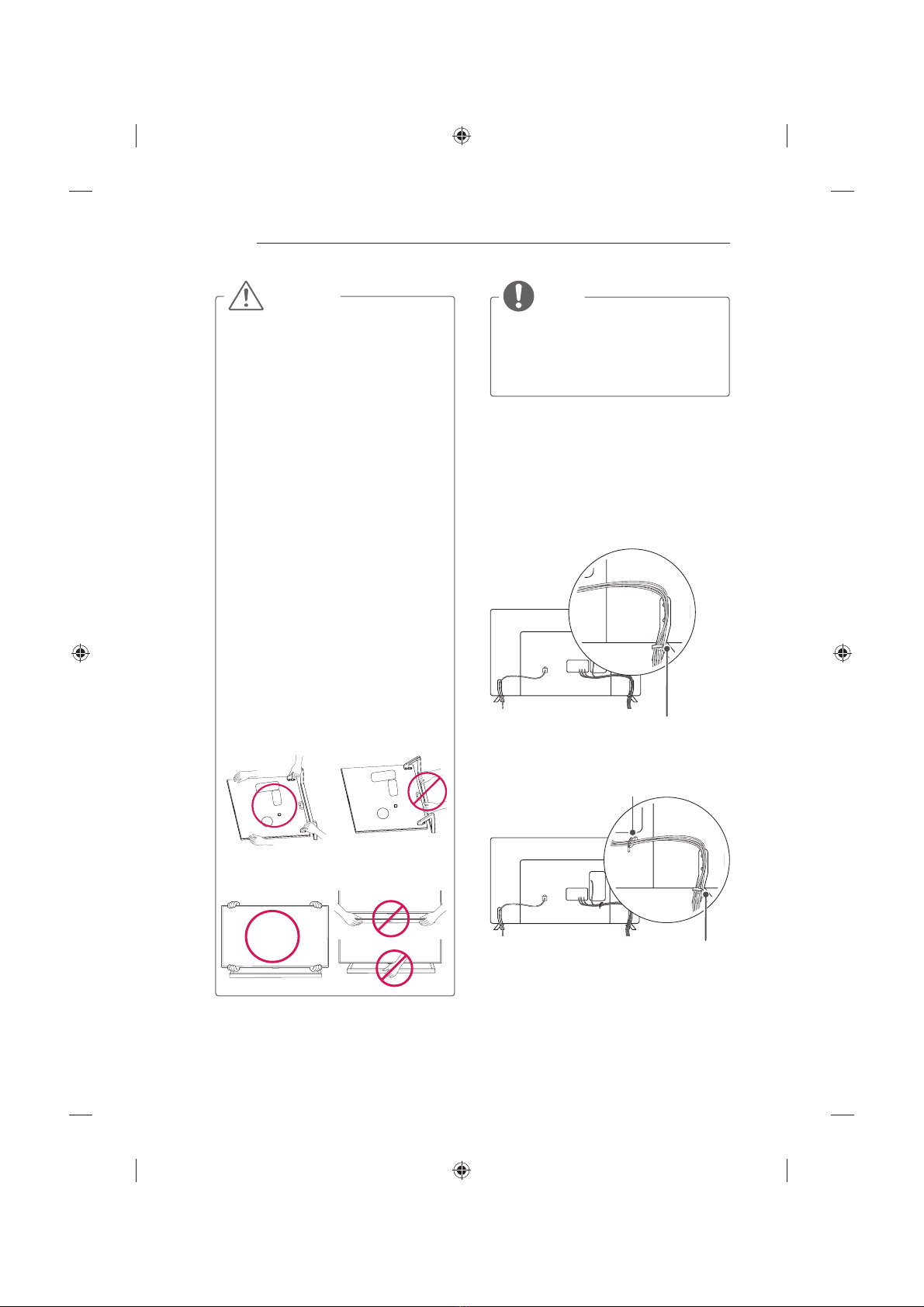

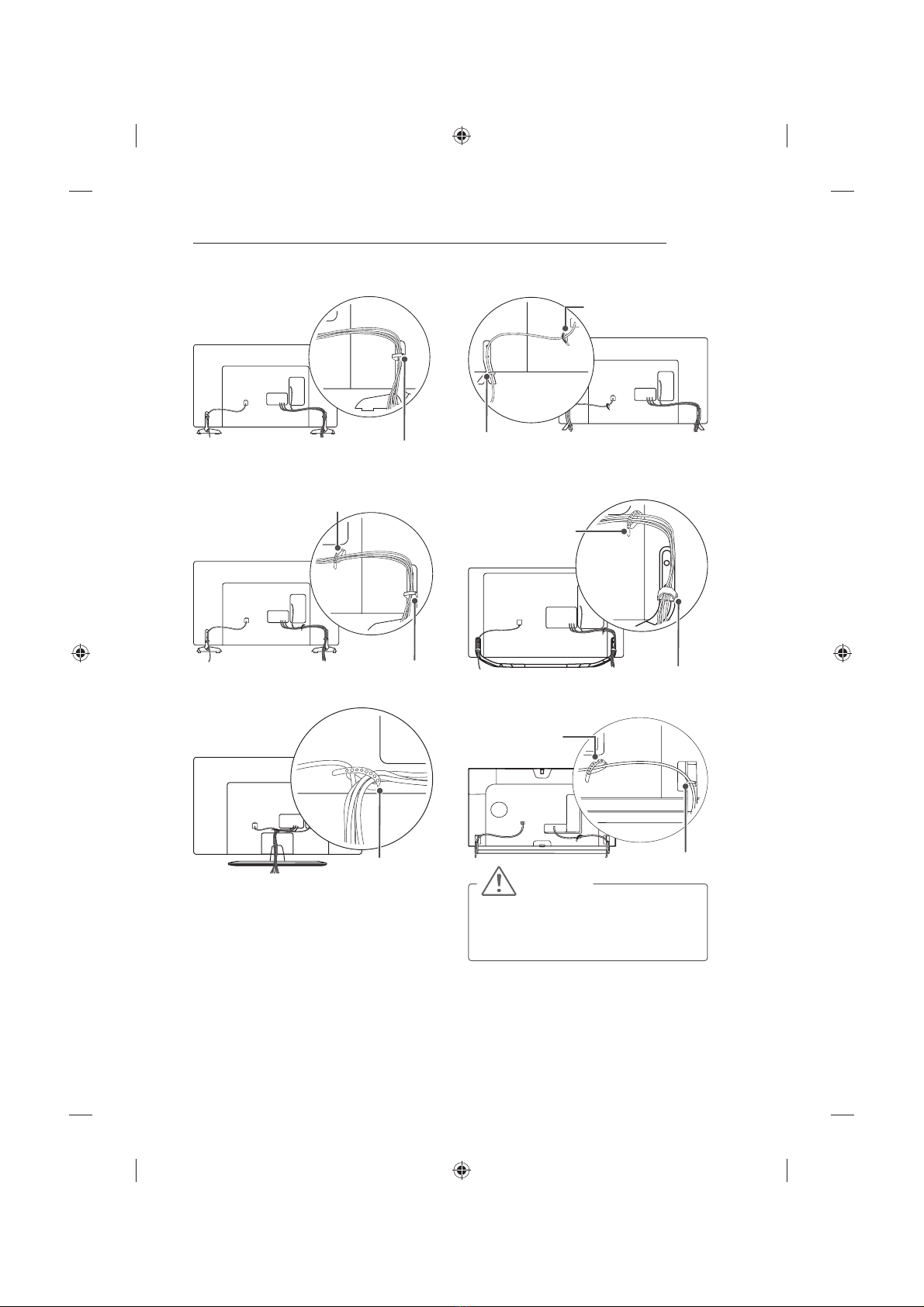

A-10 Tidying cables
COMMON
A-12 MAKING CONNECTIONS

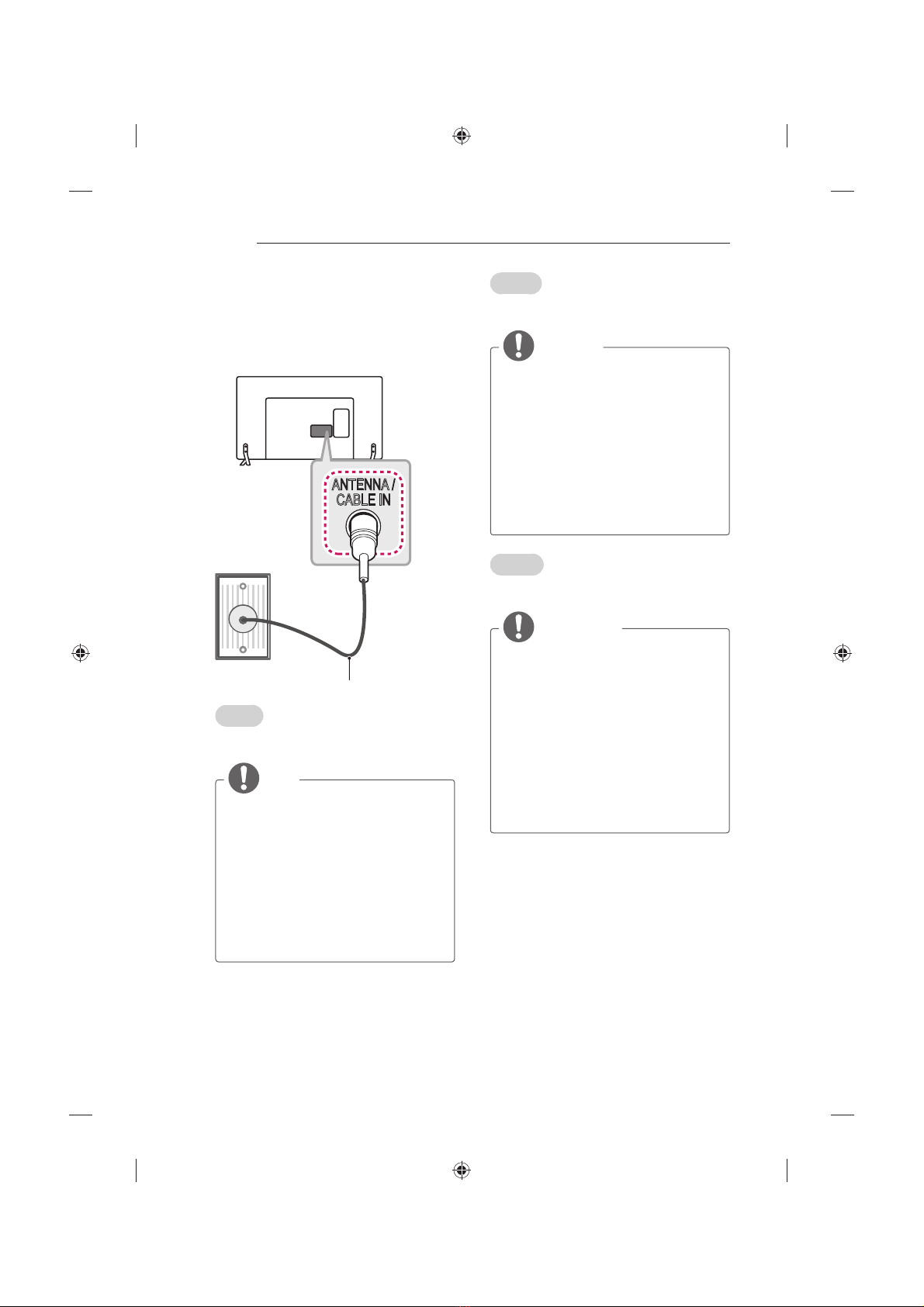

A-12 Antenna connection
A-14 Satellite dish connection
A-15 HDMI connection
A-18 - ARC (Audio Return Channel)
A-19 DVI to HDMI connection
A-22 Component connection
A-24 Composite connection
A-26 MHL connection
A-29 Audio connection
A-29 - Digital optical audio connection
A-31 USB connection
A-33 CI module connection
A-35 Headphone connection
A-38 Euro Scart connection
LANGUAGE
LANGUAGE LIST
English
Deutsch
Français
Italiano
Español
Português
Nederlands
ǼȜȜȘȞȚțȐ
 6ORYHQãþLQD
COMMON
B-1 SPECIFICATIONS

A-3
SETTING UP THE TV
SETTING UP THE TV
Image shown may differ from your TV.
Attaching the stand
LB63**-ZA, 32/39/42/47/50/55LB65**-ZA
B stand base
A stand base
1
2
1

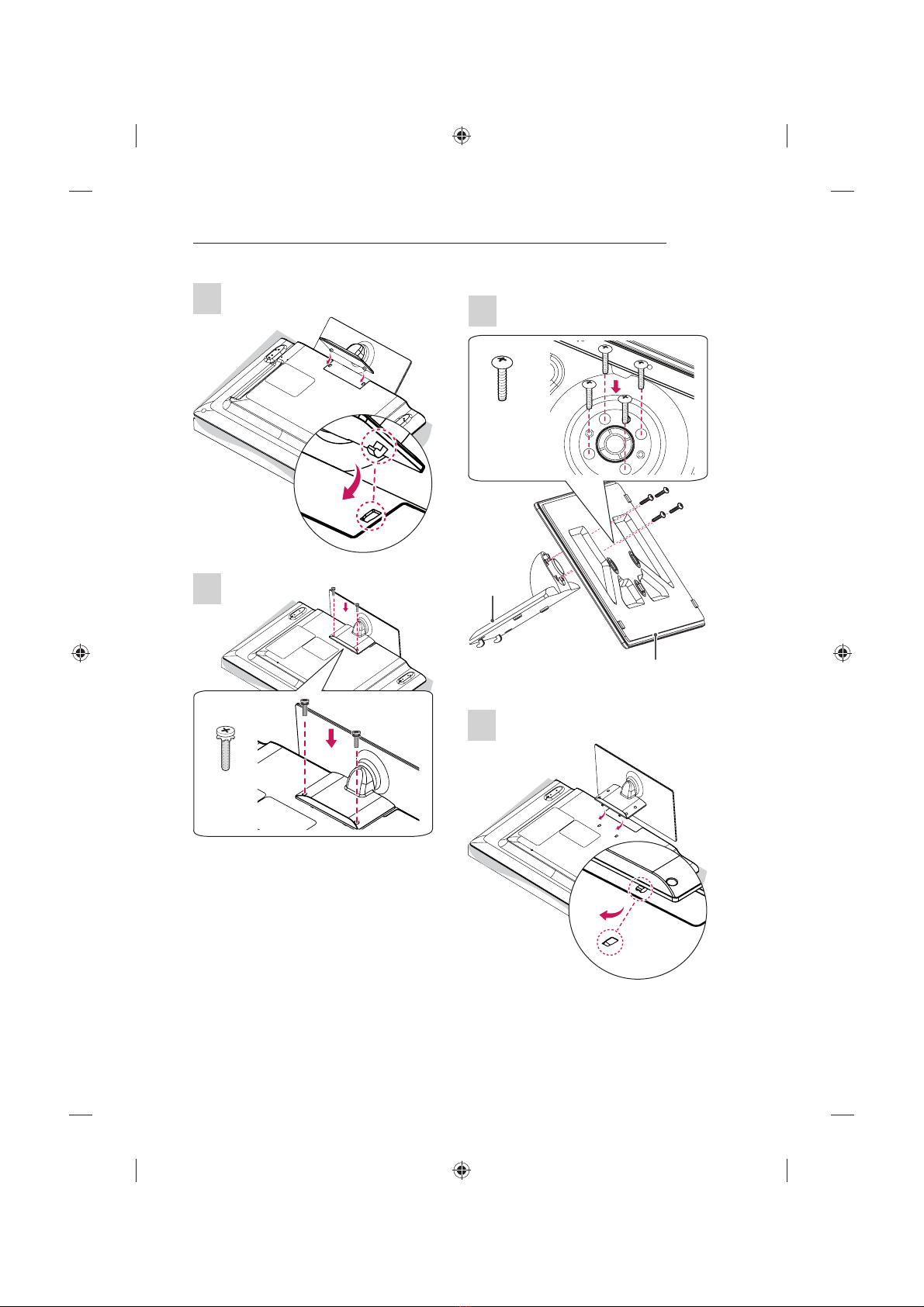

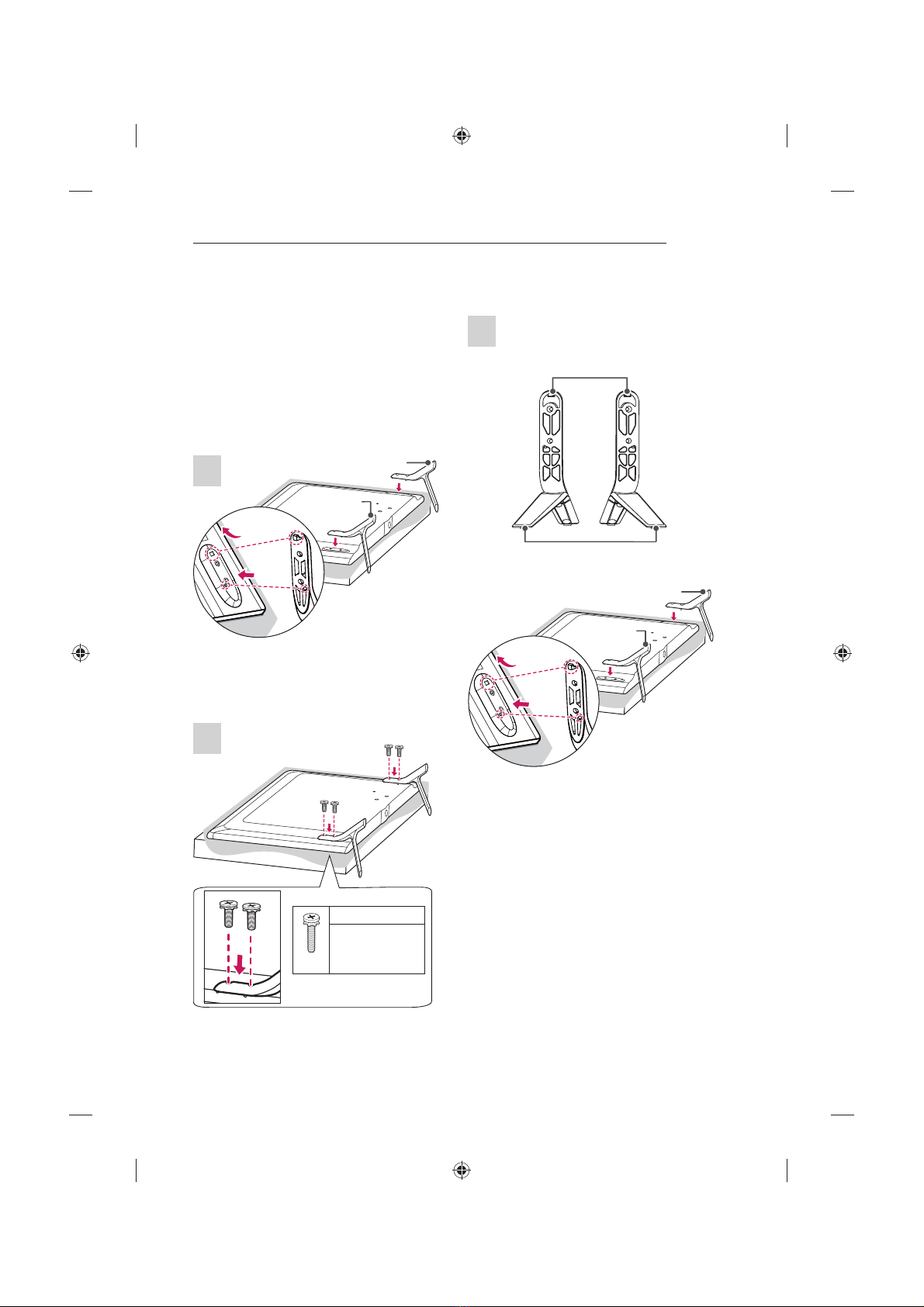

1 Attach the stand to the TV using the upper
mounting hole on the back of the TV.
2 Attach the stand to the TV using the lower
connection on the back of the TV.
2
4EA
M4 x L14
M4 x L20
(Only 32LB65**-
ZA)
70LB65**-ZA, LB67**-ZA/ZB/ZC/ZF, LB68**-ZD,
LB69**, LB73**-ZA
B stand Assy
A stand Assy
1
2
1
Stand Body
Stand Base
1 Attach the stand to the TV using the upper
mounting hole on the back of the TV.
2 Attach the stand to the TV using the lower
connection on the back of the TV.

A-4 SETTING UP THE TV
2
4EA
M4 x L14
LB63**-ZL, LB65**-ZK
A stand base
B stand base
2
1
1
1 Attach the stand to the TV using the upper
mounting hole on the back of the TV.
2 Attach the stand to the TV using the lower
connection on the back of the TV.
2
4EA
M4 x L14
M4 x L20
(Only
32LB65**-
ZK)
32/39LB65**-ZE/ZN
1
Stand Body
Stand Base
4EA
M4 x L20
1

A-5
SETTING UP THE TV
2
3
2EA
M4 x L20
LB63**-ZU, 42/47/50/55/60LB65**-ZE/ZN
1
Stand Body
Stand Base
4EA
M4 x L20
1
2
