LOCATION AND FUNCTION OF CONTROLS
LOCATION AND FUNCTION OF CONTROLS

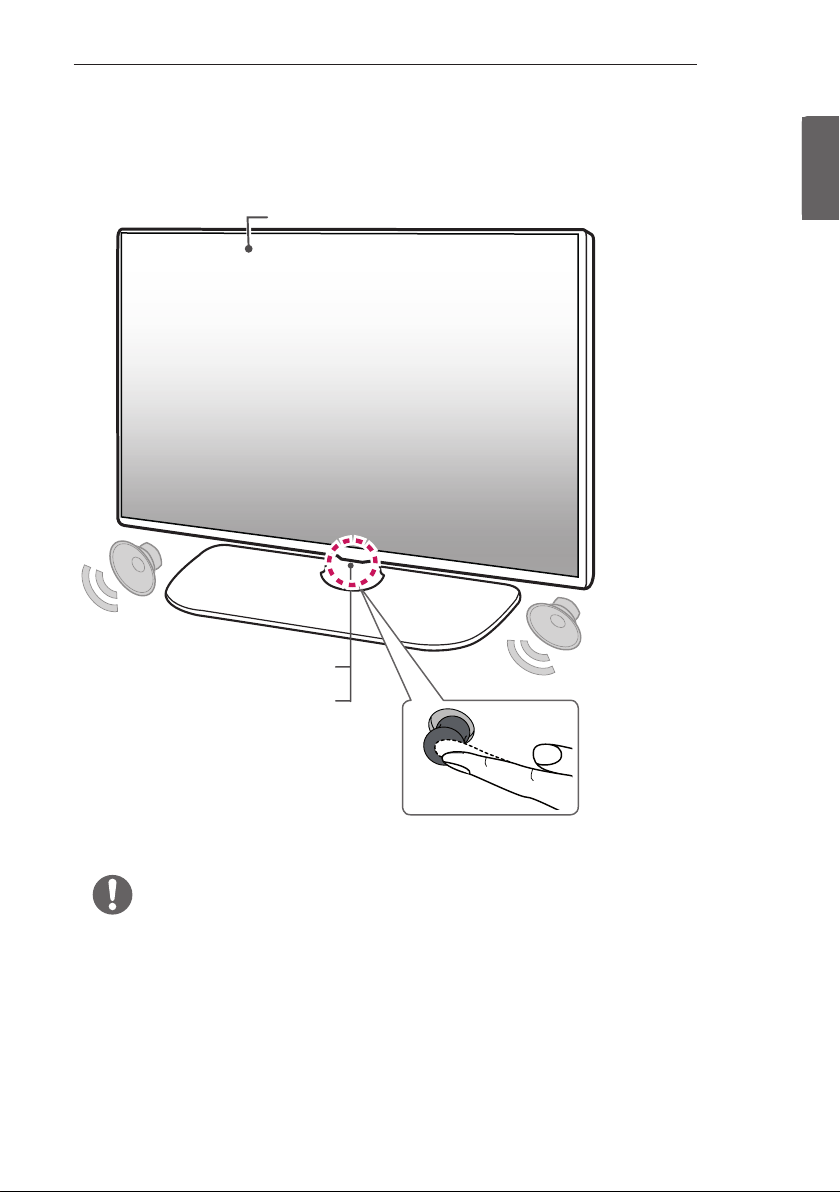

Parts and Button
Screen
Remote control and
Intelligent1sensors
Power Indicator
1 Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment.
2 Joystick Button -This button is located below the TV screen.
NOTE
yYou can set the power indicator light to on or off by selecting General in the main menus.

ENG
ENGLISH
4LOCATION AND FUNCTION OF CONTROLS
LED Clock Connection
(Except for LW76**)
ThisTV can be connected to a LED Clock via the CLOCK port.
CLOCK
LED Clock
(*Not Provided)

ENGENGLISH
5
EZMANAGER
EZMANAGER
•
•Image shown may differ from your TV.
INTRODUCTION
The Pro:Centric Platform enables you to simply install, manage and use guest-centric solutions.The default Domain“procentric.local”
and IP Server Address are needed to be registered in DNSTV will contact the IP Server using the default Domain“procentric.local”via IP
on server search page. IfTV doesn’t contact the Server, TV will search the pre-defined channel earlier than all channels. (Only DVB-C)
The frequencies of pre-defined channels are below.
Germany:‘51000, 858000, 778000, 698000, 618000, 538000, 458000, 378000, 298000, 218000, 138000 khz’.
Philippines 6Mhz:‘57000, 651000, 591000, 531000, 471000, 411000, 351000, 291000, 231000, 171000, 111000 khz’.
Other Country:‘50000, 842000, 762000, 682000, 602000, 522000, 442000, 362000, 282000, 202000, 122000 khz’.
EZ-MANAGER WIZARD
-If you are using Pro:Centric, this setup wizard till help you easily set up the TV. Select ‘NEXT’to continue.
-Otherwise, if you will not be installing a Pro:Centric Server, select‘EXIT’to quit.

ENG
ENGLISH
6EZMANAGER
LANGUAGE & COUNTRY SELECTION
(Except for Iran)
-Please select the Language and Country. Some countries need to select the Time Zone.
(Only Iran)
-Please select the Language.

ENGENGLISH
7
EZMANAGER
Automatically for Setup

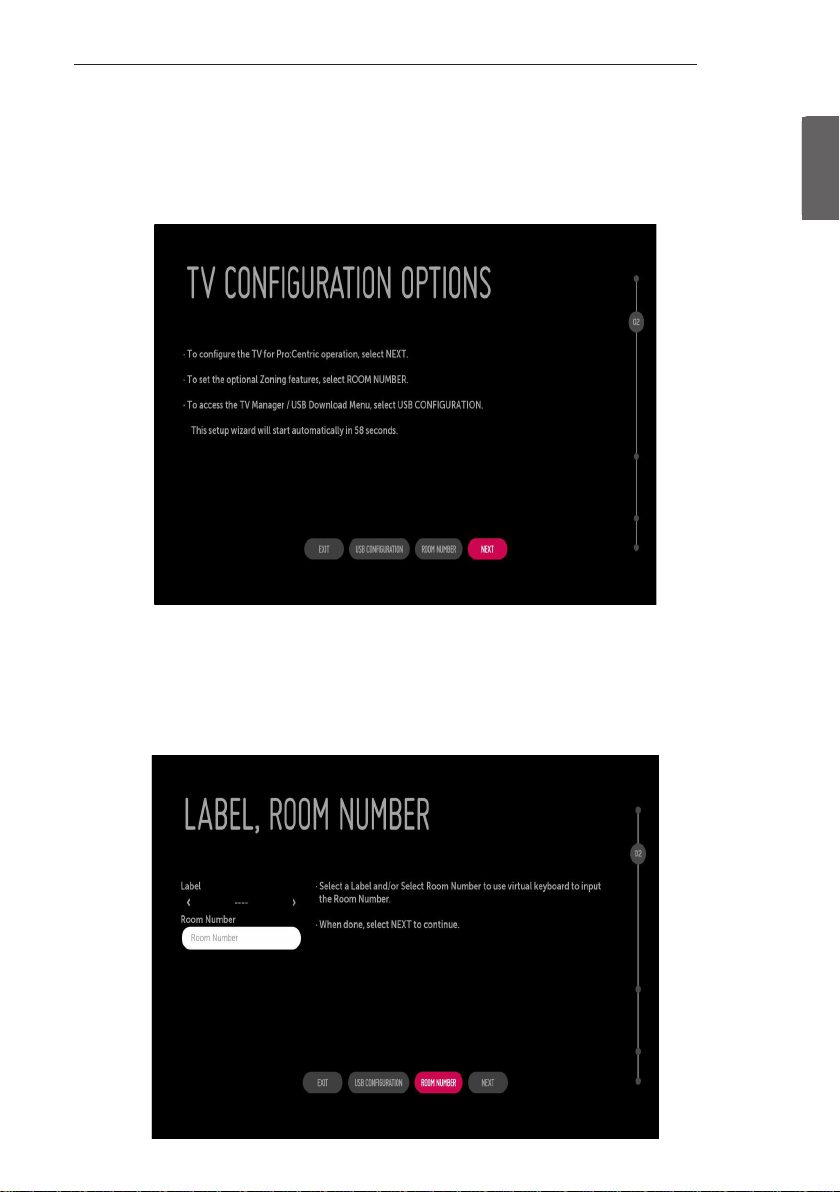

1 From theTV Conguration Options screen, you can choose how to proceed with the conguration of this TV. Whether you will
congure theTV for Pro:Centric operation via the wizard or use a USB memory device to congure theTV, you may rst wish to set
the Room Number on the TV.
-If you intend to set Room Number as part of the TV configuration, use the Room Number option to assign the Room # for
this TV before you continue with additional configuration.
-In the Label field, use the Left/Right arrow keys to specify a North, South, East, or West designation for this TV.
-In the Room Number field, you can use the number keys on the Installer Remote to direct enter a room number or use the
virtual keyboard on the TV screen.
-To continue, move and select‘NEXT’.

ENG
ENGLISH
8EZMANAGER
2 This step automatically searches for the Pro:Centric Server. If was found the Pro:Centric data channel, select the‘NEXT’.

ENGENGLISH
9
EZMANAGER

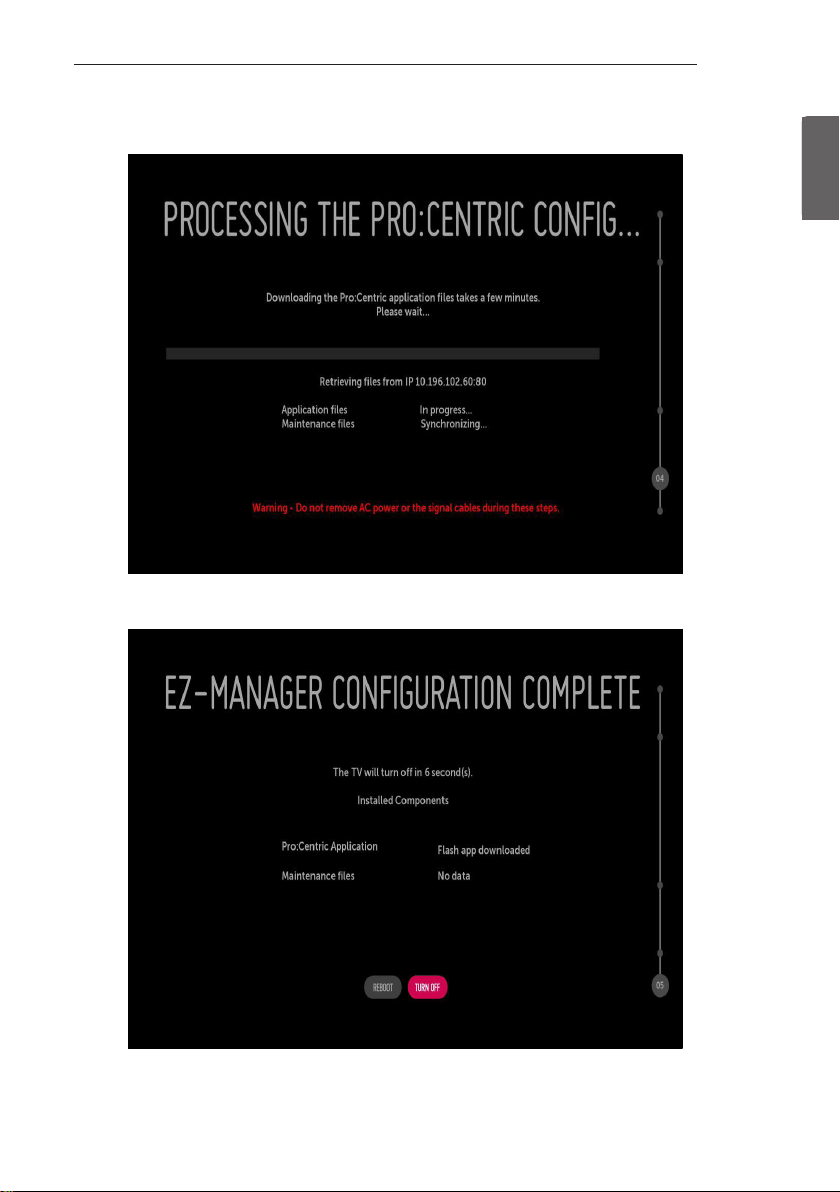

3 Downloading the Pro:Centric application les takes few minutes.
4 After the installation is completed, the following screen will be displayed.

ENG
ENGLISH
10 EZMANAGER
Manually for Setup
1 Select a Label and/or enter the Room Number using the numeric keypad on the remotes or using the virtual keyboard on the TV
screen.To continue, move and select‘NEXT’.

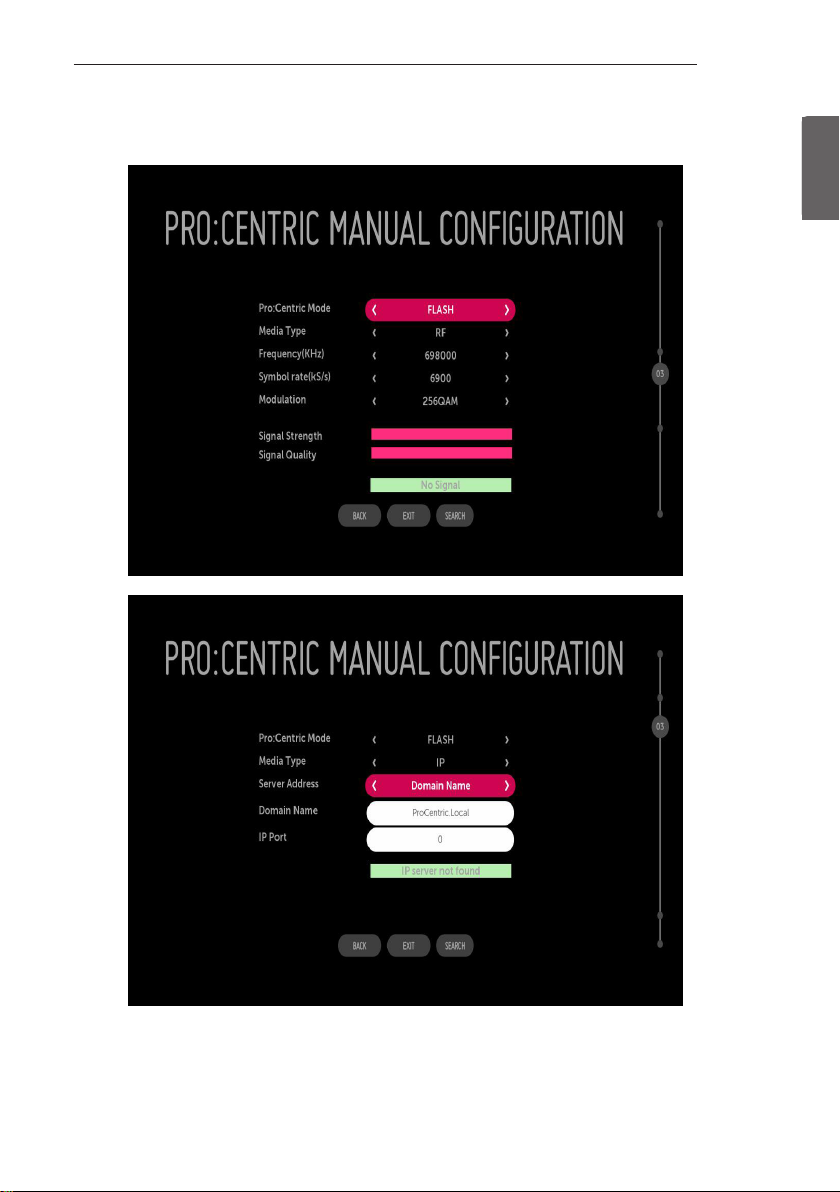

2 Please select the‘MANUAL PRO:CENTRIC’.

ENGENGLISH
11
EZMANAGER
3 Congure the appropriate Pro:Centric settings in the TV.

ENG
ENGLISH
12 EZMANAGER
4 Downloading the Pro:Centric application les takes few minutes.

ENGENGLISH
13
EZMANAGER
5 After the installation is completed, the following screen will be displayed.

ENG
ENGLISH
14 EZMANAGER
USB LG Smart Install Utility

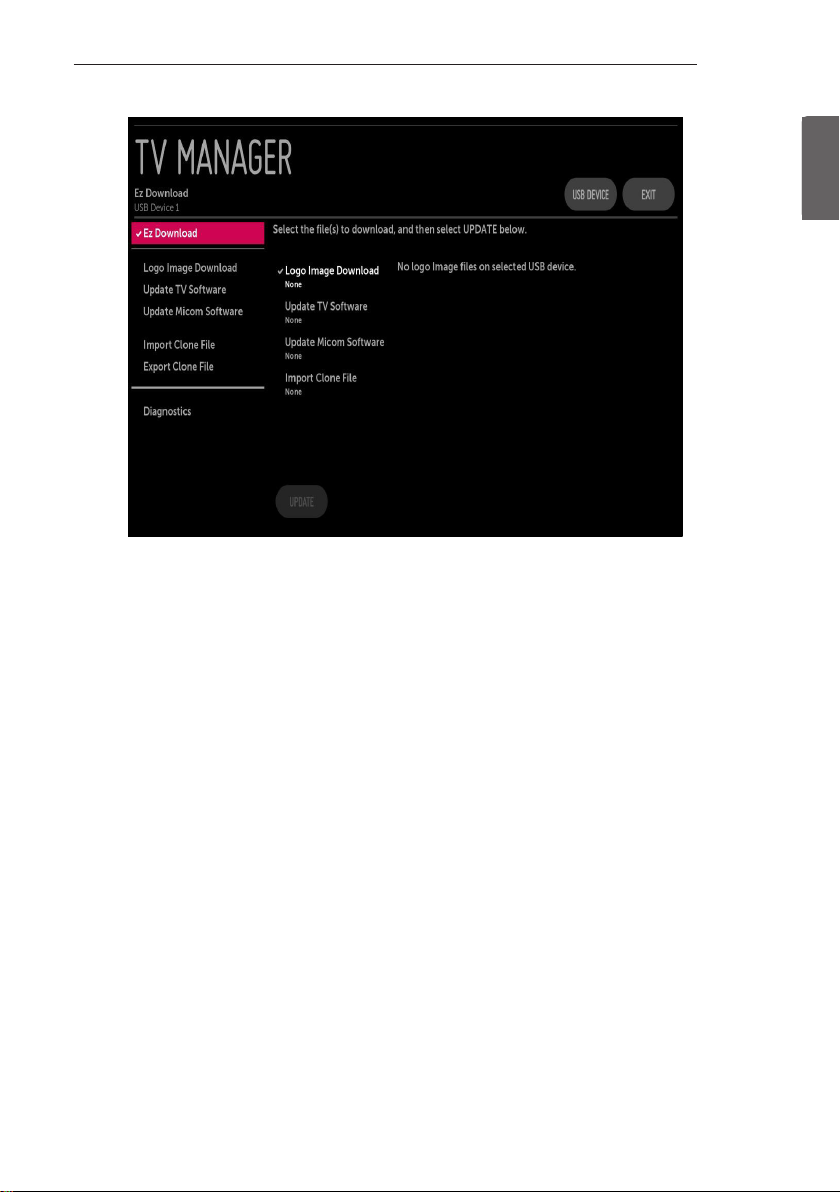

1 Select the ‘USB CONFIGURATION’ → ‘TV MANAGER’.
-If you have USB Memory for“LG_DTV”or“lg_dtv”folder, this step shows the USB file list for downloading the items.

ENGENGLISH
15
EZMANAGER

ENG
ENGLISH
16 EZMANAGER
2 Downloading the Pro:Centric application les takes few minutes.
3 After the installation is completed, the following screen will be displayed.

ENGENGLISH
17
INSTALLATION MENU
INSTALLATION MENU
•
•Image shown may differ from your TV.
INTRODUCTION
The abundant functions for HotelTV linked with software installation can be projected on OSD as ‘Installation Menu’.
The wide range of hotel features can be performed simply on additional window to enhance the LG hotel TV’s easy installation and
convenient operation for Hotelier and System Integrators.
TV
1 Press the Setting button for more than 5 seconds using the user remote control, programme
information will appear at top left on the screen.
2 Enter a four digit password and press‘OK’ button.
-TheTV is set with the initial password“1-1-0-5”.
3 Use the button to select the desired menu.

ENG
ENGLISH
18 INSTALLATION MENU
LG HOTEL MODE

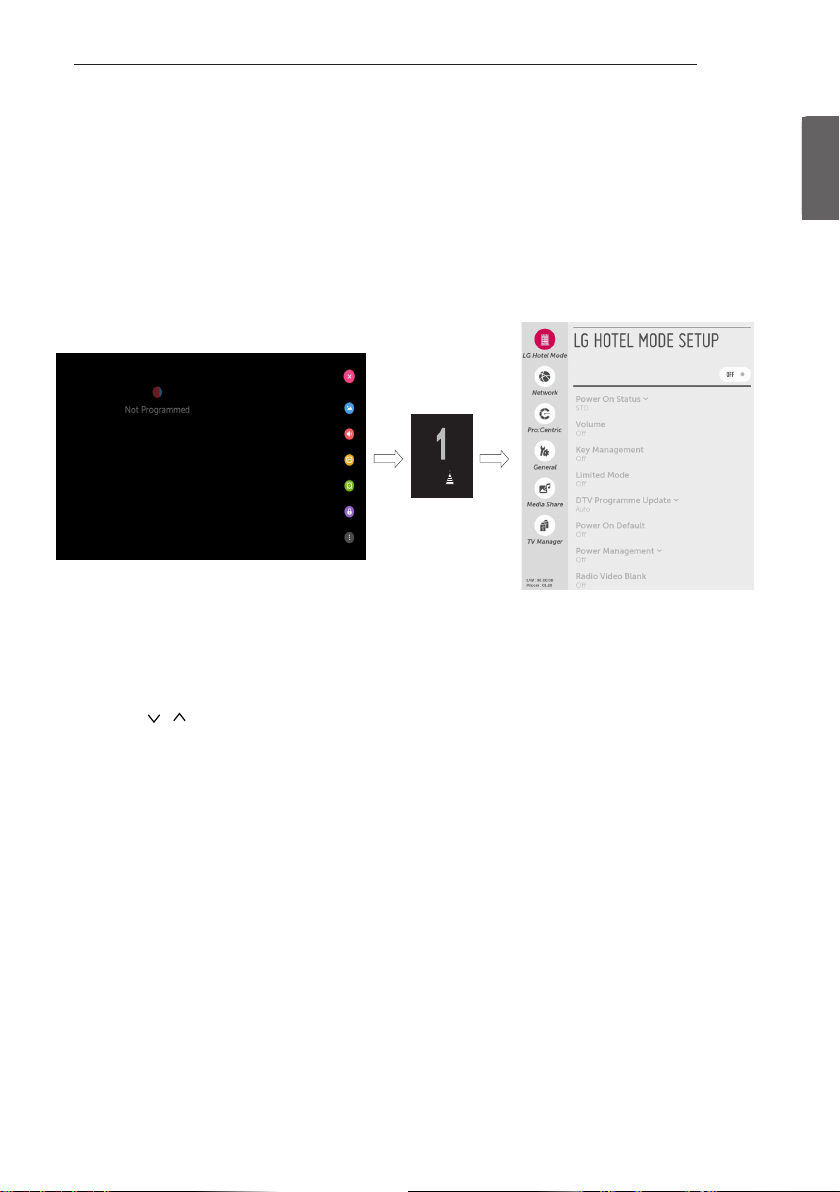

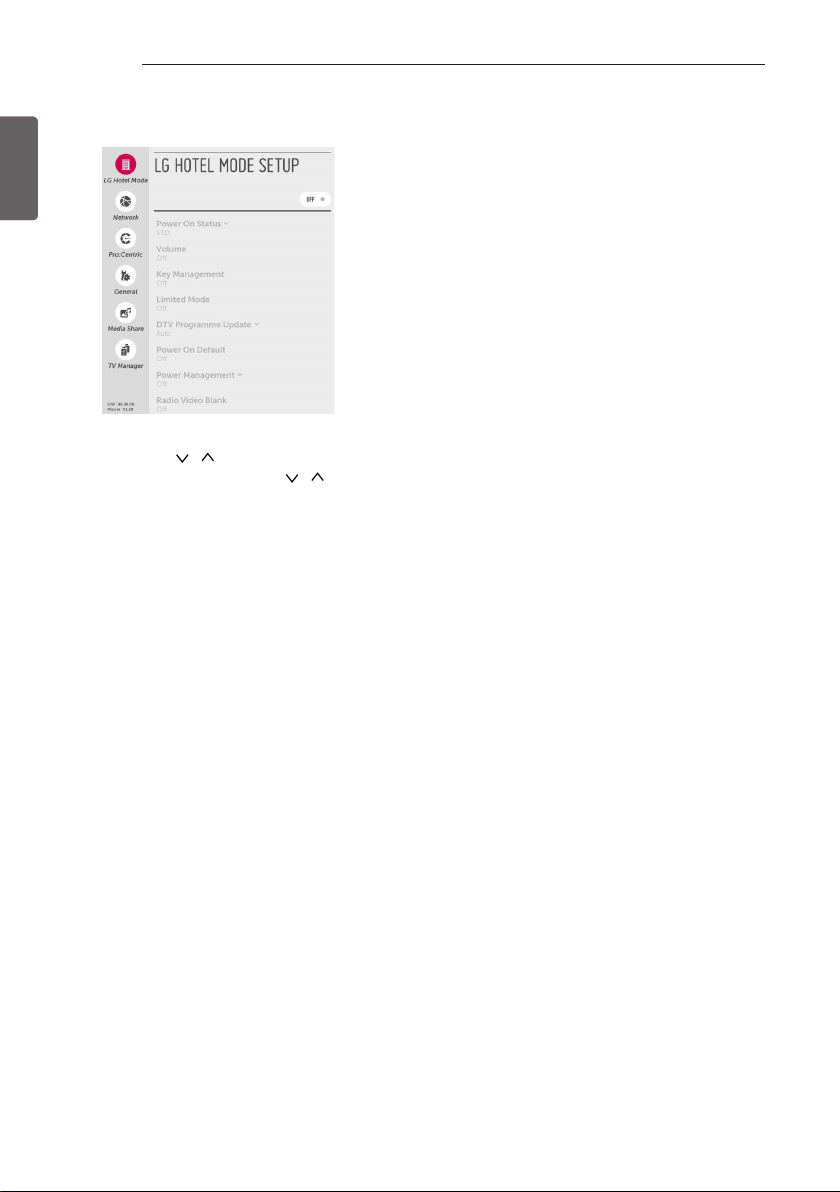

1 Use the button to select the LG HOTEL MODE SETUP.
2 Use the‘OK’button and then button to select Hotel Mode Operation.
-When‘Hotel Mode Operation’is set to Yes (Work), all functions of Hotel Mode apply.
Hotel Mode Operation
-Decide to work all functions of‘Hotel Mode Operation’or not by setting‘Hotel Mode Operation’asYes(Work) or No(Do Not
Work)
-When‘Hotel Mode Operation’is set to Yes(Work), all functions of Hotel Mode apply.
-When‘Hotel Mode Operation’is set to No(Do Not Work), all functions of Hotel Mode Do Not apply.
-When it is set to‘Yes’,‘Key Lock’item of the User menu is disabled and the OSD is displayed same to the Local Key Operation
setting of the Hotel mode.
-When it is set to‘Yes’, all items reserved at the Schedule list are deleted and the reservation function is not supported.(applied
for the model offering the reservation function)
-TheTV triggered by the external device (ex: SIMPLINK,TVLink-Tuner, etc.) operates separately from the Hotel mode.
-When it is set to‘Yes’, User Menu →Option →‘Factory Reset and Demo Mode’are disabled.
-When‘Hotel Mode Operation’is set to Yes(Work), all skipped programs are not tuned by number keys.
-When‘Hotel Mode Operation’is set to Yes(Work), Detailed Information about the programme is not available in the EPG.
Power On Status
-Decide to select working status ofTV Set when turn on main power.
-You can set with PWR, STD, LST.
-PWR always make TV set On status when turn on main power .
-STD make Stand-by status when turn on main power.
-LST makeTVSet work like previous power status. As same concept as Power Backup mode; If main power were turned off
in Power On status,TVSet would work in On status. If main power were turned off in Stand-by status, TVSet would work in
Stand-by status.
-If there Block All is both IR Operation and Local Key Operation from Key Management, In order to provide the Option
that must be able to turn on theTV in the TV turned off situation, change the value of the PWR. (Reference the Key
Management)

ENGENGLISH
19
INSTALLATION MENU
Volume
-Decide to apply volume policy of‘Start Volume’, ‘Maximum Volume’and‘MinimumVolume’as Yes(Work) or No(Do Not
Work).
-(0 ≤ Min ≤ Start ≤ Max ≤ 100)
Start Volume
yThis entry sets the start volume level when is power on.
-The level is specified as a number between minimum volume to maximum value. (Min ≤ Start ≤ Max)
-The default setting is‘Off’(disabled).
-When enabled, if the value is lower then the minimum specified in the minimum volume entry, the minimum volume
entry must be used.
-When enabled, if the value is larger then the maximum specified in the maximum volume entry, the maximum volume
value must be used.
-Access to a volume in‘OnTimer’must be fixed to start volume when‘Hotel Mode Operation’(Yes) and‘Start Volume’(Off, 0
~ 100) were set simultaneously.
Maximum Volume
yThis entry sets the maximum volume level the set. The level is specied as a number between‘MinimumVolume’to 100. (Min ≤
Max ≤ 100).
-If the command volume up to higher than maximum volume’is received, that should be ignored.
-The default value is 100.
Minimum Volume
yThis entry sets the minimum volume level the set will produce.
-The level is specified as a number between 0 to‘Maximum Volume’. (0 ≤ Min ≤ Max)
-If the command volume down to lower than minimum volume is received, that should be ignored.
-The default value is 0.
Key Management
-Manage key usability of Local(Front) Key and Remote Control.When selected to‘On’, following‘IR Operation’and‘Local Key
Operation’will be worked by below.
IR Operation
yDecide whether work the LG remote control or not.
-When‘IR Operation’is set to 'Normal', all remote keys are available.
-'Use PWR Only' makes block all remote keys except power key.
-When‘IR Operation’is set to 'Block All', all normal remote keys don’t work.
Local Key Operation
yDecide to operate 'Local/Front Key' working behavior by setting‘Local Key Operation’as 'Normal', 'Use PWR Only' and 'Block All'.
-When‘Local Key Operation’is set to 'Normal', all local keys are available.
-'Use PWR Only' makes block all local keys except power key.
-When‘Local Key Operation’is set to 'Block All', all local keys don’t work.

ENG
ENGLISH
20 INSTALLATION MENU
Limited Mode
-Configure TV function’s limitation. When selected to‘Yes’, following sub-menus will be worked by below.
Setup Menu
-Decide to enter 'Setup’Menu’as‘Yes’(Enter possible) or‘No’(Enter impossible)
Programme Change
yDecide to change channel or not by setting‘Program Change' as‘Yes’(Change Possible) or‘No’(Change Impossible) when present
source is TV.
-When‘Programme Change' is set to No (Change Impossible)
»Program Key, Numeral Key, List Key, Q.View Key don't work and entering 'Channel Menu' in the Main Menu OSD is
impossible.
»‘Programme' item in 'On Time' menu will be fixed.
»Entering‘Setup Menu' in the 'Main Menu’OSD is impossible regardless of‘Setup Menu' item.
-When 'Program Change’is set toYes(Change Possible),‘Program Key’,‘Numeric Key’,‘List Key’, ‘Q.View’Key does work and
entering‘Channel Menu' in the Main Menu OSD is possible.
Menu Display
yFunction to decide whether work with menu (including relevant menus too) of control key (Yes – Enter possible) or not (No –
Enter Impossible).
-Although select No(Enter impossible), the action that press a Menu button for 5 seconds to enter‘Installation Menu’is
available.
-When select Yes(Enter possible), Menu works.
OSD Display
yDecide to display OSD or not by setting‘OSD Display’as Yes(Display) or No(Do not Display).
-When‘OSD Display’is set to‘No’(Do not Display), all OSD is not displayed except some exception.
-Although select‘No’(Do not Display), the action that press a Menu button for 5 seconds to enter‘Installation Menu’and
entering service menu are available. (In-Start, Power-Only, Adjust, Installation Menu…)
System Provider Mode
y‘System Provider Mode’allows access to the menu system from the front panel or remote control but access is controlled as follows:
-When value is‘Yes’, Accessible Items on the menu system, others are not permissible.
»Input select screens
»Sleep timer
»Aspect Ratio
»Closed Caption
»‘Lock’/‘My Media’/‘Network’/ ‘Support’/‘Bluetooth’Menu
-‘Q.menu’, which is related to‘Setup’Menu, is not accessible.
-If the channel map is empty,‘Auto-tuning’guide dialog should be blocked by pressing‘List’,‘Fav’,‘CH+’,‘CH-’keys.
DTV Programme Update
-It is a mode to set whether to update dtv Programme automatically or not.
-When DTV Programme Update is set to‘Auto’, the function to updateTV’s programme map according to dtv programme’s
stream information.
-DTV Programme Update is set to‘Manual’, the function to keep TV’s programme map even though dtv programme’s
information is changed.
