OWNER’S MANUAL
LED TV*
Please read this manual carefully before operating
your set and retain it for future reference.
* LG LED TV applies LCD screen with LED backlights.
LA79**
LA86**
LA96**
LA97**
LA98**
LM96**

A-2 TABLE OF CONTENTS
COMMON
LANGUAGE
TABLE OF CONTENTS
A-3 SETTING UP THE TV
A-3 Attaching the stand
A-6 Tidying cables
A-8 MAKING CONNECTIONS
A-8 Antenna connection
A-9 Satellite dish connection
A-9 HDMI connection
A-10 - ARC (Audio Return Channel)
A-11 Headphone connection
A-11 DVI to HDMI connection
A-13 Component connection
A-14 Composite connection
A-15 MHL connection
A-16 Audio connection
A-16 - Digital optical audio connection
A-17 USB connection
A-18 CI module connection
A-19 Euro Scart connection
LANGUAGE LIST
English
Türkçe
B-1 SPECIFICATIONS COMMON

A-3
SETTING UP THE TV
Setting up the TV
Image shown may differ from your TV.

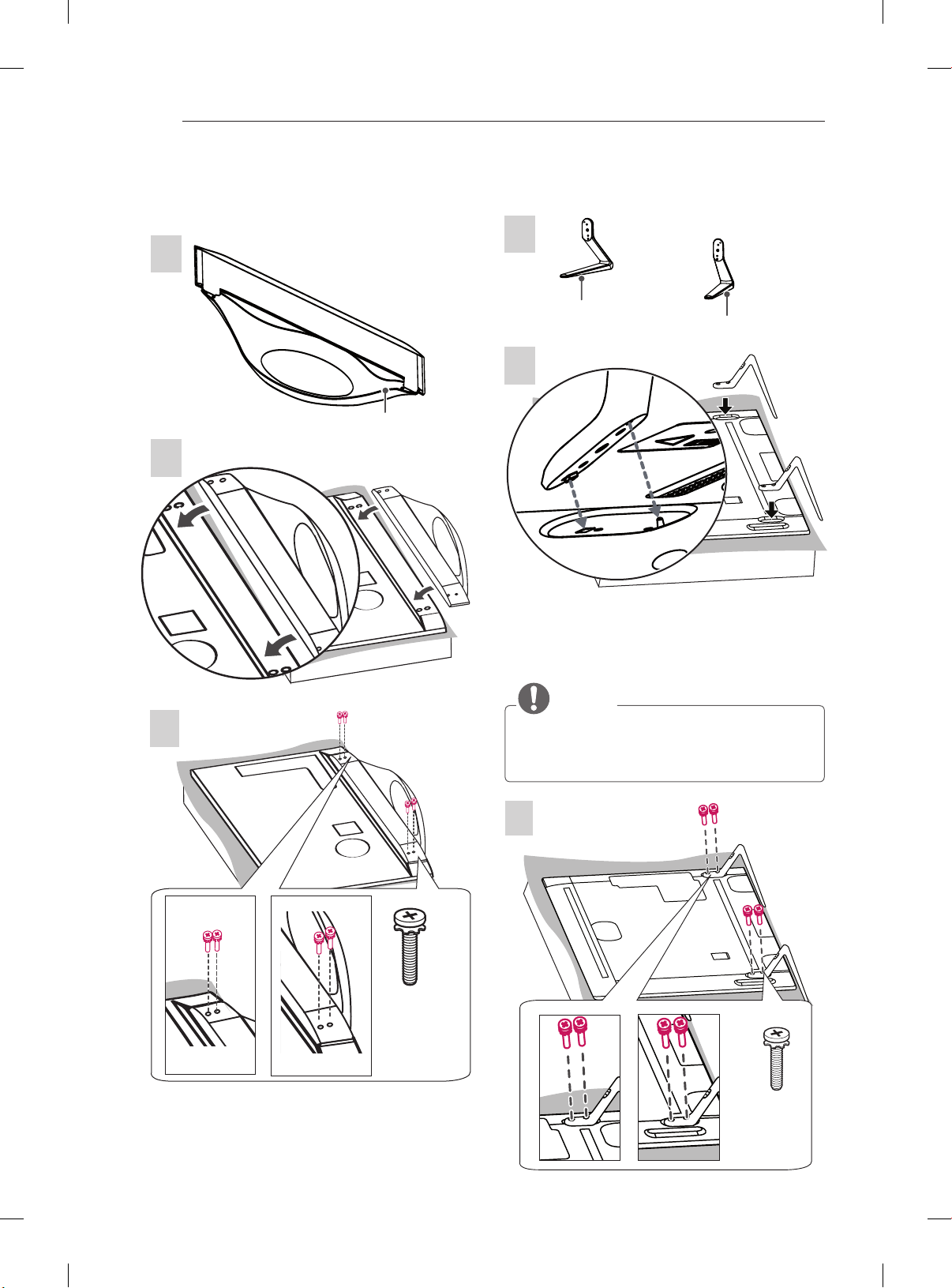

Attaching the stand
LA79**
1
2
3
M4 x 14
4EA
Stand base
Stand body
Front
M4 x 14
4EA
LA860*, LA960*
1
2
3
Stand Base
M4 x 16
4EA
(LA860*)
M4 x 20
4EA
(LA960*)

A-4 SETTING UP THE TV
3
2
1
Stand Base
M4 x 16
4 EA
LA868* LA965*
1
2
3
M4 x 14
4 EA
NOTE
yBe sure to attach the upper mounting hole
first, and then attach the lower connection
second.
Stand Base
Stand Base
①
②
① Attach the stand to the TV using the upper
mounting hole on the back of the TV.
② Attach the stand to the TV using the lower
connection on the back of the TV.

A-5
SETTING UP THE TV
Stand Base
Front
1
1
LA97** LA98**, LM96**
2
2
3
3
M4 x 14
4 EA
NOTE
yThe stand screws are already attached
at the back of the TV. Please use these
attached screw to assemble the TV and
stand. (Only 65LA97**)
Front
6 EA
M5 x 16
Front
Stand base
Stand body

A-6 SETTING UP THE TV
CAUTION
yWhen attaching the stand to the TV
set, place the screen facing down on a
cushioned table or flat surface to protect the
screen from scratches.
yMake sure that the screws are inserted
correctly and fastened securely. (If they are
not fastened securely enough, the TV may
tilt forward after being installed.)
Do not use too much force and over tighten
the screws; otherwise screw may be
damaged and not tighten correctly.
NOTE
yRemove the stand before installing the TV
on a wall mount by performing the stand
attachment in reverse.
4 EA
M4 x 20
4Tidying cables
(Only LA79**)
1 Gather and bind the cables with the Cable
Management.
2 Fix the Cable Management rmly to the TV.
Cable Holder
Cable Management
(Only LA860*, LA960*)
1 Gather and bind the cables with the Cable
Holder and the Cable Management.
2 Fix the Cable Management rmly to the TV.
⨲㘶ᖂ2
㏪ⱞ⋾#Ɐᴏ
Cable Holder
Cable Management
Cable Management
Cable Holder
(Only LA98**, LM96**)
1 Gather and bind the cables with the Cable
Holder and the Cable Management.
2 Fix the Cable Management rmly to the TV.

A-7
SETTING UP THE TV
CAUTION
yDo not move the TV by holding the cable
holders, as the cable holders may break,
and injuries and damage to the TV may
occur.

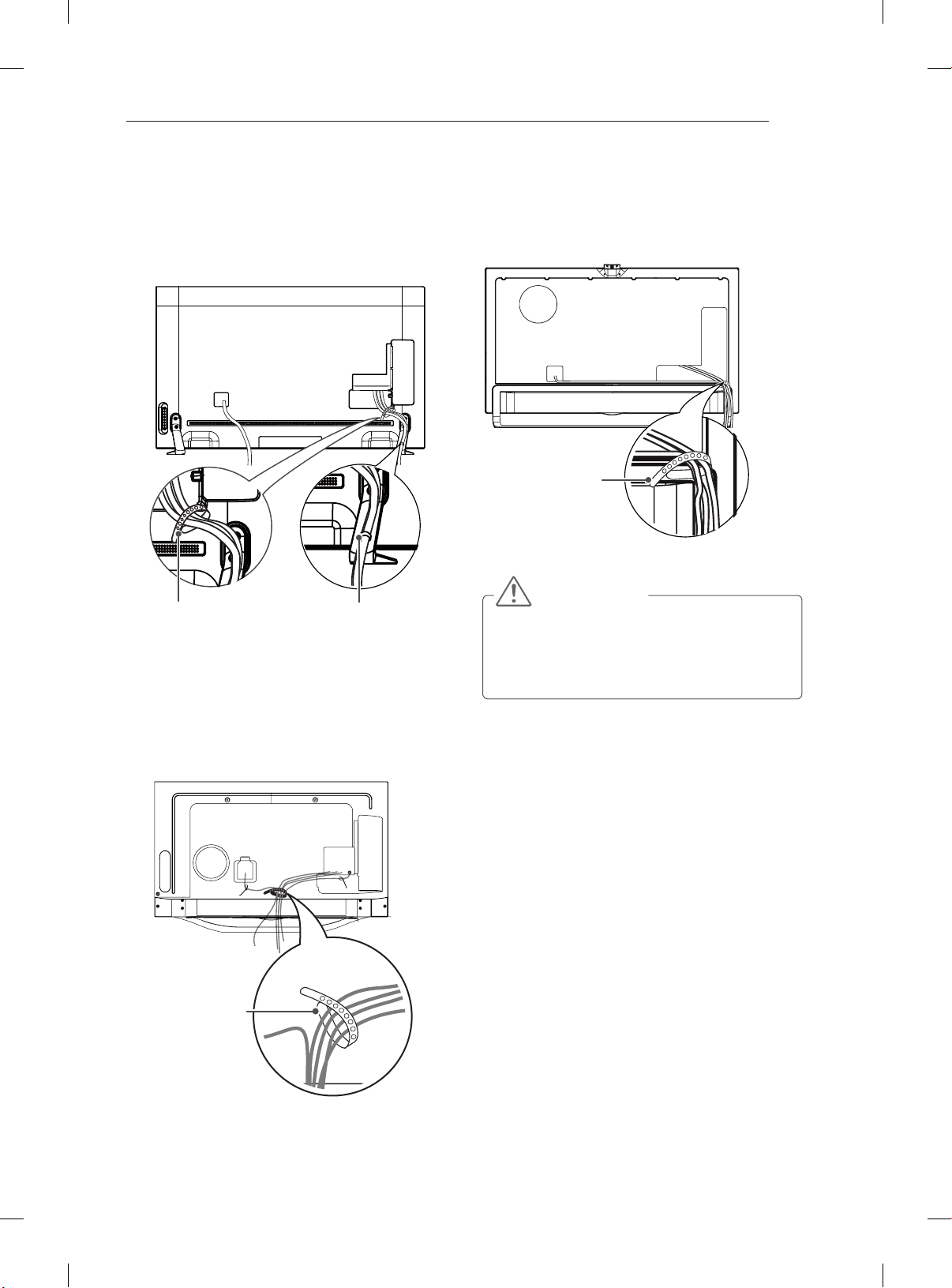

Cable Holder
1 Gather and bind the cables with the cable
holder on the back of the TV.
(Only LA868*)
(Only LA97**)
1 Gather and bind the cables with the cable
holder on the back of the TV.
Cable Holder
(Only LA965*)
1 Gather and bind the cables with the cable
holder on the back of the TV.
2 Fix the Cable Management rmly to the TV.
Cable Management
Cable Holder

A-8 MAKING CONNECTION
Türkçe
TV’yi RF kablosu (75 Ω) ile duvar anten soketine
bağlayın.
NOT
yİkiden fazla TV’de kullanmak için bir sinyal
ayırıcısı kullanın.
yGörüntü kalitesinin kötü olması durumunda
görüntü kalitesini artırmak üzere bir sinyal
güçlendiricisi kullanın.
yAnten bağlıyken görüntü kalitesinin kötü
olması durumunda anteni doğru yönde
yeniden hizalamayı deneyin.
yAnten kablosu ve dönüştürücü ürünle birlikte
verilmemektedir.
yDesteklenen DTV Ses: MPEG, Dolby Digital,
Dolby Digital Plus, HE-AAC
yUltra HD (3840x2160 piksel) içerik
gösterimine uygun ekran için harici Ultra
HD içerik oynatıcı gerekebilir ve ayrı olarak
satılır. (Yalnızca LA965*, LA97**, LA98**,
LM96**)
MAKING
CONNECTIONS
This section on MAKING CONNECTIONS mainly
uses diagrams for the LA79** models.
Antenna connection
IN
ANTENNA/
CABLE
English
Connect the TV to a wall antenna socket with an
RF cable (75 Ω).
NOTE
yUse a signal splitter to use more than 2 TVs.
yIf the image quality is poor, install a signal
amplifier properly to improve the image quality.
yIf the image quality is poor with an antenna
connected, try to realign the antenna in the
correct direction.
yAn antenna cable and converter are not
supplied.
ySupported DTV Audio: MPEG, Dolby Digital,
Dolby Digital Plus, HE-AAC
yDisplay of Ultra HD(3840 x 2160 pixels)
content compatible; additional device
capable of processing Ultra HD source
content (in 2D or 3D) may be required and
will be sold separately. (Only LA965*, LA97**,
LA98**, LM96**)

A-9
MAKING CONNECTION
Satellite dish connection
(Only satellite models)
IN
13/18V
700mA Max
LNB IN
Satellite
English
Connect the TV to a satellite dish to a satellite
socket with a satellite RF cable (75 Ω).
Türkçe
TV’yi uydu RF kablosu (75 Ω) kullanarak çanak
antene ve uydu soketine bağlayın.
HDMI connection
HDMI
2 31 4
/ DVI IN
(ARC)
(MHL)
(*Not Provided)
DVD/ Blu-Ray / HD Cable
Box / HD STB / PC
(Only LA79**, LA86**, LA960*)
2 31
/ DVI IN
(ARC)
(MHL)
HDMI
(*Not Provided)
DVD/ Blu-Ray / HD Cable
Box / HD STB / PC
(Only LA965*, LA97**, LA98**, LM96**)

A-10 MAKING CONNECTION
Türkçe
Harici cihazdan TV’ye dijital video ve ses sinyalleri
gönderir. Harici cihaz ile TV’yi HDMI kablosuyla
aşağıdaki şekilde gösterildiği gibi bağlayın.
Bağlanmak için herhangi bir HDMI giriş bağlantı
noktasını seçin. Kullandığınız bağlantı noktası
önemli değildir.
NOT
yEn iyi görüntü kalitesi için, TV’nin HDMI
bağlantısıyla kullanılması önerilir.
yCEC (Tüketici Elektronik Kontrolü)
fonksiyonlu en son Yüksek Hızlı HDMI™
Kablosunu kullanın.
yYüksek Hızlı HDMI™ Kablolarının 1080p ve
üzerine kadar HD sinyalini taşıyabildiği test
edilmiştir.
yDesteklenen HDMI Ses biçimi: Dolby Digital,
DTS, PCM (En fazla 192 KHz, 32KHz/44.1K
Hz/48KHz/88KHz/96KHz/176KHz/192KHz)
English
Transmits the digital video and audio signals from
an external device to the TV. Connect the external
device and the TV with the HDMI cable as shown.
Choose any HDMI input port to connect. It does
not matter which port you use.
NOTE
yIt is recommended to use the TV with the
HDMI connection for the best image quality.
yUse the latest High Speed HDMI™ Cable
with CEC (Customer Electronics Control)
function.
yHigh Speed HDMI™ Cables are tested to
carry an HD signal up to 1080p and higher.
ySupported HDMI Audio format : Dolby
Digital, DTS, PCM (Up to 192 KHz, 32KHz/4
4.1KHz/48KHz/88KHz/96KHz/176KHz/192K
Hz)
ARC (Audio Return Channel)
English
yAn external audio device that supports
SIMPLINK and ARC must be connected
using HDMI/DVI IN 1 (ARC) port.
yWhen connected with a high-speed HDMI
cable, the external audio device that
supports ARC outputs optical SPDIF without
additional optical audio cable and supports
the SIMPLINK function.
Türkçe
yHDMI/DVI IN 1 (ARC) bağlantı noktası kul-
lanılarak SIMPLINK ve ARC’yi destekleyen
harici bir ses cihazının bağlanması gerekir.
yARC’yi destekleyen harici ses cihazı, yüksek
hızlı bir HDMI kablosuyla bağlandığında ek
optik ses kablosu eklemeye gerek kalmadan
optik SPDIF çıkışı sağlar ve SIMPLINK fonk-
siyonunu destekler.

A-11
MAKING CONNECTION
Headphone connection
OUT
Ext.Speaker /
H/P
(*Not Provided)
English
Transmits the headphone signal from the TV to
an external device. Connect the external device
and the TV with the headphone as shown.
NOTE
yAUDIO menu items are disabled when
connecting a headphone.
yOptical Digital Audio Out is not available
when connecting a headphone.
yHeadphone impedance: 16 Ω
yMax audio output of headphone: 0.624 mW
to 1.04 mW
yHeadphone jack size: 0.35 cm
Türkçe
TV’den harici bir cihaza kulaklık sinyali gönderir.
Harici cihaz ile TV’yi kulaklıkla aşağıdaki şekilde
gösterildiği gibi bağlayın.
NOT
yKulaklık bağlandığında SES menüsü öğeleri
devre dışı bırakılır.
yOptik Dijital Ses Çıkışı kulaklık takılı olduğun-
da kullanılamaz.
yKulaklık empedansı: 16 Ω
yKulaklığın maks. ses çıkışı: 0.624 mW - 1.04
mW
yKulaklık jakı boyutu: 0,35 cm
DVI to HDMI connection
DVI OUT
AUDIO OUT
AV2
(*Not Provided)
(*Not Provided)
DVD / Blu-Ray / HD Cable Box / PC
(Only LA79**, LA86**, LA960*)

A-12 MAKING CONNECTION
Türkçe
Harici cihazdan TV’ye dijital video sinyali gönderir.
Harici cihaz ile TV’yi DVI-HDMI kablosuyla
aşağıdaki şekilde gösterildiği gibi bağlayın. Ses
sinyali göndermek için bir ses kablosu bağlayın.
Bağlanmak için herhangi bir HDMI giriş bağlantı
noktasını seçin. Kullandığınız bağlantı noktası
önemli değildir.
NOT
yGrafik kartına bağlı olarak, HDMI-
DVI Kablosu kullanılıyorsa DOS modu
çalışmayabilir.
yHDMI/DVI kablosunu kullanırken yalnızca
tek bağlantıya izin verilir.
Transmits the digital video signal from an external
device to the TV. Connect the external device and
the TV with the DVI-HDMI cable as shown. To
transmit an audio signal, connect an audio cable.
Choose any HDMI input port to connect. It does
not matter which port you use.
NOTE
yDepending on the graphics card, DOS mode
may not work if a DVI to HDMI Cable is in use.
yWhen using the DVI/HDMI cable, single link is
only supported.
English
DVI OUT
AUDIO OUT
AV2
2 31
/ DVI IN
(ARC)
(MHL)
(Only LA965*, LA97**, LA98**, LM96**)
(*Not Provided)
(*Not Provided)
DVD / Blu-Ray / HD Cable Box / PC

A-13
MAKING CONNECTION
Türkçe
Harici cihazdan TV’ye analog video ve ses
sinyalleri gönderir. Harici cihaz ile TV’yi komponent
kablosuyla aşağıdaki şekilde gösterildiği gibi
bağlayın.
NOT
yKabloların yanlış takılması, görüntünün siyah
beyaz veya bozuk renklerle gösterilmesine
neden olabilir.
Component connection
VIDEO
AUDIO
L R
IN
COMPONENT
YP B AUDIO
AV2
P R VIDEO
AV2
RED BLUE
GREEN RED WHITE
DVD / Blu-Ray /
HD Cable Box
GREEN GREEN BLUE BLUE
RED RED
RED RED
WHITE WHITE
YELLOW
(Use the composite
video cable provided.)
(*Not Provided)
GREENYELLOW
(Use the component
video cable provided.)
English
Transmits analog video and audio signals from an
external device to the TV. Connect the external
device and the TV with a component gender cable
as shown.
NOTE
yIf cables are not installed correctly, it could
cause this image to display in black and
white or with distorted colours.

A-14 MAKING CONNECTION
English
Transmits analog video and audio signals from an
external device to the TV. Connect the external
device and the TV with the composite cable as
shown.

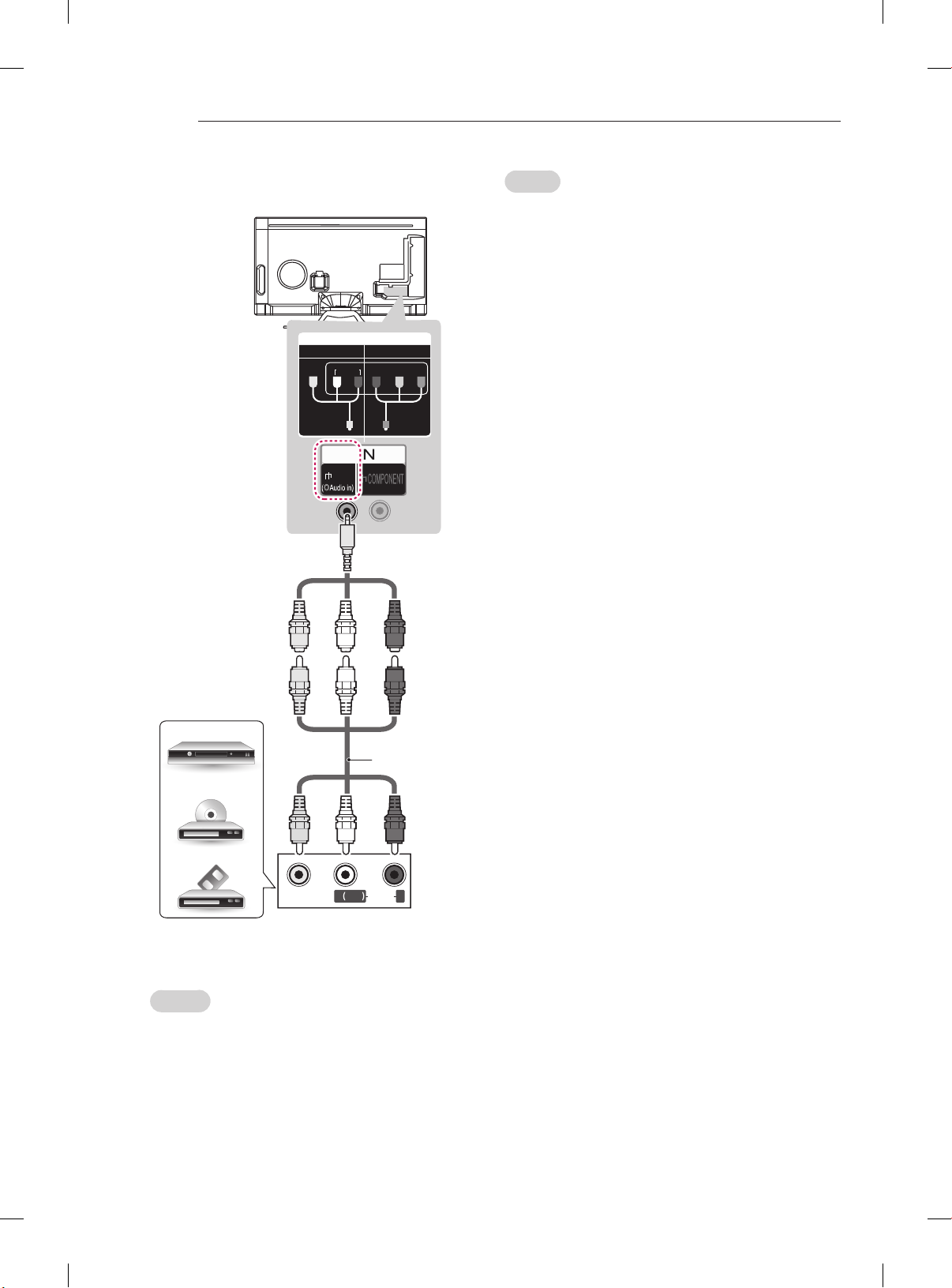

Composite connection
VIDEO
MONO
( )
AUDIO
L R
COMPONENT
PBY
IN
COMPONENT
YP B AUDIO
AV2
P R VIDEO
AV2
VCR / DVD / Blu-Ray
/ HD Cable Box
RED RED RED
WHITE WHITE WHITE
YELLOW YELLOW YELLOW
(Use the composite video
cable provided.)
(*Not Provided)
YELLOW
Türkçe
Harici cihazdan TV’ye analog video ve ses
sinyalleri gönderir. Harici cihaz ile TV’yi kompozit
kablosuyla aşağıdaki şekilde gösterildiği gibi
bağlayın.

A-15
MAKING CONNECTION
MHL connection
2
3
1
4
/
DVI I
N
(ARC)
(MHL)
MHL passive cable
(*Not Provided)
Mobile phone
(Only LA79**, LA86**, LA960*)
Mobile High-definition Link (MHL) is an interface
for transmitting digital audiovisual signals from
mobile phones to television sets.
yConnect the mobile phone to the HDMI/DVI
IN 4 (MHL) or HDMI/DVI IN 3 (MHL) port to
view the phone screen on the TV.
yThe MHL passive cable is needed to connect
the TV and a mobile phone.
yThis only works for the MHL-enabled phone.
ySome applications can be operated by the
remote control.
yFor some mobile phones supporting MHL,
you can control with the magic remote
control.
yRemove the MHL passive cable from the TV when:
- the MHL function is disabled
- your mobile device is fully charged in stand-
by mode
NOTE
English
(Only LA965*, LA97**, LA98**, LM96**)
2
3
1
/
DVI I
N
(ARC)
(MHL)
MHL passive cable
(*Not Provided)
Mobile phone

A-16 MAKING CONNECTION
Audio connection
OPTICAL AUDIO IN
OUT
OPTICAL
DIGITAL
AUDIO
Digital Audio System
(*Not Provided)
English
You may use an optional external audio system
instead of the built-in speaker.
Digital optical audio connection
Transmits a digital audio signal from the TV to an
external device. Connect the external device and
the TV with the optical audio cable as shown.
NOTE
yDo not look into the optical output port.
Looking at the laser beam may damage
your vision.
yAudio with ACP (Audio Copy Protection)
function may block digital audio output.
Türkçe
Mobil Yüksek Tanımlı Bağlantı (MHL) dijital görsel
işitsel sinyalleri cep telefonlarından televizyon
setlerine iletmek için kullanılan bir arabirimdir.
NOT
yTV’de telefon ekranını görüntülemek için cep
telefonunu HDMI/DVI IN 4 (MHL) veya HDMI/
DVI IN 3 (MHL) bağlantı noktasına bağlayın.
yTV ile cep telefonunu birbirine bağlamak için
MHL pasif kablo gereklidir.
yBu yalnızca MHL etkin telefonlarda çalışır.
yBazı uygulamalar uzaktan kumanda ile
çalıştırılabilir.
yMHL desteği olan bazı cep telefonlarını sihirli
uzaktan kumanda olarak kullanabilirsiniz.
yMHL pasif kablosunu TV’den çıkarın:
-MHL işlevi devre dışı bırakıldığında
-Mobil cihazınız bekleme modunda tamamen
şarj edildiğinde

A-17
MAKING CONNECTION
Türkçe
Dahili hoparlör yerine isteğe bağlı bir harici ses
sistemi kullanabilirsiniz.
Dijital optik ses bağlantısı
TV’den harici cihaza dijital ses sinyali gönderir.
Harici cihaz ile TV’yi optik ses kablosuyla
aşağıdaki şekilde gösterildiği gibi bağlayın.
NOT
yOptik çıkış bağlantı noktasına doğru
bakmayın. Lazer ışınına bakmak gözlerinize
zarar verebilir.
yACP (Ses Kopyalama Koruması) özelliğine
sahip sesler dijital ses çıkışını engelleyebilir.

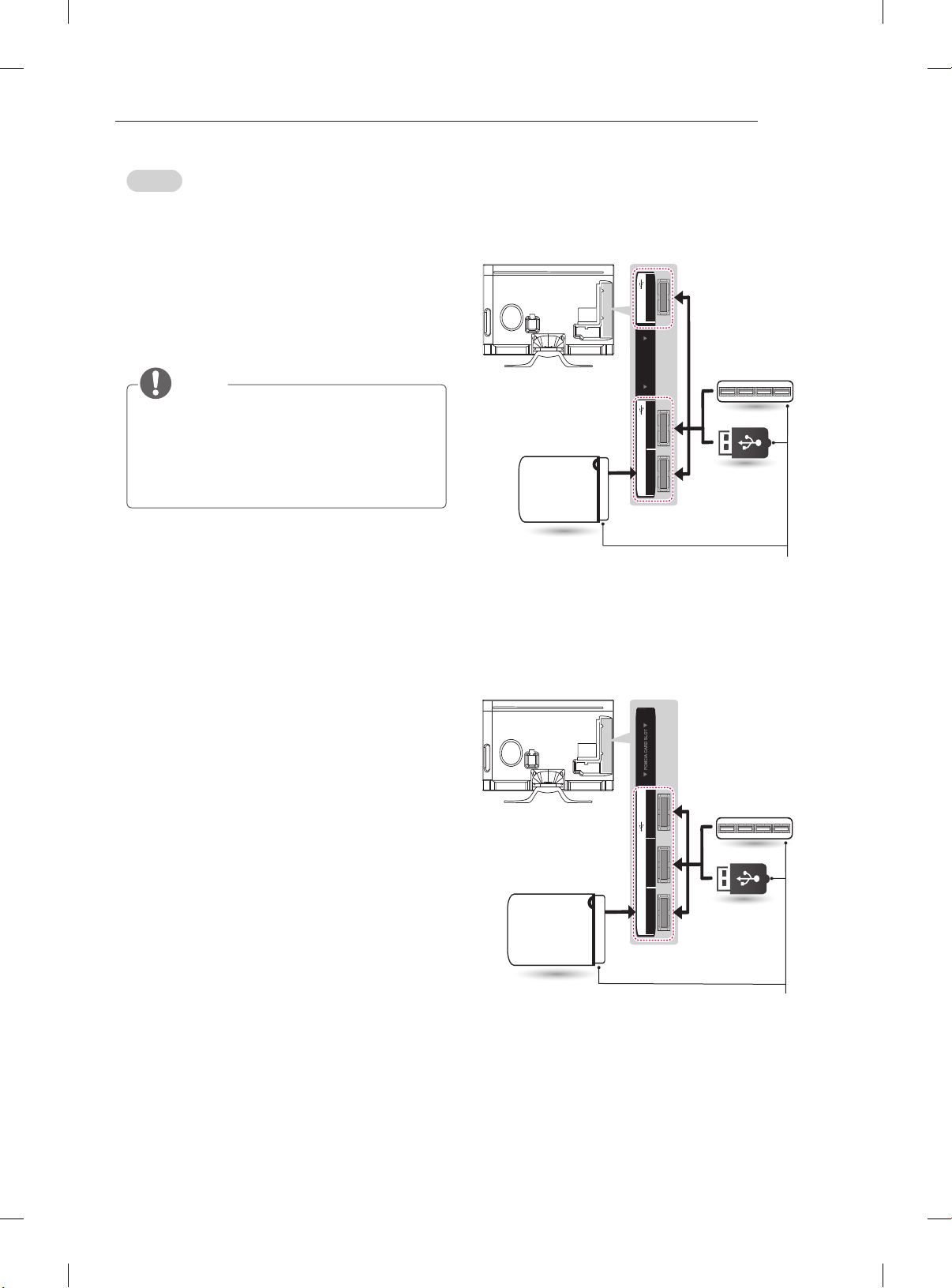

USB connection
(Only LA79**, LA86**, LA960*)
(Only LA965*, LA97**, LA98**, LM96**)
USB IN
1
2
3
HDD IN
(USB 3.0 IN)
USB IN
PC
M
C
IA
C
ARD
S
L
O
T
HUB
HDD
(*Not Provided)
USB
USB IN
1
2 3
HDD IN
(USB 3.0 IN)
HUB
HDD
(*Not Provided)
USB

A-18 MAKING CONNECTION
English
Connect a USB storage device such as a USB
ash memory, external hard drive, or a USB
memory card reader to the TV and access the
Smart Share menu to use various multimedia les.
NOTE
ySome USB Hubs may not work. If a USB
device connected using a USB Hub is not
detected, connect it to the USB port on the
TV directly.
yConnect the external power source if your
USB is needed.
Türkçe
Çeşitli multimedya dosyalarını kullanmak için
TV’ye USB aş bellek, harici sabit disk ya da USB
bellek kartı okuyucu gibi bir USB depolama aygıtı
bağlayın ve Smart Share menüsüne gidin.
NOT
yBazı USB Hubları çalışmayabilir. USB Hubı
ile bağlanan bir USB aygıtı çalışmazsa,
doğrudan TV üzerindeki USB bağlantı
noktasına bağlayın.
yUSB kullanmanız gerekiyorsa harici güç
kaynağını bağlayın.
CI module connection
▼PCMCIA CARD SLOT▼
View the encrypted (pay) services in digital TV
mode. This feature is not available in all countries.
yCheck if the CI module is inserted into the
PCMCIA card slot in the right direction. If
the module is not inserted properly, this can
cause damage to the TV and the PCMCIA
card slot.
yIf the TV does not display any video and
audio when CI+ CAM is connected, please
contact to the Terrestrial/Cable/Satellite
Service Operator.
NOTE
English
(*Not Provided)
