LG 47LB5610 User manual
Printed in KoreaP/NO : MFL67987514 (1404-REV00)
CHASSIS : LC43B
MODEL: 47LB5610 47LB5610-CD
CAUTION
BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
LED TV
SERVICE MANUAL
North/Latin America http://aic.lgservice.com
Europe/Africa http://eic.lgservice.com
Asia/Oceania http://biz.lgservice.com
Internal Use Only
- 2 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
CONTENTS
CONTENTS .............................................................................................. 2
SAFETY PRECAUTIONS ........................................................................ 3
SERVICING PRECAUTIONS ................................................................... 4
SPECIFICATION ...................................................................................... 6
ADJUSTMENT INSTRUCTION ............................................................... 8
BLOCK DIAGRAM.................................................................................. 15
EXPLODED VIEW .................................................................................. 16
SCHEMATIC CIRCUIT DIAGRAM ..............................................................
- 3 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
Schematic Diagram and Exploded View.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
General Guidance
An isolation Transformer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC
power line. Use a transformer of adequate power rating as this
protects the technician from accidents resulting in personal injury
from electrical shocks.
It will also protect the receiver and it's components from being
damaged by accidental shorts of the circuitry that may be
inadvertently introduced during the service operation.
If any fuse (or Fusible Resistor) in this TV receiver is blown,
replace it with the specified.
When replacing a high wattage resistor (Oxide Metal Film Resistor,
over 1 W), keep the resistor 10 mm away from PCB.
Keep wires away from high voltage or high temperature parts.
Before returning the receiver to the customer,
always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to
be sure the set is safe to operate without damage of electrical
shock.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1 MΩ and 5.2 MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.
Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
Do not use a line Isolation Transformer during this check.
Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC voltage
measurements for each exposed metallic part. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to
0.5 mA.
In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.
Leakage Current Hot Check circuit
IMPORTANT SAFETY NOTICE
SAFETY PRECAUTIONS
- 4 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
SERVICING PRECAUTIONS
CAUTION: Before servicing receivers covered by this service
manual and its supplements and addenda, read and follow the
SAFETY PRECAUTIONS on page 3 of this publication.
NOTE: If unforeseen circumstances create conict between the
following servicing precautions and any of the safety precautions
on page 3 of this publication, always follow the safety precau-
tions. Remember: Safety First.
General Servicing Precautions
1. Always unplug the receiver AC power cord from the AC power
source before;
a. Removing or reinstalling any component, circuit board
module or any other receiver assembly.
b. Disconnecting or reconnecting any receiver electrical plug
or other electrical connection.
c. Connecting a test substitute in parallel with an electrolytic
capacitor in the receiver.
CAUTION: A wrong part substitution or incorrect polarity
installation of electrolytic capacitors may result in an explo-
sion hazard.
2. Test high voltage only by measuring it with an appropriate
high voltage meter or other voltage measuring device (DVM,
FETVOM, etc) equipped with a suitable high voltage probe.
Do not test high voltage by "drawing an arc".
3. Do not spray chemicals on or near this receiver or any of its
assemblies.
4. Unless specied otherwise in this service manual, clean
electrical contacts only by applying the following mixture to the
contacts with a pipe cleaner, cotton-tipped stick or comparable
non-abrasive applicator; 10 % (by volume) Acetone and 90 %
(by volume) isopropyl alcohol (90 % - 99 % strength)
CAUTION: This is a ammable mixture.
Unless specied otherwise in this service manual, lubrication
of contacts in not required.
5. Do not defeat any plug/socket B+ voltage interlocks with which
receivers covered by this service manual might be equipped.
6. Do not apply AC power to this instrument and/or any of its
electrical assemblies unless all solid-state device heat sinks
are correctly installed.
7. Always connect the test receiver ground lead to the receiver
chassis ground before connecting the test receiver positive
lead.
Always remove the test receiver ground lead last.
8. Use with this receiver only the test xtures specied in this
service manual.
CAUTION: Do not connect the test xture ground strap to any
heat sink in this receiver.
Electrostatically Sensitive (ES) Devices
Some semiconductor (solid-state) devices can be damaged eas-
ily by static electricity. Such components commonly are called
Electrostatically Sensitive (ES) Devices. Examples of typical ES
devices are integrated circuits and some eld-effect transistors
and semiconductor “chip” components. The following techniques
should be used to help reduce the incidence of component dam-
age caused by static by static electricity.
1. Immediately before handling any semiconductor component or
semiconductor-equipped assembly, drain off any electrostatic
charge on your body by touching a known earth ground. Alter-
natively, obtain and wear a commercially available discharg-
ing wrist strap device, which should be removed to prevent
potential shock reasons prior to applying power to the unit
under test.
2. After removing an electrical assembly equipped with ES
devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge buildup or expo-
sure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder
ES devices.
4. Use only an anti-static type solder removal device. Some sol-
der removal devices not classied as “anti-static” can generate
electrical charges sufcient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate
electrical charges sufcient to damage ES devices.
6. Do not remove a replacement ES device from its protective
package until immediately before you are ready to install it.
(Most replacement ES devices are packaged with leads elec-
trically shorted together by conductive foam, aluminum foil or
comparable conductive material).
7. Immediately before removing the protective material from the
leads of a replacement ES device, touch the protective mate-
rial to the chassis or circuit assembly into which the device will
be installed.
CAUTION: Be sure no power is applied to the chassis or cir-
cuit, and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged replace-
ment ES devices. (Otherwise harmless motion such as the
brushing together of your clothes fabric or the lifting of your
foot from a carpeted oor can generate static electricity suf-
cient to damage an ES device.)
General Soldering Guidelines
1. Use a grounded-tip, low-wattage soldering iron and appropri-
ate tip size and shape that will maintain tip temperature within
the range or 500 °F to 600 °F.
2. Use an appropriate gauge of RMA resin-core solder composed
of 60 parts tin/40 parts lead.
3. Keep the soldering iron tip clean and well tinned.
4. Thoroughly clean the surfaces to be soldered. Use a mall wire-
bristle (0.5 inch, or 1.25 cm) brush with a metal handle.
Do not use freon-propelled spray-on cleaners.
5. Use the following unsoldering technique
a. Allow the soldering iron tip to reach normal temperature.
(500 °F to 600 °F)
b. Heat the component lead until the solder melts.
c. Quickly draw the melted solder with an anti-static, suction-
type solder removal device or with solder braid.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.
6. Use the following soldering technique.
a. Allow the soldering iron tip to reach a normal temperature
(500 °F to 600 °F)
b. First, hold the soldering iron tip and solder the strand
against the component lead until the solder melts.
c. Quickly move the soldering iron tip to the junction of the
component lead and the printed circuit foil, and hold it there
only until the solder ows onto and around both the compo-
nent lead and the foil.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.
d. Closely inspect the solder area and remove any excess or
splashed solder with a small wire-bristle brush.
- 5 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
IC Remove/Replacement
Some chassis circuit boards have slotted holes (oblong) through
which the IC leads are inserted and then bent at against the cir-
cuit foil. When holes are the slotted type, the following technique
should be used to remove and replace the IC. When working with
boards using the familiar round hole, use the standard technique
as outlined in paragraphs 5 and 6 above.
Removal
1. Desolder and straighten each IC lead in one operation by
gently prying up on the lead with the soldering iron tip as the
solder melts.
2. Draw away the melted solder with an anti-static suction-type
solder removal device (or with solder braid) before removing
the IC.
Replacement
1. Carefully insert the replacement IC in the circuit board.
2. Carefully bend each IC lead against the circuit foil pad and
solder it.
3. Clean the soldered areas with a small wire-bristle brush.
(It is not necessary to reapply acrylic coating to the areas).
"Small-Signal" Discrete Transistor
Removal/Replacement
1. Remove the defective transistor by clipping its leads as close
as possible to the component body.
2. Bend into a "U" shape the end of each of three leads remain-
ing on the circuit board.
3. Bend into a "U" shape the replacement transistor leads.
4. Connect the replacement transistor leads to the corresponding
leads extending from the circuit board and crimp the "U" with
long nose pliers to insure metal to metal contact then solder
each connection.
Power Output, Transistor Device
Removal/Replacement
1. Heat and remove all solder from around the transistor leads.
2. Remove the heat sink mounting screw (if so equipped).
3. Carefully remove the transistor from the heat sink of the circuit
board.
4. Insert new transistor in the circuit board.
5. Solder each transistor lead, and clip off excess lead.
6. Replace heat sink.
Diode Removal/Replacement
1. Remove defective diode by clipping its leads as close as pos-
sible to diode body.
2. Bend the two remaining leads perpendicular y to the circuit
board.
3. Observing diode polarity, wrap each lead of the new diode
around the corresponding lead on the circuit board.
4. Securely crimp each connection and solder it.
5. Inspect (on the circuit board copper side) the solder joints of
the two "original" leads. If they are not shiny, reheat them and
if necessary, apply additional solder.
Fuse and Conventional Resistor
Removal/Replacement
1. Clip each fuse or resistor lead at top of the circuit board hollow
stake.
2. Securely crimp the leads of replacement component around
notch at stake top.
3. Solder the connections.
CAUTION: Maintain original spacing between the replaced
component and adjacent components and the circuit board to
prevent excessive component temperatures.
Circuit Board Foil Repair
Excessive heat applied to the copper foil of any printed circuit
board will weaken the adhesive that bonds the foil to the circuit
board causing the foil to separate from or "lift-off" the board. The
following guidelines and procedures should be followed when-
ever this condition is encountered.
At IC Connections
To repair a defective copper pattern at IC connections use the
following procedure to install a jumper wire on the copper pattern
side of the circuit board. (Use this technique only on IC connec-
tions).
1. Carefully remove the damaged copper pattern with a sharp
knife. (Remove only as much copper as absolutely necessary).
2. carefully scratch away the solder resist and acrylic coating (if
used) from the end of the remaining copper pattern.
3. Bend a small "U" in one end of a small gauge jumper wire and
carefully crimp it around the IC pin. Solder the IC connection.
4. Route the jumper wire along the path of the out-away copper
pattern and let it overlap the previously scraped end of the
good copper pattern. Solder the overlapped area and clip off
any excess jumper wire.
At Other Connections
Use the following technique to repair the defective copper pattern
at connections other than IC Pins. This technique involves the
installation of a jumper wire on the component side of the circuit
board.
1. Remove the defective copper pattern with a sharp knife.
Remove at least 1/4 inch of copper, to ensure that a hazardous
condition will not exist if the jumper wire opens.
2. Trace along the copper pattern from both sides of the pattern
break and locate the nearest component that is directly con-
nected to the affected copper pattern.
3. Connect insulated 20-gauge jumper wire from the lead of the
nearest component on one side of the pattern break to the
lead of the nearest component on the other side.
Carefully crimp and solder the connections.
CAUTION: Be sure the insulated jumper wire is dressed so the
it does not touch components or sharp edges.
- 6 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
SPECIFICATION
NOTE : Specifications and others are subject to change without notice for improvement
.
1. Application range
This specification is applied to the LED TV used LC43B
chassis.
2. Requirement for Test
Each part is tested as below without special appointment.
1) Temperature: 25 °C ± 5 °C(77 °F ± 9 °F), CST: 40 °C ± 5 °C
2) Relative Humidity: 65 % ± 10 %
3) Power Voltage
: Standard input voltage (AC 100-240 V~, 50/60 Hz)
* Standard Voltage of each products is marked by models.
4) Specification and performance of each parts are followed
each drawing and specification by part number in
accordance with BOM.
5) The receiver must be operated for about5 minutes prior to
the adjustment.
3. Test method
1) Performance: LGE TV test method followed
2) Demanded other specification
- Safety : CE, IEC specification
- EMC : CE, IEC
4. Model General Specification
No. Item Specication Remarks
1. Market Hong Kong
2. Broadcasting system
1) PAL-DK
2) PAL-I
3) NTSC-M
4) DTMB
5) DVB-C
DTMB : DMB-T + ADTB-T
3. Channel Storage 1500EA Maximum number of storable program for ATV /DTV
4. Channel Coverage
Digital TV
DTMB : 21~69
DVB-C : 52.5 MHz ~866MHz
Analogue TV
PAL D/K : VHF/UHF 1 ~ 69, Cable 1 ~ 47
PAL I : VHF/UHF 1 ~ 69, Cable 1 ~ 47
NTSC M : VHF/UHF 2 ~ 78, Cable 1 ~ 71
5. Receiving system Analog : Upper Heterodyne
Digital : COFDM, QAM
► DTMB
(Carrier, Code Rate, Constellation, Frame Header, Inter-
leaving)
MODE : 3780, 0.4/0.6, 4/16/64QAM, PN945, 720
QPSK : 1/2, 2/3, 3/4, 5/6, 7/8
16-QAM : 1/2, 2/3, 3/4, 5/6, 7/8
64-QAM : 1/2, 2/3, 3/4, 5/6, 7/8
► DVB-C
- Symbolrate : 4.0Msymbols/s to 7.2Msymbols/s
- Modulation : 16QAM, 64-QAM, 128-QAM and 256-QAM
6. Video(Composite) Input PAL, SECAM, NTSC Rear 1EA
7. Component Input Y/Cb/Cr, Y/Pb/Pr Rear 1EA
8. HDMI Input HDMI1-DTV/DVI
HDMI2-DTV PC(HDMI version 1.4), Support HDCP
9. Audio Input Component, AV L/R Input
10. USB For My Media(Movie/Photo/Music List)
and SVC 1EA(JPEG, MP3, DivX HD)
- 7 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
5. Component Video Input (Y,
Pb, Pr)
No. Specication H-freq(kHz) V-freq(Hz) Porposed
Resolution H-freq(kHz) V-freq(Hz)
1. 720×480 15.73 60.00 SDTV, DVD 480i
2. 720×480 15.63 59.94 SDTV, DVD 480i
3. 720×480 31.47 59.94 480p
4. 720×480 31.50 60.00 480p
5. 720×576 15.625 50.00 SDTV, DVD 625 Line
6. 720×576 31.25 50.00 HDTV 576p
7. 1280×720 45.00 50.00 HDTV 720p
8. 1280×720 44.96 59.94 HDTV 720p
9. 1280×720 45.00 60.00 HDTV 720p
10. 1920×1080 28.125 50.00 HDTV 1080i
11. 1920×1080 33.75 60.00 HDTV 1080i
12. 1920×1080 33.72 59.94 HDTV 1080i
13. 1920×1080 26.97 23.976 HDTV 1080p
14. 1920×1080 27.00 24 HDTV 1080p
15. 1920×1080 33.71 29.97 HDTV 1080p
16. 1920×1080 33.75 30 HDTV 1080p
17. 1920×1080 56.25 50 HDTV 1080p
18. 1920×1080 67.432 59.94 HDTV 1080p
19. 1920×1080 67.5 60 HDTV 1080p
6. HDMI Input
6.1. DTV mode
No. Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Proposed
1. 720*480 31.469 / 31.5 59.94 / 60 27.00/27.03 SDTV 480P
2. 720*576 31.25 50 54 SDTV 576P
3. 1280*720 37.500 50 74.25 HDTV 720P
4. 1280*720 44.96 / 45 59.94 / 60 74.17/74.25 HDTV 720P
5. 1920*1080 33.72 / 33.75 59.94 / 60 74.17/74.25 HDTV 1080I
6. 1920*1080 28.125 50.00 74.25 HDTV 1080I
7. 1920*1080 26.97 / 27 23.97 / 24 74.17/74.25 HDTV 1080P
8. 1920*1080 33.716/33.75 29.976/30.00 74.25 HDTV 1080P
9. 1920*1080 56.250 50 148.5 HDTV 1080P
10. 1920*1080 67.43 / 67.5 59.94 / 60 148.35/148.50 HDTV 1080P
6.2. PC mode
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed Remark
1. 640*350 @70Hz 31.468 70.09 25.17 EGA
2. 720*400 @70Hz 31.469 70.08 28.321 DOS
3. 640*480 @60Hz 31.469 59.940 25.175 VESA(VGA)
4. 800*600 @60Hz 37.879 60.31 40.000 VESA(SVGA)
5. 1024*768 @60Hz 48.363 60.00 65.000 VESA(XGA)
6 1152*864 @60Hz 54.348 60.053 80.002 VESA
7. 1280*1024 @60Hz 63.981 60.020 108 VESA(SXGA) FHD only
8. 1360*768 @60Hz 47.712 60.015 85.5 VESA(WXGA)
9. 1920*1080 @60Hz 67.5 60.0 148.5 WUXGA (Reduced blanking) FHD only
- 8 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
ADJUSTMENT INSTRUCTION
1. Application Range
This specification sheet is applied to all of the LED TV with
LC43B chassis.
2. Designation
(1) The adjustment is according to the order which is
designated and which must be followed, according to the
plan which can be changed only on agreeing.
(2) Power adjustment : Free Voltage.
(3) Magnetic Field Condition: Nil.
(4) Input signal Unit: Product Specification Standard.
(5) Reserve after operation: Above 5 Minutes (Heat Run)
Temperature : at 25 °C ± 5 °C
Relative humidity : 65 ± 10 %
Input voltage : 220 V~, 60 Hz
(6) Adjustment equipments
: Color Analyzer(CA-210 or CA-110), Service remote control.
(7) Push the “IN STOP" key - For memory initialization.
3. Main PCB check process
▪ APC - After Manual-Insert, executing APC
* Boot file Download

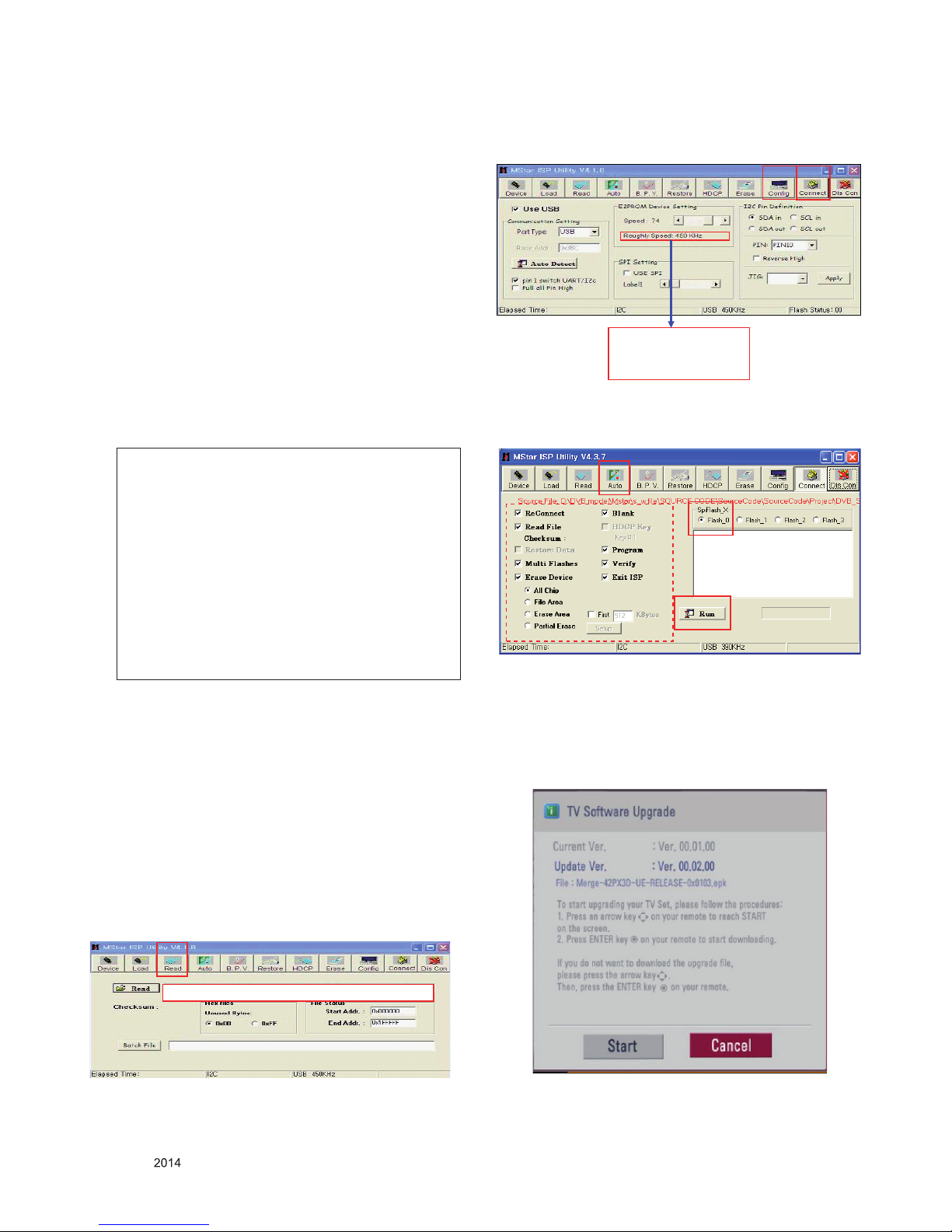

(1) Execute ISP program "Mstar ISP Utility" and then click
"Config" tab.
(2) Set as below, and then click "Auto Detect" and check "OK"
message.
If "Error" is displayed, check connection between computer,
jig, and set.
(3) Click "Read" tab, and then load download file(XXXX.bin)
by clicking "Read"
(4) Click "Connect" tab. If "Can't" is displayed, check connection
between computer, jig and set.
(5) Click "Auto" tab and set as below.
(6) Click "Run".
(7) After downloading, check "OK" message.
* USB DOWNLOAD(*.epk file download)
(1) Put the USB Stick to the USB socket.
(2) Automatically detecting update file in USB Stick.
- If version of update file in USB Stick is lower, it will not
work. But version of update file is higher, USB data will be
detected automatically.
Case1 : Software version up
1. After downloading S/W by USB , TV set will reboot
automatically.
2. Push “In-stop” key.
3. Push “Power on” key.
4. Function inspection
5. After function inspection, Push “In-stop” key.
Case2 : Function check at the assembly line
1. When TV set is entering on the assembly line, Push
“In-stop” key at rst.
2. Push “Power on” key for turning it on.
→ If you push “Power on” key, TV set will recover
channel information by itself.
3. After function inspection, Push “In-stop” key.
(1)
filexxx.bin
(4)
(5)
(6)
(7)...........OK
filexxx.bin
(2)
(3)
Please Check the Speed :
To use speed between
from 200KHz to 400KHz
- 9 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes

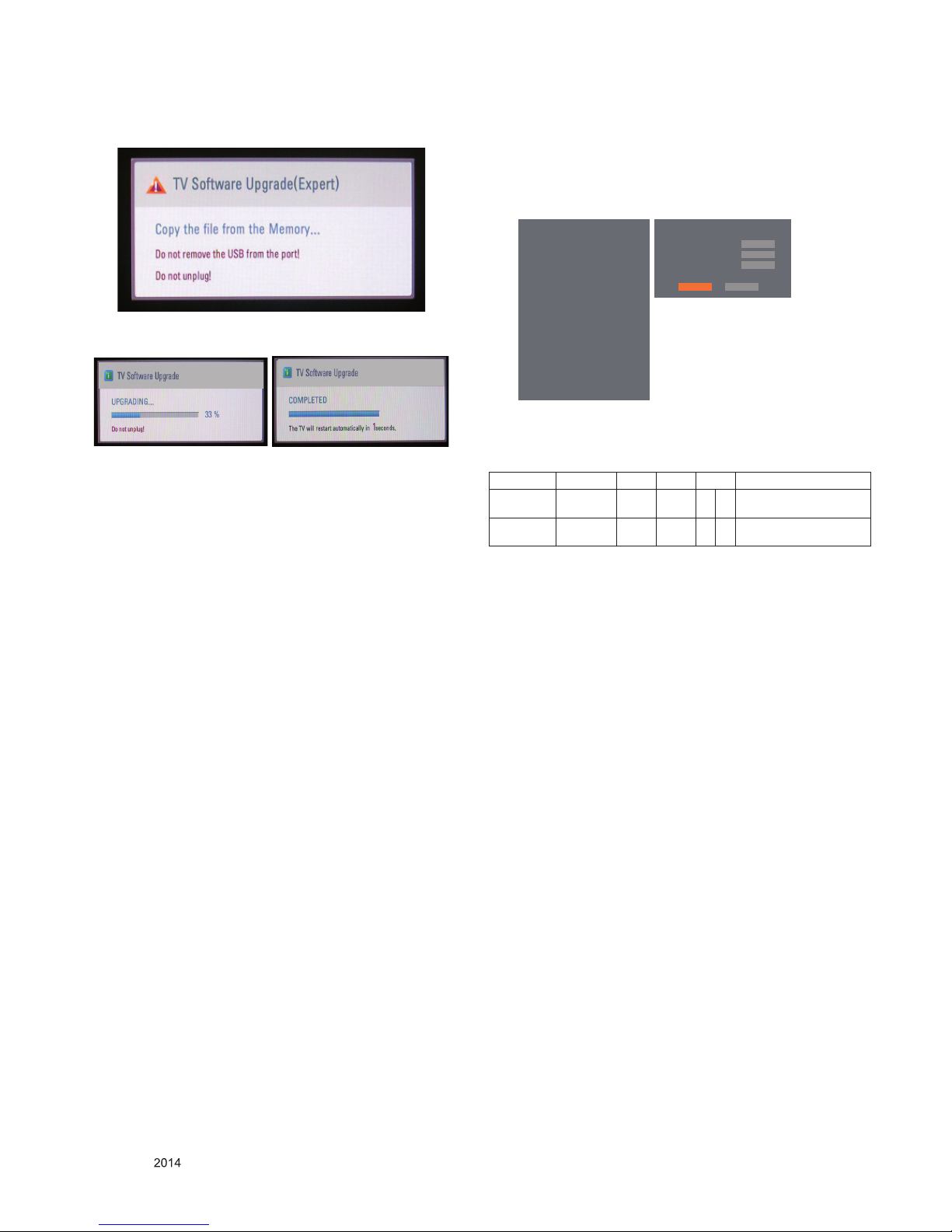

(3) Show the message "Copying files from memory".
(4) Updating is starting.
(5) Updating Completed, The TV will restart automatically.
(6) If your TV is turned on, check your updated version and
Tool option. (explain the Tool option, next stage)
* If updated version is higher than what TV has, the TV can
lost all channel data. In this case, you have to channel
recover. If all channel data is cleared, you didn’t have a
DTV/ATV test on production line.

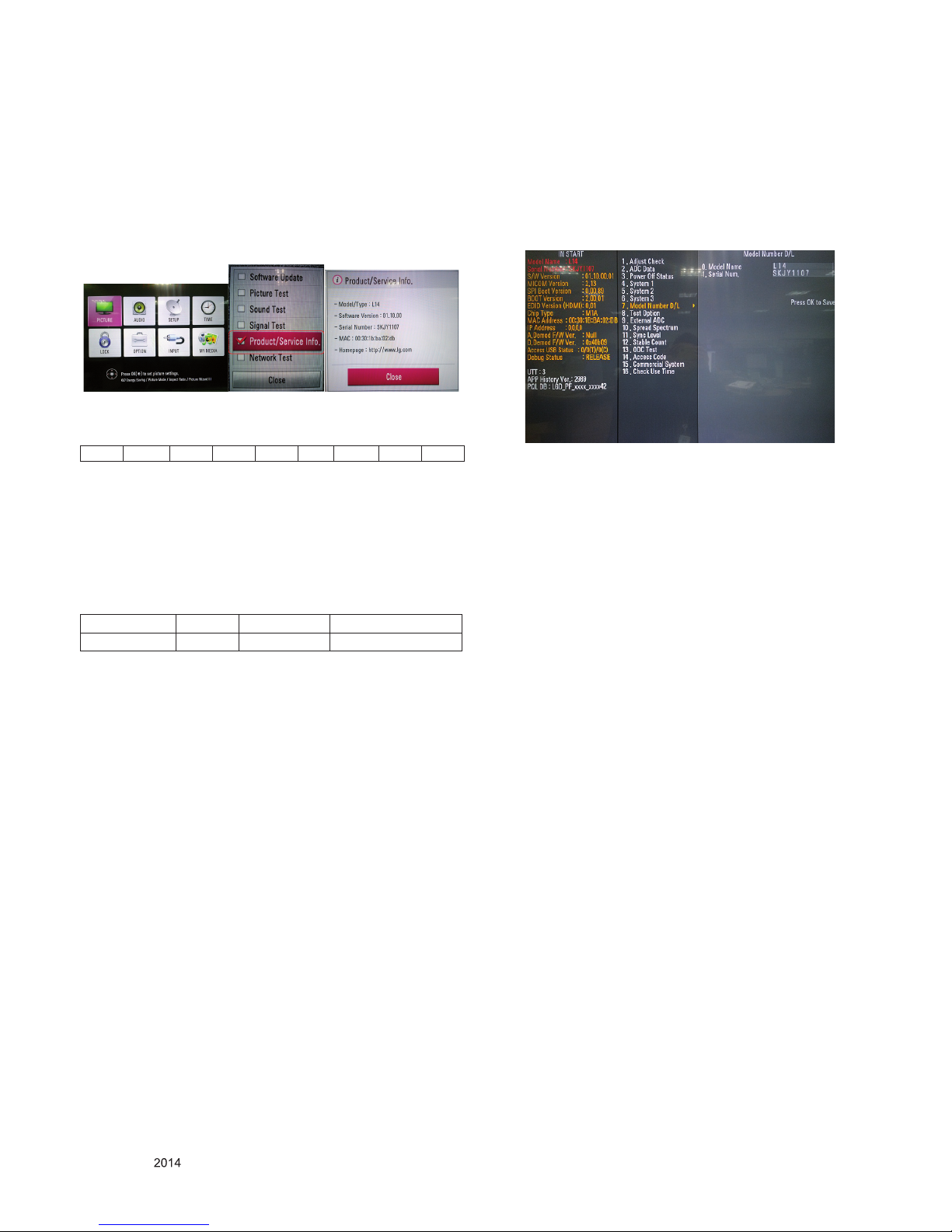

* After downloading, have to adjust Tool Option again.
(1) Push "IN-START" key in service remote control.
(2) Select "Tool Option 1" and push "OK" key.
(3) Punch in the number. (Each model has their number)
(4) Completed selecting Tool option.
4. ADC Process
4.1. ADC
- Enter Service Mode by pushing "ADJ" key,
- Enter Internal ADC mode by pushing "►" key at "8. ADC
Calibration".
<Caution> Using "P-ONLY" key of the Adjustment remote
control, power on TV.
* ADC Calibration Protocol (RS232)
Adjust Sequence
▪ aa 00 00 [Enter Adjust Mode]
▪ xb 00 40 [Component1 Input (480i)]
▪ ad 00 10 [Adjust 480i Comp1]
▪ xb 00 60 [RGB Input (1024*768)]
▪ ad 00 10 [Adjust 1024*768 RGB]
▪ aa 00 90 End Adjust mode
* Required equipment : Adjustment remote control.
4.2. Function Check
4.2.1. Check display and sound
■ Check Input and Signal items.
(1) TV
(2) AV (CVBS)
(3) COMPONENT (480i)
(4) HDMI
* Display and Sound check is executed by Remote control.
<Caution> Not to push the "INSTOP" key after completion if
the function inspection.
NO Item CMD 1 CMD 2 Data 0
Enter
Adjust MODE
Adjust
‘Mode In’ A A 0 0 When transfer the ‘Mode In’,
Carry the command.
ADC adjust ADC Adjust A D 1 0 Automatically adjustment
(The use of a internal pattern)
EZ ADJUST
0. Tool Option1
1. Tool Option2
2. Tool Option3
3. Tool Option4
4. Tool Option5
5. Tool Option Commercial
6. Country Group
7. Area Option
8. ADC Calibration ►
9. White Balance
10. 10 Point WB
11. Test Pattern
12. EDID D/L
13. Sub B/C
14. Ext. Input Adjust
ADC Calibration
ADC Comp 480i
ADC Comp 1080p
ADC Type ◄ ►
Start
NG
NG
OPT
Reset
- 10 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
5. Total Assembly line process
5.1. Adjustment Preparation
▪ W/B Equipment condition
CA210: LED →CH14, Test signal: Inner pattern(80IRE)
▪ Above 5 minutes H/run in the inner pattern. ("power on" key
of Adjustment remote control)
* The spec of color temperature and coordinate.
5.1.1. W/B adj. Objective & How-it-works
(1) Objective: To reduce each Panel’s W/B deviation
(2) How-it-works: When R/G/B gain in the OSD is at 192, it
means the panel is at its Full Dynamic Range.
In order to prevent saturation of Full Dynamic range and
data, one of R/G/B is fixed at 192, and the other two is
lowered to find the desired value.
(3) Adj. condition: normal temperature
- Surrounding Temperature: 25 ± 5 °C
- Warm-up time: About 5 Min
- Surrounding Humidity: 20% ~ 80%
- Before White balance adjustment, Keep power on status,
don’t power off
* If Model is POLA model
* W/B Table( Netcast4.0 Model)
CA210 : CH 14, Test signal : Inner pattern (80IRE)
Normal line - Standard color coordinate and temprature using
CA-1000(by H/R time)
Aging chamber line - Standard color coordinate and temprature
using CA-1000(by H/R time)
* When Model produce in Gumi Factory at Winter(Jan,Feb)
Normal line
* AUO, Sharp, CSOT use Model(If Cool spec 13000K)
Mode Color Temp Color coordinate Remark
Cool (C50) 13,000 K X=0.271 (±0.002)
Y=0.270 (±0.002)
<Test Signal>
- Inner pattern
for W/B adjust
- External white
pattern(80IRE,
204gray)
Medium(0) 9,300 K X=0.286 (±0.002)
Y=0.289 (±0.002)
Warm(W50) 6,500 K X=0.313 (±0.002)
Y=0.329 (±0.002)
NC4.0
Aging
time
(Min)
Cool Medium Warm
xyxyxy
271 270 286 289 313 329
1 0-2 282 289 297 308 324 348
2 3-5 281 287 296 306 323 346
3 6-9 279 284 294 303 321 343
4 10-19 277 280 292 299 319 339
5 20-35 275 277 290 296 317 336
6 36-49 274 274 289 293 316 333
7 50-79 273 272 288 291 315 331
8 80-119 272 271 287 290 314 330
9 Over 120 271 270 286 289 313 329
NC4.0
Aging
time
(Min)
Cool Medium Warm
xyxyxy
271 270 285 293 313 329
1 0-5 280 285 294 308 319 340
2 6-10 276 280 290 303 315 335
3 11-20 272 275 286 298 311 330
4 21-30 269 272 283 295 308 327
5 31-40 267 268 281 291 306 323
6 41-50 266 265 280 288 305 320
7 51-80 265 263 279 286 304 318
8 81-119 264 261 278 284 303 316
9 Over 120 264 260 278 283 303 315
NC4.0
Aging
time
(Min)
Cool Medium Warm
xyxyxy
271 270 286 289 313 329
1 0-5 286 295 301 314 328 354
2 6-10 284 290 299 309 326 349
3 11-20 282 287 297 306 324 346
4 21-30 279 283 294 302 321 342
5 31-40 276 278 291 297 318 337
6 41-50 274 275 289 294 316 334
7 51-80 273 272 288 291 315 331
8 81-119 272 271 287 290 314 330
9 Over 120 271 270 286 289 313 329
NC4.0 Cool Medium Warm
xyxyxy
spec 271 270 286 289 313 329
target 278 280 293 299 320 339
Case : Cool Mode
•Purpose : Adjust the color temperature to reduce the
deviation of the module color temperature.
• Principle : To adjust the white balance without the
saturation, Fix the G gain to 172 (default data) and
change the others ( R/B Gain ).
• Adjustment mode : mode - Cool
Case : Medium / Warm Mode
•Purpose : Adjust the color temperature to reduce the
deviation of the module color temperature.
•Principle : To adjust the white balance without the
saturation, Fix the one of R/G/B gain to 192 (default
data) and decrease the others.
•Adjustment mode : Two modes - Medium / Warm
- 11 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
* Connecting picture of the measuring instrument
(On Automatic control)
Inside Pattern is used when W/B is controlled. Connect to
auto controller or push Adjustment Remote control POWER
ON → Enter the mode of White-Balance, the pattern will
come out.
* Auto-control interface and directions
(1) Adjust in the place where the influx of light like floodlight
around is blocked. (Illumination is less than 10 lux).
(2) Adhere closely the Color analyzer(CA210) to the module
less than 10 cm distance, keep it with the surface of the
Module and Color analyzer's prove vertically.(90°(± 2.5°))
(3) Aging time
- After aging start, keep the power on (no suspension of
power supply) and heat-run over 5 minutes.
- Using ‘no signal’ or ‘full white pattern’ or the others,
check the back light on.
▪ Auto adjustment Map(RS-232C)
RS-232C COMMAND
[CMD ID DATA]
Wb 00 00 White Balance Start
Wb 00 ff White Balance End
* Manual W/B process using adjust Remote control.
■ Color Temperature : COOL, Medium, Warm
■ One of R Gain/ G Gain/ B Gain should be kept on 0xC0,
and adjust other two lower than C0. (when R/G/B Gain are
all C0, it is the FULL Dynamic Range of Module)
■ After enter Service Mode by pushing “ADJ” key,
■ Enter White Balance by pushing “►” key at “9. White
Balance”.
■ For manual adjustment, it is also possible by the following
sequence.
(1) Set TV in Adj. mode using POWER ON
(2) Zero Calibrate the probe of Color Analyzer, then place it
on the center of LCD module within 10cm of the surface
(3) Press ADJ key → EZ adjust using adj. R/C → 8. White-
Balance then press the cursor to the right (KEY►).
When KEY(►) is pressed 206 Gray internal pattern will
be displayed.
(4) Adjust Cool modes
1) Fix the one of R/G/B gain to 192 (default data) and
decrease the others. (If G gain is adjusted over 172
and R and B gain less than 192 , Adjust is O.K.)
2) If G gain is less than 172, Increase G gain by up to
172, and then increase R gain and G gain same
amount of increasing G gain.
3) If R gain or B gain is over 255, readjust G gain less
than 172, Conform to R gain is 255 or B gain is 255
(5) Adjust two modes (Medium/Warm) Fix the one of R/G/B
gain to 192 (default data) and decrease the others.
(6) Adj. is completed, Exit adjust mode using “EXIT” key on
Remote control.
▪ If internal pattern is not available, use RF input In EZ Adj.
menu
9. White Balance, you can select one of 2 Test-pattern:
ON, OFF. Default is inner (ON).
By selecting OFF, you can adjust using RF signal in 206
Gray pattern.
Full White Pattern CA-210
COLOR
ANALYZER
TYPE : CA-210
RS-232C Communication
RS-232C COMMAND
[CMD ID DATA] MIN
CENTER
(DEFAULT) MAX
Cool Mid Warm Cool Mid Warm
R Gain jg Ja jd 00 172 192 192 192
G Gain jh Jb je 00 172 192 192 192
B Gain ji Jc jf 00 192 192 172 192
R Cut 64 64 64 128
G Cut 64 64 64 128
B Cut 64 64 64 128
EZ ADJUST
0. Tool Option1
1. Tool Option2
2. Tool Option3
3. Tool Option4
4. Tool Option5
5. Tool Option Commercial
6. Country Group
7. Area Option
8. ADC Calibration
9. White Balance
10. 20 Point WB
11. Test Pattern
12 EDID D/L
13. Sub B/C
14. V-com
15. Ext. Input Adjust
Whit Balance
Color Temp. ◄►
R-Gain
G-Gain
B-Gain
R-Cut
G-Cut
B-Cut
Test-Pattern
Backlight
Reset To Set
Cool
172
192
192
64
64
64
ON
100
- 12 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
* CASE Cool
First adjust the coordinate far away from the target
value(x, y).
1) x, y > target
i) Decrease the R, G.
2) x, y < target
i) First decrease the B gain,
ii) Decrease the one of the others.
3) x > target, y < target
i) First decrease B, so make y a little more than the
target.
ii) Adjust x value by decreasing the R.
4) x < target, y > target
i) First decrease B, so make x a little more than the
target.
ii) Adjust x value by decreasing the G.
How to adjust
1) If G gain is adjusted over 172 and R gain and B gain
less than 192, Adjust is O.K.
2) If G gain is less than 172, increase G gain by up to
172, and then increase R gain and B gain same
amount of increasing G gain.
3) If R gain or B gain is over 255, Readjust G gain less
than 172, Conform to R gain is 255 or B gain is 255.
* CASE Medium / Warm
First adjust the coordinate far away from the target
value(x, y).
1) x, y > target
i) Decrease the R, G.
2) x, y < target
i) First decrease the B gain,
ii) Decrease the one of the others.
3) x > target, y < target
i) First decrease B, so make y a little more than the
target.
ii) Adjust x value by decreasing the R
4) x < target, y > target
i) First decrease B, so make x a little more than the
target.
ii) Adjust x value by decreasing the G
* After You finish all adjustments, Press “In-start” button
and compare Tool option and Area option value with its
BOM, if it is correctly same then unplug the AC cable.
If it is not same, then correct it same with BOM and
unplug AC cable.
For correct it to the model’s module from factory JIG
model.
* Push the “IN-STOP KEY” after completing the function
inspection.
5.2. DDC EDID Write (RGB 128Byte)
■ Connect D-sub Signal Cable to D-Sub Jack.
■ Write EDID DATA to EEPROM(24C02) by using DDC2B
protocol.
■ Check whether written EDID data is correct or not.
* For SVC main Assembly, EDID have to be downloaded to
Insert Process in advance.
5.3. DDC EDID Write (HDMI 256Byte)
■ Connect HDMI Signal Cable to HDMI Jack.
■ Write EDID DATA to EEPROM(24C02) by using DDC2B
protocol.
■ Check whether written EDID data is correct or not.
* For SVC main Assembly, EDID have to be downloaded to
Insert Process in advance.
5.4. EDID DATA
1) All Data : HEXA Value
2) Changeable Data :
*: Serial No : Controlled / Data:01
**: Month : Controlled / Data:00
***: Year : Controlled
****: Check sum
- Auto Download
■ After enter Service Mode by pushing “ADJ” key,
■ Enter EDID D/L mode.
■ Enter “START” by pushing “OK” key.
* Caution : Never connect HDMI & D-sub Cable when EDID
downloaded
* Edid data and Model option download (RS232)
EZ ADJUST
0. Tool Option1
1. Tool Option2
2. Tool Option3
3. Tool Option4
4. Tool Option5
5. Tool Option Commercial
6. Country Group
7. Area Option
8. ADC Calibration
9. White Balance
10. 20 Point WB
11. Test Pattern
12. EDID D/L ►
13. Sub B/C
14. V-Com
EDID D/L
HDMI1 OK
HDMI2 OK
Start Reset
NO Item CMD 1 CMD 2 Data 0
Enter download
Mode
Download
‘Mode In’ A A 0 0 When transfer the ‘Mode In’,
Carry the command.
EDID data and
Model option
download
ADC Adjust A E 00 10 Automatically adjustment
(The use of a internal pattern)
- 13 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
- Manual Download
[Caution]
* Use the proper signal cable for EDID Download
- Analog EDID : Pin3 exists
- Digital EDID : Pin3 exists
- Never connect HDMI & D-sub Cable at the same time.
- Use the proper cables below for EDID Writing.
- Download HDMI1/2/3 separately because each EDID data is
different.
(1) EDID Data
- FHD 8BIT HDMI EDID DATA
- HD HDMI EDID data (2D Model)
(2) Detail EDID Options are below
a. Product ID
b. Serial No: Controlled on production line.
c. Month, Year: Controlled on production line:
ex) Week : '01' -> '01'
Year : '2012' -> '16' fix
d. Model Name(Hex):
cf) TV set’s model name in EDID data is below.
e. Checksum: Changeable by total EDID data.
5.5. Outgoing condition Configuration
■ When pressing IN-STOP key by Service remote control,
Red LED are blinked alternatively. And then automatically
turn off. (Must not AC power OFF during blinking)
5.6. GND and HI-POT Test
5.5.1. GND & HI-POT auto-check preparation
(1) Check the POWER CABLE and SIGNAL CABE insertion
condition.
5.6.2. GND & HI-POT auto-check
(1) Pallet moves in the station.(POWER CORD / AV CORD is
tightly inserted)
(2) Connect the AV JACK Tester.
(3) Controller (GWS103-4) on.
(4) GND Test (Auto)
- If Test is failed, Buzzer operates.
- If Test is passed, execute next process(Hi-pot test).
(Remove A/V CORD from A/V JACK BOX)
(5) HI-POT test (Auto)
- If Test is failed, Buzzer operates.
- If Test is passed, GOOD Lamp on and move to next
process automatically.
5.6.3. Checkpoint
(1) Test voltage
1) 3 Poles
- GND: 1.5 KV/min at 100 mA
- SIGNAL: 3 KV/min at 100 mA
2) 2 Poles
- SIGNAL: 3 KV/min at 100 mA
(2) TEST time: 1 second
(3) TEST POINT
1) 3 Poles
- GND Test = POWER CORD GND and SIGNAL
CABLE GND.
- Hi-pot Test = POWER CORD GND and LIVE & NEUTRAL.
2) 2 Poles
- Hi-pot Test = Accessible Metal and LIVE & NEUTRAL.
(4) LEAKAGE CURRENT: At 0.5 mArms
No. Item Condition Hex Data
1 Manufacturer ID GSM 1E6D
2 Version Digital : 1 01
3 Revision Digital : 3 03
0123456789ABCDEF
0 00 FF FF FF FF FF FF 00 1E 6D a b
10 c 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26
20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80
30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C
40 45 00 A0 5A 00 00 00 1E 66 21 50 B0 51 00 1B 30
50 40 70 36 00 A0 5A 00 00 00 1E 00 00 00 FD 00 3A
60 3E 1E 53 10 00 0A 20 20 20 20 20 20 d
70 d 01 e
80 02 03 22 F1 4E 10 9F 04 13 05 14 03 02 12 20 21
90 22 15 01 26 15 07 50 09 57 07 f
A0 f 01 1D 80 18 71 1C 16 20 58 2C 25 00 20 C2
B0 31 00 00 9E 01 1D 00 72 51 D0 1E 20 6E 28 55 00
C0 20 C2 31 00 00 1E 02 3A 80 18 71 38 2D 40 58 2C
D0 45 00 A0 5A 00 00 00 1E 01 1D 00 BC 52 D0 1E 20
E0 B8 28 55 40 C4 8E 21 00 00 1E 00 00 00 00 00 00
F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 e
0123456789ABCDEF
0 00 FF FF FF FF FF FF 00 1E 6D a b
10 c 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26
20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 01 01
30 01 01 01 01 01 01 66 21 50 B0 51 00 1B 30 40 70
40 36 00 40 84 63 00 00 1E 64 19 00 40 41 00 26 30
50 18 88 03 06 40 84 63 00 00 18 00 00 00 FD 00 3A
60 3E 1E 53 10 00 0A 20 20 20 20 20 20 d
70 d 01 e
80 02 03 22 F1 4E 10 1F 04 93 05 14 03 02 12 20 21
90 22 15 01 26 15 07 50 09 57 07 f
A0 80 1E 01 1D 80 18 71 1C 16 20 58 2C 25 00 A0 5A
B0 00 00 00 9E 01 1D 00 72 51 D0 1E 20 6E 28 55 00
C0 20 C2 31 00 00 1E 8C 0A D0 8A 20 E0 2D 10 10 3E
D0 96 00 A0 5A 00 00 00 18 02 3A 80 18 71 38 2D 40
E0 58 2C 45 00 A0 5A 00 00 00 1E 00 00 00 00 00 00
F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 e
Model Name HEX EDID Table DDC Function
HD/FHD Model 0001 01 00 Analog/Digital
MODEL NAME MODEL NAME(HEX)
LG TV 00 00 00 FC 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 (LG TV)
EDID C/S data FHD-8BIT
HDMI
FHD-10BIT
HDMI
HD
HDMI
Check Sum
(Hex)
Block 0 41 41 75
Block 1 25 (HDMI1) DE (HDMI1) 5B (HDMI1)
15 (HDMI2) CE (HDMI2) 4B (HDMI2)
For HDMI EDID
DVI-D to HDMI or HDMI to HDMI
- 14 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
6. Model name & Serial No. download
■ Press “Power on” key of service remote control
(Baud rate : 115200 bps)
■ Connect USB to RS232 cable at USB Jack.
■ Write model name and serial number.
■ Must check the model name and serial number at the
Product/Service Info. (menu key → red key → select
Product/Service info)
6.1. Signal TABLE
CMD : A0h
LENGTH : 85~94h (1~16 bytes)
ADH : EEPROM Sub Address high (00~1F)
ADL : EEPROM Sub Address low (00~FF)
Data : Write data
CS : CMD + LENGTH + ADH + ADL + Data_1 +...+ Data_n
Delay : 20ms
6.2. Comand Set
* Description
FOS Default write : <7mode data> write
Vtotal, V_Frequency, Sync_Polarity, Htotal, Hstart, Vstart, 0,
Phase
Data write : Model Name and Serial Number write in EEPROM,.
6.3. Method & notice
(1) Serial number D/L is using of scan equipment.
(2) Setting of scan equipment operated by Manufacturing
Technology Group.
(3) Serial number D/L must be conformed when it is produced in
production line, because serial number D/L is mandatory by
D-book 4.0.
* Manual Download(Model Name and Serial Number)
If the TV set is downloaded by OTA or Service man, sometimes
model name or serial number is initialized.(Not always)
There is impossible to download by bar code scan, so It need
Manual download.
1) Press the "Instart" key of Adjustment remote control.
2) Go to the menu "6.Model Number D/L" like below photo.
3) Input the Factory model name or Serial number like photo.
4) Check the model name Instart menu.
→
Factory name displayed.
5) Check the Product/Service Info.(Menu Key → Red Key →
Select Product/Service Info.) → Buyer model displayed.
CMD LENGTH ADH ADL DATA_1 . . . Data_n CS DELAY
Adjust mode CMD(hex) LENGTH(hex) Description
EEPROM WRITE A0h 84h+n n-bytes Write (n = 1~16)
- 15 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
(P1801)
30P HD LVDS wafer
51P FHD LVDS wafer
(P1800)
COMP2_L/R_IN
COMP2_Y+/AV_CVBS_IN, COMP2_Pb+/Pr+
CK+/-, D0+/-, D1+/-, D2+/-_HDMI2
DDC_SCL/SDA_2, HDMI_CEC
Serial Flash
(8Mbit)
IC1300
SPI_SCK/SDI/SDO/CS
System EEPROM
(256Kbit)
IC104
I2C_SCL/SDA
RXA0+/-~RXA4+/-, RXACK+/ -
RXB0+/-~RXB4+/-, RXBCK+/ -
SPK_R
SPK_L
AMP_SCL/SDA
AUD_MASTER_CLK,
AUD_LRCH,
AUD_LRCK, AUD_SCK
TAS5733
(IC5600)
Connector
(P4600)
KEY1/2, LED_R, IR
REAR
HDMI1
(JK800)
SPDIF_OUT
SPDIF(Optic)
(JK1001)
SIDE
USB
(JK700)
HDMI2(MHL)
(JK801)
CK+/-, D0+/-, D1+/-, D2+/-,_HDMI4, DDC_SCL/SDA_4, HDMI_CEC
SIDE_USB_DM/DP
USB1_OCP/CTL
TPS65282
+5V_USB
MHL_CD_SENSE
AVDD5V_MHL,MHL_OCP
CI Slot(P1900)
NAND FLASH
IC102 (1Gbit)
H27U1G8F2CTR-BC
PCM_A[0:7]
TC74LCX244FT
Buffer
TS_DATA[0:7]
PCM_DATA[0:7]
COMPONENT
(JK2802)
5V_HDMI_4
PCM_A[8:14]
X-tal
24M
Main SOC
M1A -256MB Built-in
(IC101)
TU_SCL / SDA
SIF
FE_TS_DATA[8]
CVBS
BLOCK DIAGRAM
- 16 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
900
200
400
410
540
521
530
820
501
500
120 310
121
LV1
A2 A10
Set + Stand
EXPLODED VIEW
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These
parts are identified by in the Schematic Diagram and EXPLODED VIEW.
It is essential that these special safety parts should be replaced with the same components as
recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
IMPORTANT SAFETY NOTICE
THERMAL
THERMAL
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

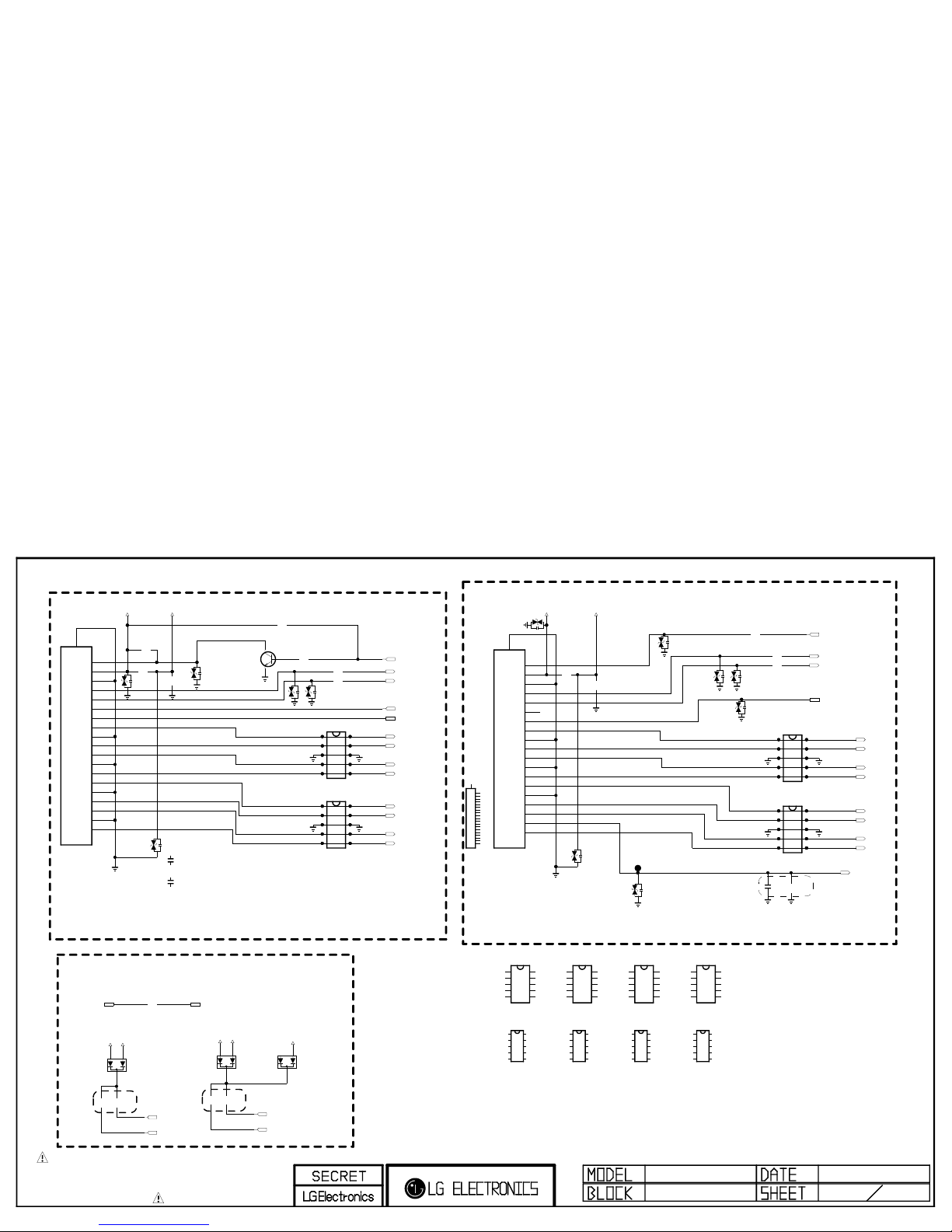

Power_PD2
131123
4
L14_M1A
Q403
MMBT3904(NXP)
E
B
C
+12V
R426
10K
+3.5V_ST
Q406
AO3435
FET_2.5V_AOS
G
D
S
PANEL_VCC
PWM_DIM
Q400
MMBT3904(NXP)
E
B
C
R420
1K
R424
3.9K
PWM_DIM_PULL_DOWN
R401
10K R442
10K
+24V
Q404
MMBT3904(NXP)
E
B
C
R441
10K
+3.5V_ST
R445
33K
R448
2.2K
C413
0.1uF
16V
OPT
C416
0.33uF
16V
R444
10K
+12V
INV_CTL
R430
2.7K
1%
+3.5V_ST
R400
10K
OPT
+3.5V_ST
R425
10K
R435
100K
Q402
MMBT3904(NXP)
E
B
C
R429
10K
C415
0.1uF
16V
C417
0.1uF
16V
L410
BLM18PG121SN1D
C424
0.1uF
16V
OPT
+3.3V_Normal
Q406-*1
DMP2130L
FET_2.5V_DIODE
G
D
S
R432
0
5%
OPT
R431
1.2K
1%
L403
MLB-201209-0120P-N2
POWER_ON/OFF_1
C401
0.1uF
50V
+1.10V_VDDC
POWER_DET
RL_ON
+3.3V_Normal
+12V
+24V
+3.5V_ST
L402
MLB-201209-0120P-N2
C429
0.1uF
16V
R423
100
PWM2_2CH_POWER
PANEL_CTL
R443
10K
R406
10K
R419
100
+3.5V_ST POWER_DET_RESET
+3.3V_Normal
C402
0.1uF
16V
C425
0.1uF
25V
OPT
C422
0.1uF
R436
100K
OPT
R451
5.6K
R404
4.7K
R402
10K
R452
5.6K
R412
33K
OPT
Q401
MMBT3906(NXP)
1
2
3
PWM1
L407
3.6uH
R454
100 5%
PD_+12V
C430
22uF
10V
C414
10uF
10V
C428
2.2uF
10V
C420
22uF
10V
C421
22uF
10V
C427
10uF
16V
ZD400
5V
ZD402
5V
L401
CB2012PK501T
L400
CB2012PK501T
L408
UBW2012-121F
120OHM
+3.3V_Normal
C406
10uF
16V
R418
10
R410
100K
L405
4.7uH
R405
4.7K
OPT
R409
10K
C408
10uF
10V
+3.3V_Normal
R416
100K
OPT
AVDD5V_MHL
+5V_Normal
USB1_OCD
C412
22uF
16V
+5V_USB
10uF
C405
R407
10K
R403
4.7K
OPT
5V_HDMI_4
USB1_CTL
+12V
/MHL_OCP_DET
C409
0.047uF
25V
L409
BLM18PG121SN1D
+3.3V_Normal
L411
CB2012PK501T
10uF
C426
10V
+1.5V_DDR
10uF
C431
10V
R455
0
C410
10uF
10V
ZD403
2.5V
ZD401
2.5V
R456
0
OPT
C432
4.7uF
50V
3216
+24V_CAP
C400
1uF
10V
1005
OPT
+24V
R457
8.2K
1%
OPT
R458
0
5%
OPT
R438
4.7K
OPT
C407
10uF
10V
2012
C434
390pF
50V
C419
0.039uF
50V
C423
270pF
50V
C435
0.1uF
16V
C418
0.01uF
ZD404
5V
+3.5V_POWER_DET
+3.5V_POWER_DET
+3.5V_POWER_DET
+3.3V_Normal
/VBUS_EN
MHL_OCP_EN
R463
2.7K
MHL_SW_TR R464
10K
MHL_SW_TR
Q408
MHL_SW_TR
E
B
C
R462
10K
MHL_SW_TR
Q407
MHL_SW_TR E
B
C
Q409
MHL_SW_TR E
B
C
R465
10K
MHL_SW_TR
R461
10K
MHL_SW_TR
R439
20K
1%
R440
47K
1%
R433
2.7K
1%
R447
22K
C403
100pF
50V
OPT
R415
15K
5%
R459
0
OPT
R408
4.7K
R449
1K
1/16W
1%
R450
200
1/16W
1%
C411
82pF
50V
C404
4700pF
50V
D401
30V
MBR230LSFT1G
L406
CB2012PK501T
+3.5V_ST
C436
10uF
10V
OPT
C437
0.1uF
16V
Q405
DMP2130L
FET_Diode
G
D
S
R427
27K
1%
OPT
R428
5.1K
1%
OPT
IC404
AZ1117EH-ADJTRG1
ADJ/GND
OUTIN
R437
100 5%
OPT
R454-*1
300
5%
PD_+3.5V
IC403
TPS5432DDAR
3
PH
2
VIN
4
GND
1
BOOT
5VSENSE
6COMP
7EN
8SS
9
[EP]GND
TPS65282REGR
IC400
1
EN
3
SS
7
FAULT2
9
SW_OUT2
10
RLIM
11
AGND
12
SW_OUT1
13 SW_IN_1
14 SW_IN_2
15 FB
16 LX_1
17 LX_2
18 BST
19 PGND_1
20 PGND_2
21 VIN_1
22 VIN_2
23 PGOOD
24 V7V
5
EN_SW2
8
FAULT1
6
EN_SW1
4
ROSC
2
COMP 25
[EP]GND
C433
4.7uF
16V
+12V_CAP
3216
MHL_5V_EN
MHL_5V_EN
R421
18K
1%
R422
3.3K
1%
P401
SMAW200-H18S5
14 12V
9
24V
4PDIM#1
18 GND
13
12V
8PDMI#2
3
3.5V
17
GND
12 GND
7
GND
2DRV ON
16 NC
11
GND
63.5V
1
PWR ON
15
12V
10 24V
5
3.5V
19
.
R446
12K
R453
0
R467
1K
OPT
R466
20K
IC401
BD48K28G
RESET_IC_ROHM
1
GND
2VOUT
3
VDD
IC402
BD48K28G
OPT
1
GND
2VOUT
3
VDD
IC401-*1
APX803D29
RESET_IC_DIODES
1
GND
3
VCC 2RESET
IC402-*1
APX803D29
OPT
1
GND
3
VCC 2RESET
Q405-*1
PMV48XP
FET_NXP
G
D
S
Q406-*2
PMV48XP
FET_NXP
G
D
S
PANEL_VCC
+1.10V_VDDC
R1
+3.3V_Normal
+1.5V_DDR
Vout=0.808*(1+R1/R2)
Power_DET
R2
FROM LIPS or POWER B/D
L14 POWER BLOCK (POWER DETECT 2)
R1
R2
+5V_Normal & +5V_USB with OCP
R2
R1
1.3A
4A
Vout=1.25*(1+R2/R1)+Iadj*R2
Vout=0.8*(1+R1/R2)
3A
(Active High)
(Active Low)
Ready - Dual Power Det
R432, R454-*1, R438
Now is
R457, R454
Detect Valtage
O R430, R431, R454
Use Circuit Designator
Power Detect +3.5V
Power Detect +12V
Power Detect +24V
Power Detect activity
* Notice
- Applying all inch models for LCD L14
- Dual Power Det is used
for detecting two kinds of voltage
Copyright © 2014 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
USB DOWN STREAM
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
14/03/03
USB_S1 7
L14_M1A
JK700
3AU04S-305-ZC-(LG)
1234
5
D700
RCLAMP0502BA
OPT
SIDE_USB1_DM
SIDE_USB1_DP
C700
22uF
10V
USB_HDD_CAP1_22uF
ZD700
5V
OPT
SD05
C701
5pF
50V
OPT C702
5pF
50V
OPT
C703
22uF
10V
USB_HDD_CAP2_22uF
+5V_USB
C704
22uF
10V
OPT
C700-*1
10uF
10V
USB_HDD_CAP1_10uF C703-*1
10uF
10V
USB_HDD_CAP2_10uF
USB (SIDE)
Copyright © 2014 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
2013/08/15
HDMI_R1_S1 8
L14_M1A
VA804
ESD_HDMI1
R803
1K
D802
MMBD6100
A2
C
A1
HDMI_ARC
VA805
ESD_HDMI2
D1+_HDMI2
CEC_REMOTE_S7
+3.5V_ST
VA800
ESD_HDMI1_VARISTOR
VA808
ESD_HDMI2
R809
10K
D2-_HDMI2
VA802
ESD_HDMI1
R807
2.7K
D801
MMBD6100
A2
C
A1
CK-_HDMI4
CK-_HDMI2
R804
100
VA801
ESD_HDMI1_VARISTOR
R816 100
HDMI-2
R810 100
DDC_SCL_2
R812
1.8K
HDMI-2
DDC_SCL_2
JK800
EAG59023302
14
13
5D1_GND
20
SHIELD
12
11
2D2_GND
19
18
10 CK+
4D1+
1D2+
17
9D0-
8D0_GND
3D2-
16
7D0+
6D1-
15
D0+_HDMI2
R811 100
VA803
ESD_HDMI1
DDC_SDA_2
5V_HDMI_2
R800
2.7K
HPD4
5V_HDMI_4
CK+_HDMI4
D800
MMBD6100
A2
C
A1
VA809
ESD_HDMI2
VA800-*1
1uF
10V
ESD_HDMI1_CAP
+5V_Normal
R805
3.3K
DDC_SCL_4
VA801-*1
1uF
10V
ESD_HDMI1_CAP
R814
33
HDMI-2
D1-_HDMI4
DDC_SDA_4
5V_DET_HDMI_4
5V_HDMI_4
D1-_HDMI2
HDMI_CEC
CK+_HDMI2
R806
2.7K
R817
300K
HDMI-2
5V_DET_HDMI_2
DDC_SDA_4
+5V_Normal
DDC_SCL_4
HPD2
HDMI_CEC
Q800
MMBT3904(NXP)
E
B
C
R801
2.7K
D0-_HDMI2
VA811
ESD_HDMI2
D0-_HDMI4
MHL_CD_SENSE
5V_HDMI_2
R813
3.3K
HDMI-2
VA810
ESD_HDMI2
D2+_HDMI4
VA807
OPT
5.6V
DDC_SDA_2
D1+_HDMI4
R815 100
HDMI-2
C800
0.047uF
25V
HDMI-2
D2-_HDMI4
R802
1.8K
D2+_HDMI2
R808
10K
HDMI_CEC
D0+_HDMI4
VA806
ESD_HDMI2
JK801
EAG62611204
HDMI-2
14 NC
13 CE_REMOTE
5D1_GND
20
GND
12 CK-
11 CK_GND
2D2_GND
19 HP_DET
18 5V
10 CK+
4D1+
1D2+
17 GND
9D0-
8D0_GND
3D2-
16 DDC_DATA
7D0+
6D1-
15 DDC_CLK
D803-*2
RCLAMP0524PA
ESD_HDMI1_SEMTECH
1
8
2
7
3
6
4
5
9
10 D804-*2
RCLAMP0524PA
ESD_HDMI1_SEMTECH
1
8
2
7
3
6
4
5
9
10 D806-*2
RCLAMP0524PA
ESD_HDMI2_SEMTECH
1
8
2
7
3
6
4
5
9
10
D805-*2
RCLAMP0524PA
ESD_HDMI2_SEMTECH
1
8
2
7
3
6
4
5
9
10
JK801-*1
DAADR019A
HDMI-2_EMI_FOOSUNG
14 RESERVED
13 CEC
5TMDS_DATA1_SHIELD
20
BODY_SHIELD
12 TMDS_CLK-
11 TMDS_CLK_SHIELD
2TMDS_DATA2_SHIELD
19 HOT_PLUG_DETECT
18 VDD[+5V]
10 TMDS_CLK+
4TMDS_DATA1+
1TMDS_DATA2+
17 DDC/CEC_GND
9TMDS_DATA0-
8TMDS_DATA0_SHIELD
3TMDS_DATA2-
16 SDA
7TMDS_DATA0+
6TMDS_DATA1-
15 SCL
D803
IP4294CZ10-TBR
ESD_HDMI1_IP4294
1
8
2
7
3
6
4
5
9
10
D803-*1
IP4283CZ10-TBA
ESD_HDMI1_IP4283
3
GND_1
2
TMDS_CH1+
4
TMDS_CH2-
1
TMDS_CH1-
5
TMDS_CH2+ 6NC_1
7NC_2
8GND_2
9NC_3
10 NC_4
D804-*1
IP4283CZ10-TBA
ESD_HDMI1_IP4283
3
GND_1
2
TMDS_CH1+
4
TMDS_CH2-
1
TMDS_CH1-
5
TMDS_CH2+ 6NC_1
7NC_2
8GND_2
9NC_3
10 NC_4
D805-*1
IP4283CZ10-TBA
ESD_HDMI2_IP4283
3
GND_1
2
TMDS_CH1+
4
TMDS_CH2-
1
TMDS_CH1-
5
TMDS_CH2+ 6NC_1
7NC_2
8GND_2
9NC_3
10 NC_4
D806-*1
IP4283CZ10-TBA
ESD_HDMI2_IP4283
3
GND_1
2
TMDS_CH1+
4
TMDS_CH2-
1
TMDS_CH1-
5
TMDS_CH2+ 6NC_1
7NC_2
8GND_2
9NC_3
10 NC_4
D804
IP4294CZ10-TBR
ESD_HDMI1_IP4294
1
8
2
7
3
6
4
5
9
10
D805
IP4294CZ10-TBR
ESD_HDMI2_IP4294
1
8
2
7
3
6
4
5
9
10
D806
IP4294CZ10-TBR
ESD_HDMI2_IP4294
1
8
2
7
3
6
4
5
9
10
HDMI (REAR 1 / SIDE 1 MHL)
HDMI_2 MHL
HDMI_1
CEC
MHL Spec
Copyright © 2014 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
Fiber Optic
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
SPDIF
2013/10/29
10
NC5_L14
+3.3V_Normal
SPDIF_OUT
JK1001
JST1223-001
SPDIF_OPTIC
1
GND
2
VCC
3
VINPUT
4
FIX_POLE
C1001
1uF
10V
OPT C1002
47pF
50V
SPDIF_CAP_47pF
C1002-*1
18pF
50V
SPDIF_CAP_18pF
SPDIF OPTIC JACK
5.15 Mstar Circuit Application
SPDIF
ESD Ready
Copyright © 2014 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
This manual suits for next models
1
Table of contents
Other LG LED TV manuals
