OWNER’S MANUAL
LED TV*
* LG LED TV applies LCD screen with LED backlights.
*MFL68003803*
A-2 TABLE OF CONTENTS
TABLE OF CONTENTS
COMMON
LANGUAGE
COMMON
A-3 SETTING UP THE TV
A-3 Attaching the stand
A-4 MAKING CONNECTIONS
A-4 Antenna connection
A-6 Satellite dish connection
A-6 Euro Scart connection
A-9 Other connections
LANGUAGE LIST
English
O’zbekcha
B-1 SPECIFICATIONS
B-6 REGULATORY
A-3
SETTING UP THE TV
SETTING UP THE TV
Image shown may differ from your TV.

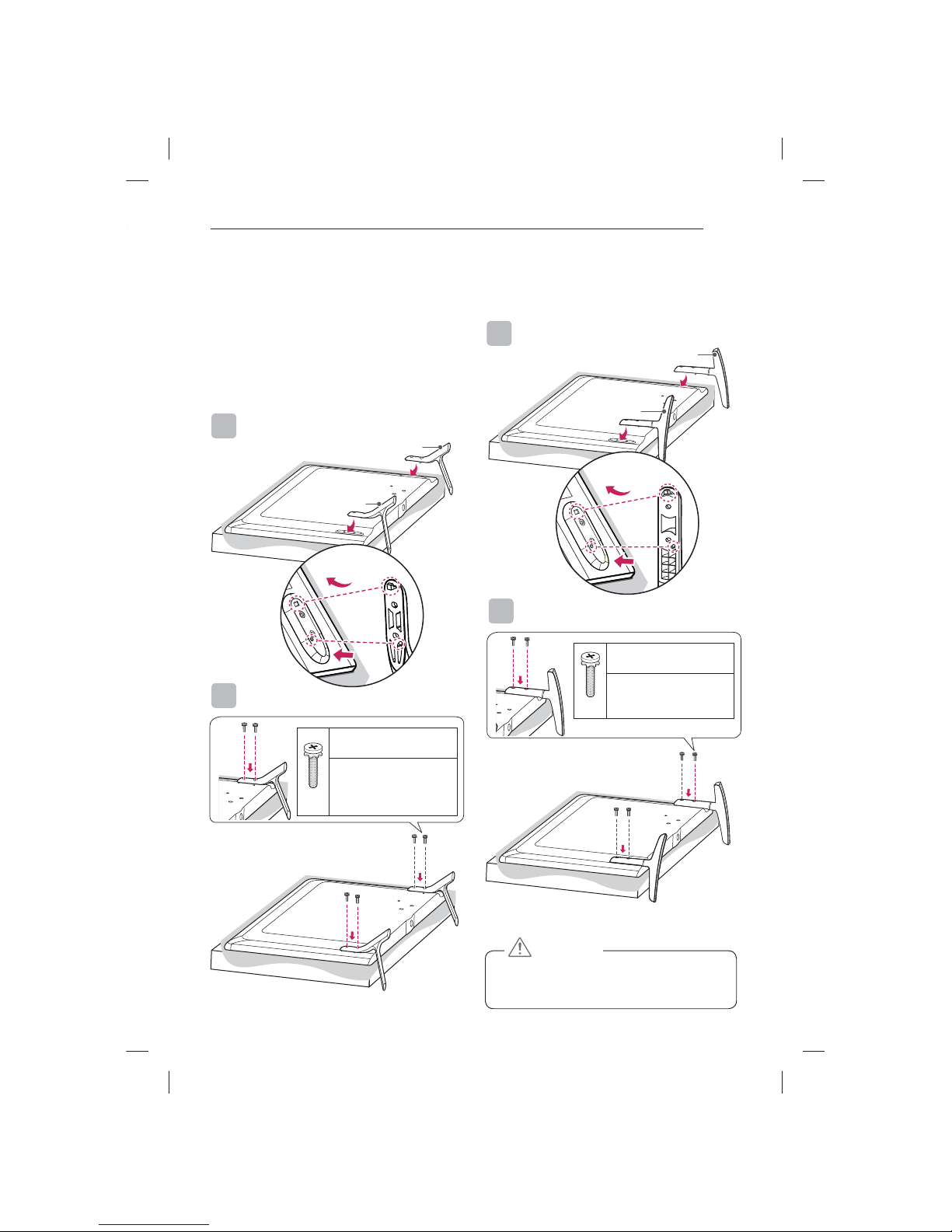

Attaching the stand
(Only LB55**, LB56**-ZE / ZC, LB62**-ZA / ZB / ZD)
4EA
M4 x L14
(Only 32LB55**,
32LB56**-ZE / ZC,
32LB62**-ZA / ZB)
M4 x L20
1
1
2
4EA
M4 x L14
(Only 32LB56**-ZT / ZQ,
32LB62**-ZE)
M4 x L20
2
A Stand Base
B Stand Base
1
2
A Stand Base
B Stand Base
1
2
yWhen attaching the stand to the TV set, place
the screen facing down on a cushioned table or
flat surface to protect the screen from scratches.
CAUTION
(Only LB56**-ZT / ZQ, LB62**-ZE)
A-4 MAKING CONNECTIONS
y
y
y
y
y
Dolby Digital, Dolby Digital Plus, HE-AAC
y
y
y
y
y
Digital, Dolby Digital Plus, HE-AAC
MAKING CONNECTIONS
This section on MAKING CONNECTIONS
mainly uses diagrams for the 47LB561V models.
Antenna connection
ANTENNA /
CABLE IN
Wall Antenna
Socket
*Not Provided
English
Connect the TV to a wall antenna socket with an RF
yUse a signal splitter to use more than 2 TVs.
yIf the image quality is poor, install a signal
amplifier properly to improve the image quality.
yIf the image quality is poor with an antenna
connected, try to realign the antenna in the
correct direction.
yAn antenna cable and converter are not supplied.
y
Dolby Digital Plus, HE-AAC
NOTE
A-5
MAKING CONNECTIONS
y
y
y
y
y
Plus, HE-AAC
O’zbekcha
Televizorni devordagi antenna rozetkasiga radio chas-
y2 tadan ko’proq televizordan foydalanish uchun
antenna tarmoqlantiruvchisidan foydalaning.
yAgar tasvir sifati yomon bo’lsa, tasvir sifatini
yaxshilash uchun signal kuchaytirgichini to’g’ri
yo’naltiring.
yAgar antenna ulangan holda tasvir sifati yomon
bo’lsa, antennani to’g’ri yo’nalishga qaratishga
harakat qiling.
yAntenna kabeli va konverter to’plam ichida
kelmaydi.
y
Digital, Dolby Digital Plus, HE-AAC
ESLATMA
y
y
y
y
y
Plus, HE-AAC
A-6 MAKING CONNECTIONS
Satellite dish connection
(Only satellite models)
LNB
Satellite IN
13/18V
700mA Max
Satellite
Dish
*Not Provided
English
Connect the TV to a satellite dish to a satellite socket
O’zbekcha
Televizorni sun’iy yo’ldosh antennasidagi sun’iy

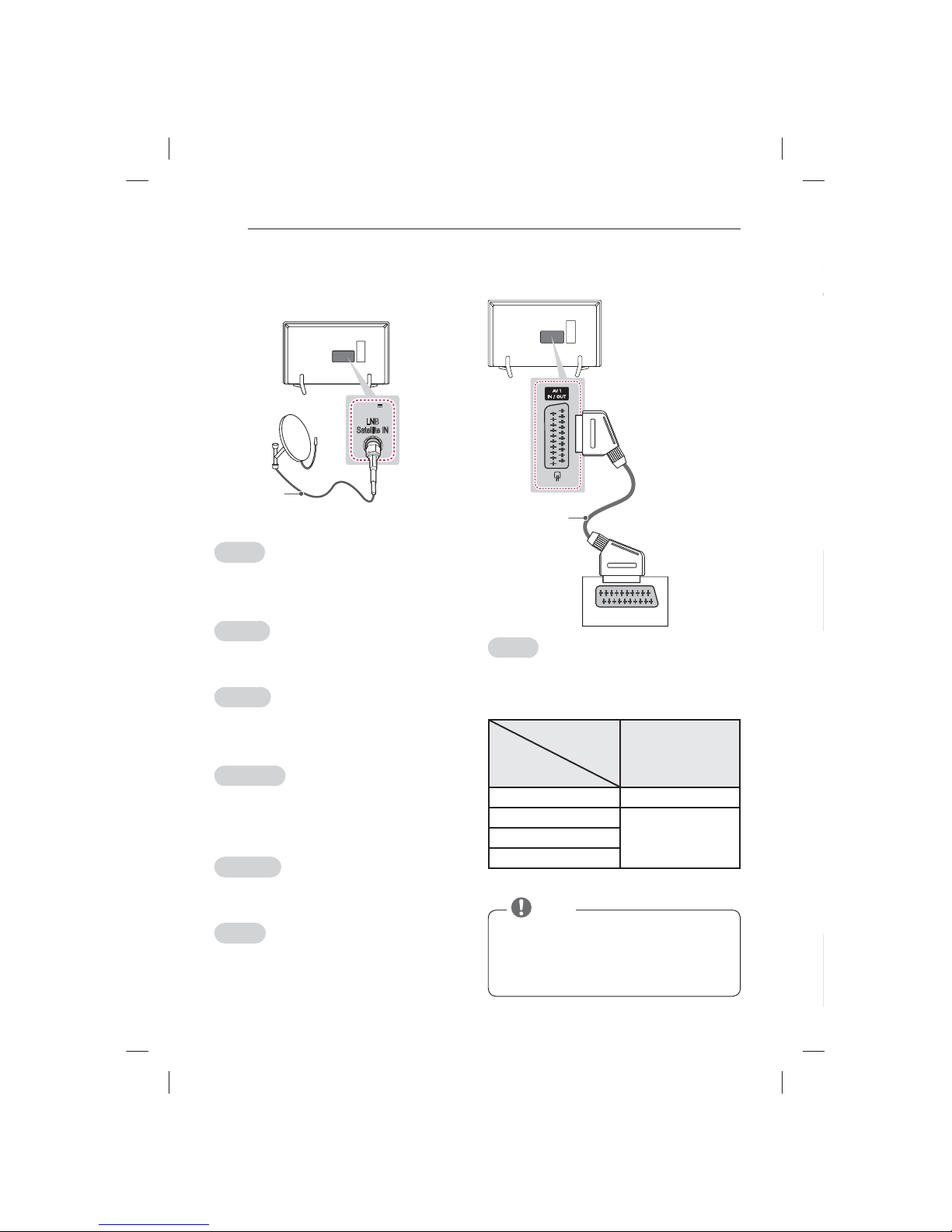

Euro Scart connection
AUDIO / VIDEO
*Not Provided
English
Transmits the video and audio signals from an
external device to the TV set. Connect the external
device and the TV set with the euro scart cable as
shown.
Output
Type
Current
input mode
AV1
(TV Out1)
Digital TV Digital TV
Analogue TV, AV
Analogue TV
Component
HDMI
1
yAny Euro scart cable used must be signal
shielded.
yWhen watching digital TV in 3D imaging mode,
only 2D out signals can be output through the
SCART cable. (Only 3D models)
NOTE
MAKING CONNECTIONS
AV1
1)
HDMI
1
y
y
AV1
1)
Analogue TV, AV
Component
HDMI
1
y
y
1)
HDMI
1
y
y
O’zbekcha
Video va audiosignallarni tashqi qurilmadan televizorga
o’tkazadi. Tashqi qurilmani Euro SCART kabeli bilan
quyida ko’rsatilganidek televizorga ulang.
Chiqish turi
Joriy
kirish rejimi
AV1
(TV-chiqish1)
Raqamli TV Raqamli TV
Analog TV, AV
Analog TV
Komponent
HDMI
1
signallarini chiqaradi.
yFoydalanilayotgan har qanday Euro SCART
kabeli signallardan himoyalangan bo’lishi kerak.
y3D tasvir rejimida televizor ko ’rilganida SCART
kabeli orqali faqat 2D signallargina chiqarilishi
mumkin. (Faqat 3D rusumlaridagina)
ESLATMA
A-8 MAKING CONNECTIONS
AV1
1)
HDMI
1
y
y
A-9
MAKING CONNECTIONS
Other connections
DVD/ Blu-Ray / HD Cable Box
DVD/ Blu-Ray / HD Cable Box / VCR
MONO
( )
YELLOW
RED
WHITE
YELLOW
RED
WHITE
GREEN
BLUE
RED
RED
WHITE
GREEN
BLUE
RED
RED
WHITE
AUDIO VIDEO
VIDEO
IN
OPTICAL
DIGITAL
AUDIO OUT
LNB
Satellite IN
13/18V
700mA Max
ANTENNA /
CABLE IN
OPTICAL
AUDIO IN
Digital Audio System
DVD/ Blu-Ray / HD Cable Box
/ HD STB / PC
HDMI
(Only LAN PORT models)
(Only Satellite models)

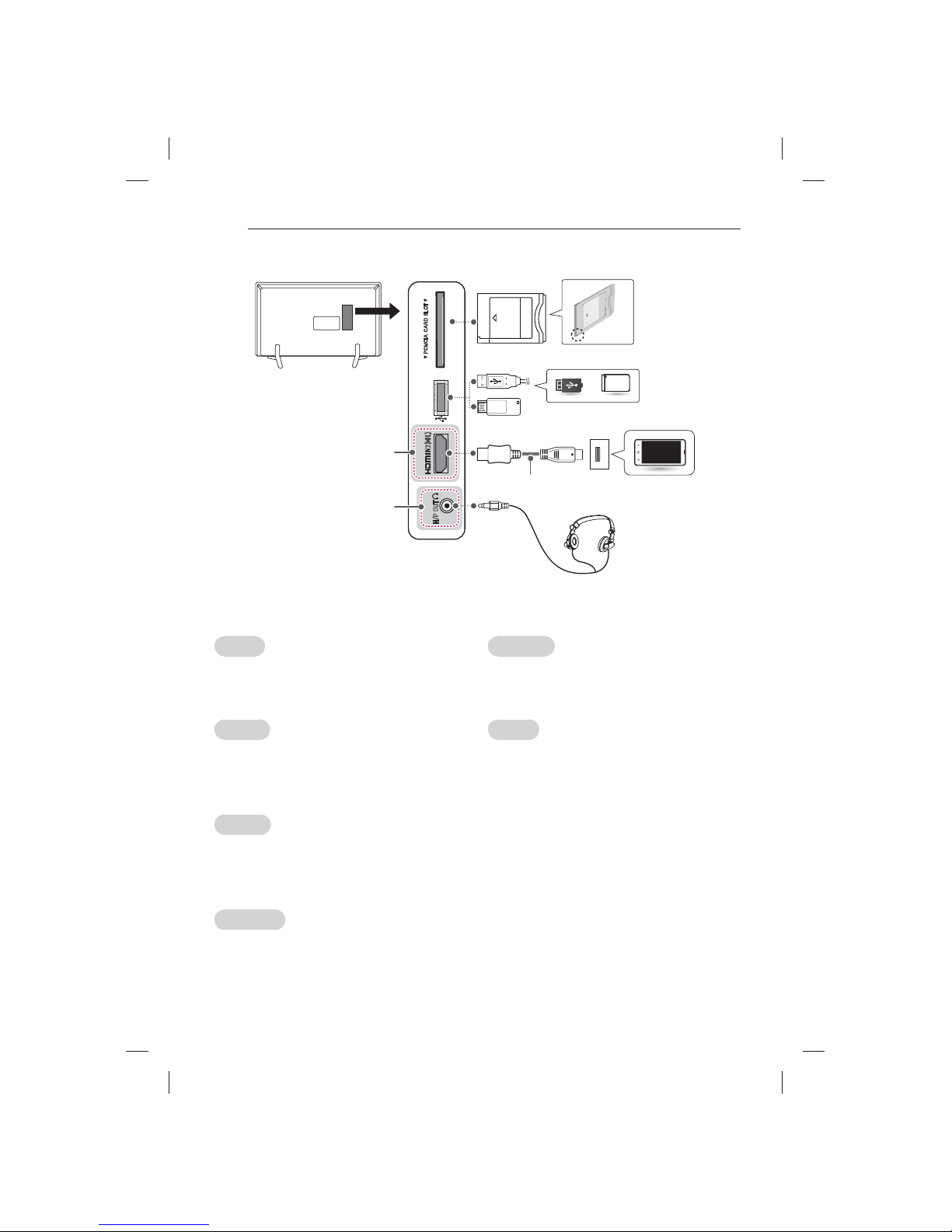

A-10 MAKING CONNECTIONS
Only LB56**, LB62** series
USB IN
USB / HDD
Mobile phone
PCMCIA card
H/P OUT
IN 2 (MHL)
HDMI 2 port position
varies by model.
Headphone
MHL passive cable
English
Connect your TV to external devices. For the best
picture and audio quality, connect the external device
and the TV with the HDMI cable as shown. Some sepa-
rate cable is not provided.
O’zbekcha
Televizoringizni tashqi qurilmalarga ulang. Eng yaxshi
tasvir va audio sifatiga ega bo’lish uchun tashqi qurilma
va televizorni HDMI kabel bilan rasmda ko’rsatilgani
kabi ulang. Ayrim alohida kabellar birga berilmaydi.
A-11
MAKING CONNECTIONS
English
Connect various external devices to the TV and switch
input modes to select an external device.
For more information of external device’s connection,
refer to the manual provided with each device.
HD receivers, DVD players, VCRs, audio systems,
USB storage devices, PC, gaming devices, and other
external devices.
yThe external device connection may differ from
the model.
yConnect external devices to the TV regardless of
the order of the TV port.
yIf you record a TV programme on a DVD recorder
or VCR, make sure to connect the TV signal
input cable to the TV through a DVD recorder or
VCR. For more information of recording, refer to
the manual provided with the connected device.
yRefer to the external equipment’s manual for
operating instructions.
yIf you connect a gaming device to the TV, use the
cable supplied with the gaming device.
yIn PC mode, there may be noise associated
with the resolution, vertical pattern, contrast or
brightness. If noise is present, change the PC
output to another resolution, change the refresh
rate to another rate or adjust the brightness and
contrast on the PICTURE menu until the picture
is clear.
yIn PC mode, some resolution settings may not
work properly depending on the graphics card.
NOTE
y
y
y
y
y
y
y
A-12 MAKING CONNECTIONS
y
y
y
y
y
y
y
y
y
y
y
y
y
y
A-13
MAKING CONNECTIONS
O’zbekcha
Turli tashqi qurilmalarni televizorga ulang va tashqi
qurilmani tanlash uchun kirish manbalari rejimini
o’zgartiring. Tashqi qurilmani ulash bo’yicha qo’shimcha
ma’lumot uchun har bir qurilma foydalanuvchi
yo’riqnomasiga qarang.
-
lar, DVD pleyerlar, videomagnitofonlar, audiotizimlar,
USB xotira qurilmalari, kompyuter, o’yin qurilmalari va
boshqa tashqi qurilmalar.
yTashqi qurilmani ulash jarayoni rusumga bog’liq
holda farq qilishi mumkin.
yTashqi qurilmalarni televizor portlari joylashuv
tartibiga bog’liq bo’lmagan holda televizorga
ulang.
yAgar siz televizion dasturni DVD yoki
videomagnitofon orqali yozib olmoqchi bo’lsangiz,
kirish televizion signali televizorga kabelini DVD
yozib olish qurilmasi yoki videomagnitofon orqali
televizorga uzatilayotganiga ishonch hosil qiling.
Yozib olish to’g’risida qo’shimcha ma’lumot
uchun ulangan qurilma bilan foydalanuvchi
yo’riqnomasiga qarang.
yFoydalanish bo’yicha ko’rsatmalar olish uchun
tashqi qurilma qo’llanmasiga qarang.
yO’yin qurilmasini televizorga ulash uchun o’yin
qurilmasi to’plami ichida kelgan kabeldan
foydalaning.
yShaxsiy kompyuter rejimida tasvir aniqligi,
vertikal namunalar, kontrast yoki ravshanlik bilan
bog’liq shovqinlar mavjud bo’lishi mumkin. Agar
shovqinlar mavjud bo’lsa, kompyuter chiqishini
boshqa tasvir aniqligiga o’zgartiring, yangilanish
chastotasini boshqasiga o’zgartiring yoki TASVIR
menyusida tasvir aniq bo’lgunicha ravshanlik va
kontrastni sozlang.
yShaxsiy kompyuter rejimida ekrandagi ayrim
tasvir aniqligi sozlanmalari videokartaga bog’liq
ravishda to’g’ri ishlamasligi mumkin.
ESLATMA
y
y
y
y
y
y
y
www.lg.com
Please read this manual carefully before operating your set and
retain it for future reference.
OWNER’S MANUAL
LED TV*
* LG LED TV applies LCD screen with LED backlights.
2
ENG
ENGLISH
LICENSES / OPEN SOURCE SOFTWARE NOTICE
LICENSES
Supported licenses may differ by model. For more information about licenses, visit www.lg.com.
Manufactured under license from Dolby Laboratories.
“Dolby” and the double-D symbol are trademarks of Dolby Laboratories.
logo are trademarks or registered trademarks of HDMI Licensing LLC in the
United States and other countries.
ABOUT DIVX VIDEO: DivX®is a digital video format created by DivX, LLC, a
®device that has
passed rigorous testing to verify that it plays DivX video. Visit divx.com
®device must be
registered in order to play purchased DivX Video-on-Demand (VOD)
movies.
To obtain your registration code, locate the DivX VOD section in your device setup
menu. Go to vod.divx.com for more information on how to complete your
registration.
®to play DivX®video up to HD 1080p, including premium content.”
“DivX®®and associated logos are trademarks of
Rovi Corporation or its subsidiaries and are used under license.”
“Covered by one or more of the following U.S. patents :
7,295,673; 7,460,668; 7,515,710; 7,519,274”
OPEN SOURCE SOFTWARE NOTICE
To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this product,
please visit http://opensource.lge.com.
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for
download.
LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing
such distribution (such as the cost of media, shipping and handling) upon email request to [email protected].
This offer is valid for three (3) years from the date on which you purchased the product.
3
ENGENGLISH
SAFETY INSTRUCTIONS
SAFETY INSTRUCTIONS
Please read these safety precautions carefully before using the product.
WARNING
yDo not place the TV and/or remote control in the following environments:
-A location exposed to direct sunlight
-An area with high humidity such as a bathroom
-Near any heat source such as stoves and other devices that produce heat
-Near kitchen counters or humidifiers where they can easily be exposed to steam or
oil
-An area exposed to rain or wind
-Near containers of water such as vases
yDo not place the product where it might be exposed to dust.
This may cause a fire hazard.
yMains Plug is the TV connecting/disconnecting device to AC mains electric supply.This
plug must remain readily attached and operable when TV is in use.
yDo not touch the power plug with wet hands. Additionally, if the cord pin is wet or
covered with dust, dry the power plug completely or wipe dust off.
You may be electrocuted due to excess moisture.
yMake sure to connect Mains cable to compliant AC mains socket with Grounded earth
pin. (Except for devices which are not grounded on earth.) Otherwise possibility you
may be electrocuted or injured.
yInsert power cable plug completely into wall socket otherwise if not secured completely
into socket, fire ignition may break out.
yEnsure the power cord does not come into contact with hot objects such as a heater.
This may cause a fire or an electric shock hazard.
yDo not place a heavy object, or the product itself, on power cables.
Otherwise, this may result in fire or electric shock.
yBend antenna cable between inside and outside building to prevent rain from flowing in.
This may cause water damaged inside the Product and could give an electric shock.
4
ENG
ENGLISH
SAFETY INSTRUCTIONS
yWhen mounting TV onto wall make sure to neatly install and isolate cabling from rear of
TV as to not create possibility of electric shock /fire hazard.
yDo not plug too many electrical devices into a single multiple electrical outlet.
Otherwise, this may result in fire due to over-heating.
yDo not drop the product or let it fall over when connecting external devices.
Otherwise, this may result in injury or damage to the product.
yKeep the anti-moisture packing material or vinyl packing out of the reach of children.
Anti-moisture material is harmful if swallowed. If swallowed by mistake, force the patient
to vomit and visit the nearest hospital. Additionally, vinyl packing can cause suffocation.
Keep it out of the reach of children.
yDo not let your children climb or cling onto the TV.
Otherwise, the TV may fall over, which may cause serious injury.
yDispose of used batteries carefully to ensure that a small child does not consume them.
Please seek Doctor- Medical Attention immediately if child consumes batteries.
yDo not insert any metal objects/conductors (like a metal chopstick/cutlery/screwdriver)
between power cable plug and input Wall Socket while it is connected to the input
terminal on the wall. Additionally, do not touch the power cable right after plugging into
the wall input terminal. You may be electrocuted.
(Depending on model)
yDo not put or store inflammable substances near the product.
There is a danger of combustion/explosion or fire due to careless handling of the
inflammable substances.
yDo not drop metallic objects such as coins, hair pins, chopsticks or wire into the
product, or inflammable objects such as paper and matches. Children must pay
particular attention.
Electrical shock, fire or injury can occur. If a foreign object is dropped into the product,
unplug the power cord and contact the service centre.
yDo not spray water on the product or scrub with an inflammable substance (thinner or
benzene). Fire or electric shock accident can occur.
yDo not allow any impact, shock or any objects to fall into the unit, and do not drop
anything onto the screen.
You may be injured or the product can be damaged.
5
ENGENGLISH

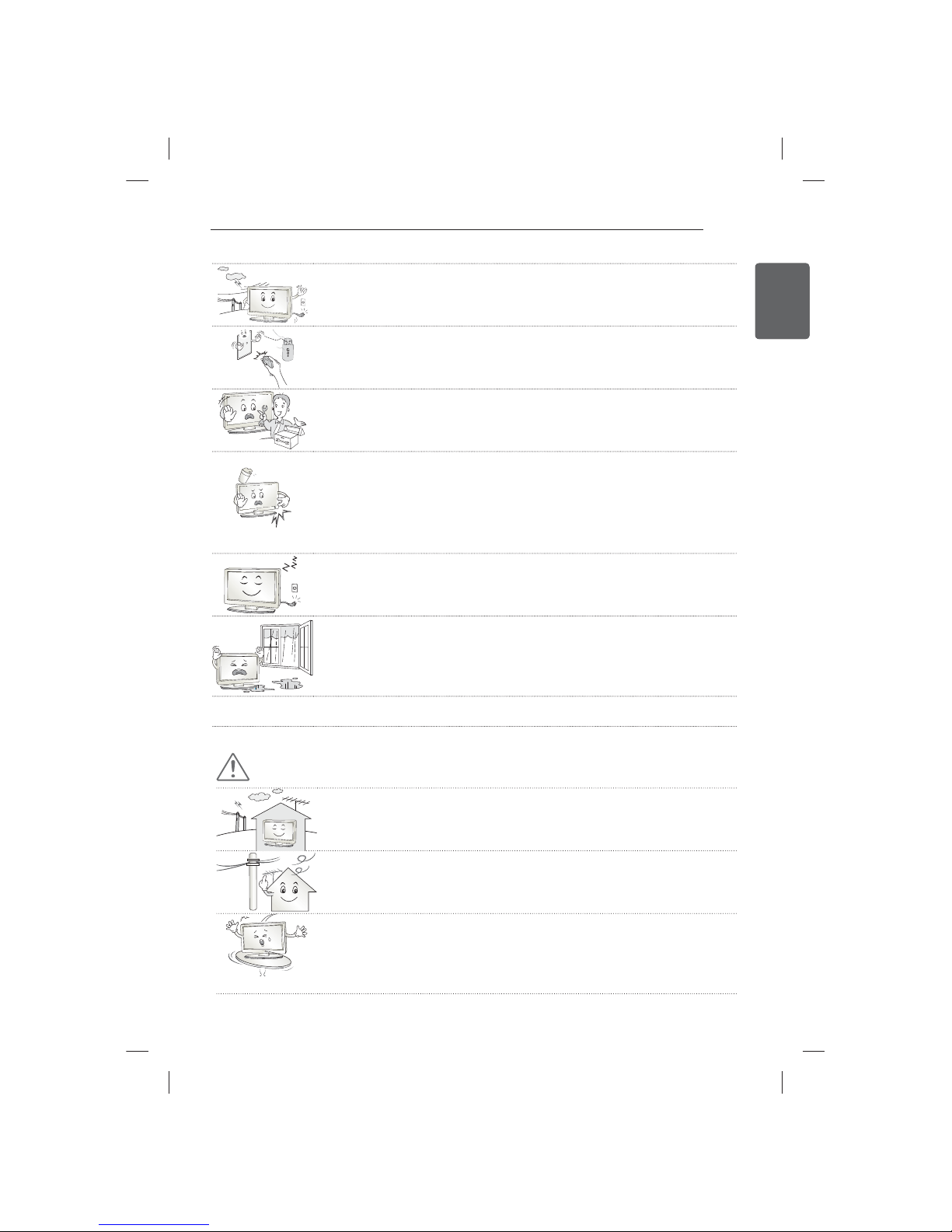

SAFETY INSTRUCTIONS
yNever touch this product or antenna during a thunder or lighting storm.
You may be electrocuted.
yNever touch the wall outlet when there is leakage of gas, open the windows and
ventilate.
It may cause a fire or a burn by a spark.
yDo not disassemble, repair or modify the product at your own discretion.
Fire or electric shock accident can occur.
Contact the service centre for check, calibration or repair.
yIf any of the following occur, unplug the product immediately and contact your local
service centre.
-The product has been impacted by shock
-The product has been damaged
-Foreign objects have entered the product
-The product produced smoke or a strange smell
yUnplug the TV from AC mains wall socket if you do not intend to use the TV for a long
period of time.
yApparatus shall not be exposed to dripping or splashing and no objects filled with
liquids, such as vases, shall be placed on the apparatus.
yDo not install this product on a wall if it could be exposed to oil or oil mist.
This may damage the product and cause it to fall.
CAUTION
yInstall the product where no radio wave occurs.
yThere should be enough distance between an outside antenna and power lines to keep
the former from touching the latter even when the antenna falls.
This may cause an electric shock.
yDo not install the product on places such as unstable shelves or inclined surfaces. Also
avoid places where there is vibration or where the product cannot be fully supported.
Otherwise, the product may fall or flip over, which may cause injury or damage to the
product.
6
ENG
ENGLISH
SAFETY INSTRUCTIONS
yIf you install the TV on a stand, you need to take actions to prevent the product from
overturning. Otherwise, the product may fall over, which may cause injury.
yIf you intend to mount the product to a wall, attach VESA standard mounting interface (optional parts) to the
back of the product. When you install the set to use the wall mounting bracket (optional parts), fix it carefully so
as not to drop.
yOnly use the attachments / accessories specified by the manufacturer.
yWhen installing the antenna, consult with a qualified service technician. If not installed
by a qualified technician, this may create a fire hazard or an electric shock hazard.
yWe recommend that you maintain a distance of at least 2 to 7 times the diagonal screen
size when watching TV.
If you watch TV for a long period of time, this may cause blurred vision.
yOnly use the specified type of battery.
This could cause damage to the remote control.
yDo not mix new batteries with old batteries.
This may cause the batteries to overheat and leak.
yBatteries should not be exposed to excessive heat. For example, keep away from direct Sunlight , open
fireplace and electric heaters .
yDo not place non-rechargeable batteries in charging device.
yMake sure there are no objects between the remote control and its sensor.
ySignal from Remote Control can be interrupted due to external/internal lighting eg
Sunlight, fluorescent lighting.
If this occurs turn off lighting or darken viewing area.
yWhen connecting external devices such as video game consoles, make sure the
connecting cables are long enough.
Otherwise, the product may fall over, which may cause injury or damage the product.
yDo not turn the product On/Off by plugging-in or unplugging the power plug to the wall
outlet. (Do not use the power plug for switch.)
It may cause mechanical failure or could give an electric shock.
Other manuals for LB55
11
This manual suits for next models
2
Table of contents
Languages:
Other LG LED TV manuals
