LG LB55 User manual

www.lg.com
Please read this manual carefully before operating your set
and retain it for future reference.
LB55**
LB56**
LB62**
P/NO : MFL68003802 (1409-REV03)
Printed in Korea
OWNER’S MANUAL
LED TV*
* LG LED TVs are LCD TVs with LED backlighting.
*MFL68003802*

A-2 TABLE OF CONTENTS
TABLE OF CONTENTS
COMMON
LANGUAGE
COMMON
A-3 SETTING UP THE TV
A-3 Attaching the stand
A-5 MAKING CONNECTIONS
A-5 Antenna connection
A-7 Satellite dish connection
A-7 Euro Scart connection
A-10 Other connections
LANGUAGE LIST
English
Deutsch
Français
Italiano
Español
Português
Nederlands
 Ελληνικά
 Slovenščina
B-1 SPECIFICATIONS
B-6 REGULATORY

A-3
SETTING UP THE TV
SETTING UP THE TV
Image shown may differ from your TV.

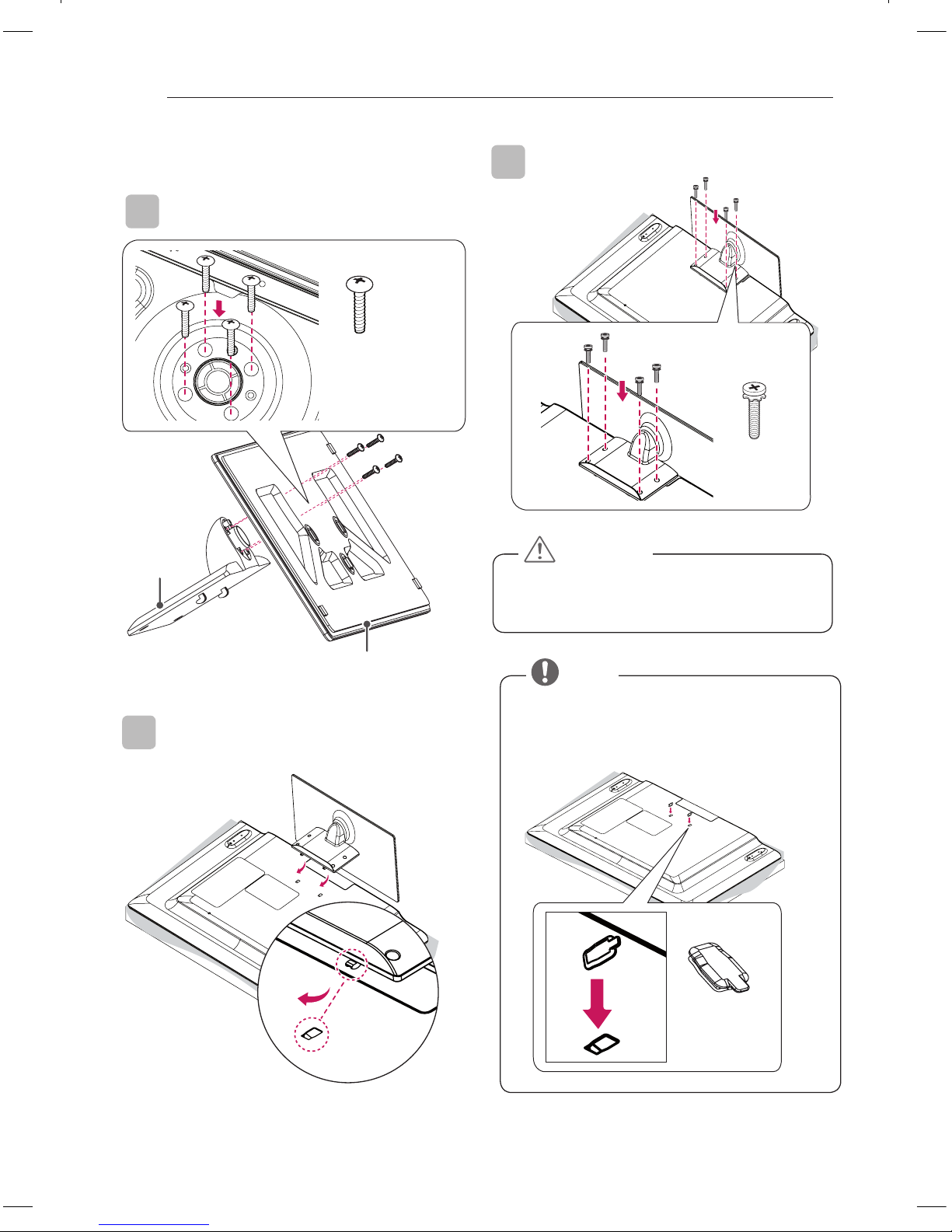

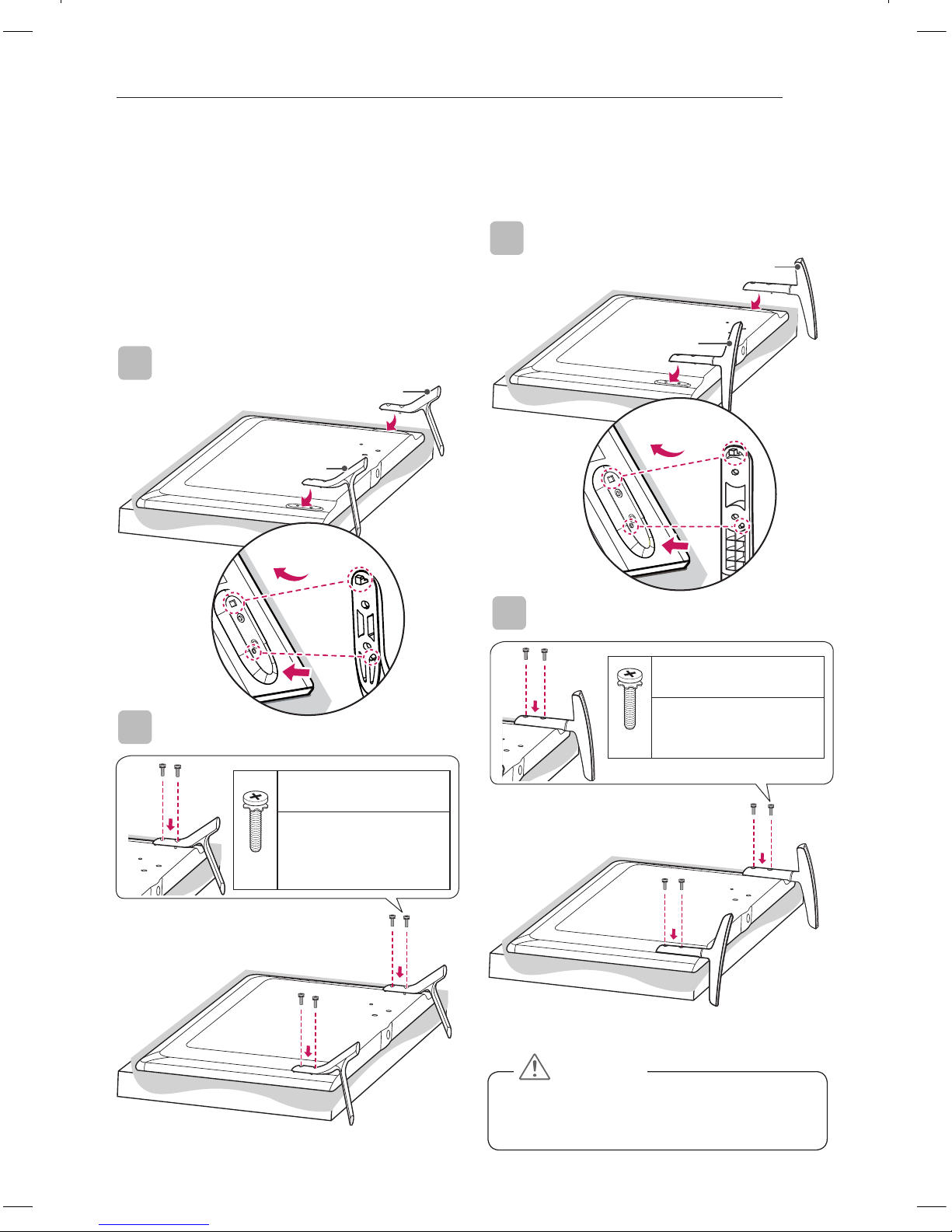

Attaching the stand
(Only LB55**, LB56**-ZE / ZC, LB62**-ZA / ZB / ZD)
4EA
M4 x L14
(Only 32LB55**,
32LB56**-ZE / ZC,
32LB62**-ZA / ZB)
M4 x L20
1
1
2
1
2
1
2
4EA
M4 x L14
(Only 32LB56**-ZT / ZQ,
32LB62**-ZE)
M4 x L20
2
A Stand Base
B Stand Base
1
2
1
2
A Stand Base
B Stand Base
1
2
yWhen attaching the stand to the TV set, place
the screen facing down on a cushioned table or
flat surface to protect the screen from scratches.
CAUTION
(Only LB56**-ZT / ZQ, LB62**-ZE)

A-4 SETTING UP THE TV
(Only LB56**-ZX, LB62**-ZM)
1
1
Stand Body
Stand Base
4EA
M4 x L20
2
3
4EA
M4 x L14
yWhen attaching the stand to the TV set, place
the screen facing down on a cushioned table or
flat surface to protect the screen from scratches.
CAUTION
yThe Rubber will protect the opening from
accumulating dust and dirt. When installing the
wall mounting bracket, use the Rubber. (Only
LB56**-ZX, LB62**-ZM)
Rubber
2EA
NOTE

A-5
MAKING CONNECTIONS
MAKING CONNECTIONS
This section on MAKING CONNECTIONS

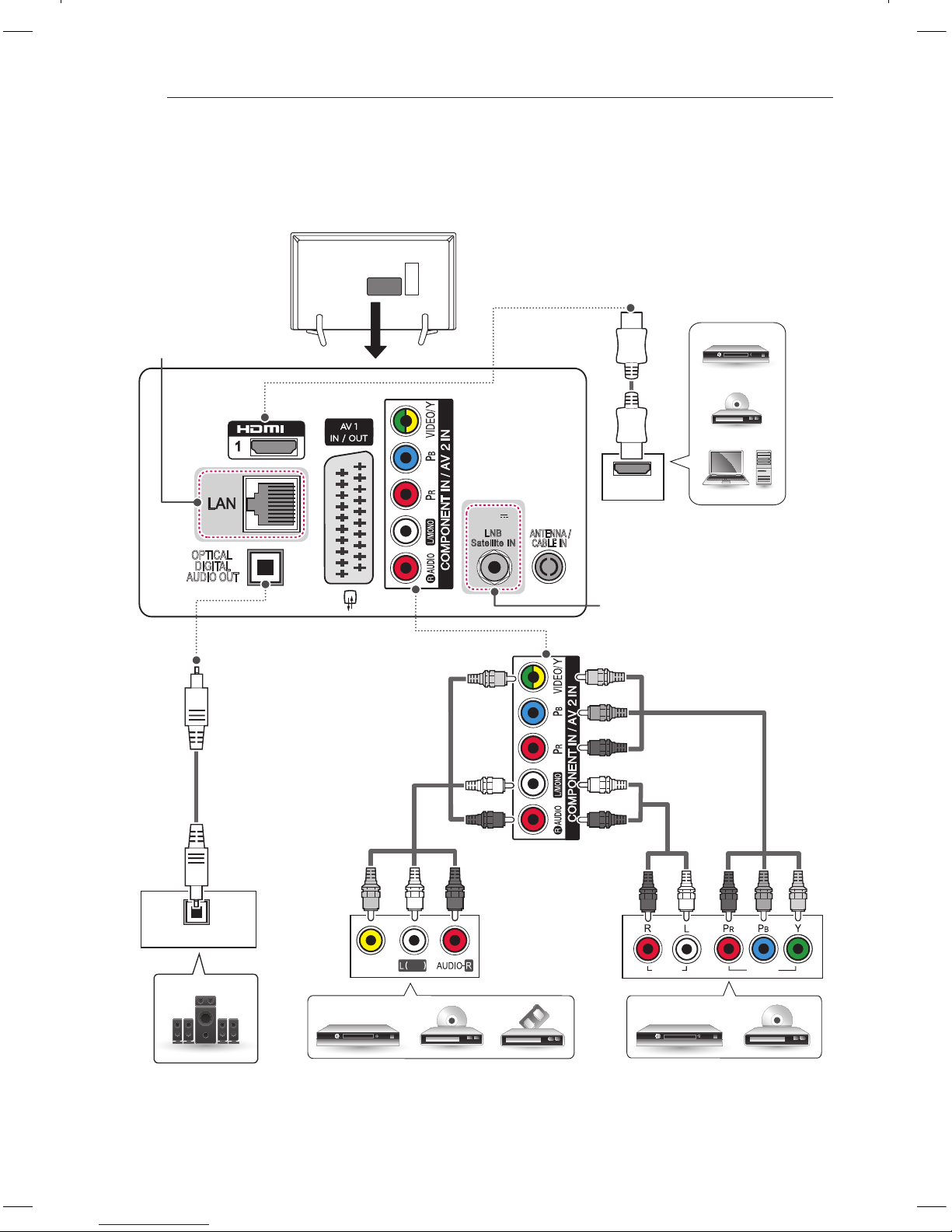

mainly uses diagrams for the 47LB561V models.

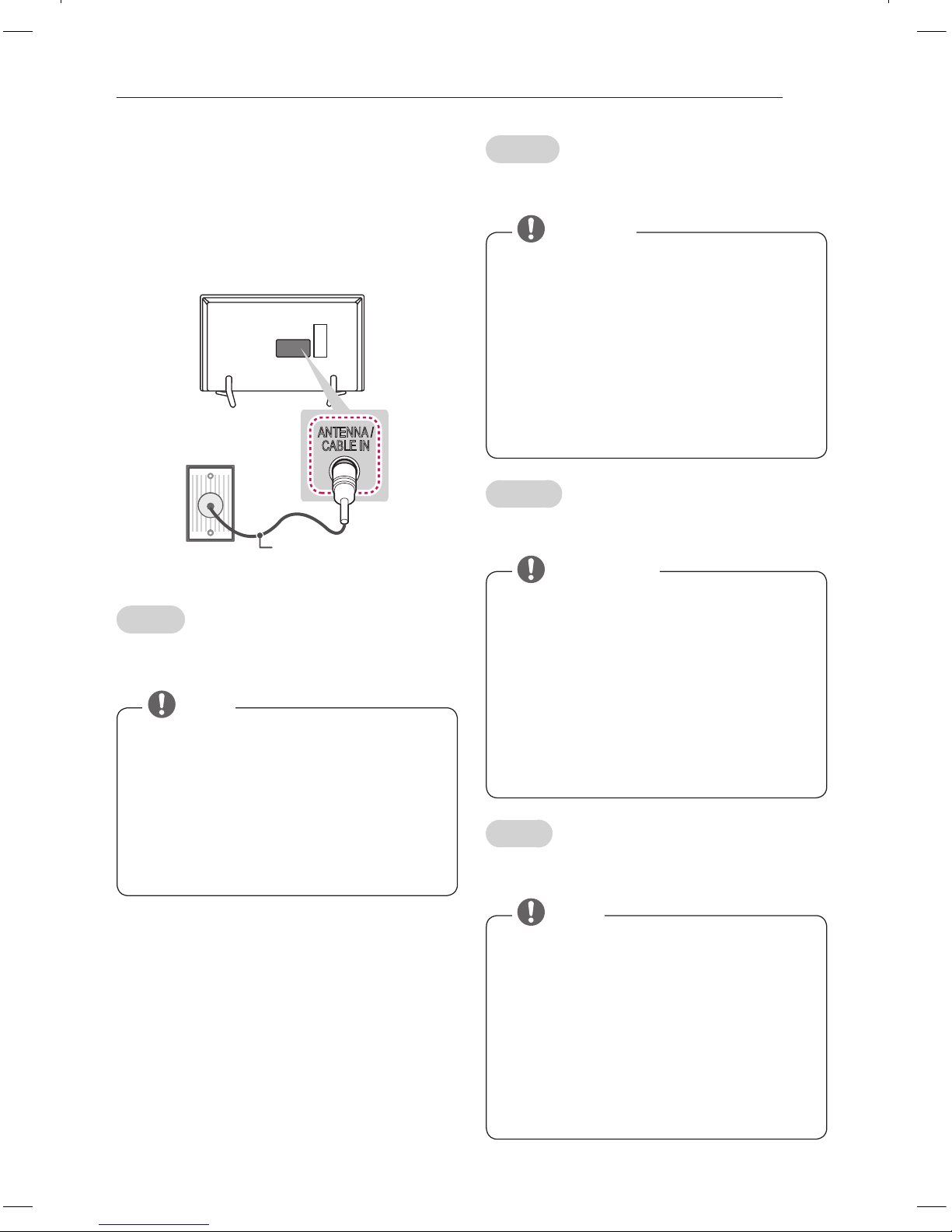

Antenna connection
ANTENNA /
CABLE IN
Wall Antenna
Socket
*Not Provided
English
Connect the TV to a wall antenna socket with an RF
cable(75Ω).
yUse a signal splitter to use more than 2 TVs.
yIf the image quality is poor, install a signal
amplifier properly to improve the image quality.
yIf the image quality is poor with an antenna
connected, try to realign the antenna in the
correct direction.
yAn antenna cable and converter are not supplied.
ySupported DTV Audio: MPEG, Dolby Digital,
Dolby Digital Plus, HE-AAC
NOTE
Deutsch
Schließen Sie das TV-Gerät mit einem HF-Kabel
(75Ω)aneineWandantennenbuchsean.
yBei Verwendung von mehr als 2 TV-Geräten
verwenden Sie einen Signalsplitter.
yIst das Bild schlecht, installieren Sie einen
Signalverstärker, um die Bildqualität zu
verbessern.
yWenn die Bildqualität bei angeschlossener
Antenne schlecht ist, richten Sie die Antenne
richtig aus.
yAntennenkabel und Verstärker sind nicht im
Lieferumfang enthalten.
yUnterstützter DTV-Ton: MPEG, Dolby Digital,
Dolby Digital Plus, HE-AAC
HINWEIS
Français
Connectez la TV à une prise d’antenne murale
avecuncâbleRF(75Ω).
yUtilisez un séparateur de signaux pour
utiliser plus de deux téléviseurs.
ySi la qualité d’image est mauvaise, installez
correctement un amplificateur de signaux
pour l’améliorer.
ySi vous utilisez une antenne et que la qualité
d’image est mauvaise, essayez de réaligner
l’antenne dans la bonne direction.
yLe câble et le convertisseur d’antenne ne sont
pas fournis.
yTechnologies audio TNT prises en charge :
MPEG, Dolby Digital, Dolby Digital Plus, HE-AAC
REMARQUE
Italiano
Collegare il televisore all’antenna centralizzata con
uncavoRF(75Ω).
yUtilizzare uno sdoppiatore del segnale per
usare più di 2 televisori.
ySe la qualità dell’immagine è scarsa, installare
correttamente un amplificatore del segnale per
migliorarla.
ySe la qualità dell’immagine è scarsa con
un’antenna collegata, provare a riallineare
l’antenna nella direzione corretta.
yIl cavo e il convertitore dell’antenna non sono in
dotazione.
yAudio DTV supportato: MPEG, Dolby Digital,
Dolby Digital Plus, HE-AAC
NOTA
