INSTALLATION MANUAL
LED TV*
Please read this manual carefully before operating your
set and retain it for future reference.
www.lg.com
LV640S-Z/T/G/D*

2TABLE OF CONTENTS
ENGLISH
TABLE OF CONTENTS
3 USING THE BUTTON
3 Basic functions
4 EZMANAGER
4 LANGUAGE & COUNTRY SELECTION
5 INSTALLATION MENU
5 INTRODUCTION
6 LG HOTEL MODE
6 - Hotel Mode Operation
6 - Power On Status
7 - Volume
7 - Key Management
8 - Limited Mode
8 - DTV Programme Update
9 - Power On Default
9 - Aux Source Setting
9 - Power Management
9 - Radio Video Blank
9 - Factory Reset
10 NETWORK
10 - MAC Address
10 - Network Setting
11 - Wake On LAN
11 - Server Settings
12 GENERAL
12 - Configuration Setup
14 - External Speaker
14 - Set ID Setup
14 - Power Saving
15 - Password Change
15 - PreLoaded App
15 - Lock Mode
15 - Crestron

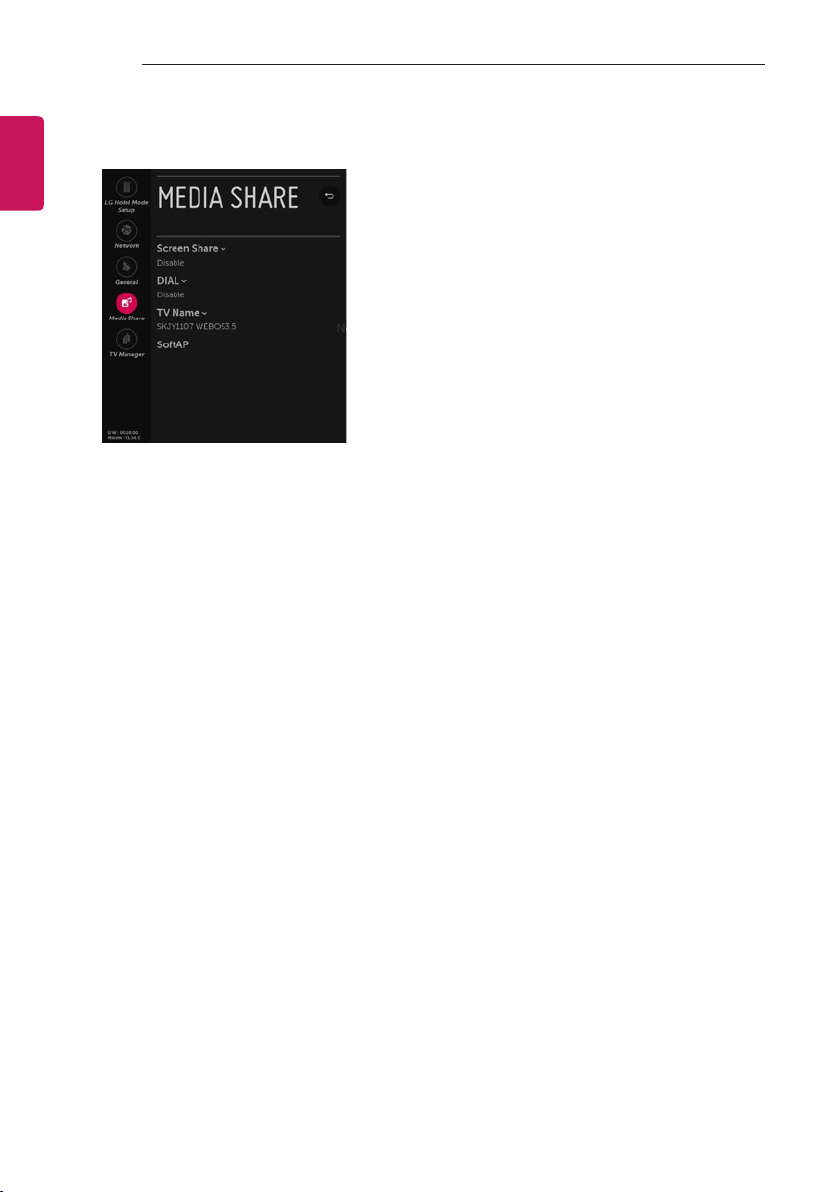

16 MEDIA SHARE
16 - Screen Share
16 - DIAL
16 - TV Name
16 - SoftAP
18 TV MANAGER

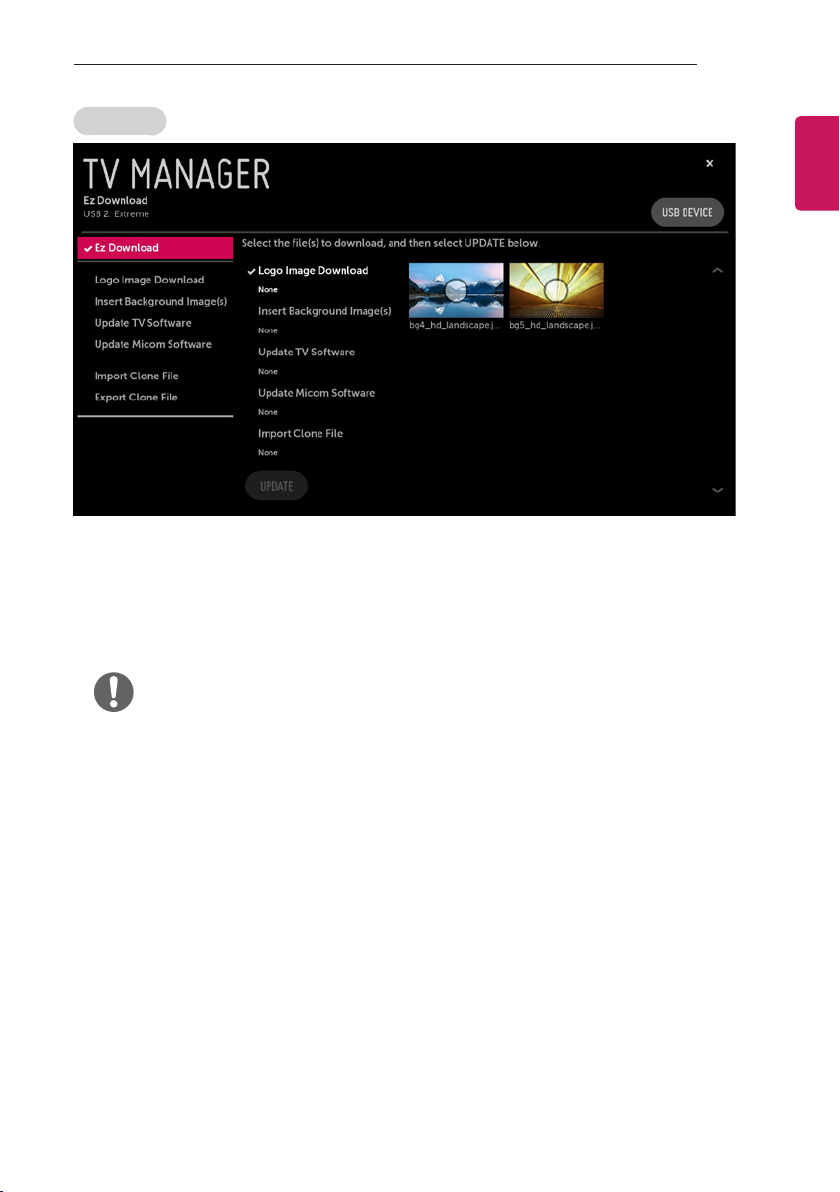

18 - USB Download Menu
26 IR CODES
27 EXTERNAL CONTROL DEVICE
SETUP
27 RS-232C Setup
27 Phone jack Type
27 Type of Connector : D-Sub 9-Pin Male
28 RS-232C Configurations
29 Command Reference List
30 IR OUT Using Guide
31 Transmission / Receiving Protocol

3
USING THE BUTTON
ENGLISH

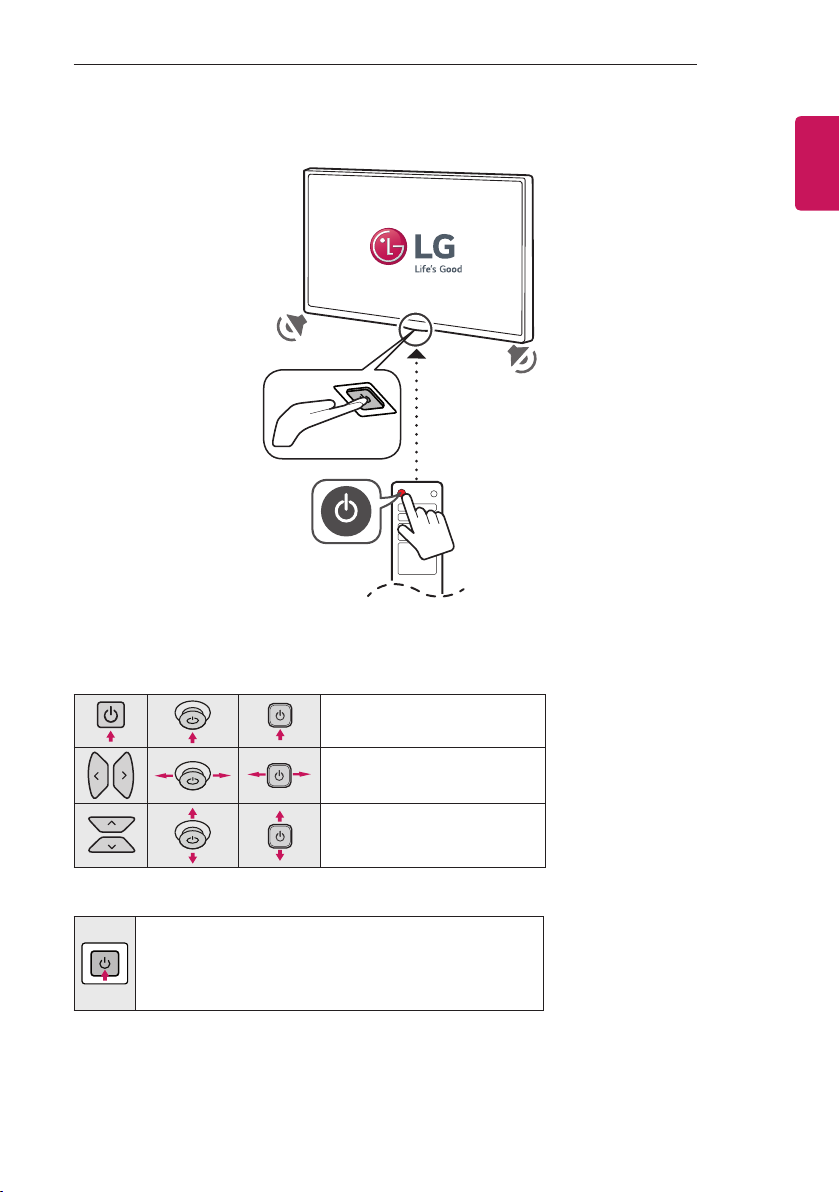

USING THE BUTTON
Basic functions
<A/B type>
Power On (Press)
Power O1(Press and hold)
Volume Control
Programmes Control
<C type>
Power On (Press)
Power O1(Press and Hold)
Menu Control (Press2)
Menu Selection (Press and Hold3)
1 All running apps will close, and any recording in progress will stop.
2 You can access and adjust the menu by pressing the button whenTV is on.
3 You can use the function when you access menu control.

4EZMANAGER
ENGLISH
EZMANAGER
•
• Image shown may differ from your TV.
LANGUAGE & COUNTRY SELECTION
-Please select the Language and Country. Some countries need to select the Time Zone.

5
INSTALLATION MENU
ENGLISH
INSTALLATION MENU
•
• Image shown may differ from your TV.
INTRODUCTION
The abundant functions for HotelTV linked with software installation can be projected on OSD as‘Installation Menu’.
The wide range of hotel features can be performed simply on additional window to enhance the LG hotelTV’s easy installation and
convenient operation for Hotelier and System Integrators.
TV
1 Press the Setting button for more than 5 seconds using the user remote control, programme
information will appear at top left on the screen.
2 Enter a four digit password and press‘OK’ button.
-TheTV is set with the initial password“1-1-0-5”.
3 Use the button to select the desired menu.

6INSTALLATION MENU
ENGLISH

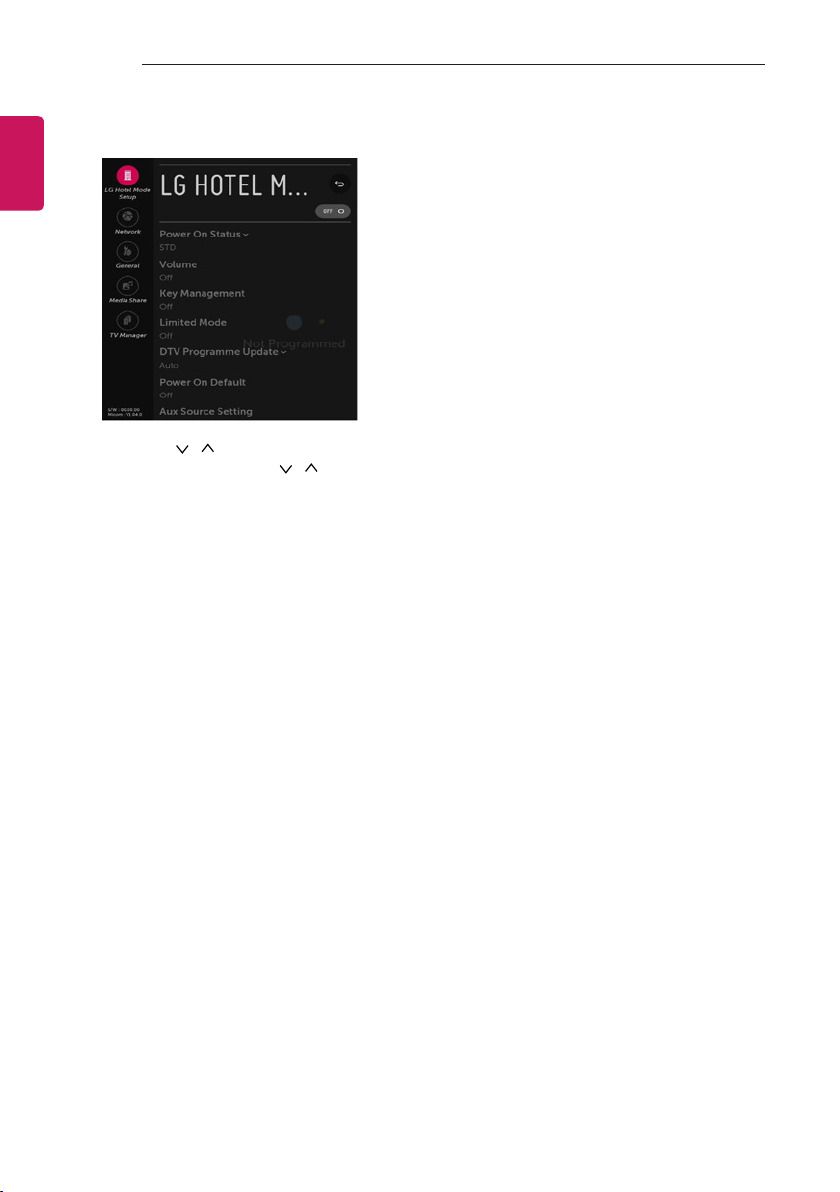

LG HOTEL MODE
1 Use the button to select the LG HOTEL MODE SETUP.
2 Use the‘OK’button and then button to select Hotel Mode Operation.
-When‘Hotel Mode Operation’is set to On (Work), all functions of Hotel Mode apply.
Hotel Mode Operation
-Decide to work all functions of‘Hotel Mode Operation’ or not by setting‘Hotel Mode Operation’ as On(Work) or Off(Do Not
Work)
-When‘Hotel Mode Operation’is set to On(Work), all functions of Hotel Mode apply.
-When‘Hotel Mode Operation’is set to Off(Do Not Work), all functions of Hotel Mode Do Not apply.
-When it is set to‘On’, all items reserved at the Schedule list are deleted and the reservation function is not supported.(applied
for the model offering the reservation function)
-TheTV triggered by the external device (ex: SIMPLINK,TVLink-Tuner, etc.) operates separately from the Hotel mode.
-When it is set to‘On’, User Menu →General →‘Reset to Initial Settings and Home/Store Mode’are disabled.
-When‘Hotel Mode Operation’is set to On(Work), all skipped programs are not tuned by number keys.
-When‘Hotel Mode Operation’is set to On(Work), Detailed Information about the programme is not available in the EPG.
-When‘Hotel Mode Operation’is set to On(Work), User Menu ->Timer->’Auto Power Off’is disabled.
-When‘Hotel Mode Operation’is set to On(Work), User Menu ->Timer->’2 Hour Auto Power Off’is disabled.
Power On Status
-Decide to select working status ofTV Set when turn on main power.
-You can set with PWR, STD, LST.
-PWR always make TV set On status when turn on main power .
-STD make Stand-by status when turn on main power.
-LST makeTVSet work like previous power status. As same concept as Power Backup mode; If main power were turned off
in Power On status,TVSet would work in On status. If main power were turned off in Stand-by status,TVSet would work in
Stand-by status.
-If there Block All is both IR Operation and Local Key Operation from Key Management, In order to provide the Option
that must be able to turn on theTV in the TV turned off situation, change the value of the PWR. (Reference the Key
Management)

7
INSTALLATION MENU
ENGLISH
Volume
-Decide to apply volume policy of‘Start Volume’,‘Maximum Volume’and ‘Minimum Volume’as On(Work) or Off(Do Not
Work).
-(0 ≤ Min ≤ Start ≤ Max ≤ 100)
Start Volume
yThis entry sets the start volume level when is power on.
-The level is specified as a number between minimum volume to maximum value. (Min ≤ Start ≤ Max)
-The default setting is‘Off’(disabled).
-When enabled, if the value is lower then the minimum specified in the minimum volume entry, the minimum volume
entry must be used.
-When enabled, if the value is larger then the maximum specified in the maximum volume entry, the maximum volume
value must be used.
-Access to a volume in‘OnTimer’must be fixed to start volume when‘Hotel Mode Operation’(On) and‘Start Volume’(Off, 0
~ 100) were set simultaneously.
Maximum Volume
yThis entry sets the maximum volume level the set. The level is specied as a number between‘MinimumVolume’to 100. (Min ≤
Max ≤ 100).
-If the command volume up to higher than maximum volume’is received, that should be ignored.
-The default value is 100.
Minimum Volume
yThis entry sets the minimum volume level the set will produce.
-The level is specified as a number between 0 to‘MaximumVolume’. (0 ≤ Min ≤ Max)
-If the command volume down to lower than minimum volume is received, that should be ignored.
-The default value is 0.
Key Management
-Manage key usability of Local(Front) Key and Remote Control. When selected to‘On’, following‘IR Operation’and‘Local Key
Operation’will be worked by below.
IR Operation
yDecide whether work the LG remote control or not.
-When‘IR Operation’is set to 'Normal', all remote keys are available.
-'Use PWR Only' makes block all remote keys except power key.
-When‘IR Operation’is set to 'Block All', all normal remote keys don’t work.
Local Key Operation
yDecide to operate 'Local/Front Key' working behavior by setting‘Local Key Operation’as 'Normal', 'Use PWR Only' and 'Block All'.
-When‘Local Key Operation’is set to 'Normal', all local keys are available.
-'Use PWR Only' makes block all local keys except power key.
-When‘Local Key Operation’is set to 'Block All', all local keys don’t work.

8INSTALLATION MENU
ENGLISH
Limited Mode
-Configure TV function’s limitation.When selected to‘On’, following sub-menus will be worked by below.
Setup Menu
-Permit to tune and manage programmes as 'On'(permitted) or 'Off'(not permitted).
Programme Change
yDecide to change channel or not by setting‘Program Change' as‘On’(Change Possible) or‘Off’(Change Impossible) when present
source is TV.
-When‘Programme Change' is set to Off (Change Impossible)
»Program Key, Numeral Key, List Key, Q.View Key don't work and entering 'Channel Menu' in the Main Menu OSD is
impossible.
»‘Programme' item in 'On Time' menu will be fixed.
»Entering 'Programmes' in the 'Main Menu’OSD is impossible regardless of 'Programmes' item.
-When 'Program Change’is set to On(Change Possible),‘Program Key’,‘Numeric Key’,‘List Key’,‘Q.View’Key, 'TV/RAD Key',
does work and entering‘Channel Menu' in the Main Menu OSD is possible.
Menu Display
yFunction to decide whether work with menu (including relevant menus too) of control key (On – Enter possible) or not (O – Enter
Impossible).
-Although select Off(Enter impossible), the action that press a Menu button for 5 seconds to enter‘Installation Menu’is
available.
-When select On(Enter possible), Menu works.
OSD Display
yDecide to display OSD or not by setting‘OSD Display’ as On(Display) or O(Do not Display).
-When‘OSD Display’is set to‘Off’(Do not Display), all OSD is not displayed except some exception.
-Although select‘Off’(Do not Display), the action that press a Menu button for 5 seconds to enter‘Installation Menu’and
entering service menu are available. (In-Start, Power-Only, Adjust, Installation Menu…)
System Provider Mode
y‘System Provider Mode’allows access to the menu system from the front panel or remote control but access is controlled as follows:
-When value is‘On’, Accessible Items on the menu system, others are not permissible.
»Input select screens
»Sleep timer
»Aspect Ratio
»Subtitles
»Programmes (Except for Programme Tuning & Settings and Programme Manager)
»‘Safety’/ 'Photo & Video' / 'Music' /‘Network’/‘Bluetooth’Menu
-If the channel map is empty,‘Auto-tuning’guide dialog should be blocked by pressing‘List’,‘CH+’,‘CH-’keys.
DTV Programme Update
-It is a mode to set whether to update dtv Programme automatically or not.
-When DTV Programme Update is set to‘Auto’, the function to update TV’s programme map according to dtv programme’s
stream information.
-DTV Programme Update is set to‘Manual’, the function to keepTV’s programme map even though dtv programme’s
information is changed.

9
INSTALLATION MENU
ENGLISH
Power On Default
-Set the channel to display andVolume Level, etc. when turn on power in AC Power On or Stand-by status.
-Set to On(Work) or Off(Do Not Work).
-When‘Power On Default’is set to Off, it is not applied to the subordinate Input, Programme, A/V Setting, Aspect Ratio
menu.
-When Power On Default is set to On, it can set by entering the subordinate menu.
Input
-Set whether it is turned on by the set input source or by the last stored input source.
Programme
-Select start channel number if Input source’s value is TV.
A/V Setting
-If‘A/V Setting’is changed from‘Off’to‘On’, A/V parameters that are set before entering‘Installation Menu’are applied
whenever turn on power.
Aspect Ratio
-The aspect ratio determines the default aspect ratio that the set returns to on power up.
Aux Source Setting
-Set to On(Work) or Off(Do Not Work).
-The Auxiliary (Input) Source Setting feature will enable or disable for each external input.
-User cannot disable the current input’s‘Aux Source Setting’.
Power Management
yThe Power Management feature will turn o the television receiver if no input control command is received from either the Local
or IR Key within a selected hours.
-Activity on either of these inputs shall reset the‘Power Management’timer and prevent interruption ofTV viewing.
-This entry can be set to a value which is corresponding to the desired hours (1Hour to 7Hours).
-Default value is‘Off(disabled)’.
Radio Video Blank
-Set to On(Work) or Off(Do Not Work).
-Programme that is set to‘Radio Programme’ and only has Sound should decide whether to set‘Video Blank’or not.
-When‘RadioVideo Blank’is set to On(Work),‘Video Blank’works only in case of Radio Programme.
-Although set to On(Work), if there are Video signal,‘Video Blank’wouldn’t work. In consideration of case that display
background screen and broadcast only with Radio,‘Video Blank ’works only when there is noVideo signal.
-When set to Off(Do Not Work),‘Video Blank’do not work although it is the Radio Programme.
-This operates only in the Analog TV Mode.
Factory Reset
-Change all settings to their default values.

10 INSTALLATION MENU
ENGLISH

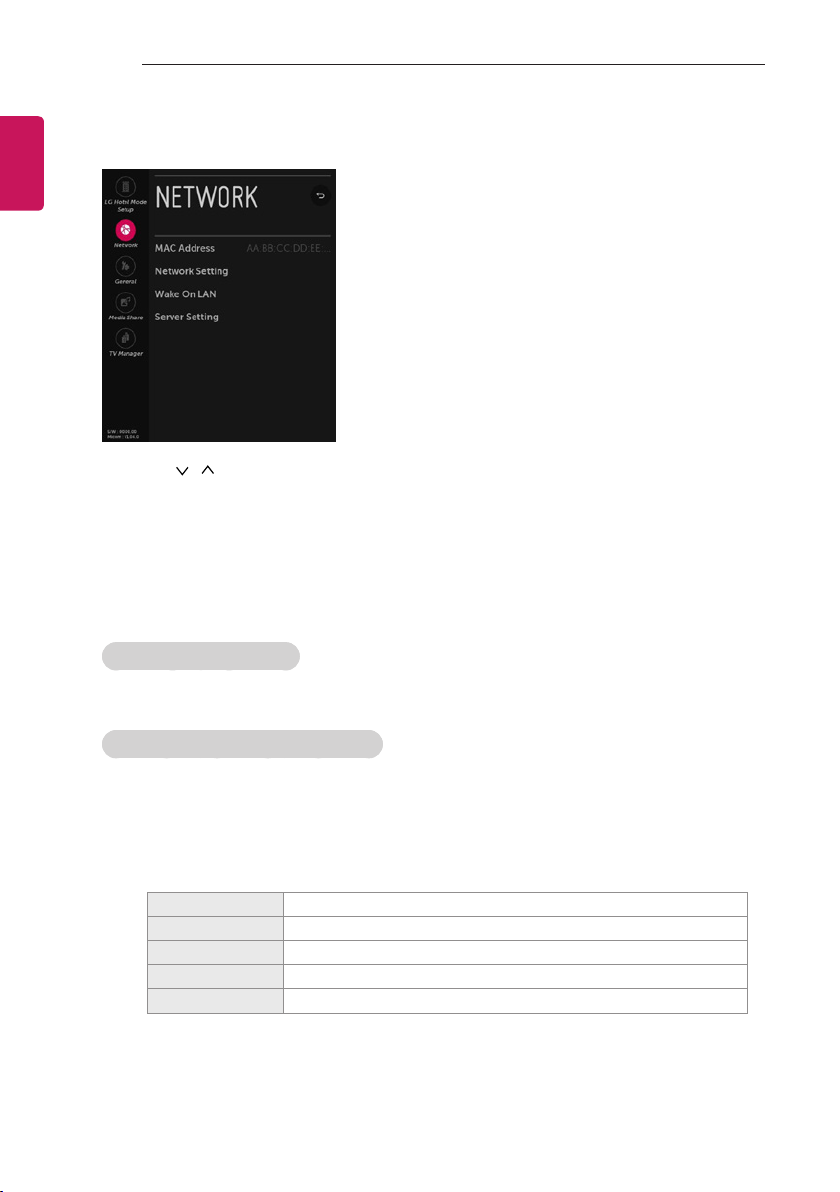

NETWORK
1 Use the button to select the NETWORK.
MAC Address
-Displays the MAC address (not customizable).
Network Setting
One-click network connection
-Connects easily to a wired/wireless network.
-Network Connection to connect to an available network automatically. Follow the prompts on theTV.
To connect to a network through Set Expert
-For use in special circumstances such as in offices (in cases where a static IP is used).
1 Select a network connection, either Wired orWireless.
2 When connecting via Wired, Congures the IP settings of theTV set. You can set the IP address, subnet mask, gateway and
DNS server.
3 When connecting via Wi-Fi, use the one of the following network connection methods.
AP List Connects to the network selected from the AP List.
Enter the SSID Connects to the wireless AP typed in.
WPS-PBC Connects easily when the button of a wireless AP supporting PBC is pressed.
WPS-PIN Connects easily when the PIN of the wireless AP that you wish to connect to is entered in to the AP website.
Advanced Wi-Fi Settings After connects Wi-Fi, you can set the IP address, subnet mask, gateway and DNS server.

11
INSTALLATION MENU
ENGLISH
Wake On LAN
ySets the Wake On LAN function to Enable or Disable.
-TheWake On LAN feature enables theTV to receive software updates and/or be powered ON upon receipt ofWake Up
Frame packets and/or Magic Packet data via the wired LAN.To facilitate use of this feature, note that the appropriate wired
connection must be made. (‘Wake up Frame’is not supported depending on model)
Server Settings
ySets the information to connect to the external server.
-Supersign Premium Server
-Supersign Link Server

12 INSTALLATION MENU
ENGLISH

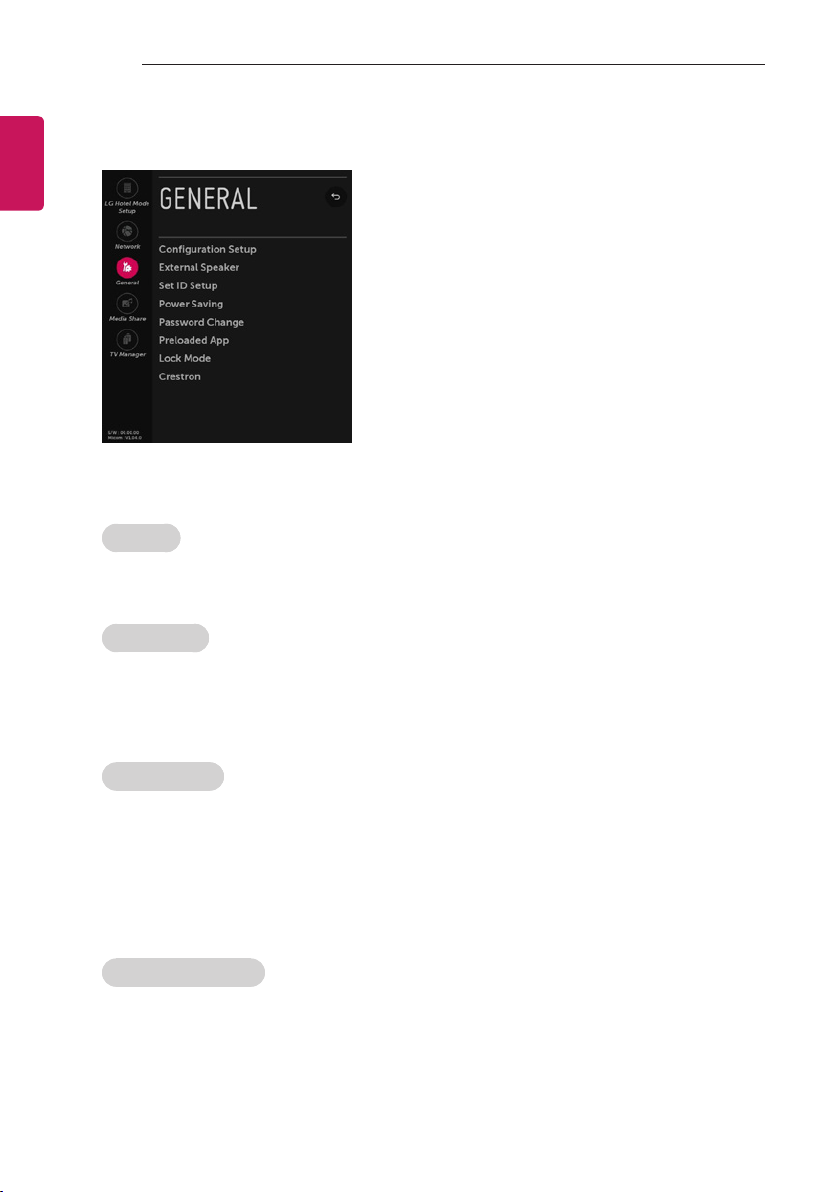

GENERAL
Conguration Setup
Select RCU
-It is a mode to set whether to use Select RCU or not. When‘Select RCU’is set to‘Enable’, You can adjust‘Number of RCU’
menu.
Number of RCU
-It is a mode to set Number of RCU.
Number of RCU value range 1~9. (When‘Select RCU’is set to‘Enable’)
Number of RCU value range 0. (When‘Select RCU’is set to‘Disable’)
* RCU(Remote Control Unit) : It is special RCU that operates only setted number of RCU in TV.
One Channel Map
-If‘One Channel Map’is‘Enable’, the TV will operate as below.
•
• A. When the TV is auto-scanning, it searches air, cable and satellite channels.
•
• B. User can assign a channel number him/herself by manual scan.
•
• C. In 'Programme Edit’window, all channels are shown in a single list regardless of input source.
•
• D. Automatically scanned channels may not have the user-desired channel numbers.
-If user change the‘Enable/Disable’value, an pop-up window will be displayed to warn that all channel
information will be deleted. The Default value is‘Enable’.
DTV Programme Update
-It is a mode to set whether to update DTV programme automatically or not.
When DTV Programme Update is set to ’Auto’, the function to update TV’s programme map according to dtv programme’s
stream information.
DTV Programme Update is set to‘Manual’, the function to keepTV’s programme map even though DTV programme’s
information is changed.

13
INSTALLATION MENU
ENGLISH
On Timer Operation
-It is a mode to select‘OnTimer Operation’working one time or repeatedly.
'Once':‘On Time’in the user menu operates only one time when the‘OnTime’menu is set to‘ON’.
‘Repeat’:‘On Time’operates repeatedly when the‘On Time’menu is set to‘ON’.
Radio Name Display
-Instead of“Audio Only”, the name of a radio channel is displayed on the screen when a radio broadcast is playing.
-Set to On(Work) or Off(Do Not Work).
-If the setting is“On”, the name of a radio channel is displayed for the radio channel.
-If the setting is“Off”, the text“Audio Only”is displayed for the radio channel.
15Min Auto Off
-When‘15Min Auto Off’is set to ‘Enable’,TV will turn off if there is no signal in 15 Min.
DVB-C
(Depending on model)
-DVB-T/C programmes (channels) are searchable and selectable like following if DVB-C is“Enable”.
DVB-C Bandwidth
(Depending on model)
-If country is‘Philippines’,‘DVB-C Bandwidth’menu will be shown.
-Select the bandwidth of cable tuning.(6 Mhz/8 Mhz). The default is 6 Mhz.
Auto Sensing
-If‘Auto Sensing’is set to‘On’, the input is automatically switched when the input signal that you set to“ON’is received.
-If‘Auto Sensing’is set to‘Disable’, the input is not switched when the input signal is received.
* SIMPLINK and Auto Sensing cannot work simultaneously. If SIMPLINK is set to On, Auto Sensing is automatically set to
Disable.
* If the signal is removed while Auto Sensing (automatic input switch) is enabled, the input returns to the previous setting.
If the several input are connected by enabling Auto Sensing and the automatic input returns to the previous setting.
If the several inputs are connected by enabling Auto Sensing and the automatic input switch is performed several times,
the input returns to the previous setting only for the last input and does not repeat the operation for the rest.
Insert Image
-Set to Enable(Work) or Disable(Do NotWork).
-It is a mode to decide whether to display background image when using Bluetooth Sound Sync app or watching Radio
channel.
-You can download the background image atTV Manager app.
No Signal Image
(Depending on model)
-Set to On or Off.
-It is a mode to decide whether to use no signal image when there is no signal.

14 INSTALLATION MENU
ENGLISH
External Speaker
Volume Control
-Selects the volume control method of an external speaker.
You can select‘Off’,‘Int Variable’,’Fixed.’,’Ext Variable’by pressing button.
Ext Variable uses the ExternalVol Up/Down Control Line to change the volume up to 1Watts.
Int variable is linked to the main volume OSD and change the volume 0 - 1Watts.
Fixed produces a fixed output.The default is Off.
Output
-This item is enabled whenVolume Control is set to Fixed. You can choose one of 7 steps.(0.01/0.03/0.05/0.1/0.2/0.5/1
Watts). The Default is 1 Watt.
Set ID Setup
Set ID Lock
-Set the‘Set ID’item in‘GENERAL’Menu whether to activate or not.
-Set to On(Work) or Off(Do Not Work).
Set ID
-Set the‘Set ID’ofTV Set with 1~99.
Power Saving
Static Saving
-It is the item for setting the level to reduce the backlight control from the items for saving the consuming power, which
is increased or decreased by 10 steps from 0 to 100. 100 makes the consuming power set to the same one from theTV. 0
reduces the consuming power to the minimum.The default value is 100.
* The value displayed at the OSD is not changed and only the actual setting value is converted to
percentage based on the static saving value to set.
* 0 ~ 30: HIGH, 40 ~ 60 : MID , 70 ~ 90 : LOW , 100 : OFF
Keyless Off Hours
-AutomaticallyTV will be turned off if there is no key input for the preset time period.
-When it is set to‘Enable’, User Menu →Timers →‘Auto Power Off’is disabled.
-When it is set to‘Enable’, User Menu →Timers →‘2 Hour Auto Power Off’is disabled.

15
INSTALLATION MENU
ENGLISH
Password Change
-To ensure more security, Password can be changed by installers’own design.
1 Change password by using virtual keyboard.
2 Input the password again for conrmation.
PreLoaded App
1 If you want to use a particular app, you can choose from the menu. you can setting each apps activation.
2 You can check or uncheck by pressing‘OK’ button.
Lock Mode
-If‘Lock Mode’is ‘Yes’, the following features will be unavailable.
* USB
- If it is set to‘Enable’, USB devices do not work in relative features.(Exclude S/W update).
* Factory Reset
- If it is set to‘Enable’, User User Menu → General → ‘Reset to Initial Settings’is disabled.
Crestron
-This function enables synchronization with applications provided by Crestron.
-Server:This menu sets the server’s IP address for the network connection with the server (equipment provided by Crestron).
-Port: This menu sets the port for the network connection with the server. The default port number is 41794.
-IP ID: This menu sets a unique ID for synchronizing with the application.

16 INSTALLATION MENU
ENGLISH
MEDIA SHARE
►You can setting Whether to use for“SmartShare”
Screen Share
-Screen Share enablesWiFi p2p functions such as Miracast and WiDi. If this value is enabled, Screen Share app is displayed at
launcher bar and User can connect to TV by user’s Miracast enabled mobile phone orWiDi enabled laptop
DIAL
-With this DIAL service, you can launch the target app at Smart Home Launcher bar without select the target app by remote
controller. The target app should be already selected at Installer Menu > General > Preloaded App.
TV Name
-When other media device(ex: smart phone, desktop, laptop) searching TV, this string was displayed.
SoftAP
-If you want to use SoftAp menu on MEDIA SHARE menu, you must select‘On’in this item.
A SoftAP is a function of TV which is used like Access Point.
-Regardless of the Instant On mode, the SoftAP setting stays unchanged after power off/on. (Depending on model)

17
INSTALLATION MENU
ENGLISH
Use Default
-If you want to use default password(this password was generated randomly), you must select‘Enable’in this item.
Security Key
-When guests want to useTV’s SoftAP function, they need this password. If you want to change this default password, you
need to Change‘Use Default’value into‘Disable’.
Wi-Fi Signal Strength
-You can control wireless signal strength on SoftAP mode.This is controlled by 5 step. If you select ‘Not Used’, wireless signal
strength will be set to Max value.
Wi-Fi Channel
-You can control wireless channel on SoftAP mode.This is controlled from 1 to 11 channel. If you select‘Auto’, wireless
channel of SoftAP will be set to random channel.

18 INSTALLATION MENU
ENGLISH
TV MANAGER
USB Download Menu
* USB Cloning : An Installer can quickly set up and clone multiple TV sets at a property. These cloned TVs will all have the same
Master TV Setup: Public Display Mode Installation Menu settings, User A/V settings and the Channel Map. This newer procedure
significantly decreases the installation time that would be necessary if the standard RS-232C method were used instead.
1 Overview USB Cloning Procedure
: Commercial TVs have the capability to support cloning internal TV data and programme information with an external
clone device called“USB Cloning”, in order to copyTV data accurately and quickly. The clone internal functions use slightly
dierent internal processes for the two types of commercialTVs. However, the UI of cloning feature remains the same in
both. Regarding the demands over the current cloning feature for quicker cloning, better portability and etc, we would like
to announce the cloning process via USB port, named as USB Cloning. USB cloning process is divided into 2 main processes.
One is writing the previously savedTV data into theTV, and one another is reading of current TV data into USB memory
card.To avoid any confusion due to the words, it is clearly specied as“Import Clone File”and “Export Clone File”in the
whole process.
2 DataTo Be Cloned
: The data cloned are the same data cloned by previous USB Cloning. Details are explained in the following:
-TV data includes :
yA. Installer Menu settings
yB. Main menu settings (Audio, Picture etc)
-Analog / Digital Channel information includes:
yA. Channel numbers
yB. Channel label
yC. Channel attributes including channel type, skipping status and etc.
3 Input Source
: The user needs a USB memory card with FAT formatted to make successive cloning via USB port.
NOTE
yCurrently, support the preceding USB file system for FAT file format only. Other file formats including NTFS is not currently
supported. Microsoft Windows officially supports FAT for the USB memory card.
yOnly a USB storage device is recognizable.

19
INSTALLATION MENU
ENGLISH
Ez Download
-Ez Download is a function that enables users to download the desired items all at once, such as EPK (software update file),
TLL, Logo Image, Background Images, Micom.
* Images and EPK files should be copied into the folder named LG_DTV on the USB.
-TLL files should be copied to the root folder of the USB.
-If you press‘EZ Download’menu, EZ Download is launched.
-If .DZM file exist file will be selected previously download file.
NOTE
yIf the DZM file is still in the USB after the download is complete:
An Ez Download pop-up window will appear and list the file types, such as TLL,Logo Image,Background Images,EPK or Micom
with the previously downloaded lists checked automatically.
yIf the global TLL and model TLL files exist in the same USB root directory, then only the globalTLL will be shown.
If the global TLL has been deleted, then the model TLL will be shown.

20 INSTALLATION MENU
ENGLISH
Logo Image Download
-If there are more than two USB Memory Device, It is possible to select the USB.
-The download sequence is Logo Image Download -> Select Image -> UPDATE.
NOTE
ySplash Image update function supports only JEPG,BMP format file of less than 8 MB filesize.
yWe recommend you that splash image resolution match theTV`s panel resolution.
yMax resolution of splash image : Full HD →1920 x 1080, HD →1360 x 768.
yMin resolution of splash image : Full HD →64 x 64, HD →64 x 64.
yTV keep splash image until you change a new splash image.
yThe target file is located in LG_DTV folder.
