LG UB85 Series User manual

Please read this manual carefully before operating your set
and retain it for future reference.
OWNER’S MANUAL
LED TV*
* LG LED TVs are LCD TVs with
LED backlighting.
Click! User Guide
P/NO : MFL68066602 (1410-REV04)
Printed in Korea
*MFL68066602* www.lg.com
UB85** UB98** UG88**
UB93** UC97**
UB95** UC9*

A-2 TABLE OF CONTENTS
TABLE OF CONTENTS
A-3 SETTING UP THE TV
A-3 Attaching the stand
A-9 Tidying cables
A-11 Assembling the AV cover
A-12 MAKING CONNECTIONS
A-12 Antenna Connection

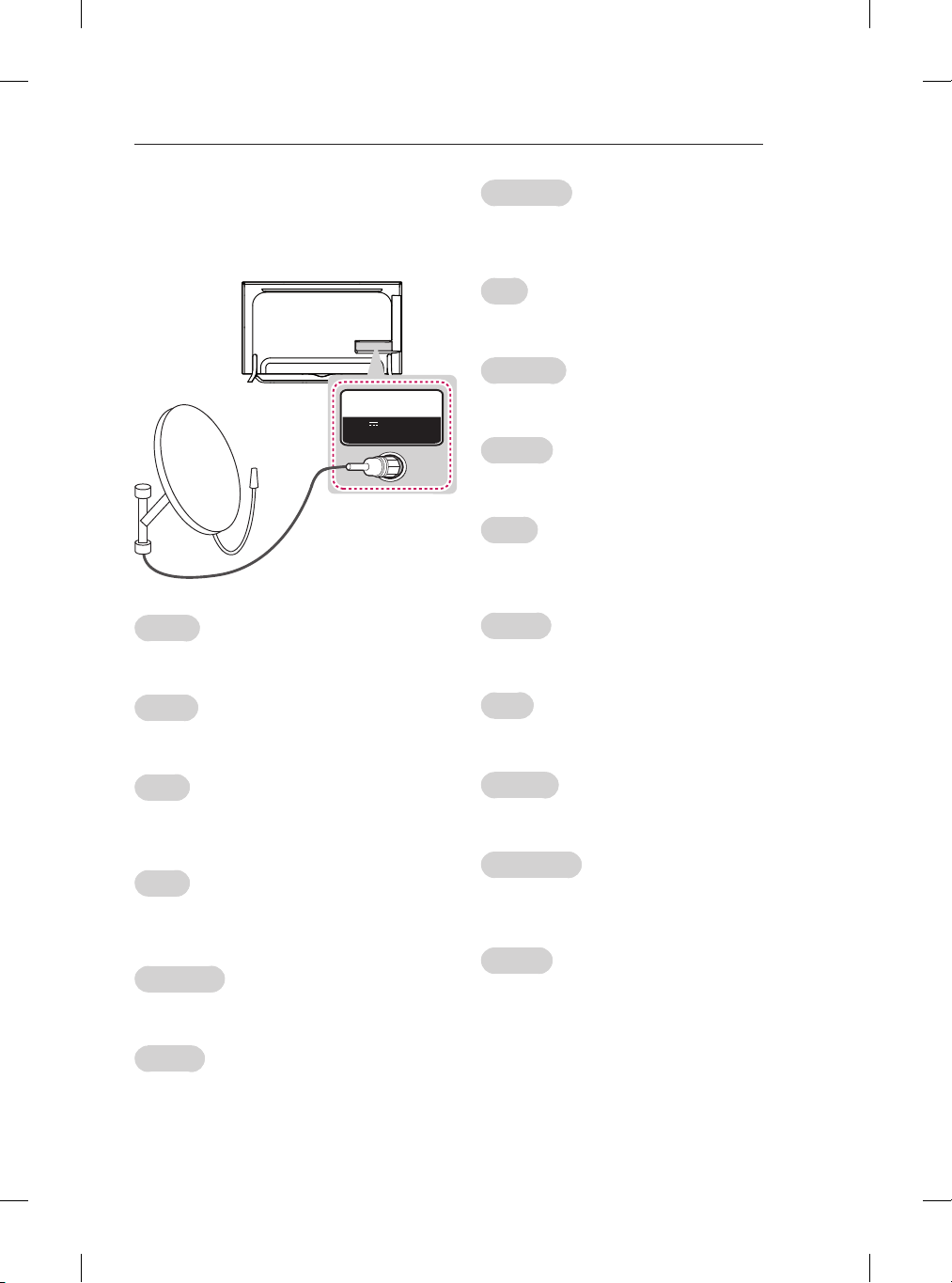

A-15 Satellite dish Connection

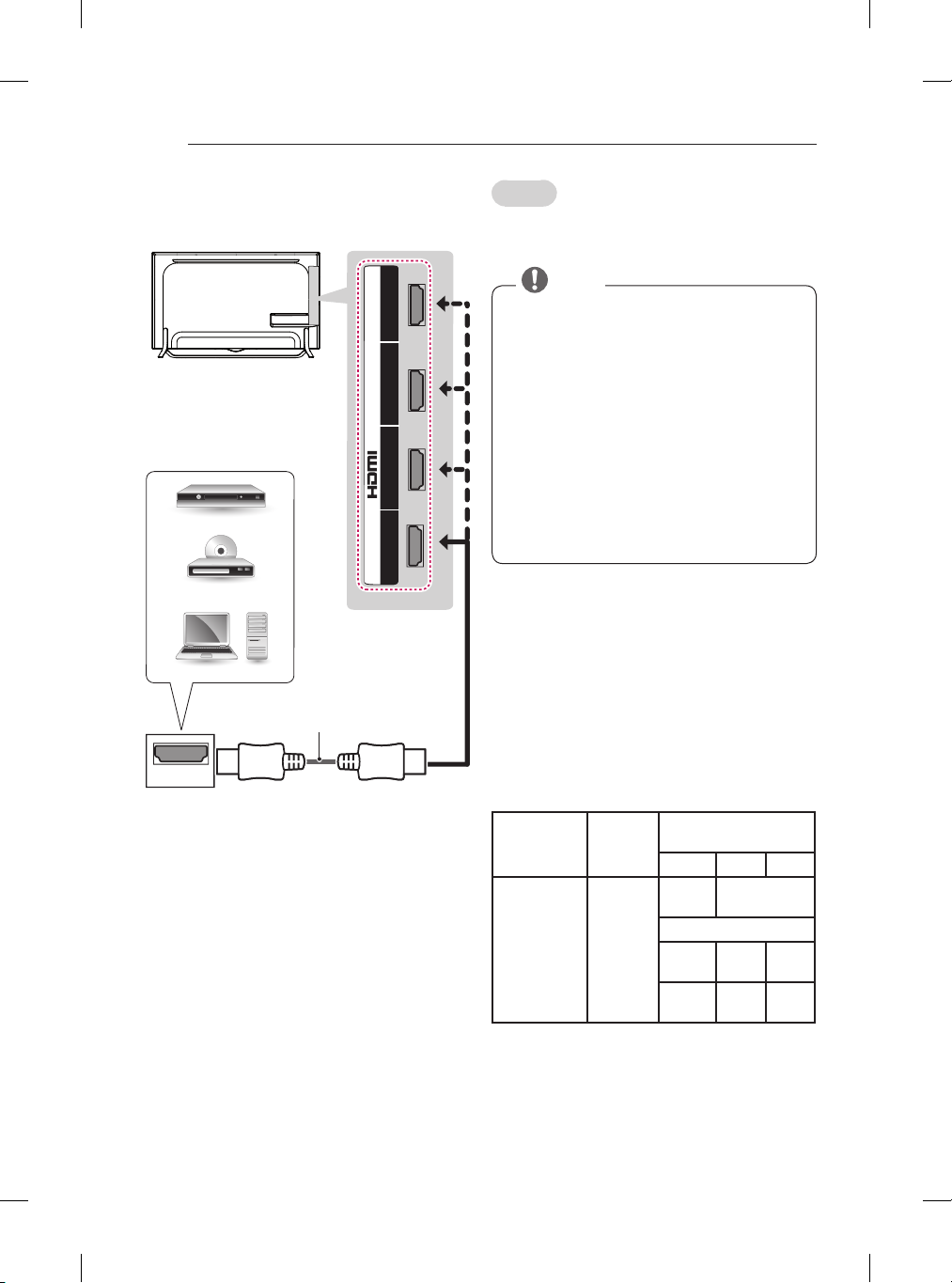

A-16 HDMI Connection
A-24 - ARC (Audio Return Channel)
A-26 DVI to HDMI Connection
A-29 Component Connection
A-32 Composite Connection
A-33 MHL Connection
A-38 Audio Connection
A-38 - Digital optical audio Connection
A-41 Headphone Connection
A-44 USB Connection
A-48 CI module Connection
A-51 Euro Scart Connection
LANGUAGE LIST
English
Magyar
Polski
 Česky
 Slovenčina
 Română
 Български
Eesti
 Lietuviųk.
Latviešu
Srpski
Hrvatski
Shqip
Bosanski
 Македонски
 Русский
B-1 SPECIFICATIONS
COMMON
LANGUAGE
COMMON

A-3
SETTING UP THE TV
SETTING UP THE TV
ImageshownmaydifferfromyourTV.

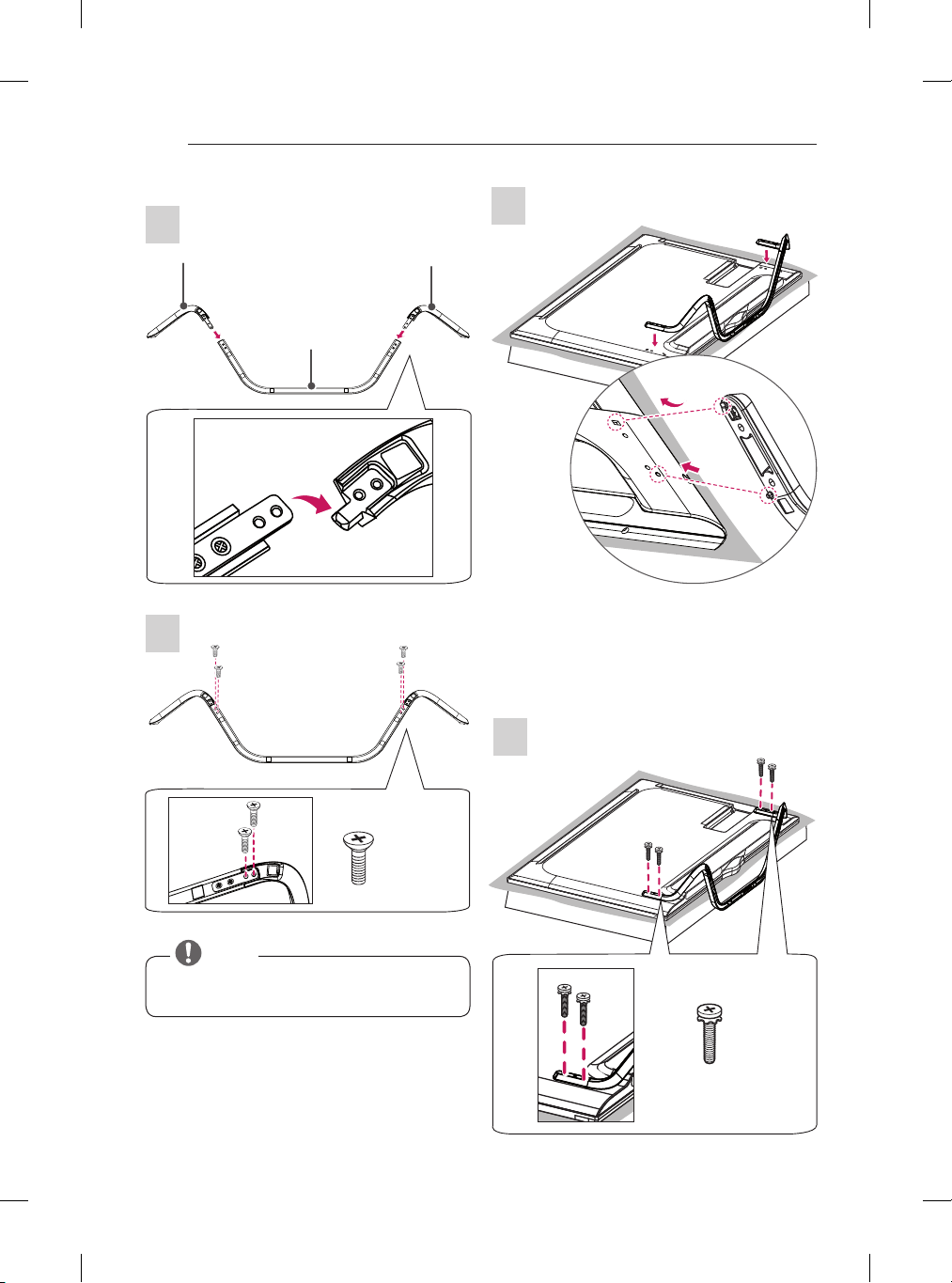

Attaching the stand
1
2
Stand Base
Stand Body (R)
Stand Body (L)
M4 x L20
4EA
UB85**-ZA, UB93**, UB95**-ZA
1
2
yBe sure to check the Stand Body (L), (R), when
installingonthestandbase.
NOTE
1 Attach the stand to the TV using the upper mounting
holeonthebackoftheTV.
2 Attach the stand to the TV using the lower
connectiononthebackoftheTV.
3
M4 x L20
4EA

A-4 SETTING UP THE TV
1 Attach the stand to the TV using the upper mounting
holeonthebackoftheTV.
2 Attach the stand to the TV using the lower
connectiononthebackoftheTV.
1
2
3
4
M4 x L20
4EA
UB85**-ZD, UB95**-ZB
yBe sure to check the Stand Body (L), (R), when
installingonthestandbase.
NOTE
1
Stand Body (L)
Stand Body (R)
Stand Base
2
4EA
M4 x L10

A-5
SETTING UP THE TV

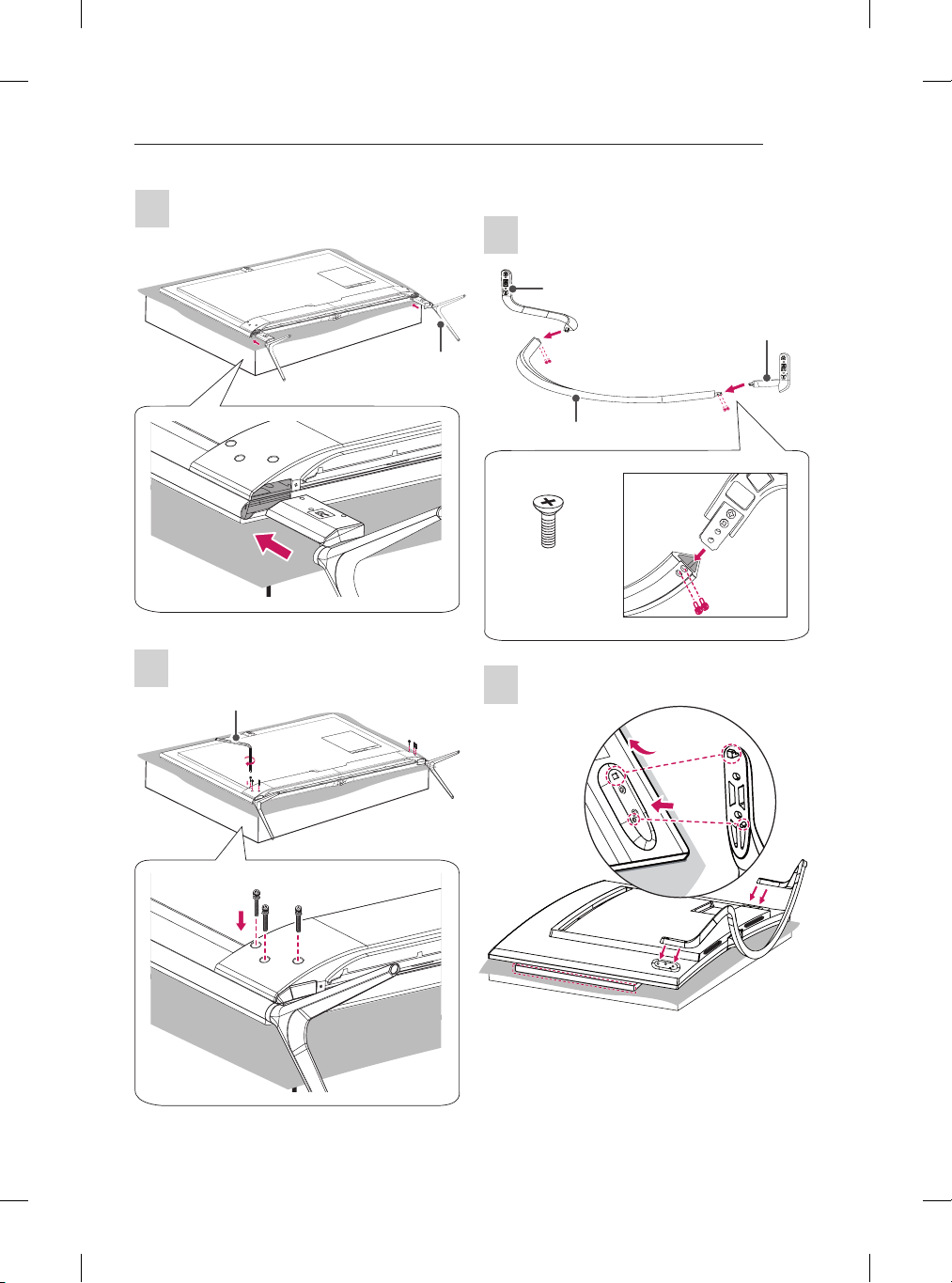

Stand Base
1
65/79/84UB98**
(Only 65/79UB98**)
2
3
1
2
Wrench
1
2
1
2
Wrench
1
2
4EA
(Insulation
Holder)
(Only 84UB98**)
4EA
M6 x L47
(Only 65UB98**)
M6 x L52
(Only 79UB98**)
4EA
M6 x L52

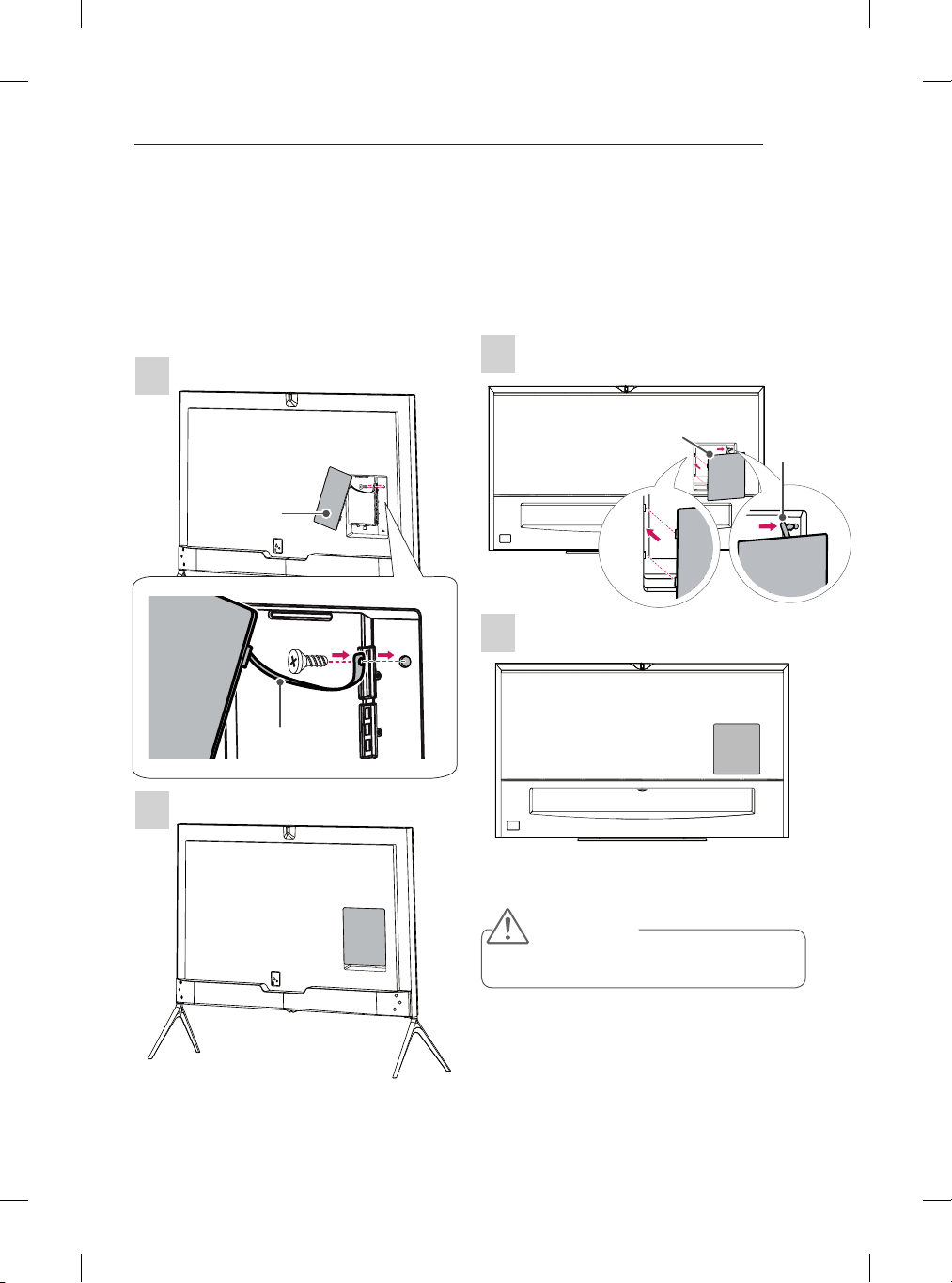

A-6 SETTING UP THE TV

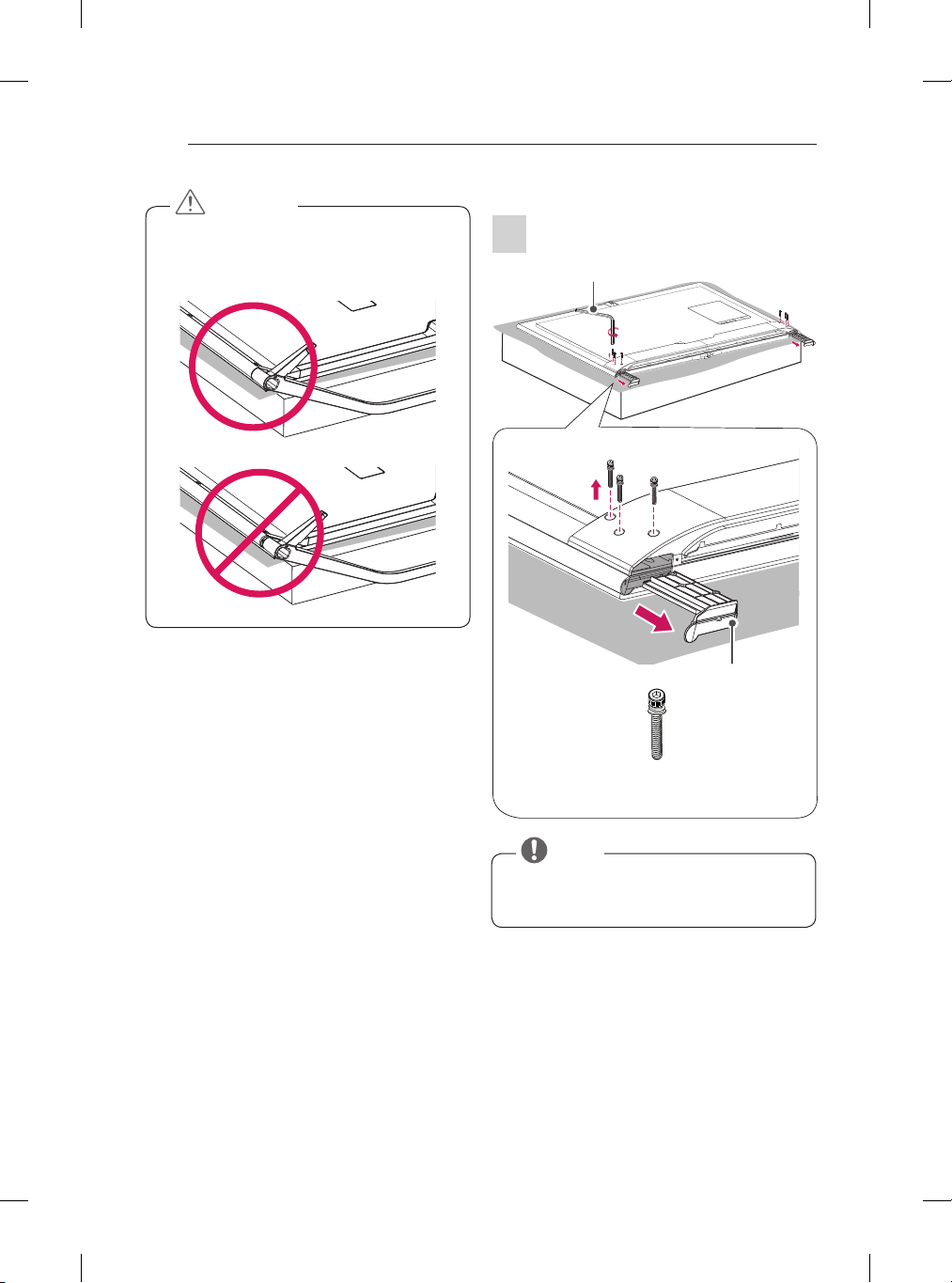

yMake sure that the screws are inserted correctly
andfastenedsecurely.(Iftheyarenotfastened
securely enough, the TV may tilt forward after
beinginstalled.)
CAUTION
1
98UB98**
1
2
1
2
M6 x L47
6EA
Mold
Wrench
yThe stand screws are already attached at the
backoftheTV.Pleaseusetheseattachedscrew
toassembletheTVandstand.(Only98UB98**)
NOTE

A-7
SETTING UP THE TV
2
3
1
2
1
2
1
2
1
2
1
2
Stand Base
1
UC97**
2
1
1
2
2
3
Stand Body (L)
Stand Body (R)
Stand Base
M4 x L10
4EA
1 When assembling the stand, lay the front screen
protective package included in the product box on
a table or flat surface and then place the TV screen
facedownontheprotectivepackage.
2 Attach the stand to the TV using the upper mounting
holeonthebackoftheTV.
3 Attach the stand to the TV using the lower connection
onthebackoftheTV.
Wrench

A-8 SETTING UP THE TV
3
1
1
M4 x L20
4EA

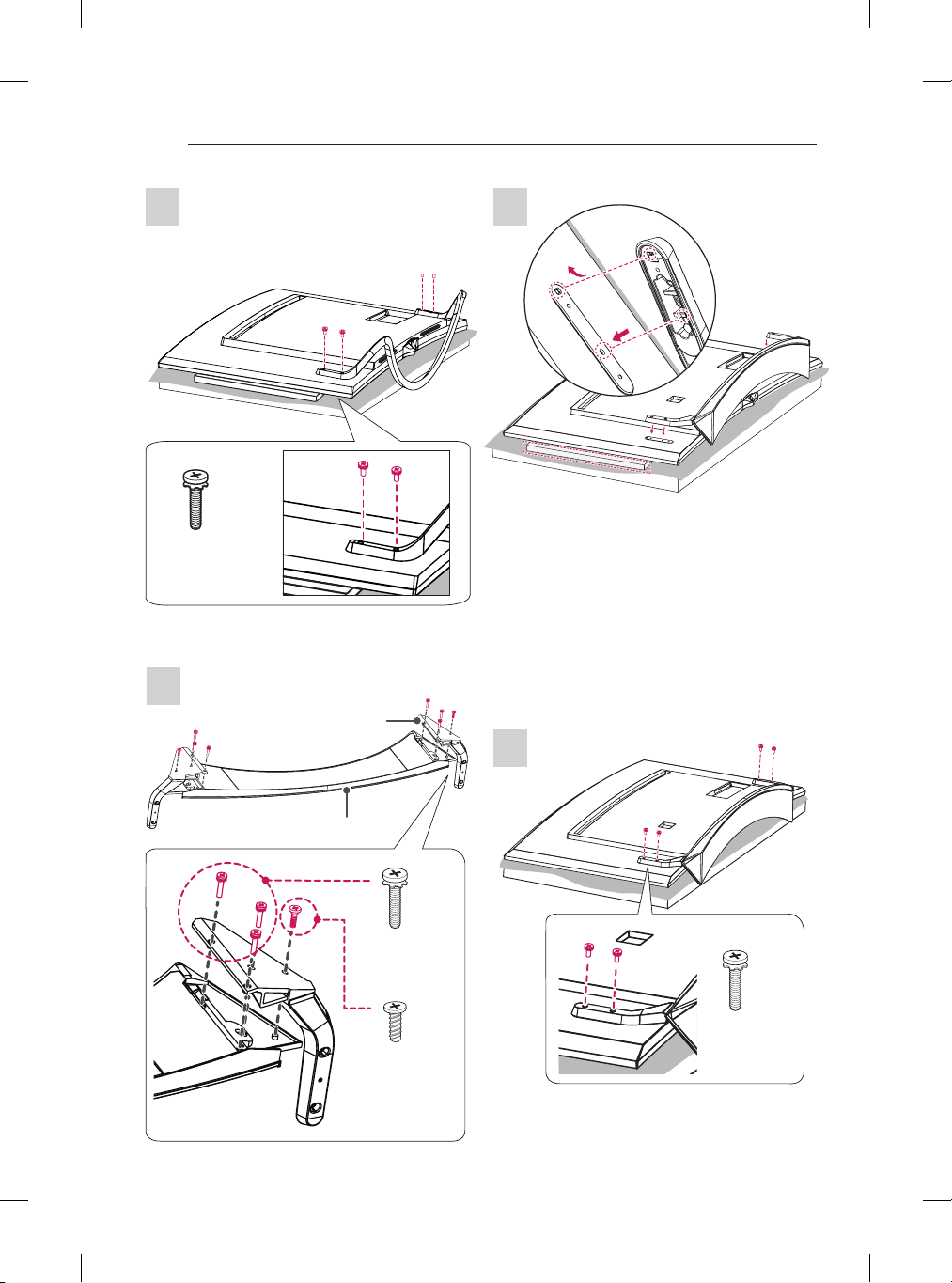

79UG88**
1
Stand Base
Stand Body (R)
Stand Body (L)
M4 x L14
6EA
M4 x L10
2EA
1 When assembling the stand, lay the front screen
protective package included in the product box on
a table or flat surface and then place the TV screen
facedownontheprotectivepackage.
2 Attach the stand to the TV using the upper mounting
holeonthebackoftheTV.
3 Attach the stand to the TV using the lower
connectiononthebackoftheTV.
1
2
3
2
1
3
1
M4 x L14
4EA

A-9
SETTING UP THE TV
Tidying cables
ImageshownmaydifferfromyourTV.
1 Gather and bind the cables with the Cable Holder
andtheCableManagement.
2 FixtheCableManagementfirmlytotheTV.
(Only UB85**-ZA, UB93**, UB95**-ZA)
Cable Holder
Cable Management
(Only UB85**-ZD, UB95**-ZB)
Cable Holder
Cable Management
yWhen attaching the stand to the TV set, place the
screen facing down on a cushioned table or flat
surfacetoprotectthescreenfromscratches.(Only
UB85**, UB93**, UB95**, UB98**)
yMake sure that the screws are inserted correctly
andfastenedsecurely.(Iftheyarenotfastened
securely enough, the TV may tilt forward after
beinginstalled.)
Do not use too much force and over tighten the
screws; otherwise screw may be damaged and
nottightencorrectly.
CAUTION
yRemove the stand before installing the TV on a
wall mount by performing the stand attachment in
reverse.
yRemove the protective film from the stand base
andthenattachthestandbodytothestandbase.
(Only UC97**, UG88**)
NOTE

A-10
SETTING UP THE TV / MAKING CONNECTIONS
(Only 65/79/84UB98**)
Cable Holder
1 GatherandbindthecableswiththeCableHolder.
(Only UC97**, UG88**)
Cable Holder
Cable Management
yDo not move the TV by holding the cable holders,
as the cable holders may break, and injuries and
damagetotheTVmayoccur.
CAUTION
(Only 98UB98**)
Cable
Holder
Cable Management
Cable
management
(Only UC9*)
Cable Management
1 FixtheCableManagementfirmlytotheTV.
