LG PSH0731B User manual

Read the "Safety precaution" before
using the product and use the product
accurately
P/No : MFL62860603
User Manual
MODEL : P H0731B

What is PLS?
Plasma Lighting ystem
PLS is a non-electrode lighting device of new concept
applying the light principle of plasma by microwave
It is highly efficient and has a long life
span, making it very efficient.
- You can save power consumption fee and maintenance cost
compared to the existing lighting (based on number of
installed units)
- Because the unit includes the ballast, you do not need to
separately purchase the ballast
Optimal lighting environment realization
- With the high illumination, it provides the optimal lighting
environment for a wide range of space
(Refer to illumination curve data below)
- The lighting color does not fade even after long period of use
Environment friendly lighting realization
- You can realize the natural light and high color rendering
- You can minimize the radiation of ultra violet and infrared light
- There is no substance harmful to environment (mercury, lead,
cadmium, etc)
These are the benefits.
• Pros: Consistent illumination can be realized for a wide area
• Applied locations: Factory, stadium, exhibition, shopping mall etc
• Illumination curve data
2
- LEGEND (D-PLANES)
- CONE LUX LEVELS

3
Contents
afety precaution 4 ~ 7
Installation method 8
Installation standard 10 ~ 11
Check before requesting for service 12
Composition and name 9
Installation and power connection 4-5
Use and cleaning 6-7
Product standard 13
* After reading the user manual, keep it at a location
where any user can see

4
afety
precaution
•Meaning of symbol described in product and this manual is as follow:
• This figure symbol is symbol to alert about matters and
manipulations that may result in danger For the part where
this symbol exists, you must carefully read the contents to
avoid occurrence of danger and comply with instructions
• This figure symbol is a symbol indicating caution since there
is possibility of fir under specific conditions
WARNING
Installation
and power
connection
WARNING
CAUTION
• There is a possibility of major damage or
human injury (death) when not followed
• There is a possibility of minor injury or
product damage when not followed
Use a moving tool to move the product
because it is heavy.
• It can cause injury when it falls and can cause
product damage
Earth
Terminal
Install the product where water does not
directly reach the product.
• It can cause fire & electric accidents
Current
Capacity
5A
Within
±10%
Do not install the product where it can be
submersed underwater.
• It can cause electric shock accidents
Current
Capacity
5A
Within
±10%

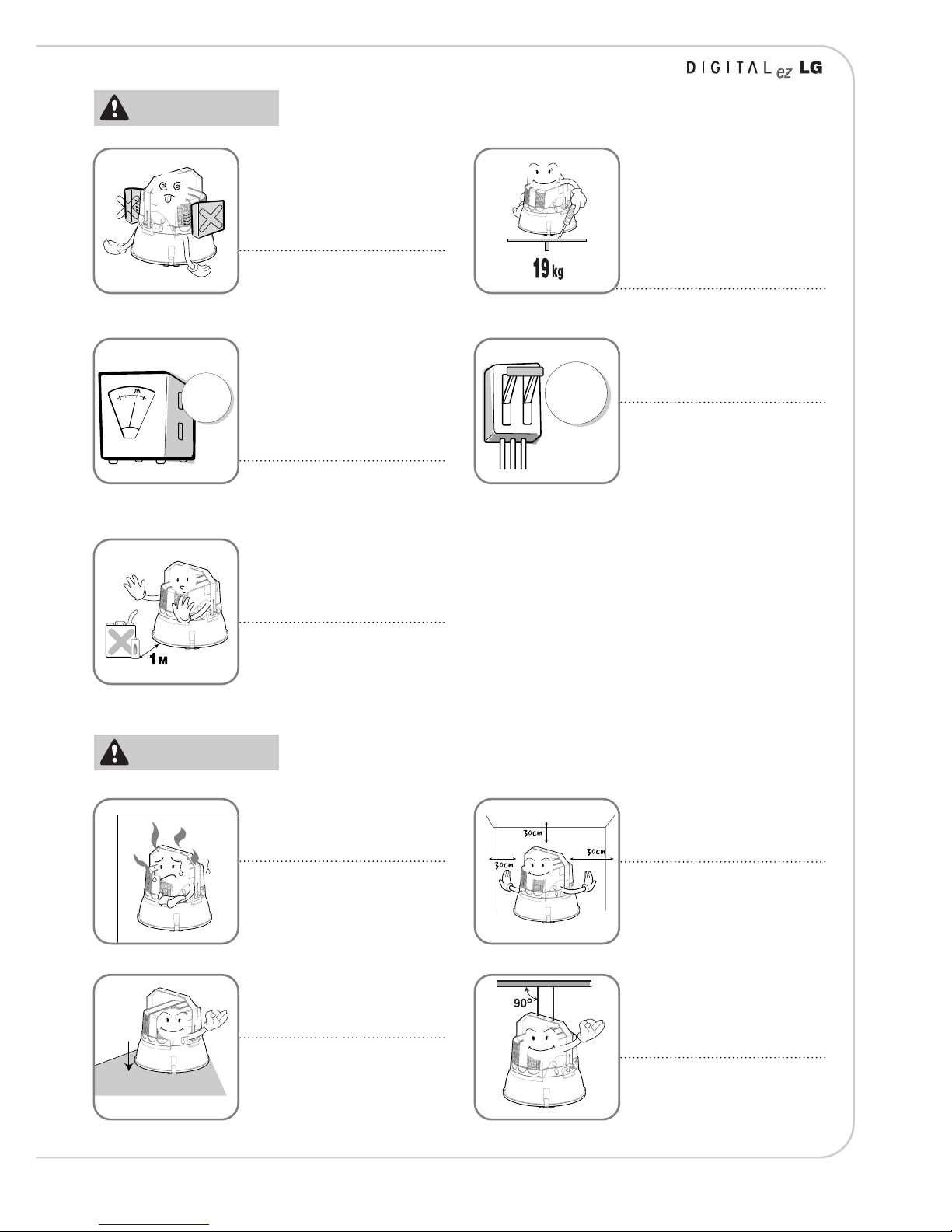

5
WARNING
CAUTION
The product must be
installed by a qualified
technician and the
switchboard should be set
to the electricity capacity
(5A) for each set.
• Always ground the product
because it can cause
electricity leakage and fire
Current
Capacity
5A
Within
±10%
Use within the rated
range.
• It can cause a fire or
damage to the product
Current
Capacity
5A
Within
±10%
For smooth cooling of the
product, ensure a
clearance by not putting
any object between the
inlet and the outlet.
• It can cause fire
Current
Capacity
5A
Within
±10%
Firmly fix the product to
minimize the product from
shaking considering the
vibration of the installing rack
and product weight (19kg).
[Always use a fixing bolt M12
and spring washer nut]
• It can cause an injury when the
product falls
Floor
Do not use any fire
device and flammable
material within 1m
radius of the product.
• It can cause a fire and
explosion
Earth
Terminal
Do not install the
product where it is not
well ventilated.
• It can cause product to
heat up or cause fire
Floor
Ensure 30cm of space
from the case for the
safety of the product.
• It can cause the product
to be heated
Floor
When putting the product
on the ground, do so as
shown in the figure.
• When the product is not
set as shown in the
picture, it can cause
damage to the product
Floor
When installing the
product, install so that
the product is facing
down.
• When installed in a tilted
way, it can fall
Floor

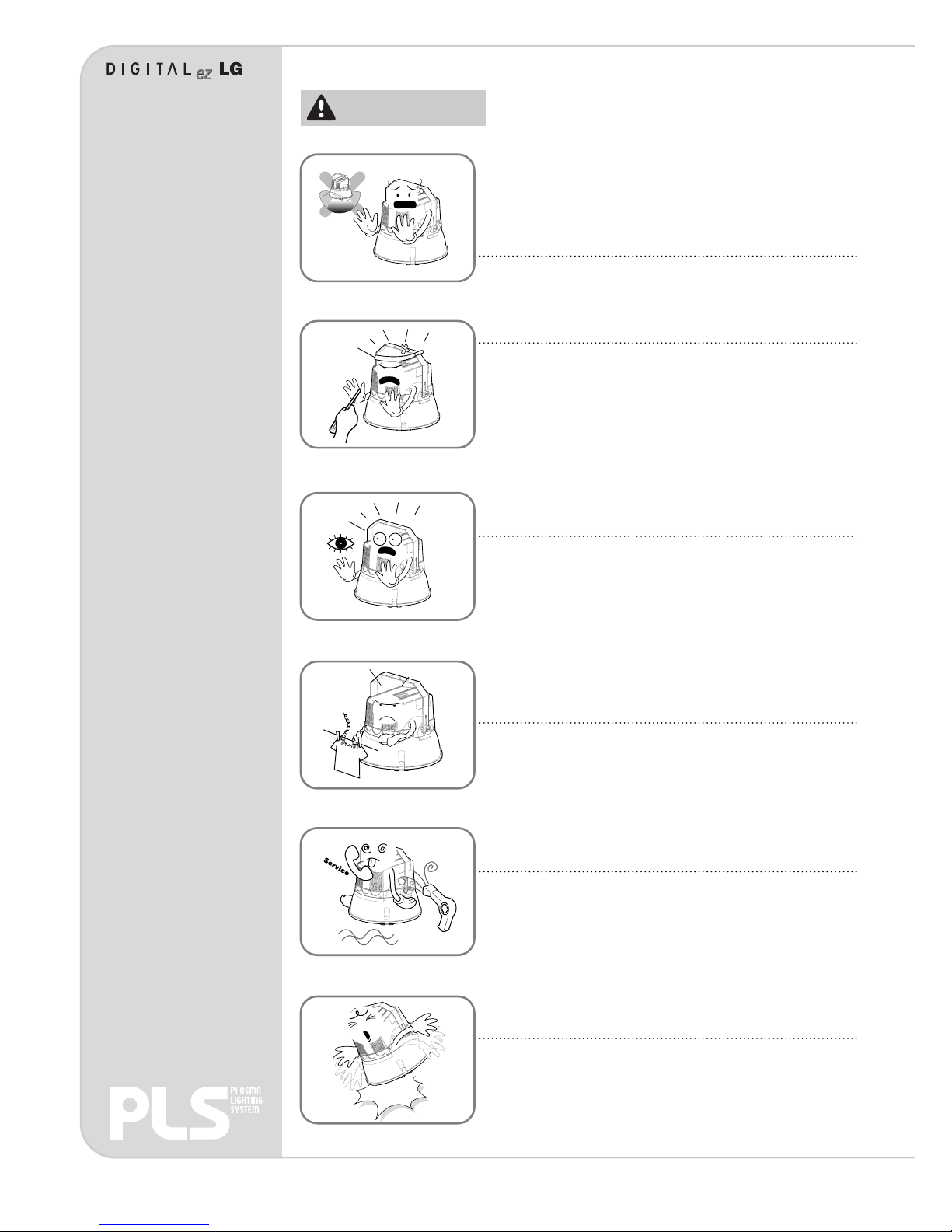

6
afety
precaution
Use and
cleaning
WARNING
Do not disassemble or change the design of
the product arbitrarily.
Do not use the lighting for underwater use.
(Underwater scenery, investigation, fishing,
event etc.)
• It can cause fire and electric shock
Floor
Do not disassemble the main unit.
• There is a danger of electrical shock since high
voltage flows inside of the case
• There is concern of damage due to leakage of
microwave if disassembling the cover at random
• Do not allow a person other than service engineer
to remove an outside cover
Earth
Terminal
Do not directly look at the lamp when lighting
up.
• It can cause visual disorder from the strong
light
Current
Capacity
5A
Within
±10%
Do not use the product for other use besides
lighting.
(Heating food, drying clothes)
• It can cause fire
Earth
Terminal
You must repair the PL when submersed in
the water.
• It can cause fire and electric shock
Floor
Do not drop the product or use the product
when it was hit.
• It can cause problems to the product
Current
Capacity
5A
Within
±10%

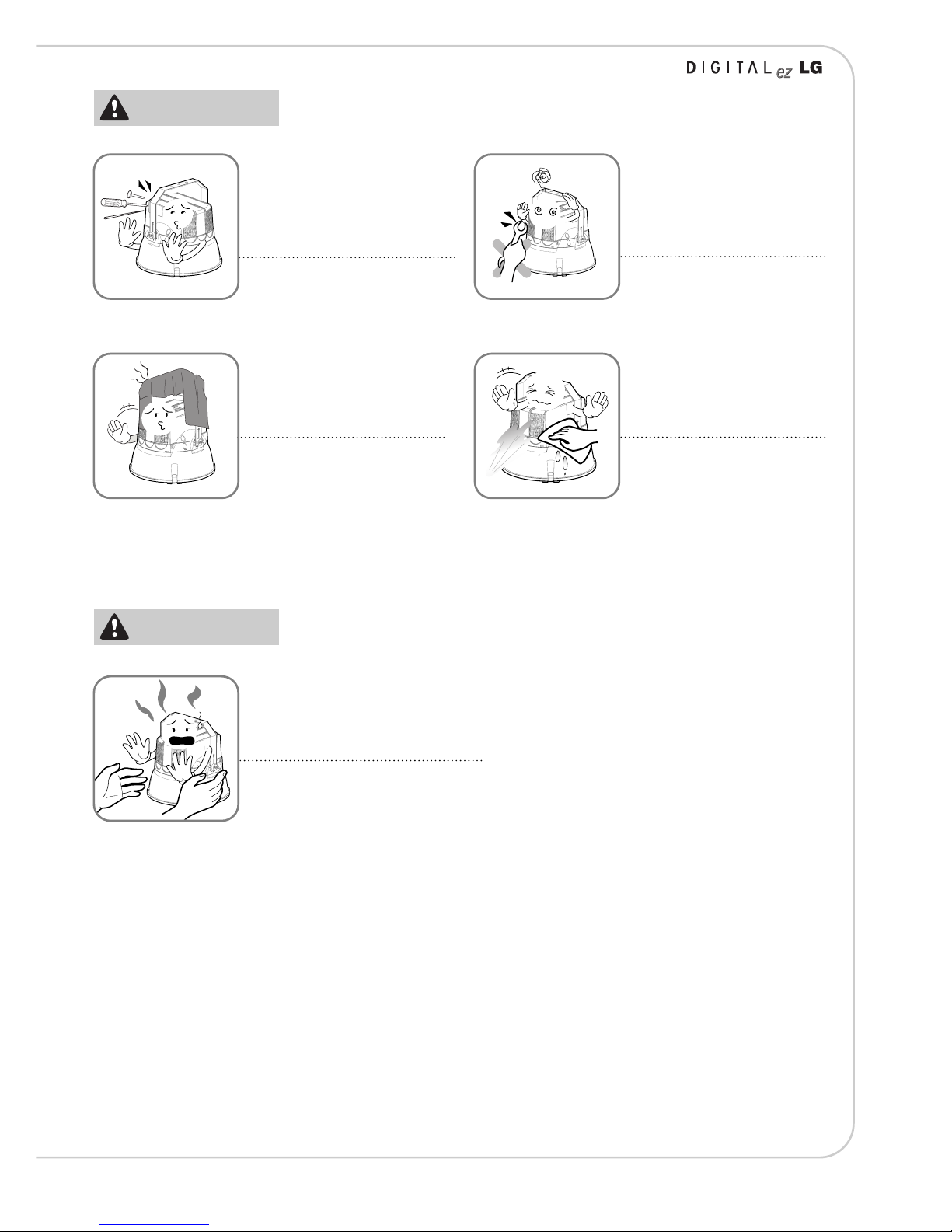

7
WARNING
When the lamp goes off
abnormally, do not
disassemble the product.
Request for repair to the
service center.
• It can cause electric shock
and problems to the
product
Current
Capacity
5A
Within
±10%
Make sure no alien
substance (pin, coin, metal
wire etc.) gets in the
inlet/outlet and holes on
the internal/external case.
• It can cause fire and
electric shock
Earth
Terminal
Do not use the product
with the cover on the
external side of the
product.
• It can cause fire and
electric shock
Earth
Terminal
When cleaning the
product, do not directly
spray water on the
product.
• It can cause fire and
electric shock
Current
Capacity
5A
Within
±10%
Be sure to wear safety
gloves in contact with the
hot part (cover glass,
reflector).
• There is danger of fire
injury since the product is
hot during operation or
immediately after
operation
Floor
CAUTION

8
Installation
method Before installing the product….
- This product (PSH0731B) is developed for indoor use and can
only be used indoors
- To prevent the product from falling by wind or external force,
use bolt and nut of M12 or higher
- This product has been developed to face downward Install
and use the product facing down
- Make sure that objects do not interfere with the cooling of the
product and make sure that the inlet/outlet is not sealed
- When installing in a location where the environment exceeds
the applicable temperature and humidity, consult with the
service center since it can cause unexpected problems
- Consult the service center when installing in a location where
chemical material, such as TCE system or chloride gas or
where vibration is very strong since it can cause unexpected
problems affecting the life span of the product
- When using in a location where dust is very heavy, it can
cause the illumination reduction from the dust It requires
periodical cleaning and cannot be installed in a location where
metallic dust is heavy
Product size

Composition
and name
9
BOLT M12 (EYE TYPE)
SUPPORTER ASSEMBLY
COVER TOP
COVER BODY
COVER LOWER
LABEL
POWER
CORD
PLUGLESS BRACKET
SPRING
CAP

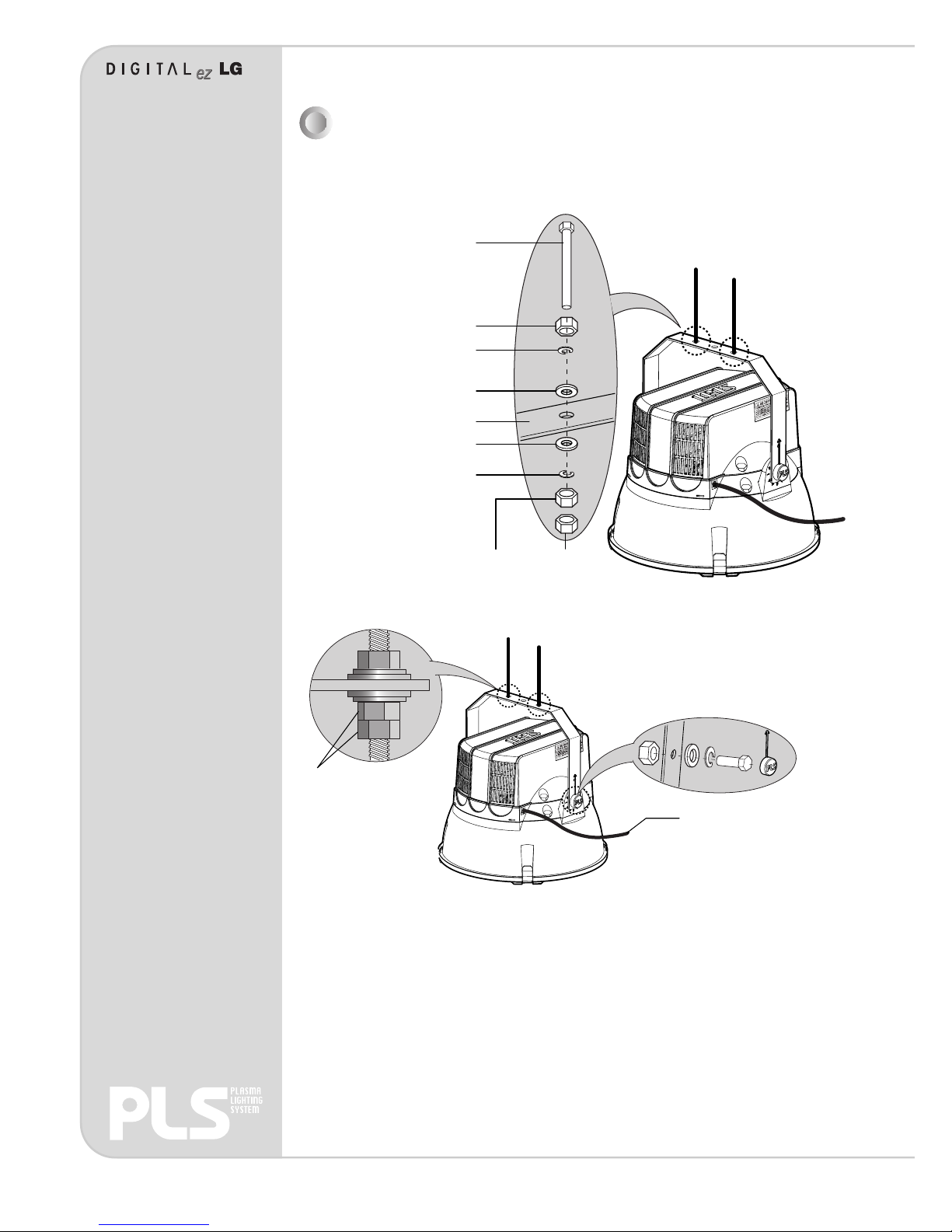

10
Installation
standard
IN-PUT POWER CORD
(220-240V/50Hz)
(Single Phase / 3W /
1 5SQ󳥗)
* Use an exclusive power
outlet for 220-240V that
is grounded
* Caution: When installing the product, you must exchange and use new
washers to prevent them from being loosened
When installing the anchor bolt, you must work the qualified technicians,
for two men or more, and should be not cut the power cord
Double nut
connection
(To prevent from
being loosened)
Anchor Bolt
M12 Nut
Washer (To prevent
from being loosened)
Washer
Washer
Support
M12 NutM12 Nut
Washer
(To prevent
from being loosened)
Installation standard
(For fixed type on ceiling)
Use the M12 bolt and nut on
both sides

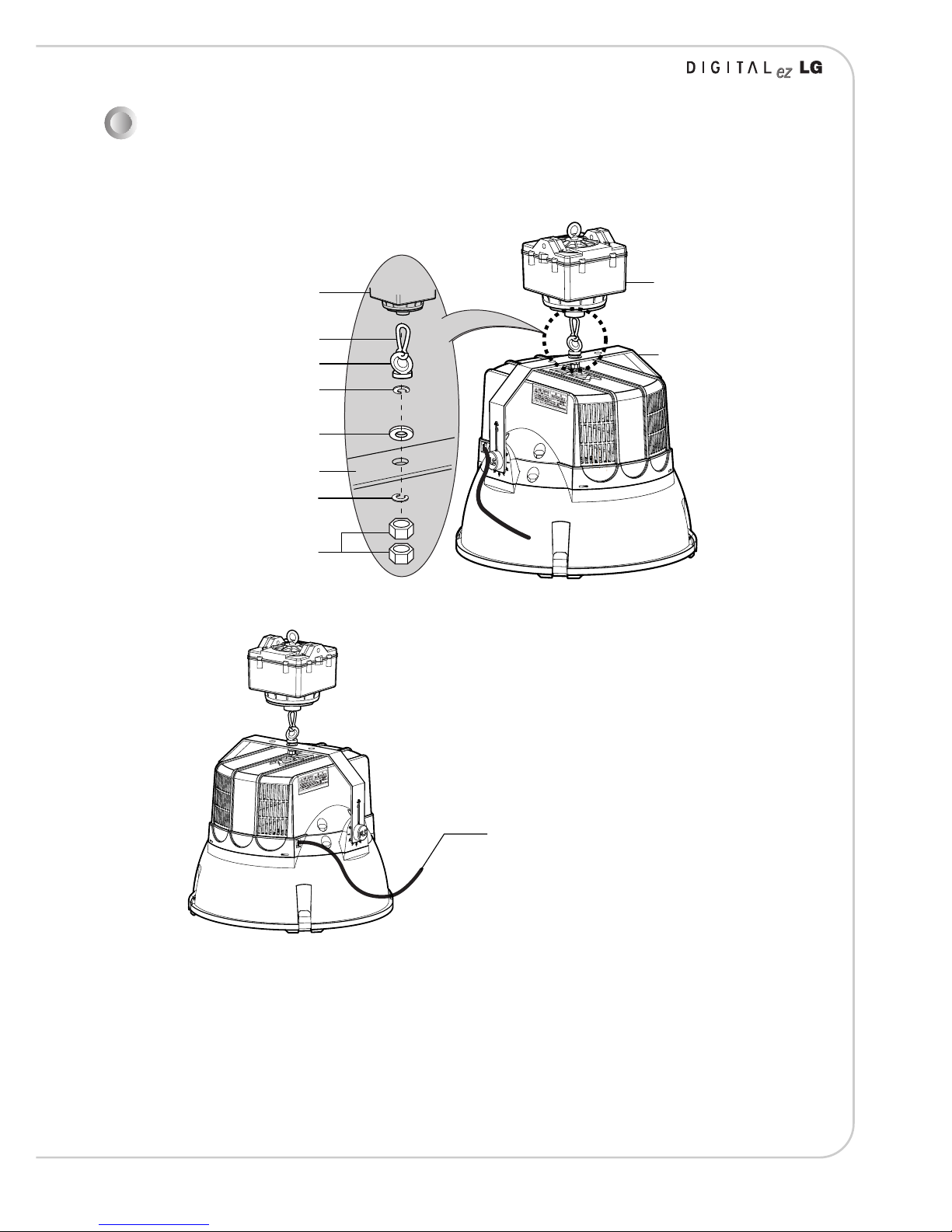

11
Installation standard
(When using lighting reel)
* Caution: When installing the product, you must exchange and use new
washers to prevent them from being loosened
When installing the anchor bolt, you must work the qualified technicians,
for two men or more, and should be not cut the power cord
Carabine Hooks
“Eye” Bolt
Washer
(To prevent
from being loosened)
Auto Reel Auto Reel
Support
Support
Washer
(To prevent
from being loosened)
Flat Washer
M12 Nut 2EA
IN-PUT POWER CORD
(220-240V/50Hz)
(Single Phase / 3W / 1 5SQ󳥗)
* Use an exclusive power outlet for 220-240V
that is grounded
Connect bolt and nut to central hole

12
Check
before
requesting
for service
ymptom Check points olution
The cooling fan is
not working
Is the 220-240V
power outlet
correctly connected?
• Plug to 220-240V
• Turn it off and then
turn it on after 5
minutes
The product is
turned off after 5
minutes
Request for service
The light flashes
within 5 minutes
after lighting
Does the product still
flash after lighting for
5 minutes
The flashing light
within 5 minutes
after turning on the
light is not problem
When the flashing
light continues even
after 5 minutes,
contact the service
center
* Accessories in box
Item
CAP PROTECTOR
SUPPORT
M12 EYE BOLT
M12 BOLT ASM
M12 NUT
USER MANUAL
No. (EA)
2
1
1
2
3
1

13
Product
standard
: PSH0731B
: 220-240V / 50Hz
: 730W
: 2450 ± 50MHz
: L500xW500xH480mm
: 18 2kg
: 58,500lm
: 4,500K, 6,500K, 7,500K
: 80Ra
: – 20°C ~ + 40°C
Model name
Rated voltage
Power consumption
Electricity frequency
Dimensions
Weight
Light speed
Color temperature
Rendering
Temperature range for use

14
Memo

15

Contents of User’s Manual are based on November, 2009 and may be changed without a prior notice
* This product is not serviced generally Authorized LG Service Centers Contact installed
company for PLS or above call center number
Contact for product use and quality
If you need a service due to the problem of the
product, contact the following number
We will provide friendly accurate service fast
Product purchase and other questions
Please contact the specialized
dealer of the applicable region or
the retailer.
