OWNER’S MANUAL
IPS LED MONITOR
23MB35PH
24MB35PH
27MB35PH
Please read this manual carefully before operating
your set and retain it for future reference.
IPS LED MONITOR MODEL
ENGLISH

2
ENG
ENGLISH
TABLE OF CONTENTS
CONTENTS
3LICENSE
4ASSEMBLING AND PREPAR-
ING
4 Unpacking
5 Parts and buttons
7 Moving and Lifting the Monitor
8 Setting up the Monitor set
8 - Attaching the Stand Base
9 - Detaching the stand base
10 - Detaching the stand body
10 - Using the cable holder
11 - Mounting on a table
12 - Adjusting the angle
13 - Adjusting the stand height
13 - Using the Kensington locking device
14 - Swivel stand
14 - Using the Pivot function
15 - Swivel stand
15 - Using the Pivot function
16 - Mounting on a wall
17 USING THE MONITOR SET
17 Connecting to a PC
17 - D-SUB connection
17 - DVI-D connection
18 - HDMI connection
18 Connecting to AV Devices
18 - HDMI connection
19 Connecting to External Devices
19 - Peripheral device connection
20 CUSTOMIZING SETTINGS
21 Customizing Settings
21 - Menu Settings
22 -Picture
23 -Color
24 -Display
24 -Audio
25 -Others
26 READER Setting
27 SMART ENERGY SAVING
28 TROUBLESHOOTING
30 SPECIFICATIONS
30 23MB35PH
31 24MB35PH
32 27MB35PH
33 Preset Modes (Resolution)
33 Indicator

3
ENG
ENGLISH
LICENSE
LICENSE
Each model has different licenses. Visit www.lg.com for more information on the license.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the
HDMI Logo are trademarks or registered trademarks of HDMI Licensing Ad-
ministrator, Inc. in the United States and other countries.
The following content is only applied to the monitor which is sold in Europe market and which needs to
meet the ErP Directive:
* This monitor is set to be turned off automatically in 4 hours after you turned on display if there is no
adjustment to display.
* To make this setting be disabled, change the option to ‘Off’ in OSD menu of “Automatic Standby”.

4
ENG
ENGLISH
ASSEMBLING AND PREPARING
ASSEMBLING AND PREPARING
Unpacking
Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations in this manual may differ from the actual product
and accessories.
yDo not use any unapproved accessories to ensure the safety and product life span.
yAny damages or injuries by using unapproved accessories are not covered by the warranty.
yThe accessories supplied with your product may vary depending on the model.
yProduct specifications or contents in this manual may be changed without prior notice due to upgrade
of product functions.
CAUTION
NOTE
CD / Card
D-SUB Cable
(This cable is not
included in all
countries.)
HDMI Cable
(This cable is not included in all
countries.)
DVI-D Cable
(This cable is not
included in all
countries.)
Stand Base
Stand Base One Screw Cable Holder
Power Cord
27MB35PH
23MB35PH
24MB35PH

5
ENG
ENGLISH
ASSEMBLING AND PREPARING
Parts and buttons
Power Indicator
yLighting On: Turned on
yLighting Off: Turned off
Connection panel (See p.17~19)
Front Side Buttons
(Power Button)
23MB35PH
24MB35PH

6
ENG
ENGLISH
ASSEMBLING AND PREPARING
Parts and buttons
Power Indicator
yLighting On: Turned on
yLighting Off: Turned off
Connection panel (See p.17~19)
Front Side Buttons
(Power Button)
27MB35PH

7
ENG
ENGLISH
ASSEMBLING AND PREPARING
Moving and Lifting the Monitor
When moving or lifting the monitor, follow these
instructions to prevent the monitor from being
scratched or damaged and to ensure safe trans-
portation regardless of its shape or size.
yAs far as possible, avoid touching the moni-
tor screen. This may result in damage to the
screen or some of the pixels used to create
images.
yIt is advisable to place the monitor in the
original box or packing material before at-
tempting to move it.
yBefore moving or lifting the monitor, discon-
nect the power cord and all cables.
yHold the top and bottom of the monitor frame
firmly. Do not hold the panel itself.
yWhen holding the monitor, the screen should
face away from you to prevent it being
scratched.
yWhen moving the monitor, avoid any strong
shock or vibrations to the product.
yWhen moving the monitor, keep it upright,
never turn the monitor on its side or tilt it
sideways.
CAUTION

8
ENG
ENGLISH
ASSEMBLING AND PREPARING

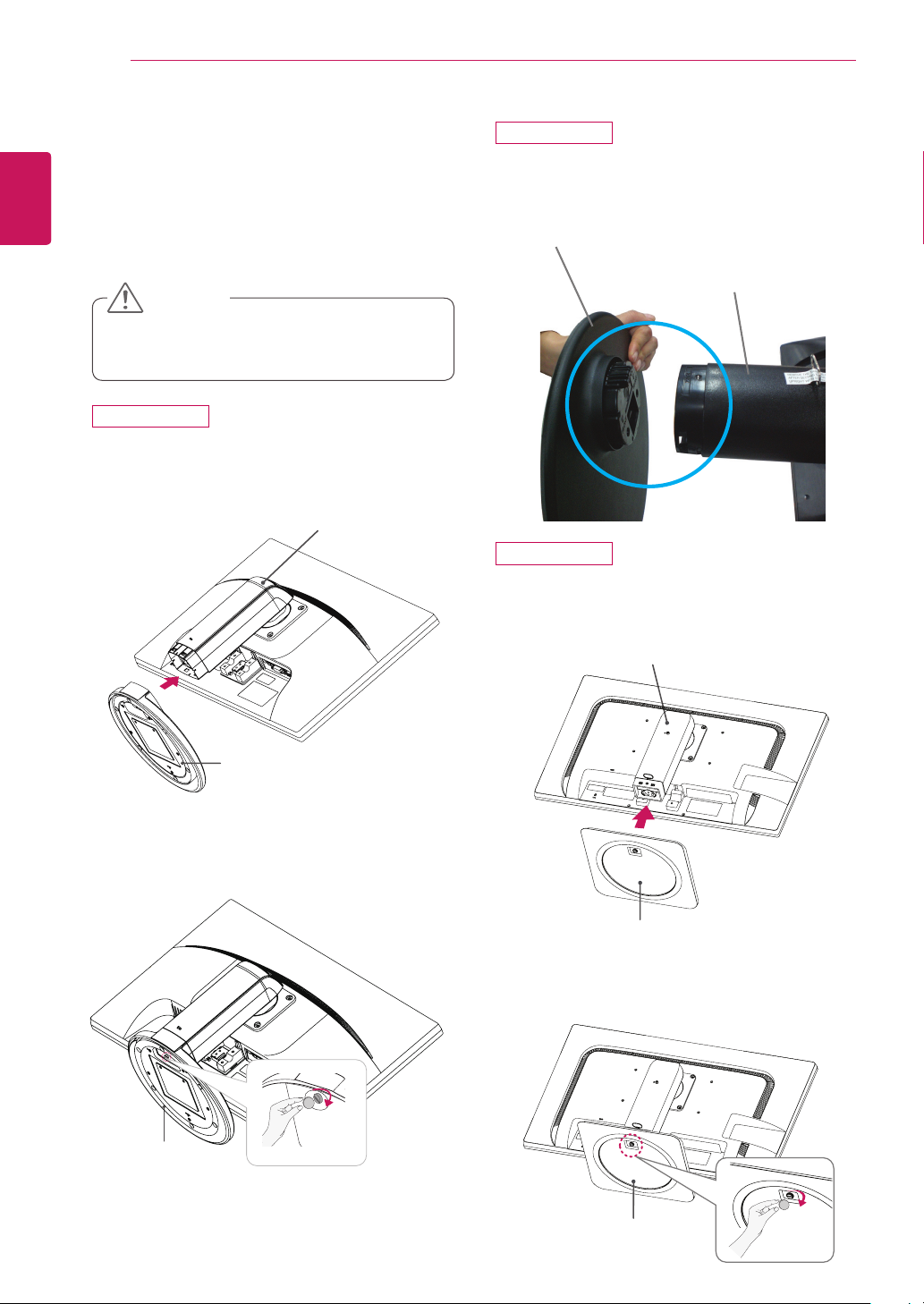

2Check the position (at the front and rear) of
the stand body, then mount the stand base on
the stand body as shown in the figure.
Setting up the Monitor set
Attaching the Stand Base
1Place the Monitor set with the screen side
down on a flat and cushioned surface.
Stand Base
Stand Base
Stand Base
Stand Body
Stand Body
yTo protect the screen from scratches, cover
the surface with a soft cloth.
3Using a coin, turn the screw clockwise to se-
cure the stand base.
CAUTION
Stand Base
Stand Base
Stand Body
2Check the position (at the front and rear) of
the stand body, then mount the stand base on
the stand body as shown in the figure.
2Check the position (at the front and rear) of
the stand body, then mount the stand base on
the stand body as shown in the figure.
3Using a coin, turn the screw clockwise to se-
cure the stand base.
23MB35PH
24MB35PH
27MB35PH

9
ENG
ENGLISH
ASSEMBLING AND PREPARING
Stand Base
Stand Base
Stand Body
Stand Body
yThe components appearing in the illustra-
tions may look different from the actual prod-
uct.
yDo not carry the monitor upside-down as this
may cause it to fall off its stand, resulting in
damage or injury.
yTo avoid damaging the screen when lifting
or moving the monitor, only hold the stand or
the plastic cover. This avoids putting unnec-
essary pressure on the screen.
yOnly remove the tape and the locking pin
when the monitor is mounted on the stand
base and is in an upright position. Otherwise,
the stand body may protrude, which may
lead to injury.

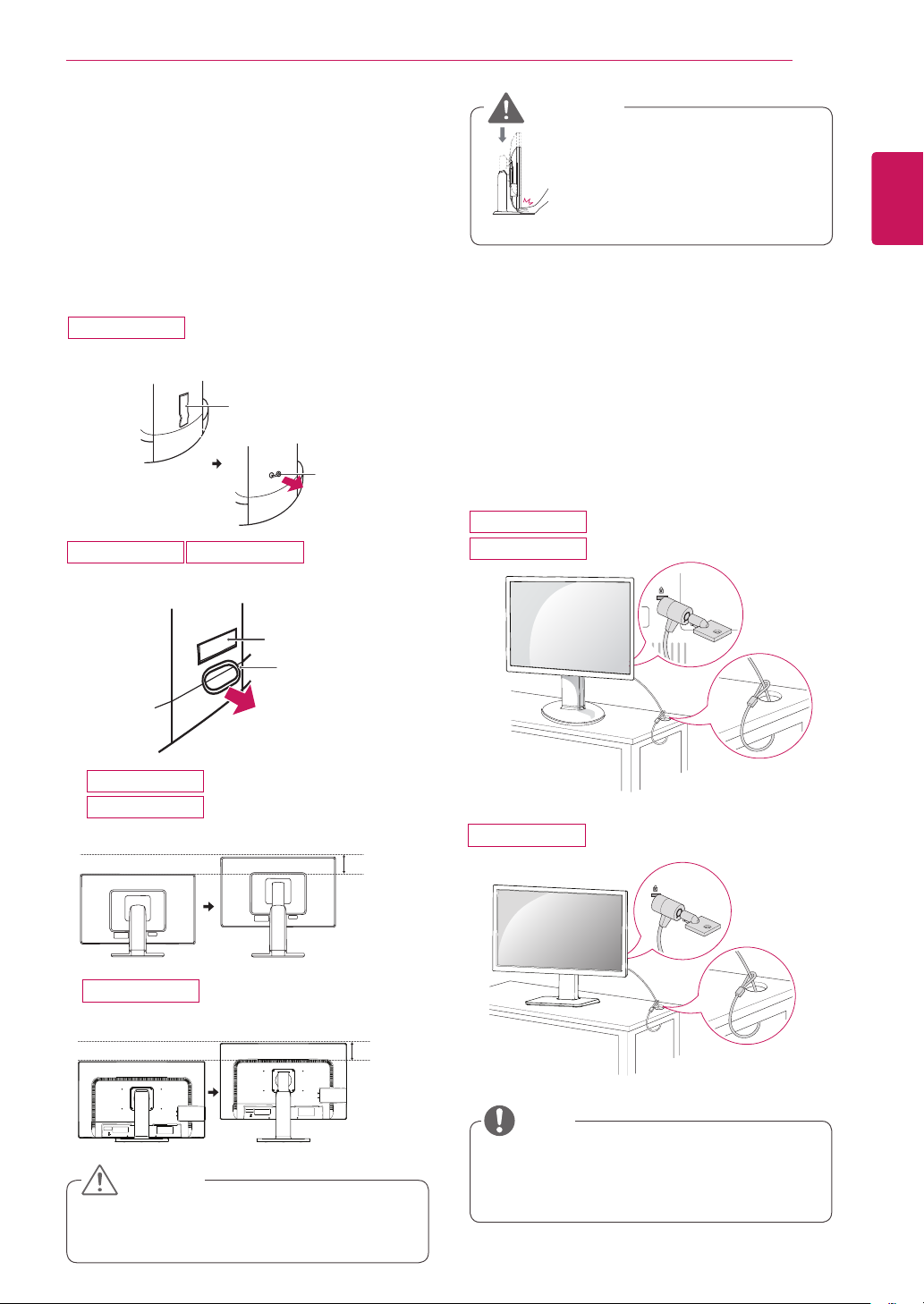

Detaching the stand base
1Place the monitor's screen face down.
To protect the screen from scratches, cover the
surface with a soft cloth.
2Using a coin, turn the screw in the stand base
counterclockwise. Detach the stand base from
the stand body.
2Using a coin, turn the screw in the stand base
counterclockwise. Detach the stand base from
the stand body.
CAUTION
2Detach the stand base from the stand body.
24MB35PH
23MB35PH
27MB35PH

10
ENG
ENGLISH
ASSEMBLING AND PREPARING
Detaching the stand body
1Place the monitor's screen face down. To
protect the screen from scratches, cover the
surface with a soft cloth.
2Using a screwdriver, remove the four screws
and detach the stand from the monitor.
Using the cable holder
Fix the Knob (Cable holder) to the
Hole(Hingebody).
1
2
3
Use one screw to fix the Cable Holder and
monitor set.
Close the Cable holder.
yThe holes are used for wall mount bracket.
yVaries depending upon your country or
model.
NOTE
27MB35PH
24MB35PH
23MB35PH
27MB35PH
