LG 27MK600M User manual

www.lg.com
Please read this manual carefully before operating
your set and retain it for future reference.
*LG LED Monitors are LCD Monitors with LED Backlighting.
LED LCD MONITOR MODEL
OWNER'S MANUAL
LED LCD Monitor
(LED Monitor*)
24MK600M
22MK600M
27MK600M
27MK60TM

ENGLISH
2
CONTENTS
LICENSE ---------------------------- 3
ASSEMBLING AND PREPARING - 4
-Product Components-------------------------- 4
-Supported Drivers and Software ----------- 5
-Component and Button Description ------- 6
How to Use the Joystick Button
Input Connector
-Moving and Lifting the Monitor-------------- 8

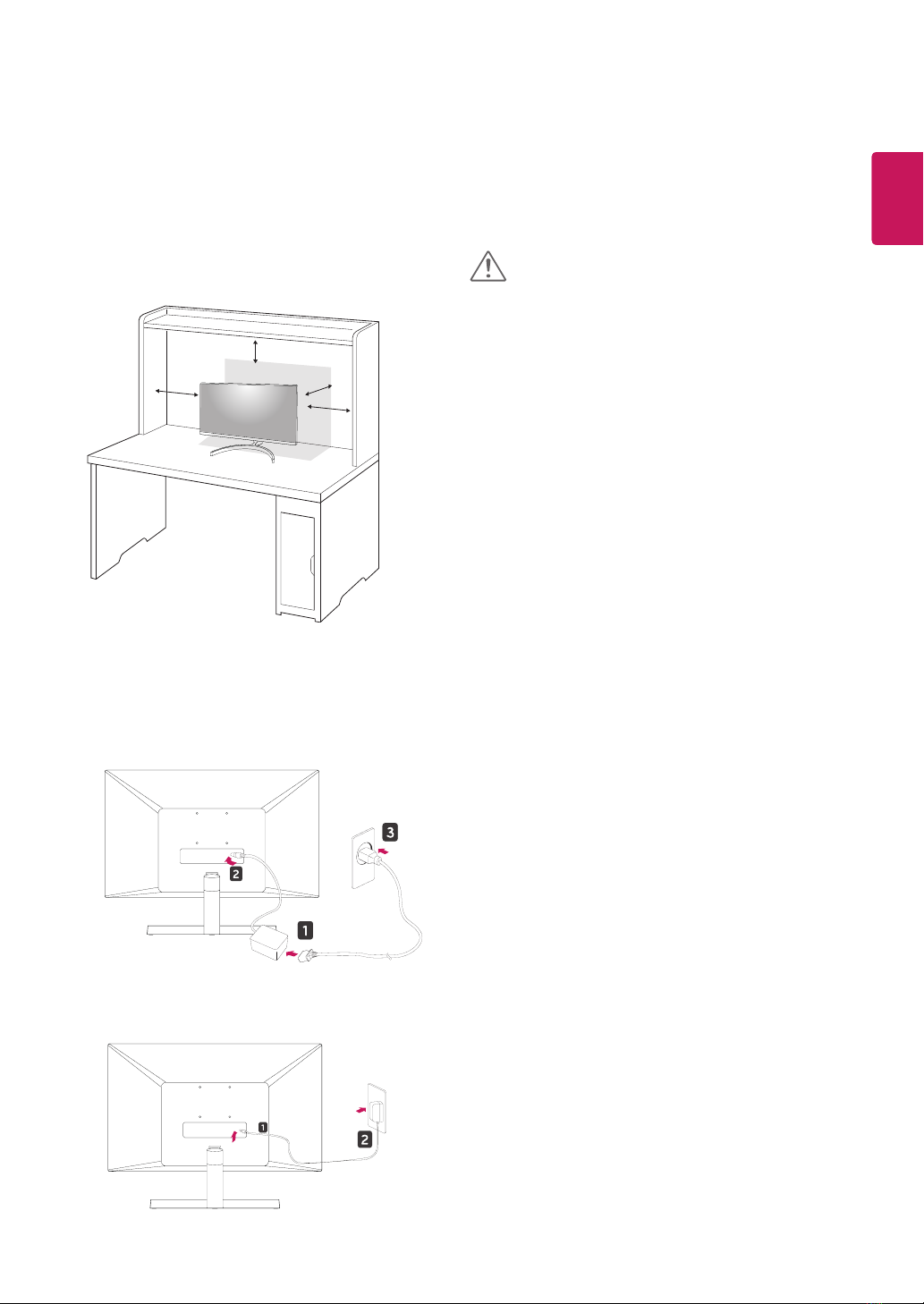

-Setting up the Monitor set ------------------- 9
Assembling the Stand
Mounting on a table
Mounting on a wall
USING THE MONITOR SET------ 14

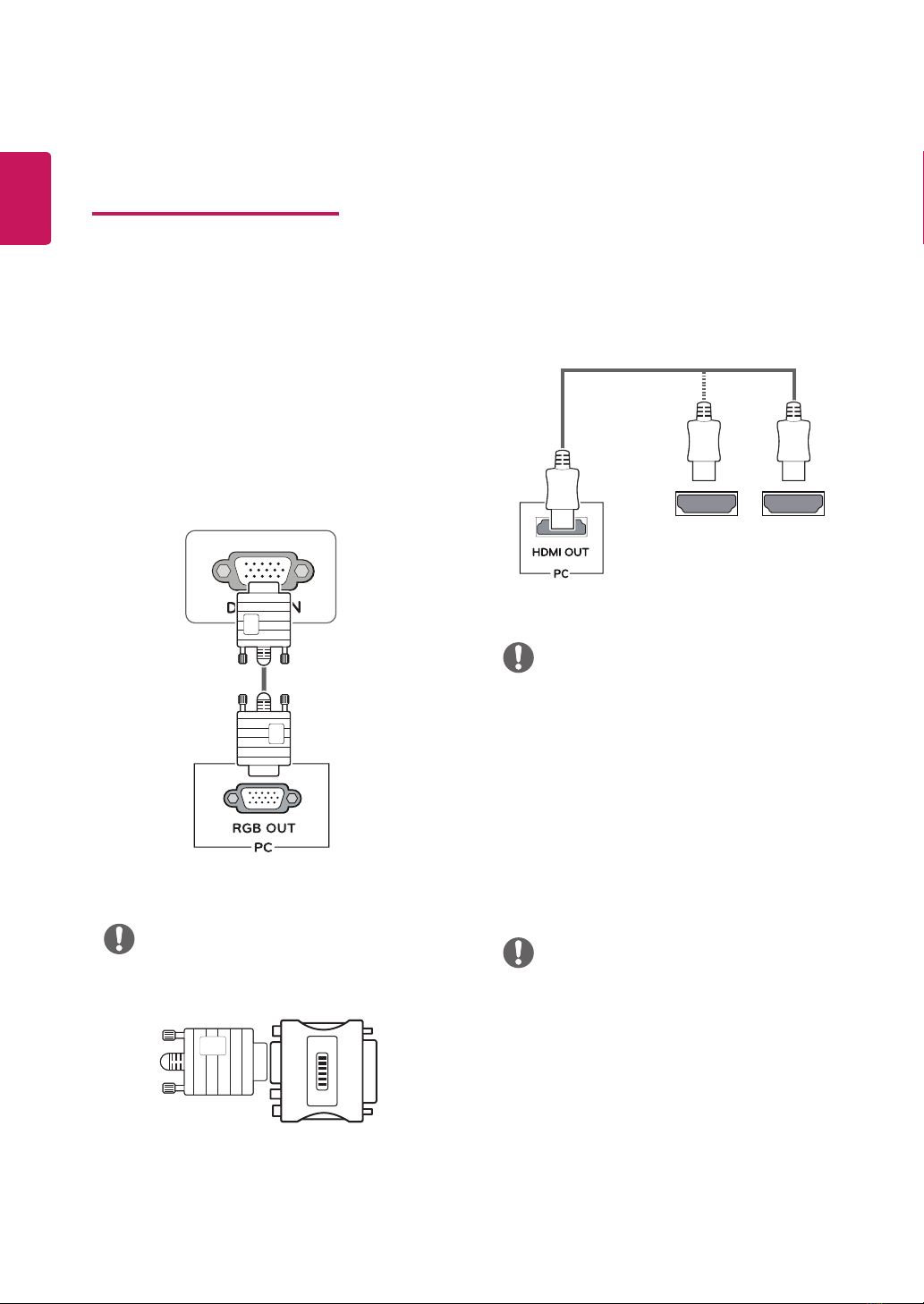

-Connecting to a PC ---------------------------14
D-SUB connection
HDMI connection

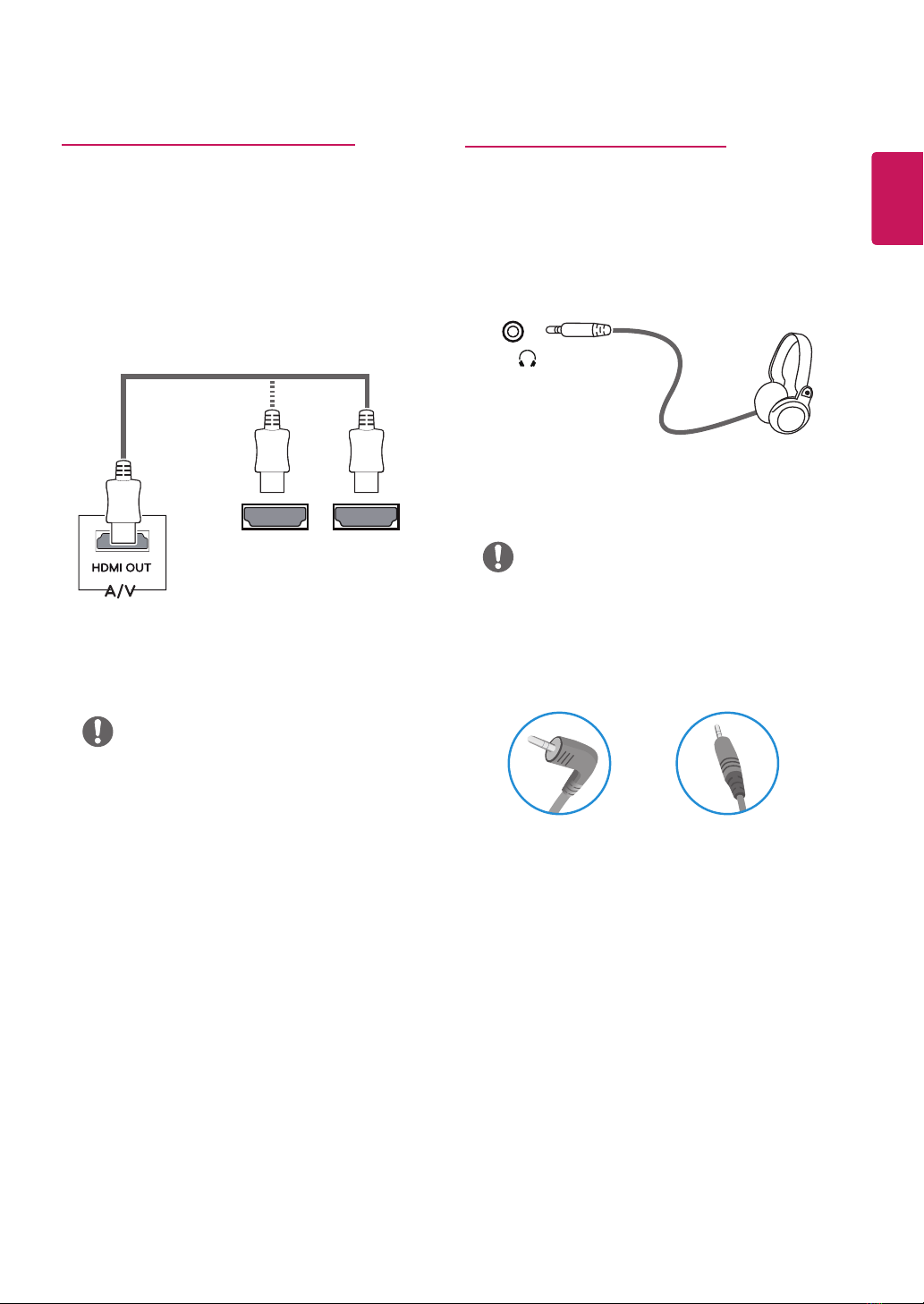

-Connecting to AV Devices ------------------15
HDMI connection
-Connecting Peripherals----------------------15
Connecting Headphones
CUSTOMIZING SETTINGS ------ 16
TROUBLESHOOTING ------------ 21
SPECIFICATIONS-------------- 22
-Preset Modes (Resolution) -----------------28

3
ENG
ENGLISH
LICENSE
Each model has different licenses. Visit www.lg.com for more information on the license.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the
HDMI Logo are trademarks or registered trademarks of HDMI Licensing
Administrator, Inc.
The following content is only applied to the monitor which is sold in Europe market and which needs to
meet the ErP Directive:
* This monitor is set to be turned off automatically in 4 hours after you turned on display if there is no
adjustment to display.
* To disable this setting, change the option to `Off' in the OSD "Automatic Standby" menu.

4
ENG
ENGLISH
ASSEMBLING AND PREPARING
Product Components
Please check whether all the components are included in the box before using the product. If there are
missing components, contact the retail store where you purchased the product. Note that the product and
components may look different from those shown here.
27MK600M
22MK600M
24MK600M 27MK60TM
CD / Card HDMI Cable D-SUB Cable
( Depending on the country )
( Depending on the country ) ( Depending on the country )
( Depending on the country )
( Depending on the country )
AC-DC AdapterPower Cord
AC-DC Adapter
or
Stand Body Stand Base Screw Cover
2 Screws3 Screws

5
ENG
ENGLISH
CAUTION
NOTE
Supported Drivers and Software
You can download and install the latest version from the LGE website ( www.lg.com ).
Drivers and Software Installation Priority 22MK600M
24MK600M
27MK600M
27MK60TM
Monitor Driver Recommended O
OnScreen Control Recommended O
yAlways use genuine components to ensure safety and product performance.
yThe product warranty will not cover damage or injury caused by the use of counterfeit components.
yIt is recommend that use the supplied components.
yIf you use generic cables not certified by LG, the screen may not display or there may be image noises.
yNote that the components may look different from those shown here.
yWithout prior notice, all information and specifications in this manual are subject to change to im-
prove the performance of the product.
yTo purchase optional accessories, visit an electronics store or online shopping site or contact the
retail store where you purchased the product.

6
ENG
ENGLISH
Component and Button Description
Joystick Button

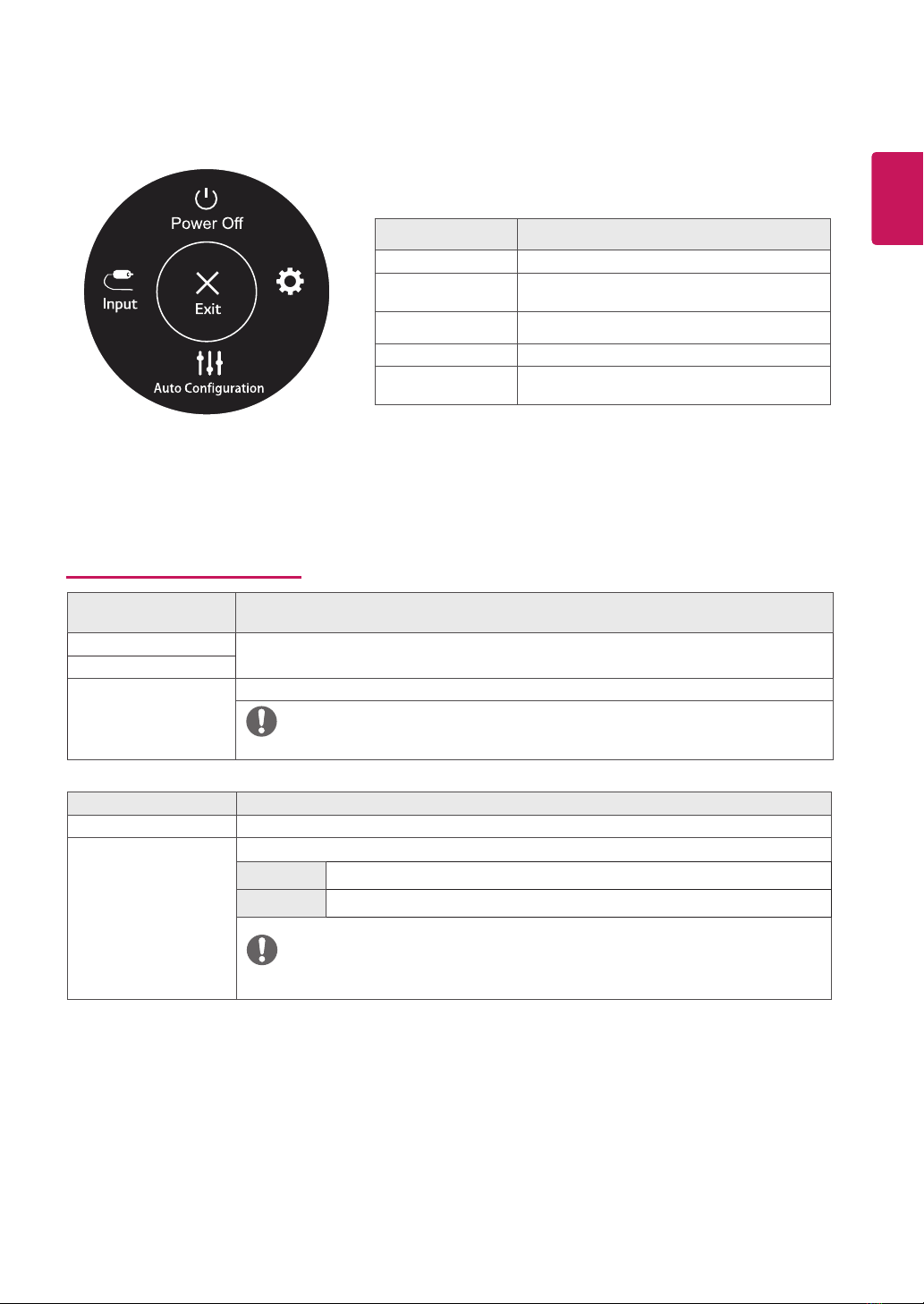

How to Use the Joystick Button
You can easily control the functions of the monitor by pressing the joystick button or moving it left/right with
your finger.
Basic Functions
Power on Press the joystick button once with your finger to turn on the
monitor.
Power off Press and hold the joystick button once with your finger to turn off
the monitor.
◄/►Volume
Control
You can control the volume by moving the joystick button left/right.
(for HDMI only)
yThe joystick button is located at the bottom of the monitor.
NOTE

7
ENG
ENGLISH
Connection panel
Input Connector

8
ENG
ENGLISH

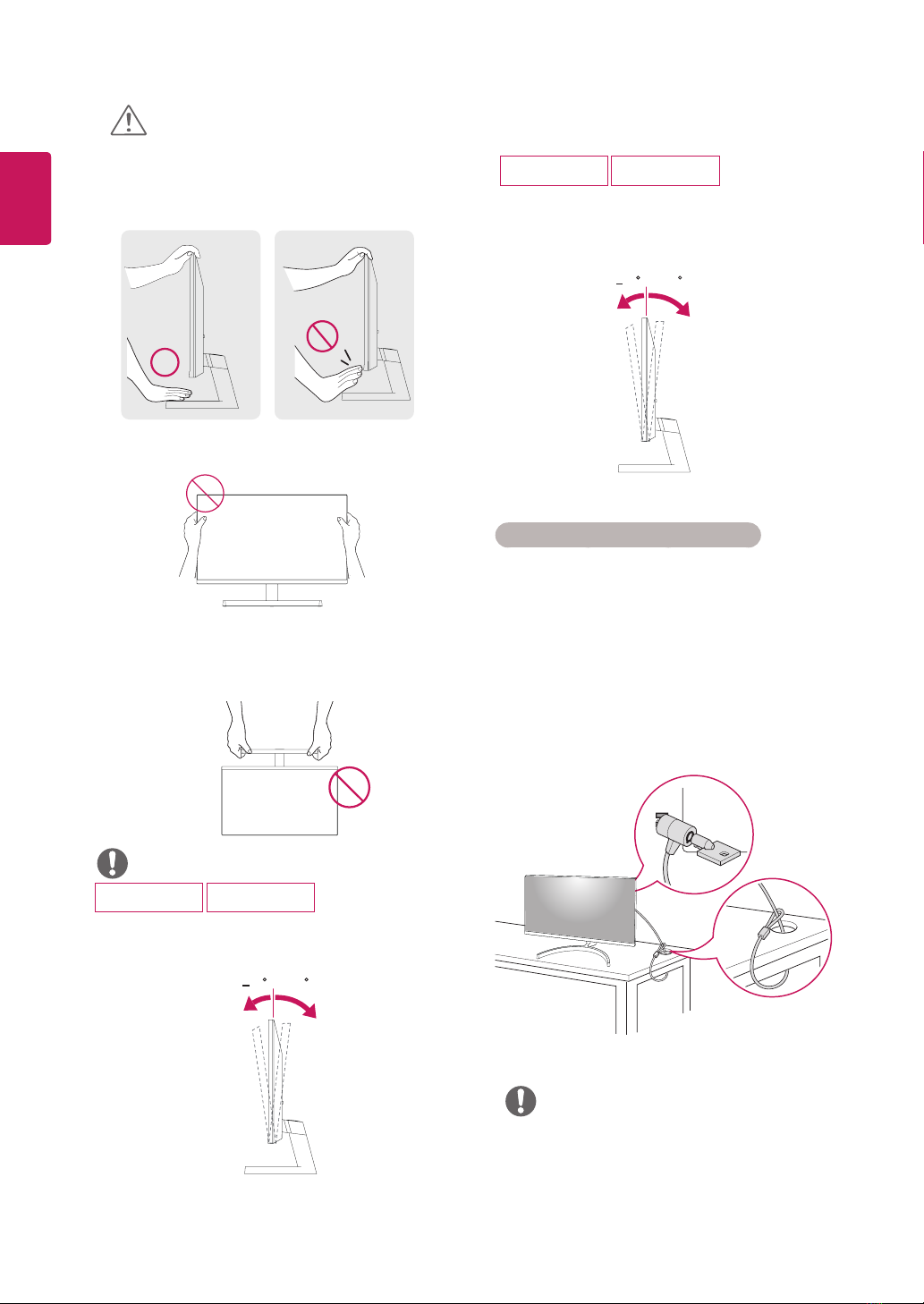

Moving and Lifting the Monitor
When moving or lifting the monitor, follow these
instructions to prevent the monitor from being
scratched or damaged and to ensure safe trans-
portation regardless of its shape or size.
yAs far as possible, avoid touching the moni-
tor screen. This may result in damage to the
screen or some of the pixels used to create
images.
yIt is advisable to place the monitor in the
original box or packing material before at-
tempting to move it.
yBefore moving or lifting the monitor, discon-
nect the power cord and all cables.
yHold the top and bottom of the monitor frame
firmly. Do not hold the panel itself.
yWhen holding the monitor, the screen should
face away from you to prevent it being
scratched.
yWhen moving the monitor, avoid any strong
shock or vibrations to the product.
yWhen moving the monitor, keep it upright,
never turn the monitor on its side or tilt it
sideways.
CAUTION
yIf you use the monitor panel without the
stand base, its joystick button may cause
the monitor to become unstable and fall,
resulting in damage to the monitor or human
injury. In addition, this may cause the joystick
button to malfunction.

9
ENG
ENGLISH
Setting up the Monitor set

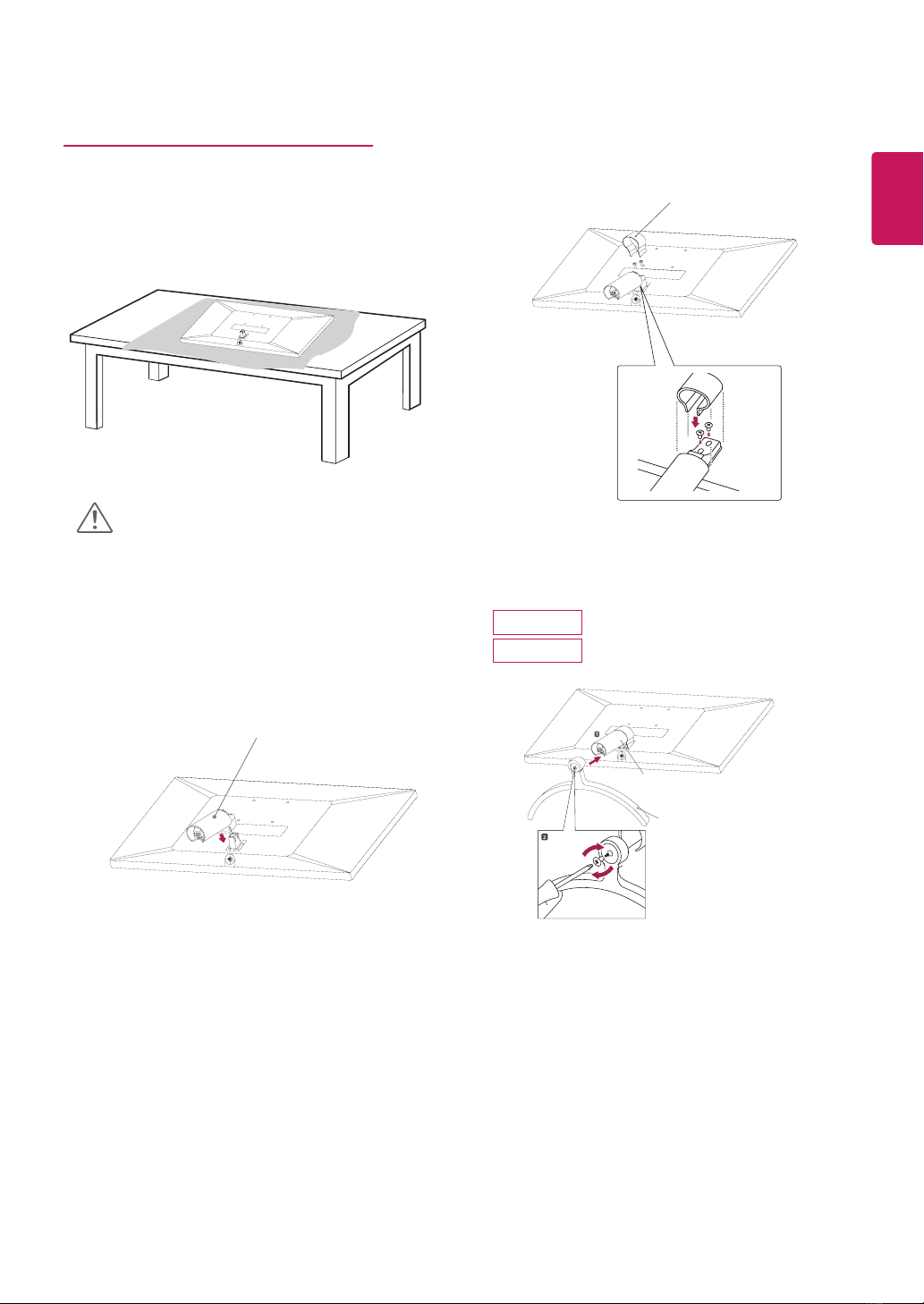

Assembling the Stand
yTo protect the screen from scratches, cover
the surface with a soft cloth.
CAUTION
1
22MK600M
24MK600M
22MK600M
24MK600M
2
3
4
Stand Base
Stand Body
Stand Body
Screw Cover

10
ENG
ENGLISH
yTo avoid injury to the fingers and foot when
Assembling the Stand Body and Base, you
should hold the Base for better stability.
yIllustrations in this document represent typical
procedures, so they may look different from
the actual product.
yDo not carry the monitor upside down by just
holding the stand base. This may cause the
monitor to fall off the stand and could result in
personal injury.
yWhen lifting or moving the monitor, do not
touch the monitor screen. The force applied
to the monitor screen may cause damage to
it.
yDo not apply foreign substances (oils,
lubricants, etc.) to the screw parts when
assembling the product. (Doing so may
damage the product.)
yApplying excessive force when tightening
screws may cause damage to the monitor.
Damage caused in this way will not be
covered by the product warranty.
CAUTION
yYou can disassemble the stand in the reverse
order of the assembly.
NOTE
WARNING

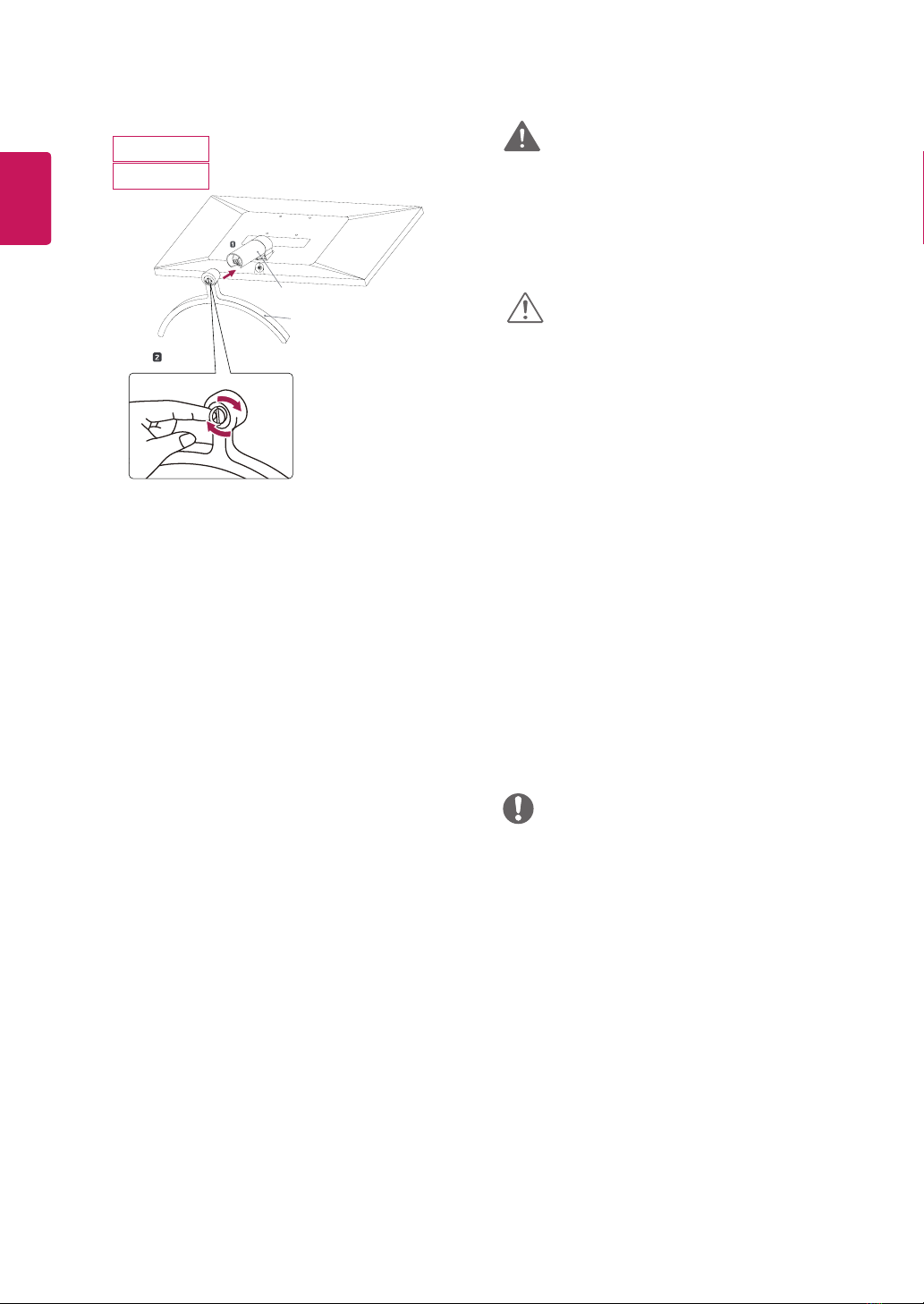

27MK600M
27MK60TM
Stand Base
Stand Body
