LG 29UM59A User manual
www.lg.com
Please read the safety information carefully before using the product.
IPS LED Monitor (LED Monitor) Model List
Owner's Manual
IPS LED MONITOR
(LED MONITOR*)
*LG LED Monitors are LCD Monitors with LED Backlighting.
29UM59A
2
ENG
ENGLISH
Contents
CONTENTS
18 USER SETTINGS
18 Activating the Main Menu
18 - Main Menu Features
19 User Settings
19 - Menu Settings
23 TROUBLESHOOTING
25 SPECIFICATIONS
25 29UM59A
26 Factory Support Mode (Preset Mode, PC)
26 HDMI / USB-C
26 HDMI / USB-C Timing (Video)
26 Power LED
27 Beep Guide
3LICENSE
4ASSEMBLING AND PREPARING
4 Product Components
5 Supported Drivers and Software
6 Component and Button Description
6 - How to Use the Joystick Button
7 Input Connector
8 Moving and Lifting the Monitor
9 Installing the Monitor
9 - Assembling the stand base
10 - Using the cable holder
10 - Installing onto a table
11 - Adjusting the angle
12 - Using the Kensington lock
13 - Installing the wall mount plate
13 - Installing to a wall
15 USING THE MONITOR
15 Connecting to a PC
15 - HDMI connection
16 - USB-C connection
16 Connecting to AV Devices
16 - HDMI connection
17 Connecting to External Devices
17 - Connecting Headphones
3
ENG
ENGLISH
LICENSE
LICENSE
Each model has different licenses. Visit www.lg.com for more information on the license.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo
are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
The following content is only applied to the monitor which is sold in Europe market and which needs to meet the ErP
Directive:
* This monitor is set to be turned off automatically in 4 hours after you turned on display if there is no adjustment to
display.
* To make this setting be disabled, change the option to ‘Off’ in OSD menu of “Automatic Standby”.
4
ENG
ENGLISH
ASSEMBLING AND PREPARING
ASSEMBLING AND PREPARING
Product Components
Please check whether all the components are included in the box before using the product. If there are missing com-
ponents, contact the retail store where you purchased the product. Note that the product and components may look
different from those shown here.
yAlways use genuine components to ensure safety and product performance.
yThe product warranty will not cover damage or injury caused by the use of counterfeit components.
yIt is recommend that use the supplied components.
yIf you use generic cables not certified by LG, the screen may not display or there may be image noises.
yNote that the components may look different from those shown here.
yWithout prior notice, all information and specifications in this manual are subject to change to improve the
performance of the product.
yTo purchase optional accessories, visit an electronics store or online shopping site or contact the retail store
where you purchased the product.
CAUTION
NOTE
CD / Card
Stand Body Stand Base Cable Holder Screw Cover 2 Screws
HDMI Cable
( This cable is not included
in all countries. )
USB C-C cable
( This cable is not included
in all countries. )
Power Cord AC-DC Adapter
( Depending on the country ) ( Depending on the country )
AC-DC Adapter
or
6
ENG
ENGLISH
ASSEMBLING AND PREPARING

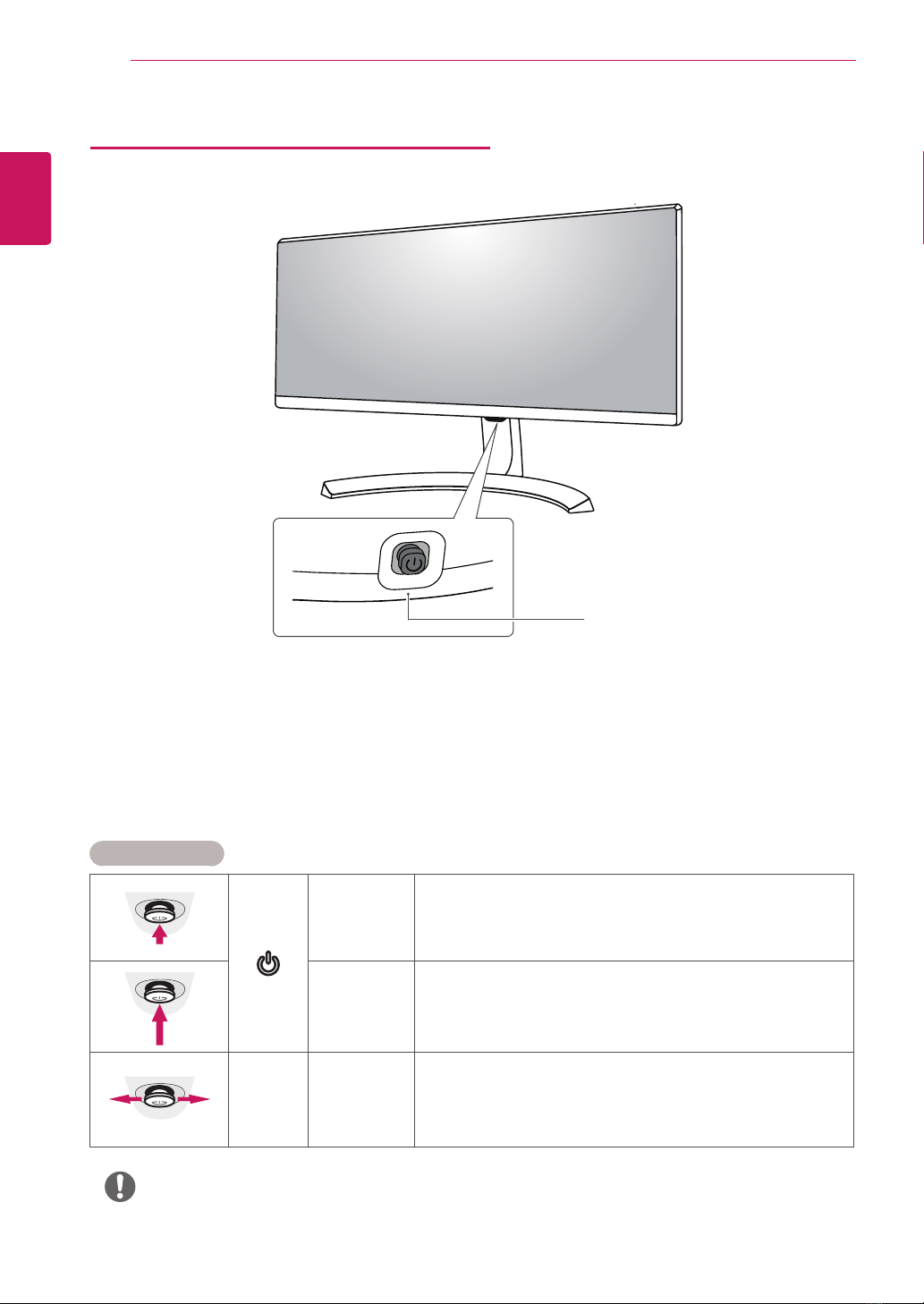

Component and Button Description
How to Use the Joystick Button
You can easily control the functions of the monitor by pressing the joystick button or moving it left/right with your
finger.
Basic Functions
Power on Press the joystick button once with your finger to turn on the
monitor.
Power off Press and hold the joystick button once with your finger to turn off the
monitor.
◄/►Volume
Control You can control the volume by moving the joystick button left/right.
yThe joystick button is located at the bottom of the monitor.
NOTE
Power LED
yOn: power is on
yOff: power is off
Joystick Button
7
ENG
ENGLISH
ASSEMBLING AND PREPARING
Input Connector
8
ENG
ENGLISH
ASSEMBLING AND PREPARING
Moving and Lifting the Monitor
When moving or lifting the monitor, follow these in-
structions to prevent the monitor from being scratched
or damaged and to ensure safe transportation regard-
less of its shape or size.
yAs far as possible, avoid touching the monitor
screen. This may result in damage to the screen or
some of the pixels used to create images.
yIt is advisable to place the monitor in the original
box or packing material before attempting to
move it.
yBefore moving or lifting the monitor, disconnect
the power cord and all cables.
yHold the top and bottom of the monitor frame
firmly. Do not hold the screen itself.
yWhen holding the monitor, the screen should face
away from you to prevent it being scratched.
yWhen moving the monitor, avoid any strong shock
or vibrations to the product.
yWhen moving the monitor, keep it upright, never
turn the monitor on its side or tilt it sideways.
CAUTION
yIf you use the monitor panel without the stand
base, its joystick button may cause the monitor to
become unstable and fall, resulting in damage to
the monitor or human injury. In addition, this may
cause the joystick button to malfunction.
9
ENG
ENGLISH
ASSEMBLING AND PREPARING
Installing the Monitor
Assembling the stand base
1Place the screen face down.
yTo protect the screen from scratches, cover the
surface with a soft cloth.
CAUTION
2Check the direction of the stand body (front, back)
and then mount the stand body onto the stand
hinge.
3Attach the Stand Base to Stand Body.
Tighten the screw to the right.
1
2
4Attach the screw cover.
Stand Body
Stand Base
Applying excessive force when tightening the
screws may cause damage to the monitor. Dam-
age caused in this way will not be covered by the
product warranty.
CAUTION
It may hurt your foot off the stand, so be careful.
CAUTION
yYou can disassemble the stand in the reverse
order of the assembly.
NOTE
Stand Body Stand Hinge
10
ENG
ENGLISH
ASSEMBLING AND PREPARING
Installing onto a table
1Lift the monitor and place it on the table in an up-
right position.
Place at least 3.94 inches away from the wall to
ensure sufficient ventilation.
Using the cable holder
Arrange the cables using the cable holder as shown in
the illustration.
2Connect the Power cord to the monitor, then plug
the power cord into the wall outlet.
3.94 inches
3.94 inches
3.94 inches
3.94 inches
yUnplug the power cord prior to moving or install-
ing the monitor. There is risk of electric shock.
CAUTION
3Press the joystick button on the bottom of the
monitor to turn on the monitor.
cable holder
or
11
ENG
ENGLISH
ASSEMBLING AND PREPARING
Cautions When Connecting Power Cord
yMake sure to use the power cord that is pro-
vided in the product package and connect it to a
grounded power outlet.
yIf you need another power cord, please contact
your local dealer or the nearest retail store.
100-240 V~ 20° -5°
Adjusting the angle
1Place the monitor in an upright position, mounted
on the stand base.
2Adjust the angle of the screen. The angle of the
screen can be adjusted forwards or backwards for a
comfortable viewing experience.
Front SideRear Side
yTo avoid injury to the fingers when adjusting the
screen, do not hold the lower part of the moni-
tor's frame as illustrated below.
WARNING
yBe careful not to touch or press the screen area
when adjusting the angle of the monitor.
12
ENG
ENGLISH
ASSEMBLING AND PREPARING
Monitor head
Using the Kensington lock
The Kensington security system connector is located at
the back of the Monitor set.
For more information on installation and usage, refer to
the Kensington lock user manual or visit the website at
http://www.kensington.com.
Connect the Kensington security system cable between
the Monitor set and a table.
yUse of the Kensington lock is optional.
The accessories can be purchased at your local
electronics store.
yThe left or right side of the monitor head can be
slightly rotated up or down (up to 3°). Adjust the
horizontal level of the monitor head.
NOTE
NOTE
13
ENG
ENGLISH
ASSEMBLING AND PREPARING
Installing the wall mount plate
This monitor supports the specification of the standard
wall mount plate or compatible device.
1Place the screen face down. To protect the screen
from scratches, cover the surface with a soft cloth.
2Place the wall mount plate onto the monitor and
align it with the screw holes.
3Tighten the four screws to fix the plate to the moni-
tor using a screwdriver.
yThe wall mount plate is sold separately.
yFor more information on installation, refer to the
wall mount plate's installation guide.
yBe careful not to use excessive force when
mounting the wall mount plate, as this can dam-
age the monitor's screen.
NOTE
To install the monitor to a wall, attach a wall mounting
bracket (optional) to the back of the monitor.
Make sure that the wall mounting bracket is securely fixed
to the monitor and to the wall.
1If you use screw longer than standard, the monitor
might be damaged internally.
2If you use improper screw, the product might be dam-
aged and drop from mounted position.
In this case, LG Electronics is not responsible for it.
Installing to a wall
Install the monitor at least 3.94 inches away from the
wall and leave about 3.94 inches of space at each side
of the monitor to ensure sufficient ventilation. Detailed
installation instructions can be obtained from your local
retail store. Please refer to the manual to install and set
up a tilting wall mounting bracket.
Wall Mount (A x B) 75 x 75
Standard screw M4 x L10
Number of screws 4
Wall Mount Plate
(Optional)
RW120
3.94 inches
3.94 inches
3.94 inches
3.94 inches
14
ENG
ENGLISH
ASSEMBLING AND PREPARING
yUnplug the power cord before moving or install-
ing the monitor to avoid electric shocks.
yInstalling the monitor on the ceiling or on a
slanted wall may result in the monitor falling off,
which could lead to injury. Please use the genu-
ine LG wall mounting bracket. For more informa-
tion, contact your local retail store or a qualified
installer.
yApplying excessive force when fastening screws
may cause damage to the monitor. Damage
caused in this way will not be covered by the
product warranty.
yUse the wall mounting bracket and screws
that conform to the VESA standard. Damage
caused by the use or misuse of inappropriate
components will not be covered by the product
warranty.
yScrew length from outer surface of back cover
should be under 8mm.
yUse the screws specified by the VESA standard.
yThe wall mount kit includes the installation guide
and all necessary parts.
yThe wall mounting bracket is optional. The acces-
sories can be purchased at your local retail store.
yThe length of the screw may differ for each wall
mounting bracket. Ensure the correct length
screw is used.
yFor more information, please refer to the user
manual for the wall mounting bracket.
CAUTION
NOTE
Wall mount Pad
Wall mount Pad
Back Cover
Back Cover
Standard screw
Max.8mm
yWall Mount (A x B)
A
B
15
ENG
ENGLISH
USING THE MONITOR
USING THE MONITOR
Connecting to a PC
yThis monitor supports the *Plug and Play feature.
*Plug and Play: A feature that allows you to add
a device to your computer without having to
reconfigure anything or install any manual drivers.
HDMI connection
Transmits the digital video and audio signals from your
PC and A/V devices to the monitor. Connect your PC
and AV device to the monitor with the HDMI cable as
illustrated below.
Press the menu button and then select the input option
from the input menu.
NOTE
yIf you use HDMI PC, it can cause compatibility
problem.
yUse a certified cable with the HDMI logo attached.
If you do not use a certified HDMI cable, the
screen may not display or a connection error may
occur.
yRecommended HDMI cable types
- High-Speed HDMI®/TM Cable
- High-Speed HDMI®/TM Cable with Ethernet
16
ENG
ENGLISH
USING THE MONITOR
Connecting to AV Devices
HDMI connection
Transmits the digital video and audio signals from your
PC and A/V devices to the monitor. Connect your PC
and AV device to the monitor with the HDMI cable as
illustrated below.
Press the menu button and then select the input option
from the input menu.
NOTE
yUse a certified cable with the HDMI logo attached.
If you do not use a certified HDMI cable, the
screen may not display or a connection error may
occur.
yRecommended HDMI cable types
- High-Speed HDMI®/TM Cable
- High-Speed HDMI®/TM Cable with Ethernet
yDP Alternate Mode(DP over USB-C) are supported
via USB-C Port.
yFeatures may not work properly depending on
the connected device’s specifications and the
environment.
yUSB-C port doesn’t provide power to the Monitor.
Use the Adapter supplied with the Monitor.
USB-C connection
Transmits digital video and audio signals from your PC
to the monitor.
Connect the monitor to your PC using the USB-C cable
as shown in the illustration below.
Press the menu button and then select the input option
from the input menu.
NOTE
(USB C-C cable)
17
ENG
ENGLISH
USING THE MONITOR
Connecting to External Devices
(sold separately)
Connecting Headphones
Connect peripherals to the monitor via the headphones
port. Connect as illustrated.
yPeripheral devices are sold separately.
yIf you use angled earphones, it may cause a prob-
lem with connecting another external device to
the monitor. Therefore, it is recommended to use
straight earphones.
Angled Straight
yDepending on the audio settings of the PC and
external device, headphones and speaker functions
may be limited.
NOTE
(sold separately)
18
ENG
ENGLISH
User Settings
USER SETTINGS
NOTE
yYour monitor’s OSD (On Screen Display) may differ slightly from that shown in this manual.
yWhen Beep Guide is activated, pressing the joystick button will take you to Settings right away.
Activating the Main Menu
1 Press the joystick button on the bottom of the monitor.
2 Move the joystick up/down (▲/▼) and left/right(◄/►) to set the options.
3 Press the joystick button once more to exit the main menu.
Joystick Button
Power Off
MenuInput Exit
Game Mode
Button Menu Status Description
Power Off
MenuInput Exit
Game Mode
Main menu disabled Enables the main menu.
Main menu enabled
Exits the main menu.
(Holding down the button to turn off the monitor. You can turn off the
monitor this way at any time, including when the OSD is on.)
Power Off
MenuInput Exit
Game Mode
◄Main menu disabled Adjusts the monitor volume level.
Main menu enabled Enters the Input feature.
►Main menu disabled Adjusts the monitor volume level.
Main menu enabled Enters the Menu features.
Power Off
MenuInput Exit
Game Mode
▲Main menu disabled Enters the Accessibility menu.
Main menu enabled Turns off the monitor.
▼
Main menu disabled Enters the Accessibility menu.
Main menu enabled Enters the Game Mode features.
Main Menu Features
Main Menu Description
Menu Configures the screen settings.
Game Mode You can change Picture Mode to a gaming mode.
Input Sets input mode.
Power Off Turns off the monitor.
Exit Exits the main menu.
Power Off
MenuInput Exit
Game Mode
19
ENG
ENGLISH
User Settings
User Settings
Menu Settings
1 To view the OSD menu, press the joystick button at the bottom of the monitor and then enter the Menu.
2 Configure the options by moving the joystick up/down/left/right.
3 To return to the upper menu or set other menu items, move the joystick to◄or pressing ( / Ok) it.
4 If you want to exit the OSD menu, move the joystick to ◄until you exit.
yWhen you enter the menu, instructions on how to use the button will appear in the bottom right corner of the screen.
yYour monitor’s OSD (On Screen Display) may differ slightly from that shown in this manual.
CAUTION
Each option is described below.
Menu > Quick Settings Description
Brightness Adjusts the color contrast and brightness of the screen.
Contrast
Volume Adjusts the volume level.
NOTE
yYou can adjust Mute / Unmute by moving the joystick button to▼in the Volume menu.
Menu > Input Description
Input List Selects the input mode.
Aspect Ratio Adjusts the aspect ratio of the screen.
Full Wide Displays the video in wide-screen, regardless of the video signal input.
Original Displays video according to the aspect ratio of the video signal input.
Cinema1 Enlarges the screen with an aspect ratio of 21:9. (at 1080p)
Cinema2 Enlarges the screen with an aspect ratio of 21:9, including the black box at the bottom for
subtitles. (at 1080p)
NOTE
yThe display may look the same for Full Wide , Original at the recommended resolution (2560×1080).
yThere is no Cinema1, Cinema2 menu on FreeSync Mode. ( Go to Picture →Game Adjust →Free-
Sync, to set FreeSync On or Off)
Menu > Picture Description
Picture Mode Custom Allows the user to adjust each element. The color mode of the main menu can be
adjusted.
Reader Optimizes the screen for viewing documents. You can brighten the screen in the OSD
menu.
Photo Optimizes the screen for photos.
Quick Settings Input Picture General
20
ENG
ENGLISH
User Settings
Picture Mode Cinema Optimizes the screen for video.
Color Weakness This mode is for users who cannot distinguish between red and green. It enables users with
color weakness to easily distinguish between the two colors.
FPS Game 1 This mode is optimized for FPS games.
FPS Game 2 It has a higher Black Stabilizer value than FPS Game 1. It is suitable for very dark FPS games.
RTS Game This mode is optimized for RTS Game.
Custom (Game) In this mode, users can customize various elements including game-related options.
NOTE
yIf the picture mode is changed in the screen may flicker or the resolution of your PC screen may be affected.
Picture Adjust Brightness Adjusts the brightness of the screen.
Contrast Adjusts the contrast of the screen.
Sharpness Adjusts the sharpness of the screen.
SUPER
RESOLUTION+
High Optimized picture quality is displayed when a user wants crystal clear images. It
is effective for high quality video or game.
Middle The optimized picture quality is displayed when a user wants images between
low and high modes for comfortable viewing. It is effective for UCC or SD video.
Low The optimized picture quality is displayed when a user wants smooth and natural images.
It is effective for slow-moving pictures or still images.
Off Select this option for everyday viewing. SUPER RESOLUTION+ is turned off in
this mode.
yBecause this is a function to increase the sharpness of low resolution pictures, it is not
recommended to use the function for normal text or for desktop icons. Doing so may
result in unnecessarily high sharpness.
NOTE
Black Level Sets the offset level (for HDMI only).
yOffset: as a reference for a video signal, this is the darkest color the monitor can display.
High Keeps the current contrast ratio of the screen.
Low Lowers the black levels and raises the white levels from the current contrast
ratio of the screen.
DFC On Adjusts the brightness automatically according to the screen.
Off Disables the DFC feature.
Game Adjust Response Time Sets a response time for displayed pictures based on the speed of the screen.
For a normal environment, it is recommended that you use Normal. For a fast-moving picture,
it is recommended that you use Fast.
Setting to Fast may cause image sticking.
Fast Sets the response time to Fast.
Normal Sets the response time to Normal.
Slow Sets the response time to Slow.
Off Does not use the response time improvement feature.
FreeSync Provides seamless and natural images by synchronizing the vertical frequency of the input
signal with that of the output signal.
CAUTION
ySupported Interface: HDMI.
ySupported Graphic Card : A graphic card that supports AMD’s FreeSync is
necessary.
ySupported Version : Make sure to update the graphic card to the latest driver.
yFor more information and requirement, refer to AMD website at http://www.
amd.com/FreeSync
On FreeSync function on.
Off FreeSync function off.
Table of contents
Other LG Monitor manuals
