LG FLATRON L1530S (L1530SM-AL**R) User manual

MENU SET/AUTO
LightView
-
+
COLOR MONITOR
SERVICE MANUAL
Website:http://biz.LGservice.com
E-mail:http://www.LGEservice.com/techsup.html
CAUTION
BEFORE SERVICING THE UNIT,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
CHASSIS NO. : CL-61
MODEL: L1530S (L1530SM-AL**R)
L1530S (L1530SSNTM-AL**R)
( ) **Same model for Service

- 1 -

CONTENTS
SPECIFICATIONS
- 2 -
1. LCD CHARACTERISTICS
Type : TFT XGA LCD Module
Size : 326.5(H) x 253.5(V) x 11.2(D)
Pixel Pitch : 0.297mm x 0.297mm
Color Depth :
6bits(with FRC)/ 16M colors
Active Video Area : 15.0inch
(304.128 x 228.096)
Surface Treatment : Anti-Glare, Hard Coating (3H)
Backlight Unit : 2CCFL
Opraating Mode : Transmissive mode, Normally white
Electrical Interface : LVDS interface
2. OPTICAL CHARACTERISTICS
2-1. Viewing Angle by Contrast Ratio
≥
10
(L1530SM / L1530SSNTM)
LPL Module
Left : 55° min. 55° typ. Right: 55° min. 65° typ.
Top : 40° min. 45° typ. Bottom: 50° min. 55° typ.
(L1530SM)
HannStar Module
Left : 50° min. 65° typ. Right: 50° min. 60° typ.
Top : 30° min. 45° typ. Bottom: 40° min. 55° typ.
AUO Module
Left : -50° min. -60° typ. Right: +50° min. +60° typ.
Top : +30° min. +40° typ. Bottom: -50° min. -60° typ
2-2. Luminance
:
200(min.), 250(typ.) at Center point
2-3. Contrast Ratio :
(L1530SM) 300(min.), 400(typ.)
-LPL, AUO Module
400(min.), 500(typ.) -Hann Star Module
(L1530SSNTM) 300(min.), 400(typ.)
3. SIGNAL (Refer to the Timing Chart)
3-1. Sync Signal
1) Type : Separate Sync. (Horizontal & Vertical)
2) Input Voltage Level: Low=0~0.8V, High=2.1~5.5V
3) Sync Polarity : Positive or Negative
3-2. Video Input Signal
1) Type : R, G, B Analog
2) Voltage Level : 0~0.7 V
a) Color 0, 0 : 0 Vp-p
b) Color 7, 0 : 0.35 Vp-p
c) Color 15, 0 : 0.7 Vp-p
3) Input Impedance : 75 Ω
3-3. Operating Frequency
Horizontal : 30 ~ 63kHz
Vertical : 56 ~ 75Hz
4. POWER SUPPLY
4-1. Power
100-240V~, 50/60Hz 0.6A
4-2. Power Consumption
5. ENVIRONMENT
5-1. Operating Temperature: 10°C~35°C (50°F~95°F)
5-2. Operating Humidity : 10%~80%
5-3. MTBF : 50,000 HRS (Min.)
Lamp Life : 40,000 Hours (Min.)
6. DIMENSIONS (with TILT / with Base)
Width : 368mm (14.48'') / 368mm
Depth : 355mm (13.97'') / 190mm
Height : 105mm (4.13'') / 367mm
7. WEIGHT (with TILT)
Net. Weight : 3.6kg (7.93 lbs)
Gross Weight : 5.0kg (11.02 lbs)
SPECIFICATIONS ................................................... 2
PRECAUTIONS ....................................................... 3
TIMING CHART ....................................................... 4
OPERATING INSTRUCTIONS ................................ 5
WIRING DIAGRAM ................................................. 6
BLOCK DIAGRAM ................................................... 7
DESCRIPTION OF BLOCK DIAGRAM ................... 8

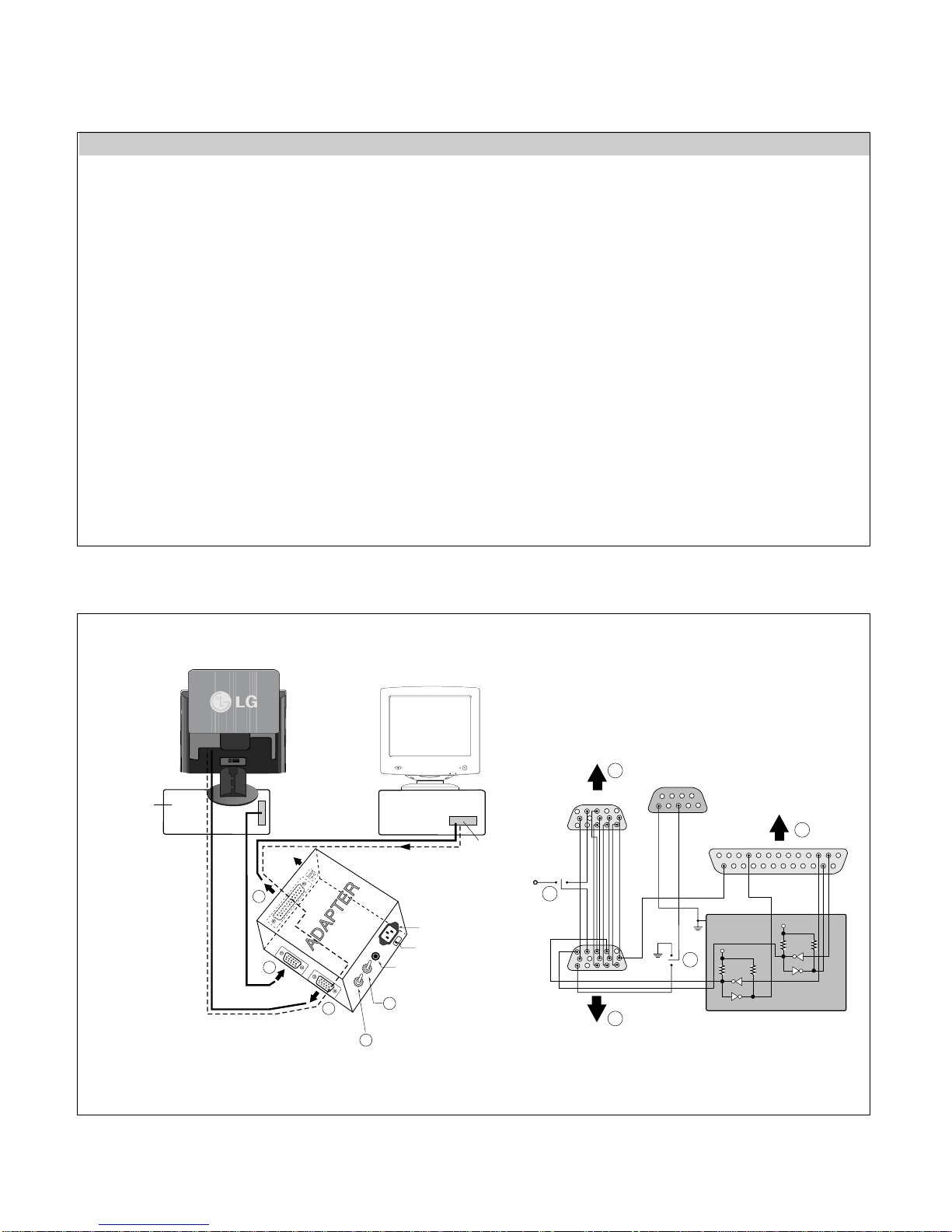

ADJUSTMENT ........................................................ 9
TROUBLESHOOTING GUIDE .............................. 10
PRINTED CIRCUIT BOARD................................... 14
EXPLODED VIEW...................................................16
REPLACEMENT PARTS LIST ...............................18
SCHEMATIC DIAGRAM......................................... 20
MODE
POWER ON (NORMAL)
STAND-BY
SUSPEND
DPM OFF
POWER S/W OFF
H/V SYNC
ON/ON
OFF/ON
ON/OFF
OFF
-
POWER CONSUMPTION
less than 25 W
less than 1 W
less than 1 W
less than 1 W
less than 1 W
LED COLOR
GREEN
AMBER
AMBER
AMBER
OFF
VIDEO
ACTIVE
OFF
OFF
OFF
-

- 3 -
WARNING FOR THE SAFETY-RELATED COMPONENT.
• There are some special components used in LCD
monitor that are important for safety. These parts are
marked on the schematic diagram and the
replacement parts list. It is essential that these critical
parts should be replaced with the manufacturer’s
specified parts to prevent electric shock, fire or other
hazard.
• Do not modify original design without obtaining written
permission from manufacturer or you will void the
original parts and labor guarantee.
TAKE CARE DURING HANDLING THE LCD MODULE
WITH BACKLIGHT UNIT.
• Must mount the module using mounting holes arranged
in four corners.
• Do not press on the panel, edge of the frame strongly
or electric shock as this will result in damage to the
screen.
• Do not scratch or press on the panel with any sharp
objects, such as pencil or pen as this may result in
damage to the panel.
• Protect the module from the ESD as it may damage the
electronic circuit (C-MOS).
• Make certain that treatment person’s body are
grounded through wrist band.
• Do not leave the module in high temperature and in
areas of high humidity for a long time.
• The module not be exposed to the direct sunlight.
• Avoid contact with water as it may a short circuit within
the module.
• If the surface of panel become dirty, please wipe it off
with a softmaterial. (Cleaning with a dirty or rough cloth
may damage the panel.)
WARNING
BE CAREFUL ELECTRIC SHOCK !
• If you want to replace with the new backlight (CCFL) or
inverter circuit, must disconnect the AC adapter
because high voltage appears at inverter circuit about
650Vrms.
• Handle with care wires or connectors of the inverter
circuit. If the wires are pressed cause short and may
burn or take fire.
PRECAUTION
CAUTION
Please use only a plastic screwdriver to protect yourself
from shock hazard during service operation.

TIMING CHART
- 4 -
VIDEO
SYNC
B
D
CFE
A
H / V
H (Pixels)
V (Lines)
H (Pixels)
V (Lines)
H (Pixels)
V (Lines)
H (Pixels)
V (Lines)
H (Pixels)
V (Lines)
H (Pixels)
V (Lines)
H (Pixels)
V (Lines)
H (Pixels)
V (Lines)
H (Pixels)
V (Lines)
H (Pixels)
V (Lines)
H (Pixels)
V (Lines)
H (Pixels)
V (Lines)
H (Pixels)
V (Lines)
H (Pixels)
V (Lines)
Sync
Polarity
+
–
–
+
–
–
–
–
–
–
–
–
+
+
+
+
+
+
+
+
–
–
–
–
–
–
+
+
Dot
Clock
25.175
28.322
25.175
30.24
31.5
31.5
36.0
40.0
50.0
49.5
57.2832
65
75
78.75
Frequency
31.468 KHz
70.0 Hz
31.468 KHz
70.0 Hz
31.469 KHz
60.0 Hz
35.00 KHz
66.67 Hz
37.861 KHz
72.8 Hz
37.50 KHz
75.0 Hz
35.156KHz
56.25 Hz
37.879 KHz
60.3 Hz
48.077 KHz
72.188 Hz
46.875 KHz
75.0 Hz
49.725 KHz
74.55 Hz
48.363 KHz
60.0 Hz
56.476 KHz
70.0 Hz
60.023 KHz
75.0 Hz
Resolution
640 x 350
720 x 400
640 x 480
640 x 480
640 x 480
640 x 480
800 x 600
800 x 600
800 x 600
800 x 600
832 x 624
1024 x 768
1024 x 768
1024 x 768
Total
Period
( E )
800
449
900
449
800
525
864
525
832
520
840
500
1024
625
1056
628
1040
666
1056
625
1152
667
1344
806
1328
806
1312
800
Video
Active
Time ( A )
640
350
720
400
640
480
640
480
640
480
640
480
800
600
800
600
800
600
800
600
832
624
1024
768
1024
768
1024
768
Blanking
Time
( B )
160
99
180
49
160
45
224
45
192
40
200
20
224
25
256
28
240
66
256
25
320
43
320
38
304
38
288
32
Sync
Duration
( D )
96
2
108
2
96
2
64
3
40
3
64
3
72
2
128
4
120
6
80
3
64
3
136
6
136
6
96
3
Back
Porch
( F )
48
60
55
34
48
33
96
39
128
28
120
16
128
22
88
23
64
23
160
21
224
39
160
29
144
29
176
28
Front
Porch
( C )
16
37
17
13
16
10
64
3
24
9
16
1
24
1
40
1
56
37
16
1
32
1
24
3
24
3
16
1
MODE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
(MAC)
(TEXT)

OPERATING INSTRUCTIONS
- 5 -
FRONT VIEW REAR VIEW
Front Control Panel
MENU SET/AUTO
LightView
-
+
See front control panel
Power Connector D-Sub Signal
Connector
2
15
34
1. Power Button
Use this button to turn the display on or off.
2. Power Indicator
This Indicator lights up green when the display operates
normally. If the display is in DPM (Energy Saving) mode, this
indicator color changes to amber.
3. MENU Button
Use this button to enter or exit the On Screen Display.
OSD LOCKED/UNLOCKED
This function allows you to lock the
current control settings, so that they
cannot be inadvertently changed.
Press and hold the MENU button for 5
seconds. The message "OSD LOCKED" should appear.
You can unlock the OSD controls at any time by pushing the
MENU button for 5 seconds. The message "OSD
UNLOCKED" should appear.
4. -, +
Buttons
Use these buttons to select or
adjust functions in the On
Screen Display.
-, + Button
LightView hot key
For more information, refer to page A13
5. SET/AUTO Button
Use this button to enter a selection in the On Screen Display.
AUTO IMAGE ADJUSTMENT
When adjusting your display settings, always press the
SET/AUTO button before entering the On Screen
Display(OSD). This will automatically adjust your display
image to the ideal settings for the current screen resolution
size (display mode).The best display mode is
15 inch monitor : 1024x768
17 inch monitor : 1280x1024
OSD LOCKED
OSD UNLOCKED
LIGHT VIEW
DAY TEXT
1 2
MENU
-
+SET
PROCESSING AUTO
IMAGE ADJUSTMENT

- 6 -
M
MST9151
J702
J707
Main Board
Power Board
Control Board
J1
J706
WIRING DIAGRAM

- 7 -
BLOCK DIAGRAM
D-SUB
MST9011B
including
(ADC/LVDS/SCALER )
MTV312
Micom
LCD Module
R,G,B
differential
LVDS (Low Voltage Differential Signaling)
LIPS
5V
5V
AC Input
3.3V
Reg. Diode
KDS184
5V 3.3V
12V
R,G,B, H/V Sync
3.3V 2.5V
3.3V 2.5V

DESCRIPTION OF BLOCK DIAGRAM
- 8 -
1. Video Controller Part.
This part amplifies the level of video signal for the digital conversion and converts from the analog video signal to the
digital video signal using a pixel clock.
The pixel clock for each mode is generated by the PLL.
The range of the pixel clock is from 25MHz to 135MHz.
This part consists of the Scaler, ADC, LVDS transmitter.
The Scaler gets the video signal converted analog to digital, interpolates input to 1280 X 768 resolution signal and
outputs 8-bit R, G, B signal to transmitter.
2. Power Part.
This part consists of the one 3.3V regulator, and two 2.5V drop diodes to convert power which is provided 12V, 5V in
Power board.
5V is provided for LCD panel and Micom.
Also, 5V is converted 3.3V by regulator and 3.3V is converted 2.5V by drop diode.
Converted power is provided for IC in the main board.
3. MICOM Part.
This part consists of EEPROM IC which stores control data, Reset IC and the Micom.
The Micom distinguishes polarity and frequency of the H/V sync are supplied from signal cable.
The controlled data of each modes is stored in EEPROM.

- 9 -

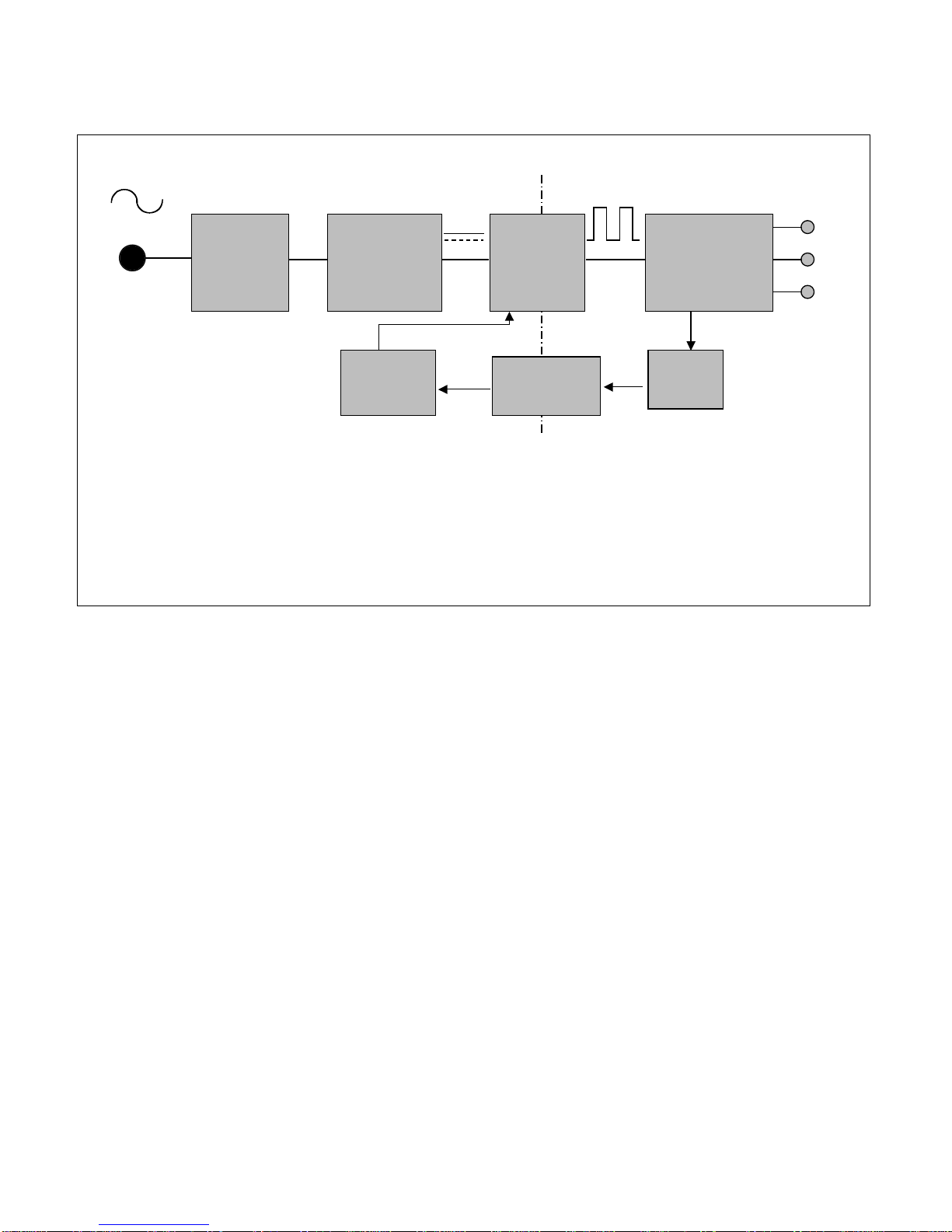

EMI
COMPONENTS
LINE
100 ~ 240V
INPUT RECTIFIER
AND FILTER ENERGY TRANSFER OUTPUT RECTIFIER AND FILTER
12V
5V
GND
SIGNAL
COLLECTI
ON
PHOTO-
COUPLER
ISOLATION
PWM
CONTROL
CIRCUIT
HVDC 100KHz
PRIMARY SECONDARY
50 ~ 60Hz
Operation description_LIPS
LIPS Board Block Diagram
1. EMI components.
This part contains of EMI components to comply with global marketing EMI standards like FCC,VCCI CISPR,
the circuit included a line-filter, across line capacitor and of course the primary protection fuse.
2. Input rectifier and filter.
This part function is for transfer the input AC voltage to a DC voltage through a bridge rectifier and a bulk capacitor.
3. Energy Transfer.
This part function is for transfer the primary energy to secondary through a power transformer.
4. Output rectifier and filter.
This part function is to make a pulse width modulation control and to provide the driver signal to power switch,to
adjust the duty cycle during different AC input and output loading condition to achieve the dc output stabilized, and
also the over power protection is also monitor by this part.
5. Photo-Coupler isolation.
This part function is to feed back the dc output changing status through a photo transistor to primary controller to
achieve the stabilized dc output voltage.
6. Signal collection.
This part function is to collect the any change from the dc output and feed back to the primary through photo
transistor

- 10 -
ADJUSTMENT
Windows EDID V1.0 User Manual
Operating System: MS Windows 98, 2000, XP
Port Setup: Windows 98 => Don’t need setup
Windows 2000, XP => Need to Port Setup.
This program is available to LCD Monitor only.
1. Port Setup
a) Copy “UserPort.sys”file to
“c:\WINNT\system32\drivers”folder
b) Run Userport.exe
c) Remove all default number
d) Add 300-3FF
e) Click Start button.
f) Click Exit button.
2. EDID Read & Write
1) Run WinEDID.exe
2) Edit Week of Manufacture, Year of Manufacture,
Serial Number
a) Input User Info Data
b) Click “Update”button
c) Click “Write”button

- 11 -
Figure 1. Cable Connection
220
IBM
Compatible PC
PARALLEL PORT
Power inlet (required)
Power LED
ST Switch
Power Select Switch
(110V/220V)
Control Line
Not used
RS232C
PARALLEL
V-SYNC POWER
ST
VGS MONITOR
E
E
V-Sync On/Off Switch
(Switch must be ON.)
F
F
A
A
B
B
C
C
1510
5
569
1
1
1
14
13
25
6
5V
5V
5V
4.7K
4.7K
4.7K
74LS06
74LS06
OFF ON
OFF
ON
11
Video Signal
Generator
SERVICE OSD
1)Turn off the power switch at the front side of display.
2)Wait for about 5 seconds and press MENU,POWER key.
3)Shows the service OSD menu.
4)The service OSD menu contains additional menus that the User OSD menu as described below.
a) CLEAR ETI : To initialize using time.
b) AUTO COLOR : W/B balance and Automatically sets the gain and offset value.
c) AGING :Select Aging mode(on/off).
d) PANEL : Select using panel.
e) NVRAM INIT : EEPROM initialize(24C08).
f) 9300 : Allows you to set the R/G/B.-9300K value manually.
g) 6500 :Allows you to set the R/G/B.-6500K value manually.
h) OFFSET : Allows you to set the R/G/B.-Offset value manually.(Analog Only)
i) GAIN : Allows you to set the R/G/B.-Gain value manually.(Analog Only)

- 12 -
TROUBLESHOOTING GUIDE
1. NO POWER
NO POWER
(POWER INDICATOR OFF)
CHECK POWER
BOARD, AND FIND
OUT A SHORT POINT
AS OPENING
EACH POWER LINE
CHECK J705
VOLTAGE
PIN5, PIN6 (5V)?
NO
CHECK 5VS LINE
(OPEN CHECK)
CHECK
U501 PIN 8 Voltage
(5V) ?
NO
NO
NO
CHECK U201 PIN 122
PULSE
CHECK U201
CHECK 3.3V LINE
CHECK X-TAL
IS U201
PIN114 (3.3V)
VOLTAGE ?
YES
YES NO PROBLEM
YES
CHECK KEY CONTROL
CONNECTOR ROUTINE
YES

- 13 -
2. NO RASTER (OSD IS NOT DISPLAYED) – LIPS
CHECK MICOM INV
ON/OFF PORT.
J705 PIN2
5V? NO
NO RASTER
(OSD IS NOT DISPLAYED)
CHECK LIPS
J705
PIN5, PIN6
5V?
NO
1. CONFIRM BRIGHTNESS
OSD CONTRL STATE.
2. CHECK MICOM DIM-ADJ
PORT
J705 PIN1
5V? NO
LIPS
CHECK
PULSE AS
CONTACTING SCOPE
PROBE TO CAUTION LABEL.
(CONTACT PROBE TO
CAUTION LABEL.
CAN YOU SEE PULSE
AT YOUR
SCOPE?
NO
REPLACE CCFL LAMP
IN THE LCD MODULE
YES
YES
YES
YES

- 14 -
3. NO RASTER (OSD IS NOT DISPLAYED) – MST9011B
1. CHECK PIN122, 123
SOLDERING CONDITION
2. CHECK X501
3. TROUBLE IN U201
U201
POWER PIN8, 114
3.3V?
NO CHECK U801
U201
PIN122, 123
OSCILLATE AS
12MHZ?
CHECK CONNECTION LINE
FROM D-SUB TO U501
TROUBLE IN CABLE
OR LCD MODULE
YES
YES
YES
NO RASTER
(OSD IS NOT DISPLAYED)
U501
PIN43 IS 48KHz H-SYNC?
PIN44 IS 60Hz V-SYNC?
IS PULSE APPEARED
AT SIGNAL PINS?
AT MODE 12?
NO
NO

- 15 -
4. TROUBLE IN DPM
TROUBLE IN DPM
TROUBLE IN U501
CHECK PC
PC IS NOT GOING
INTO DPM OFF MODE
NO
CHECK H/V SYNC
LINE
NO
YES
YES
CHECK
R773, R775
(SYNC) ?
CHECK
U501 PIN 43.44
SYNC PULSE ?

- 16 -
EXPLODED VIEW
1
3
2
5
6
6
9
12 13
8
10
74-1
11-2
11-1
4-2

- 17 -
EXPLODED VIEW PARTS LIST
1
2
3
4-1
4-2
5
6
7
8
9
10
11-1
11-2
12
13
3091TKL097B CABINET ASSEMBLY, L1530 BRAND 3090TKL088 "S" TYPE_SLIVER - L1530S
3091TKL097K CABINET ASSEMBLY, L1530 BRAND 3090TKL088 "B"-CKD - L1530S(SNT)
6304FLP113A
LCD(LIQUID CRYSTAL DISPLAY), LM150X08-A4K3 LG PHILPS TFT COLOR PSWG,LVDS,16MS,HYNIX/HITACHI
6304FHS006B LCD(LIQUID CRYSTAL DISPLAY), HSD150MX15 HANNSTAR TN COLOR DELL LVDS 250 NITS
6304FAU007B LCD(LIQUID CRYSTAL DISPLAY), M150XN07 AU TFT COLOR LVDS,TN,250NITS,16MS,PSWG
3809TKL067A BACK COVER ASSEMBLY, L1530 3808TKL072 (D/GRAY)_"S"TYPE - L1530S
3809TKL067C BACK COVER ASSEMBLY, L1530 3808TKL072 "A"-CKD - L1530S(SNT)
3043TKK146A TILT SWIVEL ASSEMBLY, L1530 .. STAND BASE_"S"TYPE - L1530S
3043TKK146B TILT SWIVEL ASSEMBLY, L1530 .. "A"-CKD - L1530S(SNT)
3043TKK145D TILT SWIVEL ASSEMBLY, L1530 .. "S"TYPE_SPRAY - L1530S
3043TKK145K TILT SWIVEL ASSEMBLY, L1530 .. "D"-CKD - L1530S(SNT)
4951TKS136A METAL ASSEMBLY, FRAME (L1530)_LPL_ANALOG -AUO, L1530S
4951TKS136B METAL ASSEMBLY, FRAME L1530_HANSTAR_ANALOG - L1530S
4951TKS136J METAL ASSEMBLY, FRAME "A"-CKD - L1530S(SNT)
4814TKK263A SHIELD, INVERTER CAP(L1530)
6871TPT271N
PWB(PCB) ASSEMBLY,POWER, M-CHASSIS 15INCH POWER TOTAL LIEN CHANG C306 68PF - LPL, HannStar
6871TPT271A PWB(PCB) ASSEMBLY,POWER, 15" M-CHASSIS POWER TOTAL LIEN CHANG "A INTEGRATED LIPS"- AUO
3313TL5090A MAIN TOTAL ASSEMBLY, L1530SM BRAND CL-61 - L1530S
3313TL5090C MAIN TOTAL ASSEMBLY, L1530SM WA CKD BRAND CL-61 - L1530S(SNT)
6631T11012R CONNECTOR ASSEMBLY, 20P H-H 140MM UL20276 PANEL LINK CABLE LM567D
6871TST541A PWB(PCB) ASSEMBLY,SUB, L1730BM CONTROL TOTAL BRAND CONTROL - L1530S
6871TST541B PWB(PCB) ASSEMBLY,SUB, L1730BM CONTROL TOTAL BRAND CL-62 - L1530S(SNT)
3550TKK446B COVER, L1530 BACK DOOR_"S"TYPE_SILVER
3550TKK452B COVER, LXX30 STAND REAR (350U)_SILVER
6850TD9004G CABLE,D-SUB, UL20276-9C(5.8MM) DT 1800MM BLACK(9930) SONY DM
6850TD9004H CABLE,D-SUB, UL2990-9C(5.8MM) DT 1500MM GLAY 20 MODEL DM - AUO
6410TEW003C POWER CORD, SP023+IS14 I-SHENG VDE/SEMKO 1870MM WALL 85964 GRA
Description Part No.Ref. No.

- 18 -
DATE: 2004. 3. 23.
*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION
C204 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C205 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C206 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C207 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C208 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C209 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C210 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C211 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C214 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C215 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C216 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C217 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C218 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C219 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C220 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C221 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C222 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C223 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C225 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C226 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C227 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C230 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C231 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C232 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C233 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C251 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C501 0CC101CK41A 100PF 1608 50V 5% R/TP NP0
C502 0CC101CK41A 100PF 1608 50V 5% R/TP NP0
C503 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C504 0CH8106F611 10UF 16V M 85STD(CYL) R/TP
C506 0CC030CK01A 3PF 1608 50V 0.25 PF R/TP NP0
C507 0CC180CK41A 18PF 1608 50V 5% R/TP NP0
C508 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C701 0CK105CD56A 1UF 1608 10V 10% R/TP X7R
C703 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C708 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5
C709 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5
C710 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5
C711 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5
C717 0CC101CK41A 100PF 1608 50V 5% R/TP NP0
C718 0CC101CK41A 100PF 1608 50V 5% R/TP NP0
C719 0CC680CK41A 68PF 1608 50V 5% R/TP NP0
C720 0CC101CK41A 100PF 1608 50V 5% R/TP NP0
C721 0CC680CK41A 68PF 1608 50V 5% R/TP NP0
C727 0CK105CD56A 1UF 1608 10V 10% R/TP X7R
C732 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5
C733 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C734 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C735 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C760 0CE107EF610 "100UF KMG,RD 16V 20% FL BULK"
C801 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5
C803 0CE107EF610 "100UF KMG,RD 16V 20% FL BULK"
DATE: 2004. 3. 23.
*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION
C804 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C805 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C806 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5
C807 0CE107EF610 "100UF KMG,RD 16V 20% FL BULK"
C808 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C809 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5
C810 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C812 0CE107EF610 "100UF KMG,RD 16V 20% FL BULK"
C814 0CE107EF610 "100UF KMG,RD 16V 20% FL BULK"
C815 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C816 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5
D701 0DS226009AA KDS226 TP KEC SOT-23 80V 300
D702 0DS226009AA KDS226 TP KEC SOT-23 80V 300
D706 0DS226009AA KDS226 TP KEC SOT-23 80V 300
D804 0DD184009AA KDS184 TP KEC - 85V - - - 300
D805 0DD184009AA KDS184 TP KEC - 85V - - - 300
ZD701 0DZ560009GB BZT52C5V6S DIODES R/TP SOD323
ZD702 0DZ560009GB BZT52C5V6S DIODES R/TP SOD323
ZD703 0DZ560009GB BZT52C5V6S DIODES R/TP SOD323
ZD704 0DZ560009GB BZT52C5V6S DIODES R/TP SOD323
ZD705 0DZ560009GB BZT52C5V6S DIODES R/TP SOD323
ZD711 0DZ560009GB BZT52C5V6S DIODES R/TP SOD323
U201 0IPRPM3007B "MST9011B(ANALOG) MSTAR 128P,L"
U501 0IZZTSZ347A MYSON MTV312 L1530SM - E
U502 0ISG240860B M24C08W6 SGS-THOMSON 8SOP R/T
U801 0IPMGKE011A KIA78D33F KEC DPAK R/TP 3.3V
U803 0IPMGK2001B AIC1117A-33CYTR(BS33) AIC SOT
Q502 0IKE704200H KIA7042AP TO-92 TP 4.2 VOLT.
Q503 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP
Q504 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP
Q505 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP
Q703 0TR390609FA KST3906-MTF TP SAMSUNG SOT23
Q704 0TR390609FA KST3906-MTF TP SAMSUNG SOT23
Q706 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP
Q707 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP
Q801 0TR127309AA KTA1273-Y(KTA966A) TP KEC TO9
Q802 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP
R201 0RJ1500D677 150 OHM 1/10 W 5% 1608 R/TP
R202 0RJ1500D677 150 OHM 1/10 W 5% 1608 R/TP
R203 0RJ1500D677 150 OHM 1/10 W 5% 1608 R/TP
R207 0RJ3900D677 390 OHM 1/10 W 5% 1608 R/TP
R208 0RJ1500D677 150 OHM 1/10 W 5% 1608 R/TP
REPLACEMENT PARTS LIST
CAUTION: BEFORE REPLACING ANY OF THESE COMPONENTS,
READ CAREFULLY THE SAFETY PRECAUTIONS IN THIS MANUAL.
* NOTE : S SAFETY Mark
AL ALTERNATIVE PARTS
MAIN BOARD
CAPACITORS
DIODEs
ICs
TRANSISTOR
RESISTORs

DATE: 2004. 3. 23.
*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION
R209 0RJ1500D677 150 OHM 1/10 W 5% 1608 R/TP
R210 0RJ1500D677 150 OHM 1/10 W 5% 1608 R/TP
R213 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP
R214 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP
R220 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP
R506 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP
R508 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP
R512 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP
R513 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP
R514 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP
R515 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP
R516 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP
R518 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP
R519 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R520 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP
R521 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP
R522 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP
R523 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP
R524 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R525 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R526 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R527 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R528 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R529 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R531 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R532 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R534 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP
R535 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/TP
R537 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/TP
R541 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R542 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R543 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP
R544 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP
R545 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP
R546 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP
R547 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP
R548 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP
R549 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP
R555 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R556 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP
R557 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R560 0RJ1501D677 1.5K OHM 1/10 W 5% 1608 R/TP
R561 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP
R563 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R564 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R565 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R701 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP
R703 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP
R706 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP
R708 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP
R709 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP
R716 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP
R717 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP
R722 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R723 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP
R724 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP
R726 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP
R727 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP
R728 0RJ1502D677 15K OHM 1/10 W 5% 1608 R/TP
R735 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP
R737 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP
R744 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP
DATE: 2004. 3. 23.
*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION
R745 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP
R747 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP
R748 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP
R749 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP
R770 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP
R771 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP
R772 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP
R773 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP
R774 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP
R775 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP
R779 0RJ0682D677 68 OHM 1/10 W 5% 1608 R/TP
R780 0RJ2001D677 2K OHM 1/10 W 5% 1608 R/TP
R781 0RJ2001D677 2K OHM 1/10 W 5% 1608 R/TP
R782 0RJ0102D677 10 OHM 1/10 W 5% 1608 R/TP
R783 0RJ0102D677 10 OHM 1/10 W 5% 1608 R/TP
R802 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP
R804 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP
R805 0RJ2000D677 200 OHM 1/10 W 5% 1608 R/TP
R806 0RJ2000D677 200 OHM 1/10 W 5% 1608 R/TP
R807 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R808 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP
R825 0RX0470J609 0.47 OHM 1 W 5% TA52
X501 6212AA2004A HC-49U TXC 12.0MHZ +/- 30 PPM
C1 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C2 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
LED1 0DLLT0340AA LITEON LTL-14CDJNHBP1 BK GREE
Q1 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP
Q2 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP
R1 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP
R2 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP
R3 0RJ2001D677 2K OHM 1/10 W 5% 1608 R/TP
R4 0RJ2001D677 2K OHM 1/10 W 5% 1608 R/TP
R5 0RJ5101D677 5.1K OHM 1/10 W 5% 1608 R/TP
R7 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP
R8 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP
SW2 140-058E SKHV10910B LGEC NON 12V 20A H
SW3 140-058E SKHV10910B LGEC NON 12V 20A H
SW6 140-058E SKHV10910B LGEC NON 12V 20A H
SW7 140-058E SKHV10910B LGEC NON 12V 20A H
SW8 140-058E SKHV10910B LGEC NON 12V 20A H
- 19 -
OTHERs
CONTROL BOARD
