SERVICE MANUAL

CAUTION

BEFORE SERVICING THE CHASSIS,

READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

CHASSIS : RF-02CA

MODEL : MT-50PZ40

MODEL : MT-50PZ41/H/V/VB/VS

MODEL : MT/MZ-50PZ43/M/S/V/VS

MODEL : MZ-50PZ42/42S

website:http://biz.LGservice.com

e-mail:http://www.LGEservice.com/techsup.html

Jan.,2003

Printed in KoreaP/NO : 3828VD0121C

- 2 -

CONTENTS

SAFETY PRECAUTIONS ...................................................................................3

DISCRIPTION OF CONTROLS ......................................................................... 4

ADJUSTMENT INSTRUCTIONS ........................................................................8

BLOCK DIAGRAM.............................................................................................11

EXPLODED VIEW..............................................................................................12

EXPLODED VIEW PARTS LIST........................................................................13

REPLACEMENT PARTS LIST...........................................................................14

SCHEMATIC DIAGRAM ........................................................................................

PRINTED CIRCUIT BOARD ..................................................................................

- 3 -

SAFETY PRECAUTIONS

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in

the Schematic Diagram and Replacement Parts List.

It is essential that these special safety parts should be replaced with the same components as recommended in this manual to

prevent X-RADIATION, Shock, Fire, or other Hazards.

Do not modify the original design without permission of manufacturer.

General Guidance

An lsolation Transformer should always be used during

the servicing of a receiver whose chassis is not isolated from

the AC power line. Use a transformer of adequate power rating

as this protects the technician from accidents resulting in

personal injury from electrical shocks.

It will also protect the receiver and it's components from being

damaged by accidental shorts of the circuitary that may be

inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this monitor is blown, replace

it with the specified.

When replacing a high wattage resistor (Oxide Metal Film

Resistor, over 1W), keep the resistor 10mm away from PCB.

Keep wires away from high voltage or high temperature parts.

Due to high vacuum and large surface area of picture tube,

extreme care should be used in handling the Picture Tube.

Do not lift the Picture tube by it's Neck.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source,

connect an electrical jumper across the two AC plug prongs.

Place the AC switch in the on positioin, connect one lead of

ohm-meter to the AC plug prongs tied together and touch other

ohm-meter lead in turn to each exposed metallic parts such as

antenna terminals, phone jacks, etc.

If the exposed metallic part has a return path to the chassis, the

measured resistance should be between 1MΩ and 5.2MΩ.

When the exposed metal has no return path to the chassis the

reading must be infinite.

An other abnormality exists that must be corrected before the

receiver is returned to the customer.

Leakage Current Hot Check (See below Figure)

Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check.

Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor

between a known good earth ground (Water Pipe, Conduit, etc.)

and the exposed metallic parts.

Measure the AC voltage across the resistor using AC

voltmeter with 1000 ohms/volt or more sensitivity.

Reverse plug the AC cord into the AC outlet and repeat AC

voltage measurements for each esposed metallic part. Any

voltage measured must not exceed 0.75 volt RMS which is

corresponds to 0.5mA.

In case any measurement is out of the limits sepcified, there is

possibility of shock hazard and the set must be checked and

repaired before it is returned to the customer.

Leakage Current Hot Check circuit

1.5 Kohm/10W

To Instrument's

exposed

METALLIC PARTS

Good Earth Ground

such as WATER PIPE,

CONDUIT etc.

AC Volt-meter

IMPORTANT SAFETY NOTICE

0.15uF

- 4 -

CONTROLS DESCRIPTION

Connection to PC

Connection to AV equipment

AC INPUT

(8Ω)

EXTERNAL SPEAKER

( )( )

R

COMPONENT(480i/480p)

(DVD INPUT)

AUDIO

INPUT

VIDEO

INPUT

AUDIO

INPUT

AUDIO

INPUT

RGB1 OUTPUT

(PC OUTPUT)

RGB1 INPUT

(PC INPUT)

RGB2 INPUT

(DIGITAL RGB INPUT)

RS-232C INPUT

(CONTROL/SERVICE)

( )( )

L

S-VIDEO

(8Ω)

EXTERNAL SPEAKER

(MONO)

R

AUDIO

L

YP

B

P

R

AUDIO

L

ON/OFF

VOL MENU

INPUT SELECT

Main power button

INPUT SELECT button

VOLUME (FF,GG) buttons

Power standby indicator

Illuminates red in standby

mode. Illuminates green

when the Monitor is turned

on Remote control sensor

MENU button

DD,EEbuttons

AUDIO INPUT

VIDEO

INPUT COMPONENT

(DVD INPUT)

S-VIDEO

INPUT

AUDIO INPUT

RGB1 INPUT

(PC INPUT)

RGB2 INPUT

(DIGITAL

RGB INPUT)

RS-232C

INPUT

Note :All cables shown are not provided with the Monitor,

except : A D-sub 15 pin cable and DVI cable is supplied to connect the Monitor to a PC.

- 5 -

AC INPUT

(8Ω)

EXTERNAL SPEAKER

( )( )

R

RGB1 OUTPUT

(PC OUTPUT)

AUDIO

INPUT

RGB1 INPUT

(PC INPUT)

RGB2 INPUT

(DIGITAL RGB INPUT)

RS-232C INPUT

(CONTROL/SERVICE)

( )( )

L

(8Ω)

EXTERNAL SPEAKER

AV1AV1

AC INPUT

(8Ω)

EXTERNAL SPEAKER

( )( )

R

COMPONENT(480i/480p)

(DVD INPUT)

AUDIO

INPUT

VIDEO

INPUT

AUDIO

INPUT

AUDIO

INPUT

RGB1 OUTPUT

(PC OUTPUT)

RGB1 INPUT

(PC INPUT)

RGB2 INPUT

(DIGITAL RGB INPUT)

RS-232C INPUT

(CONTROL/SERVICE)

( )( )

L

S-VIDEO

(8Ω)

EXTERNAL SPEAKER

Y P

B

P

R

(MONO)

R

AUDIO

L

R

AUDIO

L

Socket Type

Scart Type

1 2 3 4 5

1. EXTERNAL SPEAKER (8 ohm output)

Connect this terminal to the optionally available speaker.

*For further information, refer to ‘Speaker & Speaker

stand’ manual.

2. POWER INPUT SOCKET

This Monitor operates on an AC mains supply, the voltage

is as indicated as inside back cover of this manual. Never

apply DC power to the Monitor.

3. VIDEO/S-VIDEO/COMPONENT(DVD INPUT)/AUDIO

INPUT SOCKETS

EURO SCART SOCKET

Note : The interface board(AP-50EA40/41) is not

equipped on MT/MZ-50PZ41/43 series models. Contact

your dealer for buying this optional item.

4. RGB1 OUTPUT(PC OUTPUT)/AUDIO IN SOCKETS

You can watch the RGB1 signal in other monitor by con-

necting RGB1 OUTPUT(PC OUTPUT) to other monitor’s

PC input jack.

Note : When you watch after connecting with other mon-

itor,

a. When you select RGB1 or RGB2 for main picture, you

can watch AV1, AV2 or S-Video for sub picture.

b. When you select AV1, AV2 or S-Video for main pic-

ture, You can watch main picture’s viewing.

RGB1 INPUT(PC INPUT)/RGB2 INPUT(DIGITAL RGB

INPUT) IN SOCKETS

Connect the monitor output socket of the PERSONAL

COMPUTER to this socket.

5. RS-232C INPUT(CONTROL/SERVICE) SOCKET

Connect it to the RS-232C socket on the PC.

3

- 6 -

-When using the remote control aim it at the remote control sensor of the Monitor.

1 2 3

4 5 6

7 8

0

9

POWER

SLEEP INPUT SELECT

PSM SSM

ARC PIPARC

PIP

TWIN PICTURE

SWAP

MENU MUTE

OK

VOL

POWER STOP

PLAY FF

REC

REW

P/STILL

WIN.SIZE

WIN.POSITION

ZOOM +

ZOOM -

SPLIT ZOOM

VOL

SUB INPUT

1. POWER

switches the set on from standby or off to standby.

2. SLEEP

sets the sleep timer.

3. PSM (Picture Status Memory)

recalls your preferred picture setting.

4. ARC (Aspect Ratio Control)

changes the picture format.

5. PIP

switches the sub picture on or off.

6. SWAP

alternates between main and sub picture.

7. MENU Button

selects a menu.

8. DD/ EE

selects a menu item.

FF/ GG(Volume Down/Up)

adjusts the volume.

adjusts menu settings.

OK

displays the current mode.

9. NUMBER BUTTONS

10. VCR BUTTONS

control a LG video cassette recorder.

11. WIN. SIZE

adjusts the sub picture size.

12. ZOOM-/ZOOM+

13. INPUT SELECT BUTTON

selects TV, AV or PC monitor mode.

14. SSM (Sound Status Memory)

recalls your preferred sound setting.

15. PIP ARC

changes the picture format of PIP.

16. TWIN PICTURE

17. SUB INPUT

selects the input mode for the sub picture.

18. MUTE Button

switches the sound on or off.

19. SPLIT ZOOM

enlarge the screen with regular ration.

20. WIN.POSITION

moves the sub picture to DD/ EEor FF/ GGdirection.

1

13

14

15

16

17

18

19

20

2

3

4

5

6

7

8

9

10

11

12

- 7 -

D-sub 15 pin cable

AS mark

LG TV

Owner’s Manual

1.5V

Alkaline batteries BNC-RCA adapter (optional)

DVI cable Power cord

1 2 3

4 5 6

7 8

0

9

POWER

SLEEP INPUTSELECT

PSM SSM

ARC PIPARC

PIP

TWINPICTURE

SWAP

MENU MUTE

OK

VOL

POWER STOP

PLAY FF

REC

REW

P/STILL

WIN.SIZE

WIN.POSITION

ZOOM+

ZOOM-

SPLITZOOM

VOL

SUBINPUT

Remote control handset

Simple monitor stand

Ceiling mounting bracket

- Optional extras can be changed or modified for quality improvement without any notification new optional extras can be

added.

- Contract your dealer for buying these items.

Accessories

Optional Extras

Tilt wall mounting bracket Wall mounting bracket

Video cables

Desktop stand Desktop Speaker stand

Speakers

PC audio cables

1. Application Object

These instructions are applied to all of the PDP monitor, RF-

02CA.

2. Notes

(1) Because this is not a hot chassis, it is not necessary to use

an isolation transformer. However, the use of isolation

transformer will help protect test instrument.

(2) Adjustment must be done in the correct order.

(3) The adjustment must be performed in the circumstance of

25±5°C of temperature and 65±10% of relative humidity if

there is no specific designation.

(4) The input voltage of the receiver must keep 110~240V,

50/60Hz in adjusting.

(5) The receiver must be operated for about 15 minutes prior

to the adjustment.

1) After receiving 100% white pattern(06CH), the receiver

must be operate prior to adjustment. (Or white condition

in HEAT-RUN mode)

2) Enter into HEAT-RUN mode

- Press the POWER ON KEY on R/C for adjustment.

- OSD display HEAT-RUN WHITE and screen display

100% full WHITE PATTERN.

[Set is activated HEAT-RUN without signal generator in

this mode.

[Single color pattern of HEAT-RUN mode uses to check

PANEL. (RED/BLUE/GREEN)

[Caution]

If you turn on a still screen more than 20 minutes

(Especially Digital pattern(13 CH), Cross Hatch

Pattern), a afterimage may be occur in the black level

part of the screen.

3. RGB Auto Cut-Off & MIN Bias

Adjustment

(1) Input Full Back (0 Gray) signal which generated from

Pattern Generator into CVBS and RGB1 Input part.

(2) Press POWER ON KEY on R/C for adjustment and select

AUTO-CUT(Cut-off Auto Adjustment)

(3) Press Vol. + key and operate TO SET

(4) Screen adjustment starts with Full Black screen.

Original Window screen will be presented about 5-6

seconds later. And if there is a mark of OK OSD, then the

Auto Cut-off and Min-Bias adjustment will be completed.

(5) Pass to the next MAX Bias Adjustment after Adjustment.

[Replace PDP Module or Power Board, adjust certainly Power

PCB Assy Voltage.

4. MAX Bias Adjustment

(1) Input Full White (255 Gray) signal which generated from

Pattern Generator into CVBS and RGB1 Input part.

(2) Press POWER ON KEY on R/C for adjustment and select

MAX-BIAS

(3) Press Vol. + key and operate TO SET

(4) Original Full White screen will be presented about 1~2

seconds later. And if there is a mark of OK OSD, then the

Min-Bias adjustment will be completed.

(5) After adjustment, press

¥

key to save adjustment and

come out of the adjustment mode.

O

You can check whether circuit adjustment is operated well or

not, as below.

(1) Display RGB1 to the Main picture, CVBS to the Sub

picture in the TWIN PICTURE.

(2) To check the MIN-Bias, input Full Black (0 gray) signal into

CVBS and RGB1 input part at the same time in the Pattern

Generator.

(3) To check the MAX-Bias, input Full White (255 gray) signal

into CVBS and RGB1 input part at the same time in the

Pattern Generator.

(4) Compare Black Level with White Level by eyes. And if

there is no Level difference, the adjustment is completed

well.

O

Data value, which adjusted in the board, is valid until the VSC

Board is dissued and must be protected. For the protection of

data, Micom does not permit any more adjustment after

completion.

O

In case of re-adjustment, operate First Value Setting.

Each PCB Assy must be checked by Check JIG Set before

assembly. (Especially, be careful Power PCB Assy which can

cause fatal Damage to PDP Module.)

5. POWER PCB Assy Voltage

Adjustment (Va, Vs Voltage Adjustment)

5-1 Test Equipment :D.M.M 1EA

5-2 Connection Diagram for Measuring

Refer to Fig 1.

5-3 Adjustment Method

(1) Va Adjustment

1) After receiving 100% white pattern, HEAT RUN.

2) Connect + terminal of D.M.M to Va pin of P805 and

connect – terminal to GND pin of P805.

3) After turning the VR4, voltage of D.M.M adjustment as

same as Va voltage which on label of panel Right/Top.

(Deviation : ±0.5V)

- 8 -

ADJUSTMENT INSTRUCTIONS

- 9 -

(2) Vs adjustment

1) Connect + terminal of D.M.M to Vs pin of P805 and

connect – terminal to GND pin of P805.

2) After turning the VR1, voltage of D.M.M adjustment as

same as Vs voltage which on label of panel Right/Top.

(Deviation : ±0.5V)

6. Adjustment of White Balance

6-1. Required Equipment

Color analyzer (CA-100 or same product)

6-2. Connection Diagram of Equipment for

Measuring (Manual Adjustment)

6-3. Adjustment of White Balance

O

Operate the Zero-calibration of the CA-100, then stick sensor

to PDP module surface when you adjust.

O

For manual adjustment, it is also possible by the following

sequence.

(1) Select WHITE PATTERN of HEAT RUN mode by pressing

POWER ON KEY on remote control for adjustment then

operate HEAT RUN more than 15 minute.

(2) Supply 216Gray, 128Gray, 70Gray Level, 50% size length

and breadth signal to RGB1 input. (Refer to Fig 2,3,4)

(3) W/B adjustment must be adjusted once and follow the

sequence of Low Light --> Middle Light --> High Light and

then save the adjustment value with oKey.

DMM

VR1

VR4

Va voltage

adjustment

variable resistor

P806

GND

Va

NC

Vs

P805

Vs voltage

adjustment

variable resistor

RV401

Vs ADJ

RV601

Va ADJ

DMMDMM

+ -

Vs

NC

Va

GND

P806 P805

Vs

NC

Va

GND

P806 P805

Va voltage

adjustment

variable resistor

Vs voltage

adjustment

variable resistor

<Fig 1> Connection Diagram of Power Adjustment for Measuring

R-L 70

G-L 70

R-M 128

G-M 128

R-H 216

G-H 216

Window

MSPG-2100 or

MSTG-5200

COLOR

ANALYZER

TYPE;CA-100

Low Light

70 Gray Level

115±5Cd/§‡

RGB Signal Input

PDP MONITOR

<Fig 2> Connection Diagram of Manual Adjustment(Low Light)

R-L 70

G-L 70

R-M 128

G-M 128

R-H 216

G-H 216

Window

MSPG-2100 or

MSTG-5200

COLOR

ANALYZER

TYPE;CA-100

Middle Light

128 Gray Level

55±5Cd/§‡

RGB Signal Input

PDP MONITOR

<Fig 3> Connection Diagram of Manual Adjustment(Middle Light)

R-L 70

G-L 70

R-M 128

G-M 128

R-H 216

G-H 216

Window

MSPG-2100 or

MSTG-5200

COLOR

ANALYZER

TYPE;CA-100

High Light

216 Gray Level

115±5Cd/§‡

RGB Signal Input

PDP MONITOR

<Fig 4> Connection Diagram of Manual Adjustment(High Light)

(4) To adjust Low Light , stick sensor to Gray Level(or 15±5

Cd/m2) Pattern, press ADJ Key on R/C for adjustment and

press v, xon R/C in adjustment mode to select R-L or G-L,

press VOL +, - Key and adjust it until color coordination

becomes as below.

X: 0.285±0.003, Y: 0.295±0.003,

Color temperature: 9,200°K±500°K

(5) To adjust Middle Light , stick sensor to Gray Level(or 55±5

Cd/m2) Pattern, press ADJ Key on R/C for adjustment and

press v, xon R/C in adjustment mode to select R-M or G-M,

press VOL +, - Key and adjust it until color coordination

becomes as below.

X: 0.285±0.003, Y: 0.295±0.003

Color temperature: 9,200°K±500°K

(6) To adjust High Light, stick sensor to Gray Level(or 115±5

Cd/m2) Pattern, press ADJ Key on R/C for adjustment and

press v, xon R/C in adjustment mode to select R-L or G-L,

press VOL +, - Key and adjust it until color coordination

becomes as below.

X: 0.285±0.003, Y: 0.295±0.003

Color temperature: 9,200°K±500°K

(7) Exit adjustment mode using oKey.

7. DDC Data Input

7-1. Required Test Equipment

(1) A jig for adjusting PC, DDC. (PC serial to D-sub.

Connection equipment)

(2) S/W for writing DDC(EDID data write & read)

(3) D-Sub 15P cable, D-Sub to DVI Connector (Connect to

DVI Jack)

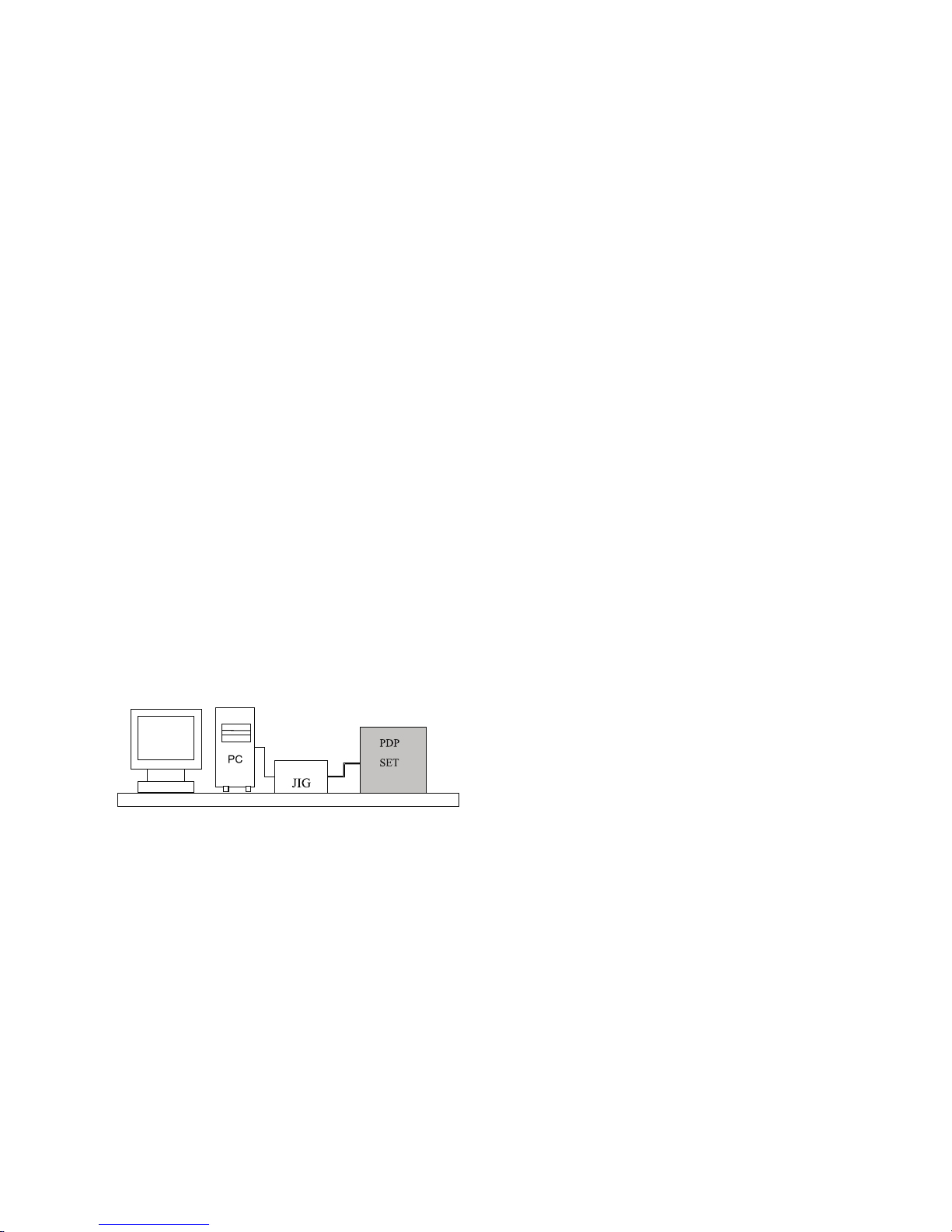

7-2. Setting of Device

7-3. Preparation for Adjustment

(1) Set devices as above and turn the PC, jig on.

(2) Put S/W for writing DDC (EDID data write & read) into

operation. (operated in DOS mode.)

7-4. Sequence of Adjustment

(1) DDC Data Input for Analog-RGB

1) Put the set on the table and turn the power on.

2) Connect PC Serial to D-sub 15P Cable of JIG for DDC

Adjustment to RGB1 terminal (D-Sub 15Pin).

3) Operate S/W for DDC record and select DDC Data for

Analog RGB in Model Menu.

4) Operate EDID Write command.

5) Operate EDID Read command and check whether

Check Sum is OK.

6) If Check Sum is NG, repeat 3) ~ 4).

7) If Check Sum is OK, DDC Data for Analog-RGB input is

completed.

(2) DDC Data input for Digital-RGB

1) Connect PC Serial to DVI Cable of JIG for DDC

Adjustment to RGB2 terminal (DVI Jack).

2) Operate S/W for DDC record and select DDC Data for

Digital RGB in Model Menu.

3) Operate EDID Write command.

4) Operate EDID Read command and check whether

Check Sum is OK.

5) If Check Sum is NG, repeat 3) ~ 4).

6) If Check Sum is OK, DDC Data for Digital-RGB input is

completed.

8. Component Off-Set adjustment

Input the signal to HD-STB(SK-010T) and receive 14Ch.

8-1. Required Equipment

HD-STB (SK-010T or same product)

8-2. Manual Adjustment of Off-Set

(1) Input Video signal and Component 720P, 1080i signal of

HD-STB into AV1 and Component input part.

(2) Select Twin Picture by pressing ADJ twice on R/C, check

component in the main picture and AV1 in the sub picture.

(3) Adjust the R-OFFSET, B-OFFSET color impression of

component(Main picture) and external Input(Sub picture)

same by pressing Volume +,- key.

- 10 -

- 11 -

BLOCK DIAGRAM

- 12 -

EXPLODED VIEW

301

303

200

204

213

302

300

305

214

215

610

520

560 530

401

570 400

410

310

320

330

581

580

550

540

590

591

212

209

207

202

201

205

210

208

203

211

206

- 13 -

EXPLODED VIEW PARTS LIST

200 6348Q-C030C PDP,50” 16:9 1365*768 DUAL SCAN PO

201 6871QCH019B PCB ASSEMBLY,CTRL ASSY HAND INSERT 50INCH V

202 6871QDH030B PCB ASSEMBLY,YDRV ASSY HAND INSERT 50WX1 4

203 6871QDH031B PCB ASSEMBLY,YDRV ASSY HAND INSERT 50WX1 4

204 6871QLH018A PCB ASSEMBLY,XRLT ASSY HAND INSERT 50WX1 4L

205 6871QLH019A PCB ASSEMBLY,XRLT ASSY HAND INSERT 50WX1 4L

206 6871QPH006A PCB ASSEMBLY,DCDC ASSY HAND INSERT 50WX1

207 6871QRH016A PCB ASSEMBLY,XRRT ASSY HAND INSERT 50WX1 4L

208 6871QRH017A PCB ASSEMBLY,XRRT ASSY HAND INSERT 50WX1 4L

209 6871QXH011A PCB ASSEMBLY,XRCT ASSY HAND INSERT 50WX1 4L

210 6871QXH012A PCB ASSEMBLY,XRCT ASSY HAND INSERT 50WX1 4L

211 6871QYH020B PCB ASSEMBLY,YSUS ASSY HAND INSERT 50WX1 4

212 6871QZH021A PCB ASSEMBLY,ZSUS ASSY HAND INSERT 50WX1 2

213 4980V00416A SUPPORTER ASSY,MN-50PZ40 RIGHT

214 4980V00416B SUPPORTER ASSY,MN-50PZ40 LEFT

215 4980V00498A SUPPORTER ASSY,SMPS MN-50PZ40

4980V00498B SUPPORTER ASSY,SMPS MN-50PZ40 DELTA

300 3091V00433B CABINET ASSEMBLY,MZ-50PZ41 LG FLATRON

3091V00433G CABINET ASSEMBLY,MZ-50PZ43S SILVER

3091V00433F CABINET ASSEMBLY,BLACK

301 4980V00361A SUPPORTER,FILTER TOP MN-50PZ40

302 4980V00362A SUPPORTER,FILTER BOTTOM MN-50PZ40

303 4980V00363A SUPPORTER,FILTER SIDE MN-50PZ40

305 3790V00311C WINDOW,GLASS FILTER MN-50PZ41 NE-CUTT

3790V00683A WINDOW,GLASS FILTER MN-50PZ40

310 5020V00688A BUTTON,CONTROL MN-50PZ41 SET

320 320-062H SPRING,COIL

330 5020V00645A BUTTON,POWER OUTER MN-50PZ40 SET

400 3809V00292A BACK COVER ASSEMBLY,MN-50PZ40 INNER

401 3301V00009B PLATE ASSEMBLY,AV

3301V00009C PLATE ASSEMBLY,AV MZ-50PZ43

410 3809V00293B BACK COVER ASSEMBLY

520 6871VMMC16A PCB ASSEMBLY,MAIN RF-02CA FOR MT

6871VMMC16C PCB ASSEMBLY,MAIN RF-02CA FOR MT PIVOT

6871VMMC06A PCB ASSEMBLY,MAIN RF-02CA FOR MZ AUTO

6871VMMC06B PCB ASSEMBLY,MAIN RF-02CA FOR MZ PIVOT

530 6871VSMD10A PCB ASSEMBLY,EXTRA RF-02CA 50IN IF/FIX

540 6871VSMD04B PCB ASSEMBLY,AV RF02CA PAL A/V

550 6871VSMD06C PCB ASSEMBLY,A/V RF-02CA 50IN AUDIO

560 6871VSMD11C PCB ASSEMBLY,SPK RF-02CA 50IN RIGHT SPK

570 3141VSNA57A CHASSIS ASSEMBLY,SUB RF-02CA PRE AMP

580 6871VSMD08A PCB ASSEMBLY,KBD RF-02CA 50IN LOCAL KEY

581 5020V00647A BUTTON,CONTROL S/W INNER MN-50PZ40 SE

590 6871VSMD09A PCB ASSEMBLY,PSW RF-02CA 50IN POWER SWITCH

591 5020V00648A BUTTON,POWER INNER MN-50PZ40 SET

600 6871VSMN17A PCB ASSEMBLY,EXTRA RF02CA RF-02CA FAN CONTR

610 3501V00084B BOARD ASSEMBLY,P-BOARD FREE VOLTAGE 50PZ43 PO

3501V00084C BOARD ASSEMBLY,P-BOARD

No. Part No. Description

- 14 -

REPLACEMENT PARTS LIST

LOCA. NO PART NO DESCRIPTION

IC858

IC7

IC8

Q001

Q002

Q104

Q150

Q151

Q152

Q153

Q155

Q156

Q157

Q158

Q161

Q162

Q300

Q301

Q302

Q303

Q304

Q305

Q306

Q307

Q308

Q309

Q310

Q314

Q315

Q316

Q317

Q318

Q319

Q320

Q400

Q401

Q402

Q403

Q404

Q405

Q407

QA101

QA102

QA103

QA720

QA721

QA722

QA723

QA740

QN101

QN102

0IMCRRH001A

0TR830009BA

0TR387500AA

0TR150400BA

0TR387500AA

0TR150400BA

0TR387500AA

0TR150400BA

0TR387500AA

0TR150400BA

0TR387500AA

0TR150400BA

0TR387500AA

0TR150400BA

0TR387500AA

0TR150400BA

0TR387500AA

0TR104009AF

0TR150400BA

0TR387500AA

0TR150400BA

0TR387500AA

BA033FP ROHM 3P-SOP,TO252-3 R/

BSS83 TP PHILIPS NON N-CHANNEL

CHIP 2SC3875S(ALY) KEC

CHIP 2SA1504S(ASY) KEC

CHIP 2SC3875S(ALY) KEC

CHIP 2SA1504S(ASY) KEC

CHIP 2SC3875S(ALY) KEC

CHIP 2SA1504S(ASY) KEC

CHIP 2SC3875S(ALY) KEC

CHIP 2SA1504S(ASY) KEC

CHIP 2SC3875S(ALY) KEC

CHIP 2SA1504S(ASY) KEC

CHIP 2SC3875S(ALY) KEC

CHIP 2SA1504S(ASY) KEC

CHIP 2SC3875S(ALY) KEC

CHIP 2SA1504S(ASY) KEC

CHIP 2SC3875S(ALY) KEC

CHIP KRC104S SOT-23 TP KEC - -

CHIP 2SA1504S(ASY) KEC

CHIP 2SC3875S(ALY) KEC

CHIP 2SA1504S(ASY) KEC

CHIP 2SC3875S(ALY) KEC

LOCA. NO PART NO DESCRIPTION

IC1

IC2

IC3

IC4

IC5

IC6

IC101

IC102

ICN102

IC103

IC104

IC105

IC201

IC202

IC401

IC402

IC404

IC405

IC501

IC502

IC503

IC504

IC601

IC701

IC702

IC703

IC704

IC741

IC742

IC743

IC744

IC745

IC746

IC747

IC748

IC749

IC750

IC801

IC802

IC803

IC850

IC851

IC852

IC853

IC854

0IMI623200B

0IDS162100B

0ISS278050A

0ISH092100A

0ISS278120A

0IAL242110A

0IMCRMN002A

0ISO208900A

0IAL242110A

0IKE780800J

0IPRPT1001A

0IMCRFA010A

0IMCRTI003A

0ISH052100C

0IBB368200A

0IKE704200J

0ISA428200A

0IMCRAD003A

0IPRPT1001A

0IIT323000D

0IFA741230A

0IMCRG2001A

0IMMRSS037C

0IMCROT001A

0IMMRSS037C

0IS5160000A

0IMCRRS001A

0IMMRSS064A

0IMMRMR006A

0IMCRAL006A

0IMCRFA013A

0ITI745740M

0IMCRPH017A

0IPH740800L

0IMCRPH015A

0IMCRPH016A

0IMCRPH014A

0IKE702700D

0IDS232000A

0IMCRSJ001A

0IPRPML001A

0IMCRFA010A

0IMCRRH001A

M62320FP,I/O EXPANDER 16P SOP

DS1621V 8P SOIC ST THERMOSTAT

KA278R05 4P,TO-220F BK LOW DRO

PQ09RF21 4P 9V S/W REGULATOR -

KA278R12 4P,TO-220F BK LOW DRO

AT24C21-10SI-2.5 8P,SOP TP 1K

MSP3440G QA B6 MICRONAS 80 QFP

CXA2089Q 48QFP BK A/V SWITCH

AT24C21-10SI-2.5 8P,SOP TP 1K

KIA7808API 3 ST REGULATOR .

TFP401PZP TEXAS INSTRUMENT

KA7809R, FAIRCHILD 2P D-PAK, R

SN74HCT08D TEXAS INSTRUMENT 16

PQ05RD21 4SIP ST REGULATOR

OPA3682E 16P SOP ST BUFFER AMP

KIA7042AF SOT-89 TP 4.2V VOLTA

LA4282 12S 2CHX10W AUDIO AMP

AD9888KS-140 ANALOG DEVICE 128

TFP401PZP TEXAS INSTRUMENT

VPC3230D QA B4 80P QFP TRAY SO

DM74LS123MX 16SOP TP DUAL RETR

FLI2200 SAGE 176P,QFP TRAY VID

K4S643232F-TC60

REMBRANT-1A OPLUS TECHNOLOGIES

K4S643232F-TC60

SII160 100 TQFP ST PANELLINK D

R8820LV RDC SEMICONDUCTOR LTD

K6R4016V1C-TC10 SAMSUNG ELECTR

MX29LV160TTC-70 MACRONIX 48P T

AT24C16N-10SI-2.7 8P SOIC ST EEPRO

74LCX244MTC FAIRCHILD 20P TSSO

SN74HC574NSR 14P,SOP TP D-TYPE

74LVC574APW PHILIPS 20P SOT360

74LVT08D 14SOP R/TP LOW VOLTAG

74LVC32AD PHILIPS 14P SOT108-1

74LVC139D PHILIPS 16P SOT109-1

74LV132D PHILIPS 14P SOT108-1

KIA7027AF 3, SOT-89 TP RESET I

DS232AS 16P,SOP TP RS-232 DRIV

SC1565IST-1.8 SEMTECH 3P SOT22

MIC39100 MICREL 3P SOT223 R/TP

KA7809R, FAIRCHILD 2P D-PAK, R

BA033FP ROHM 3P-SOP,TO252-3 R/

IC TRANSISTOR

- 15 -

LOCA. NO PART NO DESCRIPTION

QN103

QN104

QN105

QN106

QN107

QN108

D1

D001

D100

D101

D102

D103

D104

D105

D106

D107

D108

D109

D110

D111

D112

D113

D114

D115

D117

D118

D119

D120

D121

D122

D123

D801

D802

D803

D850

D851

D852

D853

D854

D855

D857

D859

DA101

DA102

DA103

DA104

DA105

DA106

DN111

LD300

0TR387500AA

0TR150400BA

0TR387500AA

0TR150400BA

0TR387500AA

0DD100009AM

0DL200000CA

0DD226239AA

0DD184009AA

0DD226239AA

0DL233309AC

CHIP 2SC3875S(ALY) KEC

CHIP 2SA1504S(ASY) KEC

CHIP 2SC3875S(ALY) KEC

CHIP 2SA1504S(ASY) KEC

CHIP 2SC3875S(ALY) KEC

EU1ZV(1) TP SANKEN

LED,SAM5670(DL-2LRG) BK Y-GREEN -

CHIP KDS226 SOT-23

KDS184S CHIP 85V 300MA KEC TP

CHIP KDS226 SOT-23

LED,SAM2333 TP KWANG GREEN/RED

LOCA. NO PART NO DESCRIPTION

LD460

LD461

LD740

LD741

LD742

LD743

LD804

LD805

LD806

ZD116

ZD201

ZD750

ZD751

ZD752

C2

C003

C4

C8

C11

C13

C14

C15

C16

C109

C110

C111

C112

C113

C114

C115

C119

C121

C123

C127

C134

C150

C154

C158

C179

C182

C185

C300

C303

C306

C311

C316

C320

C322

C344

C348

0DL233309AC

0DR050008AA

0CE106SF6DC

0CE476SF6DC

0CE106SF6DC

0CE476SF6DC

0CE477VF6DC

0CE476SF6DC

0CE105SK6DC

0CE107SF6DC

0CE477VF6DC

0CE476SF6DC

0CE106SF6DC

0CN105EJ56A

0CE106SF6DC

LED,SAM2333 TP KWANG GREEN/RED

SD05.TC R/TP SEMTECH SOD323 5V

10UF MVG 16V 20% R/TP(SMD) SMD

47UF MVG 16V M SMD R/TP

10UF MVG 16V 20% R/TP(SMD) SMD

47UF MVG 16V M SMD R/TP

470UF MV 16V 20% R/TP(SMD) SMD

47UF MVG 16V M SMD R/TP

1UF MVG 50V M SMD R/TP

100UF MVG 16V M SMD R/TP

470UF MV 16V 20% R/TP(SMD) SMD

47UF MVG 16V M SMD R/TP

10UF MVG 16V 20% R/TP(SMD) SMD

1.0UF 3216 35V 10% R/TP X7R

10UF MVG 16V 20% R/TP(SMD) SMD

For Capacitor & Resistors,

the charactors at 2nd and 3rd

digit in the P/No. means as

follows;

CC, CX, CK, CN : Ceramic

CQ : Polyestor

CE : Electrolytic

RD : Carbon Film

RS : Metal Oxide Film

RN : Metal Film

RF : Fusible

DIODE

CAPACITOR

- 16 -

LOCA. NO PART NO DESCRIPTION

C400

C401

C408

C409

C411

C418

C420

C425

C426

C427

C436

C452

C464

C800

C805

C808

C812

C814

C816

C817

C818

C820

C822

C825

C827

C829

C832

C835

C838

C840

C842

C845

C848

C849

C851

C853

C856

C859

C862

C865

C867

C869

C872

C875

C878

C892

C894

C897

C900

C903

C906

C908

0CN105EJ56A

0CE106SF6DC

0CE107SF6DC

0CK224DF56A

0CE106SF6DC

0CK224DF56A

0CE106SF6DC

0CE476SF6DC

0CE477VF6DC

0CE227VF6DC

0CE477VF6DC

0CE227VF6DC

0CE477VF6DC

0CE106SF6DC

0CE227VF6DC

0CE107SF6DC

0CE227VF6DC

0CE476SF6DC

0CE107SF6DC

0CE476SF6DC

0CE477VF6DC

0CE107SF6DC

0CE227VF6DC

0CE476SF6DC

0CE106SF6DC

0CE477VF6DC

0CE107SF6DC

0CE477VF6DC

1.0UF 3216 35V 10% R/TP X7R

10UF MVG 16V 20% R/TP(SMD) SMD

100UF MVG 16V M SMD R/TP

220000PF 2012 16V 10% R/TP X7R

10UF MVG 16V 20% R/TP(SMD) SMD

220000PF 2012 16V 10% R/TP X7R

10UF MVG 16V 20% R/TP(SMD) SMD

47UF MVG 16V M SMD R/TP

470UF MV 16V 20% R/TP(SMD) SMD

220UF MV 16V 20% R/TP(SMD) SMD

470UF MV 16V 20% R/TP(SMD) SMD

220UF MV 16V 20%R/TP

470UF MV 16V 20% R/TP(SMD) SMD

10UF MVG 16V 20% R/TP(SMD) SMD

220UF MV 16V 20%R/TP

100UF MVG 16V M SMD R/TP

220UF MV 16V 20% R/TP(SMD) SMD

47UF MVG 16V M SMD R/TP

100UF MVG 16V M SMD R/TP

47UF MVG 16V M SMD R/TP

470UF MV 16V 20% R/TP(SMD) SMD

100UF MVG 16V M SMD R/TP

220UF MV 16V 20% R/TP(SMD) SMD

47UF MVG 16V M SMD R/TP

10UF MVG 16V 20% R/TP(SMD) SMD

470UF MV 16V 20% R/TP(SMD) SMD

100UF MVG 16V M SMD R/TP

470UF MV 16V 20% R/TP(SMD) SMD

LOCA. NO PART NO DESCRIPTION

C910

C931

C933

C935

C938

C941

C944

C947

C949

C951

C954

C957

C966

C975

C977

C980

C983

C986

C989

C992

CA101

CA102

CA104

CA105

CA106

CA107

CA108

CA109

CA110

CA111

CA112

CA113

CA114

CA115

CA116

CA117

CA118

CA119

CA120

CA121

CA122

CA125

CA126

CA127

CA128

CA129

CA131

CA132

CA133

CA134

CA135

CA139

0CE477VF6DC

0CE107SF6DC

0CE477VF6DC

0CE107SF6DC

0CE227VF6DC

0CE476SF6DC

0CE477VF6DC

0CE107SF6DC

0CE476SF6DC

0CE107SF6DC

0CE227VF6DC

0CE476SF6DC

0CE107SF6DC

0CE476SF6DC

0CE107SF6DC

0CE477DK618

0CE107DH618

0CE105SK6DC

0CE106SF6DC

0CQ6821N509

0CE107DH618

0CQ6821N509

0CE477DK618

0CE106SF6DC

181-120K

0CE477DK618

0CE107DH618

0CE477DK618

0CQ1041N509

0CE227VF6DC

0CE106SF6DC

0CQ1041N509

0CE227VF6DC

0CE107SF6DC

0CE474SK6DC

0CE335SK6DC

0CE107SF6DC

0CE106SF6DC

0CE474SK6DC

0CE106SF6DC

470UF MV 16V 20% R/TP(SMD) SMD

100UF MVG 16V M SMD R/TP

470UF MV 16V 20% R/TP(SMD) SMD

100UF MVG 16V M SMD R/TP

220UF MV 16V 20% R/TP(SMD) SMD

47UF MVG 16V M SMD R/TP

470UF MV 16V 20% R/TP(SMD) SMD

100UF MVG 16V M SMD R/TP

47UF MVG 16V M SMD R/TP

100UF MVG 16V M SMD R/TP

220UF MV 16V 20% R/TP(SMD) SMD

47UF MVG 16V M SMD R/TP

100UF MVG 16V M SMD R/TP

47UF MVG 16V M SMD R/TP

100UF MVG 16V M SMD R/TP

470UF STD 50V 20% FL TP 5

100UF STD 25V M FL TP5

1UF MVG 50V M SMD R/TP

10UF MVG 16V 20% R/TP(SMD) SMD

0.0068U 100V K POLY TP

100UF STD 25V M FL TP5

0.0068U 100V K POLY TP

470UF STD 50V 20% FL TP 5

10UF MVG 16V 20% R/TP(SMD) SMD

2200PF 4KV M E FMTW LEAD 4.5

470UF STD 50V 20% FL TP 5

100UF STD 25V M FL TP5

470UF STD 50V 20% FL TP 5

0.1U 100V K POLY TP

220UF MV 16V 20% R/TP(SMD) SMD

10UF MVG 16V 20% R/TP(SMD) SMD

0.1U 100V K POLY TP

220UF MV 16V 20% R/TP(SMD) SMD

100UF MVG 16V M SMD R/TP

0.47UF MVG 50V M SMD R/TP

3.3UF MVG 50V 20% SMD R/TP

100UF MVG 16V M SMD R/TP

10UF MVG 16V 20% R/TP(SMD) SMD

0.47UF MVG 50V M SMD R/TP

10UF MVG 16V 20% R/TP(SMD) SMD

For Capacitor & Resistors,

the charactors at 2nd and 3rd

digit in the P/No. means as

follows;

CC, CX, CK, CN : Ceramic

CQ : Polyestor

CE : Electrolytic

RD : Carbon Film

RS : Metal Oxide Film

RN : Metal Film

RF : Fusible

- 17 -

LOCA. NO PART NO DESCRIPTION

CA140

CA153

CA154

CA155

CA156

CA751

CN113

CN114

CN115

CN119

CN120

CN121

CN122

CN123

CN124

CN127

CN130

CN133

CN137

CN138

CN141

CN144

CN145

CN147

CN149

P102

P103

P103A

P103B

PN101

PN102

PN103

PN104

PN105

L800

L801

L803

P1

P2

P101

P104

P741

AR200

0CE107SF6DC

0CE476SF6DC

0CE106SF6DC

0CE476SF6DC

0CE105SK6DC

0CE476SF6DC

0CE105SK6DC

0CE476SF6DC

0CE105SK6DC

0CE476SF6DC

0CE105SK6DC

0CE476SF6DC

380-068B

6612BBBHN6A

6612VLH001A

380-363J

6612JH003CA

6612VMV002A

6612J00010A

6612JH003CA

6140VB0004B

150-C02F

387-B04J

387-A03J

6630VGA001C

6630VGA004B

0RRZVTA001D

100UF MVG 16V M SMD R/TP

47UF MVG 16V M SMD R/TP

10UF MVG 16V 20% R/TP(SMD) SMD

47UF MVG 16V M SMD R/TP

1UF MVG 50V M SMD R/TP

47UF MVG 16V M SMD R/TP

1UF MVG 50V M SMD R/TP

47UF MVG 16V M SMD R/TP

1UF MVG 50V M SMD R/TP

47UF MVG 16V M SMD R/TP

1UF MVG 50V M SMD R/TP

47UF MVG 16V M SMD R/TP

JACK,PHONE 3.5 EARPHONE WITH SW S

JACK,DIN 440062-1 AMP DVI INTERACED RIG

JACK,RCA SP022B 2P BK/R

JACK,DIN PJ6046F H=8.0 W/O S/W

JACK,RCA PPJ137A AUDIO L-MON

JACK,DRAWING UCT-EX-020 UGCOM BNC MONO

JACK,RCA PPJ128A-1 A/V 2P MONO

JACK,RCA PPJ137A AUDIO L-MON

COIL,CHOKE 26UH 1UEWPHY 22.5TURN

COIL,CHOKE 82UH PHY TURN

CONNECTOR ASSY,4P (L=500)

CONNECTOR ASSEMBLY,3P 500MM

CONNECTOR (CIRC),D-SUB 15PIN 2.29MM

CONNECTOR (CIRC),D-SUB 9P 2.77MM FOR

22 OHM 1 / 16 W 1608 5% R/TP 4

LOCA. NO PART NO DESCRIPTION

AR201

AR202

AR203

AR204

AR205

AR206

AR207

AR208

AR209

AR210

AR211

AR260

AR261

AR262

AR263

AR264

AR265

AR266

AR267

AR268

AR269

AR270

AR271

AR400

AR401

AR402

AR403

AR460

AR461

AR462

AR463

AR464

AR465

AR466

AR467

AR468

AR469

AR470

AR471

AR472

AR473

AR474

AR475

AR500

AR501

AR502

AR503

AR504

AR505

AR506

AR507

AR508

0RRZVTA001D

22 OHM 1 / 16 W 1608 5% R/TP 4

COIL

JACK

CONNECTOR

RESISTOR

For Capacitor & Resistors,

the charactors at 2nd and 3rd

digit in the P/No. means as

follows;

CC, CX, CK, CN : Ceramic

CQ : Polyestor

CE : Electrolytic

RD : Carbon Film

RS : Metal Oxide Film

RN : Metal Film

RF : Fusible

- 18 -

LOCA. NO PART NO DESCRIPTION

AR509

AR510

AR511

AR512

AR513

AR514

AR515

AR516

AR517

AR550

AR551

AR552

AR553

R22

RA101

RA102

RA105

RA109

RA114

RA117

SW001

SW002

SW003

SW004

SW005

SW006

SW742

SW800

IC106

IC107

IC108

L100

L101

L135

L136

L137

L138

L150

L300

L301

L302

L460

L806

L807

L808

L809

L810

L811

0RRZVTA001D

0RRZVTA001C

0RD0152H609

0RS2701K607

0RD4700H609

0RS0221H609

140-315A

140-275A

6600VM2006A

6200VJS001A

6200VJS001B

6210VC0005A

6200JB8007L

6210VC0006A

6210VC0005A

6210VC0006A

22 OHM 1 / 16 W 1608 5% R/TP 4

4.7K OHM 1 / 16 W 1608 5% R/TP

15 OHM 1/2 W 5.00% TA52

2.7K OHM 2 W 5.00% TA62

470 OHM 1/2 W 5.00% TA52

2.2 OHM 1/2 W 5.00% TA52

SWITCH,TACT SKHV17910B NON 12V

SWITCH,PUSH JDPB21SA NON 30V 0

SWITCH,PUSH SDDF3PATP011

FILTER,EMC ZJY51R5-4P TDK

FILTER,EMC ZJY51R5-2PL(T)

FILTER,EMC BK2125 HS 750

FILTER,EMC HH2012 1M221JT

FILTER,EMC FBMH3216 HM501NT

FILTER,EMC BK2125 HS 750

FILTER,EMC FBMH3216 HM501NT

LOCA. NO PART NO DESCRIPTION

L850

L851

L852

L853

L854

L855

L856

L857

L858

L859

L860

L861

L862

L863

L864

L865

L866

L867

L868

L871

L872

L873

L874

L875

L876

L877

L880

L882

L883

L884

L885

L886

L887

L889

LA101

LA102

LA104

LA105

LA106

LN107

LN108

LN109

LT300

LT301

LT302

R30

X300

X400

X601

X700

6210VC0006A

150-F09A

6210VC0006A

6200C000010

6200C000009

6210VC0006A

6212AB2015B

6202VDT002E

156-A02M

6212AB2015C

FILTER,EMC FBMH3216 HM501NT

FILTER,EMC SQE2222 7-14MH 0.37PHY 48TURN

FILTER,EMC FBMH3216 HM501NT

FILTER,B.P. H354LAI-K5202

FILTER,B.P. H354LAI-K5225

FILTER,EMC FBMH3216 HM501NT

RESONATOR,CRYSTAL HC-49/SM5H 20MHZ +/- 30

RESONATOR,CRYSTAL SX-1SMD 20250000H

RESONATOR,CRYSTAL HC49U 18.432MHZ 30P

RESONATOR,CRYSTAL HC-49/SM4H 25MHZ +/- 50

SWITCH

FILTER & CRYSTAL

For Capacitor & Resistors,

the charactors at 2nd and 3rd

digit in the P/No. means as

follows;

CC, CX, CK, CN : Ceramic

CQ : Polyestor

CE : Electrolytic

RD : Carbon Film

RS : Metal Oxide Film

RN : Metal Film

RF : Fusible

- 19 -

LOCA. NO PART NO DESCRIPTION

P001

A1

A2

A3

A4

6726VV0006K

6866VA9001B

6851V00010C

3828VA0351A

3828VA0351C

3828VA0385G

3828VA0385A

6710V00067Y

6410VEH003C

6410VBH003B

6410VBH003C

6140VCH001C

6410VWH005C

6850V00001A

REMOTE CONTROLLER RECEIVER,38KHZ

CONNECTOR (CIRC),D-SUB 2990-9C UL 1161

CABLE ASSY,LM295B 20P SCART TO RCA3P

MANUAL,OWNERS RF02CA MT/Z-50PZ41/43

MANUAL,OWNERS 50PZ40/1/3V PL/EN

MANUAL,OWNERS 50PZ40/1/3V LG EN

REMOTE CONTROLLER

POWER CORD,M2511A-001 VOLEX

POWER CORD,

MP5004+V1625 VOLEX

POWER CORD,

MP5004(13A)+V1625

POWER CORD,

V3203CA+V1625

POWER CORD,SA16A+V1625 VOLEX 2800MM

CABLE,FLAT 1566075-1 DVI A/D TO A/D 2000M

LOCA. NO PART NO DESCRIPTION

MISCELLANEOUS

ACCESSORIES

LG MT-50PZ40, MT-50PZ41, MT-50PZ4 User manual

Popular Monitor manuals by other brands
