LG BIDLOV User manual

Operating Instructions
Built in Oven
BIDLOV
www.lg.com
Please read this instruction manual carefully before using the oven.
This will ensure that you know the important safety information and the
correct operation of the oven.
Please keep this manual in a easily accessible place and refer to them
anytime. Please transfer this manual to new owner if you sell the oven.

3
Dear Customer,
You have purchased a high-quality appliance from our Company.
Thank you for your purchase.
To ensure many years of pleasure in the use of your oven, and to
familiarise yourself with all of the appliance's functions, please read
through this Instruction Manual carefully.
Please pay particular attention to the section containing safety
instructions in the first few pages.
Keep the Instruction Manual in a safe place for reference if
questions should arise. If you should sell the appliance on, please
pass the Instruction Manual on to the new owner.
Foreword

4
Contents
Safety ................................................................................ 6~14
Appliance description ......................................................... 15
Control panel ................................................................. 16~17
Accessories ......................................................................... 18
Telescopic slides (special accessory) ............................... 19
Before initial use .................................................................. 20

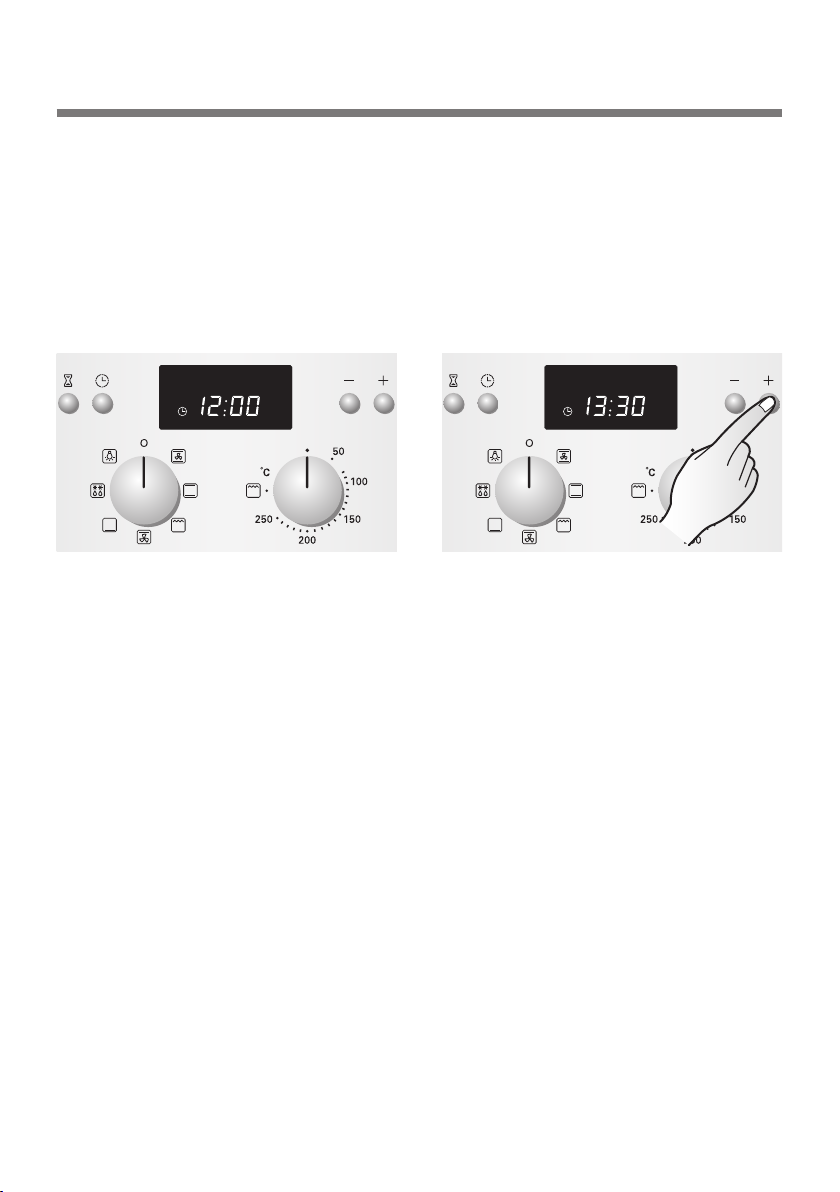

Setting the time of day ........................................................ 20
Initial cleaning ...................................................................... 21
Using the oven ............................................................... 22~37
Operating modes .......................................................... 22~24
Switching the oven on ......................................................... 25
Switching the oven off ......................................................... 26
Clock functions and symbols .............................................. 27
Setting the timers ................................................................ 28
Programming the overall cooking / baking time ................... 29
Programming the end of cooking / baking time.................... 30
Combining overall cooking / baking time and end of cooking /
baking time..................................................................... 31~32
Setting the time of day ........................................................ 33
Childproof safety device....................................................... 34
Baking ........................................................................... 35~36
Baking table ................................................................... 37~40
Roasting ................................................................................ 41
Roasting table ................................................................ 42~43

5
Grilling............................................................................. 44~45
Grilling table ........................................................................ 45
Defrosting ............................................................................. 46
Defrosting table.................................................................... 46
Cleaning and care .......................................................... 47~49
Oven light ............................................................................. 50
Oven door ....................................................................... 51~57
Troubleshooting ............................................................ 58~59
Technical specifications ................................................ 60~61
Installation instructions....................................................... 62
Customer service & spare parts .........................................63
Warranty ...........................................................................64~67

6
Safety
• You can download a owner's manual at
http://www.lg.com.
• This oven must only be installed by a licensed
electrician.
• The installer is responsible for the correct
electrical connection of the appliances and the
observance of the relative safety
recommendations.
Electrical Safety
If the oven has been damaged in transport, do not
connect it.
• This appliance must be connected to the mains
power supply by a specially licensed electrician
only.
• In the event of a fault or damage to the appliance,
do not attempt to operate it.
• Repairs of the appliance should be carried out by
a licensed technician only. Wrong repairs may
result in considerable danger. If you need repairs,
contact an LG Service Center or your dealer
• If supply cord is damaged, it must be replaced by
a special cord or assembly available from the
manufacturer, its service agent.

7
• Electrical leads and cables should not be allowed
to touch the oven.
•
The oven should be connected to the electricity
supply by means of a proper circuit breaker or fuse.
Never use multiple plug adapters or extension leads.
• Rating plate is located on the left side of door and
on the back cover.
• The power supply of the appliance should be
turned off when it is being repaired or cleaned.
• Be careful in connecting electrical appliances to
sockets near to this appliance.
• This connection may be achieved by having the
plug accessible or by incorporation a switch in the
xed wiring in accordance with the wiring rules.
• Do not use harsh abrasive cleaners or sharp
metal scrapers to clean the oven door glass since
they can scratch the surface, which may result in
shattering of the glass.
WARNING: The appliance should be powered
down before replacing the lamp to
avoid the possibility of electric
shock.
WARNING: When the oven operates, the
interior parts will be very hot.

8
Safety
WARNING: Accessible parts may become hot
during use. Young children should
be kept away.
WARNING: Accessible parts may become hot
when the grill is in use. Children
should be kept away.
WARNING: Please ensure cooking times are
correctly set as over cooking may
result in the food catching re and
subsequent damage to your oven.
WARNING: Do not touch an electric cord with a
wet hand. It is very dangerous. You
can get an electric shock.

9
Safety during Operation
• This oven has been designed only for the cooking
of household foods.
• When in use, the oven interior surfaces become
very hot!
Care should be taken to avoid touching heating
elements inside the oven.
• Never store flammable or easily deformable
materials in the oven.
• The oven surfaces will become hot when the
appliance is operated at a high temperature for a
long period of time.
• Excess spillage should be removed before self
cleaning and all utensils should not be left in the
oven during pyrolytic selfcleaning.
• During self cleaning the surfaces get hotter than
usual and children should be kept at a safe
distance.
• When cooking, take care when openning the
oven door as hot air and steam will escape
rapidly.

10
Safety
• When cooking dishes that contain alcohol, the
alcohol can evaporate due to the high
temperatures. The vapour can catch fire if it
comes into contact with a hot oven part.
• Do not use high-pressure water cleaners or
steam jet cleaners for electrical safety reasons.
• This appliance can be used by children aged from
8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been
given supervision or instruction concerning use of
the appliance in a safe way and understand the
hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall
not be made by children without supervision.
WARNING: The appliance and its accessible
parts become hot during use. Care
should be taken to avoid touching
heating elements. Children less
than 8 years of age shall be kept
away unless continuously
supervised.

11
• Children should be kept at a safe distance when
the oven operates.
• Frozen foods such as pizzas should be cooked
on the wire grill.
If the Baking tray is used, it may become
deformed due to the great difference in
temperature.
• Don’t pour water into the oven bottom when it is
hot.
This could cause damage to the enamel surfaces.
• The oven door must be closed when cooking is
performing.
• Don’t spread aluminium foil on the bottom of the
oven and do not place any baking trays or tins on
it.
The aluminium foil blocks the heat, which may
result in damage to the enamel surfaces and
cause poor cooking results.
• Dripping fruit juices from the baking tray will leave
stains, which become indelible. When cooking
very moist cakes, use the deep pan.
• Do not use the oven door as a rest table for hot
or cold cookwares.

12
Safety
• The appliance is not intended for use by young
children or infirm persons without supervision.
• Young children should be supervised to ensure
that they do not play with the appliance.
• Children should be kept at a safe distance until
the oven has cooled down after cooking.
• This appliance is not intended for use by persons
(including children) with reduced physical,
sensory or mental capabilities, or lack of
experience and knowledge, unless they have
been given supervision or instruction concerning
use of the appliance by a person responsible for
their safety.

13
Disposal
Packaging material
• Your new oven has been correctly packaged for
transportation. Remove all of the packaging
material before putting the appliance into use.
• The packaging material can be completely
recycled. You can obtain addresses for
environmentally-friendly disposal operations from
your local authority.
Used appliances
WARNING
• Used appliances must be rendered unusable
prior to disposal so that they no longer present a
risk. To achieve this, disconnect from the mains
supply and remove the power supply cable.

14
Safety
For the protection of the environment, used
appliances must be disposed of properly.
• The appliance must not be disposed of along with
normal
domestic waste.
• Your local authority will inform you of times for
uplifting special waste or identify public disposal
facilities for you.

15
Overview
Oven levels are numbered from the bottom up.
The 4 and 5 levels are mainly used for grill functions.
The cooking tables throughout this operating instructions give you
suggested oven level (shelf positions), however you can change
these to suit yourself.
Appliance description
Top-heating and grill
heating element
Shelf-
support
levels
Control panel
Door handle
Glass doo
r
Door seal
Oven light
Level 5
Level 4
Level 3
Level 2
Level 1
Side shelf support
Rating plate

16
1. Timer button
2. Clock button
3. Operating mode knob
4. Time display
Control Panel
1 2 4
3
5 6
7

17

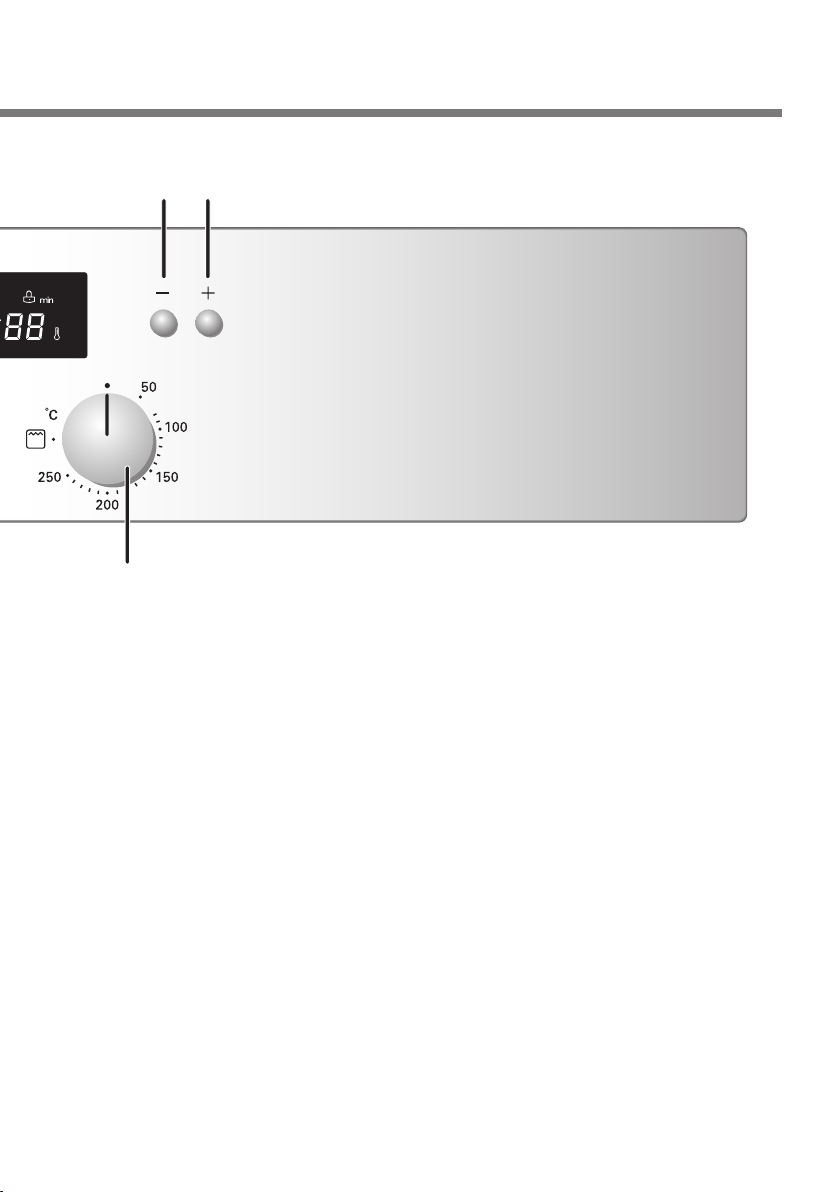

5. Less button
6. More button
7. Temperature knob
1 2 4
3
5 6
7

18
Wire grill
For dishes, baking tins, grilling and
roasting tins.
Deep pan
For cakes and biscuits, for roasting and
for catching roasting juices or fat.
Hints on using the trays and shelves
Ensure that the trays and
shelves are properly fitted
into the two side shelf
supports. Take particular
care when removing
finished dishes and meals
from the oven! Use
suitable cloth pot holder
or oven gloves. If you are
using the wire grill in combination with the deep pan or some other
tray to catch dripping liquids or fat, then do not put the trays down
on the oven floor, but slide them into the shelf supports as well. If
you place trays on the oven floor, the resulting build-up of heat can
damage the surface of the oven. For this reason, there must always
be a minimum gap of 2 cm between the accessories and the oven
floor. With wire grill, always ensure that they are properly in position
in the shelf supports.
Fitting the wire grill and trays
Slide the tray or shelf in at the
desired level.
The shelf support levels are
numbered from the bottom up to
the top.
Accessories
5
4
3
2
1
Wire grill
Deep pan
gap 2cm
5
4
3
2
1

19
Installation
The telescopic slides are installed as follows:
1. Put the inserting bar of the
telescopic slide into the hole.
2. Align the front recess with the
front screw hole. Turn a screw
in and tighten both screws.
Repeat the procedure for the
second telescopic slide arm.
3. Trays and shelves must be
placed on the telescopic slide
arms with care so as to avoid
any accidental tipping over.
To prevent this, place trays
and shelves on the telescopic
slide arms as shown in the
illustration below, so that the
securing pins on the slide
arm catch the tray or shelf to
prevent any slipping.
Telescopic slides (special accessory)

20
Setting the time of day
The oven cannot be used until the time of day is set.
When the appliance is connected for the first time or after a power
failure, the time display flashes at "12:00".
Example: to set the current time of day to 13:30.
1The time display flashes at
“12:00” and the egg timer
symbol will blink.
Before initial use
2Press the button(– / +) to
change the clock time
(13:30, in the example).
The time will be set after 4
seconds.
