PLASMA TV
SERVICE MANUAL
CAUTION
BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
CHASSIS : PP7BA
MODEL : 42PT81 42PT81-ZB
website:htt ://biz.LGservice.com
Interna Use On y

- 2 - LGE Internal Use OnlyCopyright©2007 LG Electronics. Inc. All right reserved.
Only or training and service purposes
CONTENTS
CONTENTS .............................................................................................. 2
SAFETY PRECAUTIONS ..........................................................................3
SPECIFICATION ........................................................................................4
ADJUSTMENT INSTRUCTION .................................................................7

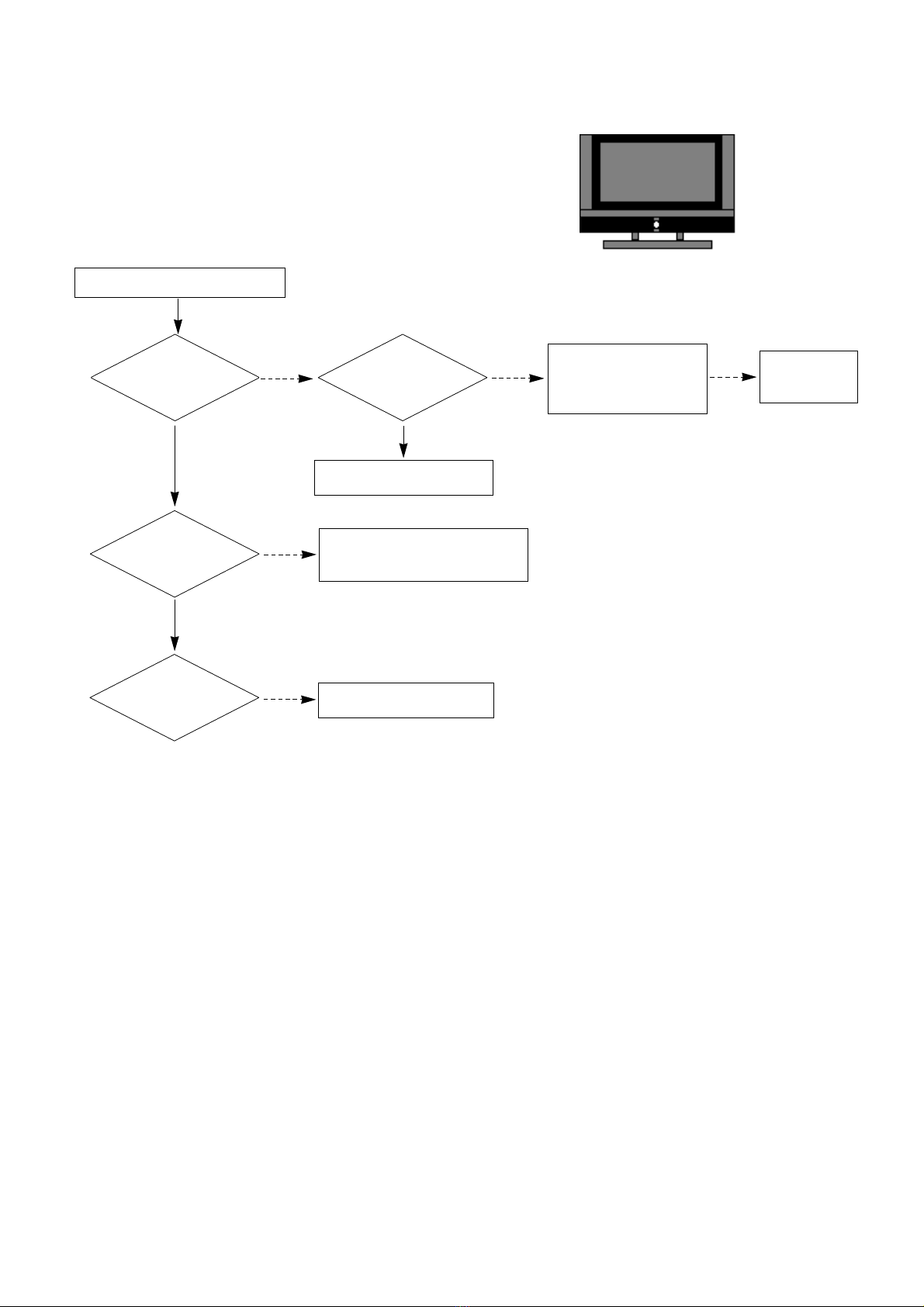

TROUBLE SHOOTING ............................................................................17
BLOCK DIAGRAM...................................................................................28
EXPLODED VIE .................................................................................. 30
EXPLODED VIE PARTS LIST ............................................................ 31
REPLACEMENT PARTS LIST ............................................................... 32
SVC. SHEET ...............................................................................................
PRINTED CIRCUIT DIAGRAM ....................................................................

- 3 - LGE Internal Use OnlyCopyright©2007 LG Electronics. Inc. All right reserved.
Only or training and service purposes
SAFETY PRECAUTIONS
Many electrical and mechanical parts in this chassis have special sa ety-related characteristics. These parts are identi ied by in the
Schematic Diagram and Replacement Parts List.
It is essential that these special sa ety parts should be replaced with the same components as recommended in this manual to prevent
X-RADIATION, Shock, Fire, or other Hazards.
Do not modi y the original design without permission o manu acturer.
General Guidance
An isolation Transformer should always be used during the
servicing o a receiver whose chassis is not isolated rom the AC
power line. Use a trans ormer o adequate power rating as this
protects the technician rom accidents resulting in personal injury
rom electrical shocks.
It will also protect the receiver and it's components rom being
damaged by accidental shorts o the circuitry that may be
inadvertently introduced during the service operation.
I any use (or Fusible Resistor) in this monitor is blown, replace it
with the speci ied.
When replacing a high wattage resistor (Oxide Metal Film Resistor,
over 1W), keep the resistor 10mm away rom PCB.
Keep wires away rom high voltage or high temperature parts.
Due to high vacuum and large sur ace area o picture tube,
extreme care should be used in handling the Picture Tube.
Do not li t the Picture tube by it's Neck.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed rom AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead o ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
I the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1MΩ and 5.2MΩ.
When the exposed metal has no return path to the chassis the
reading must be in inite.
An other abnormality exists that must be corrected be ore the
receiver is returned to the customer.
Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
Do not use a line Isolation Transformer during this check.
Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC voltage
measurements or each exposed metallic part. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to
0.5mA.
In case any measurement is out o the limits speci ied, there is
possibility o shock hazard and the set must be checked and
repaired be ore it is returned to the customer.
Leakage Current Hot Check circuit
1.5 Kohm/10W
To Instrument's
exposed
METALLIC PARTS
Good Earth Ground
such as WATER PIPE,
CONDUIT etc.
AC Volt-meter
IMPORTANT SAFETY NOTICE
0.15uF

- 4 - LGE Internal Use OnlyCopyright©2007 LG Electronics. Inc. All right reserved.
Only or training and service purposes
SPECIFICATIONS
NOTE : Speci ications and others are subject to change without notice or improvement .
VApplication Range
This spec is applied to the 42” PLASMA TV used PP7BA Chassis.
V Specification
Each part is tested as below without special appointment.
1) Temperature : 25±5°C (77±9°F), CST : 40±5
2) Relative Humidity: 65±10%
3) Power Voltage: Standard Input voltage (100-240V~, 50/60Hz)
* Standard Voltage o each product is marked by models.
4) Speci ication and per ormance o each parts are ollowed each drawing and speci ication by part number in accordance with SBOM.
5) The receiver must be operated or about 20 minutes prior to the adjustment.
VTest Method
1) Per ormance : LGE TV test method ollowed.
2) Demanded other speci ication
Sa ety : CE, IEC speci ication
EMC : CE, IEC
Chassis
PP7BA 42PT81-ZB EU LG
Model Name Market Brand Remark
42PT81-ZB Sa ety : IEC/EN60065, EMI : EN55013, EMS : EN55020EU
Model ApplianceMarket
TEST
Remark
VModule Specification1(42”)
Panel
PDP Module Outline Dimension
Pixel Pitch
Pixel Format
Pixel Type
1
2
No Item Speci ication Remark
42” XGA PDP
1005 x 597 x 60.7
0.9 x 0.676 (1 pixel = 3 RGB cells)
1024 x 768 Pixels RGB strip arrangement
RGB Closed type
42X4A
(H)mm x (V)mm x (D)mm
mm

- 5 - LGE Internal Use OnlyCopyright©2007 LG Electronics. Inc. All right reserved.
Only or training and service purposes
VModule Specification2
Market
Broadcasting system
Available Channel
Receiving system
Operating Environment
Storage Environment
Power Consumption
Stand by
Frequency range
SCART Jack(2EA)
Video Input (1EA)
S-Video Input (1EA)
Component Input (1EA)
RGB Input (1EA)
HDMI Input (2EA)
RS-232C(1EA)
Audio Input (3 EA)
Audio variable out(1EA)
USB Input(1EA)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
No Item Speci ication Remark
EU
PAL BG/I/DK, NTSC, SECAM
BAND PAL
VHF/UHF C1~C69
CATV S1~S47
Upper Heterodyne
1) Temp : 0 ~ 40 deg
2) Humidity : 10 ~ 90 %RH
1) Temp : -20 ~ 50 deg
2) Humidity : 10 ~ 90 %RH
Power on ≤ 380
(Green)
Cool ≤ 1W
Warm ≤ 55W
H : 31 ~ 61Khz
V : 56 ~ 75Hz
PAL, SECAM
PAL, SECAM, NTSC
PAL, SECAM, NTSC
Y/Cb/Cr, Y/ Pb/Pr
RGB-PC
HDMI-PC, HDMI-DTV
Remote control, S/W Upgrade
PC Audio, Component (1EA),
SIDE AV(1EA)
DivX, MP3, JPEG
1/8W non-clipped max. audio signal.
Input voltage 198Vac/60HZ .
Full White video input.
PC Input
FULL SCART, HALF SCART
SIDE AV
SIDE S-VIDEO
L/R Input
SIDE(1EA)

- 6 - LGE Internal Use OnlyCopyright©2007 LG Electronics. Inc. All right reserved.
Only or training and service purposes
ADJUSTMENT INSTRUCTION
1. Application Object
These instructions are applied to all o the 42” PLASMA TV,
PP7BA Chassis.
2. Note
(1) Because this is not a hot chassis, it is not necessary to use
an isolation trans ormer. However, the use o isolation
trans ormer will help protect test instrument.
(2) Adjustment must be done in the correct order.
(3) The adjustment must be per ormed in the circumstance o
25±5°C o temperature and 65±10% o relative humidity i
there is no speci ic designation.
(4) The input voltage o the receiver must keep 100-220V~,
50/60Hz.
(5) Be ore adjustment, execute Heat Run or 30 minutes.
3. Adjustment items
3.1. PCB assembly adjustment items
(1) Channel memory
1) Download the channel data rom BOM to EEPROM by
using LGIDS.
(2) Option adjustment ollowing BOM
1) Push the ADJ key in the Adjust Remocon.
2) Input the Option Number that was speci ied in the BOM,
into the Shipping area.
3) Select “Tool Option1/ Tool Option2/ Area Option” by
using
D/E (CH+/-) key, and press the number key(0~9)
consecutively.
ex) I the value o Tool Option1 is 7, input the data using
number key “7”(Fig.1).
(3) Color carrier Adjustment.
3.2. SET assembly adjustment items
(1) Auto AV Color Balance.

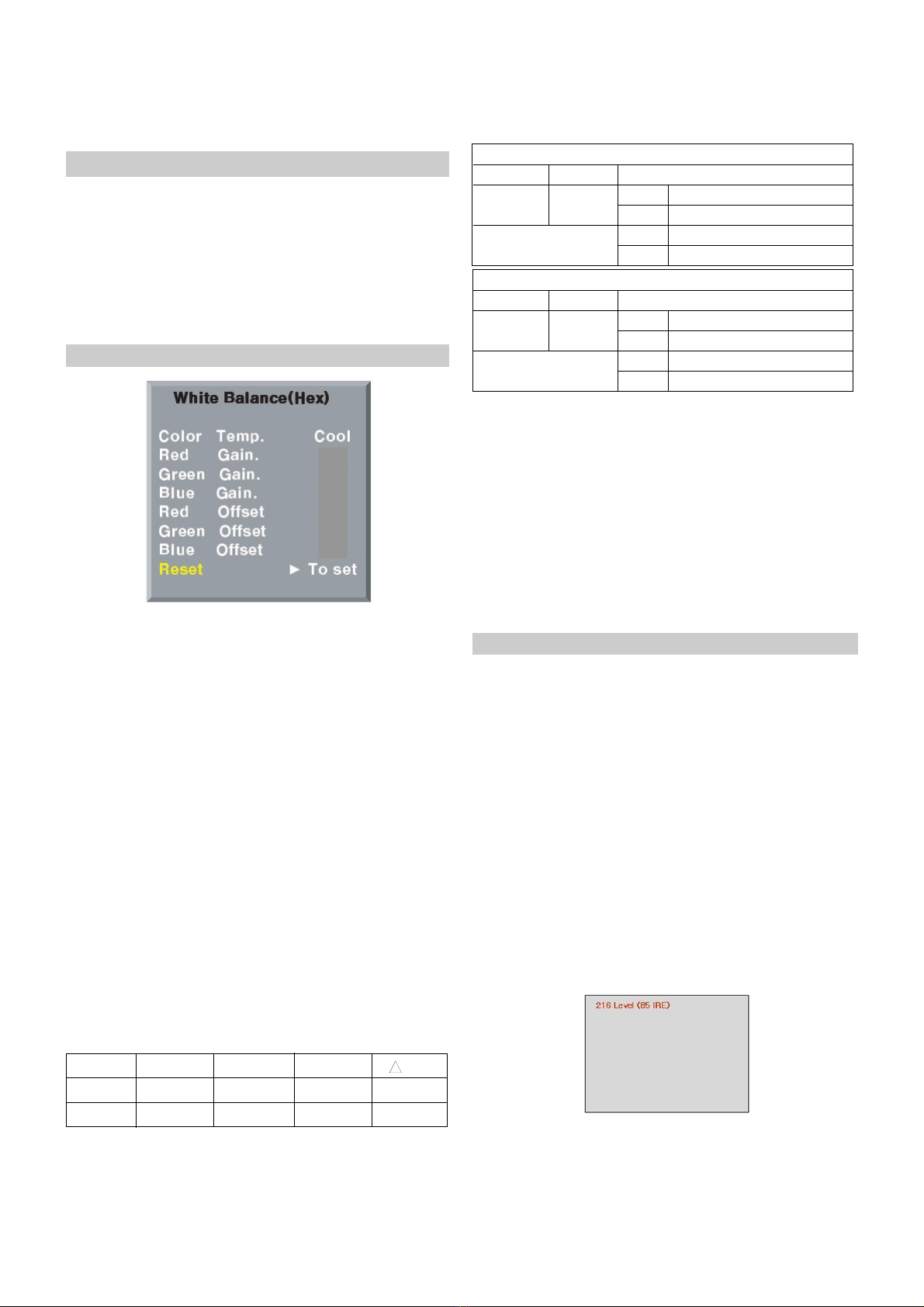

(2) Adjustment o White Balance.
(3) Auto Component Color Balance adjustment.
- standard equipment : MSPG925FA.
(4) Auto RGB Color Balance adjustment.
- standard equipment : MSPG925FA
( At DVR model Case, Please check DVR unction like
ollowing list )
(5) Checking DVR Function and HDD
* Check DVR Function as ollow on 4-2 and ind HDD ailure
under mal unction.
4. HDD assembly adjustment method
4-1. HDD Format
1) Assemble MAIN , DVR Board.
2) HDD Format in progress words will create automatically.
3) Please, wait or 30~40 seconds.
(1) HDD Format in progress.
(2) HDD Format completed.
4-2. Sub Program Download for “DVR” by
using USB memory stick
(1) Connect USB memory stick to SET.
(2) Set power o -> On
- DVR s/w will be installed automatically.
PPBA/BB 42X4APPBA/BB 42X4A XGA XGA
(Fig.1)

- 7 - LGE Internal Use OnlyCopyright©2007 LG Electronics. Inc. All right reserved.
Only or training and service purposes

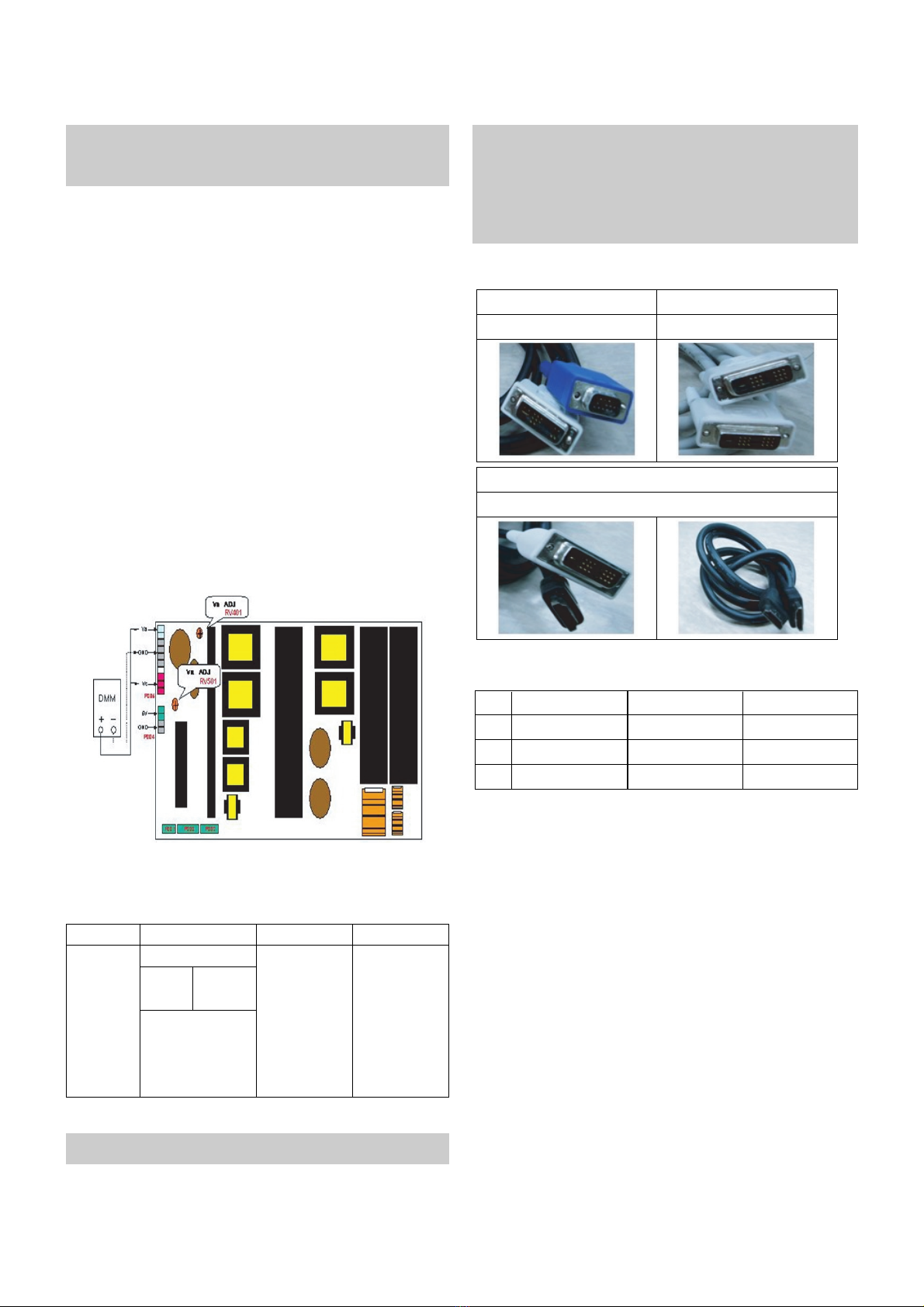

5. PO ER PCB Assy Voltage
Adjustments (Va, Vs Voltage adjustments)
5-1. Test Equipment : D.M.M. 1EA
5-2.Connection Diagram for Measuring
: re er to Fig.2
5-3. Adjustment Method
(1) Va Adjustment
1) A ter receiving 100% Full White Pattern, HEAT RUN.
2) Connect + terminal o D.M.M to Va pin o P812, connect
- terminal to GND pin o P812.
3) A ter turning VR501, voltage o D.M.M adjustment as
same as Va voltage which on label o panel right/top.
(Deviation; ±0.5V)
(2) Vs Adjustment
1) Connect + terminal o D.M.M to Vs pin o P812, connect
– terminal to GND pin o P812.
2) A ter turning VR401, voltage o D.M.M adjustment as
same as Va voltage which on label o panel right/top.
(Deviation; ±0.5V)
6. ADC Calibration
* Press the FRONT-AV Key on R/C or converting input mode.
(Change RS-232 Host : pc, BaudRate : 115200bps)
7. EDID
7-1. EDID Data
Each PCB assembly must be checked by check JIG set.
(Because power PCB Assembly damages to PDP Module,
especially be care ul)
* Use the proper signal cabel or EDID Download
- Analog EDID : Pin3 exists
- Digital EDID : Pin3 exists
* Never connect HDMI & DVU-D & DVI-A Cable at the same time.
* Use the proper cables below or EDID Writing
* HDMI 1 and HDMI2 is di erent each other. So you have to
Download di erent EDIT File.
(Fig.2) Connection diagram o power adjustment or measuring
For Analog EDID
D-sub to DVI-I DVI-D to DVI-D
For Digital EDID
For HDMI EDID
DVI-D to HDMI or HDMI to HDMI
1
2
3
Manu aturer
Version
Revision
GSM
Digital : 1
Digital : 3
1E6D
01
03
ConditionItemNo Hex Data
MSPG925FA
Component RGB-PCRF/AV/S-VIDEOADC
Model : 60
(1024*768 60Hz)
Pattern : 65
*100% Color Bar
Model:217(720P)
Pattern : 65
*100% Color Bar
PAL
INPUT AV1 - TB
SELECT AV3 - ZF
Model : 202
(PAL-BGDHI)
Pattern : 65
*100% Color Bar
- System control RS-232 Host should be “PC“ or adjustment.

- 8 - LGE Internal Use OnlyCopyright©2007 LG Electronics. Inc. All right reserved.
Only or training and service purposes
7-2. Analog(256Byte)
(1) BLOCK1(128Byte)
7-3. HDMI(256Byte)
(1) BLOCK1(128Byte)
(2) BLOCK2(128Byte)
=> Detail EDID Options are below([1], [2], [3],[4], [5])
1. [1]-Product ID
2. [2]-Serial No : Controlled on production line
3. [3]-Month, Year : Controlled on production line
ex) Week : '03' => '03'
Year : '2005' => '0F'
4. [4]-Model Name(Hex):
5. [5]-Checksum : Changeable by total EDID data
8. Adjustment of RF/AV/S-VIDEO
8-1. Requirement
(1) This AV color balance adjustment should be per ormed
be ore white Balance Adjustment.
(2) A ter AV color balance adjustment, Change the mode rom
AV to RF.
8-2. Required Equipment
(1) Remote controller or adjustment.
(2) 802F Pattern Generator, Master(MSPG-925FA), etc.
(3) MSPG-925FA Pattern Generator.
(Which has Video Signal : 100% Color Bar Pattern shown in
Fig.3)
-> Model : 202 / Pattern : 65
8-3. Method of Auto RF/AV/S-VIDEO Color
Balance
(1) Press the FRONT-AV KEY on R/C or converting input
mode.
(2) Input the Video Signal: 100% Color Bar signal into AV.
(3) Set the PSM to Dynamic mode in the Picture menu.
(4) Press INSTART key on R/C or adjustment.
(5) Press the G(Vol.+) key to operate the set, then it becomes
automatically.
(6) Auto-RGB OK means the adjustment is completed.
(Fig. 3)
12
3
4
4
5
1
1
2
3
4
4
5
Model
Name
42PB4RT
50PB4RT
42PT81
50PT81
Product ID
Product ID EDID tableHex
LG TV
00 00 00 FC 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20
Model Name

9. Adjustment of Component
9-1. Required Equipment
(1) Remote controller or adjustment.
(2) 802F Pattern Generator, Master(MSPG-925FA), etc.
(3) MSPG-925FA Pattern Generator.
(Which has 720P@60Hz YPbPr Signal : 100% Color Bar
Pattern shown in Fig.4)
-> Model : 217 / Pattern : 65
(4) It is very import to use correct adjustment pattern like
Fig.4.
1) Within the pattern, color sequence should be aligned
: White-Yellow-Cyan-Green-Gray-Red-BLUE-BLACK
( I color sequence is reversed (Black -> ...-> White),
reverse the pattern with REV key, when using Master
pattern generator like MSPG-925)
2) I Minimum Black Level and/or Maximum White Level is
not correct, Do select 100% Color Bar Pattern.
9-2. Method of Auto Component Color Balance
(1) Input the Component 720p 100% Color Bar(MSPG-925FA
model:217, pattern:65) signal into Component.
(2) Set the PSM to Dynamic mode in the Picture menu.
(3) Press the INSTART key on R/C or adjustment.
(4) Press the G(Vol.+) key to operate the set , then it
becomes automatically.
(5) Auto-RGB OK means the adjustment is completed.
10. Adjustment of RGB
10-1. Required Equipment
(1) Remote controller or adjustment.
(2) 802F Pattern Generator, Master(MSPG-925FA), etc.
(3) MSPG-925FA Pattern Generator.
(Which has XGA [1024*768] 60Hz PC Format output signal :
100% Color Bar Pattern shown in Fig.5)
(4) It is very import to use correct adjustment pattern like
Fig.5.
1) Within the pattern, color sequence should be aligned
: White-Yellow-Cyan-Green-Gray-Red-BLUE-BLACK
( I color sequence is reversed (Black -> ...-> White),
reverse the pattern with REV key, when using Master
pattern generator like MSPG-925)
2) I Minimum Black Level and/or Maximum White Level is
not correct, Do select 100% Color Bar Pattern.
10-2. Method of Auto RBG Color Balance
(1) Input the Component 720p 100% Color Bar(MSPG-925FA
model:217, pattern:65) signal into Component.
(2) Set the PSM to Dynamic mode in the Picture menu.
(3) Press the INSTART key on R/C or adjustment.
(4) Press the G(Vol.+) key to operate the set , then it
becomes automatically.
(5) Auto-RGB OK means the adjustment is completed.
- 9 - LGE Internal Use OnlyCopyright©2007 LG Electronics. Inc. All right reserved.
Only or training and service purposes
(Fig. 4)
(Fig. 4)

- 10 - LGE Internal Use OnlyCopyright©2007 LG Electronics. Inc. All right reserved.
Only or training and service purposes
11. hite Balance
* Notice
- Do the white balance adjustment under the 10LUX
- Be ore white balance, press the In-start key 2times and do
the reset like Fig.6
- Use the Torino inner pattern(216 gray pattern)
- To enter White-balance mode,press the IN-START key
2times.
11-1. Test Equipment
(1) Color Analyzer (CA-100),CA-210.
* Note : hen using the Color Analyzer with PDP,
recommend the CA-100 more than CA-210.
If CA-100 can not available, it is also good th use
the CA-210
(2) PC( or communication through RS-232C)
-> UART Baud rate : 115200.
(3) Pattern Generator(MSPG-925FA etc.)
11-2. Color Temperature & Color
Coordinates Setting
(1) When adjusting the Color Temperature o PDP, Color
Analyzer CA-210(Matrix should be corrected through
CH10 o CS-1000) should be used. When CA-210 have
used, it don’t need to it the CH10.
(2) Adjust the Color Temperature based below adjustment
color coordinates.
(3) Even i CH9 o CA-210 is corrected with Matrix, there may
be many character o Module and Filter.
(4) There ore Re er to the below Color Coordinates Target.
But, in case o WCG module, use the CH12 o CA-210.
W Target Value CA-210(CH10), CA-100
( R/G/B gain and R/G/B o set De ault values are di erent in
according to using module)
W Target Value o Brightness, Color Coordinates, Color Temperature
11-3 .Manual white Balance (INNER Pattern)
(For White Balance, Adjust twice, Cool and Warm)
(1)
Execute CA-100, CA-210(10CH) or CA-100 Zero Calibration.
(2) Use torino inner pattern as below Fig.7, Supply 216Level
(85 IRE) ull screen pattern
(3) Enter the White Balance adjustment mode by pressing the
INSTART key twice(White Balance) on R/C.
(4) Stick sensor to center o the screen and select each items
(Red/Green/Blue Gain and O set) using D/E (CH+/-) key
on R/C.
(5) Adjust with R / G / B Gain using F/G(VOL+/-) key on R/C.
(6) Adjust it until color coordination becomes as below.
W Color Temperature : Cool, Medium, Warm
(1) One o R/G.B Gain should be ixed at 80 and adjust two
Gain Value with decreasing the De ault values rom 80
1) When R Gain is Fixed at De ault value(80)
- Adjust G gain and B gain with decreasing De ault values
rom 80
2) When B Gain is Fixed at De ault value(80)
- Adjust R gain and G gain with decreasing De ault values
rom 80
3) When G Gain is Fixed at De ault value(80)
- Adjust R gain and B gain with decreasing De ault values
rom 80
(2) R/G/B Gain and R/G/B O set De ault Value.
- Red Gain : 80
- Green Gain : 80
- Blue Gain : 80
(Fig.6)
80
8080
80
7D
8080
8C
- Be ore White-balance, the AV ADC should be done.
- System control RS-232 Host should be “PC“ or adjustment.
- A ter All adjustment is completed, Please push “Instop” Key.
Temp x
0.276±0.002
0.313±0.002
0.283±0.002
0.329±0.002
+0.000
+0.003
11,000K
6,500K
COOL
WARM
CSM y uv
High Light
High Light
60 ± 20cd/m2(42XGA)
Cool X: 0.276±0.002, Y: 0.283±0.002
Normal X: 0.313±0.002, Y: 0.329±0.002
Cool 11,000±500K
Warm 6,500K±500K
Brightness
Color
-Coordinate
Desired result (216 Gray)
(Fig.7)
Color Temperature
High Light
High Light
50 ± 20cd/m2(80% o non-high altitude)
Cool X: 0.276±0.002, Y: 0.283±0.002
Normal X: 0.313±0.002, Y: 0.329±0.002
Cool 11,000±500K
Warm 6,500K±500K
Brightness
Color
-Coordinate
Desired result or high altitude(216 Gray)
Color Temperature

- 11 - LGE Internal Use OnlyCopyright©2007 LG Electronics. Inc. All right reserved.
Only or training and service purposes
11-4 .Auto white Balance (INNER Pattern)
Input Select
R-Gain_Normal
G-Gain_Normal
B-Gain_Normal
R-Gain_Warm
G-Gain_Warm
B-Gain_Warm
R-Gain_Cool
G-Gain_Cool
B-Gain_Cool
R-O set_Normal
G-O set_Normal
B-O set_Normal
R-O set_Warm
G-O set_Warm
B-O set_Warm
R-O set_Cool
G-O set_Cool
B-O set_Cool
COLOR TEMP.
Inner Pattern Signal
x
j
j
j
j
j
j
j
j
j
l
l
l
l
l
l
l
l
l
k
w
b
a
b
c
d
e
g
h
i
j
k
l
m
n
o
p
q
r
u
b
00
00
00
00
00
00
00
00
00
00
00
00
00
00
00
00
00
00
00
00
00
00h
01h
10h
11h
20h
21h
40h
41h
60h
90h
Min
00h
00h
00h
00h
00h
00h
00h
00h
00h
00h
00h
00h
00h
00h
00h
00h
00h
00h
00h
00
10
Max
80h
80h
80h
80h
80h
80h
80h
80h
80h
80h
80h
80h
80h
80h
80h
80h
80h
80h
03h(Cool,Normal,Warm,User)
W/B Adjustment Start
Using Internal Pattern W/B
Adjustment Completion
DTV-Air
Cable
RF-Air
Cable
AV1
AV2
COMP1
COMP1
RGB-PC
HDMI
INIT
80h
80h
80h
80h
80h
80h
80h
80h
80h
No Command1 Command2 Set ID Data
Mode

- 12 - LGE Internal Use OnlyCopyright©2007 LG Electronics. Inc. All right reserved.
Only or training and service purposes
W Input Select Data
: RF(10), AV1~4(20,21,22,23), SAV(30), COMP(40), DVI(50 or 60), HDMI(90)
W Command Set
( SET ID : 0 -> ALL, 1~99 -> each SET )
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
POWER ON/OFF
MAIN INPUT
ARC
SCREEN MUTE
AUDIO MUTE
VOLUME
CONTRAST
BRIGHTNESS
COLOR
TINT
SHARPNESS
OSD ON/OFF
CHILD LOCK
PIP MODE
PIP ARC
PIP POSITION
TREBLE
BASS
BALANCE
COLOR TEMP.
RED LEVEL
GREEN LEVEL
BLUE LEVEL
PIP INPUT
CURRENT STATE
KA(ka)
XB(xb)
KC(kc)
KD(kd)
KE(ke)
KF(k )
KG(kg)
KH(kh)
KI(ki)
KJ(kj)
KK(kk)
KL(kl)
KM(km)
KN(kn)
KO(ko)
KQ(kq)
KR(kr)
KS(ks)
KT(kt)
KU(ku)
KV(kv)
KW(kw)
K$(k$)
XY(xy)
KZ(kz)
0~99
0~99
0~99
0~99
0~99
0~99
0~99
0~99
0~99
0~99
0~99
0~99
0~99
0~99
0~99
0~99
0~99
0~99
0~99
0~99
0~99
0~99
0~99
0~1
10~90
1~8
0~1
0~1
0~64
0~64
0~64
0~64
0~64
0~64
0~1
0~1
0~3
0~64
0~64
0~64
0~3
0~50
0~50
0~50
10~90
FF
0: OFF, 1:ON
RF(10), AV1~4(20,21,22,23),
SAV(30), COMP(40),
RGB(50 or 60), HDMI(90)
4:3; 16:9; SPECTACLE; ZOOM;
ORIGINAL; 14:9; FULL
1: MUTE, 0: MUTE OFF
1: MUTE, 0: MUTE OFF
0: 0, 64 : 100 (Hexadecimal)
0: 0 , 64 : 100 (Hexadecimal)
0: 0 , 64 : 100 (Hexadecimal)
0: 0 , 64 : 100 (Hexadecimal)
0: R50 , 64 : G50 (Hexadecimal)
0: 0 , 64 : 100 (Hexadecimal)
0: OFF, 1: ON
1: LOCK, 0: OFF
PIP_OFF, PIP, DW1, DW2
NOT USED
NOT USED
0:0 , 64:100
0:0 , 64:100
0:L50, 64:R50
COOL, NORMAL, WARM, USER
0 : -40, 50 : 40
0 : -40, 50 : 40
0 : -40, 50 : 40
RF(10), AV1~4(20,21,22,23),
SAV(30), COMP(40),
DVI(50 or 60), ,HDMI(90)
ACK is 0, there is Signal
ACK is 1, there is No Signal
ACK is 2, power O Status
No Adjustment contents CMD SET ID VAL Specification

- 13 - LGE Internal Use OnlyCopyright©2007 LG Electronics. Inc. All right reserved.
Only or training and service purposes
26
27
28
29
30
31
32
33
34
35
36
37
RED GAIN
GREEN GAIN
BLUE GAIN
RED OFFSET
GREEN OFFSET
BLUE OFFSET
AUTO CONFIG.
SELECT PR.
SELECT SUB PR.
IR CODE
Red,Blue,Green Gain
Red,Blue,Green o set
HITE BALANCE “J”(A~F)
TUNER CONTROL
ADC Calriblation
FACTORY IR
JA
JB
JC
JD
JE
JF
JU
MA
MB
MC
Ja,Jb,Jc
Jd,Je,J
0~99
0~99
0~99
0~99
0~99
0~99
0~99
0~99
0~99
0~99
00<E0
00<90
0~3F
0~3F
0~3F
0~3F
0~3F
0~3F
01
0~C7
0~C7
Over F0
Min:00
Max: e
Min:00
Max: e
0:0, 3F:3F , FF: Current State
0:0, 3F:3F , FF: Current State
0:0, 3F:3F , FF: Current State
0:0, 3F:3F , FF: Current State
0:0, 3F:3F , FF: Current State
0:0, 3F:3F , FF: Current State
The state is not Auto Adjust Condition
Send NACK
0: Pr. 0, C7: Pr.199
0: Pr. 0, C7: Pr.199
IR CODE 0, BITMASK = 0X01
Initial Value : red -0x79
blue -0x6
green -0x80
Initial Value : red -0x80
blue -0x82
green -0x80
No Adjustment contents CMD SET ID VAL Specification

- 14 - LGE Internal Use OnlyCopyright©2007 LG Electronics. Inc. All right reserved.
Only or training and service purposes
Tool Option1
Tool Option2
Area Option Option1
Option2
Option3
Option4
System Control1
System Control2
System Control2
Power-o History
Panel Control
Fan Control
Maker
Inch
Tool
Tuner Num.
EYE
INDEX
VFD
HDMI Type(A)
Rear AV
BOOST
Full
So t Touch
Reserved
CMO
42
Option Detail List Data Remark
12. Detail list of SVC Option data

- 15 - LGE Internal Use OnlyCopyright©2007 LG Electronics. Inc. All right reserved.
Only or training and service purposes
13. Shipped condition
(1) 1) Push the IN-START key in a Adjust Remocon.
(2) Input the Option Number that was speci ied in the BOM, into the Shipping area.
(3) The work is inished, Push V Key.
1
2
3
4
5
6
STATION Auto Tuning
Manual Tuning
Promgrame Edit
Favourite Prog.
PICTURE Picture Mode
Color Temperature
XD
Advanced
Aspect Ratio
Picture Reset
Screen
XD Demo
SOUND Sound Mode
Auto Volume
Balance
TV Speaker
TIME Clock
O Time
On Time
Sleep Time
Auto Sleep
STATION SPECIAL Language
Country
Input Label
SIMPLINK
Key Lock
Set ID
DVR Time Control
Recorded TV
Manual Recording
Scheduled List
Video Quality
HDD Format
System/Storage From/Start
Storage/System/Band/Channel/Fine/S
earch/Name
To Set
-- -- --
Dynamic/Standard/Mild/User1/User2
Cool
Auto
Cinema : O
Black Level : Disable
Spectacle/Full/Original/4:3/
16:9/14:9/Zoom1/Zoom2
To Set
Disable
Disable
SRS TSXT/ Standard/ Music/
Movie/ Sports/ User
O
0
On
Year -- : --
Date -- : --
Time -- : --
O
00 : 00
O
00 : 00
Volume 30
Programme 0
O
O
To Set
To Set
To Set
O
O
O
On
To Set
To Set
To Set
High
To Set
No Item Condition Remark

- 16 - LGE Internal Use OnlyCopyright©2007 LG Electronics. Inc. All right reserved.
Only or training and service purposes
TROUBLESHOOTING
1. No power
(1) Symptom
1) Minute discharge does not occur at module.
2) Front LED does not activate.
(2) Press check
Plug in the power cord
Start Check
No
Yes
Is the power cord
plugged in?
Connect the cable.
Plasma( )
No
Yes
Are the line ilter and
PSU connected?
Replace the use.
No
Yes
Is the
correct use or
the PSU in place?
Plasma(F101)
Connect the 13pin cable.
A ter remove all cables connected PSU(except the
CN101), authorizes the AC voltage marking manual.
I the ST-by 5V does not operate, replace the PSU.
No
Yes
Is the PSU and 13pin
cable connected to the
VSC board?

- 17 - LGE Internal Use OnlyCopyright©2007 LG Electronics. Inc. All right reserved.
Only or training and service purposes
2. Protect mode
(1) Symptom
1) A ter lighting once it does not discharge minutely rom the module.
2) The relay alls.(there is an audible “Click”.)
3) The color o the ront LED turns rom green to red.
(2) Follow check
Is the PSU normal ? Replace Power Board.
Is the output the normal Low/High
voltage except or the Stand-by 5V?
Yes
No No
Are all the connectors
normal? Replace the connector.
Replace the use.
Replace the Y-Board.
A ter checking each connector does
is operate correctly?
Yes
No No
Is the Y-Board
normal?
Is the appropriate
use (FS2,FS3) on the
Y-B/D?
Is the output voltage
normal a ter removing
the P1 connector o
the Y-B/D?
Yes
No No
Replace the Z-Board.
Is the Z-Board
normal?
Is appropriate
use (FS1,FS2) on
the Z-B/D?
Is the output voltage
normal a ter removing
the P1 connector o
the Z-B/D?
Yes
No No
Is the X- Board
normal?
Is the
output voltage normal
a ter removing the P100, 110,
200, 210 connector o
the X-B/D?
A ter removing the P100, 110 and the output
voltage is normal : Replace the Right X-B/D
A ter removing the P200, 210 and the output
voltage is normal : Replace the Le t X-B/D
No
Yes
Replace the use.
Yes
Start Check

- 18 - LGE Internal Use OnlyCopyright©2007 LG Electronics. Inc. All right reserved.
Only or training and service purposes
3. No Raster
(1) Symptom
1) No OSD or image are displayed on the screen.
2) It maintains the condition where the ront LED is green.
(2) Follow check
Check the PDP Module
Replace the
Power board.
Does
minute discharge
at Module?
Is the inverter
/VaVs on?
Is output the normal
Low/High voltage except
or the Stand-by 5V?
Yes
No No
Is there a ault with
the link cable?
Yes
Is the output or the
IC700 normal?
Reconnect the link cable in P600.
No
Replace the VSC.
No
Yes
Start Check

- 19 - LGE Internal Use OnlyCopyright©2007 LG Electronics. Inc. All right reserved.
Only or training and service purposes
4. In the case an unusual display in RF mode(Main).
Check the power.(L1004)
Is the
video output o the
CXA2069Q normal? (Check R324,
in case o S-Video
Check R324,
R328)
Is the
input voltage
normal?(Check
L308)
Yes
No Yes
Is the LVDS
Cable connected?
Yes
Change the IC(IC700)
Re-insert the cable.
No
Check the IC.(IC300)
No
A
Check the power.
Is the
video output o the
Tuner normal? (Check
TU200_Pin14)
Is the
input voltage
normal?(Check Pin8,
Pin6)
Is the I2C communication
normal?
(Check Pin5, Pin4)
Yes
No Yes
No
Check the Tuner.
No
Re-insert the cable.
Is the
Tuner Cable
connected?
No
No
Is the
I2C communication
normal? (Check
R309, R310)
No
5. In the case of an unusual display in rear AV mode(Main).
Is video input o
the A/V jack normal?
Yes
Sam as Block A
Check the input source.
No

- 20 - LGE Internal Use OnlyCopyright©2007 LG Electronics. Inc. All right reserved.
Only or training and service purposes
6. In the case of an unusual display in rear S-Video mode(Main).
Is the video input
o the A/V jack normal?
Yes
Sam as Block A
Check the input source.
No
7. In the case of an unusual display in Side AV mode(Main).
Is the video input
o the A/V jack normal?
Yes
Sam as Block A
Check the input source.
No
8. In the case of an unusual display in Side S-Video mode(main).
Is the video
input o the A/V jack
normal? (Check R339,
R341,L310)
Yes
Sam as Block A
Check the input source.
No
