LG 50PK760N-ZC User manual

PLASMA TV
SERVICE MANUAL
CAUTION
BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
CHASSIS : PD02A
MODEL : 50PK760 50PK760-ZC
MODEL : 50PK760N 50PK760N-ZC
North/Latin A erica http://aic.lgservice.co
Europe/Africa http://eic.lgservice.co
Asia/Oceania http://biz.lgservice.co
Internal Use Only
Printed in Korea
P/NO : MFL62861606(1003-REV00)

- 2 - LGE Internal Use OnlyCopyright ©2010 LG Electronics Inc. All rights reserved.
Only or training and service purposes
CONTENTS
CONTENTS ............................................................................................................................... 2
SAFETY PRECAUTIONS ...........................................................................................................3
SPECIFICATION.........................................................................................................................4
ADJUSTMENT INSTRUCTION ..................................................................................................6
BLOCK DIAGRAM ...................................................................................................................10

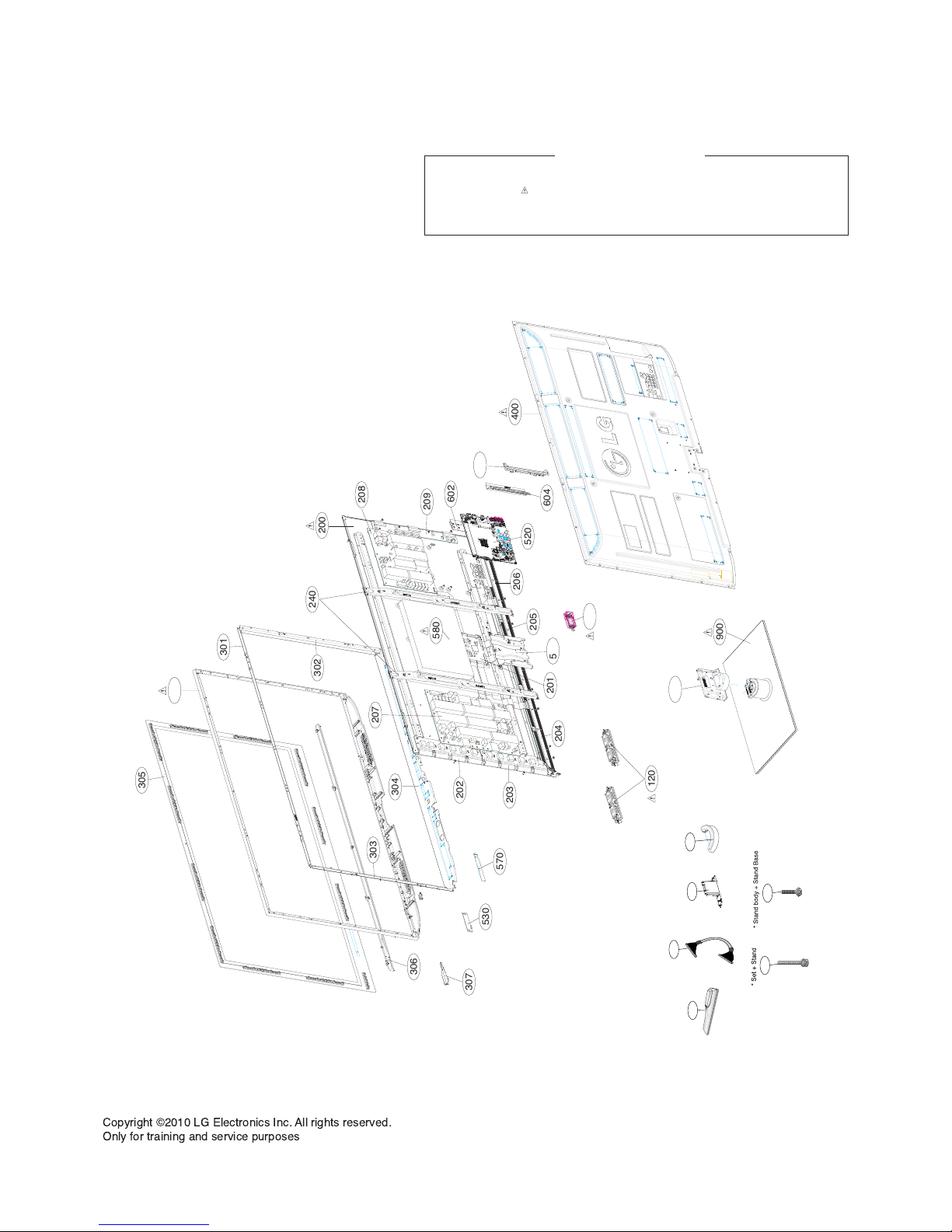

EXPLODED VIEW ................................................................................................................... 11
SVC. S EET ................................................................................................................................

- 3 - LGE Internal Use OnlyCopyright ©2010 LG Electronics Inc. All rights reserved.
Only or training and service purposes
SAFETY PRECAUTIONS
Many electrical and mechanical parts in this chassis have special sa ety-related characteristics. These parts are identi ied by in
the Schematic Diagram and Exploded View.
It is essential that these special sa ety parts should be replaced with the same components as recommended in this manual to
prevent X-RADIATION, Shock, Fire, or other Hazards.
Do not modi y the original design without permission o manu acturer.
General Guidance
An isolation Transformer should always be used during the
servicing o a receiver whose chassis is not isolated rom the AC
power line. Use a trans ormer o adequate power rating as this
protects the technician rom accidents resulting in personal injury
rom electrical shocks.
It will also protect the receiver and it's components rom being
damaged by accidental shorts o the circuitry that may be
inadvertently introduced during the service operation.
I any use (or Fusible Resistor) in this monitor is blown, replace it
with the speci ied.
When replacing a high wattage resistor (Oxide Metal Film
Resistor, over 1W), keep the resistor 10mm away rom PCB.
Keep wires away rom high voltage or high temperature parts.
Due to high vacuum and large sur ace area o picture tube,
extreme care should be used in handling the Picture Tube.
Do not li t the Picture tube by it's Neck.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed rom AC source, connect
an electrical jumper across the two AC plug prongs. Place the
AC switch in the on position, connect one lead o ohm-meter to
the AC plug prongs tied together and touch other ohm-meter
lead in turn to each exposed metallic parts such as antenna
terminals, phone jacks, etc.
I the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1MΩ and 5.2MΩ.
When the exposed metal has no return path to the chassis the
reading must be in inite.
An other abnormality exists that must be corrected be ore the
receiver is returned to the customer.
Leakage Current ot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
Do not use a line Isolation Transformer during this check.
Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC
voltage measurements or each exposed metallic part. Any
voltage measured must not exceed 0.75 volt RMS which is
corresponds to 0.5mA.
In case any measurement is out o the limits speci ied, there is
possibility o shock hazard and the set must be checked and
repaired be ore it is returned to the customer.

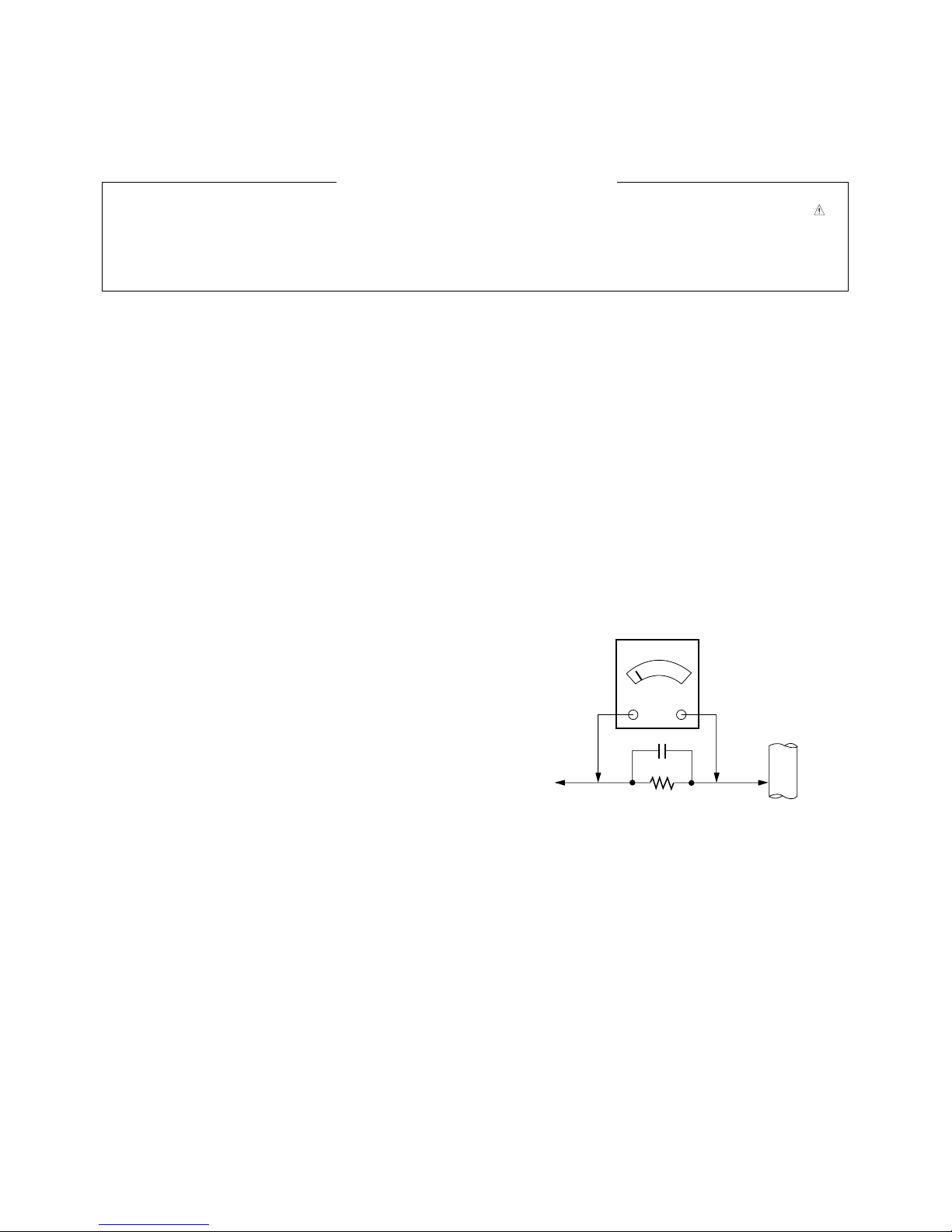

Leakage Current ot Check circuit
1.5 Kohm/10W
To Instrument's
exposed
METALLIC PARTS
Good Earth Ground
such as WATER PIPE,
CONDUIT etc.
AC Volt-meter
IMPORTANT SAFETY NOTICE
0.15uF

- 4 - LGE Internal Use OnlyCopyright ©2010 LG Electronics Inc. All rights reserve .
Only for training an service purposes
SPECIFICATION
NOTE : Specifications an others are subject to change without notice for improvement .
VApplication Range
This spec is applie to PDP TV use PD02A Chassis.
V Specification
Each part is teste as below without special appointment.
(1) Temperature : 25 °C ± 5 °C (77 °F ± 9 °F), CST : 40 ± 5
(2) Relative Humi ity: 65 % ± 10 %
(3) Power Voltage: Stan ar Input voltage (100 V - 240 V ~, 50 / 60 Hz)
* Stan ar Voltage of each pro uct is marke by mo els.
(4) Specification an performance of each parts are followe each rawing an specification by part number in accor ance with
SBOM.
(5) The receiver must be operate for about 20 minutes prior to the a justment.
VTest Method
(1) Performance : LGE TV test metho followe .
(2) Deman e other specification
Safety : CE, IEC specification
EMC : CE, IEC
VModule Specification
(1) 50” FHD
No Item Specification Remark
1 Display Screen Device 127 cm (50 inch) wi e Color Display Mo ule PDP
2 Aspect Ratio 16:9
3 PDP Mo ule PDP50R1####,
RGB Close (Well) Type, Glass Filter (38%)
Pixel Format: 1920 horiz. By 1080 ver
4 Operating Environment 1) Temp. : 0 eg ~ 40 eg
2) Humi ity : 20 % ~ 80%
5 Storage Environment 3) Temp. : -20 eg ~ 60 eg LGE SPEC
4) Humi ity : 10 % ~ 90 %
6 Input Voltage AC 100 V ~ 240 V, 50 / 60 Hz Maker LG
Mo el Name
50PK760(N)-ZC
Bran
LG
Market
Albania, Austria, Belgium, Bosnia, Bulgaria, Coratia, Czech, Denmark,
Estonia, Finlan , France, Germany, Greece, Hungary, Irelan , Italy,
Kazakhstan, Latvia, Lithuania, Luxembourg, Morocco, Netherlan s, Norway,
Polan , Portugal, Romania, Russia, Serbia, Slovakia, Slovenia, Spain,
Swe en, Switzerlan , Turkey, Ukraine, UK
Mo el Name
50PK760(N)-ZC
Bran
Safety : IEC/EN60065
EMI : EN55013
EMS : EN55020
Market
Albania, Austria, Belgium, Bosnia, Bulgaria, Coratia, Czech, Denmark,
Estonia, Finlan , France, Germany, Greece, Hungary, Irelan , Italy,
Kazakhstan, Latvia, Lithuania, Luxembourg, Morocco, Netherlan s,
Norway, Polan , Portugal, Romania, Russia, Serbia, Slovakia,
Slovenia, Spain, Swe en, Switzerlan , Turkey, Ukraine, UK

- 5 - LGE Internal Use OnlyCopyright ©2010 LG Electronics Inc. All rights reserved.
Only or training and service purposes
VModel General Specification
No Item Speci ication Remarks
1 Market Albania, Austria, Belgium, Bosnia, Bulgaria, Coratia, 36 Country
Czech, Denmark, Estonia, Finland, France, Germany,
Greece, Hungary, Ireland, Italy, Kazakhstan, Latvia,
Lithuania, Luxembourg, Morocco, Netherlands, Norway,
Poland, Portugal, Romania, Russia, Serbia, Slovenia,
Spain, Sweden, Slovakia, Switzerland, Turkey, Ukraine,
UK
2 Broadcasting system 1) PAL/SECAM BG EU (PAL Market)
2) PAL/SECAM DK
3) PAL Ⅰ/Ⅱ
4) SECAM L/L’
5) DVB T
6) DVB C DVB C (only Sweden, Finland)
3 Receiving system Analog : Upper Heterodyne
Digital : COFDM
4 Scart Jack (1EA) PAL, SECAM Scart 1 Jack is Full scart and support
RF-OUT(Analog), MNT-OUT
5 Video Input (1EA) PAL, SECAM, NTSC Side AV
6 Component Input (1EA) Y/Cb/Cr, Y/ Pb/Pr
7 RGB Input RGB-PC Analog (D-Sub 15Pin)
8 HDMI Input (4EA) HDMI-PC HDMI/DTV,HDMI2, HDMI3, HDMI4
HDMI-DTV
9 Audio Input (3 EA) RGB/DVI Audio, Component, AV L/R Input
10 SPDIF Out(1 EA) SPDIF Out
11 USB(2EA) For SVC, S/W Download, X-Studio, DivX
12 Bluetooth Bluetooth Phone(JPEG, MP3), Pro ile : A2DP, BIP, FTP, GAVDP,
Bluetooth Headset(mono, stereo) HSP, OPP
13 Ethernet LAN

- 6 - LGE Internal Use OnlyCopyright ©2010 LG Electronics Inc. All rights reserved.
Only or training and service purposes
ADJUSTMENT INSTRUCTION
1. Application Range
This spec sheet is applied to all o the PD02A chassis.
2. Specification
(1) Because this is not a hot chassis, it is not necessary to use
an isolation trans ormer. However, the use o isolation
trans ormer will help protect test instrument.
(2) Adjustment must be done in the correct order.
(3) The adjustment must be per ormed in the circumstance o
25 °C ± 5 °C o temperature and 65 % ± 10 % o relative
humidity i there is no speci ic designation.
(4) The input voltage o the receiver must keep 100 V ~ 240
V, 50 / 60 Hz.
(5) The receiver must be operated or about 5 minutes prior to
the adjustment when module is in the circumstance o over
15 °C
- In case o keeping module is in the circumstance o 0 °C,
it should be placed in the circumstance o above 15 °C
or 2 hours
- In case o keeping module is in the circumstance o below
-20 °C, it should be placed in the circumstance o above
15 °C or 3 hours,.
OA ter RGB Full White in HEAT-RUN Mode, the receiver
must be operated prior to the adjustment.
OEnter into HEAT-RUN MODE
1) Press the POWER ON KEY on R/C or adjustment.
2) OSD display and screen display PATTERN MODE.
- Set is activated HEAT run without signal generator in this
mode.
- Single color pattern ( WHITE ) o HEAT RUN MODE uses
to check panel.
- Caution : I you turn on a still screen more than 20
minutes (Especially digital pattern, cross hatch pattern),
an a ter image may be occur in the black level part o the
screen.
3.
PCB Assembly Adjustment Method
* Caution: Using ‘power on’ button o the control R/C power on
TV.
3-1. MAC Address and CI+ Key.
* Connect TV SET and PC which download MAC Address
Writing program by RS232C-Cable

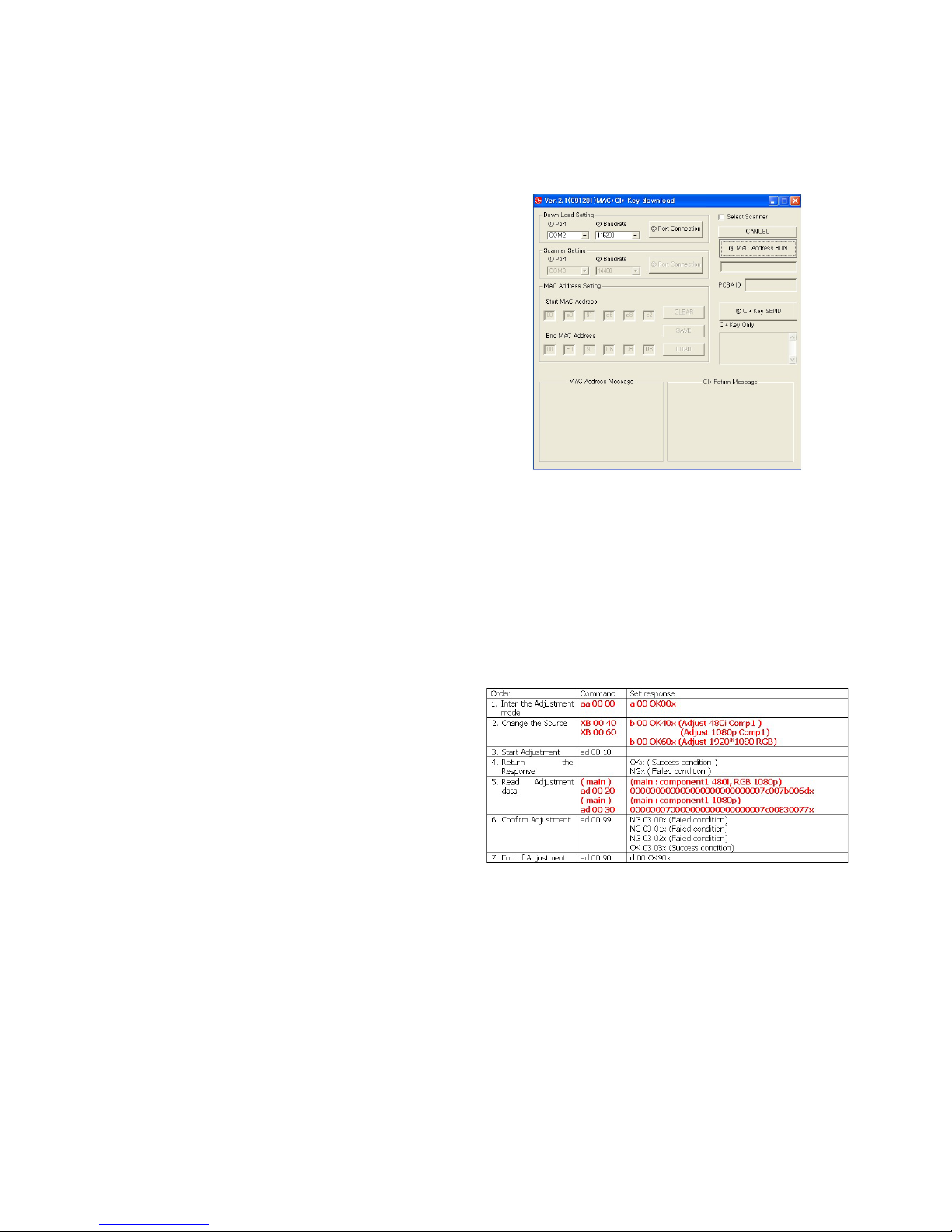

(1) Start “MAC+CIKeyl.exe”Program and Click (3) Button to
connect TV and PC.
(2) Click (4) to download MAC Address.
(3) Click (5) to download CI+ Key.
(4) When download succeed, you can see “OK” on (6)
* Each Chassis has it’ own MAC Address. Please be care ul o
download.
3-2. Ping TEST
* This test is to check Network operation.
(1) Press "Power on" button o a service R/C.(Baud rate :
115200 bps)
(2) Connect RS232-C Signal Cable.
(3) Connect LAN cable to MAIN PCB Assembly.
(4) When network operates normally, you can see “OK”.
3-3. ADC Adjustment
O Auto-control adjustment protocol(RS-232C)

- 7 - LGE Internal Use OnlyCopyright ©2010 LG Electronics Inc. All rights reserved.
Only or training and service purposes
(1) Adjustment o RGB
1) Convert to PC in Input-source.
2) Signal equipment displays
Output Voltage: 700 mVp-p
Impress Resolution FHD (1920 x 1080 @ 60Hz)
Model : 225 in Pattern Generator
Pattern : 65 in Pattern Generator
(MSPG-925 SERISE)
3) Adjust by commanding AUTO_COLOR_ADJUST
(2) COMPONENT input ADC
VConvert to Component in Input-source.
V Signal equipment displays
Impress Resolution 480i
MODEL : 209 in Pattern Generator(480i Mode)
PATTERN : 65 in Pattern Generator
(MSPG-925 SERISE)
Impress Resolution 1080i
MODEL: 225 in Pattern Generator(1080P Mode)
PATTERN: 65 in Pattern Generator
(MSPG-925 SERISE)
3-4. Insert Tool OPTION
(1) Press ADJ key on R/C to insert Tool OPTION
(2) On the “ Tool Option”, Insert Tool Option by a number key
(3) Press the ENTER(V)
(4) Press ENTER(V) again.
(5) Select “OK to Download” by using F/G(VOL +/-) and
press G(VOL +)
* FOR EU
* FOR France

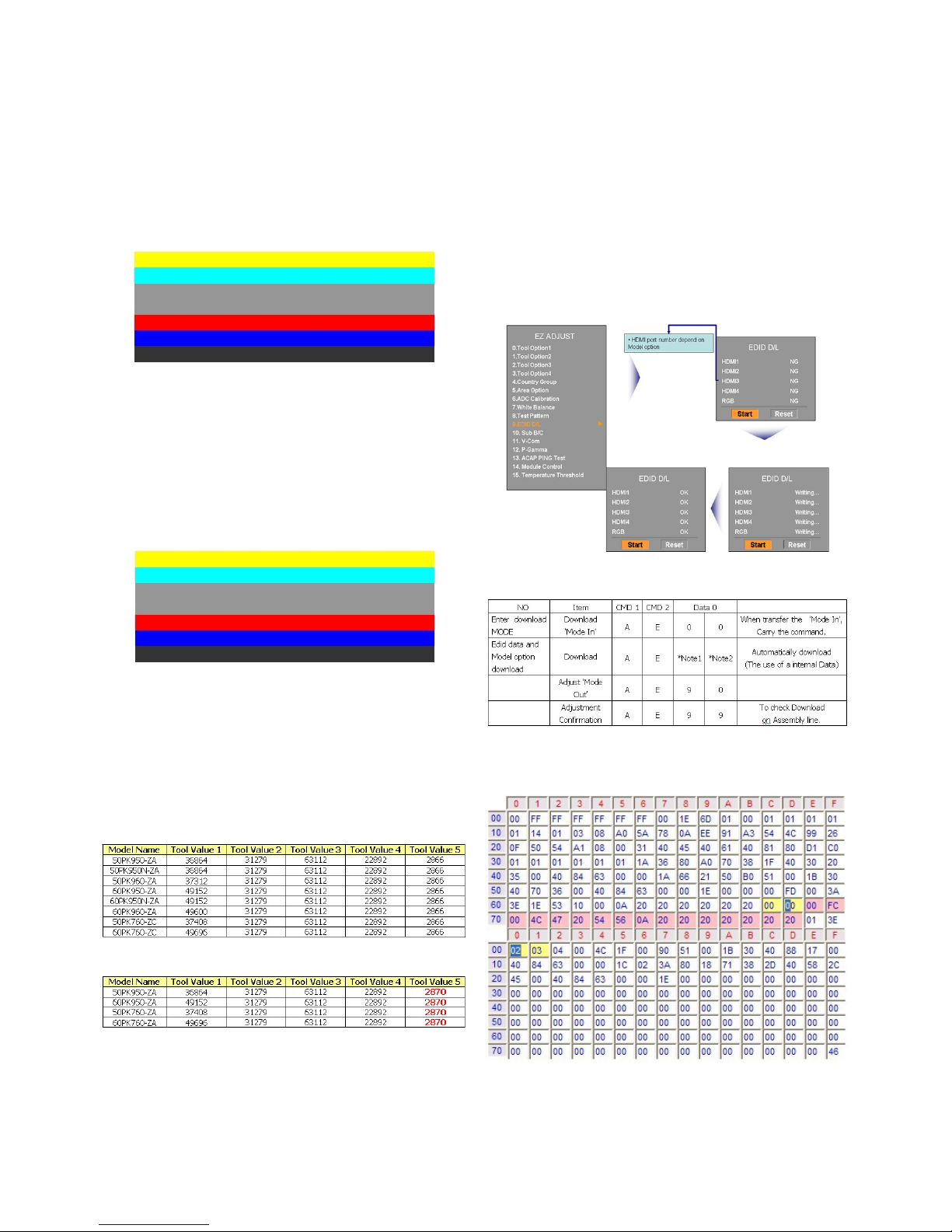

3-5. EDID(The Extended Display
Identification Data) download
(1) Press the ADJ KEY on R/C and enter EZ ADJUST.
(2) Select “5.EDID D/L” by using D/E(CH +/-) and press
ENTER(V).
(3) Select “Start” and press navigation key(G).
(4) EDID download is executed automatically.
(5) Press EXIT key on R/C
* Caution
- Never connect HDMI & D-sub Cable when the user
download EDID .
V Use the proper cables below or EDID Writing.
* Edid data and Model option download(RS232)
* EDID DATA
1) analog RGB

- 8 - LGE Internal Use OnlyCopyright ©2010 LG Electronics Inc. All rights reserved.
Only or training and service purposes

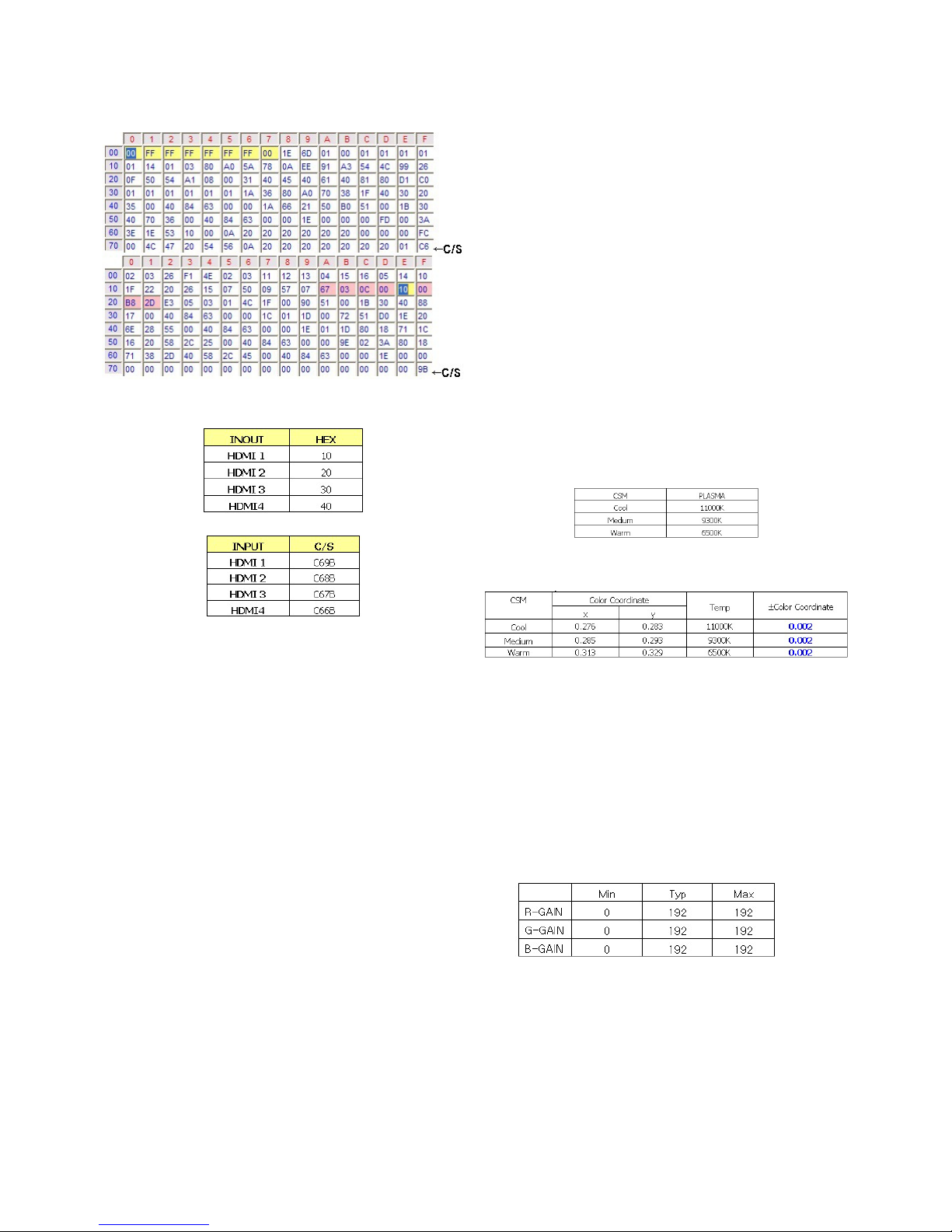

2) HDMI
ⓐVender ID
3-6. Confirmation
(1) Press ‘InStart’ Key on Factory SVC Remote Controller.
And MUST check ADC & EDID ADJ status is OK.
4. SET assembly adjustment method
* Caution : Each PCB assembly must be checked by check JIG
set. (Because power PCB Assembly damages to PDP
Module, especially be care ul)
4-1. POWER Supply Unit PCB Ass’y
Va/Vs Voltage Adjustment
Test equipment : D.M.M 1EA
Connection Diagram or Measuring : re er to ig.4
Adjustment method
(1) Va adjustment
1) Connect + terminal o D.M.M. to Va pin o P811, connect
-terminal to GND pin o P811.
2) A ter turning VR502,voltage o D.M.M adjustment as
same as Va voltage which on label o panel right/top
(deviation; ±0.5V)
(2) Vs adjustment
1) Connect + terminal o D.M.M. to Vs pin o P811, connect
-terminal to GND pin o P811.
2) A ter turning VR901, voltage o D.M.M adjustment as
same as Vs voltage which on label o panel right/top
(deviation ; ±0.5V)
4-2. Download Serial number (RS-232C)
VPress “Power on” key o service R/C.
(Baud rate : 115200 bps)
VConnect RS232 Signal Cable to RS-232 Jack.
VWrite Serial number by use RS-232.
VMust check the serial number at the Diagnostics o SET UP
menu.
(Re er to below ‘6.SET INFORMATION’).
4-3. Adjustment of White Balance
Required Equipment
ORemote controller or adjustment
OColor Analyzer ( CS-1000, CA-100,100+,CA-210 or same
produc: CH 10 (PDP)
* Please adjust CA-210, CA-100+ by CS-1000 be ore
measuring
OAuto W/B adjustment instrument(only or Auto adjustment)
O9 Pin D-Sub Jack(RS232C) is connected to the AUTO W/B
EQUIPMENT.
Before Adjust of White Balance, Please press POWER ONLY
key
Adjust Process will start by execute RS232C Command.
O Color temperature standards according to CSM and Module
OCS-1000/CA-100+/CA-210(CH 10)
White balance adjustment coordinates and color temperature.
* Manual W/B process (using adjusts Remote control)
Please Adjust in AV 1 MODE, Turn o Energy Saving Mode.
(1) Enter ‘PICTURE RESET’ on Picture Mode, then turn o
Fresh Contrast and Fresh colour in Advanced Control
(2) A ter enter Service Mode by pushing “ADJ” key,
(3) Enter White Pattern o o service mode, and change o ->
on.
(4) Enter “W/B ADJUST” by pushing “G” key at “3. W/B
ADJUST”.
* Gain Max Value is 192. So, Never make any Gain Value over
192 and please ix one Value on 192, between R, G and B.

- 9 - LGE Internal Use OnlyCopyright ©2010 LG Electronics Inc. All rights reserved.
Only or training and service purposes
* Auto-control inter ace and directions
(1) Adjust in the place where the in lux o light like loodlight
around is blocked. (Illumination is less than 10ux).
(2) Measure and adjust a ter sticking the Color Analyzer (CA-
100+, CA210 ) to the side o the module.
(3) Aging time
A ter aging start, keep the Power on (no suspension o
power supply) and heat-run over 5 minutes
4-4. Serial number download & Model
name D/L and Check Tool Option.
(1) Press "Power on" button o a service R/C.(Baud rate :
115200 bps)
(2) Connect RS232-C Signal Cable and start ‘Option Check
Program Ver3.8’
(3) Scan serial Number and press ‘F5’ button.
(4) Check ‘OK’ on program 1) program.
(5) Press ‘In start’ button on SVC R/C, check Serial Number
and Model Name.
4-5. Checking the EYE-Q Operation.
(1) Press the EYE Key on the adjustment remote controller.
(2) Check the Sensor DATA ( It must be under 10) and keep
the data longer than 1.5s
3) Check ‘OK’
(Sensor DATA 0 ~ 4095, Power Saving Mode 0 ~ 12)
* IF you press IN-STAP Button, change Green Eye-check OSD.
4-6. Ping TEST
* This test is to check Network operation.
(1) Connect LAN cable rom Computer to TV Set
(2) When network operates normally, you can see “OK” on
Computer
5. Set Information
(Serial No & Model name)
5-1. Check the serial number
& Model Name
(1) Push the menu button and press red button on R/C to
enter ‘Customer Support’menu.
(2) Move to ‘signal test’ menu. And check Serial No & Model
Name
Select the STATION -> Diagnostics -> To set
6. SW Download Guide.
* Be ore put a *.epk to USB Stick make ‘LG_DTV’ older in USB.
Then, put *.epk ile to ‘LG_DTV’ older and Turn on TV
(1) Put the USB Stick to the USB socket
(2) Automatically detecting update ile in USB Stick
* I your downloaded program version in USB Stick is Low,
it didn’t work.
But your downloaded version is High, USB data is
automatically detecting.
(3) Show the message “Copying iles rom memory”
(4) Updating is staring.
(5) Updating Completed, The TV will restart automatically.
A ter turn on TV, Please press ‘IN-STOP’ button on ADJ
Remote-control.
* IF you don’t have ADJ R/C, enter ‘Factory Reset’ in
OPTION MENU.
(6) When TV turns on, check the Updated version on
Diagnostics MENU.

- 10 - LGE Internal Use OnlyCopyright ©2010 LG Electronics Inc. All rights reserved.
Only or training and service purposes
BLOCK DIAGRAM

- 11 - LGE Internal Use Only
EXPLODED VIEW
Copyright ©2010 LG Electronics Inc. All rights reserved.
Only for training and service purposes
208
209
204
202
240
207
203
304
302
303
306
301
305
530
570
307
520
206
602
201 604
205
200
400
900
580
120
501
601
300
590
910
Many electrical and mec anical parts in t is c assis ave special safety-related c aracteristics. T ese
parts are identified by in t e Sc ematic Diagram and EXPLODED VIEW.
It is essential t at t ese special safety parts s ould be replaced wit t e same components as
recommended in t is manual to prevent X-RADIATION, S ock, Fire, or ot er Hazards.
Do not modify t e original design wit out permission of manufacturer.
IMPORTANT SAFETY NOTICE
A2
A10 A9
LV1
A12 A7

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

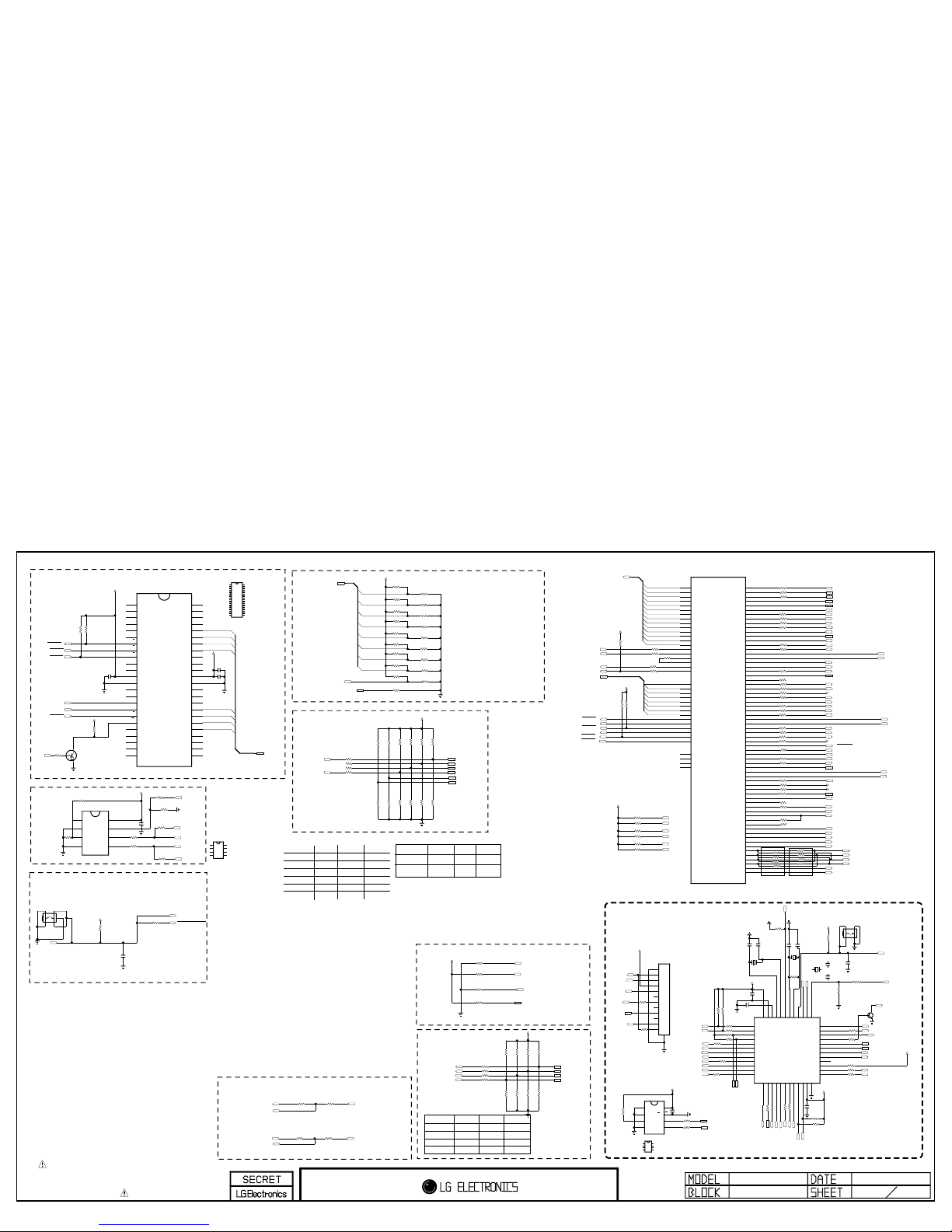

BCM GPIO/NEC MICOM/FLASH/SYS EEPROM
10/01/
BCM GPIO & NEC MICOM & FLASH & SYS EEPROM
NAND_DATA[0]
NAND_DATA[2]
NAND_DATA[3]
NAND_DATA[4]
NAND_DATA[5]
NAND_DATA[7]
NAND_DATA[6]NAND_DATA[6]
NAND_DATA[1]NAND_DATA[1]
NAND_DATA[5]
NAND_DATA[2]
NAND_DATA[6]
NAND_DATA[3]
NAND_DATA[0]
NAND_DATA[7]
NAND_DATA[4]
NAND_DATA[1]
CI_A[5]
NAND_DATA[1]
CI_A[9]
NAND_DATA[5]
CI_A[11]
NAND_DATA[4]
NAND_DATA[2]
NAND_DATA[3]
CI_A[2]
CI_A[6]
CI_A[10]
CI_A[12]
CI_A[13]
CI_A[1]
CI_A[8]
NAND_DATA[6]
CI_A[7]
NAND_DATA[0]
CI_A[3]
CI_A[0]
NAND_DATA[7]
CI_A[4]
SDA0_3.3V
C102
0.1uF
+3.3V_MULTI
NAND_DATA[0-7]
D3.3V
NAND_ALE
SCL0_3.3V
NAND_CLE R49 2.7K
R43 2.7K
R41 2.7K
READY
R45 2.7K
READY
R44 2.7K
READY
R42 2.7K
READY
R50 2.7K
READY
R46 2.7K
R48 2.7K
R47 2.7K
READY
Q100
KRC103S
E
B
C
C101 0.1uF
C105
0.1uF
NAND_CLE
NAND_RB
D3.3V
NAND_DATA[0-7]
NAND_ALE
NAND_CE
FLASH_WP
D3.3V
NAND_RE
C104
10uF 6.3V
D3.3V
NAND_WE
R3 4.7K
SW102
SKHMPWE010
FOR DEBUG
12
4 3
5
SOC_RESET
+3.3V_MULTI
R9 10K
SOC_RESET
BCM_RX RS232C_RXD
NEC_TXD
BCM_TX RS232C_TXD
NEC_RXD
NEC_EEPROM_SDA
R101
10K
+3.3V_NEC_ST
EDID_WP
NEC_ISP_RXD
R170 10K
NEC_RXD
C107
0.1uF
16V
R136
100K
1/10W
5%
RL_ON
IC105
UPD78F0513AGA-GAM-AX
1
P60/SCL0
2
P61/SDA0
3
P62/EXSCL0
4
P63
5
P33/TI51/TO51/INTP4
6
P75
7
P74
8
P73/KR3
9
P72/KR2
10
P71/KR1
11
P70/KR0
12
P32/INTP3/OCD1B
13
P31/INTP2/OCD1A
14
P30/INTP1
15
P17/TI50/TO50
16
P16/TOH1/INTP5
17
P15/TOH0
18
P14/RXD6
19
P13/TXD6
20
P12/SO10
21
P11/SL10/RXD0
22
P10/SCK10/TXD0
23
AVREF
24
AVSS
25 ANI7/P27
26 ANI6/P26
27 ANI5/P25
28 ANI4/P24
29 ANI3/P23
30 ANI2/P22
31 ANI1/P21
32 P20/ANI0
33 P130
34 P01/TI010/TO00
35 P00/TI000
36 P140/PCL/INTP6
37 P120/INTP0/EXLVI 38 P41 39 P40 40 RESET 41 P124/XT2/EXCLKS 42 P123/XT1 43 FLMD0 44 P122/X2/EXCLK/OCD0B 45 P121/X1/OCD0A 46 REGC 47 VSS 48 VDD
R106 22
C109
0.1uF
READY
5V_ON
KEY1
+3.3V_NEC_ST
+3.3V_NEC_ST
C114
0.1uF
16V
FLMD0
FLMD0
009:E3;009:F1
AC_DET
MODEL1_OPT_2
R174 10K
SCART1_MUTE
RESET_NEC 009:E3;009:F1
LED_RED R142 22
MODEL1_OPT_0
IC104
M24C16-WMN6T
0IMMRSG036B
STM_16K_EEPROM
3
NC/E2 E2
2
NC/E1 E1
4
VSS GND
1
NC/E0 NC
5SDA SDA
6SCL SCL
7WC
WC
8VCC VCC
LED_BREATHING
R146 22
INSTANT_BOOT
NEC_EEPROM_SDA
SW100
JTP-1127WEM
FOR DEBUG
1 2
43
R98 22
R79
47K
1/10W 5%
Q101
2SC3052
E
B
C
OCD1B
NEC_ISP_TXD
R169 22
R97 22
R91
10K
FOR DEBUG
R104
10K
C110
0.1uF
ERROR_DET KEY1
NEC_TXD
R168 22
OCD1B
MODEL1_OPT_3
IR_NEC
LED_WHITE
RESET_NEC
SOC_RESET
NEC_ISP_RXD
HDMI_CEC
NEC_EEPROM_SCL
MODEL1_OPT_1
NEC_EEPROM_SCL
KEY2
+3.3V_NEC_ST
NEC_ISP_TXD +3.3V_NEC_ST
WIRELESS_PWR_EN
R105 22
+3.3V_MULTI
FLMD0
P102
12505WS-12A00
FOR DEBUG
1
2
3
4
5
6
7
8
9
10
11
12
13
WIRELESS_DETECT
R30 10K
LED_PK50/LED_PK90
R36 10K
LED_PK50/LED_PK70
R27 100
MODEL1_OPT_2
R35 10K
LED_PK90
R33 10K
READY
DISP_EN
AMP_RESET_N
+3.3V_NEC_ST
MODEL1_OPT_1
MODEL1_OPT_0
R32 10K
READY
MODEL1_OPT_3
R29 10K
LED_PK70
R28 100
R34 10K
READY
R31 10K
READY
R24 10K
READY
NEC_ISP_RXD
OCD1B
R23 10K
READY
R26 10K
READY NEC_ISP_TXD
+3.3V_NEC_ST
R25 10K
READY
D3.3V
SDA0_3.3V
SDA2_3.3V
SCL3_3.3V
SCL2_3.3V
SDA3_3.3V
SCL0_3.3V
SIDEAV_DET
FE_TS_VAL_ERR
R94
22
TUNER_RESET
MODEL_OPT_5
MODEL_OPT_1
BCM_TX
MODEL_OPT_3
AUD_MASTER_CLK
SDA3_3.3V
DDC_SCL
SC_RE1
SCL1_3.3V
NAND_DATA[0-7]
SCL0_3.3V
NAND_CE
EBI_WE
DDC_SDA
R93
22
USB1_CTL
+3.3V_MULTI
R128 22
R121 22
READY
R138 100
CI_MOD_RESET
NAND_ALE
/RST_HUB
CI_5V_CTL
R114 22
SC_RE2
NAND_WE
R137 100
SDA2_3.3V
/CI_IREQ
RF_BOOSTER
SDA1_3.3V
R122 100
BT_RESET
SCL2_3.3V
R118 22
COMP_DET
D3.3V
SCL3_3.3V
CI_OUTCLK
R120 22
DSUB_DET
/CI_CD2
SCART1_DET
EPHY_LINK
R127 22
R119 22
R95
22
NAND_RE
NAND_RB
NAND_CLE
R150
100 READY
EPHY_ACTIVE_Y
R124 100
R92
22
R123 100
EBI_CS
MODEL_OPT_2
R132 22
R131 22
MODEL_OPT_0
/CI_CD1
SDA0_3.3V
R145 22
CI_A[0-13]
R96
33
BCM_RX
/CI_WAIT
MODEL_OPT_4
/CI_SEL
EBI_RW
IC100
LGE3556C (C0 VERSION)
GPIO_00 N26
GPIO_01 L26
GPIO_02 N25
GPIO_03 L25
GPIO_04 K27
GPIO_05 K28
GPIO_06 K24
GPIO_07 K26
GPIO_08 K25
GPIO_09 AA27
GPIO_10 AA28
GPIO_11 AA26
GPIO_12 L1
GPIO_13 L3
GPIO_14 L2
GPIO_15 Y25
GPIO_16 Y26
GPIO_17 M27
GPIO_18 AA25
GPIO_19 R25
GPIO_20 N28
GPIO_21 N27
GPIO_22 AH18
GPIO_23 P23
GPIO_24 M23
GPIO_25 AD19
GPIO_26 AE19
GPIO_27 M4
GPIO_28 M5
GPIO_29 L23
GPIO_30 Y28
GPIO_31 Y27
GPIO_32 G2
GPIO_33 G3
GPIO_34 G5
GPIO_35 G6
GPIO_36 G4
GPIO_37 L24
GPIO_38 P25
GPIO_39 L5
GPIO_40 K4
GPIO_41 K1
GPIO_42 L27
GPIO_43 M26
GPIO_44 N23
GPIO_45 R28
GPIO_46 R27
GPIO_47 R26
GPIO_48 P28
GPIO_49 P27
GPIO_50 K6
GPIO_51 K5
GPIO_52 P26
GPIO_53 M3
GPIO_54 M2
GPIO_55 M1
GPIO_56 L4
GPIO_57 L6
SGPIO_00 W27
SGPIO_01 W28
SGPIO_02 W26
SGPIO_03 W25
SGPIO_04 J2
SGPIO_05 J1
SGPIO_06 K3
SGPIO_07 K2
EBI_ADDR3
J23
EBI_ADDR4
J24
EBI_ADDR2
H25
EBI_ADDR1
H24
EBI_ADDR0
H23
EBI_ADDR5
J25
EBI_ADDR6
F26
EBI_ADDR8
H28
EBI_ADDR9
J26
EBI_ADDR13
H27
EBI_ADDR12
G26
EBI_ADDR11
J27
EBI_ADDR10
J28
EBI_ADDR7
F27
EBI_TAB
G24
EBI_WE1B
H26
EBI_CLK_IN
G27
EBI_CLK_OUT
G28
EBI_RWB
K23
EBI_CS0B
G25
NAND_DATA0
U24
NAND_DATA1
T26
NAND_DATA2
T27
NAND_DATA3
U26
NAND_DATA4
U27
NAND_DATA5
V26
NAND_DATA6
V27
NAND_DATA7
V28
NAND_CS0B
T24
NAND_ALE
R23
NAND_REB
T23
NAND_CLE
T25
NAND_WEB
R24
NAND_RBB
U25
SF_MISO
W24
SF_MOSI
U23
SF_SCK
V23
SF_CSB
V24
X100
10MHz
C111
12pF
50V
C108
12pF
50V
R71 1K
READY
R65 1K
HD
R70 1K
READY
R37 100
D3.3V
MODEL_OPT_1
R64 1K
FHD
MODEL_OPT_4
R39 100 MODEL_OPT_2
R51 1K
EU
R66 1K
READY
R38 100
MODEL_OPT_3
R52 1K
READY
R67 1K
READY
R68 1K
READY
MODEL_OPT_5
BT_ON/OFF
R53 1K
READY
R69 1K
EU
R54 1K
READY
R40 100
MODEL_OPT_0
OCD1A
OCD1A
OCD1A
R11
10K
FOR DEBUG
WIRELESS_DL_TX
WIRELESS_DL_RX
R12
0
READY
USB1_OCD
USB2_CTL
VREG_CTR
SDA1_3.3V
SCL1_3.3V
IC106
M24M01-HRMN6TP
STM_1M_EEPROM
3
E2
2
E1
4
VSS
1
NC
5SDA
6SCL
7WP
8VCC
SCL3_3.3V
SDA3_3.3V
R58
2.7K
READY
R55
2.7K
R56
2.7K
R59
2.7K
READY
R63
2.7K
R62
2.7K
R57
2.7K
R60
2.7K
R61
2.7K
READY
R8 10K
DTV_ATV_SELECT
USB2_OCD
M_REMOTE_MOD_ROM_TX
M_REMOTE_MOD_ROM_RX
FLMD0
IF_AGC_SEL
R4 2.7K
R82
2.7K
R80 2.7K R78 2.7K
R5 2.7K
C103
0.1uF
16V
WATCH_DOG_RESET
R89 0
READY
R164
4.7K READY
R1634.7K READY
HPD2
HPD1
HPD3
HPD4
R166
100K 1/16W
1%
R86 1.2K READY
R88 1.2K
R83 1.2K
R84 1.2K
R87 1.2K
R85 1.2K READY
5V_HDMI_2
5V_HDMI_1
5V_HDMI_3
5V_HDMI_4
SUB_SDA
SUB_SCL
IC102
NAND04GW3B2DN6E
NUMONYX_4G_NAND
26 NC_17
27 NC_18
28 NC_19
29 I/O0
30 I/O1
31 I/O2
32 I/O3
33 NC_20
34 NC_21
35 NC_22
36 VSS_2
37 VDD_2
38 NC_23
39 NC_24
40 NC_25
41 I/O4
42 I/O5
43 I/O6
44 I/O7
45 NC_26
46 NC_27
47 NC_28
48 NC_29
17
AL
3
NC_3
6
NC_6
16
CL
15
NC_10
14
NC_9
13
VSS_1
12
VDD_1
11
NC_8
10
NC_7
9
E
8
R
7
RB
4
NC_4
5
NC_5
25 NC_16 24
NC_15
23
NC_14
2
NC_2
22
NC_13
21
NC_12
1
NC_1
20
NC_11
19
WP
18
W
R176 120K
1/16W
1%
R109 10K
R110 10K
R165 10K
C1
0.1uF
50V
X101
32.768KHz
RTC_TXC
R10
4.7M
READY
R73 22
R72 22
R19 22
R18 22
R21 10K
FLASH_WP
R75 0
R74 0
R125 0
R181 0
R2 0
1/16W
5%
R220
R14 0
R159
0
R99 0
1/16W
5%
R1 0
READY
R17 0
R16 0
R7 0
READY
R1620
R134 0
READY
R1400
R102 0
R135 0
R15 0
R13 0
READY
R1290
1/16W
5%
R6 0
READY
R172 0
1/16W
5%
R144 0
1/16W
5%
R1610
R143 0
1/16W
5%
R160
0READY
R111 0
R177
0
READY
R20 0
READY
R178
0
READY
R108 0
R113 0
1/16W 5%
R90 0
READY
R133 0
READY
FLASH_WP
FLASH_WP
R76
0
X101-*1
32.768KHz
RTC_KSD
REMOTE_SW_CTRL R77 0
RF_RESET
DD
DC
R81 22
R100 22
IC104-*1
AT24C16BN-SH-B
ATMEL_16K_EEPROM
3
NC_3
2
NC_2
4
GND
1
NC_1
5SDA
6SCL
7WP
8VCC
IC106-*1
AT24C1024BN-SH-T
ATMEL_1M_EEPROM
3
A2
2
A1
4
GND
1
NC
5SDA
6SCL
7WP
8VCC
IC102-*1
TC58NVG2S3ETA00
TOSHIBA_4G_NAND
26 NC_17
27 NC_18
28 NC_19
29 I/O1
30 I/O2
31 I/O3
32 I/O4
33 NC_20
34 NC_21
35 NC_22
36 VSS_2
37 VCC_2
38 NC_23
39 NC_24
40 NC_25
41 I/O5
42 I/O6
43 I/O7
44 I/O8
45 NC_26
46 NC_27
47 NC_28
48 NC_29
17
ALE
3
NC_3
6
NC_6
16
CLE
15
NC_10
14
NC_9
13
VSS_1
12
VCC_1
11
NC_8
10
NC_7
9
CE
8
RE
7
RY/BY
4
NC_4
5
NC_5
25 NC_16 24
NC_15
23
NC_14
2
NC_2
22
NC_13
21
NC_12
1
NC_1
20
NC_11
19
WP
18
WE
C112
22pF
50V
RTC_TXC
C113
27pF
50V
RTC_TXC
C112-*1
15pF
RTC_KSD
C113-*1
15pF
RTC_KSD
SYSTEM EEPROM
Boot Strap
1 13
NAND_IO[0] : Flash Select (1)
0 : Boot From Serial Flash
1 : Boot From NAND Flash
NAND_IO[1] : NAND Block 0 Write (0)
0 : Enable Block 0 Write
1 : Disable Block 0 Write
NAND_IO[3:2] : NAND ECC (1,0)
00 : No ECC
01 : 1 ECC Bit
10 : 4 ECC Bit
11 : 8 ECC Bit
NAND_IO[4] : CPU Endian (0)
0 : Little Endian
1 : Big Endian
NAND_IO[6:5] : Xtal Bias Control (1,0)
00 : 1.2mA
01 : 1.8mA
10 : 2.4mA (Recommand)
11 : 3.0mA
NAND_IO[7] : MIPS Frequency (0)
0 : 405MHz
1 : 378MHz
NAND_ALE : I2C Level (0)
0 : 3.3V Switching
1 : 5V Switching
NAND_CLE
0 : Enable D2CDIFF AC (Dns)
1 : Disable D2CDIFF AC
BCM REVIEW
NAND FLASH MEMORY 4G BIT FOR BBTV
Open Drain
RESET
UART BYPASS(WIRED OR)
ISP Port for SUB MICOM
NEC SUB MICOM
CHECK PIN!!
PIN NAME
MICOM MODEL OPTION
MODEL_OPT_0
PK50/PK90
30
8
MODEL PWM OPTION
PK70
MODEL_OPT_3
HIGH
11
MODEL_OPT_2
MODEL_OPT_1
PK90 PK50/PK70
PIN NO. LOW
31
NEC CONFIGURATION
For CI
For CI
For CI
* I2C_1 : TUNER(MOPLL), NVRAM
* I2C_2 : NEC_SUBMICOM, (USB_HUB)
* I2C_3 : HDMISW, TUNER_DIGITAL/ANALOG, AMP, WIRELESS
* I2C_4 : MODULE
* I2C MAP
G19
BRAZIL&AUS
MODEL_OPT_3
F7
B6
NO FRC
PIN NAME
MODEL_OPT_1
HD
PIN NO.
MODEL OPTION
MODEL_OPT_5
E18
LOWHIGH
C5
MODEL OPTION
FHD
MODEL_OPT_2
MODEL_OPT_4
MODEL_OPT_0 FRC
D18
LCD : ERROR OUT(PANEL)
LCD : PWM_DIM
LCD : A_DIM
LCD_HP_DET
A8’h‘
LCD : BT_MUTE
LCD : AV_CVBS_DET
LCD : MICOM_DOWNLOAD(FLMD0)
IR_INT
LCD : FRC_RESET
NOT USE
NOT USE
NOT USE
XGA
EUROL&AUS
PK90 : LED_RED/LED_BLUE/LED_BREADING
PK70 : LED_RED/LED_BLUE
**PK50 : LED_RED
LCD : HDMI_HPD3
LCD : HDMI_HPD2
LCD : HDMI_HPD0
LCD : HDMI_POWER0
LCD : HDMI_POWER1
LCD : HDMI_POWER2
LCD : HDMI_POWER3
LCD : HDMI_HPD1
WXGA
BRAZIL
MODEL_OPT_1
MODEL_OPT_5
1
0
0
1
1
1
BRAZIL EURO AUSTRALIA
PDP CHASSIS OPTION
EURO
Copyright © 2010 LG Electronics Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

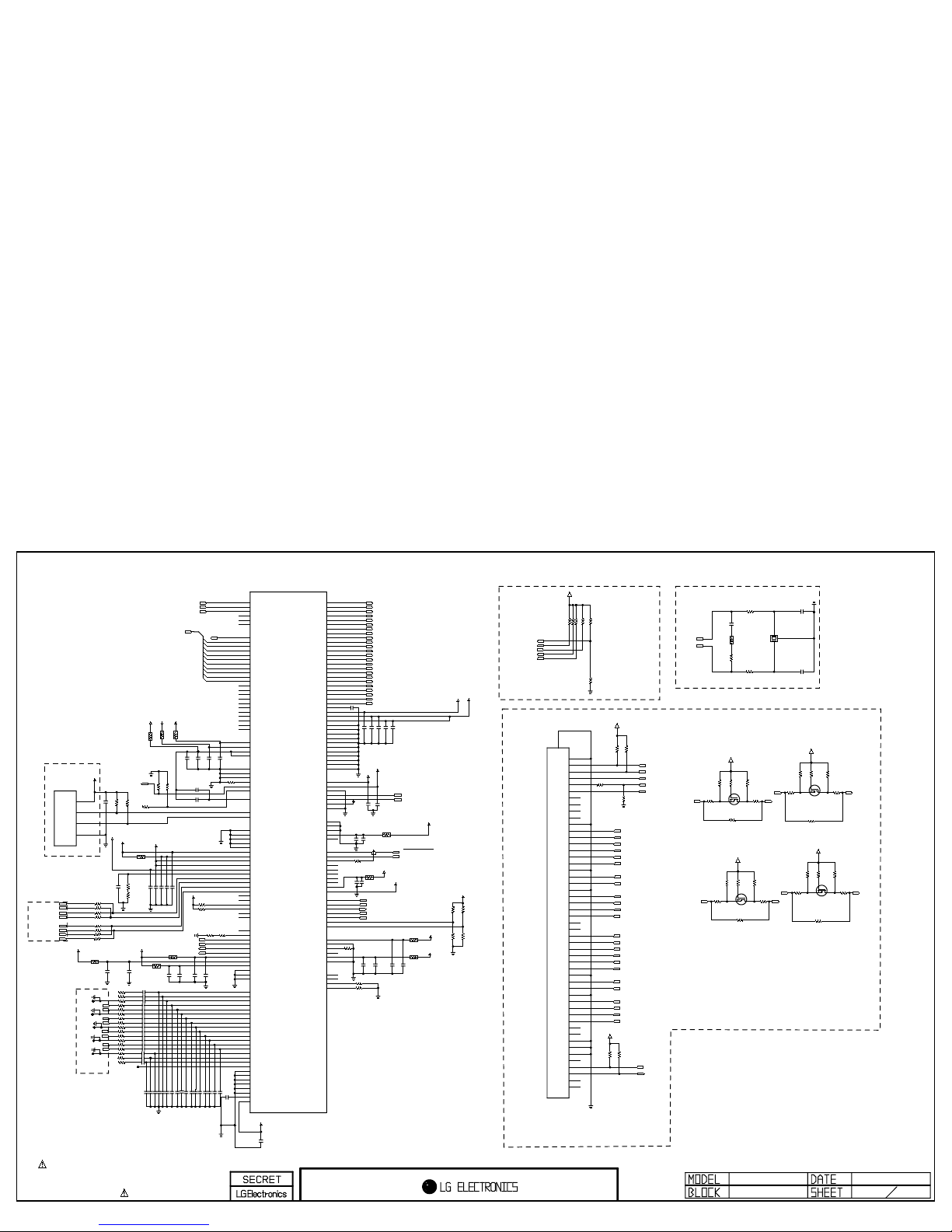

BCM AUDIO/LVDS
BCM3556-C0
10/01/
CI_OUTDATA[0]
CI_OUTDATA[6]
CI_OUTSTART
CI_OUTVALID
CI_OUTDATA[1]
CI_OUTDATA[5]
CI_OUTDATA[3]
CI_OUTDATA[2]
CI_OUTDATA[7]
CI_OUTDATA[4]
MDL_SCL002:G4
Q200
2N7002(F)
READY
G
D S
R258
22
READY
+3.3V_MULTI
R261 0
READY
R260 4.7K
READY
R262 4.7K
READY
Q201
2N7002(F)
READY
G
D S
MDL_SDA 002:G4
R267 4.7K
READY
R266 0
READY
R264
22
READY
R265 4.7K
READY
+3.3V_MULTI
C203
0.1uF
16V
L200
BLM18PG121SN1D
A1.2V
R212 51
EPHY_RDN
PC_R_IN
54MHz_XTAL_N
54MHz_XTAL_N 008:I1
C243
0.1uF
C201
4.7uF
C252
0.1uF
C237
0.1uF
R227
3.9K
C202
100pF
D3.3V
A3.3V
EPHY_TDP
C200
4.7uF
R219 51
L207
BLM18PG121SN1D
R215 51
A2.5V
C219 0.1uF
IC100
LGE3556C (C0 VERSION)
PKT0_CLK
D23
PKT0_DATA
C24
PKT0_SYNC
B26
RMX0_CLK
A25
RMX0_DATA
B25
RMX0_SYNC
A26
POD2CHIP_MCLKI
G23
POD2CHIP_MDI0
D25
POD2CHIP_MDI1
D24
POD2CHIP_MDI2
C25
POD2CHIP_MDI3
E27
POD2CHIP_MDI4
E26
POD2CHIP_MDI5
D28
POD2CHIP_MDI6
D27
POD2CHIP_MDI7
D26
POD2CHIP_MISTRT
E23
POD2CHIP_MIVAL
E24
CHIP2POD_MCLKO
F25
CHIP2POD_MDO0
C27
CHIP2POD_MDO1
C26
CHIP2POD_MDO2
B28
CHIP2POD_MDO3
B27
CHIP2POD_MDO4
A27
CHIP2POD_MDO5
F24
CHIP2POD_MDO6
F23
CHIP2POD_MDO7
E25
CHIP2POD_MOSTRT
C28
CHIP2POD_MOVAL
A28
VDAC_AVDD2P5
AC18
VDAC_AVDD1P2
AF20
VDAC_AVDD3P3_1
AG20
VDAC_AVDD3P3_2
AG21
VDAC_AVSS_1
AF19
VDAC_AVSS_2
AD20
VDAC_AVSS_3
AE20
VDAC_RBIAS
AH22
VDAC_1
AH20
VDAC_2
AG19
VDAC_VREG
AH21
BSC_S_SCL
M25
BSC_S_SDA
M24
USB_AVSS_1
R6
USB_AVSS_2
T6
USB_AVSS_3
R7
USB_AVSS_4
T7
USB_AVSS_5
T8
USB_AVDD1P2
R3
USB_AVDD1P2PLL
U3
USB_AVDD2P5
T4
USB_AVDD2P5REF
T3
USB_AVDD3P3
R4
USB_RREF
U4
USB_DM1
V1
USB_DP1
V2
USB_DM2
U1
USB_DP2
U2
USB_MONCDR
T5
USB_MONPLL
R5
USB_PWRFLT_1
R1
USB_PWRFLT_2
R2
USB_PWRON_1
T2
USB_PWRON_2
T1
EPHY_VREF
P6
EPHY_RDAC
P5
EPHY_RDN
P3
EPHY_RDP
P2
EPHY_TDN
N3
EPHY_TDP
N2
EPHY_AVDD1P2
P1
EPHY_AVDD2P5
P4
EPHY_PLL_VDD1P2
N4
EPHY_AGND_1
N1
EPHY_AGND_2
N5
EPHY_AGND_3
P7
AUDMX_LEFT1
AE6
AUDMX_RIGHT1
AD7
AUDMX_INCM1
AF6
AUDMX_LEFT2
AH4
AUDMX_RIGHT2
AG5
AUDMX_INCM2
AG4
AUDMX_LEFT3
AG6
AUDMX_RIGHT3
AF7
AUDMX_INCM3
AE7
AUDMX_LEFT4
AH5
AUDMX_RIGHT4
AG7
AUDMX_INCM4
AH6
AUDMX_LEFT5
AD8
AUDMX_RIGHT5
AF8
AUDMX_INCM5
AE8
AUDMX_LEFT6
AH7
AUDMX_RIGHT6
AH8
AUDMX_INCM6
AG8
AUDMX_AVSS_1
AF5
AUDMX_AVSS_2
AB9
AUDMX_AVSS_3
AA10
AUDMX_AVSS_4
AB10
AUDMX_AVSS_5
AA11
AUDMX_AVSS_6
AB11
AUDMX_LDO_CAP
AC8
AUDMX_AVDD2P5
AE5
LVDS_TX_0_DATA0_P B4
LVDS_TX_0_DATA0_N A4
LVDS_TX_0_DATA1_P C6
LVDS_TX_0_DATA1_N B6
LVDS_TX_0_DATA2_P B3
LVDS_TX_0_DATA2_N A3
LVDS_TX_0_DATA3_P A1
LVDS_TX_0_DATA3_N A2
LVDS_TX_0_DATA4_P D5
LVDS_TX_0_DATA4_N D6
LVDS_TX_0_CLK_P C5
LVDS_TX_0_CLK_N B5
LVDS_TX_1_DATA0_P B1
LVDS_TX_1_DATA0_N B2
LVDS_TX_1_DATA1_P C2
LVDS_TX_1_DATA1_N C3
LVDS_TX_1_DATA2_P D1
LVDS_TX_1_DATA2_N D2
LVDS_TX_1_DATA3_P E1
LVDS_TX_1_DATA3_N E2
LVDS_TX_1_DATA4_P E3
LVDS_TX_1_DATA4_N E4
LVDS_TX_1_CLK_P D3
LVDS_TX_1_CLK_N D4
LVDS_PLL_VREG F5
LVDS_TX_AVDDC1P2 F1
LVDS_TX_AVDD2P5_1 F4
LVDS_TX_AVDD2P5_2 F2
LVDS_TX_AVSS_1 C1
LVDS_TX_AVSS_2 F3
LVDS_TX_AVSS_3 C4
LVDS_TX_AVSS_4 A5
LVDS_TX_AVSS_5 E5
LVDS_TX_AVSS_6 E6
LVDS_TX_AVSS_7 D7
LVDS_TX_AVSS_8 E7
LVDS_TX_AVSS_9 F7
LVDS_TX_AVSS_10 G7
LVDS_TX_AVSS_11 H7
CLK54_AVDD1P2 AD27
CLK54_AVDD2P5 AD28
CLK54_AVSS AD26
CLK54_XTAL_N AC26
CLK54_XTAL_P AC27
CLK54_MONITOR AE25
PM_OVERRIDE Y23
VCXO_AGND_1 AA23
VCXO_AGND_2 AB24
VCXO_AGND_3 AC24
VCXO_AVDD1P2 AF25
VCXO_PLL_AUDIO_TESTOUT AF24
RESET_OUTB P24
RESETB F6
NMIB N24
TMODE_0 J5
TMODE_1 J4
TMODE_2 J6
TMODE_3 J3
SPI_S_MISO V25
POR_OTP_VDD2P5 AH3
POR_VDD1P2 AB8
EJTAG_TCK H4
EJTAG_TDI H3
EJTAG_TDO H2
EJTAG_TMS H1
EJTAG_TRSTB G1
EJTAG_CE0 H6
EJTAG_CE1 H5
PLL_MAIN_AVDD1P2 AB26
PLL_MAIN_AGND AC25
PLL_MAIN_MIPS_EREF_TESTOUT AB27
PLL_RAP_AVD_TESTOUT M6
PLL_RAP_AVD_AVDD1P2 N6
PLL_RAP_AVD_AGND N7
BYP_CPU_CLK AA24
BYP_DS_CLK Y24
BYP_SYS216_CLK AE24
BYP_SYS175_CLK AD25
R220 51
EPHY_TDN
R209 51
C246
10uF
READY
C231
4.7uF
C257
4.7uF
+3.3V_MULTI
C223 4.7uF
C259 0.1uF
L201
BLM18PG121SN1D
R249
22
A3.3V
R248
22
C224
0.1uF
C233
0.01uF
EPHY_RDP
C241
0.1uF
A2.5V
R237
1K
P200
TJC2508-4A
FOR DEBUG
1
2
3
4
COMP_L_IN
C236
0.1uF
C263
12pF
R214 51
C260
4.7uF
C234
0.1uF
C258
0.1uF
R228
120
PC_L_IN
A2.5V
COMP_R_IN
R239
390
READY
A1.2V
C239
4.7uF
R229 0
READY
A2.5V
L204
BLM18PG121SN1D
C228
4.7uF
R2421K
R213 51
C254
0.1uF
54MHz_XTAL_P 008:I2
R216 51
A2.5V
R233
75
READY
R238 560
C245
10uF
54MHz_XTAL_P
R225
51
L202
BLM18PG121SN1D
A1.2V
R208 1.5K
SC1_L_IN
C218 0.1uF
SC1_R_IN
R240
4.7K
R2411K
R210 51
FE_TS_DATA_CLK
R221 51
A1.2V
D3.3V
C264
12pF
FE_TS_SYNC
L209
1008LS-272XJLC
R236
240
A2.5V
A1.2V
C221 0.1uF
R226 1.5K
R217 51
L205
BLM18PG121SN1D
D3.3V
C255
4.7uF
R235
2.7K
X200
54MHz21
3
C262
33pF
R247 604
C226 0.1uF
FE_TS_SERIAL
C249
0.1uF
C261
4.7uF
L203
BLM18PG121SN1D
CI_A[14]
C251 0.1uF
SOC_RESET 007:B7
A1.2V
R231
75
C273
0.1uF
A1.2V
C248
10uF
L208
BLM18PG121SN1D
C256
0.1uF
A2.5V
A1.2V
C253
0.1uF
A1.2V
L206
BLM18PG121SN1D
C250
4.7uF
C247
0.1uF
JTAG_TMS
/JTAG_TRST
JTAG_TCLK
JTAG_TDO
JTAG_TDI
TP201
R211 5.1
R223 5.1
R222 5.1
R218 5.1
R224 5.1
TP204
TP203
TP202
TP200
MDL_SDA
DISP_EN
P201
TF05-51S
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
MOD_ROM_TX_MOD
R253100
FHD
MOD_ROM_RX_MOD
R255
27K
FHD
MDL_SCL
PC_SER_CLK
PC_SER_DATA
LVDS_TX_1_DATA1_N
LVDS_TX_0_DATA3_N
LVDS_TX_1_DATA2_P
LVDS_TX_0_CLK_P
LVDS_TX_0_DATA2_P
LVDS_TX_1_DATA4_N
LVDS_TX_1_DATA1_P
LVDS_TX_0_DATA2_N
LVDS_TX_1_DATA4_P
LVDS_TX_0_CLK_N
LVDS_TX_0_DATA1_P
LVDS_TX_1_CLK_P
LVDS_TX_1_DATA3_N
LVDS_TX_0_DATA4_N
LVDS_TX_0_DATA0_P
LVDS_TX_0_DATA0_N
LVDS_TX_1_DATA0_N
LVDS_TX_1_CLK_N
LVDS_TX_1_DATA0_P
LVDS_TX_1_DATA2_N
LVDS_TX_0_DATA4_P
LVDS_TX_0_DATA3_P
LVDS_TX_1_DATA3_P
LVDS_TX_0_DATA1_N
LVDS_TX_0_DATA3_P
LVDS_TX_0_DATA1_P
LVDS_TX_1_DATA1_N
LVDS_TX_1_DATA2_N
LVDS_TX_0_DATA4_N
LVDS_TX_1_CLK_N
LVDS_TX_0_DATA2_N
LVDS_TX_1_DATA0_P
LVDS_TX_1_DATA3_P
LVDS_TX_1_DATA1_P
LVDS_TX_0_DATA1_N
LVDS_TX_0_DATA0_N
LVDS_TX_0_DATA0_P
LVDS_TX_1_DATA2_P
LVDS_TX_1_CLK_P
LVDS_TX_0_CLK_P
LVDS_TX_1_DATA0_N
LVDS_TX_0_CLK_N
LVDS_TX_0_DATA3_N
LVDS_TX_1_DATA3_N
LVDS_TX_0_DATA2_P
LVDS_TX_0_DATA4_P
LVDS_TX_1_DATA4_P
LVDS_TX_1_DATA4_N
SCL3_3.3V
005:B6
SDA3_3.3V
005:B6
DTV/MNT_V_OUT
USB_DP
USB2_DP_to_MAIN
USB1_DP_to_MAIN
BT_DP
BT_DM
USB_DM
USB2_DM_to_MAIN
USB1_DM_to_MAIN
R275 1K
D3.3V
JTAG_TDO
002:D4
R277 1K
JTAG_TMS
002:D4 JTAG_TCLK
002:D4
JTAG_TDI
002:D4
/JTAG_TRST
002:D4
R276 1K
SIDE_RIN
SIDE_LIN
CI_OUTCLK,CI_OUTDATA[0-7],CI_OUTSTART,CI_OUTVALID
R28322 R28422
R245
2.7K
READY
R243
2.7K
READY
R285
2.7K
WATCH_DOG_RESET
007:B7
R244
2.7K R246 2.7K
R287 4.7K
READY
R25922
MOD_ROM_TX_MOD
002:G4
R268 0
READY
R256
22
READY
+3.3V_MULTI
R273 4.7K
READY
+3.3V_MULTI
MOD_ROM_RX_MOD
002:G4 Q203
2N7002(F)
READY
G
D S
R270
22
READY
Q202
2N7002(F)
READY
G
D S
R27422
MOD_ROM_TX
005:B6
R286 0
READY
R269 4.7K
READY
MOD_ROM_RX
005:B6
R272
22
READY
R257 4.7K
READY
C265 0.047uF C268 0.047uF C217 0.047uF
READY
C266 0.047uF C229 0.047uF
READY
C271 0.047uF C232 0.047uF
READY
C240 0.047uF C272 0.047uF C235 0.047uF
READY
C269 0.047uF C242 0.047uF C267 0.47uF
C244 0.47uF
C270 0.47uF C238 0.47uF C230 0.47uF
C204 0.015uF
C212 0.015uF
C207 0.015uF
C220 0.015uF
50V
C214 0.015uF
C209 0.015uF
C210 0.015uF
C205 0.015uF
C208 0.015uF
C206 0.015uF
C213 0.015uF
C211 0.015uF
C227 0.15uF
25V
C215 0.15uF
C225 0.15uF
25V
C216 0.15uF
25V
C222 0.15uF
25V
R288
22
READY
R271
22
READY
R263
22
READY
R278 1K
READY
R279 1K
READY
R281 1K
L211
BLM18PG121SN1D
L210
BLM18PG121SN1D
+3.3V_MULTI
R230 4.7K R232 4.7K
R234 4.7K
+3.3V_MULTI
R250 4.7K
R207
0USE_NO_HUB
R201
0USE_USB_HUB
R205
0USE_USB_HUB
R204
0USE_USB_HUB
R2020USE_NO_HUB R203
0USE_NO_HUB
R206
0USE_NO_HUB
R200
0USE_USB_HUB
2 13
54MHz X-TAL
AUDIO INCM-TP
PLACE NEAR JACKS
R220 : BCM recommened resistor 562 ohm
BROAD BAND STUDIO
CASE 1 : R = 0 ohm --> CL = 8 pF
CASE 2 : R = 22 Ohm --> CL = 22pF
FHD
LVDS
USB HUB
EJTAG
Copyright © 2010 LG Electronics Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
BCM VIDEO IN/BCM POWER 3 13
BCM3556-C0 10/01/
GND
R332 0
READY
SPDIF_OUT
009:D6
R318
10K
D3.3V
10K
R354
R331 34
READY
C334 0.1uF
C3001
4.7uF
A2.5V
D1.8V
IC100
LGE3556C (C0 VERSION)
DS_AGCI_CTL
AG28
DS_AGCT_CTL
AH28
EDSAFE_AVSS_1
AA21
EDSAFE_AVSS_2
AB22
EDSAFE_AVSS_3
AF26
EDSAFE_AVSS_4
AF27
EDSAFE_AVSS_5
AF28
EDSAFE_AVDD2P5
AG27
EDSAFE_DVDD1P2
AE26
EDSAFE_IF_N
AE28
EDSAFE_IF_P
AE27
PLL_DS_AGND
AD24
PLL_DS_AVDD1P2
AB19
PLL_DS_TESTOUT
AB25
SD_V5_AVDD1P2
AB18
SD_V5_AVDD2P5
AC17
SD_V5_AVSS
AB17
SD_V1_AVDD1P2
AD14
SD_V1_AVDD2P5
AD16
SD_V1_AVSS_1
AB15
SD_V1_AVSS_2
AC15
SD_V2_AVDD1P2
AD13
SD_V2_AVDD2P5
AE13
SD_V2_AVSS_1
AC13
SD_V2_AVSS_2
AB14
SD_V2_AVSS_3
AC14
SD_V3_AVDD1P2
AC12
SD_V3_AVDD2P5
AD12
SD_V3_AVSS_1
AB13
SD_V3_AVSS_2
AA14
SD_V4_AVDD1P2
AC11
SD_V4_AVDD2P5
AD11
SD_V4_AVSS
AB12
SD_R
AD10
SD_INCM_R
AC10
SD_G
AE9
SD_INCM_G
AF9
SD_B
AH9
SD_INCM_B
AG9
SD_Y1
AG15
SD_PR1
AE15
SD_PB1
AF15
SD_INCM_COMP1
AH15
SD_Y2
AG16
SD_PR2
AF16
SD_PB2
AH17
SD_INCM_COMP2
AH16
SD_Y3
AG14
SD_PR3
AE14
SD_PB3
AF14
SD_INCM_COMP3
AH14
SD_L1
AH10
SD_C1
AG10
SD_INCM_LC1
AE10
SD_L2
AE11
SD_C2
AF11
SD_INCM_LC2
AH11
SD_L3
AH13
SD_C3
AE12
SD_INCM_LC3
AF12
SD_CVBS1
AD9
SD_CVBS2
AG11
SD_CVBS3
AG12
SD_CVBS4
AF13
SD_INCM_CVBS1
AC9
SD_INCM_CVBS2
AF10
SD_INCM_CVBS3
AH12
SD_INCM_CVBS4
AG13
SD_SIF1
AF17
SD_INCM_SIF1
AG17
SD_FB
AD15
SD_FS
AE16
SD_FS2
AE17
PLL_VAFE_AVDD1P2
AB16
PLL_VAFE_AVSS
AA15
PLL_VAFE_TESTOUT
AC16
RGB_HSYNC
AG3
RGB_VSYNC
AF4
I2S_CLK_IN AE18
I2S_CLK_OUT AF18
I2S_DATA_IN AD17
I2S_DATA_OUT AH19
I2S_LR_IN AD18
I2S_LR_OUT AG18
AUD_LEFT0_N AG26
AUD_LEFT0_P AH26
AUD_AVDD2P5_0 AF23
AUD_AVSS_0_1 AA20
AUD_AVSS_0_2 AB21
AUD_AVSS_0_3 AC22
AUD_AVSS_0_4 AC23
AUD_AVSS_0_5 AD23
AUD_RIGHT0_N AH25
AUD_RIGHT0_P AG25
AUD_LEFT1_N AH23
AUD_LEFT1_P AG23
AUD_RIGHT1_N AG24
AUD_RIGHT1_P AH24
AUD_AVDD2P5_1 AE22
AUD_AVSS_1_1 AB20
AUD_AVSS_1_2 AC21
AUD_AVSS_1_3 AE23
AUD_LEFT2_N AF21
AUD_LEFT2_P AE21
AUD_RIGHT2_N AF22
AUD_RIGHT2_P AG22
AUD_AVDD2P5_2 AD21
AUD_AVSS_2_1 AC20
AUD_AVSS_2_2 AD22
AUD_SPDIF AH2
SPDIF_AVDD2P5 AC6
SPDIF_AVSS AE4
SPDIF_IN_N AF3
SPDIF_IN_P AH1
HDMI_RX_0_CEC_DAT AG1
HDMI_RX_0_HTPLG_IN AA6
HDMI_RX_0_HTPLG_OUT AA5
HDMI_RX_0_DDC_SCL AB3
HDMI_RX_0_DDC_SDA Y6
HDMI_RX_0_RESREF AC4
HDMI_RX_0_CLK_N AC1
HDMI_RX_0_CLK_P AC2
HDMI_RX_0_DATA0_N AD1
HDMI_RX_0_DATA0_P AD2
HDMI_RX_0_DATA1_N AE1
HDMI_RX_0_DATA1_P AE2
HDMI_RX_0_DATA2_N AF1
HDMI_RX_0_DATA2_P AF2
HDMI_RX_0_VDD3P3 AD3
HDMI_RX_0_VDD1P2 AE3
HDMI_RX_0_VDD2P5 AC3
HDMI_RX_0_AVSS_1 AD4
HDMI_RX_0_AVSS_2 AB5
HDMI_RX_0_AVSS_3 AB6
HDMI_RX_0_AVSS_4 AG2
HDMI_RX_0_AVSS_5 AB4
HDMI_RX_0_AVSS_6 AA7
HDMI_RX_0_PLL_AVSS Y8
HDMI_RX_0_PLL_DVDD1P2 AC5
HDMI_RX_0_PLL_DVSS W8
HDMI_RX_1_CEC_DAT AA3
HDMI_RX_1_HTPLG_IN V4
HDMI_RX_1_HTPLG_OUT U6
HDMI_RX_1_DDC_SCL V5
HDMI_RX_1_DDC_SDA V3
HDMI_RX_1_RESREF W4
HDMI_RX_1_CLK_N W2
HDMI_RX_1_CLK_P W3
HDMI_RX_1_DATA0_N Y1
HDMI_RX_1_DATA0_P Y2
HDMI_RX_1_DATA1_N AA2
HDMI_RX_1_DATA1_P AA1
HDMI_RX_1_DATA2_N AB2
HDMI_RX_1_DATA2_P AB1
HDMI_RX_1_VDD3P3 Y3
HDMI_RX_1_VDD1P2 Y4
HDMI_RX_1_VDD2P5 W5
HDMI_RX_1_AVSS_1 W1
HDMI_RX_1_AVSS_2 U5
HDMI_RX_1_AVSS_3 W6
HDMI_RX_1_AVSS_4 U7
HDMI_RX_1_AVSS_5 V7
HDMI_RX_1_AVSS_6 W7
HDMI_RX_1_AVSS_7 U8
HDMI_RX_1_AVSS_8 V8
HDMI_RX_1_AVSS_9 Y5
HDMI_RX_1_PLL_AVSS V6
HDMI_RX_1_PLL_DVDD1P2 AA4
HDMI_RX_1_PLL_DVSS Y7
R350
10K
R351 10K
IC100
LGE3556C (C0 VERSION)
DVSS_1
AD5
DVSS_2
AD6
DVSS_3
J7
DVSS_4
K7
DVSS_5
L7
DVSS_6
M7
DVSS_7
AB7
DVSS_8
AC7
DVSS_9
G8
DVSS_10
D9
DVSS_11
AA9
DVSS_12
G10
DVSS_13
A11
DVSS_14
L11
DVSS_15
M11
DVSS_16
N11
DVSS_17
P11
DVSS_18
R11
DVSS_19
T11
DVSS_20
U11
DVSS_21
V11
DVSS_22
D12
DVSS_23
G12
DVSS_24
L12
DVSS_25
M12
DVSS_26
N12
DVSS_27
P12
DVSS_28
R12
DVSS_29
T12
DVSS_30
U12
DVSS_31
V12
DVSS_32
L13
DVSS_33
M13
DVSS_34
N13
DVSS_35
P13
DVSS_36
R13
DVSS_37
T13
DVSS_38
U13
DVSS_39
V13
DVSS_40
G14
DVSS_41
L14
DVSS_42
M14
DVSS_43
N14
DVSS_44
P14
DVSS_45
R14
DVSS_46
T14
DVSS_47
U14
DVSS_48
V14
DVSS_49
L15
DVSS_50
M15
DVSS_51
N15
DVSS_52
P15
DVSS_53
R15
DVSS_54
T15
DVSS_55
U15
DVSS_56
V15
DVSS_57
A16
DVSS_58
G16
DVSS_59
L16
DVSS_60
M16
DVSS_61
N16
DVSS_62 P16
DVSS_63 R16
DVSS_64 T16
DVSS_65 U16
DVSS_66 V16
DVSS_67 AA16
DVSS_68 D17
DVSS_69 L17
DVSS_70 M17
DVSS_71 N17
DVSS_72 P17
DVSS_73 R17
DVSS_74 T17
DVSS_75 U17
DVSS_76 V17
DVSS_77 AA17
DVSS_78 AC19
DVSS_79 G18
DVSS_80 L18
DVSS_81 M18
DVSS_82 N18
DVSS_83 P18
DVSS_84 R18
DVSS_85 T18
DVSS_86 U18
DVSS_87 V18
DVSS_88 D20
DVSS_89 G20
DVSS_90 H20
DVSS_91 A21
DVSS_92 E21
DVSS_93 F21
DVSS_94 G21
DVSS_95 E22
DVSS_96 F22
DVSS_97 G22
DVSS_98 H22
DVSS_99 J22
DVSS_100 K22
DVSS_101 L22
DVSS_102 M22
DVSS_103 N22
DVSS_104 P22
DVSS_105 R22
DVSS_106 T22
DVSS_107 U22
DVSS_108 V22
DVSS_109 W22
DVSS_110 Y22
DVSS_111 AA22
DVSS_112 W23
DVSS_113 AB23
DVSS_114 F28
DVSS_115 M28
DVSS_116 T28
DVSS_117 AC28
C319
4.7uF
C3030
0.01uF
C308 10pF
READY
C312
1000pF
COMP_Y
C342 0.1uF
R329 75 READY
C307
0.1uF
C339 0.1uF
C3027
1000pF
HDMI0_RXC-_BCM 008:AA19
R328
75
READY
A2.5V
C3052
0.1uF
16V
C3046
0.1uF
16V
C3009
1000pF C3016 4.7uF
C3047
0.1uF
SC1_G
A3.3V
C3022
0.01uF
R346499
A1.2V
SC1_FB
R338
0
READY
R353 10K
SC1_R C344 0.1uF
C304 10pF
READY
HDMI0_RX1+_BCM 008:AC19
C3150.01uF READY
C370
0.1uF
C3000
0.1uF
C314
4.7uF
COMP_Pb
A1.2V
R363
20
C3044
0.1uF
A1.2V
A2.5V
DSUB_R
009:G4
C3014
1000pF
HDMI0_RX2+_BCM 008:AD19
C3160.01uF READY
R301 75
C357
1000pF
R327 75 READY
R334
0
READY
C3026
0.01uF C3041
0.1uF
16V
C3028
4.7uF
C355
4.7uF
C3029
0.01uF
A2.5V
R317 75
R342
0
READY
R324 75
C313
0.01uF
C303 10pF READY
R337
0
READY
R347 0
READY C3056
4.7uF
L305
BLM18PG121SN1D
C3005
10uF
C3023
0.01uF
R349 0
READY
R340
0
READY
C309
0.1uF
C3037
0.1uF
16V
C346 0.1uF
READY
D1.8V
R345 10K
AUD_LRCK
R321
10K
AUD_LRCH
C367
0.1uF
C3060
33uF
C375
10uF
C372
10uF
R319
12K
C3054
0.01uF
C301
0.1uF
HDMI_SCL 008:AA19
R320 75
L307
BLM18PG121SN1D
C3061
0.1uF
16V
RGB_VSYNC
C3039
1000pF
R325 75
L303
BLM18PG121SN1D
R343499
READY
L302
BLM18PG121SN1D
A2.5V
A1.2V
C3031
1000pF
HDMI_SDA 008:AA19
C3012
0.1uF C3015 1000pF
D3.3V
C310
4.7uF
C323 0.1uF
READY
C3033
0.01uF
C3034
0.01uF
COMP_Pr
C3032
0.1uF
R333 0
READY
C3051
1000pF
R344
1K
C373
10uF
HDMI0_RX0-_BCM 008:AB19
DSUB_G
009:G4
C350
0.1uF
HDMI0_RX0+_BCM 008:AB19
R339
0
READY
R303 75
C3018
0.01uF
RGB_HSYNC
TU_SIF
C354
0.1uF
C363
0.1uF
C365
0.01uF
C332 0.1uF
A2.5V
C3024
4.7uF
L300
BLM18PG121SN1D
C3007
33uF
C3011
1000pF
C340 0.1uF
C3059
10uF
C3019
1000pF
SCART1_Rout_P
R326 75
READY
HDMI0_RX2-_BCM 008:AC19
C343 0.1uF
A2.5V
C3017
1000pF
C317
0.1uF
A3.3V
C327 0.1uF
C362
0.1uF
SC1_B
D3.3V
C369
0.1uF
C3043
10uF
10V
R322 12K
D1.2V
A1.2V
C352
1000pF
AUD_SCK
C360
0.01uF
R336
0
READY
L304
BLM18PG121SN1D
C311
0.1uF
C3050
4.7uF
L308
BLM18PG121SN1D
C3058
0.1uF
16V
C336 0.1uF
C359
0.01uF
C3055
0.1uF
16V
C305
10pFREADY
IC100
LGE3556C (C0 VERSION)
VDDC_1
H8
VDDC_2
J8
VDDC_3
K8
VDDC_4
L8
VDDC_5
M8
VDDC_6
N8
VDDC_7
P8
VDDC_8
R8
VDDC_9
AA8
VDDC_10
H9
VDDC_11
H10
VDDC_12
H11
VDDC_13
H12
VDDC_14
H13
VDDC_15
H14
VDDC_16
H15
VDDC_17
H16
VDDC_18
H17
VDDC_19
H18
VDDC_20
H19
VDDC_21
H21
VDDC_22
J21
VDDC_23
K21
VDDC_24
L21
VDDC_25
M21
VDDC_26
N21
VDDC_27
P21
VDDC_28
R21
VDDC_29
T21
VDDC_30
U21
VDDC_31
V21
VDDC_32
W21
VDDC_33
Y21
AGC_VDDO
AH27
VDDO_1
AA12
VDDO_2
AA13
VDDO_3
AA18
VDDO_4
AA19
VDDO_5
E28
VDDO_6
L28
VDDO_7
U28
VDDO_8
AB28
DDRV_1
A9
DDRV_2
G9
DDRV_3
G11
DDRV_4
G13
DDRV_5
A14
DDRV_6
G15
DDRV_7
G17
DDRV_8
A19
DDRV_9
G19
C3049
0.1uF
16V
C320
0.01uF
C325 0.1uF
C389
0.1uF
A1.2V
A2.5V
C368
0.1uF C374 10uF
C347
0.1uF
C3045
0.1uF
L301
BLM18PG121SN1D
C3048
4.7uF
C3010
0.01uF
D1.8V
C378
0.1uF
16V
L306
BLM18PG121SN1D
C3020
1000pF
HDMI0_RXC+_BCM 008:AB19
R341
0
READY
C338 0.1uF
C322 0.1uF
R335
0
READY
C3021
0.1uF
C3035
0.1uF
16V
C306
0.1uF
C356
0.01uF
R348 0
READY
C361
0.01uF
R305 75
D1.2V
C326 0.1uF
SC1_ID
C3002
1000pF
C30010pF
READY
SCART1_Lout_P
C302
0.1uF
C3053
4.7uF
C3040
0.1uF
C3004
0.1uF
TU_CVBS
C3013
0.1uF
C321 0.1uF
C318
1000pF
C3038
0.1uF
D1.2V
SC1_CVBS_IN
R323 75
C351
4.7uF
R330 75
C3036
4.7uF
D1.8V
C3006
10uF
DSUB_B
009:G5
C3003
0.01uF
C3025
0.1uF
C3057
0.1uF
A3.3V
C3042
0.01uF
C324 0.1uF C364
10uF
HDMI0_RX1-_BCM 008:AC19
C333 0.1uF
C335 0.1uF
C337 0.1uF
C341 0.1uF
C345 0.1uF
R314 34
R316 34
R315 34
R300 34
R307 34
C328 0.1uF
C329 0.1uF
C330 0.1uF
C331 0.1uF
R312 34
R313 34
R310 34
R311 34
AV_CVBS_IN
R357 0
READY
R358 0
READY
SCART1_Lout_N
SCART1_Rout_N
+5V_MULTI
R306 240
R304 120
R309 12
R359 12
R362
62
R364
62
R366 0
READY
R365 0
READY
R35522
R35622
R352 0
D3.3V
R308 18
R360
75
SC1_RGB
CVBS
DSUB
COMPONENT
CONNECT NEAR BCM CHIP
CVBS INCM-TP
PLACE NEAR JACKS
SC RGB INCM-TP
PLACE NEAR JACKS
COMP INCM-TP
PLACE NEAR JACKS
DSUB RGB INCM-TP
PLACE NEAR JACKS
Copyright © 2010 LG Electronics Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

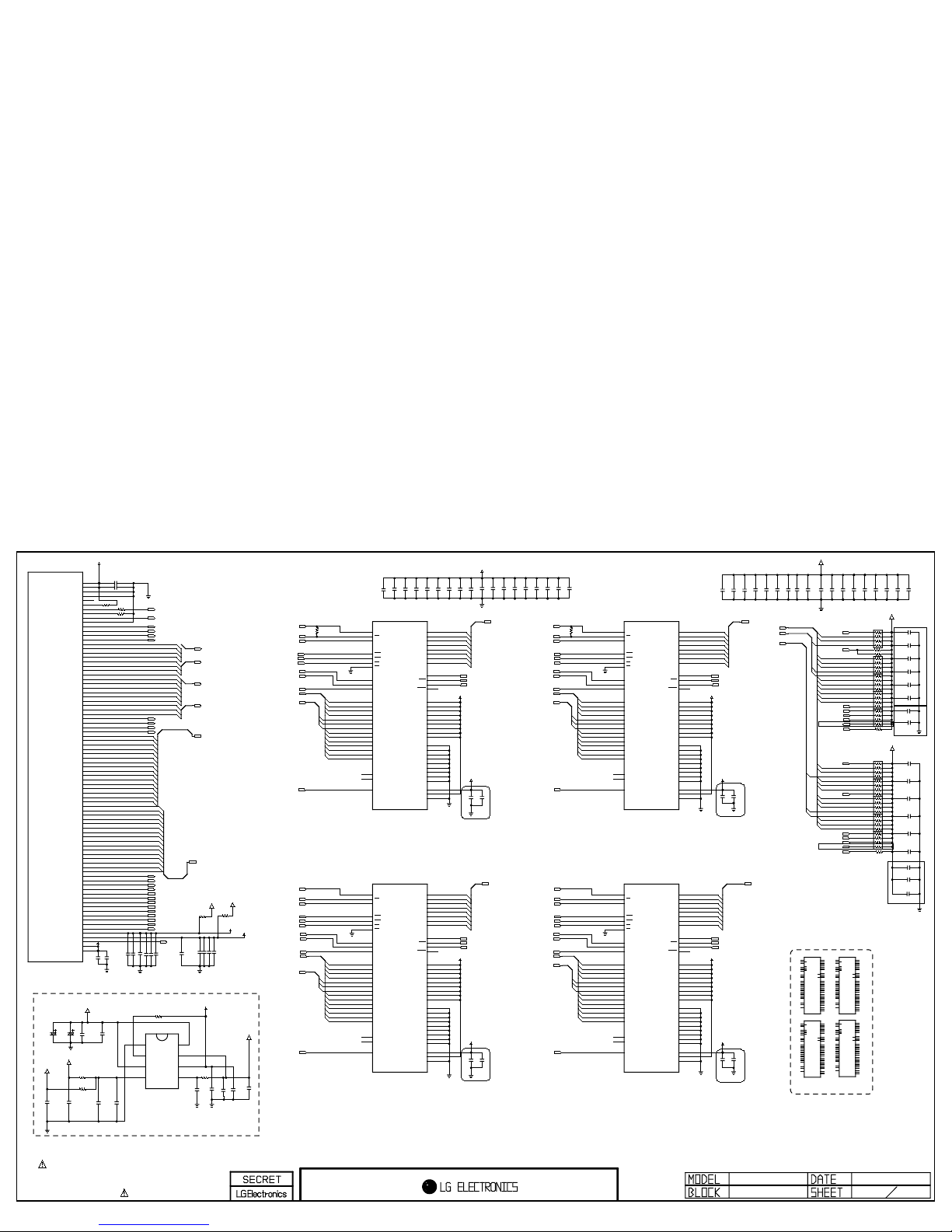

DDR2 MEMORY INTERFACE
BCM3556-C0
10/01/
DDR01_A[13]
DDR01_A[10]
DDR0_DQ[0]
DDR01_A[11]
DDR1_DQ[8]
DDR1_A[5]
DDR01_A[11]
DDR1_A[5]
DDR01_A[12]
DDR01_A[11]
DDR1_A[4]
DDR0_A[4]
DDR01_A[13]
DDR01_A[10]
DDR0_A[5]
DDR1_A[6]
DDR0_DQ[1]
DDR01_A[12]
DDR1_A[6]
DDR01_A[12]
DDR0_DQ[13]
DDR1_A[5]
DDR1_DQ[10]
DDR01_A[10]
DDR01_A[7]
DDR01_A[3]
DDR01_A[7]
DDR01_A[3]
DDR01_A[1]
DDR01_A[3]
DDR01_A[7]
DDR0_DQ[15]
DDR1_DQ[14]
DDR01_A[10]
DDR01_A[0]
DDR01_A[13]
DDR01_A[7]
DDR01_A[7]
DDR1_A[4]
DDR01_A[13]
DDR1_DQ[11]
DDR01_A[12]
DDR01_A[2]
DDR01_A[1]
DDR01_A[9]
DDR1_A[4]
DDR01_A[2]
DDR1_DQ[12]
DDR01_A[9]
DDR01_A[11]
DDR1_DQ[3]
DDR0_A[4]
DDR01_A[8]
DDR01_A[0]
DDR01_A[2]
DDR01_A[8]
DDR01_A[8]
DDR01_A[8]
DDR1_DQ[6]
DDR01_A[2]
DDR0_A[4]
DDR1_A[6]
DDR01_A[13]
DDR01_A[1]
DDR0_DQ[5]
DDR01_A[11]
DDR1_DQ[2]
DDR0_DQ[10]
DDR01_A[0]
DDR0_DQ[3]
DDR0_A[5]
DDR01_A[2]
DDR1_DQ[13]
DDR01_A[7]
DDR01_A[11]
DDR1_DQ[4]
DDR01_A[12]
DDR0_A[6]
DDR1_DQ[5]
DDR01_A[3]
DDR01_A[7]
DDR01_A[11]
DDR0_DQ[11]
DDR0_DQ[4]
DDR01_A[9]
DDR01_A[3]
DDR1_DQ[0]
DDR01_A[13]
DDR01_A[0]
DDR01_A[9]
DDR01_A[0]
DDR1_A[4]
DDR1_DQ[9]
DDR01_A[9]
DDR0_DQ[7]
DDR01_A[9]
DDR01_A[10]
DDR01_A[12]
DDR01_A[1]
DDR0_DQ[12]
DDR0_A[6]
DDR1_A[5]
DDR01_A[8]
DDR01_A[10]
DDR1_DQ[1]
DDR0_DQ[14]
DDR01_A[1]
DDR0_A[5]
DDR1_DQ[15]
DDR01_A[12]
DDR0_DQ[2]
DDR01_A[3]
DDR01_A[8]
DDR0_A[6]
DDR01_A[10]
DDR0_DQ[8]
DDR01_A[2]
DDR0_DQ[6]
DDR0_A[6]
DDR0_A[5]
DDR01_A[8]
DDR01_A[0]
DDR01_A[9]DDR1_DQ[7]
DDR1_A[6]
DDR01_A[13]
DDR0_DQ[9]
DDR01_A[1]
DDR0_A[4]
DDR01_A[3]
DDR01_A[0]
DDR01_A[1]
DDR01_A[2]
DDR0_DQ[15]
DDR0_DQ[14]
DDR0_DQ[13]
DDR0_DQ[12]
DDR0_DQ[11]
DDR0_DQ[10]
DDR0_DQ[9]
DDR0_DQ[8]
DDR0_DQ[7]
DDR0_DQ[6]
DDR0_DQ[5]
DDR0_DQ[4]
DDR0_DQ[3]
DDR0_DQ[2]
DDR0_DQ[1]
DDR0_DQ[0]
DDR1_DQ[15]
DDR1_DQ[0]
DDR1_DQ[1]
DDR1_DQ[2]
DDR1_DQ[3]
DDR1_DQ[4]
DDR1_DQ[5]
DDR1_DQ[6]
DDR1_DQ[7]
DDR1_DQ[8]
DDR1_DQ[9]
DDR1_DQ[10]
DDR1_DQ[11]
DDR1_DQ[12]
DDR1_DQ[13]
DDR1_DQ[14]
C422
0.047uF
D1.8V
R403 0
READY
DDR01_BA0
D1.8V
C403
10uF
10V
C455
22uF
DDR01_A[7-13]
DDR1_DQ[8-15]
004:B5
C460
470pF
C472
0.1uF
DDR0_DM1 004:A4 DDR1_DM1 004:A4
IC400
BD35331F-E2
3
VTTS
2
EN
4
VREF
1
GND
5VDDQ
6VCC
7VTT_IN
8VTT
DDR01_BA2
C401
0.1uF
16V
DDR01_WEb
DDR0_CLK
004:A7;004:C7
C436
0.1uF
A1.2V
DDR0_DQS0 004:A4
AR403
75
DDR1_DQ[0-7]
004:B5
DDR1_DQS0 004:H6
DDR1_CLKb
004:A7;004:F4
DDR1_DQS0b 004:A3
C464
0.1uF
DDR01_RASb
DDR1_DQ[0-15]
C412
470pF
DDR01_A[0-3,7-13]
C421
470pF
C474
0.1uF
C447
0.1uF
AR409
75
DDR01_BA0
C444
470pF
C475
0.1uF
DDR01_CKE
DDR0_A[4-6]
C400
0.1uF
16V
C438
470pF
DDR0_DQ[0-7] 004:B6
DDR1_DQS1b 004:H3 R408
4.99K
1%
READY
DDR0_DQS1b 004:E3
DDR0_A[4-6]
DDR01_ODT
D1.8V
C448
0.1uF
DDR01_BA2
DDR0_DQS1b 004:A4
R416 75
C414
1uF
+3.3V_ST
DDR1_A[4-6]
C404
0.1uF
AR400
75
DDR0_VREF0
DDR01_A[0-3]
DDR01_CKE
DDR0_DQS0 004:E6
DDR1_VREF0
DDR_VTT
DDR0_DQ[8-15]
C415
470pF
AR405
75
R411
100
1%
C4090.1uF
C410
1uF
C478
0.1uF
16V
C411
470pF
DDR01_BA2
DDR0_A[4-6]
DDR01_WEb
DDR0_DQ[0-15]
DDR01_WEb
DDR0_DM0 004:A4
DDR01_BA0
DDR01_RASb
DDR01_BA0
DDR01_CASb
DDR1_DQS0b 004:H6
DDR01_BA1
DDR0_DQS1 004:E3
DDR0_VREF0
AR407
75
C416
0.1uF 16V
DDR1_VREF0
DDR1_A[4-6]
C443
470pF
DDR01_WEb
C459
0.047uF
C446
0.047uF
DDR1_DM0 004:A4
C461
10uF
DDR1_CLK 004:F7;004:F4
DDR1_CLKb
DDR01_RASb
DDR01_RASb
C427
0.1uF
DDR0_CLKb 004:C7;004:C4 DDR01_RASb
C451
470pF
C476
470pF
DDR01_BA0
DDR0_A[4-6]
DDR01_RASb
DDR1_DQS1b 004:A3
C453
0.1uF
DDR0_CLK 004:C7;004:C4
C435
10uF
C4080.1uF
C463
0.047uF
R406 240
1%
R409
4.99K
1%
READY
C406
0.1uF
C425
470pF
DDR1_CLK
R415 75
C450 10uF
D1.8V
DDR01_CKE
C431
0.1uF
DDR0_VREF0
R414 75
DDR01_BA2
C445
470pF
DDR01_A[0-3,7-13]
IC100
LGE3556C (C0 VERSION)
DDR_BVDD0 A6
DDR_BVDD1 A24
DDR_BVSS0 B7
DDR_BVSS1 B24
DDR_PLL_TEST F20
DDR_PLL_LDO B23
DDR01_CKE B17
DDR_COMP C22
DDR01_ODT E16
DDR_EXT_CLK C23
DDR0_CLK B12
DDR0_CLKB C12
DDR1_CLK A13
DDR1_CLKB A12
DDR01_A00 B15
DDR01_A01 E14
DDR01_A02 A15
DDR01_A03 D15
DDR0_A04 E13
DDR0_A05 E12
DDR0_A06 F13
DDR01_A07 C14
DDR01_A08 F14
DDR01_A09 B14
DDR01_A10 D14
DDR01_A11 C13
DDR01_A12 D13
DDR01_A13 B13
DDR1_A04 F15
DDR1_A05 C15
DDR1_A06 D16
DDR01_BA0 F16
DDR01_BA1 B16
DDR01_BA2 E15
DDR01_CASB A17
DDR0_DQ00 A8
DDR0_DQ01 B11
DDR0_DQ02 B8
DDR0_DQ03 D11
DDR0_DQ04 E11
DDR0_DQ05 C8
DDR0_DQ06 C11
DDR0_DQ07 C9
DDR0_DQ08 D8
DDR0_DQ09 E10
DDR0_DQ10 E9
DDR0_DQ11 F11
DDR0_DQ12 F12
DDR0_DQ13 E8
DDR0_DQ14 D10
DDR0_DQ15 F8
DDR1_DQ00 C18
DDR1_DQ01 C20
DDR1_DQ02 A18
DDR1_DQ03 B21
DDR1_DQ04 C21
DDR1_DQ05 B18
DDR1_DQ06 B20
DDR1_DQ07 D18
DDR1_DQ08 E18
DDR1_DQ09 D21
DDR1_DQ10 F18
DDR1_DQ11 E20
DDR1_DQ12 A22
DDR1_DQ13 F17
DDR1_DQ14 B22
DDR1_DQ15 E17
DDR0_DM0 A10
DDR0_DM1 C10
DDR1_DM0 A20
DDR1_DM1 F19
DDR0_DQS0 B10
DDR0_DQS0B B9
DDR0_DQS1 F10
DDR0_DQS1B F9
DDR1_DQS0 B19
DDR1_DQS0B C19
DDR1_DQS1 E19
DDR1_DQS1B D19
DDR01_RASB C16
DDR_VREF0 A7
DDR_VREF1 A23
DDR01_WEB C17
DDR_VDDP1P8_1 C7
DDR_VDDP1P8_2 D22
DDR0_DM0 004:E6
DDR01_RASb
DDR01_CKE
AR404
75
C439
10uF
AR406
75
DDR01_BA1
AR401
75
C440
0.1uF
DDR01_WEb
DDR0_VREF0
DDR0_DQS1 004:A4
DDR01_A[0-3,7-13]
C423
0.1uF
DDR01_BA2
D1.8V
C417
470pF
C426
0.047uF
C454
10uF
DDR01_ODT
004:A7;004:C5;004:C2;004:F2;004:I4;004:I6
DDR01_BA1
C429
10uF
AR408
75
DDR01_A[0-3,7-13]
C424
10uF
C434
470pF
DDR1_CLKb 004:F7;004:F4
DDR01_CASb
C433
470pF
DDR1_VREF0
C437
0.047uF
C418
1uF
DDR01_BA0
DDR01_A[0-3,7-13]
DDR1_DQS0 004:A4
DDR01_CASb
C457
10uF
C458
0.1uF
D1.8V
DDR01_BA2
DDR01_ODT
C428
22uF
DDR01_CASb
D1.8V
DDR01_BA1
DDR01_WEb
DDR01_BA1
DDR1_A[4-6]
004:B6;004:F3;004:I7
DDR0_CLKb
004:A7;004:C4
DDR0_DQS0b 004:A4
DDR01_BA0
DDR01_WEb
D1.8V
DDR1_DQS1 004:H3
C430
0.1uF C465
0.1uF
DDR0_CLK
004:A7;004:C4
R413 75
C473
0.1uF
C452
0.047uF
C442
470pF
C407
0.1uF
16V
DDR0_DQS0b 004:E6
C413
1uF
DDR01_ODT
DDR1_DM0 004:H6
C449
0.1uF
DDR_VTT
DDR01_CKE
004:A7;004:C7;004:F7;004:F4
C456
22uF
DDR1_VREF0
DDR01_BA1
C432
22uF
D1.8V
DDR0_CLKb
004:A7;004:C7
DDR01_ODT
DDR0_DM1 004:E3
DDR01_BA1 DDR1_DQS1 004:A3
AR402
75
DDR01_ODT
C462
0.1uF
DDR01_CASb
DDR1_DM1 004:H3
DDR1_A[4-6]
004:B6;004:F6;004:I7
DDR01_CASb
DDR1_CLK
004:A7;004:F4
R410
100 1%
DDR01_ODT
D1.8V
DDR01_BA2
DDR_VTT
C441
0.047uF
C405
10uF
10V
R402
10K
C479
0.1uF
16V
C420
10uF
10V
C419
2.2uF
10V
R412
220
C477
10uF
10V
IC402
NT5TU128M8DE_BD
NANYA_1G_DDR2
CK
E8
CK
F8
CKE
F2
RAS
F7
CAS
G7
WE
F3
CS
G8
BA0
G2
BA1
G3
NC_1/BA2
G1
A0
H8
A1
H3
A2
H7
A3
J2
A4
J8
A5
J3
A6
J7
A7
K2
A8
K8
A9
K3
A10/AP
H2
A11
K7
A12
L2
A13
L8
NC_2/A14
L3
NC_3/A15
L7
ODT
F9
DQ0 C8
DQ1 C2
DQ2 D7
DQ3 D3
DQ4 D1
DQ5 D9
DQ6 B1
DQ7 B9
DQS B7
DQS A8
DM/RDQS B3
NU/RDQS A2
VDDQ_1 A9
VDDQ_2 C1
VDDQ_3 C3
VDDQ_4 C7
VDDQ_5 C9
VDD_1 A1
VDD_2 L1
VDD_3 E9
VDD_4 H9
VSSQ_1 A7
VSSQ_2 B2
VSSQ_3 B8
VSSQ_4 D2
VSSQ_5 D8
VSS_1 A3
VSS_2 E3
VSS_3 J1
VSS_4 K9
VREF E2
VDDL E1
VSSDL E7
IC401
NT5TU128M8DE_BD
NANYA_1G_DDR2
CK
E8
CK
F8
CKE
F2
RAS
F7
CAS
G7
WE
F3
CS
G8
BA0
G2
BA1
G3
NC_1/BA2
G1
A0
H8
A1
H3
A2
H7
A3
J2
A4
J8
A5
J3
A6
J7
A7
K2
A8
K8
A9
K3
A10/AP
H2
A11
K7
A12
L2
A13
L8
NC_2/A14
L3
NC_3/A15
L7
ODT
F9
DQ0 C8
DQ1 C2
DQ2 D7
DQ3 D3
DQ4 D1
DQ5 D9
DQ6 B1
DQ7 B9
DQS B7
DQS A8
DM/RDQS B3
NU/RDQS A2
VDDQ_1 A9
VDDQ_2 C1
VDDQ_3 C3
VDDQ_4 C7
VDDQ_5 C9
VDD_1 A1
VDD_2 L1
VDD_3 E9
VDD_4 H9
VSSQ_1 A7
VSSQ_2 B2
VSSQ_3 B8
VSSQ_4 D2
VSSQ_5 D8
VSS_1 A3
VSS_2 E3
VSS_3 J1
VSS_4 K9
VREF E2
VDDL E1
VSSDL E7
IC404
NT5TU128M8DE_BD
NANYA_1G_DDR2
CK
E8
CK
F8
CKE
F2
RAS
F7
CAS
G7
WE
F3
CS
G8
BA0
G2
BA1
G3
NC_1/BA2
G1
A0
H8
A1
H3
A2
H7
A3
J2
A4
J8
A5
J3
A6
J7
A7
K2
A8
K8
A9
K3
A10/AP
H2
A11
K7
A12
L2
A13
L8
NC_2/A14
L3
NC_3/A15
L7
ODT
F9
DQ0 C8
DQ1 C2
DQ2 D7
DQ3 D3
DQ4 D1
DQ5 D9
DQ6 B1
DQ7 B9
DQS B7
DQS A8
DM/RDQS B3
NU/RDQS A2
VDDQ_1 A9
VDDQ_2 C1
VDDQ_3 C3
VDDQ_4 C7
VDDQ_5 C9
VDD_1 A1
VDD_2 L1
VDD_3 E9
VDD_4 H9
VSSQ_1 A7
VSSQ_2 B2
VSSQ_3 B8
VSSQ_4 D2
VSSQ_5 D8
VSS_1 A3
VSS_2 E3
VSS_3 J1
VSS_4 K9
VREF E2
VDDL E1
VSSDL E7
IC403
NT5TU128M8DE_BD
NANYA_1G_DDR2
CK
E8
CK
F8
CKE
F2
RAS
F7
CAS
G7
WE
F3
CS
G8
BA0
G2
BA1
G3
NC_1/BA2
G1
A0
H8
A1
H3
A2
H7
A3
J2
A4
J8
A5
J3
A6
J7
A7
K2
A8
K8
A9
K3
A10/AP
H2
A11
K7
A12
L2
A13
L8
NC_2/A14
L3
NC_3/A15
L7
ODT
F9
DQ0 C8
DQ1 C2
DQ2 D7
DQ3 D3
DQ4 D1
DQ5 D9
DQ6 B1
DQ7 B9
DQS B7
DQS A8
DM/RDQS B3
NU/RDQS A2
VDDQ_1 A9
VDDQ_2 C1
VDDQ_3 C3
VDDQ_4 C7
VDDQ_5 C9
VDD_1 A1
VDD_2 L1
VDD_3 E9
VDD_4 H9
VSSQ_1 A7
VSSQ_2 B2
VSSQ_3 B8
VSSQ_4 D2
VSSQ_5 D8
VSS_1 A3
VSS_2 E3
VSS_3 J1
VSS_4 K9
VREF E2
VDDL E1
VSSDL E7
C469
0.1uF
C468
0.1uF
C471
0.1uF
C467
0.1uF
C470
0.1uF
C466
0.1uF
C481
0.1uF
C484
0.1uF
C483
0.1uF
C482
0.1uF
C480
0.1uF
DDR01_CKE
DDR01_CKE
C402
100uF
16V
R401
0
R400
0
R404 0
C485
100uF
16V
IC404-*1
K4T1G084QE-HCF8
SS_1G_DDR2
CK
E8
CK
F8
CKE
F2
RAS
F7
CAS
G7
WE
F3
CS
G8
BA0
G2
BA1
G3
BA2
G1
A0
H8
A1
H3
A2
H7
A3
J2
A4
J8
A5
J3
A6
J7
A7
K2
A8
K8
A9
K3
A10/AP
H2
A11
K7
A12
L2
A13
L8
NC_1
L3
NC_2
L7
ODT0
F9
DQ0 C8
DQ1 C2
DQ2 D7
DQ3 D3
DQ4 D1
DQ5 D9
DQ6 B1
DQ7 B9
DQS B7
DQS A8
DM/RDQS B3
NU/RDQS A2
VDDQ_1 A9
VDDQ_2 C1
VDDQ_3 C3
VDDQ_4 C7
VDDQ_5 C9
VDD_1 A1
VDD_2 L1
VDD_3 E9
VDD_4 H9
VSSQ_1 A7
VSSQ_2 B2
VSSQ_3 B8
VSSQ_4 D2
VSSQ_5 D8
VSS_1 A3
VSS_2 E3
VSS_3 J1
VSS_4 K9
VREF E2
VDDL E1
VSSDL E7
IC402-*1
K4T1G084QE-HCF8
SS_1G_DDR2
CK
E8
CK
F8
CKE
F2
RAS
F7
CAS
G7
WE
F3
CS
G8
BA0
G2
BA1
G3
BA2
G1
A0
H8
A1
H3
A2
H7
A3
J2
A4
J8
A5
J3
A6
J7
A7
K2
A8
K8
A9
K3
A10/AP
H2
A11
K7
A12
L2
A13
L8
NC_1
L3
NC_2
L7
ODT0
F9
DQ0 C8
DQ1 C2
DQ2 D7
DQ3 D3
DQ4 D1
DQ5 D9
DQ6 B1
DQ7 B9
DQS B7
DQS A8
DM/RDQS B3
NU/RDQS A2
VDDQ_1 A9
VDDQ_2 C1
VDDQ_3 C3
VDDQ_4 C7
VDDQ_5 C9
VDD_1 A1
VDD_2 L1
VDD_3 E9
VDD_4 H9
VSSQ_1 A7
VSSQ_2 B2
VSSQ_3 B8
VSSQ_4 D2
VSSQ_5 D8
VSS_1 A3
VSS_2 E3
VSS_3 J1
VSS_4 K9
VREF E2
VDDL E1
VSSDL E7
IC401-*1
K4T1G084QE-HCF8
SS_1G_DDR2
CK
E8
CK
F8
CKE
F2
RAS
F7
CAS
G7
WE
F3
CS
G8
BA0
G2
BA1
G3
BA2
G1
A0
H8
A1
H3
A2
H7
A3
J2
A4
J8
A5
J3
A6
J7
A7
K2
A8
K8
A9
K3
A10/AP
H2
A11
K7
A12
L2
A13
L8
NC_1
L3
NC_2
L7
ODT0
F9
DQ0 C8
DQ1 C2
DQ2 D7
DQ3 D3
DQ4 D1
DQ5 D9
DQ6 B1
DQ7 B9
DQS B7
DQS A8
DM/RDQS B3
NU/RDQS A2
VDDQ_1 A9
VDDQ_2 C1
VDDQ_3 C3
VDDQ_4 C7
VDDQ_5 C9
VDD_1 A1
VDD_2 L1
VDD_3 E9
VDD_4 H9
VSSQ_1 A7
VSSQ_2 B2
VSSQ_3 B8
VSSQ_4 D2
VSSQ_5 D8
VSS_1 A3
VSS_2 E3
VSS_3 J1
VSS_4 K9
VREF E2
VDDL E1
VSSDL E7
IC403-*1
K4T1G084QE-HCF8
SS_1G_DDR2
CK
E8
CK
F8
CKE
F2
RAS
F7
CAS
G7
WE
F3
CS
G8
BA0
G2
BA1
G3
BA2
G1
A0
H8
A1
H3
A2
H7
A3
J2
A4
J8
A5
J3
A6
J7
A7
K2
A8
K8
A9
K3
A10/AP
H2
A11
K7
A12
L2
A13
L8
NC_1
L3
NC_2
L7
ODT0
F9
DQ0 C8
DQ1 C2
DQ2 D7
DQ3 D3
DQ4 D1
DQ5 D9
DQ6 B1
DQ7 B9
DQS B7
DQS A8
DM/RDQS B3
NU/RDQS A2
VDDQ_1 A9
VDDQ_2 C1
VDDQ_3 C3
VDDQ_4 C7
VDDQ_5 C9
VDD_1 A1
VDD_2 L1
VDD_3 E9
VDD_4 H9
VSSQ_1 A7
VSSQ_2 B2
VSSQ_3 B8
VSSQ_4 D2
VSSQ_5 D8
VSS_1 A3
VSS_2 E3
VSS_3 J1
VSS_4 K9
VREF E2
VDDL E1
VSSDL E7
C486
0.1uF
C488
0.1uF
C487
1uF
10V
4 13
Close to IC
Close to IC
* DDR_VTT
Close to IC
Close to IC
SI
SI
SI
PI
SI
SS MEMORY MULTI
Close to IC & PLACE TO TOP
Copyright © 2010 LG Electronics Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only

THERMAL
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
SMPS POWER
10/01/
BCM3556-C0
INSTANT_BOOT
+5V_MULTI
R521
0
READY
L513
MLB-201209-0120P-N2
0LCML00003B
+5V_ST
C543
10uF
6.3V
AC_DET
+3.3V_USB_HUB
C546
0.1uF
16V
C548
100uF
16V
C565
10uF
16V
C500
10uF
6.3V
C552
0.1uF
16V
IC501
MP2212DN
3
IN
2
GND
4
BS
1
FB
5VCC
6SW_1
7SW_2
8EN/SYNC
C517
10uF
6.3V
READY
RL_ON
5V_ON
P_+5V
P_17V
Q500
2SC3052
E
BC
C514
0.1uF
50V
+3.3V_ST
C510
0.1uF
50V
L501
CB4532UK121E
EAM38058401
L505
MLB-201209-0120P-N2
0LCML00003B
0.1uF
C513
P_+5V
C540
0.1uF
16V
C526
0.1uF
16V
R501
10K
READY
R512
100
C507 100pF 50V
D3.3V
L503
CB3216PA501E
EAM44020101
R517
10K
C505
0.1uF
16V
C518
100uF
16V
+5V_MULTI
C515
0.1uF
16V
R514
10K
C551
10uF
6.3V
READY
L515
120-ohm
MLB-201209-0120P-N2
C512
22uF
10V
C504
100uF
16V
C525
10uF
6.3V
C503
10uF
6.3V
READY
+5V_USB
ERROR_DET
C549
100uF
16V
C502
0.1uF
16V
RL_ON
+5V_MULTI
C556
0.1uF
16V
L510
MLB-201209-0120P-N2
0LCML00003B
C508
1uF
10V
+5V_ST
C501
22uF
10V
+5V_ST
C509
0.1uF
16V
IC500
AP2121N-3.3TRE1
EAN58801701
1
GND
2VOUT 3
VIN
R503
100
C554
0.1uF
16V
C506
10uF
6.3V
R509
10K
+5V_ST
C535
0.1uF
16V
+5V_ST
+3.3V_MULTI
R504
100
R500
10K
READY
P_+5V
C531 0.1uF 16V
C511
0.1uF
16V
R511
10K
READY
+5V_CI
+3.3V_MULTI
D1.8V
L500
CIC21J501NE
R505
10
1/10W
1%
+3.3V_NEC_ST
L502
3.6uH
NR8040T3R6N
C555
100uF
16V
L518
120-ohm
MLB-201209-0120P-N2
C566
100uF
16V
C561
0.1uF
16V
A3.3V
L509
MLB-201209-0120P-N2
0LCML00003B
A2.5V
IC505
AZ1085S-3.3TR/E1
0IPMG78341A
1
ADJ/GND
2OUTPUT 3
INPUT
R531 910
1%
R532 66.5
1%
R533
1K
1%
IC503
AZ1085S-ADJTR/E1
0IPMG78346A
1
ADJ/GND
2OUTPUT 3
INPUT
L516
MLB-201209-0120P-N2
0LCML00003B
L504
MLB-201209-0120P-N2
0LCML00003B
P500
SMAW200-H18S1
14
9
4
18
13
8
3
17
12
7
2
16
11
6
1
15
10
5
19
D1.2V
C524
0.1uF C530
22uF
C557
22uF
16V
L507
2uH
R519
470K
1%
10
R516
C532
0.1uF
C523
22uF
16V
A1.2V
C534
22uF
16V
C528
1uF
10V
C553
22uF
16V
C558
0.1uF
16V
C522
0.1uF
C519
0.1uF
L506
BLM18PG121SN1D
INSTANT_BOOT
+5V_ST
R534
910K
1%
R515
100K
C533
47uF
16V
R537
10K
READY
IC502
MP2208DL-LF-Z
3
PGND_1
2
SS
4
SW_1
1
AGND
6
NC
5
IN_1
7
BS 8VCC
9POK
10 IN_2
11 SW_2
12 PGND_2
13 EN/SYNC
14 FB
15
EP
L520
MLB-201209-0120P-N2
0LCML00003B
R525
10K
P_17V
R529 6.2K
1%
C542 0.1uF
L514
10uH
NR8040T100M
L511
+5V_TU
C550
1uF
50V C569
0.1uF
16V
R528 33K
1%
C539
10uF
25V
C560
47uF
16V
IC504
MP8706EN-C247-LF-Z
3
SW_2
2
SW_1
4
BST
1
IN
5EN/SYNC
6FB
7VCC
8GND
C567
22uF
10V
C562
22uF
10V
C516
47uF
25V
+5V_MULTI
R522
47
R518
22
C520
47uF
25V
Q501
AO4813
EBK60706901
3S1
2G2
4G1
1S2
5 D1_1
6 D1_2
7 D2_1
8 D2_2
R506 27
L508
BLM18PG121SN1D
R520
10K
R508 3.9K
READY
D500
5.6V
L517
L519
120-ohm
MLB-201209-0120P-N2
R530
30K
1%
R524
10K
R526
100K
R507
7.5K 1%
R502
5.6K
1/16W
1%
5 13
3A
C IN
4.4A
Instant Boot (5V -->BCM3556 CORE 1.2V)
FRC DDR 1.5V & Multi 5V Switch
Vout=0.8*(1+R1/R2)
MAX 3A
R1
CURRENT: MAX 3A
Multi Power(5V -->3.3V)
BCM3556 CORE 2.5V
CURRENT: MAX 6A
R2
Placed on SMD-TOP
POWER Wafer 24P
Placed on SMD-TOP
Instant Boot (5V -->1.8V_DDR)
POWER B/D
Stand-by (5VST --> +3.3V_ST)
V0 = 1.25(1+R2/R1)
R1
R2
CURRENT: MAX 3A
R2R1
Vout=0.8*(1+R1/R2)
TUNER 5V
3A
R1
R2
Vout=(1+R1/R2)*0.8
Copyright © 2010 LG Electronics Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

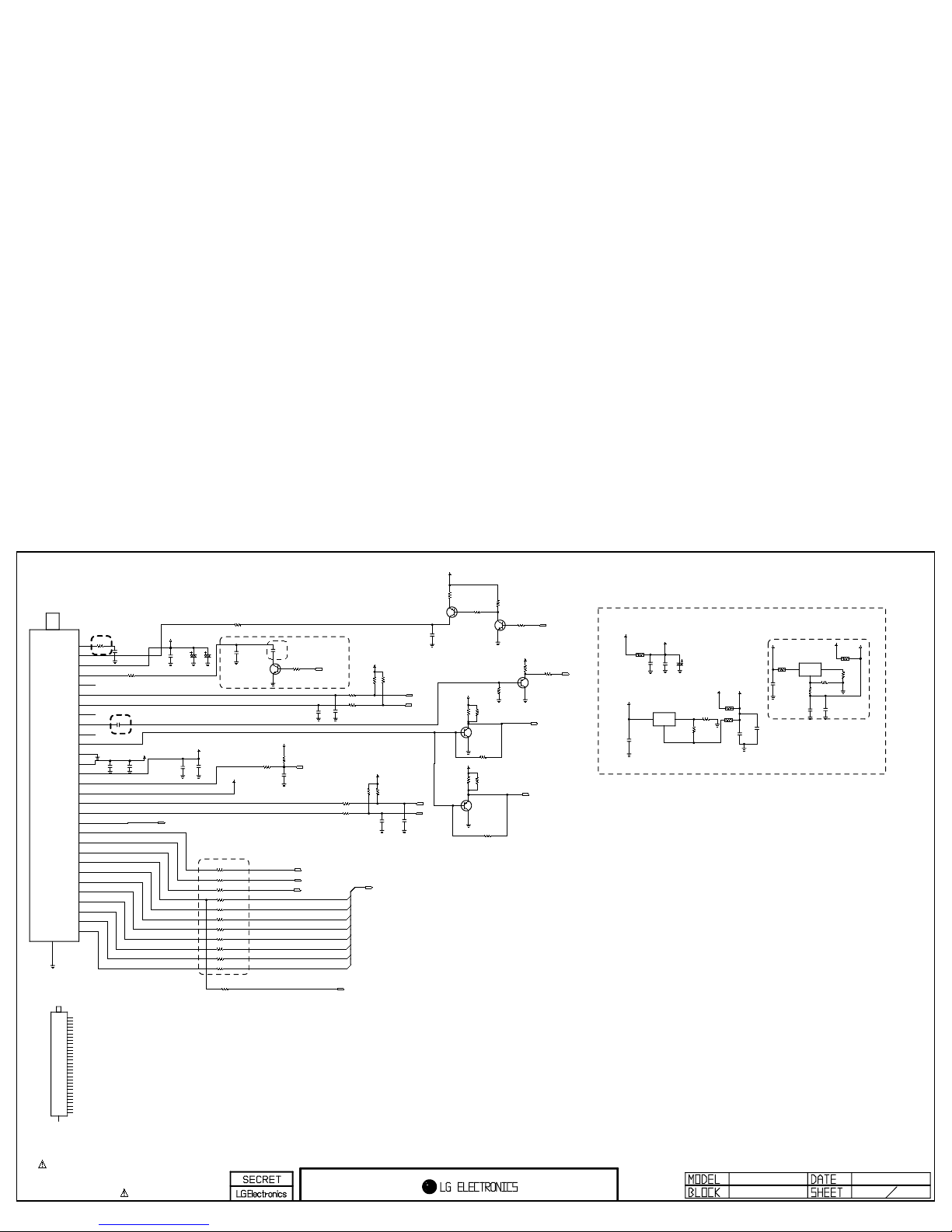

10/01/
BCM3556-C0
FE_TS_DATA[5]
FE_TS_DATA[1]
FE_TS_DATA[6]
FE_TS_DATA[3]
FE_TS_DATA[4]
FE_TS_DATA[2]
FE_TS_DATA[0]
FE_TS_DATA[7]
C601
0.1uF
16V
READY
FE_TS_DATA_CLK
TU_CVBS
+3.3V_TU
Q603
2SC3052
E
B
C
SCL0_3.3V
C619
10uF
10V
READY
IF_AGC_SEL
C628
22pF
50V
READY
R647
4.7K
C611
0.1uF
16V
+1.2V_TU
R601 0
READY
C612
10uF
10V
C610
0.1uF
16V
SCL2_3.3V
C604
0.1uF
16V
FOR DEBUG
+2.5V_TU
SDA2_3.3V
R625
10K
READY
R638
4.7KREADY
R648
10K
+3.3V_TU
C603
0.1uF
16V
FE_TS_SYNC
C630
22pF
50V
READY
C625
18pF
50V
READY
R624
100K
R644
2.2K
C615
0.1uF
16V
READY
FE_TS_VAL
Q600
2SC3052
READY E
B
C
R636
4.7K
READY
+5V_TU
+1.2V_TU
+5V_TU
Q601
ISA1530AC1
E
B
C
FE_TS_SERIAL
C631
0.01uF
25V
C629
10uF
10V
C627
0.1uF
16V
+3.3V_TU
C623
18pF
50V
READY
FE_TS_DATA[0-7]
+5V_TU
TU_SIF
R628
10
SDA0_3.3V
C602
0.1uF 16V
+5V_TU
C608
100pF
50V
C600
100pF
50V
R650
82
+3.3V_TU
R646
10K
Q602
ISA1530AC1
E
B
C
TUNER_RESET
RF_BOOSTER
Q604 ISA1530AC1
E
B
C
+2.5V_TU
C621
0.1uF
16V
+3.3V_TU
C617
0.1uF
16V
R626
1.2K
READY
R622
100
IC601
AZ1117H-ADJTRE1(EH11A)
2
OUTPUT
3
INPUT 1ADJ/GND
R600 0
READY
R649
470
1/10W
A1.2V
A2.5V
R605
0
READY
+3.3V_MULTI
+3.3V_TU
L602
BLM18PG121SN1D
C618
0.1uF
16V
C620
22uF
10V
L603
BLM18PG121SN1D
READY
L601
BLM18PG121SN1D
C613
100uF
16V L609
BLM18PG121SN1D
READY
Q605
ISA1530AC1
E
B
C
ATV_OUT
+5V_TU
C699
100uF
16V
R643
200
1/8W
R645
200
1/8W
C609
100uF
16V
TU601
TDFR-G135D
NIM TUNER
1RF_S/W_CNTL
2BST_CNTL
3+B1[5V]
4NC[RF_AGC]
5AS
6SCL[A_DEMOD]
7SDA[A_DEMOD]
8NC(IF_TP)
9SIF
10 NC
11 VIDEO
12 GND
13 1.2V
14 3.3V
15 RESET
16 2.5V
17 SCL[D_DEMOD]
18 SDA[D_DEMOD]
19 ERR
20 SYNC
21 VALID
22 MCL
23 D0
24 D1
25 D2
26 D3
27 D4
28 D5
29 D6
30 D7
31
SHIELD
R629
22
R630
22
R632 22
R631 22
L600
BLM18PG121SN1D
R602
0
READY
R610 47
R614 47
R615 47
R611 47
R616 47
R612 47
R613 47
R607 47
R606 47
R608 47
R609 47
IC600
AZ1117H-ADJTRE1(EH11A)
READY
2
OUTPUT
3
INPUT 1ADJ/GND
R653 120
READY
R654
120
READY
+3.3V_TU
R655 4.7K
R656 4.7K
C614
0.1uF
16V
R627 47
R651
220
1/8W
R652
220
1/8W
FE_TS_ERR
R641
0
READY
TU601-*1
TDFR-G035D
NIM TUNER_T2
1RF_S/W_CNTL
2BST_CNTL
3+B1[5V]
4NC[RF_AGC]
5NC_1
6SCLT
7SDAT
8NC(IF_TP)
9SIF
10 NC_2
11 VIDEO
12 GND
13 +B2[1.2V]
14 +B3[3.3V]
15 RESET
16 +B4[2.5V]
17 SCL[D_DEMOD]
18 SDA[D_DEMOD]
19 ERR
20 SYNC
21 VALID
22 MCL
23 D0
24 D1
25 D2
26 D3
27 D4
28 D5
29 D6
30 D7
31
SHIELD
R621 0
R642
0
11 13
TUNER
R2
close to TUNER
close to TUNER
OPTION : RF AGC
Close to the tuner
NIM OPTION - FOR DEBG
R1
CAN NIM TUNER for EU
NIM POWER BLOCK
Copyright © 2010 LG Electronics Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

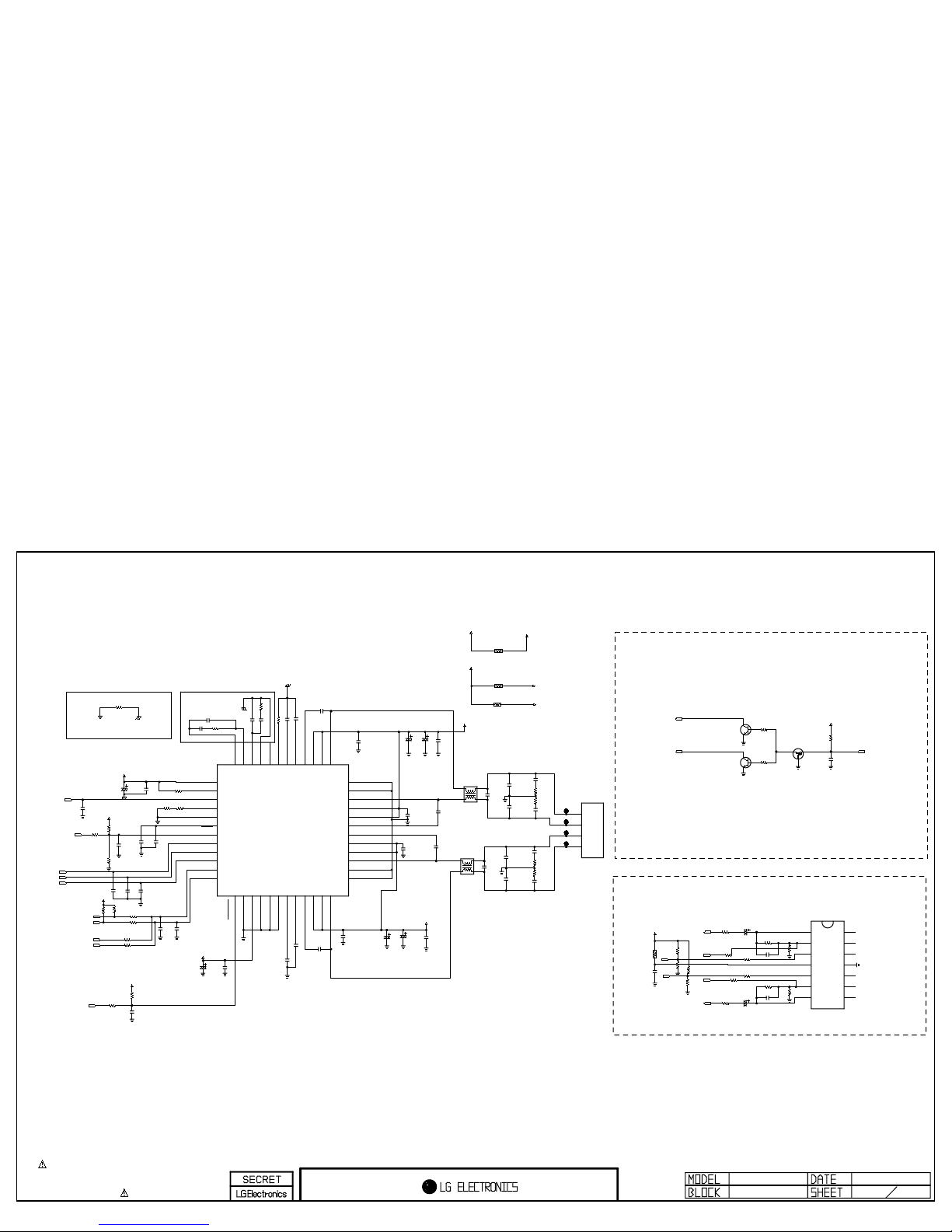

10/01/
BCM3556-C0
R716
3.3
+3.3V_DVDD
R718
3.3
SDA2_3.3V
004:E17;001:Y15
AC_DET
011:I17;001:V10
+3.3V_AU_AVDD
R709
200
1%
C719
0.033uF
50V
R712
470
R711
18K
1%
C731
0.033uF
50V
AVSS
AVSS
+3.3V_DVDD
R713 470
C718 0.033uF
50V
C730
0.033uF
50V
AMP_RESET_N
001:O19
R715
3.3
+3.3V_DVDD
SCL2_3.3V
004:M17;001:Y14
AUD_MASTER_CLK
001:Z13
+3.3V_DVDD
+17V_AMP
C709
10uF 16V
+3.3V_AU_AVDD
C701
10uF 16V
AVSS
R717
3.3
AVSS
L703
120-ohm
L702
120-ohm
IC700
TAS5709PHPR
1OUT_A 2PVDD_A_1 3PVDD_A_2 4BST_A 5GVDD_OUT_1 6SSTIMER 7OC_ADJ 8NC 9AVSS
10 PLL_FLTM 11 PLL_FLTP 12 VR_ANA
13
AVDD
14
TESTOUT
15
MCLK
16
OSC_RES
17
DVSS_1
18
VR_DIG
19
PDN
20
LRCLK
21
SCLK
22
SDIN
23
SDA
24
SCL
25RESET 26STEST 27DVDD 28DVSS_2 29GND 30AGND 31VREG 32GVDD_OUT_2 33BST_D 34PVDD_D_1 35PVDD_D_2 36OUT_D
37 PGND_CD_1
38 PGND_CD_2
39 OUT_C
40 PVDD_C_1
41 PVDD_C_2
42 BST_C
43 BST_B
44 PVDD_B_1
45 PVDD_B_2
46 OUT_B
47 PGND_AB_1
48 PGND_AB_2
TV_LOUT
P_17V
C749
0.1uF
SCART1_MUTE
TV_LOUT
C746 33pF
Q701
RT1P141C-T112
1
2
3
2SC3052
Q702
TV_ROUT
IC701
LM324D
3
3
2
2
4
4
1
1
6
6
5
5
7
788
99
10 10
11 11
12 12
13 13
14 14
TV_ROUT
2SC3052
Q705
C745 33pF
R729 2K
1/16W
5%
R720
2K
R706
2K
READY
R727
2K 1/16W
5%
R719
2K
R700
0
READY
R705
0
R710 0
READY
1/16W
5%
R702
1K
R714 22K
R703
22K
R708 33
R704
33
R707 33
R724 33K
R723 33K
R722
5.6K
R721
5.6K
R726 10K R725
10K
C704
0.01uF
R742
22pF
READY
C703
0.1uF
C700
1000pF
50V
READY
C748
22pF
READY
C747
22pF
READY
C750
22pF
READY
C702
1000pF
READY
C707
33pF
READY
C706
33pF
READY
C711
0.01uF
C720
0.01uF
C725
0.01uF
C726
0.01uF
C721
0.01uF
C715
0.1uF
C713
0.047uF
C712 4700pF
C710 4700pF
C708
0.047uF
C714 2200pF
C739
0.01uF
C741
0.01uF
C738
0.01uF
C740
0.01uF
+3.3V_DVDD
C742
0.1uF
25V
+3.3V_MULTI
C733
0.68uF
C732
0.68uF
+17V_AMP
P_17V
+17V_AMP
L704
MLB-201209-0120P-N2
0LCML00003B
C716 1uF
C734
0.1uF
C736
0.1uF
C737
0.1uF
C735
0.1uF
SCART1_Lout_P
SCART1_Lout_N R730
5.6K
SCART1_Rout_P
SCART1_Rout_N
R731
5.6K
AUD_LRCH
AUD_LRCK
AUD_SCK
L701
AD-9060
EAP61008401
2S
1S 1F
2F
L700
AD-9060
EAP61008401
2S
1S 1F
2F P703
WAFER-ANGLE
1
2
3
4
R728
2.2K
READY R744
2.2K
READY
C744
10uF
35V
C743
10uF
35V
C717
1uF
R1070 10K
READY
+3.3V_ST
R732 47K
READY
R733 47K
READY
R735 47K
READY
R734 47K
READY
C723
47uF
25V
C727
47uF
25V
C724
47uF
25V
C722
47uF
25V
L705
120-ohm
C728
10uF
25V
C729
10uF
25V
C705
4.7uF
16V
SDA3_3.3V
004:E17;001:Y15
SCL3_3.3V
004:M17;001:Y14 R736 33
READY
R701 33
READY
AMP
PULL DOWN
This parts are Located
on AVSS area.
SPK_R-
Separate DGND AND AVSS
SPK_L-
SPK_R+
SPK_L+
TV_L/ROUT
MUTE Ctrl
MNT/DTV OUT
Audio Out Amp
7 13
AUDIO AMP
Copyright © 2010 LG Electronics Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

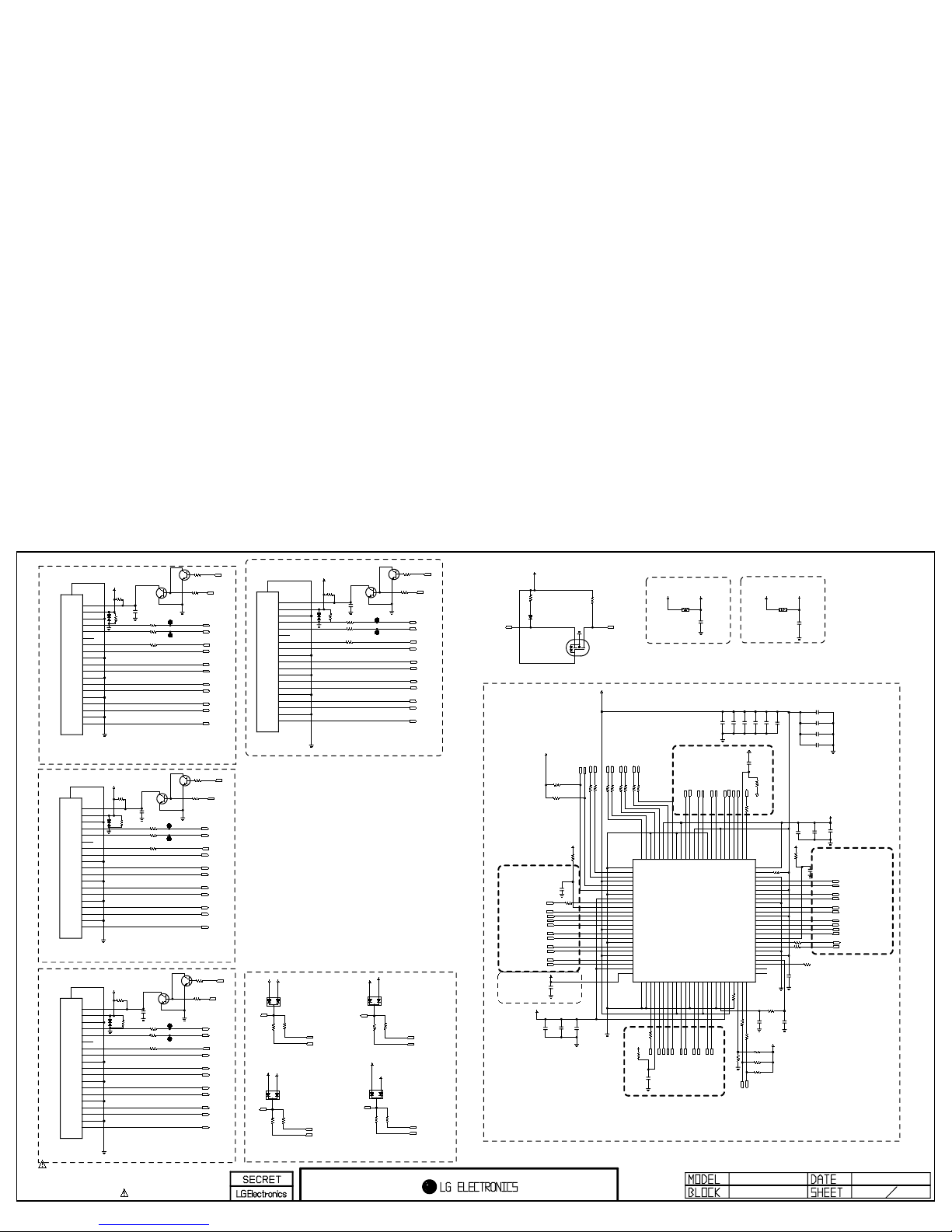

HDMI MUX/HDMI
10/01
BCM3556-C0
GND
D0+_HDMI3
DDC_SCL_4
D0-_HDMI1
DDC_SDA_3
DDC_SDA_4
CK+_HDMI1
GND
CEC_REMOTE
DDC_SDA_1
D2-_HDMI1
5V_HDMI_2
5V_HDMI_1
D1+_HDMI1
D0-_HDMI3
CK-_HDMI3
D1-_HDMI1
D0+_HDMI1
D2+_HDMI3
HPD2
D1-_HDMI3
D2-_HDMI3
GND
CK+_HDMI3
GND
CK-_HDMI1
DDC_SCL_3
5V_HDMI_4
D1+_HDMI3
DDC_SCL_1
CEC_REMOTE
D2+_HDMI1
5V_HDMI_3
+3.3V_ST
BSS83
Q808
SB D
G
HDMI_CECCEC_REMOTE
D805 MMBD301LT1G
30V
C801
0.1uF
16V
R805
1K
R826
1K
R818 10K
D809
AVRL161A1R1NT
D806
AVRL161A1R1NT
READY
D807
AVRL161A1R1NT
READY
D808
AVRL161A1R1NT
READY
JK801
EAG59023302
14
13
5D1_GND
20
SHIELD
12
11
2D2_GND
19
18
10 CK+
4D1+
1D2+
17
9D0-
8D0_GND
3D2-
16
7D0+
6D1-
15
JK800
EAG59023302
14
13
5D1_GND
20
SHIELD
12
11
2D2_GND
19
18
10 CK+
4D1+
1D2+
17
9D0-
8D0_GND
3D2-
16
7D0+
6D1-
15
JK802
EAG59023301
14
13
5D1_GND
20
SHIELD
12
11
2D2_GND
19
18
10 CK+
4D1+
1D2+
17
9D0-
8D0_GND
3D2-
16
7D0+
6D1-
15
R804
1K
JK803
EAG42463001
14
13
5D1_GND
20
JACK_GND
12
11
2D2_GND
19
18
10 CK+
4D1+
1D2+
17
9D0-
8D0_GND
3D2-
16
7D0+
6D1-
15
C827
0.1uF
HDMI0_RX0-_BCM 003:D4 HDMI0_RXC-_BCM 003:D4
C814
0.1uF
+3.3V_HDMI
C818 0.1uF
C828
0.1uF
16V
R860
READY
0
+5V_MULTI
C808
0.1uF
16V
+1.8V_HDMI
C820
0.1uF
C807
0.1uF
16V
HDMI0_RX2+_BCM 003:D4
C811 0.1uF C817 0.1uF C812 0.1uF
R861
12K
C824
0.1uF
HPD4
008:T28
R857
READY4.7K
C823
0.1uF
16V
HDMI0_RX0+_BCM 003:D4
+1.8V_HDMI
R839
1.8K
R863 0
READY
+3.3V_HDMI
C815 0.1uF
HDMI0_RX1+_BCM 003:D4
DDC_SCL_1
008:H26;008:O8
SCL2_3.3V
001:I4;007:E14;007:K5;025:AE10;027:U11
R838
1.8K
C813 0.1uF
HPD3
008:I19
HDMI0_RX1-_BCM 003:D4 HDMI0_RX2-_BCM 003:D4
C829
0.1uF
16V
C805
0.1uF
SDA2_3.3V
001:I4;007:C12;007:K5;025:AF10;027:U10
C819
0.1uF
16V
CEC_REMOTE
005:E5;008:H17;008:H26;008:H7;008:S25;008:Z26;008:AE26
C816
0.1uF
16V
5V_HDMI_1
5V_HDMI_4
DDC_SCL_2 008:H8;008:T4
DDC_SDA_2 008:H8;008:T4
HDMI0_RXC+_BCM 003:D4
C806
0.1uF
16V
DDC_SDA_1
008:H26;008:O8
C821
0.1uF
16V
C804
0.1uF
16V
C825
0.1uF
HPD2 008:H10
C826
0.1uF
R832
47K
R830
47K
R821
47K
R822
47K
R823
47K
DDC_SCL_2
R831
47K R833
47K
R824
47K
DDC_SDA_2
DDC_SCL_1
DDC_SDA_1
+5V_MULTI5V_HDMI_2
D801
ENKMC2838-T112
A1
C
A2
+5V_MULTI
D802
ENKMC2838-T112
A1
C
A2
5V_HDMI_1
5V_HDMI_3
D800
ENKMC2838-T112
A1
C
A2
+5V_MULTI +5V_MULTI
5V_HDMI_4
D803
ENKMC2838-T112
A1
C
A2
D2-_HDMI2
DDC_SDA_2
D1+_HDMI2
D1-_HDMI2
CK-_HDMI2
CEC_REMOTE
DDC_SCL_2
D0-_HDMI2
D2+_HDMI2
CK+_HDMI2
D0+_HDMI2
D2-_HDMI1
D0-_HDMI1
D1-_HDMI1
D1+_HDMI1
CK+_HDMI1
D0+_HDMI1
CK-_HDMI1
D2+_HDMI1
DDC_SCL_3
DDC_SDA_3
DDC_SCL_4
DDC_SDA_4
DDC_SDA_3 DDC_SCL_3
D2-_HDMI2
D2+_HDMI2
D0-_HDMI2
D0+_HDMI2
D1-_HDMI2
D1+_HDMI2
CK+_HDMI2
CK-_HDMI2
CK-_HDMI3 D1-_HDMI3 D0-_HDMI3 D2+_HDMI3 CK+_HDMI3 D0+_HDMI3 D1+_HDMI3 D2-_HDMI3
L800
BLM18PG121SN1D
+1.8V_HDMI
C810
0.1uF
16V
D3.3V
L801
BLM18PG121SN1D
+3.3V_HDMI
D1.8V
C822
0.1uF
16V
HPD1
008:I19
CK+_HDMI4
CK-_HDMI4
D1-_HDMI4
D0-_HDMI4
D2+_HDMI4
D1+_HDMI4
D2-_HDMI4
D0+_HDMI4
D0+_HDMI4 D0-_HDMI4 D1-_HDMI4
CK-_HDMI4
CK+_HDMI4
D2-_HDMI4
D2+_HDMI4 D1+_HDMI4
5V_HDMI_3
5V_HDMI_2
DDC_SDA_4
DDC_SCL_4
HDMI_SDA 008:AA19 HDMI_SCL 008:AA19
+5V_MULTI
5V_HDMI/MULTI_2
5V_HDMI/MULTI_3 5V_HDMI/MULTI_4
5V_HDMI/MULTI_1
5V_HDMI/MULTI_2
R807 10K
R802
3.6K
READY
Q804
KRC104S
E
B
C
Q801
KRC104S
E
B
C
R806 10K
C800
0.1uF
16V
R808 10K HPD1
Q800
KRC104S
E
B
C
Q803
KRC104S
E
B
C
5V_HDMI/MULTI_1
R801
1K
R829 10K
C803
0.1uF
16V
R834 10K HPD4
Q806
KRC104S
E
B
C
Q807
KRC104S
E
B
C
5V_HDMI/MULTI_4
R825
3.6K
READY
R819 10K
C802
0.1uF
16V
R820 10K HPD3
Q802
KRC104S
E
B
C
Q805
KRC104S
E
B
C
5V_HDMI/MULTI_3
R803
3.6K
READY
R846
0
READY
R865
0
READY
R864
0
READY
R858
1.2K
R859
1.2K
R848
0
READY
R844
0
READY
R843
0
READY
R847
0
READY
R835
27K
R855 1
R856 1
C809
0.1uF
16V
IC800
TDA19997
1
VSS_1
2
OUT_C+
3
OUT_C-
4
VDDO[3V3]
5
OUT_DDC_CLK
6
OUT_DDC_DAT
7
VSS_2
8
VDDDC[1V8]_1
9
RXA_HPD
10
RXA_5V
11
RXA_DDC_DAT
12
RXA_DDC_CLK
13
RXA_C-
14
RXA_C+
15
VDDH[3V3]_1
16
RXA_D0-
17
RXA_D0+
18
VSS_3
19
RXA_D1-
20
RXA_D1+
21
VDDH[3V3]_2
22
RXA_D2-
23
RXA_D2+
24
VDDH[1V8]_1
25
AUX_5V
26
VSS_4
27
TEST1
28
RXB_HPD
29
RXB_5V
30
RXB_DDC_DAT
31
RXB_DDC_CLK
32
RXB_C-
33
RXB_C+
34
VDDH[3V3]_3
35
RXB_D0-
36
RXB_D0+
37
VSS_5
38
RXB_D1-
39
RXB_D1+
40
VDDH[3V3]_4
41
RXB_D2-
42
RXB_D2+
43
VSS_6
44
CDEC_DDC
45
VDDDC[1V8]_2
46
VDDDC[1V8]_4
47
TEST2
48
PD
49
I2C_SDA
50
I2C_SCL
51 RXE_DDC_CLK
52 RXE_DDC_DAT
53 INT_N/MUTE
54 CDEC_STBY
55 VDDS[3V3]
56 VSS_7
57 CEC
58 RXC_HPD
59 RXC_5V
60 RXC_DDC_DAT
61 RXC_DDC_CLK
62 RXC_C-
63 RXC_C+
64 VDDH[3V3]_5
65 RXC_D0-
66 RXC_D0+
67 VSS_8
68 RXC_D1-
69 RXC_D1+
70 VDDH[3V3]_6
71 RXC_D2-
72 RXC_D2+
73 VSS_9
74 R12K
75 VDDH[1V8]_2
76 RXD_HPD 77 RXD_5V 78 RXD_DDC_DAT 79 RXD_DDC_CLK 80 RXD_C- 81 RXD_C+ 82 VDDH[3V3]_7 83 RXD_D0- 84 RXD_D0+ 85 VSS_10 86 RXD_D1- 87 RXD_D1+ 88 VDDH[3V3]_8 89 RXD_D2- 90 RXD_D2+ 91 VDDDC[1V8]_3 92 VSS_11 93 OUT_D2+ 94 OUT_D2- 95 VDDO[1V8] 96 OUT_D1+ 97 OUT_D1- 98 VSS_12 99 OUT_D0+
100 OUT_D0-
CEC_REMOTE
R854
10
R809 22
R810 22
R814 22
R815 22
R828 22
R827 22
R813 22
R816 22
R867 0 R868 0
R869 0 R870 0 R871 0 R872 0 R873 0 R874 0
R811 0
R866
0
READY
R853 0
R862
0
R817 0
R836 0
R812 0
R800
2K
R837
100K
SIDE HDMI
6 13
HDMI
$0.47
->$0.27
$0.47
->$0.28
HDMI2
HDMI S/W For Platform
HDMI1
SIDE_HDMI
HDMI3
EDID Pull-up
NEED TO CHECK THE CASE OF INSTANT BOOT
Copyright © 2010 LG Electronics Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

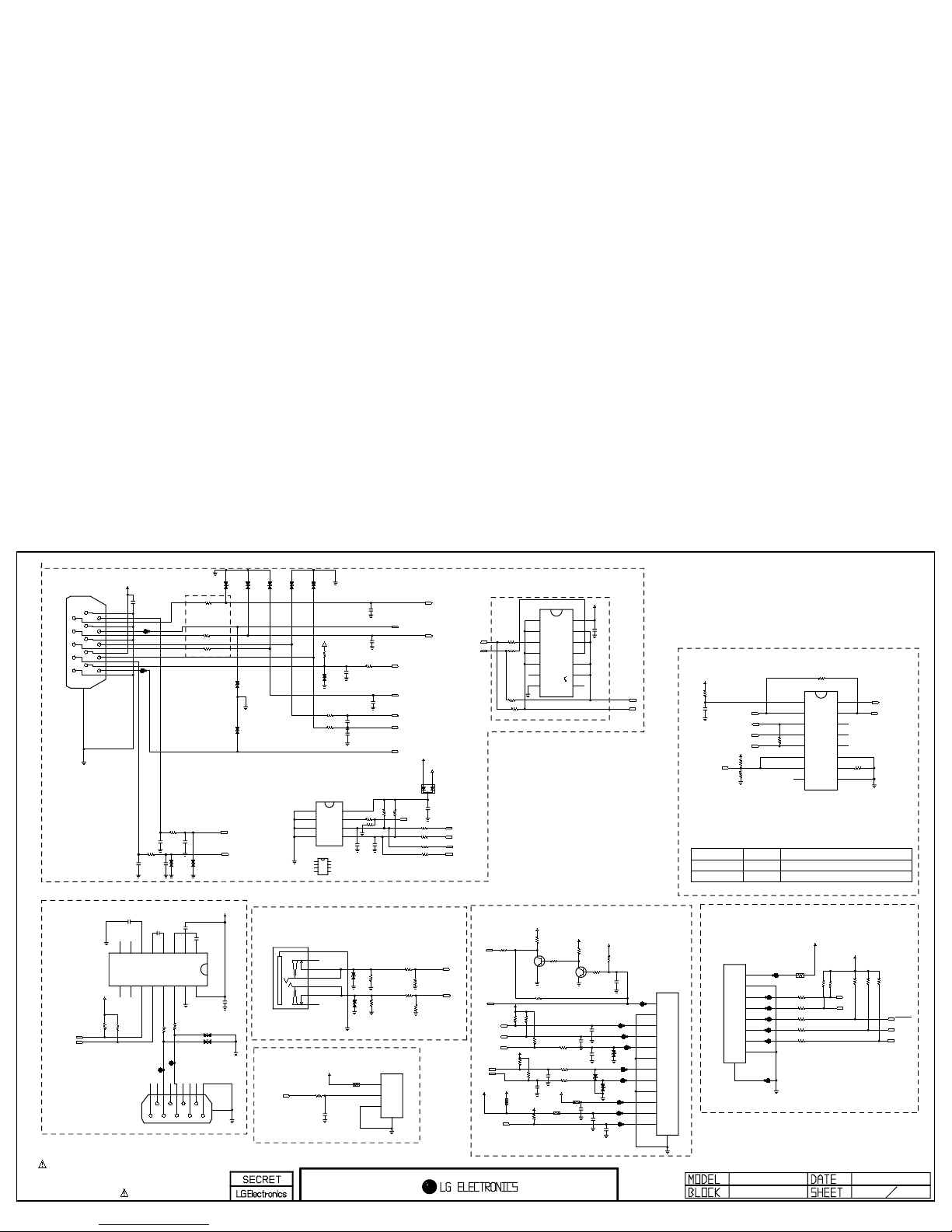

10/01/
BCM3556-C0
DDC_SCL/UART_RX
DSUB_DET
GND
12pF C917
DDC_SCL/UART_RX
DSUB_G
DSUB_B
C922
0.1uF
DSUB_R
DSUB_VSYNC
PC_SER_DATA
DDC_SDA/UART_TX
DDC_SDA/UART_TX
12pF
C916
IC901
AT24C02BN-10SU-1.8
STM_2K_EEPROM
3
2
4
1
5
6
7
8
PC_SER_CLK
+3.3V_MULTI
DSUB_HSYNC
+5V_VGA
C900
0.1uF
16V
DDC_SDA
DDC_SCL
R904
100
C907
0.1uF
50V
+3.3V_ST
C909
0.1uF
50V C910
0.1uF
50V
IC900
MAX3232CDR
3C1- 2V+ 4C2+
1C1+
6V- 5C2-
7DOUT2 8RIN2
9
ROUT2
10
DIN2
11
DIN1
12
ROUT1
13
RIN1
14
DOUT1
15
GND
16
VCC
C911
0.1uF
50V
R905 100
RS232C_TXD
+3.3V_ST
RS232C_RXD
C902
0.1uF
50V
R936
12K
READY
R935
12K
READY
PC_L_IN
R926
470K
READY
R927
470K
READY
PC_R_IN
+5V_VGA
+5V_MULTI
D912
ENKMC2838-T112
A1
C
A2
KEY2
+3.3V_ST
KEY1
LED_WHITE
D911
5.6V
D910
5.6V
D901
READY
D900
READY
D905 D904
D909
30V
READY
D906
D907
D902
30V
D903
30V
LED_BREATHING
L901
MLB-201209-0120P-N2
+3.3V_MULTI
C930
10pF
C903
10pF
C926
10pF
C933
10pF
C929
10pF
READY
C931
10pF D913
C924
10pF
READY
C923
10pF
READY
D908
+3.3V_MULTI
LED_RED
R945
22
P900
SPG09-DB-010
1
RED
2
GREEN
3
BLUE
4
GND_1
5
DDC_GND
6
RED_GND
7
GREEN_GND
8
BLUE_GND
9
NC
10
SYNC_GND
11
GND_2
12
DDC_DATA
13
H_SYNC
14
V_SYNC
15
DDC_CLOCK
16
SHILED
C927
0.1uF
16V
C932
0.1uF
16V
P901
SPG09-DB-009
1 2 3 4 5
6 7 8 9
10
R917
1K
C914
0.1uF
16V
READY
R911 10K
C901
270pF
50V
READY
R902
10
C906
220pF
50V
READY
C908
220pF
50V
READY
R903
10
C905
220pF
50V
READY
4.7pF
C915
READY
4.7pF
C913
READY
4.7pF
C912
READY
L900
MLB-201209-0120P-N2
R922 100
C919
18pF
50V
C918
18pF
50V
R946
22
R947
22
R941
10K
R938
10K
R939
4.7K
R900
4.7K R901 4.7K
JK900
PEJ027-01
6B T_TERMINAL2
7B B_TERMINAL2
5T_SPRING
4R_SPRING
7A B_TERMINAL1
6A T_TERMINAL1
3E_SPRING
R959
22
R953
22
+5V_MULTI
C928
0.1uF
R961
22
READY
RGB_HSYNC
003:B2
IC903
74F08D
3
Q0
2
D0B
4
D1A
1
D0A
6
Q1
5
D1B
7
GND 8Q2
9D2A
10 D2B
11 Q3
12 D3A
13 D3B
14 VCC
RGB_VSYNC
003:B2
R960
22
READY
DSUB_VSYNC
DSUB_HSYNC
EDID_WP
R913 10K
+5V_MULTI
R928
47K
R921
10K
+3.3V_ST
+3.3V_ST
Q902
2SC3052 EB
C
R910
22
R914
47K
R925
47K
R912
0
READY
Q901
2SC3052 EB
C
+3.3V_ST
R940
10K
READY
+3.3V_ST
IR_NEC
+5V_MULTI
L902
READY
R924
2.7K
R923
2.7K
D915
5.6V
CDS3C05HDMI1
D916
5.6V
CDS3C05HDMI1
P906
12507WS-12L
1
IR
2
GND
3
KEY1
4
KEY2
5
LED-RED
6
GND
7
SCL
8
SDA
9
GND
10
3.3V_ST
11
3.3V_MULTI
12
LED-WHITE
13
GND
R906
4.7K
READY
R907
4.7K
READY
+3.3V_MULTI
IR
P907
12507WR-03L
LED_PK90
1
2
3
4
D918 D917
SUB_SCL
SUB_SDA
R937
10K
R929
1
R930
1
R934
22
R932
22
R988
10
LED_PK90
L903
MLB-201209-0120P-N2
LED_PK90
10
R916
10
R915
R933
0
R931
0
R943 0
R942 0
R944 0
R955
0
NON_M_REMOTE
R909
47K
READY
MOD_ROM_TX
R951
0
NON_M_REMOTE
R918
0
C904
0.1uF
M_REMOTE
R908
4.7K
READY
M_REMOTE_MOD_ROM_TX
IC902
MC14053BDR2G
M_REMOTE
3Z1
2Y0
4Z
1Y1
6INH
5Z0
7VEE
8VSS 9
C
10
B
11
A
12
X0
13
X1
14
X
15
Y
16
VDD
R962
0
M_REMOTE
M_REMOTE_TX
REMOTE_SW_CTRL
DD
R956 2.7K
R948
100
M_REMOTE_TX
R957 2.7K
R950
100
R949
100
L904
BLM18PG121SN1D
120-ohm
R958 2.7K
M_REMOTE_RX
R952
4.7K
READY
RF_RESET
DC
R954
4.7K
READY
R919
100
R920
100
P902
12507WR-08L
M_REMOTE
1
2
3
4
5
6
7
8
9
+3.3V_MULTI
+3.3V_MULTI
M_REMOTE_MOD_ROM_RX
M_REMOTE_RX
MOD_ROM_RX
+3.3V_MULTI
+3.3V_MULTI
IC901-*1
R1EX24002ASAS0A
RENESAS_2K_EEPROM
3
A2
2
A1
4
VSS
1
A0
5SDA
6SCL
7WP
8VCC
ROM DOWNLOAD FOR PDP
RS232C PC AUDIO
10 13
LVDS/RS232//RGB
RGB
FOR PK/J90 - BREATING
BCM Reference
RGB V/HSYNC BUUFFER
M24C02 COMPARE THE COST
READY FOR BEAD
bcm REF circuit
SUB Board I/F
M_REMOTE CONNECT --> BCM UART
STATUSWIRELESS_SW_CTRL
LOW
X1/Y1/Z1HIGH
MODULE ROM DL CONNECT --> BCM UARTX0/Y0/Z0
SELECT PIN
M_REMOTE & MOD_ROM_DL
MOTION REMOTE
M/R UART SWITCH
Copyright © 2010 LG Electronics Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
