LG 50PM9700 User manual

Life's Good
PLASMA
Please read this manual carefully before operating your set and retain it
for future reference.
42PM4700
50PM4700 50PM6700 60PM6700 50PM9700 60PM9700
P/NO : MFL67468602 (1203-REV03) www.lg.com

2 MPORTANTSAFETY NSTRUCTONS
IMPORTANT SAFETY INSTRUCTIONS
Always comply with the following precautions to avoid dangerous situations and ensure peak performance
of your product.
WARNING/CAUTION
TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK). NO
USER SERVICEABLE PARTS INSIDE. REFER
TO QUALIFIED SERVICE PERSONNEL.
_i he lightning flash with arrowhead
symbol, within an equilateral triangle,
is intended to alert the user to the
presence of uninsulated "dangerous voltage"
within the product's enclosure that may be of
sufficient magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an
equilateral triangle is intended to alert
the user to the presence of important
operating and maintenance (servicing)
instructions in the literature accompanying
the appliance.
WARN ING/CAUTIO N
-TO REDUCE THE RISK OF FIRE AND
ELECTRIC SHOCK, DO NOT EXPOSE THIS
PRODUCT TO RAIN OR MOISTURE.
WARNING: This product contains chemicals
known to the State of California to cause cancer
and birth defects or other reproductive harm.
Wash hands after handling,
Read these instructions.
Keep these instructions.
Heed all warninc_
Follow all instructions.
• Do not use this apparatus near water.
• Clean only with a dry cloth.
• Do not block any ventilation openings. Install
in accordance with the manufacturer's
instructions.
• Do not install near any heat sources such
as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce
heat.
Do not defeat the safety purpose of the
polarized or grounding-type plug. A polarized
plug has two blades with one wider than the
other. A grounding type plug has two blades
and a third grounding prong. The wide blade
or the third prong are provided for your safety.
If the provided plug does not fit into your
outlet, consult an electrician for replacement
of the obsolete outlet (Can differ by country).

MPORTANTSAFETY NSTRUCTONS 3
• Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit
from the apparatus.
d
• Only use attachments/accessories specified
by the manufacturer.
• Use only with a cart, stand, tripod, bracket,
or table specified by the manufacturer, or
sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
• Unplug this apparatus during lightning
storms or when unused for long periods of
time.
• Refer all servicing to qualified service
personnel. Servicing is required when
the apparatus has been damaged in any
way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does
not operate normally, or has been dropped.
• Do not stick metal objects or any other
conductive material into the power cord. Do
not touch the end of the power cord while it
is plugged in.
Keep the packing anti-moisture material or
vinyl packing out of the reach of children.
Anti-moisture material is harmful if
swallowed. If swallowed by mistake, force
the patient to vomit and visit the nearest
hospital. Additionally, vinyl packing can
cause suffocation. Keep it out of the reach of
children.
CAUTION concerning the Power Cord
(Can differ by country):
It is recommended that appliances be
placed upon a dedicated circuit; that is, a
single outlet circuit which powers only that
appliance and has no additional outlets or
branch circuits. Check the specification page
of this owner's manual to be certain. Do not
connect too many appliances to the same
AC power outlet as this could result in fire or
electric shock. Do not overload wall outlets.
Overloaded wall outlets, loose or damaged
wall outlets, extension cords, frayed power
cords, or damaged or cracked wire insulation
are dangerous. Any of these conditions could
result in electric shock or fire. Periodically
examine the cord of your appliance, and
if its appearance indicates damage or
deterioration, unplug it, discontinue use of
the appliance, and have the cord replaced
with an exact replacement part by an
authorized service. Protect the power cord
from physical or mechanical abuse, such as
being twisted, kinked, pinched, closed in a
door, or walked upon. Pay particular attention
to plugs, wall outlets, and the point where
the cord exits the appliance. Do not move
the TV with the power cord plugged in. Do
not use a damaged or loose power cord. Be
sure do grasp the plug when unplugging the
power cord. Do not pull on the power cord
to unplug the TV.

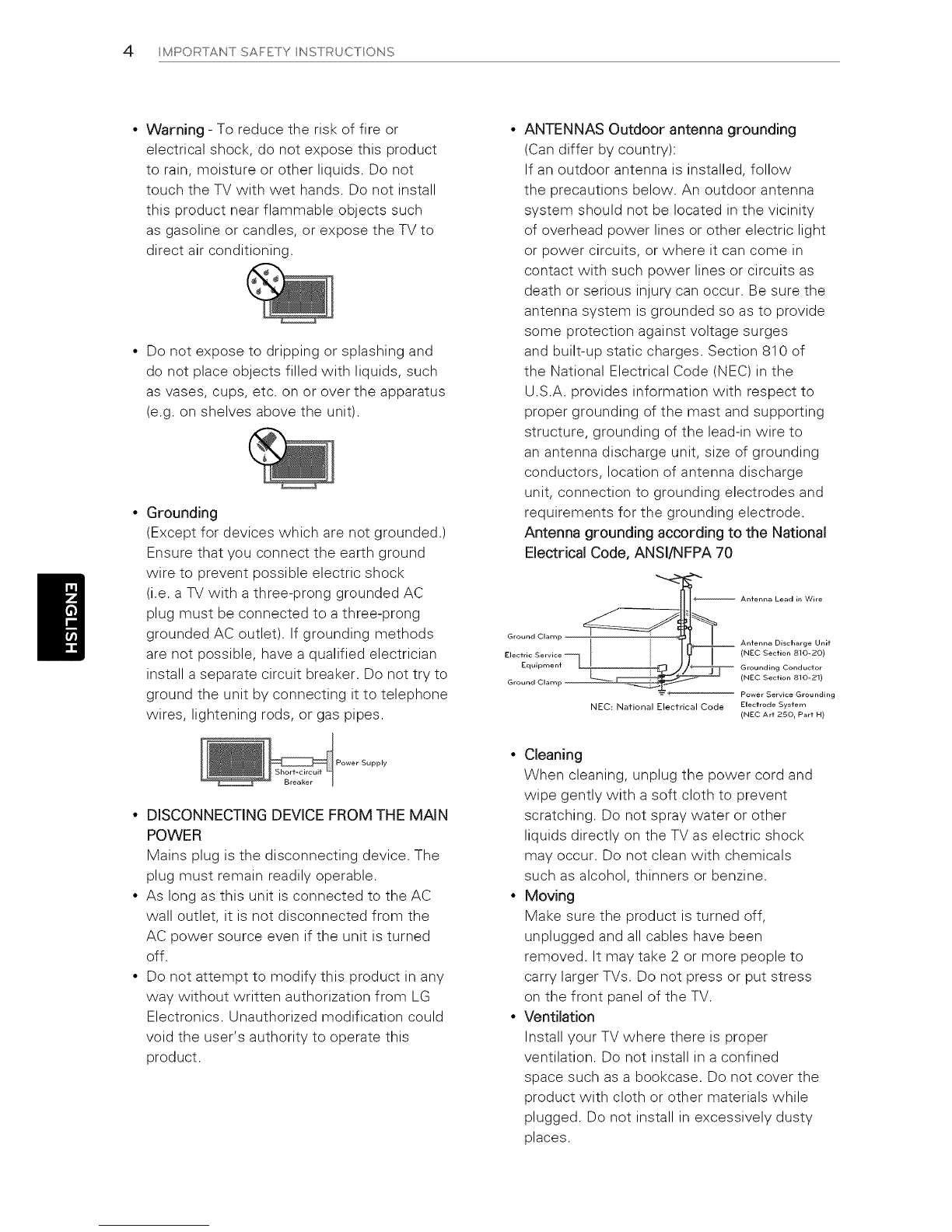

4MPORTANT SAFETY NSTRUCT ONS
• Warning - To reduce the risk of fire or
electrical shock, do not expose this product
to rain, moisture or other liquids. Do not
touch the TV with wet hands. Do not install
this product near flammable objects such
as gasoline or candles, or expose the TV to
direct air conditioning.
Do not expose to dripping or splashing and
do not place objects filled with liquids, such
as vases, cups, etc. on or over the apparatus
(e.g. on shelves above the unit).
Grounding
(Except for devices which are not grounded.)
Ensure that you connect the earth ground
wire to prevent possible electric shock
(i.e. a TV with a three-prong grounded AC
plug must be connected to a three-prong
grounded AC outlet). If grounding methods
are not possible, have a qualified electrician
install a separate circuit breaker. Do not try to
ground the unit by connecting it to telephone
wires, lightening rods, or gas pipes.
Power Supply
• DISCONNECTING DEVICE FROM THE MAIN
POWER
Mains plug is the disconnecting device. The
plug must remain readily operable.
• As long as this unit is connected to the AC
wall outlet, it is not disconnected from the
AC power source even if the unit is turned
off.
• Do not attempt to modify this product in any
way without written authorization from LG
Electronics. Unauthorized modification could
void the user's authority to operate this
product.
• ANTENNAS Outdoor antenna grounding
(Can differ by country):
If an outdoor antenna is installed, follow
the precautions below. An outdoor antenna
system should not be located in the vicinity
of overhead power lines or other electric light
or power circuits, or where it can come in
contact with such power lines or circuits as
death or serious injury can occur. Be sure the
antenna system is grounded so as to provide
some protection against voltage surges
and built-up static charges. Section 810 of
the National Electrical Code (NEC) in the
U.S.A. provides information with respect to
proper grounding of the mast and supporting
structure, grounding of the lead-in wire to
an antenna discharge unit, size of grounding
conductors, location of antenna discharge
unit, connection to grounding electrodes and
requirements for the grounding electrode.
Antenna grounding according to the National
Electrical Code, ANSI/NFPA 70
CIq A .............Wire
(NEC Section 810-20)
_i C Grounding Conductor
Groun (NEC Section 810-21)
Power Service Grounding
NEC: National Electrical Code Electrode System
(NEC Art 250 r Part H)
• Cleaning
When cleaning, unplug the power cord and
wipe gently with a soft cloth to prevent
scratching. Do not spray water or other
liquids directly on the TV as electric shock
may occur. Do not clean with chemicals
such as alcohol, thinners or benzine.
• Moving
Make sure the product is turned off,
unplugged and all cables have been
removed. It may take 2 or more people to
carry larger TVs. Do not press or put stress
on the front panel of the TV.
• Ventilation
Install your TV where there is proper
ventilation. Do not install in a confined
space such as a bookcase. Do not cover the
product with cloth or other materials while
plugged. Do not install in excessively dusty
places.

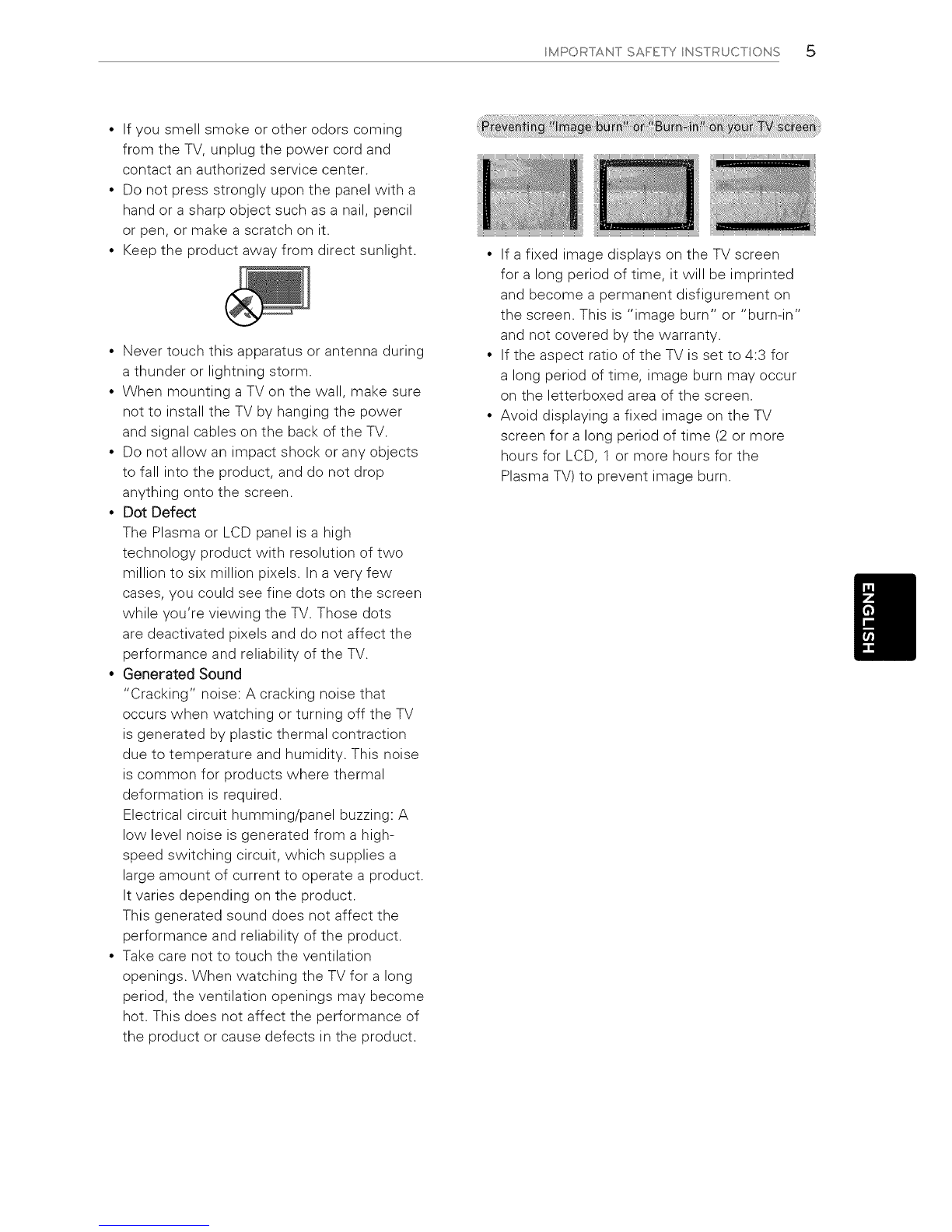

MPORTANTSAFETY NSTRUCTONS 5
• If you smell smoke or other odors coming
from the TV, unplug the power cord and
contact an authorized service center.
• Do not press strongly upon the panel with a
hand or a sharp object such as a nail, pencil
or pen, or make a scratch on it.
• Keep the product away from direct sunlight.
• Never touch this apparatus or antenna during
a thunder or lightning storm.
• When mounting a TV on the wall, make sure
not to install the TV by hanging the power
and signal cables on the back of the TV.
• Do not allow an impact shock or any objects
to fall into the product, and do not drop
anything onto the screen.
• Dot Defect
The Plasma or LCD panel is a high
technology product with resolution of two
million to six million pixels. In a very few
cases, you could see fine dots on the screen
while you're viewing the TV. Those dots
are deactivated pixels and do not affect the
performance and reliability of the TV.
• Generated Sound
"Cracking" noise: A cracking noise that
occurs when watching or turning off the TV
is generated by plastic thermal contraction
due to temperature and humidity. This noise
is common for products where thermal
deformation is required.
Electrical circuit humming/panel buzzing: A
low level noise is generated from a high-
speed switching circuit, which supplies a
large amount of current to operate a product.
It varies depending on the product.
This generated sound does not affect the
performance and reliability of the product.
• Take care not to touch the ventilation
openings. When watching the TV for a long
period, the ventilation openings may become
hot. This does not affect the performance of
the product or cause defects in the product.
• If a fixed image displays on the TV screen
for a long period of time, it will be imprinted
and become a permanent disfigurement on
the screen. This is "image burn" or "burn-in"
and not covered by the warranty.
• If the aspect ratio of the TV is set to 4:3 for
a long period of time, image burn may occur
on the letterboxed area of the screen.
• Avoid displaying a fixed image on the TV
screen for a long period of time (2 or more
hours for LCD, 1 or more hours for the
Plasma TV) to prevent image burn.

6 MPORTANTSAFETY NSTRUCTONS
Viewing 3D Imaging (For 3D models)
_ WARNING
• Viewing Time
- When watching 3D contents, take 5- 15 minute breaks every hour. Viewing 3D contents for a long
period of time may cause headache, dizziness, fatigue or eye strain.
• Some users may experience a seizure or other abnormal symptoms when they are exposed to a
flashing light or particular pattern from 3D contents.
• Do not watch 3D videos if you feel nausea, are pregnant and/or have a chronic illness such as
epilepsy, cardiac disorder, or blood pressure disease, etc.
• 3D Contents are not recommended to those who suffer from stereo blindness or stereo anomaly.
Double images or discomfort in viewing may be experienced.
• If you have strabismus (cross-eyed), amblyopia (weak eyesight) or astigmatism, you may have trouble
sensing depth and easily feel fatigue due to double images. It is advised to take frequent breaks than
the average adult.
• If your eyesight varies between your right and left eye, revise your eyesight prior to watching 3D
contents.
• Do not watch 3D contents when you feel fatigue from lack of sleep, overwork or drinking.
• When these symptoms are experienced, stop using/watching 3D contents and get enough rest until
the symptom subsides.
- Consult your doctor when the symptoms persist. Symptoms may include headache, eyeball pain,
dizziness, nausea, palpitation, blurriness, discomfort, double image, visual inconvenience or fatigue.

MPORTANT SAFETY NSTRUCT ONS "7
_ CAUTION
• Viewing Distance
- Maintain a distance of at least twice the screen diagonal length when watching 3D contents. If you
feel discomfort in viewing 3D contents, move further away from the TV.
• Viewing Position (Only for SG Mode)
- Face the center of the screen at eye level with the head looking straight ahead. Otherwise, you may
not be able to view 3D contents properly.
• Infants/Children
- Usage/Viewing 3D contents for children under the age of 5 are prohibited.
- Children under the age of 10 may overreact and become overly excited because their vision is in
development (for example: trying to touch the screen or trying to jump into it. Special monitoring and
extra attention is required for children watching 3D contents.
- Children have greater binocular disparity of 3D presentations than adults because the distance
between the eyes is shorter than one of adults. Therefore they will perceive more stereoscopic depth
compared to adults for the same 3D image.
• Teenagers
-Teenagers under the age of 19 may be stimulated to light coming from 3D videos. Advise them not to
watch 3D videos for a long time when they are tired.
• Elderly
-The elderly may perceive less of a 3D effect than the youth. Do not sit closer to the TV than the
recommended distance.
/
• Make sure to use LG 3D glasses. Otherwise, you may not be able to view 3D videos properly.
• Do not use 3D glasses instead of your normal glasses, sunglasses or protective goggles.
• Using modified 3D glasses may cause eye strain or image distortion.
• Do not keep your 3D glasses in extremely high or low temperatures. It will cause deformation.
• The 3D glasses are fragile and are easy to be scratched. Always use a soft, clean piece of cloth when
wiping the lenses. Do not scratch the lenses of the 3D glasses with sharp objects or clean/wipe them
with chemicals.
• When watching 3D videos under fluorescent lights or with three wave length lamps, you may
experience the screen blinking. When this occurs, turn the light off or turn it down. (Only for SG
mode)
• Other electronic or communication devices should be turned off or put away from the TV because it
can cause interference and prevent the 3D function from working properly. (Only for SG mode)
• When you watch TV lying down, 3D images may look darker or invisible. (Only for SG mode)

8 L CENSES /OPEN SOURCE SQFrTWARE NQTCE
LICENSES
Supported licenses may differ by model. For more information about licenses, visit www.lg.com.
[Z]DOLBY
DIGITAL PLUS 1
PULSE]
Manufactured under license from Dolby Laboratories. "Dolby" and the double-D
symbol are trademarks of Dolby Laboratories.
H|ml/
HIGH-OEFINITION MULTIMEDIA INTERFACE
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing LLC.
HD
ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a
subsidiary of Rovi Corporation. This is an official DivX Certified® device that plays
DivX video. Visit divx.com for more information and software tools to convert your
files into DivX video.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered
in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your
registration code, locate the DivX VOD section in your device setup menu. Go to
vod.divx.com for more information on how to complete your registration.
"DivX Certified® to play DivX® video up to HD 1080p, including premium content."
"DivX®, DivX Certified® and associated Iogos are trademarks of Rovi Corporation
or its subsidiaries and are used under license."
"Covered by one or more of the following U.S. patents:
7,295,673; 7,460,668; 7,515,710; 7,519,274"
OPEN SOURCE SOFTWARE NOTICE
To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this
product, please visit http://opensource.lge.com.
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are
available for download.
LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of
performing such distribution (such as the cost of media, shipping and handling) upon email request to
[email protected]. This offer is valid for three (3) years from the date on which you purchased the
product.

TABLE OF' CONTENTS 9
TABLE OF CONTENTS
2 IMPORTANT SAFETY INSTRUCTIONS
.6 Viewing 3D Imaging (For 3D models)
8 LICENSES
8 OPEN SOURCE SOFTWARE NOTICE
9 TABLE OF CONTENTS
I0 INSTALLATION PROCEDURE
I0 ASSEMBLING AND PREPARING
10
14
15
16
17
17
19
19
20
21
22
22
23
Unpacking
Optional Extras
Parts and buttons
Lifting and moving the TV
Setting up the TV
- Attaching the stand
- Attaching the protection cover
- Tidying cables
- Mounting on a table
- Mounting on a wall
MAKING CONNECTIONS
Connecting to an antenna or cable
Connecting to a HD receiver, DVD, or VCR
player
23 - HDMI Connection
24 - DVI to HDMI Connection
25 - Component Connection
26 - Composite Connection
27 Connecting to a PC
27 - HDMI Connection, DVI to HDMI Connec-
tion or RGB Connection
29 Connecting to an Audio System
29 - Digital Optical Audio Connection
30 Connecting to a USB
REMOTE CONTROL31
33 Magic Remote Control Functions
34 - Registering Magic Remote Control
34 - How to use Magic Remote Control
34 - Precautions to Take when Using the
Magic Remote Control
35 WATCHING TV
35 Turning the TV on for the first time
36 USING THE USER GUIDE
37 TROUBLESHOOTING
37 EXTERNAL CONTROL DEVICE SETUP
38 SPECIFICATIONS
42 MAINTENANCE
42
42
42
Cleaning Your TV
- Screen, frame, Cabinet and stand
- Power cord
- ¥ NOTE
• Image shown may differ from your TV.
• Your TV's OSD (On Screen Display) may
differ slightly from that shown in this manual.
• The available menus and options may differ
from the input source or product model that
you are using.
• New features may be added to this TV in the
future.

10 ASSEMBLNGANDPREPARNG
INSTALLATION PROCEDURE
1Open the package and make sure all the accessories are included.
2Attach the stand to the TV set.
3 Connect an external device to the TV set.
4Make sure the network connection is available.
You can use the TV network functions only when the network connection is made.
ASSEMBLING AND PREPARING
Unpacking
Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations in this manual may differ from the actual
product and item.
._-_ NOTE ........................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
• The items supplied with your product may vary depending on the model.
• Product specifications or contents of this manual may be changed without prior notice due to
upgrade of product functions.
CAUTION
• Do not use any unapproved items to ensure the safety and product life span.
• Any damages or injuries by using unapproved items are not covered by the warranty.
• In case of some model, the thin film on screen is a part of TV, So don't take it off.

ASSEMBL NG AND PREPAR NG 11
..... NOTE ...................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
• How to use the ferrite core
1 Use the ferrite core to reduce the electromagnetic interference in the PC audio cable.
Wind the PC audio cable on the ferrite core thrice. Place the ferrite core close to the TV.
[to an External device] [to the TV] .................................................................................................
[Figure 1] [Cross Section of Ferrite Core]
2 Use the ferrite core to reduce the electromagnetic interference in the power cable.
Wind the power cable on the ferrite core once. Place the ferrite core close to the TVand wall plug.
[to a wall plug] [to the TV] ......
[Cross Section of Ferrite Core]
[Figure 2]
3 Use the ferrite core to reduce the electromagnetic interference in the LAN cable. Wind the
LAN cable once on the ferrite core. Place the ferrite core close to the TV.
[to an External device] [to the TV]
rnm)
[Figure 3] [Cross Section of Ferrite Core]
4 Use the ferrite core to reduce the electromagnetic interference in the component Y, Pb, Pr, L, R
cable. Place the ferrite core close to the TV.
[to an External device] [to the TV] ............................................................................................................................................................................................
10 mm (+/-5 mm)
[Figure 4]
- If there is one ferrite core, follow as shown in Figure 1.
- If there are three ferrite cores, follow as shown in Figures 1and 2.
- If there are four ferrite cores, follow as shown in Figures 1, 2 and 3.
- If there are five ferrite cores, follow as shown in Figures t, 2, 3 and 4.
/

12 ASSEMBLNGANDPREPARNG
For PM4700, PM6700-UB series
Remote control,
Batteries (AAA)
(See p.31)
Stand Screws
3 EA, MSx16
(See p.17)
Protection cover
(See p.19)
Owner's manual
Stand Screws
4 EA, M4 x 30
(See p.17)
Power Cord
Cable holder
(See p.19)
Power Cord holder
(See p.19)
Ferrite core
(Depending on model)
(See p.11)
Polishing cloth
(Depending on model)
Use this to remove dust from
the cabinet.
Stand Body
(See p.17)
Stand Base
(See p.17)
Wi-Fi dongle
(For PM4700 series)

ASSEMBLNGANDPREPARNG 13
For PM9700, PM6700-UD series
....@@
Magic Remote Control,
Batteries (AA)
(See p.33)
Stand Screws
MSx 16
The number of screws may
differ depending on the model.
(See p.18)
Owner's manual
Stand Screws
4 EA, M4 x 30
(See p.18)
Cable holder
(See p.19)
Power Cord holder
(See p.19)
Protection cover
(See p.19) Power Cord Ferrite core (Depending on model)
(See p.11)
Stand Body
(See p.18)
Stand Base
(See p.18) Cable management (See p.18)
Polishing cloth
(Depending on model)
Use this to remove dust from
the cabinet.

14 ASSEMBL NG AND PREPAR NG
Optional Extras
Optional extras can be changed or modified for quality improvement without any notification.
Contact your dealer to buy these items.
These devices only work with certain models.
AG-S3 **
3D Glasses
The model name or
design may be changed
manufacturer's circumstances
or policies.
'\ j
AN-MR300
Magic Remote Control
1
AN-WF100
Wireless LAN for Broadband/
DLNA Adaptor
C.omn_tihilitv PM4700 PM6700 PM9700
I i
III
AGES3 3D Glasses . O I e
AN-WF100 Wireless LAN for Broadband/ U I I

ASSEMBLNGANDPREPARNG 15
Parts and buttons
For PM4700, PM6700-UB series
Screen
Remote control
intelligent sensors
Power /
/ /
/ / SI
Buttons
For PM9700, PM6700-UD series
i i frill i I _ii_ ii
i Buttons
Button Description
0) /I Turns the power on or off.
iNPUT Changes the input source.
SETTINGS Accesses the main menus, or saves your input and exits the menus.
OK ® Selects the highlighted menu option or confirms an input.
+ Adjusts the volume levet.
v A Scrolls through the saved channels.
1 Intelligent sensor -Adjusts the image quality and brightness based on the surrounding environment.

16 ASSEMBLNGANDPREPARNG
Lifting and moving the TV
When moving or lifting the TV, read the following
to prevent the TV from being scratched or
damaged and for safe transportation regardless of
its type and size.
---_ CAUTION
• Avoid touching the screen at all times, as
this may result in damage to the screen.
It is recommended to move the TV in the
box or packing material that the TV originally
came in.
Before moving or lifting the TV, disconnect
the power cord and all cables.
When holding the TV, the screen should face
away from you to avoid damage.
• Hold the top and bottom of the TV frame
firmly. Make sure not to hold the transparent
part, speaker, or speaker grill area.
• When transporting a large TV, there should
be at least 2 people.
• When transporting the TV by hand, hold the
TV as shown in the following illustration.
• When transporting the TV, do not expose the
TV to jolts or excessive vibration.
• When transporting the TV, keep the TV
upright, never turn the TV on its side or tilt
towards the left or right.
/J'i'
I , '
X X
X

ASSEMBLNGANDPREPARNG 17
Setting up the TV
Put your TV on a pedestal stand and mount the TV on a table or wall.
Attaching the stand
If you are not mounting the TV to a wall, use the following instructions to attach the stand.
For PM4700, PM6700-UB series
3 EA
MSx16
Stand Body
Stand Base
_-_ CAUTION
•When attachingthe standto theTV
set,placethe screenfacingdown on a
cushioned table or flat surface to protect
the screen from scratches.
/
4 EA
M4 x 30
-_ CAUTION
•Tightenthe screws firmlyto prevent
theTV from tiltingforward.Do not over
tighten.

18 ASSEMBLNGANDPREPARNG
For PM9700/PM6700-UD series
Sfand Body
Sfand Base
CAUTION
• When attaching the stand to the TV
set, place the screen facing down on a
cushioned table or flat surface to protect
the screen from scratches.
4 EA
M4 x 30
CAUTION
• Tighten the screws firmly to prevent
the TV from tilting forward. Do not over
tighten.
managemenf

ASSEMBLNGANDPREPARNG]9
Attaching the protection cover
Remove the stand before installing the TV
on a wall mount by performing the stand
attachment in reverse.
After removing the stand, push the supplied
protection cover into the opening at the bottom
of the TV until it locks in place.
This will protect the opening from accumulating
dust and dirt.
Protection cover
Secure the TV and the protection cover with
the 2 screws.
2 EA
M4 x 30
Tidying cables
2
Install the power cord holder and power cord.
It will help prevent the power cable from being
removed by accident.
Power cord holder
Gather and bind the cables with the cable
holder.
/
i,, Cable holder
CAUTION
Do not move the TV by holding the cable
holder and power cord holder, as the cable
holders may break, and injuries and damage
to the TV may occur.
-| CAUTION
•Tighten the screws firmly to prevent
the TV from tilting forward. Do not over
tighten.

20 ASSEMBLNGANDPREPARNG
Mounting on a table
Lift and tilt the TV into its upright position on a
table.
- Leave a 10 cm (4 inch) (minimum) space from
the wall for proper ventilation.
2Connect the power cord to a wall outlet.
_]\ CAUTION
• Do not place the TV near or on sources
of heat, as this may result in fire or other
damage.
\
Swivel 20_+2degrees to the left or right and adjust
the angle of the TV to suit your view.
200+2° 20o+2o
.........._ CAUTION
• When adjustingtheangleofthe TV,watch
outforyourfingers.
-Personalinjurymay occurifhands or
fingersarepinched.Ifthe productistilted
too much, itmay fall,causingdamage or
injury.
Front Rear
(Depending on model)
1Insert and tighten the eye-bolts, or TV brackets
and bolts on the back of the TV.
- If there are bolts inserted at the eye-bolts
position, remove the bolts first.
2Mount the wall brackets with the bolts to the
wall.
Match the location of the wall bracket and the
eye-bolts on the rear of the TV.
3 Connect the eye-bolts and wall brackets tightly
with a sturdy rope.
Make sure to keep the rope horizontal with the
flat surface.
CAUTION 1
• Make sure that children do not climb on or /
J
hang on the TV.
_ NOTE
• Use a platform or cabinet that isstrong and
largeenough to support the TV securely.
• Brackets,boltsand ropes are optional.You
can obtain additionalaccessories from your
local dealer.
