LG LSC27910SW/01 User manual
- 2 -WARNINGS AND SAFETY PRECAUTIONS ..........................................................................1. SPECIFICATIONS ...............................................................................................................2. PARTS IDENTIFICATION ...................................................................................................3. HOW TO INSTALL THE REFRIGERATOR ........................................................................4. HOW TO DISASSEMBLE AND ASSEMBLE......................................................................5. MICOM FUNCTION .............................................................................................................6. EXPLANATION FOR MICOM CIRCUIT ..............................................................................7. ICEMAKER AND DISPENSER WORKING PRINCIPLES AND REPAIR............................8. CIRCUIT ..............................................................................................................................9. TROUBLE DIAGNOSIS ......................................................................................................10. EXPLODED VIEW .............................................................................................................345610152542484988
https://appliancetechmanuals.com

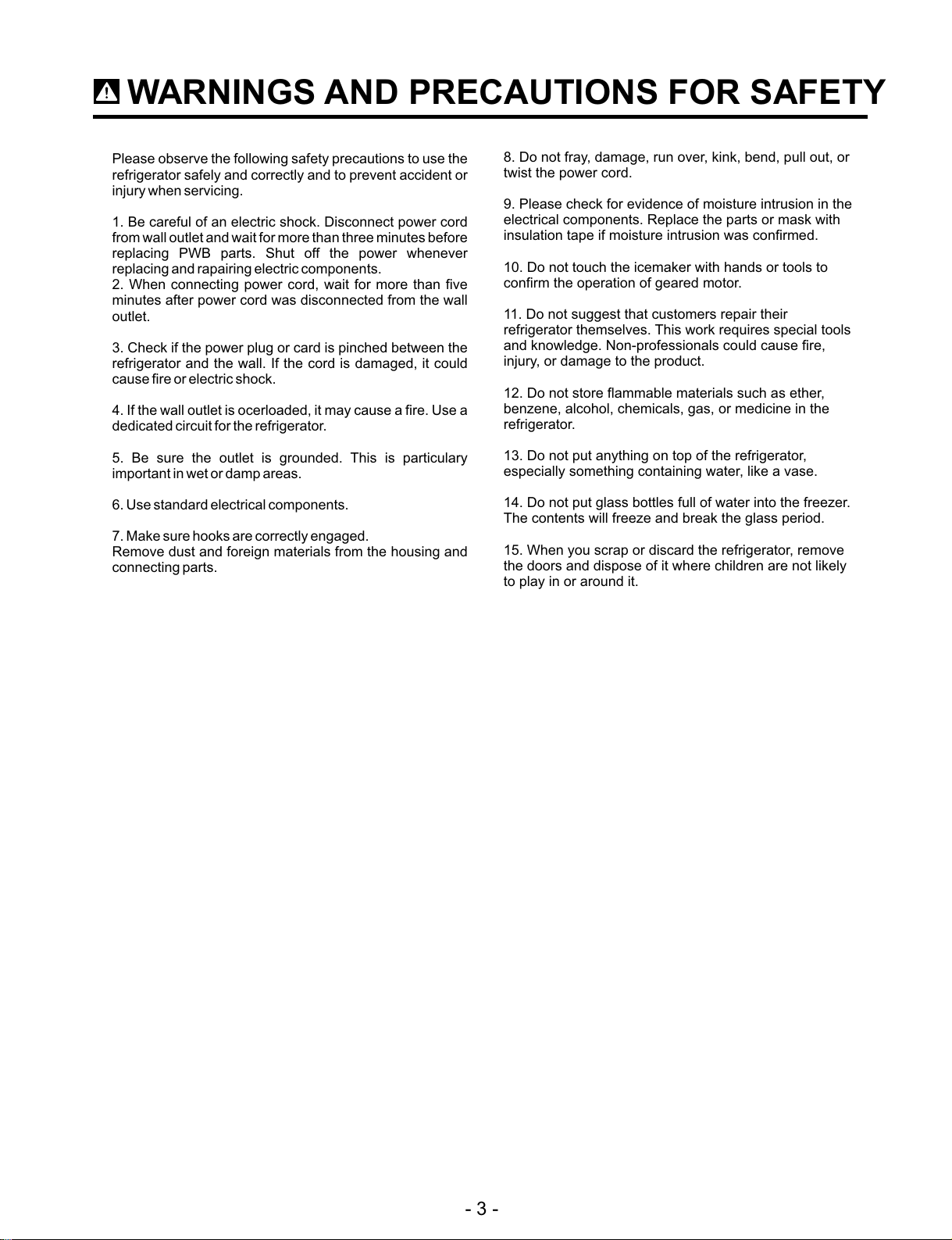

Please observe the following safety precautions to use the refrigerator safely and correctly and to prevent accident or injury when servicing.1. Be careful of an electric shock. Disconnect power cord from wall outlet and wait for more than three minutes before replacing PWB parts. Shut off the power whenever replacing and rapairing electric components.2. When connecting power cord, wait for more than five minutes after power cord was disconnected from the wall outlet.3. Check if the power plug or card is pinched between the refrigerator and the wall. If the cord is damaged, it could cause fire or electric shock.4. If the wall outlet is ocerloaded, it may cause a fire. Use a dedicated circuit for the refrigerator.5. Be sure the outlet is grounded. This is particulary important in wet or damp areas.6. Use standard electrical components.7. Make sure hooks are correctly engaged.Remove dust and foreign materials from the housing and connecting parts.8. Do not fray, damage, run over, kink, bend, pull out, or twist the power cord.9. Please check for evidence of moisture intrusion in the electrical components. Replace the parts or mask with insulation tape if moisture intrusion was confirmed.10. Do not touch the icemaker with hands or tools to confirm the operation of geared motor.11. Do not suggest that customers repair their refrigerator themselves. This work requires special tools and knowledge. Non-professionals could cause fire, injury, or damage to the product.12. Do not store flammable materials such as ether, benzene, alcohol, chemicals, gas, or medicine in the refrigerator.13. Do not put anything on top of the refrigerator, especially something containing water, like a vase.14. Do not put glass bottles full of water into the freezer. The contents will freeze and break the glass period.15. When you scrap or discard the refrigerator, remove the doors and dispose of it where children are not likely to play in or around it.WARNINGS AND PRECAUTIONS FOR SAFETY- 3 -
https://appliancetechmanuals.com
Front ViewTop View1. SPECIFICATIONS- 4 -
LSC27910SWLSC27910STLSC27910TTLSC27910SBMODELSLSC27910SWLSC27910STLSC27910TTLSC27910SB
Super white Stainless Titanium BlackPCM StainlessVCMVCM3 PlasticYes (1) 40W/Blue3 EA (Wire)Embo (normal)13 - 70 HoursHeater, SheathWater Tank HeaterVistaA-LG3 full + 1halfAUTO ICE MAKER+ SPACE PLUSYesYes (1) 40W/Blue1 (Fix) + 2 (S/Out)Cyclo, PentaneLD72LACH PTC Starting TypeFin Tube Type Wire Condenser LampShelfMagic Crisper
FREEZERREFRIGERATOR
Handle TypeDisplay GraphicBasket, QuantityIce Tray & BankSPECIFICATIONSCase MaterialDoor Material286.6 lbs
GENERALFEATURES
ColorAnti-freezing HeaterDrier27 cuftR134a (185gr)Temperate (N)115V~ / 60HzFan CoolingMICOM controlFull AutomaticYes NoLampShelfTray meatEgg BankBasket, QuantityHeater DefrostDefrosting SystemFirst DefrostCondenserLubricanting OilDefrost CycleDefrosting DeviceEvaporatorCapillary TubePolyol Ester 310 ± 10 ccMOLECULAR SIEVE XH-7 ID Ø0.834 HoursCooling SystemRated RatingInsulationCompressorTemperature Control
MODELS
SPECIFICATIONSCapacityRefrigerantNet WeightDimensions Climate class
724 mm (281/2
912 mm (35 in.)
779 mm (305/8 in.)830 mm (325/8 in.)891 mm (355/16 in.)1261 mm (495/8 in.)1741.5 mm (681/2 in.)1746.5 mm (683/4 in.)1771 mm (6911/16 in.)1771 mm (6911/16 in.)
29/32908 mm (35 in.)11/1636 x 33 x 70 in
https://appliancetechmanuals.com

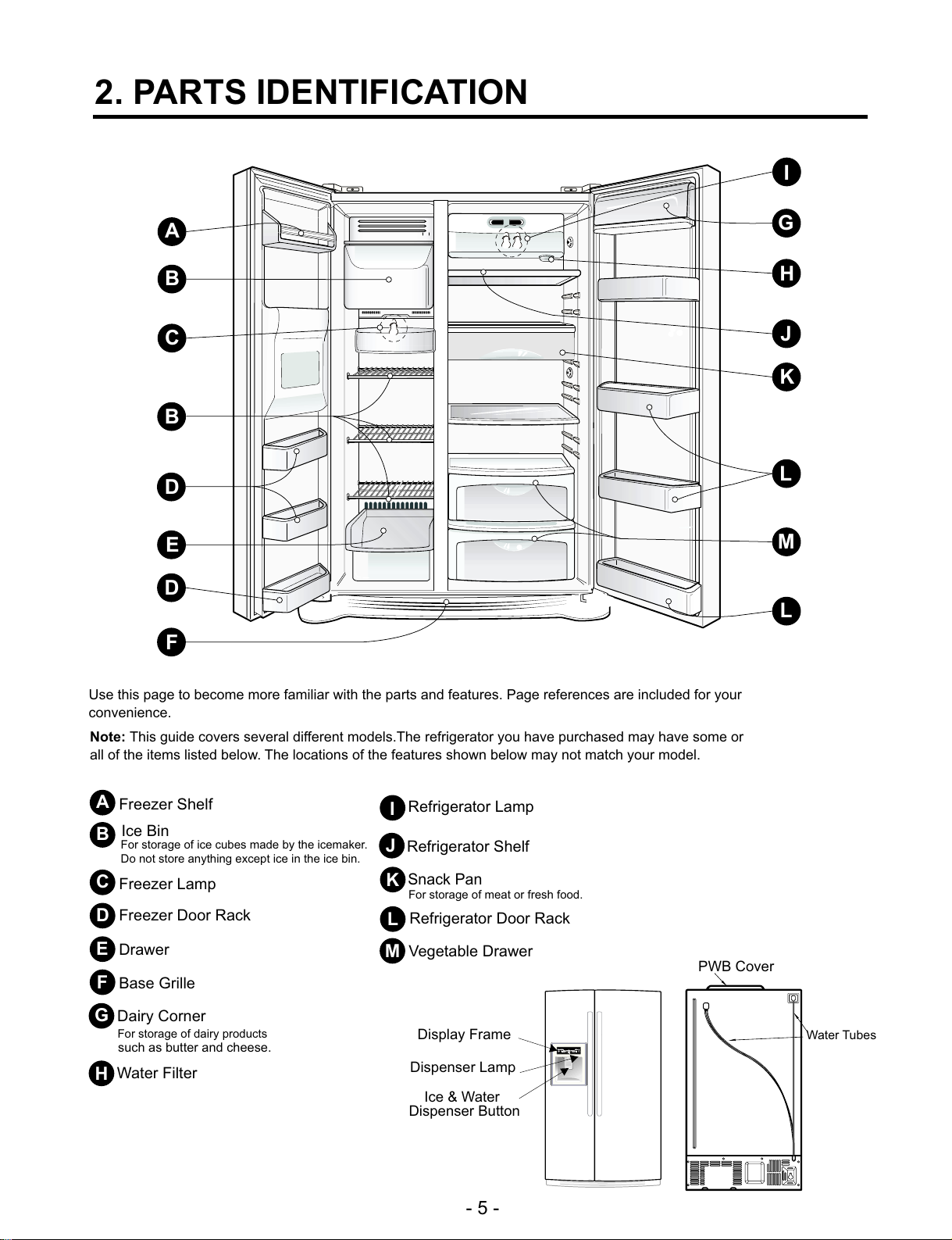

2. PARTS IDENTIFICATIONDisplay FrameDispenser LampIce & WaterDispenser ButtonPWB Cover Water Tubes- 5 -Use this page to become more familiar with the parts and features. Page references are included for your convenience.Note: This guide covers several different models.The refrigerator you have purchased may have some or all of the items listed below. The locations of the features shown below may not match your model.Refrigerator Door RackDairy CornerJLMKRefrigerator ShelfFreezer Door RackFreezer ShelfDrawerBCDAEVegetable DrawerFGIIce BinFor storage of dairy products such as butter and cheese.Freezer LampBase Grille
Snack Pan
For storage of meat or fresh food.Water FilterHRefrigerator LampABCBDDEFMGHIJLLKFor storage of ice cubes made by the icemaker.Do not store anything except ice in the ice bin.
https://appliancetechmanuals.com

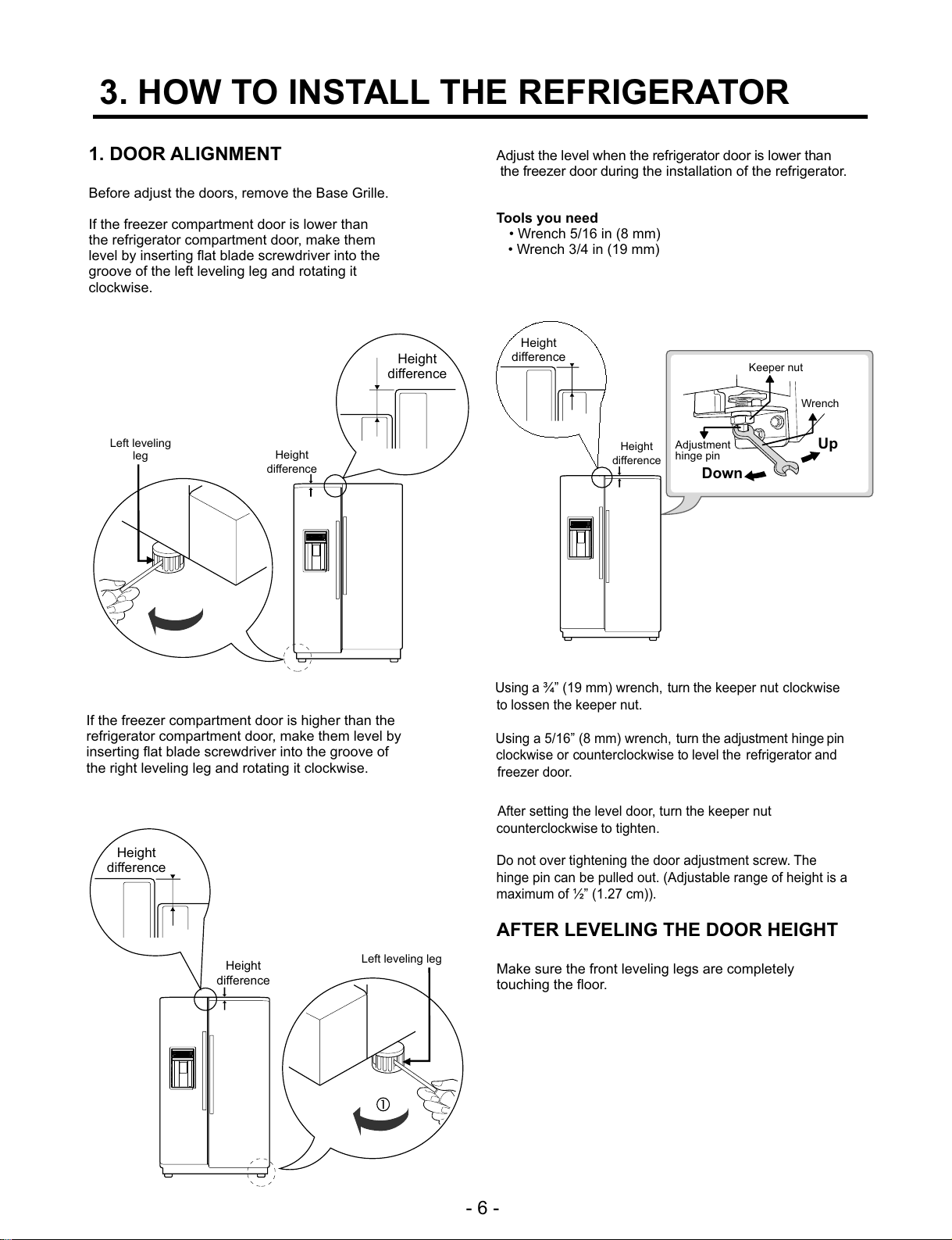

3. HOW TO INSTALL THE REFRIGERATOR- 6 -1. DOOR ALIGNMENTBefore adjust the doors, remove the Base Grille. If the freezer compartment door is lower than the refrigerator compartment door, make them level by inserting flat blade screwdriver into the groove of the left leveling leg and rotating it clockwise. Left leveling legHeight If the freezer compartment door is higher than the refrigerator compartment door, make them level by inserting flat blade screwdriver into the groove of the right leveling leg and rotating it clockwise. Left leveling legHeight difference Adjust the level when the refrigerator door is lower than the freezer door during the installation of the refrigerator.Tools you need• Wrench 5/16 in (8 mm) • Wrench 3/4 in (19 mm)AFTER LEVELING THE DOOR HEIGHTMake sure the front leveling legs are completelytouching the floor.difference Height difference Height difference Height difference Height difference
Using a ¾” (19 mm) wrench, turn the keeper nut clockwise to lossen the keeper nut.
Keeper nutAdjustment hinge pinWrenchUpDown
Using a 5/16” (8 mm) wrench, turn the adjustment hinge pin clockwise or counterclockwiseto level the refrigerator and After setting the level door, turn the keeper nut counterclockwise to tighten.Do not over tightening the door adjustment screw. The hinge pin can b e pulled out. (Adjustable range of height is a maximum of ½” (1.27 cm)). freezer door.
https://appliancetechmanuals.com
- 7 -Removing the water filter:1. For first-time installation, remove filter substitute cap (A) by turning it counterclockwise a quarter turn and pulling it down.2. For subsequent installation, remove old filter by slowly turning it to the left a quarter turn and pulling it down.Installing the water filter Remove red cap from the filter and insert the two tabs on the filter tip into the two slots in the refrigerator filter receptacle. You should feel the filter entering completely. Turn the filter to the right a quarter turn clockwise to lock it into place. The locked symbol will be lined up with the indicator arrow.2. WATER FILTERBefore removing or installing water filter:1. Take out the top shelf and move it to the lowest level.2. Remove the lamp cover by pressing the tab under the cover and pulling cover to the front.3. IMPORTANT: Turn off household water supply.After installing water filter a) Replace the cover lamp and shelf to the initial position. b) Dispense 2.5 gallons (9.46 L) of water to purge the system (dispense for approximately 5 minutes). Open the refrigerator door and check the shelf area for leaks. c) After installing filter, turn on household water supply. A
https://appliancetechmanuals.com
3. HOW TO CONTROL THE AMOUNT OF WATER SUPPLIED TO ICEMAKER3-1. Confirm the amount of water supplied to the icemaker.1. Pull out the ice bin shelf in the upper part of the freezer compartment.Caution: •Do not put hands or tools into the chute to confirm the operation of geared motor. It may damage the refrigerator or hurt your hands.2. Turn on the electricity after connecting water pipe.1) Press the test switch under the icemaker for two seconds as shown below.2) The bell rings (ding ~ dong), the ice tray rotates, and water comes out the icemaker water tube.3) The water is supplied into the tray two or three times. The amount is small each time. Put a container under the ice tray and press test switch.4) When the ice tray rotates,the water in it will spill. Collect the spilled water and discard it.5) When ice tray has finished rotation, water comes out the water tube. Check the amount that goes into the ice tray. (Refer to the drawing below. The optimum amount is 110cc. (Almost 4 oz.)).* It is acceptable is the adjusted water level is less than the optimum level.- 8 -
https://appliancetechmanuals.com

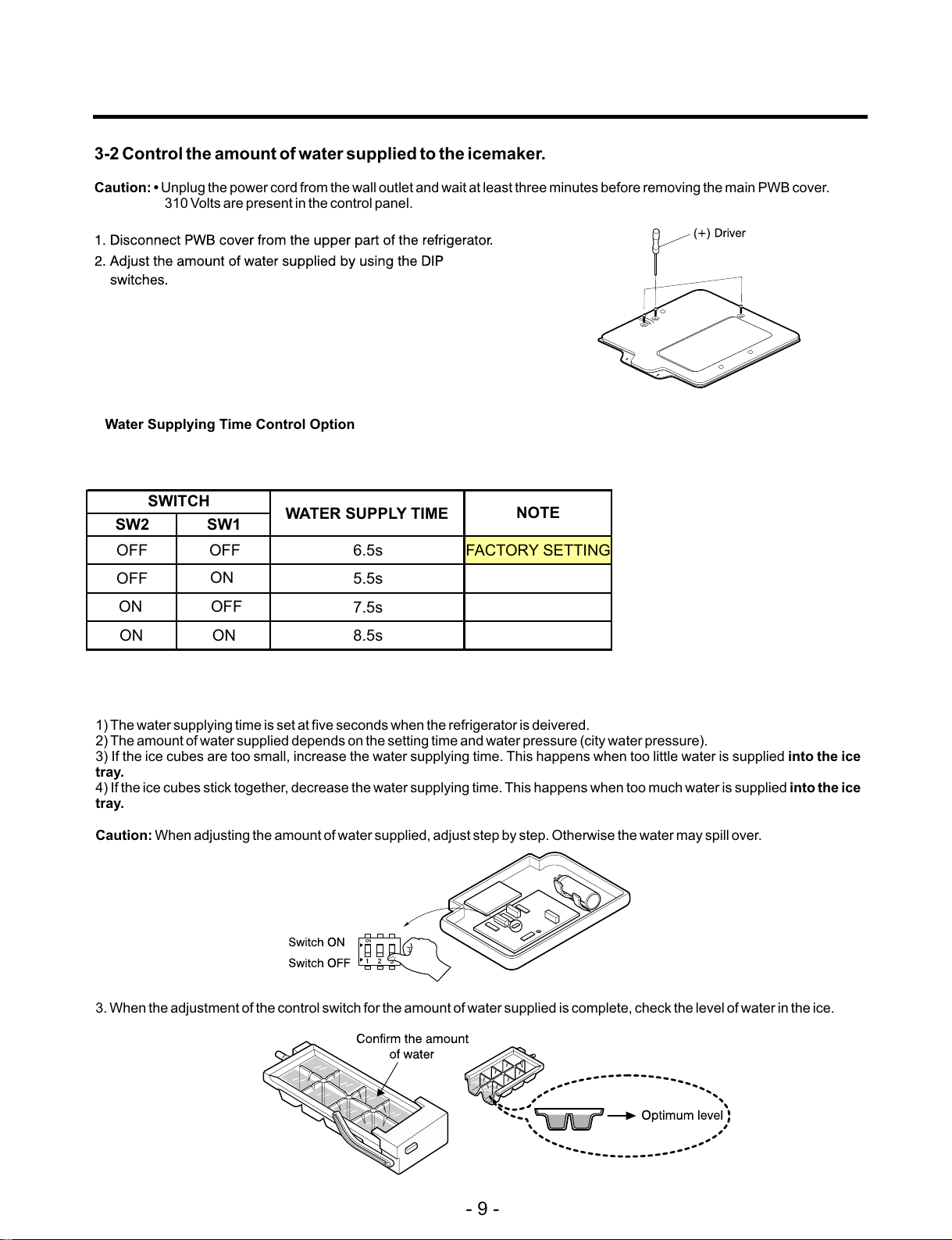

3-2 Control the amount of water supplied to the icemaker.Caution: • Unplug the power cord from the wall outlet and wait at least three minutes before removing the main PWB cover. 310 Volts are present in the control panel.Water Supplying Time Control Option1) The water supplying time is set at five seconds when the refrigerator is deivered.2) The amount of water supplied depends on the setting time and water pressure (city water pressure).3) If the ice cubes are too small, increase the water supplying time. This happens when too little water is supplied into the ice tray.4) If the ice cubes stick together, decrease the water supplying time. This happens when too much water is supplied into the ice tray.Caution: When adjusting the amount of water supplied, adjust step by step. Otherwise the water may spill over.3. When the adjustment of the control switch for the amount of water supplied is complete, check the level of water in the ice.- 9 -SW2SW1OFF6.5sFACTORY SETTINGON5.5sOFF7.5sON8.5sWATER SUPPLY TIMESWITCHNOTEOFFONOFFON
https://appliancetechmanuals.com

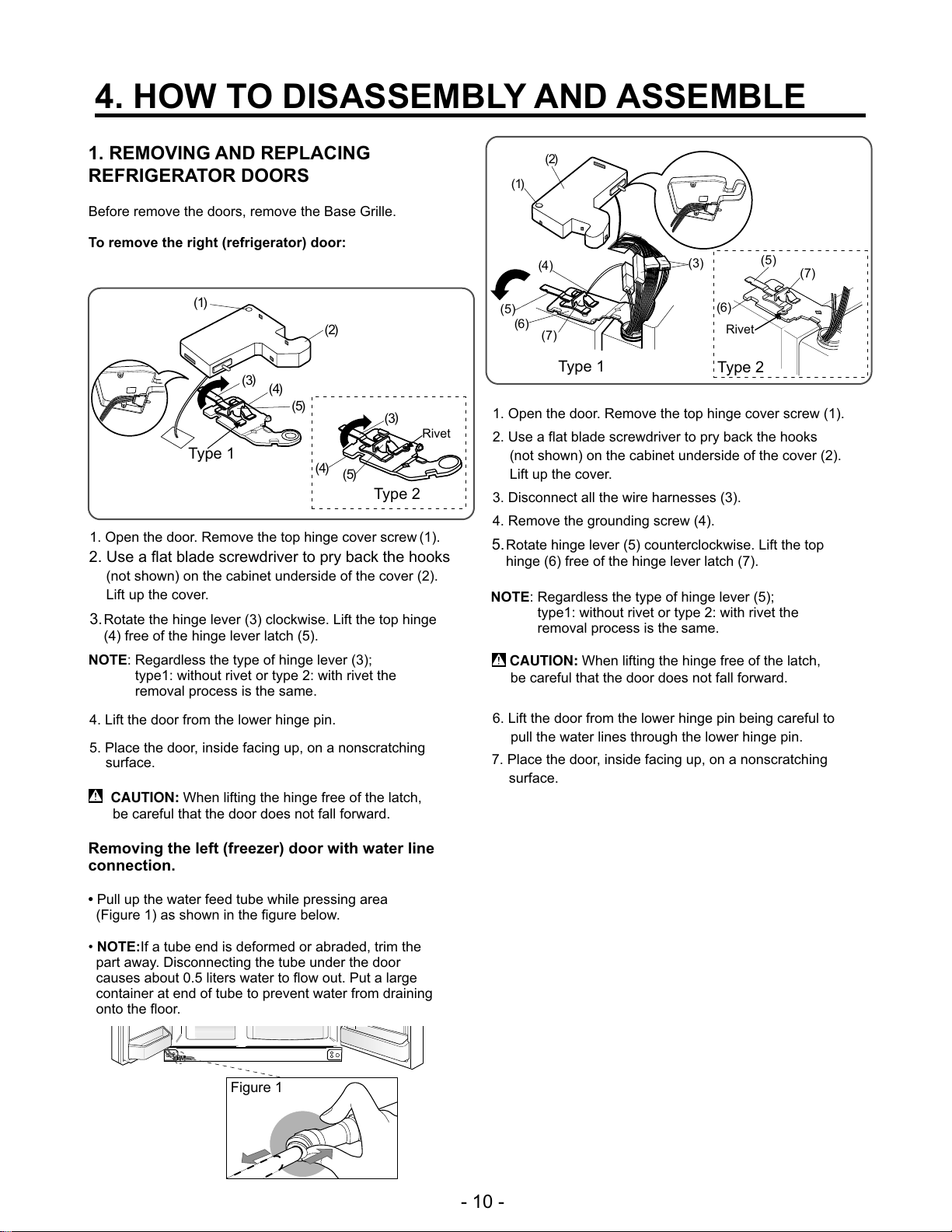

4. HOW TO DISASSEMBLY AND ASSEMBLE1. REMOVING AND REPLACING REFRIGERATOR DOORSBefore remove the doors, remove the Base Grille. To remove the right (refrigerator) door:CAUTION: When lifting the hinge free of the latch, be careful that the door does not fall forward.(1)(2)(3)(4)(5)1. Open the door. Remove the top hinge cover screw 3. Rotate the hinge lever (3) clockwise. Lift the top hinge 2. Use a flat blade screwdriver to pry back the hooks (not shown) on the cabinet underside of the cover (2). Lift up the cover.4. Lift the door from the lower hinge pin.5. Place the door, inside facing up, on a nonscratching surface.(1). Type 2 Type 1 (4) free of the hinge lever latch (5). (3)(4)(5)RivetNOTE: Regardless the type of hinge lever (3); type1: without rivet or type 2: with rivet the removal process is the same.Removing the left (freezer) door with water lineconnection.• Pull up the water feed tube while pressing area (Figure 1) as shown in the figure below.If a tube end is deformed or abraded, trim the part away. Disconnecting the tube under the door causes about 0.5 liters water to flow out. Put a large container at end of tube to prevent water from draining onto the floor. • NOTE: Figure 1 1. Open the door. Remove the top hinge cover screw (1).2. Use a flat blade screwdriver to pry back the hooks (not shown) on the cabinet underside of the cover (2). Lift up the cover.3. Disconnect all the wire harnesses (3).4. Remove the grounding screw (4).5. Rotate hinge lever (5) counterclockwise. Lift the top CAUTION: When lifting the hinge free of the latch, be careful that the door does not fall forward.7. Place the door, inside facing up, on a nonscratching surface.6. Lift the door from the lower hinge pin being careful to pull the water lines through the lower hinge pin.hinge (6) free of the hinge lever latch (7). (1)(2)(3)(5)(6)(7)(4)Type 2 Type 1 (6)(5)RivetNOTE: Regardless the type of hinge lever (5); type1: without rivet or type 2: with rivet the removal process is the same.(7)- 10 -
https://appliancetechmanuals.com

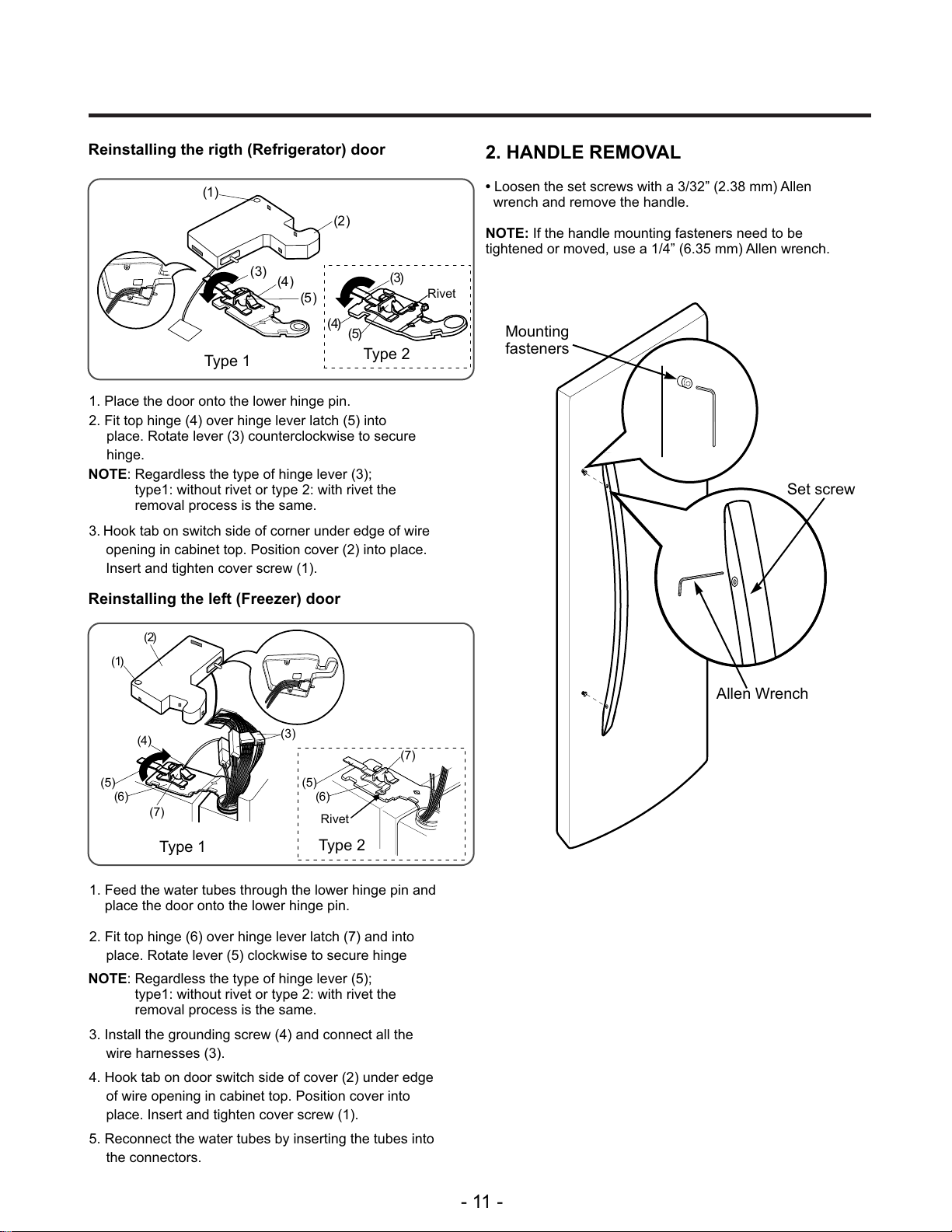

Reinstalling the rigth (Refrigerator) door(1)(2)(3)(4)(5)Type 2 Type 1 (3)(4)(5)Rivet2. Fit top hinge (4) over hinge lever latch (5) into place. Rotate lever (3) counterclockwise to secure 3. Hook tab on switch side of corner under edge of wireopening in cabinet top. Position cover (2) into place.Insert and tighten cover screw (1).hinge.1. Place the door onto the lower hinge pin. NOTE: Regardless the type of hinge lever (3); type1: without rivet or type 2: with rivet the removal process is the same.Reinstalling the left (Freezer) door(1)(2)(3)(5)(6)(7)(4)Type 2 Type 1 (5)(6)(7)Rivet2. Fit top hinge (6) over hinge lever latch (7) and into place. Rotate lever (5) clockwise to secure hinge 3. Install the grounding screw (4) and connect all the wire harnesses (3).4. Hook tab on door switch side of cover (2) under edge of wire opening in cabinet top. Position cover into place. Insert and tighten cover screw (1).1. Feed the water tubes through the lower hinge pin and place the door onto the lower hinge pin.5. Reconnect the water tubes by inserting the tubes into the connectors.NOTE: Regardless the type of hinge lever (5); type1: without rivet or type 2: with rivet the removal process is the same.2. HANDLE REMOVAL • NOTE: If Loosen the set screws with a 3/32” (2.38 mm) Allen wrench and remove the handle.the handle mounting fasteners need to be tightened or moved, use a 1/4” (6.35 mm) Allen wrench. MountingfastenersSet screw Allen Wrench- 11 -
https://appliancetechmanuals.com

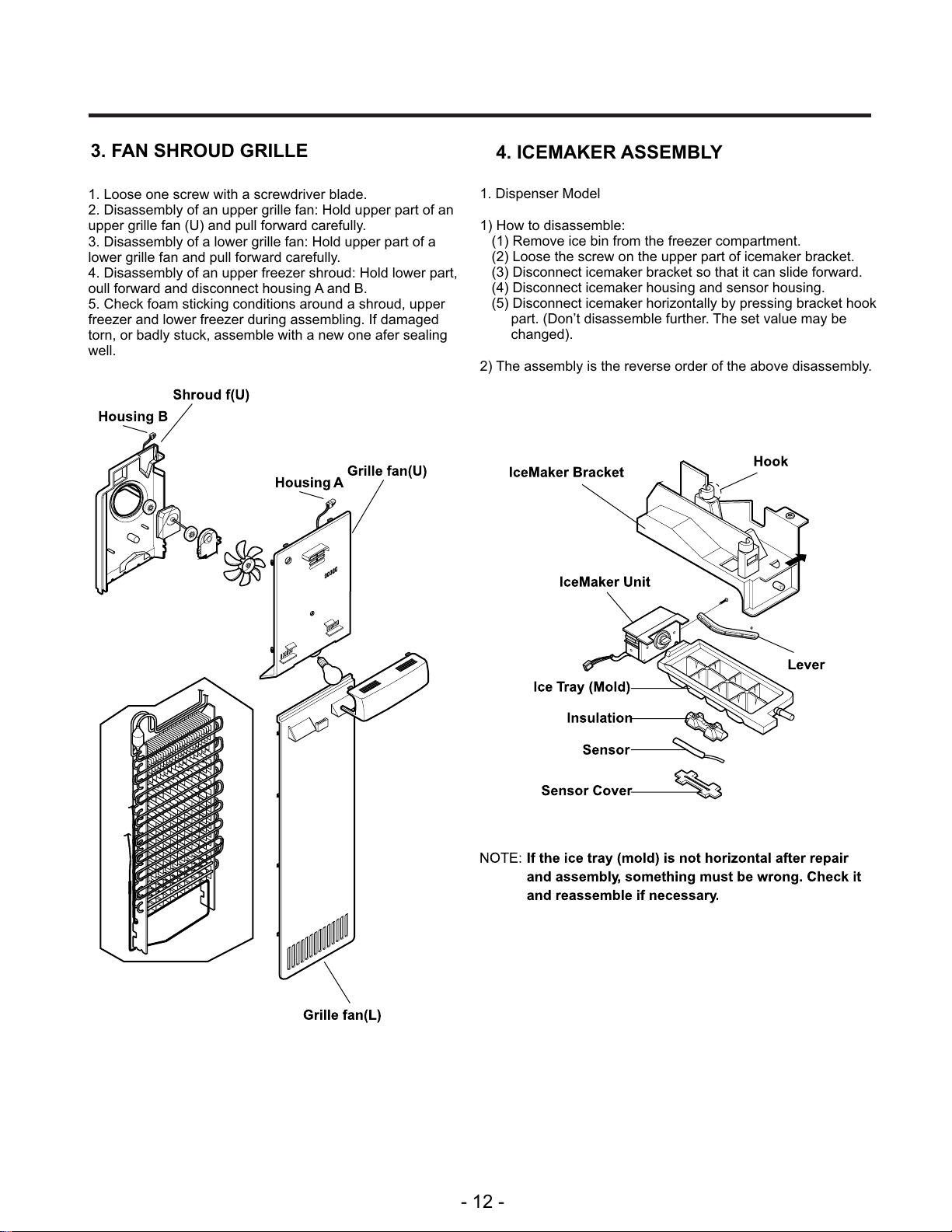

3. FAN SHROUD GRILLE4. ICEMAKER ASSEMBLY1. Loose one screw with a screwdriver blade.2. Disassembly of an upper grille fan: Hold upper part of an upper grille fan (U) and pull forward carefully.3. Disassembly of a lower grille fan: Hold upper part of a lower grille fan and pull forward carefully.4. Disassembly of an upper freezer shroud: Hold lower part, oull forward and disconnect housing A and B.5. Check foam sticking conditions around a shroud, upper freezer and lower freezer during assembling. If damaged torn, or badly stuck, assemble with a new one afer sealing well.1. Dispenser Model1) How to disassemble: (1) Remove ice bin from the freezer compartment. (2) Loose the screw on the upper part of icemaker bracket. (3) Disconnect icemaker bracket so that it can slide forward. (4) Disconnect icemaker housing and sensor housing. (5) Disconnect icemaker horizontally by pressing bracket hook part. (Don’t disassemble further. The set value may be changed).2) The assembly is the reverse order of the above disassembly.- 12 -
https://appliancetechmanuals.com
5. MICOM FUNCTION1. MONITOR PANEL
12
Display Power Saving Mode- 15 -1-1. Display Second Function1. Buzzer sound mute Mode The buzzer sound is set to OFF. It activates by sounding the recognition sound of “Ding ~” after pressing and holding ICE PLUS” button more than 5 seconds. It inactivates when resetting the mode power.2. Display OFF mode.Display off mode puts the display into standby mode until the door is opened. To put the display into Display off Mode, press and hols the FRZ. TEMP. and ICE PLUS buttons simultaneously for 5 seconds until the Ding~sounds. (Use both buttons for this to work.) When Display off Mode is activated, the display remains OFF unless a door is opened or a button is pressed. The display will return to the OFF position after 30 seconds inactivity.To remove the display from Display off Mode, press and hold the FREEZER and ICE PLUS buttons simultaneously for 5 seconds until the Ding~sounds. The Display off Mode default setting is OFF after a power interruption.
https://appliancetechmanuals.com
ºº
Pressthebuttontocyclethroughthesettingsinthisorder:(Medium)(MediumHigh)(High)(Low)

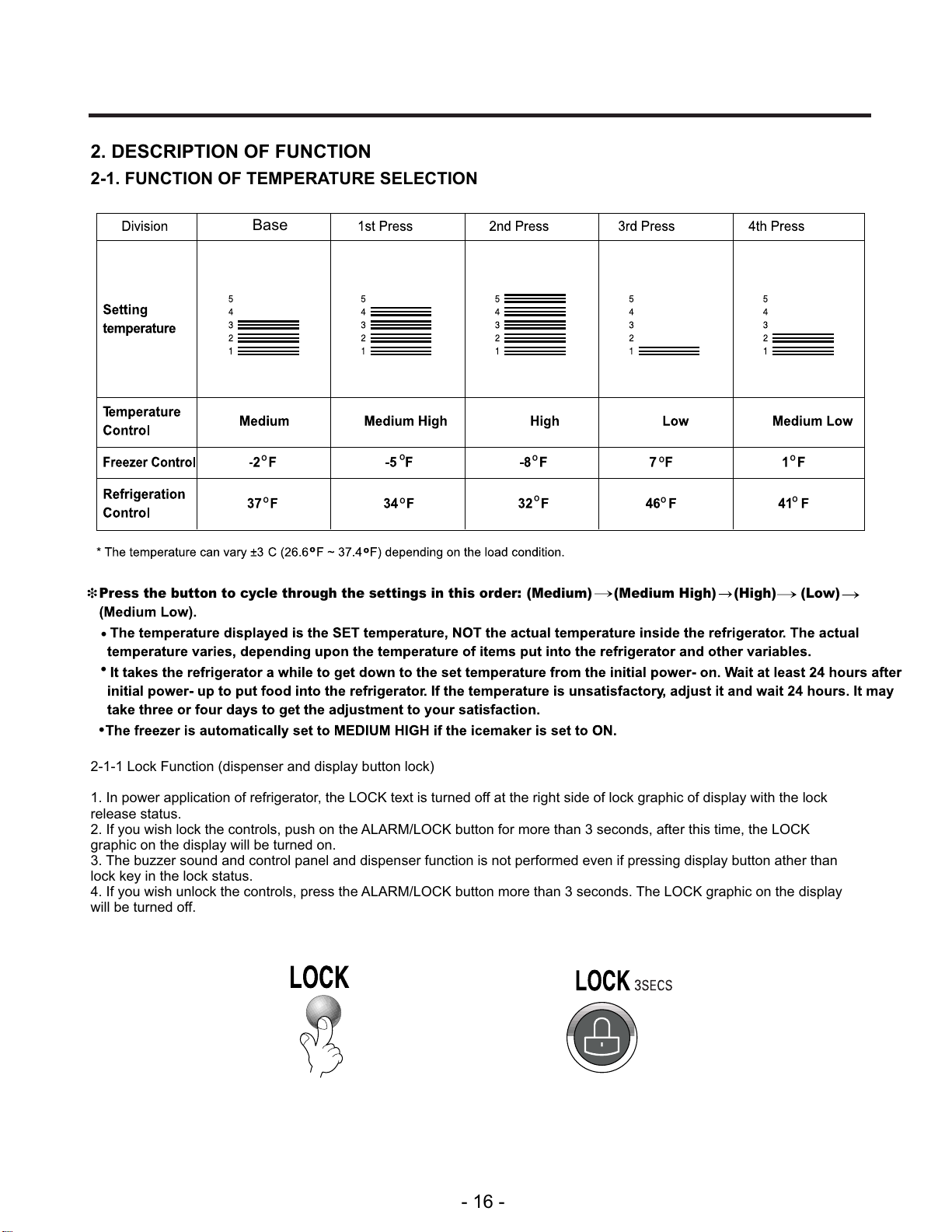

•••ººººººººººBase- 16 -2. DESCRIPTION OF FUNCTION2-1-1 Lock Function (dispenser and display button lock)1. In power application of refrigerator, the LOCK text is turned off at the right side of lock graphic of display with the lock release status.2. If you wish lock the controls, push on the ALARM/LOCK button for more than 3 seconds, after this time, the LOCK graphic on the display will be turned on.3. The buzzer sound and control panel and dispenser function is not performed even if pressing display button ather than lock key in the lock status.4. If you wish unlock the controls, press the ALARM/LOCK button more than 3 seconds. The LOCK graphic on the display will be turned off.2-1. FUNCTION OF TEMPERATURE SELECTION
https://appliancetechmanuals.com
- 17 -2-1-2. Filter condition display function1. There is a replacement indicator light for the water filter cartridge on the dispenser.2. Water filter needs replacement once six months.3. Water filter light and FILTER RESET HOLD 3 SECONDS text turn n to tell you need to replace the filter soon.4. After replace the filter, press and hold the lock button more than 3 seconds. Then water filter light and FILTER RESET HOLD 3 SECONDS text turn off with reset status.2-3. ICE PLUSPlease select this function for prompt freezer.• Function is repeated folloing below whenever pressing ICE PLUS•The arrow mark graphic remains at the On status after flickering 4 times when selecting Special Refrigeration ICE PLUS.• ICE PLUS function automatically turns off if a fixed time passes.2-4 Dispenser Light• Dispenser switch or dispenser light button turn the dispenser light in the dispenser on and off.• The dispenser light Function is repeated following below whenever pressing LIGHT/FILTER button.• If dispenser light continuously turns on more than 7 minutes with dispenser light button, the dispenser light turns off automatically by compulsion.••2-2. Dispenser use selection´ll
I
I
https://appliancetechmanuals.com
2-5 ICE PLUS1. Ice Plus increases the cooling speed in the freezer by running the fan and the compressor simultaneously.2. Ice Plus is released if the power fails and is restored.3. The temperature setting is not changed when Ice Plus is selected.4. You can change the temperature in the freezer and the refrigerator even if Ice Plus has been selected and is in progress.5. The refrigerator operates independently of the Ice Plus setting and operation.6. At the end of the Ice Plus cycle, the freezer defaults to its original setting.7. If frost removal starting time is arrived during Ice Plus, Ice Plus operation is done only for the remaining time after completion of frost removal when the Ice Plus operation time passes 90 minutes. If passing 90 minutes, Ice Plus operation is done only for 2 hours after completion of frost removal.8. If pressing Ice Plus button during frost removal, the Ice Plus LCD or LED is turned on but if pressing the Ice Plus, compressor operates after the remaining time has passed.9. If selection Ice Plus within 7 minutes (delay for 7 minutes of compressor) after the compressor stops, compressor operates after the remaining time has passed.10. The freezer fan motor operates at the high speed of RPM during operation of Ice Plus.- 18 -2-6 Control of variable type of freezing fan2-7 Control of cooling fan motor
https://appliancetechmanuals.com
Closing2-8. Door opening alarm2-9. Ringing of button selection buzzer - 19 -2-11 Defrost function1. Defrost is performedwhenever total operation time of compressor becomes 7 - 50 hour.2. In providing initial power (or returning power failure), frost removal starts whenever total operation time of compressor becomes 4 - 5 hours.3. Defrost is completed if temperature of a defrost sensor becomes more than 5°C after starting defrost. The defrost cycle will fail if the refrigerator does not reach a temperature of 5°C (9°F) two hours into the defrost cycle.4. The defrost cycle will not operate of the defrost sensor fails, arcs, or shorts cut.2-12 Refrigerator lamp automatically off2-10 Ringing of compulsory operation, compulsory frost removal buzzer
https://appliancetechmanuals.com
