P/No. MFL61944108
BOTTOM FREEZER
REFRIGERATOR
Please read this guide thoroughly
before operating and keep it handy for
reference at all times.
Models / Modèles
CONGÉLATEUR
INFÉRIEUR
RÉFRIGÉRATEUR
Veuillez lire ce manuel en entier avant de mettre
en marche l’unité et conservez-le à portée de la
main pour le consulter à tout moment.
LDN20718**, LDC22738**, LBN20517**, LBN20518**
Owner’s Manual
Manuel d’utilisateur
LBN22517**, LBN20511**, LBN20512**, LRBC20512**
REFRIGERADOR
CON CONGELADOR
INFERIOR
Manual de Usuario
Lea detenidamente estas instrucciones antes de
usar el refrigerador y guárdelas como referencia
para el futuro.
LBC20514**, LRBN20512**, LBC22520**, LDC22720**
LDN20517**
visit our web site http://www.lgservice.com LG Electronics
United States of America
LG Electronics will repair or at its option replace, without charge, your product which proves to be defective
in material or workmanship under normal use during the warranty period listed below from the date of
original purchase.
This warranty is good only to the original purchaser of the product during the warranty period as long as it is
in the U.S. including Alaska, Hawaii, and U.S. Territories.
LG Refrigerator / Freezer Warranty Period
Product Parts Labor
Refrigerator / Freezer 1 year 1 year [In-Home Service (Except Model GR-051)]
Sealed System 7 years 1 year [In-Home Service (Except Model GR-051)]
(Compressor, Condenser, Evaporator)
No other express warranty is applicable to this product. THE DURATION OF ANY IMPLIED WARRANTIES.
INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY, IS LIMITED TO THE DURATION OF
THE EXPRESS WARRANTY HEREIN. LG ELECTRONICS SHALL NOT BE LIABLE FOR THE LOSS OF
USE OF THE PRODUCT, INCONVIENCE, LOSS OR ANY OTHER DAMAGES, DIRECT OR
CONSEQUENTIAL, ARISING OUT OF THE USE OF OR INABILITY TO USE, THIS PRODUCT OR FOR
ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING THE IMPLIED WARRANTY
OF MERCHANTABILITY APPLICABLE TO THIS PRODUCT.
Some States do not allow the exclusion or limitation of incidental or consequential damages or limitations on how
long an implied warranty lasts; so these limitations or exclusions may not apply to you. This warranty gives you
specific legal rights and you may also have other rights which vary from state to state.
THE ABOVE WARRANTY DOES NOT APPLY TO:
1. Service trips to your home to deliver and pickup, install, instruct, or replace house fuses or correct house wiring or
plumbing, or correction of unauthorized repairs.
2. Damage to the product caused by accident, pests, fire, floods, or acts of God.
3. Repairs when your LG product is used in other than normal, single-family household use.
4. Damage resulting from accident, alteration, misuse, abuse, or improper installation.
Therefore, these costs are paid by the consumer.
If the product is installed outside the normal service area, any cost of transportation involved in the repair of the product, or the
replacement of defective parts, shall be borne by the owner.
CUSTOMER ASSISTANCE NUMBERS:
To obtain Warranty Coverage: Retain your Bill of Sale to prove date of purchase.
A Copy of your Sales Receipt must be submitted at the time
warranty service is provided.
To obtain Product or Customer (24 hrs a day, 7 days per week, 365 days per year)
Service Assistance: Press the appropriate menu option, and have your product type
(Refrigerator), model number, serial number, and ZIP/Postal
Code ready.
To obtain the nearest
Authorized Service Center:
Press the appropriate option, and have your product type
(Refrigerator), model number, serial number, and ZIP/Postal
Code ready.
LIMITED WARRANTY
(24 hrs a day, 7 days per week, 365 days per year)
Call 1-800-243-0000
Call 1-800-243-0000
Damages caused during and/or after delivery.
Display, discount, or refurbished units purchased with scratches, dents, or defects.
Proof of purchase is required and must be provided to LG in order to validate warranty.
5.
6.
2
TABLE OF CONTENTS
English Version 6
Warranty (USA) 2-3
Safety Instructions 7 -8

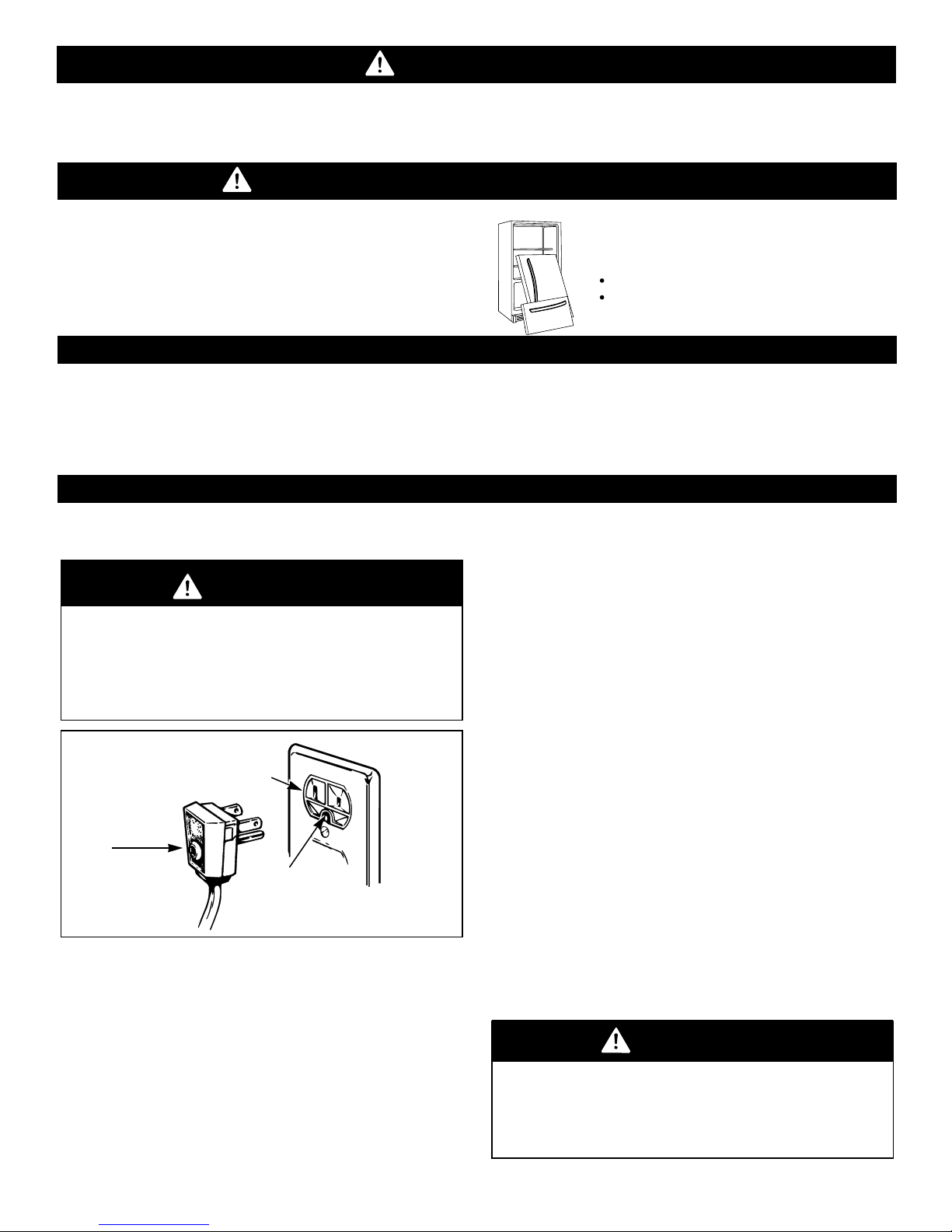

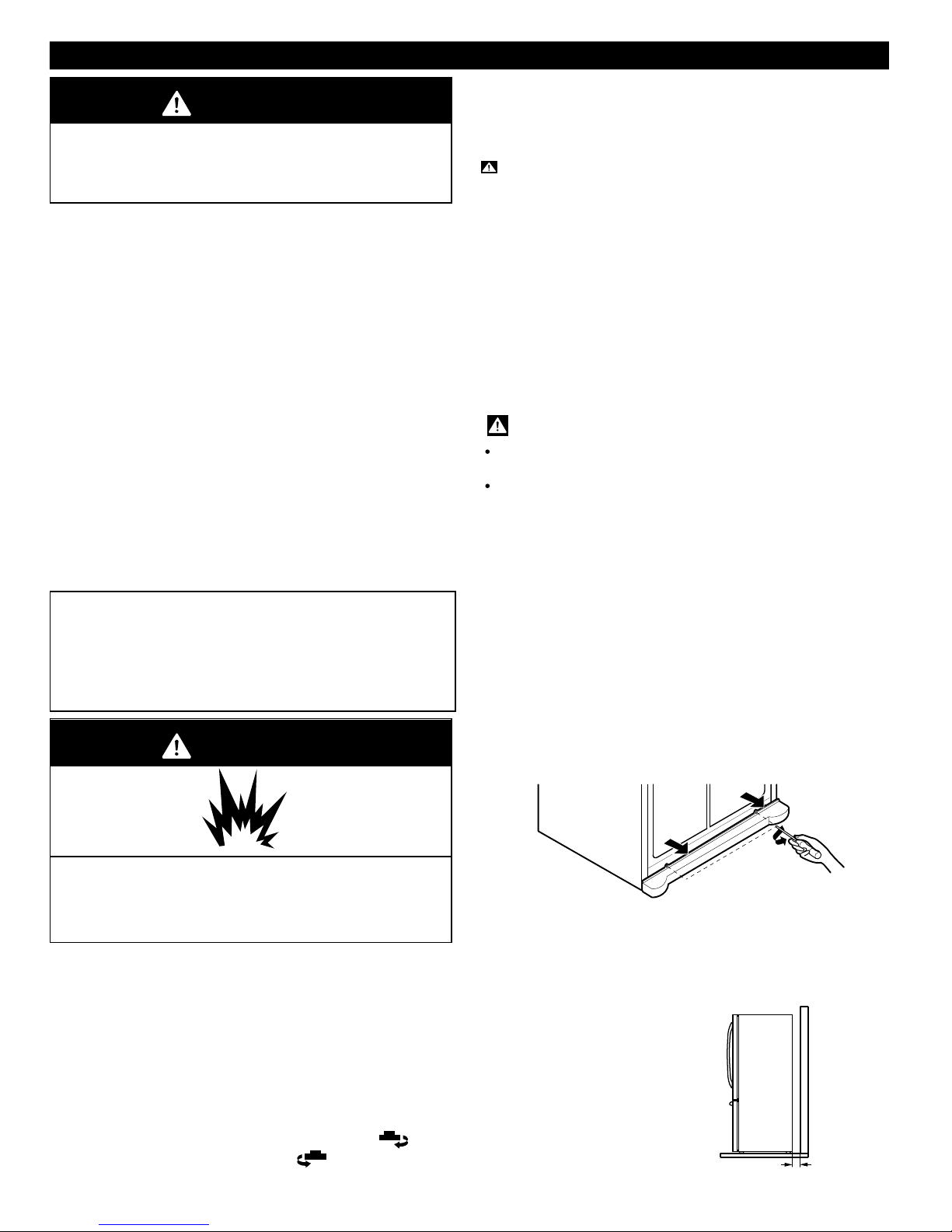

Grounding Requirements 8

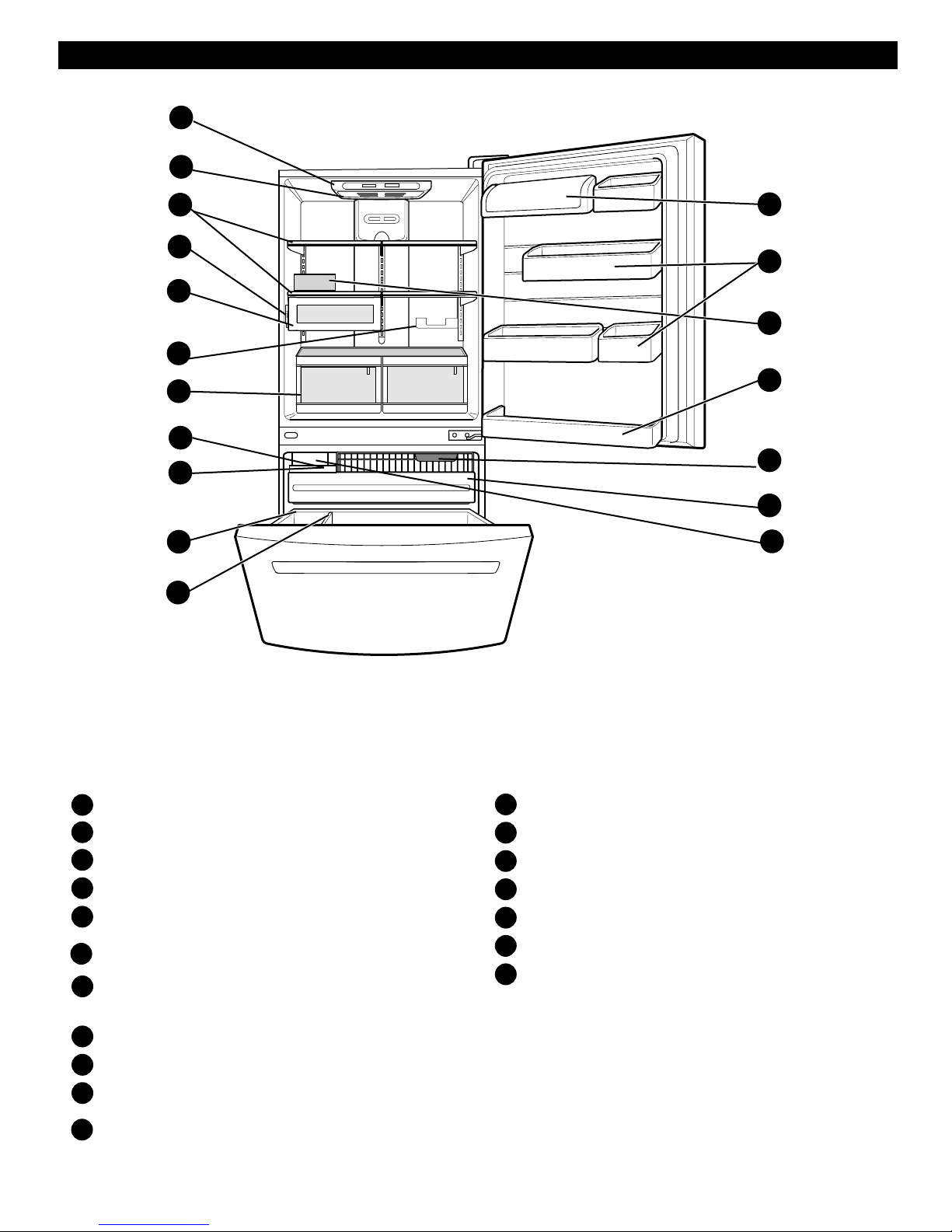

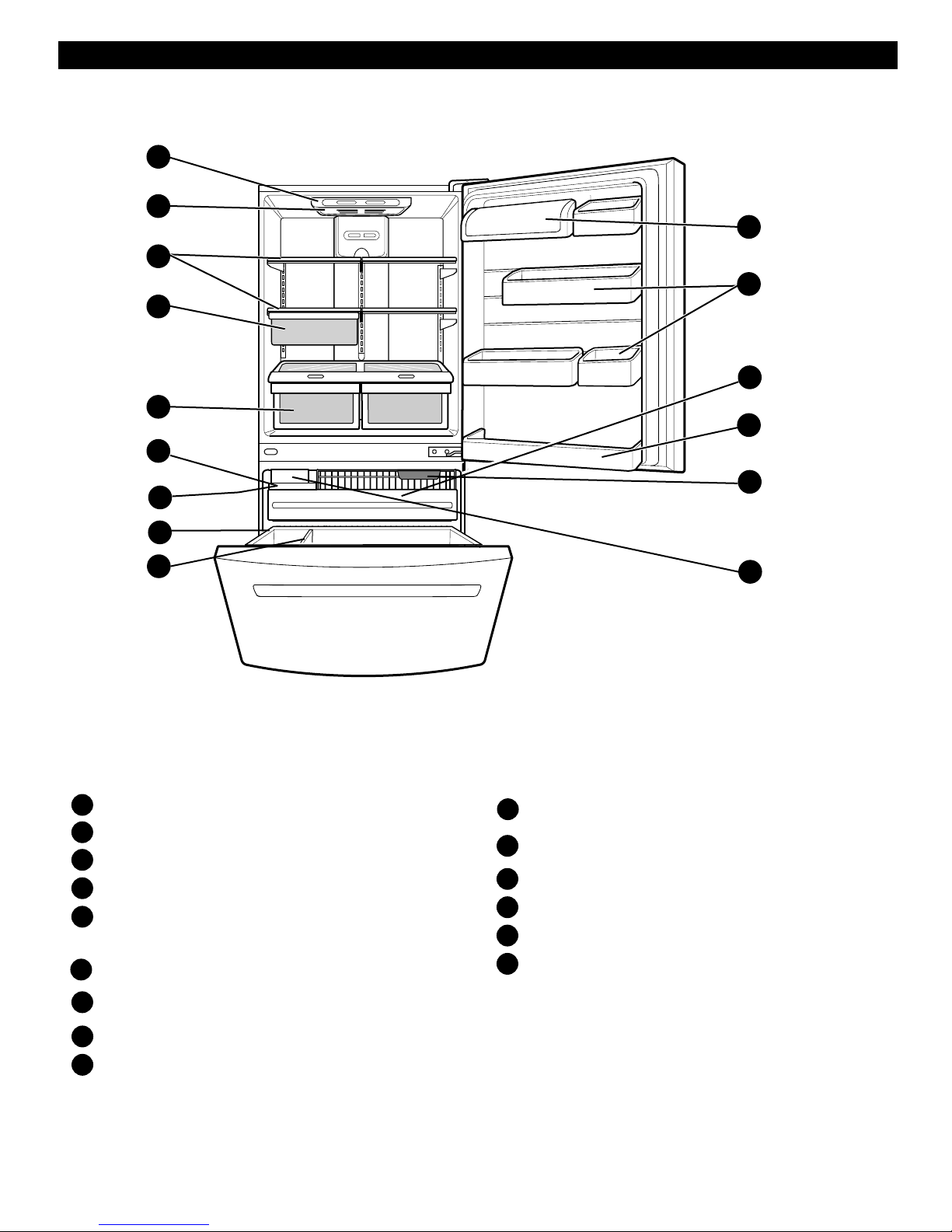

Parts and Features 9 - 11
Refrigerator Installation 12-19
Unpacking Your Refrigerator 12
Installation 12
Base Grille 12

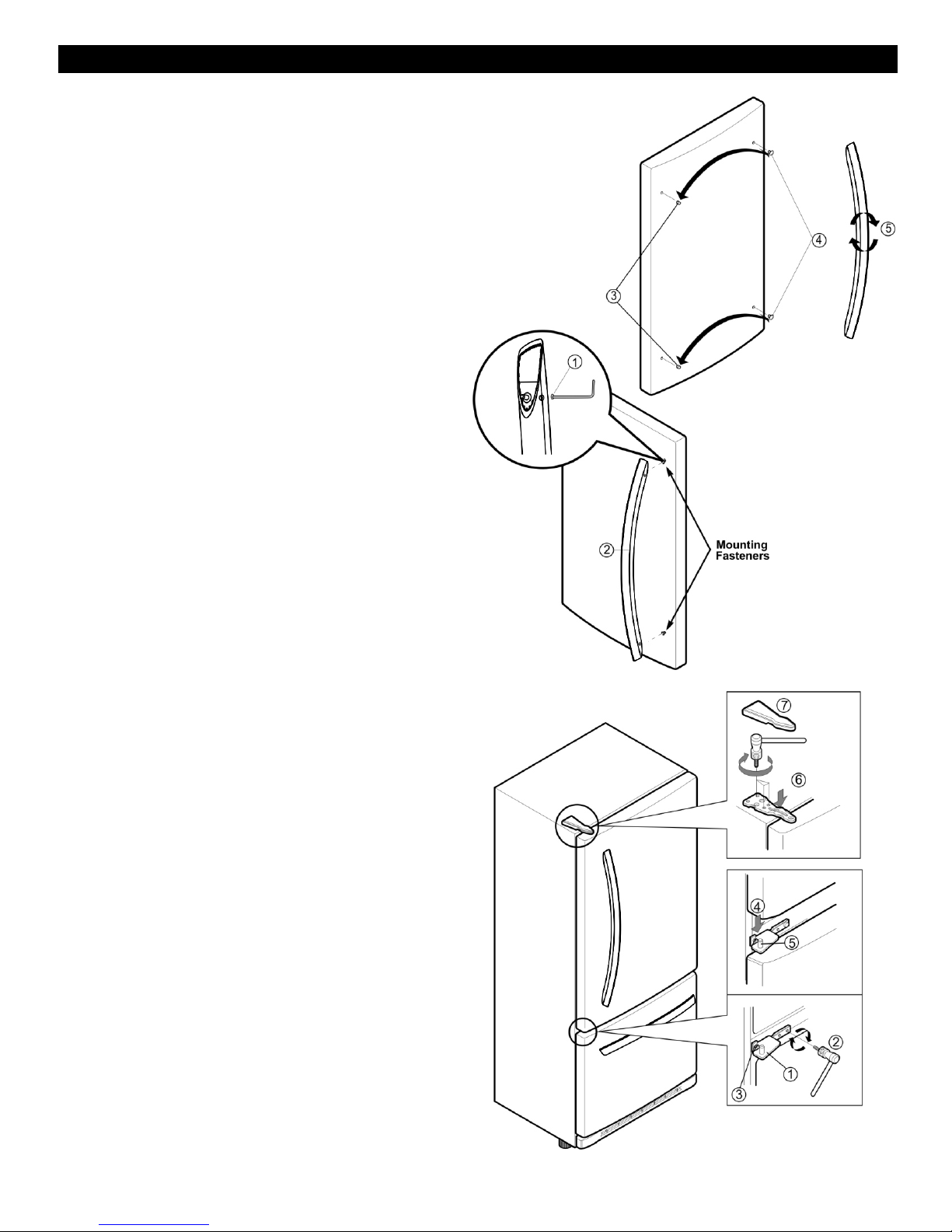

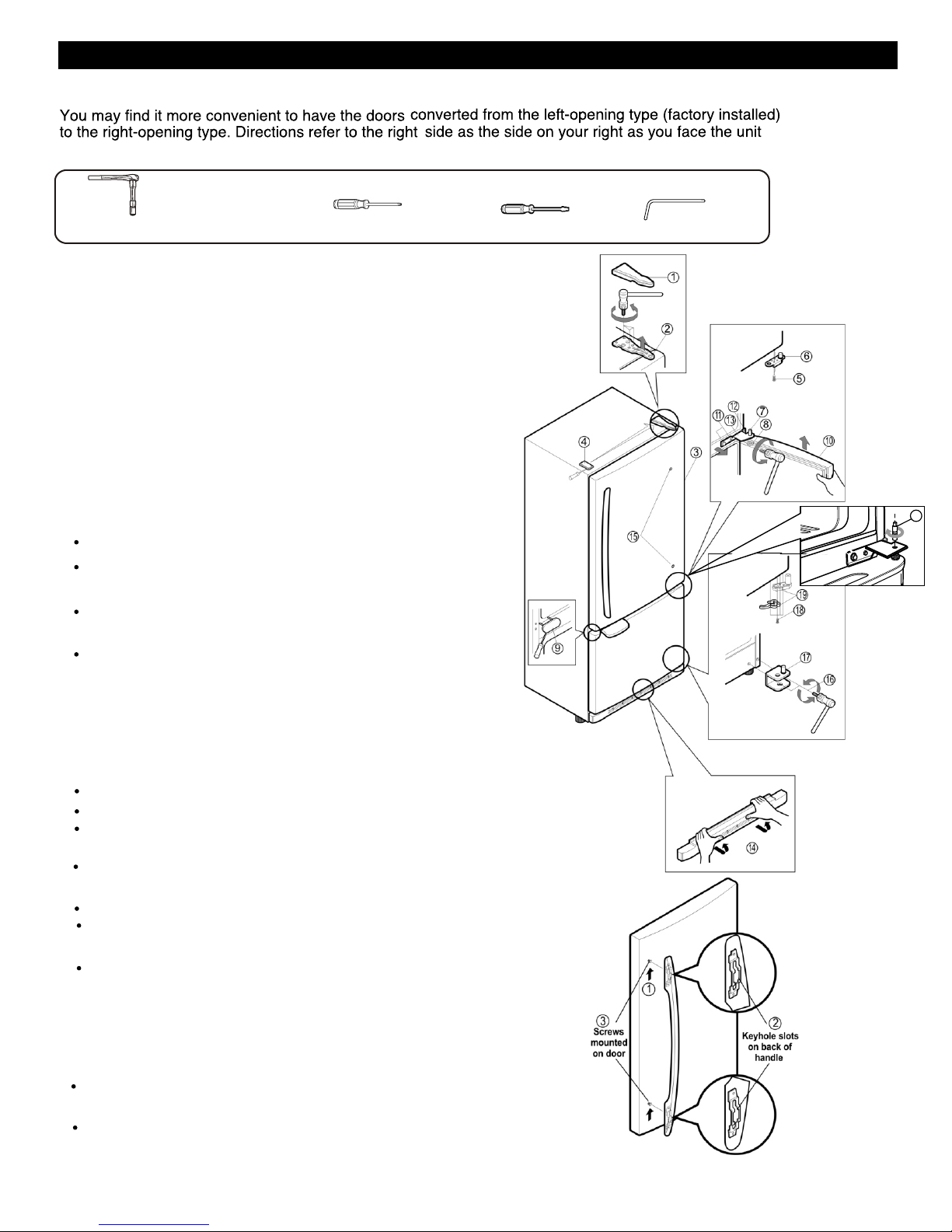

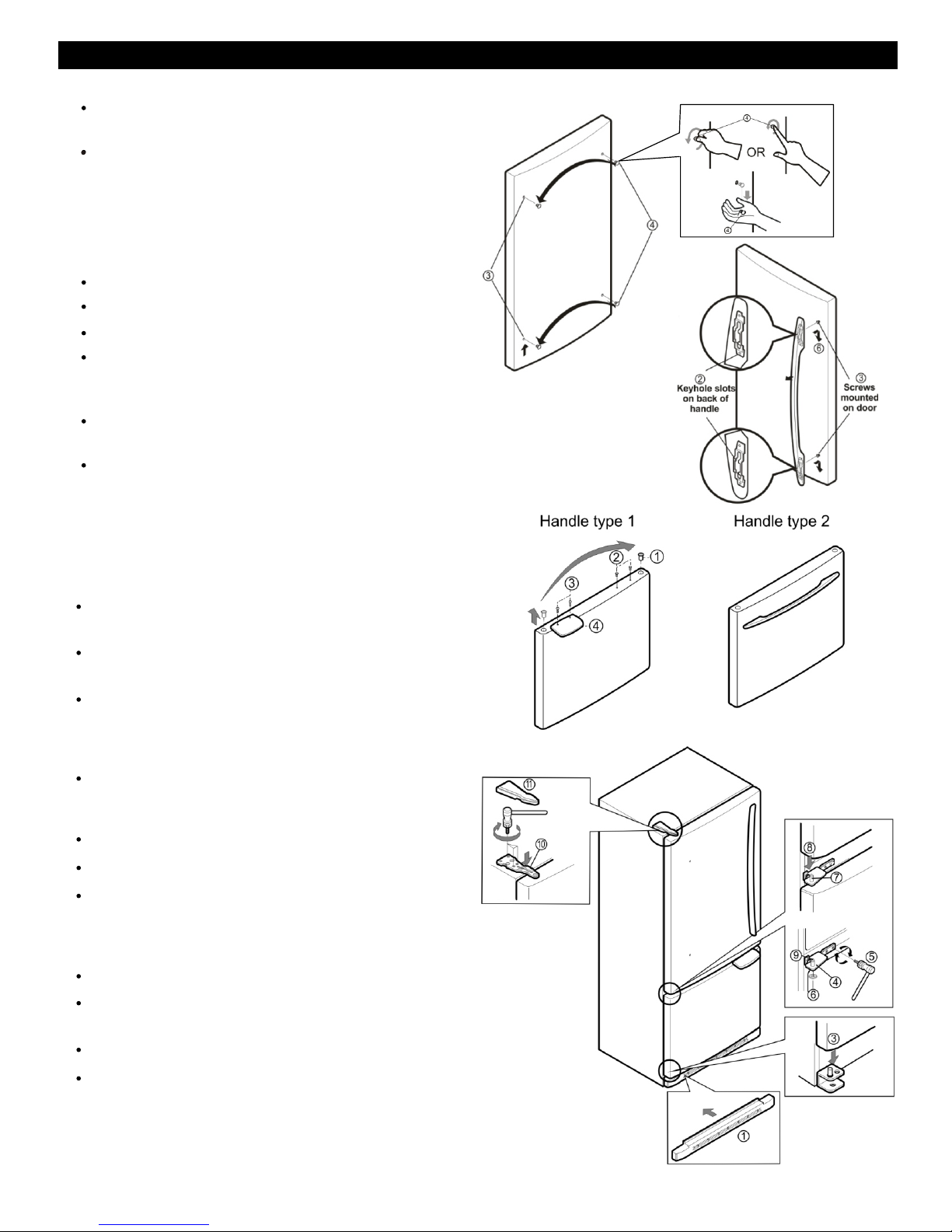

Removing, Reversing and Replacing
Your Refrigerator Doors 13-19

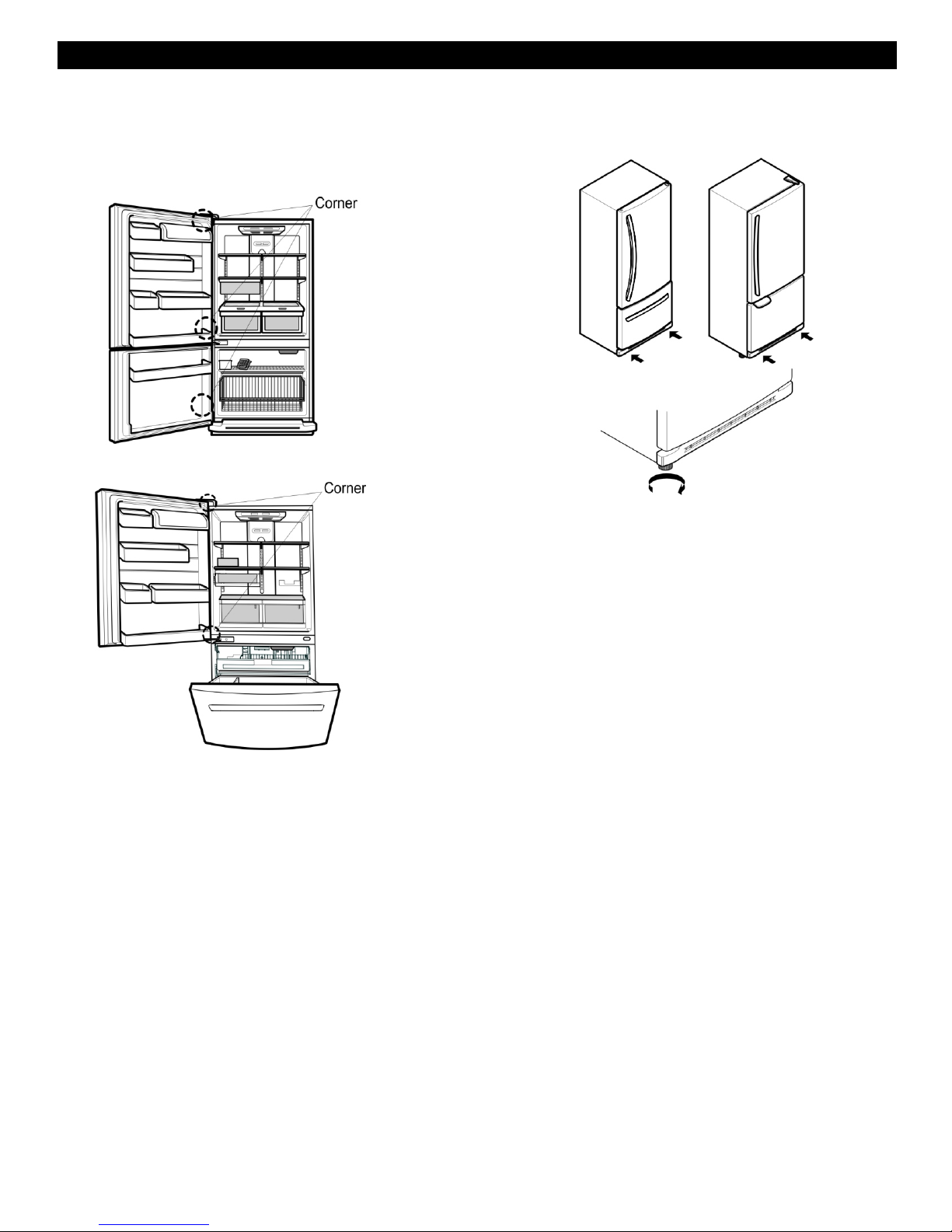

Door Closing and Alignment 19
Using Your Refrigerator 22 -29

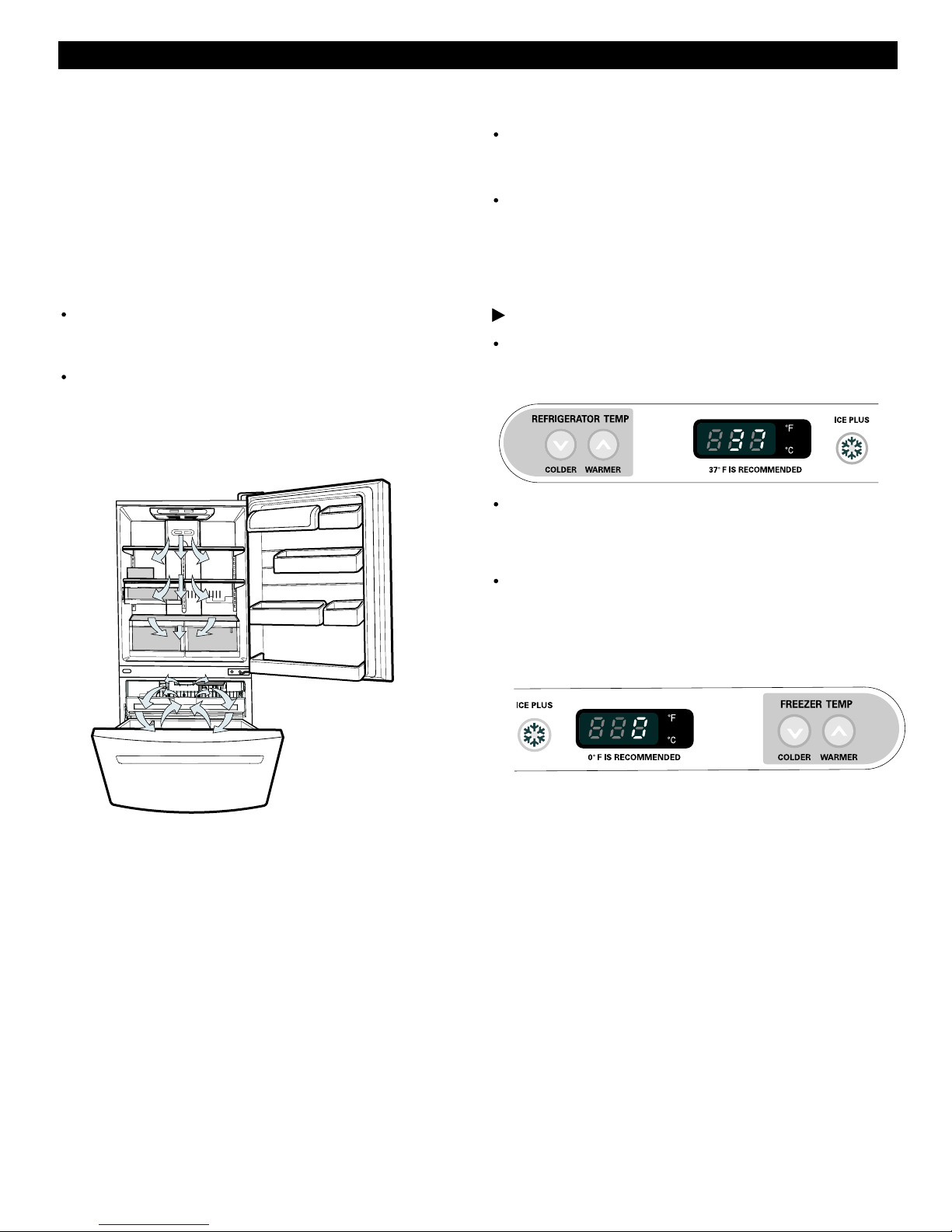

Ensuring Proper Air Circulation 20
Multi Flow
Door Alarm
20
20

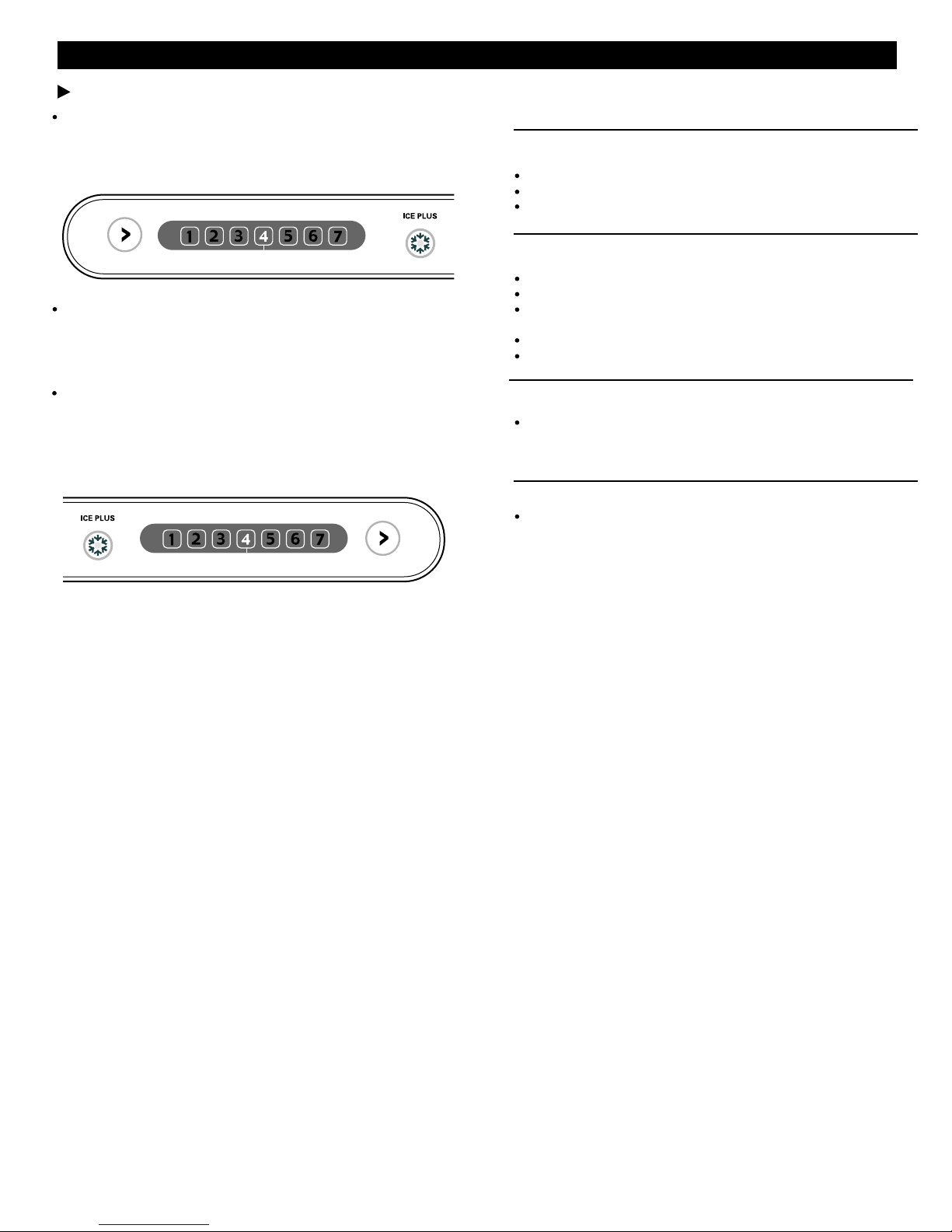

Setting the Controls 20 -21
Adjusting Control Settings 21
Food Storage Guide 22
Storing Frozen Food 22

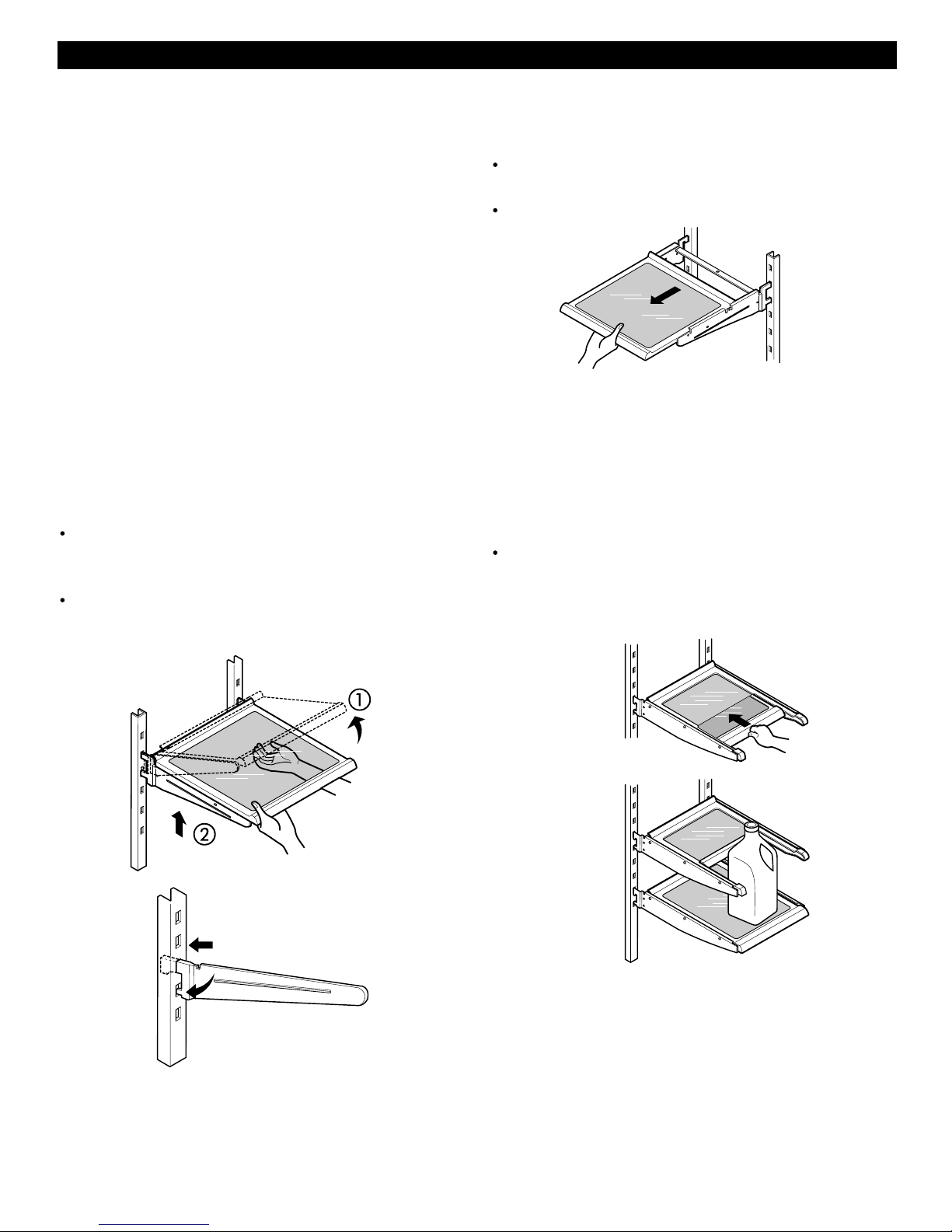

Refrigerator Shelves 23
Chef Fresh / Snack Pan 24
Crisper Humidity Control 24
Optibin Crisper 24
Crisper cover with lattice on inner surface 25
Door Racks 25
Design-A-Door 25
Dairy Bin 26
Ice Bin 26
DuraBase 26
Tilting Door 27
Wire Durabase 27
DuraBase Divider 26
Freezer Shelf 27
Care and Cleaning 28 -29
General Cleaning Tips 28
Outside 28
Inside Walls 28
Door Liner and Gaskets 28
Plastic Parts 28
Condenser Coils 28
Light Bulb Replacement 28 -29
Power Interruptions 29
When you go on vacation 29
About the Custom Cube Icemaker 30
Connecting the Water Line 31 -33
Troubleshooting Guide 34 -37
French Version 38
Guide-Out Drawer Basket 27
For Drawer Models
For Swing Models
13
17
Spanish Version 70
6
Warranty (Canada) 4-5
This guide contains many important safety messages. Always read and obey all safety messages.
This is the safety alert symbol. It alerts you to safety messages that inform you
of hazards that can kill or hurt you or others, or cause damage to the product.
All safety messages will be preceded by the safety alert symbol and the hazard
signal word DANGER, WARNING, CAUTION. These words mean:
All safety messages will identify the hazard, tell you how to reduce the chance of injury and tell you what can happen if
the instructions are not followed.
SAFETY MESSAGES
WARNING
To reduce the risk of fire, electric shock, or injury
to persons when using your product, basic safety
precautions should be followed, including the following:
NEVER unplug your refrigerator by pulling on the power cord.
Always grip the plug firmly and pull it straight out from the
outlet.
Repair or replace immediately all electric service cords that
have become frayed or otherwise damaged. Do not use a cord
that shows cracks or abrasion damage along its length or at
either the plug or connector end.
When moving your refrigerator away from the wall,
be careful not to roll over or damage the power cord.
DO NOT store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance.
DO NOT allow children to climb, stand or hang on the
refrigerator doors or shelves in the refrigerator. They could
damage the refrigerator and seriously injure themselves.
Keep fingers out of “pinch point” areas; clearances between
Unplug your refrigerator before cleaning or making any repairs.
NOTE: We strongly recommend that any servicing be
performed by a qualified individual.
Before replacing a burned-out light bulb, unplug the
refrigerator or turn off power at the circuit breaker or fuse box
in order to avoid contact with a live wire filament. (Aburned-
out light bulb may break when being replaced.) NOTE: Setting
either or both controls to the OFF position does not remove
power to the light circuit.
Read all instructions before using this appliance.
Use this appliance only for its intended purpose as described
in this use and care guide.
After your refrigerator is in operation, do not touch the cold
surfaces in the freezer compartment when hands are damp or
wet. Skin may adhere to the extremely cold surfaces.
In refrigerators with automatic icemakers, avoid contact with
the moving parts of the ejector mechanism, or with the heating
element that releases the cubes. DO NOT place fingers or
hands on the automatic icemaking mechanism while the
refrigerator is plugged in.
DO NOT refreeze frozen foods which have thawed completely.
The United States Department of Agriculture in Home and
Garden Bulletin No. 69 says:
“...You may safely refreeze frozen foods that have thawed if
they still contain ice crystals or if they are still cold below
40 °F (4 °C).”
“...Thawed ground meats, poultry, or fish that have any off-odor
or off-color should not be refrozen and should not be eaten.
Thawed ice cream should be discarded. If the odor or color of
any food is poor or questionable, get rid of it. The food may be
dangerous to eat.”
“Even partial thawing and refreezing reduces the eating quality
of foods, particularly fruits, vegetables and prepared foods.
The eating quality of red meats is affected less than that of
many other foods. Use refrozen foods as soon as possible to
save as much of their quality as you can.”
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
7
the doors and cabinet are necessarily small. Be careful
when you open the doors when children are in the area.
For personal safety, this appliance must be properly grounded.
Have the wall outlet and the circuit checked by a qualified
electrician to make sure the outlet is properly grounded.
Do not store bottles in the freezer compartment - they may
break when frozen, causing damage.
WARNING
CAUTION
You can be killed or seriously injured if you don’t follow instructions.
Indicates an imminently hazardous situation which, if not avoided,
may result in minor or moderate injury, or product damage only.
DANGER You will be killed or seriously injured if you don’t follow instructions.
Your old refrigerator may have a cooling system that used If you are throwing away your old refrigerator, make sure
CFC’s (chlorofluorocarbons). CFC’s are believed to harm the CFC refrigerant is removed for proper disposal by a
stratospheric ozone. qualified servicer. If you intentionally release this CFC
refrigerant, you can be subject to fines and imprisonment
under provisions of environmental legislation.
DANGER: RISK OF CHILD ENTRAPMENT
BEFORE YOU THROW AWAY
YOUR OLD REFRIGERATOR
OR FREEZER
Take off the doors.
Leave the shelves in place so that
children may not easily climb inside.
CFC DISPOSAL
GROUNDING REQUIREMENTS
Child entrapment and suffocation are not problems of
the past. Junked or abandoned refrigerators are still
dangerous... even if they will sit for “just a few days”. If
you are getting rid of your old refrigerator, please follow
the instructions at right to help prevent accidents.
8
IMPORTANT: Please read carefully.
TO CONNECT ELECTRICITY
RECOMMENDED GROUNDING METHOD
The refrigerator should always be plugged into its own
individual properly grounded electrical outlet rated for
115 V, 60 Hz, AC only, and fused at 15 or 20 amperes.
This provides the best performance and also prevents
overloading house wiring circuits which could cause a fire
hazard from overheated wires. It is recommended that a
separate circuit serving only this appliance be provided.
Use a receptacle which cannot be turned off with a switch
or pull chain. Do not use an extension cord.
WARNING
Electrical Shock Hazard
FOR PERSONAL SAFETY, this appliance must be
properly grounded. Have the wall outlet and the
circuit checked by a qualified electrician to make sure
the outlet is properly grounded.
Ensure proper
ground exists
before use.
3-prong
grounding
plug
3-prong
grounding type
wall receptacle
Where a standard two-prong wall outlet is encountered,
it is your personal responsibility and obligation to have it
replaced with a properly grounded three-prong wall outlet.
Do not, under any circumstances, cut or remove the
third (ground) prong from the power cord.
NOTE: Before performing any type of installation,
cleaning, or removing a light bulb, turn the control
(Thermostat, Refrigerator Control or Freezer Control,
depending on the model) to OFF and then disconnect the
refrigerator from the electrical source. When you are
finished, reconnect the refrigerator to the electrical source
and reset the control (Thermostat, Refrigerator Control or
Freezer Control, depending on the model) to the desired
setting.
USE OF EXTENSION CORDS
Because of potential safety hazards under certain
Conditions, we strongly recommend against the use of
an extension cord.
WARNING
POWER CORD REPLACEMENT
If the power cord is damaged, it must be replaced
by the manufacturer, by our service center or by
qualified personal by LG Electronics, to avoid some
risk.
However, if you still elect to use
an extension cord, it is absolutely necessary that it be
a UL-listed (in the United States) or ACNOR (Canada),
3-wire grounding type appliance extension cord having a
grounding type plug and outlet, and that the electrical rating
of the cord be 15 amperes (minimum) and 120 volts.
Use of an extension cord will increase the clearance
needed for the back of the refrigerator.
CAUTION
This appliance is not intended for use by persons (including children) with reduce physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the
appliance by person responsible for their safety. Children should be supervised to ensure that they do not play with the
appliance.
Ice Bin
Durabase
Divider
Egg Box
Refrigerator Door Rack
Freezer Light
Pull out Drawer
*On some models
9
B
C
D
A
F
E
Use this section to become more familiar with the parts and features.
NOTE: This guide covers several different models. The refrigerator you have purchased may have some
or all of the items listed below. The locations of the features shown below may not match your model.
PARTS AND FEATURES
G
H
I
J
K
M
N
L
O
P
Q
R
A
B
C
D
E
F
G
H
J
L
N
O
P
K
M
I
Q
R
Ice Tray (Inside of H)*
Optibin Crisper
Keeps fruits and vegetable fresh and crisper
Chef Fresh / Snack Pan
Can Dispenser*
Temperature Control*
Shelves
Refrigerator Light
Digital Sensor Control
Dairy Bin
Design-A-Door
Custom cube Icemaker*
A
B
C
D
E
J
K
N
M
L
F
G
HH
I
N
O
Ice Bin
Durabase
Divider
Refrigerator Door Rack
Freezer Light
Pull out Drawer
*On some models
B
C
D
A
F
E
Use this section to become more familiar with the parts and features.
NOTE: This guide covers several different models. The refrigerator you have purchased may have some
or all of the items listed below. The locations of the features shown below may not match your model.
G
H
I
J
K
M
N
L
O
Ice Tray (Inside of F)*
Optibin Crisper
Keeps fruits and vegetable fresh and crisper
Chef Fresh / Snack Pan
Shelves
Refrigerator Light
Digital Sensor Control
Dairy Bin
Design-A-Door
Custom cube Icemaker*
10
PARTS AND FEATURES
Use this section to become more familiar with the parts and features.
NOTE: This guide covers several different models. The refrigerator you have purchased may have some
or all of the items listed below. The locations of the features shown below may not match your model.
PARTS AND FEATURES
Digital Sensor Control
Refrigerator Light
Shelves
Snack Pan
Optibin Crisper
Keeps fruits and vegetable fresh and crisp
Ice Trays*
Ice Bin
Wire Durabase
Dairy Bin
Design-A-Door
Wire Freezer Shelf
Refrigerator Door Rack
Freezer Light
Freezer Door Rack
B
C
D
A
F
E
G
H
I
J
L
M
K
N
A
B
C
D
E
F
G
H
I
J
M
N
L
K
11
*On some models
12
UNPACKING YOUR REFRIGERATOR
Remove tape and any temporary labels from your
refrigerator before using. Do not remove any warning-
type labels, the model and serial number label, or the
Tech Sheet that is attached to back wall of the refrigerator.
To remove any remaining tape or glue, rub the area
briskly with your thumb. Tape or glue residue can also be
easily removed by rubbing a small amount of liquid dish
soap over the adhesive with your fingers. Wipe with warm
water and dry.
Do not use sharp instruments, rubbing alcohol, flammable
fluids or abrasive cleaners to remove tape or glue. These
products can damage the surface of your refrigerator. For
more information, see the Important Safety Instructions
section.
Refrigerator shelves are installed in the shipping position.
Please reinstall shelves according to your individual
storage needs.
When Moving Your Refrigerator:
Your refrigerator is heavy. When moving the
refrigerator for cleaning or service, be sure to protect
the floor. Always pull the refrigerator straight out when
moving it. Do not wiggle or walk the refrigerator when
trying to move it, as floor damage could occur.
INSTALLATION
1. Avoid placing the unit near heat sources, direct sunlight,
or moisture.
2. To avoid vibration, the unit must be level. If required,
adjust the leveling screws to compensate for
unevenness of the floor. The front should be slightly
higher than the rear to aid in door closing. Leveling
screws can be turned easily by tipping the cabinet
slightly. Turn the leveling screws clockwise ( ) to
raise the unit, counterclockwise ( ) to lower it.
3. Install this appliance in an area where the temperature
is between 55 °F (13 °C) and 110°F (43 °C.) If the
temperature around the appliance is too low or high,
cooling ability may be adversely affected.
NEXT
1. Clean your refrigerator thoroughly and wipe off all dust
accumulated during shipping.
2. Install accessories such as ice cube bin, drawers,
shelves, etc., in their proper places. They are packed
together to prevent possible damage during shipment.
3. Let your refrigerator run for 2 or 3 hours before putting
food in it. Check the flow of cold air in the freezer
compartment to ensure proper cooling. Your refrigerator
is now ready for use.
WARNING:
Be careful when you work with hinge, base grille,
stopper etc. You may be injured.
Do not put hands or metal sticks into air vents, base
grille or bottom of refrigerator. You may be injured or
receive an electrical shock.
REFRIGERATOR INSTALLATION
WARNING
Excessive Weight Hazard
Use two or more people to move and install
refrigerator.
Failure to do so can result in back or other injury.
WARNING
Keep flammable materials and vapors, such as
gasoline, away from refrigerator.
Failure to do so can result in death, explosion or fire.
CAUTION: Avoid placing the unit near heat sources,
direct sunlight or moisture.
Explosion Hazard
A proper distance from adjacent items
Please keep the refrigerator at a proper distance from other
things. Too small a distance from adjacent items may result
in lowered freezing capability and increased electricity
charge consumption.
(5.08 cm) 2”
BASE GRILLE INSTALLATION
To remove the base grille
To install or replace Base Grille:
1. Remove the 2 screws from the bottom front part of
refrigerator.
2. Place Base Grille into position and insert and tighten
screws.
1. Open the doors. (Refrigerator and Freezer)
2. Once doors are open, remove screws from Base Grille
and remove.
3. Reattach screws to the base of refrigerator.
REFRIGERATOR INSTALLATION
IMPORTANT: Before you begin, turn the refrigerator OFF and unplug it. Remove food and any
adjustable door or utility bins from doors.
HOW TO REVERSE DOOR OPENING DIRECTION
(when converting from the left-opening type to right-
opening type)
1. Removing Refrigerator Door
Lift the Refrigerator door (3) slightly and remove it.
Loosen the 2 screws (9) and the 2 screws (10), and
lift off the middle hinge (11).
Use a flat tip screwdriver to pry off bottom hole cover
(7) and attach it on the right.
•
•
•
•
•
HOW TO REMOVE DOOR HANDLES
NOTE: Handle appearance may vary from illustrations
2.Removing Refrigerator Handle
•
•
•
•
•
Loosen the set screws (1) with the 3/32” Allen
Loosen the handle mounting fasteners (3)
wrench and remove the handle (2).
with the 1/4” Allen wrench.
Install the plug buttons (4) on the left side.
Install the handle mounting fasteners (3)
on the right side.
4
REMOVING,REVERSING AND REPLACING REFRIGERATOR DOORS (For Drawer Type Models)
T O O L S Y O U M A Y N E E D
Hex head socket wrench No. 2 Phillips screwdriver Flat head screwdriver Allen wrench
10 mm
1/4 in
3/8 in
1/4 in
3/32 in
Other Important and necessary tools are:
1/4 inch socket wrench 10mm open-end wrench
Adjustable wrench Flat 2-inch putty knife
•
••
•
Gently pry off the Top Hinge Cover with a flat head screwdriver
and remove (1).
Using 10 mm socket wrench, remove the 3 bolts and lift off the
Top Hinge. Set parts aside (2).
Pry off the cover (4) using a slotted screwdriver to find the
hole screw and attach it on the right.
Loosen the screws (5), remove the stopper (6) and
attach them on the left (on the opposite side).
Using a ¼-inch socket wrench, loosen and remove
Hinge Pin (8) from the Middle Hinge Pin Bracket.
door slightly and remove it.
NOTE: At this point the door will be loose, lift up
8
Carefully loosen the plug buttons with your fingers (4).
The buttons can be unscrewed with your fingers,
rotating the pieces counter clockwise, and then
the piece will be loose and fall. The buttons were
installed without some pressure, for this reason the
action can be done with your forefinger or thumb
finger or with both.
on this page
13
