LG LRSDS2706 Series User manual

OWNER'S MANUAL
SIDE BY SIDE
REFRIGERATOR
Read this owner's manual thoroughly before operating the
appliance and keep it handy for reference at all times.
ENGLISH
LRSDS2706*, LRSXS2706*, LRSOS2706*, LRSOC2306*, LRSXC2306*
MFL71823901
Rev.03_071321
www.lg.com
Copyright © 2021 LG Electronics Inc. All Rights Reserved.

TABLE OF CONTENTS
2
3 IMPORTANT SAFETY
INSTRUCTIONS
3 READ ALL INSTRUCTIONS BEFORE USE
3 WARNING
6 CAUTION
7 PRODUCT OVERVIEW
7 Product Features
11 INSTALLATION
11 Before Installing
12 Choosing the Proper Location
13 Removing/Assembling Doors
17 Connecting the Water Line
20 Leveling and Door Alignment
21 Turning on the Power
22 OPERATION
22 Before Use
23 Control Panel
25 Sabbath Mode
26 Ice and Water Dispenser
27 In-Door Ice Bin
28 Automatic Icemaker
29 Storing Food
31 Drawers
31 Refrigerator Shelves
31 InstaView
32 Door-in-Door
32 Door Bins
33 SMART FUNCTIONS
33 LG ThinQ Application
35 Smart Grid Function
38 MAINTENANCE
38 Cleaning
38 Air Filter
39 Water Filter
44 TROUBLESHOOTING
44 FAQs
45 Before Calling for Service
55 LIMITED WARRANTY
55 USA
59 Canada

3IMPORTANT SAFETY INSTRUCTIONS
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
Safety Messages
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and
follow all safety messages.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury,
and tell you what may happen if the instructions are not followed.
WARNING
WARNING
product, follow basic precautions, including the following:
Installation
the use of long-sleeved gloves and safety glasses.
nce if it is damaged, malfunctioning, partially disassembled, or has
missing or broken parts, including a damaged cord or plug.
cated grounded electrical outlet rated for use with this product (115
responsibility to replace a standard 2-prong wall outlet with a standard
3-prong wall outlet.
be turned off with a switch. Do not use an extension cord.
for easy access to a power source.
t to roll over or damage the power cord.
installing or relocating the refrigerator.
cut or remove the third (ground) prong from the power cord.
of the reach of children. Packaging material can be dangerous for children.
There is a risk of suffocation.
a damp or dusty place where insulation on electrical parts may
deteriorate.
in direct sunlight or expose it to the heat from heating appliances such as
stoves or heaters.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or injure you and others. All safety messages
will follow the safety alert symbol and either the word WARNING or CAUTION.
These words mean:
WARNING
You may be killed or seriously injured if you do not follow instructions.
CAUTION
You may be injured or cause damage to the product if you do not follow instructions.

4IMPORTANT SAFETY INSTRUCTIONS
Operation
- staff kitchen areas in shops, offices and other working environments;
- farm houses and by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments;
- catering and similar non-retail applications.
ch as the storage of medicine or test materials or
for use on ships, etc.
stand, or hang on the refrigerator doors or on the shelves in the
refrigerator. They could damage the refrigerator and seriously injure themselves.
mb into the refrigerator. They could be trapped and suffocated.
that they do not play with the refrigerator.
tween the doors and cabinets are necessarily small.
Be careful closing doors when children are nearby.
e freezer compartment with wet or damp hands. Doing
so may cause frostbite.
y. Doing so may result in a serious health hazard.
r plug into a multi-outlet extension cord.
must be replaced by the manufacturer or its service agent or a similarly
qualified person in order to avoid a hazard.
uch the power cord with wet hands.
t plug appliance into a damaged wall outlet.
r vents or bottom of the refrigerator. Doing so could
result in personal injury or electric shock.
ne/LPG), ensure the area is adequately ventilated and contact an
authorized service center before resuming use. Do not touch the refrigerator or power cord of the
refrigerator.
immediately and contact an authorized service center if there is a strange
noise, odor, or smoke coming from the appliance.
l wire, etc.) other than a standard fuse.
e refrigerator, unless it is of a type recommended by
the manufacturer.
ed containers, combustible substances, or flammable
objects (such as candles and lamps) on the appliance.
d by fuses, use time delay fuse.
other means to accelerate the defrosting process, other than those
recommended by the manufacturer.
orage compartments of the appliance, unless they are
of the type recommended by the manufacturer.
ch as aerosol cans with a flammable propellant in this appliance.

5IMPORTANT SAFETY INSTRUCTIONS
ENGLISH
Maintenance
move odors in the refrigerator.
cts away from the refrigerator. Ensure the area is
adequately ventilated and contact an authorized service center.
as gasoline, away from the refrigerator.
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
before cleaning or repairing the refrigerator.
artment lights are interior LED lighting, and service should be
performed by a qualified technician.
diately in the event of a blackout or thunderstorm.
s into the refrigerator. Call a service agent.
soda in the freezer compartment. Contents may expand when frozen,
break the container and cause injury.
Disposal
are dangerous, even if they are sitting for only a few days. When
disposing of the refrigerator, remove the packing materials from the door or take off the doors but leave
the shelves in place so that children may not easily climb inside.
igerant and insulation foam are removed for proper
disposal by a qualified servicer. If you release the refrigerant or throw away the insulation foam, you
may be fined or imprisoned in accordance with the relevant environmental law. Insulation foam contains
flammable blowing gas.
nce, remove the door gasket while leaving the shelves and bins in place, and
keep children away from the appliance.
Grounding Instructions
with a qualified electrician or service personnel if you are in doubt whether the appliance is properly
grounded. Do not modify the plug provided with the appliance; if it will not fit the outlet, have a proper
outlet installed by a qualified electrician.
outlet and wiring for proper grounding.
ing on the power cord. Always grip the plug firmly and pull straight
out from the outlet. Failure to do so may damage the power cord, resulting in a risk of fire and electric
shock.

6IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
Risk of Fire and Flammable Materials
CAUTION
CAUTION
derate injury to persons, malfunction, or damage to the product or
property when using this product, follow basic precautions, including the following:
Installation
e may be a danger of the unit falling.
accordance with the Installation Instructions.
Operation
near the refrigerator.
rce to any glass surface. Do not touch glass surfaces if they are
cracked or broken.
oor bins. Doing so may cause damage to the bin or
personal injury if items are removed with excessive force.
Maintenance
the prongs of the power plug and contact areas. Do
not use a wet or damp cloth when cleaning the plug.
side or outside of the refrigerator.
with warm water when they are cold. They may break if exposed to
sudden temperature changes.
This appliance contains a small amount of isobutane refrigerant (R600a), which is combustible.
When transporting and installing the appliance, care should be taken to ensure that no parts
of the refrigerating circuit are damaged. Refrigerant squirting out of the pipes could ignite or
cause an eye injury. If a leak is detected, avoid any naked flames or potential sources of
ignition and air out the room in which the appliance is standing for several minutes.
In order to avoid the creation of a flammable gas air mixture if a leak in the refrigerating
circuit occurs, the size of the room in which the appliance may be sited depends on the
amount of refrigerant used. The room must be 10.8 square feet (1 square meter) in size for
every 8g of R600a refrigerant inside the appliance. The amount of refrigerant in your
particular appliance is shown on the identification plate inside the appliance. Never start up an
appliance showing any signs of damage. If in doubt, consult your dealer.

7PRODUCT OVERVIEW
ENGLISH
PRODUCT OVERVIEW
Product Features
The images in this guide may be different from the actual components and accessories, which are subject
to change by the manufacturer without prior notice for product improvement purposes.
Exterior
aDispenser Control Panel
Sets the the dispenser mode.
bFiltered Water and Ice Dispenser
Dispenses purified water and ice.
cDoor in Door
This is a convenient storage area for frequently-used items that require easy access.
dDoor in Door Lever
Opens Door-in-Door.
eInstaView
Knock twice on the glass to turn the LED light inside the InstaView on or off.

8PRODUCT OVERVIEW
Interior
Door in Door Model: LRSDS2706*
Standard Door Model: LRSXS2706*, LRSXC2306*

9PRODUCT OVERVIEW
ENGLISH
InstaView Model: LRSOS2706*, LRSOC2306*
aLED Lamp
The LED lamps inside the appliance light up when you open the door.
bTemperature Sensor
This sensor senses the temperature of the fridge compartment.
the sensor and food to accurately sense the temperature.
cAutomatic Icemaker
This is where ice is automatically produced and stored.
dCraft Icemaker
This is where craft ice is automatically produced and stored.
eFreezer Shelf
Stores frozen food such as meat, fish, and ice cream.
most quickly on any shelf except for the top shelf.
fFreezer Door Bin
Stores small packages of frozen food. Do not store ice cream or food which will be stored for a long
period of time.
gFreezer Drawer
Stores frozen food for longer storage.
hFridge Shelf
Stores refrigerated foods and fresh foods.
content at the front of the shelf.
elf in another groove at a different height.
ill differ from model to model.
iFridge Door Bin
Stores small packages of refrigerated foods, drinks and sauce containers.

10 PRODUCT OVERVIEW
jControl Panel
Sets the refrigerator and freezer temperatures or other functions.
kFridge Drawer
Stores fruits and vegetables to keep fresh for as long as possible.
lBottom Drawer Cover
CAUTION
t of the bottom shelf. The items may fall and cause an injury or
appliance damage.
mDoor in Door Compartment
Stores commonly used food items such as beverages and snacks.
nInstaView
Knock twice on the glass to turn the LED light inside the InstaView on or off.
Product Specifications
The appearance and specifications listed in this manual may vary due to constant product improvements.
Electrical requirements: 115 V, 60 Hz
Min. / Max. water pressure: 20 - 120 psi (138 - 827 kPa)
Model Description Net weight
LRSDS2706* Standard-depth, Door-in-Door Side by Side Refrigerator, Craft Ice 284 lb (129 kg)
LRSXS2706* Standard-depth, Side by Side Refrigerator 265 lb (120 kg)
LRSOS2706* Standard-depth, Instaview Side by Side Refrigerator, Craft Ice 300 lb (136 kg)
LRSOC2306* Standard-depth, Door-in-Door Side by Side Refrigerator, Craft Ice 276 lb (125 kg)
LRSXC2306* Standard-depth, Side by Side Refrigerator 240 lb (109 kg)

11INSTALLATION
ENGLISH
INSTALLATION
Before Installing
Installation Overview
Please read the following installation instructions first after purchasing this product or transporting it to
another location.
aUnpacking the Refrigerator
bChoosing the Proper Location
cDisassembling/Assembling
dConnecting the Water Line
eLeveling and Door Alignment
WARNING
water supply only.

12 INSTALLATION
Unpacking the Refrigerator
WARNING
to move and install the
refrigerator. Failure to do so can result in back
injury or other injury.
moving the refrigerator for cleaning or service.
Always pull the refrigerator straight out when
moving it. Do not wiggle or walk the refrigerator
when trying to move it, as floor damage could
occur.
gasoline, away from the refrigerator. Failure to
do so can result in fire, explosion, or death.
NOTE
your refrigerator before using. Do not remove
any warning labels, the model and serial number
label, or the Tech Sheet that is located under the
front of the refrigerator.
tape or glue, rub the
area briskly with your thumb. Tape or glue
residue can also be easily removed by rubbing a
small amount of liquid dish soap over the
adhesive with your fingers. Wipe with warm
water and dry.
flammable fluids, or abrasive cleaners to remove
tape or glue. These products can damage the
surface of your refrigerator.
Refrigerator shelves are installed in the shipping
position. Reinstall shelves according to your
individual storage needs.
Choosing the Proper
Location
Water
The refrigerator must be located where a water
supply can be connected for the automatic
icemaker.
NOTE
be 20 - 120 psi or 138 -
827 kPa or 1.4 - 8.4 kgf/cm2. If the refrigerator is
installed in an area with low water pressure
(below 20 psi or 138 kPa or 1.4 kgf/cm2), you can
install a booster pump to compensate for the
low pressure.
Electricity
Use an individual, grounded outlet:115 Volts, 60
Hz, AC, 15 amps minimum.
WARNING
hazard by plugging in multiple appliances in the
same outlet with the refrigerator.
tric shock, do not install
the refrigerator in a wet or damp area.
Flooring
To avoid noise and vibration, the unit must be
installed and leveled on a solidly constructed floor.
If required, adjust the leveling legs to compensate
for the unevenness of the floor.
NOTE
platform or weakly supported structure is not
recommended.
Ambient Temperature
Install this appliance in an area where the
temperature is between 55 °F (13 °C) and 110 °F
(43 °C).
If the temperature around the appliance is too low
or high, cooling ability may be adversely affected.

13INSTALLATION
ENGLISH
Dimensions and Clearances
nce and the installation path to ensure there is sufficient room to
move the refrigerator through doors or narrow openings.
t the refrigerator through, remove the refrigerator doors. See Removing/
Assembling the Doors and Drawers in this manual.
and airflow and space in front to open the doors and drawers.
result in lowered freezing capability and increased
electricity consumption charges. Allow at least 2 inches (50 mm) between the back of the refrigerator
and the wall.
in front of the refrigerator to fully open the doors and drawers.
Removing/Assembling
Doors
If the entrance door is too narrow for the
refrigerator to pass through, remove the
refrigerator doors and move the refrigerator
sideways through the doorway.
CAUTION
to remove and install
the refrigerator doors.
refrigerator before installing.
air vents or bottom of the refrigerator.
lever.
doors.
replacing the doors as the handle may come off.
- Dimension/Clearance
LRSDS2706*,
LRSXS2706*,
LRSOS2706*
LRSOC2306*,
LRSXC2306*
A Depth 33 15/32" (850 mm) 28 15/16" (735 mm)
B Width 35 29/32" (912 mm) 35 29/32" (912 mm)
C Height to Top of Case 68 29/32" (1750
mm)
68 29/32" (1750
mm)
D Height to Top of Hinge 70 15/32" (1790
mm)
70 15/32" (1790
mm)
E Back Clearance 2" (50 mm) 2" (50 mm)
F Depth without Door 28 15/16" (735 mm) 24 7/16" (620 mm)
G Depth (Total with Door Open 90°) 51" (1295 mm) 46 7/16" (1180 mm)

14 INSTALLATION
- Flat-head screwdriver
- Phillips screwdriver

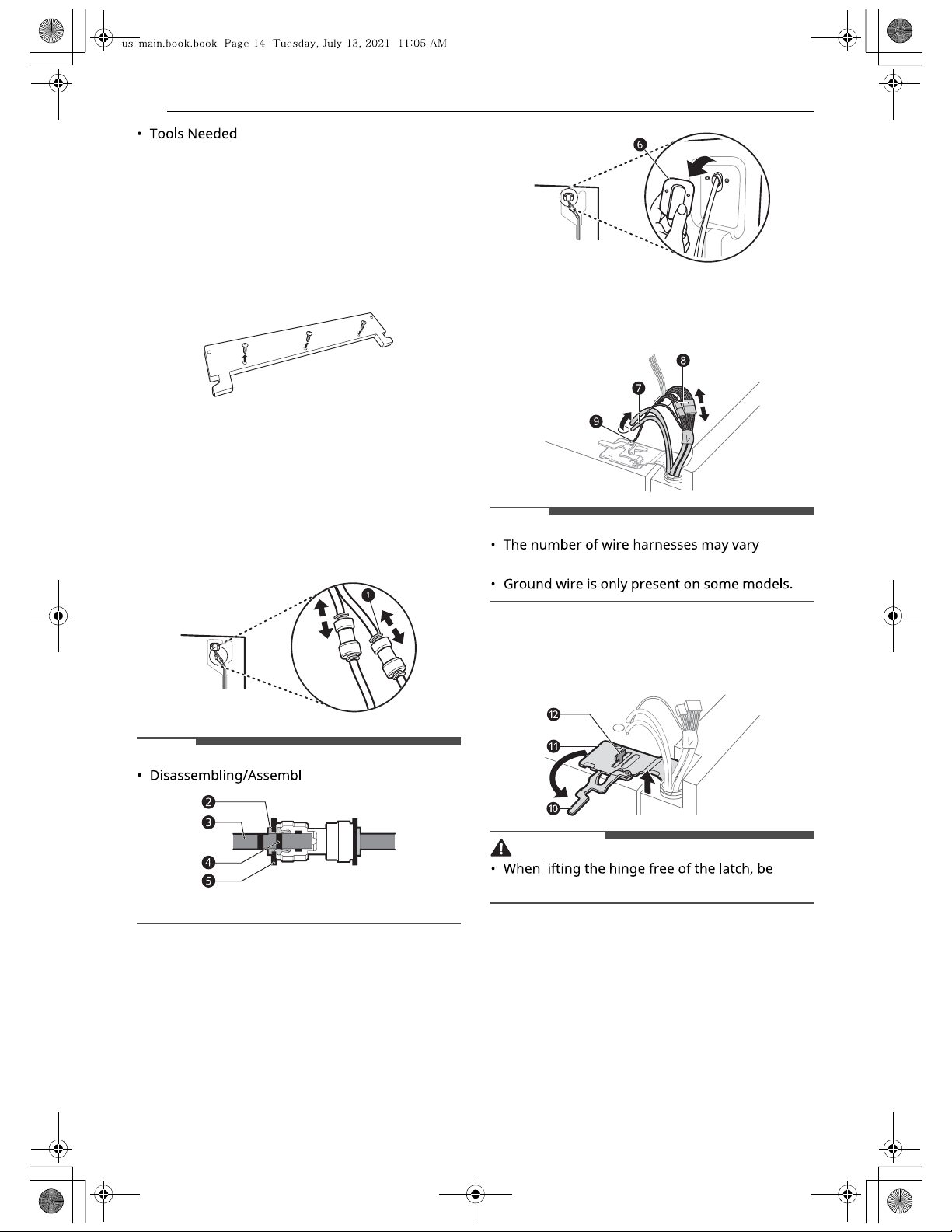

Removing the Hinge Cover
Remove the screws from the hinge cover at the top
of the refrigerator. Lift the hook (not visible),
located at the bottom of the front side of the cover
with a flat-head screwdriver.
Removing the Freezer Door
1 The water supply is connected to the upper
right part of the rear surface of the
refrigerator. Remove the clip in the joint area.
Hold the water supply connection and gently
push the collet a to detach the water supply
line as shown.
NOTE
ing the Water Lines
b Collet c Tube d Insert line e Clip
2 Remove the screws from the water line cover
f and detach the cover.
3 Pull out the water supply lines g. Disconnect
all the wire harnesses h. Unscrew the ground
wire i.
NOTE
depending on the model.
4 Rotate the hinge lever j counterclockwise.
Lift the top hinge k free of the hinge lever
latch l.
CAUTION
careful that the door does not fall forward.
5 Free the hinge from the water lines and wire
harnesses and set it aside.
6 Lift the door from the bottom hinge pin m
and place it, inside facing up, on a non-
scratching surface.

15INSTALLATION
ENGLISH

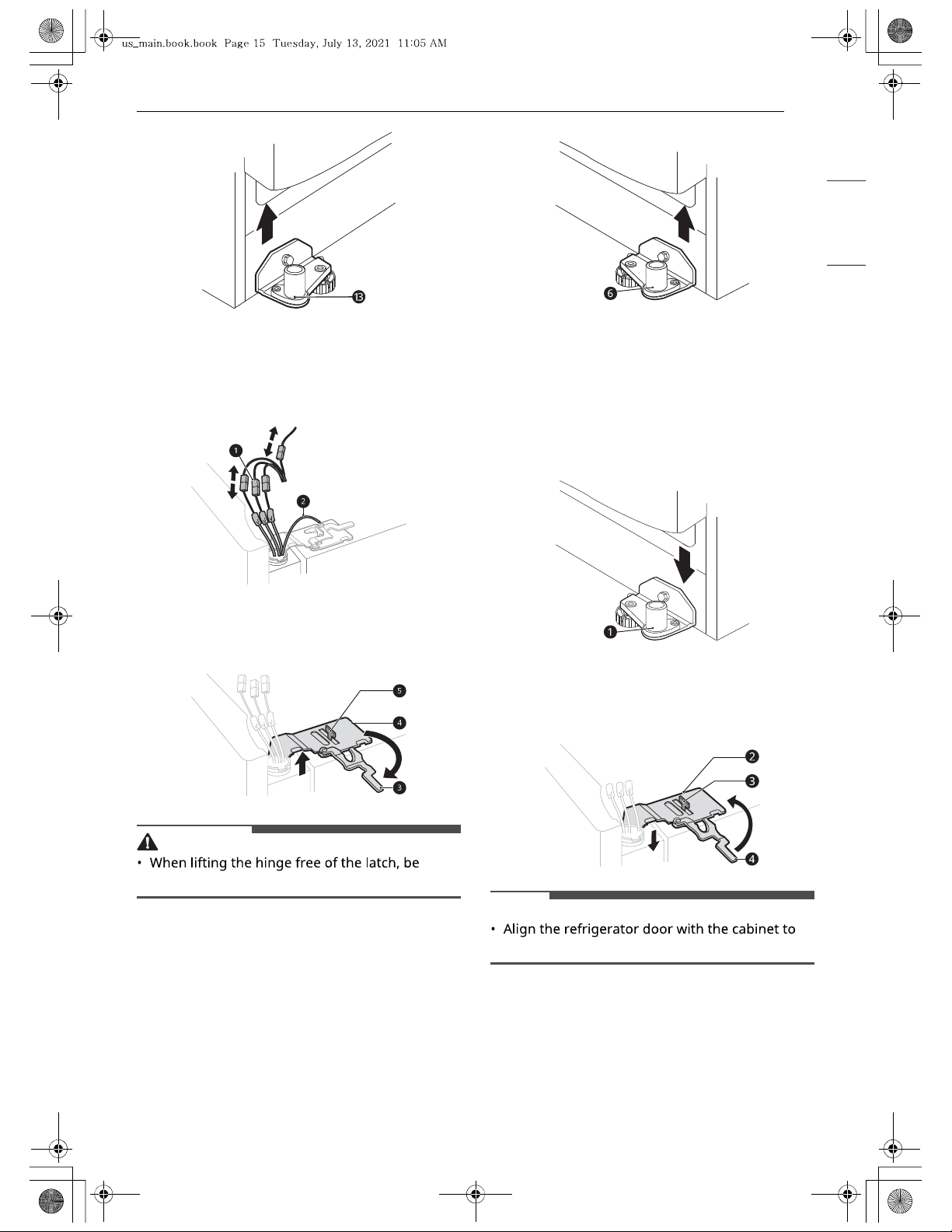

Removing the Refrigerator Door
1 Detach all the wire harnesses a. Unscrew the
ground wire b.
2 Rotate the hinge lever c clockwise. Lift the
top hinge d free of the hinge lever latch e.
CAUTION
careful that the door does not fall forward.
3 Lift the door from the bottom hinge pin f.
4 Place the door, inside facing up, on a non-
scratching surface.
Assembling the Refrigerator Door
1 Place the door onto the bottom hinge pin a.
2 Fit the hinge b over the hinge lever latch c
and slot it into place. Rotate the lever d
counterclockwise to secure the hinge.
NOTE
help fit the top hinge in place.
3 Connect all the wire harnesses e. Screw in
the ground wire f.

16 INSTALLATION
NOTE
depending on the model.
Assembling the Freezer Door
1 Install the freezer door onto the bottom hinge
pin a.
2 Fit the hinge b over the hinge lever latch c
and slot it into place. Rotate the lever d
clockwise and fasten the hinge.
NOTE
the cabinet to help fit
the top hinge in place.
3 Connect all the wire harnesses and the
ground wire.
4 Push the water supply lines into the hole on
the top case and pull them through the
backplate.
NOTE
depending on the model.
5 Hold the water supply connection and gently
push in the collet e to connect the water
supply lines as shown. Insert the tube at least
5/8 inch (15 mm) into the connector. Insert
the clip on the joint to fasten the tubes in
place.
NOTE
f Collet g Tube h Insert line i Clip

17INSTALLATION
ENGLISH
d insert the tube until
only one line shows on the tube.
Assembling the Hinge Cover
Position the hinge cover in its place. Insert and
tighten the cover screws.
Connecting the Water Line
Before Beginning
This water line installation is not covered by the
refrigerator warranty. Follow these instructions
carefully to minimize the risk of expensive water
damage.
If necessary, call a qualified plumber to correct
water hammer before installing the water supply
line to the refrigerator. Water banging in the pipes
(water hammer) in residential plumbing can cause
damage to refrigerator parts and lead to water
leakage or flooding.
used before the water line is connected.
where the ambient temperatures fall below
freezing.
WARNING
water supply only.
CAUTION
connect the refrigerator water line to a cold
water supply.
ring installation to
prevent injury.
Water Pressure
You will need a cold water supply.
Water Pressure
Models with water filter:
- 20 - 120 psi (138 - 827 kPa)
Where reverse osmosis water filtration
system is connected to a cold water supply:
- 40 - 60 psi minimum to reverse osmosis
system (2.8 kgf/cm2 - 4.2 kgf/cm2, or less than
2 - 3 seconds to fill a cup of 7 oz capacity)
If the water pressure from the reverse osmosis
system is less than 20 psi or 138 kPa or 1.4 kgf/cm2
(takes more than 4 seconds to fill a cup of 7 oz or
198 cc capacity):
osmosis system is blocked. Replace the filter if
necessary.
on the reverse osmosis
system to refill after heavy usage.
remains low, call a
licensed, qualified plumber.
in accordance with local
plumbing code requirements.
Supplies Needed
Copper or PEX Tubing, ¼ in. outer diameter, to
connect the refrigerator to the water supply. Be
sure both ends of the tubing are cut square. To
determine how much tubing you need, measure
the distance from the water valve on the back of
the refrigerator to the water supply pipe. Then,
add 8 feet (2.4 m). Be sure there is sufficient
extra tubing (about 8 feet [2.4 m] coiled into 3
turns of about 10 in. [25 cm] diameter) to allow
the refrigerator to move out from the wall after
installation.
Power drill.
½ in. or adjustable wrench.
Flat-blade and Phillips screwdrivers.
Two ¼ in. outer diameter compression nuts
and 2 ferrules (sleeves) to connect the copper

18 INSTALLATION
tubing to the shutoff valve and the refrigerator
water valve.
fitting at the end, purchase an adapter (available
at plumbing supply stores) to connect the water
line to the refrigerator OR cut off the flared
fitting with a tube cutter and use a compression
fitting.
to the cold water line.
The shutoff valve should have a water inlet with
a minimum inside diameter of 5/32 in. at the
point of connection to the COLD WATER LINE.
Saddle-type shutoff valves are included in many
water supply kits. Before purchasing, make sure
a saddle-type valve complies with your local
plumbing codes.
NOTE
pe water valve should
not be used.
Water Line Installation Instructions
Install the shutoff valve on the nearest frequently
used drinking water line.
WARNING
power drill) during installation, be sure the
device is battery-powered, double-insulated or
grounded in a manner that will prevent the
hazard of electric shock.
1 Shut off the main water supply.
pressure on the line.
2 Choose the valve location.
accessible. It is best to connect into the side
of a vertical water pipe. When it is necessary
to connect into a horizontal water pipe,
make the connection to the top or side,
rather than at the bottom, to avoid drawing
off any sediment from the water pipe.
3 Drill the hole for the valve.
the water pipe using a
sharp bit. Remove any burrs resulting from
drilling the hole in the pipe. Be careful not
to allow water to drain into the drill. Failure
to drill a ¼ in. hole may result in reduced ice
production or smaller cubes.
NOTE
Licensed plumbers must use only copper tubing
(NDA tubing #49595 or #49599) or Cross Link
Polyethylene (PEX) tubing.
4 Fasten the shutoff valve.
e to the cold water
pipe with the pipe clamp.
NOTE
Codes 248CMR shall be adhered to. Saddle
valves are illegal and use is not permitted in
Massachusetts. Consult with your licensed
plumber.

19INSTALLATION
ENGLISH

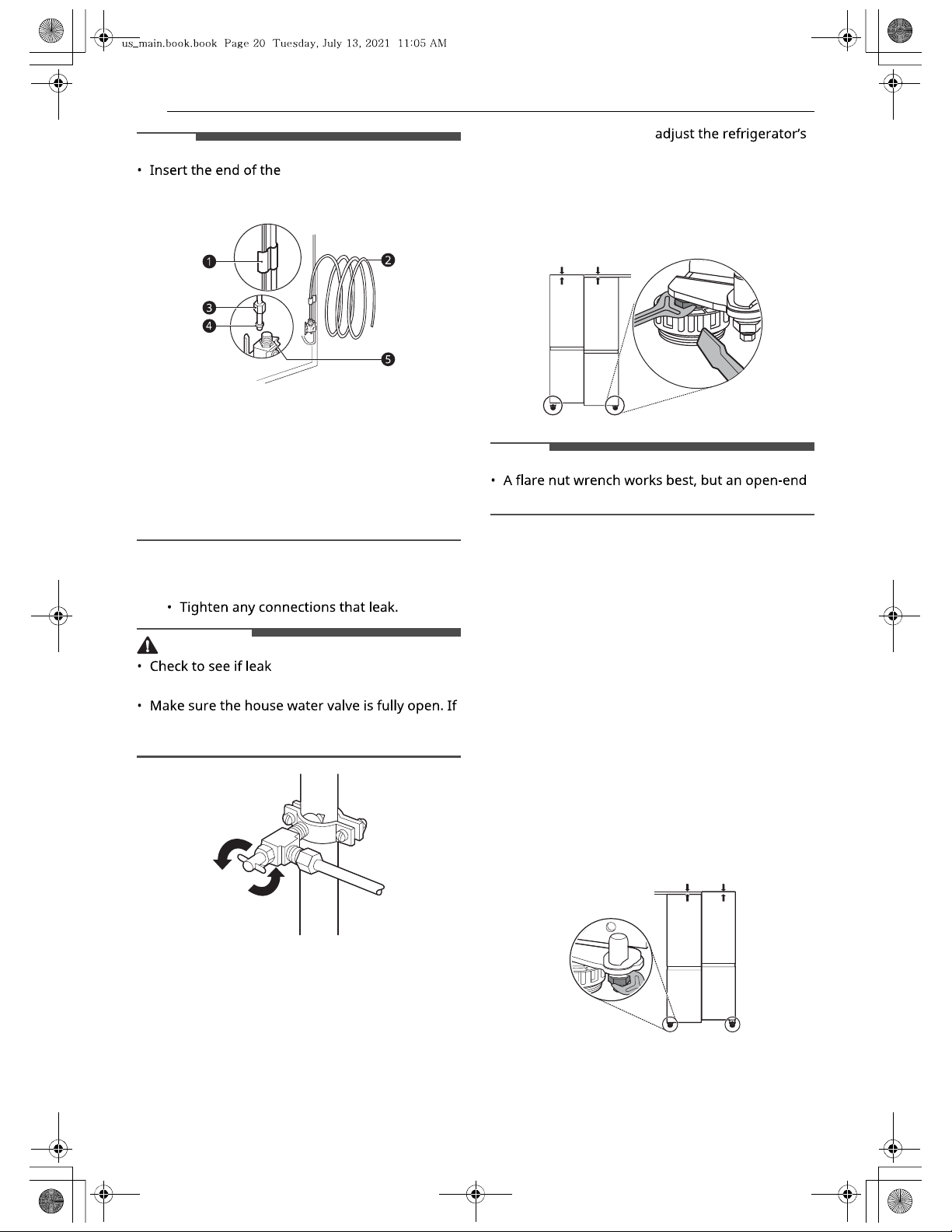

aPipe Clamp
bSaddle-Type Shutoff Valve
cVertical Cold Water Pipe
5 Tighten the pipe clamp.
washer begins to swell.
NOTE
the tubing.
aPipe Clamp
bInlet End
cClamp Screw
dWasher
6 Route the tubing.
tween the cold water
line and the refrigerator. Route the tubing
through a hole drilled in the wall or floor
(behind the refrigerator or adjacent base
cabinet) as close to the wall as possible.
NOTE
nt extra tubing (about 8
ft. coiled into three turns of about 10 in.
diameter) to allow the refrigerator to move out
from the wall after installation.
7 Connect the tubing to the valve.
(sleeve) for copper tubing onto the end of
the tubing and connect it to the shutoff
valve. Make sure the tubing is fully inserted
into the valve. Tighten the compression nut
securely.
aSaddle-Type Shutoff Valve
bCompression Nut
cPacking Nut
dOutlet Valve
eFerrule (sleeve)
8 Flush out the tubing.
supply on and flush
out the tubing until the water is clear. Shut
the water off at the water valve after about
one quart of water has been flushed
through the tubing.
9 Connect the tubing to the refrigerator.
NOTE
connection to the
refrigerator, be sure that the refrigerator power
cord is not plugged into the wall outlet.
valve.
t and ferrule (sleeve)
onto the end of the tubing as shown.

20 INSTALLATION
NOTE
copper tubing into the
connection as far as possible. While holding the
tubing, tighten the fitting.
aTubing Clamp
b¼ in. Tubing
c¼ in. Compression Nut
dFerrule (sleeve)
eRefrigerator Connection
10 Turn the water on at the shutoff valve.
CAUTION
s occur at the water line
connections.
it is not open completely, the icemaker and
dispenser may not work properly.
Leveling and Door
Alignment
Leveling
The refrigerator has two front leveling legs. Adjust
the legs to alter the tilt from front-to-back or side-
to side. If the refrigerator seems unsteady, or the
doors do not close easily,
tilt using the instructions below:
1 Turn the leveling leg to the left to raise that
side of the refrigerator or to the right to lower
it. It may take several turns of the leveling leg
to adjust the tilt of the refrigerator.
NOTE
wrench will suffice. Do not over-tighten.
2 Open both doors and check to make sure that
they close easily. If the doors do not close
easily, tilt the refrigerator slightly more to the
rear by turning both leveling legs to the left. It
may take several more turns, and be sure to
turn both leveling legs the same amount.
Door Alignment
Both the left and right refrigerator doors have an
adjustable nut, located on the bottom hinge, to
raise and lower them to align properly.
If the space between the doors is uneven, follow
the instructions below to align the doors evenly:
Use the wrench (included with the owner's
manual) to turn the nut in the door hinge to adjust
the height.
1 Open the door and use the wrench to loosen
the keeper nut by turning it to the left.
