Lg 21fu7rl User manual

COLOR TV

SERVICE MANUAL

CAUTION

BEFORE SERVICING THE CHASSIS,

READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

CHASSIS : CW81B

MODEL : 21FU7RL/RLG/RG

MODEL : 21FU7RL/RLG/RG-T4/Z4

website:http://biz.LGservice.com

June., 2008

Printed in ChinaP/NO : MFL42115604

Internal Use Only

- 2 -

CONTENTS

CONTENTS............................................................................................... 2

SAFETY PRECAUTIONS...........................................................................3

SPECIFICATIONS......................................................................................4

ADJUSTMENT ...........................................................................................6

TROUBLE SHOOTING ............................................................................13

BLOCK DIAGRAM...................................................................................17

PRINTED CIRCUIT BOARD ....................................................................18

EXPLODED VIEW....................................................................................20

Only for training and service purposes. LGE Internal Use Only

- 3 -

SAFETY PRECAUTIONS

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the

Schematic Diagram and Replacement Parts List.

It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent

X-RADIATION, Shock, Fire, or other Hazards.

Do not modify the original design without permission of manufacturer.

General Guidance

An isolation Transformer should always be used during the

servicing of a receiver whose chassis is not isolated from the AC

power line. Use a transformer of adequate power rating as this

protects the technician from accidents resulting in personal injury

from electrical shocks.

It will also protect the receiver and it's components from being

damaged by accidental shorts of the circuitry that may be

inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this TV receiver is blown,

replace it with the specified.

When replacing a high wattage resistor (Oxide Metal Film Resistor,

over 1W), keep the resistor 10mm away from PCB.

Keep wires away from high voltage or high temperature parts.

Due to high vacuum and large surface area of picture tube,

extreme care should be used in handling the Picture Tube. Do

not lift the Picture tube by it's Neck.

X-RAY Radiation

Warning:

To determine the presence of high voltage, use an accurate high

impedance HV meter.

Adjust brightness, color, contrast controls to minimum.

Measure the high voltage.

The meter reading should indicate

23.5 ± 1.5KV: 14-19 inch, 26 ± 1.5KV: 19-21 inch,

29.0 ± 1.5KV: 25-29 inch, 30.0 ± 1.5KV: 32 inch

If the meter indication is out of tolerance, immediate service and

correction is required to prevent the possibility of premature

component failure.

Before returning the receiver to the customer,

always perform an AC leakage current check on the exposed

metallic parts of the cabinet, such as antennas, terminals, etc., to

be sure the set is safe to operate without damage of electrical

shock.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source, connect an

electrical jumper across the two AC plug prongs. Place the AC

switch in the on position, connect one lead of ohm-meter to the AC

plug prongs tied together and touch other ohm-meter lead in turn to

each exposed metallic parts such as antenna terminals, phone

jacks, etc.

If the exposed metallic part has a return path to the chassis, the

measured resistance should be between 1MΩand 5.2MΩ.

When the exposed metal has no return path to the chassis the

reading must be infinite.

An other abnormality exists that must be corrected before the

receiver is returned to the customer.

Leakage Current Hot Check (See below Figure)

Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check.

Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor

between a known good earth ground (Water Pipe, Conduit, etc.)

and the exposed metallic parts.

Measure the AC voltage across the resistor using AC voltmeter

with 1000 ohms/volt or more sensitivity.

Reverse plug the AC cord into the AC outlet and repeat AC voltage

measurements for each exposed metallic part. Any voltage

measured must not exceed 0.75 volt RMS which is corresponds to

0.5mA.

In case any measurement is out of the limits specified, there is

possibility of shock hazard and the set must be checked and

repaired before it is returned to the customer.

Leakage Current Hot Check circuit

The source of X-RAY RADIATION in this TV receiver is the High

Voltage Section and the Picture Tube.

For continued X-RAY RADIATION protection, the replacement

tube must be the same type tube as specified in the

Replacement Parts List.

1.5 Kohm/10W

To Instrument’s

exposed

METALLIC PARTS

Good Earth Ground

such as WATER PIPE,

CONDUIT etc.

AC Volt-meter

IMPORTANT SAFETY NOTICE

0.15uF

Only for training and service purposes. LGE Internal Use Only

Scope

This specification is applied to all the television related to CW -

81B Chassis.

Requirement for Test

Each part is tested as below without special appointment.

1) Temperature : 25 ± 5°C (77 ± 9°F), CST : 40 ± 5

2) Relative Humidity : 65 ±10%

3) Power Voltage : Standard input Voltage AC220V ~ 50/60Hz.

* Standard Voltage of each products is marked by models.

4) Specification and performance of each parts are followed

each drawing and specification by part number in

accordance with BOM.

5) The receiver must be operated for about 20 minutes prior to

the adjustment.

Test Method

1) Performance : LGE TV test method followed.

2) Demanded other specification

- 4 -

General specification

SPECIFICATIONS

Note : Specification and others are subject to change without notice for improvement.

Item

Receiving System

Available Channel

Input Voltage

Market

Screen Size

Aspect Ratio

Display Method

Tuning System

Operating Environment

Storage Environment

Specification

PAL BG, DK, I / NTSC M (AV 3.58/ 4.43)

SECAM DK

PAL NM / NTSC M (AV 3.58)

PAL BG, DK, I / NTSC M (AV 3.58/ 4.43)

SECAM BG, DK, L

VHF : E2 ~ E12

UHF : E21 ~ E69

CATV : S1 ~ S20

HYPER : S21 ~ S41

AC220V ~ 50/60Hz

AC100 ~ 240V, 50/60Hz

Korea, Latin America, China, Indonesia,

Philipines, Taiwan, Thai, Vietnam, Asia,

Africa

14 ~ 21 inch (FLAT / Conventional)

21'' Superslim/Ultraslim

4 : 3

CRT

FVS

1) Temp : 0 ~ 40 deg

2) Humidity : ~ 85 %

1) Temp : -20 ~ 60 deg

2) Humidity : ~ 90 %

Remark

China/ Indonesia/ Thai/ Vietnam

CIS

L America/ Philippines/ Taiwan

Asia/Middle East/ Africa

PAL Model

East Asia

Others

PAL Model

No.

Only for training and service purposes. LGE Internal Use Only

Model

T4/Z4 Model

Market

PAL Model

Remark

Safety: CB Spec. (EN60065)

EMC: CE Spec (EN55020,

EN55013)

Appliance

- 5 -

Features and Function (For China. Indonesia, Vietnam, Thai, CIS / Middle East Asia, Africa)

Item

Feature AV Input

AV Output

Component

Key Local Key

Remocon

Channel Auto prog.

Manual

Prog. edit

Favorite

Picture PSM

User Control

Sound SSM

Treble/ Bass

Turbo SND

FM Transmitter

(Option)

Timer Clock

Off time

On time

Auto off (Sleep)

Special Language

Input

Child lock

Etc. Sleep

Review

Specification

2 AV 1, 2

1 Monitor out

1 Input (For component)

Power, Vol(F, G), PR(E, D), MENU, OK

Turbo-Picture, Sound

LG Code (NEC)

System/ Storage/ Normal/ Turbo

Storage/ System/ Channel/ Fine/ Search/ Name

Copy/ Move/ Delete/ Skip

8 Channel

Dynamic/ Standard/ Mild/ Game/ User

Contrast/ Brightness/ Color Sharpness

Tint (NTSC-M Only)

ON/OFF

Flat/ Music/ Movie/ Speech/ User

0 ~ 100

ON/ OFF

Wide Range (191ch)

88.0MHz ~ 107.0MHz

-- : --

-- : -- Off(On)

-- : -- Pr 1 VOL 30 Off (On)

On/ Off

English/ Indonesia/ Thai/ Vietnam

TV/ AV1/ AV2/ Component

On/ Off

Remark

Rear1, Front1(CVBS,L,R)

Tool Option (For China, Vietnam,Thai,CIS)

Rear

Rear (Y,Pb,Pr,DVD-L/R)

7EA/ Front

Option

Tint: NTSC System only

option

AV, RF Stereo Option

AV, RFStereo

Option For Middle East Aisa/Africa

Option

(Sleep) For Middle East Asia/Africa

East Asia

AV2 Option

No.

Only for training and service purposes. LGE Internal Use Only

1. Scope of Application

These instructions are applied to CW81B Chassis.

2. Notes

1) Because this is a cold chassis, it is not necessary to use an

isolation transformer. However, operating it using a

transformer between the power supply line and chassis input

to prevent electric shock and to protect the test instrument.

2) All adjustment must be done in the correct sequence.

However, for better productivity, it can be change in a pre-

permitted range.

3) Environment conditions : If not specified, it must be done in

following conditions.

Temperature : 25 ± 5°C

Humidity: 60% ± 10%

4) Power supply of SET for PAL/SECAM

China/indonesia/Vietnam/CIS Market: AC100~240V±10%,

50/60Hz.

5) If not specified, the receiver must be operated for more than

20 minutes prior to the adjustment.

6) Signal : Received the standard color signal (65dB±1dBuV).

PAL/SECAM

: LG standard signal means the digital pattern

PAL-B/G 05CH.

7) If not specified, APC ON is APC CLEAR (DYNAMIC)

3. AGC Voltage Adjustment

3-1. Necessary Instrument

- Digital Multi-meter: 1 set

- Max Input Current : Over 1A/ Max Input Voltage : 500Vdc

- Measurement Range : 10mV-100mVdc/ Accuracy : 0.03%

3-2. Adjustment Preparation

1) Input in the 75Ωcable 65dB(±1dB) LG standard signal.

2) Connect the multi-meter to J105 (AGC Check, Marking).

3-3. Adjustment

1) Press the “INSTART” key of factory remote control and

select “VP0 (RF AGC)” adjustment mode.

2) Press the VOL+/- (F/ G) key until the multi-meter shows

reading as shown below.

3) CAUTION: Since the signal strength can be easily

changed by the condition of signal cable, you need to

check the signal strength frequently in order to prevent

error.

4. Screen Voltage Adjustment

4-1. Adjustment (Using Factory Remote Control)

1) Input in the 75Ωcable LG standard signal (Digital Pattern,

480NC).

2) Press the “ADJ’ key of factory remote control once to make

the TV set display horizontal line.

3) Turn the screen volume on the FBT clockwise until the

horizontal line is visible and turn it counterclockwise until

horizontal line faintly visible.

(Exit screen voltage adjustment by press “Enter(A)” key of

factory remote control.)

5. Purity and Convergence Adjustment

5-1. Purity adjustment

(1) Adjustment Preparation

1) Receive Red Raster Pattern for purity adjustment (51CH).

2) Demagnetize the CPT and Cabinet with a degaussing coil.

(2) Adjustment

1) Pre-adjust the static convergence (STC) with the 4 and

6pole magnet.

2) If the horizontal Line is inline with CPT Mark, 2-Pole

magnet should direct 3-9 o’clock direction.

3) If not, direct 2-pole magnet handle toward 6-12 o’clock

direction and adjust the Horizontal Line to fall onto the

mark opening the magnet at an angle.

4) Push the DY(deflection yoke) all the way to the CPT

funnel.

5) Turn the purity magnet(2-pole magnet) so that the “green”

color portion of left side and the “blue” color portion on the

right side have equal amount of color.

6) Pull the DY slowly backward and fix it when the whole

screen becomes red.

(The specified torque for fixing DY screw should be

10Kg/cm.)

5-2. Convergency Adjustment

(1) Necessary Instrument

1) Degaussing Coil

2) Convergency fixing instrument (Speical tools)

(2) Adjustment Preparation

1) Operate the unit at least 15 minutes before adjustment.

2) Using degaussing coil, remove the stains on CPT &

Cabinet.

3) Received the Cross Hatch Pattern of Convergence. (09ch)

4) Let the Contrast in normal luminance level.

(3) Static Convergence (STC) Adjustment

1) Receive the Cross Hatch Pattern Convergence (09ch).

G R B

- 6 -

ADJUSTMENT

G R B

6700NFNS11E

6700VS0002F

6700PF0006B

6870NB0026A

6700MF0014A

6700MF0014B

6700MF0018B

6700MF0018A

LGIT

SANYO

LGIT

2.15 ± 0.05V

3.0 ± 0.05V

2.3 ± 0.05V

2.15 ± 0.05V

2.3 ± 0.05V

2.15 ± 0.05V

2.4 ± 0.05V

2.5 ± 0.05V

65dBu

70dBu

65dBu

TAEA-H111F

TAEW-G002D

115-B-A86EL

TAEA-J001F

TAEW-G013D

TAEW-G017D

TAEA-G001D

TAEA-G011D

Korea

PAL

HITACHI

PAL

SECAM(CIS)

PAL

SECAM(CIS)

Tuner P/N Maker AGC Vol Signal Tuner Spec. Remark

Only for training and service purposes. LGE Internal Use Only

- 7 -

2) Before adjusting Static Convergence (STC), adjust the

focus first seeing to it that the WHITE color picture quality

is sharp enough.

3) Converge the RED vertical and BLUE vertical line in unity

(same line) by changing the angle between the 2 tabs of

4-pole magnet.

4) Converge the RED horizontal and BLUE horizontal line in

unity(same line) by turning the 2 tabs of the 4-pole

magnet. At this time, do not change the angle between

the 2 tabs.

5) Converge the R, G, B vertical line in unity (same line) by

changing the angle between the 2 tabs of the 6-pole

magnet.

6) Converge the R, G, B horizontal line in unity(same line) by

turning the 2 tabs of the 6-pole magnet. At this time, do

not change the angle between the 2 tabs.

(4) Dynamic Convergence (DYC) Adjustment

1) Y-axis Adjustment:

Adjust convergence of Y-axis (vertical) by moving the

deflection yoke (DY) left and right.

2) X-axis Adjustment:

Adjust convergence of X-axis (horizontal) by moving the

deflection yoke (DY) up and down.

6. White Balance Adjustment

6-1. Necessary Instrument

1) Automatic White Balance Meter (Low/High light Pattern

generator)

2) CRTColor Analyzer, CA -100: 1 set

3) Factory Remote Control

6-2. Adjustment Preparation

Prior to this adjustment, the Screen Voltage adjustment

should be finished.

6-3. Automatic adjustment

1) Adjust using Auto White Balance Meter.

2) Enter CPU OFF Mode by pressing “IN-START” & “MUTE”

key of factor remote control in turn before adjustment.

Exit CPU OFF mode by press the “MUTE” key of factory

remote control after adjustment finished.

* In case there is excess RED color at screen voltage

adjustment, adjust it using “volume - (F) key of factory remote

control until the RED color disappear.

6-4. Manual adjustment

1) Adjust using white Balance meter and factory remote

control.

2) Enter white balance adjustment mode by pressing

“INSTART” key of factory remote control.

3) Use the CHD, CHEKey to choose adjustment item.

4) Use the VOLF, VOLGKey to change item data.

5) Adjustment Procedure

a. Make the picture luminance 45Ft-L by changing the

“CONTRAST” and “BRIGHTNESS”.

b. Adjust X data of High light with R-DRIVE and Y data of

high light with B-DRIVE to have the color temperature

as shown below.

c. Make the picture luminance 4.5Ft-L by changing the

“CONTRAST” and “BRIGHTNESS”.

d. Adjust X data of low light with R-BIAS and Y data of low

light with B-BIAS to have the color temperature as

shown below.

e. Repeat steps a~d until both low and high light have the

same readings as shown below.

7. Focus Voltage Adjustment

This adjustment must be done after operating the TV set

receiver sufficiently.

7-1. Adjustment Preparation

Receive the LG standard pattern (PAL: Digital pattern,

480NC,13CH) and set the picture condition on “APC ON”

(CLEAR) mode.

7-2. Adjustment

Turn the focus volume on the FBT upper direction to have

the best focus vertical line (Fig. 1(a)) and horizontal line (Fig.

1(b)) as shown below.

8. SUB-BRIGHTNESS Adjustment

This adjustment must be done after White balance adjustment.

8-1. Adjustment Preparation

1) Receive PAL B/G 5CH pattern.

2) Set the picture condition on “PSM ON” (DYNAMIC) mode.

8-2. Adjustment

1) Press the “ADJ” key of the factory remote control twice to

enter to “SUB-BRIGHTNESS” adjustment mode.

2) Change the Sub-Brightness data by pressing the VOLF,

VOLGkey so that the 1th, 2th black level in gray scale of

PAL B/G 05CH pattern have a little bit of difference.

(See Fig. 2)

Market Color Temperature X-AXIS Y-AXIS

ALL 13,000 268±5 273±5

(a)

(b)

<Fig. 1>

<Fig. 2> PAL B/G 05CH Signal

1th VS 2th

BLACK LEVEL have a bit of difference.

(In case of Vietnam Model 2th VS 3th)

Only for training and service purposes. LGE Internal Use Only

- 8 -

8-3. Sub-Tint adjustment

This adjustment has to be done only if the picture has bad tint

otherwise, it can be omitted if the picture has good tint.

1) Receive LG standard pattern signal (SMPTE, 2CH)

2) Set the picture condition on “APC ON” (CLEAR) mode.

3) Press the “ADJ” key of the factory remote control three

times to enter to “SUB-TINT” adjustment mode.

4) Change the Sub-Tint data by pressing the VOLF, VOLG

key until the upper and lower CYAN color becomes same

color.

9. Deflection setting data adjustment

These adjustment will be done by automatic adjustment

Equipment.

For manual adjustment, it is also possible by the following

procedure.

9-1. Adjustment Preparation

1) Deflection setting data adjustment can be done only with

remote control.

2) Press “IN-START” key on factory remote control continuously

to enter to Deflection Adjustment mode.

3) Press the CHD, Ekey to select adjustment item.

4) Press the VOLF, Gkey to change the data.

9-2. Adjustment

1) Horizontal Position Adjustment

Select SVC02(H-POS) and adjust so that the left and right

vertical line are symmetrical as possible.

2) Vertical Position Adjustment

Select SVC02(V-POS) and adjust so that the horizontal

center line coincide with geometric horizontal center of the

CPT.

3) Vertical Size Adjustment

Select SVC02(VA) and adjust so that the middle circle of the

Digital Pattern(480NC, 13CH) coincide with the effective

screen of CPT.

9-3. Adjustment (21'' Superslim, Ultra S/S

Model)

1) Vertical Position Adjustment

Select SVC02(V-POS) and adjust so that the horizontal

center line coincide with geometric horizontal center of the

CPT.

2) Vertical linearity Adjustment

Select SVC02(V-LIN) and adjust so that the size of the upper

circle is alike with the one of the lower circle at LG standard

pattern (PAL: EU05CH, NTSC: 13CH)

3) Vertical Size Adjustment

Select SVC02(VA) and adjust so that the middle circle of the

Digital Pattern(PAL B/G 5CH) has 6~7mm gaps from the

effective screen of CPT

4) Horizontal Position Adjustment

Select SVC02(H-POS) and adjust so that the left and right

vertival line are symmetrical as possible.

5) Horizontal Size Adjustment

Select SVC02(EW WIDTH) and adjust so that the outer line of

the left and right and the remotest grid will correspond to the

effective boundary surface. (The remotest grid PAL: within

0~25%; NTSC: within 2.5~3.0 column)

6) Parabora Adjustment

Select SVC02(EW PARAB) and adjust so that the vertical line

of the remotest grid at the left or right side of the screen will

be parallel to the vertical line of the center of screen. (or the

remotest grid of CPT)

7) Trapezoidal Adjustment

Select SVC02(EW TRAPE) and adjust so that the width of

the upper part of screen is alike with the one of the lower part

of the screen.

8) EW UPCOR / LOCOR Adjustment

Select SVC02(EW C UPCOR, EW LOCOR) and adjust so

that the vertical line in the four corners become straight line.

9) BOW Adjustment

Select SVC02(HP BOW) and adjust so that the vertical line in

the four corners become straight line.

10. IIC BUS SUB Adjustment Data

Table

11. Auto Adjustment Preparation

Setting Table

Speed

SLave ADD VIDEO IC

BA EEPROM

A0 Delay

OSD

SUB-BRIGHTNESS

SUB-TINT

Range

0 ~ 100

-20 (R) ~ +20 (G)

PAL

Secam

EEPROM

Sub Add 8D 8A 8F 8C

SpeedPlus

Step/Data

3 3 3 3

Sub Add

Start Bit

Stop Bit

Masking

Direction

VCD TV PC

R DRIVE

R BIAS

B DRIVE

B BIAS

B AMP B CUT G AMP G CUT

Only for training and service purposes. LGE Internal Use Only

PAL

NTSC

- 9 -

OPTION 1

CPT

XD MENU

TURBO SND

V-CURVE

V-MUTE

SND MUTE

OPTION 2

DVD

EYE

GAME

X-WAVE

COLOR T

Degausss

HOTEL

200Pr

OPTION 3

NTSC

DUAL SV

PIP

SND1 FL1

SND1 FL2

SND2 FL1

SND2FL2

HIDEV

OPTION 4

OSD LANG

SND MODE

Local KEY

REMARK

INDONESIA

THAILAND

VIETNAM

CODE

0/1

CODE

0/1

CODE

0/1

CODE

0/1/2

DESCRIPTION

0: Slim/Ultra, 1:Normal/Flat

1: With; 0: Without

1: Volume Curve high; 0: Volume Curve low

1: WithVideo Mute; 0: Without

1: WithSound Mute(no signal);0: Without(no signal)

DESCRIPTION

1: With DVD input; 0: Without

1: With; 0: Without

1: With Game Module ; 0: Without

1: With Blue Back; 0: Without X-WAVE

1: Color+10 STEP; 0: -

1: With; 0: Without

1: 200 Program; 0: 100 Program

DESCRIPTION

1: With NTSC system; 0: Without

1: With DUAL SAVING; 0: Without

1: SYNC KILL=1(no signal); 0: SYNC KILL=0 (no signal)

1: 75KHZ (mono filter); 0: 50KHZ (mono filter)

1: 200KHZ(mono filter); 0: 100KHZ (mono filter)

1: WithA2STEREO direction; 0: Without

1: WithNICAM direction; 0: Without

1: With; 0: Without

DESCRIPTION

0: INDONE (IND/ENG)

1: THAI (THA/ENG)

2: VIETNA (VIE/ENG)

3: MULTI: ENG/IND/THA/VIE

4: AUS: ENG

0: MONO; 1: AV STEREO; 2: RF STEREO

0: NO AV; 1: AV1; 2: AV1 2

0: 4 KEY; 1: 6 KEY; 2: 8 KEY

OPTION 1

CPT

XD MENU

TURBO SND

V-CURVE

V-MUTE

SND MUTE

Teletext

SCART

OPTION 2

DVD

EYE

GAME

X-WAVE

COLOR T

Degausss

HOTEL

200Pr

OPTION 3

NTSC

DUAL SV

PIPI

SND1 FL1

SND1 FL2

SND2FL1

SND2 FL2

HIDEV

OPTION 4

OSD LANG

TXT LANG

OPTION 5

Snd Mode

Local Key

REMARK

CODE

0/1

CODE

0/1

CODE

0/1

CODE

0/1/2/3

CODE

0/1/2

DESCRIPTION

1: Slim/Ultra, 0:Normal/Flat

1: With; 0: Without

1: Volume Curve high; 0: Volume Curve low

1: With Video Mute; 0: Without

1: With Sound Mute(no signal);0: Without(no signal)

1: With; 0: Without

DESCRIPTION

1: With DVD input; 0: Without

1: With; 0: Without

1: With Game Module ; 0: Without

1: With Blue Back; 0: Without X-WAVE

1: Color+10 STEP; 0: -

1: With; 0: Without

1: 200 Program; 0: 100 Program

DESCRIPTION

1: With NTSC system; 0: Without

1: With DUAL SAVING; 0: Without

1: SYNC KILL=1(no signal); 0: SYNC KILL=0 (no signal)

1: 75KHZ (mono filter); 0: 50KHZ (mono filter)

1: 200KHZ(mono filter); 0: 100KHZ (mono filter)

1: WithA2STEREO direction; 0: Without

1: WithNICAM direction; 0: Without

1: With; 0: Without

DESCRIPTION

0: ENG (ENG)

1: ARAB (ENG/FRE/ARAB/URUD)

2: FARSI (ENG/FARSI)

0: EU WEST; 1: EU EAST; 2: ARABIC 3: FARSI

DESCRIPTION

0: MONO; 1: AV STEREO; 2: RF STEREO

0: NO AV; 1: AV1; 2: AV12

0: 4 KEY; 1: 6 KEY; 2: 8 KEY

12. EEPROM OPTION TABLE

( <Table 1> PAL MODEL SOUTH EAST, <Table 2> PAL MODEL MIDDLE EAST)

You can find the EEPROM Option Data if entering the IN-START key of the adjustable remote control and then pressing the MENU key.

Only for training and service purposes. LGE Internal Use Only

SVC

SVC 01

SVC 02

SVC 03

SVC 04

RF AGC

R BIAS

G BIAS

B BIAS

R DRIVE

G DRIVE

B DRIVE

Y-DELAY

OSD CONT.

OSD POS.

V POS

V LIN

H POS

EW WIDTH

EW PARAB

EW TRAPE

EW UPCOR

EW LOCOR

HP BOW

HP ANGLE

V SC

V COMP

HS COMP

V DC

VBLK SW

H BLK L

H BLK R

EW Cor

DEEM TC

FM GAIN

A2 SW

SIF SYS

CH CONV

FM MUTE

VOL FIL

VOLUME L

AUDIO SW

SURR CNT

MONO

VOLUME R

TONE ATT

T BOOST C

TREBLE

PSEUD ST

BBOOST C

BASS GA

S TRAP

S TRAP SW

F DDS

DELAY T

Y FILTER

C FILTER

Y APF

COR GAIN

P SHOOT

O SHOOT

WPL OPE

Range

0 ~ 63

0 ~ 255

0 ~ 127

0 ~ 15

0 ~ 7

0 ~ 60

0 ~ 15

0 ~ 31

0 ~ 127

0 ~ 31

0 ~ 127

0 ~ 31

0 ~ 7

0 ~ 63

0: normal mode; 1: wide mode

0 ~ 7

0 ~7

0: Normal mode; 1: Corner pin gain up mode

0: 50us ; 1: 75us

0: 500mVrms@± 50KHz. deviation (for PAL)

0: Normal mode; 1: 5.74MHz mode need to set SIF system=1

0: 4.5MHz; 1: 5.5MHz; 2: 6.0MHz; 3: 6.5MHz

0: Normal BPF mode; 1: CH converter measure mode at India

0: Enable FM output; 1: Disable FM output

0: Filter OFF; 1: TV operating mode

0 ~ 127

MONO Mode: 0 (0: Stereo EXT; 1: Stereo INT)

MONO Mode: 1 (0: MONO CH1; 1: MONO CH2; 0: MONO CH3; 1: MONO CH4)

0: Surround OFF; 1: MODE-A (-3dB); 2: MODE-B (0dB); 3:MODE-C(+3dB)

0: STEREO input mode; 1: MODE input mode

0 ~ 127

0: 0dB; 1: -6dB

0: Cut; 1: Boost

0 ~ 63

0: Pseudo Stereo OFF; 1: Pseudo Stereo ON

0: Cut; 1: Boost

0 ~ 63

0 (min) ~ 7 (max)

0: Sound trap OFF mode (need external trap); 1: Normal mode (sound trap ON)

0: Normal mode (NTSC: work; PAL/SECAM: stop);

1: Forced DDS mode (always work)

Delay Test

0: 3.58MHz Trap; 1: 4.43MHz Trap; 2: Wide mode; 3: 4.286MHz Trap

0: 3.58MHz peaking; 1: 3.58MHz symmetrical;

2: 4.43MHz peaking; 3: 4.43MHz symmetrical

0: Chroma trap ON (composite video mode)

1: Chroma trap OFF (YCbCr mode and YC mode)

0: Coring OFF; 1: Coring Gain 1(minimum);

2: Coring Gain 2(middle); 3: Coring Gain 3(maximum)

0 (narrow) ~ 3 (wide)

0: WPL OFF; 1: High operating point;

2:Middle operating point; 3: Low operating point

Initial(PAL)

Initial(SECAM)

Remark

Necessary

Unnecessary

Necessary

Unnecessary

Necessary

Unnecessary

Necessary

Unnecessary

Necessary

Unnecessary

- 10 -

Only for training and service purposes. LGE Internal Use Only

- 11 -

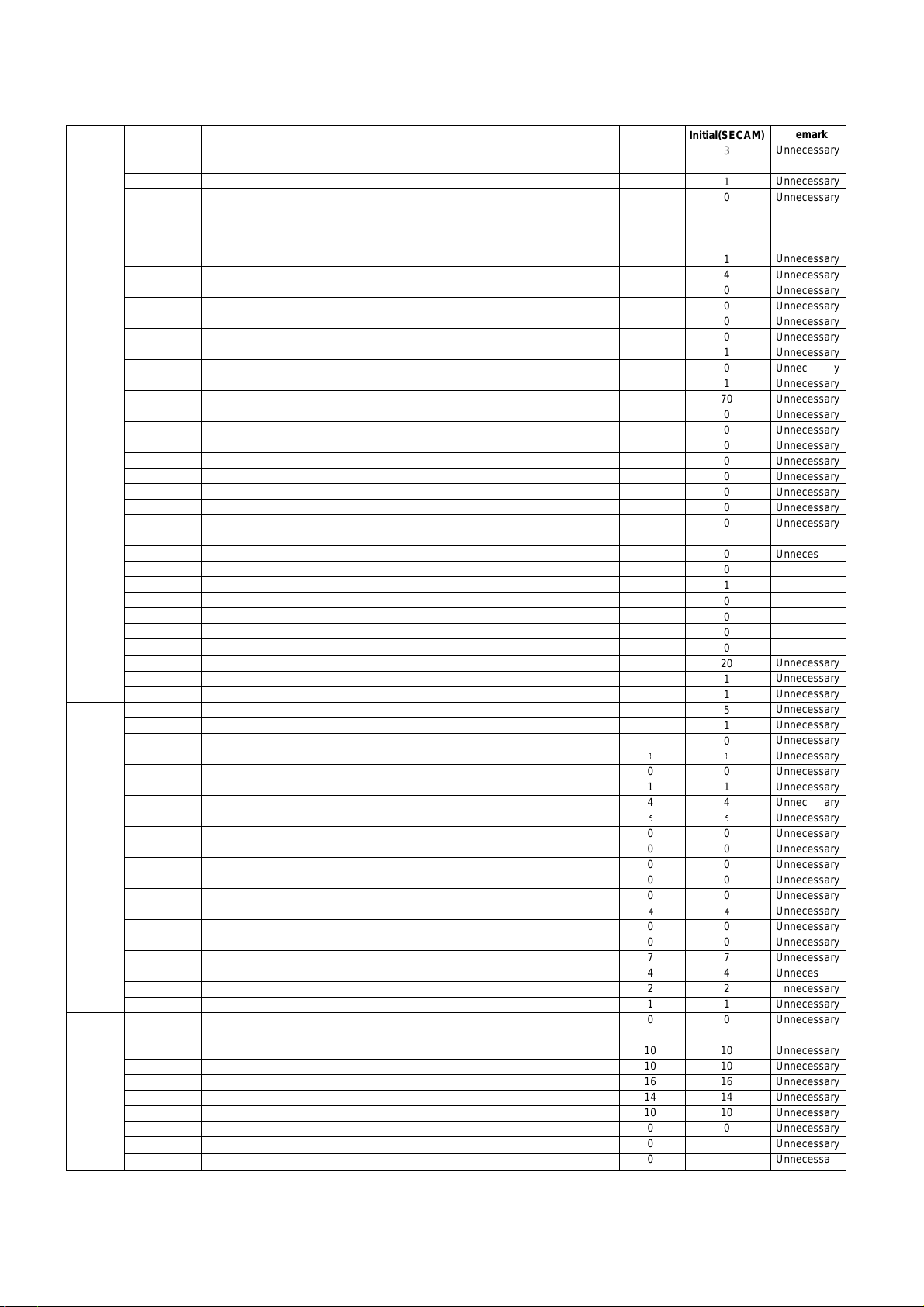

SVC

SVC 04

SVC 05

SVC 06

SVC 07

GAMMA ST

DC REST

BS START

BS GAIN

C TRAP

C BPF

GAMMA GA

GRAY MDE

YCMIX

TXT CC

VIN/XRGB

T DISABLE

H FREQ

AFC G

A MUTE

V MUTE

SYN KILL

V KILL

VSEP

V RES T

HLVDT

V SYN

CD MODE

FBPBLK

AFC NST

AFC2SW

CROSS BW

BLK DEF.

SUB BIAS

V TRANS

DIG OSD

RGB CONT

RGB TEMP

ACL DEF.

ACL SW

ABL DEF.

MID STP

ABL TH

VXO ADJ

CrCb IN

C EXT

C BYPASS

C KI ON

C KI OFF

C KI OPE

GRN ADJ

TINT TH

ID KILL

CVCO ADJ

VCO CNTR

FSC/EHT

C SYS

RY BY GA

RY BY AN

R-Y LEVEL

B-Y LEVEL

GY AMP

HTNo CIr

VXO Free

VXO Stby

Range

0: Low operating point; 1: Middle operating point;

2: High operating point; 3: Defect

0: 100%; 1: 107%; 2: 113%; 3: 129%

0: Black Stretch ON (Starting Point=401RE);

1: Black Stretch ON (Starting Point=501RE)

2: Black Stretch ON (Starting Point=601RE)

3: Black Stretch OFF

0 (min) ~ 2 (max)

0 (min) ~ 7 (max)

0 (min) ~ 3 (max)

0: White (70%); 1: Gray (15%)

0: YC_C; 1: 2.2V_DC

0: Output without LPF; 1: Output by LPF

0: FBP/EXT RGB IN; 1: YC-C/DVD-Y/CR-IN/CB-IN

0: Test mode; 1: TV operating normally

0 ~ 63

0: Automatic mode; 1: Enforce high gain mode

0: Audio Mute OFF; 1: Audio Mute ON

0: Video Mute OFF; 1: Video Mute ON

0 ~ 1

0: TV operating mode; 1: Defeat the vetical output

0: Normal mode; 1: Sensitivity up mode

0: If H-Lock is not defect, stop vertical sync detection

1: V sync system always working

0 ~ 7

0 ~ 1

0: Normal mode; 1: Enforce low gain mode (non-standard)

0: About 4us ~ 8us; 1: about 8us ~ 12us

0: TV operating mode; 1: Black pattern; 2: White pattern; 3: Crosshatch pattern

0: Blanking ON (normal mode); 1: Blanking OFF

0 ~ 127

0: Random transmission; 1: Transmission between vertical retrace period

0: Analogue OSD mode; 1: Digital OSD mode

0 ~ 15

0: -1VBE; 1: Flat

0: ACL Defect OFF; 1: ACL Defect ON

0: High sentivity; 1: Low sentivity

0: ABL Defect OFF; 1: ABL Defect ON

0: Enable limit operating; 1: Disable limit operating

0 ~ 7

0: Video; 1: CbCr

0: Internal composite video signal; 1: From pin 2 input

0: Bypass OFF; 1: Bypass ON (used in Y/C mode)

0: Automatic mode (TV in operation); 1: Enforce killer ON when color control is min

0: TV in operation; 1: Test mode, killer circuit is not in operation

0 ~ 7 (-30dB ~ -40dB)

0 ~ 7 (Auto green off ~ level high)

0: Normal mode; 1: Tint control set center value (cann't control tint)

0: Easy to become NTSC; 1: Easy to become PAL

0 ~ 7

0: Normal mode; 1: VCO free run mode

0: FSC OUT; 1: EHT

0: PAL/NTSC/4.43 NTSC (AUTO); 1: PAL-M/PAL-N/NTSC(AUTO)

2: PAL; 3: PAL-M; 4: PAL-N; 5: NTSC; 6: 4.43NTSC; 7: Not available

0 ~ 15

0 ~ 31

0 ~ 15

0: Color ON; 1: Color OFF

0: Normal mode;1: VXO free run mode

0: Normal mode;1: VXO Standby mode

Initial(PAL)

?O@?he?

?@@@@?he?

@?he?

?@@@@@@@h?

?@@@@@@?g?

J(M?he?

7Yhf?

@@6Xhe?

@@@)X?h?

?I'@)Xh?

V4@1h?

?@h?

J5h?

?W.Yh?

?'6KO.Y?h?

?V4@0Yhe?

W&h?

?W&@h?

W&@@h?

7Y@@h?

?J5?@@h?

W.Y?@@h?

?O.Ye@@h?

@@Y?e@@h?

@@@@@@@@@@g?

@@h?

Initial(SECAM)

?O@?he?

?@@@@?he?

@?he?

?@@@@@@@h?

?@@@@@@?g?

J(M?he?

7Yhf?

@@6Xhe?

@@@)X?h?

?I'@)Xh?

V4@1h?

?@h?

J5h?

?W.Yh?

?'6KO.Y?h?

?V4@0Yhe?

W&h?

?W&@h?

W&@@h?

7Y@@h?

?J5?@@h?

W.Y?@@h?

?O.Ye@@h?

@@Y?e@@h?

@@@@@@@@@@g?

@@h?

Remark

Unnecessary

Only for training and service purposes. LGE Internal Use Only

- 12 -

SVC

SVC 07

SVC 08

SVC 09

SVC 10

IF AGC

SVO SW

VIF SYS

V LEVEL

OM TYPE

OM SW

OM LEVEL

VCO FREQ

AMONI SW

AFT SENS

VCO ADJ

VIDEO SW

SYNC SS

DIntLace

OE TEST

Ext RB

Ext GB

Ext BB

Ext RDr

Ext GDr

Ext BDr

MONI C2

DDS BPF

BELL ADJ

BELL MONI

S KIL OPE

S KIL ON

S KIL OFF

BellBypas

Text Hpos

Text VPos

DE EM SW

CIK STOP

TEST MODE

MONI cbcr

IF TEST

DVD VOL

MAX VOL

CLPDEL50

CLPDEL60

CLPLEN

CLMPID

PIP H

Ch1 Pre

FM 2 Pre

NICAM Pre

MONO Pre

CH1 - M TH

CH1 - L TH

CH2 - M TH

CH2 - L TH

BERL

BERH

Range

0: Normal mode; 1: Minimize the gain of VIF amplifier

0: Internal Video out mode; 1: Selected External video output mode

0: 38.0 MHz; 1: 38.9MHz; 2: 39.5MHz; 3: 45.75MHz

0 ~ 7

0: APC Voltage sample holde circuit type; 1: APC detector stop type

0: Normal mode; 1: Over modulation measure circuit ON

0 ~ 15

0 ~ 255

0: Normal mode (de-empasis FM detector);

1: SAO mode at external audio input mode

0: ±200KHz (4.5-0.5v change); 1: ±150KHz (4.5-0.5v change)

2: ±100KHz (4.5-0.5v change); 3:±50KHz (4.5-0.5v change)

0: Internal; 1: External; 2: DVD-Y; 3: YC-Y

000: Low (sync tip side); 100: Middle (normal); 111: High (pedestal side)

0: Normal mode; 1: Deinterlace mode

Ext R Bias setting

Ext G Bias setting

Ext B Bias setting

Ext R Drive setting

Ext G Drive setting

Ext B Drive setting

DDS Band Pass Filter

Secam IC Only

Text Only

0:Cut off freq. high; 1:Cut off freq. low

0:Normal; 1:IC Test Mode

0~7

0:Normal; 1:IC Test Mode

0 ~ 100

0 ~ 31

1 ~ 3

0~255

0~49

0~143

0~255

0~143

0~255

Initial(PAL)

100

128

Initial(SECAM)

100

128

Remark

Unnecessary

Only for training and service purposes. LGE Internal Use Only

- 13 -

VIDEO/MICOM12500

TUNER / IF

11100 HORZ. DEFL

14400

SOUND

13100 VERT. DEFL

15300

SMPS

Secondary

18200

SMPS Primary

18100

CPT

16100

11100 TUNER

TUNER INPUT SECTION

5V(ZD102,C108,C106)

30V(C103,C107,ZD103,R150)

TUNER Not Working

TU SEARCH Problem

TUNING Problem

CONTROL SECTION

SDA(R514)

SCL(R516)

TUNER Not Working

TU SEARCH Problem

TU Weak Picture Signal

MOD. CONTROL SECTION

AGC(C110,R151,J108,R109

,R154,R108)

TV system Detection Problem

TV MODE Weak Picture Signal

VIDEO/SOUND BUFFER

IF(Z111,C101,R100)

No Video Signal No Sound Signal

Video S/N Problem Sound S/N Problem

Video Noise·No Sound Noise

11101 11102 11103 11104

TUNER/IF

(TU101)

11100

45 1

2 7 10

 R404,R512,R532,C512,C513

 C515,C516,C517,C523,C544

R501,R504,C502,C506,C507

R622,R621

SET Maneuver defectiveness

KEY Not Working No Sound

R22,C15

RESET SECTION

SET Maneuver

defectiveness

MENU Picture Error

SET LATCH-UP

POWER

ST-5V(C521,R528)

RGB 9V(C510,C511,R515)

IF VCC(C528,C526,L528,C547)

VCC(C518,L503)

POWER SUPPLY SECTION

1 CHIP IC (IC501)

LV762XX

61 ~ 64

31,32

1~13

12 41

17~22

12500 VIDEO/MICOM

46~49

TUNER

NO CH. SEARCH

NO PICTURE

NO SOUND.

X501,

R537

OSC SECTION (4.43MHz)

SET Maneuver

defectiveness

Clock Error

OSD Not Working

MENU Picture Error

L IN: L221,C215

R IN: L222,C222

IN: L225,R226

IN: C210,C211,C212

IN: L221,C215

IN: L222,C222

REAR A/V DVD

AUDIO/VIDEO No I/P, O/P

04,09,35,4

9,62

50~64

35,36,40

11100

12500

12502

12503 12504 12505

12510

12509

PA01,R82,C30,C28,

R/C RECEIVER

In case of influx NOISE

R/C is not operate

LD11,R58,R60,R72,Q10

LED O/P Section

SW11~SW16

R16,R17,R18,R19,R20,R66

KEY I/P Section

KEY Error

12511

R/G/B DRIVE Section

R505~R510, C510

C510,C511,R515

DEFLECTION SECTION

Deflection Problem

Vertical/Horizontal Line

NO PICTURE

SOUND Section

NO SOUND

12506

12507

12508

AUDIO L/R

VIDEO

DVD-Y,Pb,Pr

DVD-R

DVD-L

R154,C101,Z111

1. TV FUNCTIONAL

2. TU / IF SECTION

3. VIDEO PROCESSING

TROUBLE SHOOTING

Only for training and service purposes. LGE Internal Use Only

- 14 -

AC INPUT

P801A/B,SW801

FUSE & VARISTOR

NO POWER

FUSE OPEN

FILTER SECTION

T802(150-F06T)

RELAY(DEGAUSS)

RL801,Q845,D847

NO MICOM CONTROL

NO DEGAUSS

PURITY PROBLEM

BRIDGE RECTIFIER

DB801(TS4B05G)

NO POWER

FUSE OPEN

NO RECTIFIER

DC O/P

T803

NO POWER

NO STR VCCSUPPLY SO

NO POWER

FUSE OPEN & STR

DAMAGED DUE TO CHANGE

IN PRIMARY INDUCTANCE

OF SMPS

IC801(STR-W6754)

SECONDARY LOAD REGULATION POOR

OVER VOLTAGE PROT. NOT OPR.

NO POWER / INTERMITANT NO POWER

SWITCHING NOISE

START RESISTOR

R804,R805

STR SWITCH ON PROB.

NO POWER

STR VCC POWER SECTION

D815,R804,R805,R810,R839

STR NO OPR./NO POWER

EXCESSIVE I/P VOLTAGE CAUSES

NO POWER/ NO OSCILLATIONS

STR FEED BACK SECTION

D845,R810,C840

STR NO OPR./NO POWER

INTERMITENT NO POWER

SECONDARY O/P VOLTAGE POOR

INTERMITANT ST-BY MODE

LOAD REG. FB SECTION

IC802,Q840,R808,R853,C852

SMPS SEC LOAD REG POOR

INTERMITANT NO POWER

18101

1810218103

18104

18105

18106

18108

18110

18111

18200

18205

NO POWER

POWER RADIATION

SAFETY PROBLEM

DEGAUSS

COIL

VD801(TVR621D)

F801(T4AL250V)

4. SMPS PRIMARY SECTION

5. SMPS SECONDARY SECTION

STR-

W6554

C831

(220u/160V) R107

(RS 12K/2W)

SMPS

Trans

(S-Vcc)

17V

20V-(10W)

LA42101 (#7,Vcc)

T/X Pre-Amp

110V

D824

(SFAF504G)

C831

(330u/25V)

11V

D813

(RU3AMV)

C826

(1000u/16V)

R873

(47/0.5W)

D-Coil Relay

MAIN IC (#24, Vcc)

EEPROM (#8, Vcc)

IC804

LV76213(#9, Vcc)

D826

(RU3AMV)

LV76213(#20, Vcc)

LV76213(#49,Vcc)

FBT B+

R833

(RS 0.47/2W) L802

(82uH) FR403

(RF 1.2/2W) Tuner 30V

KIA78R09API

112.17V / 395mA 110.1V 110.07V 109.63V / 380mA

29.97V / 10mA

3.3V / 10mA

5.0V / 13mA

8.0V / 15mA

14V / 25mA

KIA78L05BP

IC803

R620

(RS 5.6/2W) 5.0V / 231mA LV76213(#62,#4 Vcc)

LA72730 (#8 Vcc)

(st-by 5V)

(105V~120V)

(28V~32V)

NT: 398mA

PAL:503mA

KIA7805API

LA72702N (#19 Vcc)

TUNER(Vcc)

R529

(RS 68)

R513

(RS 300)

R520

(RS 620)

5.0V / 14mA

5.0V / 40mA

5V /75mA.

NT: 360mA

PAL:465mA

LC75024E (3.3V Vcc)

85mA

LA42102 (#7,Vcc) IC 601 (SOUND-amp) 5W+5 W ST

LA42102N (#7,Vcc) IC 601 (SOUND-amp) 10W+10W ST

IC 601 (SOUND-amp) 5W MONO

17V

ST_BY 1W

Option D806

(TVR06J)

C838

(2200u/25V)

IC806

KIA78R05API

IC04

LA42102 (#5,St-by)

IC 751 (S/W IC )

IC 661 (RF STEREO NT)

IC 501 (Main IC)

IC 601 (SOUND-amp)

LC75024E (1.5V Vcc)

IC 807 (NICAM)

IC 501 (Main IC 3.3V Vcc)

IC 501 (Main IC Hor Vcc)

IC 501 (Main IC RGB Vcc)

180V

D505

(RGP10J)) C540

(4.7u/250V)

CPT Board

26V

D301

(RGP15J))

C309

(470u/35V)

LA78040N

(#2,Vcc)

184.47V / 18mA

28.2V / 320mA

FBT

Trans

FM TX, Game, USB OPT

60mA

145mA.

3.3V Reg.

1.5V Reg.

ST-5V

5V_1

R132

(RS 68)

3.3V

1.8V

Only for training and service purposes. LGE Internal Use Only

- 15 -

VERTICAL IC(IC301)

LA78141

V-IN VCC GND V-

OUT

PUMP

-UP

VERTICAL I/P

VCT VERTICAL O/P

RETRACE KINE

VERT SIZE PROBLEM

VERT IC O/P CAN DECIDE

GAIN

VCC SECTION (24V)

FBT SEC O/P VCC

FULL RASTER

VERT. PROTECTION ENABLE

CAUSES NO POWER

PUMP UP VCC

C307,D302

RETRACE LINE

POWER OFF

VERTICAL O/P DAMPING

& FILTER

R310,R315,C314,C305,C310

VERTICAL FOLDING

VERTICAL ROLLING NOISE

(HORZ LINE MOVING UP/DOWN)

VETICAL REFERECE SECTION

C313,C322

VERT SIZE PROBLEM

VERT LINEARITY PROBLEM

POWER OFF(PROTECTION ENABLED)

OUTPUT STAGE VCC SECTION

C307

VCT VERT. PROTECTION

ENABLE

POWER OFF

15300

15301

15303

15305

15304

15306

15308

FR301,D301,C303,C309,C306

O/STAGE

V-REF

R305,R309,R311,C322

6. VERTICAL SECTION

FBT

T402

HORZ DRIVE SECTION

R403,R401,

Q401,T403,C404

H-OUT

47V VCC

DEFLECTI0N PROB

POWER OFF

HORZ O/P SECTION

Q402,C414

HORZ. DEF

COMPENSATION SECTION

HEATER

VOLTAGE

.FR401

X-RAY WORKING

SAFETY PROB

ROLLING PICT

180V VOLTAGE

FR501,D505,C540

HORZ LINE

NO RETRACE

MAIN VCC(110V)

DEFLECTION PROB

POWER OFF

STRANGE NOISE

COLLECTOR

C412 ,L401,L402,

INEARITY ADJ NOT WORK

HORZ SIZE PROBLEM

STRANGE NOISE

ANODE

FOCUS

SCREEN

14401 14402 14404

14410

26V VOL

FR301,D301

7. HORIZONTAL SECTION

Only for training and service purposes. LGE Internal Use Only

8. SOUND PROCESSING SECTION

TUNER LA42102L(10W*2))

NICAM IC

(LC75024E)

ANT.

Sound Amp.

Speaker

TUNER : RF signal is feed to TUNER through Antenna. IF output from Tuner is then given to 1 CHIP IC.

1 CHIP IC : 1 CHIP IC processes the input IF. Demodulates Picture and sound information and gives analog R G B

output for Display and SPKL/R as audio output, this sound output is further Amplified and feed to speakers.

Sound Amp : Sound amps(LA42102L) is and Audio Amplifier it amplifies the output sound signal from

Surround ic(LC75024E) and feeds to speaker which generates Sound.

11100 12500 13602

13603

1 CHIP IC

(LV762XX)

11500

- 16 -

CPT CIRCUIT VCC / GND

Heater Voltage

e-GUN Dead

e-GUN LIFE

DECREASE

FR932

17006

16100 CPT DRIVE

SECTION

11500 VIDEO PROCESSING

SECTION

CPT / e-GUN

ONE SIGNAL R/G/B)

MISSING

NO PICTURE, CPT

Dead

16004

DISCHARGE

PROTECTION CIRCUIT

ONE SIGNAL (R/G/B)

MISSING

16101

R,G,B Signal-IN

L902, L903, L904

16005

Spot Killer CIRCUIT

SPOT & TRAY

C901, R902, D903

16002

Vcc 180V

15GND

L902

L903

L904

R915 C907

R905

C904 R922

C902

R921

R906

R916

Q901

Q902

9V R908

L901

180V

D902

9. CPT DRIVE SECTION

The CPT-BOARD assembly is composed of discrete type RGB

Amplifier.

Amp- Gain is defined by Resistance of R917, R912,R923.

High Frequency compensation is made by inductance of L901,

capacitance of C907,C904 and C902.

DC level of emitter of Q901,Q902 and Q903 is defined by R908.

CPT Board Circuit 11700

16100

R G B AMP CIRCUIT

16101

L902

L903

L904

R915 C907

R905

C904 R922

C902

R921

R906

R916

Q901

Q902

9V R908

L901

R917 R912 R923

Q903

180V

D902

Only for training and service purposes. LGE Internal Use Only

- 17 -

BLOCK DIAGRAM

LA76213

DVD

(FLAT OPT.)

DVD

(FLAT OPT.)

CPT DRIVE

FBT

185V

AFC

ABL

HEATER

B+

HDT

Collector

AV1(V/R/L)-IN

USOC

AUDIO B+

B+

(110/115V)

(17V/11V)

SMPS

TRANS

SCLSDA

EXT

Video-in

RGB

OUT

TUNER

V_DY

Rear_AV(1)

( PHONE)

Rear_AV(1)

( PHONE)

IC02

EEPROM

24C04/16

V-OUT

H-OUT

SPK1.

10.5V

Y(G)/Cr(R)/Cb(B)

SDA

SCL

LC75024E

A2/NICAM

MONO

SOUND AMP

LA42101

MONO

SOUND AMP

LA42101

INPUT

(100~240V)

STEREO,

Sound Max

SOUND AMP.

LA42102(N)

STEREO,

Sound Max

SOUND AMP.

LA42102(N)

R610

Option Par

IIC Bus Line

(Mono)

M L-OUT

5 46~48

STEREO

( ~ A43L)

MONO

( ~A43K )

24V

ST-BY

TRANS

(1W Opt)

57 56 64

From

IC804

9V REG

IC04

ST-5V REG

From

IC804

IC661

5.1V

IC751

LA72730

(STEREO Opt)

IC751

LA72730

(STEREO Opt)

JA01

HIC291

Game Pack

(Game Opt)

HIC291

Game Pack

(Game Opt)

4,5,6 8 7

From USOC Video(Game)

Audio(Game)

SIF

out

3,6 11 1 4 7

2 5 9

LA72702

BTSC

IC701

LIN-TV

RIN-TV

19 20

R/L Out

L-OUT

R-OUT

SAW

910

IF IN

Z102

10 11 13

SIF IN

3261

V-OUT (Mono)

17 18

2750

Ext R/L

RGB

SCLSDA

27 26

33V

ST-5V

From

IC804

From

IC804

ST-5v

From

IC04

19 924

H-Vcc

5V VDD

3.3V Vcc

From

IC804

SOUND

R620

7.5V

R620

7.5V

IC803

Q402

MD1803

IC401

TDA8145

IC301

V-in FBP in

EW OUT L401

Vcc

EW-OUT

EW IN

From

IC803

SDA

SCL

SCLSDA

SPK L/R

OUT

SCART

R,G,

8 33

TV IN(ST)

M_R/L OUT(ST)

Monitor V OUT(ST)

SPK2.

Only for training and service purposes. LGE Internal Use Only

- 18 -

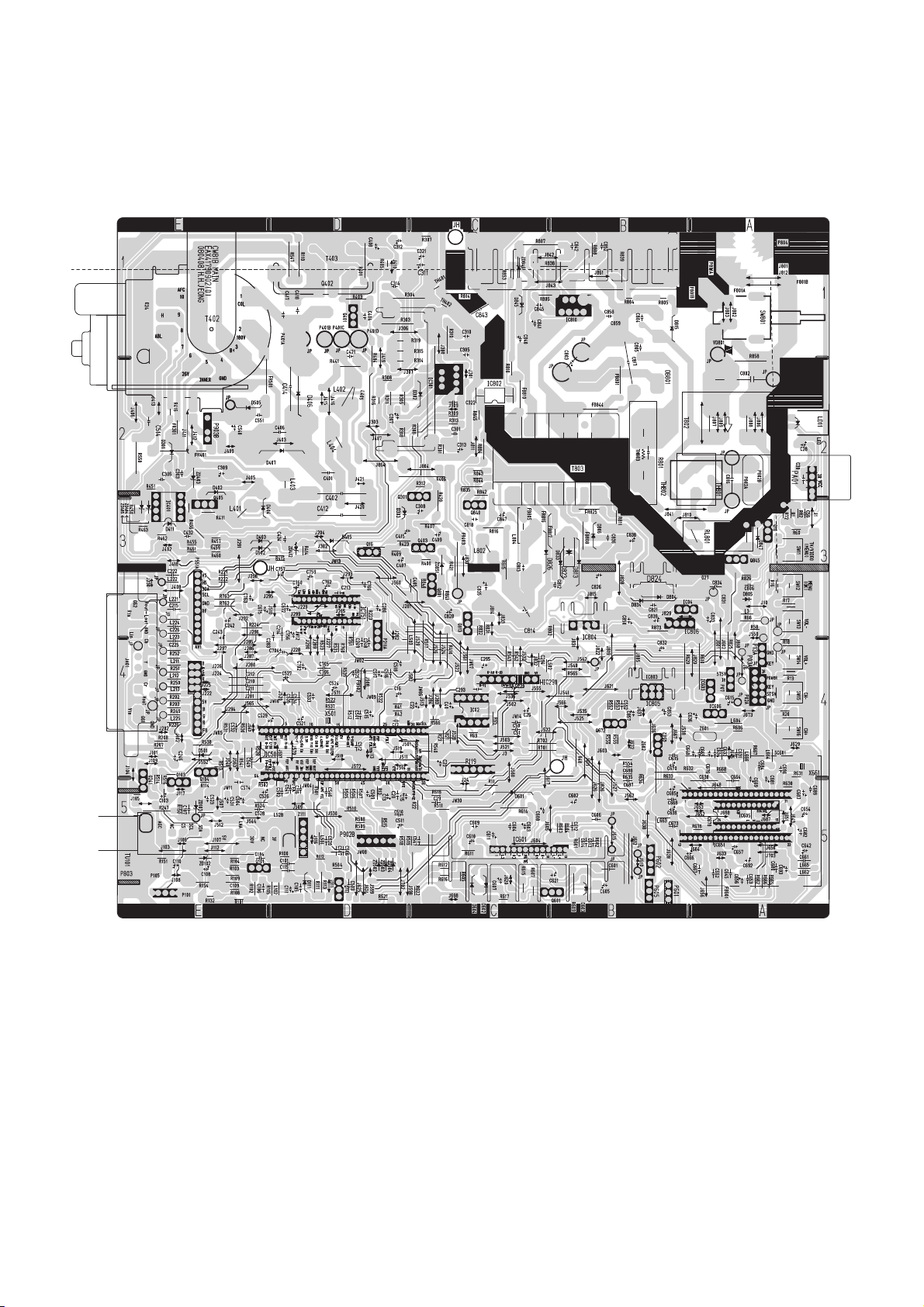

PRINTED CIRCUIT BOARD

MAIN

Only for training and service purposes. LGE Internal Use Only

- 19 -

Only for training and service purposes. LGE Internal Use Only

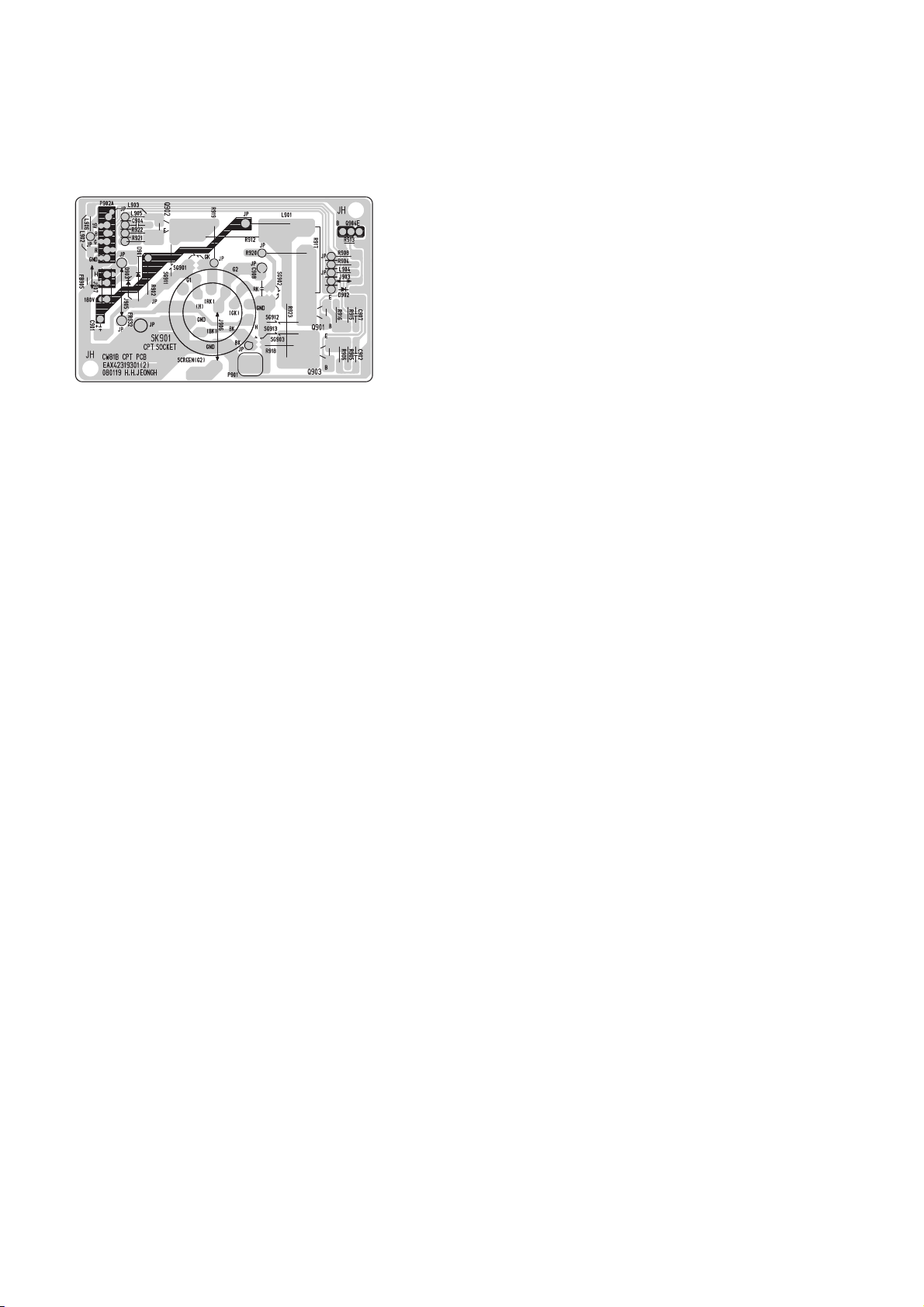

CPT (option)

- 20 -

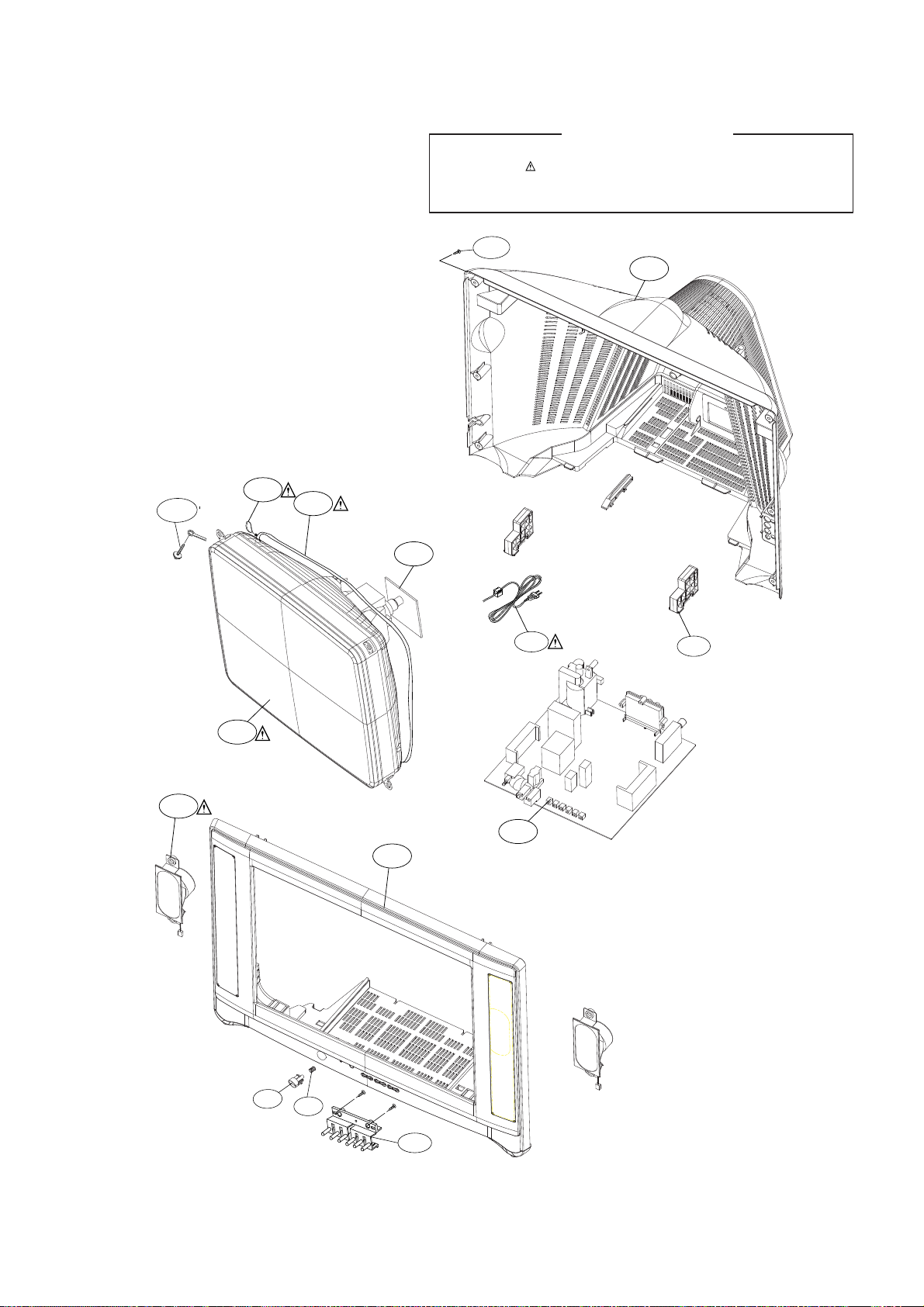

EXPLODED VIEW

120

300

330 320

170 150

913

112

520

174

400

105

510

(option)

310

943

Only for training and service purposes. LGE Internal Use Only

Many electrical and mechanical parts in this chassis have special safety-related characteristics.These

parts are identified by in the Schematic Diagram and EXPLODED VIEW.

It is essential that these special safety parts should be replaced with the same components as

recommended in this manual to prevent X-RADIATION,Shock, Fire, or other Hazards.

Do not modify the original design without permission of manufacturer.

IMPORTANT SAFETY NOTICE

This manual suits for next models

Table of contents

Popular TV manuals by other brands

Toshiba

Toshiba 36AX61 owner's manual

Toshiba

Toshiba CX35F70 owner's manual

Grundig

Grundig T 55-830 text manual

Toshiba

Toshiba MD20FP1C Service manual

Toshiba

Toshiba 42 UA3A Series operating instructions

JVC

JVC AV-28KH1BUF Gebruiksaanwijzing

Samsung

Samsung HLR5078WX Service manual

THOMSON

THOMSON CR14300 Basic service data

Sony

Sony BRAVIA KDL-49W750D operating instructions

Hitachi

Hitachi 42PD3200 user guide

Magnavox

Magnavox MT1331B3 owner's manual

Panasonic

Panasonic PRISM W1 Series operating instructions

Sharp

Sharp AQUOS 8T-C60DW1X Initial setup guide

JVC

JVC AV-14F3 Service manual

Samsung

Samsung TU43CU7175U C Series user manual

Sony

Sony WEGA KLV-S19A10 quick start guide

Panasonic

Panasonic TX-W28R4F Service manual

Sony

Sony Trinitron WEGA KV-AW21 operating instructions

LG 21FU7RL User manual

Popular TV manuals by other brands
