LG MC-035B User manual

COLOR TV
SERVICE MANUAL
CAUTION
BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
CHASSIS : MC-035B
MODEL: Lafinion 70W
website:http://biz.LGservice.com
e-mail:http://www.LGEservice.com/techsup.html

- 2 -
CONTENTS
CONTENTS .............................................................................................. 2
SAFETY PRECAUTIONS ..........................................................................3
SPECIFICATIONS .................................................................................... 4
CONTROL DESCRIPTIONS .................................................................... 5
ADJUSTMENT INSTRUCTIONS ............................................................. 8

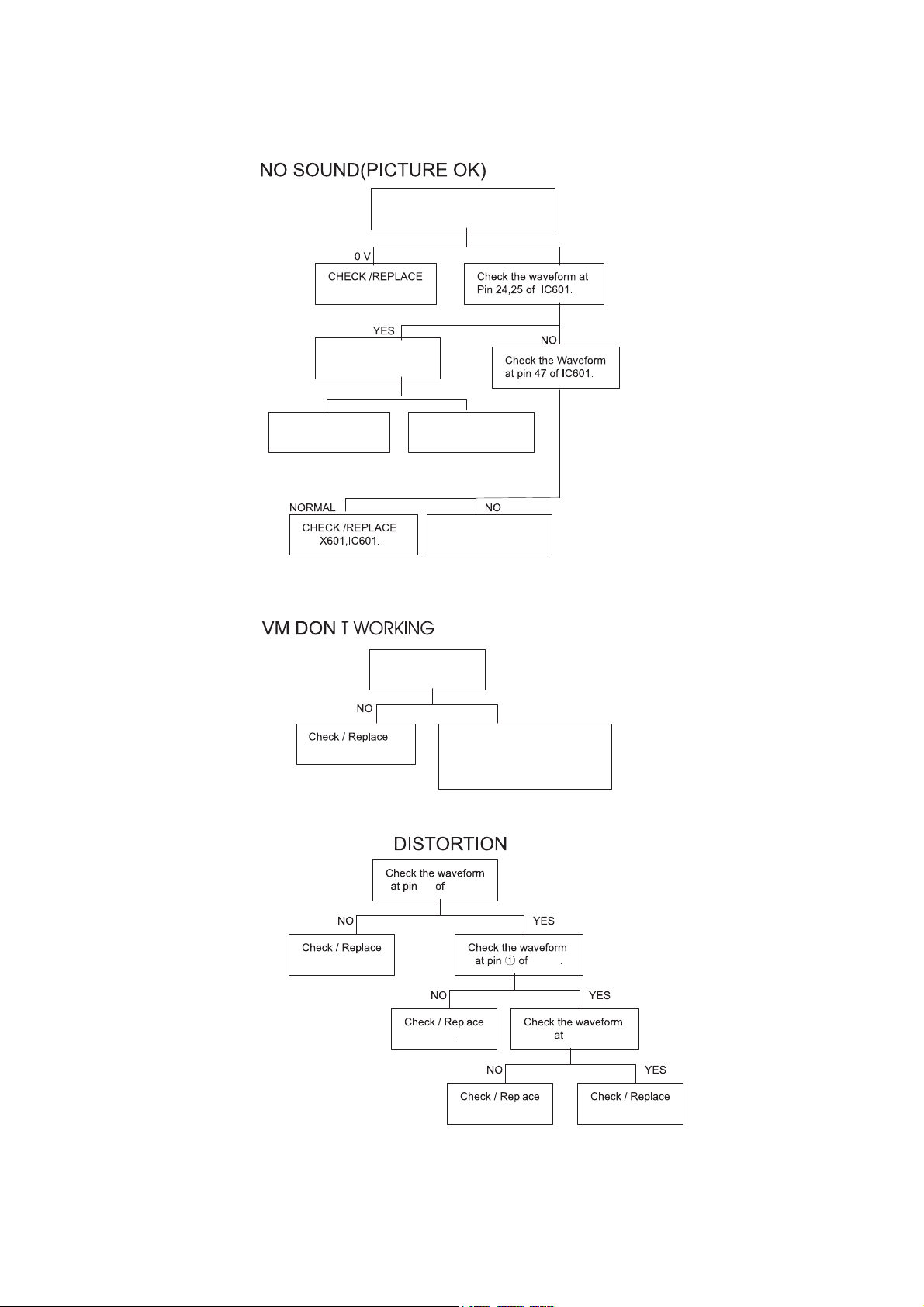

TROUBLE SHOOTING .......................................................................... 14

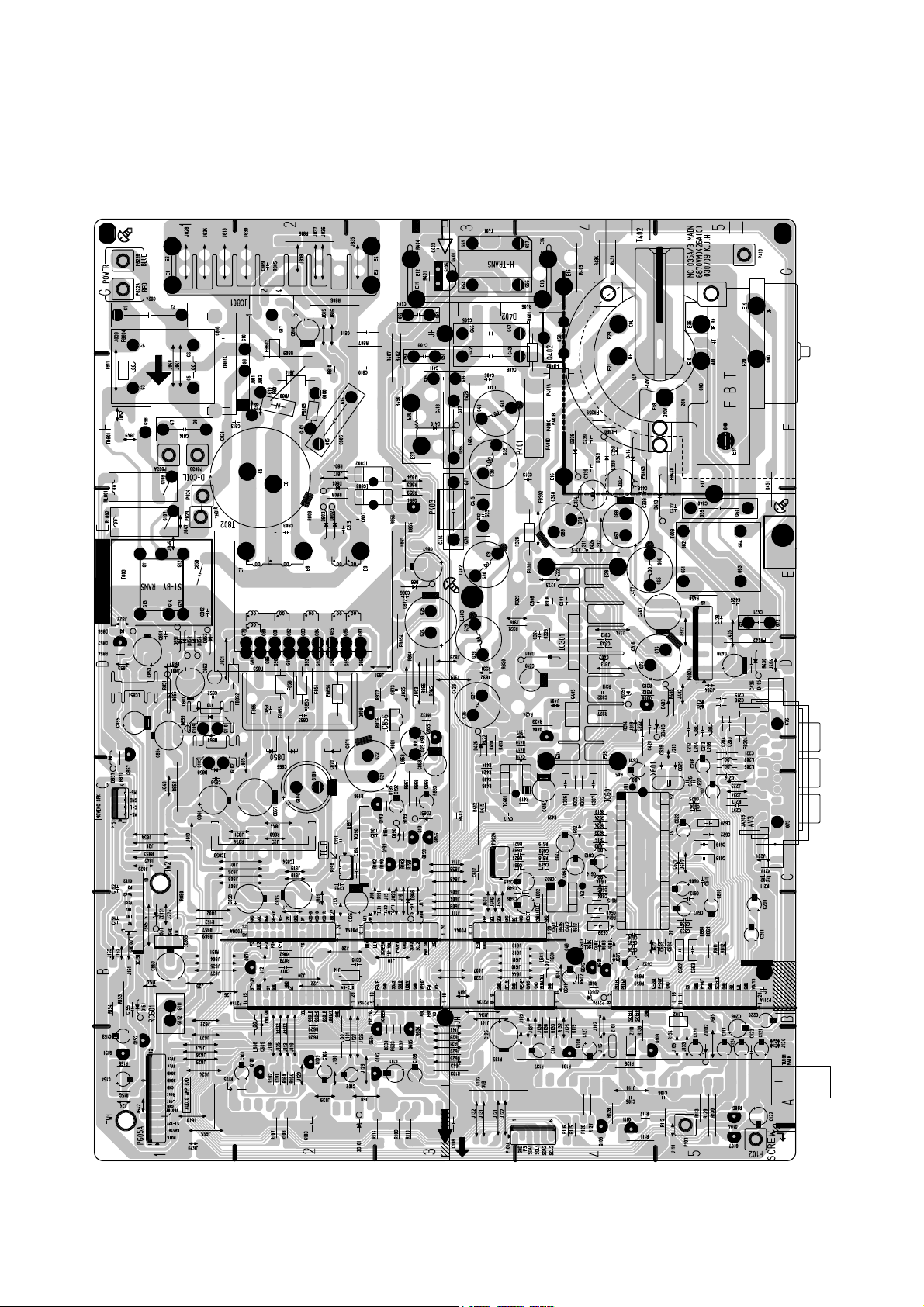

PRINTED CIRCUIT BOARD ....................................................................20
BLOCK DIAGRAM ................................................................................. 25
EXPLODED VIEW .................................................................................. 28
EXPLODED VIEW PARTS LIST ..............................................................29
REPLACEMENT PARTS LIST ............................................................... 30
SVC. Sheet ..................................................................................................

- 3 -
SAFETY PRECAUTIONS
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in
the Schematic Diagram and Replacement Parts List.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to
prevent X-RADIATION, Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
General Guidance
An lsolation Transformer should always be used during
the servicing of a receiver whose chassis is not isolated from
the AC power line. Use a transformer of adequate power rating
as this protects the technician from accidents resulting in
personal injury from electrical shocks.
It will also protect the receiver and it's components from being
damaged by accidental shorts of the circuitary that may be
inadvertently introduced during the service operation.
If any fuse (or Fusible Resistor) in this TV receiver is blown,
replace it with the specified.
When replacing a high wattage resistor (Oxide Metal Film
Resistor, over 1W), keep the resistor 10mm away from PCB.
Keep wires away from high voltage or high temperature parts.
Due to high vacuum and large surface area of picture tube,
extreme care should be used in handling the Picture Tube.
Do not lift the Picture tube by it's Neck.
X-RAY Radiation
Warning:
To determine the presence of high voltage, use an accurate
high impedance HV meter.
Adjust brightness, color, contrast controls to minimum.
Measure the high voltage.
The meter reading should indicate
23.5 ¡1.5KV: 14-19 inch, 26 ¡1.5KV: 19-21 inch,
29.0 ¡1.5KV: 25-29 inch, 30.0 ¡1.5KV: 32 inch
If the meter indication is out of tolerance, immediate service
and correction is required to prevent the possibility of
premature component failure.
Before returning the receiver to the customer,
always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc.,
to be sure the set is safe to operate without damage of
electrical shock.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source,
connect an electrical jumper across the two AC plug prongs.
Place the AC switch in the on positioin, connect one lead of
ohm-meter to the AC plug prongs tied together and touch other
ohm-meter lead in turn to each exposed metallic parts such as
antenna terminals, phone jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1MΩ and 5.2MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.
Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
Do not use a line Isolation Transformer during this check.
Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC
voltmeter with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC
voltage measurements for each esposed metallic part. Any
voltage measured must not exceed 0.75 volt RMS which is
corresponds to 0.5mA.
In case any measurement is out of the limits sepcified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.

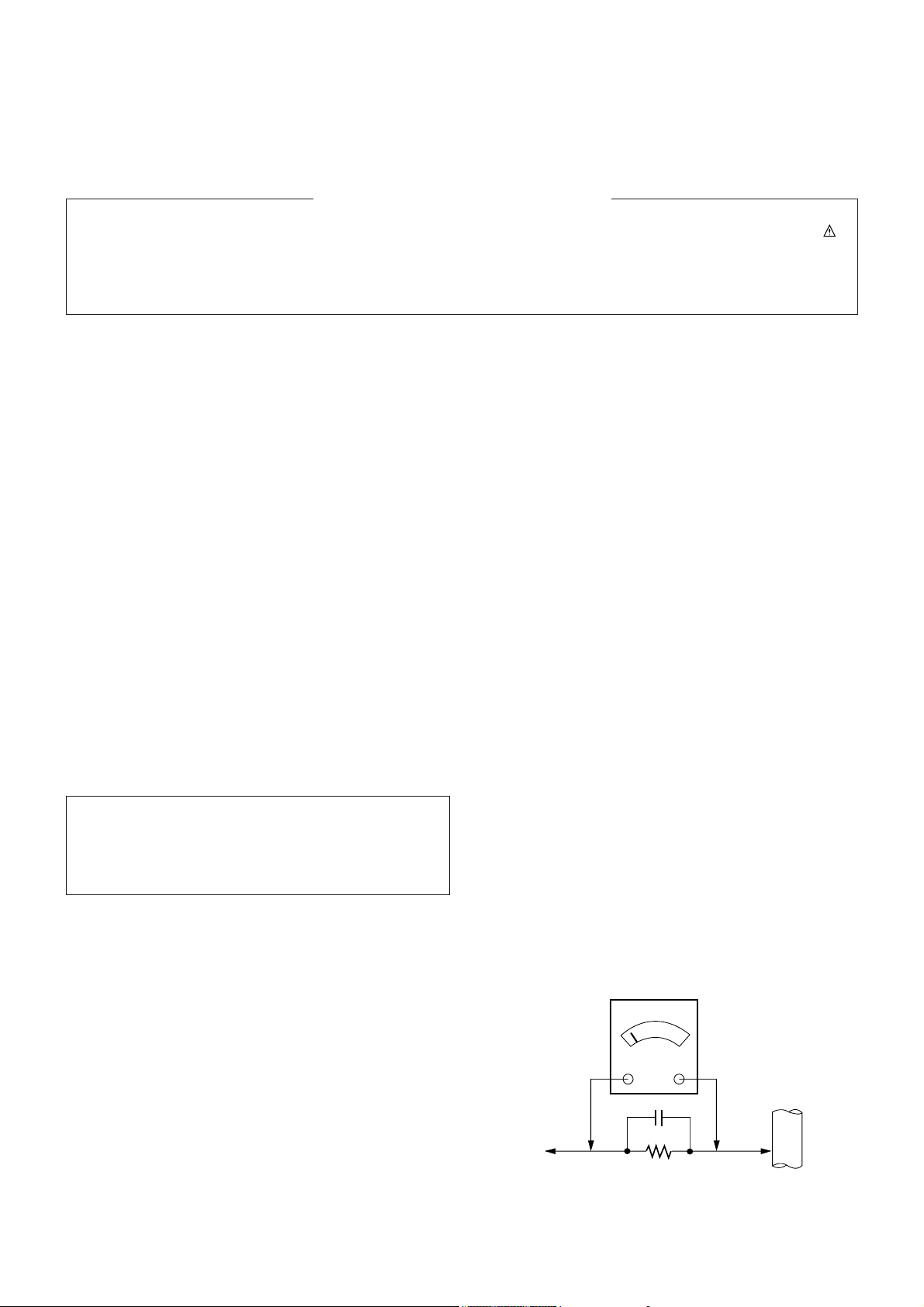

Leakage Current Hot Check circuit
The source of X-RAY RADIATION in this TV receiver is the
High Voltage Section and the Picture Tube.
For continued X-RAY RADIATION protection, the
replacement tube must be the same type tube as specified in
the Replacement Parts List.
1.5 Kohm/10W
To Instrument's
exposed 
METALLIC PARTS
Good Earth Ground
such as WATER PIPE,
CONDUIT etc.
AC Volt-meter
IMPORTANT SAFETY NOTICE
0.15uF

SPECIFICATIONS
Note : Specification and others are subject to change without notice for improvement.
OGeneral Specification
OPower requirement : AC110-240V, 50/60Hz(RT model)
AC230V,50Hz (RZ model)
OPower consumption : Max 160W
OCPT : Flat CPT
OFeature and Function
Specification
PAL/SECAM-B/G, D/K
PAL I/I,SECAM L/LÕ(option)
NTSC M(option)
NTSC M/PB,PAL BG,DK,I
SECAM BG, DK
VHF: E2~E12
UHF: E21~E69
CATV: S1~S20
HYPER: S21~S41
L/LÕ: B,C,D(option)
AC 110-240V/50Hz,60Hz(NON-EU)
AC 230V/50Hz(EU)
FLAT 29Ó , WIDE 32Ó/28Ó
FVS 100 program/200PR.(w/o txt)
- 4 -
No.
1
2
3
4
5
6
Item
Receiving Broadcasting
Method
AV Receiving System
Receiving Channel
Input Voltage
Screen Size
Tuning System
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Item
Teletext
REMOCON
AV input
Component input
PERI TV connector
RGB input
2 Carrier Stereo
NICAM Stereo
2 Carrier Dual
NICAM Dual
SSC(Split Screen) Mode
Multi Picture Display Mode
Film Mode
Noise Reduction
Progressive Scan
Motion Detection
Swivel Speaker
Digital Eye
Specification
TOP,FLOF 2000 page(option)
LG code
4(Side or Front:1 Rear:3)
2(Rear:option)
Full SCART:1 (AV1:option)
1(AV1:option)
BG,DK
BG,I,L(RZ model option)
BG,DK
BG,I,L(RZ model option)
O
O
O
O
O
O
O(option-29FB90)
O
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Min
0.85
3.0
40
0.4
0.1
43
2
0.85
3.8
40
0.4
0.1
43
0.6
0.6
Typ
1
0.5
1
0.5
0.7
0.7
Max
1.15
0.6
7
2
1.15
0.6
7
2
0.8
0.8
Unit
Vpp
MHz
dB
V
kHz
dB
%
V
Vpp
MHz
dB
V
kHz
dB
%
Vpp
Vpp
Remark
0.85
3.0
40
0.4
0.1
43
2
0.85
3.8
40
0.4
0.1
43
0.6
0.6
Item
Video input level
Video input frequency response
Video input S/N
Audio input level
Audio input frequency response
Audio input S/N
Audio input distortion
Audio input dynamic range
Video output level
Video output frequency response
Video output S/N
Audio output level
Audio output frequency response
Audio output S/N
Audio output distortion
Video input level, R/G/B
Video input level,
Component(Y,PB,PR)
OExternal Interface Regulation

- 5 -
CONTROL DESCRIPTIONS
All the functions can be controlled with the Communicator.
Some functions can also be adjusted with the buttons on the front panel of the set.
Communicator.
Before you use the Communicator, please install the batteries. See the next page.
1.SSM( Sound Status Memory)
recalls your preferred sound setting.
2. PSM(Picture Status Memory)
recalls your preferred picture setting.
3.ARC(Aspect ratio Control)
changes the picture format.
4.VCR BUTTONS
control a LG video cassette recorder.
5.DVD BUTTONS.
control a LG DVD.
6.PIP BUTTONS(option)
PIP
switches the sub picture on or off.
PR +/-
selects a programme for the sub picture.
SWAP
alternates between main and sub picture.
INPUT
selects the input mode for the sub picture.
SIZE
adjusts the sub picture size.
STILL
freezes motion of the sub picture.
POSITION
relocates the sub picture in clockwise direction.
SCAN
switches on or off the programme scan mode through 12 sub pictures.
7.RESET
initalize the adjusted value.
8.POWER
switches the set on from standby or off to standby.
9.NUMBER BUTTONS
switches the set on from standby or directly select a number.
10.MENU
selects a menu.
11.(Programme Up/Down)
selects a programme or a menu item.
switches the set on from standby.
(Volume Down/Up)
adjusts the volume.
adjusts menu settings
OK
accepts your selection or display the current mode
12.MUTE
switches the sound on or off

- 6 -
13.MAIN STILL
freezes motion of the picture.
14. I/II
selects the language during dual language broadcast.
selects the sound output(option).
15.SLEEP
sets the sleep timer.
16.EYE/*(option)
switches the eye function on or off.
17.TELETEXT BUTTONS(option)
These buttons are used for teletext.
For further details, see the ÔTeletextÕ section.
18.TV/VCR/DVD BUTTONS
selects the connected external equipment.
19.TURBO PICTURE BUTTON
selects Turbo picture.
TURBO SOUND BUTTON
selects Turbo sound.
20.TV/AV
selects TV or AV mode.
switches the set on from standby.
21.LIST
displays the programme table.
22.SWAP
returns to the previously viewed programme.
selects a favourite programme.
COLOURED BUTTONS: These buttons are used for teletext (Only TELETEXT models) or
programme edit.
Internal generator charge
The communicator can be charged with the internal electric generator. To charge the
communicator do the followings;
1. In first use,
20 rotation of the handle in the arrow direction as picture below -> waiting for one minute -> 20
rotation again -> waiting for one minute again -> 20 rotation again -> beginning to use
2.In usual use
5 or 6 rotation -> resuming to use
Note: Do not rotate the handle too rapidly for the protection of the communicator.

- 7 -

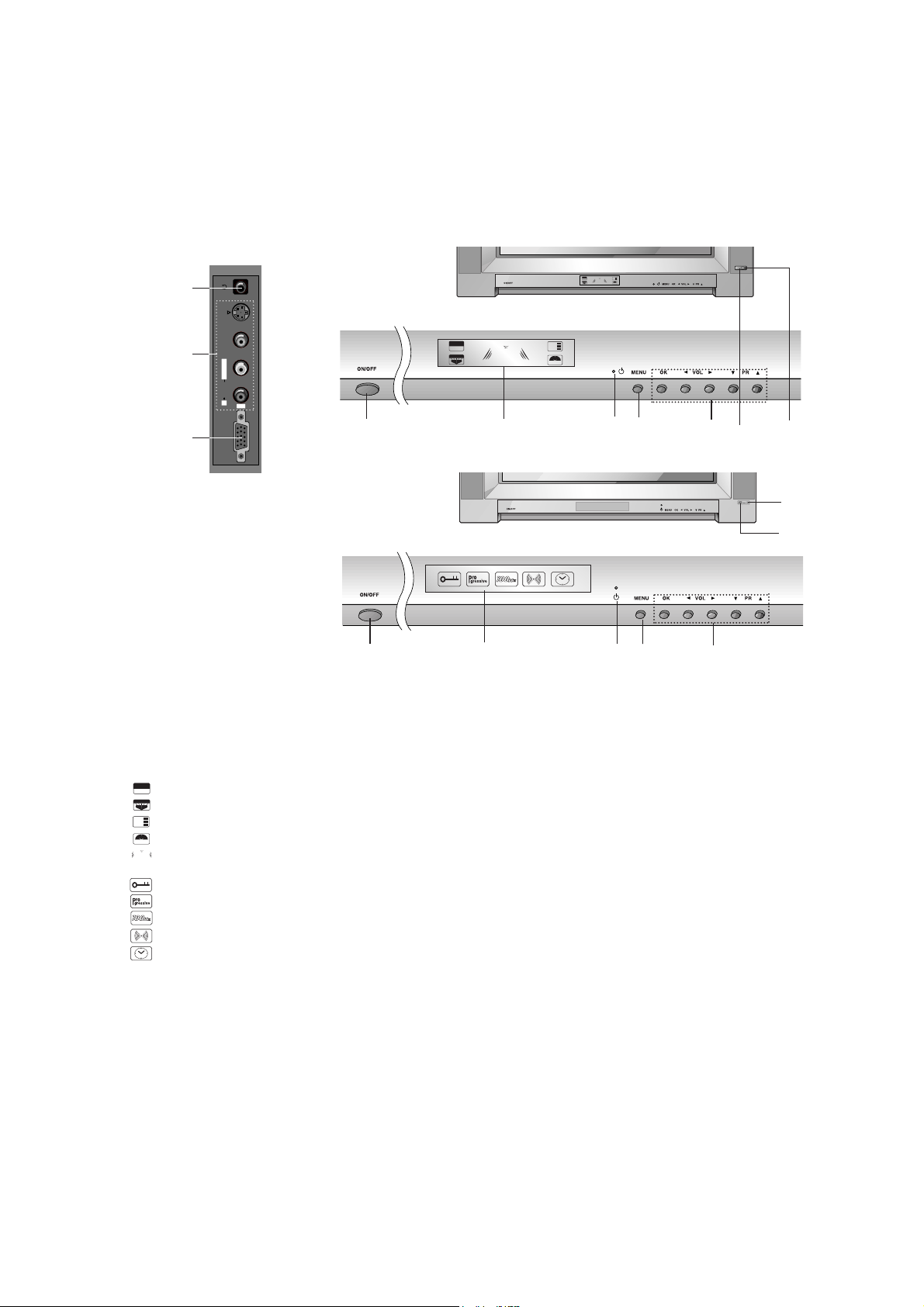

1. MAIN POWER (ON/OFF)
switches the set on or off.
2. LED (Light Emitting Diode) DISPLAY
(option)
illuminates brightly when the set is switched on.
: DRP signal indicator
: DRPC signal indicator
: PIP input signal indicator
: SLEEP timer indicator
: TURBO SOUND indicator
: CHILD LOCK indicator
: Progressive indicator
: 100HZ indicator
: STEREO indicator
: SLEEP timer indicator
3. POWER/STANDBY INDICATOR
illuminates brightly when the set is in standby
mode.
dims when the set is switched on.
4. MENU
selects a menu.
5. OK
accepts your selection or displays the current
mode.
FF/ GG(Volume Down/Up)
adjusts the volume.
adjusts menu settings.
DD/ EE(Programme Up/Down)
selects a programme or a menu item.
switches the set on from standby.
6. REMOTE CONTROL SENSOR
7. EYE (option)
adjusts picture according to the surrounding
conditions.
8. HEADPHONE SOCKET
Connect the headphone plug to this socket.
9. AUDIO/VIDEO IN SOCKETS (AV4)
Connect the audio/video out sockets of exter-
nal equipment to these sockets.
S-VIDEO/AUDIO IN SOCKETS (S-AV)
Connect the video out socket of an S-VIDEO
VCR to the S-VIDEO socket.
Connect the audio out sockets of the S-
VIDEO VCR to the audio sockets as in AV4.
10. PC INPUT SOCKET (option)
Connect the monitor output socket of the
PERSONAL COMPUTER to this socket.
Note : Set the resolution of PC to VGA
640x480 (60 Hz) video mode to use this set as
PC monitor.
DRP
TURBO
THEATER
DRPC
100
SLEEPSLEEP
PIPPIP
DRP
TURBO
THEATER
DRPC
100
SLEEPSLEEP
PIPPIP
1 2 43 5
RT-29FB90 series
Front panel
Side panel
DRP
100
DRPC
PIPPIP
SLEEPSLEEP
TURBO
THEATER
7
6
S-VIDEO VIDEO L/MONO RAUDIO
AV4
PC INPUT
8
9
10
1 2 43
Lafinion 82W / 70W / 72 series
7
5
6

1.Safety Precautions
1. It is safe to adjust after using insulating transformer between
the power supply line and chassis input to prevent the risk of
electric shock and protect the instrument.
2. Never disconnect leads while the TV receiver is on.
3. Don't short any portion of circuits while power is on.
4. The adjustment must be done by the correct appliances.
5. Unless otherwise noted, set the line voltage to 220Vac!10%.
5. The adjustment of TVshould be performed after warming up
for 15 minutes.
2.DVCO Adjustment
1) This is for adjustment of VPC9407,crystal oscillator frequency
after receiving a company Digital pattern. (PAL:EU05CH)
2) When entering adjustment mode by pressing IN-START
key,DVCO adjustment is operating automatically.
(T/X doesnÕt operating occassionally during DVCO
adjustment.)
3. Focus Adjustment
3-1. Preparation for Adjustment
Tune the TV set to receive a digital pattern(PAL-B/G 05ch).
3-2. Adjustment Method
1) Adjust the lower Focus volume of FBT for the best focus of
vertical line B.
2) Adjust the upper Focus volume of FBT for the best focus of
area A.
3) Repeat above step 1) and 2) for the best overall focus.
4. Purity & convergence Adjustment
4-1. Preparation for Adjustment
Adjustment should be operated when using the CPT(without
ITC from CPT manufacturing place)
*This adjustment must follow the sequence as shown picture
below.
4-2. Purity Adjustment
1) Degauss the CPT and CABINET enough.
2) Receive red RASTER signal.(PG50ch)
3) Remove fixing screw of DY and stick DY to opening part(CPT
FUNNEL part)
4) Make crossing adjustment to the Magnet of CPT and make
the R-land is placed on center correctly. At this moment, 4
pole and 6 pole magnet should be at the position of no
magnetic field.
5) Move DY and make whole screen to be equal red, and fix the
DY with fixing SCREW after checking color pollution in each
single color and white RASTER of green/blue/red.(At this
time, be careful about inclination and DY should be fixed
keeping horizontality.)
6) Check the receiver in direction of East, West, South, North.
Adjust with supporting MAGNET when adjustment is not
operated.
- 8 -
ADJUSTMENT INSTRUCTIONS
b
AB
Fig. 1
Assembling DY to CPT
CPT Assembling As preparatory operations before
assembling CPT, wind cotton Tape for
protecting to CPT NECK and DY, CPT
connection parts. At this moment, end of
tape should be over-lapped and wound in
direct route to the NECK.
Let the screen Standard condition. Operate
Heat-Run at least 15 minutes.
Torque is to be 9-11 kg f.cm when fixing
DY.
Fix the Magnet to the position as shown
picture below. Be careful not to make CPT
neck shadow while adjusting DY.
HEAT RUN
Degaussing
STC Adjustment
PURITY Adjustment
DY Fixing
SCREEN Voltage adj.
W/B Fixing
FOCUS not yet ADJ.
STC not yet ADJ.
DYC not yet ADJ.
6pole 4 2
F
F
15 ~ 20mm

4-3. Convergence Adjustment
This adjustment should be operated at the best condition of
FOCUS after finishing the PURITY adjustment.
1) BACK RASTER receives black CROSS HATCH signal.
2) Adjust Brightness so that there are 9-12 dots.
3) Widen two tabs of 4pole Magnet with equal angles and
accord red, blue vertical lines at the center of screen.
4) With keeping angle of "c. clause", rotate tab and accord
red/blue, green vertical lines at the center of screen.
5) Widen two tabs of 6pole Magnet with equal angles and
accord red, blue vertical lines at the center of screen.
6) With keeping angle of "e. clause", repeat the adjustment from
c to e keeping in mind the movement of red, blue, green
when the horizontal lines are twisted.
7) Move DY up, down, left, right and make the convergence to
be optimal condition and stick rubber wedge to CPT so that
the DY not to move.
6. Screen voltage Adjustment
6-1. Preparation for Adjustment
1) Connect power to TV Set and let POWER ON condition.
2) Operate screen more than 15 minutes before adjustment.
6-2. Adjustment Method
1) Adjust in no RF signal condition.
2) Press ADJ KEY on the R/C for adjustment and make
horizontal line.
Turn the Screen Volume so that horizontal line not to be
shown and then change oppositely to finish the adjustment
at the showing place.
7. White balance Adjustment
7-1. Preparation for Adjustment
1) This adjustment should be performed after screen voltage
adjustment.
2) Tune the TV set to receive an 100% white pattern.
7-2. Adjustment Method
1) Enter the adjust mode by pressing the IN-START button.
2) Press Channel UP/DOWN button for desirous function
Adjustment.
3) Press Volume UP/DOWN button to adjust the data.
4) Adjustment Sequence
a- Change the "CONTRAST", "BRIGHT" and adjust to be 3.5
Ft_L.
b- Adjust "Y" value of High Light with GD(G-Drive) and adjust
"X" value with BD(B-Drive) and make color coordinates
of High Light which is specified in "__clause".
c- Change the "CONTRAST", "BRIGHT" and adjust to be 4.5
Ft_L.
d- Adjust "Y" value of Low Light with GC(G-Cutoff) and
adjust "X" value with BC(B-Cutoff) and make color
coordinates of Low Light which is specified in "__clause".
e- Repeat the adjustment from 'a' to 'd' until the High, Low
color coordinates of "_clause" is satisfied.
f- Check the adjusted color coordinates with white balance
meter.
8. Deflection Data Adjustment
8-1. Preparation for Adjustment
1) Deflection Data Adjustment should be performed with the
remote controller for handset.
2) Enter the Adjustment mode by pressing the INSTART button.
3) Select the DEFLECT to deflection Data Adjustment.
4) Press the Channel UP/DOWN button to select adjustment
items.
5) Press the Volume UP/DOWN button to adjust the data.
6) The TV set receives PAL-B/G Digital pattern.
NOTE : If production line doesnÕt the production line of LG
TV,receive available deflection adjustment pattern.
VL (Vertical Linearity)
Adjust so that the boundary line between upper and lower half is in
accord with geometric horizontal center of the CPT.
VA (Vertical Amplitude)
Adjust upper and lower part of circle from the effective screen of
the CPT.to be distance of 6~7mm.
SC (Vertical ÒSÓ Correction)
Adjust so that all distance between each horizontal lines are to
be the same.
VS--(Vertical Shift)
Adjust so that the horizontal center line of a digital circle pattern
is in accord with geometric horizontal center of the CPT.
HS (Horizontal Shift)
Adjust so that the vertical center line of a digital circle pattern is in
accord with geometric vertical center of the CPT.
EW (Horizontal Width)
Adjust to that a digital circle pattern looks like exact circle.
EP (East-West Parabola)
Adjust so that middle portion of the outermost left and right vertical
line looks like parallel with vertical lines of the CPT.
- 9 -
Color Tem.
13000K
9000K
266!
8
288! 8
273! 8
295! 8
NON EU
EU
XYMemo
Menu
RD(0~3F)
GD(0~3F)
BD(0~3F)
RC(0~3F)
GC(0~3F)
BC(0~3F)
001F
001B
0020
001F
001A
0020
High Light Adj
High Light Adj
High Light Adj
Low Light Adj
Low Light Adj
Low Light Adj
LG 29Ó WIDE
MENO

- 10 -
EPP(East-West Pin Phase)
Adjust so that horizontal width of the uppermost part and horizontal
width of the lowermost part of received screen are to be the same.
UC(Upper Coner Correction)
Adjust so that coner vertical line of upper-left and upper-right to be
straight line after finishing EP adjustment.
LC(Lower Coner Correction)
Adjust so that coner vertical line of lower-left and lower-right to be
straight line after finishing EP adjustment.
A-BOW(AFC Bow)
In line adjustment, not to change default value is basic.
A-ANG(AFC Angle)
In angle adjustment, adjust until inclination of left and right screen
should be precise.
V-SCR(V-Scroll)
Only adjust when V SHIFT is impossible.
* Adjust in PAL100Hz and PAL50Hz, NTSC60Hz, 480P, 1080I,
VGA Mode don't need to be adjusted because they are changed
into correction about adjustment value of PAL 100Hz.
* But, If the inclination adjustment is not correct when checking
NTSC60Hz, 480P, 1080I, VGA Mode after finishing adjustment in
PAL100Hz, adjust each Mode again.
9. OPTION Adjustment
9-1. Preparation for Adjustment
1) This option adjustment decides funtion in accordance with
model.
Press the SVC TX adjustment button(IN-START button) at
SVC mode,then adjust the option at OPTION 1,2,3,4 mode.
2) Mark the option adjustment data like [111,11,111,11] in BOM.
Menu
VS
VA
HS
EW
EP
EPP
A-ANG
A-BOW
UC
LC
U-VL
L-VL
VL
SC
V-SCR
0 ~ 3F
0 ~ 3F
0 ~ 3F
0 ~ 3F
0 ~ 3F
0 ~ 3F
0 ~ 3F
0 ~ 3F
0 ~ 3F
0 ~ 3F
0 ~ 0F
0 ~ 0F
0 ~ 0F
0 ~ 0F
0 ~ 3F
1E
1E
1C
1D
A
1E
1F
1E
1F
1F
02
06
05
05
21
18
1F
29
1D
C
1D
1F
20
21
22
2
7
5
4
21
17
1E
14
1F
B
1B
1D
1E
20
20
2
7
5
4
21
11
23
25
2A
E
14
1D
1E
20
1F
2
7
5
4
21
1D
2B
10
1C
7
22
21
1E
1C
15
2
6
5
4
21
Range PAL
100HZ
NTSC
60HZ 480P 1080I VGA
Fig. 2 <50HZ>
Fig. 2<60HZ>
[113,63,112,201]
OPTION 1
OPTION 2
OPTION 3
OPTION 4
D D D D
OMark of BOM
LEVEL PART NO. SPECIFICATION DESCRIPTION JOB EXP.
1. 3141VMN382A MAIN CHASSIS ASSY [113,63,112,201]
The OPTION 1 data is 113,OPTION 2 data is 63,the oOPTION 3 data is 112,the
OPTION 4 data is 201 in this model.

9-2. Adjustment Method
1) Input data directly by the buttons corresponded with
OPTION1 ??(0~255), OPTION2 ??(0~255), OPTION3
???(0~250).
2) Option4???(0~116) controls correspondinglines directly
relate with OSD and TXT LANG.
3) Select each OPTION function by the CH Up/Down button and
then set up each OPTION by the VOL Up/Down button.
4 : 3 TV
16 : 9 TV
WITHOUT TEXT
WITH TEXT
WIHTOUT D/K CHINA or BB SYSTEM
WIHT D/K CHINA or BB SYSTEM
Not appy to Sound High Deviation
Provide for Sound High deviation
WITHOUT DOLBY
WITH DOLBY
WITHOUT DIGITAL INDEX
WITH DIGITAL INDEX
WITHOUT CENTER SPK
WITH CENTER SPK
WITH DRPC
WITH FI-NE SYSTEM
- 11 -
WL/CL
CT/CE/WT/WE
EU(WE/WL/CE/CL
NON-EU(WT/CT)
Without TOP TEXT
EYE
A2 ST
SYS
TOP
I/II SV
TSEAR
200 PR
Option Code
0
1
0
1
0
1
0
1
0
1
0
1
0
1
2
3
Function Remark
100 PROGRAM SAVE
200 PROGRAM SAVE
NICAM
Without Turbo Search function
With Turbo Search function
NO SAVE DUAL/SOUND Condition
SAVE DUAL SOUND Condition
FLOP TEXT
TOP TEXT
Without EYE
With EYE
NICAM
NICAM&FM STEREO/DUAL
B/G,I.D/K
B/G
B/G,I.D/K,M
RESERVED
Table 1. OPTION 1 Function
Table 3. OPTION 3 Function
Table 2. OPTION 2 CODE Data
Option Code
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
RT-29FB90RB
MC035B
MC035A
WIDE
TEXT
CH+AU
HDEV
DOLBY
DGIDX
CTSPK
FNDRP
Function Remark
ITEM
FP
NP
SP
S1 vol
S2 vol
DESCRIPTION
FM Pre-scaler
Nicam Pre-scaler
Scart Pre-scaler
Scart1 Pre-scaler
Scart2 Pre-scaler
When B/G,I D/K,L
apply to SCART
001B
0079
0017
0052
0052
MSP3411 Pre-scaler setting value
ITEM
M-STR
M-HMC
M-HP
M-LP
M-LIM
DBSWF
DESCRIPTION
EFFECT STRENGTH
HARMONIC CONTENT
HIGH PASS CENTER FREQUENCY
LOW PASS CENTER FREQUENCY
AMPLITUDE LIMIT
Woofer Response(effect)
Woofer
002D
0019
0005
0005
00FC
DonÕt care
W/O woofer
007F
0000
0002
001E
00FF
001E
MSP3411G B8 version DBS setting value
SAV3
WOOF
VGA
DVD
H-PHON
AV SV
VOL
ACMS
Option Code
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
Function Remark
Without ACMS funtion
With ACMS funtion
NORMAL VOLUME CURVE
RUSHED VOLUME CURVE
Without HEADPHONE
With HEADPHONE
Without DVD INPUT
With DVD INPUT
AV3 Y&C
Without WOOFER
With WOOFER
Without VGA
With VGA
AV Status not save
AV Status save

- 12 -
Table 4. OPTION 4 Funtion
CODE
0
1
2
3
4
5
6
7
8
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
OPTION
LANG
TXT LAN
Language
E Only
English+EU 5
English+Other EU
FARSI
ARAB URDU
E + HINDI
E + I + M + V
E + THAI
E + CHINA
West Europe
East Europe
Turkey EU1
EAST EU2
Cyrillic 1
Cyrillic 2
Cyrillic 3
Turkey/Greek 1
Turkey/Greek 2
Turkey/Greek 3
Arab/France
Arab/English
Arab/Hebrew 1
Arab/Hebrew 2
Farsi/English
Farsi/France
Farsi all
Funciton
Table 5. OPTION 5 Funtion
CODE
0
1
0
1
0
1
0
1
0
1
OPTION
DCION
C2151
AUTOA
AUTOB
TBIDX
Funciton
DYNAMIC CONTRAST OFF
DYNAMIC CONTRAST ON
WITHOUT COMPONENT INPUT
WITH COMPONENT INPUT
H-FILTER AUTO CONTRAST CONTROL OFF
H-FILTER AUTO CONTRAST CONTROL ON
H-FILTER AUTO LUMINANCE CONTROL OFF
H-FILTER AUTO LUMINANCE CONTROL ON
WITHOUT TURBO THEATER INDEX
WITH TURBO THEATER INDEX
REMARK
RZ
RT
RZ
RT
RZ&RT
RZ&RT
RZ&RT
RT-29FB90RB ONLY

- 13 -

- 14 -
TROUBLE SHOOTING
17.8V
Q401, Q402, T401.
67V
R407,D861,FB854.
R865,R864,L853,D850,FB856.
1V
pin 2 of FBT.
2Vp-p 0V
Q871,Q852,Q854,
IC803,IC851
Check pin 2 of P004A.
Check / Replace
Check / Replace
IC801 and the
secondary part of
POWER circuit.
Check / Replace
R809,D802,R803,R810.
Check / Replace
SW1101,F1101,T1101,
DB814,TH810.
Check / Replace
Check / Replace Check / Replace
IC501S.
Check / Replace
FR359,FR360,D339,D349,IC301.
Check / Replace
IC001,Q002.
Check / Replace
Check the voltage at
pin 4 of STR.
Check the voltage at
pin 10 of P004A.
Check the voltage at
Check the voltage of C404(+).
Check the voltage of C821.
pin 5 of P214A.
Check the H-DRV voltage at
135V
5.5Vp-p 0V

- 15 -
Check if heater element is lighting.
Check the heater voltage.
Increase the screen
Check/Replace
FR442,R910.
Check/Replace
CPT.
Check/Replace
Q503,504,505.
Check the waveform
at pin 20,21,22 of IC501S.
Check/Replace
IC901,902,903.
Check/Replace
IC101.
Retrace line is Screen is black.
visible.
Check the waveform
at pin 3 of ic901,902,903
Check the waveform
at pin 62,63,64 of IC501S.
(RGB out)
Check the waveform
at pin 7 of IC901,902,903.
Check FBT & CPT socket
& CPT.
voltage of FBT.
Check/Replace
IC501S.
Check the waveform
at pin 2,140,143 of IC101S.
Check the waveform at
PIN100 of IC101S.(CVBS4)
Check the waveform at
PIN 38,41,46 of IC102S
NO YES
YES YES NO
NO
NO
NO
YES
Check/Replace
IC401S,FL201S,202S,203S
Check/Replace
IC102S.
NO
YES
YES
Check/Replace
IC101S.
Check the waveform at
Pin2 of P213B.(Vmain)
NOYES
Check/Replace
IC201S.
Check the waveform at
TU101,Q108.
NOYES

- 16 -
PIN CUSHION
47 IC501S.
IC501S. IC401
IC401 R424.
Q404, Q405. L402,403,C423.
Check the waveform
at pin 11 of P901B.
Checkthe waveform at
pin10 of HIC951.
Check the Vcc at pin11(135V).
Check the Vcc at pin4(12V).
NORMAL
Q501,IC501S.
18V
D850,F851.
Check the voltage at pin1,15
of IC650(SOUND AMP).
CHECK/REPLACE
IC650.
2.5V 0V
CHECK/REPLACE
Q601,Q602,L601.
CHECK/REPLACE
TU101.
Check the waveform
at PIN 8,13 of IC 650.

- 17 -
pin 21,22 of IC601.
Check the waveform at
pin 1,3 of IC602.
Check the waveform at
IC601.
Check / Replace
H/P JACK.
Check / Replace
IC603.
Check / Replace
Check the voltage at
pin 14 of TU101.
CHECK/REPLACE
TU101.
CHECK/REPLACE
IC001.
Check the voltage at
pin 14 of T101.
CHECK/REPLACE
TU101.
CHECK/REPLACE
IC001.
0V2.5V
Check/Replace
IC201S,IC101S.
Check/Replace
Q108,C114,R119.
Check/Replace
Check/Replace
Check the voltage at
pin9 of TU101.
Check the voltage at
pin13 of TU101(5V).
Check the waveform at
pin19 of TU101(Video).
Check the waveform at
pin2 of P213A.
DON'T CATCH CHANNEL(MAIN)
R403,FB854,D861,ZD102.
Check/Replace
IC854,F856.
TU101.
YES
YES

- 18 -
Q503,504,505,CPT Board.
IC401S.
IC501S
pin 62,63,64 of IC501S.
Check Y,Cb,Cr signal
input from JA201.
Check / Replace
Check / Replace Check / Replace
pin25,26,27 of IC401S.
Check the waveform at
Check the waveform at
Check/Replace
Q301,302,303,304,305,306.
Check the waveform at pin78,80,82 of IC101S.
(From comp1,480i input)
Check the waveform at pin1,2,3 of IC401S.
(From comp1,480p/1080i input)
Check the waveform at pin7,8,9 of IC401S.
(From comp2,480p/1080i input)
YES
NO DVD/COMPONENT PICTURE(OPTION)
YES
NO
YESNO
YES
NO
IC501S,R540,R541. IC301, D301.
YES
Check the voltage
at pin 1,6 of IC301.
Check the waveform
at pin 12 of IC001.
Check the waveform
at pin 52,53 of IC501S.
Check / Replace
Check / Replace
IC201S,Q206.
Check /Replace
Check / Replace
FR359,FR360,D339,D349.
NO
pin121 of IC101.
Check the waveform at
YES
Q301.
Check /Replace
NO
pin111,112,113 of IC101.
Check the waveform at
YES
IC101.
Check /Replace
NO
IC501S.
Check /Replace

MEMO
- 19 -

- 20 -
PRINTED CIRCUIT BOARD
MAIN
