LG WT-32Q82IP User manual

COLOR TV
SERVICE MANUAL
CAUTION
BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
CHASSIS : MC-006A
MODEL:WT-32Q82IP
MODEL:WT-32Q81IP
website:http://biz.LGservice.com
e-mail:http://www.LGEservice.com/techsup.html
All manuals and user guides at all-guides.com

- 2 -
CONTENTS
Contents ................................................................................................................. 2
Safety Precautions ............................................................................................3
Specifications ..................................................................................................... 4
Control Descriptions ........................................................................................ 5
Disassembly Instructions ............................................................................. 8
Adjustment Instructions ............................................................................... 9
Trouble Shooting .............................................................................................. 19
Wiring Diagram ................................................................................................. 25
Exploded View .................................................................................................. 26
Exploded View Parts List..............................................................................27
Replacement Parts List ............................................................................... 28
SVC. Sheet ................................................................................................................
All manuals and user guides at all-guides.com

- 3 -

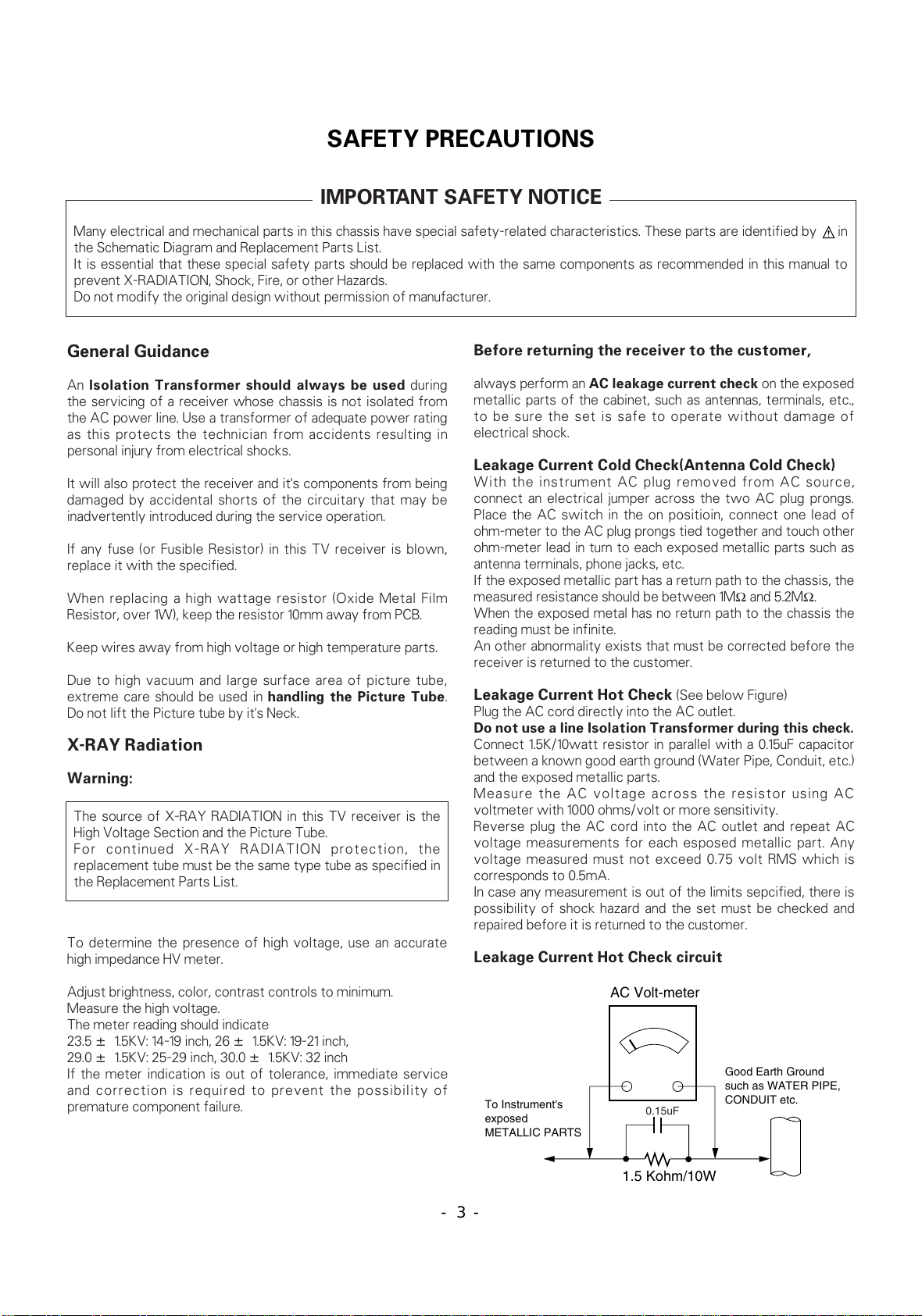

SAFETY PRECAUTIONS
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in
the Schematic Diagram and Replacement Parts List.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to
prevent X-RADIATION, Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
General Guidance
An lsolation Transformer should always be used during
the servicing of a receiver whose chassis is not isolated from
the AC power line. Use a transformer of adequate power rating
as this protects the technician from accidents resulting in
personal injury from electrical shocks.
It will also protect the receiver and it's components from being
damaged by accidental shorts of the circuitary that may be
inadvertently introduced during the service operation.
If any fuse (or Fusible Resistor) in this TV receiver is blown,
replace it with the specified.
When replacing a high wattage resistor (Oxide Metal Film
Resistor, over 1W), keep the resistor 10mm away from PCB.
Keep wires away from high voltage or high temperature parts.
Due to high vacuum and large surface area of picture tube,
extreme care should be used in handling the Picture Tube.
Do not lift the Picture tube by it's Neck.
X-RAY Radiation
Warning:
To determine the presence of high voltage, use an accurate
high impedance HV meter.
Adjust brightness, color, contrast controls to minimum.
Measure the high voltage.
The meter reading should indicate
23.5 ±1.5KV: 14-19 inch, 26 ±1.5KV: 19-21 inch,
29.0 ±1.5KV: 25-29 inch, 30.0 ±1.5KV: 32 inch
If the meter indication is out of tolerance, immediate service
and correction is required to prevent the possibility of
premature component failure.
Before returning the receiver to the customer,
always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc.,
to be sure the set is safe to operate without damage of
electrical shock.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source,
connect an electrical jumper across the two AC plug prongs.
Place the AC switch in the on positioin, connect one lead of
ohm-meter to the AC plug prongs tied together and touch other
ohm-meter lead in turn to each exposed metallic parts such as
antenna terminals, phone jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1MΩ and 5.2MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.
Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
Do not use a line Isolation Transformer during this check.
Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC
voltmeter with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC
voltage measurements for each esposed metallic part. Any
voltage measured must not exceed 0.75 volt RMS which is
corresponds to 0.5mA.
In case any measurement is out of the limits sepcified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.
Leakage Current Hot Check circuit
The source of X-RAY RADIATION in this TV receiver is the
High Voltage Section and the Picture Tube.
For continued X-RAY RADIATION protection, the
replacement tube must be the same type tube as specified in
the Replacement Parts List.
1.5 Kohm/10W
To Instrument's
exposed
METALLIC PARTS
Good Earth Ground
such as WATER PIPE,
CONDUIT etc.
AC Volt-meter
IMPORTANT SAFETY NOTICE
0.15uF
All manuals and user guides at all-guides.com

- 4 -

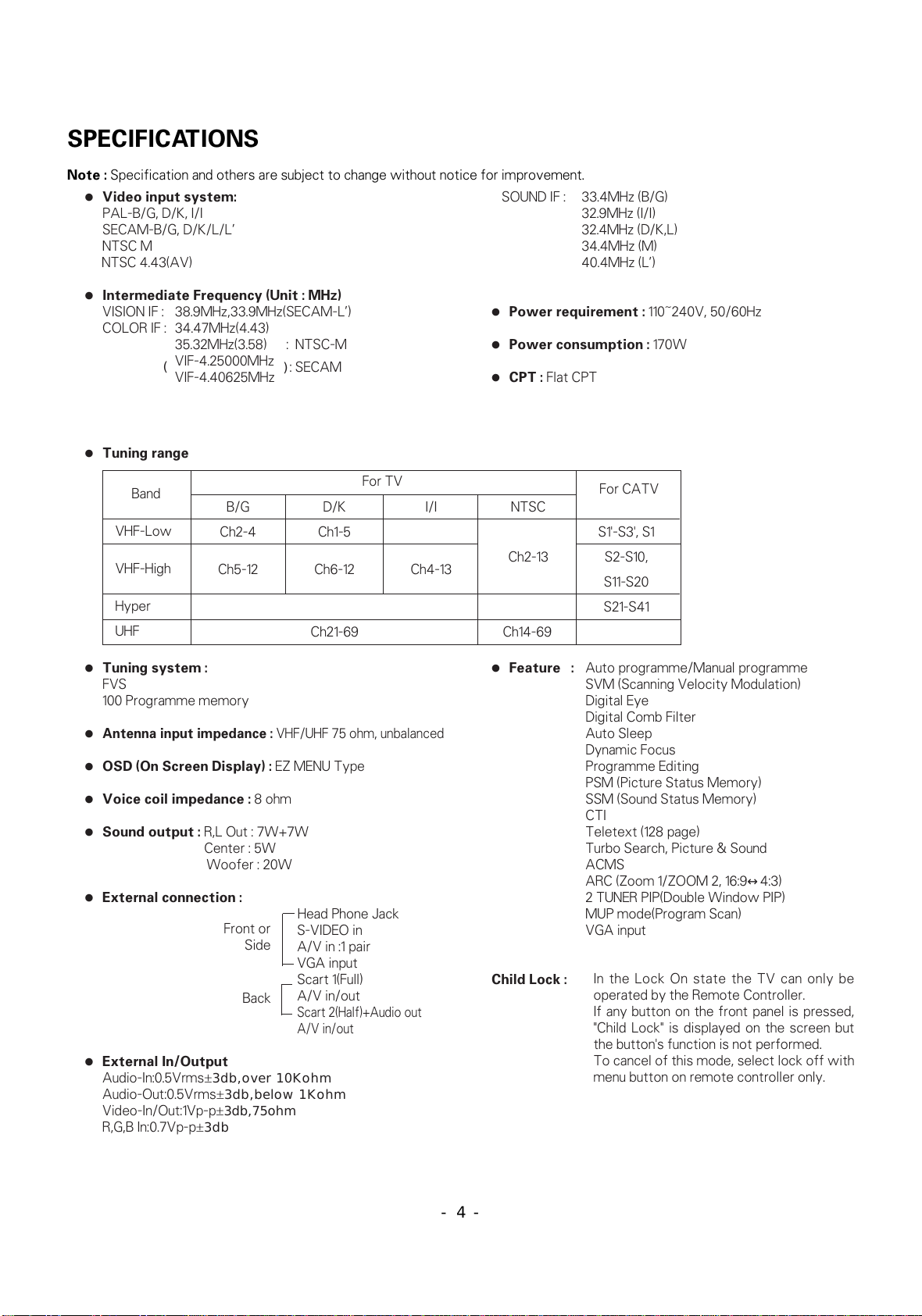

SPECIFICATIONS
Note : Specification and others are subject to change without notice for improvement.
OVideo input system:
PAL-B/G, D/K, I/I
SECAM-B/G, D/K/L/L’
NTSC M
NTSC 4.43(AV)
OIntermediate Frequency (Unit : MHz)
VISION IF : 38.9MHz,33.9MHz(SECAM-L’)
COLOR IF : 34.47MHz(4.43)
35.32MHz(3.58) : NTSC-M
VIF-4.25000MHz
VIF-4.40625MHz
SOUND IF : 33.4MHz (B/G)
32.9MHz (I/I)
32.4MHz (D/K,L)
34.4MHz (M)
40.4MHz (L’)
OPower requirement : 110~240V, 50/60Hz
OPower consumption : 170W
OCPT : Flat CPT
OTuning system :
FVS
100 Programme memory
O Antenna input impedance : VHF/UHF 75 ohm, unbalanced
OOSD (On Screen Display) : EZ MENU Type
OVoice coil impedance : 8 ohm
OSound output : R,L Out : 7W+7W
Center : 5W
Woofer : 20W
OExternal connection :
Head Phone Jack
S-VIDEO in
A/V in :1 pair
VGA input
Scart 1(Full)
A/V in/out
Scart 2(Half)+Audio out
A/V in/out
OExternal In/Output
Audio-In:0.5Vrms!3db,over 10Kohm
Audio-Out:0.5Vrms!3db,below 1Kohm
Video-In/Out:1Vp-p!3db,75ohm
R,G,B In:0.7Vp-p!3db
OFeature : Auto programme/Manual programme
SVM (Scanning Velocity Modulation)
Digital Eye
Digital Comb Filter
Auto Sleep
Dynamic Focus
Programme Editing
PSM (Picture Status Memory)
SSM (Sound Status Memory)
CTI
Teletext (128 page)
Turbo Search, Picture & Sound
ACMS
ARC (Zoom 1/ZOOM 2, 16:9↔4:3)
2 TUNER PIP(Double Window PIP)
MUP mode(Program Scan)
VGA input
Child Lock :
OTuning range
Band
VHF-Low
VHF-High
Hyper
UHF
S1'-S3', S1
S2-S10,
S11-S20
S21-S41
For TV For CATV
B/G
Ch2-4
Ch5-12
D/K
Ch1-5
Ch6-12
I/I
Ch4-13
NTSC
Ch2-13
Ch21-69 Ch14-69
In the Lock On state the TV can only be
operated by the Remote Controller.
If any button on the front panel is pressed,
"Child Lock" is displayed on the screen but
the button's function is not performed.
To cancel of this mode, select lock off with
menu button on remote controller only.
(): SECAM
Front or
Side
Back
All manuals and user guides at all-guides.com

- 5 -
DESCRIPTION OF CONTROLS
All the functions can be controlled with the remote control handset.
Some functions can also be adjusted with the buttons on the front
panel of the set.
Remote control handset
Before you use the remote control handset, please install the bat-
teries. See the next page.
1. POWER
switches the set on from standby or off to standby.
2. DRP (Digital Reality Picture)
switches DRP 1250 or 100.
3. TURBO SOUND BUTTON
selects Turbo sound.
4. PIP BUTTONS
PIP
switches the sub picture on or off.
PR +/ -
selects a programme for the sub picture.
SWAP
alternates between main and sub picture.
INPUT
selects the input mode for the sub picture.
SIZE
adjusts the sub picture size.
STILL
freezes motion of the sub picture.
POSITION
relocates the sub picture in clockwise direction.
2/12 PIP
switches on or off the programme scan mode through 12 sub
pictures.
5. MENU
selects a menu.
6. DD/ EE(Programme Up/Down)
selects a programme or a menu item.
switches the set on from standby.
FF/ GG(Volume Up/Down)
adjusts the volume.
adjusts menu settings.
OK
accepts your selection or displays the current mode.
7. NUMBER BUTTONS
switches the set on from standby or directly select a number.
8. PSM (Picture Status Memory)
recalls your preferred picture setting.
9. I/II
selects the language during dual language broadcast.
selects the sound output (option).
10. VCR BUTTONS
control a LG video cassette recorder.
123
456
7
PSM SSM
8
0
POSITION STILL
2/12PIP
MIX
REVEAL ?
M
TIME
SIZE
LIST
SLEEP
I/II ARC
STOP REC
P/STILL
REW FF
PLAY
9
POWER
DRP TV/AV
SOUND PICTURE
TURBO
PIP TEXT
PR - PR +
INPUTSWAP
MENU PR
VOL OK VOL
PR
MUTE
1
2
3
4
5
6
7
8
10
9
All manuals and user guides at all-guides.com

- 6 -
11. TV/AV
selects TV or AV mode.
clears the menu / text from the screen.
switches the set on from standby.
12. TURBO PICTURE BUTTON
selects Turbo picture.
13. TELETEXT BUTTONS
These buttons are used for teletext.
For further details, see the ‘Teletext’ section.
14. SWAP
returns to the previously viewed programme.
15. MUTE
switches the sound on or off.
16. SSM (Sound Status Memory)
recalls your preferred sound setting.
17. LIST
displays the programme table.
18. SLEEP
sets the sleep timer.
19. ARC (Aspect Ratio Control)
changes the picture format.
Note : In teletext mode, the PR +/
- ,SWAP and INPUT buttons are
used for teletext function.
Battery installation
The remote control handset is powered by two AAA type batteries.
To load the batteries, turn the remote control handset over and
open the battery compartment. Install two batteries as indicated by
the polarity symbols ( and ) marked inside the compartment.
Note : To avoid damage from possible battery leakage, remove the
batteries if you do not plan to use the remote control handset for an
extended period of time.
+
-
123
456
7
PSM SSM
8
0
POSITION STILL
2/12PIP
MIX
REVEAL ?
M
TIME
SIZE
LIST
SLEEP
I/II ARC
STOP REC
P/STILL
REW FF
PLAY
9
POWER
DRP TV/AV
SOUND PICTURE
TURBO
PIP TEXT
PR - PR +
INPUTSWAP
MENU PR
VOL OK VOL
PR
MUTE
11
12
13
14
15
16
19
17
18
All manuals and user guides at all-guides.com

- 7 -
1. POWER/STANDBY INDICATOR
illuminates red when the set is in standby
mode and green when the set is switched on.
2. REMOTE CONTROL SENSOR
3. MAIN POWER (POWER vv)
switches the set on or off.
4. HEADPHONE SOCKET
Connect the headphone plug to this socket.
5. AUDIO/VIDEO IN SOCKETS (AV4)
Connect the audio/video out sockets of exter-
nal equipment to these sockets.
S-VIDEO/AUDIO IN SOCKETS (S-AV)
Connect the video out socket of an S-VIDEO
VCR to the S-VIDEO socket.
Connect the audio out sockets of the S-
VIDEO VCR to the audio sockets as in AV4.
6. TV/AV (option)
selects TV or AV mode.
clears the menu / text from the screen.
switches the set on from standby.
7. MENU
selects a menu.
8. OK
accepts your selection or displays the current
mode.
FF/ GG(Volume Up/Down)
adjusts the volume.
adjusts menu settings.
DD/ EE(Programme Up/Down)
selects a programme or a menu item.
switches the set on from standby.
9. PC INPUT SOCKET
Connect the monitor output socket of the
PERSONAL COMPUTER to this socket.
Note : Set the resolution of PC to VGA
640x480 (60 Hz) video mode to use this set as
PC monitor.
POWER S-VIDEO
VIDEO AUDIO
AV4
H/P
L/MONO R
POWER
5
TV/AV MENU OK VOL PR
ANT IN
69
78
132 4
Front panel
Back panelTop panel
All manuals and user guides at all-guides.com

- 8 -
Fig. 2-1 Fig. 2-2
CPT
PCB
Remove
Screws
Power
PCB
Main PCB Main 2 PCB
Memory
PCB
Control
PCB
100Hz
PCB
DISASSEMBLY INSTRUCTIONS
Important note
This set is disconnected from the power supply through the
converter transformer. An isolating transformer is necessary
for service operations on the primary side of the converter
transformer.
Back Cabinet Removal
Remove the screws residing on the back cabinet and carefully
separate the back cabinet from the front cabinet. (Fig. 2-1).
Chassis Assy Removal
Grasp both side of Frame and pull it backward smoothly.
Speaker Assy Removal
1. Remove P1651 and P1652 connector from Main2 (Power/Def./
Sound-Amp) Board.
2. Remove respective 6 screws for speaker on the front
cabinet. (Fig. 2-2).
CPT Removal
1. Pull out the CPT board from the CPT neck.
2. Place the front cabinet on soft material not to mar the front
surface or damage control knobs.
3. Remove 4 screws securing the picture tube mounting
brackets to the front cabinet.
4. Carefully separate CPT from the front cabinet.
PICTURE TUBE HANDLING CAUTION
Due to high vacuum and large surface area of picture tube, great
care must be exercised when handling picture tube. Always lift
picture tube by grasping it firmly around faceplate.
NEVER LIFT TUBE BY ITS NECK! The picture tube must not be
scratched or subjected to excessive pressure as fracture of
glass may result in an implosion of considerable violence which
can cause personal injury or property damage.
All manuals and user guides at all-guides.com

- 9 -
□Safety Precautions
1. It is safe to adjust after using insulating transformer between
the power supply line and chassis input to prevent the risk of
electric shock and protect the instrument.
2. Never disconnect leads while the TV receiver is on.
3. Don't short any portion of circuits while power is on.
4. The adjustment must be done by the correct appliances.
5. Unless otherwise noted, set the line voltage to 230Vac!10%,
50Hz.
5. The adjustment of TVshould be performed after warming up
for 15 minutes.
□Test Equipment required
1. RF signal generator (with pattern generator)
2. DC Power Supply
3. Multimeter (volt meter)
4. Oscilloscope
5. Color analyzer
O Focus Adjustment
1) Tune the TV set to receive a digital pattern.
2) Adjust the upper Focus volume of FBT for the best focus of
vertical line B.
3) Adjust the lower Focus volume of FBT for the best focus of
area A.
4) Repeat above step 2) and 3) for the best overall focus.
O Screen Voltage Adjustment
1) Turn the TV set on.
2) This adjustment should be performed after warming up for
more than 15 minutes.
3) Enter the SVC mode by pressing the SVC button on remote
controller and make a horizontal line by pressing the H-LINE
button.
4)Finish adjusting at the point when the horizontal line appears
again after adjusting screen volume until the horizontal line
disappear.
OWhite Balance Adjustment
NOTE : This adjustment should be performed after screen
voltage adjustment.
1) Tune the TV set to receive an 100% white pattern.
2) Press Channel UP/DOWN button for desirous function
Adjustment.
3) Press Volume UP/DOWN button to adjust the data.
4) Adjust until “CONTRAST” and “BRIGHT” become 3.5 Ft_L
5) Enter the SVC mode by pressing the SVC button.
6) Adjust the Y value of High Light with G-DRIVE and adjust the
X value with B-DRIVE until they have the color coordinate of
High Light as below.
7) Adjust until “CONTRAST” and “BRIGHT” become 4.5 Ft_L
8) Enter the adjustment mode by pressing the SVC button.
9) Adjust the Y value of Low Light with G-CUTOFF and adjust
the X value with B-CUTOFF until they have the color
coordinate of Low Light as below.
10) Repeat adjusting until the color coordinate of High and Low
Light is satisfied.
11) Check the adjusted color coordinate with a white balance
meter.
ODeflection Data Adjustment
1) Deflection Data Adjustment should be performed with the
remote controller for handset.
2) Enter the SVC mode by pressing the SVC button.
3) Enter the Deflection Adjustment mode by pressing the
ADJUST button.
4) Press the Channel UP/DOWN button to select adjustment
items.
5) Press the Volume UP/DOWN button to adjust the data.
6) The TV set receives PAL-B/G Digital pattern.
VS (Vertical Shift)
Adjust so that the horizontal center line of a digital circle
pattern is in accord with geometric horizontal center of the
CPT.
ADJUSTMENT INSTRUCTIONS
Test Point : Observing Display
Adjust : Focus control of FBT
b
AB
Fig. 1
Color Tem.
13000K
9000K
266!
8
288! 8
273! 8
295! 8
NON EU
EU
XYMemo
Menu
RD
GD
BD
RC
GC
BC
20
1E
20
1F
1F
1F
LG 29” FLAT LG 29” S/F LG 32” FLAT
All manuals and user guides at all-guides.com

- 10 -
VA (Vertical Amplitude)
Adjust so that the circle of a digital circle pattern may be
located within the effective screen of the CPT.
HS (Horizontal Shift)
Adjust so that the vertical center line of a digital circle pattern
is in accord with geometric vertical center of the CPT.
EW (Horizontal Width)
Adjust to that a digital circle pattern looks like exact circle.
A-BOW
In line adjustment, not to change default value is basic.
A-ANG
In angle adjustment, adjust until inclination of left and right
screen should be precise.
EP (East-west Parabolar)
Adjust so that middle portion of the outermost left and right
vertical line looks like parallel with vertical lines of the CPT.
UC
Adjust until the vertical lines at upper left and right corner
of the screen become straight after EP adjustment.
LC
Adjust until the vertical lines at lower left and right corner
of the screen become straight after EP adjustment.
SC (Vertical “S” Correction)
Adjust so that all distance between each horizontal lines
are to be the same.
VL (Vertical Linearity)
Adjust so that the boundary line between upper and lower
half is in accord with geometric horizontal center of the CPT.

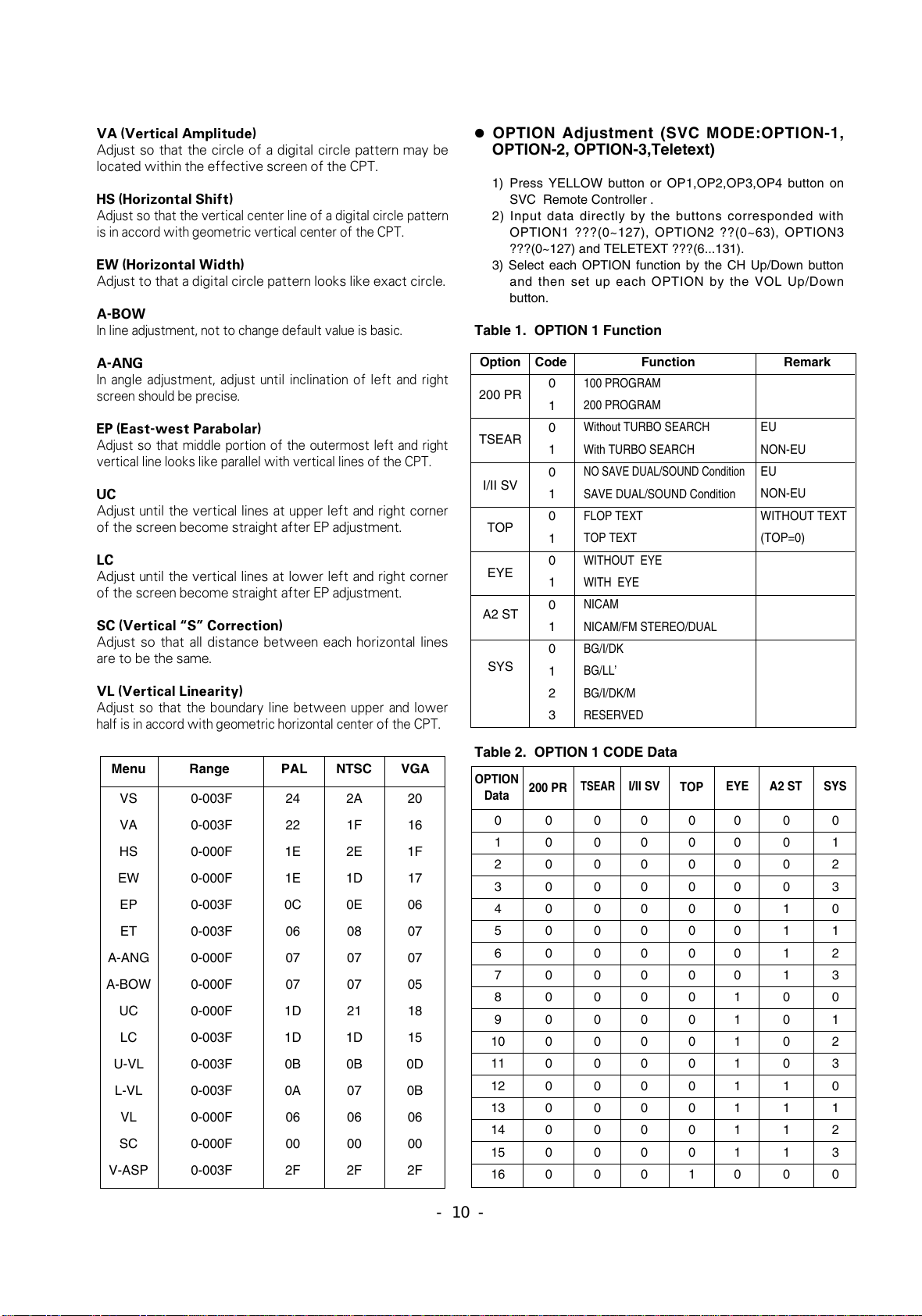

O OPTION Adjustment (SVC MODE:OPTION-1,
OPTION-2, OPTION-3,Teletext)
1) Press YELLOW button or OP1,OP2,OP3,OP4 button on
SVC Remote Controller .
2) Input data directly by the buttons corresponded with
OPTION1 ???(0~127), OPTION2 ??(0~63), OPTION3
???(0~127) and TELETEXT ???(6...131).
3) Select each OPTION function by the CH Up/Down button
and then set up each OPTION by the VOL Up/Down
button.
Table 1. OPTION 1 Function
Table 2. OPTION 1 CODE Data
Menu
VS
VA
HS
EW
EP
ET
A-ANG
A-BOW
UC
LC
U-VL
L-VL
VL
SC
V-ASP
0-003F
0-003F
0-000F
0-000F
0-003F
0-003F
0-000F
0-000F
0-000F
0-003F
0-003F
0-003F
0-000F
0-000F
0-003F
24
22
1E
1E
0C
06
07
07
1D
1D
0B
0A
06
00
2F
2A
1F
2E
1D
0E
08
07
07
21
1D
0B
07
06
00
2F
20
16
1F
17
06
07
07
05
18
15
0D
0B
06
00
2F
Range PAL NTSC VGA
EU
NON-EU
EU
NON-EU
WITHOUT TEXT
(TOP=0)
EYE
A2 ST
SYS
TOP
I/II SV
TSEAR
200 PR
Option Code
0
1
0
1
0
1
0
1
0
1
0
1
0
1
2
3
Function Remark
100 PROGRAM
200 PROGRAM
Without TURBO SEARCH
With TURBO SEARCH
NO SAVE DUAL/SOUND Condition
SAVE DUAL/SOUND Condition
FLOP TEXT
TOP TEXT
WITHOUT EYE
WITH EYE
NICAM
NICAM/FM STEREO/DUAL
BG/I/DK
BG/LL’
BG/I/DK/M
RESERVED
OPTION
Data 200 PR
TSEAR I/II SV TOP A2 ST SYS
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
EYE
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
All manuals and user guides at all-guides.com

- 11 -

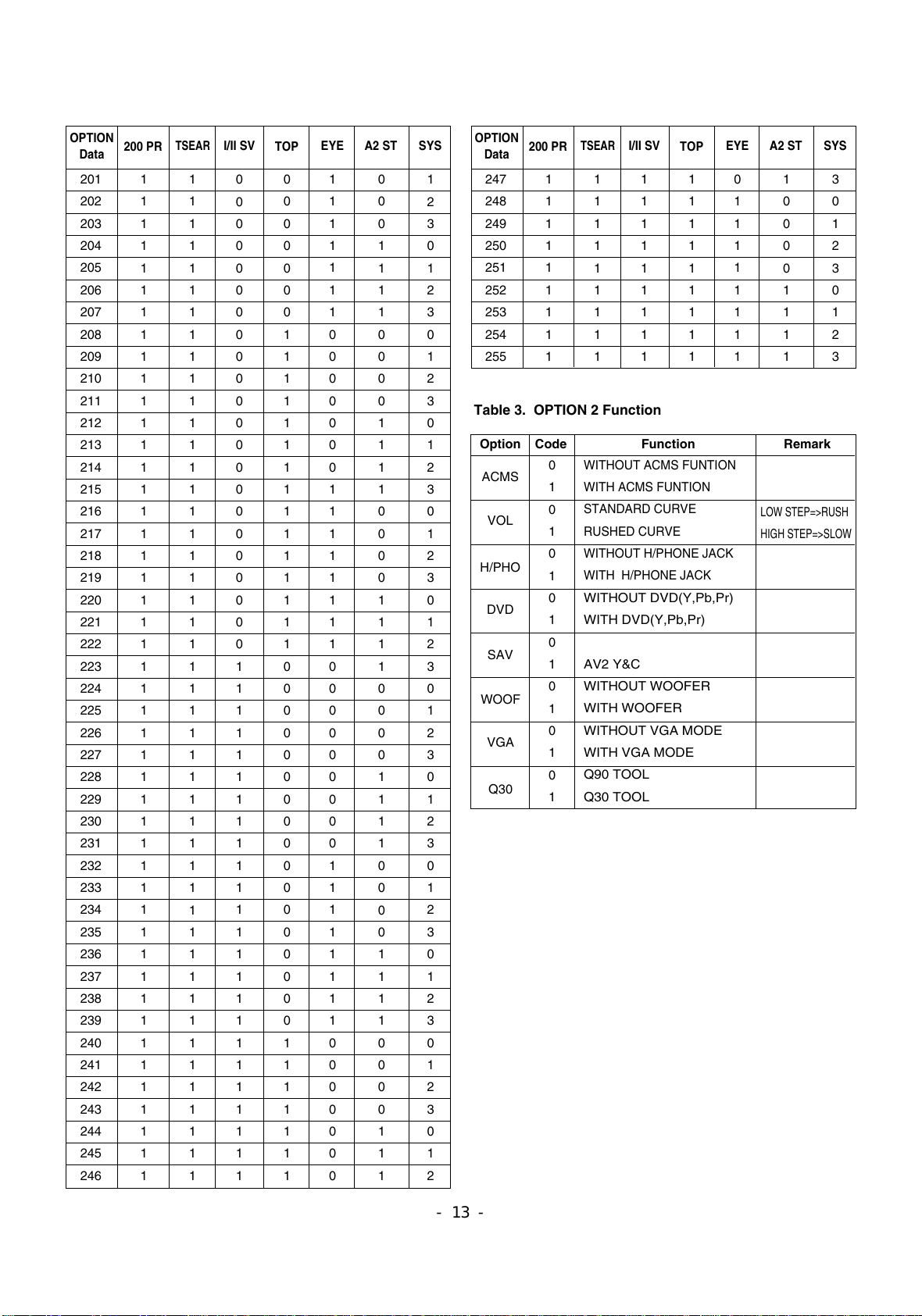

OPTION
Data 200 PR
TSEAR I/II SV TOP A2 ST SYS
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
EYE
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
OPTION
Data 200 PR
TSEAR I/II SV TOP A2 ST SYS
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
EYE
1
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
1
1
1
1
1
All manuals and user guides at all-guides.com

- 12 -
OPTION
Data 200 PR
TSEAR I/II SV TOP A2 ST SYS
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
EYE
1
1
1
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
1
1
1
OPTION
Data 200 PR
TSEAR I/II SV TOP A2 ST SYS
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
EYE
1
1
1
1
1
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
1
All manuals and user guides at all-guides.com

Table 3. OPTION 2 Function
- 13 -
OPTION
Data 200 PR
TSEAR I/II SV TOP A2 ST SYS
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
EYE
1
1
1
1
1
1
1
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
OPTION
Data 200 PR
TSEAR I/II SV TOP A2 ST SYS
247
248
249
250
251
252
253
254
255
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
1
1
1
1
3
0
1
2
3
0
1
2
3
EYE
0
1
1
1
1
1
1
1
1
LOW STEP=>RUSH
HIGH STEP=>SLOW
SAV
WOOF
VGA
Q30
DVD
H/PHO
VOL
ACMS
Option Code
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
Function Remark
WITHOUT ACMS FUNTION
WITH ACMS FUNTION
STANDARD CURVE
RUSHED CURVE
WITHOUT H/PHONE JACK
WITH H/PHONE JACK
WITHOUT DVD(Y,Pb,Pr)
WITH DVD(Y,Pb,Pr)
AV2 Y&C
WITHOUT WOOFER
WITH WOOFER
WITHOUT VGA MODE
WITH VGA MODE
Q90 TOOL
Q30 TOOL
All manuals and user guides at all-guides.com

- 14 -
DATA ACMS
VOL
H/PHO DVD
WOOFER
Q30
VGA
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
SAV
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
1
1
1
1
1
Table 4. OPTION 2 CODE Data
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
DATA ACMS
VOL
H/PHO DVD WOOFER
Q30
VGA
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
SAV
1
1
1
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
1
1
1
All manuals and user guides at all-guides.com

- 15 -
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
DATA ACMS
VOL
H/PHO DVD WOOFER
Q30
VGA
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
SAV
1
1
1
1
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
1
1
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
DATA ACMS
VOL
H/PHO DVD WOOFER
Q30
VGA
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
SAV
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
All manuals and user guides at all-guides.com

- 16 -
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
DATA ACMS
VOL
H/PHO DVD WOOFER
Q30
VGA
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
SAV
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
DATA ACMS
VOL
H/PHO DVD WOOFER
Q30
VGA
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
SAV
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
Table 5. OPTION 3 Function
CH+AU
EU
WIDE
Option Code
0
1
0
1
0
1
Function Remark
4:3 TV
16:9 TV
NON EU
EU
Without D/K CHINA or BB
With D/K CHINA or BB
Table 6. OPTION 3 CODE Data
0
32
64
96
128
160
DATA WIDE
0
0
0
0
1
1
EU CH+AU
0
0
1
1
0
0
0
1
0
1
0
1
192
224
DATA WIDE
1
1
EU CH+AU
1
1
0
1
All manuals and user guides at all-guides.com

- 17 -
CODE
0
1
2
3
4
5
6
7
8
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
OPTION
LANG
T LAN
Language
E Only
English+EU 4
English+Other EU
English+FARSI
English+Arab+URDU
English+India
English+East-South Asia
English+THAI
English+China
West Europe
East Europe
Turkey
Czecho/Hungary
Cyrillic 1
Cyrillic 2
Cyrillic 3
Turkey/Greek 1
Turkey/Greek 2
Turkey/Greek 3
Arab/France
Arab/English
Arab/Hebrew 1
Arab/Hebrew 2
Farsi/English
Farsi/France
Farsi all
Funciton
English
English/German/French/Italian/Spanish
English/Dutch/Swedish/Norwegian/Danish/Swiss/Portuguess/Roman
ian/Polish/Hungarian/Czech/Russian
English/Farsi
English/French/Arab+Urdu
English/Swedish/Norwegian/Danish/Finish
English/Indonesian/Malaysian/Vietnamese
English/Thai
English/China
English/French/Swedish/Czech/German/Spanish/Itallian
Polish/Fench/Swedish/Czech/German/Slovenian/Italian/Romanian
English/French/Swedish/Turkish/German/Spanish/Itallian
English/Hungarian/Serbian/Czech/German/Polish/Spanish/Itallian/
Romanian
Table 7. OPTION 4 Funtion
All manuals and user guides at all-guides.com

Table 8. OPTION 4 Code Data
- 18 -
LANG
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
2
2
TLAN
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
0
1
2
DATA
000
001
002
003
004
005
006
007
008
009
010
011
012
013
014
015
016
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
200
201
202
LANG
2
2
2
2
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
TLAN
3
4
5
6
7
8
9
10
11
12
13
14
15
16
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
0
1
2
3
4
5
DATA
203
204
205
206
207
208
209
210
211
212
213
214
215
216
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
400
401
402
403
404
405
LANG
4
4
4
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
6
6
6
6
6
6
6
6
6
TLAN
6
7
8
9
10
11
12
13
14
15
16
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
0
1
2
3
4
5
6
7
8
DATA
406
407
408
409
410
411
412
413
414
415
416
500
501
502
503
504
505
506
507
508
509
510
511
512
513
514
515
516
600
601
602
603
604
605
606
607
608
LANG
6
6
6
6
6
6
6
6
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
8
8
8
8
8
8
8
8
8
8
8
8
TLAN
9
10
11
12
13
14
15
16
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
0
1
2
3
4
5
6
7
8
9
10
11
DATA
609
610
611
612
613
614
615
616
700
701
702
703
704
705
706
707
708
709
710
711
712
713
714
715
716
800
801
802
803
804
805
806
807
808
809
810
811
LANG
8
8
8
8
8
TLAN
12
13
14
15
16
812
813
814
815
816
DATA
All manuals and user guides at all-guides.com

- 19 -
Trouble Shooting
18V
Q401, Q402, T401.
(OPTION)
33V
FR848,D811,R407.
D813,L801,IC804,R811,R812.
3V
pin 2 of FBT.
3.3V 0V
Q12,Q851,Q852,Q853,D813
Check pin 42 of IC01.
Check / Replace
Check / Replace
IC801 and the
secondary part of
POWER circuit.
Check / Replace
D802,R801,R857.
Check / Replace
SW1101,F1101,T801,D801,R802.
Check / Replace
Check / Replace Check / Replace
ICP(V)01
Check / Replace
Q804,Q805,R813,ZD801
Check / Replace
IC1,IC301,FR359,FR360,
D339,D349
Check / Replace
Check the voltage at
pin 9 of STR.
Check the voltage at
pin 50 of IC01.
Check the voltage at
Check the voltage of C828(+).
Check the voltage of C834(+).
pin 50 of ICP(V)01.
Check the H-OUT voltage at
135V
All manuals and user guides at all-guides.com

- 20 -
Check if heater element is lighting.
Check the heater voltage.
Increase the screen
Check/Replace
FR442,R910.
Check/Replace
CPT.
Check/Replace
IC501,IC701,IC702.
Check/Replace
CPT PCB ASSY.
Check/Replace
Q210,Q204,IC201.
Check/Replace
TU101.
Retrace line is Screen is black.
visible.
Check the waveform
at pin 12 of P501A.
Check the waveform
at pin 26,28,30 of IC702.
Check the waveform
at pin 24 of TU101.
Check FBT & CPT socket
& CPT.
voltage of FBT.
'
Q2902,Q2907,Q2908,Q2909
Check / Replace
IC702.
Check / Replace
at pin 45 of IC702.
Check the waveform
Q2910,FR2948,VM coil.
All manuals and user guides at all-guides.com
