LG 32LT560H User manual

EZ-Manager Wizard
pages 12 – 20
Custom Master TV Setup
pages 35 – 37
Cloning Procedures
pages 38 – 43
EXPERIENCED INSTALLER
Commercial Mode Setup Guide
Note: Selected features shown in this guide may not be available on all models.
Lodging Guest Interactive Pro:Centric ®TVs
© Copyright 2019 LG Electronics U.S.A., Inc. P/N: 206-4339 (Rev A)
32LT560H
43LT560H
49LT560H

2206-4339
MODEL and SERIAL NUMBER
The model and serial numbers of this TV are located on the
back of the cabinet. For future reference, LG suggests that you
record those numbers here:
Model No._________________ Serial No._______________
WARNING:
TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER-
SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the
presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the literature accompanying the appliance.
WARNING:
TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
WARNING:
This product contains chemicals known to the State of California to cause cancer and birth defects or other
reproductive harm. Wash hands after handling.
NOTE TO CABLE/TV INSTALLER:
This reminder is provided to call the cable TV system installer’s attention to Article 820-40 of the National Electrical Code
(U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be
connected to the grounding system of the building, as close to the point of the cable entry as practical.
REGULATORY INFORMATION:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is
operated in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Do not attempt to modify this product in any way without written authorization from LG Electronics U.S.A., Inc.
Unauthorized modification could void the user’s authority to operate this product.
COMPLIANCE:
The responsible party for this product’s compliance is: LG Electronics U.S.A., Inc.
1000 Sylvan Avenue, Englewood Cliffs, NJ 07632, USA • Phone: [phone]
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
For Customer Support/Service, please call:
1-888-865-3026
The latest product information and documentation is
available online at:
www.lg.com/us/business
Marketed and Distributed in the United States by LG Electronics U.S.A., Inc.
1000 Sylvan Avenue, Englewood Cliffs, NJ 07632
© Copyright 2019 LG Electronics U.S.A., Inc.

3
206-4339
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accor-
dance with the manufacturer’s instructions.
8. Do not install near any heat sources, such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding-type plug
has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If
the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched,
particularly at plugs, convenience receptacles, and the
point where it exits from the apparatus.
11. Only use attachments/accessories specified by the
manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table
specified by the manufacturer or sold with the apparatus.
When a cart is used, use caution when moving the cart/
apparatus combination in order to avoid injury from
tip-over.
13. Refer all servicing to qualied service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally,
or has been dropped.
14. Never touch this apparatus or antenna during a thunder or
lightning storm.
15. Do not apply pressure on or scratch the TV panel during
handling. Do not press against the TV panel with your hand
or a sharp object such as a nail, pencil, or pen.
16. Power Cord
Caution: Check the TV specifications in the Owner’s
Manual to determine power requirements.
Periodically examine the cord of your appliance, and if its
appearance indicates damage or deterioration, unplug it,
discontinue use of the appliance, and have the cord replaced
with an exact replacement part by an authorized servicer.
Protect the power cord from physical or mechanical abuse,
such as twisting, kinking, or pinching or being closed in a
door or walked upon. Pay particular attention to plugs, wall
outlets, and the point where the cord exits the appliance.
Do not use a damaged or loose power cord. Be sure to grasp
the plug when unplugging the power cord. Do not pull on the
power cord to unplug the TV.
Do not stick metal objects or any other conductive material
into the power cord. Do not touch the end of the power cord
while it is plugged in.
17. Overloading
Do not connect too many appliances to the same AC power
outlet as this could result in fire or electric shock. Do not
overload wall outlets. Overloaded wall outlets, loose or
damaged wall outlets, extension cords, frayed power cords,
or damaged or cracked wire insulation are dangerous. Any of
these conditions could result in re or electric shock.
18. Outdoor Use/Wet Location
Warning: To reduce the risk of re or electrical
shock, do not expose this product to rain,
moisture or other liquids.
Do not touch the TV with wet hands. Do not install this product
near ammable objects such as gasoline or candles or expose
the TV to direct air conditioning.
Do not expose to dripping or splashing and do not place
objects lled with liquids, such as vases, cups, etc., on or over
the apparatus (e.g., on shelves above the unit).
19. Grounding
(Except for devices that are not grounded) Ensure that you
connect the earth ground wire to prevent possible electric
shock (i.e., a TV with a three-prong grounded AC plug must be
connected to a three-prong grounded AC outlet). If grounding
methods are not possible, have a qualied electrician install
a separate circuit breaker. Do not try to ground the unit by
connecting it to telephone wires, lightning rods, or gas pipes.
20. Disconnect Device
The power plug is the disconnecting device. The power plug
must remain readily accessible.
As long as this unit is connected to the AC wall outlet, it is not
disconnected from the AC power source even if the unit is
turned off.
(Continued on next page)
IMPORTANT SAFETY INSTRUCTIONS
PORTABLE CART WARNING

4206-4339
(Continued from previous page)
21. Outdoor Antenna Grounding
If an outside antenna or cable system is connected to the
product, follow the precautions below.
An outdoor antenna system should not be located in the
vicinity of overhead power lines or other electric light or power
circuits or where it can come into contact with such power
lines or circuits as death or serious injury can occur.
Be sure the antenna system is grounded so as to provide
some protection against voltage surges and built-up static
charges.
Article 810 of the National Electrical Code (NEC) in the U.S.A.
provides information with respect to proper grounding of the
mast and supporting structure, grounding of the lead-in wire
to an antenna-discharge unit, size of grounding conductors,
location of antenna-discharge unit, connection to grounding
electrodes, and requirements for the grounding electrode.
Antenna Grounding According to NEC, ANSI/NFPA 70
22. Cleaning
When cleaning, unplug the power cord and wipe gently with
a soft cloth to prevent scratching. Do not spray water or other
liquids directly on the TV as electric shock may occur. Do not
clean with chemicals such as alcohol, thinners or benzene.
23. Transporting Product
Make sure the TV is turned off and unplugged and that all
cables have been removed. It may take two or more people
to carry larger TVs. Do not press against or put stress on the
front panel of the TV.
24. Ventilation
Install the TV where there is proper ventilation. Do not install
in a conned space such as a bookcase. Do not cover the TV
with cloth or other materials (e.g., plastic) while it is plugged
in. Do not install in excessively dusty places.
25. If you smell smoke or other odors coming from the TV or
hear strange sounds, unplug the power cord, and contact an
authorized service center.
26. Keep the product away from direct sunlight.
27. When mounting a TV on the wall, make sure that none of the
electrical cabling bears any of the weight of the TV. Install in
accordance with the manufacturer’s instructions.
28. Do not install this product on a wall if it could be exposed to
oil or oil mist. This may damage the product and cause it to
fall.
29. Do not allow an impact shock or any objects to fall into the
product, and do not drop objects onto the screen.
30. Do not touch the ventilation openings, as they may become
hot while the TV is operating. This does not affect the perfor-
mance of the product or cause defects in the product.
31. Do not use high voltage electrical equipment near the TV
(e.g., a bug zapper). This may result in product malfunction.
32. Dot Defect
This panel is an advanced product that contains millions of
pixels. In a very few cases, you could see ne dots on the
screen while you are viewing the TV. Those dots are deacti-
vated pixels and do not affect the performance and reliability
of the TV.
33. Generated Sound
“Cracking”: A cracking noise that occurs while the TV is
on or when it is turned off is generated by plastic thermal
contraction due to temperature and humidity. This noise is
common for products where thermal deformation is required.
Electrical circuit humming/panel buzzing: A low level noise is
generated from a high-speed switching circuit, which supplies
a large amount of current to operate a product. It varies
depending on the product. This generated sound does not
affect the performance and reliability of the product.
34. If the TV feels cold to the touch, there may be a small “icker”
when it is turned on. This is normal; there is nothing wrong
with the TV. Some minute dot defects may be visible on the
screen, appearing as tiny red, green, or blue spots. However,
they have no adverse effect on the TV’s performance. Avoid
touching the screen or holding your nger(s) against it for
long periods of time. Doing so may produce some temporary
distortion effects on the screen.
35. Displaying a still image for a prolonged period of time may
cause image burn-in. Avoid displaying a xed image on the
TV screen for an extended length of time.
IMPORTANT SAFETY INSTRUCTIONS
Antenna Lead in Wire
Antenna Discharge Unit
(NEC Section 810-20)
Grounding Conductor
(NEC Section 810-21)
Ground Clamps
Power Service Grounding
Electrode System (NEC
Art 250, Part H)
Ground Clamp
Electric Service
Equipment

5
206-4339
Table of Contents
Safety Warnings .................................. 2
Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . 3 – 4
Table of Contents ................................. 5
Commercial Mode Overview .....................6 – 9
Setup Checklist ................................. 6
Pass-through Mode.............................. 6
FTG Mode..................................... 7
Determining the TV Operating Mode ................ 9
Pro:Centric Operation ........................10 – 11

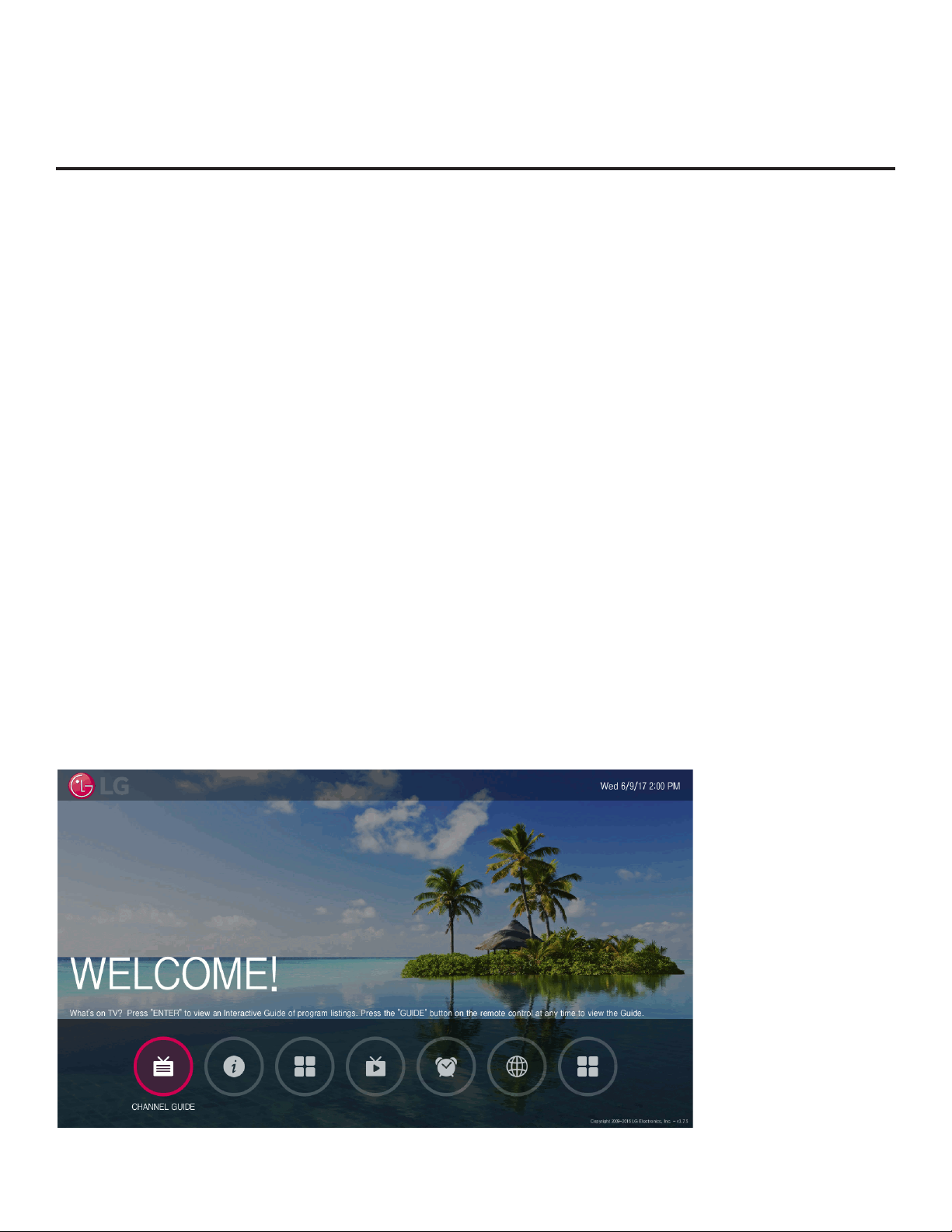

Interactive Menu Features ....................... 10
Interactive Menu Navigation ...................... 10
Pro:Centric Java Application Setup .................11
EZ-Manager Wizard ..........................12 – 20
Before You Begin .............................. 12
Initiate Configuration or Exit the EZ-Manager Wizard .. 12
TV Configuration Options.......................... 13
Zone and Room Number Assignments .............. 14
Configure Pro:Centric Settings .................... 15
USB Configuration ............................. 18
Ez Download Utility ..........................21 – 24
Before You Begin .............................. 21
Accessing and Using the Ez Download Utility ........ 21
Installer Menu ...............................25 – 34
Accessing the Installer Menu ..................... 25
Navigating Within the Installer Menu ............... 26
Modifying Installer Menu Settings.................. 26
Exiting the Installer Menu and Activating Settings ..... 26
Detailed Descriptions of Installer Menu Items ........ 29
Custom Master TV Setup......................35 – 37
Before You Begin .............................. 35
Clonable TV Setup Menu Features ................ 35
Custom Master TV Setup Procedure ............... 36
Cloning Procedures ..........................38 – 43
Exporting a Clone File .......................... 38
Importing a Clone File........................... 40
Cloud Configuration Tool Overview .............44 – 49
Creating an FTG Configuration File ................ 44
File Manager Web Page Overview................. 47
Channel Map Web Page Overview................. 48
Installer Menu Web Page Overview ................ 49
IP Environment Setup ........................50 – 54
Accessing the IP Environment Menu ............... 50
Configuring the Network Connection ............... 50
Network Status ................................ 52
Pro:Centric Setup .............................. 52
References
Updating TV/PTC Software using a USB Memory
Device......................................55 – 56
Downloading a Boot Logo Image using a USB
Memory Device ..............................57 – 58
Power Consumption Settings....................... 59
TV Aux Input Configuration ........................ 60
Auto Input(s) Sensing Feature ...................61 – 62
Restoring Factory Defaults on the TV(s) .............. 63
Using the TV Zoning Feature....................64 – 66
LT560H Rear and Side Jack Panels ................. 67
External Stereo Speaker Specifications............... 68
Installer Remote Control Typical Key Functions ........ 69
TLT Communication Parameters .................70 – 76
Troubleshooting ..............................77 – 78
General Troubleshooting......................... 77
Commercial Mode Check . . . . . . . . . . . . . . . . . . . . . . . . . 78
Glossary of Terms ............................... 79
Document Revision History / Open Source Software
Notice ......................................... 80
Back Cover..................................... 81
Notes
• Installer Menu content is intended for use primarily by qualied TV electronics technicians.
• Refer to the applicable Owner’s Manual and/or Easy Setup Guide for additional information on TV installation, specications, maintenance,
and safety instructions.
• Design and specications subject to change without prior notice. This document provides examples of typical TV displays. Your displays
may vary from those shown in this document.

6206-4339
Commercial Mode Overview
This document describes how to set up LT560H Pro:Centric ®TVs for Commercial Mode operation. LG
commercial TV functionality is based on “ownership” of the Channel Map; that is, the Channel Map resides
in the TV’s CPU or Protocol Translation Controller (PTC) or it resides in a Pro:Centric application or an
external device from the solution provider.
These TV models support several different operational modes: LG’s Free-To-Guest (FTG) Mode via the TV
CPU or Pass-through Mode (default). When in Pass-through Mode, these TV models can also be externally
controlled via Multiple Protocol Interface (MPI) or TV-Link Tuner (TLT) interface (RS-232C).
Setup Checklist
Note: This document provides information specific to Commercial Mode operation. Refer to the Owner’s
Manual and/or Easy Setup Guide for information on TV installation and hardware and cable connections.
Installation
__ Unpack TV and all accessories.
__ Install batteries in the Installer Remote.
__ Install TV on VESA mount or stand.
Note: It may be advisable to make all cable
connections before installing on VESA mount
or stand, as appropriate.
Hardware Connections
__ Install any additional hardware as
appropriate to your institution, LAN, etc.
Cable Connections
__ Make all rear jack panel connections, as
appropriate.
Commercial Mode Setup
__ Complete appropriate procedures as described
in this document for Commercial Mode operation.
Pass-through Mode
This mode allows you to configure individual TVs for Pro:Centric and/or FTG Mode operation. This mode
also allows external control via either the MPI port or the TLT (RS-232C) port on the TV rear jack panel.
There are two methods for configuring individual TVs that are currently in Pass-through Mode: either
using the EZ-Manager Wizard or the Custom Master TV Setup procedure as described in this document.
EZ-Manager Wizard
When the TV is in a factory default state, the EZ-Manager Wizard provides automated or manual options
for conguring essential items for Pro:Centric operation and also provides an option for using a USB
memory device to congure the TV. Use the Installer Remote to make selections and complete each step.
See “EZ-Manager Wizard” on pages 12 to 20 for detailed information.
Custom Master TV Setup
The Custom Master TV Setup procedure enables you to create a customized Master TV Setup for
Pass-through Mode or FTG Mode configuration purposes. Use the Installer Remote to congure Installer
Menu items as required for TV operation and set up TV features (Channels, Picture, Sound, etc.). See
“Custom Master TV Setup” on pages 35 to 37 for detailed information.

7
206-4339
Commercial Mode Overview (Cont.)
Installer Menu
To create a Master TV Setup, you will need to know how to access
the commercial controller (PTC) Installer Menu and make changes to
the default values as required. If necessary, familiarize yourself with
the Installer Menu and how to make and save changes. See pages 25
to 34 for information on accessing the Installer Menu and for detailed
descriptions of the Installer Menu items.
TV Setup Menus
On-screen setup menus control the features of the TV. Use the
Installer Remote to access the TV setup menus, and set the TV
features to the desired configuration for the end user.
Cloning
Cloning refers to the process of using a Master TV Setup to configure
a Target TV. The Master TV’s clonable setup menu features should
be configured as part of the Master TV Setup. If there are features in
the Master TV’s setup—channel icons or labels, digital font options,
etc.—that are not set or that are set incorrectly, those features also
will not be set or will be set incorrectly in the Target TVs. See pages
38 to 43 for detailed information on Clone (.tlx) les and cloning
requirements and procedures.
External MPI Control
To control the TV using an external MPI control device, you must use
the TV’s MPI port for communication purposes.
To control the TV using an external TLT control device, you must use
the TV’s RS-232C port for communication purposes. See Reference
section, “TLT Communication Parameters,” for further information.
FTG Mode
In this mode, the TV’s CPU is congured with an FTG Channel Map,
and the CPU controls and restricts the tuning operation of the TV
based on this FTG Channel Map. The FTG Channel Map enables the
decryption of each Pro:Idiom ®encrypted channel and also provides
logical channel mapping of physical RF channels (digital and analog)
and Aux inputs. In addition, in these models, FTG Mode provides the
option to select either logical or physical tuning (see note below) during
configuration.
Note: Logical channel mapping of physical RF channels eliminates
dash tuning (for example, physical 19-3 can be mapped to logical
channel 9). Physical channel tuning requires that you include the dash
when direct entering channel numbers.
Typical Installer Menu
PTC INSTALLER MENU
xxLT560H
CPU -CTV
000 INSTALLER SEQ 000
UPN 000-000-000-000 ASIC D279
PTC V#.##.### CPU V#.##.##.##
TV Setup Menus
Sound
Channels
General
Safety
Accessibility
Picture Mode Settings
Aspect Ratio
16:9
Additional Settings

8206-4339
FTG Mode Features
FTG Mode provides the following features:
• Logical or physical channel tuning of physical RF channels and Aux inputs.
• Mapping of RF channels with minor (program) numbers up to 999.
• FTG Channel Map of up to 600 channels.
• Start Channel set for RF or Aux input delivered content.
• Pro:Centric data delivery over RF or IP.
• TV Zoning (including channel restrictions by Zone) option for location-specic congurations.
LG’s Cloud Conguration Tool enables you to create an FTG Conguration (.tlx) le, which may be used
to congure the CPU for FTG Mode. Conguration utilities enable you to create/edit an FTG Channel Map
and congure Installer Menu settings. You can also create a Clone (.tlx) le from a Master TV Setup that
may be used to congure the CPU for FTG Mode.
Note: The TV Zoning feature is supported via “.tlx” le. See Reference section, “Using the TV Zoning
Feature,” for further information.
In this mode, the TV’s CPU must be congured with an FTG Channel Map and FTG Installer Menu settings
using one of the following processes:
• Local: Congure an individual LT560H TV via its USB port using a USB memory device / “.tlx” le. The
le may be either a Clone le (see “Cloning Procedures” on pages 38 to 43) or an FTG Conguration le
(see “Cloud Conguration Tool Overview” on pages 44 to 49).
• Remote: Congure all LT560H TVs at the site using a Pro:Centric server head end device (Example:
PCS400R). Refer to the Pro:Centric Server Admin Client User Guide for further information.
While the TV is in FTG Mode:
• Users can still access the Installer Menu using an LG Installer Remote; however, all Installer Menu
items will be read-only.
• Any FTG Mode conguration changes must be made using a “.tlx” le (typically edited in the Cloud
Conguration Tool). Channel Map and Installer Menu conguration utilities enable you to make changes,
respectively, to the FTG Channel Map and FTG Installer Menu settings as necessary. See information
on local conguration in this document or refer to documentation for the server for information on remote
management.
• If it becomes necessary to restore the TV to Pass-through Mode, there are several options that will enable
you to do so. See Reference section, “Restoring Factory Defaults on the TV(s),” for further information.
Pages 44 to 49 provide overviews of the utilities that comprise the Cloud Conguration Tool. Refer to the
Cloud Configuration Tool User Guide for further information on the Cloud Conguration Tool.
Remote Management in FTG Mode
When the TV is configured for FTG Mode, remote management of the FTG Channel Map and FTG
Installer Menu settings is provided by a Pro:Centric server, via a Clone/Conguration (.tlx) file loaded on
the Pro:Centric Admin Client. See the Pro:Centric Server Admin Client User Guide for further information.
Commercial Mode Overview (Cont.)

9
206-4339
Commercial Mode Overview (Cont.)
Determining the TV Operating Mode
To determine the operating mode of the TV, press MENU SETTINGS on the Installer Remote. The menu
displayed depends on the operating mode. See examples below.
If the Function Menu appears, the TV is in a mode (FTG, PPV, etc.) that does not allow the end user to
change the fundamental TV setup. If the TV setup menus appear, the TV is in Pass-through Mode.
Sound
Channels
General
Safety
Accessibility
Picture Mode Settings
Aspect Ratio
16:9
Additional Settings
Aspect Ratio
Sound
General
Safety
Accessibility
Aspect Ratio
16:9
ASPECT RATIO
Function Menu
Indicates the TV is not in
Pass-through Mode. While
the TV is in this mode,
Installer Menu settings can
be accessed as read-only.
TV Setup Menus
Shows that the TV is in
Pass-through Mode.

10 206-4339
Pro:Centric Operation
Interactive Menu Features
LG’s Pro:Centric Java (GEM) application enables guests to locate and select television entertainment
using an interactive channel guide, check the daily weather, view hotel and surrounding amenities, etc. via
custom portal interactive menus. The application provides multiple templates for portal interactive menus.
Pro:Centric application features include:
• Portal and information screens/pages (including a “Welcome” page) that include branding logos.
• An optional customized user interface (custom “skins”).
• Billboards and points-of-interest maps that can be customized to focus on hotel amenities, local attractions
and businesses, restaurants, news, events, etc.
• An optional Weather billboard that includes a local radar map, current conditions, and a four day forecast.
• An interactive channel guide that provides a channel list with channel icons. An electronic program
guide (EPG) is an optional feature that displays up to three days of programming information viewable
by channel and time.
• Video spooling that enables the hotel to deliver a video le to guest TVs for promotion and information
purposes.
The Pro:Centric Admin Client web editor/content wizard is provided for customer conguration of portal
content.
Note: Customized content is typically dened by the service integrator and/or hotel administrators. LG
does not provide hotel-specic content.
Interactive Menu Navigation
An LG Pro:Centric-capable TV remote control provides access to both interactive menus and regular TV
features. Press PORTAL on the remote to access the interactive menus.
Example: Pro:Centric Java (GEM) Application Portal
Note: Interactive menu
options may vary,
depending on Pro:Centric
features enabled for the
site. This example shows
typical portal interactive
menus.

11
206-4339
Pro:Centric Java Application Setup
The Pro:Centric Java (GEM) application operates in conjunction with FTG and PPV Modes. This section
provides an overview of the setup required for the Pro:Centric features. Administration and management
options for the Pro:Centric server are described in detail in the Pro:Centric Server Admin Client
User Guide. This document describes only those settings that must be specied on the TVs to enable
Pro:Centric remote management and/or the Pro:Centric application.
• Remote management (TV E-Z Installation): The Pro:Centric Admin Client provides remote management
facilities for downloading boot logo image and software updates as well as facilities for downloading a
Clone/Configuration (.tlx) file for FTG Mode configuration.
• Pro:Centric application: The application comprises the Pro:Centric interactive menus/features described
on the previous page. Pro:Centric application settings are managed via the Pro:Centric Admin Client for
the Java application.
The Pro:Centric remote management facilities and application download are based on Installer Menu
item settings that are used to set up the TV’s Pro:Centric features. The Installer Menu / Pro:Centric server
settings can be congured using one of the methods described below.
TV in Factory Default State
When the TV is in a factory default state, the EZ-Manager Wizard provides automated or manual options
for conguring the TV’s Pro:Centric server settings. See “EZ-Manager Wizard” on pages 12 to 20 for
further information.
The EZ-Manager Wizard also provides a USB conguration option that enables you to congure a TV for
FTG Mode using a Clone/Configuration (.tlx) le stored on a USB memory device. The “.tlx” le incorporates
FTG Installer Menu settings, including Installer Menu items 098 PRO:CENTRIC and 119 DATA CHANNEL,
which are used to set up the TV’s Pro:Centric feature.
TV in Pass-through Mode
If the EZ-Manager Wizard has been exited and the TV is in Pass-through Mode, either:
• Set Installer Menu items 098 PRO:CENTRIC and 119 DATA CHANNEL to the appropriate values.
See Installer Menu information on pages 25 to 34 for further details. Also, as necessary, refer to “Custom
Master TV Setup” on pages 35 to 37 and/or cloning information on pages 38 to 43.
• Congure the appropriate Pro:Centric server settings in the IP Environment / Pro:Centric Menu. You
must use this option, in particular, if you wish to congure IP settings for the Pro:Centric server. See
“Accessing the IP Environment Menu” on page 50 and “Pro:Centric Setup” on pages 52 to 54 for
further information.
Note: When the TV is in either Pass-through Mode or FTG Mode, you can also leave Installer Menu item
119 DATA CHANNEL set to its default value (255) to enable the TV’s Data Channel Auto Search feature to
set the DATA CHANNEL value. See item 119 description on page 33 for additional information.
TV in FTG Mode
If the TV is already in FTG Mode, use the Cloud Conguration Tool to update Installer Menu items #98
Pro:Centric and #119 Data Channel (along with their afliated elds). Then, transfer the FTG Installer Menu
settings to the TV. Refer to the FTG Mode overview on pages 7to 8for further information on FTG Mode
operation and conguration. Also, see note above regarding the option to use the TV’s Data Channel Auto
Search feature to set the DATA CHANNEL value.
Pro:Centric Operation (Cont.)

12 206-4339
EZ-Manager Wizard
The primary purpose of the EZ-Manager Wizard is to guide you through the process (automated or
manual) of configuring the essential Installer Menu items for Pro:Centric operation. The wizard will
appear on the screen each time the TV is turned ON, until one of its configuration methods has
been completed or the wizard is exited. Use the Installer Remote to make selections and complete
each step.
While the EZ-Manager Wizard is intended primarily for Pro:Centric-related conguration, the
wizard also offers Zoning as well as USB conguration options.
• LT560H TVs support the TV Zoning feature, which enables location-specic congurations (see
Reference section, “Using the TV Zoning Feature,” for further information). The EZ-Manager
Wizard enables you to set the TV Zone # in the TV as part of the conguration process.
• The EZ-Manager Wizard also enables you to access the TV Manager / USB download options
as part of the conguration process, if desired, to perform USB conguration and/or update
functions.
Caution: Do NOT unplug the TV power cord or remove the antenna cable or, if
applicable, the LAN cable during the conguration process, as doing so will interrupt
the current step and may corrupt the conguration data.
Before You Begin
• If you plan to create a customized Master TV Setup using the procedure described on pages 35
to 37, be sure to exit the EZ-Manager Wizard in order to avoid setup conicts or setting modes
that may cause unintended behavior or restrict the custom setup procedure. See also “Initiate
Conguration or Exit the EZ-Manager Wizard” below.
• If it has been completed or exited and therefore does not display, the EZ-Manager Wizard can
be reactivated; however, this requires that you restore the TV to a factory default condition. See
Reference section, “Restoring Factory Defaults on the TV(s),” for further information.
• Each wizard step is allotted a time frame after which the wizard proceeds without user interaction.
If the Pro:Centric server is congured on the system/network and if no location-specic settings
are required in the TV, for example, TV Zone, Label, and/or Room Number settings, you can
simply turn ON the TV, and once initiated, the wizard will proceed through each of the conguration
steps with no further user interaction.
• If any of the conguration steps fails, you will see a “Diagnostics” screen with an indication of the
failure. You will then have the opportunity to reinitiate the conguration process from the previous
screen or exit the EZ-Manager Wizard.
Initiate Conguration or Exit the EZ-Manager Wizard
The Welcome screen provides a brief introduction to the EZ-Manager Wizard.
Note: If there is no user action in this screen within 10 seconds, the wizard will proceed to the rst
conguration step. Once the wizard has proceeded, it is not possible to return to the Welcome
screen; however, if you simply wish to exit the wizard, you can do so by selecting the “Exit” option
from the subsequent screen(s).
(Continued on next page)

13
206-4339
EZ-Manager Wizard (Cont.)
(Continued from previous page)
EZ-Manager Wizard
Welcome to LG’s EZ-Manager Wizard
• Use the EZ-Manager Wizard to congure the TV for Pro:Centric operation
or to congure the TV using a USB memory device.
Select ‘Next’ to continue.
• If a Pro:Centric server will not be installed and/or you do not wish to use
the EZ-Manager Wizard to congure this TV, you may exit the wizard.
Select ‘No Pro:Centric’ to disable the Pro:Centric feature of this TV, or
select ‘Exit’ to quit.
This setup wizard will start automatically in 10 seconds.
Exit Next
No Pro:Centric
Use the arrow keys on the Installer Remote to select the desired option in the Welcome screen:
• To proceed with the EZ-Manager Wizard, select/highlight Next, and then press OK. Then,
continue to the “TV Conguration Options” section below.
• To exit the wizard, but retain the use of the Pro:Centric remote management feature on this TV
(i.e., Installer Menu item 119 DATA CHANNEL set to 255) in the future, select/highlight Exit, and
then press OK. In the conrmation pop-up window, select OK, and then press OK once more on
the Installer Remote.
• If you do not intend to install a Pro:Centric server on this system and you do not wish to use the
wizard’s Zoning or USB conguration options, exit the wizard as follows: Select/highlight No
Pro:Centric, and then press OK. This will disable the Pro:Centric feature of this TV (i.e., Installer
Menu item 119 DATA CHANNEL will be set to 0). In the conrmation pop-up window, select OK,
and then press OK once more on the Installer Remote.
TV Conguration Options
In the TV Conguration Options screen, you can choose how to proceed with the conguration of this
TV (assuming you do not opt to exit the wizard, which you may also do at any time).
Note: If you intend to use the Zoning feature on the TV for location-specic conguration
purposes, select the “Zone & Room Number” option from this screen and set the
appropriate TV Zone # in the TV BEFORE you continue with additional conguration.
Z
EZ-Manager Wizard
Exit Next
4
3
2
1
TV Configuration Options
• To congure the TV for Pro:Centric operation, select ‘Next’.
• To set the optional Zoning feature, select ‘Zone & Room Number’.
• To congure the TV using a USB memory device, select ‘USB Conguration’.
USB Configuration Zone & Room Number
This setup wizard will continue automatically in 60 seconds.
Note: If there is no user action in this screen within one minute, the wizard will automatically
continue to the next conguration step.
(Continued on next page)

14 206-4339
EZ-Manager Wizard (Cont.)
(Continued from previous page)
Use the Left/Right arrow keys on the Installer Remote to navigate between options on this screen.
Each time you select/highlight one of the following options, the screen text and elds will change
in accordance with your selection.
• To continue with Pro:Centric conguration, select Next (default) and press OK on the Installer
Remote. See “Congure Pro:Centric Settings” on pages 15 to 18 for additional information.
• To set the Zoning feature on the TV, select Zone & Room Number. See “Zone and Room
Number Assignments” below for further information.
• To access the TV Manager / USB download options, select USB Conguration. See “USB
Conguration” on pages 18 to 20 for further information.
Note: If you choose to exit the EZ-Manager Wizard from this point on, you will have the option to
save any settings made by selecting Save and Exit in the exit conrmation window. Or, you can
exit the wizard without saving any settings by simply selecting OK in the conrmation window.
Zone and Room Number Assignments
You may complete one or more of the elds in the Zone, Label, and Room Number screen or leave
them at their default settings (Zone) or blank (Label and Room Number), as desired. However, if you
intend to use the Zoning feature on this TV, you MUST specify the appropriate value in the Zone
eld as described below. See also Reference section, “Using the TV Zoning Feature,” for further
information.
Note: The TV Zoning feature is only applicable for TVs that will be congured using a “.tlx” le
(local or remote conguration).
Z
EZ-Manager Wizard
4
3
2
1
Zone, Label, and Room Number
CHVOL
1 2 3
4 5 6
7 8
0
9
P
A
G
E
Q.MENU
CHAR/NUM
FLASHBK
EXIT
OK
ENTER
GUIDE
PORTAL
TV DVD
INPUT
MARK
CC
TIMER
MUTE
INFO
PIP PIPCH+ PIPCH -
SWAP
PIP INPUT
SAP
MENU
SETTINGS
abc def
ghi jkl mno
pqrs tuv wxyz
.,;@
DELETE
123
45 6
78
0
9
DEL
CHAR/
NUM
Zone Room Number
Label
0
-----
• If creating Zones for Installer Menu settings and/or Channel Mapping, select the appropriate Zone # (0-8)
based on the Zone in which this TV is installed. (See Commercial Mode Setup Guide for more information.)
• Select a Label and/or use the alphanumeric keypad on the remote to input the Room Number.
• When done, select ‘Next’ to continue.
Exit Next
USB Configuration Zone & Room Number
1. Complete the appropriate eld(s) as described below. Use the Left/Right arrow keys on the
Installer Remote to navigate between each of the elds.
• Zone: Enables you to set a TV Zone # so that the TV can be congured with Installer Menu
and/or Setup Menu settings intended only for the assigned Zone. The Installer Menu and/or
Setup Menu settings may be provided in a Clone/Conguration (.tlx) le. If the TV is being
congured for FTG Mode, the TV Zone # setting also allows the TV to omit channels that
have been restricted in the FTG Channel Map.
(Continued on next page)

15
206-4339
EZ-Manager Wizard (Cont.)
(Continued from previous page)
To change the TV Zone from its default value (0), navigate to the Zone eld at the left of the
screen, and use the Up/Down arrow keys to specify the desired TV Zone # (1–8).
• Label: Allows you to select a North, South, East, or West text label for this TV. In the Label
eld, use the Up/Down arrow keys to select the applicable label.
• Room Number: Allows you to specify the number of the room—up to 16 characters—in which
the TV is located. In the Room Number eld, you can use the number keys on the Installer
Remote to direct enter a room number. Use the Dash key on the Installer Remote as necessary
to toggle between number and letter characters in the Room Number eld. Also, you can use
the Flashback key on the Installer Remote to delete characters in this eld.
2. When you are ready to continue, select the appropriate option, as follows:
• To proceed to the next EZ-Manager screen, use the arrow keys to select Next, and then press
OK on the Installer Remote. Continue to “Congure Pro:Centric Settings” below.
• To use a USB memory device to complete the conguration, select USB Conguration. See
“USB Conguration” on pages 18 to 20 for further information
Congure Pro:Centric Settings
Once you select “Next” from the TV Conguration Options screen, the Searching for Pro:Centric
Server screen is displayed.
Note: Select the “Back” button, where available, to check previous settings, as necessary.
Z
EZ-Manager Wizard
Back
Manual Pro:Centric
4
3
2
1
Searching for Pro:Centric Server...
Exit
It may take 1 min 32 second(s).
This step automatically searches for the Pro:Centric server.
If there is no Pro:Centric Server installed, you do not need to continue
with this procedure. Please select either ‘Exit’ or ‘Manual Pro:Centric’.
Status : Tuning channel 49
TV is now searching all of the channels for the data channel...
You have the following options:
• You can allow the EZ-Manager Wizard to proceed with a series of automated steps to congure
the TV for Pro:Centric operation and then to look for the Pro:Centric application and maintenance
(E-Z Installation) les to download. In this case, the wizard uses a search algorithm to determine
the Data Channel and the Pro:Centric Application Mode to set in the TV.
Continue with the “Automated Pro:Centric Conguration” subsection below.
• If you already know the settings (e.g., Data Channel and Pro:Centric Application Mode) that need
to be congured in order for the TV to connect to the Pro:Centric server and/or if the Pro:Centric
server is not yet installed, you may expedite the setup process by entering this data manually.
Continue with the “Manual Pro:Centric Conguration” subsection on page 17.

16 206-4339
EZ-Manager Wizard (Cont.)
Automated Pro:Centric Conguration
Note: If the server is not yet congured on the system or if Pro:Centric data delivery will be over
IP and there is no Domain Name System (DNS) server, use the manual conguration option to
congure the TV’s Pro:Centric server settings (see “Manual Pro:Centric Conguration” subsection
on page 17). See also note below regarding DNS requirements.
Note: If there is a DNS server at the site, you can create a “procentric.local” DNS entry with the
Pro:Centric server’s IP address. Also, the Pro:Centric server’s port number must be set to “80” to
allow the automated Pro:Centric IP conguration via the EZ-Manager to nd the server.
Once the Pro:Centric data channel is found (a Pro:Centric Server Was Found screen will be
displayed) and the Pro:Centric Application Mode is determined, the wizard will advance to the
Processing the Pro:Centric Conguration screen, which shows the progress of the data downloads
(see example below). Note that some steps may require a few minutes.
If the process is successful, no further user interaction is required, though, in some instances, where
the option (for example “Next”) is available, you may manually move forward to subsequent steps
within the wizard to speed up the process.
EZ-Manager Wizard
Processing the Pro:Centric Configuration...
Application files
Maintenance files
–Updating Configuration File
Warning - Do not remove AC power or the signal cables during these steps
20%
GEM app downloaded
In progress...
Retrieving files from data channel 75
4
2
13
Downloading the maintenance files takes several minutes.
Please wait...
Note: If, after completing the search, the TV is unable to nd the Pro:Centric data channel (while the
Searching for Pro:Centric Server screen is on display), the wizard will stop and show a Diagnostics
screen that enables you to manually return to the previous screen (to reinitiate the conguration) or
exit the wizard.
When the Pro:Centric Conguration is complete, an EZ-Manager Conguration Complete screen is
displayed, and after 10 seconds, the wizard exits, and the TV turns OFF.
EZ-Manager Wizard
EZ-Manager Configuration Complete
Pro:Centric Application
Maintenance Files
GEM application downloaded
LT560H_Config.tlx
Installed Components
2
13
The TV will turn off in 3 second(s).
4
Reboot Turn Off
Note: With the EZ-Manager Conguration Complete screen on display, you can also manually turn
off or reboot the TV. If desired, select Turn Off or Reboot, respectively, and then press OK on the
Installer Remote.

17
206-4339
*PCS150R and later Pro:Centric servers do not support HRC or IRC cable channel frequencies.
EZ-Manager Wizard (Cont.)
Manual Pro:Centric Conguration
1. With the Searching for Pro:Centric Server screen on display, use the Left/Right arrow keys on
the Installer Remote to select Manual Pro:Centric at the bottom right of the screen, and then
press OK.
In the Pro:Centric Manual Conguration screen (see examples below), you will be able to
congure the appropriate Pro:Centric settings in the TV. Use the Up/Down arrow keys on the
Installer Remote to navigate between elds.
2. In the Pro:Centric Mode eld, use the Left/Right arrow keys to select the appropriate Pro:Centric
Application Mode—GEM (Java) or Conguration Only.
Note: For remote management only, select Conguration Only. The TV will search for TV
E-Z Installation data downloads; however, Pro:Centric application data will not be downloaded,
i.e., Installer Menu item 098 PRO:CENTRIC will be set to 0.
EZ-Manager Wizard
Pro:Centric Mode
Media Type
Data Channel
Signal Strength
Signal Quality
RF
<
Configuration Only
>
Back Next
Exit
Pro:Centric Manual Configuration
0%
0%
No signal
1
4
3
2
1
Pro:Centric Manual Configuration Screen
with RF Media Fields
Note: By default, the Pro:Centric Manual
Conguration screen initially shows RF
conguration elds.
EZ-Manager Wizard
Pro:Centric Mode
Media Type
Address
Port
Configuration Only
IP
< >
Back Next
Exit
Pro:Centric Manual Configuration
255
0
255255255
4
3
2
1
Pro:Centric Manual Configuration Screen
with IP Media Fields
3. Refer to the appropriate subsection below, depending on the Pro:Centric server conguration,
to complete the remaining elds.
RF Conguration
a) In the Media Type eld, use the Left/Right arrow keys to select RF.
b) In the Data Channel eld, either key in or use the Left/Right arrow keys to select the RF
channel number that will be used by the Pro:Centric server as its data channel. The Data
Channel value can be set from 1 to 135. *
(Continued on next page)

18 206-4339
EZ-Manager Wizard (Cont.)
(Continued from previous page)
IP Conguration
a) In the Media Type eld, use the Left/Right arrow keys to select IP.
Note: When you select “IP” as the Media Type, the default (RF) Data Channel and Signal
Strength/Quality elds are replaced with (IP) Address and Port elds.
b) In the Address and Port elds, either key in or use the Left/Right arrow keys to select the
appropriate values for the Pro:Centric server IP address and port number. The IP address
must match the IPv4 multicast address and the port number must match the port number
that is set in the Pro:Centric server.
4. Once all elds are completed as required, you have two options:
• To save the data entered and exit the wizard, use the arrow keys to select Exit and then press
OK. In the subsequent pop-up conrmation window, select Save and Exit, and then press OK
once more. The Pro:Centric application and/or E-Z Installation data will be downloaded to the
TV at a later time. This option is useful, in particular, if the Pro:Centric server has not yet been
congured.
• To initiate a real-time download of Pro:Centric application and/or E-Z Installation data, use the
arrow keys to select Next, and then press OK (see also note below).
Note: With RF conguration, Pro:Centric server data must be present on the RF channel
selected as the TV’s Data Channel in order for you to select “Next” (you will see a “Data
Channel Found” message below the Signal Quality indicator). With IP conguration,
Pro:Centric server data must be present via the wired LAN cable connection in order for
you to select “Next” (you will see a “IP Server Found” message below the Port eld).
If you opt to initiate a real-time download in the last step, the EZ-Manager Wizard will proceed with
the Pro:Centric application and/or E-Z Installation data downloads (see Processing the Pro:Centric
Conguration screen example on page 16). When the Pro:Centric conguration is complete, an
EZ-Manager Conguration Complete screen (see example on page 16) is displayed, and after
10 seconds, the wizard exits, and the TV turns OFF.
Note: With the EZ-Manager Conguration Complete screen on display, you also have the option
to manually turn off or reboot the TV. If desired, select Turn Off or Reboot, respectively, and then
press OK on the Installer Remote.
USB Conguration
TV Manager / USB download options enable you to download conguration, boot logo (splash
screen) image, or software les individually from a USB memory device to the TV. You can also use
the Ez Download utility available from the menu to select multiple types of les to be downloaded
at one time using one process.
Each of the USB download functions requires that you have the appropriate le(s) loaded on a USB
memory device. If you wish to perform a software update or download a boot logo, the software/
image le(s) must be stored in a folder named “LG_DTV” in the root directory of the USB device.
Clone/Conguration (.tlx) les should simply be stored in the root directory of the USB device.
The procedure below assumes that the desired le(s) is/are already loaded onto the USB device.
For further information on TV Manager / USB download options and le requirements, and/or for
information on creating Clone/Conguration (.tlx) les, refer to the appropriate section(s) in this
document.

19
206-4339
Before You Begin
• If you intend to use the Zoning feature on this TV, make sure to set the appropriate TV Zone #
in the EZ-Manager’s Zone, Label, and Room Number screen BEFORE continuing with USB
Conguration. See “TV Conguration Options” on pages 13 to 14 for further information.
• Ensure the USB device to be used has been formatted with FAT format.
• When creating les to be downloaded, avoid using special characters (?, &, @, etc.) in lenames.
• Refer to “Ez Download Utility” on pages 21 to 24 for further information on the Ez Download utility.
• Refer to “Custom Master TV Setup” on pages 35 to 37 for information on creating a Clone (.tlx)
file, and/or refer to “Creating an FTG Conguration File” on pages 44 to 46 for information on
creating an FTG Conguration (.tlx) le for FTG Mode conguration.
• See Reference section, “Downloading a Boot Logo Image using a USB Memory Device,” for
boot logo image guidelines.
• See Reference section, “Updating TV/PTC Software using a USB Memory Device,” for further
information on software updates.
USB Conguration via EZ-Manager Wizard
With either the TV Conguration Options or the Zone, Label, and Room Number screen on display,
proceed as follows to congure the TV using the USB memory device.
1. Insert the USB memory device with the appropriate le(s) into the TV’s USB port.
2. Use the arrow keys on the Installer Remote to select USB Conguration, and then press OK.
You will be redirected to the TV Manager / USB download options.
TV MANAGER
USB
Diagnostics
Ez Download
Download Boot Logo
Update TV Software
Update PTC Software
Import Clone File
Back OK
Note: You can press on the Installer Remote at any time to return to the EZ-Manager Wizard.
Note: Ez Download is always selected by default when you initially access the TV Manager.
Also note that Diagnostics is for service use only.
(Continued on next page)
EZ-Manager Wizard (Cont.)

20 206-4339
(Continued from previous page)
3. Select the appropriate option from the TV Manager, and initiate the desired download(s).
Update progress will be displayed on the screen. Do NOT remove the USB device while
updates are in progress. When the update process is finished, depending on the type of
update(s) completed, either the EZ-Manager TV Configuration Options screen will be
redisplayed (software and/or boot logo image updates only—see also note below) or the
TV will tune according to the Start Channel setting in the Installer Menu (TV configured with
Clone/Configuration file).
Note: If you are performing a software and/or boot logo image update, the TV will reboot
after the update(s) is/are complete. When the TV Configuration Options screen is redisplayed,
you can either proceed with configuration via the EZ-Manager Wizard or exit the EZ-Manager
Wizard, as required.
4. Remove the USB memory device, and verify that the appropriate configuration/download(s)/
update(s) is/are resident on the TV.
