- 1 -

ADJUSTMENT INSTRUCTION

These instructions are applied to only NC-71A chassis.

Notes

(1) Because this is not a hot chassis, it is not necessary to

use an isolation transformer.

However, the use of isolation transformer will help protect

test instrument.

(2) Adjustment must be done in the correct order.

(3) Supply 100¡›240V A.C./50¡›60Hz.

(4) The receiver must be operated for about 30 minutes proir

to the adjustment.

1. Screen Voltage Adjustment

(1) Press ADJ-STAR button on the Adjustment Remote

Controller and make the screen has the horizontal line.

(2) Turn the screen control clockwise until the Horizontal line

is visible and turn it counterclockwise until the Horizontal

line is faintly visible.

2. FOCUS Adjustment

(1) Press the APC button on the Remote Control for APC

ON condition.

APC ON CONTRAST : 100

BRIGHT : 50

COLOR : 50

TINT : 0

SHARPNESS : 50

(2) Adjust the FOCUS control on the FBT to obtain a sharp

and clear picture.

3. Deflection setting Data Adjustment

(1) Set the TV set in the Power off condition(stand-by).

(2) Press 7,3,9,2,ENTER and POWER buttons on the Remote

control to enter the deflection set-up mode.

(3) Press CH Up/Down to select adjustment item.

(4) Press VOL Up/Down to change Data.

3-1. Horizontal Position(HPOS)

Select VP 1(HPOS) and adjust until left and right side of

screen is equal.

3-2. Vertical Position(VPOS)

Select VP 2(VPOS) and adjust until the mechanical center of

CPT and the center of screen coincides.

3-3. Vertical Size(VSIZE)

Select VP 3(VSIZE) and the center circle of Digital Pattern

coincides with the outer frame of screen.

3-4. Vertical Linearity(U-LIN, L-LIN)

Select VP 4, 5(U-LIN, L-LIN) and adjust until the upper and

lower side of screen is equal.

4. White Balance Adjustment

(1) Press 7, 3, 9, 2 ENTER and POWER buttons on the

Remote controller to get into the Adjustment mode.

(2) Press CH Up/Down to select adjustment item.

(3) Press VOL Up/Down to change Data.

(4) Adjustment

¤Adjust Contrast and Brightness until the high light area

of signal is 45F.L.

¤Ł Select G-DRI and B-DRI and adjust to get the High light

data.

¤Ø Adjust Contrast and Brightness until the high light area

of signal is 4.5F.L.

¤Œ Select G-CUT and B-CUT and adjust to get the Low

light data .

¤º Repeat adjustment ¤~¤Œabove to get both Low and

High light data.

¤Check the result of adjustment using White Balance

Meter

HIGH LIGHT : X=270, Y=283

LOW LIGHT : X=270, Y=283

- 2 -

PURITY & CONVERGENCE ADJUSTMENT

Caution:

Convergence and Purity have been factory aligned. Do not

attempt to tamper with these alignments.

However, the effects of adjacent receiver components, or

replacement of picture tube or deflection yoke may require the

need to readjust purity any convergence.

¡Purity Adjustment

This procedure DOES NOT apply to bonded yoke and picture

tube assemblies.

The instrument should be at room temperature (60 degrees F or

above) for six (6) hours and be operating at low beam current

(dark background) for approximately 20 to 30 minutes before

performing purity adjustments.

CAUTION: Do not remove any trim magnets that may be

attached to the bell of the picture tube.

1. Remove the AC power and disconnect the internal

degaussing coil.

2. Remove the yoke from the neck of the picture tube.

3. If the yoke has the tape version beam bender, remove it and

replace it with a adjustable type beam bender (follow the

instructions provided with the new beam bender)

4. Replace the yoke on the picture tube neck, temporarily

remove the three (3) rubber wedges from the bell of the

picture tube and then slide the yoke completely forward.

5. Reconnect the internal degaussing coil.

6. Position the beam bender locking rings at the 9 o'clock

position and the other three pairs of tabs (2,4 and 6 pole

magnets) at the 12 o'clock position.

7. Perform the following steps, in the order given, to prepare the

receiver for the purity adjustment procedure.

a. Face the receiver in the "magnetic north" direction.

b. Externally degauss the receiver screen with the television

power turned off.

c. Turn the television on for approximately 10 seconds to

perform internal degaussing and then turn the TV off.

d. Unplug the internal degaussing coil. This allows the

thermistor to cool down while you are performing the purity

adjustment. DO NOT MOVE THE RECEIVER FROM ITS

"MAGNETIC NORTH" POSITION.

e. Turn the receiver on and obtain a red raster by increasing

the red bias control (CW) and decreasing the bias controls

for the remaining two colors (CCW).

f. Attach two round magnets on the picture tube screen at 3

o'clock and 9 o'clock positions, approximately one (1) inch

from the edge of the mask (use double-sided tape).

DEFLECTION YOKE

PURITY &CONVERGENCE

MAGNET ASSEMBLY

RUBBER

WEDGES

GLASS CLOTH TAPE

,,,,

,,,,,

,,,,

,,

,,,

,,

,,,,,

,,,,,,

,,,,,

,,

PURITY MAGNET

6-POLE

4-POLE

MAGNET

CONVERGENCE MAGNET ASSEMBLY

6-POLE

MAGNES PURITY MAGNET(2-POLE)

X-AXIS YOKE

POSITIONING

(L/R PURITY)

6-POLE

MAGNETS

CONVERGENCE MAGNET ASSEMBLY

- 3 -

8. Referring to above, perform the following two steps:

a. Adjust the yoke Z-axis to obtain equal blue circles.

b. Adjust the appropriate beam bender tabs to obtain correct

purity (four equal circles).

9. After correct purity is set, tighten the yoke clamp screw and

remove the two screen magnets.

10. Remove the AC power and rotate the receiver 180 degrees

(facing "magnetic south").

11. Reconnect the internal degaussing coil.

12. Turn the receiver on for 10 seconds (make sure the receiver

came on) to perform internal degaussing, and then turn the

receiver off.

13. Unplug the internal degaussing coil.

14. Turn on the receiver and check the purity by holding one (1)

round magnet at the 3 o'clock and a second round magnet at

9 o'clock position. If purity is not satisfactory, repeat steps 8

through 14.

15. Turn off the receiver and reconnect the internal degaussing

coil.

¡Convergence Adjustment

Caution: This procedure DOES NOT apply to bonded yoke and

picture tube assemblies.

Do not use screen magnets during this adjustment

procedure. Use of screen magnets will cause an

incorrect display.

1. Remove AC power and disconnect the internal degaussing

coil.

2. Apply AC Power and set the brightness to the Picture Reset

condition. Set the Color control to minimum.

3. Apply 8V to the pin42 of IC501.

4. Adjust the Red, Green and Blue Bias controls to get a dim

white line.

5. Remove the AC power and 8V from the pin42 of IC501.

6. Reconnect the internal degaussing coil and apply AC power.

7. Turn the receiver on for 10 seconds to perform internal

degaussing and then turn the receiver off again.

8. Unplug the internal degaussing-coil.

9. Turn on the receiver, connect a signal generator to the VHF

antenna terminal and apply a crosshatch signal.

Caution: During the convergence adjustment procedure, be

very careful not to disturb the purity adjustment tabs

are accidentally move, purity should be confirmed

before proceeding with the convergence adjustments.

Note:

Make sure the focus is set correctly on this instrument

before proceeding with the following adjustment.

10. Converge the red and blue vertical lines to the green vertical

line at the center of the screen by performing the following

steps (below TABLE).

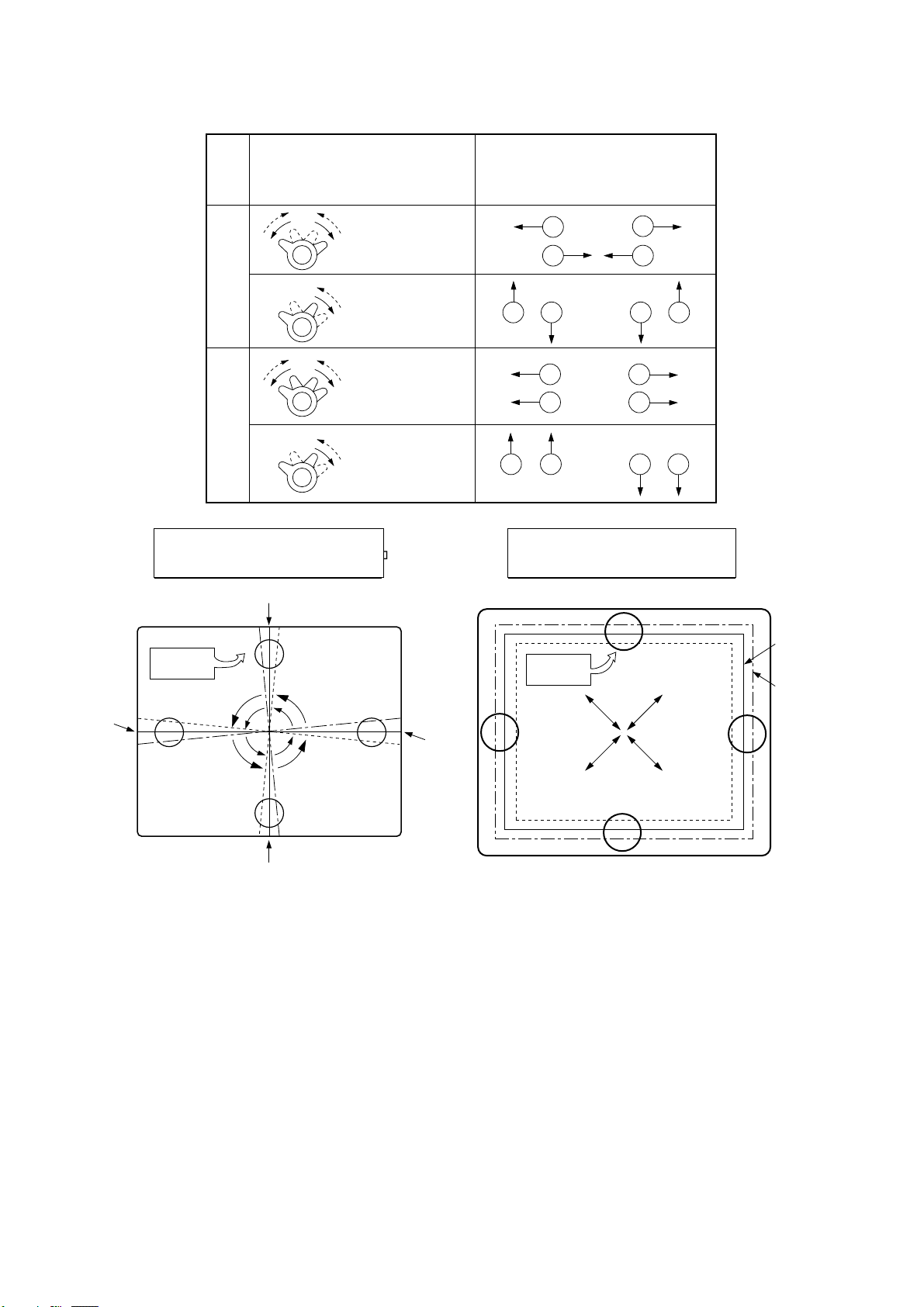

a. Carefully rotate both tabs of the 4-pole ring magnet

simultaneously in opposite directions from the 12 o'clock

position to converge the red and blue vertical lines.

b. Carefully rotate both tabs of the 6-pole ring magnet

simultaneously in opposite directions form the 12 o'clock

position to converge the red and blue (now purple)

vertical lines with the green vertical line.

11. Converge the red and blue horizontal with the green line at

the center of the screen by performing the following steps.

(below TABLE)

a. Carefully rotate both tabs of the 4-pole ring magnet

simultaneously in the same direction (keep the spacing

between the two tabs the same) to converge the red and

blue horizontal lines.

b. Carefully rotate both tabs of the 6-pole ring magnet

simultaneously in same direction (keep the spacing

between the two tabs the same) to converge the red and

blue (now purple) horizontal lines with the green

horizontal line.

c. Secure the tabs previsouly adjusted by locking them in

place with the locking tabs on the beam bender.

MAGNETS

RED RED

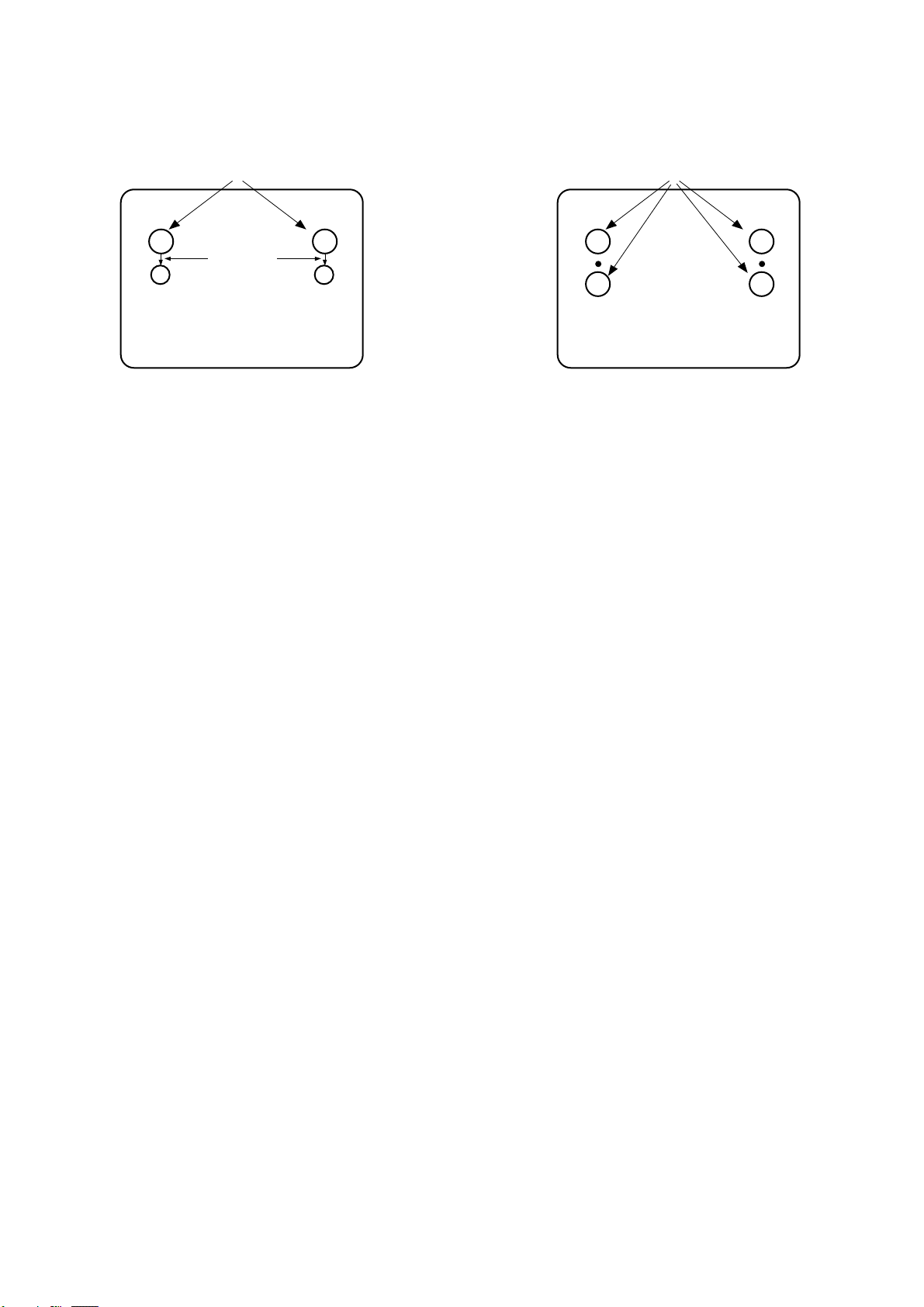

1.ADJUST YOKE Z-AXIS FIRST

TO GET EQUAL BLUE

COLOR CIRCLES

2 .ADJUST BEAM BENDER 2 POLE

MAGNET TO GET FOUR EQUAL

COLOR CIRCLES

- 4 -

RING

PAIRS

4

POLE

ROTATION DIRECTION

OF BOTH TABS

OPPOSITE

SAME

OPPOSITE

SAME

MOVEMENT OF RED

AND BLUE BEAMS

B B

RR

OR

B R B R

OR

B

R

B

R

B R OR BR

6

POLE

12. While watching the 6 o'clock positions on the screen, rock the

front of the yoke in a vertical (up/down) direction to converge

the red and blue vertical lines. (Fig upper left)

13. Temporarily place a rubber wedge at the 12 o'clock position

to hold the vertical position or the yoke.

14.

Check the 3 o'clock and 9 o'clock areas to confirm that the red

and blue horizontal lines are converged.

If the lines are not converged, slightly offset the vertical tilt of the

yoke (move the rubber wedge if necessary) to equally balance the

convergence error of the horizontal lines at 3 o'clock and 9 o'clock

and the vertical lines at 6 o'clock and 12 o'clock.

15. Place a 1.5 inch piece of glass tape over the rubber foot at

the rear of the 12 o'clock wedge.

16. While watching the 6 o'clock and 12 o'clock areas of the

screen, rock the front of the yoke in the horizontal (left to

right) motion to converge the red and blue horizontal lines.

(Fig. upper right)

17. Temporarily place a rubber wedge at the 5 o'clock and 7

o'clock positions to hold the horizontal position of the yoke.

18. Check the 3 o'clock and 9 o'clock areas to confirm that the

red and blue vertical lines are converged. If the lines are not

converged, slightly offset the horizontal tilt of the yoke (move

the temporary rubber wedges if necessary) to equally

balance the convergence error of the horizontal lines at 6

o'clock and 12 o'clock and the vertical lines at 3 o'clock and 9

o'clock.

19. Using a round magnet confirm purity at the center, right and

left sides and corners. See Purity Adjustment Procedure.

20. Reconfirm convergence and apply a 1.5 inch piece of glass

tape over the rubber foot at the rear of the 5 o'clock and the 7

o'clock wedges.

RED

BLUE

RED BLUE

BLUE

RED

GREEN

BLUE RED

GREEN

ADJUSTMENT

VIEWING

AREA

UP/DOWN ROCKING OF THE YOKE

CAUSES OPPOSITE ROTATION OF RED

AND BLUE RASTERS

ADJUSTMENT

VIEWING

AREA

RED

GREEN

TV

SCREEN

LEET/RIGHT ROCKING OF THE YOKE

CAUSES OPPOSITE SIZE CHANGE OF 

THE RED AND BLUE RASTERS

UP/DOWN ROCKING OF THE YOKE

CAUSES OPPOSITE ROTATION OF RED

AND BLUE RASTERS

LEFT/RIGHT ROCKING OF THE YOKE

CAUSES OPPOSITE SIZE CHANGE OF THE

RED AND BLUE RASTERS

BLOCK DIAGRAM

- 1 -

112

102

913

150

153

170

510

540

502

530

560

420

123

122

400

410

520

551

503

550 950

943

121

340

315

300

700

360

370

200 125

354

350

351

935

120

124

104

301

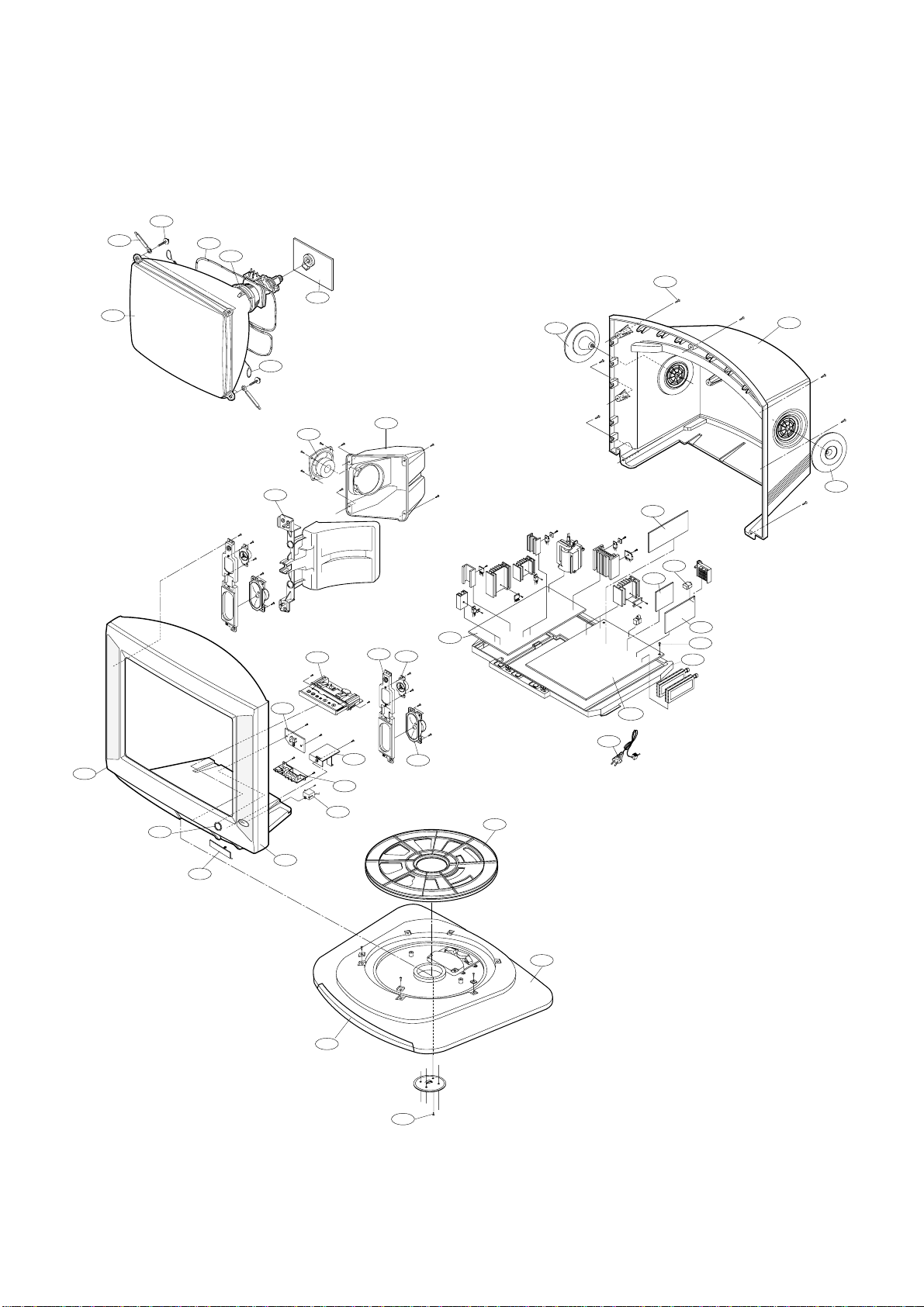

EXPLODED VIEW

- 1 -

EXPLODED VIEW LIST

102 341-919A HOLDER,D-COIL

104 4980V00020A SUPPORTER,CPT

112

2426GF068AI CPT SET,A68KYN098X 00P7ND (0 GAUSS)

2426GF068AG CPT SET,A68KYN098X 00T7ND (CHILE)

2426GF068AK CPT SET,A68KYN098X 00N7ND MEXICO

120 6400VF5001A SPEAKER,MID-RANGE C122P02K145D 8OHM 5W

121 4810V00020A BRACKET,S/WOOFER MIDDLE

122 120-C78C SPEAKER,WF 8OHM 20W/30W 134*134

123 3550V00005A COVER,WOOFER

124 120-D39A SPEAKER,TWEETER(4OHM)

125 4810V00019A BRACKET,S/WOOFER FRONT

150 150-D05D COIL,DEGAUSSING,CU 29Ó 60T 8.7OHM

153 153-146D DY,DCAY1-29SLBA

170 170-797R LEAD SET,CPT EARTH

200 4870V00002B DRAWER ASSY

210 6871VSN025A PWB ASSY,CONTROL DRAWER(NC-71A)

220 6871VSN026A PWB ASSY,INTERFACE(NC-71A)

300 3091V00047D CABINET ASSY

301 3211V00007D FRAME ASSY

315 3580V00005A DOOR,A/V

340 5020V00139A BUTTON,POWER ASSY

350 3750V00002A RACK,SWIVEL

351 3508V00058A DECORATION ASSY

354 4980V00035A SUPPORTER,BASE,(SWIVEL+C/A)

360 6871VSN023A PWB ASSY,FRONT AV

370 6871VSN024A PWB ASSY,POWER LED(NC-71A)

400 3809V00034D BACK COVER ASSY

410 4811V00002A BRACKET ASSY,S/WOOFER FRONT

420 4811V00002D BRACKET ASSY, S/WOOFER

502 450-A17A ADAPTER,ANT RF

503 312-404D FRAME,MAIN

510 6871VSM147B PCB ASSY,CPT VM(NC-71A)

520 6871VMM118B PWB ASSY,MAIN

530 6871VSN022C PWB ASSY,AV/DCF

540 6871VSN155A PWB ASSY,SUB

550 6871VDM034B PWB ASSY,MAIN2,(NC-71A) S&DEF

551 174-009Q CORD,POWER

174-019S CORD,POWER MEXICO

560 6871VSN021A PWB ASSY,M/W (NC-71A)

700 167-131C CY.YE. SENSOR MODULE

912 1PTF0402816 SCREW,TRUSS HEAD,D4 L12 MSWR3/BK

913 332-229D SCREW ASSY,HEXAGON HEAD (D7,L28)

935 1PTF0403316 SCREW,TRUSS HEAD,D4 L20 MSWR3/BK

943 1PTF0403116 SCREW,TRUSS HEAD,D4 L16

NO PART NO DESCRIPTION

- 2 -

REPLACEMENT PARTS LIST

-26 -

LOCA. NO PART NO DESCRIPTION

IC001

IC002

IC003

IC004

IC01S

IC1

IC10

IC101

IC1061

IC11

IC2

IC20

IC201

IC3

IC301

IC302

IC501

IC550

IC601

IC603

IC660

IC661

IC662

IC7

IC701

IC702

IC8

IC801

IC802

IC803

IC804

IC805

IC9

REMO

Q001

Q002

Q003

Q004

Q005

Q1

Q171

Q172

Q176

Q2

Q218

Q219

Q220

Q235

0IMI372706A

0IAL240410A

0IKE704200B

0ISA721000A

0IKE780900E

0IPH831500A

0IOK548262A

0IMO145770E

0IMA526500B

0IMO130770B

0IPH831500A

0IKE704200B

0ISO184564A

0IKE780800B

0IKE455800E

0ISA784500A

0ISO204248A

0ISA722200A

0INE185200A

0ISG746400A

0ISA428200A

0IKE455800E

0IPH907630A

0IMO145770E

0ITO908900A

0IKE780800A

0ISK670900A

0ISH817300B

0ISK120000A

0IKE780500P

0ISK300159A

0IKE780800B

0IGS868902A

0TR319809AA

0TR126609AA

0TR319809AA

IC,M37270EFSP,64SDIP

IC,AT24C04-10PC 8D EEPROM(4K,IIC)

IC,KIA7042P 3P 4.2V RESET

IC,LA7210 10SIP SYNC.SEPERATOR

IC,KIA7809PI 3P(TO-220IS)1A,9V

IC,TDA8315T-N2(R) 24SOP PIP DECOD

IC,MSM548262JS-7040SOJ 2M V-RAM

IC,MC14577CP 8D DUAL VIDEO AMP

IC,AN5265

IC,MC13077P 20D PAL/NTSC ENCODER

IC,TDA8315T-N2(R) 24SOP PIP DECOD

IC,KIA7042P 3P 4.2V RESET

IC,CXA1845Q 64QFP A/V S/W

IC,KIA78L08BP(TA) TO-92 8V,150MA

IC,KIA4558 8DIP DUAL OP AMP

IC,LA7845 7SIP V/OUT(1.5A)

IC,CXA2042S 48SD NTSC V/C/D (IIC)

IC,LA7222 (1280 AUDIO)

IC,UPC1852BCT 28SD US MPX(IIC)

IC,TDA7464 44TQFP BK DIGITAL AUDI

IC,LA4282

IC,KIA4558 8DIP DUAL OP AMP

IC,SAB9076H N3 PIP CONTROLLER

IC,MC14577CP 8D DUAL VIDEO AMP

IC,TC9089AN 28SD DCF

IC,KIA7808PI 3P(TO-220IS) 1A,8V

IC,STR/S6709 9S SMPS-CNTR

IC,PC817XF3 4D PHOTO COUPLER

IC,SE120N

IC,KIA78L05BP(TA)3P 5V,150MA

IC,SLA3001M REGULATOR(5V,9V,12V)

IC,KIA78L08BP(TA) TO-92 8V,150MA

IC,LG8689-02A(GMS81004-U014) 24SO

TR,KTC3198-TP-Y (KTC1815)KEC

TR,KTA1266-TP-Y (KTA1015) KEC

TR,KTC3198-TP-Y (KTC1815)KEC

LOCA. NO PART NO DESCRIPTION

Q298

Q299

Q401

Q402

Q403

Q404

Q405

Q504

Q505

Q506

Q510

Q511

Q512

Q513

Q514

Q515

Q516

Q517

Q518

Q519

Q601

Q602

Q660

Q661

Q800

Q801

Q802

Q803

Q804

Q805

Q806

Q901

Q902

Q910

Q911

Q912

Q913

Q914

Q920

Q921

Q922

Q923

Q924

Q930

Q931

Q932

Q933

Q934

Q988

Q989

Q997

0TR319809AA

0TR126609AA

0TR223800AA

0TR187900AA

0TR126609AA

0TR127409AB

0TR205900AB

0TR126609AA

0TR319809AA

0TF161009AB

0TR319809AA

0TR126609AA

0TR319809AA

0TR385200AA

0TR126609AA

0TR968000AA

0TR322809AA

0TR319809AA

0TR322709AA

0TR126609AA

0TR319809AA

0TR322900AA

0TR422009CB

0TR421009CB

0TR319809AA

0TR322900AA

0TR422009CB

0TR421009CB

0TR319809AA

0TR322900AA

0TR422009CB

0TR421009CB

0TR319809AA

0TR322709AA

0TR968000AA

0TR319809AA

TR,KTC3198-TP-Y (KTC1815)KEC

TR,KTA1266-TP-Y (KTA1015) KEC

TR,KTC2238A-Y

TR,2SD1879

TR,KTA1266-TP-Y (KTA1015) KEC

TR,KTA1274-Y TO-92L TP KEC

TR,KTD2059-Y TO-220IS KEC

TR,KTA1266-TP-Y (KTA1015) KEC

TR,KTC3198-TP-Y (KTC1815)KEC

FET,KTK161Y,TP,KEC

TR,KTC3198-TP-Y (KTC1815)KEC

TR,KTA1266-TP-Y (KTA1015) KEC

TR,KTC3198-TP-Y (KTC1815)KEC

TR,2SC3852A SANKEN

TR,KTA1266-TP-Y (KTA1015) KEC

TR,KTA968A-Y KEC

TR,KTC3228-0 TP(KTC2383),KEC

TR,KTC3198-TP-Y (KTC1815)KEC

TR,KTC3227-Y,TP(KTC1627A),KEC

TR,KTA1266-TP-Y (KTA1015) KEC

TR,KTC3198-TP-Y (KTC1815)KEC

TR,KTC3229 (KTC2068),KEC

TR,BF422L(AMMO)TO-92 TP PHILIPS

TR,BF421L(AMMO)TO-92 TP PHILIPS

TR,KTC3198-TP-Y (KTC1815)KEC

TR,KTC3229 (KTC2068),KEC

TR,BF422L(AMMO)TO-92 TP PHILIPS

TR,BF421L(AMMO)TO-92 TP PHILIPS

TR,KTC3198-TP-Y (KTC1815)KEC

TR,KTC3229 (KTC2068),KEC

TR,BF422L(AMMO)TO-92 TP PHILIPS

TR,BF421L(AMMO)TO-92 TP PHILIPS

TR,KTC3198-TP-Y (KTC1815)KEC

TR,KTC3227-Y,TP(KTC1627A),KEC

TR,KTA968A-Y KEC

TR,KTC3198-TP-Y (KTC1815)KEC

-26 -

RUN DATE;971030

IC

TRANSISTOR

LOCA. NO PART NO DESCRIPTION

Q998

Q999

D001

D003

D006

D008

D009

D01

D010

D1

D297

D298

D299

D301

D339

D349

D401

D402

D403

D405

D408

D409

D410

D411

D500

D501

D510

D601

D602

D603

D604

D609

D665

D666

D667

D803

D806

D807

D808

D809

D821

D822

D823

D824

D825

D826

D827

D829

D910

D911

D912

D913

D920

0TR127409AB

0TR223800AA

0DD247109AA

0DL200000CA

0DD247109AA

0DD150009CE

0DD150009CC

0DD247109AA

0DD060009AC

0DD247109AA

0DD410000AB

0DD410000AC

0DD100009AE

0DD150009CC

0DD247109AA

0DD100009AL

0DD100009AM

0DD060009AC

0DD100009AM

0DD247109AA

0DD420000BB

0DD060009AC

0DD410000AD

0DD060009AC

0DD247109AA

0DD420000BB

0DD247109AA

TR,KTA1274-Y TO-92L TP KEC

TR,KTC2238A-Y

DIODE,1S2471

DIODE,DL-2LRG RED GREEN OPTO

DIODE,1S2471

DIODE,GP15J (1.5A/600V)

DIODE,RGP15G

DIODE,1S2471

DIODE,TVR06J 0.6A/600V 250NS

DIODE,1S2471

DIODE,RU4C,LF-L1

DIODE,RU4DS,LF-L1

DIODE,RU-1A V

DIODE,RGP15G

DIODE,1S2471

DIODE,EH-1ZV

DIODE,EU1ZV

DIODE,TVR06J 0.6A/600V 250NS

DIODE,EU1ZV

DIODE,1S2471

DIODE,D4L20U

DIODE,TVR06J 0.6A/600V 250NS

DIODE,RU4AM,LF-L1

DIODE,TVR06J 0.6A/600V 250NS

DIODE,1S2471

DIODE,D4L20U

DIODE,1S2471

LOCA. NO PART NO DESCRIPTION

D921

D922

D923

D930

D931

D932

D933

D941

D942

D943

D944

D945

D946

D988

D989

D991

D992

D993

D994

D995

D998

D999

L899

ZD1061

ZD161

ZD162

ZD171

ZD172

ZD210

ZD211

ZD213

ZD214

ZD339

ZD349

ZD401

ZD501

ZD502

ZD503

ZD504

ZD505

D801

ZD808

ZD828

C003

C005

C007

C008

C009

C010

C011

C012

C013

C014

0DD247109AA

0DS124409AA

0DD247109AA

0DD150009CC

0DD247109AA

0DD150009CC

0DD060009AC

0DZ910009BA

0DZ510009AB

0DZ300009BA

0DZ510009AB

0DZ300009BA

0DZ620009AA

0DZ180009AA

0DZ560009AA

0DZ910009BA

0DD560000AA

0DZ750009AA

0DZ110009AA

0CN1010K519

0CN1030F679

0CE475DK618

0CN2210K519

0CN1030F679

0CE476DF618

0CN2210K519

DIODE,1S2471

DIODE,SWITCHING 1SS244 TP

DIODE,1S2471

DIODE,RGP15G

DIODE,1S2471

DIODE,RGP15G

DIODE,TVR06J 0.6A/600V 250NS

DIODE ZENER,MTZ9.1B

DIODE ZENER,MTZ5.1B

DIODE ZENER,MTZ30B

DIODE ZENER,MTZ5.1B

DIODE ZENER,MTZ30B

DIODE ZENER,MTZ6.2B

DIODE ZENER,MTZ18B

DIODE ZENER,MTZ5.6B

DIODE ZENER,MTZ9.1B

DIODE,D5SB60 BRIDGE (5A/600V)S.D.G

DIODE ZENER,MTZ7.5B

DIODE ZENER,MTZ 11B

C,TUBULA(HIGH DIELE) 100PF 50V K

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,ELECTROLYTIC 4.7UF STD 50V M

C,TUBULA(HIGH DIELE) 220PF 50V K

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,ELECTROLYTIC 47UF STD 16V M

C,TUBULA(HIGH DIELE) 220PF 50V K

- 27 -

DIODE

CAPACITOR

LOCA. NO PART NO DESCRIPTION

C015

C016

C017

C018

C019

C020

C021

C022

C023

C024

C025

C026

C027

C029

C030

C031

C032

C033

C034

C035

C040

C041

C042

C043

C044

C045

C046

C047

C048

C049

C050

C051

C052

C053

C054

C055

C056

C057

C09S

C10S

C104

C105

C1061

C1063

C1064

C1065

C1066

C1067

C1068

C1070

C1071

C1072

C109

C11S

C110

0CE105DK618

0CN1020K519

0CN5610K519

0CQ1041N509

0CC1800K415

0CN1040K949

0CE477DD618

0CC3300K415

0CN1040K949

0CE476DF618

0CN1040K949

0CN1010K519

0CN1040K949

0CE477DD618

0CE105DK618

0CE476DF618

0CN1020K519

0CN8210K519

0CN1820F569

0CN4710K519

0CN1020K519

0CN3310K519

0CE474DK618

0CE105DK618

0CN2220F669

0CE6849K538

0CN1030F679

0CE227DF618

0CE475DK618

0CE106DF618

0CE105DK618

0CE107DF618

0CE105DK618

0CQ4742K439

0CE105DK618

0CE476DF618

0CE475DK618

0CQ2242K439

0CE337DF618

0CE227DF618

0CE476DF618

0CE227DF618

0CE1051K636

C,ELECTROLYTIC 1UF STD 50V M

C,TUBULA(HIGH DIELE) 1000PF 50V K

C,TUBULA(HIGH DIELE) 560P 50V K

C,POLYESTER(MYLAR) 0.1MF 100V L

C,CERAMIC(TEMP COMP) 18P 50V J

C,TUBULA(HIGH DIELE) 0.1M 50V Z

C,ELECTROLYTIC 470UF STD 10V M

C,CERAMIC(TEMP COMP) 33P 50V J

C,TUBULA(HIGH DIELE) 0.1M 50V Z

C,ELECTROLYTIC 47UF STD 16V M

C,TUBULA(HIGH DIELE) 0.1M 50V Z

C,TUBULA(HIGH DIELE) 100PF 50V K

C,TUBULA(HIGH DIELE) 0.1M 50V Z

C,ELECTROLYTIC 470UF STD 10V M

C,ELECTROLYTIC 1UF STD 50V M

C,ELECTROLYTIC 47UF STD 16V M

C,TUBULA(HIGH DIELE) 1000PF 50V K

C,TUBULA(HIGH DIELE) 820P 50V K

C,TUBULA(HIGH DIELE) 1800P 16V K

C,TUBULA(HIGH DIELE) 470PF 50V K

C,TUBULA(HIGH DIELE) 1000PF 50V K

C,TUBULA(HIGH DIELE) 330P 50V K

C,ELECTROLYTIC 0.47UF STD 50V M

C,ELECTROLYTIC 1UF STD 50V M

C,TUBULA(HIGH DIELE) 2200P 16V M

C,ELECTROLYTIC 0.68UF KU 50V K

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,ELECTROLYTIC 220UF STD 16V M

C,ELECTROLYTIC 4.7UF STD 50V M

C,ELECTROLYTIC 10UF STD 16V M

C,ELECTROLYTIC 1UF STD 50V M

C,ELECTROLYTIC 100UF STD 16V M

C,ELECTROLYTIC 1UF STD 50V M

C,POLYESTER(MYLAR) 0.47UF S 50V J

C,ELECTROLYTIC 1UF STD 50V M

C,ELECTROLYTIC 47UF STD 16V M

C,ELECTROLYTIC 4.7UF STD 50V M

C,POLYESTER(MYLAR) 0.22UF S 50V J

C,ELECTROLYTIC 330UF STD 16V M

C,ELECTROLYTIC 220UF STD 16V M

C,ELECTROLYTIC 47UF STD 16V M

C,ELECTROLYTIC 220UF STD 16V M

C,ELECTROLYTIC 1UF SM 50V M

LOCA. NO PART NO DESCRIPTION

C113

C12S

C120

C121

C124

C125

C13S

C130

C135

C14S

C142

C143

C145

C15S

C157

C158

C159

C16S

C160

C161

C162

C163

C164

C165

C166

C167

C168

C169

C17S

C172

C173

C174

C175

C176

C178

C18

C18S

C181

C183

C184

C19

C19S

C196

C2

C20S

C201

C202

C21S

C211

0CE476DF618

0CE105DK618

0CE106DF618

0CE105DK618

0CE476DF618

0CE107DF618

0CE105DK618

0CE107DD618

0CE476DF618

0CE107DD618

0CE106DF618

0CE107DD618

0CE106DF618

0CE107DD618

0CK1030K945

0CE227DD618

0CE107DD618

0CN1040K949

0CE476DK618

0CE106DF618

0CE476DF618

0CE106DF618

0CN1030F679

0CE477DF618

0CE107DF618

0CN1030F679

0CE105DK618

0CE106DF618

0CE227DD618

0CN1040K949

0CE107DD618

0CE476DK618

0CK1030K945

0CE477DF618

0CE337DF618

0CQ4742K439

0CN1030F679

0CQ5631N409

0CE4741K636

0CE105DK618

0CE107DD618

0CQ4742K439

0CE105DK618

0CE476DF618

0CQ4721N509

0CE475DK618

C,ELECTROLYTIC 47UF STD 16V M

C,ELECTROLYTIC 1UF STD 50V M

C,ELECTROLYTIC 10UF STD 16V M

C,ELECTROLYTIC 1UF STD 50V M

C,ELECTROLYTIC 47UF STD 16V M

C,ELECTROLYTIC 100UF STD 16V M

C,ELECTROLYTIC 1UF STD 50V M

C,ELECTROLYTIC 100UF STD 10V M

C,ELECTROLYTIC 47UF STD 16V M

C,ELECTROLYTIC 100UF STD 10V M

C,ELECTROLYTIC 10UF STD 16V M

C,ELECTROLYTIC 100UF STD 10V M

C,ELECTROLYTIC 10UF STD 16V M

C,ELECTROLYTIC 100UF STD 10V M

C,CERAMIC(HIGH DIELE) 0.01MF 50V Z

C,ELECTROLYTIC 220UF STD 10V M

C,ELECTROLYTIC 100UF STD 10V M

C,TUBULA(HIGH DIELE) 0.1M 50V Z

C,ELECTROLYTIC 47UF STD 50V M

C,ELECTROLYTIC 10UF STD 16V M

C,ELECTROLYTIC 47UF STD 16V M

C,ELECTROLYTIC 10UF STD 16V M

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,ELECTROLYTIC 470UF STD 16V M

C,ELECTROLYTIC 100UF STD 16V M

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,ELECTROLYTIC 1UF STD 50V M

C,ELECTROLYTIC 10UF STD 16V M

C,ELECTROLYTIC 220UF STD 10V M

C,TUBULA(HIGH DIELE) 0.1M 50V Z

C,ELECTROLYTIC 100UF STD 10V M

C,ELECTROLYTIC 47UF STD 50V M

C,CERAMIC(HIGH DIELE) 0.01MF 50V Z

C,ELECTROLYTIC 470UF STD 16V M

C,ELECTROLYTIC 330UF STD 16V M

C,POLYESTER(MYLAR) 0.47UF S 50V J

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,POLYESTER(MYLAR) 0.0560UF 100V J

C,ELECTROLYTIC 0.47UF SM 50V M

C,ELECTROLYTIC 1UF STD 50V M

C,ELECTROLYTIC 100UF STD 10V M

C,POLYESTER(MYLAR) 0.47UF S 50V J

C,ELECTROLYTIC 1UF STD 50V M

C,ELECTROLYTIC 47UF STD 16V M

C,POLYESTER(MYLAR) 0.0047U 100V K

C,ELECTROLYTIC 4.7UF STD 50V M

- 28 -

LOCA. NO PART NO DESCRIPTION

C219

C22

C22S

C220

C222

C225

C226

C227

C229

C23S

C230

C231

C232

C233

C236

C237

C24S

C240

C241

C242

C243

C245

C246

C247

C25

C25S

C254

C26

C26S P

C28

C28S P

C281

C282

C285

C286

C287

C288

C29S

C295

C296

C297

C3

C30S P

C303

C305

C308

C309

C31S

C310

C32S

C33S

C332

C337

C338

0CE476DF618

0CQ4742K439

0CQ4721N509

0CE476DF618

0CE475DK618

0CE476DF618

0CE475DK618

0CE477DF618

0CQ1831N509

0CE475DK618

0CE476DF618

0CE226DK618

0CQ2231N509

0CE477DF618

0CE106DF618

0CE475DK618

0CE476DF618

0CN1030F679

0CE475DK618

0CE476DF618

0CE475DK618

0CE105DK618

0CQ1831N509

0CE227DF618

0CE107DD618

0CQ5632K439

0CE106DF618

0CQ5632K439

0CE475DK618

0CE337DF618

0CN1030F679

0CQ3921N409

0CE476DF618

0CQ2231N509

0CN1030F679

0CE227DF618

0CN1030F679

0CE1051K636

0CQ5632K439

0CK1030K945

0CE107DK618

0CQ3341N401

0CQ3331N509

0CQ4721N509

0CE107DJ618

0CE226DF618

0CQ3321N509

0CK1030K945

0CE108DH618

C,ELECTROLYTIC 47UF STD 16V M

C,POLYESTER(MYLAR) 0.47UF S 50V J

C,POLYESTER(MYLAR) 0.0047U 100V K

C,ELECTROLYTIC 47UF STD 16V M

C,ELECTROLYTIC 4.7UF STD 50V M

C,ELECTROLYTIC 47UF STD 16V M

C,ELECTROLYTIC 4.7UF STD 50V M

C,ELECTROLYTIC 470UF STD 16V M

C,POLYESTER(MYLAR) 0.018U 100V K

C,ELECTROLYTIC 4.7UF STD 50V M

C,ELECTROLYTIC 47UF STD 16V M

C,ELECTROLYTIC 22UF STD 50V M

C,POLYESTER(MYLAR) 0.022MF 100V K

C,ELECTROLYTIC 470UF STD 16V M

C,ELECTROLYTIC 10UF STD 16V M

C,ELECTROLYTIC 4.7UF STD 50V M

C,ELECTROLYTIC 47UF STD 16V M

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,ELECTROLYTIC 4.7UF STD 50V M

C,ELECTROLYTIC 47UF STD 16V M

C,ELECTROLYTIC 4.7UF STD 50V M

C,ELECTROLYTIC 1UF STD 50V M

C,POLYESTER(MYLAR) 0.018U 100V K

C,ELECTROLYTIC 220UF STD 16V M

C,ELECTROLYTIC 100UF STD 10V M

C,POLYESTER 0.0560UF S 50V J

C,ELECTROLYTIC 10UF STD 16V M

C,POLYESTER 0.0560UF S 50V J

C,ELECTROLYTIC 4.7UF STD 50V M

C,ELECTROLYTIC 330UF STD 16V M

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,POLYESTER(MYLAR) 0.0039U 100V J

C,ELECTROLYTIC 47UF STD 16V M

C,POLYESTER(MYLAR) 0.022MF 100V K

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,ELECTROLYTIC 220UF STD 16V M

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,ELECTROLYTIC 1UF SM 50V M

C,POLYESTER 0.0560UF S 50V J

C,CERAMIC(HIGH DIELE) 0.01MF 50V Z

C,ELECTROLYTIC 100UF STD 50V M

C,POLYESTER(MYLAR) 0.33U 100V J

C,POLYESTER(MYLAR) 0.033U 100V K

C,POLYESTER(MYLAR) 0.0047U 100V K

C,ELECTROLYTIC 100UF STD 35V M

C,ELECTROLYTIC 22UF STD 16V M

C,POLYESTER(MYLAR) 0.0033U 100V K

C,CERAMIC(HIGH DIELE) 0.01MF 50V Z

C,ELECTROLYTIC 1000UF STD 25V M

LOCA. NO PART NO DESCRIPTION

C339

C34S

C346

C347

C348

C349

C35S

C36S

C37

C38S

C39

C39S

C40S

C401

C402

C403

C405

C41S

C410

C414

C415

C42

C42S

C422

C424

C425

C43S

C430

C431

C432

C433

C435

C437

C438

C44

C44S

C442 .5

C446

C447

C449

C45S

C453

C46

C48

C50

C500

C501

C502

C503

C504

C505

C506

C507

C508

C509

0CK47101515

0CQ4742K439

0CE106DK618

0CK1030K945

0CE108DH618

0CK47101515

0CQ4742K439

0CE1051K636

0CE106DF618

0CQ1042K439

0CE3351K636

0CQ1221N419

0CQ4721N509

181-091K

0CQ1031N509

0CE107DJ618

181-091G

0CQ2231N509

181-033T

0CK2220W515

0CE475BP618

0CE4741K636

0CQ2231N509

0CE5651K652

181-015H

181-015K

0CQ1042K439

181-013P

181-013G

0CK2220W515

181-009R

0CK56101515

0CE107DK618

0CE106DF618

0CE226DF618

0CQZVBK004B

0CK56101515

0CE476DR618

0CE474DK618

0CE107DF618

0CE476DF618

0CE227DF618

0CE107DF618

0CE477DF618

0CC1000K115

0CN4710K519

0CE104DK618

0CE475DK618

0CE104DK618

0CN1030F679

0CE477DF618

0CE104DK618

C,CERAMIC(HIGH DIELE) 470P 1KV K

C,POLYESTER(MYLAR) 0.47UF S 50V J

C,ELECTROLYTIC 10UF STD 50V M

C,CERAMIC(HIGH DIELE) 0.01MF 50V Z

C,ELECTROLYTIC 1000UF STD 25V M

C,CERAMIC(HIGH DIELE) 470P 1KV K

C,POLYESTER(MYLAR) 0.47UF S 50V J

C,ELECTROLYTIC 1UF SM 50V M

C,ELECTROLYTIC 10UF STD 16V M

C,POLYESTER(MYLAR) 0.1UF S 50V J

C,ELECTROLYTIC 3.3UF SM 50V M

C,POLYESTER(MYLAR) 0.0012U 100V J

C,POLYESTER(MYLAR) 0.0047U 100V K

C,DE0907 R 561K 2K

C,POLYESTER(MYLAR) 0.01U 100V K

C,ELECTROLYTIC 100UF STD 35V M

C,DE0907 R471K 2K

C,POLYESTER(MYLAR) 0.022MF 100V K

CAPACITOR 2KV B 222K TP7.5

C,CERAMIC(HIGH DIELE) 2200PF 500V K

C,ELECTROLYTIC 4.7U KME(RG) 160V

C,ELECTROLYTIC 0.47UF SM 50V M

C,POLYESTER(MYLAR) 0.022MF 100V K

C,ELECTROLYTIC 5.6UF SM 50V M

C,MPP 1600V 0.0082uF H

C,MPP 1600V 0.0091uF H

C,POLYESTER(MYLAR) 0.1UF S 50V J

C,MPP 400V 0.33UF J

C,MPP 200V 0.5UF J

C,CERAMIC(HIGH DIELE) 2200PF 500V K

C,PP 200V 0.022UF K

C,CERAMIC(HIGH DIELE) 560P 1KV K

C,ELECTROLYTIC 100UF STD 50V M

C,ELECTROLYTIC 10UF STD 16V M

C,ELECTROLYTIC 22UF STD 16V M

C,POLYESTER 0.027UF D 630V J

C,CERAMIC(HIGH DIELE) 560P 1KV K

C,ELECTROLYTIC 47UF STD 250V M

C,ELECTROLYTIC 0.47UF STD 50V M

C,ELECTROLYTIC 100UF STD 16V M

C,ELECTROLYTIC 47UF STD 16V M

C,ELECTROLYTIC 220UF STD 16V M

C,ELECTROLYTIC 100UF STD 16V M

C,ELECTROLYTIC 470UF STD 16V M

C,CERAMIC(TEMP COMP) 10PF 50V D

C,TUBULA(HIGH DIELE) 470PF 50V K

C,ELECTROLYTIC 0.1UF STD 50V M

C,ELECTROLYTIC 4.7UF STD 50V M

C,ELECTROLYTIC 0.1UF STD 50V M

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,ELECTROLYTIC 470UF STD 16V M

C,ELECTROLYTIC 0.1UF STD 50V M

- 29 -

LOCA. NO PART NO DESCRIPTION

C51

C510

C511

C512

C513

C514

C515

C516

C517

C518

C519

C520

C521

C522

C524

C525

C526

C527

C529

C530

C531

C533

C534

C535

C536

C537

C540

C541

C542

C550

C551

C552

C553

C554

C556

C557

C558

C559

C560

C561

C562

C563

C57

C58

C6

C601

C602

C603

C604

C605

C606

C607

C609

C610

C611

0CE107DF618

0CE104DK618

0CQ1031N509

0CQ1041N509

0CQ1042K439

0CN1020K519

0CE105DK618

0CE474DK618

0CE226DK618

0CQ1041N509

0CN1030F679

0CE337DF618

0CN1010K519

0CQ1041N509

0CQ2721N409

0CQ5621N509

0CE105DK618

0CE474DK618

0CQ1021N409

0CE1051K636

0CN1520F569

0CQ6821N509

0CE227DF618

0CN1030F679

0CQ2242K439

0CN1030F679

0CE476DF618

0CN1030F679

0CE476DF618

0CN1030F679

0CQ1031N509

0CE227DD618

0CN1030F679

0CE106DF618

0CQ1042K439

0CE107DF618

0CE107DD618

0CQ1042K439

0CE474DK618

0CQ4731N509

0CE104DK618

0CE225DK618

0CE105DK618

0CE475DK618

0CQ1042K439

0CE226DF618

0CE227DF618

C,ELECTROLYTIC 100UF STD 16V M

C,ELECTROLYTIC 0.1UF STD 50V M

C,POLYESTER(MYLAR) 0.01U 100V K

C,POLYESTER(MYLAR) 0.1MF 100V L

C,POLYESTER(MYLAR) 0.1UF S 50V J

C,TUBULA(HIGH DIELE) 1000PF 50V K

C,ELECTROLYTIC 1UF STD 50V M

C,ELECTROLYTIC 0.47UF STD 50V M

C,ELECTROLYTIC 22UF STD 50V M

C,POLYESTER(MYLAR) 0.1MF 100V L

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,ELECTROLYTIC 330UF STD 16V M

C,TUBULA(HIGH DIELE) 100PF 50V K

C,POLYESTER(MYLAR) 0.1MF 100V L

C,POLYESTER(MYLAR) 2700PF 100V J

C,POLYESTER(MYLAR) 5600PF 100V K

C,ELECTROLYTIC 1UF STD 50V M

C,ELECTROLYTIC 0.47UF STD 50V M

C,POLYESTER(MYLAR) 0.001U 100V J

C,ELECTROLYTIC 1UF SM 50V M

C,TUBULA(HIGH DIELE) 1500P 16V K

C,POLYESTER(MYLAR) 0.0068U 100V K

C,ELECTROLYTIC 220UF STD 16V M

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,POLYESTER(MYLAR) 0.22UF S 50V J

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,ELECTROLYTIC 47UF STD 16V M

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,ELECTROLYTIC 47UF STD 16V M

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,POLYESTER(MYLAR) 0.01U 100V K

C,ELECTROLYTIC 220UF STD 10V M

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,ELECTROLYTIC 10UF STD 16V M

C,POLYESTER(MYLAR) 0.1UF S 50V J

C,ELECTROLYTIC 100UF STD 16V M

C,ELECTROLYTIC 100UF STD 10V M

C,POLYESTER(MYLAR) 0.1UF S 50V J

C,ELECTROLYTIC 0.47UF STD 50V M

C,POLYESTER(MYLAR) 0.047U 100V K

C,ELECTROLYTIC 0.1UF STD 50V M

C,ELECTROLYTIC 2.2UF STD 50V M

C,ELECTROLYTIC 1UF STD 50V M

C,ELECTROLYTIC 4.7UF STD 50V M

C,POLYESTER(MYLAR) 0.1UF S 50V J

C,ELECTROLYTIC 22UF STD 16V M

C,ELECTROLYTIC 220UF STD 16V M

LOCA. NO PART NO DESCRIPTION

C614

C615

C616

C617

C619

C621

C622

C623

C637

C64

C648 P

C649

C65

C660

C661

C662

C663

C664

C665

C666

C667

C668

C669

C670

C671

C672

C673

C674

C675

C676

C677

C678

C679

C68

C680

C681

C682

C683

C684

C685

C686

C687

C688

C69

C690

C692

C693

C694

C695

C697

C698

C699

C701

C704

0CE105DK618

0CSZVTA001B

0CSZVTA001A

0CE105DK618

0CQ4742K439

0CE105DK618

0CE476DF618

0CQ5621N509

0CE107DD618

0CQ5632K439

0CN1030F679

0CQ1042K439

0CE108DJ618

0CQ1042K439

0CK1030K945

0CQ1042K439

0CE107DH618

0CE106DF618

0CQ1031N509

0CE107DH618

0CQ1031N509

0CE106DF618

0CE107DH618

0CE106DF618

0CE108DK61A

0CQ4742K439

0CE228DJ650

0CQ1041N509

0CE228DJ650

0CQ1041N509

0CE107DD618

0CE107DH618

0CE106DF618

0CE106DK618

0CE106DF618

0CE107DH618

0CE474DK618

0CE106DF618

0CE107DF618

0CE477DK618

0CQ1041N509

0CQ5621N509

0CE107DF618

0CE477DF618

0CQ3931N509

0CK1030K945

0CE476DF618

C,ELECTROLYTIC 1UF STD 50V M

C,TANTALUM 16V 10UF K

C,TANTALUM

C,ELECTROLYTIC 1UF STD 50V M

C,POLYESTER(MYLAR) 0.47UF S 50V J

C,ELECTROLYTIC 1UF STD 50V M

C,ELECTROLYTIC 47UF STD 16V M

C,POLYESTER(MYLAR) 5600PF 100V K

C,ELECTROLYTIC 100UF STD 10V M

C,POLYESTER 0.0560UF S 50V J

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,POLYESTER(MYLAR) 0.1UF S 50V J

C,ELECTROLYTIC 1000UF STD 35V M

C,POLYESTER(MYLAR) 0.1UF S 50V J

C,CERAMIC(HIGH DIELE) 0.01MF 50V Z

C,POLYESTER(MYLAR) 0.1UF S 50V J

C,ELECTROLYTIC 100UF STD 25V M

C,ELECTROLYTIC 10UF STD 16V M

C,POLYESTER(MYLAR) 0.01U 100V K

C,ELECTROLYTIC 100UF STD 25V M

C,POLYESTER(MYLAR) 0.01U 100V K

C,ELECTROLYTIC 10UF STD 16V M

C,ELECTROLYTIC 100UF STD 25V M

C,ELECTROLYTIC 10UF STD 16V M

C,ELECTROLYTIC 1000UF STD 50V M

C,POLYESTER(MYLAR) 0.47UF S 50V J

C,ELECTROLYTIC 2200UF STD 35V M

C,POLYESTER(MYLAR) 0.1MF 100V L

C,ELECTROLYTIC 2200UF STD 35V M

C,POLYESTER(MYLAR) 0.1MF 100V L

C,ELECTROLYTIC 100UF STD 10V M

C,ELECTROLYTIC 100UF STD 25V M

C,ELECTROLYTIC 10UF STD 16V M

C,ELECTROLYTIC 10UF STD 50V M

C,ELECTROLYTIC 10UF STD 16V M

C,ELECTROLYTIC 100UF STD 25V M

C,ELECTROLYTIC 0.47UF STD 50V M

C,ELECTROLYTIC 10UF STD 16V M

C,ELECTROLYTIC 100UF STD 16V M

C,ELECTROLYTIC 470UF STD 50V M

C,POLYESTER(MYLAR) 0.1MF 100V L

C,POLYESTER(MYLAR) 5600PF 100V K

C,ELECTROLYTIC 100UF STD 16V M

C,ELECTROLYTIC 470UF STD 16V M

C,POLYESTER(MYLAR) 0.039UF 100V K

C,CERAMIC(HIGH DIELE) 0.01MF 50V Z

C,ELECTROLYTIC 47UF STD 16V M

- 30 -

LOCA. NO PART NO DESCRIPTION

C712

C721

C722

C725

C727

C732

C770

C801

C802

C803

C804

C805

C806

C807

C809

C810

C811

C812

C813

C814

C815

C817

C820

C821

C822

C823

C824

C825

C826

C827

C828

C829

C831

C832

C833

C834

C836

C837

C838

C839

C840

C850

C860

C89

C899

C901

C902

C907

C908

C909

C910

C911

C913

C914

C920

0CE477DD618

0CQ1021N509

0CQ1031N509

0CE106DF618

0CQ4742K439

0CQZVBK002C

0CK56101515

181-091D

181-001T

0CE477DF618

0CE227DJ618

0CE476DN618

0CK1020K515

181-131M

181-091B

181-091C

0CE227DP61A

181-102P

0CE477DF618

0CE1051K636

0CE108DF618

0CE337DK618

0CE3386H610

181-091C

0CE108BF618

181-003D

181-091C

181-091D

0CQ1041N509

0CE108DF618

0CE228DK650

0CE228DH610

0CE108DK61A

0CE108DF618

181-120E

181-120H

0CE105DK618

181-091C

181-033T

0CE475DR618

0CE107DF618

0CN1040K949

0CN2220F669

0CN2210K519

0CN1030F679

0CK1010W515

0CN2220F669

C,ELECTROLYTIC 470UF STD 10V M

C,POLYESTER(MYLAR) 0.001U 100V K

C,POLYESTER(MYLAR) 0.01U 100V K

C,ELECTROLYTIC 10UF STD 16V M

C,POLYESTER(MYLAR) 0.47UF S 50V J

C,POLYESTER A.C 275V 0.22UF K

C,CERAMIC(HIGH DIELE) 560P 1KV K

C,DE0905 R 102K 1KV

C,ELECTROLYTIC 400V 470UF M

C,ELECTROLYTIC 470UF STD 16V M

C,ELECTROLYTIC 220UF STD 35V M

C,ELECTROLYTIC 47UF STD 100V M

C,CERAMIC(HIGH DIELE) 1000PF 500V K

CAPACITOR MPP 1600V 0.003

C,DE5105 270MF1KV J

C,DE0705 R 471K 1KV

C,ELECTROLYTIC 220UF STD 160V M

C,HR 160V 33UF TP

C,ELECTROLYTIC 470UF STD 16V M

C,ELECTROLYTIC 1UF SM 50V M

C,ELECTROLYTIC 1000UF STD 16V M

C,ELECTROLYTIC 330UF STD 50V M

C,ELECTROLYTIC 3300M SMS 25V M

C,DE0705 R 471K 1KV

C,ELECTROLYTIC 1000UF KME 16V M

C,ELECTROLYTIC 160V 100UF T HR

C,DE0705 R 471K 1KV

C,DE0905 R 102K 1KV

C,POLYESTER(MYLAR) 0.1MF 100V L

C,ELECTROLYTIC 1000UF STD 16V M

C,ELECTROLYTIC 2200UF STD 50V M

C,ELECTROLYTIC 2200UF STD 25V M

C,ELECTROLYTIC 1000UF STD 50V M

C,ELECTROLYTIC 1000UF STD 16V M

C,ACT 4KV E 222M FL10

CAPACITOR ACT 4KV E 152M FL10

C,ELECTROLYTIC 1UF STD 50V M

C,DE0705 R 471K 1KV

CAPACITOR 2KV B 222K TP7.5

C,ELECTROLYTIC 4.7UF STD 250V M

C,ELECTROLYTIC 100UF STD 16V M

C,TUBULA(HIGH DIELE) 0.1M 50V Z

C,TUBULA(HIGH DIELE) 2200P 16V M

C,TUBULA(HIGH DIELE) 220PF 50V K

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,CERAMIC(HIGH DIELE) 100PF 500V K

C,TUBULA(HIGH DIELE) 2200P 16V M

LOCA. NO PART NO DESCRIPTION

C921

C923

C924

C930

C931

C933

C934

C970

C971

C972

C979

C98

C981

C985

C986

C987

C990

C992

C993

C994

C995

C996

C997

C999

J138

FB401

FB802

FB803

FB804

FB806

L999

F801

F809

F810

F811

DL701

Z701

L001

L002

L003

L004

L005

L007

L009

L1

L1061

L11S

L161

L162

0CN2210K519

0CN1030F679

0CK1010W515

0CN2220F669

0CN2210K519

0CN1030F679

0CK1010W515

0CN1040K949

0CE476DF618

0CE227DF618

0CN1040K949

0CE107DD618

0CE105DK618

0CK4720W510

0CN6810K519

0CE107DF618

0CE336DP618

0CN6810K519

0CE684DK618

0CE476DK618

0CK4720W510

0CN6810K519

0CE107DF618

0CE106BR618

0CN1030F679

125-022K

125-123A

125-022K

131-029K

131-096E

150-Y03A

150-B01B

0LA0221K119

0LA0332K119

0LA0102K119

0LA0681K119

0LA0332K119

0LA0221K119

0LA0222K119

0LA0332K039

C,TUBULA(HIGH DIELE) 220PF 50V K

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,CERAMIC(HIGH DIELE) 100PF 500V K

C,TUBULA(HIGH DIELE) 2200P 16V M

C,TUBULA(HIGH DIELE) 220PF 50V K

C,TUBULA(HIGH DIELE) 0.01MF 16V M

C,CERAMIC(HIGH DIELE) 100PF 500V K

C,TUBULA(HIGH DIELE) 0.1M 50V Z

C,ELECTROLYTIC 47UF STD 16V M

C,ELECTROLYTIC 220UF STD 16V M

C,TUBULA(HIGH DIELE) 0.1M 50V Z

C,ELECTROLYTIC 100UF STD 10V M

C,ELECTROLYTIC 1UF STD 50V M

C,CERAMIC(HIGH DIELE) 4700P 500V K

C,TUBULA(HIGH DIELE) 680P 50V K

C,ELECTROLYTIC 100UF STD 16V M

C,ELECTROLYTIC 33UF STD 160V M

C,TUBULA(HIGH DIELE) 680P 50V K

C,ELECTROLYTIC 0.68UF STD 50V M

C,ELECTROLYTIC 47UF STD 50V M

C,CERAMIC(HIGH DIELE) 4700P 500V K

C,TUBULA(HIGH DIELE) 680P 50V K

C,ELECTROLYTIC 100UF STD 16V M

C,ELECTROLYTIC 10UF KME 250V M

C,TUBULA(HIGH DIELE) 0.01MF 16V M

CORE,FERRITE 1UH

CORE,FERRITE BFD3565R2F

CORE,FERRITE 1UH

FUSE,MINI,TIME LAG 5A/250V

FUSE,MICRO 125V 4.0A

COIL,DELAY LINE 200NS

COIL,L/C FILTER(05S) BPF

INDUCTOR,2.2UH K

INDUCTOR,33UH K

INDUCTOR,10UH K

INDUCTOR,6.8UH K

INDUCTOR,33UH K

INDUCTOR,2.2UH K

INDUCTOR,22UH K

INDUCTOR,33UH 10%

- 31 -

FERRITE CORE

FUSE

COIL & TRANSFORMER

LOCA. NO PART NO DESCRIPTION

L163

L171

L18

L2

L201

L205

L21

L22

L296

L299

L401

L403

L405

L408

L409

L5

L501

L502

L503

L504

L506

L6

L601

L701

L702

L703

L704

L705

L707

L8

L800

L801

L810

L910

L911

L920

L921

L930

L931

T1

T3

T401

T402

T6

T7

T801

T802

T803

CON899

P002

0LA0332K119

0LA0332K039

0LA0472K119

0LA0221K119

0LA0332K039

0LA0332K119

0LA0221K119

0LA0332K039

0LA0332K119

150-717J

150-W01A

150-L01G

150-C04D

150-C04C

0LA0221K119

0LA0332K119

0LA0332K039

0LA0332K119

0LA0332K039

0LA0221K119

0LA0332K039

0LA0222K119

0LA0152K119

0LA0222K119

0LA0272K119

0LA0222K119

0LA0221K119

150-C02F

0LA0682K139

0LA0122K139

0LA0682K139

0LA0122K139

0LA0682K139

0LA0122K139

150-B01D

150-B04F

151-C02F

6174Z-6238M

150-B03B

150-B02H

150-F06L

6170VMCA01F

387-084C

387-805H

387-839J

387-907L

387-A08G

INDUCTOR,33UH K

INDUCTOR,33UH 10%

INDUCTOR,47UH K

INDUCTOR,2.2UH K

INDUCTOR,33UH 10%

INDUCTOR,33UH K

INDUCTOR,2.2UH K

INDUCTOR,33UH 10%

INDUCTOR,33UH K

COIL,CHOKE 560UH (E/W)

COIL,WIDTH 24UH

COIL,H-LINEARITY 24.8UH

COIL,CHOKE 33UH R 1018

COIL,CHOKE 25UH R 1018

INDUCTOR,2.2UH K

INDUCTOR,33UH K

INDUCTOR,33UH 10%

INDUCTOR,33UH K

INDUCTOR,33UH 10%

INDUCTOR,2.2UH K

INDUCTOR,33UH 10%

INDUCTOR,22UH K

INDUCTOR,15UH K

INDUCTOR,22UH K

INDUCTOR,27UH K

INDUCTOR,22UH K

INDUCTOR,2.2UH K

COIL,CHOKE 82UH R1217

INDUCTOR,68UH K

INDUCTOR,12UH K

INDUCTOR,68UH K

INDUCTOR,12UH K

INDUCTOR,68UH K

INDUCTOR,12UH K

COIL,L/C FILTER(05S) BPF

COIL,L/C FILTER(05Q) LPF

TRANSFORMER,H-DRIVE,EI-19,BULK

FBT,FTMPC12-T6238L

COIL,L/C FILTER(05T) LPF

COIL,L/C FILTER(05W) LPF

COIL,LINE FILTER SQE2930 10MH

TRANSFORMER,SMPS[COIL],TYPE SOOJUNG EER5345 STR-6709W

CONNECTOR ASSY,POWER(D4.0 W/O EYELET) ILSIN

CONNECTOR ASSY,12P,CONNECTOR-CONNECTOR 600MM

CONNECTOR ASSY,3P (IL-G)

CONNECTOR ASSY,1P MXH8610 700MM

CONNECTOR ASSY,8P (L=400)

LOCA. NO PART NO DESCRIPTION

P007

P1

P3A

P301A

P502A

P803A

P804A

P907A

JA209

P1

P2

P202

P205

P206

D996

J300

J411

L006

R001

R002

R003

R004

R005

R006

R007

R008

R009

R010

R011

R012

R013

R014

R015

R016

R017

R018

R019

R020

R021

R022

R023

R024

R025

R027

R028

R029

R032

R033

R034

R035

R036

387-907D

387-A06J

387-A10D

387-812L

387-A10H

387-812F

387-A07F

380-363B

341-768H

380-068B

380-363B

380-389B

380-068B

0RD0222F609

0RD6201F609

0RF0470H609

0RD4701F609

0RD2202F609

0RD4702F609

0RD4701F609

0RD4702F609

0RD2200F609

0RD4702F609

0RD2200F609

0RD5601F609

0RD7501F609

0RD2200F609

0RD4702F609

0RD2200F609

0RD4701F609

0RD2200F609

0RD4701F609

0RD2201F609

0RD2200F609

0RD4701F609

0RD4702F609

0RD2200F609

0RD4702F609

0RD1001F609

0RD1502F609

0RD4700F609

0RD4703F609

0RD1004F609

CONNECTOR ASSY,1P MXH8610 250MM

CONNECTOR ASSY,6P (L=500)

CONNECTOR ASSY,10P (L=250)

CONNECTOR ASSY,YJN250 12P

CONNECTOR ASSY,10P (L=450)

CONNECTOR ASSY,YJN250 7P

CONNECTOR ASSY,7P (L=350)

JACK,S-VHS(TCS7953-14-211)HOSIDEN

JACK,ASSY A/V JACK(3PX3PX3P) V

JACK,EARPHONE WITH SW STEREO 3.5

JACK,S-VHS(TCS7953-14-211)HOSIDEN

JACK,A/V 3P (WITH SWITCH)

JACK,EARPHONE WITH SW STEREO 3.5

R,CARBON FILM 22 1/6W 5

R,CARBON FILM 6.2K 1/6W 5

R,FUSIBLE 0.47 1/2W 5

R,CARBON FILM 4.7K 1/6W 5

R,CARBON FILM 22K 1/6W 5

R,CARBON FILM 47K 1/6W 5

R,CARBON FILM 4.7K 1/6W 5

R,CARBON FILM 47K 1/6W 5

R,CARBON FILM 220 1/6W 5

R,CARBON FILM 47K 1/6W 5

R,CARBON FILM 220 1/6W 5

R,CARBON FILM 5.6K 1/6W 5

R,CARBON FILM 7.5K 1/6W 5

R,CARBON FILM 220 1/6W 5

R,CARBON FILM 47K 1/6W 5

R,CARBON FILM 220 1/6W 5

R,CARBON FILM 4.7K 1/6W 5

R,CARBON FILM 220 1/6W 5

R,CARBON FILM 4.7K 1/6W 5

R,CARBON FILM 2.2K 1/6W 5

R,CARBON FILM 220 1/6W 5

R,CARBON FILM 4.7K 1/6W 5

R,CARBON FILM 47K 1/6W 5

R,CARBON FILM 220 1/6W 5

R,CARBON FILM 47K 1/6W 5

R,CARBON FILM 1.0K 1/6W 5

R,CARBON FILM 15K 1/6W 5

R,CARBON FILM 470 1/6W 5

R,CARBON FILM 470K 1/6W 5

R,CARBON FILM 1.0M 1/6W 5

- 32 -

CONNECTOR

JACK

RESISTOR

LOCA. NO PART NO DESCRIPTION

R037

R038

R039

R040

R041

R042

R043

R044

R045

R046

R047

R048

R049

R050

R051

R052

R053

R054

R055

R056

R059

R060

R061

R062

R063

R064

R065

R066

R067

R068

R069

R070

R071

R072

R073

R074

R075

R076

R077

R078

R079

R080

R081

R082

R083

R084

R085

R086

R087

R088

R089

R090

R091

R092

R093

0RD2200F609

0RD1002F609

0RD4700F609

0RD4701F609

0RD2200F609

0RD4702F609

0RD1000F609

0RD1301F609

0RD2200F609

0RD4701F609

0RD2200F609

0RD4702F609

0RD1000F609

0RD1301F609

0RD2200F609

0RD4702F609

0RD2200F609

0RD4701F609

0RD2200F609

0RD4702F609

0RD2200F609

0RD4702F609

0RD2200F609

0RD4702F609

0RD2200F609

0RD4702F609

0RD4701F609

0RD4702F609

0RD4701F609

0RD4702F609

0RD4701F609

0RD2200F609

0RD4702F609

0RD2200F609

0RD4702F609

0RD4700F609

0RD4702F609

0RD4701F609

0RD1001F609

0RD4701F609

0RD1201F609

0RD4701F609

0RD6800F609

0RD4701F609

0RD5600F609

0RD4701F609

0RD6800F609

0RD2200F609

0RD3300F609

0RD3003F609

0RD1202F609

R,CARBON FILM 220 1/6W 5

R,CARBON FILM 10K 1/6W 5

R,CARBON FILM 470 1/6W 5

R,CARBON FILM 4.7K 1/6W 5

R,CARBON FILM 220 1/6W 5

R,CARBON FILM 47K 1/6W 5

R,CARBON FILM 100 1/6W 5

R,CARBON FILM 1.3K 1/6W 5

R,CARBON FILM 220 1/6W 5

R,CARBON FILM 4.7K 1/6W 5

R,CARBON FILM 220 1/6W 5

R,CARBON FILM 47K 1/6W 5

R,CARBON FILM 100 1/6W 5

R,CARBON FILM 1.3K 1/6W 5

R,CARBON FILM 220 1/6W 5

R,CARBON FILM 47K 1/6W 5

R,CARBON FILM 220 1/6W 5

R,CARBON FILM 4.7K 1/6W 5

R,CARBON FILM 220 1/6W 5

R,CARBON FILM 47K 1/6W 5

R,CARBON FILM 220 1/6W 5

R,CARBON FILM 47K 1/6W 5

R,CARBON FILM 220 1/6W 5

R,CARBON FILM 47K 1/6W 5

R,CARBON FILM 220 1/6W 5

R,CARBON FILM 47K 1/6W 5

R,CARBON FILM 4.7K 1/6W 5

R,CARBON FILM 47K 1/6W 5

R,CARBON FILM 4.7K 1/6W 5

R,CARBON FILM 47K 1/6W 5

R,CARBON FILM 4.7K 1/6W 5

R,CARBON FILM 220 1/6W 5

R,CARBON FILM 47K 1/6W 5

R,CARBON FILM 220 1/6W 5

R,CARBON FILM 47K 1/6W 5

R,CARBON FILM 470 1/6W 5

R,CARBON FILM 47K 1/6W 5

R,CARBON FILM 4.7K 1/6W 5

R,CARBON FILM 1.0K 1/6W 5

R,CARBON FILM 4.7K 1/6W 5

R,CARBON FILM 1.2K 1/6W 5

R,CARBON FILM 4.7K 1/6W 5

R,CARBON FILM 680 1/6W 5

R,CARBON FILM 4.7K 1/6W 5

R,CARBON FILM 560 1/6W 5

R,CARBON FILM 4.7K 1/6W 5

R,CARBON FILM 680 1/6W 5

R,CARBON FILM 220 1/6W 5

R,CARBON FILM 330 1/6W 5

R,CARBON FILM 300K 1/6W 5

R,CARBON FILM 12K 1/6W 5

LOCA. NO PART NO DESCRIPTION

R094

R095

R096

R097

R098

R099

R1

R100

R101

R102

R103

R104

R105

R106

R1061

R1062

R1067

R1068

R107

R108

R109

R111

R114

R124

R15S

R16S

R161

R162

R164

R165

R166

R168

R169

R17S

R170

R171

R173

R174

R175

R176

R179

R180

R182

R183

R184

R185

R186

R189

R19S

R2

R20S

R202

R203

R205

R206

0RD3901F609

0RD1002F609

0RD4701F609

0RD1501F609

0RD1801F609

0RD1201F609

0RD4701F609

0RD1502F609

0RD1001F609

0RD1003F609

0RD2200F609

0RD1802F609

0RD6802F609

0RD1201F609

0RF0561H609

0RD1000F609

0RD0471H609

0RD0331H609

0RD1003F609

0RD1002F609

0RD5601F609

0RD4702F609

0RD2200F609

0RD1003F609

0RD1001F609

0RD2200F609

0RD4701F609

0RD1000H609

0RD1003F609

0RD1501H609

0RD1001F609

0RD1501H609

0RD4701F609

0RD2200F609

0RD1000H609

0RD1501H609

0RD2700F609

0RD5600F609

0RD1001F609

0RD1000F609

0RD1601F609

0RD1001F609

0RD4701F609

0RD1001F609

0RD2200F609

0RD5601F609

0RD2200F609

0RD5601F609

R,CARBON FILM 3.9K 1/6W 5

R,CARBON FILM 10K 1/6W 5

R,CARBON FILM 4.7K 1/6W 5

R,CARBON FILM 1.5K 1/6W 5

R,CARBON FILM 1.8K 1/6W 5

R,CARBON FILM 1.2K 1/6W 5

R,CARBON FILM 4.7K 1/6W 5

R,CARBON FILM 15K 1/6W 5

R,CARBON FILM 1.0K 1/6W 5

R,CARBON FILM 100K 1/6W 5

R,CARBON FILM 220 1/6W 5

R,CARBON FILM 18K 1/6W 5

R,CARBON FILM 68K 1/6W 5

R,CARBON FILM 1.2K 1/6W 5

R,FUSIBLE 5.6 1/2W 5

R,CARBON FILM 100 1/6W 5

R,CARBON FILM 4.7 1/2W 5

R,CARBON FILM 3.3 1/2W 5

R,CARBON FILM 100K 1/6W 5

R,CARBON FILM 10K 1/6W 5

R,CARBON FILM 5.6K 1/6W 5

R,CARBON FILM 47K 1/6W 5

R,CARBON FILM 220 1/6W 5

R,CARBON FILM 100K 1/6W 5

R,CARBON FILM 1.0K 1/6W 5

R,CARBON FILM 220 1/6W 5

R,CARBON FILM 4.7K 1/6W 5

R,CARBON FILM 100 1/2W 5

R,CARBON FILM 100K 1/6W 5

R,CARBON FILM 1.5K 1/2W 5

R,CARBON FILM 1.0K 1/6W 5

R,CARBON FILM 1.5K 1/2W 5

R,CARBON FILM 4.7K 1/6W 5

R,CARBON FILM 220 1/6W 5

R,CARBON FILM 100 1/2W 5

R,CARBON FILM 1.5K 1/2W 5

R,CARBON FILM 270 1/6W 5

R,CARBON FILM 560 1/6W 5

R,CARBON FILM 1.0K 1/6W 5

R,CARBON FILM 100 1/6W 5

R,CARBON FILM 1.6K 1/6W 5

R,CARBON FILM 1.0K 1/6W 5

R,CARBON FILM 4.7K 1/6W 5

R,CARBON FILM 1.0K 1/6W 5

R,CARBON FILM 220 1/6W 5

R,CARBON FILM 5.6K 1/6W 5

R,CARBON FILM 220 1/6W 5

R,CARBON FILM 5.6K 1/6W 5

- 33 -

LOCA. NO PART NO DESCRIPTION

R208

R209

R229

R230

R232

R233

R234

R256

R257

R275

R276

R277

R279

R280

R281

R282

R283

R284

R285

R288

R289

R292

R293

R294

R295

R296

R298

R299

R3

R302

R303

R304

R305

R306

R307

R308

R310

R311

R315

R318

R319

R320

R326

R327

R328

R331

R335

R339

R348

R349

0RD2200F609

0RD1001F609

0RD1002F609

0RD2200F609

0RD1001F609

0RD4702F609

0RD0102H609

0RD2200F609

0RD4703F609

0RD5601F609

0RD1000F609

0RD1001F609

0RD1000F609

0RD1001F609

0RD1000F609

0RD1003F609

0RS0470K607

0RD2201F609

0RD0752F609

0RD1003F609

0RD1002F609

0RD2201F609

0RD1001F609

0RD2202F609

0RD2700F609

0RD3301F609

0RD4700F609

0RN2702F409

0RD3303F609

0RN2701F409

0RN2201F409

0RN1001F409

0RD1501F609

0RS0561H609

0RN4702F409

0RD0331F609

0RS6800H609

0RD6201F609

0RN8201F409

0RS0151K607

0RN2701F409

0RD8201F609

180-D02E

0RD1802F609

180-D02H

R,CARBON FILM 220 1/6W 5

R,CARBON FILM 1.0K 1/6W 5

R,CARBON FILM 10K 1/6W 5

R,CARBON FILM 220 1/6W 5

R,CARBON FILM 1.0K 1/6W 5

R,CARBON FILM 47K 1/6W 5

R,CARBON FILM 10 1/2W 5

R,CARBON FILM 220 1/6W 5

R,CARBON FILM 470K 1/6W 5

R,CARBON FILM 5.6K 1/6W 5

R,CARBON FILM 100 1/6W 5

R,CARBON FILM 1.0K 1/6W 5

R,CARBON FILM 100 1/6W 5

R,CARBON FILM 1.0K 1/6W 5

R,CARBON FILM 100 1/6W 5

R,CARBON FILM 100K 1/6W 5

R,METAL FILM OXIDE 0.47 2W 5%

R,CARBON FILM 2.2K 1/6W 5

R,CARBON FILM 75 1/6W 5

R,CARBON FILM 100K 1/6W 5

R,CARBON FILM 10K 1/6W 5

R,CARBON FILM 2.2K 1/6W 5

R,CARBON FILM 1.0K 1/6W 5

R,CARBON FILM 22K 1/6W 5

R,CARBON FILM 270 1/6W 5

R,CARBON FILM 3.3K 1/6W 5

R,CARBON FILM 470 1/6W 5

R,METAL FILM 27K 1/6W 1%

R,CARBON FILM 330K 1/6W 5

R,METAL FILM 2.70K 1/6W 1%

R,METAL FILM 2.2K 1/6W 1%

R,METAL FILM 1K 1/6W 1%

R,CARBON FILM 1.5K 1/6W 5

R,METAL FILM OXIDE 5.6 1/2W 5

R,METAL FILM 47K 1/6W 1%

R,CARBON FILM 3.3 1/6W 5

R,METAL FILM OXIDE 680 1/2W 5

R,CARBON FILM 6.2K 1/6W 5

R,METAL FILM 8.20K 1/6W 1%

R,METAL FILM OXIDE 1.50 2W 5%

R,METAL FILM 2.70K 1/6W 1%

R,CARBON FILM 8.2K 1/6W 5

R,RNF RND(S) CR 2W 1.0 J

R,CARBON FILM 18K 1/6W 5

R,RNF RND(S) CR 2W 1.4 J

LOCA. NO PART NO DESCRIPTION

R4

R400

R401

R402

R403

R404

R405

R406

R416

R418

R419

R423

R434

R435

R436

R437

R438

R439

R441

R443

R446

R448

R501

R502

R503

R504

R505

R506

R507

R508

R509

R510

R511

R512

R513

R514

R515

R516

R517

R519

R520

R522

R523

R524

R525

R526

R527

R528

R529

R530

R531

R533

R534

R535

R536

0RD2700F609

0RD0472H609

0RS1500H609

0RS0470J607

0RN1501G509

0RD3302F609

0RN5601G409

0RD8201F609

0RS4700K607

0RD1001F609

0RD2401H609

0RS1801H609

0RS2701H609

0RS1501H609

180-D02X

0RD4702H609

0RS3901H609

0RS1202H609

0RF0101J607

180-D02E

180-D02C

0RD1002F609

0RD1502F609

0RD2200F609

0RD0222F609

0RD2200F609

0RD2000F609

0RD5600F609

0RF0470H609

0RD1000F609

0RD8201F609

0RD1000F609

0RN1201F409

0RD1000F609

0RD2701F609

0RD1502F609

0RD6201F609

0RD9101F609

0RD3900F609

0RN1502F409

0RD3903F609

0RD1000F609

R,CARBON FILM 270 1/6W 5

R,CARBON FILM 47 1/2W 5

R,METAL FILM OXIDE 150 1/2W 5

R,METAL FILM OXIDE 0.47 1W 5%

R,METAL FILM 1.5K 1/4W 2

R,CARBON FILM 33K 1/6W 5

R,METAL FILM 5.6K 1/4W 1

R,CARBON FILM 8.2K 1/6W 5

R,METAL FILM OXIDE 470 2W 5%

R,CARBON FILM 1.0K 1/6W 5

R,CARBON FILM 2.4K 1/2W 5

R,METAL FILM OXIDE 1.8K 1/2W 5

R,METAL FILM OXIDE 2.7K 1/2W 5

R,METAL FILM OXIDE 1.5K 1/2W 5

R,FUSIBLE 5.6OHM 2 W 5%

R,CARBON FILM 47K 1/2W 5

R,METAL FILM OXIDE 3.9K 1/2W 5

R,METAL FILM OXIDE 12K 1/2W 5

R,FUSIBLE 1 1W 5%

R,RNF RND(S) CR 2W 1.0 J

R,RNF RND(S) EQ 2W 0.47 J

R,CARBON FILM 10K 1/6W 5

R,CARBON FILM 15K 1/6W 5

R,CARBON FILM 220 1/6W 5

R,CARBON FILM 22 1/6W 5

R,CARBON FILM 220 1/6W 5

R,CARBON FILM 200 1/6W 5

R,CARBON FILM 560 1/6W 5

R,FUSIBLE 0.47 1/2W 5

R,CARBON FILM 100 1/6W 5

R,CARBON FILM 8.2K 1/6W 5

R,CARBON FILM 100 1/6W 5

R,METAL FILM 1.20K 1/6W 1%

R,CARBON FILM 100 1/6W 5

R,CARBON FILM 2.7K 1/6W 5

R,CARBON FILM 15K 1/6W 5

R,CARBON FILM 6.2K 1/6W 5

R,CARBON FILM 9.1K 1/6W 5

R,CARBON FILM 390 1/6W 5

R,METAL FILM 15K 1/6W 1%

R,CARBON FILM 390K 1/6W 5

R,CARBON FILM 100 1/6W 5

- 34 -

LOCA. NO PART NO DESCRIPTION

R537

R538

R539

R540

R541

R542

R548

R549

R550

R552

R553

R554

R557

R558

R559

R560

R561

R562

R563

R568

R569

R570

R575

R576

R577

R578

R580

R581

R582

R583

R585

R586

R587

R588

R589

R607

R608

R609

R610

R611

R612

R613

R615

R625

R626

R650

R651

R653

R654

R660

R661

R662

R663

R664

R665

0RD2200F609

0RD1001F609

0RD1000F609

0RD0102F609

0RD3301F609

0RD0752F609

0RD1001F609

0RD3600F609

0RD1301F609

0RD4702F609

0RD5601F609

0RD8202F609

0RD2202F609

0RD1002F609

0RD1000F609

0RD1001F609

0RD5601F609

0RD1001F609

0RD2001F609

0RD1001F609

0RD1000F609

0RD2002F609

0RD2701F609

0RD2400F609

0RD8200F609

0RD2401F609

0RD1001F609

0RD4702F609

0RN3302F409

0RN3301F409

0RD1001F609

0RD0102F609

0RD2200F609

0RD1001F609

0RD2701F609

0RD2200F609

0RD0561H609

0RD2002F609

0RD1002F609

0RS0331H609

0RD5600F609

0RS0331H609

0RD3000F609

0RD1801F609

R,CARBON FILM 220 1/6W 5

R,CARBON FILM 1.0K 1/6W 5

R,CARBON FILM 100 1/6W 5

R,CARBON FILM 10 1/6W 5

R,CARBON FILM 3.3K 1/6W 5

R,CARBON FILM 75 1/6W 5

R,CARBON FILM 1.0K 1/6W 5

R,CARBON FILM 360 1/6W 5

R,CARBON FILM 1.3K 1/6W 5

R,CARBON FILM 47K 1/6W 5

R,CARBON FILM 5.6K 1/6W 5

R,CARBON FILM 82K 1/6W 5

R,CARBON FILM 22K 1/6W 5

R,CARBON FILM 10K 1/6W 5

R,CARBON FILM 100 1/6W 5

R,CARBON FILM 1.0K 1/6W 5

R,CARBON FILM 5.6K 1/6W 5

R,CARBON FILM 1.0K 1/6W 5

R,CARBON FILM 2.0K 1/6W 5

R,CARBON FILM 1.0K 1/6W 5

R,CARBON FILM 100 1/6W 5

R,CARBON FILM 20K 1/6W 5

R,CARBON FILM 2.7K 1/6W 5

R,CARBON FILM 240 1/6W 5

R,CARBON FILM 820 1/6W 5

R,CARBON FILM 2.4K 1/6W 5

R,CARBON FILM 1.0K 1/6W 5

R,CARBON FILM 47K 1/6W 5

R,METAL FILM 33K 1/6W 1%

R,METAL FILM 3.30K 1/6W 1%

R,CARBON FILM 1.0K 1/6W 5

R,CARBON FILM 10 1/6W 5

R,CARBON FILM 220 1/6W 5

R,CARBON FILM 1.0K 1/6W 5

R,CARBON FILM 2.7K 1/6W 5

R,CARBON FILM 220 1/6W 5

R,CARBON FILM 5.6 1/2W 5

R,CARBON FILM 20K 1/6W 5

R,CARBON FILM 10K 1/6W 5

R,METAL FILM OXIDE 3.3 1/2W 5

R,CARBON FILM 560 1/6W 5

R,METAL FILM OXIDE 3.3 1/2W 5

R,CARBON FILM 300 1/6W 5

R,CARBON FILM 1.8K 1/6W 5

LOCA. NO PART NO DESCRIPTION

R666

R667

R668

R669

R670

R671

R672

R673

R674

R675

R676

R677

R678

R679

R680

R681

R682

R683

R684

R685

R686

R687

R688

R689

R690

R691

R692

R695

R701

R704

R719

R728

R802

R803

R804

R805

R806

R807

R808

R809

R810

R811

R812

R813

R814

R815

R816

R818

R820

R821

R822

R823

R824

R825

R826

0RD2201F609

0RD3000F609

0RD4700H609

0RS0331H609

0RD4701F609

0RD2002F609

0RS0331H609

0RD6200F609

0RD1000F609

0RD1002F609

0RD1601F609

0RD1803F609

0RD1002F609

0RD5600F609

0RD1001F609

0RD1002F609

0RD4703F609

0RD1302F609

0RD6802F609

0RD3902F609

0RD1000F609

0RD3000F609

0RD3902F609

0RD0682F609

0RD3900F609

0RD1001F609

0RS1000H609

0RS2702K607

180-A01D

0RS0222K607

0RN0680H609

0RS0222K607

0RS1202H609

0RS6801H609

0RD2001F609

0RD1001F609

0RN0680H609

0RD1001F609

0RS1001H609

0RD3901F609

0RD1002F609

0RD4702F609

131-096E

0RS1002K607

0RS0472K607

R,CARBON FILM 2.2K 1/6W 5

R,CARBON FILM 300 1/6W 5

R,CARBON FILM 470 1/2W 5

R,METAL FILM OXIDE 3.3 1/2W 5

R,CARBON FILM 4.7K 1/6W 5

R,CARBON FILM 20K 1/6W 5

R,METAL FILM OXIDE 3.3 1/2W 5

R,CARBON FILM 620 1/6W 5

R,CARBON FILM 100 1/6W 5

R,CARBON FILM 10K 1/6W 5

R,CARBON FILM 1.6K 1/6W 5

R,CARBON FILM 180K 1/6W 5

R,CARBON FILM 10K 1/6W 5

R,CARBON FILM 560 1/6W 5

R,CARBON FILM 1.0K 1/6W 5

R,CARBON FILM 10K 1/6W 5

R,CARBON FILM 470K 1/6W 5

R,CARBON FILM 13K 1/6W 5

R,CARBON FILM 68K 1/6W 5

R,CARBON FILM 39K 1/6W 5

R,CARBON FILM 100 1/6W 5

R,CARBON FILM 300 1/6W 5

R,CARBON FILM 39K 1/6W 5

R,CARBON FILM 68 1/6W 5

R,CARBON FILM 390 1/6W 5

R,CARBON FILM 1.0K 1/6W 5

R,METAL FILM OXIDE 100 1/2W 5

R,METAL FILM OXIDE 27K 2W 5%

R,RW ROUND G 2W 0.16 J

R,METAL FILM OXIDE 22 2W 5%

R,METAL FILM 0.68 1/2W 5

R,METAL FILM OXIDE 22 2W 5%

R,METAL FILM OXIDE 12K 1/2W 5

R,METAL FILM OXIDE 6.8K 1/2W 5

R,CARBON FILM 2.0K 1/6W 5

R,CARBON FILM 1.0K 1/6W 5

R,METAL FILM 0.68 1/2W 5

R,CARBON FILM 1.0K 1/6W 5

R,METAL FILM OXIDE 1.0K 1/2W 5

R,CARBON FILM 3.9K 1/6W 5

R,CARBON FILM 10K 1/6W 5

R,CARBON FILM 47K 1/6W 5

FUSE MICRO 125V 4.0A

R,METAL FILM OXIDE 10K 2W 5%

R,METAL FILM OXIDE 47 2W 5%

- 35 -

LOCA. NO PART NO DESCRIPTION

R827

R828

R830

R831

R832

R833

R901

R907

R908

R909

R910

R911

R912

R916

R917

R918

R920

R921

R922

R926

R927

R928

R930

R931

R932

R936

R937

R938

R949

R956

R957

R958

R959

R968

R969

R970

R971

R972

R973

R974

R975

R976

R977

R981

R982

R983

R984

R985

R986

R987

R988

R991

R992

R993

R994

0RD2001F609

0RD6801F609

0RS1502H609

0RS0391K607

0RS0121K607

180-D02D

0RD1000F609

0RD3002F609

0RD1002F609

0RD1000F609

0RD2000F609

0RD1600F609

0RS1000H609

0RD4702F609

0RS1001H609

0RD1000F609

0RD2000F609

0RD1500F609

0RS1000H609

0RD4702F609

0RS1001H609

0RD1000F609

0RD2000F609

0RD1600F609

0RS1000H609

0RD5102F609

0RS1001H609

0RD3301F609

0RF0102J607

0RD2202F609

0RD1200F609

0RD0562F609

0RD3300F609

0RD1001F609

0RD5100F609

0RD1001F609

0RD1000F609

0RD1001F609

0RD2703H609

0RD5100F609

0RS0222H609

0RD0562F609

0RD6801H609

0RD6802H609

0RD4701H609

0RD0102F609

0RD1500H609

0RD0271H609

0RS0222H609

0RD0562F609

0RD6801H609

0RD6802H609

R,CARBON FILM 2.0K 1/6W 5

R,CARBON FILM 6.8K 1/6W 5

R,METAL FILM OXIDE 15K 1/2W 5

R,METAL FILM OXIDE 3.90 2W 5%

R,METAL FILM OXIDE 1.20 2W 5%

R,RNF RND(S) EQ 2W 0.68 J

R,CARBON FILM 100 1/6W 5

R,CARBON FILM 30K 1/6W 5

R,CARBON FILM 10K 1/6W 5

R,CARBON FILM 100 1/6W 5

R,CARBON FILM 200 1/6W 5

R,CARBON FILM 160 1/6W 5

R,METAL FILM OXIDE 100 1/2W 5

R,CARBON FILM 47K 1/6W 5

R,METAL FILM OXIDE 1.0K 1/2W 5

R,CARBON FILM 100 1/6W 5

R,CARBON FILM 200 1/6W 5

R,CARBON FILM 150 1/6W 5

R,METAL FILM OXIDE 100 1/2W 5

R,CARBON FILM 47K 1/6W 5

R,METAL FILM OXIDE 1.0K 1/2W 5

R,CARBON FILM 100 1/6W 5

R,CARBON FILM 200 1/6W 5

R,CARBON FILM 160 1/6W 5

R,METAL FILM OXIDE 100 1/2W 5

R,CARBON FILM 51K 1/6W 5

R,METAL FILM OXIDE 1.0K 1/2W 5

R,CARBON FILM 3.3K 1/6W 5

R,FUSIBLE 10 1W 5%

R,CARBON FILM 22K 1/6W 5

R,CARBON FILM 120 1/6W 5

R,CARBON FILM 56 1/6W 5

R,CARBON FILM 330 1/6W 5

R,CARBON FILM 1.0K 1/6W 5

R,CARBON FILM 510 1/6W 5

R,CARBON FILM 1.0K 1/6W 5

R,CARBON FILM 100 1/6W 5

R,CARBON FILM 1.0K 1/6W 5

R, CARBON FILM 270K 1/2W 5

R,CARBON FILM 510 1/6W 5

R,METAL FILM OXIDE 22 1/2W 5

R,CARBON FILM 56 1/6W 5

R,CARBON FILM 6.8K 1/2W 5

R,CARBON FILM 68K 1/2W 5 TA52

R,CARBON FILM 4.7K 1/2W 5

R,CARBON FILM 10 1/6W 5

R,CARBON FILM 150 1/2W 5

R,CARBON FILM 2.7 1/2W 5

R,METAL FILM OXIDE 22 1/2W 5

R,CARBON FILM 56 1/6W 5

R,CARBON FILM 6.8K 1/2W 5

R,CARBON FILM 68K 1/2W 5

LOCA. NO PART NO DESCRIPTION

R995

R996

R997

R998

VR01

VR02

VR03

VR04

VR05

SW1

SW2

SW3

SW4

SW5

SW6

SW7

SW8

C/F201

X001

X002

X1

X2

X3

X501

X502

ZD701

P604

RL801

SK900

TH801

TH802

TU101

TU102

ZNR801

A1

A2

A3

0RD4701H609

0RD1202H609

0RD1500H609

0RD0271H609

180-F03H

180-F03L

140-313B

166-272C

156-A01P

166-E02B

156-A01B

156-007R

156-A01B

166-E02E

166-F01G

106-060A

343-A70B

141-018E

381-226B

163-051A

163-048D

6700VNF002B

6700VNF002C

164-003D

3828VA0130A

6710V00010L

450-017C

R,CARBON FILM 4.7K 1/2W 5

R,CARBON FILM 12K 1/2W 5

R,CARBON FILM 150 1/2W 5

R,CARBON FILM 2.7 1/2W 5

R,SEMI-FIX(H) EVN-DJAA03 B103

R,EVN-DJAA03 B104 SEMI-FIX(H)

SWITCH,TACT 2LEAD 160G H:5MM HORI(TA)

FILTER,COMB UGL-350KNT(BULK)SHOWA

CRYSTAL,8.000000 16PF 40 OHM BULK

FILTER,RESO CSB503F38 15.734

CRYSTAL,3.579545 16PF 90 OHM

CRYSTAL,14.318180MHZ

CRYSTAL,3.579545 16PF 90 OHM

FILTER,RESO CSB500F2 500

FILTER,EMI,DSS306-93FZ103N 100V TA

PRE-AMP,SBX8030F

SUPPORTER,VIF/SIF

RELAY,DG12D1-0(M)-2 12V44MA

SOCKET,CPT,PCS 628-05B S/LESS BULK(NO5)

THERMISTOR,J5 03 P5 3D 140M 290S

THERMISTOR,KL15L2R5

TUNER,TVCH2-B01A LGEC NTSC

TUNER,TVBH2-B01A LGEC NTSC

VARISTOR,SVC 561D-14A

MANUAL,OWNERS NC71A,LG,E/SP,CN-29H90D

REMOTE CONTROLLER,NC71A,CN-29H90DS

ADAPTER,ANT.(300 TO 75) NTSC

- 36 -

SWITCH

FILTER & CRYSTAL

MISCELLANEOUS

ACCESSORIES

- 1 -

TROUBLESHOOTING

1. No Video

Check Video output

Check the waveform of IC702

Check the waveform at Video

terminal of TUNER(TU102)

Check the waveform

at pin 25(Yout)

Check the waveform at pin

49 of IC201

Check the waveform(Yin) at

pin 4 of IC501

Check pin 53 of IC201

(A/V SW)

Check the waveform(fs0) at

pin 11 of IC702

Replace IC702

Check the waveform at pin 1

of IC701

Replace IC701

Check the in/output of IC501

Replace IC501.

Check the voltages MB, 30V and

5V of TU102.

Repair Power Circuit.

Check Power Circuit.

Check

U-COM SDA,

SCL

Check ZD161 and ZD162.

Replace TU102.

Check R,G,B output of IC501

Check FBT B+

Check CPT Board.

Yes

Normal

0V

Normal

Abnormal

No

LOW

- 2 -

2. No Power

Plug in after pull out the Power Cord.

Check the voltage of C829 (B+)

No Power POWER ON at St-By.

Check D826.

Check the voltage of C809.

Check the voltage at pin 9 of IC801.

Check IC801 and peripheral

components.

Check the voltage (B+) of C829.

POWER ON

POWER LATCH No POWER ON.Check the B+ voltage

Check R804, R807,

R812.

Check the voltage at pin

39 of IC001.

Check the voltage of

Q803 collector.

Check IC802, IC803.

Check Fuse and D801.

Check R805, R806.

Check Q800, ZD808.

Check secondary short.

Check IC804, D809

(5.6V Regulator)

Check IC004

(Reset IC)

Check

Q802~4,

ZD828

R825, R826

Check Q800, ZD808, D806, C811

Check IC802, IC803.

Check the voltage at pin 64 of IC001.

Check the voltage at pin 29 of IC001.

Check the waveform at pins 30

and 31 of IC001.

Check X001 and replace IC001.

ST-by

normal

A:

38~42V

0V 120V

B:

C: D: E:

0V

normal

abnormal

(ST-by Vcc)

abnormal

ST-by : 38-42V

NORMAL : 120V

about 1.4times of AC input voltage

ST-by : 6.5V

NORMAL : 8.5V

NORMAL

ST-by : 0V (Low)

NORMAL : 5V (High)

abnormal

ST-by : 0V

NORMAL : 80V

OVP operation

Reset voltage

X-TAL

u-COM Vcc

LG CN29H90 Guide

Popular TV manuals by other brands
