LG CP-29Q12P User manual

Color Television
OWNER'S MANUAL
Internet Home Page : http://www.lge.co.kr
P/N : 3828VA0187B (MC996A)
Please read this manual carefully before operating your set.
Retain it for future reference.
Record model number and serial number of the set.
See the label attached on the back cover and quote this
information to your dealer when you require service.
MODEL : CP-29Q12P

WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
PRODUCT TO RAIN OR MOISTURE.
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER(OR
BACK). NO USER-SERVICEABLE PARTS IN SIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
Safety Precautions
Writing Model And Serial Numbers
The serial number and model number are found
on the back of this unit. The serial number is
unique to this unit. You should record requested
information here and retain this guide as a
permanent record of your purchase. Please retain
your purchase receipt as your proof of purchase.
Date of Purchase
Dealer Purchased from
Dealer Address
Dealer Phone No.
Model No.
Serial No.
Cleaning
Unplug this television receiver from the wall outlet
before cleaning. Do not use liquid cleaners or
aerosol cleaners. Use a damp cloth for cleaning.
Do not use attachments not recommended by the
television receiver manufacturer as they may
cause hazards.
Power Supply
This television receiver should be operated only
from the type of power source indicated on the
marking label. If you are not sure of the type of
power supplied to your home, consult your
television dealer or local power company.
Installation
Do not use this television receiver near water, for
example, near a bathtub, washbowl, kitchen sink,
or laundry tub, in a wet basement, or near a swim-
ming pool, etc.
Do not place this television receiver on an
unstable cart, stand, or table. The television
receiver may fall, causing serious injury to a child
or an adult, and serious damage to the appliance.
Use only with a cart or stand recommended by the
manufacturer, or sold with the television receiver.
Wall or shelf mounting should follow the manu-
facturer's instructions and should use a mounting
kit approved by the manufacturer.
Slots and openings in the cabinet and the back or
bottom are provided for ventilation, and to insure
reliable operation of the television receiver, and to
protect it from overheating. These openings must
not be blocked or covered. The openings should
never be blocked by placing the television receiver
on a bed, sofa, rug, or other similar surface. This
television receiver should not be placed in a built-
in installation such as a bookcase unless proper
ventilation is provided.
It is recommended not to operate this unit near
speakers or big metallic furnitures in order to keep
their magnetism from disturbing colors purity
(uniformity) on the screen.
Use
Do not allow anything to rest on the power cord.
Do not locate this television receiver where the
cord will be abused by persons walking on it.
Do not overload wall outlets and extension cords
as this can result in fire or electric shock.
Never push objects of any kind into this television
receiver through cabinet slots as they may touch
dangerous voltage points or short out parts that
could result in a fire or electric shock.
Never spill liquid of any kind on the television
receiver.
Service
Do not attempt to service this television yourself
as opening or removing covers may expose you
to dangerous voltage or other hazards. Refer all
servicing to qualified personnel.
2

Description of controls .................................................................................................4 ~6
Basic TV operation .............................................................................................................7
Turning on/off the TV .....................................................................................................7
Selecting the on screen language .................................................................................7
Memorizing Channels ....................................................................................................8
Memorizing the Channels by AUTO PROGRAM ..........................................................8
Memorizing the Channels by MANUAL PROGRAM .....................................................9
Selecting the Channel ...................................................................................................9
Adjusting the Volume .....................................................................................................9
Various function ...............................................................................................................10
Setting the Clock .........................................................................................................10
Setting the OFF TIMER ...............................................................................................10
Setting the ON TIMER .................................................................................................10
Setting the Sleep Time ................................................................................................11
Auto Off .......................................................................................................................11
Key Lock ......................................................................................................................11
Auto Demonstration .....................................................................................................12
Operating the degauss ................................................................................................12
Adjusting the Fine Tuning ............................................................................................12
Favorite channel memory.............................................................................................13
Zoom Picture................................................................................................................13
Picture control ..................................................................................................................14
Enjoying the Eye Function ...........................................................................................14
Auto Picture Control ....................................................................................................14
YNR (Luminance Noise Reduction) .............................................................................14
Adjusting the Picture ....................................................................................................14
Sound control ...................................................................................................................15
Enjoying the Stereo/SAP Broadcast ............................................................................15
AVL (Auto Volume Leveler) .........................................................................................15
Auto Sound Control .....................................................................................................16
Adjusting the equalizer (USER mode in ASC) .............................................................16
Adjusting the balance ..................................................................................................16
Closed caption function ...................................................................................................17
Using Closed Captions ................................................................................................17
Operating the Caption and Text ...................................................................................18
PIP function .......................................................................................................................19
Watching the PIP (Picture in Picture) ..........................................................................19
Selecting the input signal (in PIP and Double window mode)......................................19
Moving the Sub Picture (in PIP mode) ........................................................................20
Swapping Screens........................................................................................................20
Still Picture....................................................................................................................20
Channel Search............................................................................................................20
Adjusting the Volume (in PIP and Double window mode) ...........................................21
Antenna Connections .......................................................................................................22
Connecting an Outdoor Antenna .................................................................................22
Connecting a CATV Cable ..........................................................................................22
Connection of external equipment ..................................................................................23
Connecting AUDIO/VIDEO IN Jacks ...........................................................................23
Connecting the S-VHS VCR ........................................................................................24
Recording Onto VCR ...................................................................................................24
Recording a program from connected other equipment ..............................................25
Connecting the COMPONENT INPUT jacks ...............................................................25
Troubleshooting check list...............................................................................................26
CONTENTS
3

POWER
TV/VIDEO
EYE
MUTE
MENU
ENTER VOL VOL
CH
CH
APC
PIP/DW SWAP POSITION CH
+
POWER REW PLAY FF
STILL STOP REC
PIP MENU
ZOOM IN
ZOOM OUT STILL CH.SEARCH CH
-
DASP
MTS REVIEW FCR
AVL CAPTION SLEEP
AUTO
PROGRAM MEMORY /ERASE
12345
67890
This is a simplified representation of front panel.
1. POWER BUTTON
Refer to "Turning on/off the TV".
2. STAND BY INDICATOR
Illuminates green when the TV is in standby mode.
3. REMOTE CONTROL SENSOR
4. EYE BUTTON
To switch on or off eye picture.
5. MUTE BUTTON
To mute the sound. Again to restore the muted sound.
6. MENU BUTTON
To display on screen menus one by one.
7. CHANNEL UP/DOWN (
D
/
E
) BUTTONS
• To select the desired channel.
•To select the desired menu item when menu is
displayed on the screen.
VOLUME UP/DOWN (G
/
F) BUTTONS
• To increase or decrease volume level.
•To enter or adjust the selected menu when menu is
displayed on the screen.
ENTER (
n ) BUTTON
• To exit from the displayed menu.
• To memorize the adjusted menu.
• To recall the current TV mode (by remote control only).
8. DASP BUTTON
To select the sound appropriate to your viewing program
character ; NEWS, CINEMA, MUSIC or USER.
9. APC (Auto Picture Control) BUTTON
To adjust the factory preset pictures corresponding to the
lighting around.
10.MTS BUTTON
To listen to the MTS sound ; MONO, STEREO or SAP.
11.REVIEW BUTTON
To return to the previous channel.
12.ZOOM IN/OUT BUTTON
To select the desired picture format (NORMAL, ZOOM IN
or ZOOM OUT).
Description of controls
MENU VOL CH
TV/VIDEOSTAND BY VOL CH
ON/OFF
1
122
3
613 72
4
5
6
7
9
10
11
12
8
4

Description of controls
13.TV/VIDEO BUTTON
To select TV or VIDEO mode.
14.AVL (Auto Volume Leveler) BUTTON
To keep on equal volume level of each channels.
15.CAPTION BUTTON
To select the CAPTION mode.
Refer to "Closed caption function".
16.SLEEP BUTTON
To set the desired sleep time.
17.MEMORY/ERASE BUTTON
To memorize or erase the desired channel.
18.AUTO PROGRAM BUTTON
To memorize channels by AUTO PROGRAM.
19.FCR ( Favorite Channel Review ) BUTTON
To select the favorite channel.
Refer to "Favorite channel memory".
20.NUMBER BUTTONS
To select the desired channel directly.
21.VCR BUTTONS
To control LG video cassette recorder.
22.EYE SENSOR
POWER
TV/VIDEO
EYE
MUTE
MENU
ENTER VOL VOL
CH
CH
APC
PIP/DW SWAP POSITION CH
+
POWER REW PLAY FF
STILL STOP REC
PIP MENU
ZOOM IN
ZOOM OUT STILL CH.SEARCH CH
-
DASP
MTS REVIEW FCR
AVL CAPTION SLEEP
AUTO
PROGRAM MEMORY /ERASE
1 2 3 4 5
6 7 8 9 0
13
15
21
16
14
17
18
19
5
20

Description of controls
23.PIP (Picture in Picture) BUTTONS
PIP/DW BUTTON
To select the PIP mode or double window mode.
SWAP BUTTON
To exchange the main picture and sub picture.
POSITION BUTTON
To move the sub picture to another corner of the main
picture.
PIP MENU BUTTON
To display various menu in the PIP mode or double
window mode.
STILL BUTTON
To stand still the picture in sub picture.
CH. SEARCH BUTTON
To search one by one the pictures of all the programmed
channels through the sub picture while the main picture
remains as a current channel.
CH +/
- BUTTONS
To select the desired channel of the sub picture.
Fitting Batteries in the Remote Control Unit
The remote control is powered by batteries. This requires AA
type batteries for operation. To ensure consistent operation,
change the batteries about once a year.
10 2 3 4
5 6 7 89
10 2 3 4
5 6 7 89
1. Remove the battery compart-
ment cover by sliding it after
pushing down slightly in the
arrowhead direction.
2. Insert new batteries as
indicated by the polarity
markings (+and
- ) inside the
compartment.
3. Replace the battery compart-
ment cover.
POWER
TV/VIDEO
EYE
MUTE
MENU
ENTER VOL VOL
CH
CH
APC
PIP/DW SWAP POSITION CH
+
POWER REW PLAY FF
STILL STOP REC
PIP MENU
ZOOM IN
ZOOM OUT STILL CH.SEARCH CH
-
DASP
MTS REVIEW FCR
AVL CAPTION SLEEP
AUTO
PROGRAM MEMORY /ERASE
1 2 3 4 5
6 7 8 9 0
23
6

Before operating your TV, make sure the following instructions have been completed.
• Your TV has been connected to an antenna or a cable system.
• Your TV has been plugged in a power outlet.

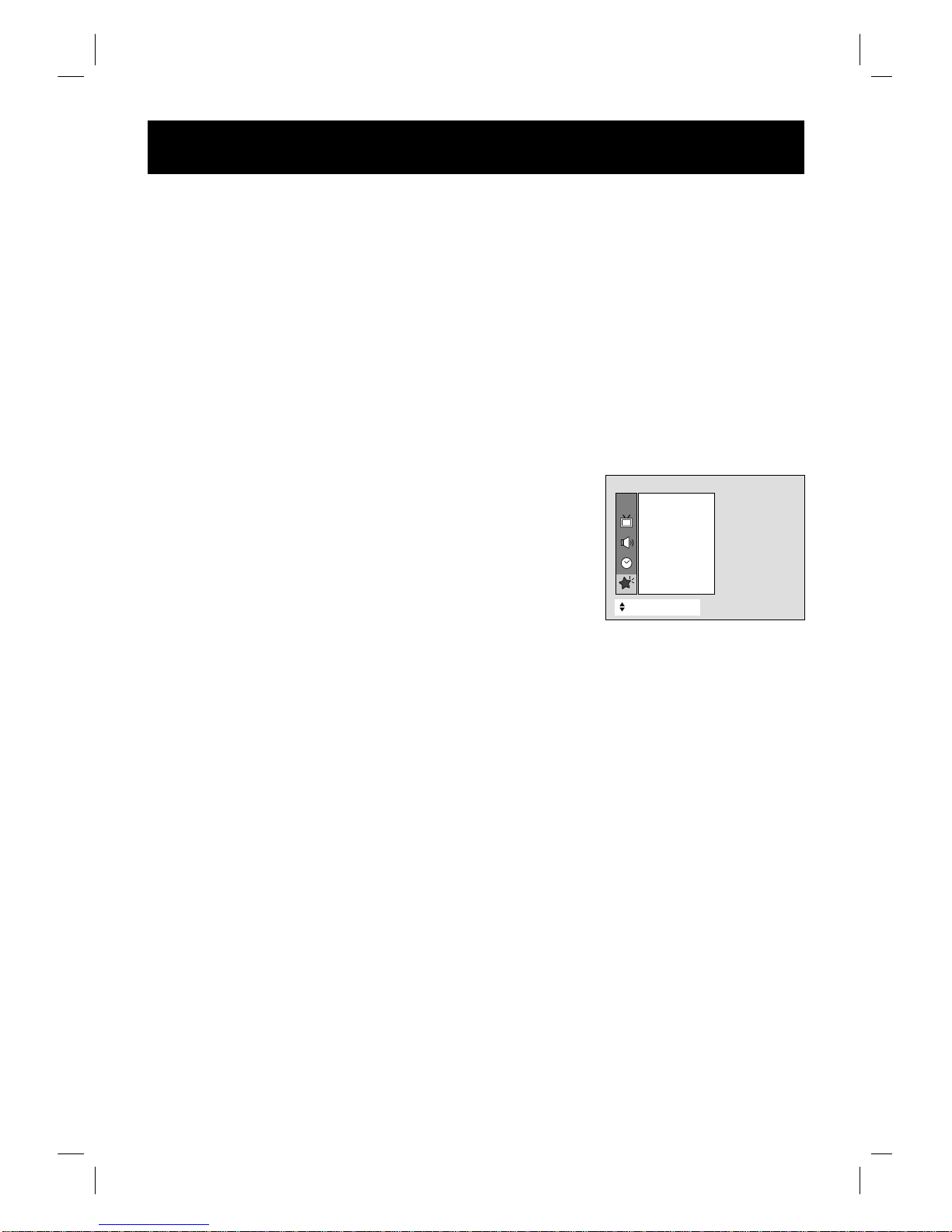

Basic TV operation
Turning on/off the TV
To turn on the TV, press any button on the set or remote control.
A channel number will be displayed on the screen. The on-screen
display will disappear after a few seconds.
To turn the TV off, press the POWER button.
Selecting the on screen language
1. Press the MENU button until the menu is displayed as shown right.
2. Press the G and then
D
/
E
button to select LANGUAGE.
3. Press the Gbutton to enter the language menu.
4. Press the
D
/
E
button to select the desired language.
5. Press the ENTER (
n )button to exit.
From this point on, the on-screen display will be presented in the
language of your choice.
7
CH.CH.
+MOVE+{NEXT
LANGUAGE++++{
CAPTION+++++{
KEY+LOCK++++{
AUTO+OFF++++{
DEGAUSS+++++{
PIP®DW++++++{
AUTODEMO++++{
SPECIAL

Memorizing Channels
This is the function to memorize all the active channels in your area before you can use the TV.
There are two ways of memorizing channels. You can use either.
One is called AUTO PROGRAM and the other is called MANUAL PROGRAM.
In AUTO PROGRAM the TV will memorize the channels in ascending order. If there are additional
channels you want to add or delete, you can manually add or delete those channels.

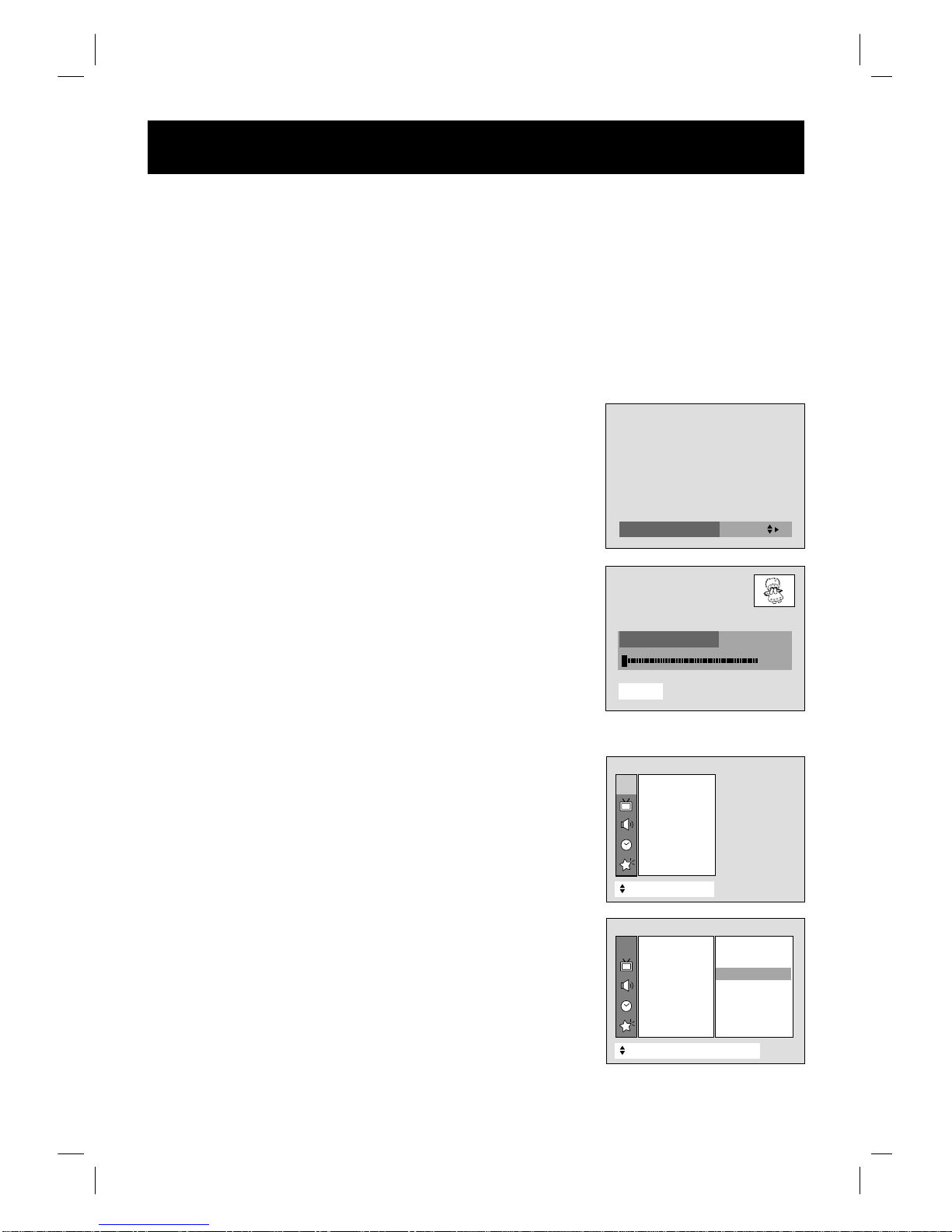

Basic TV operation
Memorizing the Channels by AUTO PROGRAM
AUTO PROGRAM searches and memorizes all the active channels in
your area then you can select the desired channel with the
D
/
E
buttons.
Using the AUTO PROGRAM button
You can conveniently perform AUTO PROGRAM using the AUTO
PROGRAM button on the remote control.
1. Press the AUTO PROGRAM button.
2. Press the
D
/
E
button to select TURBO or NORMAL.
3. Press the Gor AUTO PROGRAM button.
The AUTO PROGRAM starts now.
If you want to stop auto programming, press the ENTER (
n )button.
Only the channels searched up to that time are memorized.
TURBO AUTO PROGRAM is further faster than NORMAL AUTO
PROGRAM.
Note : If the programmed signal has poor quality or the certain CH is
not memorized, memorize again in the NORMAL AUTO
PROGRAM.
Using the MENU button
1. Press the MENU button until the menu is displayed as shown right.
2. Press the
D
/
E
button to select AUTO PROGRAM.
3. Press the Gbutton to enter the AUTO PROGRAM mode.
4. Press the
D
/
E
button to select TURBO or NORMAL.
5. Press the Gbutton. The AUTO PROGRAM starts now.
8
ÅSTOP
O5%
++AUTO+PROGRAM OTURBO
CH
AUTO
++AUTO+PROGRAM OOOOTVO19
CH
AUTO
CH.CH.
+MOVE+{+NEXT
INPUT+++++++{
AUTO+PROGRAM{
MANUAL+PROG.{
FINE++++++++{
FAVORITE+CH.{
CHANNEL
CH.CH.
+MOVE+{+NEXT+}BACK
INPUT+++++++{
AUTO+PROGRAM{
MANUAL+PROG.{
FINE++++++++{
FAVORITE+CH.{
CHANNEL
TURBO++++++{
NORMAL+++++{

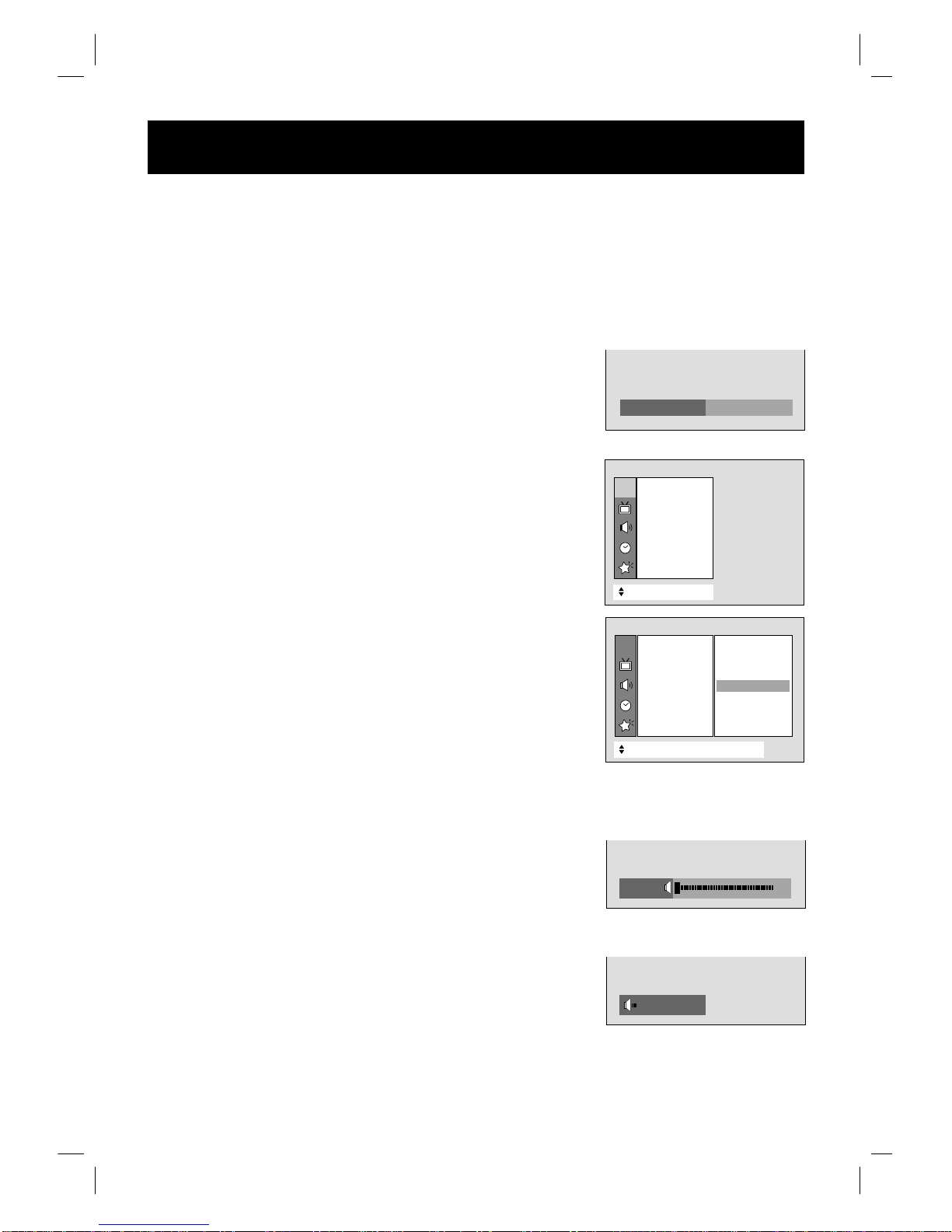

Basic TV operation
Memorizing the Channels by MANUAL PROGRAM
Using the MEMORY/ERASE button
You can conveniently perform MANUAL PROGRAM using the
MEMORY / ERASE button on the remote control.
1. Press the
D
/
E
or NUMBER buttons to select the channel number
you want to memorize or erase.
2. Press the MEMORY/ERASE button.
The on screen display appears as shown right.
3. Press the VOL F
/
Gor MEMORY/ERASE button to select
MEMORY or ERASE.
4. Press the ENTER (
n )button to exit.
Using the MENU button
1. Press the MENU button until the menu is displayed as shown right.
2. Press the G and then
D
/
E
button to select the MANUAL
PROG..
3. Press the Gbutton to enter the MANUAL PROG. mode.
4. Press the
D
/
E
or NUMBER buttons to select the channel number
you want to memorize or erase.
5. Press the
D
/
E
button to select MEMORY or ERASE.
6. Repeat process 3 to 4 to memorize or erase another channels.
7. Press the ENTER (
n )button to exit.
Selecting the Channel
Press the
D
/
E
button to conveniently select the upper or lower
channel then the channel being viewed, or NUMBER buttons to
directly select the desired channel.
Adjusting the Volume
Press the Gbutton to increase the volume level or Fbutton to
decrease the volume level.
To mute the sound, press the MUTE button.
The word MUTE is displayed (It's not displayed in the Caption mode).
It's convenient when you get the telephone calls.
To restore the muted sound, press the MUTE button again or VOL F
/
G
button.
EEEMUTE
VOLUME 5
9
++MANUAL TV2122ERASE2}{
CH
MANU
CH.CH.
+MOVE+}{+ADJUST+ÅBACK
INPUT+++++++{
AUTO+PROGRAM{
MANUAL+PROG.{
FINE++++++++{
FAVORITE+CH.{
CHANNEL
CH.CH.
+MOVE+{+NEXT
INPUT+++++++{
AUTO+PROGRAM{
MANUAL+PROG.{
FINE++++++++{
FAVORITE+CH.{
CHANNEL
222TV213+
MEMORY

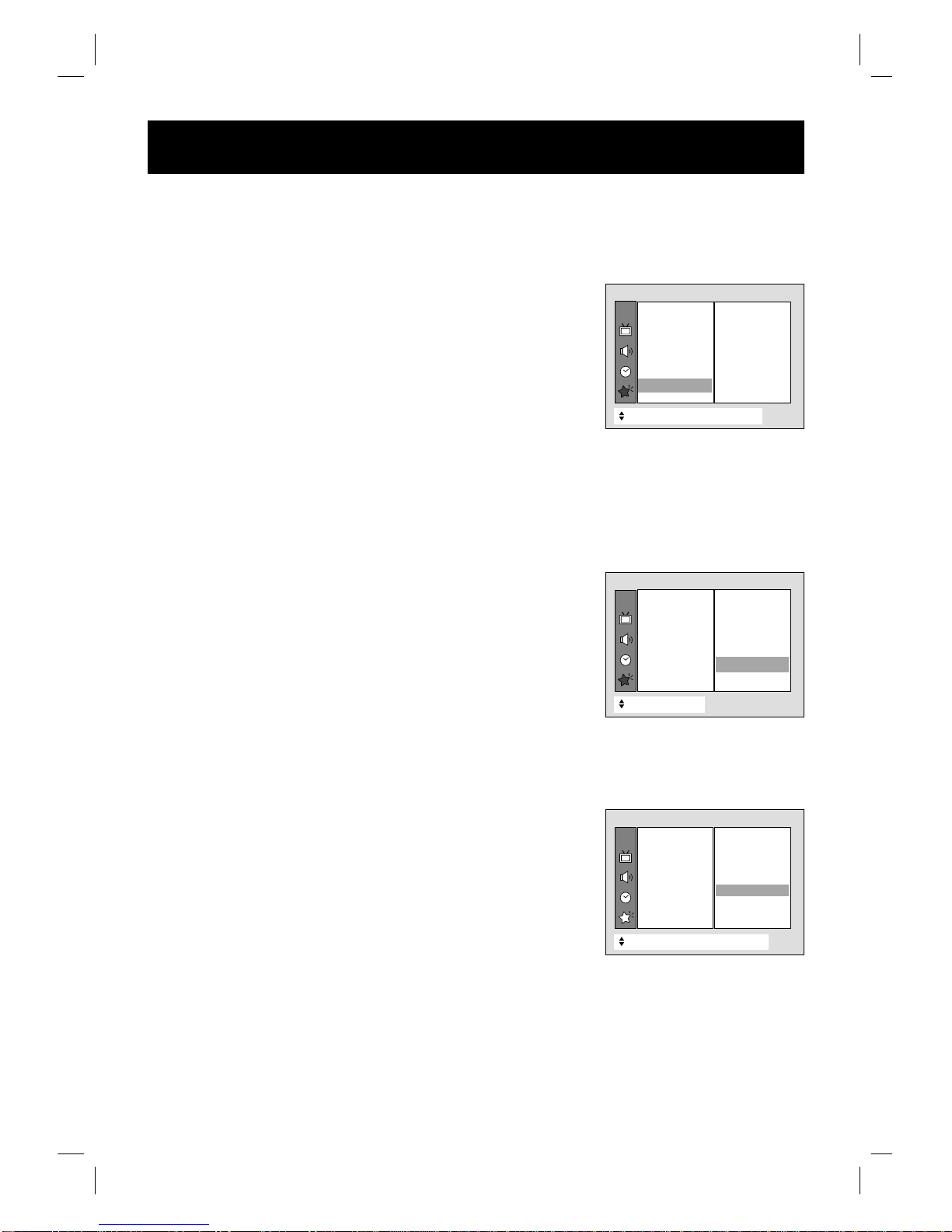

Various function
Setting the Clock
Before setting the on/off timer, first you should set the current time.
1. Press the MENU button until the menu is displayed as shown right.
2. Press the G and then
D
/
E
button to select CLOCK.
3. Press the Gbutton to enter the CLOCK mode.
4. Press the
D
/
E
button to adjust the hour.
5. Press the F
/
Gbutton to select the minute position and then press
the
D
/
E
button to adjust the minute.
6. Press the ENTER (
n )button to exit.
Setting the OFF TIMER
This is the function to automatically switch the TV off at a preset time.
1. Press the MENU button until the TIMER menu is displayed.
2. Press the G and then
D
/
E
button to select OFF-TIMER.
3. Press the Gbutton to enter the OFF-TIMER mode.
4. Press the
D
/
E
button to adjust the hour.
5. Press the F
/
Gbutton to select the minute position and then press
the
D
/
E
button to adjust the minute.
6. RUN/HOLD is used to activate or deactivate preset on/off times.
Press the F
/
Gbutton to select HOLD or RUN position and then
press the
D
/
E
button to select HOLD or RUN.
7. Press the ENTER (
n )button to exit.
Note: If the same time is set for the on time and off time, only the off
time operates.
Setting the ON TIMER
This is the function to automatically turn the TV on at a preset time and
channel.
1. Press the MENU button until the TIMER menu is displayed.
2. Press the G and then
D
/
E
button to select ON-TIMER.
3. Press the Gbutton to enter the ON-TIMER mode.
4. Repeat OFF TIMER process 4 to 5.
5. Press the F
/
Gbutton to select the channel position and then press
the
D
/
E
button to adjust the desired channel.
6. Press the F
/
Gbutton to select HOLD or RUN position and then
press the
D
/
E
button to select HOLD or RUN.
7. Press the ENTER (
n )button to exit.
Note: Two hours after the set is switched on by the on timer function,
it will automatically switched off unless a button has been
pressed.
10
CH.CH.
+MOVE+{+NEXT
CLOCK+++++++{
OFF+TIMER+++{
ON+TIMER++++{
TIMER
CH.CH.
}{+MOVE+++ADJUST++Å+BACK
CLOCK+++++++{
OFF+TIMER+++{
ON+TIMER++++{
TIMER
__:__ + AMAM__
CH.CH.
}{+MOVE+++ADJUST++Å+BACK
CLOCK+++++++{
OFF+TIMER+++{
ON+TIMER++++{
TIMER
__:__ + AM
0RUN
PM11 40
CH.CH.
}{+MOVE+++ADJUST++Å+BACK
CLOCK+++++++{
OFF+TIMER+++{
ON+TIMER++++{
TIMER
__:__+++++++++PM
TV06
RUN
11 40

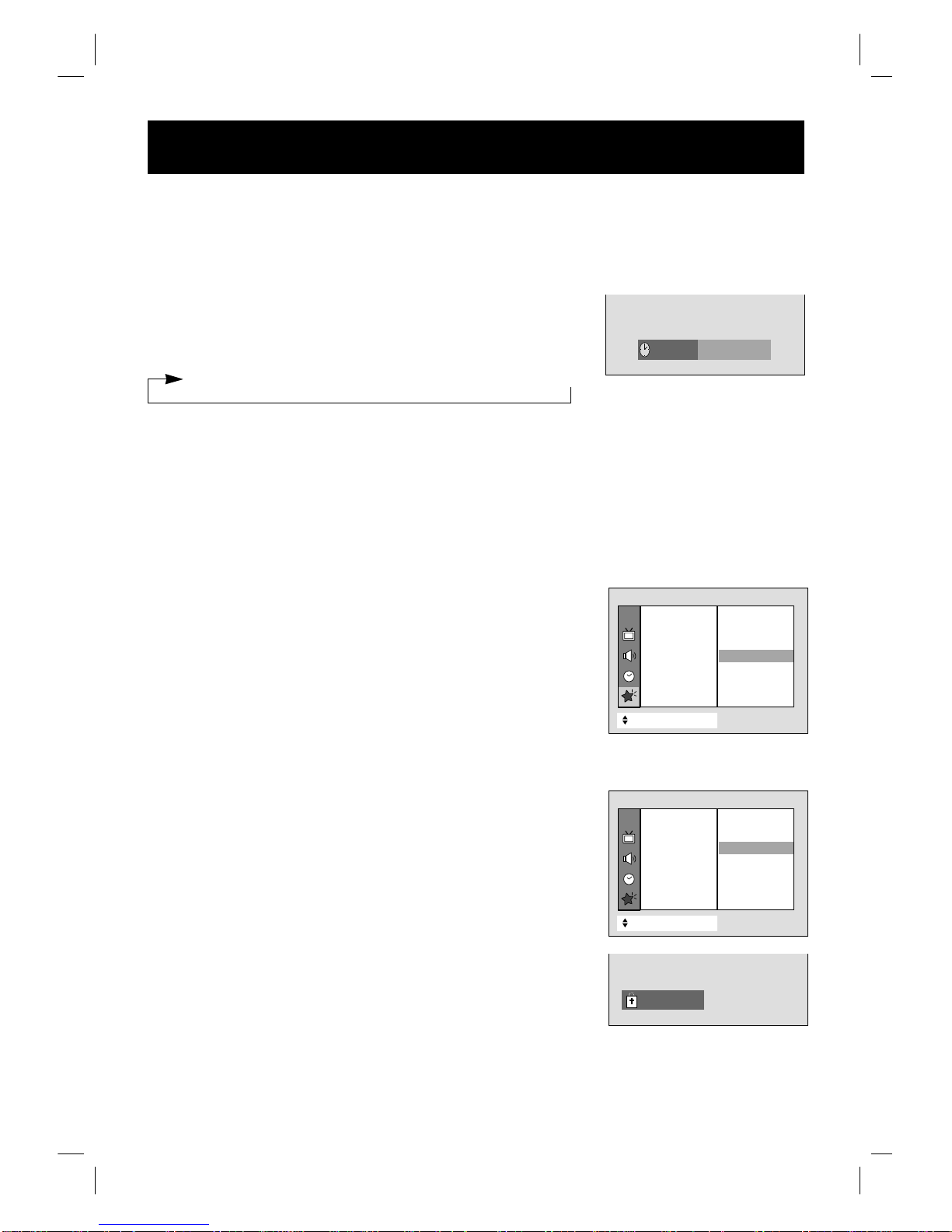

Setting the Sleep Time
You don't have to remember to switch the TV off before you go to
sleep. The sleep timer automatically turns the TV off after the preset
time elapses.
Press the SLEEP button to select the desired sleep time.
Each time you press this button, the sleep time is displayed one by
one on the top right-hand corner of the screen as shown below.
The timer begins to count down from the number of minutes selected.
Notes: •After 3 seconds, the desired sleep time will disappear and be
operated automatically.
•To view the remaining sleep time, press the SLEEP button
once and the remaining sleep time will be displayed.
•To cancel the sleep time, select the SLEEP --- mode by using
the SLEEP button.
Auto Off
If there is no input signal, the TV is switched off automatically in 10
minutes.
1. Press the MENU button until the SPECIAL menu is displayed.
2. Press the G and then
D
/
E
button to select AUTO OFF.
3. Press the Gbutton to enter the AUTO OFF mode.
4. Press the
D
/
E
button to select ON or OFF.
Key Lock
The TV can be set so that the remote control is needed to control it.
This feature can be used to prevent unauthorized viewing.
1. Press the MENU button until the SPECIAL menu is displayed.
2. Press the G and then
D
/
E
button to select KEY LOCK.
3. Press the Gbutton to enter the KEY LOCK mode.
4. Press the
D
/
E
button to select ON or OFF.
5. Press the ENTER (
n )button to exit.
With the key lock on, the display KEY LOCK appears on the screen if
any button on the front panel is pressed while viewing the TV.
This function won't work anymore after plugging-in the TV again.
Various function
--- ‘10 ‘ 20 ‘30 ‘60 ‘90 ‘120 ‘180 ‘240
SSSSLEEP SS1301}{
11
zzzz
CH.CH.
+MOVE+}+BACK
LANGUAGE++++{
CAPTION+++++{
KEY+LOCK++++{
AUTO+OFF++++{
DEGAUSS+++++{
PIP®DW++++++{
AUTODEMO++++{
SPECIAL
CH.CH.
+MOVE+}+BACK
LANGUAGE++++{
CAPTION+++++{
KEY+LOCK++++{
AUTO+OFF++++{
DEGAUSS+++++{
PIP®DW++++++{
AUTODEMO++++{
SPECIAL
ON+
OFF
ON+
OFF
SSSKEYOLOCK

Auto Demonstration
Auto demonstration allows you to review all the menus programmed in
the TV set.
1. Press the MENU button until the SPECIAL menu is displayed.
2. Press the G and then
D
/
E
button to select AUTODEMO.
3. Press the G button to enter the AUTODEMO mode.
4. Press the Gbutton, and the demonstration starts.
When the demonstration reaches the last display, it starts again
from the beginning.
To stop auto demonstration, press any button.
Operating the degauss
In this TV set the magnetic field of the earth may influence on the color
purity of picture by neighbor magnetic substance or installation
direction of the TV set. The stripes may appear on the screen or the
color may not be equal in the corner. You can enjoy the program in
high color quality by operating the Degauss.
1. Press the MENU button until the SPECIAL menu is displayed.
2. Press the G and then
D
/
E
button to select DEGAUSS.
3. Press the Gbutton to enter the DEGAUSS mode.
4. Press the
D
/
E
button to select ON or OFF.
After the degaussing function works, ON mode switches to OFF
mode.
5. Press the ENTER (
n )button to exit.
Note: Do not operate this function often because the lifetime of CPT
may be shorten.
Adjusting the Fine Tuning
This function is to adjust the picture to stable condition when it is poor,
for example, a horizontal stripe, twisted picture or no color in broad-
casting.
1. Press the MENU button until the CHANNEL menu is displayed.
2. Press the G and then
D
/
E
button to select FINE.
3. Press the Gbutton to enter the FINE mode.
4. Press the
D
/
E
button to tune the desired picture condition.
5. Press the ENTER (
n )button to memorize.
Notes : • To release the memorized fine tuning, program again the
fine-tuned channel by AUTO PROGRAM or MANUAL
PROGRAM.
•If the finely tuned channel is memorized, the color of the
channel number changes to yellow.
Various function
12
CH.CH.
+MOVE+{+NEXT+}+BACK
LANGUAGE++++{
CAPTION+++++{
KEY+LOCK++++{
AUTO+OFF++++{
DEGAUSS+++++{
PIP®DW++++++{
AUTODEMO++++{
SPECIAL
TO+START++++
+++AUTODEMO
CH.CH.
+MOVE+}+BACK
LANGUAGE++++{
CAPTION+++++{
KEY+LOCK++++{
AUTO+OFF++++{
DEGAUSS+++++{
PIP®DW++++++{
AUTODEMO++++{
SPECIAL
ON
OFF
CH.CH.
+ADJUST+}BACK+ÅMEMORY
INPUT+++++++{
AUTO+PROGRAM{
MANUAL+PROG.{
FINE++++++++{
FAVORITE+CH.{
CHANNEL
00000 = 010+++
AUTODEMO+++{

Various function
Favorite channel memory
Favorite channel memory is a convenient feature that lets you quickly
scan up to five channels of your choice without having to wait for the
TV to scan through all the in-between channels.
Using the MENU button
1. Press the MENU button until the menu is displayed as shown right.
2. Press the Gand then the
D
/
E
button to select FAVORITE CH..
3. Press the Gbutton to enter the FAVORITE CH. mode.
4. Press the
D
/
E
button to memorize a favorite channel.
5. Press the Gand then
D
/
E
button to select the input signal ; TV or
CATV.
6. Press the Gbutton to select channel position and then
D
/
E
button
to select the desired channel number.
7. Press the ENTER (
n )button.
8. Repeat steps 4 to 7.
9. Press the ENTER (
n )button to exit.
To select the favorite channel, repeatedly press the FCR (Favorite
Channel Review) button. Five channels programmed appear on the
screen one by one.
Zoom Picture
You can select the desired picture format (NORMAL, ZOOM IN or
ZOOM OUT).
• NORMAL : This picture format is 4 to 3 of general TV.
• ZOOM IN : This screen is magnified to the upper/lower sides
through ZOOM screens one by one.
Each time press this button, the screen is more
magnified than the previous screen.
The bottom and top of the picture may be lost.
• ZOOM OUT : This works in the opposite way of ZOOM IN.
1. Press the ZOOM IN/OUT button.
2. Press the F
/
Gor ZOOM IN/OUT button to select your desired
picture format.
13
CH.CH.
+MOVE+{+NEXT
INPUT+++++++{
AUTO+PROGRAM{
MANUAL+PROG.{
FINE++++++++{
FAVORITE+CH.{
CHANNEL
CH.CH.
}{+MOVE+++ADJUST++Å+BACK
INPUT+++++++{
AUTO+PROGRAM{
MANUAL+PROG.{
FINE++++++++{
FAVORITE+CH.{
CHANNEL
+ TV +69+
TVVVVV03VVVV
TVVVVV10VVVV
CATVV111VVVV
CATVV125VV
SSSZOOM SS131}{
SSSZOOM S- __31}{

Picture control
Enjoying the Eye Function
The set will automatically adjust the picture according to the
surrounding conditions with the display MAGIC EYE.
1. Press the EYE button on the remote control.
2. The display MAGIC EYE appears and the picture is adjusted
automatically.
Auto Picture Control
You can select picture modes programmed at factory as you prefer.
Using the APC button
1. Press the APC button.
2. Press the
D
/
E
or APC button to select MAGIC EYE, CLEAR,
OPTIMUM, SOFT or USER.
3. Press the ENTER (
n )button to exit.
Using the MENU button
1. Press the MENU button until the PICTURE menu is displayed.
2. Press the G and then
D
/
E
button to select AUTO PICTURE.
3. Press the G button to enter the AUTO PICTURE mode.
4. Press the
D
/
E
button to select MAGIC EYE, CLEAR,
OPTIMUM, SOFT or USER.
5. Press the ENTER (
n )button to exit.
YNR (Luminance Noise Reduction)
To reduce the picture noise which may appear on the screen during
watching the TV in a weak signal area.
1. Press the MENU button until the PICTURE menu is displayed.
2. Press the G and then
D
/
E
button to select YNR.
3. Press the G button to enter the YNR mode.
4. Press the
D
/
E
button to select ON or OFF.
5. Press the ENTER (
n )button to exit.
YNR ON : The picture noise is reduced, on the other hand the
resolution is poor.
YNR OFF : The resolution is good when there is no picture noise.
Adjusting the Picture
This is the function to manually adjust the desired picture levels
(CONTRAST, BRIGHTNESS, COLOR, TINT, SHARPNESS) of the
screen as you like. If the picture you set is not satisfactory, you can
select a factory preset picture.
1. Press the MENU button until the PICTURE menu is displayed.
2. Press the G and then
D
/
E
button to select USER CONTROL.
3. Press the G button to enter the USER CONTROL mode.
4. Press the
D
/
E
button to select the desired picture mode.
5. Press the G button to enter the desired picture mode.
6. Press the F
/
G button to adjust the level.
The level of displayed picture mode is adjusted.
7. Press the ENTER (
n )button to exit.
+++MAGIC+EYE MAGIC+EYE
AMBIENCE
CONTRASTOO 85
SHARPNESSO 50
BRIGHTNESSO 54
CHROMA
COLOROOOO 50
14
+++AUTO+PICTURE CCLEAR
AUTO
CH.CH.
+MOVE+}BACK
AUTO+PICTURE{
YNR+++++++++{
USER+CONTROL+{
CH.CH.
+MOVE+}BACK
AUTO+PICTURE{
YNR+++++++++{
USER+CONTROL+{
MAGICOEYE
CLEAR
OPTIMUM
SOFT
USER
ON
CLEAR
OFF
CH.CH.
+MOVE+{NEXT+}BACK
AUTO+PICTURE{
YNR+++++++++{
USER+CONTROL+{
CONTRASTOOO{
BRIGHTNESS+{
COLOR+++++++{
TINT+++++++{
SHARPNESS++{

Enjoying the Stereo/SAP Broadcast
This TV set can receive MTS stereo programs and any SAP
(Secondary Audio Program) that accompanies the stereo program, as
the system to be transmitted one additional sound signal as well as the
original one. MTS function doesn't operate in the video mode.
Using the MTS Button
1. Press the MTS button to select your desired MTS mode.
Each time you press this button or the
D
/
E
button, the MONO,
STEREO or SAP mode appears in turn.
2. Press the ENTER (
n )button to exit.
Using the MENU Button
1. Press the MENU button until the menu is displayed as shown right.
2. Press the G and then
D
/
E
button to select MTS.
3. Press the Gbutton to enter the MTS mode.
4. Press the
D
/
E
button to select MONO,STEREO or SAP.
5. Press the ENTER (
n )button to exit.
Notes: •The stereo or SAP can be broadcast only when the TV
station transmits its signal even though you have selected
STEREO or SAP.
•The mono sound is automatically broadcast in case of mono
broadcast even when the STEREO or SAP has been
selected.
• Select MONO if you want to listen to the mono sound in the
fringe area during stereo/SAP broadcasting.
AVL (Auto Volume Leveler)
AVL automatically keeps on an equal volume level even if you change
channels.
Using the AVL Button
1. Press the AVL button.
2. Press the
D
/
E
button to select ON or OFF.
3. Press the ENTER (
n )button to exit.
Using the MENU Button
1. Press the MENU button until the SOUND menu is displayed.
2. Press the G and then
D
/
E
button to select AUTO VOLUME.
3. Press the Gbutton to enter the AUTO VOLUME mode.
4. Press the
D
/
E
button to select ON or OFF.
5. Press the ENTER (
n )button to exit.
Sound control
15
CH.CH.
+MOVE+{NEXT
MTS+++++++++{
DASP++++++++{
AUTO+VOLUME+++{
USER+CONTROL+{
SOUND
CH.CH.
+MOVE+}BACK
MTS+++++++++{
DASP++++++++{
AUTO+VOLUME+++{
USER+CONTROL+{
SOUND
MONO
STEREO
SAP
CH.CH.
+MOVE+}BACK
MTS+++++++++{
DASP++++++++{
AUTO+VOLUME+++{
USER+CONTROL+{
SOUND
ON
OFF
SSSSMTS SS1MONO1
SSSOAUTOOVOLUME SON1
AUTO

Auto Sound Control
You can enjoy the best sound without any special adjustment because
this TV set automatically adjusts the sound appropriate to viewing
program character by self-intelligence.
Using the DASP Button
1. Press the DASP button.
2. Press the
D
/
E
button to select NEWS, CINEMA, MUSIC or
USER.
3. Press the ENTER (
n )button to exit.
Using the MENU Button
1. Press the MENU button until the SOUND menu is displayed.
2. Press the Gand then the
D
/
E
button to select DASP.
3. Press the Gbutton to enter the DASP mode.
4. Press the
D
/
E
button to select NEWS, CINEMA, MUSIC or
USER.
5. Press the ENTER (
n )button to exit.
Adjusting the equalizer (OFF mode in ASC)
1. Press the MENU button until the SOUND menu is displayed.
2. Press the Gand then the
D
/
E
button to select USER CONTROL.
3. Press the Gbutton to enter the USER CONTROL menu.
4. Press the
D
/
E
button to select EQUALIZER.
5. Press the Gbutton to enter the EQUALIZER mode.
6. Press the F
/
G button to select the sound band and then press the
D
/
E
button to adjust the desired level.
7. Press the ENTER (
n )button to exit.
Adjusting the balance
1. Repeat ‘Adjusting the equalizer’ steps 1 to 3.
2. Press the
D
/
E
button to select BALANCE.
3. Press the Gbutton to enter the BALANCE mode.
4. Press the F
/
G button to adjust the balance level.
5. Press the ENTER (
n )button to exit.
Sound control
}{ADJUST++ÅBACK
16
CH.CH.
+MOVE+}BACK
MTS+++++++++{
DASP++++++++{
AUTO+VOLUME+++{
USER+CONTROL+{
SOUND
}{MOVE+++ADJUST+ÅBACK
NEWS
CINEMA
MUSIC
USER
CH.CH.
+MOVE+{NEXT+}BACK
MTS+++++++++{
DASP++++++++{
AUTO+VOLUME+++{
USER+CONTROL+{
SOUND
+EQUALIZER+++{
+BALANCE++++++{
– VOLUME+++++{
0BALANCE000000000000
0.1 0.4 1 4 10kHz
EQUALIZER
SSSSDASP SNEWS1
DASP

Closed captioning is a process which converts the audio portion of a television program into written
words, which then appear on the television screen in a form similar to subtitles. Closed captions allow
viewers to read the dialogue and narration of television programs.
Using Closed Captions
Captions are the subtitles of the dialogue and narration of television
programs. For prerecorded programs, program dialogue can be
arranged into captions in advance. It's possible to caption a live
program by using a process called “real-time captioning”, which
creates captions instantly. Real-time captioning is normally done by
professional reporters using a machine shorthand system and
computer for translation into English.
Captioning is an effective system for the hearing-impaired, and it can
also aid in teaching language skills.
• The picture at left shows a typical caption.
Caption Tips
• Not all TV broadcasts include closed caption signals.
•Sometimes TV stations broadcast two different caption signals on the same channel. By selecting
MODE 1 or MODE 2, you can choose which signal you view. MODE 1 is usually the signal with the
captions, while MODE 2 might show demonstration or programming information.
• Your TV might not receive caption signals normally in the following situations.
Poor reception conditions are encountered:
An old, bad or illegally recorded tape is played.
Strong, random signals from a car or airplane interfere with the TV signal.
The signal from the antenna is weak.
The program wasn't captioned when it was produced, transmitted or taped.
Closed caption function
n IGNITION:
Picture may flutter, drift, suffer from black spots or horizontal
streaking. Usually caused by interference from automobile ignition
systems, neon lamps, electrical drills and other electrical
appliances.
n GHOSTS:
Ghosts are caused when the TV signal splits and follows two paths.
One is the direct path and the other is reflected off tall buildings,
hills or other objects. Changing the direction or position of the
antenna may improve reception.
n SNOW:
If your receiver is located at the weak, fringe area of a TV signal,
your picture may be marred by small dots. It may be necessary to
install a special antenna to improve the picture.
FOLLOW ME
Some
pictures
17
1
2
3
4
5

Using the Text Function
Text services give a wide variety of information on all kind of subjects
(ex. captioned program lists, weather forecasts, stock exchange
topics, news for hearing-impaired---) through the full TV screen.
But not all stations offer text services, even though they might offer
captioning.
Note:In the event you receive a poor signal, an empty black box may
appear and disappear, even when the text mode is selected.
This is normal function in such an event.
Operating the Caption and Text
Using the CAPTION button
1. Press the CAPTION button.
2. Press the
D
/
E
or CAPTION button to select MODE 1,MODE 2,
TEXT 1, TEXT 2 or OFF.
3. Press the ENTER (
n )button to exit.
Using the MENU button
1. Press the MENU button until the menu appears as shown right.
2. Press the Gand then
D
/
E
button to select CAPTION.
3. Press the Gbutton to enter the CAPTION mode.
4. Press the
D
/
E
button to select MODE 1,MODE 2,TEXT 1,
TEXT 2 or OFF.
5. Press the ENTER (
n )button to exit.
Note:This TV is programmed to remember which mode it was last set
to, even if you switch the set off.
Closed caption function
18
CH.CH.
+MOVE+}BACK
LANGUAGE++++{
CAPTION+++++{
KEY+LOCK++++{
AUTO+OFF++++{
DEGAUSS+++++{
PIP®DW++++++{
AUTODEMO++++{
SPECIAL
CH.CH.
+MOVE+{NEXT
LANGUAGE++++{
CAPTION+++++{
KEY+LOCK++++{
AUTO+OFF++++{
DEGAUSS+++++{
PIP®DW++++++{
AUTODEMO++++{
SPECIAL
OFF
MODE1
MODE2
TEXT1
TEXT2
SSSOCAPTION SSOFF

PIP function
Watching the PIP (Picture in Picture)
This is the function to call up a little picture (PIP : picture in picture)
within the main picture. Thus at the same time you can watch two
different programs.
1. Press the PIP/DW button to select PIP mode or double window
mode.
2. Press the CH +/
- button of the PIP buttons to select the desired
channel in the sub picture.
Note:In the Double window mode, press the
D
/
E
button to select the
upper or lower channel in main picture and press the CH +/
-
button of the PIP buttons to select the upper or lower channel in
sub picture.
Selecting the input signal (in PIP and Double
window mode)
Using the PIP MENU Button
1. Press the PIP MENU button.
2. Press the
D
/
E
button to select INPUT.
3. Press the Gand then
D
/
E
button to select TV, CATV, VIDEO 1,
VIDEO 2, VIDEO 3 or VIDEO 4.
4. Press the ENTER (
n )button to exit.
Using the MENU Button
1. Press the MENU button until the SPECIAL menu is displayed.
2. Press the Gand then the
D
/
E
button to select PIP/DW.
3. Press the Gbutton to enter the PIP/DW mode.
4. Press the
D
/
E
button to select INPUT.
5. Press the Gand then
D
/
E
button to select TV, CATV, VIDEO 1,
VIDEO 2, VIDEO 3 or VIDEO 4.
6. Press the ENTER (
n )button to exit.
11
+24
Sub Picture
Sub Picture
Main Picture
Main Picture
11 24
< PIP mode >
< Double window mode >
19
CH.CH.
+MOVE+{NEXT+}BACK
LANGUAGE++++{
CAPTION+++++{
KEY+LOCK++++{
AUTO+OFF++++{
DEGAUSS+++++{
PIP®DW++++++{
AUTODEMO++++{
SPECIAL
CH.CH.
+MOVE+}BACK
PIP®DW++++++{
– VOLUME++++{
INPUT+++++++{
CHANNEL+++++{
POSITION++++{
SPECIAL
TO+SET+PIP®DW
+MOVE+}BACK
PIP®DW++++++++{
– VOLUME++++++{
INPUT+++++++++{
CHANNEL+++++++{
POSITION++++++{
PIP®DW++++++{
TV+
CATV
VIDEO1
VIDEO2
VIDEO3
VIDEO4
TV+
CATV
VIDEO1
VIDEO2
VIDEO3
VIDEO4
PIP®DW++++++{

PIP function
Moving the Sub Picture (in PIP mode)
Press the POSITION button to select the desired position of sub
picture. The sub picture moves clockwise.
Swapping Screens
Press the SWAP button.
Each time you press this button, the main picture and sub picture
exchange places.
Still Picture
Press the STILL button.
The still picture is displayed in
the sub picture.
To cancel the still picture, press
the STILL button again.
Channel Search
This is the function to search one by one the pictures of all the
programmed channels through the PIP screen while the main screen
remains as a current channel.
Press the CH. SEARCH button.
The pictures of all the programmed channels are searched through
one PIP screen, as shown right.
By pressing the SWAP button, you can see the channel being
searched on the PIP screen through the main screen.
To release the channel search, press the CH. SEARCH or ENTER (
n )
button.
Watching Channel
SWAP
< PIP mode >
< Double window mode >
Still pictureStill picture
ÅSTOP
‘
‘
‘
‘
20
24
