SERVICE MANUAL

GOLDSTAR WE32Q10IP

MODEL

- 1 -

Y Safety Precautions

1. It is safe to adjust after using insulating transformer between

the power supply line and chassis input to prevent the risk of

electric shock and protect the instrument.

2. Never disconnect leads while the TV receiver is on.

3. Don't short any portion of circuits while power is on.

4. The adjustment must be done by the correct appliances.

5. Unless otherwise noted, set the line voltage to 230Vac

!

10%,

50Hz.

Y Test Equipment required

1. RF signal generator (with pattern generator)

2. DC Power Supply

3. Multimeter (volt meter)

4. Oscilloscope

5. Color analyzer

:

PIF (Picture Intermediate Frequency) Adjustment

1) Connect the measuring equipment to the Main Board as

shown in Fig.1.

2) Set RF frequency and output level of RF SIGNAL

GENERATOR as shown Table 1.

3) Turn off S1 and S3 and on S2.

4) Adjust L107 so that the DC voltage may be 2.5

!

0.1Vdc.

(Table 1)

:SECAM-L' Adjustment

NOTE : This adjustment should be performed after PIF

adjustment.

1) Turn on S1 and S3 and off S2.

2) Adjust VR102 so that the DC voltage may be indicated

2.5

!

0.1Vdc.

:

RF AGC (Automatic Gain Control) Adjustment

The RF AGC control (VR101) was aligned at the time of

manufacture for optimum performance over a wide range

conditions. Readjustment of VR101 should not be necessary

unless unusual local conditions exist, such as ;

1) Channel interference in a CATV system.

2) Picture bending and/or color beats, which are unusually due

to excessive RF signal input when the receiver is too close

to a transmitting tower or when the receiver is connected to

an antenna distribution system where the RF signal has

been amplified. In this case, the input signal should be

attenuated (with pad or filter) to a satisfactory level.

3) Picture noise caused by "broadcast noise" or weak signal.

If the broadcast is "clean" and the RF signal is at least 1mV

(60dBu), the picture will be noise free in any area.

Adjusting the VR101(RF AGC) control to one end of rotation

will usually cause a relatively poor signal to noise ratio;

Adjusting to the other end of rotation will usually cause a

degradation of over load capabilities resulting in color beats or

adjacent channel interference. For best results, adjust the

VR101 control while performing on all over local channels, or

the voltage at TP2 will be 2.3

!

0.1Vdc in RF level 65

!

1dBuV.

IC101

TDA4474

TP1

JP7 IC05

IC102

5V

JP3

S1

S3

S2

JP5

Q106

4.7k½

100½

24

7

11

15

VR102

1

0.01pF Signal-

Generator

(B/G,D/K,I,L)

(SECAM-L')

JP1

L107

16

VR102

38.9MHz

34.25MHz

5V

Power-

Supply

V Multimeter or Oscilloscope

JP2

JP4

Test Point : TP1

Adjust : L107

Test Point : TP1

Adjust : VR102

Frequency

38.9MHz

34.25MHz

System

B/G,D/K/I,SECAM-L

SECAM-L'

Modulation

OFF

Output level

10mVp-p

Adjust

L107

VR102

Main Board(Component side view)

Fig. 1 : Connection Diagram of Equipment for PIF Adjustment

ADJUSTMENT INSTRUCTIONS

Test Point : J209 or Observing Display

Adjust : VR101

- 2 -

:Screen Voltage Adjustment

NOTE: To enter SVC mode, press "OK" buttons on both TV

set and the Remote control at the same time.

1) Tune the TV set to receive a digital pattern.

2) Press MIX button on remote controller for Service to get

into the Screen Adjust Mode.

3) Adhere the Color Analyzer on the White window of CPT

face.

4) Adjust Screen Volume of FBT so that the luminance of

White window is 6.5

!

0.5ft/L.

:Focus Adjustment

NOTE: This adjustment should be performed after warming

up for 10 minutes.

1) Tune the TV set to receive a digital pattern.

2) Adjust the lower Focus control of FBT for the best focus of

vertical line B.

3) Adjust the upper Focus control of FBT for the best focus of

area A.

4) Repeat above step 2) and 3) for the best overall focus.

:Deflection Data Adjustment (Line SVC-1)

1. Preparation for Deflection Adjustment

1) At SVC mode, press the Yellow colored button.

If the Remote Controller doesn't have the Yellow button,

use the button under the Channel Down(PR E) button.

And then, deflection data adjustment OSD (SVC1 mode)

will be displayed.

2) Press Channel UP/DOWN button for desirous function

Adjustment.

3) Press Volume UP/DOWN button to adjust the data.

VL--(Vertical Linearity)

Adjust so that the boundary line between upper and lower half is

in accord with geometric horizontal center of the CPT.

VA--(Vertical Height)

Adjust so that the circle of a digital circle pattern may be located

within the effective screen of the CPT.

SC--(Vertical "S" correction)

Adjust so that all distance between each horizontal lines are to

be the same.

VS--(Vertical Shift)

Adjust so that the horizontal center line of a digital circle pattern

is in accord with geometric horizontal center of the CPT.

HS--(Horizontal Shift)

Adjust so that the vertical center line of a digital circle pattern is

in accord with geometric vertical center of the CPT.

EW--(Horizontal Width)

Adjust to that a digital circle pattern looks like exact circle.

EC--(East-west Parabola)

Adjust so that middle portion of the outermost left and right

vertical line looks like parallel with vertical lines of the CPT.

CRNU & CRNL

Adjust so that the vertical line at every 4 corners of the screen

looks like parallel with the vertical lines of the CPT.

ET--(East-west Trapezium)

Adjust to make the length of top horizontal line same with it of the

bottom horizontal line.

Test Point : RK (Red Cathode of CPT Board)

Adjust : Screen Control of FBT

Test Point : Observing Display

Adjust : Focus control of FBT

b

AB

Fig. 3

White window OSD

SCREEN ADJUST MODE

Fig. 2 SVC MODE for SCREEN Adjust

- 3 -

(Table 2)

:White Balance Adjustment.(LINE SVC 0)

NOTE : This adjustment should be performed after screen

voltage adjustment.

1) Tune the TV set to receive an 100% white pattern.

2) Press the Yellow button on remote controller in the SVC

Mode (press OK buttons on both TV set and remote

controller at the same time) then you can find On Screen

Display.

3) Press PSM (RED) button on remote controller. (Standard

picture)

4) Press PR+ or PR- button for desirous function adjustment.

5) Adjust VOL+ or VOL- button for CG:00E9.

6)

Adjust VOL+ or VOL-button in each status of "Rg--"/"Bg--" for

X=267!8, Y=273!8 with color analyzer (color temperature

13,000

o

K).

(Table 3)

Menu

VL

VA

SC

VS

HS

EW

ET

EC

CRNU

CRNL

0 ~ FFFF

0079

00C1

0091

0082

0092

011D

007F

0061

0083

Range LG 29Ó Flat

Menu

CR

CG

CB

WR

WG

WB

0 ~ 511

00E9

0187

Range LG 29Ó Flat

:OPTION Adjustment (SVC MODE:OPTION-1,

OPTION-2, OPTION-3)

NOTE: When the EEPROM has been replaced, the Option data

should be restored as the function of individual system

and specification.

1) Press OK buttons on both TV set and Remote Controller at

the same time to get into SVC mode.

2) Press the Yellow button several times to find OPTION-1,

OPTION-2 and OPTION-3.

3) Input the correspond OPTION data referring to Table below

with the numeric buttons 0~9.

Table 1. OPTION 1 Function

Table 2. OPTION 1 CODE Data

- 4 -

EU

NON-EU

LOW STEP$RUSH

HIGH STEP$SLOW

Vol-

Curve

M-SYS

L-SYS

Woofer

H-Phone

EYE

I/II SAVE

Option Code

0

1

0

1

0

1

0

1

0

1

0

1

0

1

Function Remark

No SAVE DUAL Sound Condition

SAVE DUAL Sound Condition

Without EYE

With EYE

Without Headphone Jack

With Headphone Jack

Squiter Amp.

Woofer Amp.

Standard Curve

Rushed Curve

Without NTSC-M

With NTSC-M system

Without SECAM L/LÕ

With SECAM L/LÕ

OPTION

Data

I/II

SAVE EYE H-

PHONE Woofer M

SYS

L

SYS

0

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

L

SYS

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

Volume

0

1

0

1

0

OPTION

Data

I/II

SAVE EYE H-

PHONE Woofer M

SYS

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

Volume

0

1

0

1

0

1

0

1

0

1

0

1

- 5 -

L

SYS

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

OPTION

Data

I/II

SAVE EYE H-

PHONE Woofer M

SYS

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

Volume

1

0

1

0

1

0

1

0

1

0

1

0

1

OPTION

Data

I/II

SAVE EYE H-

PHONE Woofer M

SYS

L

SYS

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

Volume

1

0

1

0

1

Table 3. OPTION 2 Function

Table 4. OPTION 2 CODE Data

- 6 -

OPTION

Data TOP TURBO D/K B/B DVD

0

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

VGA

0

1

0

1

0

1

0

1

0

1

0

1

0

1

OPTION

Data TOP TURBO D/K B/B DVD

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

VGA

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

Without

To compensate the

Inclination of picuture

VGA

BB SYS

DK

CHINA

TURBO

TOP

TEXT(TOP=0)

Option Code

0

1

0

1

0

1

0

1

0

1

0

1

Function Remark

FLOP TEXT

TOP TEXT

W/O TURBO Picture & Sound

With TURBO Picture & Sound

Without D/K CHINA

With D/K CHINA

Without BB System

With BB System

Without VGA Mode

With VGA Mode

Without DVD(Y, Cr, Cb) Input

With DVD Input

DVD

Table 5. OPTION 3 Function

Table 6. OPTION 3 CODE Data

- 7 -

OPTION

Data Soft Wide TV Scart LNA

0

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

0

1

0

1

0

OSD

0

1

2

3

4

5

6

7

0

1

2

3

4

5

6

7

0

1

2

3

4

5

6

7

According to

Tool Outlook.

AV1

OSD

LNA

Scart

Wide

TV

Soft

Touch

Option Code

0

1

0

1

0

1

0

1

0

1

2

3

4

5

6

7

Function Remark

Use Normal Key Board

Use Soft Touch Key Board

4:3 TV

16:9 TV

Scart Input

Phone Input

Without LNA

With LNA

English Only

Eng+Chinese

Eng+French+Arabic+Urdu+Parsi

Eng+German+French+Italian+Spainish+Netherlandish

+Portuguese

Eng+Swedenish+Norwegian+Danish+Finish

Eng+Romanian+Polish+Hungarian+Czech+Russian

Reserved

Full

OPTION

Data Soft Wide TV Scart LNA

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

OSD

0

1

2

3

4

5

6

7

0

1

2

3

4

5

6

7

0

1

2

3

4

5

6

7

0

1

2

3

4

5

6

7

0

1

2

3

4

5

6

7

0

1

2

3

4

5

- 8 -

OPTION

Data Soft Wide TV Scart LNA

70

71

72

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

1

0

1

0

1

0

1

0

1

0

1

0

1

0

OSD

6

7

0

1

2

3

4

5

6

7

0

1

2

3

4

5

6

7

0

1

2

3

4

5

6

7

0

1

2

3

4

5

6

7

0

1

2

3

4

5

6

7

0

1

2

3

OPTION

Data Soft Wide TV Scart LNA

116

117

118

119

120

121

122

123

124

125

126

127

1

0

1

OSD

4

5

6

7

0

1

2

3

4

5

6

7

RGB

Amplifier

IC681

TDA2615

IC601

MSP3410

IC101

TDA4474

(VIF/SIF)

IC501

VPC3215

IC503

CIP3250

IC504

MSM541222

IC507

DDP3310

IC203

TDA8601

IC202

TEA5114

IC3001

LB1645

(Tilt control)

FBT

DY

IC701

TPU305XX

(Teletext)

IC01

MI-COM

SMPS

H-Drive

IC831

5V regulator

IC651

TDA2615

IC605

TDA2822

AV1

AV2/SAV

TU101

TUNER

IC201

CXA2040Q

(AV S/W)

ICP3

TDA9160

ICP6

SDA

ICP5

SDA9187

Head phone

PC input

Component

RGB

AV3/SAV

Main speaker

Squiter

V-Deflection

amplfier

Dynamic

Focus

CPT

B+ (135V)

30V

IC833

12V regulator

IC833

8V regulator

30V

PIP PROCESS

100HZ PROCESS

RGB/YUV S/W

Audio Process

BLOCK DIAGRAM

510

150

153

913

122

912

300

501

570

700

354

350

600

120

121

112

400

943

125

124

126

127

330

170

550

530

520

503

560

P802

540

310

EXPLODED VIEW

- 1 -

- 2 -

EXPLODED VIEW PARTS LIST

LOCA. NO PART NO DESCRIPTIONS

112 6341V32003A BARE CPT ASSY,2440GE489AC 100HZ DY

120 120-C77G SPEAKER,GENERAL 8OHM 10

121 120-D39C SPEAKER,TWEETER 8OHM 10W/20W

122 4810V00088A BRACKET,SPEAKER

124 120-C78G SPEAKER,WOOFER 8 OHM 10W/

125 3110V00018A CASE,WOOFER TOP

126 3110V00019A CASE,WOOFER BOTTOM

127 6401VA0004B SPEAKER ASSY WOOFER(L)

150 150-201J COIL,DEGAUSSING

153 6150ZT5340B DY,DW32SLFL2

170 170-797X CPT EARTH,32Ó 144T 2LUG

300 3091V00152B CABINET ASSY

310 5020V00274A BUTTON,CONTROL TOUCH SWITCH

330 5020V00374A BUTTON,POWER

350 4980V00035A SUPPORTER,BASE

354 4980V00056A SUPPORTER,SWIVEL ROLLER

400 3809V00092B BACK COVER ASSY(2 SCART)

501 4810V00139A BRACKET,MAIN

503 3500V00019B BOARD,MAIN

510 6871VSM371D PWB ASSY,CPT&VM

520 6871VMM311P PWB ASSY MAIN WL-32Q10

6871VMM311Q PWB ASSY MAIN WE-32Q10

530 6871VDM073E PWB ASSY MAIN2 32Q10 W/ST-BY

6871VDM073F PWB ASSY MAIN2 32Q10 W/O ST-BY

540 6871VSM313C PWB ASSY,DIGIT MC993A CE/CL

550 6871VSM513A PWB ASSY,POWER

560 6871VSM437A PWB ASSY,SIDE BOD.

570 6871VSM511A PWB ASSY,S/TOUCH

600 6871VSM512A PWB ASSY,SIDE AV

700 0IGL120104D IC,G-LINK CDS SENSOR MODULE(P1201-04)

913 332-229A SCREW ASSY,HEXAGON HEAD SPECIAL

943 1PTF0403116 SCREW,TAP TITE D4.0 L16.0

P802 174-009V CORD,POWER(W/HOLD,HOUSING)L=400,4.0

The components identified by mark is

critical for safety.

Replace only with part number specified.

CPT

CONTROL POWER

DIGITAL(TOP)

DIGITAL(BOTTOM)

PRINTED CIRCUIT BOARD

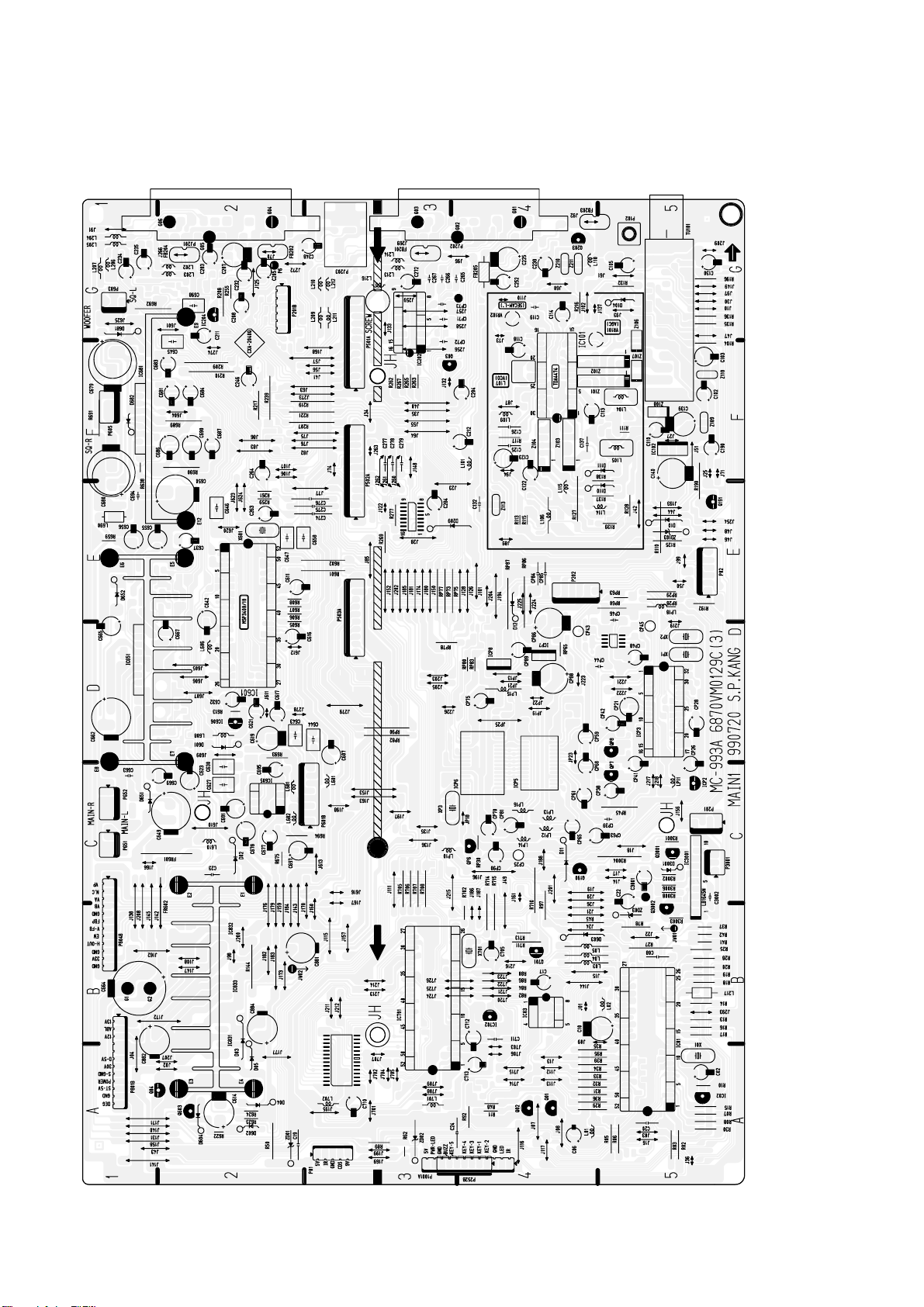

MAIN

MAIN 2

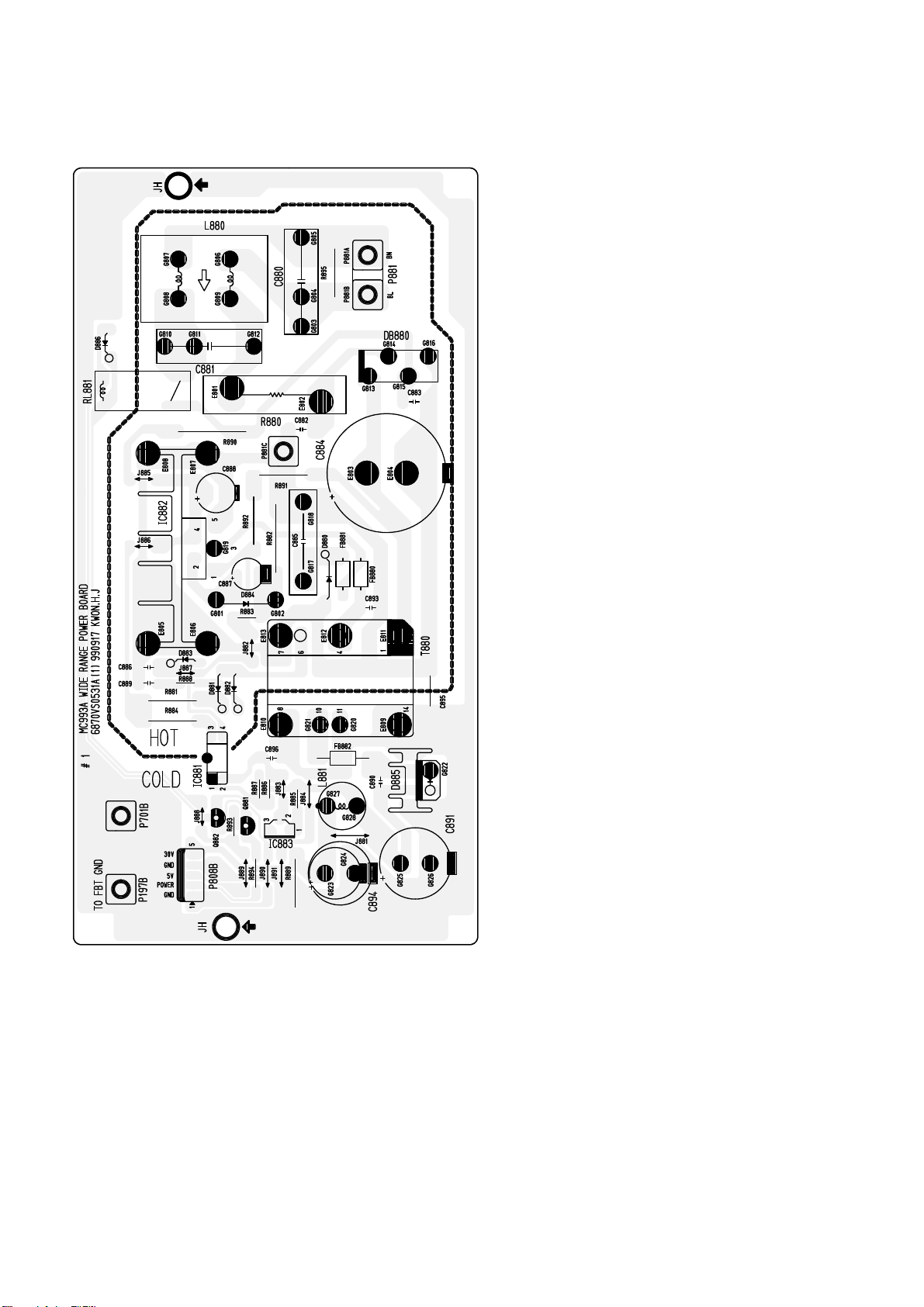

POWER BOARD

- 20 -

REPLACEMENT PARTS LIST

LOCA. NO PART NO DESCRIPTION

D11

D12

D101

D102

D104

D110

D111

D301

D306

D401

D402

D405

D406

D407

D408

D409

D410

D412

D460

D461

D462

D501

D502

D503

D570

D571

D602

D603

D604

D651

D652

D681

D682

D683

D801

D802

D803

D805

D806

D807

D808

D809

D811

D814

D825

D826

D827

D828

D829

D850

D851

D901

D902

0DD414809ED

0DD226239AA

0DD414809ED

0DD859009AA

0DD150009CA

0DD414809ED

0DD300000AD

0DD400509AA

0DD200009AF

0DD100009AU

0DD150009CA

0DD200009AF

0DD414809ED

0DD100009AQ

0DD414809ED

0DD181009AB

0DD560000AA

0DD060009AC

0DD100009AM

0DD060009AC

0DD100009AM

0DD100009AL

0DD414809ED

0DD060009AC

0DD420000BB

0DD414809ED

0DD060009AC

0DD400509AA

DIODE,1N4148 TA

DIODE,SWITCHING KDS226 SOT-23

DIODE,1N4148 TA

DIODE,SILICON MA859

DIODE,RECTIFIER RGP15J

DIODE,1N4148 TA

DIODE,FMS-3FU SANKEN

DIODE,RECTIFIER 1N4005

DIODE,RECTIFIER RU2M V(1)

DIODE,RECTIFIER EU1AV(1)

DIODE,RECTIFIER RGP15J

DIODE,RECTIFIER RU2M V(1)

DIODE,1N4148 TA

DIODE,RP1HV(1)

DIODE,1N4148 TA

DIODE,SWITCHING KDS181 85V 300MA

DIODE,RECTIFIER D5SB60(5A/600V)

DIODE,TVR06J 0.6A/600V 250NS

DIODE,RECTIFIER EU1ZV(1)

DIODE,TVR06J 0.6A/600V 250NS

DIODE,RECTIFIER EU1ZV(1)

DIODE,EH-1ZV(1)

DIODE,1N4148 TA

DIODE,TVR06J 0.6A/600V 250NS

DIODE,D4L20U SHINDENGEN

DIODE,1N4148 TA

DIODE,TVR06J 0.6A/600V 250NS

DIODE,RECTIFIER 1N4005

LOCA. NO PART NO DESCRIPTION

D813

ICS01

IC01

ICP2

ICS02

IC02

IC03

ICS03

ICP3

ICP4

ICP5

ICP6

ICP7

ICP8

IC101

IC102

IC201

IC202

IC204

IC301

IC401

IC501

IC503

IC504

IC505

IC507

IC510

IC601

IC605

IC606

IC651

IC652

IC681

IC701

IC702

IC703

IC801

IC802

IC803

IC804

IC831

IC832

IC833

IC901

IC902

IC903

IC3001

D02

D10

0ISK100300A

0ISG747410A

0ISO750011A

0IKE780800B

0ISG747410A

0ISS753300A

0IAL241600B

0IMO156216A

0IPH916030A

0ISM918900A

0ISM918730A

0IET221000B

0IKE780500K

0ITF447400A

0IKE780500K

0ISO204000A

0ISG511400A

0IKE780900H

0ISA784500A

0IKE455800E

0IIT321560A

0IIT325010A

0IOK541222A

0ISS754200A

0IIT331020A

0IKE780800B

0IIT341000J

0ISG282200A

0ISS753300A

0IPH261600A

0IIT305000A

0ISS753300A

0ISS622567D

0ISK670900A

0ISH123200B

0ISH052100A

0ISK130000A

0ISH052100A

0ISH122100A

0IKE780800A

0IPH611190A

0ISA164500B

0DD414809ED

BC,SLA1003 SIP12 BK DIODE MODULE(

IC,M74HC74M1R 14P,SOP TP DUAL DTY

IC,CXP7500P11S-1(OTP) 52SDIP BK M

IC,KIA78L08BP(TA) TO-92 8V,150MA

IC,M74HC74M1R 14P,SOP TP DUAL DTY

IC,KA7533Z RESET T0-92 TP 3.3V

IC,AT24C16-10PC 8D EEPROM 16K

IC,JLC1562BN 16D I,C BUS EXPANDER

IC,TDA9160A/N3 32SD P/N/S DECODER

IC,SDA9189X 32SOP PIP(QUARTER)

IC,SDA9187/3X 28P SOP BK PIP A/D

IC,EL2210CS 8P SOP ST VIDEO AMP

IC,KIA7805PI 3P(TO-220IS) 5V,1A

IC,TDA4474(VIF)

IC,KIA7805PI 3P(TO-220IS) 5V,1A

IC,CXA2040AQ 32P,QFP BK IIC BUS V

IC,TEA5114 16D RGB S/W

IC,KIA78L09BP(AT) 3P 9V,150MA

IC,LA7845 7SIP V/OUT(1.5A)

IC,KIA4558 8DIP DUAL OP AMP

IC,VPC3215C-PT-B6 68P,PLCC BK COM

IC,CIP3250A-PS-B1 68P,PLCC BK INT

IC,MSM5412222-30TS-K 44P,TSOP TP

IC,KA7542Z RESET TO92 TP 4.2V

IC,DDP3310B-PT-C2 68P,PLCC BK DIS

IC,KIA78L08BP(TA) TO-92 8V,150MA

IC,MSP3410D-C5 52P SDIP BK MULTI

IC,TDA2822M 8D DUAL AUDIO AMP(1W)

IC,KA7533Z RESET T0-92 TP 3.3V

IC,TDA2616 STEREO AMP(20+20W)

IC,TPU3050 52P,SDIP BK TELETEXT P

IC,KA7533Z RESET T0-92 TP 3.3V

IC,KM62256DLG-7L 28P,SOP TP 256K

IC,STR/S6709 9S SMPS-CNTR

IC,PC123 FY2 PHOTO COUPLER

IC,PQ05RF21 4P(TO-220) 5V S/W REG

IC,SE130N 3P 130V ERROR AMP

IC,PQ05RF21 4P(TO-220) 5V S/W REG

IC,PQ12RF21 4P(TO-220) 12V S/W RE

IC,KIA7808PI 3P(TO-220IS) 1A,8V

IC,TDA6111Q 9SIP RGB AMP

IC,LB1645N 10SIP BK MOTOR DRIVE I

DIODE,1N4148 TA

IC

DIODE

The components identified by mark are

critical for safety.

Replace only with part number specified.

- 21 -

LOCA. NO PART NO DESCRIPTION

D903

D905

D906

D907

D908

D909

D910

D911

D912

D913

D2001

D2002

D2004

D2005

D2006

D2007

D2008

D2009

D3001

DS01

DS02

DS03

ZDS01

ZD01

ZD02

ZD03

ZDS04

ZDS05

ZDS06

ZD103

ZD302

ZD303

ZD410

ZD460

ZD501

ZD502

ZD801

ZD804

ZD850

ZD1201

ZD1202

ZD1205

ZD1206

IC2001

IC2002

Q01

Q02

Q03

Q04

Q10

0DD400509AA

0DD414809ED

0DD150009CA

0DD414809ED

0DD247109AA

0DZ620009BB

0DZ910009AJ

0DZ510009AB

0DZ620009BB

0DZ330009BA

0DZ180009AG

0DZ510009AB

0DZ120009AF

0DZ750009AG

0DZ510009AB

0DZ750009AG

0DZ910009AJ

0DZ620009BB

0TR437000BA

0TR165900AC

0TR319809AA

0TR102009AB

0TR319809AA

0TR150400BA

DIODE,RECTIFIER 1N4005

DIODE,1N4148 TA

DIODE,RECTIFIER RGP15J,TP(52MM)

DIODE,1N4148 TA

DIODE,DETECTOR 1S2471

DIODE,ZENER MTZJ6.2B DO34 0.5W

DIODE,ZENER MTZJ9.1B DO34 0.5W

DIODE,ZENER MTZ5.1B,TP(52MM)

DIODE,ZENER MTZJ6.2B DO34 0.5W

DIODE,ZENER HZT33(TP)

DIODE,ZENER MTZJ18B DO34 500MW

DIODE,ZENER MTZ5.1B,TP(52MM)

DIODE,ZENER MTZJ12B DO34 500MW

DIODE,ZENER MTZJ7.5B DO34 0.5W

DIODE,ZENER MTZ5.1B,TP(52MM)

DIODE,ZENER MTZJ7.5B DO34 0.5W

DIODE,ZENER MTZJ9.1B DO34 0.5W

DIODE,ZENER MTZJ6.2B DO34 0.5W

TR,KTC4370A-Y

TR,KTA1659A-Y TO-220IS KEC

TR,KTC3198-TP-Y (KTC1815)KEC

TR,KRC102M,TP(KRC1202),KEC

TR,KTC3198-TP-Y (KTC1815)KEC

TR,CHIP 2SA1504S(ASY) KEC

LOCA. NO PART NO DESCRIPTION

Q11

Q101

Q102

Q103

Q105

Q106

Q107

Q108

Q150

Q201

Q202

Q203

Q204

Q205

Q207

Q231

Q301

Q353

Q401

Q402

Q404

Q405

Q460

Q461

Q462

Q463

Q464

Q501

Q502

Q503

Q504

Q505

Q506

Q507

Q508

Q509

Q510

Q511

Q512

Q513

Q514

Q530

Q570

Q603

Q641

Q642

Q651

Q661

Q681

Q701

Q801

Q802

0TR150400BA

0TR387500AA

0TR388109AA

0TR387500AA

0TR102009AG

0TR387500AA

0TR102009AG

0TR387500AA

0TR150400BA

0TR126609AA

0TR150400BA

0TR387500AA

0TR102009AG

0TR150400BA

0TR319809AA

0TR471000AA

0TF200000AA

0TR544600AA

0TR127509AC

0TR205900AA

0TR319809AA

0TR126609AA

0TR319809AA

0TR471000AA

0TR319809AA

0TR150400BA

0TR387500AA

0TR150400BA

0TR387500AA

0TR150400BA

0TR387500AA

0TR150400BA

0TR387500AA

0TR150400BA

0TR387500AA

0TR126609AA

0TR150400BA

0TR387500AA

0TR150400BA

0TR387500AA

0TR126609AA

0TR385200AA

0TR322709AA

TR,CHIP 2SA1504S(ASY) KEC

TR,CHIP 2SC3875S(ALY) KEC

TR,KTC3881 CHIP KEC

TR,CHIP 2SC3875S(ALY) KEC

TR,CHIP KRC102S SOT-23 TP KEC

TR,CHIP 2SC3875S(ALY) KEC

TR,CHIP KRC102S SOT-23 TP KEC

TR,CHIP 2SC3875S(ALY) KEC

TR,CHIP 2SA1504S(ASY) KEC

TR,KTA1266-TP-Y (KTA1015) KEC

TR,CHIP 2SA1504S(ASY) KEC

TR,CHIP 2SC3875S(ALY) KEC

TR,CHIP KRC102S SOT-23 TP KEC

TR,CHIP 2SA1504S(ASY) KEC

TR,KTC3198-TP-Y (KTC1815)KEC

TR,2SC4710 SANYO OTOROLA IBA

FET,IRFIBC20G BK I.R 600V 1.7

TR,2SC5446(AS) BK TOSHIBA TO3P

TR,KTA1275-Y TP(KTA1013),KEC

TR,KTD2059-O,TO-220IS,100V,5A,KEC

TR,KTC3198-TP-Y (KTC1815)KEC

TR,KTA1266-TP-Y (KTA1015) KEC

TR,KTC3198-TP-Y (KTC1815)KEC

TR,2SC4710

TR,KTC3198-TP-Y (KTC1815)KEC

TR,CHIP 2SA1504S(ASY) KEC

TR,CHIP 2SC3875S(ALY) KEC

TR,CHIP 2SA1504S(ASY) KEC

TR,CHIP 2SC3875S(ALY) KEC

TR,CHIP 2SA1504S(ASY) KEC

TR,CHIP 2SC3875S(ALY) KEC

TR,CHIP 2SA1504S(ASY) KEC

TR,CHIP 2SC3875S(ALY) KEC

TR,CHIP 2SA1504S(ASY) KEC

TR,CHIP 2SC3875S(ALY) KEC

TR,KTA1266-TP-Y (KTA1015) KEC

TR,CHIP 2SA1504S(ASY) KEC

TR,CHIP 2SC3875S(ALY) KEC

TR,CHIP 2SA1504S(ASY) KEC

TR,CHIP 2SC3875S(ALY) KEC

TR,KTA1266-TP-Y (KTA1015) KEC

TR,2SC3852A SANKEN

TR,KTC3227-Y,TP(KTC1627A),KEC

TRANSISTOR

The components identified by mark are

critical for safety.

Replace only with part number specified.

- 22 -

LOCA. NO PART NO DESCRIPTION

Q803

Q804

Q805

Q811

Q812

Q851

Q852

Q853

Q904

Q910

Q2001

Q2002

Q2003

Q3001

Q3002

QP6

QP7

QP8

QP9

QS01

QS02

QS03

QS04

QS05

QS06

QS07

QS08

QS09

QS10

QS11

QS12

QS13

QS14

QS15

QS16

QS20

QS21

QS22

QS23

QS25

QS27

QS28

QS29

QS30

QS31

QS32

QS33

QS34

QS35

QS70

0TR319809AA

0TR968000AA

0TR319809AA

0TR322709AA

0TR968000AA

0TR322800AB

0TR319809AA

0TR126609AA

0TR437000BA

0TR126609AA

0TR319809AA

0TR102009AB

0TR387500AA

0TR319809AA

0TR150400BA

0TR388009BB

0TR387500AA

0TR102009AG

0TR387500AA

TR,KTC3198-TP-Y (KTC1815)KEC

TR,KTA968A-Y KEC

TR,KTC3198-TP-Y (KTC1815)KEC

TR,KTC3227-Y,TP(KTC1627A),KEC

TR,KTA968A-Y KEC

TR,KTC3228-Y(KTC2383),KEC

TR,KTC3198-TP-Y (KTC1815)KEC

TR,KTA1266-TP-Y (KTA1015) KEC

TR,KTC4370A-Y TO-220IS KEC

TR,KTA1266-TP-Y (KTA1015) KEC

TR,KTC3198-TP-Y (KTC1815)KEC

TR,KRC102M,TP(KRC1202),KEC

TR,CHIP 2SC3875S(ALY) KEC

TR,KTC3198-TP-Y (KTC1815)KEC

TR,CHIP 2SA1504S(ASY) KEC

TR,KTC3880-Y TP KEC SOT23 CHIP

TR,CHIP 2SC3875S(ALY) KEC

TR,CHIP KRC102S SOT-23 TP KEC

TR,CHIP 2SC3875S(ALY) KEC

LOCA. NO PART NO DESCRIPTION

C02

C06

C08

C10

C17

C19

C20

C24

C102

C103

C105

Ò

C110

C113

C114

Ò

C118

C119

C122

C123

C125

C126

C130

Ò

C132

C137

C139

C140

C204

C205

C207

C208

C211

C212

C225

C230

C234

C235

C246

C252

C263

C264

C265

C266

C267

C272

C301

C302

C303

C304

C305

C306

0CE335DK618

0CE476DD618

0CN1030F679

0CE227DD618

0CE476DF618

0CN1030F679

0CN1010K519

0CN8200K519

0CE106DK618

0CE476DD618

0CE475DK618

0CE225DK618

0CE476DF618

0CE106DF618

0CE225DK618

181-007H

0CE225DK618

181-007H

0CE226DF618

0CE474DK618

0CN1030F679

0CX4700K409

0CE227DF618

0CE225DK618

0CX4700K409

0CN1030F679

0CE227DF618

0CE477DF618

0CE225DK618

0CE227DF618

0CE336DF618

0CE225DK618

0CE227DF618

0CE106DF618

0CE226DK618

0CE104DK618

0CE106DF618

0CE226DF618

181-007C

0CE106DF618

0CQ4741N501

0CE107DJ618

0CE477DH618

0CQ1041N509

0CN1020K519

3.3000UF STD 50V M

47UF STD 10V M

10000P 16V M

220UF STD 10V M

47UF STD 16V M

10000P 16V M Y

100P 50V K B TA52

82P 50V K B TA52

10UF STD 50V M

47UF STD 10V M

4.7000UF STD 50V M

2.2000UF STD 50V M *WE-

47UF STD 16V M

10UF STD 16V M

2.2000UF STD 50V M

ECQ-V1H474JZ3 *WE-

2.2000UF STD 50V M

ECQ-V1H474JZ3(TR),50V 0.4

22UF STD 16V M

0.4700UF STD 50V M

10000P 16V M

47P 50V J

220UF STD 16V M

2.2000UF STD 50V M *WE-

47P 50V J

10000P 16V M

220UF STD 16V M

470UF STD 16V M

2.2000UF STD 50V M

220UF STD 16V M

33UF STD 16V M

2.2000UF STD 50V M

220UF STD 16V M

10UF STD 16V M

22UF STD 50V M

0.1000UF STD 50V M

10UF STD 16V M

22UF STD 16V M

ECQ-V1H104JZ3(TR),50V 0.1

10UF STD 16V M

0.47U 100V K

100UF STD 35V M

470UF STD 25V M

0.1U 100V K

1000P 50V K

For Capacitor & Resistors,

the charactors at 2nd and 3rd

digit in the P/No. means as

follows;

CC, CX, CK, CN : Ceramic

CQ : Polyestor

CE : Electrolytic

RD : Carbon Film

RS : Metal Oxide Film

RN : Metal Film

RF : Fusible

CAPACITOR

LG GOLDSTAR WE32Q10IP User manual

Popular TV manuals by other brands
