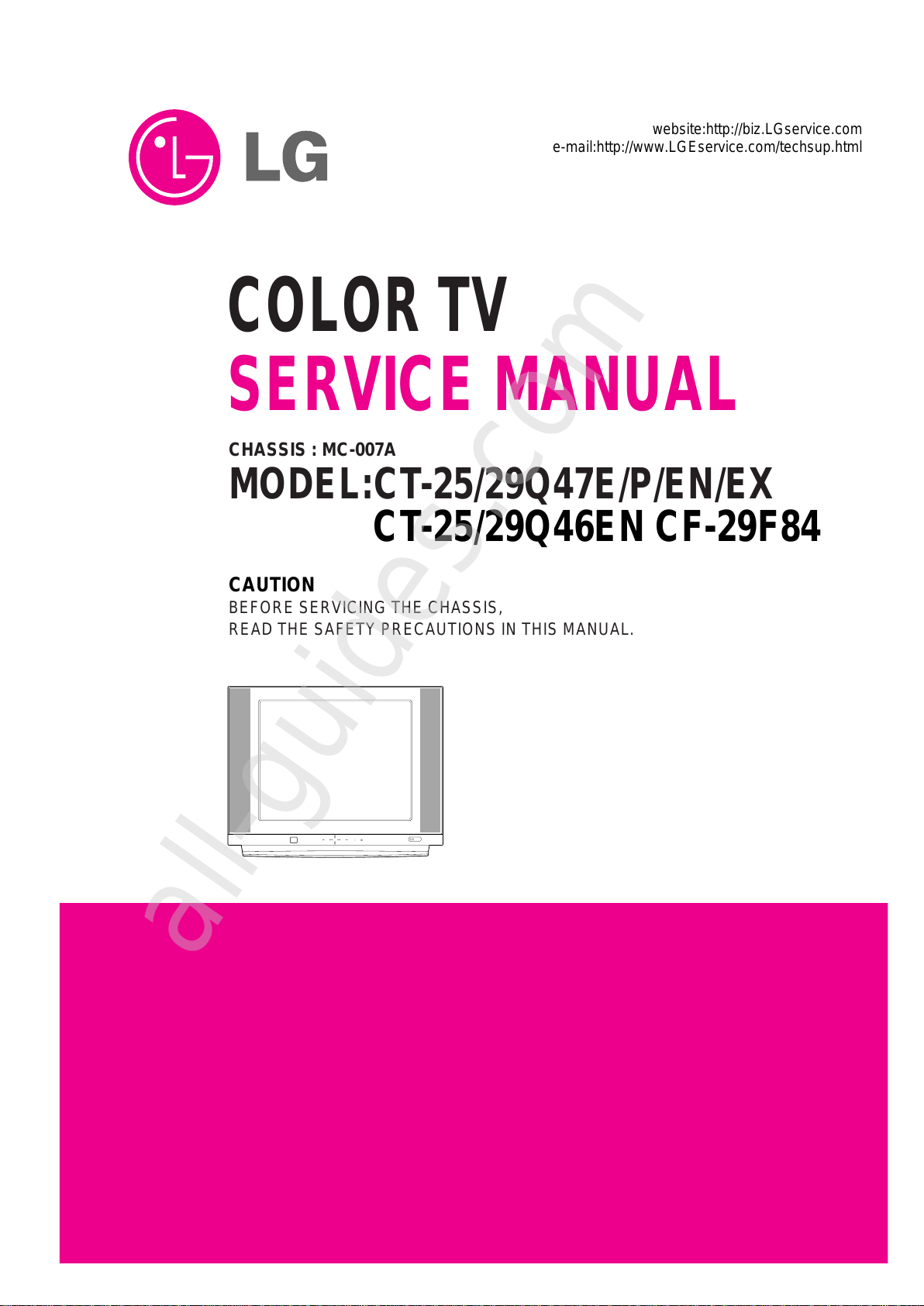

COLOR TV

SERVICE MANUAL

CAUTION

BEFORE SERVICING THE CHASSIS,

READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

CHASSIS : MC-007A

MODEL:CT-25/29Q47E/P/EN/EX

MODEL:CT-25/29Q46EN CF-29F84

website:http://biz.LGservice.com

e-mail:http://www.LGEservice.com/techsup.html

All manuals and user guides at all-guides.com

all-guides.com

- 2 -

CONTENTS

Contents ................................................................................................................. 2

Safety Precautions ............................................................................................3

Specifications ..................................................................................................... 4

Control Descriptions ........................................................................................ 5

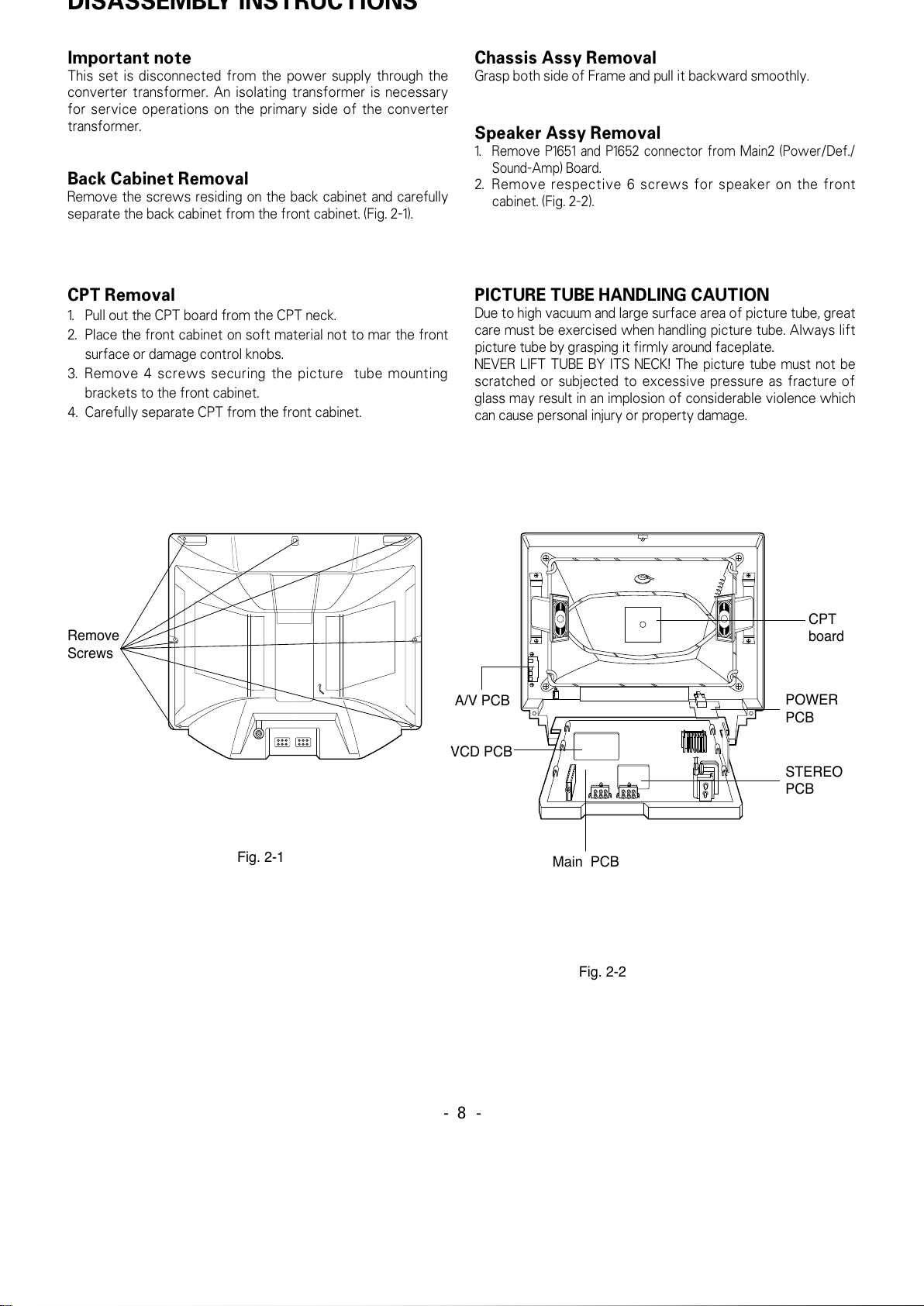

Disassembly Instructions ............................................................................. 8

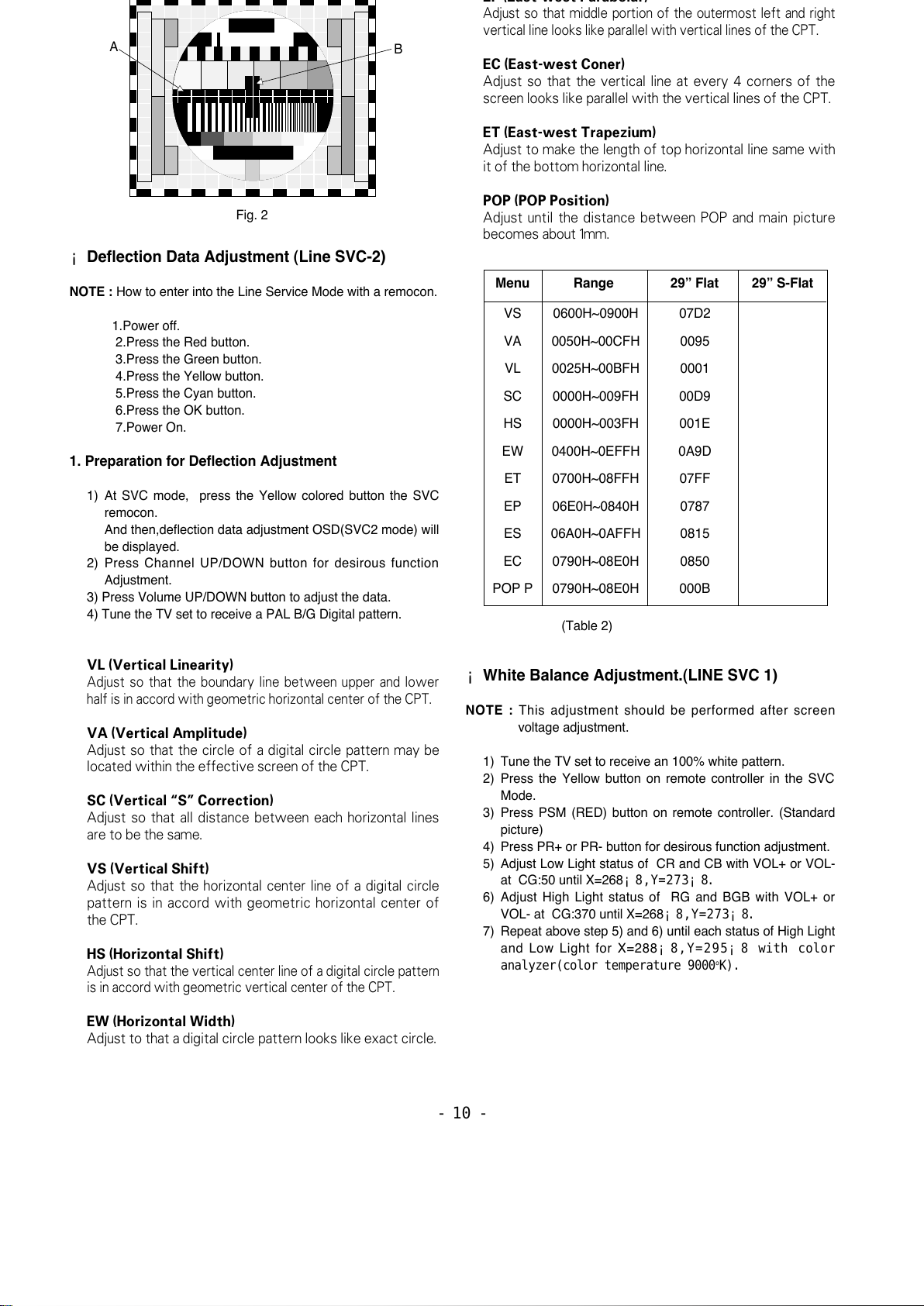

Adjustment Instructions ............................................................................... 9

Exploded View .................................................................................................. 14

Exploded View Parts List ..............................................................................15

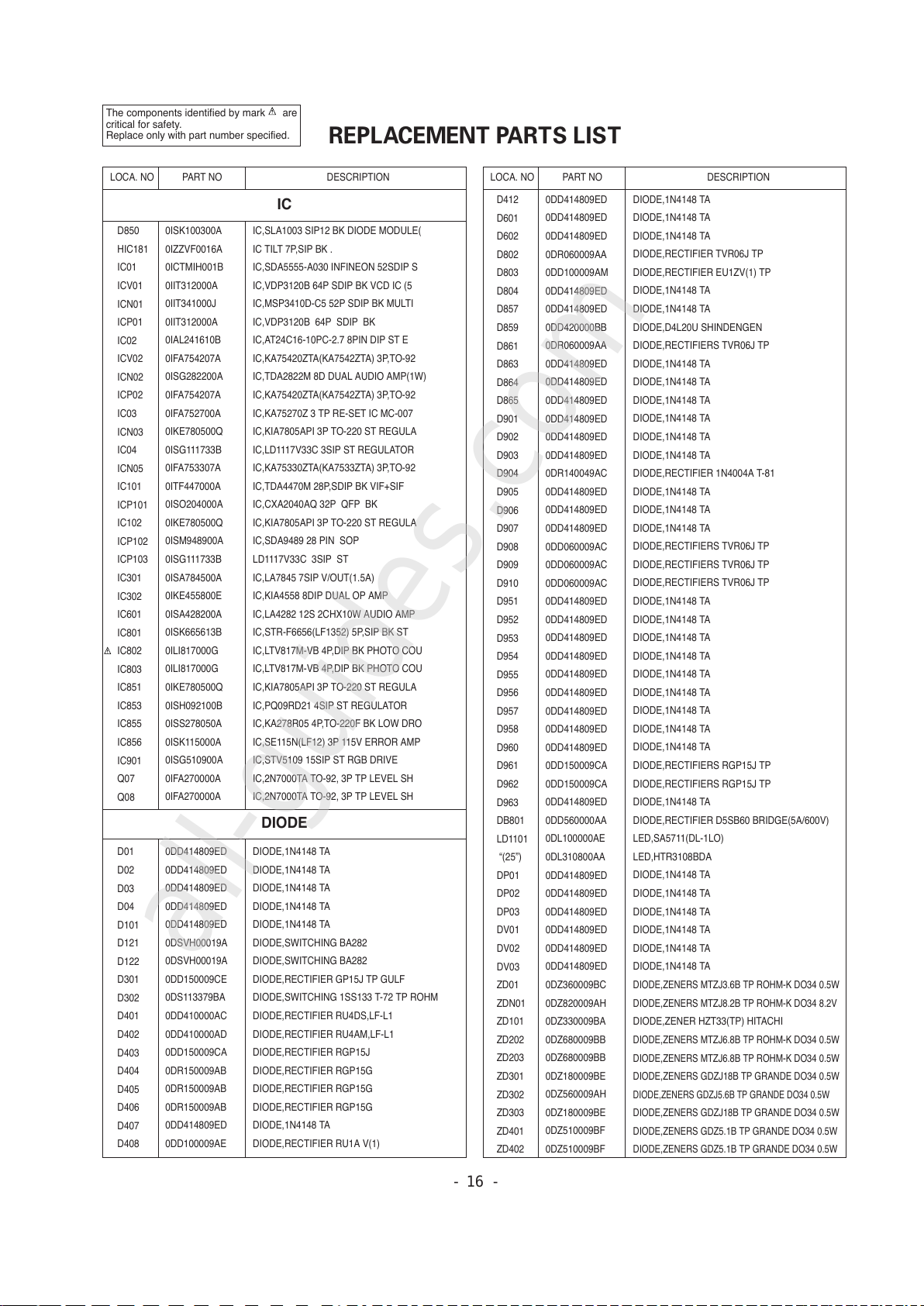

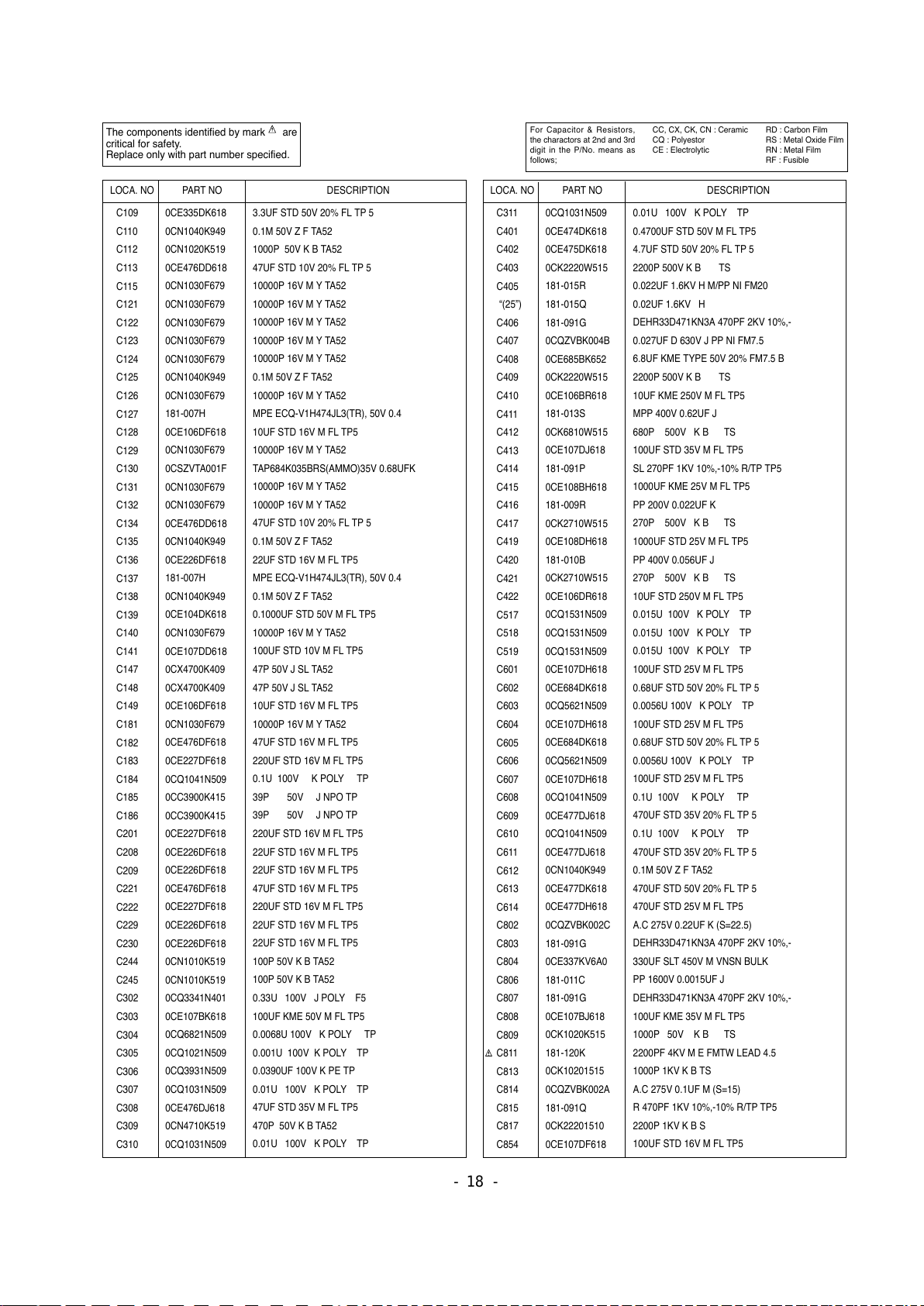

Replacement Parts List ................................................................................ 16

SVC. Sheet ................................................................................................................

All manuals and user guides at all-guides.com

- 3 -

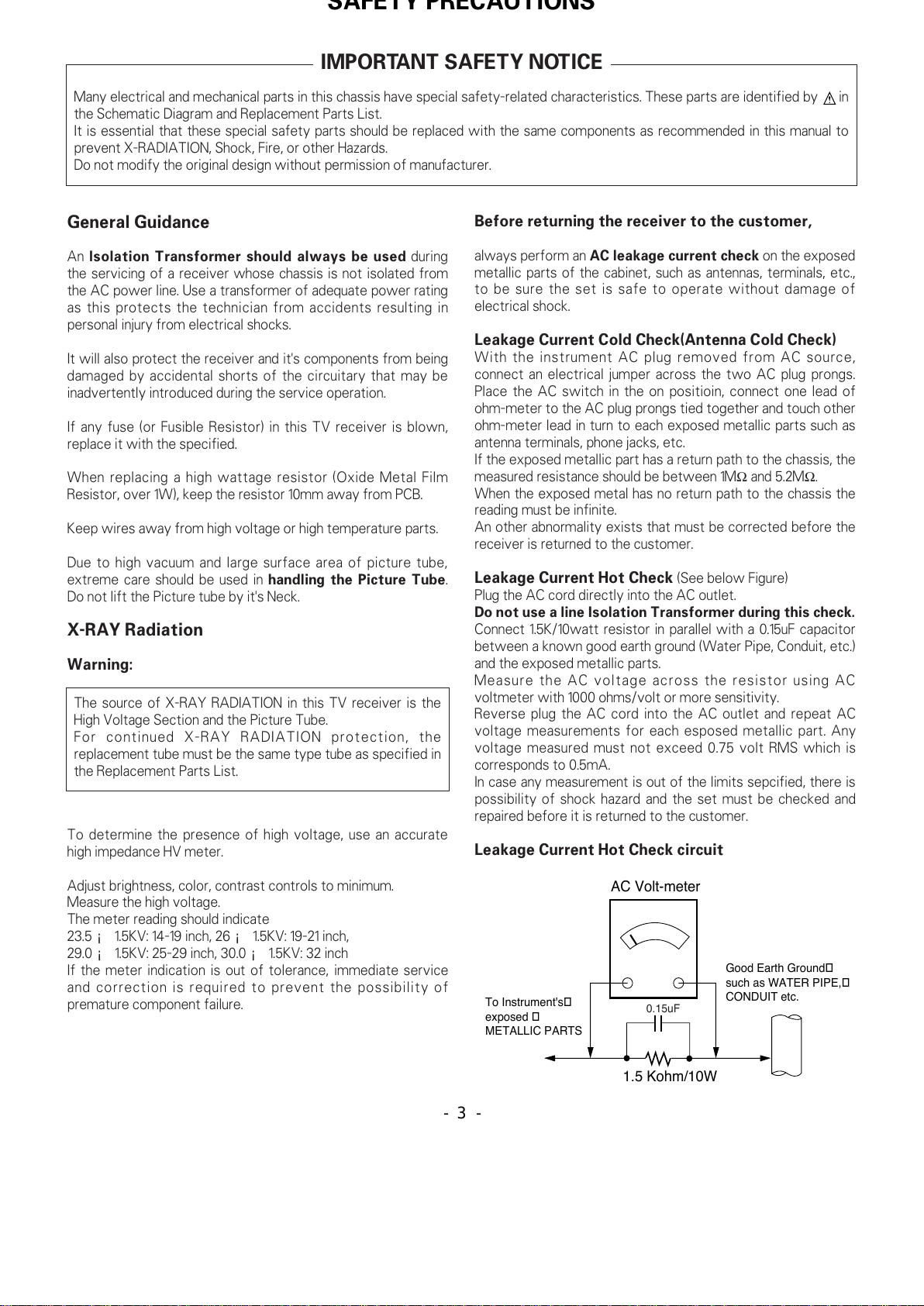

SAFETY PRECAUTIONS

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in

the Schematic Diagram and Replacement Parts List.

It is essential that these special safety parts should be replaced with the same components as recommended in this manual to

prevent X-RADIATION, Shock, Fire, or other Hazards.

Do not modify the original design without permission of manufacturer.

General Guidance

An lsolation Transformer should always be used during

the servicing of a receiver whose chassis is not isolated from

the AC power line. Use a transformer of adequate power rating

as this protects the technician from accidents resulting in

personal injury from electrical shocks.

It will also protect the receiver and it's components from being

damaged by accidental shorts of the circuitary that may be

inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this TV receiver is blown,

replace it with the specified.

When replacing a high wattage resistor (Oxide Metal Film

Resistor, over 1W), keep the resistor 10mm away from PCB.

Keep wires away from high voltage or high temperature parts.

Due to high vacuum and large surface area of picture tube,

extreme care should be used in handling the Picture Tube.

Do not lift the Picture tube by it's Neck.

X-RAY Radiation

Warning:

To determine the presence of high voltage, use an accurate

high impedance HV meter.

Adjust brightness, color, contrast controls to minimum.

Measure the high voltage.

The meter reading should indicate

23.5 ¡1.5KV: 14-19 inch, 26 ¡1.5KV: 19-21 inch,

29.0 ¡1.5KV: 25-29 inch, 30.0 ¡1.5KV: 32 inch

If the meter indication is out of tolerance, immediate service

and correction is required to prevent the possibility of

premature component failure.

Before returning the receiver to the customer,

always perform an AC leakage current check on the exposed

metallic parts of the cabinet, such as antennas, terminals, etc.,

to be sure the set is safe to operate without damage of

electrical shock.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source,

connect an electrical jumper across the two AC plug prongs.

Place the AC switch in the on positioin, connect one lead of

ohm-meter to the AC plug prongs tied together and touch other

ohm-meter lead in turn to each exposed metallic parts such as

antenna terminals, phone jacks, etc.

If the exposed metallic part has a return path to the chassis, the

measured resistance should be between 1MΩ and 5.2MΩ.

When the exposed metal has no return path to the chassis the

reading must be infinite.

An other abnormality exists that must be corrected before the

receiver is returned to the customer.

Leakage Current Hot Check (See below Figure)

Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check.

Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor

between a known good earth ground (Water Pipe, Conduit, etc.)

and the exposed metallic parts.

Measure the AC voltage across the resistor using AC

voltmeter with 1000 ohms/volt or more sensitivity.

Reverse plug the AC cord into the AC outlet and repeat AC

voltage measurements for each esposed metallic part. Any

voltage measured must not exceed 0.75 volt RMS which is

corresponds to 0.5mA.

In case any measurement is out of the limits sepcified, there is

possibility of shock hazard and the set must be checked and

repaired before it is returned to the customer.

Leakage Current Hot Check circuit

The source of X-RAY RADIATION in this TV receiver is the

High Voltage Section and the Picture Tube.

For continued X-RAY RADIATION protection, the

replacement tube must be the same type tube as specified in

the Replacement Parts List.

1.5 Kohm/10W

To Instrument's

exposed 

METALLIC PARTS

Good Earth Ground

such as WATER PIPE,

CONDUIT etc.

AC Volt-meter

IMPORTANT SAFETY NOTICE

0.15uF

All manuals and user guides at all-guides.com

- 4 -

SPECIFICATIONS

Note : Specification and others are subject to change without notice for improvement.

¡Video input system:

PAL-B/G, D/K, I/I

SECAM-B/G, D/K/L/L’

NTSC M

NTSC 4.43(AV)

¡Intermediate Frequency (Unit : MHz)

VISION IF : 38.9MHz,33.9MHz(SECAM-L’)

COLOR IF : 34.47MHz(4.43)

35.32MHz(3.58) : NTSC-M

VIF-4.25000MHz

VIF-4.40625MHz

SOUND IF : 33.4MHz (B/G)

32.9MHz (I/I)

32.4MHz (D/K,L)

34.4MHz (M)

40.4MHz (L’)

¡Power requirement : 110~240V, 50/60Hz

¡Power consumption : 25”:125W

29”:135W

¡CPT : True Flat CPT(Flatron)

¡Tuning system :

FVS

100 Programme memory

200 Programme memory(For CHINA)

¡

Antenna input impedance : VHF/UHF 75 ohm, unbalanced

¡OSD (On Screen Display) : MENU Type

¡Voice coil impedance : 8 ohm

¡Sound output : 12W+12W

Dual/Stereo : A2/NICAM(Option)

¡External connection : Head Phone Jack

S-VIDEO in

A/V in :1 pair

Scart 1(Full)

A/V in/out

Scart 2(Half)+Audio out

A/V in/out

¡External In/Output

Audio-In:0.5Vrms¡3db,over 10Kohm

Audio-Out:0.5Vrms¡3db,below 1Kohm

Video-In/Out:1Vp-p¡3db,75ohm

R,G,B In:0.7Vp-p¡3db

¡Feature : Auto programme/Manual programme

SVM (Scanning Velocity Modulation)

Digital Eye

Digital Comb Filter

Auto Sleep

Dynamic Focus

Programme Editing

PSM (Picture Status Memory)

CTI

Double Window Teletext (TOP/FLOF)

Turbo Search, Picture & Sound

ACMS

ARC (Zoom 1/ZOOM 2, 16:9¡Œ4:3)

1 TUNER PIP(Double Window PIP)

Child Lock :

¡Tuning range

Band

VHF-Low

VHF-High

Hyper

UHF

S1'-S3', S1

S2-S10,

S11-S20

S21-S41

For TV For CATV

B/G

Ch2-4

Ch5-12

D/K

Ch1-5

Ch6-12

I/I

Ch4-13

NTSC

Ch2-13

Ch21-69 Ch14-69

In the Lock On state the TV can only be

operated by the Remote Controller.

If any button on the front panel is pressed,

"Child Lock" is displayed on the screen but

the button's function is not performed.

To cancel of this mode, select lock off with

menu button on remote controller only.

(): SECAM

Front or

Side

Back

All manuals and user guides at all-guides.com

- 5 -

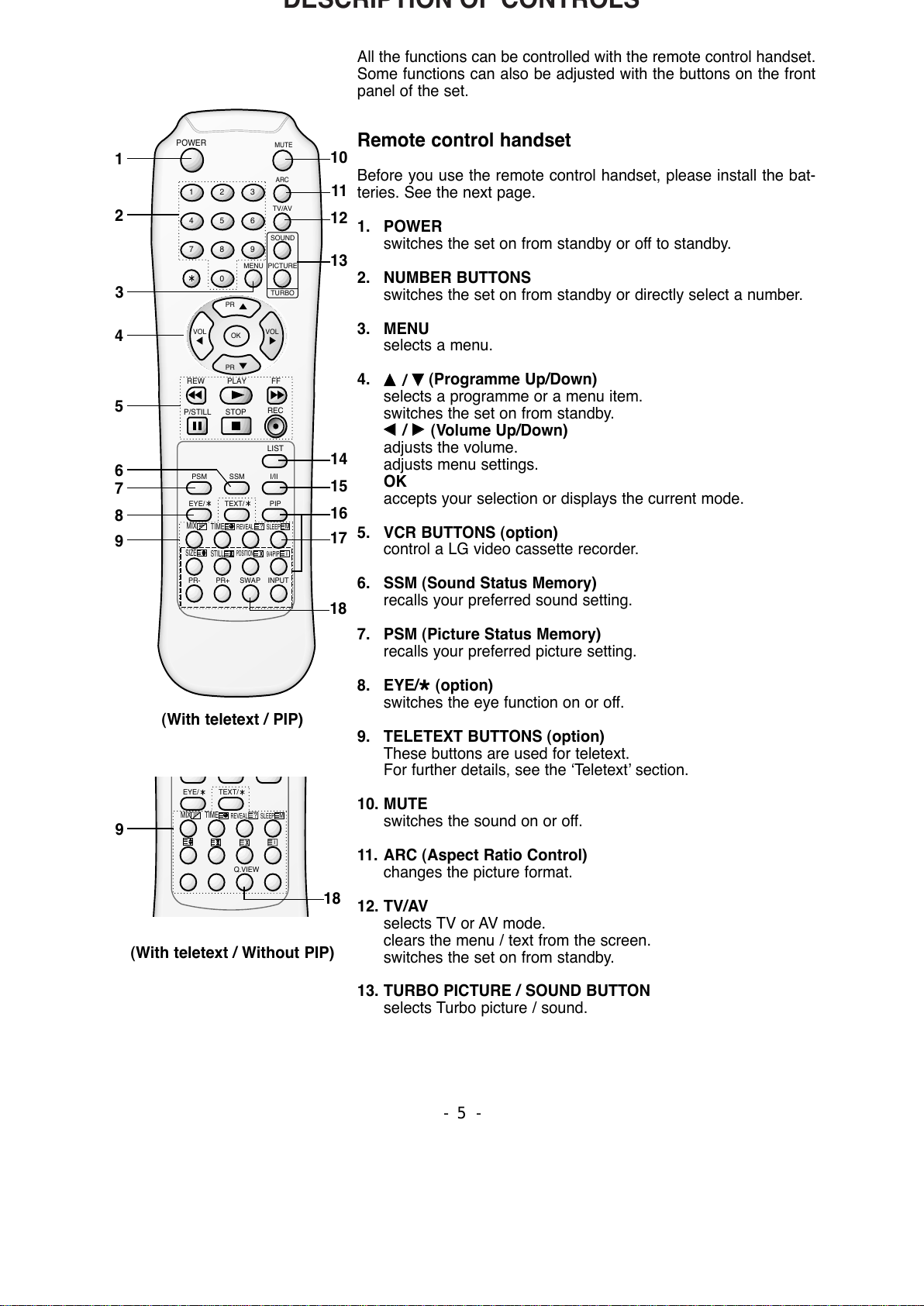

DESCRIPTION OF CONTROLS

All the functions can be controlled with the remote control handset.

Some functions can also be adjusted with the buttons on the front

panel of the set.

Remote control handset

Before you use the remote control handset, please install the bat-

teries. See the next page.

1. POWER

switches the set on from standby or off to standby.

2. NUMBER BUTTONS

switches the set on from standby or directly select a number.

3. MENU

selects a menu.

4. DD/ EE(Programme Up/Down)

selects a programme or a menu item.

switches the set on from standby.

FF/ GG(Volume Up/Down)

adjusts the volume.

adjusts menu settings.

OK

accepts your selection or displays the current mode.

5. VCR BUTTONS (option)

control a LG video cassette recorder.

6. SSM (Sound Status Memory)

recalls your preferred sound setting.

7. PSM (Picture Status Memory)

recalls your preferred picture setting.

8. EYE/*(option)

switches the eye function on or off.

9. TELETEXT BUTTONS (option)

These buttons are used for teletext.

For further details, see the ÔTeletextÕ section.

10. MUTE

switches the sound on or off.

11. ARC (Aspect Ratio Control)

changes the picture format.

12. TV/AV

selects TV or AV mode.

clears the menu / text from the screen.

switches the set on from standby.

13. TURBO PICTURE / SOUND BUTTON

selects Turbo picture / sound.

TEXT/EYE/

Q.VIEW

?

MIX TIME

REVEAL SLEEP

i

M

(With teletext / Without PIP)

(With teletext / PIP)

TV/AV

SOUND


TURBO

ARC

MUTE

POWER

MENU

PR

VOL

PR

VOL OK

PLAY

P/STILL

LIST

STOP REC

REW FF

I/II

TEXT/ PIPEYE/

PR- PR+ SWAP INPUT

SSM

PSM

1 2 3

4 5 6

7 8 9

0

?

MIX TIME

REVEAL SLEEP

SIZE STILL

POSITION

9/4PIP

i

M

2

11

1

4

5

7

8

9

12

10

16

14

15

13

17

6

3

9

18

All manuals and user guides at all-guides.com

- 6 -

0

2 31

5 64

8 97

POWER

MENU

LIST

ARC I/II

SSM SLEEP

PSM

SOUNDPICTURE

Q.VIEW

PR

OK

VOL VOL

PR

TV/AV

MUTE

TURBO

EYE/

14. LIST

displays the programme table.

15. I/II

selects the language during dual language broadcast (option).

selects the sound output.

16. PIP BUTTONS (option)

PIP

switches the sub picture on or off.

PR +/

-

selects a programme for the sub picture.

SWAP

alternates between main and sub picture.

INPUT

selects the input mode for the sub picture.

SIZE

adjusts the sub picture size.

STILL

freezes motion of the sub picture.

POSITION

relocates the sub picture in clockwise direction.

9/4 PIP

switches on or off the 9 or 4 sub pictures.

17. SLEEP

sets the sleep timer.

18. SWAP or Q.VIEW

returns to the previously viewed programme.

COLOURED BUTTONS

These buttons are used for teletext (only TELETEXT models) or

programme edit.

Battery installation

The remote control handset is powered by two AAA or AA type bat-

teries. To load the batteries, turn the remote control handset over

and open the battery compartment. Install two batteries as indicat-

ed by the polarity symbols ( and ) marked inside the compart-

ment.

Note : To avoid damage from possible battery leakage, remove the

batteries if you do not plan to use the remote control handset for an

extended period of time.

+

-

AAA AA

10

(Without teletext / PIP)

1

2

4

3

18

11

8

7

13

12

3

15

14

6

All manuals and user guides at all-guides.com

all-guides.com

- 7 -

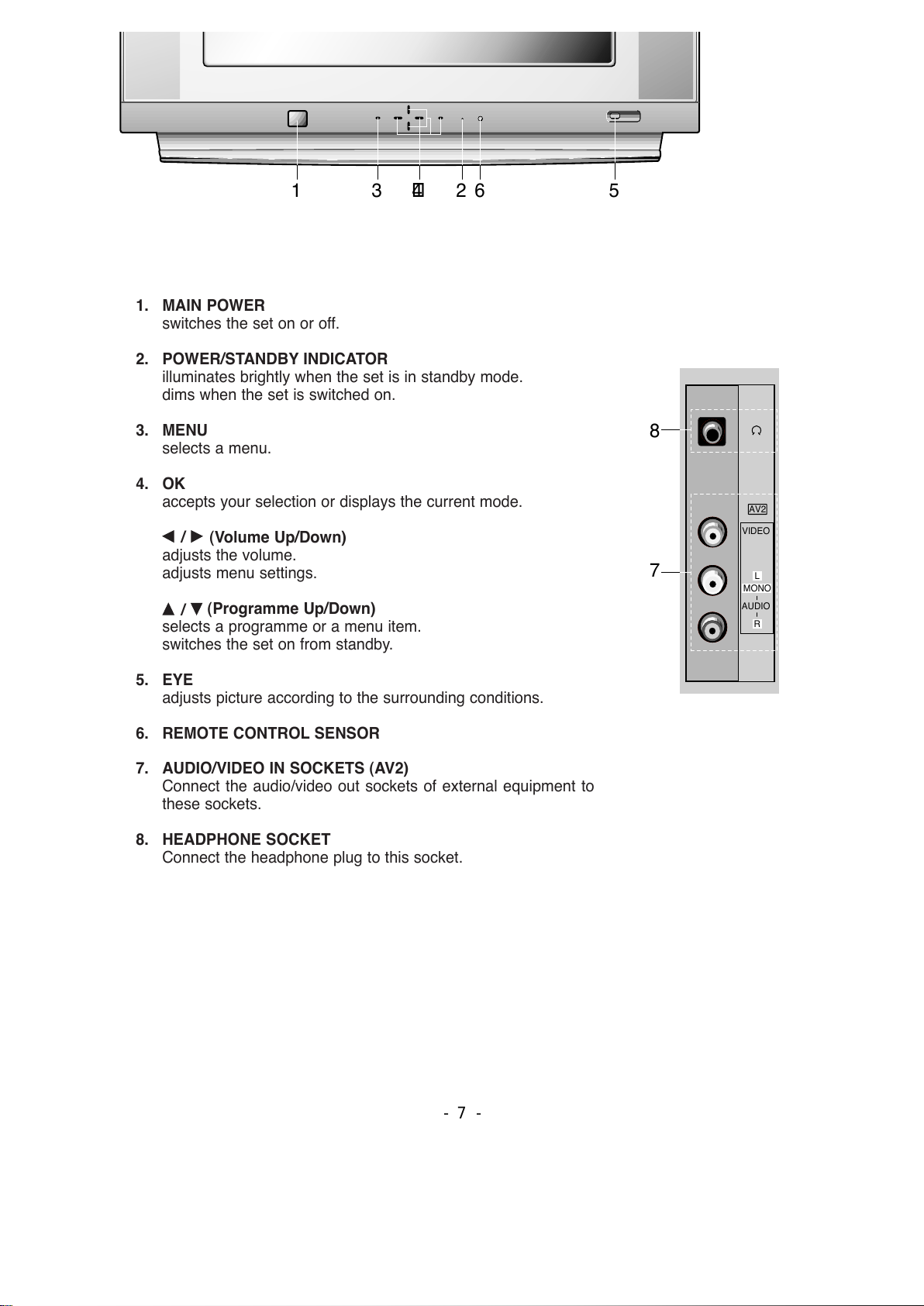

1. MAIN POWER

switches the set on or off.

2. POWER/STANDBY INDICATOR

illuminates brightly when the set is in standby mode.

dims when the set is switched on.

3. MENU

selects a menu.

4. OK

accepts your selection or displays the current mode.

F / G (Volume Up/Down)

adjusts the volume.

adjusts menu settings.

D / E(Programme Up/Down)

selects a programme or a menu item.

switches the set on from standby.

5. EYE

adjusts picture according to the surrounding conditions.

6. REMOTE CONTROL SENSOR

7. AUDIO/VIDEO IN SOCKETS (AV2)

Connect the audio/video out sockets of external equipment to

these sockets.

8. HEADPHONE SOCKET

Connect the headphone plug to this socket.

VIDEO

MONO

R

L

AUDIO

AV2

7

8

1 3 4 2 6 5

All manuals and user guides at all-guides.com

- 8 -

Fig. 2-1

Fig. 2-2

CPT

board

Remove

Screws

STEREO

PCB

Main PCB

A/V PCB

VCD PCB

POWER

PCB

DISASSEMBLY INSTRUCTIONS

Important note

This set is disconnected from the power supply through the

converter transformer. An isolating transformer is necessary

for service operations on the primary side of the converter

transformer.

Back Cabinet Removal

Remove the screws residing on the back cabinet and carefully

separate the back cabinet from the front cabinet. (Fig. 2-1).

Chassis Assy Removal

Grasp both side of Frame and pull it backward smoothly.

Speaker Assy Removal

1.

Remove P1651 and P1652 connector from Main2 (Power/Def./

Sound-Amp) Board.

2. Remove respective 6 screws for speaker on the front

cabinet. (Fig. 2-2).

CPT Removal

1. Pull out the CPT board from the CPT neck.

2. Place the front cabinet on soft material not to mar the front

surface or damage control knobs.

3. Remove 4 screws securing the picture tube mounting

brackets to the front cabinet.

4. Carefully separate CPT from the front cabinet.

PICTURE TUBE HANDLING CAUTION

Due to high vacuum and large surface area of picture tube, great

care must be exercised when handling picture tube. Always lift

picture tube by grasping it firmly around faceplate.

NEVER LIFT TUBE BY ITS NECK! The picture tube must not be

scratched or subjected to excessive pressure as fracture of

glass may result in an implosion of considerable violence which

can cause personal injury or property damage.

All manuals and user guides at all-guides.com

- 9 -

¡Safety Precautions

1. It is safe to adjust after using insulating transformer between

the power supply line and chassis input to prevent the risk of

electric shock and protect the instrument.

2. Never disconnect leads while the TV receiver is on.

3. Don't short any portion of circuits while power is on.

4. The adjustment must be done by the correct appliances.

5. Unless otherwise noted, set the line voltage to 230Vac¡

10%, 50Hz.

5. The adjustment of TVshould be performed after warming up

for 15 minutes.

¡Test Equipment required

1. RF signal generator (with pattern generator)

2. DC Power Supply

3. Multimeter (volt meter)

4. Oscilloscope

5. Color analyzer

¡

PIF (Picture Intermediate Frequency) Adjustment

1) Connect the measuring equipment to the Main Board as

shown in Fig.1.

2) Set RF frequency and output level of RF SIGNAL

GENERATOR as shown Table 1.

3) Turn off S1 and S3 and on S2.

4) Adjust L104 so that the DC voltage may be 2.4¡0.05Vdc.

(Table 1)

¡LÕ VCO Adjustment (For SECAM-LÕ MODEL)

1) Connect the measuring equipment to the Main Board as

shown in Fig.1.

2) Set RF frequency and output level of RF SIGNAL

GENERATOR as shown Table 1.

3) Turn on S1,S3 and off S2.

2) Adjust VR122 so that the DC Voltage may be 2.4¡0.05Vdc.

¡

RF AGC (Automatic Gain Control) Adjustment

1) Input PAL-B/G 05 CH.

2) Connect Multimeter to TP2(J15),AGC adjustment point.

3) Adjust VR121 until the voltage of Multimeter becomes

2.5¡0.1V.

¡Screen Voltage Adjustment

1) Tune the RF Modulator to receive a PAL or SECAM signal.

2) Press MIX button on remote controller for Service to get into

the Screen Adjust Mode.

3) Adhere the Color Analyzer on the White window of CPT

face.

4) Adjust Screen Volume of FBT so that the luminance of White

window is 12¡1 FL.

¡Focus Adjustment

1) Tune the TV set to receive a digital pattern.

2) Adjust the upper Focus volume of FBT for the best focus of

vertical line B.

3) Adjust the lower Focus volume of FBT for the best focus of

area A.

4) Repeat above step 2) and 3) for the best overall focus.

IC101

TDA4470

TP1(VCO)

IC102(KI7805)

22 7

13



14

1

0.01uF

JP1

L104

9V

Power-

Supply

V Multimeter or Oscilloscope

JP2

38.9MHz

34.25MHz

(B/G,D/K,I,L)

(SECAM-L')

100 ohm

S1

5V

4.7 Kohm

S3

S2 JP3

100 ohm



Q122 VR122

R108

R144

Test Point : TP1

Adjust : L104

Test Point : TP1

Adjust : VR122

Frequency

38.9MHz

34.25MHz

System

B/G,D/K/I,SECAM-L

SECAM-LÕ

Modulation

OFF

Output level

10mVp-p

Adjust

L104

VR122

Fig. 1 : Connection Diagram of Equipment for PIF Adjustment

ADJUSTMENT INSTRUCTIONS

Test Point : TP 2(J15)

Adjust : VR121

Test Point : CPT Face

Adjust : Screen Control of FBT

Test Point : Observing Display

Adjust : Focus control of FBT

All manuals and user guides at all-guides.com

- 10 -

¡Deflection Data Adjustment (Line SVC-2)

NOTE : How to enter into the Line Service Mode with a remocon.

1.Power off.

2.Press the Red button.

3.Press the Green button.

4.Press the Yellow button.

5.Press the Cyan button.

6.Press the OK button.

7.Power On.

1. Preparation for Deflection Adjustment

1) At SVC mode, press the Yellow colored button the SVC

remocon.

And then,deflection data adjustment OSD(SVC2 mode) will

be displayed.

2) Press Channel UP/DOWN button for desirous function

Adjustment.

3) Press Volume UP/DOWN button to adjust the data.

4) Tune the TV set to receive a PAL B/G Digital pattern.

VL (Vertical Linearity)

Adjust so that the boundary line between upper and lower

half is in accord with geometric horizontal center of the CPT.

VA (Vertical Amplitude)

Adjust so that the circle of a digital circle pattern may be

located within the effective screen of the CPT.

SC (Vertical “S” Correction)

Adjust so that all distance between each horizontal lines

are to be the same.

VS (Vertical Shift)

Adjust so that the horizontal center line of a digital circle

pattern is in accord with geometric horizontal center of

the CPT.

HS (Horizontal Shift)

Adjust so that the vertical center line of a digital circle pattern

is in accord with geometric vertical center of the CPT.

EW (Horizontal Width)

Adjust to that a digital circle pattern looks like exact circle.

EP (East west Parabolar)

Adjust so that middle portion of the outermost left and right

vertical line looks like parallel with vertical lines of the CPT.

EC (East-west Coner)

Adjust so that the vertical line at every 4 corners of the

screen looks like parallel with the vertical lines of the CPT.

ET (East-west Trapezium)

Adjust to make the length of top horizontal line same with

it of the bottom horizontal line.

POP (POP Position)

Adjust until the distance between POP and main picture

becomes about 1mm.

(Table 2)

¡White Balance Adjustment.(LINE SVC 1)

NOTE : This adjustment should be performed after screen

voltage adjustment.

1) Tune the TV set to receive an 100% white pattern.

2) Press the Yellow button on remote controller in the SVC

Mode.

3) Press PSM (RED) button on remote controller. (Standard

picture)

4) Press PR+ or PR- button for desirous function adjustment.

5) Adjust Low Light status of CR and CB with VOL+ or VOL-

at CG:50 until X=268

¡8,Y=273¡ 8.

6) Adjust High Light status of RG and BGB with VOL+ or

VOL- at CG:370 until X=268

¡8,Y=273¡ 8.

7) Repeat above step 5) and 6) until each status of High Light

and Low Light for X=288

¡8,Y=295¡ 8 with color

analyzer(color temperature 9000

o

K).

b

AB

Fig. 2

Menu

VS

VA

VL

SC

HS

EW

ET

EP

ES

EC

POP P

0600H~0900H

0050H~00CFH

0025H~00BFH

0000H~009FH

0000H~003FH

0400H~0EFFH

0700H~08FFH

06E0H~0840H

06A0H~0AFFH

0790H~08E0H

07D2

0095

0001

00D9

001E

0A9D

07FF

0787

0815

0850

000B

Range 29Ó Flat 29Ó S-Flat

All manuals and user guides at all-guides.com

- 11 -

(Table 3)

¡SVC Data & PSM,SSM Data.

Table 1. ABL Data (LINE SVC-3)

Table 2. SOUND PRE-SCALER (LINE SVC-4)

Table 3. PSM Data

Menu

DVCO

IBRM

WDRM

BCLTH

BCLTM

BCLGA

SVGA

SVDEL

SVD1

LDLY

HBST

HBSO

0~1FFH

0~3FFH

0~7FFH

0~1FFH

0~01FF

00C8

0190

0065

000B

0007

0008

0005

0003

0001

00F0

0158

Range 29Ó Flat 29Ó S-Flat

Menu

FP

NP

SP

S1 VOL

S2 VOL

0~127

0011

0045

001E

0042

Range DATA

Mode

CONTRAST

BRIGHT

COLOR

SHARPNESS

90

50

100

55

60

40

50

60

40

30

STANDARD DYNAMIC MILD GAME

Menu

CR

CG

CB

RG

GG

BG

0 ~ 511

50

370

Range DATA

All manuals and user guides at all-guides.com

all-guides.com

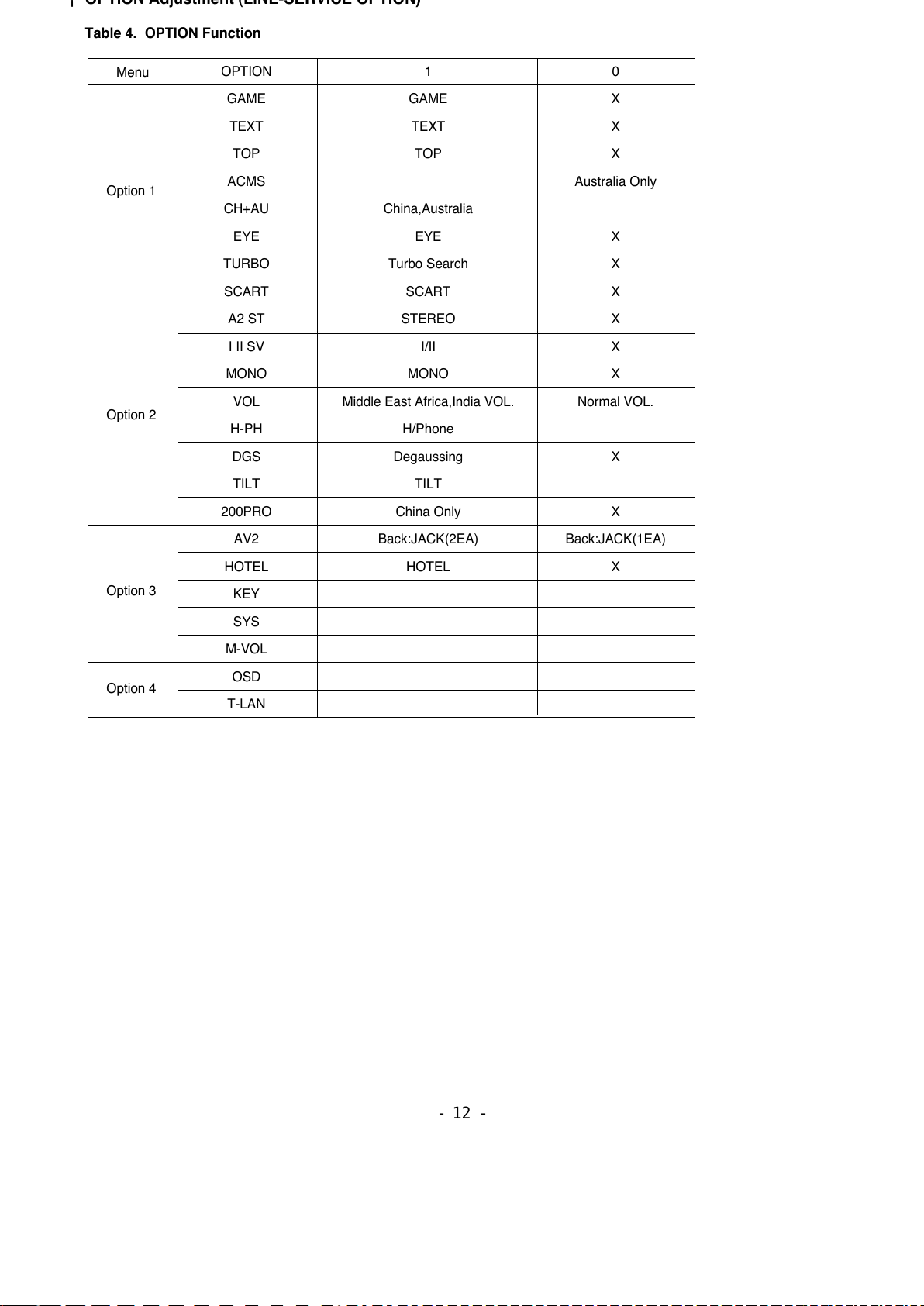

¡OPTION Adjustment (LINE-SERVICE OPTION)

Table 4. OPTION Function

- 12 -

OPTION

GAME

TEXT

TOP

ACMS

CH+AU

EYE

TURBO

SCART

A2 ST

I II SV

MONO

VOL

H-PH

DGS

TILT

200PRO

AV2

HOTEL

KEY

SYS

M-VOL

OSD

T-LAN

1

GAME

TEXT

TOP

China,Australia

EYE

Turbo Search

SCART

STEREO

I/II

MONO

Middle East Africa,India VOL.

H/Phone

Degaussing

TILT

China Only

Back:JACK(2EA)

HOTEL

0

X

Australia Only

X

Normal VOL.

X

Back:JACK(1EA)

X

Option 1

Option 2

Option 3

Option 4

Menu

All manuals and user guides at all-guides.com

- 13 -

MEMO

All manuals and user guides at all-guides.com

112

913

150 153

510

170



530

520

550

P801

501

560

570

310 600

700

121

120

300

320

330

400

943

540



EXPLODED VIEW

- 14 -

All manuals and user guides at all-guides.com

- 15 -

EXPLODED VIEW PARTS LIST Replace only with part number specified.

112 2426GE259AJ 2426GF239AR CPT SET

120 6400VA0027A 6400VA0027A SPEAKER,GENERAL H165/051800A 8 OHM 10/1

121 3110V00073A 3110V00073A CASE,SPEAKER

150 150-D05Z 6140VC2005F COIL,DEGAUSSING

153 6150Z-1230F 6150Z-1240A DY

170 170-844G 170-844K CPT EARTH

300 3091V00278F 3091V00255P CABINET ASSY

3091V00278G 3091V00255W CABINET ASSY *SY-BROTHERS

310 5020V00459A 5020V00459C BUTTON,CONTROL 6KEY

320 320-062E 320-062E SPRING,KNOB

330 5020V00391A 5020V00391A BUTTON,POWER 1KEY

400 3809V00203A 3809V00188A BACK COVER ASSY

- 3809V00188E BACK COVER ASSY

3809V00203G 3809V00188M BACK COVER ASSY (1SCART-1 PHONE)

501 3210V00043D 3210V00043D FRAME 29Q47EX MAIN

3210V00043A 3210V00043A FRAME 29Q47E MAIN

510 6871VSMB41A 6871VSMB41B PWB ASSY,CPT 007A W/SVM,LGESY8

520 - 6871VMMA98C PWB ASSY,MAIN 29Q47EX

- 6871VMMA98E PWB ASSY,MAIN 29Q47E LGEGF

- 6871VMMA98F PWB ASSY,MAIN 29Q47E LGEIN

- 6871VMMA98U PWB ASSY,MAIN 29Q47P BUTTERFLY

6871VMMA98P 6871VMMA98K PWB ASSY,MAIN 29Q47E BROTHERS

6871VMMA98M 6871VMMA98L PWB ASSY,MAIN Q46EN JEB

530 6871VSMB39E 6871VSMB39D PWB ASSY,VCD 007A W/O(SVHS,PIP)

6871VSMB39B 6871VSMB39B PWB ASSY,VCD 007A W/O(SVHS,PIP)

- 6871VSM625G PWB ASSY,W/PIP,SY

540 - 6871VSMB40B PWB ASSY,AUDIO 007A A/V STEREO

- 6871VSMB40C PWB ASSY,AUDIO 007A A/V STEREO

6871VSMD20A 6871VSMD20A PWB ASSY,AUDIO 007A RF STEREO,

550 - 6871VSMB47A PWB ASSY,HV 007A Q46 D_FOCUS,LGESY8

560 - 6871VSMB43A PWB ASSY,CONT 007A M66 CONTROL,LGESY8

6871VSMB43D 6871VSMB43B PWB ASSY,CONT Q46

570 - 6871VSMB44B PWB ASSY,POWER 007A Q46 S_POWER,LGESY8

6871VSMB44E 6871VSMB44E PWB ASSY,POWER 007A Q46 S_POWER JEB

600 - 6871VSMB42B PWB ASSY,A/V 007A Q46 SIDE A/V,LGESY8

6871VSMB42C 6871VSMB42E PWB ASSY,A/V 007A Q46 SIDE A/V

700 0IGL120104A 0IGL120104A IC,CDS SENSOR MODULE(P1201-04)

913 332-229H 332-229H SCREW ASSY HEXAGON HEAD (L:40,D:18)

943 1PTF0403116 1PTF0403116 SCREW,TAP TITE(P) D4.0 L16.0 MSWR3/FZB

P801 174-009V 174-009V POWER CORD(W/HOLD,HOUSING)L=400,4.0

No. Description

Part No.

25" 29"

All manuals and user guides at all-guides.com

- 16 -

REPLACEMENT PARTS LIST

LOCA. NO PART NO DESCRIPTION

D412

D601

D602

D802

D803

D804

D857

D859

D861

D863

D864

D865

D901

D902

D903

D904

D905

D906

D907

D908

D909

D910

D951

D952

D953

D954

D955

D956

D957

D958

D960

D961

D962

D963

DB801

LD1101

Ò(25Ó)

DP01

DP02

DP03

DV01

DV02

DV03

ZD01

ZDN01

ZD101

ZD202

ZD203

ZD301

ZD302

ZD303

ZD401

ZD402

0DD414809ED

0DR060009AA

0DD100009AM

0DD414809ED

0DD420000BB

0DR060009AA

0DD414809ED

0DR140049AC

0DD414809ED

0DD060009AC

0DD414809ED

0DD150009CA

0DD414809ED

0DD560000AA

0DL100000AE

0DL310800AA

0DD414809ED

0DZ360009BC

0DZ820009AH

0DZ330009BA

0DZ680009BB

0DZ180009BE

0DZ560009AH

0DZ180009BE

0DZ510009BF

DIODE,1N4148 TA

DIODE,RECTIFIER TVR06J TP

DIODE,RECTIFIER EU1ZV(1) TP

DIODE,1N4148 TA

DIODE,D4L20U SHINDENGEN

DIODE,RECTIFIERS TVR06J TP

DIODE,1N4148 TA

DIODE,RECTIFIER 1N4004A T-81

DIODE,1N4148 TA

DIODE,RECTIFIERS TVR06J TP

DIODE,1N4148 TA

DIODE,RECTIFIERS RGP15J TP

DIODE,1N4148 TA

DIODE,RECTIFIER D5SB60 BRIDGE(5A/600V)

LED,SA5711(DL-1LO)

LED,HTR3108BDA

DIODE,1N4148 TA

DIODE,ZENERS MTZJ3.6B TP ROHM-K DO34 0.5W

DIODE,ZENERS MTZJ8.2B TP ROHM-K DO34 8.2V

DIODE,ZENER HZT33(TP) HITACHI

DIODE,ZENERS MTZJ6.8B TP ROHM-K DO34 0.5W

DIODE,ZENERS GDZJ18B TP GRANDE DO34 0.5W

DIODE,ZENERS GDZJ5.6B TP GRANDE DO34 0.5W

DIODE,ZENERS GDZJ18B TP GRANDE DO34 0.5W

DIODE,ZENERS GDZ5.1B TP GRANDE DO34 0.5W

LOCA. NO PART NO DESCRIPTION

D850

HIC181

IC01

ICV01

ICN01

ICP01

IC02

ICV02

ICN02

ICP02

IC03

ICN03

IC04

ICN05

IC101

ICP101

IC102

ICP102

ICP103

IC301

IC302

IC601

IC801

IC802

IC803

IC851

IC853

IC855

IC856

IC901

Q07

Q08

D01

D02

D03

D04

D101

D121

D122

D301

D302

D401

D402

D403

D404

D405

D406

D407

D408

0ISK100300A

0IZZVF0016A

0ICTMIH001B

0IIT312000A

0IIT341000J

0IIT312000A

0IAL241610B

0IFA754207A

0ISG282200A

0IFA754207A

0IFA752700A

0IKE780500Q

0ISG111733B

0IFA753307A

0ITF447000A

0ISO204000A

0IKE780500Q

0ISM948900A

0ISG111733B

0ISA784500A

0IKE455800E

0ISA428200A

0ISK665613B

0ILI817000G

0IKE780500Q

0ISH092100B

0ISS278050A

0ISK115000A

0ISG510900A

0IFA270000A

0DD414809ED

0DSVH00019A

0DD150009CE

0DS113379BA

0DD410000AC

0DD410000AD

0DD150009CA

0DR150009AB

0DD414809ED

0DD100009AE

IC,SLA1003 SIP12 BK DIODE MODULE(

IC TILT 7P,SIP BK .

IC,SDA5555-A030 INFINEON 52SDIP S

IC,VDP3120B 64P SDIP BK VCD IC (5

IC,MSP3410D-C5 52P SDIP BK MULTI

IC,VDP3120B 64P SDIP BK

IC,AT24C16-10PC-2.7 8PIN DIP ST E

IC,KA75420ZTA(KA7542ZTA) 3P,TO-92

IC,TDA2822M 8D DUAL AUDIO AMP(1W)

IC,KA75420ZTA(KA7542ZTA) 3P,TO-92

IC,KA75270Z 3 TP RE-SET IC MC-007

IC,KIA7805API 3P TO-220 ST REGULA

IC,LD1117V33C 3SIP ST REGULATOR

IC,KA75330ZTA(KA7533ZTA) 3P,TO-92

IC,TDA4470M 28P,SDIP BK VIF+SIF

IC,CXA2040AQ 32P QFP BK

IC,KIA7805API 3P TO-220 ST REGULA

IC,SDA9489 28 PIN SOP

LD1117V33C 3SIP ST

IC,LA7845 7SIP V/OUT(1.5A)

IC,KIA4558 8DIP DUAL OP AMP

IC,LA4282 12S 2CHX10W AUDIO AMP

IC,STR-F6656(LF1352) 5P,SIP BK ST

IC,LTV817M-VB 4P,DIP BK PHOTO COU

IC,KIA7805API 3P TO-220 ST REGULA

IC,PQ09RD21 4SIP ST REGULATOR

IC,KA278R05 4P,TO-220F BK LOW DRO

IC,SE115N(LF12) 3P 115V ERROR AMP

IC,STV5109 15SIP ST RGB DRIVE

IC,2N7000TA TO-92, 3P TP LEVEL SH

DIODE,1N4148 TA

DIODE,SWITCHING BA282

DIODE,RECTIFIER GP15J TP GULF

DIODE,SWITCHING 1SS133 T-72 TP ROHM

DIODE,RECTIFIER RU4DS,LF-L1

DIODE,RECTIFIER RU4AM,LF-L1

DIODE,RECTIFIER RGP15J

DIODE,RECTIFIER RGP15G

DIODE,1N4148 TA

DIODE,RECTIFIER RU1A V(1)

IC

DIODE

The components identified by mark are

critical for safety.

Replace only with part number specified.

All manuals and user guides at all-guides.com

all-guides.com

- 17 -

LOCA. NO PART NO DESCRIPTION

ZD901

Q02

Q03

Q04

Q05

Q121

Q122

Q123

Q124

Q125

Q126

Q201

Q221

Q301

Q303

Q402

Q405

Q401

Q601

Q853

Q854

Q857

Q901

Q910

Q951

Q952

Q953

Q954

Q955

Q956

Q957

Q958

QN01

QN02

QP01

QP02

QP03

QP04

QP05

QP06

QP07

QP08

QP09

QP10

QP104

QP105

QP106

QP11

QP12

QP13

0DZ180009BE

0TR945009AA

0TR102009AB

0TR945009AA

0TR102009AB

0TR945009AA

0TR733009AA

0TR945009AA

0TR319709AB

0TR945009AA

0TR733009AA

0TR945009AA

0TR127409AB

0TR223800AA

0TR205900AB

0TR258100AA

0TR733009AA

0TR945009AA

0TR102009AB

0TR320209AA

0TR126609AA

0TR437000BA

0TR320209AA

0TR127009AA

0TR320209AA

0TR127009AA

0TR165900AC

0TR150400BA

0TR387500AA

0TR150400BA

0TR387500AA

0TR150400BA

0TR387500AA

0TR150400BA

0TR387500AA

DIODE,ZENER GDZJ18B

TR,KSC945C-Y TP SAMSUNG

TR,KRC102M,TP(KRC1202),KEC

TR,KSC945C-Y TP SAMSUNG

TR,KRC102M,TP(KRC1202),KEC

TR,KSC945C-Y TP SAMSUNG

TR,KSA733C-Y TP SAMSUNG TO-92

TR,KSC945C-Y TP SAMSUNG

TR,KTC3197,TP(KTC388A),KEC

TR,KSC945C-Y TP SAMSUNG

TR,KSA733C-Y TP SAMSUNG TO-92

TR,KSC945C-Y TP SAMSUNG

TR,KTA1274-Y TO-92L TP KEC

TR,KTC2238A-Y

TR,KTD2059-Y TO-220IS KEC

TR,2SD2581 BK SANYO TO3P -

TR,KSA733C-Y TP SAMSUNG TO-92

TR,KSC945C-Y TP SAMSUNG

TR,KRC102M,TP(KRC1202),KEC

TR,KTC3202-TP-Y (KTC1959)KEC

TR,KTA1266-TP-Y (KTA1015) KEC

TR,KTC4370A-Y TO-220IS KEC

TR,KTC3202-TP-Y (KTC1959)KEC

TR,KTA1270-TP-Y (KTA562TM)KEC

TR,KTC3202-TP-Y (KTC1959)KEC

TR,KTA1270-TP-Y (KTA562TM)KEC

TR,KTA1659A-Y TO-220IS BK KEC - -

TR,CHIP 2SA1504S(ASY) KEC

TR,CHIP 2SC3875S(ALY) KEC

TR,CHIP 2SA1504S(ASY) KEC

TR,CHIP 2SC3875S(ALY) KEC

TR,CHIP 2SA1504S(ASY) KEC

TR,CHIP 2SC3875S(ALY) KEC

TR,CHIP 2SA1504S(ASY) KEC

TR,CHIP 2SC3875S(ALY) KEC

LOCA. NO PART NO DESCRIPTION

QP14

QP15

QV01

QV02

QV03

QV04

QV05

QV06

QV07

QV08

QV09

QV10

QV11

QV12

QV13

QV14

QV15

C01

C02

C03

C04

C05

C08

C09

C10

C11

C12

C14

C17

C18

C19

C20

C21

C22

C24

C25

C26

C27

C29

C30

C31

C32

C33

C34

C101

C103

C104

C105

C106

C108

0TR387500AA

0TR150400BA

0TR387500AA

0TR150400BA

0TR387500AA

0TR150400BA

0TR387500AA

0TR150400BA

0CE476DD618

0CN1030F679

0CX6200K409

0CN1030F679

0CE106DK618

181-007D

0CN1040K949

0CN1010K519

0CE476DF618

0CE475DK618

0CE476DD618

0CE107DD618

0CN1030F679

0CE225DK618

0CN1020K519

0CC3300K415

0CN1030F679

0CE106DK618

0CN1030F679

0CE476DK618

0CN1030F679

0CE227DD618

0CX3300K409

0CE106DF618

TR,CHIP 2SC3875S(ALY) KEC

TR,CHIP 2SA1504S(ASY) KEC

TR,CHIP 2SC3875S(ALY) KEC

TR,CHIP 2SA1504S(ASY) KEC

TR,CHIP 2SC3875S(ALY) KEC

TR,CHIP 2SA1504S(ASY) KEC

TR,CHIP 2SC3875S(ALY) KEC

TR,CHIP 2SA1504S(ASY) KEC

47UF STD 10V 20% FL TP 5

10000P 16V M Y TA52

62P 50V J SL TA52

10000P 16V M Y TA52

10UF STD 50V M FL TP5

MPE ECQ-V1H154JL3(TR), 50V 0.1

0.1M 50V Z F TA52

100P 50V K B TA52

47UF STD 16V M

4.7UF STD 50V 20% FL TP 5

47UF STD 10V 20% FL TP 5

100UF STD 10V M FL TP5

10000P 16V M Y TA52

2.2UF STD 50V 20% FL TP 5

1000P 50V K B TA52

33P 50V J NP0 TP

10000P 16V M Y TA52

10UF STD 50V M FL TP5

10000P 16V M Y TA52

47UF STD 50V M FL TP5

10000P 16V M Y TA52

220UF STD 10V M FL TP5

33P 50V J SL TA52

10UF STD 16V M FL TP5

CAPACITOR

For Capacitor & Resistors,

the charactors at 2nd and 3rd

digit in the P/No. means as

follows;

CC, CX, CK, CN : Ceramic

CQ : Polyestor

CE : Electrolytic

RD : Carbon Film

RS : Metal Oxide Film

RN : Metal Film

RF : Fusible

The components identified by mark are

critical for safety.

Replace only with part number specified.

TRANSISTOR

All manuals and user guides at all-guides.com

- 18 -

LOCA. NO PART NO DESCRIPTION

C109

C110

C112

C113

C115

C121

C122

C123

C124

C125

C126

C127

C128

C129

C130

C131

C132

C134

C135

C136

C137

C138

C139

C140

C141

C147

C148

C149

C181

C182

C183

C184

C185

C186

C201

C208

C209

C221

C222

C229

C230

C244

C245

C302

C303

C304

C305

C306

C307

C308

C309

C310

0CE335DK618

0CN1040K949

0CN1020K519

0CE476DD618

0CN1030F679

0CN1040K949

0CN1030F679

181-007H

0CE106DF618

0CN1030F679

0CSZVTA001F

0CN1030F679

0CE476DD618

0CN1040K949

0CE226DF618

181-007H

0CN1040K949

0CE104DK618

0CN1030F679

0CE107DD618

0CX4700K409

0CE106DF618

0CN1030F679

0CE476DF618

0CE227DF618

0CQ1041N509

0CC3900K415

0CE227DF618

0CE226DF618

0CE476DF618

0CE227DF618

0CE226DF618

0CN1010K519

0CQ3341N401

0CE107BK618

0CQ6821N509

0CQ1021N509

0CQ3931N509

0CQ1031N509

0CE476DJ618

0CN4710K519

0CQ1031N509

3.3UF STD 50V 20% FL TP 5

0.1M 50V Z F TA52

1000P 50V K B TA52

47UF STD 10V 20% FL TP 5

10000P 16V M Y TA52

0.1M 50V Z F TA52

10000P 16V M Y TA52

MPE ECQ-V1H474JL3(TR), 50V 0.4

10UF STD 16V M FL TP5

10000P 16V M Y TA52

TAP684K035BRS(AMMO)35V 0.68UFK

10000P 16V M Y TA52

47UF STD 10V 20% FL TP 5

0.1M 50V Z F TA52

22UF STD 16V M FL TP5

MPE ECQ-V1H474JL3(TR), 50V 0.4

0.1M 50V Z F TA52

0.1000UF STD 50V M FL TP5

10000P 16V M Y TA52

100UF STD 10V M FL TP5

47P 50V J SL TA52

10UF STD 16V M FL TP5

10000P 16V M Y TA52

47UF STD 16V M FL TP5

220UF STD 16V M FL TP5

0.1U 100V K POLY TP

39P 50V J NPO TP

220UF STD 16V M FL TP5

22UF STD 16V M FL TP5

47UF STD 16V M FL TP5

220UF STD 16V M FL TP5

22UF STD 16V M FL TP5

100P 50V K B TA52

0.33U 100V J POLY F5

100UF KME 50V M FL TP5

0.0068U 100V K POLY TP

0.001U 100V K POLY TP

0.0390UF 100V K PE TP

0.01U 100V K POLY TP

47UF STD 35V M FL TP5

470P 50V K B TA52

0.01U 100V K POLY TP

LOCA. NO PART NO DESCRIPTION

C311

C401

C402

C403

C405

Ò(25Ó)

C406

C407

C408

C409

C410

C411

C412

C413

C414

C415

C416

C417

C419

C420

C421

C422

C517

C518

C519

C601

C602

C603

C604

C605

C606

C607

C608

C609

C610

C611

C612

C613

C614

C802

C803

C804

C806

C807

C808

C809

C811

C813

C814

C815

C817

C854

0CQ1031N509

0CE474DK618

0CE475DK618

0CK2220W515

181-015R

181-015Q

181-091G

0CQZVBK004B

0CE685BK652

0CK2220W515

0CE106BR618

181-013S

0CK6810W515

0CE107DJ618

181-091P

0CE108BH618

181-009R

0CK2710W515

0CE108DH618

181-010B

0CK2710W515

0CE106DR618

0CQ1531N509

0CE107DH618

0CE684DK618

0CQ5621N509

0CE107DH618

0CE684DK618

0CQ5621N509

0CE107DH618

0CQ1041N509

0CE477DJ618

0CQ1041N509

0CE477DJ618

0CN1040K949

0CE477DK618

0CE477DH618

0CQZVBK002C

181-091G

0CE337KV6A0

181-011C

181-091G

0CE107BJ618

0CK1020K515

181-120K

0CK10201515

0CQZVBK002A

181-091Q

0CK22201510

0CE107DF618

0.01U 100V K POLY TP

0.4700UF STD 50V M FL TP5

4.7UF STD 50V 20% FL TP 5

2200P 500V K B TS

0.022UF 1.6KV H M/PP NI FM20

0.02UF 1.6KV H

DEHR33D471KN3A 470PF 2KV 10%,-

0.027UF D 630V J PP NI FM7.5

6.8UF KME TYPE 50V 20% FM7.5 B

2200P 500V K B TS

10UF KME 250V M FL TP5

MPP 400V 0.62UF J

680P 500V K B TS

100UF STD 35V M FL TP5

SL 270PF 1KV 10%,-10% R/TP TP5

1000UF KME 25V M FL TP5

PP 200V 0.022UF K

270P 500V K B TS

1000UF STD 25V M FL TP5

PP 400V 0.056UF J

270P 500V K B TS

10UF STD 250V M FL TP5

0.015U 100V K POLY TP

100UF STD 25V M FL TP5

0.68UF STD 50V 20% FL TP 5

0.0056U 100V K POLY TP

100UF STD 25V M FL TP5

0.68UF STD 50V 20% FL TP 5

0.0056U 100V K POLY TP

100UF STD 25V M FL TP5

0.1U 100V K POLY TP

470UF STD 35V 20% FL TP 5

0.1U 100V K POLY TP

470UF STD 35V 20% FL TP 5

0.1M 50V Z F TA52

470UF STD 50V 20% FL TP 5

470UF STD 25V M FL TP5

A.C 275V 0.22UF K (S=22.5)

DEHR33D471KN3A 470PF 2KV 10%,-

330UF SLT 450V M VNSN BULK

PP 1600V 0.0015UF J

DEHR33D471KN3A 470PF 2KV 10%,-

100UF KME 35V M FL TP5

1000P 50V K B TS

2200PF 4KV M E FMTW LEAD 4.5

1000P 1KV K B TS

A.C 275V 0.1UF M (S=15)

R 470PF 1KV 10%,-10% R/TP TP5

2200P 1KV K B S

100UF STD 16V M FL TP5

For Capacitor & Resistors,

the charactors at 2nd and 3rd

digit in the P/No. means as

follows;

CC, CX, CK, CN : Ceramic

CQ : Polyestor

CE : Electrolytic

RD : Carbon Film

RS : Metal Oxide Film

RN : Metal Film

RF : Fusible

The components identified by mark are

critical for safety.

Replace only with part number specified.

All manuals and user guides at all-guides.com

- 19 -

LOCA. NO PART NO DESCRIPTION

C855

C856

C857

C858

C859

C860

C861

C862

C863

C864

C866

C867

C870

C871

C872

C873

C901

C902

C903

C904

C905

C906

C907

C908

C909

C910

C911

C912

C913

C951

C952

C953

C954

C955

C956

C957

C958

C959

C960

C961

C962

C963

C964

C965

C966

C967

C1101

Ò(25Ó)

C1201

Ò

C1202

C1203

0CE107DD618

0CK47101515

0CE228DF618

0CE477DF618

0CK47101515

0CE108BF618

0CE475CK636

181-091Q

0CE108DK61A

0CK4710W515

0CE227DK618

181-091D

0CE227DP650

0CE107CP618

0CQ1041N509

0CX1500K409

0CX5R60K509

0CX2200K409

0CE107DF618

0CN2230H949

0CE106DR618

0CQZVBK002A

0CE475DR618

0CK1020W515

0CE476DF618

0CK22202515

0CK1040K945

0CE107DK618

0CE106DF618

0CSZVTA001F

0CE106DP618

0CN1010K519

0CK4720W510

0CN1010K519

0CK4720W510

0CE107DF618

0CE106DP618

0CK1010W515

0CN2210K519

0CE107DD618

0CE475DK618

0CN2710K519

0CN4710K519

0CN2210K519

100UF STD 10V M FL TP5

470P 1KV K B TS

2200UF STD 16V M FL TP5

470UF STD 16V 20% FL TP 5

470P 1KV K B TS

1000UF KME 16V M FL TP5

4.7UF SHL,SD 50V 20% FM5 BP(D)

R 470PF 1KV 10%,-10% R/TP TP5

1000UF STD 50V M FL TP7.5

470PF 500V K B TR

220UF STD 50V M FL TP5

DEHR33A102KN2A 1000PF 1KV 10%,

220UF STD 160V M FM7.5 BULK

100U SHL 160V M FL TP5

0.1U 100V K POLY TP

15P 50V J SL TA52

5.6P 50V K SL TA52

22P 50V J SL TA52

100UF STD 16V M FL TP5

22000P 25V Z FTA52

10UF STD 250V M FL TP5

A.C 275V 0.1UF M (S=15)

4.7UF STD 250V 20% FL TP 5

1000P 500V K B TS

47UF STD 16V M FL TP5

2200PF 2KV K B TR

0.1UF 50V Z F TR

100UF STD 50V M

10UF STD 16V M FL TP5

TAP684K035BRS(AMMO)35V 0.68UFK

10UF STD 160V M FL TP5

100P 50V K B TA52

4700P 500V K B S

100P 50V K B TA52

4700P 500V K B S

100UF STD 16V M FL TP5

10UF STD 160V M FL TP5

100P 500V K B TS

220P 50V K B TA52

100UF STD 10V M

4.7UF STD 50V 20

270P 50V K B TA52

470P 50V K B TA52

220P 50V K B TA52

LOCA. NO PART NO DESCRIPTION

C1204

Ò

C1205

Ò

C1206

Ò

C1207

C1210

C1211

C1212

C1213

C1401

C1403

CH19

CN05

CN07

CN10

CN11

CN12

CN13

CN16

CN20

CN21

CN23

CN24

CN29

CN30

CN32

CN34

CN35

CN36

CN37

CN38

CN39

CN40

CN41

CN42

CN43

CN44

CN45

CN46

CN47

CN49

CN50

CN53

CN54

CN59

CP06

CP10

CP108

CP109

CP11

0CN2210K519

0CN4710K519

0CN2210K519

0CE475DK618

0CN4710K519

0CN1040K949

0CN4710K519

0CN2210K519

0CN1030F679

0CE476DD618

0CQ5631N409

0CQ1531N509

0CE107DF618

0CE335DK618

0CK224DF56A

0CE106DF618

0CE107DF618

0CE476DF618

0CE106DF618

0CE107DF618

0CE106DF618

0CK224DF56A

0CE106DF618

0CK224DF56A

0CE106DF618

0CX5600K409

0CE107DF618

0CE106DF618

0CE335DK618

0CE476DF618

0CE477DD618

0CQ3331N509

220P 50V K B TA52

470P 50V K B TA52

220P 50V K B TA52

4.7UF STD 50V 20%

470P 50V K

0.1M 50V Z

470P 50V K

220P 50V K B TA52

10000P 16V M

47UF STD 10V 20%

0.0560UF 100V J PE TP

0.015U 100V K POLY TP

100UF STD 16V M FL TP5

3.3UF STD 50V 20% FL TP 5

220000PF 2012 16V 10% R/TP X7R

10UF STD 16V M FL TP5

100UF STD 16V M FL TP5

47UF STD 16V M FL TP5

10UF STD 16V M FL TP5

100UF STD 16V M FL TP5

10UF STD 16V M FL TP5

220000PF 2012 16V 10% R/TP X7R

10UF STD 16V M FL TP5

220000PF 2012 16V 10% R/TP X7R

10UF STD 16V M FL TP5

56P 50V J SL TA52

100UF STD 16V M FL TP5

10UF STD 16V M FL TP5

3.3UF STD 50V 20% FL TP 5

47UF STD 16V M FL

470UF STD 10V M FL

0.0033U 100V K POLY TP

For Capacitor & Resistors,

the charactors at 2nd and 3rd

digit in the P/No. means as

follows;

CC, CX, CK, CN : Ceramic

CQ : Polyestor

CE : Electrolytic

RD : Carbon Film

RS : Metal Oxide Film

RN : Metal Film

RF : Fusible

The components identified by mark are

critical for safety.

Replace only with part number specified.

All manuals and user guides at all-guides.com

- 20 -

LOCA. NO PART NO DESCRIPTION

CP110

CP111

CP112

CP12

CP121

CP123

CP125

CP128

CP130

CP131

CP139

CP14

CP140

CP142

CP143

CP145

CP146

CP148

CP151

CP16

CP17

CP18

CP19

CP20

CP22

CP29

CP31

CP32

CP36

CP38

CP40

CP41

CP44

CP45

CV06

CV10

CV11

CV12

CV14

CV16

CV20

CV29

CV31

CV36

CV38

CV40

CV41

CV42

CV43

CV44

CV45

CV46

181-442Z

0CQ3331N509

0CE476DF618

0CE105DK618

181-442Z

0CE476DF618

0CE106DF618

0CE107DF618

0CE106DF618

0CE225DK618

0CE335DK618

0CN2230H949

0CE106DF618

0CE226DD618

0CE476DF618

0CE106DF618

0CE476DF618

0CE226DF618

0CK224DF56A

0CE106DF618

0CE335DK618

0CQ3321N509

0CQ3331N509

0CE106DF618

0CE335DK618

0CE106DF618

0CE476DF618

0CE106DF618

181-007H

0CK224DF56A

PE,ECQ -B1H104KF3

0.033U 100V K POLY TP

47UF STD 16V M FL TP5

1UF STD 50V M

PE,ECQ -B1H104KF3

47UF STD 16V M FL TP5

10UF STD 16V M FL TP5

100UF STD 16V M FL TP5

10UF STD 16V M FL TP5

2.2UF STD 50V 20%

3.3UF STD 50V 20% FL TP 5

22000P 25V Z

10UF STD 16V M FL TP5

22UF STD 10V 20%

47UF STD 16V M FL TP5

0CE106DF618

47UF STD 16V M FL TP5

22UF STD 16V M FL TP5

220000PF 2012 16V 10

10UF STD 16V M FL TP5

3.3UF STD 50V 20% FL TP 5

0.0033U 100V K POLY TP

0.033U 100V K POLY TP

10UF STD 16V M FL TP5

3.3UF STD 50V 20% FL TP 5

10UF STD 16V M FL TP5

47UF STD 16V M FL TP5

10UF STD 16V M FL TP5

MPE ECQ-V1H474JL3(TR), 50V 0.4

220000PF 2012 16V 10% R/TP X7R

LOCA. NO PART NO DESCRIPTION

CV47

CV63

HJ1001

JK201

Ò

JK202

JK1201

PJ1001

J29

J51

JV26

JV27

J1202

L01

L02

L101

L102

L103

L104

L121

L122

L123

L126

L202

L204

L222

L224

L245

L246

L401

L402

Ò(25Ó)

L853

L901

L1201

L1202

L1203

L1204

L1401

LN01

LN03

LN05

LN06

LN07

LN08

LP01

LP02

LP03

0CK224DF56A

0CE226DF618

380-068B

6612VJH011C

6612VMH001A

6612VJH011C

6613V00004B

0LA0102K119

0LA0182K119

0LA0391K119

0LA0681K119

0LA1000K119

0LA0102K119

150-C01G

0LA1000K139

0LA0102K119

150-E11G

0LA0102K119

0LA0681K119

150-C01C

0LA0102K119

150-717K

150-L01F

150-L01D

150-C02F

0LA0102K139

0LA0472K119

150-W01D

0LA0102K119

0LA1000K119

0LA0102K119

0LA0471K119

220000PF 2012 16V 10% R/TP X7R

22UF STD 16V M FL TP5

JACK,PHONE 3.5

JACK,RCA PPJ109C A/V IN/OUT 6

JACK,SCART UPJ-R1 018

JACK,RCA PPJ109C A/V IN/OUT 6

JACK ASSY,+3P

INDUCTOR,10UH K 2.3*3.4 TP

INDUCTOR,18UH K 2.3*3.4 TP

INDUCTOR,3.9UH K 2.3*3.4 TP

INDUCTOR,6.8UH K 2.3*3.4 T

INDUCTOR,100UH K 2.3*3.4 TP

INDUCTOR,10UH K 2.3*3.4 TP

COIL,CHOKE 1.0UH PHY TURN

INDUCTOR,100UH K 4*10.5 TP

INDUCTOR,10UH K 2.3*3.4 TP

COIL,IFT 38.9MHZ 1PF PHY

INDUCTOR,10UH K 2.3*3.4 TP

INDUCTOR,6.8UH K 2.3*3.4 TP

COIL,CHOKE 0.48UH

INDUCTOR,10UH K 2.3*3.4 TP

COIL,CHOKE 1.1UH

COIL,LINEARITY 22.8UH

COIL,LINEARITY 20UH

COIL,CHOKE 82UH PHY TURN

INDUCTOR,10UH K 4*10.5 TP

INDUCTOR,47UH K 2.3*3.4 TP

COIL,CHOKE 3600UH PHY TURN

INDUCTOR,10UH K 2.3*3.4 TP

INDUCTOR,100UH K 2.3*3.4 TP

INDUCTOR,10UH K 2.3*3.4 TP

INDUCTOR,4.7UH K 2.3*3.4 TP

For Capacitor & Resistors,

the charactors at 2nd and 3rd

digit in the P/No. means as

follows;

CC, CX, CK, CN : Ceramic

CQ : Polyestor

CE : Electrolytic

RD : Carbon Film

RS : Metal Oxide Film

RN : Metal Film

RF : Fusible

The components identified by mark are

critical for safety.

Replace only with part number specified.

COIL & TRANSFORMER

JACK

All manuals and user guides at all-guides.com

LG CT-25Q47E User manual

Popular TV manuals by other brands
