LG MFL66100447 User manual

www.lg.com
OWNER’S MANUAL
LCD TV / LED LCD TV
Please read this manual carefully before operating the
set and retain it for future reference.
P/NO : MFL66100447 (1203-REV03)
Printed in Korea

ENG
ENGLISH

3
ENGENGLISH
LICENSES
LICENSES
Supported licenses may differ by model. For more information about licenses, visit www.lg.com.
<Digital TV>
Manufactured under license from Dolby Laboratories. “Dolby” and the double-D
symbol are trademarks of Dolby Laboratories.
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing LLC.
ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, a subsidiary
of Rovi Corporation.
This is an official DivX Certified® device that plays DivX video. Visit Divx.com for
more information and software tools to convert your files into DivX video.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered
in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your
registration code, locate the DivX VOD section in your device setup menu. Go to
vod.divx.com for more information on how to complete your registration.
“DivX Certified® to play DivX® video up to HD 1080p, including premium content.”
DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation
or its subsidiaries and are used under license.
Covered by one or more of the following U.S. patents :
7,295,673; 7,460,668; 7,515,710; 7,519,274
<Analog TV>
Manufactured under license from Dolby Laboratories. “Dolby” and the double-D
symbol are trademarks of Dolby Laboratories.

4
ENG
ENGLISH
TABLE OF CONTENTS
3 LICENSES
4 TABLE OF CONTENTS
6 ASSEMBLING AND PREPAR-
ING
6 Unpacking
8 Parts and buttons
10 Lifting and moving the TV
10 Setting up the TV
10 - Attaching the stand
12 - Not using the Desk Type Stand
12 - Mounting on a table
13 - Mounting on a wall
15 - Tidying cables
16 REMOTE CONTROL
19 WATCHING TV
19 Connecting an antenna
19 Turning the TV on for the first time
20 Watching TV
21 Managing programmes
21 - Automatically setting up programme
21 - Manually setting up programme (In
digital mode) (Only DTV)
22 - Manually setting up programme (In
analogue mode)
23 - Editing your programme list
25 - Selecting the programme list
27 EPG (Electronic Program Guide) (In digi-
tal mode)
27 - Switch on/off EPG
27 - Select a programme
28 - NOW/NEXT Guide Mode
28 - 8 Day Guide Mode
28 - Date Change Mode
28 - Extended Description Box
29 MHEG (Multimedia and Hypermedia In-
formation coding Expert Group) (In digital
mode)
29 - Teletext Within Digital Service
29 - Teletext in Digital Service
30 - Switch on/off MHEG
30 - Select a programme
30 - Programme Listing Mode
30 - NOW/NEXT Guide Mode
31 Using additional options
31 - Adjusting aspect ratio
32 - Changing AV modes
32 - Using the input list
33 - Locking the buttons on the TV (Child
Lock)
34 Using the quick menu
35 ENTERTAINMENT
35 - Connecting USB storage devices
36 - Browsing files
37 - Viewing movies
40 - Viewing photos
42 - Listening to music
44 - DivX® VOD Guide
45 CUSTOMIZING TV SETTINGS
45 Accessing main menus
46 Customizing settings
46 - SETUP settings
47 - PICTURE settings
53 - AUDIO settings
56 - TIME settings
57 - LOCK settings
58 - OPTION settings
60 MAKING CONNECTIONS
61 Connection overview
TABLE OF CONTENTS

5
ENGENGLISH
TABLE OF CONTENTS
62 Connecting to a HD receiver, DVD, or
VCR player
62 - HDMI connection
62 - DVI to HDMI connection
62 - Component connection
63 - Composite connection
63 Connecting to a PC
63 - HDMI connection
63 - DVI to HDMI connection
64 - RGB Connection
65 Connecting to an audio system
65 - Digital optical audio connection
65 - Headphone connection
66 - Speaker output Setup
66 Connecting to a USB
67 SIMPLINK connection
67 - Activating the SIMPLINK feature
68 TELETEXT
68 Switch On/Off
68 Simple Text
68 - Page selection
68 Top Text
68 - Block / Group / Page Selection
68 - Direct Page Selection
69 Fastext
69 - Page selection
69 Special Teletext Function
70 MAINTENANCE
70 Cleaning your TV
70 - Screen and frame
70 - Cabinet and stand
70 - Power cord
71 Preventing “Image burn” or “Burn-in” on
your TV screen
72 TROUBLESHOOTING
74 SPECIFICATIONS
79 IR CODES
80 EXTERNAL CONTROL DEVICE
SETUP
80 RS-232C Setup
80 Type of connector;
D-Sub 9-Pin Male
80 RS-232C Configurations
81 Communication Parameters
81 Command reference list
82 Transmission / Receiving Protocol
87 OPEN SOURCE LICENSE
87 Open source software notice

6
ENG
ENGLISH
ASSEMBLING AND PREPARING

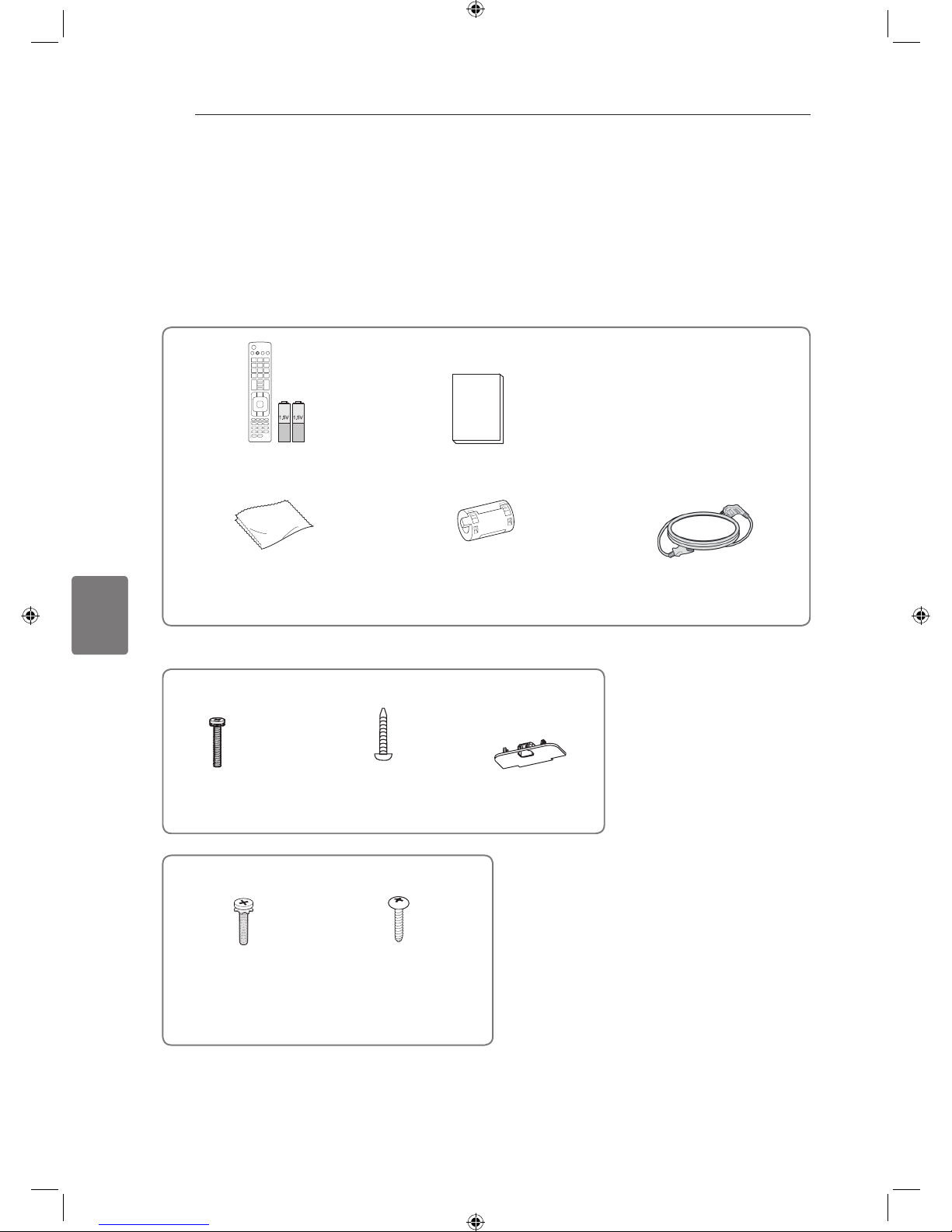

Remote control and batteries(AAA) Owner’s manual
Polishing cloth1(This item is not
included for all models.)
Ferrite core (Depending on model)
(This item is not included for all
models.)
Power Cord(This item is not included
for all models.)
ASSEMBLING AND PREPARING
Unpacking
Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product.
The illustrations in this manual may differ from the actual product and item.
1 Gently wipe the spots on the cabinet with the polishing cloth.
(M4 x 20)
x 8
Only 26/32LK33**, 32/37/42/47LK45**
Screw for assembly Screw for fixing Protection cover
(Except for 47LK45**)
Only 32/37/42/47/55LV35**
Screw for assembly Screw for fixing
(Only 32/37LV35**)
(M4 x 12)
x 8

7
ENGENGLISH
ASSEMBLING AND PREPARING
yDo not use any pirated items to ensure the safety and product life span.
yAny damages or injuries by using pirated items are not covered by the manufacturer's warranty.
CAUTION
yThe items supplied with your product may vary depending on the model.
yProduct specifications or contents of this manual may be changed without prior notice due to
upgrade of product functions.
yImage shown may differ from your TV.
NOTE
yFor an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm
thick and 18 mm width.(Except for 26/32LK33**)
B
AA
B
*A 10 mm
*B 18 mm

8
ENG
ENGLISH
ASSEMBLING AND PREPARING
Parts and buttons
yTV can be placed in standby mode in order to reduce the power consumption. And TV should be
turned off if it will not be watched for some time, as this will reduce energy consumption.
yThe energy consumed during use can be significantly reduced if the level of brightness of the
picture is reduced, and this will reduce the overall running cost.
NOTE
yDo not step on the glass stand or subject it to any impact. It may break, causing possible injury
from fragments of glass, or the TV may fall.
yDo not drag the TV. The floor or the product may be damaged.
yIn case of some model, the thin film on screen is a part of TV. So don't take it off.
CAUTION

9
ENGENGLISH
ASSEMBLING AND PREPARING
R
IN 3
USB IN
P
OK
INPUT
HOME
OPTICAL DIGITAL
AUDIO OUT
AUDIO IN
(RGB/DVI)
RGB IN (PC)
RS-232C IN
(CONTROL & SERVICE)
L/MONO
R
AUDIO
VIDEO
21
1
ANTENNA/
CABLE IN
H/P
R
IN 3
USB IN
AV IN 2
L/MONO
R
AUDIO
VIDEO
USB IN
IN 3
SPEAKER OUT
VOLUME
CONTROL
STEREO
(8Ω)
Connection panel
(See p.60)
Speakers

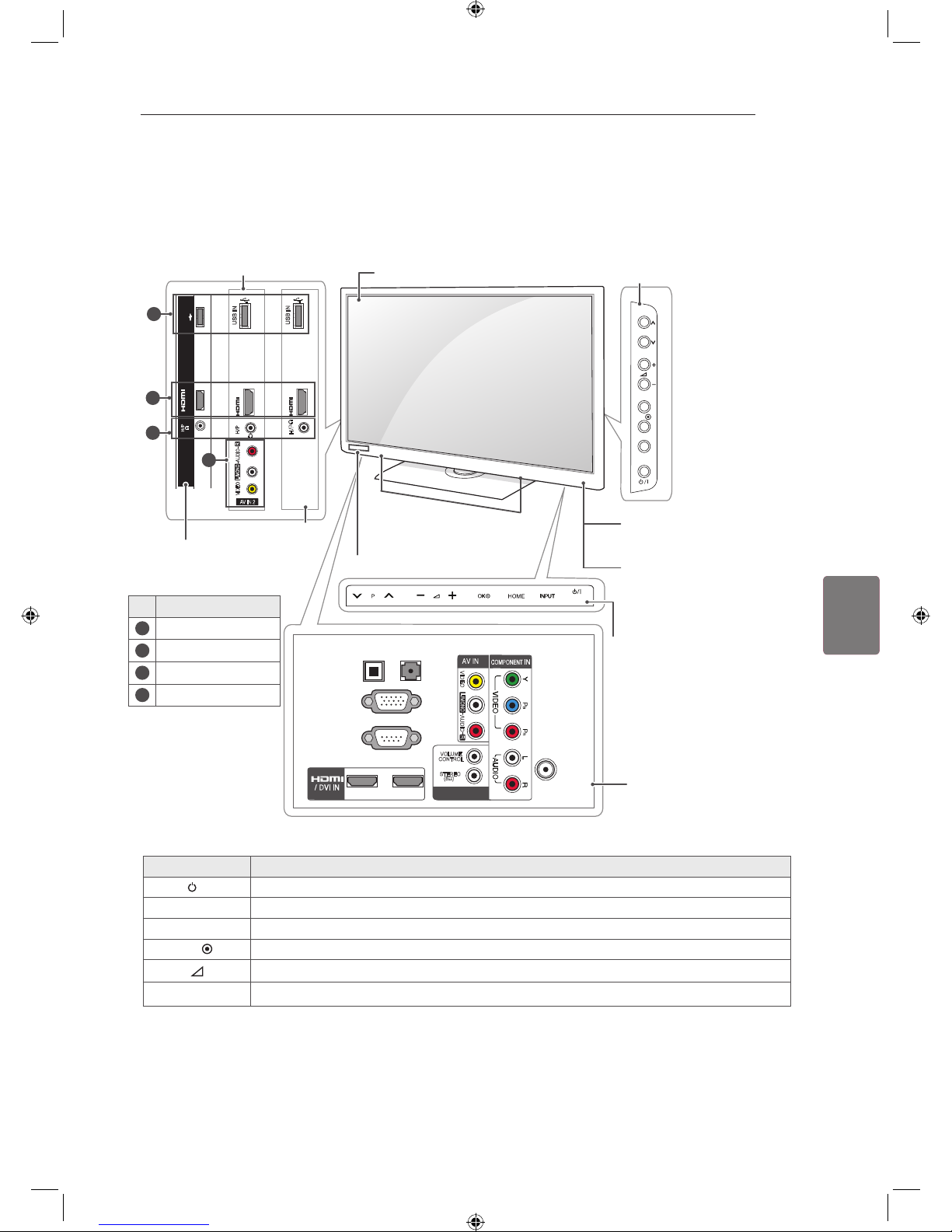

Button Description
/I Turns the power on or off
INPUT Changes the input source
HOME Accesses the main menus, or saves your input and exits the menus
OK Selects the highlighted menu option or confirms an input
- +
Adjusts the volume level
v P
^
Scrolls through the saved programmes
Only 32/37/42/47/55LV35**, 26/32LK33**, 32/37/42/47LK45**
yImage shown may differ from your TV.
(Only
26/32LK33**)
Screen
1 Intelligent sensor - Adjusts the image quality corresponding to the surrounding environment.(Except for
26/32LK33**)
2 Touch Button - You can use the desired button function by touching.(Except for 26/32LK33**)
In case of some model, the thin film on screen is a part of TV. So don't take it off.
Remote control and intel-
ligent1sensors(Except for
26/32LK33**)
Power Indicator
(Can be adjusted using
the Power Indicator in the
OPTION menu.)
Touch buttons2
(Except for 26/32LK33**)
(Only
32/37/42/47/55LV35**)
(Only
32/37/42/47LK45**)
(Only
26/32LK33**)
No. Description
1USB input
2HDMI IN
3Headphone Socket
4AV (Audio and Video) IN
1
2
3
4
Clock LED (Except for
26/32LK33**)

10
ENG
ENGLISH
ASSEMBLING AND PREPARING
Only 26/32LK33**
1Lay the TV with the screen side down on a flat
surface.
yLay a foam mat or soft protective cloth
on the surface to protect the screen from
damage.
CAUTION
2Assemble the parts of the Stand Body with the
Stand Base of the TV.
Stand Body
Stand Base
3Secure the TV and the stand with the 4 screws.
yTighten the screws firmly to prevent
the TV from tilting forward. Do not over
tighten.
CAUTION
Lifting and moving the TV
When moving or lifting the TV, read the following to
prevent the TV from being scratched or damaged
and for safe transportation regardless of its type
and size.
yIt is recommended to move the TV in the box
or packing material that the TV originally came
in.
yBefore moving or lifting the TV, disconnect the
power cord and all cables.
yWhen holding the TV, the screen should face
away from you to avoid damage.
yHold the top and bottom of the TV frame firmly.
Make sure not to hold the transparent part,
speaker, or speaker grill area.
yWhen transporting a large TV, there should be
at least 2 people.
yWhen transporting the TV by hand, hold the
TV as shown in the following illustration.
yWhen transporting the TV, do not expose the
TV to jolts or excessive vibration.
yWhen transporting the TV, keep the TV
upright, never turn the TV on its side or tilt
towards the left or right.
yAvoid touching the screen at all times, as
this may result in damage on the screen
or some of the pixels used to create
images.
CAUTION Attaching the stand
Setting up the TV
yImage shown may differ from your TV.
Put your TV on a pedestal stand and mount the TV
on a table or wall.

11
ENGENGLISH
ASSEMBLING AND PREPARING
Only 32/37/42/47LK45**
1Lay the TV with the screen side down on a flat
surface.
yLay a foam mat or soft protective cloth
on the surface to protect the screen from
damage.
CAUTION
2Assemble the parts of the Stand Body with the
Stand Base of the TV.
3Secure the TV and the stand with the 4 screws.
Stand Base
Stand Body
yTighten the screws firmly to prevent
the TV from tilting forward. Do not over
tighten.
CAUTION
Only 32/37/42/47/55LV35**
1Lay the TV with the screen side down on a flat
surface.
yLay a foam mat or soft protective cloth
on the surface to protect the screen from
damage.
CAUTION
2Assemble the parts of the Stand Body with the
Stand Base of the TV.
3Secure the TV and the stand with the 4 screws.
Stand Body
Stand Base
yTighten the screws firmly to prevent
the TV from tilting forward. Do not over
tighten.
CAUTION

12
ENG
ENGLISH
ASSEMBLING AND PREPARING
10 cm
10 cm
10 cm
10 cm
Only 26/32LK33**, 32/37/42/47LK45**

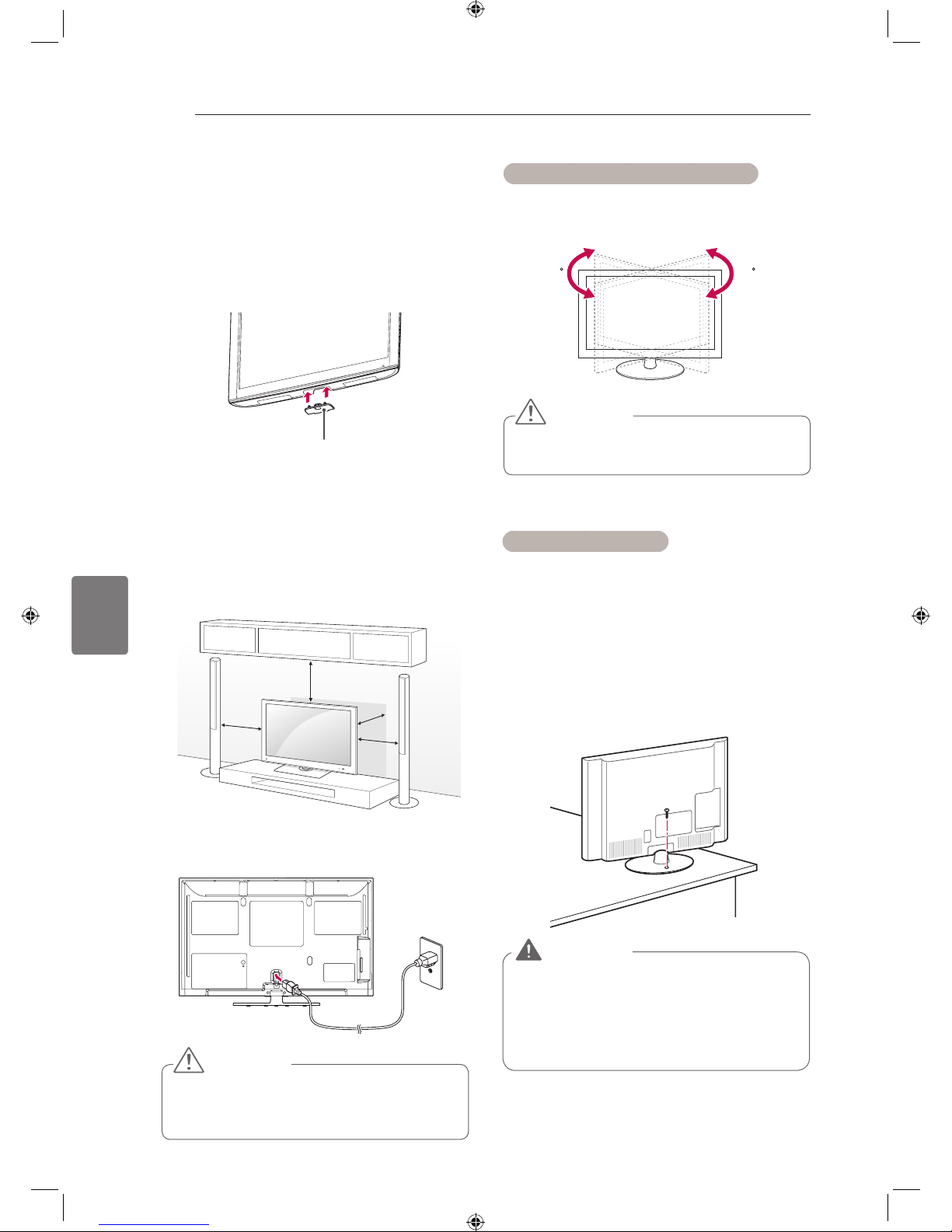

1Push the supplied protection cover into the
opening at the bottom of the TV until clicking
sound.
Protection cover
Mounting on a table
yImage shown may differ from your TV.
1Lift and tilt the TV into its upright position on a
table.
- Leave a 10 cm (minimum) space from the
wall for proper ventilation.
2Connect the power cord to a wall outlet.
yDo not place the TV near or on sources
of heat, as this may result in fire or other
damage.
CAUTION
Securing the TV to a table
yImage shown may differ from your TV.
yThis feature is not available for all models.
Only 26/32LK33**, 32/37/42LK45**, 32/37LV35**
Fix the TV to a table to prevent from tilting forward,
damage, and potential injury.
Mount the TV on a table, and then insert and
tighten the supplied screw on the rear of the stand.
yTo prevent TV from falling over, the TV
should be securely attached to the floor/
wall per installation instructions. Tipping,
shaking, or rocking the TV may cause
injury.
WARNING
Not using the Desk Type Stand
yImage shown may differ from your TV.
Adjusting the angle of the TV to suit view
Swivel 20 degrees to the left or right and adjust the
angle of the TV to suit your view.
2020
yWhen adjusting the angle of the product,
watch out for your fingers.
CAUTION

13
ENGENGLISH
ASSEMBLING AND PREPARING
Securing the TV to a wall
yImage shown may differ from your TV.
yThis feature is not available for all models.
1Insert and tighten the eye-bolts, or TV brackets
and bolts on the back of the TV.
- If there are bolts inserted at the eye-bolts
position, remove the bolts first.
2Mount the wall brackets with the bolts to the
wall.
Match the location of the wall bracket and the
eye-bolts on the rear of the TV.
3Connect the eye-bolts and wall brackets tightly
with a sturdy rope.
Make sure to keep the rope horizontal with the
flat surface.
yUse a platform or cabinet that is strong
and large enough to support the TV
securely.
NOTE
yMake sure that children do not climb on
or hang on the TV.
CAUTION
Using the Kensington security system
yImage shown may differ from your TV.
yThis feature is not available for all models.
The Kensington security system connector is
located at the rear of the TV. For more information
of installation and using, refer to the manual
provided with the Kensington security system or
visit http://www.kensington.com.
Connect the Kensington security system cable
between the TV and a table.
Mounting on a wall
Attach a wall mount bracket at the rear of the TV
carefully and install the wall mount bracket on a
solid wall perpendicular to the floor. When you
attach the TV to other building materials, please
contact qualified personnel.
LG recommends that wall mounting be performed
by a qualified professional installer.
10 cm
10 cm
10 cm
10 cm

14
ENG
ENGLISH
ASSEMBLING AND PREPARING
Make sure to use screws and wall mount
bracket that meet the VESA standard. Standard
dimensions for the wall mount kits are described in
the following table.
Separate purchase(Wall Mounting Bracket)
Model 26/32LK33**
32LK45**
32LV35**
VESA (A x B) 200 x 100
Standard screw M4
Number of screws 4
Wall mount
bracket
LSW100B, LSW100BG
Model 37/42/47LK45**
37LV35**
42/47/55LV35**
VESA (A x B) 200 x 200 400 x 400
Standard screw M6 M6
Number of screws 4 4
Wall mount
bracket
LSW200B,
LSW200BG
LSW400B,
LSW400BG yUse the screws that are listed on the VESA
standard screw specifications.
yThe wall mount kit includes an installation
manual and necessary parts.
yThe length of screws may differ depending
on the wall mount. Make sure to use the
proper length.
yFor more information, refer to the manual
supplied with the wall mount bracket.
NOTE
yDisconnect the power first, and then move or
install the TV. Otherwise electric shock may
occur.
yIf you install the TV on a ceiling or slanted
wall, it may fall and result in severe injury.
Use an authorized LG wall mount bracket
and contact the local dealer or qualified
personnel.
yDo not over tighten the screws as this may
cause damage to the TV and void your
warranty.
yUse the screws and wall mount bracket
that meet the VESA standard. Any
damages or injuries by misuse or using an
improper accessory are not covered by the
manufacturer's warranty.
CAUTION

15
ENGENGLISH
ASSEMBLING AND PREPARING
Only 26/32LK33**, 32/37/42/47LK45**
1Gather and bind the cables with the cable
management clip.
2Fix the cable management clip firmly to the TV.
yDo not move the TV by holding the
cable management clip, as the cable
management clip may break, and injuries
and damage to the TV may occur.
NOTE
Cable Management Clip
Tidying cables
yImage shown may differ from your TV. 1Gather and bind the cables with the Cable
Holder on the TV back cover.
Only 32/37/42/47/55LV35**
Cable Holder
or
Cable Holder

16
ENG
ENGLISH

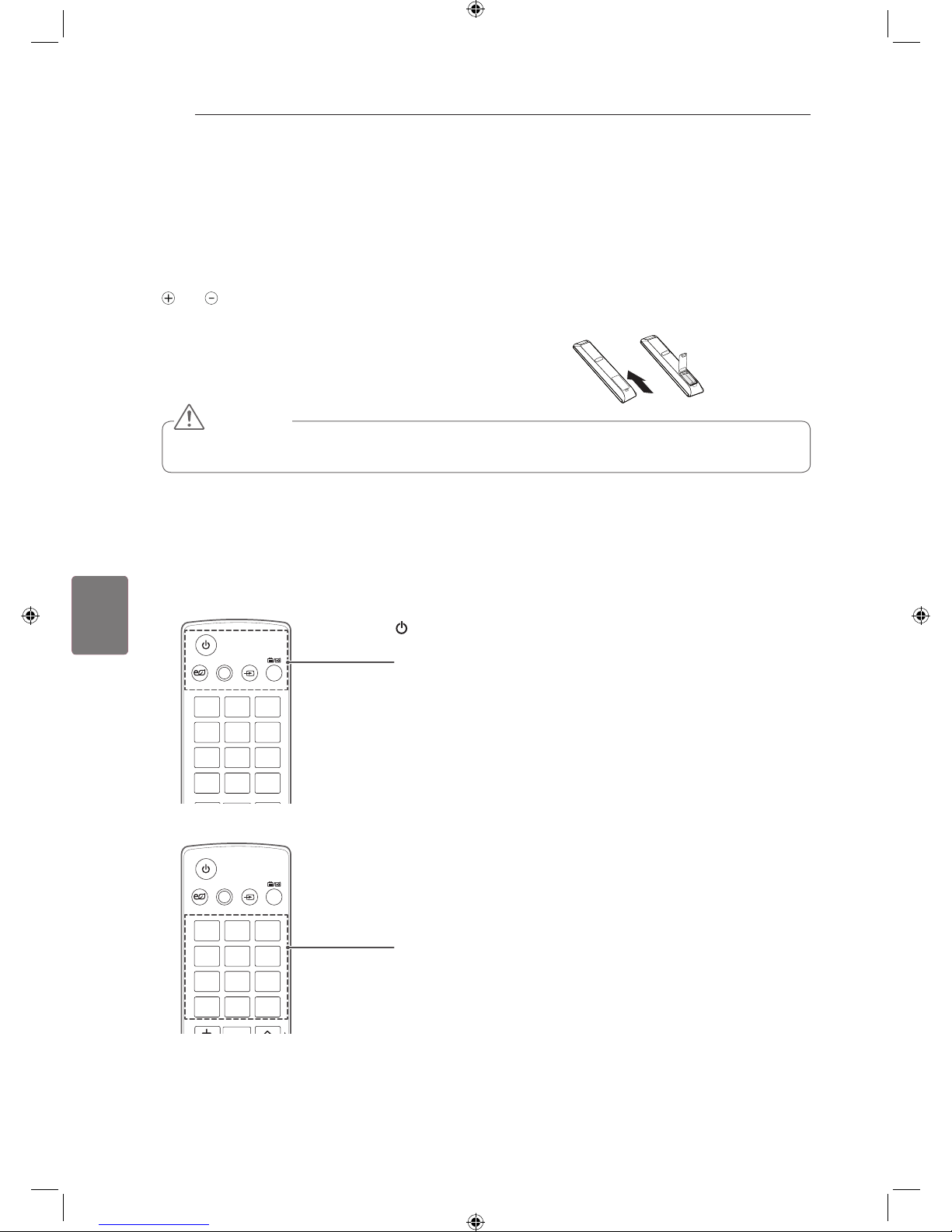

REMOTE CONTROL
REMOTE CONTROL
The descriptions in this manual are based on the buttons on the remote control.
Please read this manual carefully and use the TV correctly.
To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching
and ends to the label inside the compartment, and close the battery cover. Be
sure to point the remote control toward the remote control sensor on the TV.
To remove the batteries, perform the installation actions in reverse.
AV MODE INPUT
TV/
RAD
ENERGY
1 2 3
4 5 6
7 8
0
9
LIST
Q.VIEW
FAV
RATIO
MUTE
MARK
P
P
A
G
E
SAVING
BACK EXIT
OK
GUIDE Q.MENU
INFO
Home
FREEZE
AV MODE INPUT
TV/
RAD
ENERGY
1 2 3
4 5 6
7 8
0
9
LIST
Q.VIEW
FAV
RATIO
MUTE
MARK
P
P
A
G
E
SAVING
BACK EXIT
OK
GUIDE Q.MENU
INFO
Home
FREEZE
yDo not mix old and new batteries, as this may damage the remote control.
CAUTION
(POWER)
Turns the TV on or off.
ENERGY SAVING (See p.47)
Adjusts the brightness of the screen to reduce energy consumption
AV MODE (See p.32)
Selects an AV mode
INPUT (See p.32)
Changes the input source; Turns the TV on.
TV/RAD
Selects Radio, TV and DTV programme.
Number buttons
Enters numbers.
LIST (See p.25)
Accesses the saved programme list.
Q.VIEW
Returns to the previously viewed programme.
yImage shown may differ from your TV.
yIn Analogue TV and in some countries, some remote control keys may not work.

17
ENGENGLISH
REMOTE CONTROL
+ -

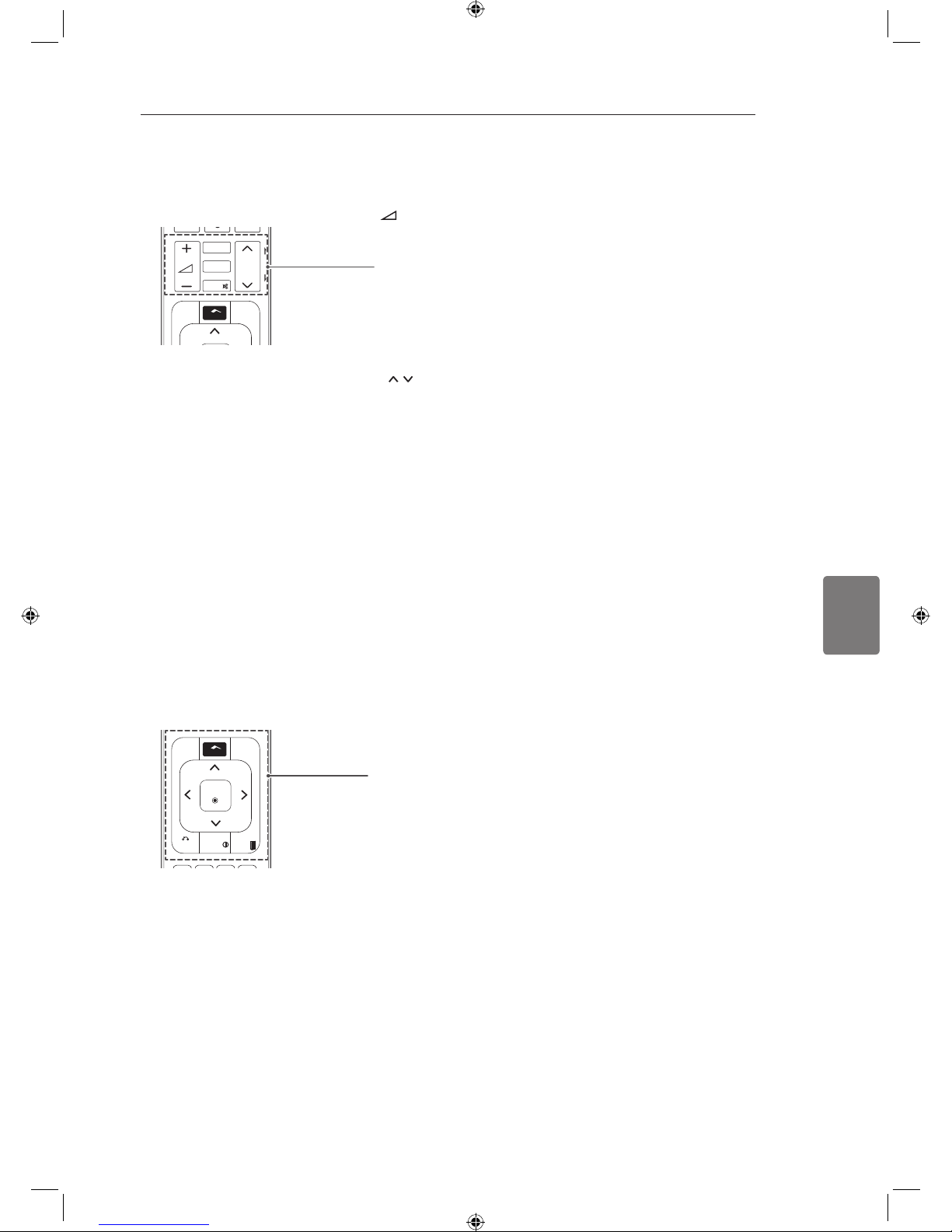

Adjusts the volume level.
MARK
Selects a menu or option.
FAV (See p.26)
Accesses your favourite programme list
RATIO (See p.31)
Resizes an image
MUTE
Mutes all sounds.
P
Scrolls through the saved programmes.
PAGE
Moves to the previous or next screen.
AV MODE INPUT
TV/
RAD
ENERGY
1 2 3
4 5 6
7 8
0
9
LIST
Q.VIEW
FAV
RATIO
MUTE
MARK
P
P
A
G
E
SAVING
BACK EXIT
OK
GUIDE Q.MENU
INFO
Home
FREEZE
GUIDE
Shows programme guide.
Home
Accesses the main menus, or saves your input and exit the menus.
Q. MENU (See p.34)
Accesses the quick menus
Navigation buttons (up/down/left/right)
Scrolls through menus or options.
OK
Selects menus or options and confirms your input.
BACK
Returns to the previous level.
INFO (See p.27)
Views the information of the current programme and screen.
EXIT
Clears all on-screen displays and return to TV viewing.
AV MODE INPUT
TV/
RAD
ENERGY
1 2 3
4 5 6
7 8
0
9
LIST
Q.VIEW
FAV
RATIO
MUTE
MARK
P
P
A
G
E
SAVING
BACK EXIT
OK
GUIDE Q.MENU
INFO
Home
FREEZE

18
ENG
ENGLISH
REMOTE CONTROL
Coloured buttons
These buttons are used for teletext (on TELETEXT models only),
Programme edit.
TELETEXT BUTTONS (See p.68)
These buttons are used for teletext.
For further details, see the ‘Teletext’ section.
SUBTITLE
Recalls your preferred subtitle in digital mode.
Control buttons( , , , , )
Controls the MY MEDIA menus, or the SIMPLINK compatible devices
(USB,SIMPLINK).
SIMPLINK (See p.67)
Accesses the AV devices connected to the TV;
Opens the SIMPLINK menu.
AV MODE INPUT
TV/
RAD
ENERGY
1 2 3
4 5 6
7 8
0
9
LIST
Q.VIEW
FAV
RATIO
MUTE
MARK
P
P
A
G
E
SAVING
BACK EXIT
OK
GUIDE Q.MENU
INFO
Home
FREEZE
AV MODE INPUT
TV/
RAD
ENERGY
1 2 3
4 5 6
7 8
0
9
LIST
Q.VIEW
FAV
RATIO
MUTE
MARK
P
P
A
G
E
SAVING
BACK EXIT
OK
GUIDE Q.MENU
INFO
Home
AV MODE INPUT
TV/
RAD
ENERGY
1 2 3
4 5 6
7 8
0
9
LIST
Q.VIEW
FAV
RATIO
MUTE
MARK
P
P
A
G
E
SAVING
BACK EXIT
OK
GUIDE Q.MENU
INFO
Home
FREEZE

ENG
ENGLISH
19
WATCHING TV
WATCHING TV

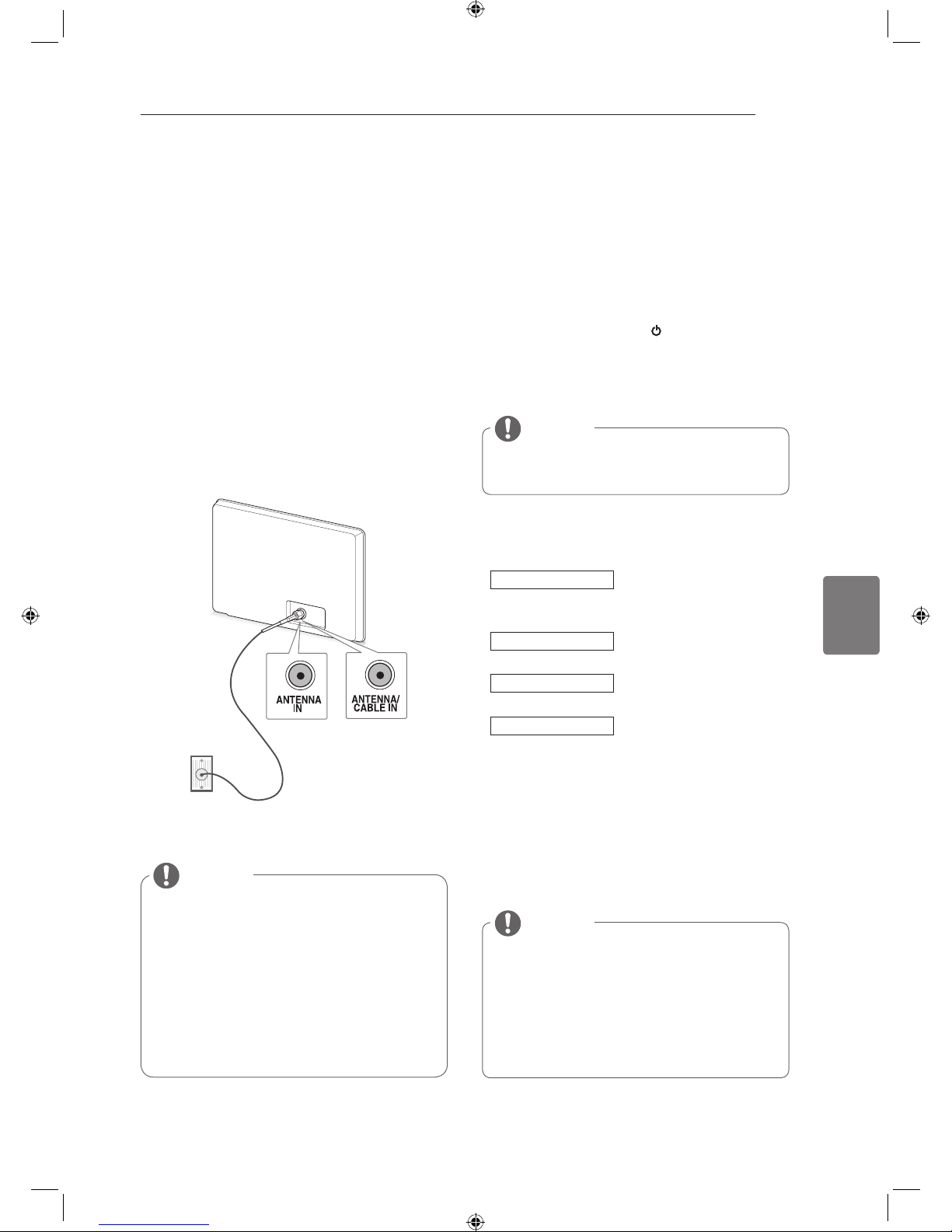

Connecting an antenna
Connect an antenna to watch TV while referring to
the following.
To prevent damage do not connect to the mains
outlet until all connections are made between the
devices.
Connect the TV to a wall antenna socket with an
RF cable (75 Ω).
yImage shown may differ from your TV.
yUse a signal splitter to use more than 2
TVs.
yIf the image quality is poor, install a signal
amplifier properly to improve the image
quality.
yIf the image quality is poor with an
antenna connected, aim the antenna to
the correct direction.
yAn antenna cable and converter are not
supplied.
NOTE
Turning the TV on for the first
time
When you turn the TV on for the first time, the
Initial setting screen appears. Select a language
and customize the basic settings.
1Connect the power cord to a power outlet.
2In Standby mode, press (POWER) to turn
the TV on.
The Initial setting screen appears if you turn
the TV on for the first time.
yYou can also access Factory Reset by
accessing OPTION in the main menus.
NOTE
3Follow the on-screen instructions to customize
your TV settings according to your preferences.
Language Selects a language to display.
(Except for Australia, New
Zealand, Singapore, South
Africa)

Country Selects a country to display.
(Only Australia, New Zealand)

Time Zone Selects a Time Zone to
display.(Only Australia)

Auto Tuning Scans and saves available
channels automatically.
yDTV mode control buttons may not
function based on country broadcasting
circumstances. (Only DTV)
yIn country that Digital broadcasting
regulation isn’t fixed, some DTV function
may not work depending on digital
broadcasting circumstances. (Only DTV)
NOTE
Wall Antenna
Socket
or

ENG
ENGLISH
20 WATCHING TV
4When the basic settings are complete,
press OK.
yIf you do not complete the Initial setting, it
will appear whenever the TV turns on.
yDisconnect the power cord from the
power outlet when you do not use the TV
for a long period of time.
NOTE
5To turn the TV off, press (POWER) .
Watching TV
1In Standby mode, press (POWER) to turn
the TV on.
2Press INPUT and select Antenna.
3To turn the TV off, press (POWER) .
The TV switches to Standby mode.
