OWNER’S MANUAL
WASHING
MACHINE
Before beginning installation, read these instructions carefully.
This will simplify installation and ensure that the product is installed
correctly and safely. Leave these instructions near the product after
installation for future reference.
MFL67890447
F14U1JBS(0-9)
TABLE OF CONTENTS
This manual is produced for a group of products
and may contain images or content different from
the model you purchased.
This manual is subject to revision by the
manufacturer.
SAFETY INSTRUCTIONS ......................................03
Important Safety Instructions...............................................................05
INSTALLATION.......................................................08
Specifications ......................................................................................08
Accessories .........................................................................................08
Installation Place Requirements..........................................................09
Unpacking and Removing Shipping Bolts ...........................................10
Using Non-Skid Pads (Optional).......................................................... 11
Wooden Floors (Suspended Floors).................................................... 11
Leveling the Washing Machine............................................................12

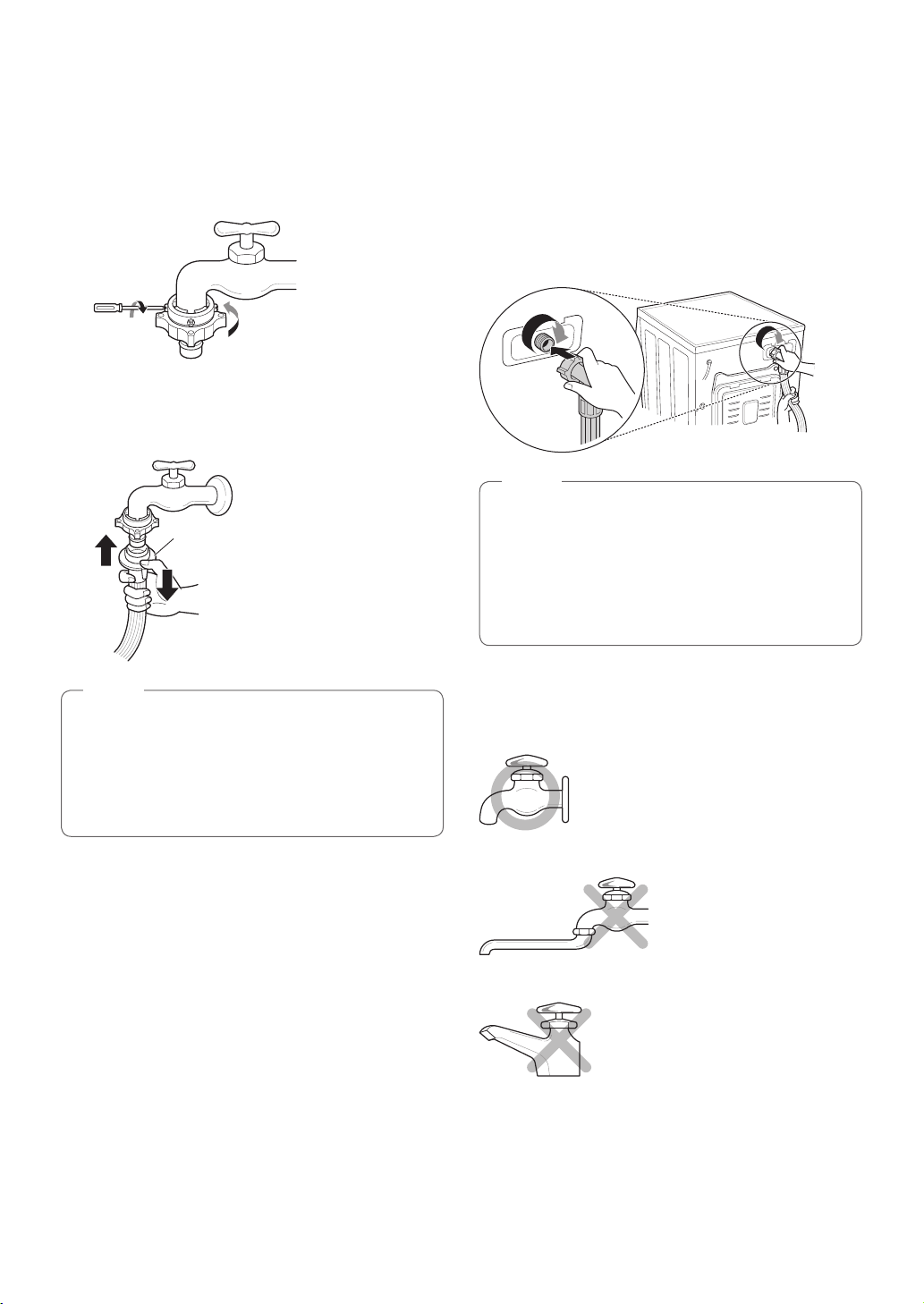

Connecting Inlet Hose .........................................................................12
Installation of Drain Hose ....................................................................15
Electrical Connections (In the UK Only) ..............................................15
OPERATION ...........................................................16
Using the Washing Machine................................................................16

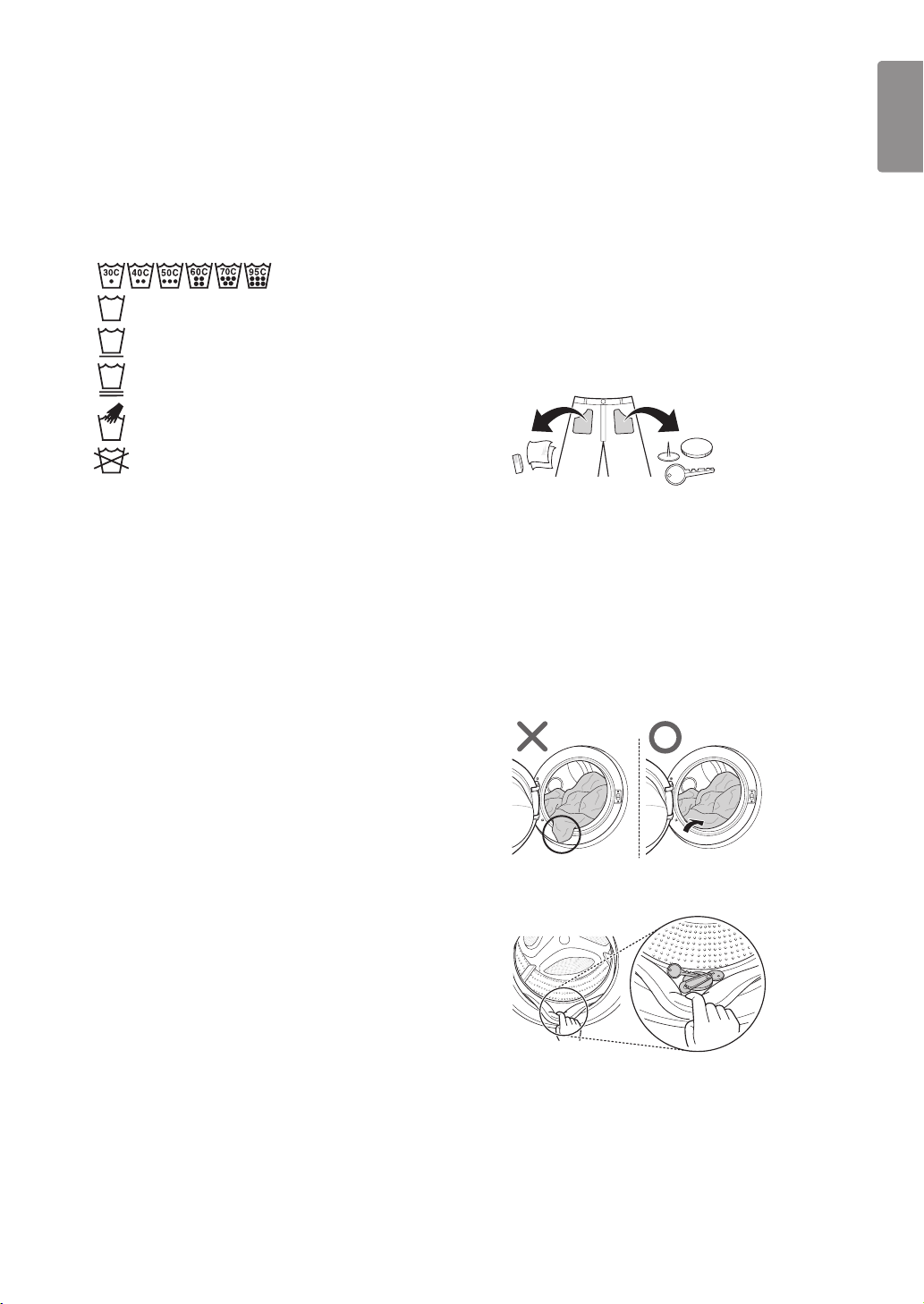

Sorting Iaundry ....................................................................................17

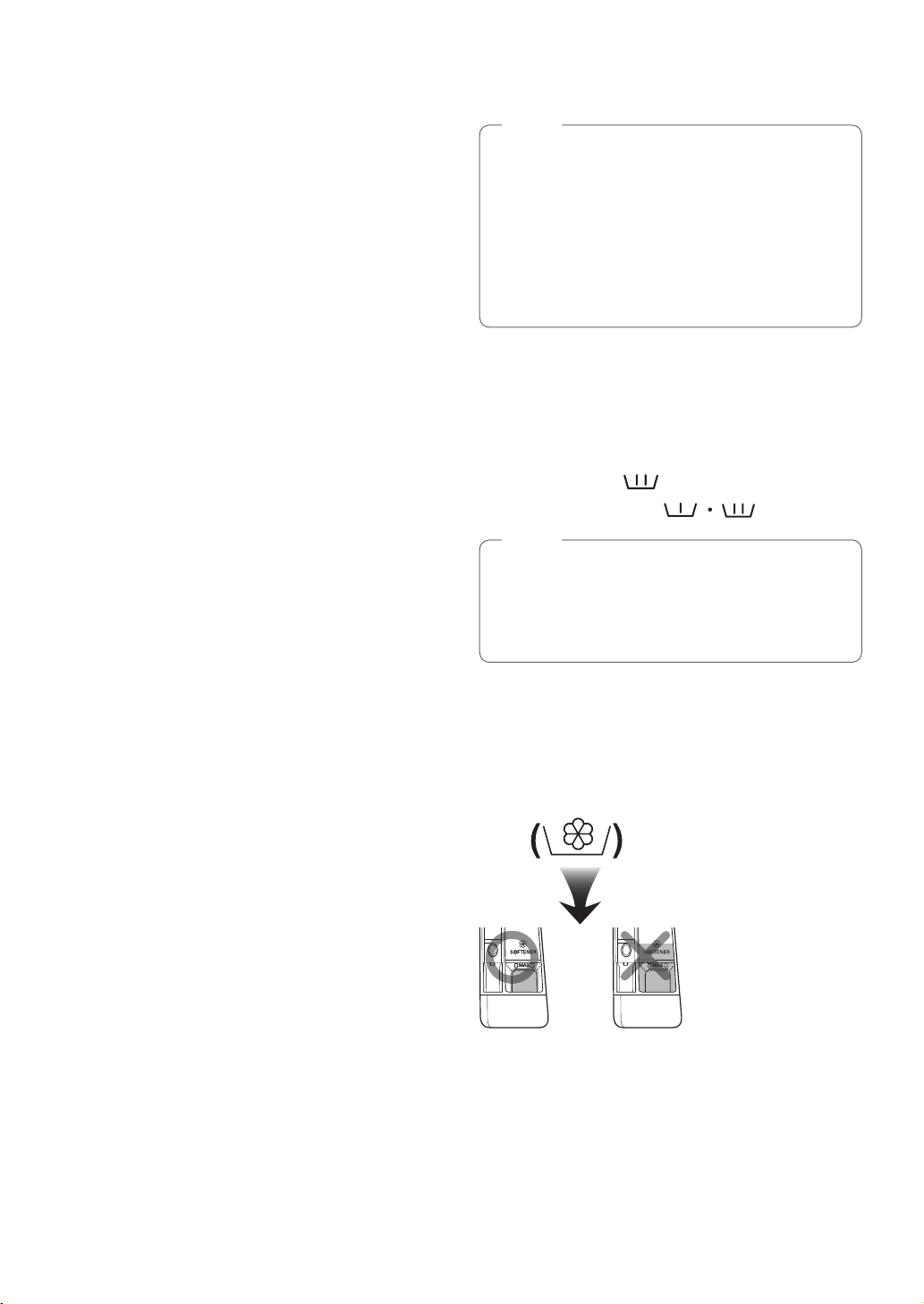

Adding Cleaning Products...................................................................18
Control Panel.......................................................................................20
Programme Table ................................................................................21
Option Cycle........................................................................................25
Using Smart Function (Optional) .........................................................28
MAINTENANCE......................................................29
Cleaning your Washing Machine.........................................................29
Cleaning the Water Inlet Filter .............................................................29
Cleaning the Drain Pump Filter ...........................................................30
Cleaning the Dispenser Drawer...........................................................31
Tub Clean (Optional) ...........................................................................31
Caution on Freezing During Winter .....................................................32
Using the Smart Diagnosis™ Function ...............................................34
TROUBLESHOOTING............................................35
Diagnosing Problems ..........................................................................35
Error Messages ...................................................................................37
WARRANTY............................................................39
OPERATING DATA.................................................42
03
ENGLISH
SAFETY INSTRUCTIONS
The following safety guidelines are intended to prevent unforeseen risks or
damage from unsafe or incorrect operation of the product.
The guidelines are separated into ‘WARNING’ and ‘CAUTION’ as described
below.
This symbol is displayed to the indicate matters and operations that
can cause risk. Read the part with this symbol carefully and follow the
instructions in order to avoid risk.
WARNING - This indicates that the failure to follow the instructions
can cause serious injury or death.
CAUTION - This indicates that the failure to follow the instructions
can cause the minor injury or damage the product.
your product, basic safety precautions should be followed, including the
following.
WARNING
CHILDREN IN THE HOUSEHOLD
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety. Children should be supervised to ensure that they do
not play with the appliance.
For use in Europe:
This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
Children of less than 3 years should be kept away unless continuously supervised.
04
GROUNDING REQUIREMENTS
For your safety, the information in this manual must be followed to
property damage, injury to persons, or death.
WARNING
•This appliance must be grounded. In the event of malfunction or breakdown, grounding
will reduce the risk of electric shock by providing a path of least resistance for electric
current.
•This appliance is equipped with a cord having an equipment-grounding conductor and
grounding plug. The plug must be plugged into an appropriate outlet that is properly
installed and grounded in accordance with all local codes and ordinances.
•Improper connection of the equipment-grounding conductor can result in risk of electric
whether the appliance is properly grounded.
•
DISPOSAL OF YOUR OLD APPLIANCE
1. All electrical and electronic products should be disposed of separately from
the municipal waste stream via designated collection facilities appointed
by the government or the local authorities.
2. The correct disposal or your old appliance will help prevent potential
negative consequences for the environment and human health.
3. For more detailed information about disposal of your old appliance, please
purchased the product.
05
ENGLISH
Important Safety Instructions
your product, basic safety precautions should be followed, including the
following.
WARNING
Operation
•Do not use a sharp object like drill or pin
to press or separate an operation unit. It
can cause the electric shock or injury.
•Only an authorized repair person from
LG Electronics service centre should
disassemble, repair, or modify the
product. Improper service may cause
•Do not spray the water inside or outside
the product to clean it. Water can
damage the insulation, causing electric
•Keep the area underneath and around
your appliances free of combustible
materials such as lint, paper, rags,
chemicals, etc. Improper use can cause
•Do not put living animals, such as pets
into the product. It may cause injury.
•Do not leave this appliance door open.
Children may hang on the door or crawl
inside the appliance, causing damage
or injury.
Installation
•Never attempt to operate this appliance
if it is damaged, malfunctioning, partially
disassembled, or has missing or broken
parts, including a damaged cord or plug.
It can cause electric shock or injury.
•This appliance is heavy. Two or more
people may be needed to install and
move the appliance. Failure to do so
can result in injury.
•Store and install this appliance where
it will not be exposed to temperatures
below freezing or exposed to outdoor
weather conditions. Failure to do so can
result in leakage.
•Tighten the drain hose to avoid
separation. Splashing of water may
cause electric shock.
•If the supply cord is damaged, it must
be replaced by the manufacturer or
person in order to avoid a hazard.
•The appliance must not be installed
behind a lockable door, a sliding door
or a door with a hinge on the opposite
side to that of the tumble dryer, in such
a way that a full opening of the tumble
dryer door is restricted.
06
•Never reach into this appliance while
it is operating. Wait until the drum has
completely stopped. Failure to do so
may result in injury.
•Do not put in, wash or dry articles that
have been cleaned in, washed in,
soaked in, or spotted with combustible
or explosive substances (such as
wax, oil, paint, gasoline, degreasers,
drycleaning solvents, kerosene,
vegetable oil, cooking oil, etc.). Improper
•
and contact the LG Electronics service
centre. Contact with water can cause
electric shock.
•Do not push down the door excessively,
when the appliance door is open. Doing
so may topple over the appliance and it
can cause the injury.
•Use new hose-sets supplied with the
appliance. Old hose-sets should not
be reused. Water leakage may cause
property damage.
•Do not touch the door during steam
cycles, drying or high-temperature
washing. The door surface can become
very hot. Allow the door lock to release
before opening the door. Failure to do
so may result in injury.
•
combustible substances (benzene,
gasoline, thinner, petroleum, alcohol,
etc.) around the product. It may cause
•If the drain hose or inlet hose is frozen
during winter, use it only after thawing.
shock, and frozen parts may cause
product malfunction or reduction in
product life span.
•Keep all washing detergents, softener
and bleach away from children. These
products contain poisonous materials.
•Do not plug multiple products into
multiple socket-outlets or extension
•Remove the power plug when you clean
the product. Not removing the plug may
result in electric shock or injury.
•Do not touch the power plug with wet
hands. It can cause the electric shock
or injury.
•When pulling out the power plug from
an outlet, hold the power plug, not the
cable. Damage of the cable can cause
the electric shock or injury.
•Do not bend the power cable
excessively or place a heavy object on
top of it. Damage of the power cable
07
ENGLISH
Disposal
•Before discarding an old appliance,
unplug it. Render the plug useless.
Cut off the cable directly behind the
appliance to prevent misuse.
•Dispose of the packaging material (such
as vinyl and styrofoam) away from
children. The packaging material can
suffocate a child.
•Remove the door to the washing
compartment before this appliance is
removed from service or discarded to
avoid the danger of children or small
animals getting trapped inside. Failure
to do so can result in serious injury to
persons or death.
08
INSTALLATION
Transit bolts
Power plug
Drawer
Control panel
Drum
Door
Drain hose
Drain plug
Cover cap
(Location may
vary depending on
products)
Adjustable feet
•
•Size : 600 mm (W) X 610 mm (D) X 850 mm (H)
•Product weight : 70 kg
•Wash Capacity : 10 kg
•Permissible water pressure : 0.1 - 1.0 MPa (1.0 - 10.0 kgf / cm2)
•Information for customer Noise regarding EN:
norm EN 60704
Declared value of acoustical noise of this product is like below table.
That comply with the requirements level A of acoustical power considering of reference
acoustical power 1pW.
•Noise Level :
•
Accessories
Inlet hose (1EA)
(Option: Hot (1EA))
Spanner Caps for covering shipping
bolt holes
Anti–slip sheets (2EA)
(Optional)
Wash Spin
55 dB(A) 73 dB(A)
09
ENGLISH
Installation Place Requirements
Location
10 cm 2 cm 2 cm
Allowable slope under the entire washing
machine is 1°.
Power outlet : Must be within 1.5 meters of either side
of the location of the washing machine.
•Do not overload the outlet with more than one
appliance.
Additional Clearance : For the wall, 10 cm: rear
/2 cm: right & left side
•Do not place or store laundry products on top of the
washing machine at any time.
•
Positioning
•
•Make sure that air circulation around the washing
machine is not impeded by carpets, rugs, etc.
•
pieces of wood, cardboard or similar materials under
the washing machine.
•If it is impossible to avoid positioning the washing
machine next to a gas cooker or coal burning
insulation (85x60 cm) covered with aluminum foil on
the side facing the cooker or stove must be inserted
between the two appliances.
•Do not install your washing machine in rooms where
freezing temperatures may occur. Frozen hoses may
burst under pressure. The reliability of the electronic
control unit may be impaired at temperatures below
freezing point.
•Please ensure that when the washing machine is
installed, it is easily accessible for an engineer in the
event of a breakdown.
•With the washing machine installed, adjust all four feet
using the transit bolt spanner provided to ensure the
appliance is stable, and a clearance of approximately
20 mm is left between the top of the washing machine
and the underside of any work-top.
•This equipment is not designed for maritime use or for
use in mobile installations such as caravans, aircraft
etc.
Electrical Connection
•Do not use an extension cord or double adapter.
•Always unplug the washing machine and turn off the
water supply after use.
•Connect the washing machine to an earthed socket in
accordance with current wiring regulations.
•The washing machine must be positioned so that the
plug is easily accessible.
•Repairs to the washing machine must only be carried
inexperienced persons may cause injury or serious
malfunctioning. Contact your local service centre.
•If the washing machine is delivered in winter and
temperatures are below freezing, place the washing
machine at room temperature for a few hours before
putting it into operation.
10
Unpacking and Removing
Shipping Bolts
1Lift the washing machine off the foam base.
•After removing the carton and shipping material,
lift the washing machine off the foam base. Make
sure the tub support comes off with the base
and is not stuck to the bottom of the washing
machine.
•If you must lay the washing machine down to
remove the carton base, always protect the side
of the washing machine and lay it carefully on
its side. DO NOT lay the washing machine on its
front or back.
Tub Support
(Optional) Carton base
2Remove the bolt assemblies.
•Starting with the bottom two shipping bolts, use
the spanner (included) to fully loosen all shipping
bolts by turning them counterclockwise. Remove
the bolt assemblies by wiggling them slightly
while pulling them out.
Retainer
Shipping
bolt
3Install the hole caps.
•Locate the hole caps included in the accessory
pack and install them in the shipping bolt holes.
Cap
NOTE
•Save the bolt assemblies for future use. To
prevent damage to internal components, DO NOT
transport the washing machine without reinstalling
the shipping bolts.
•Failure to remove shipping bolts and retainers
may cause severe vibration and noise, which
can lead to permanent damage to the washing
machine. The cord is secured to the back of the
washing machine with a shipping bolt to help
prevent operation with shipping bolts in place.
11
ENGLISH
Using Non-Skid Pads (Optional)
If you install the washing machine on a slippery surface,
it may move because of excessive vibration. Incorrect
leveling may cause malfunction through noise and
vibration. If this occurs, install the non-skid pads under
the leveling feet and adjust the level.
1
•Use a dry rag to remove and clean foreign
objects and moisture. If moisture remains, the
non-skid pads may slip.
2Adjust the level after placing the washing machine
in the installation area.
3Place the adhesive side of the non-skid pad on the
•It is most effective to install the non-skid pads
pads under the front legs, place them under the
back legs.
This side up
Adhesive side
4Ensure the washing machine is level.
•Push or rock the top edges of the washing
machine gently to make sure that the washing
machine does not rock. If the washing machine
rocks, level the washing machine again.
Wooden Floors (Suspended
Floors)
•
•To prevent vibration we recommend you place rubber
cups at least 15 mm thick of the each foot of the
with screws.
Rubber Cup
•If possible install the washing machine in one of the
•Fit the rubber cups to reduce vibration.
•You can obtain rubber cups (p/no.4620ER4002B) from
the LG Service Centre.
NOTE
•Proper placement and leveling of the washing
machine will ensure long, regular, and reliable
operation.
•The washing machine must be 100% horizontal
•It must not ‘Seesaw’ across corners under the
load.
•The installation surface must be clean, free from
•Do not let the feet of the washing machine get
wet. Failure to do so may cause vibration or noise.
12
Leveling the Washing Machine
(Do not insert pieces of wood etc. under the feet). Make
and then check that the appliance is perfectly level (Use
a spirit level).
•Once the washing machine is level, tighten the lock
nuts up towards the base of the washing machine. All
lock nuts must be tightened.
Raise
Lock Nut
Lower
Tighten all 4
locknuts securely
•Diagonal Check
When pushing down the edges of the washing
machine top plate diagonally, the washing machine
should not move up and down at all (Check both
directions). If the washing machine rocks when
pushing the machine top plate diagonally, adjust the
feet again.
NOTE
•
to excessive vibration and unbalance.
•If the washing machine is installed on a raised
platform, it must be securely fastened in order to
eliminate the risk of falling off.
Connecting Inlet Hose
•Water supply pressure must be between 0.1 MPa and
2
).
•Do not strip or crossthread when connecting inlet hose
to the valve.
•If the water supply pressure is more than 1.0 MPa, a
decompression device should be installed.
•Periodically check the condition of the hose and
replace the hose if necessary.
Checking Rubber Seal Inlet Hose
Two rubber seals are supplied with the water inlet hoses.
They are used for preventing water leaks. Make sure the
Hose connector
Rubber seal
Hose connector
Rubber seal
13
ENGLISH

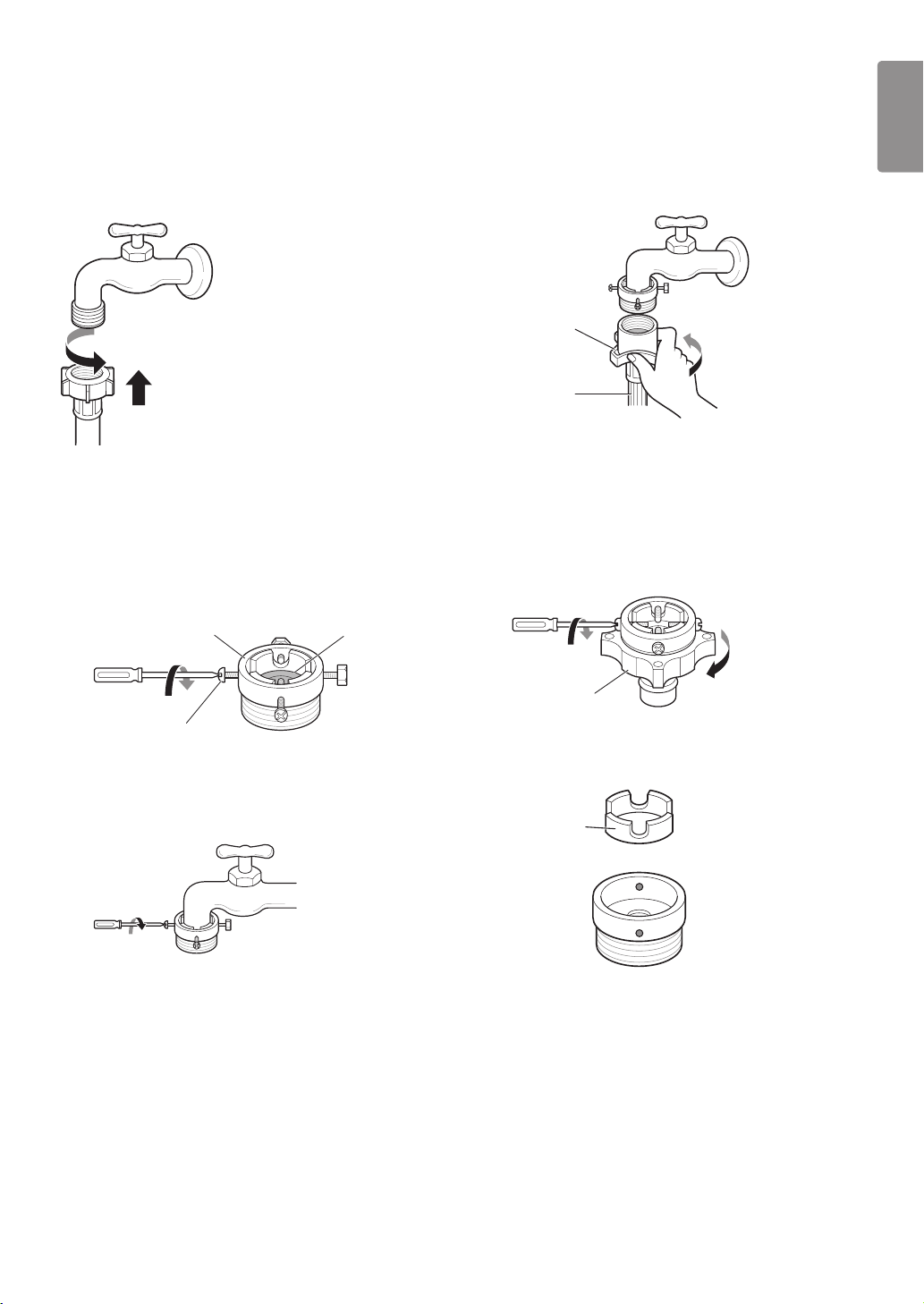

Connecting Hose to Water Tap
Connecting screw-type hose to tap with thread
Screw the hose connector onto the water supply tap.
Connecting screw-type hose to tap without
thread
1
Upper
connector
Rubber
seal
Fixing screw
2Push the adapter onto the end of the tap so that
the rubber seal forms a watertight connection.
3Push the inlet hose vertically upwards so that the
rubber seal within the hose can adhere completely
to the tap and then tighten it by screwing it to the
right.
Plate
Inlet hose
Connecting one touch type hose to tap without
thread
1Unscrew the adapter ring plate and loose the four
Ring plate
2
the adapter.
Guide plate
14
3Push the adapter onto the end of the tap so that
the rubber seal forms a watertight connection.
screws.
4Pull the connector latch plate down, push the inlet
hose onto the adapter, and release the connector
latch plate. Make sure the adapter locks into place.
Latch plate
NOTE
•After connecting the inlet hose to the water
substances (dirt, sand, sawdust, etc.) in the water
lines. Let the water drain into a bucket, and check
the water temperature.
Connecting Hose to Washing Machine
Make sure that there are no kinks in the hose and that
they are not crushed.
When your washing machine has two valves.
•The Inlet hose with the red connector is for the hot
water tap.
NOTE
•After completing connection, if water leaks from
the hose, repeat the same steps.
Use the most conventional type of tap for the
water supply. In case the tap is square or too big,
remove the guide plate before inserting the tap
into the adaptor.
Using the horizontal tap
Horizontal tap
Extension tap
Square tap
15
ENGLISH
Installation of Drain Hose
•The drain hose should not be placed higher than 100
may not drain or may drain slowly.
•
from damage due to water leakage.
•If the drain hose is too long, do not force it back into
the washing machine. This will cause abnormal noise.
about 100 cm
about 145 cm
max. 100 cm
about 105 cm
•When installing the drain hose to a sink, secure it
tightly with string.
•
from damage due to water leakage.
Laundry tub
Hose
retainer
max. 100 cm
Tie strap
max. 100 cm
Electrical Connections (In the UK
Only)
The wires in the mains lead are coloured in accordance
with the following code:
Green and Yellow: Earth
Blue: Neutral
Brown: Live
This appliance must be earthed.
Green and
Yellow (Earth)
Brown (Live)
Blue (Neutral)
Fuse
Cord grip
As the colours of the wires in the mains lead of this
apparatus may not correspond with the coloured
markings identifying the terminals in your plug, proceed
as follows:
The green and yellow wire must be connected to the
terminal in the plug which is marked with the letter E or
by the earth symbol ( ) or coloured Green or Green
and Yellow.
The blue wire must be connected to the terminal which
is marked with the letter N or coloured Black.
The brown wire must be connected to the terminal which
is marked with the letter L or coloured Red.
1362 fuse.
16
OPERATION
Using the Washing Machine
a half load of detergent), allow the washing machine
to wash without clothing. This will remove residue and
water from the drum that may have been left during
manufacturing.
1Sort laundry and load items.
•Sort laundry by fabric type, soil level, colour and
load size as needed. Open the door and load
items into the washing machine.
2Add cleaning products and/or detergent and
softener.
•Add the proper amount of detergent to the
detergent dispenser drawer. If desired, add
bleach or fabric softener to the appropriate areas
of the dispenser.
3Turn on the washing machine.
•Press the Power button to turn ON the washing
machine.
4Choose the desired washing cycle.
•Press the Cycle button repeatedly or turn the
cycle selector knob until the desired cycle is
selected.
5Begin cycle.
•Press the Start/Pause button to begin the cycle.
water to measure the weight of the load. If the
Start/Pause button is not pressed within 5
minutes, the washing machine will shut off and
all settings will be lost.
6End of cycle.
•
Immediately remove your clothing from the
washing machine to reduce wrinkling. Check
around the door seal when removing the load for
small items that may be caught in the seal.
17
ENGLISH
Sorting Iaundry
1Look for a care label on your clothes.
•This will tell you about the fabric content of your
garment and how it should be washed.
•Symbols on the care labels.
Wash temperature
Normal machine wash
Permanent press
Delicate
Hand wash
Do not wash
2Sorting laundry.
•To get the best results, sort clothes into loads
that can be washed with the same wash cycle.
•Different fabrics need to be washed at varying
temperatures and spin speeds.
•Always sort dark colours from pale colours and
whites. Wash separately as dye and lint transfer
can occur causing discolouration of white and
pale garments. If possible, do not wash heavily
soiled items with lightly soiled ones.
– Soil (Heavy, Normal, Light)
Separate clothes according to amount of soil.
– Colour (White, Lights, Darks)
Separate white fabrics from coloured fabrics.
– Lint (Lint producers, Collectors)
Wash lint producers and lint collectors
separately.
3Caring before loading.
•Combine large and small items in a load. Load
•Large items should not be more than half the
total wash load. Do not wash single items. This
may cause an unbalanced load. Add one or two
similar items.
•Check all pockets to make sure that they are
empty. Items such as nails, hair clips, matches,
pens, coins and keys can damage both your
washing machine and your clothes.
•Close zippers, hooks and strings to make sure
that these items don’t snag on other clothes.
•Pre-treat dirt and stains by brushing a small
amount of detergent dissolved water onto stains
to help lift dirt.
•
remove any small articles.
•Check inside the drum and remove any items
from a previous wash.
•
gasket to prevent clothing and gasket damage.
18
Adding Cleaning Products
Detergent Dosage
•Detergent should be used according to the instruction
of the detergent manufacturer and selected according
to type, colour, soiling of the fabric and washing
temperature.
•If too much detergent is used, too many suds can
occur and this will result in poor washing results or
cause heavy load to the motor.
•If you wish to use liquid detergent follow the guidelines
provided by the detergent manufacturer.
•You can pour liquid detergent directly into the
main detergent drawer if you are starting the cycle
immediately.
•Do not use liquid detergent if you are using Time
delay, or if you have selected Pre Wash, as the liquid
may harden.
•If too many suds occur, reduce the detergent amount.
•Detergent usage may need to be adjusted for water
temperature, water hardness, size and soil level of the
load. For best results, avoid oversudsing.
•Refer to the label of the clothes, before chooseing the
detergent and water temperature:
•When using the washing machine, use designated
detergent for each type of clothing only:
– General powdered detergents for all types of fabric
– Powdered detergents for delicate fabric
– Liquid detergents for all types of fabric or
designated detergents only for wool
•For better washing performance and whitening, use
detergent with the general powdered bleach.
•
beginning of the cycle.
NOTE
•Do not let the detergent harden.
Doing so may lead to blockages, poor rinse
performance or odour.
•Full load : According to manufacturer’s
recommendation.
•Part load : 3/4 of the normal amount
•Minimum load : 1/2 of full load
Adding Detergent and Fabric Softener
Adding detergent
•
•
NOTE
•Too much detergent, bleach or softener may
•Be sure to use the appropriate amount of
detergent.
Adding fabric softener
•
cause early dispensing of the fabric softener, which
may stain clothes. Close the dispenser drawer slowly.
19
ENGLISH
•Do not leave the fabric softener in the detergent
drawer for more than 2 days (Fabric softener may
harden).
•Softener will automatically be added during the last
rinse cycle.
•Do not open the drawer when water is being supplied.
•Solvents (benzene, etc) should not be used.
NOTE
•Do not pour fabric softener directly on the clothes.
Adding water softener
•A water softener, such as Anti-limescale (e.g. Calgon)
can be used to cut down on the use of detergent in
extremely hard water areas. Dispense according to
detergent and then the water softener.
•Use the quantity of detergent required for soft water.
Using tablet
1Open the door and put tablets into the drum.
2Load the laundry into the drum and close the door.
20
Control Panel
AB
C
Power button
•Press the Power button to turn the washing
machine on.
•Press and hold the Power button for 1 second
to turn the washing machine off.
Start/Pause button
•This Start/Pause button is used to start the
wash cycle or pause the wash cycle.
•If a temporary stop of the wash cycle is needed,
press the Start/Pause button.
Display
•The display shows the settings, estimated
time remaining, options, and status messages.
When the product is turned on, the default
settings in the display will illuminate.
•A: The display shows estimate time
remaining. While the size of the load is being
calculated automatically, blinking or ‘Detecting’
appears.
•B: The water temperature is displayed when
pressing the Temp. button.
•C: The spin speed level is displayed when
pressing the Spin button.
Programme button
•Programmes are available according to laundry
type.
•Lamp will light up to indicate the selected
programme.
Options
•This allows you to select an additional cycle
and will light when selected.
•Use these buttons to select the desired cycle
options for the selected cycle.
This manual suits for next models
1
Table of contents
Languages:
Other LG Washer manuals
LG
LG F1214WVTM User manual
LG
LG F1480RD5 User manual
LG
LG FH 96/B8 D Series User manual
LG
LG F4Y7 BTN1 Series User manual
LG
LG FH0H3NDNL 2 Series User manual
LG
LG WT901CW User manual
LG
LG WM2277H Series User manual
LG
LG WF-T1407TP User manual
LG
LG WP8WMR User manual
LG
LG STEAM WASHER WM2487H*MA Instruction Manual
Popular Washer manuals by other brands
Hoover
Hoover WDYN 11743D User instructions
Daewoo
Daewoo DWD-FC1011 Service manual
Electrolux
Electrolux EW 1100 F Installation and instruction manual
White-Westinghouse
White-Westinghouse Washer user manual
Kenmore
Kenmore Kenmore Three-Speed Triple Dispenser Automatic... Owner's Manual & Installation Instructions
GEAppliances
GEAppliances GFWN1100 Owner's Manual & Installation Instructions
Haier
Haier HW-C860TVE user manual
Whirlpool
Whirlpool Gold GSW9545JQ0 Use & care guide
CDA
CDA CI981 Installation, use and maintenance
Siemens
Siemens WM14VKH0GC User manual and installation instructions
Beko
Beko WTE 10712 PAR user manual
Alliance Laundry Systems
Alliance Laundry Systems Commercial Automatic Washer Limited warranty
