LG WF-95T User manual

WASHING MACHINE
SERVICE MANUAL
MODELS : WF-T(F,C,S)510(~2)1(~5)PC(H,P,D,E,F)(K,X,S)
WF-T(F,C,S)520(~2)1(~7)PC(H,P,D,E,F)(K,X,S)
WF-T(F,C,S)530(~2)1(~7)TC(H,P,D,E,F)(K,X,S)
WF-T(F,C,S)540(~2)1(~5)TC(H,P,D,E,F)(K,X,S)
WF-T(F,C,S)570(~2)0PC(H,P,D,E,F)(K,X,S)
WF-T(F,C,S)610(~2)1(~5)TC(H,P,D,E,F)(K,X,S)
WF-T(F,C,S)620(~2)1(~7)TC(H,P,D,E,F)(K,X,S)
WF-T(F,C,S)670(~2)0(~5)TC(H,P,D,E,F)(K,X,S)
WF-T(F,C,S)7408(9)T(P)C(H,P,D,E,F)(K,X,S)
WF-T(F,C,S)8301TC(H,P,D,E,F)(K,X,S)
WF-T(F,C,S)840(1)8(9)TC(H,P,D,E,F)(K,X,S)
WF-95T/98XV/99TV/100TVS/1857TVS/F60PC
WF-F62PC/F63PC/T66PC/S5258PH/S5788PCX
WF-F6007PC/F8458PP/S1002TP/S1051TP/6027PC
WF-F608TC/T6000PP/WF-S8618(9)TP(H,C)
WF-S1031TP, WF-6022PCK, WF-T68PC, WF-92CV
WF-7020TC, WF-T8619TP, WF-T7014PP,
WF-S(F/C)8608(9)TP(H,C), WF-80TL, WF-T6605TD, WF-S7601TP
WF-F655TC/F656TC/S5500PC/F611PC/F612PC/F6012
WF-S5800PPK/S5700PPM/S1003TP, WF-S6702PP
WF-F613PC/WF-F610PC/WF-S1041TP/S1000TP/WF-T8617TP
WF-T1051TM/S1051TP/S1061TP
CAUTION
Before servicing the washer, Read the safety precautions in the manual.

2
SAFETY PRECAUTION!
DISASSEMBLE POWER CORD BEFORE SERVING
RECONNECT ALL GROUNDING DEVICES
IMPORTANT SAFETY NOTICE !
This service information is intended for individuals
possessing adequate backgrounds of electrical,
electronic and mechanical experience.
Any attempt to repair this appliance may result in
personal injury or property damage.
The manufacturer or seller can not be responsible
for the interpretation of this information, nor can it
assume any liability in connection with its use.
CONTENTS
1. Specifications..................................................................................................................................................3
2. Installation Instructions....................................................................................................................................4
3. Operating Instructions
3-1. Identification of Parts...........................................................................................................................10
3-2. Before Starting to Wash......................................................................................................................11
3-3. Function of Each Button......................................................................................................................16
3-4. Washing Programs..............................................................................................................................22
3-5. Other Functions...................................................................................................................................26
3-6. Care and Maintenance........................................................................................................................29
4. Service Information
4-1. Schematic Diagram.............................................................................................................................30
4-2. Wiring Diagram ...................................................................................................................................31
4-3. Program Time Chart............................................................................................................................34
4-4. Adjustment..........................................................................................................................................39
4-5. Disassembly Instruction......................................................................................................................40
4-6. Test Running without water.................................................................................................................43
4-7. Trouble Shooting against Common Washing Problems .....................................................................44
4-8. Trouble Shooting According to Error Message...................................................................................45
4-9. How to Diagnose and Repair by Symptom.........................................................................................46
5. Exploded View ............................................................................................................................................58
6. Replacement Part List...................................................................................................................................62

3
1. SPECIFICATIONS
WF-T(F,C,S)8301 Series
WF-100TVS / 1857TVS / S1051TP / S1003TP /
S1041TP / S1000TP
WF-T1051TM / S1051TP / S1061TP
Refer to rating label on the back of Washer
Refer to rating label on the back of Washer
Refer to rating label on the back of Washer
Stainless
0.3kgf/cm2~ 8kgf/cm2
250V, 6A for 220~240V/50Hz
125V, 12A for100~127V/60Hz
50Hz : 700 50
60Hz : 740 50
Refer to rating label on the back of Washer
Refer to rating label on the back of Washer
Fuzzy, Economy, Jean, Wool
4 Stages
6,9 or 15 Hrs
B.P Sensor
Magnet Sensor
Applied
Double
Applied
Applied
Applied
Applied
Model
Power Sourse
Input
Capacity
Inner Tub
Inlet Water
Pressure
Rating of
Fuse
Spin Speed
Dim.
Weight
Program
Water Level
Reservation
Unbalance
Switch
Lid Interlock
Switch
Child Lock
Lint Filter
Softener
Dispenser
Detergent
Dispenser
Bleach Inlet
Auto Power
Off
Refer to rating label on the back of Washer
Refer to rating label on the back of Washer
Refer to rating label on the back of Washer
Plastic / Stainless
0.3kgf/cm2~ 8kgf/cm2
250V, 6A for 220~240V/50Hz
125V, 12A for100~127V/60Hz
50Hz : 700 50
60Hz : 740 50
Refer to rating label on the back of Washer
Refer to rating label on the back of Washer
Fuzzy, Economy, Jean, Wool
4 Stages
6,9 or 15 Hrs
B.P Sensor
Magnet Sensor
Applied
Single
Applied
Applied
Applied
Applied
WF-T(F,C,S)7408(9) Series
WF-T(F,C,S)840(1)8(9) Series
WF-95T/98XV/99TV/F8458PP
WF-S1002TP
WF-S8618(9) Series
WF-S1031TP/8619TP
WF-S(F/C)8608(9)TP(H,C)/T8617TP
Refer to rating label on the back of Washer
Refer to rating label on the back of Washer
Refer to rating label on the back of Washer
Plastic / Stainless
0.3kgf/cm2~ 8kgf/cm2
250V, 6A for 220~240V/50Hz
125V, 12A for100~127V/60Hz
50Hz : 700 50
60Hz : 740 50
Refer to rating label on the back of Washer
Refer to rating label on the back of Washer
Fuzzy, Economy, Jean, Wool
4 Stages
6,9 or 15 Hrs
B.P Sensor
Magnet Sensor
Applied
Single / Double
Applied
Applied
Applied
Applied
WF-T(F,C,S)51(~4,7)0(~2)0(~7)Serie
WF-T(F,C,S,)61(2,7)0(~2)0(~7) Series
WF-92CV/T68PC, WF-6022PCK
WF-F60(2,3)PC/T66PC/T6000PP
WF-S5258PH/S5788PCX
WF-F6007PC/6027PC/F608TC/F6012
WF-7020TC/T7014PP/80TL/T6605TD/S7601TP
WF-T(F,C,S)670(~2)1(~5)P(T)C(H,P,D,E,F)
WF-F655TC/F656TC/S5500PC/F611PC/F612PC
WF-S5800PPK/5700PPM/S6702PP

2. INSTALLATION INSTRUCTIONS

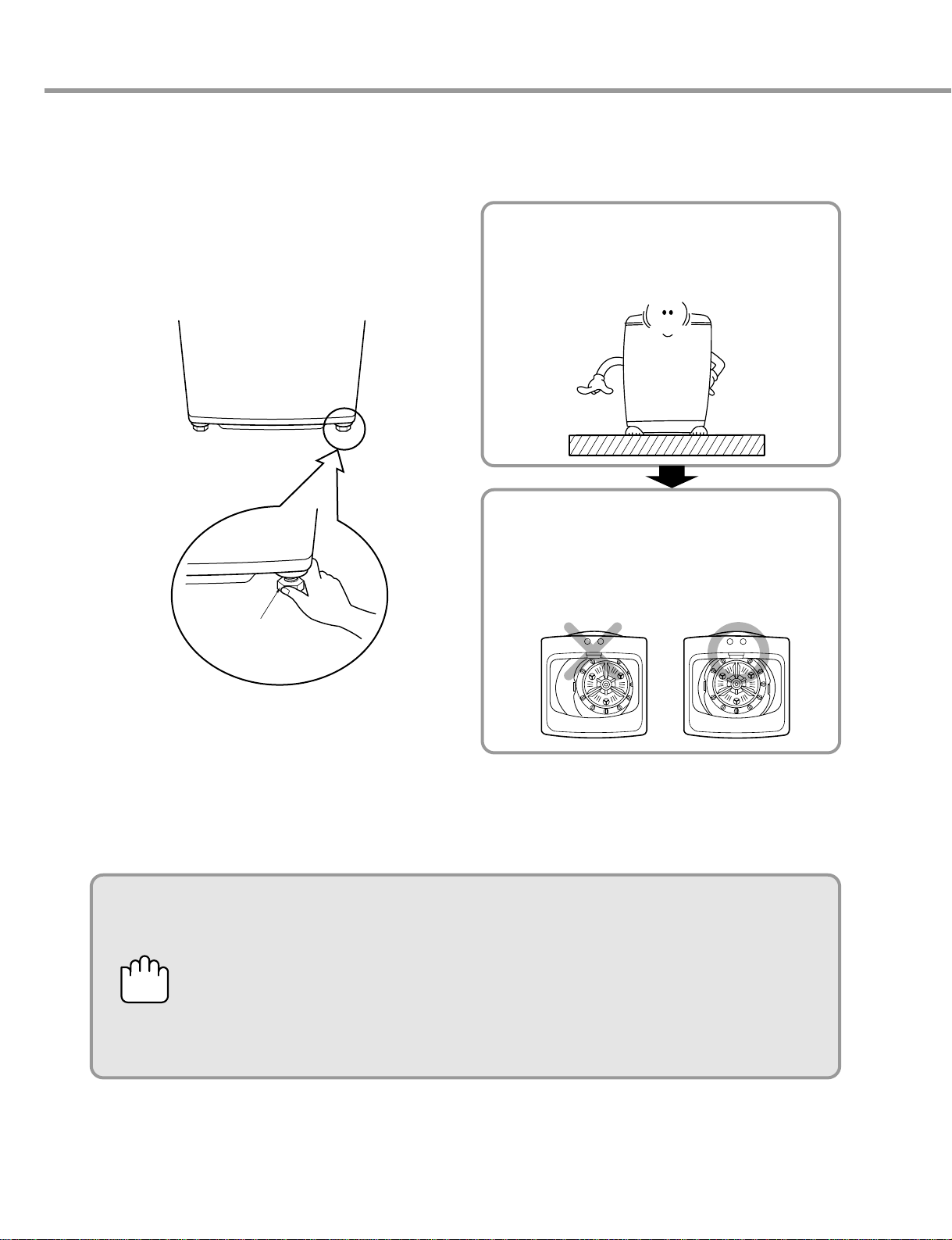

2-1. HOW TO ADJUST LEVEL
4
How to use the adjusting plates
∙ Use the adjusting plates to level the washer when the
adjustable legs cannot cover the gap.
1
2
Adjustable leg
Turn the adjustable legs to set the washer
horizontal (2 EA).
Installation area
∙Install the washer on flat and firm
surface.
Improper installation of the washer may cause noise and malfunctioning.
1. The ventilating openings in the base area must not be obstructed be carpeting
when the washing machine is installed on a carpeted floor.
2. Install the washing machine on a level and firm surface, any tilt should be
less than 1�� .
CAUTION
Checking level
∙Open the lid, and check if the washer is
correctly leveled by looking down from
the top.

5
More than 10cm
More than 2cm
More than 2cm
35
4
Horizontal setting
∙Lift up the front of the washer and
adjust level by turning the adjustable
legs clockwise or using the adjusting
plate.
Confirming level
Distance between drain hose and the wall
Checking slope
∙If installation surface is tilted, the
washer will be shaken.
∙Place the washer to original position
and confirm the level.
∙
Distance between drain hose and the wall
should be more than 10 cm, and the distance
between the other part and the wall should be
more than 2 cm.

2-2. CONNECTING WATER SUPPLY HOSE
6
Before connecting Water Supply Hose to water tap, check your hose type
and choose correct instruction. Water Supply Hose may vary according to
the country.
Make sure connect blue inlet hose to cold water tab, and orange inlet hose
to hot water tab.

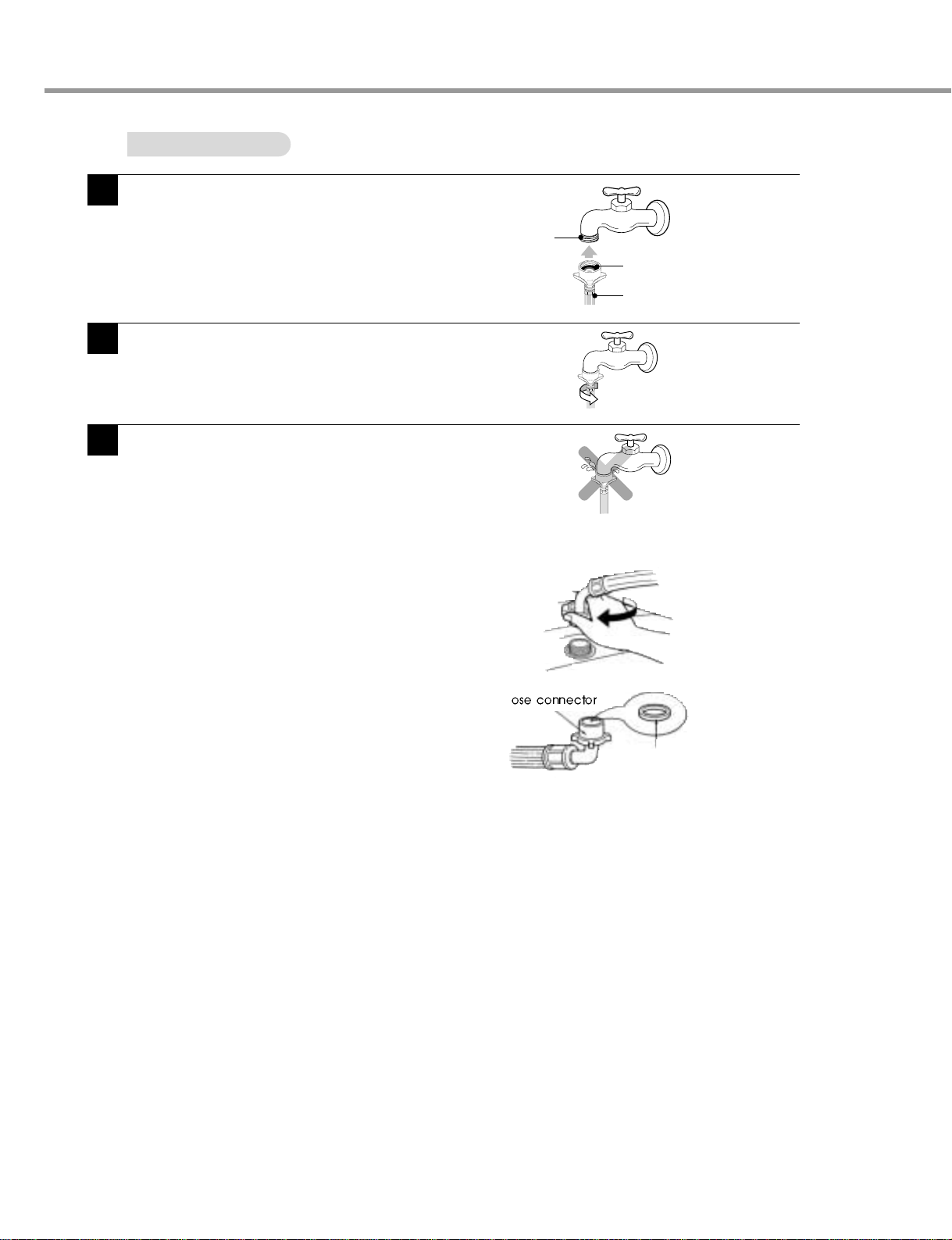

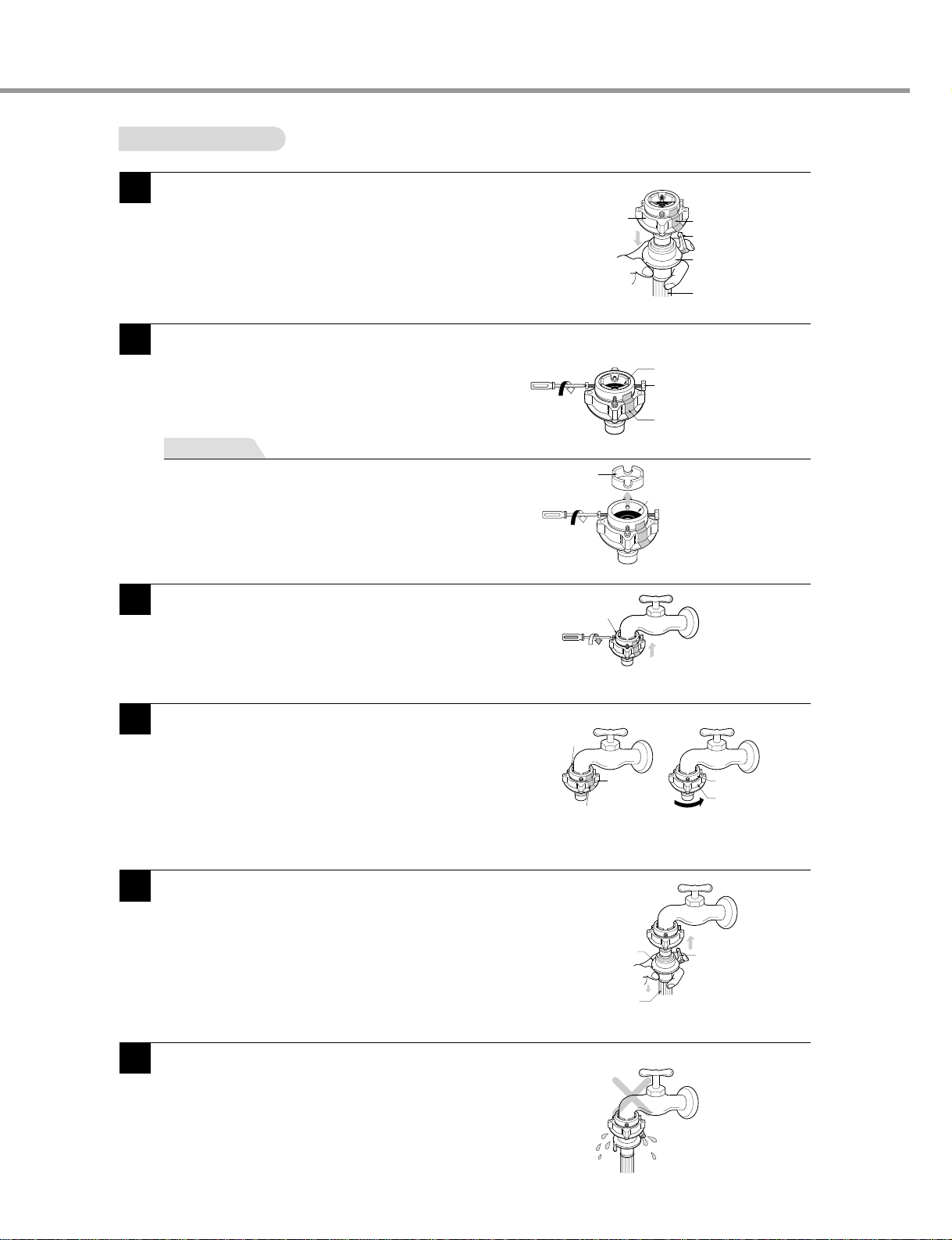

Connecting Water Supply Hose to water tap
Rubber packing
Water supply hose
Connector
Untighten the screw
Untighten the screw of the connector so
that the tap can be placed in the middle.
Fixing the connector to the tap
Push the upper connector up till the rubber
packing is in tight contact with the tap. Then
tighten the 4 screws.
Attach the water supply hose to the connector
Push the water supply hose vertically
upwards so that the rubber seal within the
hose can adhere completely to the tap.
Check the connection of water supply hose and the connector
After connecting the hose, open the tap to
check for any water leakage.
In case of water leakage, close the tap and
start again from step 1
Fixing the connector of connector and water supply hose
Attach the water supply hose to the
connector and then tighten it by screwing it
to the right.
Normal Type
Normal tab without thread & screw type inlet hose.)
1
2
3
4
5

7
Rubber packing
Screw
Fixed sticker
Rubber packing
Guide plate
Connector
Connector
Fixed sticker
Middle
Connector Middle
Connector
Water Supply Hose
Pressing rod Pressing handle
Connector
Middle
connector Fixed Stiicker
Pressing Handle
Pressing Rod
Water Supply Hose
Separate Middle connector from Water Supply Hose
Separate Middle connector from the Water
Supply Hose by pulling the Pressing Rod and
the Pressing Handle that is attached to the
Water Supply Hose while pressing them.
Loosen the fixed nuts to connect the connector to the tap
Untighten the screw of the connector so that
the tap can be placed in the middle.
Fixing Connectors to the Tap
Push the upper connector up till the rubber
packing is in tight contact with the tap. Then
tighten the 4 screws.
Fixing Upper Connector and Middle Connector
Remove the fixed sticker in between the
Upper and Middle Connectors. Tighten the
connectors by holding one connector and
twist middle connector to the right.
Connecting Middle Connector and Water Supply Hose
Press down the pressing rod of the Water
Supply Hose which was separated from
middle connector(refer to Step1) and then
join it to the middle connector.
One Touch Type
If the tap diameter is too large or is square,
open the 4 screw and take out the guide
plate and follow step 1.
In case the tap is large.
Note
Checking the water leakage
After connecting the hose, open the tap to
check for any water leakage.
In case of water leakage, close the tap and
start again from step 1.
If you skip step1, it may cause water leakage.
(NORMAL TAB WITHOUY THREAD & ONE TOUCH TYPE INLET HOSE.)
1
2
3
4
5
6

8
Attach the water supply hose to the tap.
Push the water supply hose up so that the
rubber packing within the hose can adhere
completely to the tap.
Connect the water supply hose to the tap.
Connect the water supply hose to the tap and
then tighten it by screwing it to the right.
Check water leakage.
After connecting the hose, open the faucet to
check for any water leakage.
Connect the water supply hose to inlet valve
of the washing machine, and then lock it by
turning the hose connecting part.
Check to see if there is a rubber seal inside
the connector.
Screw Type
Water Supply Hose
Rubber Packing
H
Rubber seal
Water
tap
Connecting Water Supply Hose to the machine
1
2
3

9

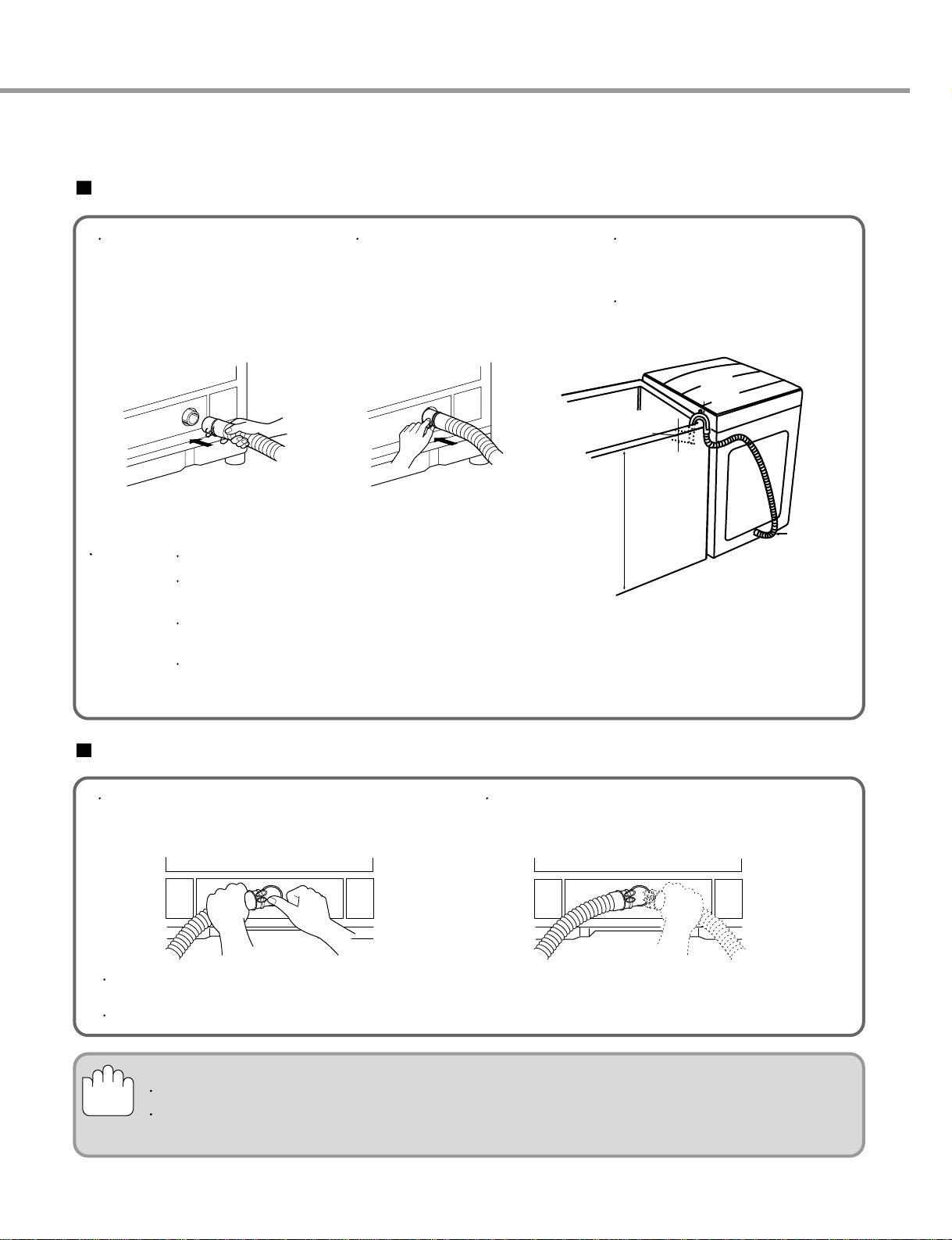

2-3. CONNECT THE DRAIN HOSE
CAUTION
Hose
Guide
0.9~1.2m Drain Hose
Within 50mm
Connect the drain hose to
the outlet of the drain pump
located at the rear of the
washing machine.
Attach the clip to the drain
hose. And then push it toward
the body of the washing
machine as indicated by the
arrow.
Check that the drain hose is
hung up over the edge of the
laundry tub.
Do not use an extension hose.
Connect the drain hose to the outlet of the
drain located at the back side of the
washing machine.
Fix the drain hose with the clip.
And then push it toward the body as in the
figure.
Keep it downward while the washing machine
is working.
Ensure the hose is free from kinking.
Never lay down the drain hose, as water will be discharged.
Be sure the drain hose is properly routed so it will not kink
or lift from the sink.
The discharge height should be approximately 0.9~1.2m from
the floor.
Connect the drain hose adjusting the length of it not to be
dropped. If drain hose is dropped the drainage could be poor
because of blockage in the hose.
NOTE
:
Do not install the washer where it is directly exposed to sunlight, wind, rain etc.
Plug the power cord of this washer into a properly installed standard electrical outlet
that is switched & earthed.
For pump model
For non - pump model

3. OPERATING INSTRUCTION
3-1. IDENTIFICATION OF PARTS
10
SOFTENER DISPENSER
• Softener will automatically
flow into the tub.
(Softener dispenser for
WF-#83 Series is located in
detergent box of top cover.)
BLEACH INLET
DETERGENT DISPENSER
FUNCTION
SELECTORS
PULSATOR
ANTI RAT BASE
ADJUSTABLE LEG
SPINDLE
DRAIN HOSE
For non Pump Model
• Keep downward while the
washing machine is
working.
DRAIN HOSE
For Pump Model
• Check out if the drain hose is
hung up before operating the
washing machine.
POWER SUPPLY
CORD
WATER SUPPLY HOSE
• Make sure that water does
not leak.
• In case of one valve model
water supply hose is one.

11
3-2. BEFORE STARTING TO WASH
•Check all pockets to make sure that they are empty. Things such as nails, hairclips, matches, pens,
coins, and keys can damage both your washer and your clothes.
•Mend any torn garments or loose buttons. Tears or holes may become larger during washing.
• Remove belts, underwires, etc. to prevent damage to the machine or your clothes.
• Pretreat any dirt and stains.
• Make sure the clothes are washable in water.
• Check the washing instructions.
• Remove tissue in pockets.
To get the best results, different fabrics need to be washed in different ways.
• SOIL (Heavy, Normal, Light) Separate clothes according to the type and amount of soil.
• COLOR (Whites, Lights, Darks) Separate white fabrics from colored fabrics.
• LINT (Lint producers, Collectors) Separate lint producers and lint collectors.
Lint Producers Terry cloth, Chenile, Towels, Nappies, Diapers
Lint Collectors Synthetics, Corduroy, Permanent Press, Socks
WIRE
Sorting
Check before Loading
* Look for a care label on your clothes. This will tell you about the fabric content of your garment
and how it should be washed.
Sort clothes into loads that can be washed with the same wash cycle, water temperature and spin speed.
Care Labels
Use nylon nets for long, delicate items. For laundry with long strings or long length , a net
will prevent tangling during washing.
Fasten zippers, hook, and strings to make sure that
these items don't snag on other clothes.
Nylon net is not supplied by LG.
Clothes like downs and woollens are light weight, large and float easily.
Use a nylon net and wash them in a small amount of water. If the laundry floats during the wash
cycle, it may become damaged. Use dissolved detergent to prevent the detergent from clumping.
Light and Large-sized clothing
Long laundry items
Do not wash fabrics containing flammable materials (waxes, cleaning fluids, etc.).
Load Size
The water level should just cover the clothes. Adjust the load size accordingly.
Loosely load clothes no higher than the top row of holes in the washer tub. To
add items after washer has started, press Start button and submerge additional
items. Close the lid and press Start button again to restart.
Loading
•Pretreat shirt collars and cuffs with a pre-wash product or liquid detergent when placing them in the washer.
Before washing treat special stains with bar soaps, liquid detergent or a paste of water and granular detergent.
•Use a pretreat soil and stain remover.
Treat stains AS SOON AS POSSIBLE. The longer they are left the harder they are to remove.
Pretreatment on stains or heavy soil
Fire Hazard
Never place items in the washer that are
dampened with gasoline or other
flammable fluids.
No washer can completely remove oil.
Do not dry anything that has ever had any
type of oil on it (including cooking oils).
Doing so can result in death, explosion, or
fire.
WARNING

12
•The temperature of the water impacts the effectiveness of all laundry additives and therefore, the cleaning
results. We recommend temperatures of:
- HOT 49~60°C…(120-140˚F) White items, diapers, underclothing and heavily soiled, colorfast items.
- WARM 29~40°C…(85-105˚F) Most items
- COLD* 18~24°C…(65-75˚F) Only very bright colors with light soil.
•When washing in cold water additional steps may be needed:
- Adjust detergent amount and pre-dissolve detergent in warm water
- Pretreat spots and stains
- Soak heavily soiled items
- Use appropriate bleach
* Temperature below 18°C…(65˚F) will not activate laundry additives and may cause lint, residue, poor cleaning,
etc. In addition, detergent manufactures and care labels define cold water as 26~29°C…(80-85˚F).
If the temperature of the water in the tub is too cold for your hands, the detergent will not activate and clean
effectively.
Using Detergent
Detergent
Follow the detergent package directions. Using too little detergent is a common cause of laundry problems.
Use more detergent if you have hard water, large loads, greasy or oily soils or lower water temperature.
Choosing the right detergent
We recommend the use of domestic detergent, (powder, liquid or concentrated). Soap flakes or granulated
soap powders should not be used in your washing machine. When washing woolens remember to use
detergent suitable for washing woolens.
Water temperature
Using Water
•The machine sets the appropriate temperature automatically according to the wash program .
•You can change the water temperature by pressing the WATER TEMP button.
•This machine detects the quantity of laundry automatically, then sets the water level and
proper amount of detergent.
•When you select a wash program, the water level and amount of detergent (to be used)
will be shown on the control panel.
•The following table shows the amount of water.
•When the water level is automatically detected, it may differ depending on the quantity of laundry even
though the same water level is indicated on the control panel.
•The amount of a cup in the diagram is about 40g for concentrated detergent.
Amount of Water Level
EX-LARGE
LARGE
MEDIUM
SMALL
WATER.DETERGENT
D
T
L
Attention
If iron is present in the water the clothes may become an all-over yellow or they may be stained with brown
or orange spots or streaks. Iron is not always visible. Installation of water softener or an iron filter may be
necessary for severe cases.

13
Open the detergent dispenser and deposit the appropriate
amount of detergent.
Some detergents MUST be fully dissolved before
adding to your machine to get the best wash results.
Check the instructions on the detergent packet.
If you use powdered detergent it is essential that the required amount
be fully dissolved in very hot water before being added to warm or hot
water for the actual wash.
Pre-dissolving detergent in warm water when washing in cold water can
improve its performance.
Attentión
Using Detergent
How much detergent
When you select a wash program the water level and the amount of detergent (to be used) will be shown
on the control panel. The amount of a cup in the diagram is about 40g for concentrated detergent.
The correct amount of detergent will vary depending on the amount of soil in your clothes (Jeans and work
cloches may need more detergent, while bath towels usually need less.).
For liquid and concentrated detergents, follow the recommendations of the detergent manufacturer.
Note: To check you are using the correct amount of detergent, lift the lid of your machine about
half-way through the wash. There should be a thin layer of foam over the surface of the water. Lots
of foam may look good, but it does not contribute to cleaning your clothes. No foam means not
enough detergent has been used; soil and lint can settle back on the clothes or the washing
machine.
If excess detergent is used, the rinse will not be as clean and efficient. Also, it could cause
environmental pollution, so use it accordingly.
Adding the detergent
•Check clothing care label for special instructions and separate
the laundry to be bleached
•Dilute liquid chlorine bleach.
•Measure the recommended amount of liquid bleach carefully
following instructions on the bottle.
•Before starting the washer, pour measured amount of bleach
directly into bleach dispenser. Avoid splashing or overfilling.
Powdered bleach should be mixed with water before pouring.
Using Liquid Bleach
Bleach dispenser
( )
Attention
■Never pour undiluted liquid bleach directly onto clothes or into the wash basket.
This may cause change of color or damage the laundry.
■Do not mix chlorine bleach with ammonia or acids such as vinegar and/or rust remover. Mixing can reduce
a toxic gas which may cause death.
■Do not pour powdered bleach into bleach dispenser.
Where you deposit
the detergent
Powder Detergent

14
Using Fabric Softener (Except for WF-#83 Series)
Using Fabric Softener (For WF-#83 Series)
If you wish to use fabric softener we recommend
Attention
■Do not mix with detergent or bleach.
■Never pour fabric softener directly on clothes. It may stain them.
■Do not stop the washer during the first spin for timely dispensing.
■Option washing is not designed to be used with fabric softener dispenser.
•Dilute fabric softener with water.
Undiluted fabric softener may result in spots that look like oil stains.
•Measure and add the recommended amount of fabric softener into the
compartment marked with this smbol( ).
Follow manufacturer’s direction. Fabric softener is automatically dispensed
in the final rinse.
Do not overfill. The dispenser hold max 35mL.
Never add more than 35mL.
Overfilling can cause early dispensing of the fabric softener
which could result in stained clothes. A cup with a pouring spout will help you avoid spilling.
•The effect of adding fabric softener may vary according to its viscosity. The stickier fabric softener makes its effect the
lower. For a sticky fabric softener it is recommended that it be diluted with water, then be manually put during the time
when the washer beeps several times before the final rinse. This function informing correct time to dispense manually is
optionally applied to some models. Please keep it in mind that fabric softener has to be diluted with water before
dispensed and never poured directly on clothes.
Scrud(Waxy Build up)
Softener dispenser ( )
or
Scrud is the name given to the waxy build-up that can occur within any washer when the fabric softener comes into contact with
detergent. This build-up is not brought about by a fault in the machine.
If scrud is allowed to build-up in the machine it can result in stains on your clothes or an unpleasant smell in your washer.
•Using fabric softener sparingly.
•When filling the dispenser, do not splash or overfill.
•Clean dispenser as soon as the cycle is finished.
•Clean your machine regularly. (refer to page 25)
•Cold water washing increases the chance of this build-up occurring. We recommend a regular warm or hot wash e.g. every 5th
wash should be at least a warm one.
•Fabric softener of thinner consistency is less likely to leave residue on the dispenser and contribute to a build-up.
Fabric Softener Cap
* If the softener is over filled, it can over flow.
Powder Detergent & Fabric Softener dispenser.
Where you deposit
the softener
Available Fabric Softener Type
Depositing Fabric Softener
Limit Line
Depositing
softener
don’t fill it
above the
limit line.
•Do not use concentrated fabric softener. This may cause some problems in automatic dispensing.
•For more details refer to the softener products instructions for use.
•Don't use softener with detergent. Use softener in last rinse water
•When using dispenser, dilute softener (30ml) with fresh water (30ml)
•When filling dispenser, do not splash or overfill. It may stain clothes.
•Never pour fabric softener directly on clothes. It may stain them
•If spotting occurs, wet and rub hand dishwashing liquid (or mild bar
soap) and rewash.
Fabric Softener will be inserted automatically during the final rinse and the machine gives on alarm sound.
When water pressure is low, the softener may have to be inserted manually.
Note

15
•Remove stains promptly.
•Determine the kind of stain, then follow the recommended treatment in the stain
removal chart below.
•To pretreat stains, use a prewash product, liquid detergent, or a paste made from
granular detergent and water.
•Use cold water on unknown stains because hot water can set stains.
•Check care label instructions for treatments to avoid on specific fabrics.
•Check for colorfastness by testing stain remover on an inside seam.
•Rinse and wash items after stain removal.
For successful stain removal:
Follow fabric care label
instructions
■ Do not use or mix liquid chlorine bleach with other household chemicals such as toilet cleaners, rust removers, acid or products
containing ammonia. These mixtures can produce dangerous fumes which can cause serious injury or death.
■ To reduce the risk of fire or serious injury to persons or property, comply with the basic warnings listed below:
•Read and comply with all instructions on stain removal products.
•Keep stain removal products in their original labeled containers and out of children’s reach.
•Thoroughly wash any utensil used.
•Do not combine stain removal products, especially ammonia and chlorine bleach. Dangerous fumes may result.
•Never wash items which have been previously cleaned in, washed in, soaked in or spotted with gasoline, dry cleaning
solvents or other flammable or explosive substances because they give off vapors that could ignite or explode.
•Never use highly flammable solvents, such as gasoline, inside the home. Vapors can explode on contact with flames or
sparks.
WARNING
Stain Removal
STAIN
Adhesive tape, chewing gum,
rubber cement
Baby formula, dairy products, egg
Beverages (coffee, tea, soda,
juice, alcoholic beverages)
Blood
Candle wax, crayon
Chocolate
Collar or cuff soil, cosmetics
Dye transfer on white fabric
Grass
Grease, oil, tar (butter, fats, salad
dressing, cooking oils, car grease,
motor oils)
Ink
Mildew, scorch
Mud
Mustard, tomato
Nail polish
Paint, varnish
Rust, brown or yellow
discoloration
Shoe polish
Apply ice. Scrape off excess. Place stain face down on paper towels. Saturate with prewash stain remover or
nonflammable dry cleaning fluid.
Use product containing enzymes to pretreat or soak stains.
Pretreat stain. Wash using cold water and bleach safe for fabric.
Rinse with cold water. Rub with bar soap. Or pretreat or soak with product containing enzymes. Wash using
bleach safe for fabric.
Scrape off surface wax. Place stain face down between paper towels. Press with warm iron until wax is
absorbed. Replace paper towels frequently. Treat remaining stain with prewash stain remover or
nonflammable dry cleaning fluid. Hand wash to remove solvent. Wash using bleach safe for fabric.
Pretreat or soak in warm water using product containing enzymes. Wash using bleach safe for fabric.
Pretreat with prewash stain remover or rub with bar soap.
Use packaged color remover. Wash using bleach safe for fabric.
Pretreat or soak in warm water using product containing enzymes. Wash using bleach safe for fabric.
Scrape residue from fabric. Pretreat. Wash using hottest water safe for fabric. For heavy stains and tar, apply
nonflammable dry cleaning fluid to back of stain. Replace towels under stain frequently. Rinse throughly.
Wash using hottest water safe for fabric.
Some inks may be impossible to remove. Washing may set some inks. Use prewash stain remover,
denatured alcohol or nonflammable dry cleaning fluid.
Wash with chlorine bleach if safe for fabric. Or, soak in oxygen bleach and hot water before washing. Badly
mildewed fabrics may be permanently damaged.
Brush off dry mud. Pretreat or soak with product containing enzymes.
Pretreat with prewash stain remover. Wash using bleach safe for fabric.
May be impossible to remove. Place stain face down on paper towels. Apply nail polish remover to back of
stain. Repeat, replacing paper towels frequently. Do not use on acetate fabrics.
WATER BASED : Rinse fabric in cool water while stain is wet. Wash. Once paint is dry, it cannot be removed,
OIL BASED AND VARNISH : Use solvent recommended on can label. Rinse throughly before washing.
For spots, use rust remover safe for fabric. For discoloration of an entire load, use phosphate detergent and
nonchlorine bleach. Do not use chlorine bleach because it may intensify discoloration.
LIQUID : Pretreat with a paste of granular detergent and water. PASTE : Scrape residue from fabric. Pretreat
with prewash stain remover or nonflammable dry cleaning fluid. Rub detergent into dampened area, Wash
using bleach safe for fabric.
TREATMENT
Special Guide for Stain Removal

16
3-3. FUNCTION OF EACH BUTTON
1) Models with water temp. control
WATER
LEVELLEVEL
WATER
TEMPTEMP.PRO-
GRAM
PRO-PRO-
CESSCESS START
PAUSE
EX-LARGE
LARGE
MEDIUM
SMALL
DETERGENT WATER
TURBO
WASH
RINSE
SPIN
How to select temp.
■ Use it to select hot or cold water
(When hot water only is selected, hot
water is supplied for washing and cold
water are supplied for rinsing).
■ In WOOL program, cold water is
selected automatically.
(Hot water may damage the fabric).
Child lock function
■ Use to lock or unlock the control buttons
to prevent all the setting being change
by a child.
■ For locking, push both buttons
(PROCESS+PROGRAM)
simultaneously and for unlocking, push
them one more in washing process
How to use Process
■ Use to select the desired function among soak,wash,rinse and spin.
■ By pression the button,it cycle
[WASH+RINCE+SPIN] �[RINSE+SPIN] �[RINSE] �
[WASH+RINSE]�[WASH]�
[TURBO(SOAK)+WASH+RINSE+SPIN] �
[TURBO(SOAK)+WASH+RINSE ] �[TURBO(SOAK)+WASH].
How to adjust the water level
■ By pressing the button, it cycles
[LARGE �EX-LARGE �SMALL�MEDIUM�LARGE]
■ At FUZZY program, water level is selected automatically based on the
amount of laundry.
■ Water level is set to LARGE for WOOL program, EX-LARGE for
BLANKET PROGRAM.
■ Water level can be adjusted even when the washer is in operation.
▶Changing various functions is possible only in PAUSE state.
Selection button does not work when the washer is in operation (Except for water level, water temp).
Note
* The control panel may differ according to different models

17
WATER
LEVEL
WATER
TEMP. PRO-PRO-
GRAMGRAM
PRO-
CESS START
PAUSE
FUZZY
ECONOMY
JEAN
WOOL
AUTO OFF
O (SOAK)
Start and temporary pause
■ Use it to start or pause temporarily.
■ Pressing the button repeats start and temporary
pause.
■ After 10 minutes in a temporary pause state,
the power will automatically turn off.
How to select a washing program
■ Use it to select washing programs.
■ By pressing the button, it cycles
[ FUZZY �ECONOMY �JEAN �WOOL �
FUZZY ]
AUTO OFF (Power) button
■ Use to turn the power on or off.
■ Push again and power goes on or off
■ The power goes off automatically about 10
seconds after the wash is finished.
How to use delayed washing
■ Use this function for delayed washing.
■ Use it to set the delay time.
■ By pressing the button, it cycles
[6 �9 �15(6+9) �6] hours.
■ To cancel delay time, turn the power switch off.
: 3 step works at large and medium water level of Fuzzy and Jean course.

WATER
LEVELLEVEL
DELADELAY
STARTPRO-
GRAM
PRO-PRO-
CESSCESS START
PAUSE
TURBO
WASH
RINSE
SPIN
EX-LARGE
LARGE
MEDIUM
SMALL
DETERGENT WATER
HOUR
18
2) Models without water temp. Control
How to use delayed washing
■ Use this function for delayed washing.
■ Use it to set the delay time.
■ By pressing the button, it cycles
[6 �9 �15(6+9) �6] hours.
■ To cancel delay time, turn the power
switch off.
How to use Process
■ Use to select the desired function among soak,wash,rinse and
spin.
■ By pression the button,it cycle
[WASH+RINCE+SPIN] �[RINSE+SPIN] �[RINSE] �
[WASH+RINSE] �[WASH] �
[TURBO(SOAK)+WASH+RINSE+SPIN ] �
[TURBO(SOAK)+WASH+RINSE] �[TURBO(SOAK)+WASH].
How to adjust the water level
■ By pressing the button, it cycles
[LARGE �EX-LARGE �SMALL�MEDIUM�LARGE]
■ At FUZZY program, water level is selected automatically based on the amount of laundry.
■ Water level is set to LARGE for WOOL program.
■ Water level can be adjusted even when the washer is in operation.
▶Changing various functions is possible only in PAUSE state.
Selection button does not work when the washer is in operation (Except for water level, water temp).
Note
* The control panel may differ according to different models

WATER
LEVEL
DELAY
START PRO-PRO-
GRAMGRAM
PRO-
CESS START
PAUSE
FUZZY
ECONOMY
JEAN
WOOL
O
(SOAK)
AUTO OFF
19
Start and temporary pause
■ Use it to start or pause temporarily.
■ Pressing the button repeats start and temporary
pause.
■ After 10 minutes in a temporary pause state,
the power will automatically turn off.
How to select a washing program
■ Use it to select washing programs.
■ By pressing the button, it cycles
[ FUZZY �ECONOMY �JEAN �WOOL �
FUZZY ]
AUTO OFF (Power) button
■ Use to turn the power on or off.
■ Push again and power goes on or off
■ The power goes off automatically about 10
seconds after the wash is finished.
Child lock function
■ Use to lock or unlock the control buttons to
prevent all the setting being change by a
child.
■ For locking, push both buttons
(PROCESS+PROGRAM) simultaneously and
for unlocking, push them one more in washing
process
: 3 step works at large and medium water level of Fuzzy and Jean Program.

20
3) Models with Speedy Soak Process
▶Changing various functions is possible only in PAUSE state.
Selection button does not work when the washer is in operation (Except for water level, water temp).
WATER
LEVELLEVEL
WATER
TEMPTEMP.PRO-
GRAM
PRO-PRO-
CESSCESS START
PAUSE
Speedy Soa
Wash
Rinse
Spin
Ex-Large
Large
Medium
Small
DETERGENT WATER
Warm Hot
Cold
Water temperature button
(option) Water level button
(indication of detergent amount)
•Use to adjust the water level as required. The
appropriate amount of detergent is shown next to the
water level in the Water-Detergent diagram
•Water level is automatically selected for fuzzy (normal)
program.
The following settings are indicated as the button is
pushed Large Ex-Large Small Medium Large
• Use to select water temperature.
Pressing the button allows you to select
Cold Warm (Hot&Cold) Hot Cold
respectively. Default setting is Cold.
Child lock function
Use to lock or unlock the control buttons to prevent
settings from being changed by a child.
To lock, push the PROCESS and PROGRAM buttons
simultaneously and to unlock push them one more time
during the washing process.
Process button
•Use to select Speedy soak,
Wash, Rinse and Spin functions
as desired.
Note
The control panel may differ according to different models
