LG WF-T5001 series User manual

Washing
Machine
OWNER'S MANUAL
Please read this manual
carefully
before
operating your
set.
Retain it for future reference.
Record model name and serial number of the set.
Quote
this information to
your
dealer when
you require
service.
MODEL
:
WF-T5001(~2)PC(H/P)
WF-T5011(~2)PC(H/P)
WF-T6001(~2)TC(H/P)
WF-T6011(~2)TC(H/P)
WF-T5001(~2)PD(E/F)
WF-T5011(~2)PD(E/F)
WF-T6001(~2)TD(E/F)
WF-T6011(~2)TD(E/F)
WF-T7001(~2)TC(H/P)
WF-T7011(~2)TC(H/P)
WF-T7001(~2)TD(E/F)
WF-T7011(~2)TD(E/F)

P
roduct Features
Punch
+
3
washing
action
The
punch
action's
powerful
vertical water thrust
combined with the
rotating pulsator
movement
improves washing performance
and reduces
tangles.
3
Spinning mini-pulsators
create
powerful jets
of
water which move the
laundry up
and down
in
the
drum to ensure
your laundry
is
evenly
and
thoroughly
washed.
The Turbo Drum
washing
machine does not
operate
with the lid
open.
If
the lid is
opened during
wash,
rinse and
spin cycles,
the machine
will
stop
automatically.
Fuzzy Logic
Control
A
built-in load sensor
automatically
detects and measures the
laundry
load a
microprocessor optimizes washing
conditions such as ideal water
consumption
and
washing
time.
Advanced
technology
is built into the Electronic Control
System
which ensures
the best
washing
result.
Turbo Drum
washing
While the "Punch
+
3"
pulsator
rotates
in
one
direction,
the Turbo Drum rotates
in
the
opposite
direction. This creates an even flow of water
in
both
the
upper
and lower
parts
of the
drum,
resulting
in
an
enhanced
washing
and
rinsing
action.
Lint Filter
Lint and loose threads from
laundry generated
during
the
washing cycle
are
caught by
the lint filter
for a cleaner wash.
START WASHING
AUTO
POWER
OFF
SENSING
Laundry
Sensor
Water Level Sensor
SETTING
Optimum
Washing
Condition
Auto Restart
In
the event of a
power
failure,
the
washing
machine
will
automatically
resume its
interrupted cycle
when
power
is resumed.
Applied
models
:
WF-T5001(~2)PD(E/F), WF-T5011(~2)PD(E/F)
WF-T6001(~2)TD(E/F), WF-T6011(~2)TD(E/F)
WF-T7001(~2)TD(E/F), WF-T7011(~2)TD(E/F)

C
ontents
Introduction
Read this manual
Before
Starting
to Wash
Washing Programs
Additional Function
Options
Installation
Care and Maintenance
Specification
Troubleshooting
Safety
Information
Identification of Parts
Function Information
Preparation
Before
Washing

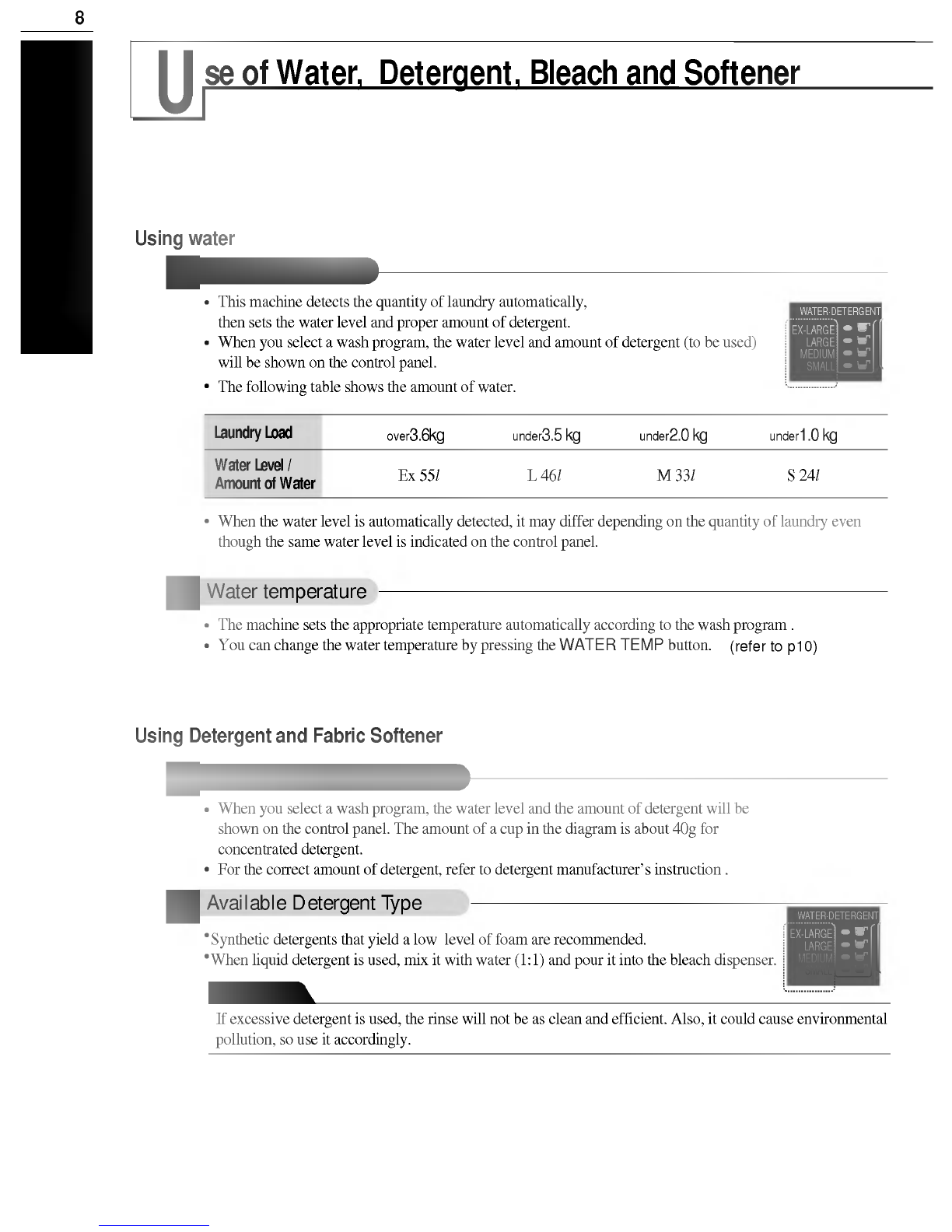

Use of
Water,
Detergent,
Bleach
and Softener
Function of each Button
Fuzzy
Wash
(Normal Wash)
Economy
Wash
Jean Wash
Wool Wash
Soak Wash
Delay
Start
(Reservation)
Wash
Option Washing
Other useful Functions
Placing
and
Leveling
Connecting
Water
Supply
Hose
Connecting
Drain Hose
Grounding
Method
Cleaning
Troubleshooting
Specification
Inside
you
will
find
many
helpful
hints on how to use and maintain
your
washer
properly.
Just a little
preventive
care on
your
part
can save
you
a
great
deal of time and
money
over the life of
your
washer. You
will
find
many
answers to common
problems
in
the
Troubleshooting
section.
If
you
review our chart of
Troubleshooting Tips
first,
you
may
not need to call for service at all.
4
5
6
7
8
10
12
12
12
12
12
14
15
16
17
18
21
22
23
25
27

Introduction
4
S
afety
information
Attention
Do not
put your
hands or feet under this
machine.
Do not
place any rugs
or
heavy
material
over
the
power
cord.
Since
the machine is
heavy,
a minimum of
two
persons
should
move
it.
Do not install the
washer where
it is
exposed
to
sunlight,
wind, rain,
etc.
The
appliance
must be
positioned
so that
the
plug
is accessible
Power
Supply
cord
Installation
Maintenance
Make sure the
power
cord is free of dust
and
plug
it in
properly
so that the cord
will
not
move.
Do not touch the
power
cord
with wet
hands.
Violation of these
guidelines
could result in serious or fatal
injury.
For
your
better
understanding.
these
precautions
are
separated
into
two
categories.
We
urge you
to
pay special
attention to them in the interests of
your
own
safety,
and
protection
of
your
machine
against damage:
The
appliance
is not intended for use
by young
children or infirm
persons
without
supervision.
Do not install the
washing
machine in a
damp place.
Keep
the
washing
machine
away
from fire or heat
source.
Young
children should be
supervised
to ensure that
they
do not
play
with
the
appliance.
The base
opening
must not be obstructed
by
carpeting
when
the
washing
machine is installed on
a
carpeted
floor.
Make sure to
ground
the earth
wire
or connect it
to a
ground
detector after
you put
the
power
cord
into an outlet.
When the
power
cord is
loose,
do not use it.
Do not
damage
the
power
cords.
Do not
plug many
cords into one outlet at the same
time.
If the
power
cord or fuse is
damaged,
it must be
replaced by
the manufacturer or its
service
agents
or
similarly qualified people
in order to
avoid
a hazard.
If the
appliance
is
supplied
from a cord extension
set or electrical
portable
outlet
device
the cord
extension set or electrical
portable
outlet
device
should be
positioned
so it is not
subject
to
splashing
or
ingress
of moisture.
Following
these
guidelines
will
protect your
machine
against damage.
Operation
?
Do not
press
the buttons
with
sharp objects.
?
Check
the hose connection and
open
the
tap
before
activating
the machine.
?
Do not
pour
more than
50˚C(122˚F)
water
into the tub.
?
Do not
wash
any waterproof
materials.
When
you
take out the
laundry,
be careful not to
fall into the
washer.
Do not
put
hands into the
rotating
tub.
Do not
sprinkle
water over
the buttons.
Make sure the lid is closed
during operation
of the
spin cycle.
Do not
put heavy objects
on the machine.
Unplug
the cord
when
the machine is not in use.
?
Do not
pour
corrosive
materials or bleach
over
the
washing
machine. It
will
cause
damage
to the
power
cord or the machine.
?
Never
disassemble or remodel the
washer
and
power
cord
by yourself. Only
a
qualified
technician should
work
on the
machine.
Caution
Caution
Attention
For
your safety,
the information
in
this
manual
must
be followed
to
minimize
the
risk of fire or
explosion,
electric
shock,
or
to
prevent property damage, personal injury,
or loss of life.
WARNING!

Introduction
I
dentification of Parts
5
Water
supply hose(1
EA
or
2EA)
Powder
detergent
box
Bleach
dispenser
Inner tub
Control
panel
Adjustable leg
Power cord
Lint filter
Drain hose
for
pump
model
Drain hose for
non
pump
model
Drain hose Anti-rat
cover(option)
Water
supply
hoses
or
or
1
Each for cold and
hot water
Body
Accessories
Part can be different
according
to the model.
Note

Before Starting to Wash
6
Function
Information
Our machine
provides
various
washing
methods which suit various conditions and
types
of
laundry.
Other
washing
methods
Different
types
of
laundry washing
Use
this
Program
for normal clothes
except
for
woolen
clothes and
lingerie.
The sensor
automatically
detects the
quantity
of
laundry
and selects the
appropriate
water
level,
wash
power, washing
time,
rinsing
time and
spinning
time.
(refer
to
p12 )
Thick and
heavy
clothes or those
which
are
excessively dirty
like
jeans
or
working
uniforms can be
washed.
(refer
to
p12)
Delicate clothes
(lingerie,
wool
etc.)
which
may
be
easily damaged
can be
washed.
(refer
to
p12)
Fuzzy
(Normal)
Wash
Jean Wash
Wool Wash
Economy
wash
can be selected to
wash
lightly
soiled clothes of less than
3.0
kg
in a short time.
(refer
to
p12)
Economy
Wash
Soak
Wash can be selected to
wash
heavily
soiled
laundry by soaking
in
water
for some time to
remove
dirt
and
grime.
(refer
to
p12)
Soak Wash
Delay
Start
(Reservation)
Wash is used to
delay
the
finishing
time
of the
operation.
Delayed
Start
washing
can be set
according
to
preference.
(refer
to
p14)
Delay
Start
(Reservation)
Wash
Spin, Rinse/Spin,
Rinse, Wash/Rinse,
and Wash
only options
can selected.
(refer
to
p15)
Option
Wash

Before Starting to Wash
Preparation
Before
Washing
7
Brush a little
detergent
dissolved
in
water
onto stains like collars
and cuffs to
help
shift dirt.
Treat stains
AS SOON AS POSSIBLE.
The
longer they
are left the
harder
they
are to
remove.
?
Check all
pockets
to make sure that
they
are
empty. Things
such as
nails,
hairclips,
matches,
pens,
coins and
keys
can
damage
both
your
washer
and
your
clothes.
?
Close
zippers,
hook and
strings
to make sure that these items
don't
snag
on other clothes. .
?
Mend
any
torn
garments
or loose buttons.
Tears or holes
may
become
larger during washing.
?
Remove
any
loose brassiere wires
as
they
can
damage your
washing
machine and clothes.
?
Pre-treat dirt and stains.
?
Make sure the clothes are
washable
in
water.
?
Check
the
washing
instructions.
To
get
the best
results,
different fabrics need to be
washed
in different
ways.
SOIL
(Heavy,
Normal,
Light) Separate
clothes
according
to amount of soil
COLOR
(Whites,
Lights,
Darks)
Separate
white
fabrics from colored fabrics.
LINT
(Lint
producers,
Collectors)
Separate
lint
producers
and lint collectors.
Use
nylon
nets for
long,
delicate items.
For
laundry
with
long strings
or
long length,
a net
will
prevent
tangling during washing.
Fasten
zippers
or hooks on items before
washing.
Nylon
net is not
supplied by
LG.
Clothes
like
downs
and
woollens
are
light weight, large
and float
easily.So
use a
nylon
net and
wash
them in a small amount of
water.
If the
laundry
floats
during
the
wash
cycle,
it
may
become
damaged.
Use dissolved
detergent
to
prevent
the
detergent
from
clumping.
WIRE
Sorting
Caring
before
loading
Pretreatment
Light
and
Large-
size
clothing
Long laundry
item

Before Starting to Wash
8
Use
of
Water,
Detergent,
Bleach and Softener
Water
temperature
Using
water
The machine sets the
appropriate temperature automatically according
to the
wash
program
.
You can
change
the
water
temperature by pressing
the WATER TEMP button.
Laundry
Load
over3.6kg
under3.5
kg
under2.0
kg
under1.0
kg
Water Level /
Amount of Water
S
24l M
33l
L
46l
Ex
55l
This machine detects the
quantity
of
laundry automatically,
then sets the
water level
and
proper
amount of
detergent.
When
you
select a
wash
program,
the
water level
and amount of
detergent
(to
be
used)
will
be
shown
on the control
panel.
The
following
table
shows
the amount of
water.
When the
water level
is
automatically
detected,
it
may
differ
depending
on the
quantity
of
laundry
even
though
the same
water level
is indicated on the control
panel.
Amount of water
EX-LARGE
LARGE
MEDIUM
SMALL
WATER.DETERGENT
(refer
to
p10)
Using Detergent
and Fabric Softener
Amount of
detergent
Available
Detergent Type
Synthetic detergents
that
yield
a
low level
of foam are recommended.
When
liquid detergent
is
used,
mix it
with water
(1:1)
and
pour
it into the bleach
dispenser.
When
you
select a
wash
program,
the
water level
and the amount of
detergent
will
be
shown
on the control
panel.
The amount of a
cup
in the
diagram
is about
40g
for
concentrated
detergent.
For the correct amount of
detergent,
refer to
detergent
manufacturer's instruction .
If
excessive
detergent
is
used,
the rinse
will
not be as clean and efficient.
Also,
it could cause
environmental
pollution,
so use it
accordingly.
Attention
EX-LARGE
LARGE
MEDIUM
SMALL
WATER.DETERGENT

Before Starting to Wash
9
Attention
Available Fabric Softener
Type
Available Bleach
Type
Depositing
Bleach
Depositing Detergent
Where
you
deposit
the
detergent
Powder
Detergent dispenser.
Do not use concentrated fabric softener. This
may
cause some
problems
in automatic
dispensing.
For more details refer to the softener
products
instructions for use.
Using
Bleach
Open
the
detergent dispenser
and
deposit
the
appropriate
amount of
detergent
.
Use
oxygenated
bleach.
Powdered
bleach should mixed
with water
and then be
deposited
into the tub.
For more details refer to the
products
instruction for use.
Separate
the
laundry
to be bleached and
deposit
liquid
bleach into the Bleach
dispenser.
The
dispenser
dilutes
liquid
chlorine bleach before
it reaches into
your
wash
load.
Bleach
dispenser
Do not insert bleach or fabric softener
directly
onto
laundry.
This
may
affect colors or
damage clothing
Do not mix chlorine bleach
with
ammonia or acids such as
vinegar
and/or
rust
remover.
Mixing
can
produce
a toxic
gas
which
may
cause death.
Depositing
Fabric softener
Fabric
Softener will
be inserted
automatically during
the final rinse.
Check
fabric care labels for
special
instructions.
Note
?
Don't use softener
with
detergent.
Use
softener in last
rinse
water
?
When
using dispenser,
dilute
softener(30ml)
with
fresh
water(30ml)
?
When
filling dispenser,
do not
splash
or
overfill.
It
may
stain clothes.
?
Never
pour
fabric softener
directly
on clothes.
It
may
stain them
?
If
spotting
occurs,
wet
and rub hand
dishwashing liquid
(or
mild bar
soap)
and
rewash.

Before Starting to Wash
10
F
unction of each Button
EX-LARGE
LARGE
MEDIUM
SMALL
WATER.DETERGENT
HOUR DELAY
MIN.
TIME
LEFT
HOT
COLD
WARM
DELAY
START
Note
According
to the machine
model,
figure
of control
panel may
be different.
Water
temperature
button
(option)
Water level button
(indication
of
detergent
amount)
?
Use
to
adjust
the
water level
as
required.
The
appropriate
amount of
detergent
is
shown
next to the
water level
in
the
WATER-DETERGENT
diagram
?
Water
level
is
automatically
selected for
fuzzy
(normal)
and
jean programs.
The
following settings
are indicated as the button is
pushed
LARGE EX-LARGE SMALL
MEDIUM LARGE
Use
to select
water
temperature.
Pressing
the button
allows
you
to select
Cold
Warm
(Hot&Cold)
Hot
Cold
respectively.
Default
setting
is
Cold.
Delay
Start
(Reservation)
button
?
Use
to set a
delayed finishing
time.
?
The time increases
when
the button is
pushed.
?
The
following settings
are indicated as the button
ispushed3
4
5
...11 12 14
16 ...46
48 3 HOUR.
?
To cancel
delay
time,
turn the
power
switch
off.
(RES=DELAY)
(refer
to
14p)
Process button
?
Use
to select
SOAK,
WASH,
RINSE
and
SPIN
functions as
desired.

Before Starting to Wash
11
FUZZY
ECONOMY
JEAN
WOOL
SOAK
WASH
RINSE
SPIN
OUR
IN.
START
PAUSE
AUTO OFF
Time
left,
Delay
Start
(Reservation),
Alarm indication
?
Time left
-
During operation,
the
remaining
time is indicated.
?
Delay
Start indication
(Reservation)
-
When
delay
start
(reservation)
program
is
selected,
it indicates the
finishing
time.
(RES.=DELAY)
?
Alarm indication
-When an error
occurs,
an error
message appears
to
indicate the
abnormality.
For
example,
indicates that the lid is
open.
Child lock function
Use
to lock or unlock the control
buttons to
prevent settings
from
being changed by
a child.
To
lock,
push
the
PROCESS
and
PROGRAM
buttons
simultaneously
and to unlock
push
them one more time
during
the
washing process.
Start/ Pause button
?
Use
to start or
pause
the
washing process.
?
Repeats
start and
pause by
pushing
the button.
?
The
power goes
off
automatically
10
minutes
after
stopping.
(refer
to
p 16)
AUTO OFF
(Power)
button
?
Use
to turn the
power
on or
off.
?
Push
again
and
power goes
on or off
?
The
power goes
off
automatically
about
10
seconds after the
wash
is
finished.
Program
button
?
Use
for
selecting
wash
program.
?
This button
allows
you
to select 4 different
programs
for different kinds of
laundry
and dirtiness.
?
program
selections
light up
in
sequence
as
follows:
FUZZY
(NORMAL)
ECONOMY JEAN
WOOL FUZZY
(NORMAL)
etc.
Select
the desired
program by pressing
the button.

Washing Programs
12
Washing
Programs
Washing
Programs
Add
the
laundry
Add
the
detergent
Fuzzy Washing
(Normal Wash)
Used for normal
loads,
this mode
automatically
selects the most
appropriate
conditions and
completes
the
sequence
in
one
operation.
The built-in sensor
detects the size of the load and the
ideal wash
power
and
wash,
rinse
and
spin
times are set
accordingly
Economy
Wash
Use this mode when
washing lightly
solided clothes for a short time. The
weight
should be under
2.0kg.
Jean Wash
Use
jeans program
when
washing
heavy,
thick,
and
extremely dirty
laundry
such as
jeans
and work
outfits.
Wool Wash
Use this
program
for
washing
delicate
fabrics such as
lingerie
and woolens.
(wash
only
"water washable"
clothes)
Before
washing your
woolens check
the care label for the
washing
instructions.
(wash
only
water washable
clothes)
Soak Wash
Use this mode for
washing
excessively dirty laundry by soaking
in water for some time to remove
proteins
and fats. 'SOAK' mode can
be used with all
washing programs
simultaneously except
for "WOOL"
program.
AUTO OFF
1
1
1
1
1
2
5
4
5
5
6
3
3
3
4
2
2
2
2
3
Select the
ECONOMY
program
on the
Control
panel.
Add the
appropriate
quantity
of
detergent
as
indicated
by
the water
level next to WATER-
DETERGENT.
Or follow the
detergent
manufacturer's
instructions
Select the
JEAN
program
on the Control
panel.
Select the
WOOL
program
on
the Control
panel.
SOAK will
not work in
WOOL
Program.
Use neutral
detergent
appropriate
for the
laundry.
When
washing
woolens use a mild
detergent
recommend-
ed for
washing
wool.
Keep pressing
the PROCESS button until the SOAK
light
is on and then
WASH,
RINSE,
SPIN
lights
are on
simultaneously.
If
necessary,
select the desired
washing process
from
(SOAK+WASH+RINSE+SPIN), (SOAK+WASH+RINSE),
(SOAK+WASH) manually.
SOAK
WASH
RINSE
SPIN

Washing Programs
13
Close the lid Finish Caution & Note
The
pulsator
rotates for 8
seconds to detect the
laundry
load.
Then the water level and
the amount of
detergent
to
be used will be shown and
water will be
supplied.
Water will be
supplied
for 2 minutes after the
start of the wash to
supplement
the water
the
laundry
has
absorbed.
When the wash
program
ends,
the
buzzer will
ring
for 10
seconds before the
Power
goes
off
automatically.
If water is
already
in the
tub,
or
putting
wet
laundry
into thetub before
starting
will
increase the water level.
With
lightweight bulky
loads,
water level can
be set low.
Changes
to water
temperature (hot/cold)
and
wash level are
possible during operation.
(refer
to
p
10)
When
setting
the water level
manually,
do not
set to MEDIUM to
prevent damage
to
laundry.
Washing
with hot water
may damage
the
laundry (Water
is set to cold
automatically).
Ensure that the load is under
2kg
In order to avoid
damage
to
laundry,
the
spin cycle may appear
slow.
This also avoids wrinkles and
clothing may
still contain some water. This is normal.
Soak Wash cannot be selected for the Wool
Wash
program.
The water level and the
amount of
detergent
to be
used will be shown and
water willl be
supplied.
3 5 6
7
8
7
7
6
6
6
7
4
4
5
4

Additional Function Options
14
D
elay
Start
(Reservation)
Wash
3
AUTO OFF
Delay
Start
(Reservation)
Wash is used to
delay
the
finishing
time of the
operation.
The hours to be
delayed
can be set
by
the user
accordingly.
The time on the
display
is the
finishing
time
,
not the start time.
When
you
be
press
the
START/PAUSE
button the
light
will
blink.
Select
the
program
for
laundry
on the
Control
panel.
This method
will
not
work
in Wool
Program.
How to set the
delay
time.
Example
: It's 7 a.m.
now.
If
you'd
like
your
wash
to finish at
9
a.m. set the time as in the
figure
below.
When
you push
the button the
reservation
time
changes
3
4
5
...12 14
16
...
48 3
repeatedly.
Press the POWER button to turn
power
on.
Press the PROGRAM button to select the
washing program.
Add the
laundry
and
press
the START/PAUSE button.
Press the
Delay
Start
(RESERVATION)
button to set the time when the
delayed washing
is to be
completed.
The
appropriate quantity
of
detergent
marked next to the
water level
of
WATER-DETERGENT.
When the lid is
open
the machine
will
not
operate,
and an
alarm
signal
will
remind
you
to close the lid
Add the
detergent.
Water
will
be
supplied
for 2 minutes after the start of the
wash
to
supplement
the
water
the
laundry
has absorbed.
Close the lid.
The
washing
will
be finished
according
to the
delayed
time.
Finish
1
2
4
5
6
HOUR DELAY
MIN.
TIME
LEFT
(RES.=DELAY)
To select
washing program, spinning
time,
water level
or
hot/cold
manually, press
the
Delay
Start
(RESERVATION)button
and select the desired
option.
Then
press
the
START/PAUSE
button.
When the
laundry
cannot be taken out
immediately
after the
wash
program
ends,
it is better to omit the
spinning program
.
(The
laundry
will
be
wrinkled
if left for a
long
time after
spinning.)
Note
If the lid is
open,
the machine
will
not
work,
and an alarm
signal
will
alarm to remind
you
to close the lid.

Additional Function Options
Option
Washing
15
Press the AUTO OFF
(Power)
button to turn
power
on.
Press the PROCESS button until above
Option Washing
light
is on.
(
refer to
p11)
When
you
want to
only
drain,
wait until the water
in
the
washing
tub drains
completely
and
then,
turn off the
power.
Add the
laundry
into the
washing
tub.
Press the START/PAUSE button.
Press the
WATER LEVEL
button,
to control the water level
according
to the
amount of
laundry.
If
you
do not choose
anything,
it is set the LARGE water
level
automatically.
Add the
detergent
and close the lid.
AUTO OFF
1
2
3
4
5
6
When
you only
need the
Wash,
Wash/Rinse or Rinse
cycles,
these can be set
manually
Wash
,
Wash+Rinse
,
Rinse
,
Rinse+Spin
,
Spin only options
(refer
to
p10)
?
When a
Wash,
Wash/Rinse
or
Rinse
only option
is
selected,
after the
wash
is
completed
the
water will
not be
drained
off,
If
you
wish
to drain the
water,
press
the
SPIN
button and
wait
until the
water
in the tub has drained
completely.
Then
press
the
START/PAUSE
button .
?
If
you
do not
specify
the water
level,
then Medium
will
be
automatically
selected.
?
If
only
Rinse is
selected,
the
process
will
start from Water
Supply.
Note

16
ther Useful Functions
O
Additional Function Options
After all
washing
conditions are set
according
to the manual.
Press the POWER button.
Press the START/PAUSE button to start
washing.
Press both the PROCESS button and the PROGRAM button
simultaneously.
Turn
Power
on.
AUTO OFF
If
you
want
to use the
washing
machine
without
alarm
signal
sounds,
press
both the WATER LEVEL and
PROCESS
buttons
simultaneously.
To make buzzer
work,
press
both the WATER LEVEL and
PROCESS
buttons
simultaneously
one more
time.
If
you
want
to lock all the
keys
to
prevent setting
from
being changed by
a
child,
you
can use the
child lock
option.
If
you
want
to unlock
during
wash,
press
both the
PROCESS
and the
PROGRAM
button
simultaneously
again.
Child Lock Function
Mute
Option
Although
the machine
will
not
work
during
a
power
failure or if
power
is
interrupted,
when
power
is
resumed,
it
will
start
again automatically
from the
point
in the
cycle
when
it
stopped
Applied
models
:
WF-T5001(~2)PD(E/F), WF-T5011(~2)PD(E/F)
WF-T6001(~2)TD(E/F), WF-T6011(~2)TD(E/F)
WF-T7001(~2)TD(E/F), WF-T7011(~2)TD(E/F)
Auto Restart
How to Lock
How to Unlock
In child-Lock
mode,
all
process light
will
blink.
Note
2
1
3
?
During
the
wash
program,
all the buttons are locked
until
washing
is
completed
or until the child- lock
function is
deactivated
manually.
?"
"
and the
remaining
time
will
be
displayed
alternately
in child-lock mode.

Placing
and
Leveling
17
Installation
Caution
Top
view of the machine
more than 10cm
more
than
2cm
more than
10cm
Place the machine on a flat and
firm
surface which allows
proper
clearance.
We
suggest
a minimum clearance of 2cm to the
left sides of the machine for ease of installation.
At the rear and
right
side a minimum clearance of
10cm
is
suggested.
Check that the machine is level
Open
the lid and look from
above
to see if it is
same as
shown.
UP
Adjustable legs
Leveling
the machine
Lift the front of the
washing
machine and
twist
the
Adjustable Leg
until the
washing
machine is
placed evenly.
Installing
the Anti-Rat
Cover
(option)
The anti-rat
cover
should be affixed
firmly
from the back of the
washer
If the
power
is
supplied
from a cord extension set or
generator,
the cord extension set or electrical
portable
outlet
device
should be
positioned
so that it is not
exposed
to
splashing
or
ingress
of moisture.
1
2
3

18C
Installation
Before
connecting
the Water
Supply
Hose to the water
tap,
check the hose
type
and
then choose the correct instruction here under.
Note that the Water
Supply
Hose
supplied may vary
from
country
to
country,
Make
sure to connect the blue inlet hose to the cold water
tap,
and the
orange
inlet hose to
the hot water
tap.
Connecting
Water
Supply
Hose to water
tap
Rubber
packing
Connector
Connector
Water
Supply
Hose
screw
Untighten
the screw
Untighten
the
screw
of the connector so that the
tap
can be
placed
in the middle.
Fixing
the connector to the
tap
Push the
upper
connector
up
till the rubber
packing
is in
tight
contact
with
the
tap.
Then
tighten
the 4
screws.
Attach the water
supply
hose connects
securely
to the connector
Push the
water
supply
hose
vertically upwards
so
that the rubber seal
within
the hose can adhere
completely
to the
tap.
Check the connection of water
supply
hose and the connector
After
connecting
the
hose,
open
the
tap
to check
for
any
water
leakage.
If the connection
leaks,
close the
tap
and start
again
from
step
1
Fixing
the connector to the water
supply
hose
Attach the
water
supply
hose to the connector and
then
tighten
it
by screwing
it to the
right.
Normal
Type
(Normal
tap
without
thread
& screw
type
inlet
hose.)
1
2
3
4
5
onnecting
Water
Supply
Hose

19
Installation
Rubber
packing
Rubber
packing
Fixed sticker
screw
Guide
plate
Connector
Connector
Fixed sticker
Middle
Connector
Middle
Connector
Water
Supply
Hose
Pressing
rod
Pressing
handle
Connector
Middle
connector
Fixed Sticker
Pressing
Handle
Pressing
Rod
Water
Supply
Hose
Separate
Middle connector from Water
Supply
Hose
Separate
Middle connector from the Water
Supply
Hose
by pulling
the
Pressing
Rod and the
Pressing
Handle that is attached to the Water
Supply
Hose
while
pressing
them.
Loosen the fixed nuts to connect the connector to the
tap
Untighten
the
screw
of the connector so that the
tap
can be
placed
in the middle.
Fixing
Connectors to the
Tap
Push the
upper
connector
up
till the rubber
packing
is in
tight
contact
with
the
tap.
Then
tighten
the 4
screws.
Fixing Upper
Connector and Middle Connector
Remove
the fixed sticker in
between
the
Upper
and Middle
Connectors.
Tighten
the connectors
by holding
one connector and
twist
middle
connector to the
right.
Connecting
Middle Connector and Water
Supply
Hose
Press
down
the
pressing
rod of the Water
Supply
Hose
which was
separated
from middle connector
(refer
to
Step1)
and then
join
it to the middle
connector.
Normal
Type
If the
tap
diameter is too
large
or is
square,
untighten
the 4
screws
and
remove
the
guide
plate.
Then
follow
step1.
In
case
tap
is too
large.
Note
Check for water
leakage
After
connecting
the
hose,
open
the
tap
to check
for
any
water
leakage.
If the connection
leaks,
close the
tap
and start
again
from
step
1.
If
you skip step
1,
water
leakage may
occur.
(Normal
tap
without
thread
&
one touch
type
inlet
hose.)
1
2
3
4
5
6

20
onnecting
Water
Supply
Hose
C
Installation
Attach the water
supply
hose to the
tap.
Push the
water
supply
hose
up
so that the rubber
packing
within
the hose can adhere
completely
to
the
tap.
Connect the water
supply
hose to the
tap.
Connect
the
water
supply
hose to the
tap
and then
tighten
it
by screwing
it to the
right.
Check water
leakage.
After
connecting
the
hose,
open
the
tap
to check
for
any
water
leakage.
Connect
the
water
supply
hose to inlet
valve
of
the
washing
machine,
and then lock it
by turning
the hose
connecting part.
Check
to see if there is a rubber seal inside
the connector.
Screw
Type
Water
Supply
Hose
Rubber
Packing
Hose connector
Rubber seal
Water
tap
Connecting
Water
Supply
Hose to the machine
1
2
3
