Owner's Manual
Washing Machine
WM2277H*
WM2077CW
Please read fhis manual carefully. !t provides
instructions on safe installation, use, and maintenance.
Retain it for future reference.
Record the model and serial numbers of your machine
ond report this information to your dealer If your machine
requires service.
Designed specially to use only
HE (High Efficiency) detergent

PRODUCT FEATURES
Direct Drive System
The advanced Brushless DC motor directly drives the drum without
belt and pulley.
Tilted Drum and Extra Large Door Opening
Tilted drum and extra large opening make it possible to load
and unload clothing more easily.
RollerJets
Washing ball enhances the wash performance and reduces damage
to the clothing. The jets spray and help tumble clothes to enhance
washing performance while maintaining fabric care.
Automatic Wash Load Detection
Automatically detects the load and optimizes the washing time.
Built-in Heater (WM2277H*)
Internal heater helps to maintain water temperature at its optimum level for
selected cycles.
Child Lock
The Child lock prevents children from pressing any button to change the
settings during operation.
CONTENTS
Important Safety Information.3
Specifications. 4
Installation Instructions. 5
Preparation Before Washing.10
Using the Dispenser.11
Cycles.13
How to Use the Washer.14
Maintenance.17
Troubleshooting Guide.20
Warranty.23
2

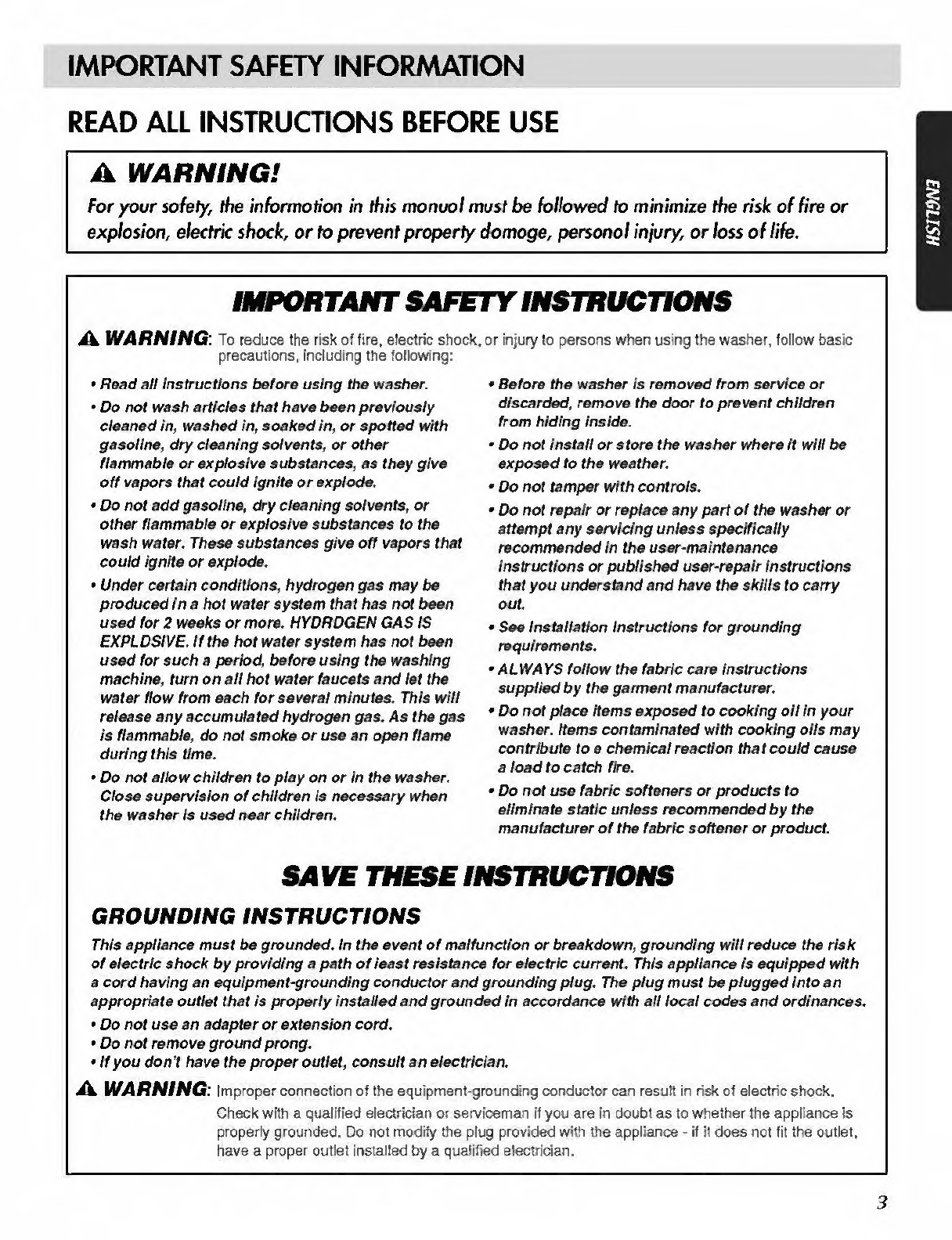

IMPORTANT SAFETY INFORMATION
READ ALL INSTRUCTIONS BEFORE USE
A WARNING!
For your safety, the information in this manual must be followed to minimize the risk of fire or
explosion, electric shock, or to prevent property damage, personal injury, or loss of life.
STR
A WARNING To reduce the risk of fire, electric shock, or injury to persons when using the wa^er, follow basic
precautions, including the following:
• Read all Instructions before using the washer.
■ Do not wash articles that have been previously
cleaned In, washed In, soaked in, or spotted with
gasoline, dry cleaning solvents, or other
flammable or explosive substances, as they give
off vapors that could ignite or explode.
• Do not add gasoline, dry cleaning solvents, or
other flammable or explosive substances to the
wash water. These substances give off vapors that
could Ignite or explode.
• Under certain conditions, hydrogen gas may be
produced in a hot water system that has not been
used for 2 weeks or more. HYDROGEN GAS IS
EXPLOSIVE. If the hot water system has not been
used for such a period, before using the washing
machine, turn on all hot water faucets and let the
water flow from each for several minutes. This will
release any accumu/afed hydrogen gas. As the gas
is flammable, do not smoke or use an open flame
during this time.
• Do not allow children to play on or in the washer.
Close supervision of children is necessary when
the washer Is used near children.
' Before the washer is removed from service or
discarded, remove the door to prevent children
from hiding inside.
■ Do not install or store the washer where it will be
exposed to the weather.
■ Do not lamper with controls.
■ Do not repair or replace any part of the washer or
adempf any servicing un/ess specifically
recommended in the user-maintenance
instructions or published user-repair Instructions
that you understand and have the skills to carry
out.
■ See Installation Instructions for grounding
requirements.
■ >lLlV/4 VS follow the fabric care Instructions
supplied by the garment manufacturer.
’ Do not place items exposed to cooking oil in your
washer. Items contaminated with cooking oils may
contribute to a chemical reaction that could cause
a load to catch fire.
' Do not use fabric softeners or products to
eliminate static unless recommended by the
manufacturer of the fabric softener or product.
SAVE THESE INSTRUCTIONS
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk
of electric shock by providing a path of least resistance for electric current. This appliance is equipped with
a cord having an equipment-grounding conducfor and grounding plug. The plug must be plugged into an
appropriate outlet that is properly installed and grounded in accordance with all local codes and ordmances.
■ Do not use an adapter or extension cord.
• Do not remove ground prong.
• If you don’t have the proper outlet, consult an electrician.
A WARNING Improper connection of the equipment-grounding conductor can result in risk of electric shock.
Check with a qualified electrician or servicemam If you are in doubt as to v^ether the appliance is
properly grounded. Do not modify the plug provided writh the appliance - if it does not fit the outlet,
have a proper outlet installed by a qualified electrician.
3
ENGLISH

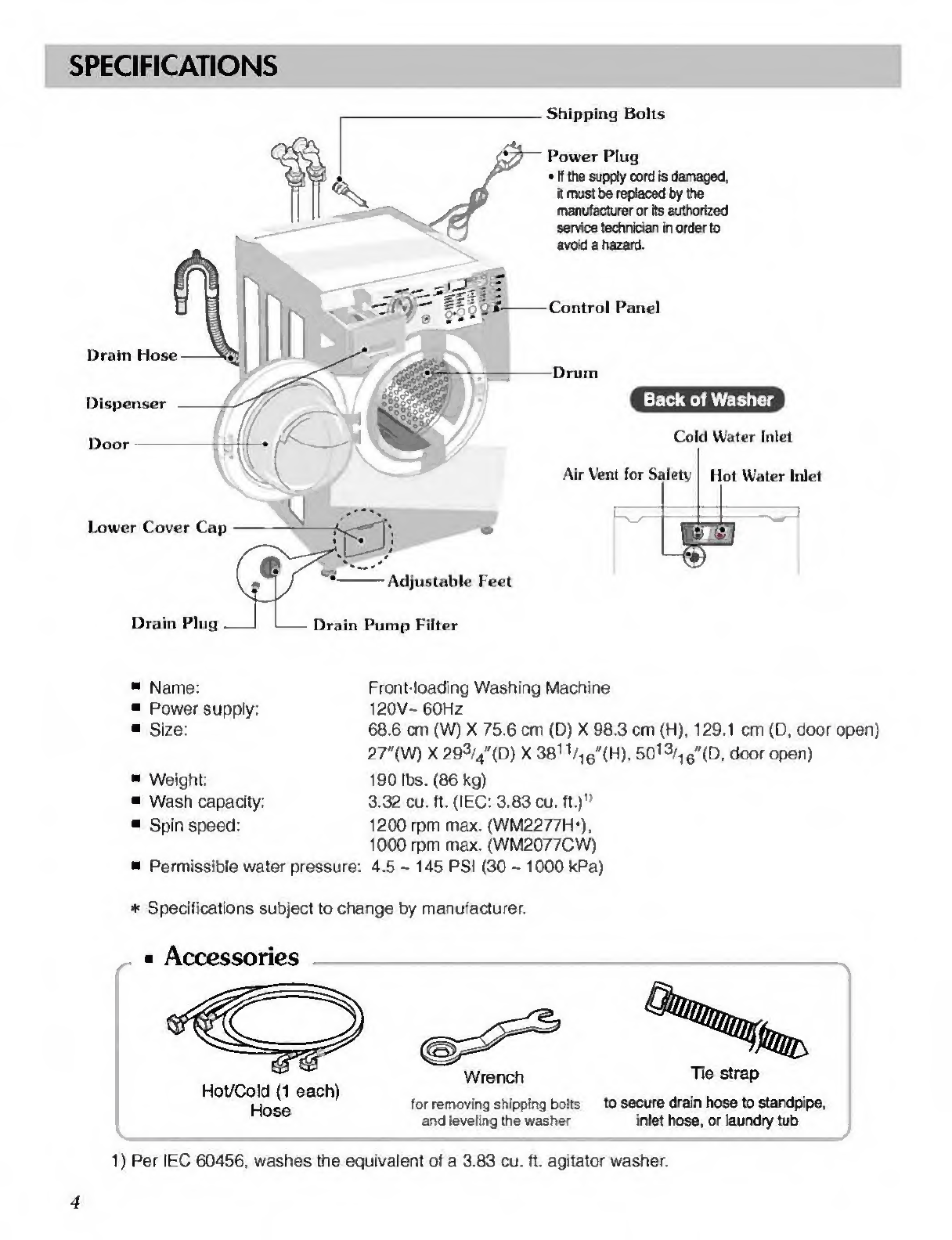

SPECIFICATIONS
Back of Washer
Cold Water Inlet
Air Vent lor Safety
ot Water Inlet
Shipping Bolts
Power Plug
• If the supply cord is damaged,
it must be replaced by the
manufacturer or its authorized
service technician in order to
avoid a hazard.
Panel
Drain
Dispenser
Door
Lower Cover Cap
Drain Plug
■ Name;
■ Power supply:
■ Size:
■ Weight:
■ Wash capacity;
■ Spin speed:
■ Permissible water pressure:
Front-loading Washing Machine
120V- 60Hz
68.6 cm (W)X75.6cm (D) X 98.3 cm (H). 129.1 cm (D. door open)
27"(W) X 293/4''(D) X 38’ 50’3/-,6"(D, door open)
190 lbs. (86 kg)
3.32 cu. ft. (lEC: 3.83 cu. ft.)’*
12X rpm max. (WM2277H*).
1000 rpm max. (WM2077CW)
4.5-145 PSI (30- 1000 kPa)
* Specifications subject to change by manufacturer.
Accessories
Hot/Cold {1 each)
Hose
Wrertch
for removing shipping bolts
and leveling the washer
Tie Strap
to secure drain hose to standpipe,
inlet hose, or laundry tub
1) Per lEC 60456, washes the equivalent of a 3.83 cu. ft. agitator washer.
4

INSTALLATION INSTRUCTIONS
A WARNING ; Two or more people may be need to install and move the appliance.
Install or store unit where it uill not be exposed to tempenitures below freeziof' or
exposed to outside weather conditions.
Pn)perly ground washer to conform with ail g<ivemin^ codes and ordinances.
To reduce the risk of electric shock, do not install the washer in humid spaces.
The base opening must not be obstructed b}' carpeting when the washing machine is installed on a carpeted llo<»r.
In countries where there are areas which ma> be subject to infestation bv cockroaches or other vermin, pay
IMirlicuiar attention to keeping the appliance and its surroundings in clean condition at all times.
Damage caused by cockntaches or other vermin will not be covered by the appliance warranty.

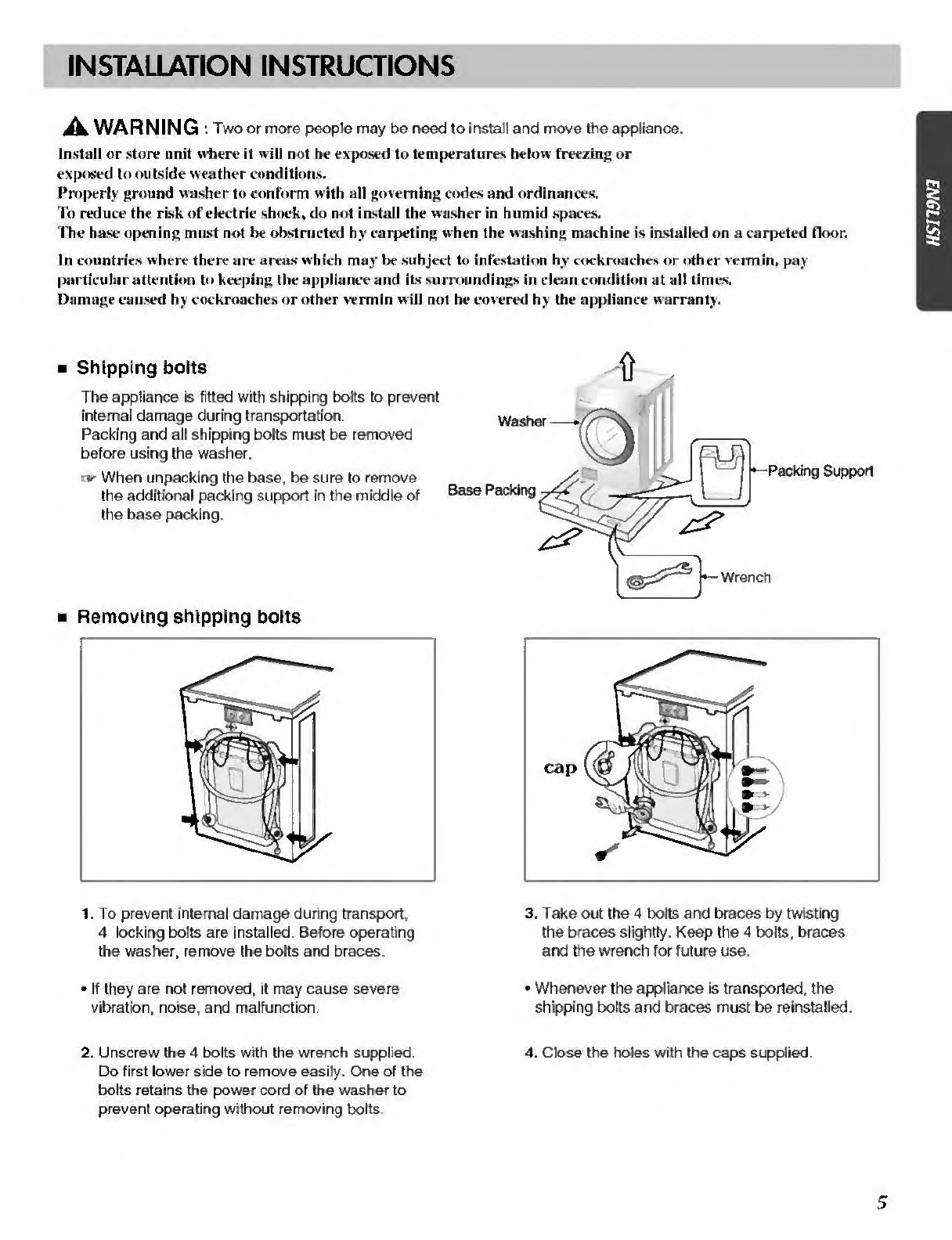

■ Shipping bolts
The appliance is fitted with shipping bolts to prevent
internal damage during transportation.
Packing and all shipping bolts must be removed
before using the washer.
cv When unpacking the base, be sure to remove
the additional packing support in the middle of
the base packing.
Washer
Packing Support
Packing
Wrench
■ Removing shipping bolts
1. To prevent internal damage during transport,
4 locking bolts are installed. Before operating
the washer, remove the bolts and braces.
• If they are not removed, it may cause severe
vibration, noise, and malfunction.
3. Take out the 4 bolts and braces by twisting
the braces slightly. Keep the 4 bolts, braces
and the wrench for future use.
• Whenever the appliance is transported, the
shipping bolts and braces must be reinstalled
2. Unscrew the 4 bolts with the wrench supplied. 4. Close the holes with the caps supplied.
Do first lower side to remove easily. One of the
bolts retains the power cord of the washer to
prevent operating without removing bolts.
5
ENCLISH

INSTALLATION INSTRUCTIONS

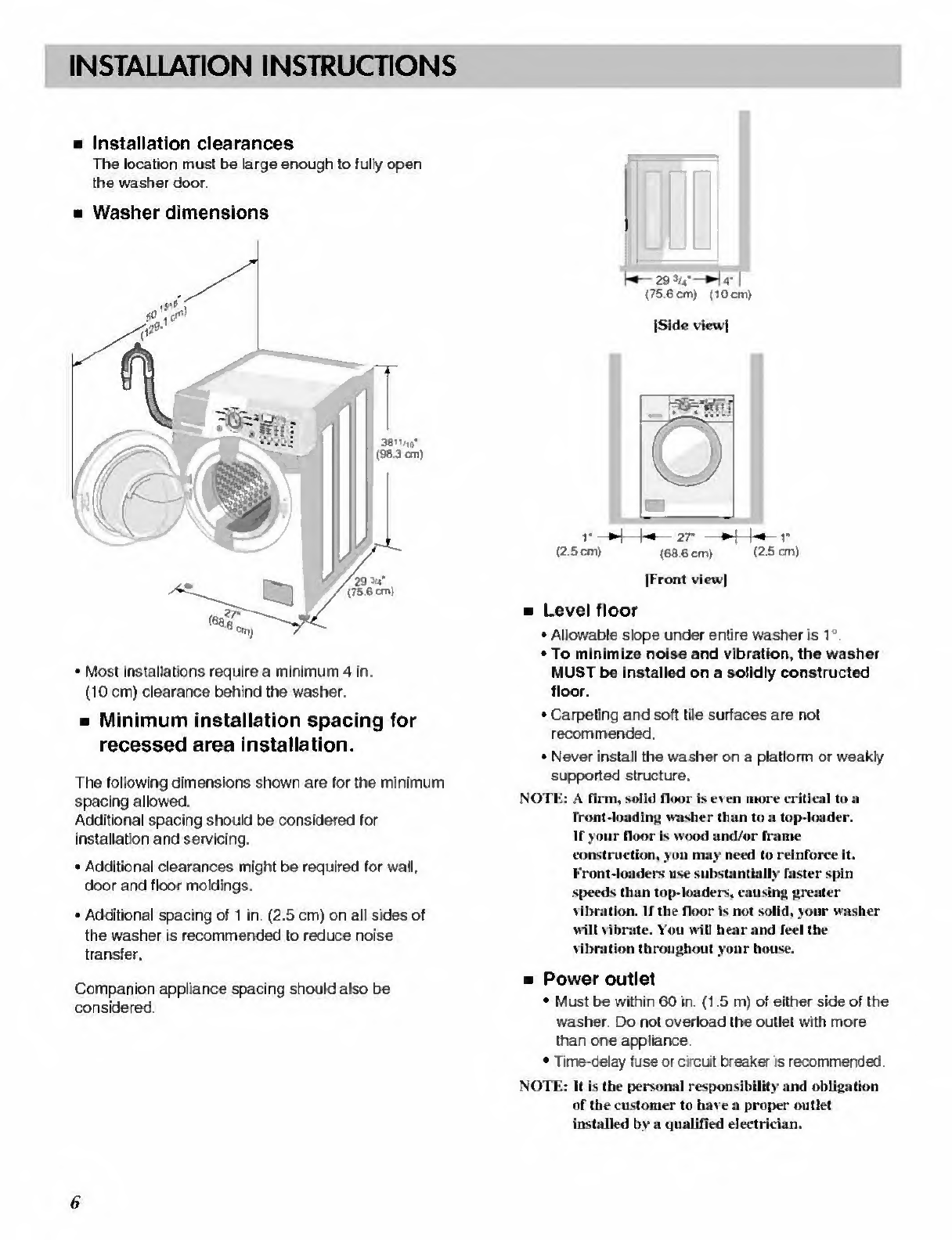

■ Instaiiation clearances
The location must be large enough to fully open
the washer door.
■ Washer dimensions
• Most Installations require a minimum 4 in.
(10 cm) clearance behind the washer.
■ Minimum installation spacing for
recessed area installation.
The following dimensions shown are for the minimum
spacing allowed.
Additional spacing should be considered for
Installation and servicing.
• Additional clearances might be required for wait,
door and floor moldings.
• Additional spacing of 1 in. (2.5 cm) on all sides of
the washer is recommerKled to reduce noise
transfer.
Companion appliance spacing should also be
considered.
(75.6cm) (10cm)
|Side view|
(Front view)
■ Level floor
• Allowable slope under enhre washer is 1°.
• To minimize noise and vibration, the washer
MUST be installed on a solidly constructed
floor.
• Carpeting and soft tile surfaces are not
recommended.
• Never install the washer on a platform or weakly
supported structure.
NOTK: A Hnn. solid floor is es en more critical to a
frontdoadintt sva.sher than to a top>loader.
If your lloor is wood and/or frame
construction, you may need to reinforce it.
Frontdoaders use suhstanlially faster spin
speeds than tup>loaders. causing preater
vibration, if the floor is not solid, your washer
will vibrate. You will hear and feel the
vibration thn>u}:h«>ut your house.
■ Power outlet
• Must be within 60 in. (1.5 m) of ei^er side of the
washer. Do not overload the outlet with more
than one appliance.
• Time-delay fuse or circuit breaker is recommended.
NOTE: It is the personal responsibility and obligation
of the customer to have a proper outlet
installed by a qualified electrician.
6

INSTALLATION INSTRUCTIONS
■ Electrical connection
• Do not use an extension cord or double adapter.
• If the supply cord is damaged, it must be replaced by a qualified person in order to avoid a hazard.
• if the machine wiil not be used for an extended time, unplug it and shut off the water supply.
• Connect the machine to a grournjed outiet in accordance with current wiring regulations.
• The appliance must be positioned so that the plug is easily accessible.
A CAUTION! Concerning the Power Cord
Most appliances recommend they be placed upon a dedicated circuit: that is, a single outlet circuit ^Ich powers only ^at
appliance and has no additional outlets or branch circuits. Check the specification page of this owner's manual to be
certain.
Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords,
or damaged or cracked wire Insulation are dangerous. Any of these conditions could result in electric shock or fire.
Periodically examine the cord of your appliance, and If its appearance indicates damage or deterioration, unplug It.
discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer.
Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, dosed in a door, or
walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.
■ Connecting water supply hose
• Water supply pressure must be between
4.5 and 145 PSI (30-1000 kPa).
• Do not crossthread when connecting inlet hose to
the valve.
• If the water surety pressure is more than 145 PSI,
a pressure reducing device should be installed.
• Two Sealing washers are supplied with the water
inlet hoses to prevent water leaks.
• Check for leakage of washing machine connections
by turning the tap completely on.
• Periodically check the condition of the hose and
replace the hose if necessary.
• Make sure that there is no kink in the hose and that
it is r)ot crushed.
• Be sure that the two water input ports are connected
to the correct water faucets. The connector for hot
water is colored red.
NOTK: Wushing Machine is l« he connected to the water mains using new hoses.
Old hoses should not be used.
Kepairs to the washing machine must only be carried not by (|ualifkd personnel. Repairs carried nut by
inexperienced persons may cause injury or serioas mafrunctirming. Contact your local service center.
Do not install your washing machine in a room where temperatures below freezing may occur.
Krozen hoses may hurst under pressure. I'he reliability of the electronic control unit may be impaired
at temperatures below the freezing point.
If the appliance is delivered in the fvinter cnonths and temperatures are below freezing,
store the Wiishing machine at room temperature for a few hours before putting it into operation. 7
ENGLISH

INSTALLATION INSTRUCTIONS
■ Installation of drain hose
• The drain hose should not be placed higher than
96 in. from the bottom of the washer.
• Properly securing the drain hose will protect the
floor from damage due to water leakage.
• Place the end of the drain hose in the hole of the
floor drain system.
• When installing the drain hose at a sink, secure it
so it canrx}t break away ar>d cause flooding and
damage.
• Properly securing the drain hose will protect the
floor from damage due to water leakage.
This e(|uipmtml is not desi}>n«d for muritimt? use or for mobile installulioas such as in KV\, aircraft, etc.
Turn off the faucet if the machine is to be left fur an extended period of time (e.}>. hoiiday).
When disposing of the appiiance, cut off the power cable, and destniy the plug.
Disable the diH>r lock to prevent young children being trapped inside.
Packaging material (e.g. Film.s. Styrofi>am>can lie dangeroas for children. There is a risk of suffocation! Keep all
packaging fnim children.
8

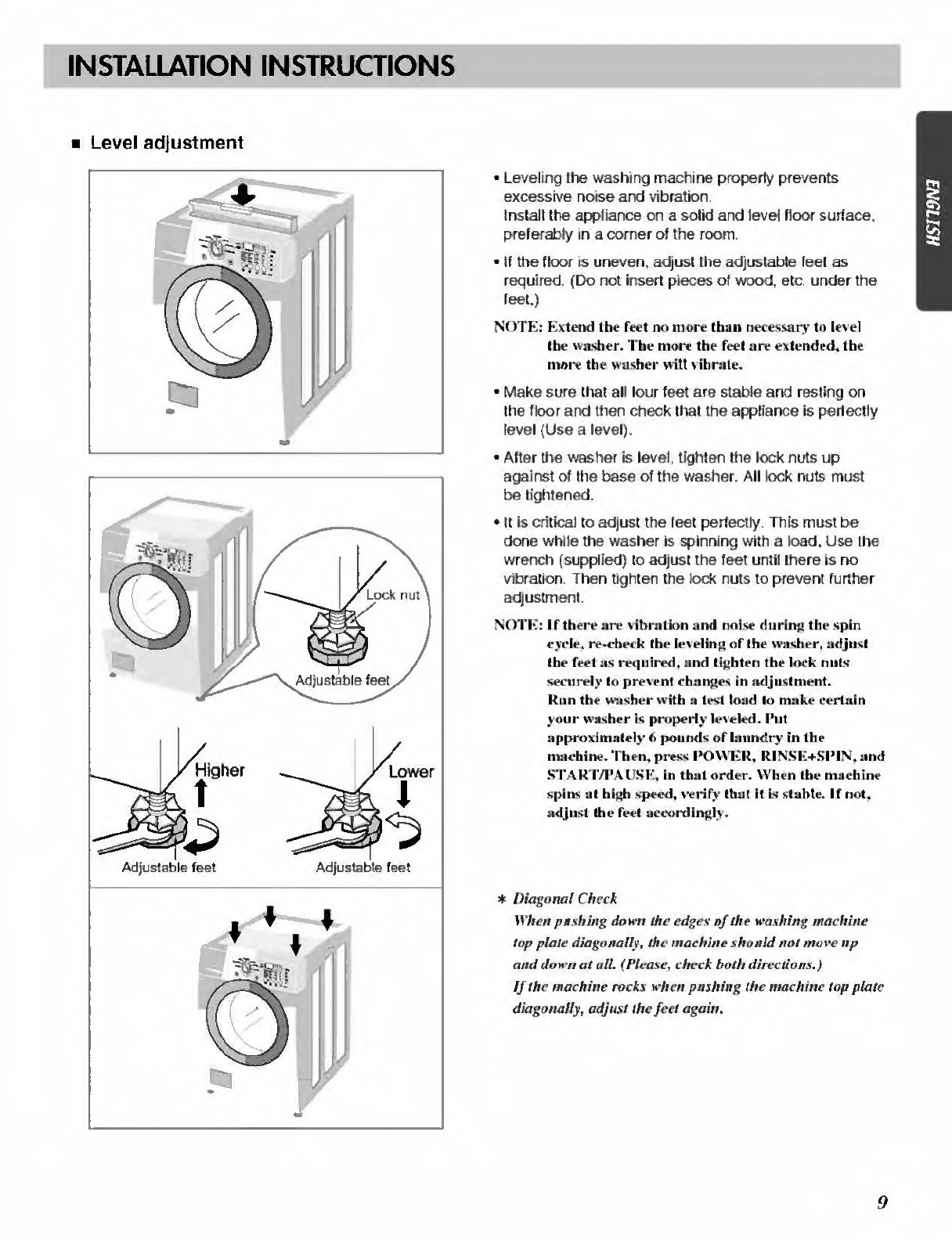

INSTALLATION INSTRUCTIONS
■ Level adjustment
• Leveling the washing machine property prevents
excessive noise and vibration.
Install the appliance cm a solid arxJ level floOT surface,
preferably in a comer of the room.
• If the floor is uneven, adjust the adjustable feet as
required. (Do not irisert pieces of wood. etc. under the
feet.)
NOTI£: Kktend the feet no more Ihan necessan' tole>el
lh« wa.sher. I'bi; more the feel are extended, the
more the washer will >ibrate.
• Make sure that all four feet are stable and resting on
the floor and then check that the appliance is perfectly
level (Use a level).
• After the washer is level, tighten the lock nuts up
against of the base of the washer All lock nuts must
be tightened.
• It is critical to adjust the feet perfectly. This must be
done while the washer is spinning wi^ a load. Use the
wrench (supplied) to adjust the feet until there is no
vibration. Then tighten the lock nuts to prevent further
adjustment.
NOTK: If there are vihratkm and noise during the spin
cycle. reH'heck the le\ elinit of the washer, adjust
the feet us required, and lighten the lock nuts
securely to present changes in udjusimenl.
Run the washer with a test loud to make certain
your washer is properly leveled. Ihit
approximately 6 pounds of laundry in the
machine. Then, press I'OWKK, KIN.SK+SFIN. and
.STAKT/I*.41ISK. in that order. When the machine
spins at hi(>h speed, verify that it is stable. If not.
adjust the feel accordinyily .
* Diagonal Check
When pushing down the edges of the washing machine
tup plate diagonally, the machine should not move up
and down at all. (Please, check both directions.)
If the machine rocks when pushing the machine top plate
diagonally, adjust the feet again.
9
ENGLISH

PREPARATION BEFORE WASHING
A WARNING
To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY
INSTRUCTIONS before operating this appliance.
1. Fabric Care Labels
Look for a care label on your clothes. This will tell you about the fabric content of your garment and how it should
be washed.
2. Sorting
To get the best results, sort clothes into loads that can be washed with the same wash cycle.
Different fabrics need to be washed In different ways.
Always sort dark colors from pale colors and whites. Wash separately as dye and lint transfer can occur causing
discoloration of white clothing. If possible, do not wash heavily soiled items with lightly soiled ones.
Soil (Heavy. Normal. Separate clothes accurdinit to amount of soil.
Color (White. Lights. Hurksl Separate white Tahrics from colored fabrics.
Lint (Lint Ih'oducers. Collectors) Wash lint producers and lint collectors separately.
3. C heck before loading
Combine large and small items in a load. Load large items first.
Large items should not be more than half the total wash load.
Do not wash single Items. This may cause an out-of-balance load. Add one or two similar items.
• Check all the pockets to make sure that they are
empty. Things such as clip, matches, pens,
coins, and keys can damage both your washer
and your clothes.
• Close zippers, hooks, and strings to make sure
that these items do not snag on other clothes.
• Pretreat dirt and stains by brushing a little
detergent dissolved in water onto stains like
collars arKl cuffs to help lift dirt.
NOTE: D«) nut wash or spin water-pnwf clothes.
10

USING THE DISPENSER
The automatic dispenser consists of four compartments which hold 1) liquid chlorine bleach. 2) liquid fabric
soltener, 3l liquid or powdered detergent for prewash and 4> liquid or powdered detergent
and color safe bleach for main wash.
All laundry products can be added at once in their respective dlspeaser compartments.
They will be dispensed at the appn)priute time for most elTective cleaning. .After loading the laundry
additives into the dispenser, close the dispenser drawer.
Add detergent, bleach and fabric softener to the automatic dispenser foilowing these steps:
1. Open the dispenser drawer.
2. Load the laundry products Into the appropriate compartments.
3. Close the dispenser drawer.
■ About detergent
Designed specially to use only
HE(High Efficiency) detergent
Your LG TROMM washer is designed to use only High Efficiency (HE) detergents.
HE detergents are formulated specifically for front load washers and contain suds reducing components.
HE detergents make less suds, Improve washing and rinsing performance, and help to keep the interior
of your LG TROMM washer clean. Use the manufacture's recommend amount.
If a regular detergent is used. It may cause oversudsing artd unsatisfactory performance.
For the best washing and rinsing performance, low-sudsing HE detergents are strongly recommerxJed.
1. Prewash Detergent Compartment
• Add detergent to this compartment when using
the Prewash option. Liquid or powdered
detergent may be used in this compartment. The
detergent will automaticalty be dispensed during
Prewash if the Prewash option is selected.
• Add 1/2 the recommended amount of detergent
to the Prewash compartment and the
recommended amount of detergent to the main
wash compartment.
NOTE : Liquid detergent will drain into the washer
drum as it b added.
11
ENGLISH

USING THE DISPENSER
2. Main Wash Detergent Compartment 3. Liquid Bleach Compartment
• Add measured detergent to this compartment for
Main wash. Detergent is flushed from the
dispenser at the beginning of the cycle. Either
powdered or liquid detergent can be used.
• Liquid or powdered color-safe bleach may be
added to the main wash compartment along with
the same type of liquid or powdered detergent.
• When using liquid detergent, make sure the liquid
detergent box and insert are in place. Do not
exce^ the maximum fill line.
• For powered detergent, remove both the liquid
detergent box and insert.
• Powdered detergent will not dispense with the
liquid detergent box and insert in place.
Insert
• Add measured liquid chlorine bleach to this
compartment. The bleach will be automatically
dispensed at the proper time during the wash
cycle.
• Do rK>t exceed ^e maximum fill line. Overfilling can
cause early dispensing of the bleach which could
result in damaged clothes.
• Do rK>t pour undiluted liquid chlorine bleach directly
onto the load or into the drum. Fabric damage can
occur.
• Do mt use powdered bleach in this compartment.
4. Fabric Softener Compartment
• Add recommended amount of fabric softener to
this compartment.
• Dilute concentrated softeners with warm water to
the fill line.
• Do not exceed ^e maximum fill line. Overfilling can
cause early dispensing of the fabric softener which
coufd result in stained clothes.
• Do not pour fabric softener directfy on the wash
load.
• The fabric softener will be automatically dispensed
during the last rinse cycle.
NOTK: Do not place. stM'e, or spill luundry products
(soap, determent, bleach, softener, etc.) on the
lop of your washer or dryer. I'hese products
can damajie the finish or controls if left there
too lont(.
Designed specially to use only
HE(High Efficiency) detergent
J2

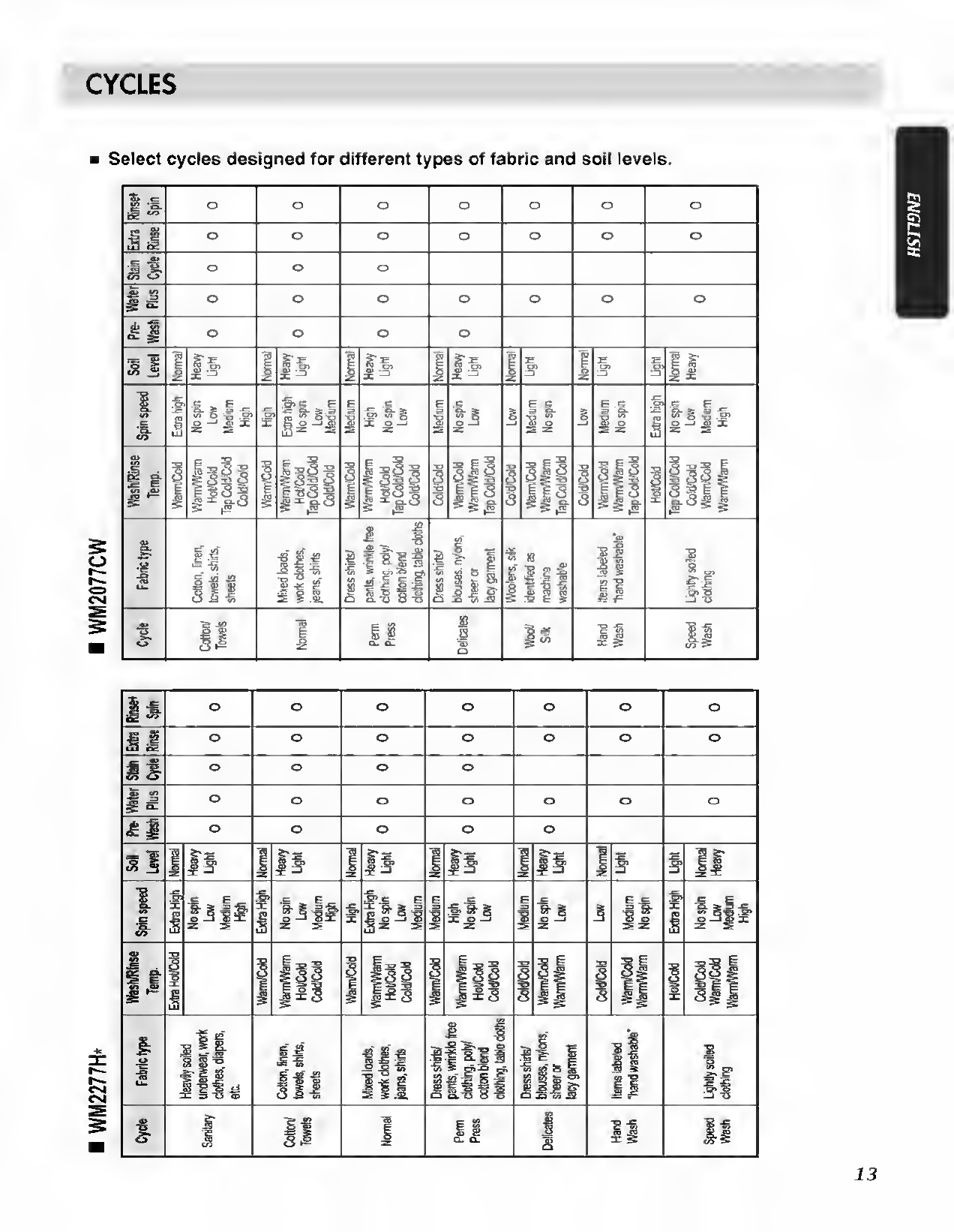

HOW TO USE THE WASHER
■ WM2277H-
■ WM2077CW
1. Power
• Use this button to turn the Power On/Off.
2. Cycles
• Rotate the Cycle selector knob to select cycle
designed for different types of fabric and soil
levels.
• Each cycle has a preset Water Temperature, Spin
Speed, Soil Level, and Option (See page 13).
• The preset settings can be changed anytime
before Start.
N01'l']: 'I'his friml IrKid washer requires longer cjde time
and gets clothes much cleaner, ret is more gentle
on the fahrics, than top load wasiiers. Washing
time can he reduced significant!}' for s'mall huids
or lightly soiled loads by selecting Speed 1\ ash
cycle and setting the Soil Level button at Light
3. S tart/Pause '
• Use this button to start/stop the washer.
4. D elay Wash
• Allows the start of any cycle to be delayed for
1-12 (9) hours.
• Choose the wash cycle for your load, and then
press the Delay Wash button once for one hour or
press the button again to increase the delay wash
time up to 12 (9) hours in one hour increments.
14

HOW TO USE THE WASHER
5. Custom Program
• Custom Program allows you to store a customized
wash cycle for future use.
* I'o make a Custom I'rosram:
1. Select a cycle.
2. Select Wash/Rtnse Temperature, Spin Speed,
and Soil Level.
3. Select other desired Options.
4. Press and hold Custom Program button 3
seconds (2 beep sounds).
The Custom program Is now stored for future
use. To reuse the program, select Custom
Program and press Start/Pause(^.
7. Spin speed
• To change the spin speed, press the Spin Speed
button repeatedly to cycle through available
(^tions.
• To start Drain/^in cycle:
1. Press Powert^button to turn on,
2. Press Spin Speed button only.
3. Press Start/Pause(H)button.
8. Soil Level
• To change the soil level, press the Soil Level
button repeatedly until the desired setting is on.
6. Wash/Rinse Temperature
9. Beeper
• Select a water temperature based on the type of
load you are washing.
• Follow the fabric care label and chart below for
best results.
• Press repeatedly to adjust the volume of the
Beeper.
Suggested Wash Temp. Garment
Extra Hot
Kitchen towels, sheets.
167“F (75X)
and baby garments
Hot Whites and Heavy
122"F (50"C) soiled color-fast Items
Warm
Most loads
104“F(40'’C)
Cold
77“F (25"C)
Brightly colored items,
washable woolens
• Warm rinses leave the loads dryer than cold
rinses. Warm rinses Increase wrinkling.
• In cold climates, a warm rinse makes the toad
more comfortable to handle.
• Cold rinses save energy.
• The Cold rinse temperatures depend on the cold
water at your faucet.
• Warm rinses are regulated at approximately
86“F (30^).
• For the Tap Cold/Cold setting, both wash and rinse
temperatures depend on the cold water at your
faucet.
15
ENGLISH

HOW TO USE THE WASHER
OPTION
1. Prewash
• Use this option for loads that need pretreatment.
Adds 16 minutes prewash and drain.
2. Rinse+Spin
• Use this option to rinse and then spin.
EST. TIME REMAINING
• This display shows:
a) the estimated time remaining in the cycle when
(grating,
b) the error code when an error has been
detected.
STATUS INDICATOR
• These lights show which portion of the cyde the
washer is operating.
3. Extra Rinse
• This option provides an additional rinse.
• Use this option to ensure the removal of detergent
or bleach residue from garments.
4. S tain cycle
• Adds time to the wash and rinse for better stain
removal.
• Automatically provides a rinse.
5. W ater Plus
CHILD LOCK
PRE-WASH
ACHaOlOCX
• Use this option to prevent unwanted use of the
washer. Press and hold PRE WASH button for 3
seconds to lock/unlock control.
• When Child lock is set. CHILD LOCK lights and all
buttons are disabled except the Power (e) button.
You can lock the washer while it is operating.
• Adds extra water to the wash and rinse cycles lor
superior results.
6. S PINSENSE ™
• SPINSENSE'” can be used when there Is a vibration
problem, especially on wood floor Installations.
• To operate SPINSENSE'“ press and hold the Stain
Cycle button for 3 seconds when the washing machine
Is running on any cycle.
• When SPINSENSE'“ has been selected, the Spin
Speed button light will blink on and off continually to
Indicate that the SPINSENSE'” function has been
selected.
• Push and hold the Stain Cycle button again for 3
seconds to cancel SPINSENSE ™
• Once SPINSENSE’“ has been selected, if will continue
to function even if Interrupted by a power failure.
DOOR LOCKED
• Lights whenever the door of the washer is locked.
• The door can be unlocked by pressing the
Start/Pause(^ button to stc^ the washer.
NOTH: If the water temperature or the level is too
high, the door cannot be unlocked.
I)n not try to force the door open when
DOOR LOCKED lights on.
16

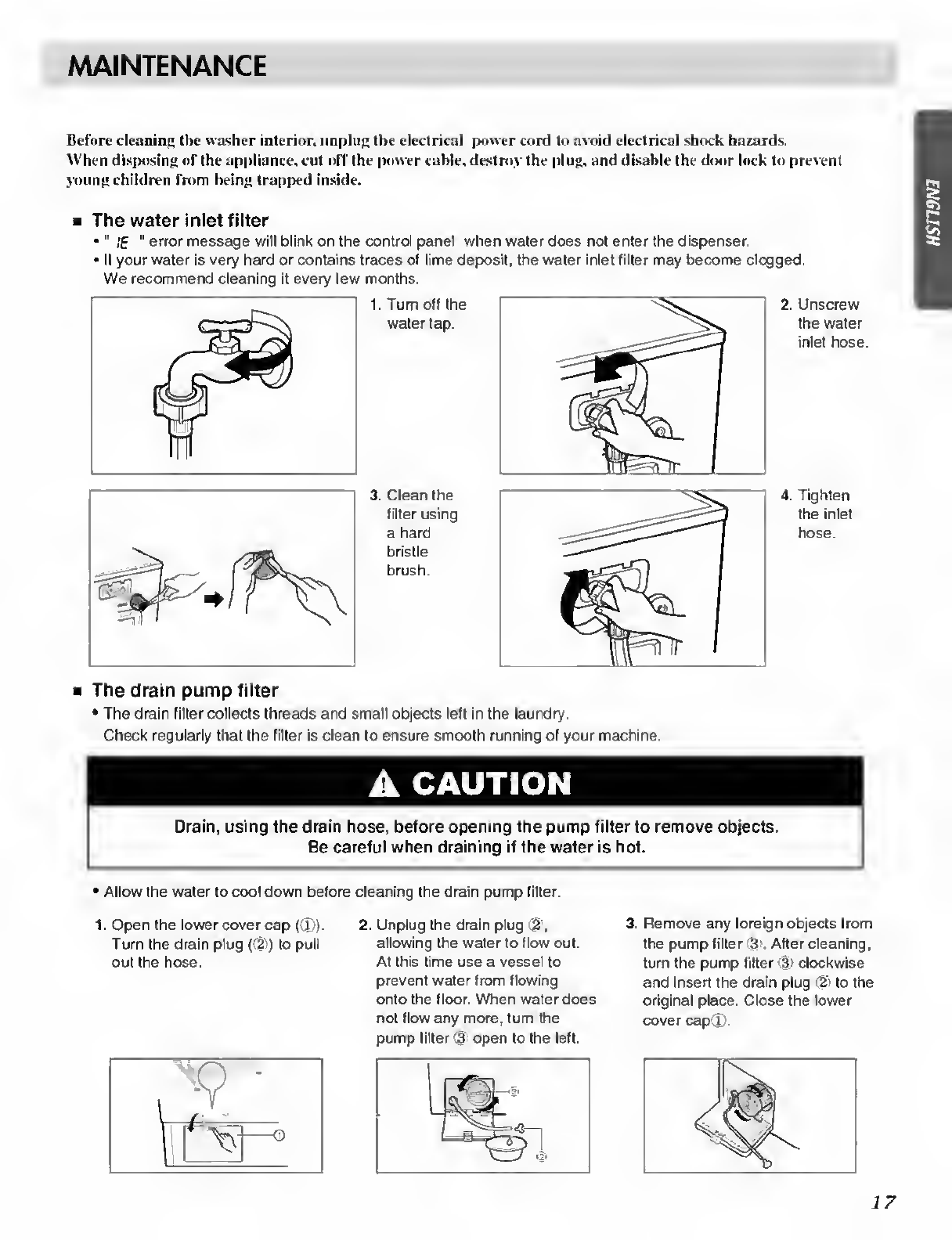

MAINTENANCE
Before cleaning the washer interior, unplug the electrical power cord to as oid electrical shock hazards.
When disposing of the appliance, cut ofT the power cable, destroy the plug, and disable the dtair luck to prevent
young children from being trapped inside.
■ The water inlet filter
•" IE " error message will blink on the control panel when water does not enter the dispenser
• if your water is very hard or contains traces of time deposit, the water inlet filter may become clogged.
We recommend cleaning it every few months.
1. Turn off the
water tap.
2. Unscrew
the water
inlet hose
3. Clean the
filter using
a hard
bristle
brush.
4. Tighten
the inlet
hose.
■ The drain pump filter
■ The drain filter collects threads and small objects left in the laundry.
Check regularly that the filter is clean to ensure smooth running of your machine.
A CAUTION
Drain, using the drain hose, before opening the pump filter to remove objects.
Be careful when draining if the water is hot.
■ Allow the water to cool down before cleaning the drain pump filter.
1. Open the lower cover cap ((t)).
Turn the drain plug (<S>) to pull
out the hose.
2. Unplug the drain plug
allowing the water to flow out.
At this time use a vessel to
prevent water from flowing
onto the floor. Wftien water does
not flow any more, turn the
pump filter open to the left.
3. Remove any foreign objects from
the pump filter ($). After cleaning,
turn the pump filter S.) clockwise
and insert the drain plug •%) to the
original place. Close the lower
cover cap-i'.
ENGLISH

AAAINTENANCE
■ Cleaning the Dispenser
■ The dispenser may need to be cleaned periodically due to laundry additive build-up.
1 Pull the dispenser
I drawer out until it stops.
* Run warm water and use a soft brush or cloth on the drawer, liquid detergent box and inserts to remove any excess
laundry additives.
* Clean the drawer opening using water and a small brush.
* Follow the illustrations in reverse order to replace the parts to their proper location.
NOTK: Do not use any cleaning substance on the drawer opening other than water because It will drain into the tub.
ir this should happen, set the washer for a rinse and spin cycle to remove any cleaning substance fnim the
washer before doing a Itaid of laundry.
■ The washing drum
• If you live in a hard water area, lime scale can continuously build up in places where it cannot be seen
and it is not easily removed from the drum.
Over time the build-up of scale clogs appliances, and if it is not kept in check, these will eventually
have to be r^laced.
• Although the washing drum is made of Stainless steel, specks of rust can be caused by small metal articles
(paper clips, safety pins, etc.) which have been left in the drum.
• The washing drum should be cleaned from time to time.
• If you use descaling agents, dyes, or bleaches, make sure they are suitable for washing machine use.
• Descaler could contain components that can damage part of your washing machine.
• Remove the spots with a stainless steel cleaning agent.
• Never use steel wool.
18

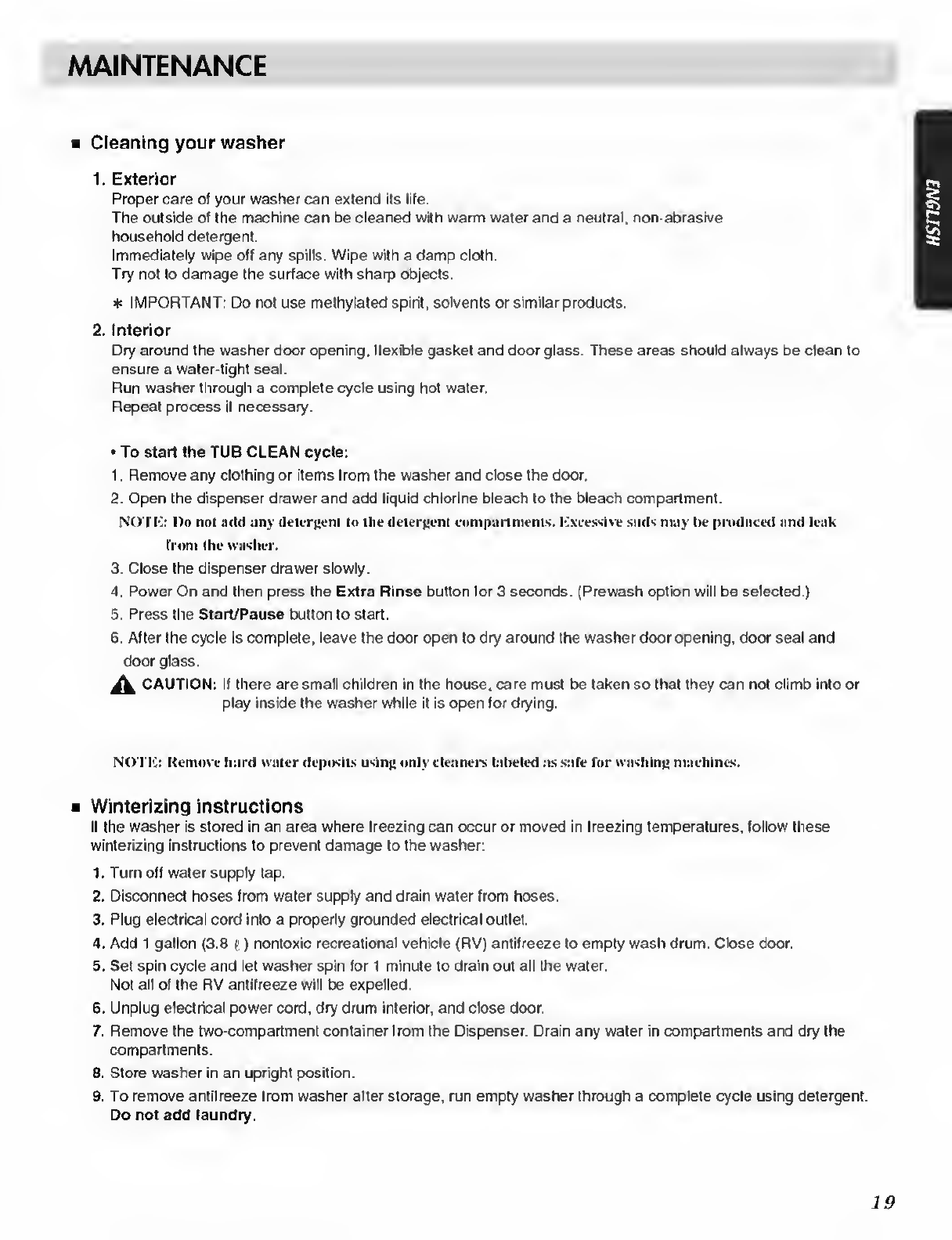

MAINTENANCE
■ Cleaning your washer
1. Exterior
Proper care of your washer can extend its life.
The outside of the machine can be cleaned with warm water and a neutral, non-abrasrve
household detergent.
Immediately wipe off any spills. Wipe with a damp cloth.
Try not to damage the surface with sharp objects.
* IMPORTANT: Do not use methylated spirit, solvents or similar products.
2. Interior
Dry around the washer door opening, flexible gasket and door glass. These areas should always be clean to
ensure a water-tight seal.
Run washer through a complete cycle using hot water.
Repeat process if necessary.
• To start the TUB CLEAN cycle:
1. Remove any clothing or items from the washer and close the door.
2. Open the dispenser drawer and add liquid chlorine bleach to the bleach compartment.
NOTK: l)«) not add any deterfteni to the deterfient compartments. Kxces.si\e suds may be produced and leak
From the washer.
3. Close the dispenser drawer slowly.
4. Power On and then press the Extra Rinse button for 3 seconds. (Prewash option will be selected.)
5. Press the Start/Pause button to start.
6. After the cycle is complete, leave the door open to dry around the washer door opening, door seal and
door glass.
A CAUTION: If there are small children in the house, care must be taken so that they can not climb into or
play inside the washer while it is open for drying.
NOTK: Remove hard water deposits usin^t only cleaners labeled a.s safe for washing machines.
■ Winterizing instructions
If the washer is stored in an area where freezing can occur or moved in freezing temperatures, follow these
winterizing instructions to prevent damage to the washer:
1. Turn off water supply tap.
2. Disconnect hoses from water supply and drain water from hoses.
3. Plug electrical cord into a properly grounded electrical outlet.
4. Add 1 gallon (3.8 c) nontoxic recreational vehicle (RV) antifreeze to empty wash drum. Close door.
5. Set spin cycle and let washer spin for 1 minute to drain out all the water.
Not all of the RV antifreeze will be expelled.
6. Unplug electrical power cord, dry drum interior, and close door.
7. Remove the two-compartment container from the Dispenser. Drain any water in compartments and dry the
compartments.
8. Store washer in an upright position.
9. To remove antifreeze from washer after storage, run empty washer through a complete cycle using detergent.
Do not add laundry.
19
ENGLISH

TROUBLESHOOTING GUIDE
« Thh washing machinv Is equipped with automata' safety functions which detect and diagnose problems at an
early stage and react appnipriateiy. \Mien the machine does not function properly or does not function at all,
check the follow ing points before you call the Ser>'ice Department.
Problem
Possible Cause
Solution
Rattling and clanking noise • Foreign objects such as coins Stc^ washer and check drum and drain
or safety pins may be in drum fitter.
or pump- If noise continues after washer is restarted,
call tor service.
Thumping sound • Heavy wash loads may If sound continues, washer is probably out
produce a thumping sound. of balance. Stop and redistribute wash
This is normal. load.
Vibrating noise • Have all the transit bolts and See Installation Instructions for removing
packing been removed? shipping bolts.
• Wash load may be unevenly
distributed in the drum.
Stop washer and rearrange wash load
• Are all the feet resting firmly Adjust the leveling feet.
on the ground? Make sure all four feet are in firm contact
with the floor, while the washer is in the
spin cycle with load.
Water leaks • Fill hose connection is loose at
tap or washer.
Check and tighten hose connectiorrs.
• House drain pipes are Unclog drain pipe. Contact plumber if
clogged.
necessary.
Excessive suds • Too much detergent or Reduce detergent amount or use HE
unsuitable detergent.
i
1
(High Efficiency) detergent.
A Designed specially to use only
HE(High Efficiency) detergent
20
