LG WM3677HW User manual

@
WM3677HW Owne >
Washing Machine
Please read this manual carefully. It provides
instructions on safe installation, use, and maintenance.
Retain it for future reference.
Record the model and serial numbers of your machine
and report this information to your dealer if your machine
requires service.
Lavadora
Lea este manual cuidadosamente. Le proveer6
instrucciones para una instalaci6n, uso y mantenimiento
seguros. Cons_rvelo para futuras referencias. Cite esta
informaci6n a su proveedor si requiere de servicio.

Direct Drive System
The advanced Brushless DC motor directly drives the drum without
belt and pulley.
Tilted Drum and Extra Large Door Opening
Tilted drum and extra large opening make it possible to load
and unload clothing more easily.
Water Circulation
Spray detergent solution and water onto the load over and over.
Clothes are soaked more quickly and thoroughly during wash cycle.
The detergent suds can be removed more easily by the water shower
during rinse cycle. The water circulation system uses both water and
detergent more efficiently.
Roller Jets
Washing ball enhances the wash performance and reduces damage
to the clothing. The jets spray and help tumble clothes to enhance
washing performance while maintaining fabric care.
Automatic Wash Load Detection
Automatically detects the load and optimizes the washing time.
Built-in Heater
Internal heater automatically heats the water to the best temperature on
selected cycles.
Child Lock
The Child lock prevents children from pressing any button to change the
settings during operation.
Important Safety Information ........................................................................................................................................... 3
Specifications ................................................................................................................................................................... 4
Installation Instructions .................................................................................................................................................... 5
Preparation Before Washing .......................................................................................................................................... 10

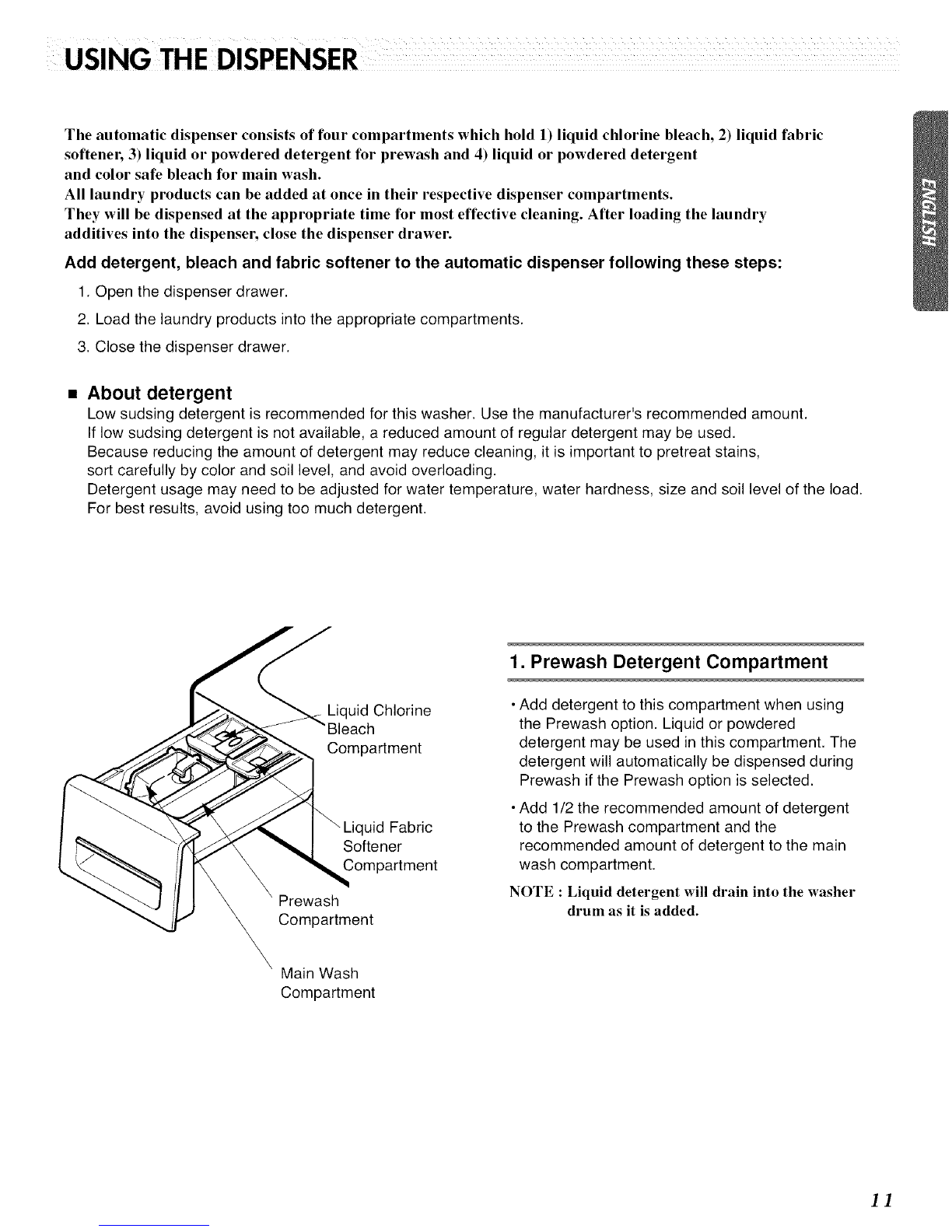

Using the Dispenser ...................................................................................................................................................... 11

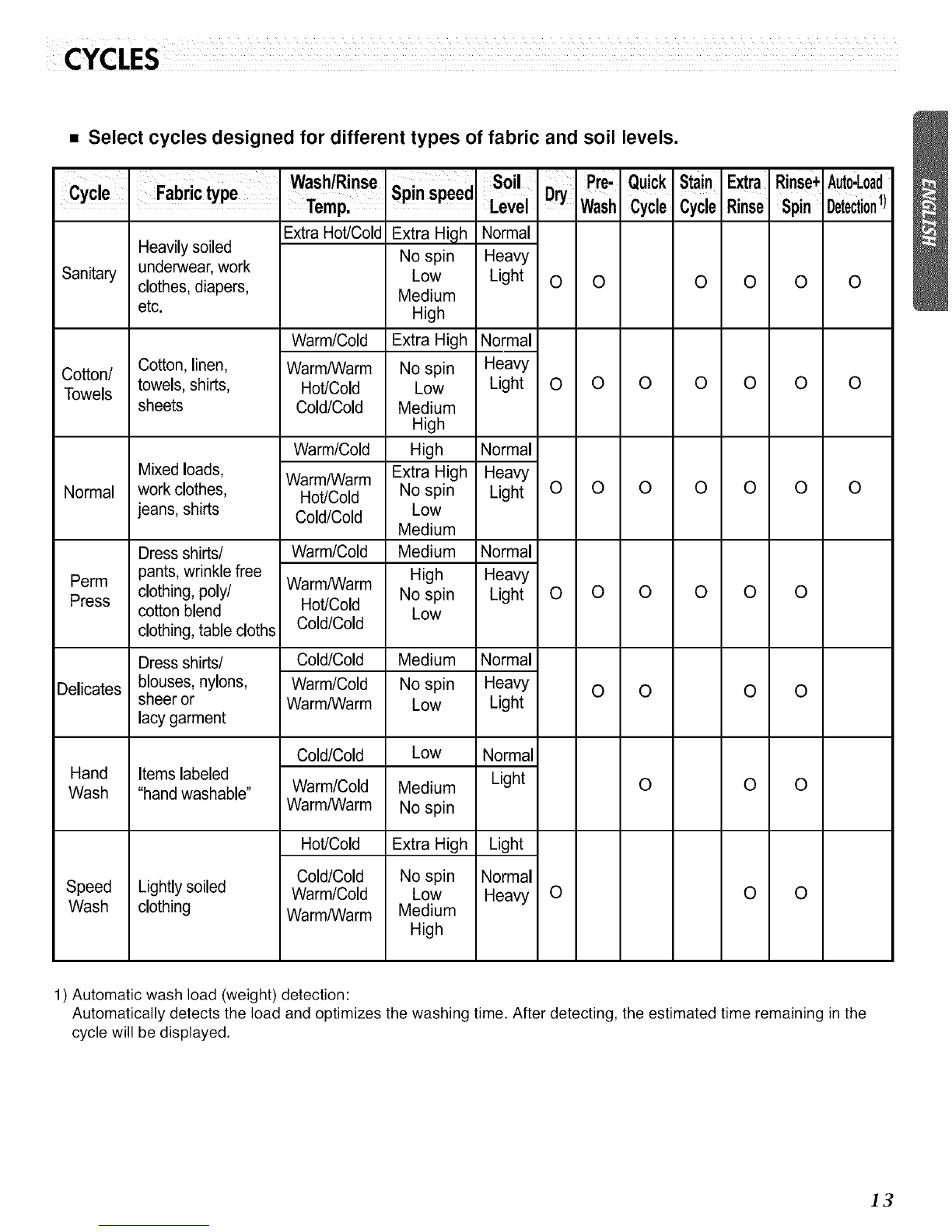

Cycles ........................................................................................................................................................................... 13
How to Use the Washer ................................................................................................................................................. 14
Maintenance .................................................................................................................................................................. 18
Troubleshooting Guide .................................................................................................................................................. 21
Warranty ........................................................................................................................................................................ 24
2

READ ALLINSTRUCTIONS BEFOREUSE
a, WARNINGS
For your safety, the information in this manual must be followed to minimize the risk of fire or
explosion, electric shock, or to prevent property damage, personal injury, or loss of life.
IMPORTANT SAFETY INSTRUCTIONS
_1_WARNING: To reduce the risk of fire, electric shock, or injury to persons when using the washer, follow basic
precautions, including the following:
•Read all instructions before using the washer.
•Do not wash articles that have been previously
cleaned in, washed in, soaked in, or spotted with
gasoline, dry cleaning solvents, or other
flammable or explosive substances, as they give
off vapors that could ignite or explode.
•Do not add gasoline, dry cleaning solvents, or
other flammable or explosive substances to the
wash water. These substances give off vapors that
could ignite or explode.
• Under certain conditions, hydrogen gas may be
produced in a hot water system that has not been
used for 2 weeks or more. HYDROGEN GAS IS
EXPLOSIVE. ff the hot water system has not been
used for such a period, before using the washing
machine, turn on all hot water faucets and let the
water flow from each for several minutes. This will
release any accumulated hydrogen gas. As the gas
is flammable, do not smoke or use an open flame
during this time.
•Do not allow children to play on or in the washer.
Close supervision of children is necessary when
the washer is used near children.
• Before the washer is removed from service or
discarded, remove the door to prevent children
from hiding inside.
• Do not install or store the washer where it will be
exposed to the weather.
• Do not tamper with controls.
• Do not repair or replace any part of the washer or
attempt any servicing unless specifically
recommended in the user-maintenance
instructions or published user-repair instructions
that you understand and have the skills to carry
out.
•See Installation Instructions for grounding
requirements.
•AL WAYS follow the fabric care instructions
supplied by the garment manufacturer.
• Do not place items exposed to cooking oil in your
washer. Items contaminated with cooking oils may
contribute to a chemical reaction that could cause
a load to catch fire.
• Do not use fabric softeners or products to
eliminate static unless recommended by the
manufacturer of the fabric softener or product.
SAVE THESE INSTRUCTIONS
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk
of electric shock by providing a path of least resistance for electric currenL This appliance is equipped with
a cord having an equipment-grounding conductor and grounding plug. The plug must be plugged into an
appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
•Do not use an adapter or extension cord.
•Do not remove ground prong.
•If you don't have the proper outlet, consult an electrician.
A. WARNING: Improper connection of the equipment-grounding conductor can result in risk of electric shock.
Check with a qualified electrician or serviceman if you are in doubt as to whether the appliance is
properly grounded. Do not modify the plug provided with the appliance - if it does not fit the outlet,
have a proper outlet installed by a qualified electrician.

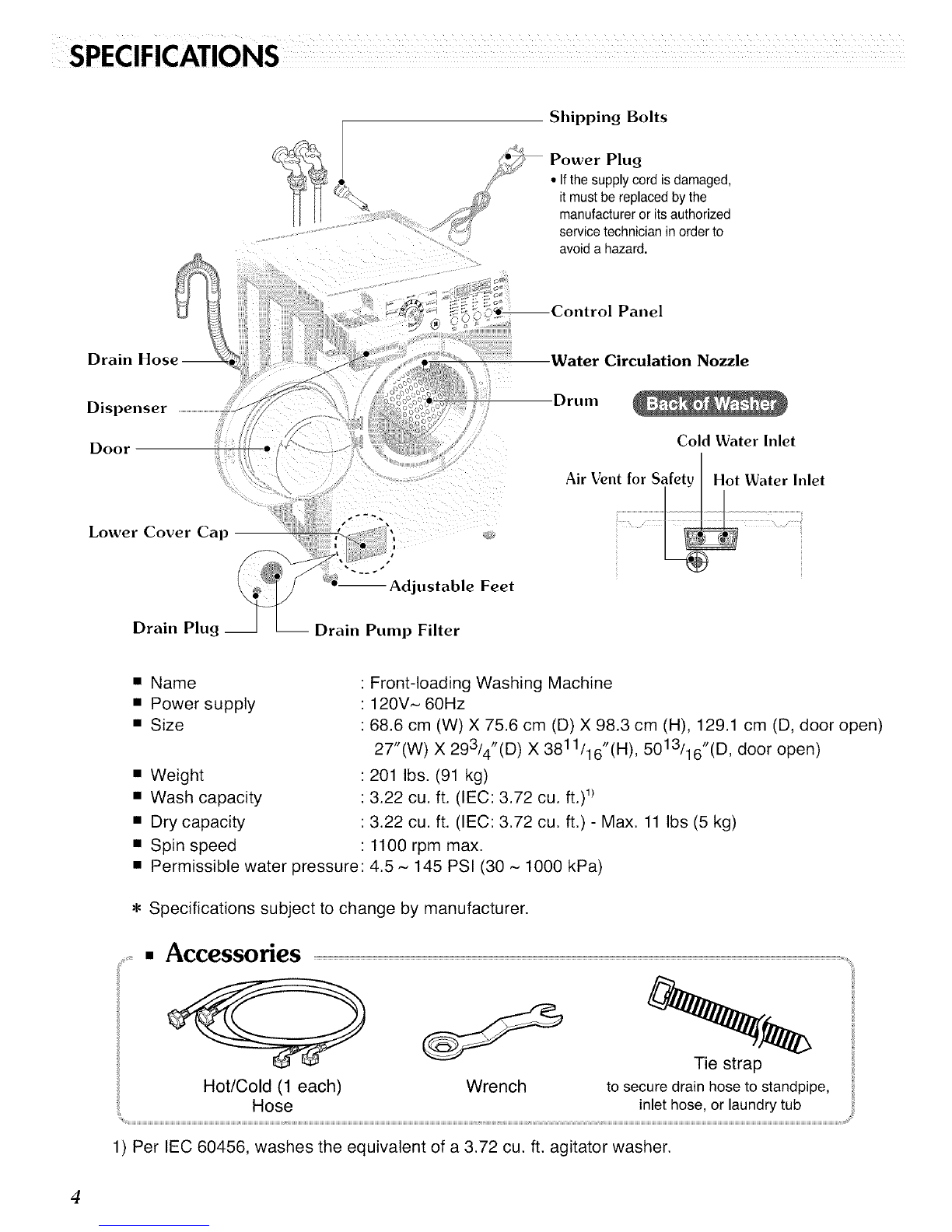

Shipping Bolts
Power Plug
• Ifthe supply cord is damaged,
it must be replaced by the
manufacturer or its authorized
service technician in order to
avoid a hazard.
Control Panel
Drain
Dispenser
Door
Lower Cover Cap
Drain Plug Drain Pump Filter
Water Circulation Nozzle
-Drnnl
Air Vent for Safety
Cold Water Inlet
Hot Water Inlet
• Name
• Power supply
• Size
• Weight
• Wash capacity
• Dry capacity
• Spin speed
• Permissible water pressure:
Front-loading Washing Machine
120V~ 60Hz
68.6 cm (W) X 75.6 cm (D) X 98.3 cm (H), 129.1 cm (D, door open)
27"(W) X 29314"(D) X 3811116"(H ), 5013116"(D, door open)
201 Ibs. (91 kg)
3.22 cu. ft. (IEC: 3.72 cu. ft.) 1/
3.22 cu. ft. (IEC: 3.72 cu. ft.) - Max. 11 Ibs (5 kg)
1100 rpm max.
4.5 ~ 145 PSI (30 ~ 1000 kPa)
*Specifications subject to change by manufacturer.
•Accessories
Tie strap
Hot/Cold (1 each) Wrench to secure drain hose to standpipe,
Hose inlet hose, or laundry tub
1) Per IEC 60456, washes the equivalent of a 3.72 cu. ft. agitator washer.

Install or store unit where it will not be exposed to temperatures below freezing or
exposed to outside weather conditions.
Properly ground washer to conform with all governing codes and ordinances.
To reduce the risk of electric shock, do not install the washer in humid spaces.
The base opening must not be obstructed by carpeting when the washing machine is installed on a carpeted floor.
In countries where there are areas which may be subject to infestation by cockroaches or other vermin, pay
particular attention to keeping the appliance and its surroundings in clean condition at all times.
Any damage which may be cause by cockroaches or other vermin will not be covered by the appliance guarantee.
•Shipping bolts
The appliance is fitted with shipping bolts to prevent internal damage during transport.
•Removing shipping bolts
1. To prevent internal damage during transport,
4 locking bolts are installed. Before operating
the washer, remove the bolts and braces.
• If they are not removed, it may cause severe
vibration, noise, and malfunction.
d
3. Take out the 4 bolts and braces by twisting
the braces slightly. Keep the 4 bolts, braces
and the wrench for future use.
•Whenever the appliance is transported, the
shipping bolts and braces must be replaced.
2. Unscrew the 4 bolts with the wrench supplied.
f
4. Close the holes with the caps supplied.

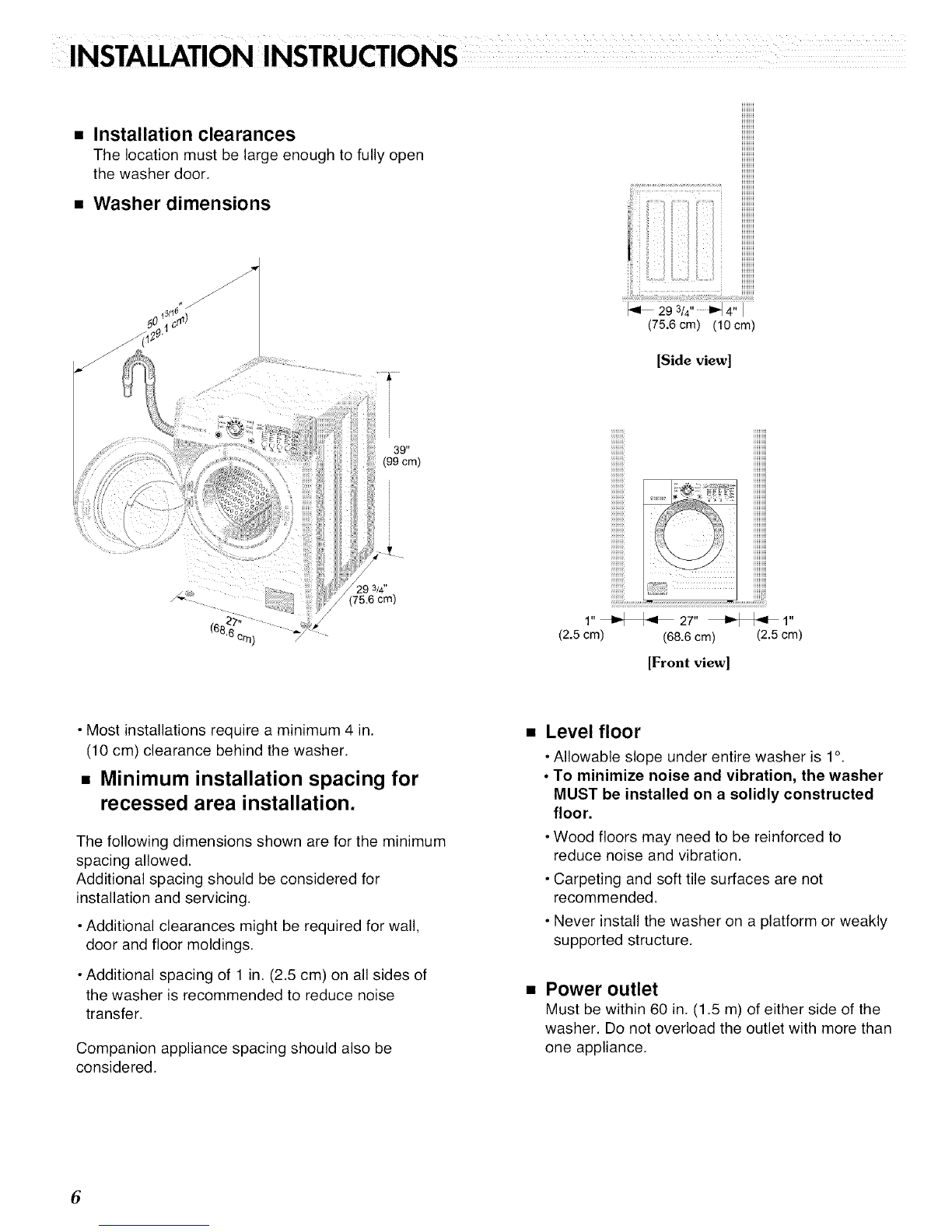

•Installation clearances
The location must be large enough to fully open
the washer door,
• Washer dimensions
I_1 29 3/4" 4" I
(75.6 cm) (10 cm)
[Side view]
39"
(99 cm)
111111117
111111117
111111117
111111117
111111117
111111117
111111117
111111117
111111117
111111117
1111117
iiiiiiiii
iiiiiiiii
771:
CCI
iiiiiiiii
1"_27" _1"
(2.5 cm) (68.6 cm) (2.5 cm)
[Front view]
•Most installations require a minimum 4 in,
(10 cm) clearance behind the washer.
•Minimum installation spacing for
recessed area installation.
The following dimensions shown are for the minimum
spacing allowed.
Additional spacing should be considered for
installation and servicing.
•Additional clearances might be required for wall,
door and floor moldings.
•Additional spacing of 1 in. (2.5 cm) on all sides of
the washer _srecommended to reduce noise
transfer.
Companion appliance spacing should also be
considered.
•Level floor
•Allowable slope under entire washer is 1°.
• To minimize noise and vibration, the washer
MUST be installed on a solidly constructed
floor.
•Wood floors may need to be reinforced to
reduce noise and vibration.
• Carpeting and soft tile surfaces are not
recommended.
• Never install the washer on a platform or weakly
supported structure,
•Power outlet
Must be within 60 in. (1.5 m) of either side of the
washer. Do not overload the outlet with more than
one appliance,
6

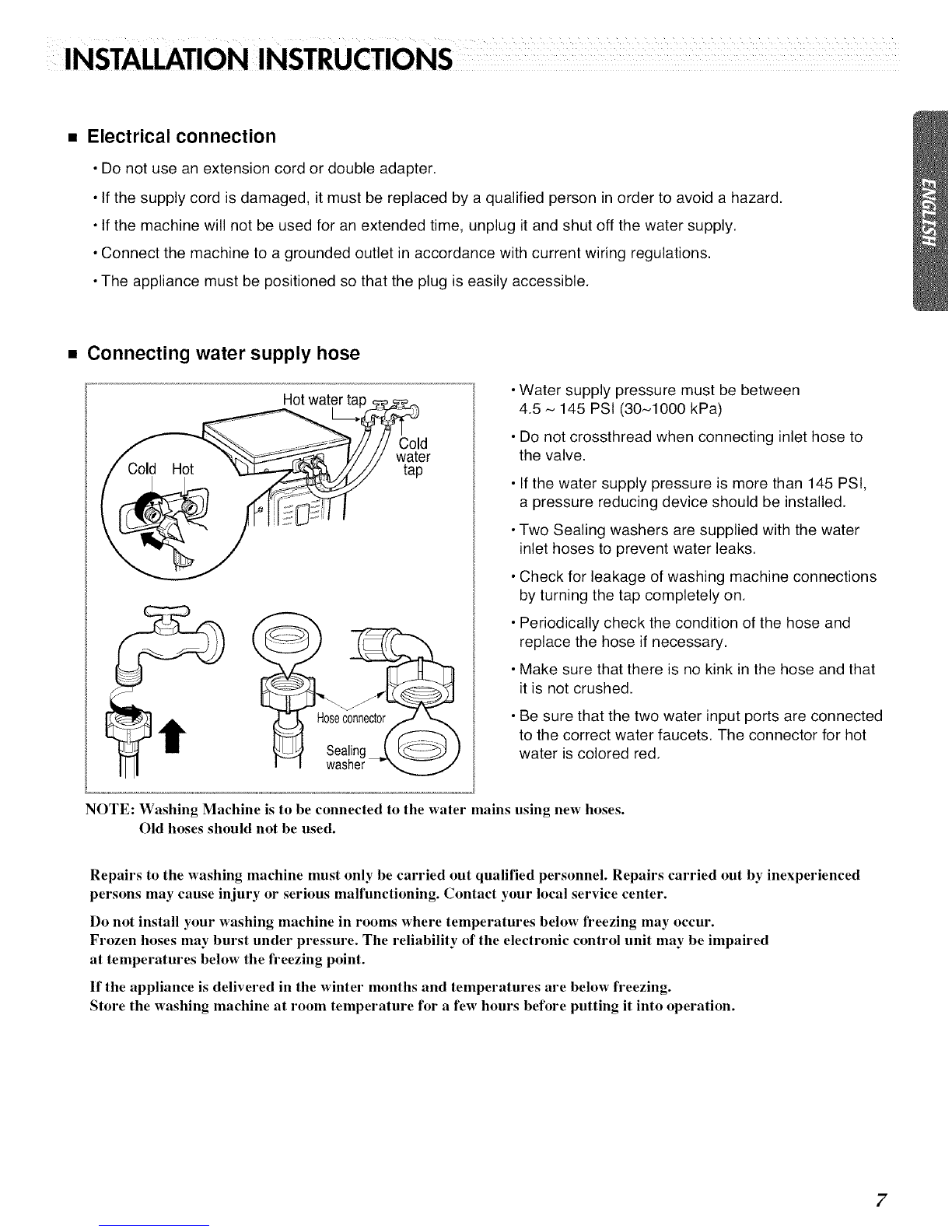

•Electrical connection
•Do not use an extension cord or double adapter.
• Ifthe supply cord is damaged, it must be replaced by a qualified person in order to avoid a hazard.
• If the machine will not be used for an extended time, unplug it and shut off the water supply.
•Connect the machine to a grounded outlet in accordance with current wiring regulations.
•The appliance must be positioned so that the plug is easily accessible.
•Connecting water supply hose
Hot water
Cold
water
tap
Sealing
washer
•Water supply pressure must be between
4.5 N 145 PSt (30N1000 kPa)
• Do not crossthread when connecting inlet hose to
the valve.
• If the water supply pressure is more than 145 PSI,
a pressure reducing device should be installed.
•Two Sealing washers are supplied with the water
inlet hoses to prevent water leaks.
• Check for leakage of washing machine connections
by turning the tap completely on.
• Periodically check the condition of the hose and
replace the hose if necessary.
• Make sure that there is no kink in the hose and that
it is not crushed.
• Be sure that the two water input ports are connected
to the correct water faucets. The connector for hot
water is colored red.
NOTE: Washing Machine is to be connected to the water mains using new hoses.
Old hoses should not be used.
Repairs to the washing machine must only be carried out qualified personnel. Repairs carried out by inexperienced
persons may cause injury or serious malfunctioning. Contact your local service center.
Do not install your washing machine in rooms where temperatures below freezing may occur.
Frozen hoses may burst under pressure. The reliability of the electronic control unit may be impaired
at temperatures below the freezing point.
If the appliance is delivered in the winter months and temperatures are below freezing.
Store the washing machine at room temperatm'e for a few hours before putting it into operation.
7

INSTALLATIONINSTRUCTIONS
•Installation of drain hose
about 70
•Place the end of the drain hose in the hole of the
floor drain system.
Laundrytub
Hose
Retainer
max. 96" (2.4 m)
•The drain hose should not be placed higher than
96 in. from the bottom of the washer.
•Properly securing the drain hose will protect the
floor from damage due to water leakage.
•When installing the drain hose at a sink, secure it
so it cannot break away and cause flooding and
damage.
• Properly securing the drain hose will protect the
floor from damage due to water leakage.
This equipment is not designed for maritime use or for mobile installations such as in RV's, aircraft, etc.
Turn off the faucet if the machine is to be left for an extended period of time (e.g. holiday).
When disposing of the appliance, cut off the power cable, and destroy the plug.
Disable the door lock to prevent young children being trapped inside.
Packaging material (e.g. Films, Styrofoam) can be dangerous for children. There is a risk of suffocation! Keep all
packaging from children.
8

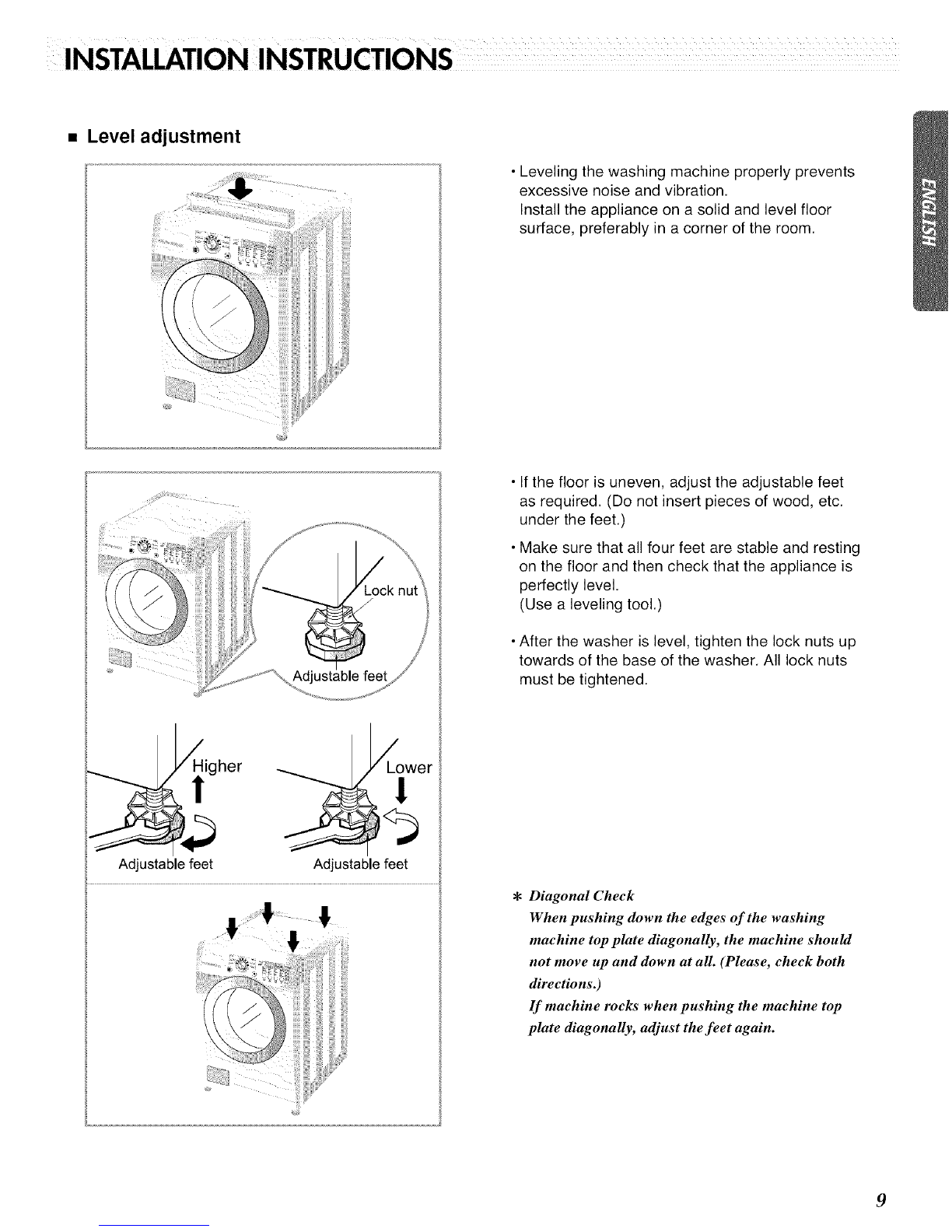

•Level adjustment
•Leveling the washing machine properly prevents
excessive noise and vibration.
Install the appliance on a solid and level floor
surface, preferably in a corner of the room.
Adjustable feet
i'_igher
Adjustable feet Adjustable feet
• If the floor is uneven, adjust the adjustable feet
as required. (Do not insert pieces of wood, etc.
under the feet.)
• Make sure that all four feet are stable and resting
on the floor and then check that the appliance is
perfectly level.
(Use a leveling tool.)
•After the washer is level, tighten the lock nuts up
towards of the base of the washer. All lock nuts
must be tightened.
*Diagonal Check
When pushing down the edges of the washing
machine top plate diagonally, the machine should
not move up and down at all. (Please, check both
directions.)
If machine rocks when pushing the machine top
plate diagonally, adjust the feet again.

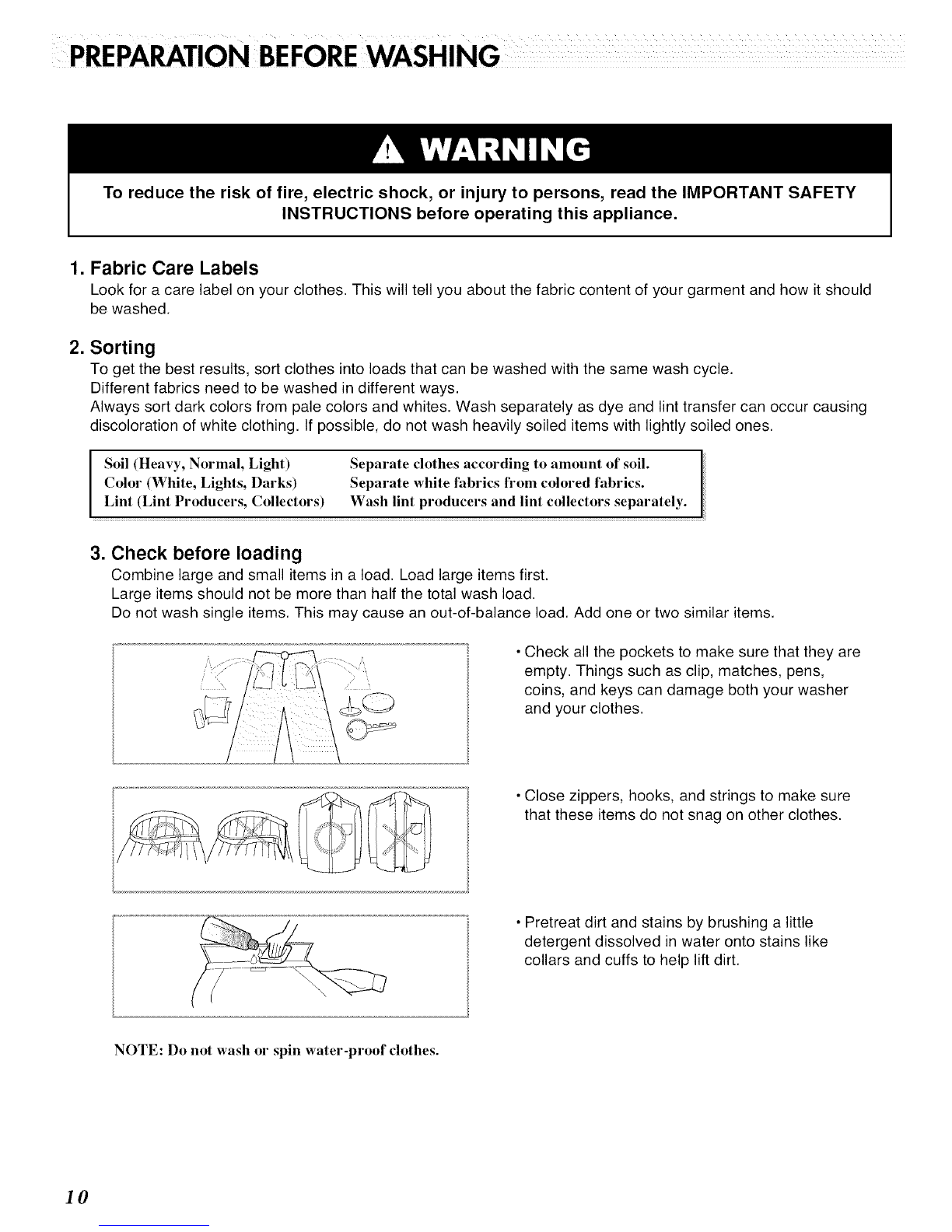

To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY
INSTRUCTIONS before operating this appliance.
1. Fabric Care Labels
Look for a care label on your clothes. This will tell you about the fabric content of your garment and how it should
be washed.
2. Sorting
To get the best results, sort clothes into loads that can be washed with the same wash cycle.
Different fabrics need to be washed in different ways.
Always sort dark colors from pale colors and whites. Wash separately as dye and lint transfer can occur causing
discoloration of white clothing. If possible, do not wash heavily soiled items with lightly soiled ones.
ISoil (Heavy, Normal, Light) Separate clothes according to amount of soil.
Color (White, Lights, Darks) Separate white fabrics from colored fabrics.
Lint (Lint Producers, Collectors) Wash lint producers and lint collectors separately.
3. Check before loading
Combine large and small items in a load. Load large items first.
Large items should not be more than half the total wash load.
Do not wash single items. This may cause an out-of-balance load. Add one or two similar items.
•Check all the pockets to make sure that they are
empty. Things such as clip, matches, pens,
coins, and keys can damage both your washer
and your clothes.
•Close zippers, hooks, and strings to make sure
that these items do not snag on other clothes.
• Pretreat dirt and stains by brushing a little
detergent dissolved in water onto stains like
collars and cuffs to help lift dirt.
NOTE: Do not wash o1"spin water-proof clothes.
10
