LI-TIAN LIGHTING LT-ALP-20W-MA User manual

LED Outdoor Security Light
LT-ALP-20W-MA Installa�on Instruc�ons
IMPORTANT
READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
Fixtures must be wired in accordance with the Na�onal Electrical Code and all applicable local codes. Proper
grounding is required for safety. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE
INSTALLATION CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT
AND THE HAZARDS INVOLVED.
W
PARTS PACKAGE
Mounting BracketEVA Gasket
8/32 inches screws (×2)
(set the mounting bracket)
3/16 inches screws
(set the lamp fixture)
Wire Connecting Caps (×3)
CM
USC
Intertek

LED Outdoor Security Light
LT-ALP-20W-MA Installa�on Instruc�ons
INSTALLATION PREVIEW
Wire Connecting Caps(×3)
3/16”screws
EVA Gasket
Mounting Bracket
Junction Box
(Need to order separately)
8/32”screws (×2)
INSTALLATION STEPS
Note: Turn off the main power before installaon.
①
1) To pull the lead wire into the Junc�on Box, Please note that the input voltage is AC 120V/50-60Hz.
2) To fix the Moun�ng Bracket to the Junc�on Box.

LED Outdoor Security Light
LT-ALP-20W-MA Installa�on Instruc�ons
③Rotatable
Rotatable
6) To adjust the sensor device and
to set the head of lamp to suitable
posi�on.
Note: These instrucons do not cover all details or variaons in equipment nor do they provide for every
possible situaon during installaon, operaon or maintenance.

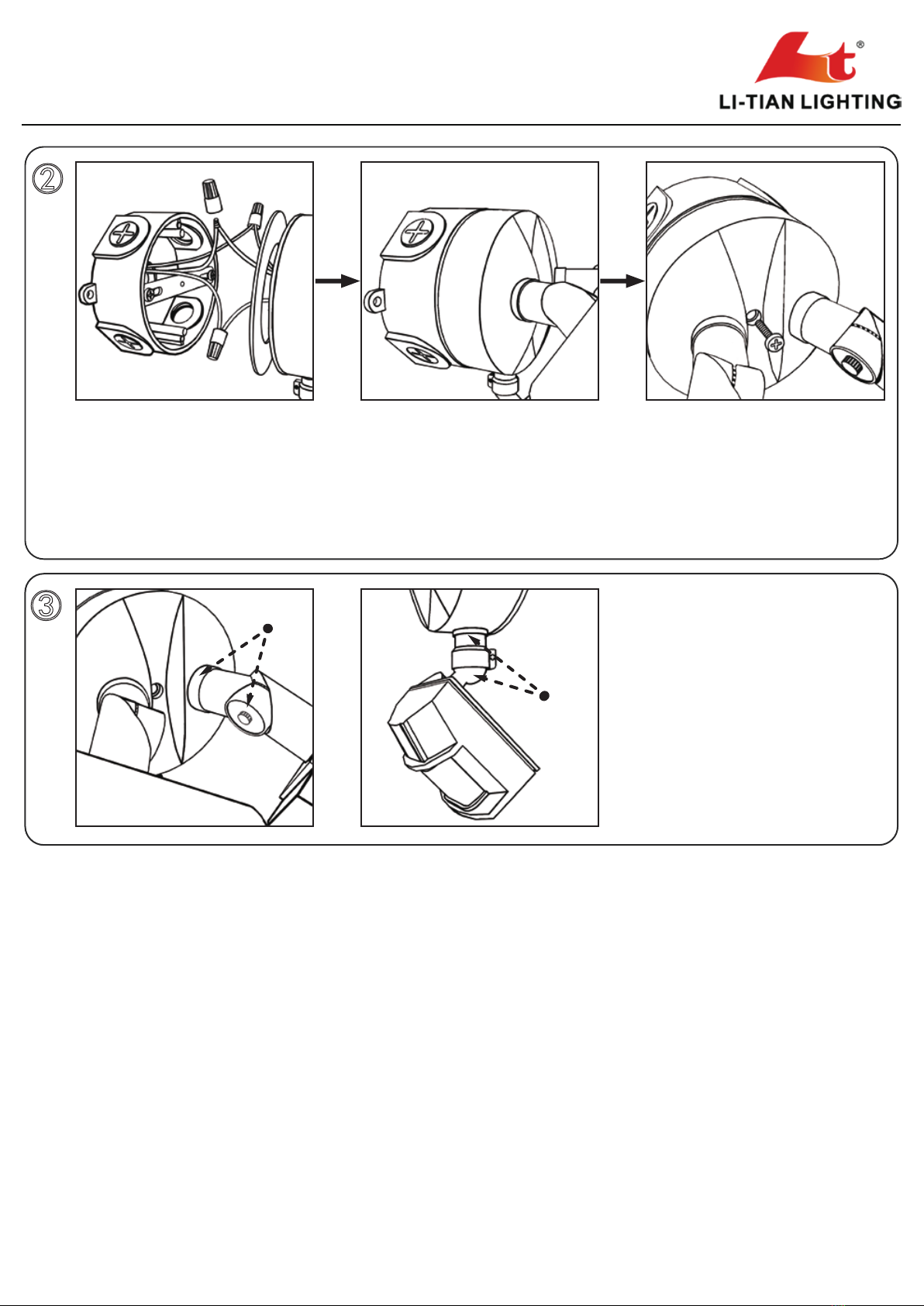

②
3) To paste the EVA Gasket onto the surface of Junc�on Box.
4) To connect three lead wires of this lamp to the lead wires of Junc�on Box correspondingly with 3pcs of
wire Connec�ng Caps and no�ce to keep good grounding connec�on.
5) To secure this lamp to the Junc�on Box with the screws by passing the screws through the center hole
of this lamp fixture, and then finish the installa�on.
IMPORTANT
D


TROUBLESHOOTING
1

CLEANING
CAUTION: Be sure fixture temperature is co ol enough to touch. Do not clean or maintain while fixture is energized.
1. Lens should be washed in a solu�on of warm water and any mild, non abrasive household detergent, rinsed with
clean water and wiped dry. Do not use chemicals to clean fixture.
2. Do not open fixture to clean the LED. Do not touch the LED.
