Liberty XL-2 Technical specifications

Liberty Aerospace, Inc. Section 9
XL-2 SUPPLEMENTS
P/N 135A-970-509 EASA APPROVED: August 18, 2009
Initial Release Page 1 of 42
EASA APPROVED
AIRPLANE FLIGHT MANUAL SUPPLEMENT
FOR
LIBERTY XL-2 COMPLIANCE AT
A GROSS WEIGHT OF 1750 LBS
Serial No.
Registration No.
When Liberty Rework Kit Instruction RKI-SIL-08-001 for a Gross Weight of
1750 LBS is installed on SN0007 and 0009 through SN0125 this supple-
ment is applicable and must be inserted in the Liberty Aerospace XL-2 Air-
plane Flight Manual (AFM) Supplements Section (Section 9) P/N 135A-970-
500. The information contained herein supplements the EASA approved
Airplane Flight Manual P/N 135A-970-500 only in those areas listed herein.
For limitations, procedures, and performance information not contained in
this document, refer to the Liberty XL-2 EASA Approved Airplane Flight
Manual P/N 135A-970-500.
This flight manual supplement is approved by the FAA on behalf of the
European Aviation Safety Agency (EASA) using the bilateral agreement be-
tween the FAA and the DGAC-France. This flight manual was prepared in
accordance with the European requirements.
EASA Approved:
Date:

Section 9 Liberty Aerospace, Inc.
SUPPLEMENTS XL-2
EASA APPROVED: August 18, 2009 P/N 135A-970-509
Page 2 of 42 Revision B — August 3, 2010
LIBERTY XL-2 COMPLIANCE AT A GROSS WEIGHT OF 1750 LBS
LOG OF REVISIONS
Rev. To
Pages Description
EASA Approval Signature
and Date
A 13,14
Added step
and note to
check for
proper door
closure to the
Engine Run-
up procedure
For: Melvin D. Taylor Manager
Atlanta Aircraft Certification
Office, FAA
Atlanta, GA
Date:
B 32
Added infor-
mation and
part number
for the rein-
forced ex-
haust.
For: Melvin D. Taylor Manager
Atlanta Aircraft Certification
Office, FAA
Atlanta, GA
Date:

Liberty Aerospace, Inc. Section 9
XL-2 SUPPLEMENTS
P/N 135A-970-509 EASA APPROVED: August 18, 2009
Initial Release Page 3 of 42
SECTION 1 - GENERAL
INTRODUCTION
NOTE
NON FACTORY INSTALLED SUPPLEMENTAL TYPE CERTIFICATE (STC)
AND FORM 337 ITEMS SHOULD BE EVALUATED BY THE MAINTE-
NANCE TECHNICIAN TO VERIFY THAT THEY HAVE NO IMPACT ON
THE LIBERTY XL-2 COMPONENT INSTALLATION AND MAINTENANCE
REQUIRED TO COMPLY WITH THE 1750 LBS GROSS WEIGHT IN-
CREASE AND/OR THAT THESE ITEMS DO NOT AFFECT AIRCRAFT
AIRWORTHINESS WHEN OPERATED AT 1750 LBS.
LIBERTY AEROSPACE IS NOT LIABLE FOR THE WEIGHT DISTRIBU-
TION AND BALANCE ARM THAT RESULT FROM NON-FACTORY STC
AND FORM 337 ITEMS.
FOR GROSS WEIGHT AT 1750 LBS REFER TO RKI-SIL-08-001:
WARNING
OPERATING THE AIRCRAFT ABOVE A WEIGHT OF 1653 LBS WITHOUT
THE FOLLOWING MANDATORY MODIFICATIONS RESULTS IN AN AIR-
CRAFT THAT DOES NOT COMPLY WITH THE FAA REGULATIONS AND
MAY RESULT IN AN ACCIDENT, AND SERIOUS OR FATAL INJURY.
WARNING
REMOVAL AND REPLACEMENT OF ITEMS REQUIRED FOR THE
GROSS WEIGHT INCREASE MUST BE PERFORMED BY A SUITABLY
QUALIFIED AIRCRAFT MECHANIC/TECHNICIAN. IT IS THE RESPONSI-
BILITY OF THE OWNER/OPERATOR TO ENSURE THAT PARTS FITTED
TO THE AIRCRAFT AT 1653 LBS ARE NOT MIXED WITH THE PARTS
REQUIRED TO SHOW COMPLIANCE WHEN OPERATED AT 1750 LBS
GROSS WEIGHT.

Section 9 Liberty Aerospace, Inc.
SUPPLEMENTS XL-2
EASA APPROVED: August 18, 2009 P/N 135A-970-509
Page 4 of 42 Initial Release
WARNING
REWORK KIT INSTRUCTION (RKI): IS THE INSTRUCTIONS, PROCE-
DURES AND PARTS SUPPLIED TO COMPLY WITH A SERVICE DOCU-
MENT.
FOR RKI-SIL-08-001 THE LIBERTY CRITICAL SERVICE BULLETINS
(CSB), SERVICE BULLETINS (SB), SERVICE INFORMATIONAL LET-
TERS (SIL), AND REWORK KIT INSTRUCTIONS (RKI) ARE MANDA-
TORY FOR THE AIRCRAFT TO MEET TYPE DESIGN AND TO BE OPER-
ATED AT A GROSS WEIGHT OF 1750 LBS.
FIGURE 1 - 1 AIRPLANE THREE VIEWS

Liberty Aerospace, Inc. Section 9
XL-2 SUPPLEMENTS
P/N 135A-970-509 EASA APPROVED: August 18, 2009
Initial Release Page 5 of 42
MAXIMUM CERTIFICATED WEIGHTS
WARNING
OPERATING THE AIRCRAFT ABOVE A WEIGHT OF 1653LBS WITH-
OUT THE MANDATORY MODIFICATIONS RESULTS IN AN AIRCRAFT
THAT DOES NOT COMPLY WITH THE FAA REGULATIONS AND MAY
RESULT IN AN ACCIDENT, AND SERIOUS OR FATAL INJURY.
Takeoff Weight............................................................................. 1750 lbs
Landing Weight............................................................................ 1750 lbs
Weight in baggage compartment................................................... 100 lbs
(See Section 6 for weight and balance limits)
STANDARD AIRPLANE WEIGHTS
Standard empty weight................................................................ 1174 lbs
Maximum useful load..................................................................... 576 lbs
SPECIFIC LOADINGS
Wing Loading.......................................................................15.63 lbs/sq ft
Power Loading...................................................................... 14.00 lbs/HP

Section 9 Liberty Aerospace, Inc.
SUPPLEMENTS XL-2
EASA APPROVED: August 18, 2009 P/N 135A-970-509
Page 6 of 42 Initial Release
SECTION 2 - LIMITATIONS
AIRSPEED LIMITATIONS
Airspeed limitations and their operational significance are shown in
Table 2 - 1
AIRSPEED INDICATOR MARKINGS
Airspeed indicator markings and their color code significance are shown in
Table 2 - 2.
TABLE 2 - 2 AIRSPEED INDICATOR MARKINGS
SYMBOL SPEED KIAS
VNE Never Exceed Speed 157
VNO Maximum Structural Cruising Speed 122
VAManeuvering Speed at 1750 LBS 100
VFE Maximum Flap Extended Speed 86
TABLE 2 - 1 AIRSPEED LIMITATIONS
MARKING KIAS SIGNIFICANCE
White Arc 44 - 86 Flap Operating Range
Green Arc 50 - 122 Normal Operating Range
Yellow Arc 122 - 157 Operations must be conducted with
caution and only in smooth air
Red Line 157 Max Speed for all Operations

Liberty Aerospace, Inc. Section 9
XL-2 SUPPLEMENTS
P/N 135A-970-509 EASA APPROVED: August 18, 2009
Initial Release Page 7 of 42
POWERPLANT LIMITATIONS
PROPELLER
Propeller Manufacturer ......................... MT-Propeller Entwicklung GmbH
Propeller Model Number................................................ MT175R127-2Ca
Number of Blades ....................................................................................2
Propeller Diameter.............................................................................69 in
Propeller Type.............................................Wood/Fiberglass, Fixed Pitch
WEIGHT LIMITS
Maximum ramp weight: 1750 lbs
Maximum takeoff weight: 1750 lbs
Maximum landing weight: 1750 lbs
Maximum weight in baggage compartment: 100 lbs
WEIGHT AND CENTER OF GRAVITY LIMITS
Forward: 81.00 inches aft of datum at 1598 lbs.
Mid: 83.00 inches aft of datum at 1750 lbs.
Aft: 86.75 inches aft of datum at 1750 lbs.
FLIGHT LOAD FACTORS
Operating Altitude Limitation
Maximum Operating Altitude 12,500 ft
Load Factor Flaps Up Flaps Down
Positive 3.8 G 2.0 G
Negative -1.52 G 0.0 G
TABLE 2 - 3 FLIGHT LOAD FACTORS

Section 9 Liberty Aerospace, Inc.
SUPPLEMENTS XL-2
EASA APPROVED: August 18, 2009 P/N 135A-970-509
Page 8 of 42 Initial Release
MANEUVER LIMITS
This airplane is certified in the normal category, which is applicable to air-
planes intended for non-aerobatic operations. These include maneuvers
incidental to normal flying, stalls, lazy eights, chandelles, and turns in which
the angle of bank does not exceed 60 degrees. No aerobatic maneuvers,
including spins, are authorized.
Normal Category Maneuvers and Recommended Entry Speeds:
Maneuvering Speed:
Chandelle: .....................................................................100 KIAS
Lazy Eight:.....................................................................100 KIAS
Steep Turn:....................................................................100 KIAS
Stalls:............................................................... Slow Deceleration
OTHER LIMITATIONS
FLAP LIMITATIONS
Approved takeoff setting: 10°
Performance data is presented for Flaps 10° only.
Approved landing settings: 0°, 10°, 30°
Performance data is presented for Flaps 30° only.

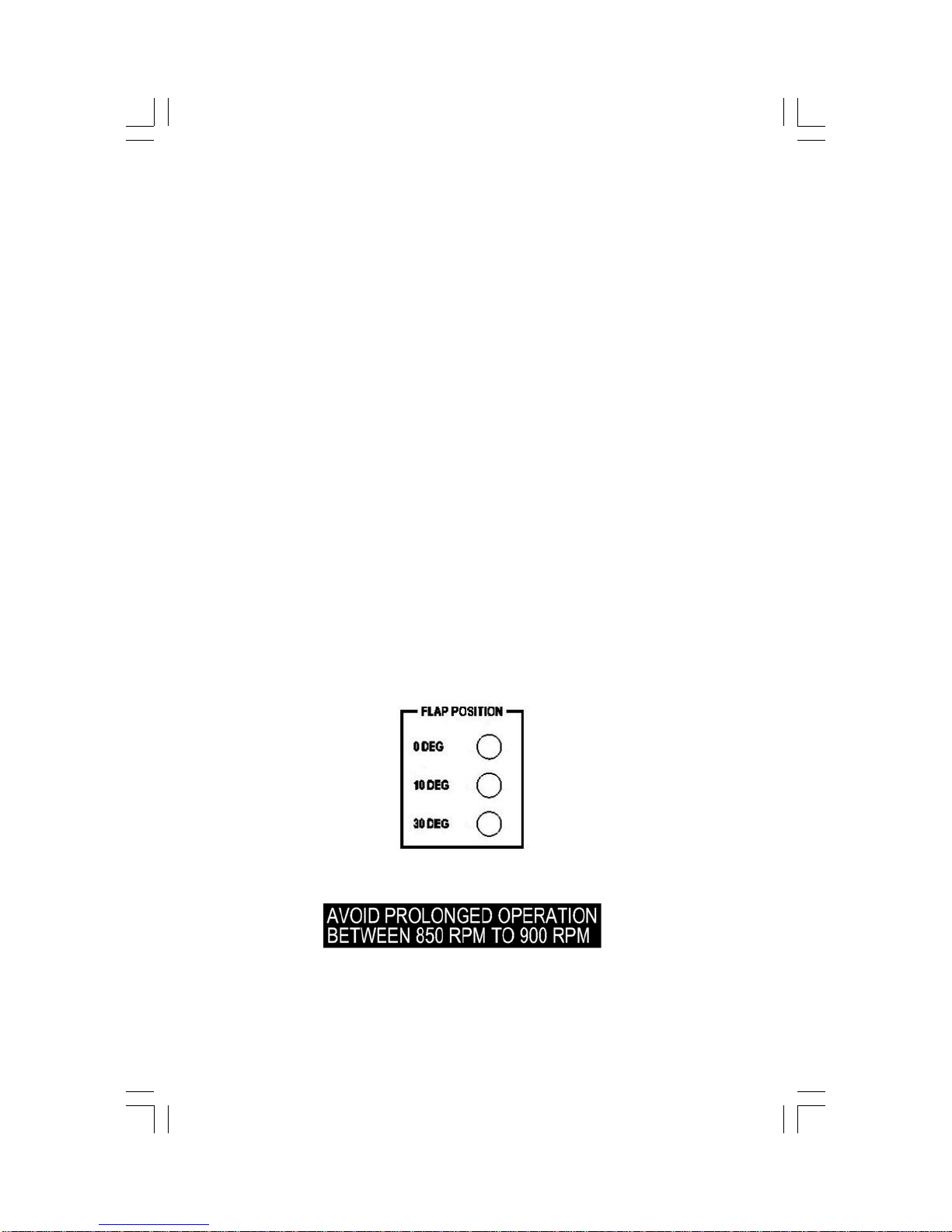

PLACARDS
On the instrument panel, adhered to flap position indicator:
On the VM1000 bottom bezel:

Liberty Aerospace, Inc. Section 9
XL-2 SUPPLEMENTS
P/N 135A-970-509 EASA APPROVED: August 18, 2009
Initial Release Page 9 of 42
SECTION 3 - EMERGENCY PROCEDURES
AIRSPEEDS FOR EMERGENCY OPERATIONS
Maneuvering Speed:
1750 lbs......................................................................... 100 KIAS
Best Glide Speed:
1750 lbs........................................................................... 69 KIAS
Emergency Approach Speed Without Engine Power:
Flaps Up.......................................................................... 69 KIAS
Flaps 30° ......................................................................... 65 KIAS
DOOR OPEN IN FLIGHT
Abort takeoff if door opens during takeoff. In flight, do not allow efforts to re-
close the door to interfere with the primary task of maintaining control and
flying the airplane.
1. Flaps……………………………………………………………………..10°
2. Airspeed...........................................................REDUCE TO 65 KIAS
3. Door ...................................................................CLOSE AND LATCH
(yaw airplane in direction of open door if necessary)
If unable to latch door in flight, or if damage has occurred:
4. LAND........................................................AS SOON AS PRACTICAL
5. APPROACH SPEED……………………………………………...65KIAS
LANDING WITH A FLAT MAIN GEAR TIRE
1. Approach Speed .................................................................... 65 KIAS
2. Line Up....................ON SIDE OF RUNWAY OPPOSITE FLAT TIRE
(Airplane will tend to turn toward flat tire after touchdown.)
3. Flaps ..............................................................................................30°
4. Touchdown ...................................... GOOD SIDE MAIN TIRE FIRST
(Hold airplane off flat tire as long as possible using ailerons.)
5. Directional Control ............................................................. MAINTAIN
(Using rudder and brake on good tire side as required.)

Section 9 Liberty Aerospace, Inc.
SUPPLEMENTS XL-2
EASA APPROVED: August 18, 2009 P/N 135A-970-509
Page 10 of 42 Initial Release
LANDING WITH A FLAT NOSE TIRE
CAUTION
Do not attempt to taxi airplane with flat main or nose gear tire.
1. Approach Speed.................................................................... 65 KIAS
2. Flaps................................................NO MORE THAN 10 DEGREES
3. Touchdown ...............................................................ON MAIN GEAR
(Hold nose wheel off the ground as long as possible)
4. Elevator.................................................MAINTAIN FULL AFT STICK
(After nose wheel touches down)
5. Brakes.....................................................USE MINIMUM REQUIRED
6. Ignition Switch...............................................................................OFF
(If operational considerations permit)
LANDING WITHOUT ELEVATOR CONTROL
Manipulating the electric pitch trim and throttle provides attitude control
should primary elevator control be lost. Make small adjustments to trim and
throttle to adjust pitch attitude and airspeed for best glide angle for landing.
Choose the longest available runway. The final power reduction after the
landing flare will cause a nose-down pitch and a possible nose wheel first
touchdown. Make a gradual power reduction while simultaneously selecting
nose-up elevator trim.
1. Throttle................................................................................. REDUCE
2. Trim............................................................ NOSE UP, SLOW TO VFE
3. Flaps..................................................................................FLAPS UP
4. Approach Speed.....70 KIAS, USE TRIM AND POWER TO ADJUST
5. Throttle......................................AS REQUIRED FOR GLIDE ANGLE
