Liectroux C30B User manual

Please read this manual carefully before using the product and keep it safe.
Robot Vacuum Cleaner Instruction Manual
Robot Vacuum Cleaner C30B
Deutsch
English Français Español
PусскийPortuguês Română Scan to download
manuals in more languages

Contents
Download APP
APP Using
Safety Regulation and Warning
Product Composition / Package Contents
Product Composition / Part Name
Product Usage / Preparation
Product Use / Host Charging
Product Use / Start Cleaning
Product Use / Pause, Wake up and Shut down
Product Use / Schedule Settings
Product Usage / Water Tank Use
Component Maintenance / Dust Box
Component Maintenance / Water Tank and Mop
Component Maintenance / Roller Brush and Side Brushes
Component Maintenance / Charging Pole Pieces, Ground Sensors, Drive Wheels and Universal Wheel
Trouble Shooting and Resolutions
Product Parameter
Harmful Substances
10
9
2-8
1
11-12
13
14
15-16
17
17
18
19-21
22
23
24
25
26
27

Scan to download APP
Thanks for buying our robot vacuum cleaner.
Please read this manual carefully before use.
Please follow up the manual during operation for your
safe.
There are wifi-version and non-wifi version of our C30B
model.
If your robot is wifi-version, please read the Quick Guide
for APP Using in the next page; If your robot is non-wifi
version, please skip the page of Quick Guide for APP
Using.

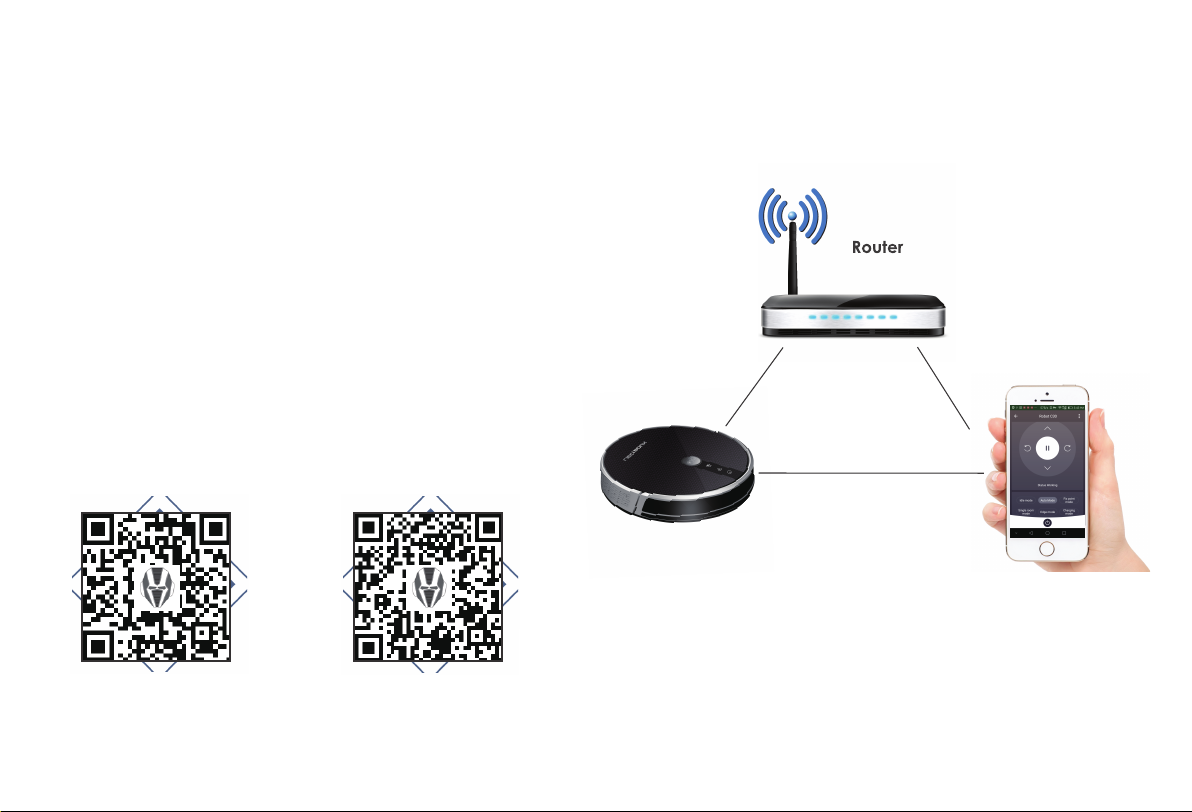

***Please make sure that your robot, your router, and
your phone are close to each other before you start
APP connection.
IOS APP Android APP
Suggested distance: less than 4M
1

Quick Guide for App Using

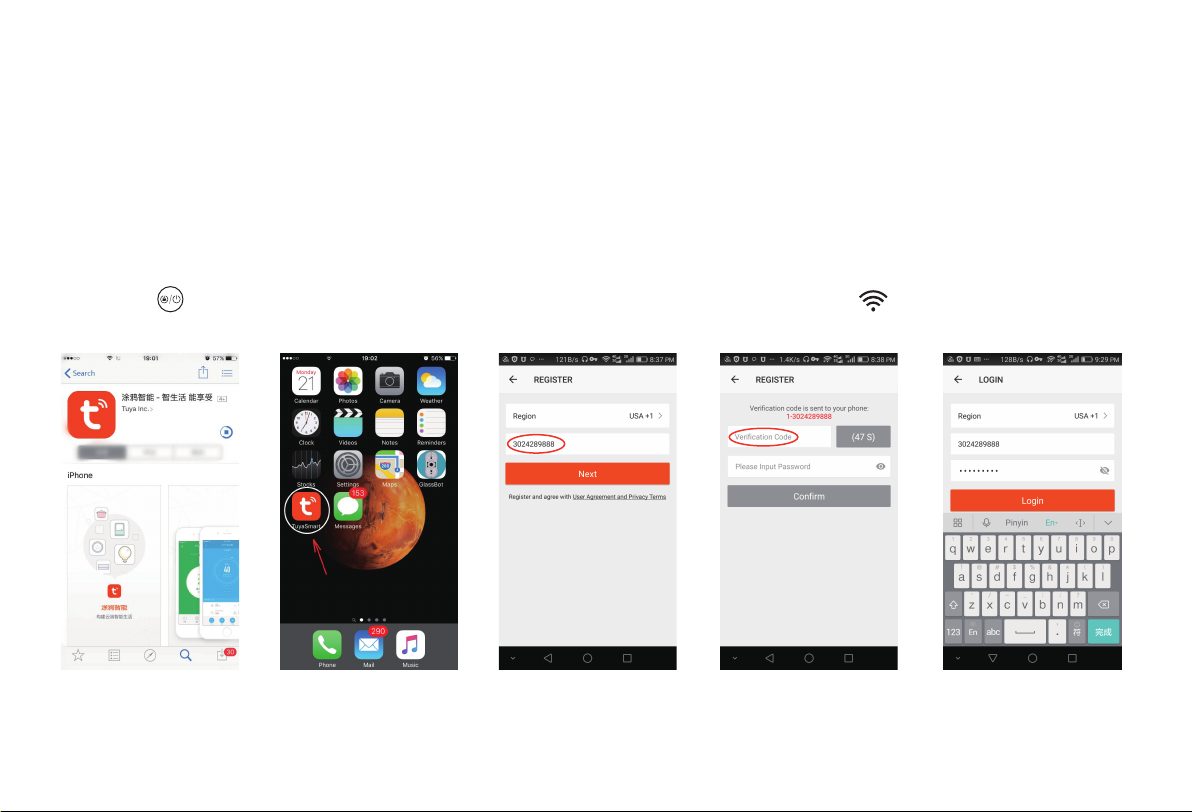

1. App Downloading
For Wifi-version C30B only
Search “Tuya” from your APPSTORE or google play; download the APP [Fig 1]; Open “Tuya” on your cellphone after download
[Fig 2]; Register an account via email or cell phone number [Fig 3] (tap the right Verification Code and Set up a password for your
Tuya ID [Fig 4]); Login with account and password [Fig 5].
Fig 01 Fig 02 Fig 03 Fig 04 Fig 05
***Important***: Before WIFI connection, turn on the robot; After the voice prompts “Welcome to use sweeping robot”, please press the
start button continuously twice, then the voice prompts “connecting network”, and the WIFI icon begins to flash constantly;
Your robot is initialized.
2

Quick Guide for App Using
For Wifi-version C30B only

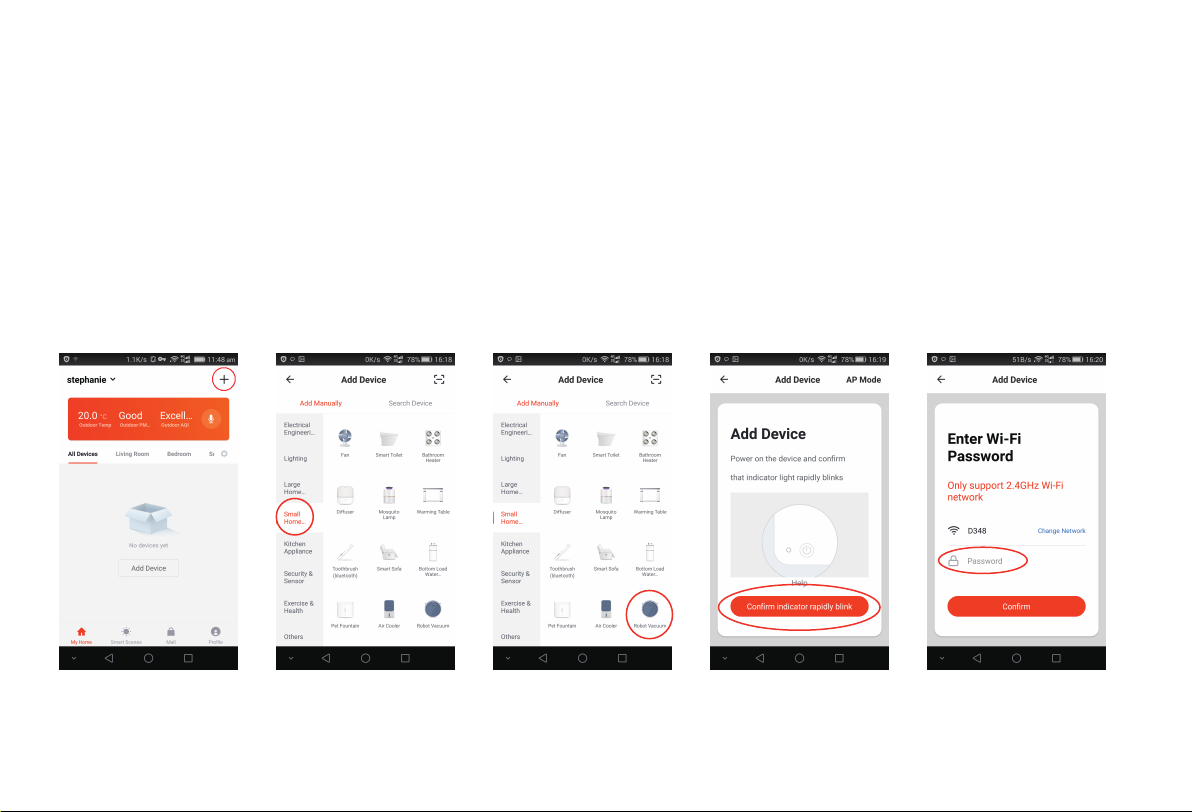

Tap + on the top right corner to add device [Fig 6]; Tap Small Home Appliance [Fig 7]; Choose Robot Vacuum [Fig 8]; Click Confirm
indicator rapidly blink [Fig 9];
Type your WIFI Password [Fig 10] and start device connection [Fig 11]; Adding device succeeded [Fig 12].
Fig 06 Fig 07 Fig 08 Fig 09 Fig 10
3

Quick Guide for App Using
For Wifi-version C30B only

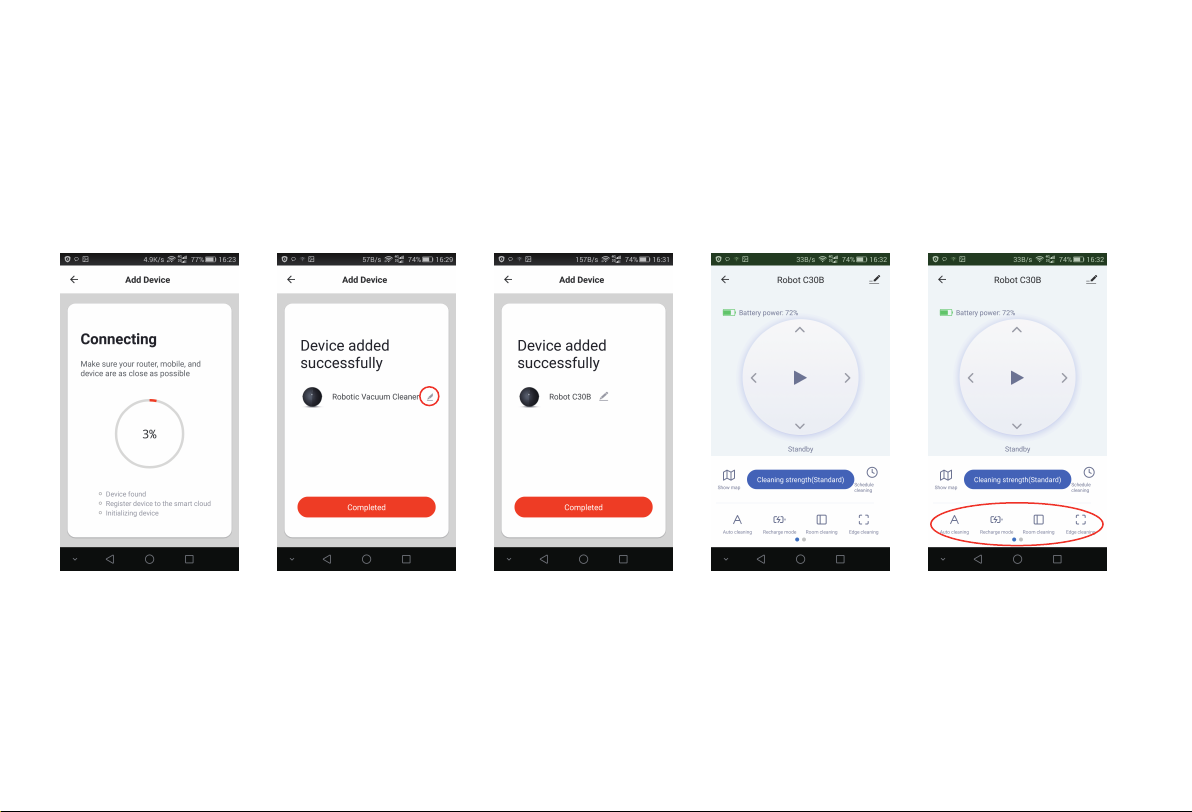

Rename your device, e,g. Robot C30B [Fig 13]; Start using App to control your robot [Fig 14].
Fig 11 Fig 12 Fig 13 Fig 14 Fig 15
4

Quick Guide for App Using
3. Scheduling
For Wifi-version C30B only

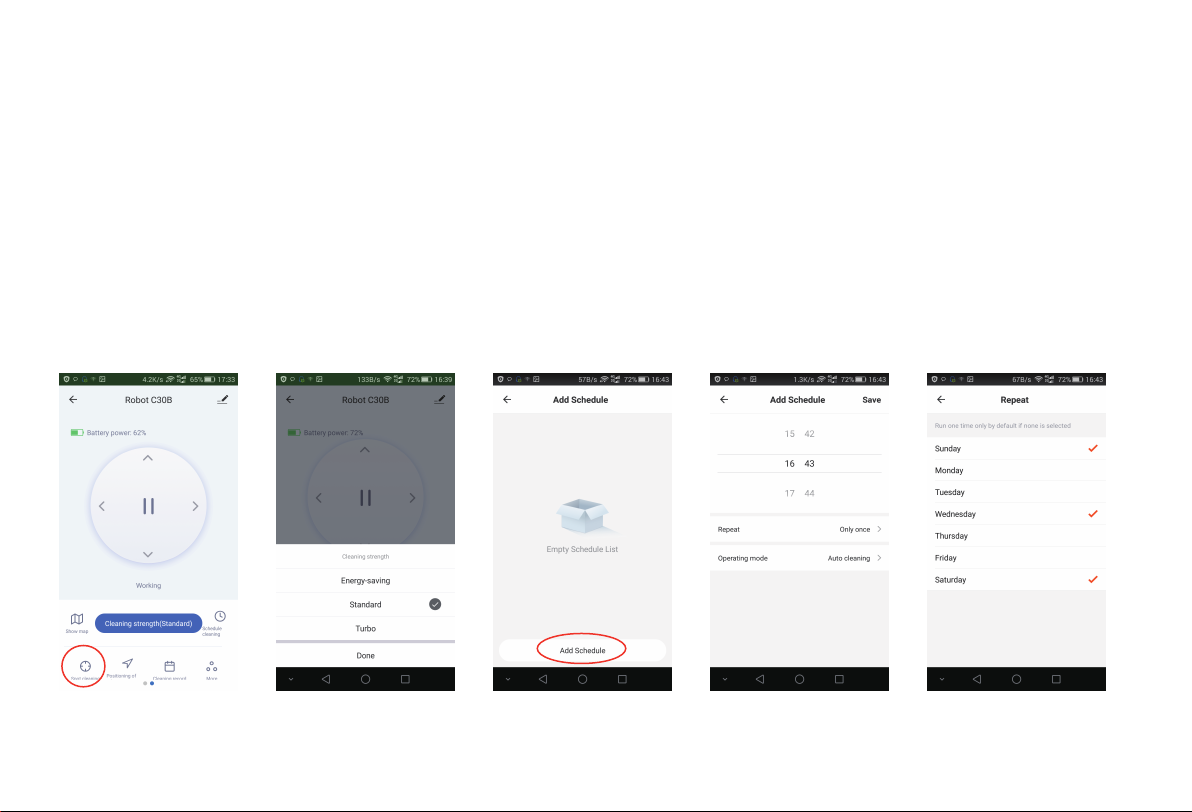

Choose Schedule cleaning to enter scheduling interface and Choose “Add Schedule” [Fig 18]; choose the proper working time [Fig
19] and day (multiple Mon-Sun) [Fig 20].
2. APP Operation
You may click "Auto cleaning", "Recharge mode", "Room cleaning", "Edge cleaning", "Spot cleaning" as you want to start certain
cleaning mode [Fig 15] [Fig 16]; Choose Cleaning strength to enter suction power setting interface [Fig 17];
Fig 16 Fig 17 Fig 18 Fig 19 Fig 20
5

Quick Guide for App Using
5. Working Map and Cleaning Record
For Wifi-version C30B only
The App will show the map of working cleaning path of the robot [Fig 22]; But it may not update in real time;
Tap "Cleaning record", it will show the cleaning records of working time and cleaned area, also you can clear the data[Fig 23].
4. Start / Pause / Standby / Sleeping mode
Press “ ” / “ ” to start / pause the robot [Fig 21];
Note: When the robot pauses over 10 minutes, it will enter sleeping mode;
If it is in sleeping mode, press “ ” , the robot will be waken up to standby mode; Press the cleaning mode as you want to start
working.
Fig 21 Fig 22 Fig 23 Fig 24 Fig 25
6

Quick Guide for App Using
7. Mute
For Wifi-version C30B only
Tap "More" to enter mute function setting interface [Fig 25]; If mute function is active, the robot will cancel voice prompt, so it will not
bother you [Fig 26].
6. Find robot
You may not know where the robot is when it finishes cleaning and stops. Then press “Positioning of ” [Fig 24]; then there is
“Ding Dong” sound prompt for you to find the robot.
Fig 26 Fig 27 Fig 28 Fig 29 Fig 30
7

8. Supported Third-party Control
The robot works with Amazon Alexa, Google Assistant, and some other third part control devices.Tap in the top right corner [Fig
27], then find "Supported Third-party Control" and tap corresponding icon to learn connection way [Fig 28].
Quick Guide for App Using
For Wifi-version C30B only
10. Reset WIFI
Changing the connection from existing WIFI network to new WIFI network, you need to re-connect your robot to the new WIFI
network after initializing your robot as follows: turn on the robot, after the voice prompts “Welcome to use sweeping robot”, press
the start button twice continuously, then the voice prompts “Connecting network”, and WIFI icon begins to flash
constantly, your robot is initialized; Then you could connect it to new network.
Thanks for buying our robots and wish you enjoy using.
Notes: The APP software is upgrading, the actual APP user interface may be different from the statements in this manual. Some
functions may be added while some functions mentioned above may be deleted. As different countries has different netwroking
policy, the real time map displaying function may be delayed or may not be fulfilled. If other languages' version of this APP
instruction is confusing or inaccurate, please refer to English version. Our company reserves the right to change the paprameters
without prior notice.

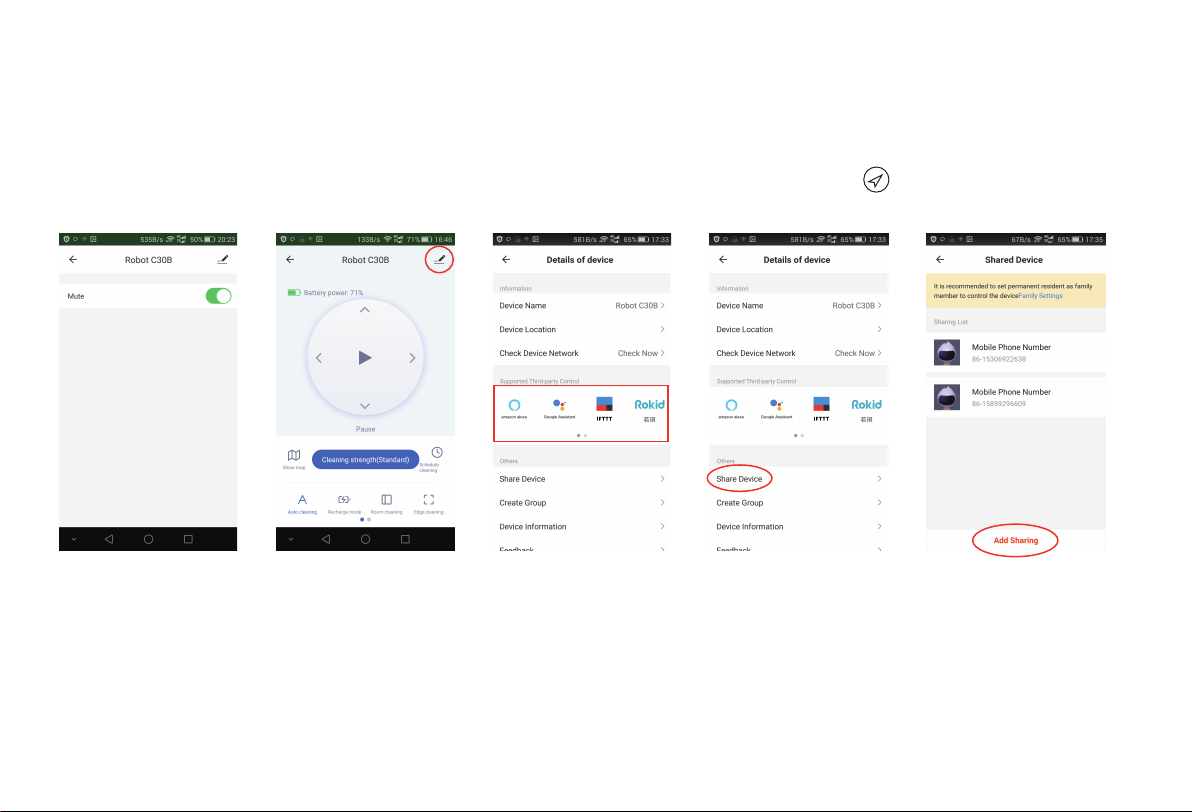

9. Share Devices
Only one main ID for one single device is available. If you want to share the device to others in your family, tap on the top right
corner; Choose “Share devices” [Fig 29]; type correct registered cellphone number/ email ID to add additional users [Fig 30].
Note: other users have to register Tuya ID before added.
8

Safety Regulation
Before using this product, please read the following safety instructions and follow all the
safety precautions.
Please read the instructions carefully.
Please keep this instuctions.
Any operation inconsistent with this instruction manual may cause damage to this product.
1. Only authorized technicians can disassemble this product. Users are not
recommended to disassemble this product by themselves.
2. Please use the original power adapter only. Other adapters may caused damage to
this product.
3. Do not touch wires, sockets or power adapters when your hands are wet.
4. Do not use cloth curtains or body parts to roll into the product drive wheels.
5. Do not place this product near cigarette butts, lighters and other smoldering fires.
6. Please clean the product after charging.
7. Do not bend wires excessively or place heavy objects and sharp objects on the
machine.
8. This product is an indoor househould product. Do not use it outdoors.
9. Do not sit on the product.
10. Do not use this product in wet environment (e.g. bathroom).
11. Before using this product, please remove all vulnerable items (e.g. glasses, lamps,
etc.) on the ground as well as items (e.g. wires, paper sheets, curtains) that may
entangle the side brushes and air suction passages.
12. Do not put this product in a place where it is easy to fall (e.g. on desks and chairs).
13. Please carefully check whether the power adapter is connected to the socket
before use, otherwise the battery may be damaged.
14. To prevent tripping, please inform other members of the house when this product
works.
15. Please empty the dust box before using this product when the dust box is full.
16. The temperature used for this product is 0 to 40 degrees celsius.
17. Do not use this product in high temperature environment.
18. Please remove the battery from the machine before the product is scrapped.
19. Please make sure that this product is not powered on when removing the battery.
20. Please recycle the discarded batteries safely.
Use only the original rechargeable battery and charging station specially equipped by the
manufacturer. Non-rechargeable batteries are strictly prohibited, please refer to “product
parameters” for battery specification information.
It is forbidden to use products in environments with open flames or fragile objects.
It is forbidden to use products in extremely hot ( above 40 °C ) or extremely cold ( below 0 °C )
weather.
It is forbidden for human hair, clothes, fingers and other parts to approach the opening and
operating parts of the product.
It is forbidden to use products on wet or stagnant ground.
It is forbidden for products to absorb any articles such as stones and waste paper that may clog
products.
It is prohibited for the product to absorb any inflammable substances, such as petrol, toner and
toner for printers or photocopiers. It is also prohibited to use the product in clean areas with
flammable items.
It is forbidden for products to absorb any burning articles, such as cigarettes, matches, ashes
and other articles that may cause fire.
It is forbidden to place articles at the suction port. Do not use the product when the suction port
is blocked. Clean up dust, cotton wool, hair etc. at the suction port to ensure smooth air
circulation at the suction port.
Use the power cord carefully to avoid damage. It is forbidden to use the power cord to drag or
pull the products and the product charging station. It is forbidden to use the power cord as a
handle. It is forbidden to clamp the power cord in the crack of the door. It is forbidden to pull the
power cord at sharp corners and corners. It is forbidden for the product to run on the power
cord while the power cord should be far away from the heat source.
Do not use damaged charging station.
Even if the product has been severely damaged, burning of the product is prohibited, which
may lead to explosion of the battery of the product.
Note: Warning:
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
9

Product Composition / Package Contents
Charging StationHost
Dust Box Mop Side Brushes
10

Product Composition / Part Name
Top Bottom
Ground Sensor
Start / Pause key
Surface Cover
Omnidirectional
Lens
Dust Box / Water
Tank Button
Left Side Brush
Left Wheel
Dust box
Right Wheel
Right Side Brush
Battery Cover
Charging Pole Piece
Universal Wheel
Rolling Brush Assembly
11

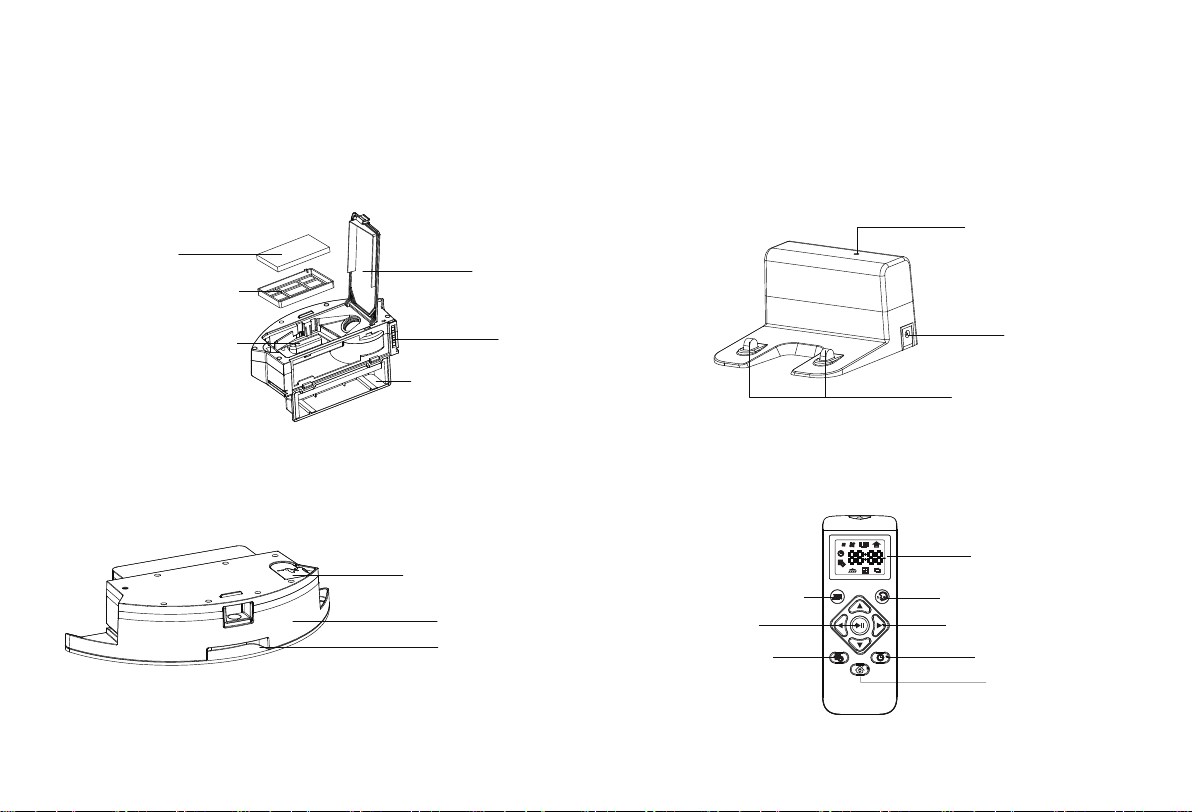

Dust box Charging Station
Water Tank and Mop Assembly Remote Control
HEPA Filter
Primary Filter Strainer
Dust Box Metal Sheet
HEPA Filter Cover
Conductive Shrapnel
Dust Box Side Cover
Schedule Setting
Start / Pause Direction Control
Time Setting
Recharging
DC Socket
Signal lndicator
Charging Pole Piece
Display Screen
Mop
Water Tank
Water lnjection
Port
12
Auto Cleaning Mode / Powerful
Suction Mode / Quiet Cleaning
Mode
Mode Switching (Mopping Mode /
Single Room Mode / Border Mode)

Product Usage / Preparation
Remove Protection

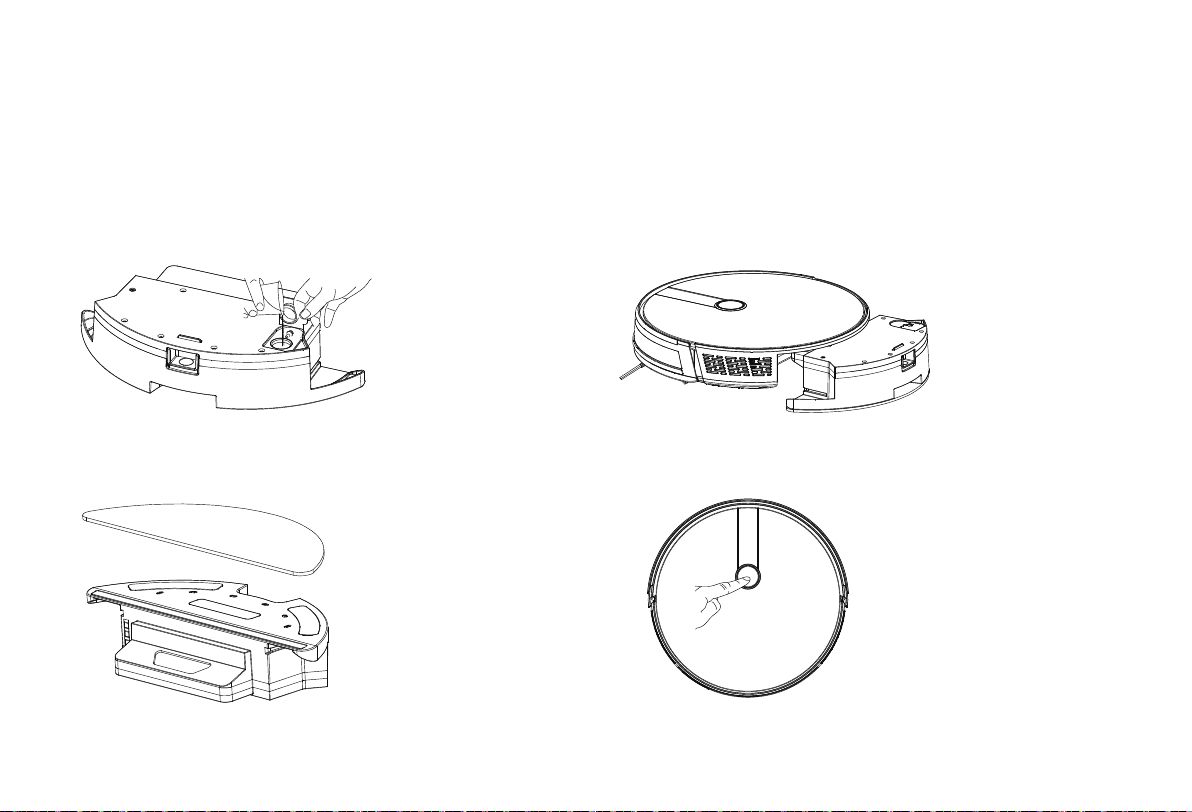

Remove the protective strip Remove protective film
Before using the host, remove the protective strip on the host and the protective film on the charging station.
13

1.
2.
3.
4.
2.
3.
Product Use / Host Charging
Charging attention:
Placing and charging: The charging station is against the wall
and placed on a flat ground. Do not place articles within the
range of 0.5m left and right and 1.5m ahead.
The charging station cannot be used in enviroments with
strong reflection such as direct sunlight or nearby mirrors. If
there is any object with strong reflection, please cover it 7cm
from the bottom.
In order to ensure the normal working hours of the host,
please fully charge it before use. The charging time is about
5 hours.
When charging, do not assemble the water tank assembly to
the robot vacuum, so as to ensure the safety of charging and
prevent wet mops from damaging the floor.
During the cleaning process, the host can sense that its
power is insufficient and automatically start the recharging
mode to find the charging station to recharge. You can also
command the host to start the recharging mode through the
recharging button on the remote controller.
Connect the power supply.
Installing side brush: Install the side brush according to the
left and right (L/R).
5.
14
1. Charging: Place the host on the charging station for charging.
(During charging, the indicator light flashes; If charging is
over, the light is always on. The charging time is about 5
hours.
Attention：When manual charging,
please keep the front bumper of the
robot 2cm away from the charging
station to ensure the metal contacts
connected well for a successful
charging.
2cm

Product Use / Start Cleaning
Automatic Cleaning
According to different cleaning needs, the product has a
variety of cleaning modes to choose from. You can start
various cleaning modes through a host, remote control or app.
If it is dustbin instead of water tank installed in the host, and in
standby mode or other working modes, press the button on
the remote controller, the host starts automatic cleaning. Press
the button again, the host will switch to powerful suction
mode. Press the button once more, the host will switch to
quiet cleaning mode. Pressing the button additionally more
times will make the host switch between powerful suction mode
and quiet cleaning mode circularly.
If it is water tank installed in the host, and in standby or other
working modes, pressing the button will always make the
host enter into mopping mode.
Setting method: In the shutdown state, press the button for
a few seconds. When the indicator light of the host is on, it
indicates that the host is powered on. When the button on
the host is pressed for a short time, or press the automatic
cleaning button on the remote controller, the host starts
automatic cleaning.
Single Room Cleaning
Applicable scenario: Used to clean the single room.
Settting method: Click the remote control mode switch button
( ) to select the single room cleaning mode to start the
single room cleaning.
Friendly Reminder: When it is only necessary to clean a single
room, please close the door and the host will do centralized
cleaning in the room.
If this room does not have a charging station, the host will
return to the orginal point after finishing cleaning.
15
Mopping Mode
Applicable scenario: Used to do wet & dry mopping.
Setting method: Install the water tank to the host and press the
start button on the host or the button or ( ) on
the remote controller, the host starts mopping mode.
(Attention: If the water tank is not installed, press the button
( ) on the remote controller, the host will prompt that the
water tank is not installed and the host will not work at this
status.)
Press the button ( ), the host will switch to single room
cleaning mode.
Press the button ( ), the host will switch to border
cleaning mode.

Border Sweeping
Manual Control
Applicable scenario: For indoor border cleaning, the host cleans along the perimeter of fixed objects (such as walls), and returns to
the charging station after the border cleaning finished.
Setting method: Click the remote control mode switch button ( ) to select the border cleaning mode to start the border
cleaning.
Applicable scenario: Suitable for manual control cleaning.
Setting method: Click on the buttons on the remote controller to move forward and backward and turn right or left.
16

Schedule setting: Press the remote control schedule setting button to set the host scheduled cleaning time. First press the
button , , then press the buttons to set the hour and minute. After it, press the button , then the setting is completed.
The host will automatically start to clean at the scheduled time every day.
PS: Before the schedule setting, you need to press the button to set the current time of the host first. Press the button ,
then press the buttons to set the hour and minute of the current time. After it, press the button , then the setting is
completed.
Product use / pause, wake up and shut down
Product Usage / Schedule Settings
Pause: During the operation of the host, press the host button or the pause button on the remote controller or app to pause the
host.
Wake up: If the host stops working for more than ten minutes, it will automatically enter into sleep mode (all the host lights are off). You
can wake up the host by pressing the host button or any button on the remote controller, or the button on app.
Shut down: After the host stops working, press the host button for a few seconds and all the indicator lights of the host go out to
indicate that the host has been shut down.
17

Do not use the floor mopping function on carpets.
After mopping the floor, please empty the water tank in time and remove the mop.
Product Use / Water Tank Use
Add water
Install Mop Start Mopping the Floor
Install the Water Tank Assembly
18
