Liectroux i7 User manual

Please read this manual carefully before using the product and keep it safe.
Instruction Manual
Cordless Stick Vacuum Cleaner i7
English P

This appliance is for indoor use with domestic purpose only. Use the appliance only on accordance with the instruction in this manual. Any other usage
or modification is dangerous. The manufacturer is not liable for damage due to improper use of the appliance.
WARNING
To reduce the risk of fire, electric shock, or injury
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
This vacuum cleaner is intended for household use. Do not use for any other purpose.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
Children shall not play with appliance. Cleaning and user maintenance shall not be made by children without supervision.
Use the original parts or parts recommended by the manufacturer only.
Do not use the appliance without filters; otherwise it can get damaged.
Do not use outdoors or on wet surfaces.
Do not pick up anything that is burning or smoking, such as cigarettes, matches or hot ashes.
Keep the vacuum cleaner away from heat sources and avoid direct sunlight.
Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
Do not block any ventilation openings; otherwise, the motor will be overloaded, the protection device will be triggered, and automatically shut down.
Do not vacuum small particles such as cement, gypsum powder, wall powder, etc., otherwise it will cause the vacuum cleaner filter to be blocked and
the motor to be damaged.
Wipe the vacuum cleaner with a soft cloth to clean it. Do not use wax, thinner, or irritating detergents.
This product is a cordless vacuum cleaner. It cannot be used while charging or out of battery.
Keep and follow these instructions.
Important SafetyInstructions
- 01 -

Vacuum Cleaner Parts
Name
Main Appliance
Aluminum Alloy Tube
Crevice Nozzle
2-in-1 Dusting Brush
Floor Brush
Hanging Dock
Battery Pack
User Manual
Charger
HEPA Filter
Quantity
1
1
1
1
1
1
1
1
1
2
- 02 -

Product Introduction
1. Crevice nozzle
2. Dusting brush
3. Floor brush
4. Release button
5. Adjustment button
6. Aluminum wand
7.Release button
8. Vent cover
9. LED Screen
10. Mode switch
11. Charging Port
12. Battery pack button
13. Battery pack
14. Dust cup
15. Dust cup lock
16. Dust cup release button
17. Vent cover
18. ON/OFF Switch
19. Handle
20. Dust cup cover
21. Hanging Dock
- 03 -
10
11
13
14
15
16
6
5
4
3
7
8
9
12
1
2
21 20
17 18
19

Caution: Do not connect the power cord plug to the wall outlet until assembly is completed.
1.
2.
Battery case : Insert the battery into the battery case until it clicks into place.
Main body & Floor brush : Press and hold the release button, then insert the aluminum wand and nozzles separately until you hear a clicking sound,
the installation is completed. You can adjust the length of the wand by adjusting the lock button.
Assembling Your Vacuum Cleaner
Release
button
Release
button
Adjustment
lock
- 04 -

- 05 -
Connect the Crevice nozzle to the vacuum cleaner.
Press the lock to separate the
electric floor brush from the wand.
Press the lock to separate the electric floor brush
from the main body.
Connect the Floor brush to the main body.
Release
button Release
button
Release
button
Release
button

3.
4.
Tools can be attached to the vacuum cleaner as needed.
Simply drop the appliance to the wall-mounted dock.
CAUTION：Please make sure that the battery pack is fixed firmly
before hanging onto the wall.
- 06 -
Use the screws to fix the dock
onto the wall.

please be sure to charge before
.
high speed mode; press the power
LED Display Indicator
- 07 -
it a full
LEDs
This product is equipped with an LED display power indicator. The battery is not fully charged at the time of purchase, so
use (charge for at least 4 hours).
Please note that if the battery power indicator only one LED lit, it means the power is low, please use it after charging
How to use：
It has two speed working modes. Press the power button once to start working at low speed, press the mode switch to
button to turn off the vacuum cleaner.
Charging:
1）
2）
3）
4）
Note: You can charge the battery on the main body, or unlock from the main body and charge it. While charging, the 3
on the main body will flash, or the indicator on the battery pack will blink. After fully charged, the 3 LEDs or the
indicator on the battery pack will keep constant on.
If you are using this appliance for the first time or the appliance is to be stored unused for a long period, please give
charge before use.
When the battery is low, please charge it in time to ensure sufficient working time.
After use, please charge the battery while it is cool. The battery cannot be charged when it is overheated.
This appliance cannot be used while charging.

1.
1)
Cleaning and Care
- 08 -
How to empty the dust cup
Empty the dust cup in the following cases:
- When dust level reached the “MAX” line.
- When suction power has dropped.
Release
button
2) Press the release button to open the
dust cup cover, and then empty the
contents.
3) Reattach the dust cup bottom cover.

- 09 -
2.
1)
2)
3)
4)
Cleaning the filter
Open the dust cup bottom cover, twist anti-clockwise and remove the HEPA filter holder.
Take out the HEPA from the filter holder, and replace with a clean one.
Clean the HEPA under cold, running water.
The HEPA filter should be air dried completely before re-installing.
DO NOT wash in the dishwasher.
DO NOT dry with hair dryer.
DO NOT assemble when the parts are damp.

3.
1)
2)
3)
- 10 -
Cleaning the electric floor brush
Cut off any hair, thread, string, carpet pile, and lint entangled around floor brush with a pair of scissors, then
Push up the slide button located on the bottom of floor brush to the unlock position.
Remove the latch.
Remove the brush roller.
Slide button

4.
1)
2)
3)
- 11 -

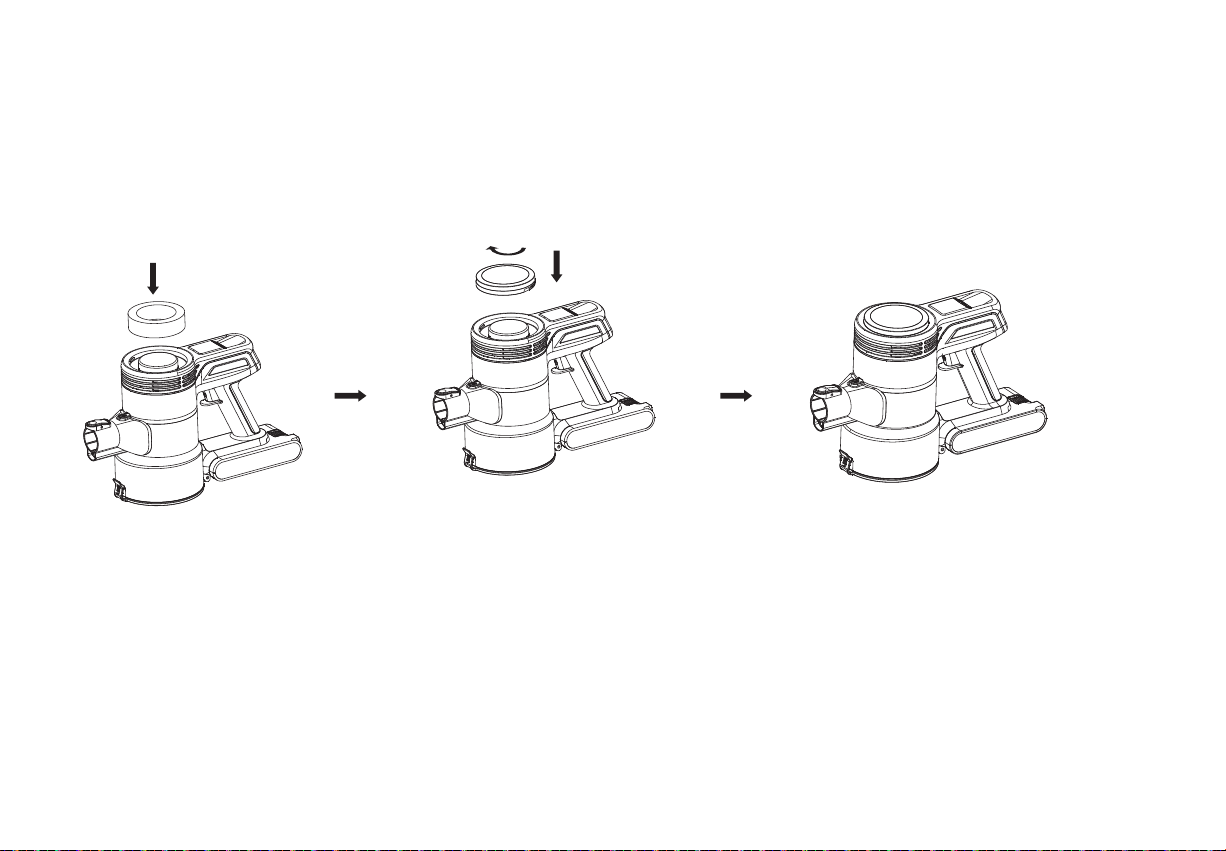

Assembly
Assemble the filter in reverse of disassembly.
Put the sponge filter into the middle cover area.
Put the top cover on the sponge filter.
Close the filter cover.Twist clockwise the top cover, ensure it’s closed with the main body.

- 12 -
Filter stand
4) Put the HEPA filter back into the filtration holder.
5) Attach the filtration holder back into the dust cup by twisting in a counterclockwise direction.
6) Close the bottom cover.
HEPA filter

7)
8)
- 13 -
Press the dust cup lock, turn it in a clockwise direction.
The dust cup can be separated with the main body.
slot
Press
the lock
slot
9) Ensure the rib on the dust cup fitted with the slot of main body.
10) Reattach the dust cup until it clicks.

- 14 -
TROUBLESHOOTING:
TECHNICAL SPECIFICATION:
Vacuum is not cleaning well
Vacuum suddenly stops
Battery will not charge
Floor brush doesn’t spin
Battery
Charging
Battery charger output
Usage time
Power
Vacuum
22.2v/2200mAh
4 hours
26.5V/500mA
30min (low speed), 15min(high speed)
250W
22kPa
1.Empty the dust bin
2.Check that the dust bin is correctly attached
3.Check that the filter is correctly attached
4.Clean the filter
1.Make sure the dust cup is in the locked position
2.Check the electrical inputs in the dirt chamber get stuck or not
1.Charge the battery
2.Clear debris from the brush bar
1.Check connections
2.Clear wall socket

Maintenance and warnings
Do not throw this product in household garbage. Be sure to take it to your local waste collection point or retailer. The classification and disposal
of electrical or electronic product waste is beneficial to the protection of the environment and human health. The recycling and recycling of its
components can greatly save energy and reduce raw material consumption.
The adapter must be removed from the socket-outlet and the battery pack must be removed from the appliance before cleaning or maintaining the
appliance.
To maintain optimum suction power, clean the vacuum cleaner regularly.
If the filter is damaged, it must be replaced by the manufacturer or its agent.
Cleaning the dust cup frequently can make the vacuum cleaner maintain optimum suction power and prevent the vacuum cleaner from overheating
and loss.
The filter in the dust cup can be rotated and removed for cleaning. If the HEPA filter is not very dirty, just tap the filter to let the dust fall off.
Do not clean the filter with a washing machine or dishwasher, and do not use a hair dryer to dry the filter.
When the dust cup or filter is not dried after cleaning, do not insert it into the vacuum cleaner, because the wet dust cup or filter can easily damage the
vacuum cleaner.
- 15 -
Disposal of the appliance
