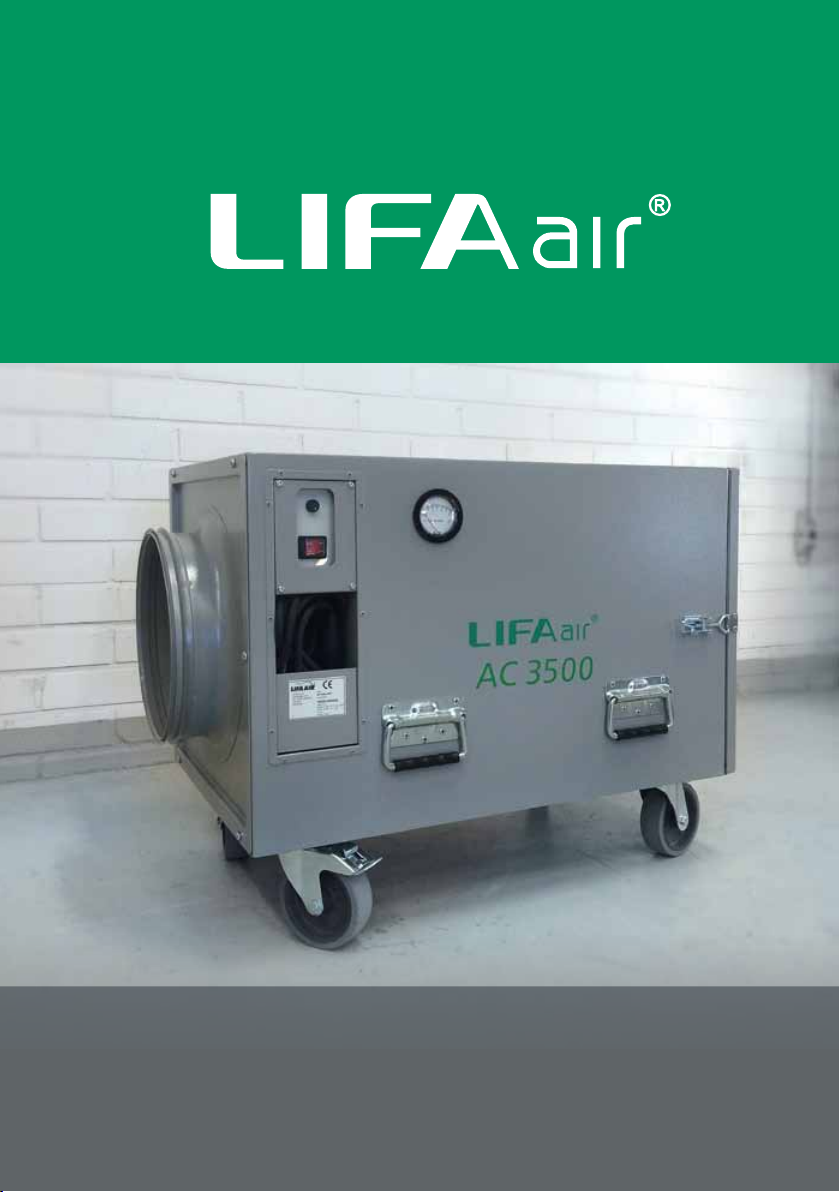

Lifa AirClean 3500 Operating instructions

OPERATING AND MAINTENANCE MANUAL
LIFA AirClean 3500
Electrically operated negative air pressure machine / air cleaner

LIFA AirClean 3500
Index
These instructions should
always be available for the
personnel operating the
machine. Please read these
instructions carefully before
operating the machine.
Following these instructions
in detail ensures many years
of trouble-free use.
IMPORTANT!
Read these instructions
carefully before
operating the machine!
LIFA AirClean 3500....................3
Safety Precautions.....................4
General Directions ....................6
Construction and Control..........7
Operating Principles .................8
Service and Maintanance..........9
Technical Data .........................10
Spare parts and accessories....11
Warranty ..................................12
Recycling .................................13
Declaration of Conformity.......14
LIFA Air Product Family...........15
Congratulations on your new LIFA AirClean 3500 negative air machine!
LIFA AC3500 is designed for ltering / cleaning of airborne pollutants, such as
construction dust, quartz, mill and wood dust etc. which forms in new and renova-
tion buildings.
• Airow linearly adjustable until 3600 m
3
/h (2100 CFM) (max airow w/o lters)
• Durable construction for professional use
• Operates in single phase current, 200–277 VAC, 50/60 Hz (100–120 VAC also
available, the voltage change is done using an encapsulated autotransformer,
which has a 5A fuse)
• Negative pressure in rooms or HVAC air ducts
• Wide range of lters available
Note: There is an 8 second delay between switching on the machine and
the start of the engine!
2
LIFA AirClean 3500
3

6. Electrical connection
• Ensure that the voltage supply and the
current correspond to the information
stated in the CE-plating and the
information in these instructions.
• LIFA AirClean 3500 must be
connected to a single-phase current
(1~) 200-277 VAC (or 100-120 VAC),
50/60 Hz, 10 A.
Only authorised electrician may do the
repairs or installations of the electrical
components. In addition, electrician has
to be authorised by the manufacturer;
otherwise the warranty expires.
7. Noise level
The noise level of LIFA AirClean 3500 is
low (<70 dB) and it does not depend on
the operating environment.
8. Transportation
Check all parts before installation and
use. Ensure that none of them have
been damaged during transport and the
fan wheel rotates freely. The vacuuming
unit must be protected from moisture
and it must not be stored unprotected
outside. Please be careful when lifting
the vacuuming unit.
The following safety directions must be carefully observed in order to avoid
injury of personnel or damage to the environment or the equipment.
Following these instructions will ensure the safe and uninterrupted use of
the machine.
Safety Precautions
• Equipmentmustnotbeusedwithoutalter.
• This equipment must not be positioned nor used in the areas
where there is a risk of explosion or hazardous substances are
used.
• The equipment must not get wet and it must be protected
fromrain,vibrationandwind.
• Foreignobjectsmustnotbeinsertedorttedintothe
equipment.
• Themachinemustnotbecoveredduringtheoperation.
• The operator must ensure that the equipment is suitable and
designedforthetaskandthestatutoryrequirementsaremet.
Ensure that the power supply is
reliably earthed/grounded!
1. Avoid contamination of the
environment
The machine should be kept as
clean as possible. The lters must
be appropriately disposed of.
2. General safety
The power must be turned off when
the machine is not being used. It is
forbidden to make any modications to
LIFA AC3500.
3. Operating safety
The person/persons performing the work
should use personal protective equip-
ment: ltered mouth mask, helmet, ear-
muffs, goggles, overall, safety boots and
other necessary protective equipment the
project requires. The axial fan has
extremely powerful suction. Items
(clothing, hair etc.) could easily be
sucked into the intake cone and cause
injury. It is prohibited to remove
protective grating of the suction inlet.
The vacuuming unit must never be
used with an unprotected suction inlet
or exhaust outlet, because the fan
wheel could cause serious injury. Any
objects that get caught in the fan could
be thrown out at high speed and cause
injury. Always ensure the outlet air is
directed to a safe place where there
are no people or materials that could
be damaged. Never put your hand in
the vacuum.
4. Workplace conditions
It is prohibited to use the vacuuming
unit in handling of gases, which are
classied as corrosive, toxic or explo-
sive or contain high moisture. The
machine must not be used in areas
where there is a risk of explosion. The
worksite must be free of obstacles and
the main switch easily controlled.
5. Operating temperature
The temperature of the transferred
gas must not exceed 80 °C (175 °F).
The machine must not be used in an
environment where the temperature
exceeds 40 °C (100 °F) or drops below
–20 °C (-4 °F).
4
LIFA AirClean 3500
5

General Directions Construction and Control
1. Connection stud exhaust side ø 300 mm (12”)
2. Main switch and linear airow controller
3. Differential pressure gauge
4. Lifting handles (both sides)
5. Fastening latches (both sides)
6. Frame for bag lters
7. Fastening piece and frame for G4 pre-lter
8. Connection stud suction side ø 300 mm (12”)
Note: there is an 8 second
delay between switching
on the machine and the
start of the engine.
Differential
pressure gauge
Linear
airow control
Main switch
Electric cable
1.
6.
7.
8.
3.
2.
5.
4.
1. LIFA AirClean 3500 can only be used for the purposes that it
is designed for and which are outlined in the instructions. It is
forbidden to use the equipment for any other purpose without
written permission from the manufacturer. If this equipment is
used for a purpose other than in which it is designed for, the
manufacturer does not take the responsibility for any
consequences.
2. Persons responsible for operating this equipment / supervising
the use of this equipment must get acquainted with the
structure, functions and the safe use of the equipment.
3. It is prohibited to remove or disable any technical protective /
safety device while using the machine.
4. If the machine must be installed in a way that protective / safety
device is disabled or device functioning is limited, work supervisor
/ person in charge must immediately be notied of this.
6
LIFA AirClean 3500
7

Operating Principles Service and Maintanance
The machine must be unplugged before carrying out
maintenance!
Regular service and maintenance:
• Filter exchange
Filters must be replaced when the pressure difference is ≥2 kPa. This
can be seen from the differential pressure gauge. The person replacing
the lter must wear personal protective equipment. Old lter can
be disposed of as mixed waste or as hazardous waste (hazardous
materials).
• Machine cleaning
The body and the ends of the machine must be cleaned thoroughly
after every use for example by sweeping with a damp cloth.
If there is a possibility that the lter contains hazardous materials, it
must be replaced according to the legislative guidelines regarding the
handling of hazardous materials. Also, the body and the ends must be
cleaned after operating the machine.
Please note that machine must be cleaned of hazardous materials
before sending it to the manufacturer or a servicer authorized by
manufacturer for maintenance.
Fans are equipped with fully closed ball bearings that do not need
lubricating. Fan units are maintenance-free.
Only an authorized electrician, who is also authorized by the
manufacturer, may carry out the electrical maintenance.
NOTE!
Possible repairs must be carried out by the manufacturer or a servicer
authorized by LIFA Air. Third party repairs will void the warranty.
Installation
Check that the exhaust air can ow unhindered
and protect the unit from vibration or blows.
Ensure that the suction inlet and exhaust outlet
are tted with their protective grilles, in accord-
ance with the regulations. The maximum permit-
ted operating temperature is 40 °C (100 °F).
Filters
The machine must always be used with at least
the pre-lter, which must be installed as shown
in picture above. Place the pre-lter between the
Fastening piece / frame for G4 pre-lter (No. 7)
and the Connection stud suction side (No. 8).
In addition, LIFA AC3500 can be used with a
HEPA/gas and/or a bag lter. For longer lifetime
of the HEPA/gas lters, we recommend using
the F7 bag lter and the G4 pre-lter. When
using all three lter-types in the same unit, an
additional pre-lter-box (g. d), length 31 cm,
12”) is required for the F7 bag lter. The pre-
lter-box is placed between the vacuum unit and
the parts No. 6, 7and 8, as shown in the picture
above.
In case a bag lter is not being used, the frame
for bag lters (No. 6) must be removed.
Electrical connection
The vacuuming unit has an EC-motor, which is
connected to a single-phase (1~) current. The
electrical power network must be earthed.
LIFA AC3500 can be used with a) a bag lter, b) a HEPA lter and c) pre-lter media. When using all
three lters at the same time, an additional d) pre-lter box for the bag lter must be installed as shown
in the picture above.
a)
c)
b)
d)
8
LIFA AirClean 3500
9

Technical Data Spare parts and accessories
By using original LIFA-accessories you ensure the best performance and long operating life of the machine.
Please inform the model of the machine (LIFA AC3500) when ordering spare parts and accessories.
Operating power: Electricity
Operating voltage: 200-277 VAC (100-120 VAC also available ), 1~
Frequency: 50/60 Hz
Motor: 0,78 kW / 3,9–2,8 A, EC-motor
Electric cable: 3G1.5mm2, length 3 m (10 ft)
Main switch: Mainswitchandlinearairowcontrol
(8 sec delay)
Hose connection
stud:
Suction: Ø300 mm (12”),
Exhaust: Ø300 mm (12”)
Dimensions:
Length:
Height:
Width:
960(37.8”)
650(25.6”)
540(21.3”)
Weight: 57 kg (126 lbs),
100-120 VAC version: 65 kg (143 lbs)
Material Painted steel
LIFA AirClean 3500
CE-marking plate is situated beside the main switch. Plugging in,
maintenance and spare part supply must be done in accordance with
the information given in this plate.
6420281010835 HEPA-lter H13, size 450x450x292 mm (18”x18”x11”),
AC3500
37450450300 F7-bag lter, 5 pockets+plastic frame, size
450x450x300 mm (18”x18”x12”), AC3500
6420281022920 G4 prelter-media, cut to right size, 5 pcs package,
AC3500
6420281023606 Pre-lter box forbaglters,usedwhenHEPAlteris
insidethevacuumunit,length310mm(12.2"),AC3500
6420281010019
Activated carbon lter, size 450x450x200 mm,
15 kg (18”x18”x 8”, 33 lbs), against harmful gases
e.g.VOCs,creosite,AC3500
6420281021961 Ulpa-lter U15, to be used with the activated carbon
lter,size450x450x93mm(18”x18”x4”),AC3500
6420281021565
Exhaust Hose, clear plastic foil, 480 mm (19”) x
thickness 0,15 mm and length 70 m (230 ft) / roll,
Ø 350 mm (14”), weight 10 kg (22 lbs)
6420281010941 Vacuum/Suction Duct Hose
Ø 305 mm (12”) x length 10 m (33 ft)
6420281023576 Clamp for Duct Hose Ø 300 mm (12”)
EU7_01
Bag lter for exhaust side, class F7, ø 480 mm, length
1,5 m, used for preventing exhaust air blowing effect
and/or noise reducing/dampering
10
LIFA AirClean 3500
11

Warranty Recycling
The warranty period is one (1) year start-
ing from the date of purchase and is
valid according to the regular terms of
delivery, provided that these operational
and maintenance instructions have been
carefully followed. Using anything other
than original LIFA-accessories in the
equipment will void the warranty.
Repair is free of charge within the
warranty period (proof-of-purchase /
receipt must be presented) under the
following conditions:
• The defect is caused by defects in
materials or defective components.
• Defects caused by normal wear and
tear. Misuse or insufcient maintenance
are NOT covered by the warranty.
• Any maintenance and repairs must be
carried out by the manufacturer or by
an authorized representative of the
manufacturer. Manufacturer does not
take responsibility for maintenance
carried out by a third party.
• A written reclamation form must be
lled in and sent with descriptive
photos to the manufacturer.
The appliance shall be delivered
to the authorized Oy Lifa Air Ltd.
representative from which machine
has been bought or when agreed
beforehand mutually in writing, to
the manufacturer postage paid to:
Oy Lifa Air Ltd.
Vellamonkatu 30 B
FI-00550 Helsinki
FINLAND
Tel. [phone]
Email: [e-mail]
Please note that the machine must
be cleaned of hazardous materials
before sending it to the manufacturer
or a servicer authorized by manufac-
turer for maintenance. In case the
machine has not been cleaned appro-
priately, Oy Lifa Air Ltd. will charge
the customer for the cleaning of the
machine.
Oy Lifa Air Ltd. reserves the right to
introduce changes without a further
notice.
The machine can always be returned to the LIFA Air authorized
representative from which the buyer has bought the machine from,
or to the address above postage paid in case there is no recycling
facility where the owner lives.
• Metal parts (frame, reel, motor) can be recycled as metal scrap.
• Electrical parts (frequency converter, main switch) should be
returned to an authorized recycling depot.
• Filters that may possibly contain hazardous materials must be
appropriately disposed of as hazardous waste. Other lters can be
recycled as mixed normal waste.
• Other parts can be recycled as mixed normal waste.
12
LIFA AirClean 3500
13

Declaration of Conformity LIFA Air Product Family
Manufacturer’s name: Oy Lifa Air Ltd.
Manufacturer’s address: Vellamonkatu 30 B,
FI-00550 Helsinki, Finland
Manufacturer’s telephone: [phone]
Manufacturer’s website: www.lifa-air.com
Model: LIFA AirClean 3500
Oy Lifa Air Ltd. is ISO 9001 and ISO 14001 Certied.
Oy Lifa Air Ltd., hereby states, with sole responsibility, that the machine models
covered by this announcement comply with the requirements of the following
EC directives and standards:
• EU Machinery Directive MD 2006/42/EC
• EU Low Voltage Directive LVD 2006/95/EC
• EU Electromagnetic Compatibility Directive EMC 2004/108/EC
• EU Directive on the restriction of the use of certain hazardous substances in
electrical and electronic equipment RoHS 2011/65/EC
• EN ISO 12100:2010 Safety of machinery
• EN 60204-1:2007 Safety of machinery. Electrical equipment of machines.
General requirements.
The product fulls requirements for CE-marking.
Oy Lifa Air Ltd. 10.01.2017
Johan Brandt, CEO
HepaClean 1100 HepaClean 2500 AirClean 3500 HepaClean 4000
Airowmax,
w/olter(m3/h)
1100
(650 CFM)
2500
(1470 CFM)
3600
(2100 CFM)
4600
(2700 CFM)
HEPA 13
(m3/h)
700
(410 CFM)
1800
(1100 CFM)
2900
(1700 CFM)
3200
(1880 CFM)
F7baglter
(m3/h)
--- 2400
(1400 CFM)
3200
(1900 CFM)
3500
(2060 CFM)
Operating
Voltage
200-240 VAC, 1~
50/60 Hz
200-277 VAC (or
100-120 VAC), 1~
50/60 Hz
200-277 VAC (or
100-120 VAC), 1~
50/60 Hz
200-277 VAC (or
100-120 VAC), 1~
50/60 Hz
EC-motor
power 0,17 kW / 1,5-1,25 A 0,5 kW / 2,5-1,8 A 0,78 kW / 3,9-2,8 A 1,35 kW / 6,8-4,9 A
Electric cable 3 m (10 ft) 3 m (10 ft) 3 m (10 ft) 3 m (10 ft)
Measurements
(mm)
L665(26.2”),
H410(16.1”),
W380 (15”)
L960(37.8”),
H650(25.6”),
W540(21.3”)
L960(37.8”),
H650(25.6”),
W540(21.3”)
L1030(40.6”),
H800(31.5”),
W700(27.6”)
Weight
(w/olters)
16 kg
(35 lbs)
57 kg
(126 lbs)
57 kg (126 lbs),
(100-120 VAC ver-
sion: 65 kg, 143 lbs)
88 kg
(194 lbs)
Material Painted steel Painted steel Painted steel Painted steel
Readily
assembled
Lifting handle Lockable wheels,
lifting handles
Lockable wheels,
lifting handles
Lockable wheels,
lifting handles
Machine’s
equipment
Linearairow
control, connection
studs:
Ø250 mm (10”) in,
Ø300mm (12”) out
Linearairow
control, Pressure
gauge, connection
studs:
Ø300 mm (12”) in,
Ø300 mm (12”) out
Linearairow
control, Pressure
gauge, connection
studs:
Ø300 mm (12”) in,
Ø300 mm (12”) out
Linearairow
control, Pressure
gauge, connection
studs:
Ø300 mm (12”) in,
Ø300 mm (12”) out
14
LIFA AirClean 3500
15

Oy Lifa Air Ltd.
Vellamonkatu 30 B, 00550 Helsinki, Finland
+3589394858|[e-mail]|www.lifa-air.com
Theseinstructionsshouldalwaysbeavailableforthepersonneloperatingthemachine.
Pleasereadtheseinstructionscarefullybeforeoperatingthemachine.
Followingtheseinstructionsindetailensuresmanyyearsoftrouble-freeuse.
