LIFAN Power USA AXQ1-200A Assembly instructions

Operating Instructions and
Owner’s Manual
AXQ1-200A
PLEASE READ THIS MANUAL CAREFULLY BEFORE OPERATING YOUR NEW
PORTABLE GENERATOR/WELDER

LIFAN Power USA
2205 Industrial Park Road
Van Buren, AR 72956
866-471-7464
www.lifanpowerusa.com
2
PLEASE READ THE
FOLLOWING INSTRUCTIONS!
1. Unit Shipped with “NO OIL” in Engine or where applicable pumps and/or
accessories. Check and fill with proper oil as outlined in the Owner’s Manual for
the respective product.
2. For repair under Warranty or questions concerning Warranty, DO NOT return
this product to the Store where purchased. Follow the procedures as outlined in
the “WARRANTY POLICY” and “WARRANTY REGISTRATION” in the Owner’s
Manual. For any questions visit www.lifanpowerusa.com or call 1-866-471-
7464.
3. Read the “Owner’s Manual” prior to operating any equipment and familiarize
yourself with the proper and safe operation of the equipment. If you have any
questions visit www.lifanpowerusa.com or call 1-866-471-7464.
This Owner’s Manual is for the Following Models:
AXQ1-200A

LIFAN Power USA
2205 Industrial Park Road
Van Buren, AR 72956
866-471-7464
www.lifanpowerusa.com
3
Table of Contents
Preface 4
Product Specifications 5
Safety Instructions 6
Controls and Features 10
PRE-OPERATING INSTRUCTIONS 12
Assembly 12
Battery Specifications 15
Generator/Welder Setup 16
Operation of Generator/Welder 19
Storing the Unit 22
Maintenance 23
Troubleshooting 28
Generator/Welder Safety 29
Wire Diagram 30
Generator Wattage Reference Worksheet 31
Limited Warranty Policy 33

LIFAN Power USA
2205 Industrial Park Road
Van Buren, AR 72956
866-471-7464
www.lifanpowerusa.com
4
Preface
Thank you for choosing LIFAN Power USA for your Power Equipment Needs. LIFAN
Power USA prides itself on providing quality products at affordable pricing, creating the
“Best Equipment Value on Today’s Market!”
All LIFAN Power USA products are manufactured utilizing the latest technology. Built
with quality components, your new Power Equipment Product will give you years of
dependable service. Your unit, along with all of LIFAN Power USA products are
designed, engineered, and manufactured with LIFAN’s Industrial Grade Gasoline Engine.
This Owner’s Manual will provide you with all of your needed information for your new
Power Equipment Product, including Safe Operation and Maintenance of your unit.
Please read this Owner’s Manual completely and carefully prior to operation. Keep this
Owner’s Manual for assistance in the future, such as proper maintenance schedules and
tips to prolong the life and effective use of your unit. If you require assistance, please
visit our website (www.lifanpowerusa.com) or call toll free 866-471-7464.
This Owner’s Manual contains information with respect to the newest products at the
time of publication. Due to revision and modifications, the information noted in the
Owner’s Manual might vary from the actual status. This Owner’s Manual is subject to
change without notice. The copyright of this Owner’s Manual belongs to EquipSource,
LLC. Any group or individual is forbidden to reprint or copy any of this Owner’s Manual
without the written consent of EquipSource, LLC.
FOR ALL WARRANTY AND SERVICE RELATED ISSUES/QUESTIONS DO NOT RETURN
YOUR UNIT TO THE STORE OR DEALER WHERE THE ITEM WAS PURCHASED. FOR
SERVICE VISIT LIFAN POWER USA’S WEBSITE (WWW.LIFANPOWERUSA.COM) OR CALL
1-866-471-7464. WE WILL BE HAPPY TO HANDLE YOUR WARRANTY ISSUE OR DIRECT
YOU TO THE NEAREST “AUTHORIZED SERVICE CENTER.”

LIFAN Power USA
2205 Industrial Park Road
Van Buren, AR 72956
866-471-7464
www.lifanpowerusa.com
5
ModelSize AXQ1-200 LengthXWidthXHeight(inch) 30inX23inX23in
Voltage 120VAC Weight 110lbs
ACSurgeOutput14500Watts
RatedACOutput24000Watts 12VCord,Plug,&Clips 1ea.
MaximumACAmperage 30amps 120V30ampMaleTwistLockPlug 1ea.
ACCycle 60Hertz Mobility/WheelKit Yes
Regulation
AVR3Battery(notincluded) 12V100ccamin7"lx3"w
12V8.3ampDCReceptacle 1ea.
120V30ampACTwistLockReceptacle 1ea.
CircuitProtection MasterCircuitBreaker
DCAmperage 200amps
Manufacturer LIFAN
Model LF190FD-13111
MaximumHorsepower(MHP) 15MHP
EngineDisplacement 420cc
StartingSystem Recoil/Electric
FuelTankCapacity 6.5Gallons
FuelTankMaterial RustPreventativeCoatedSteel
RunTime(@50%Load) 10hrs
SoundLevel(@7mor23ft) 75decibels
EngineType 4-StrokeOHV
FuelType AutomotiveGradeUnleadedGasoline
FuelCompliance 15%EthanolMix
OilType&Amount SAE10w3032oz.
AutomaticIdleControl Yes
LowOilShutoffProtection Yes
PRODUCTSPECIFICATIONS
ProfessionalGenerator/WelderCombination
ForAdditionalProductInformation,PleaseScan
theQRCodeBeloworVisit
www.lifanpowerusa.com
866-741-7464
VanBuren,AR72956
2205IndustrialParkRoad
LIFANPowerUSA
3
=AutomaticVoltageRegulation
Engine
Accessories
Comments
2=PowerAvailableforContinuousOperation
1
=TemporaryPoweravailablefornomorethan10seconds
Dimensions
Generator
Welder

LIFAN Power USA
2205 Industrial Park Road
Van Buren, AR 72956
866-471-7464
www.lifanpowerusa.com
6
Safety Instructions
For your safety read this manual carefully. Become familiar with the proper operation,
care, and maintenance of your LIFAN Power USA generator/welder combination unit.
The safety and alert symbol ( ) is used with a signal word (CAUTION, DANGER, WARNING), a pictorial and/or
safety message to alert you to hazards. CAUTION indicates a hazard that, if not avoided, could result in minor or moderate
injury. DANGER indicates a hazard that, if not avoided, could result in death or serious injury. WARNING indicates a
hazard that, if not avoided, could result in death or serious injury.
Hazard Symbols and Meanings
WARNING!
Running unit emits carbon monoxide: an odorless, colorless, poison gas.
Breathing carbon monoxide can cause nausea or death!
ONLY operate unit outdoors.
Exhaust gas must be prevented from entering confined areas.
Direct exhaust gas away from windows, doors, ventilation and other openings.
Do not operate unit inside or under any buildings.
Operating this unit inside the compartment of a recreational vehicle will likely result in death!
WARNING!
The engine exhaust from this unit contains chemicals known to the state of California to cause birth defects,
reproductive harm, and cancer.
Do not use this unit within the generator compartment of a recreational vehicle!
This unit does not meet U.S. Coast Guard Regulation 33CFR-183 and should not be used on marine applications.
Use of this unit on marine applications could result in injury or death.
This is the safety alert symbol. It is used to alert you to potential personal injury
hazards. Obey all safety messages that follow this symbol to avoid possible injury
or death.
Explosion Fire Electrical Shock
Toxic Fumes Hot surface or gas Kickback

LIFAN Power USA
2205 Industrial Park Road
Van Buren, AR 72956
866-471-7464
www.lifanpowerusa.com
7
Safety Instructions (continued)
CAUTION!
Exceeding generators wattage/amperage capacity can damage generator and /or electrical
devices connected to it.
Start the generator and let the engine rpm’s stabilize before connecting electrical loads.
Connect all electrical loads with the device in the off position.
Turn off electrical loads before shutting off generator engine.
WARNING!
Rapid recoil of starter cord (kickback) may pull hand and arm forward
toward engine at a rapid rate.
Broken bones, bruises, sprains, and fractures may result.
When starting engine, pull cord slowly until tension is felt, and then pull rapidly to avoid
kickback.
Never start or stop engine with electrical devices plugged in and turned on. Doing so is
hazardous and will damage generator.
WARNING!
Generator produces powerful voltage!
Only a licensed electrician can safely
connect generator to existing utility
hookups. Failure to isolate generator from
electrical grid can result in death to utility
workers as well as others.
When using generator as backup power, notify utility company. Use approved
transfer equipment to isolate generator from electric utility.
Do NOT operate generator while exposed to rain or other wet conditions.
Do NOT handle generator when in contact with water.
Do NOT contact bare wires or receptacles.
Do inspect all electrical cords for damage and discontinue from use any damaged or
excessively worn cords.
Do NOT allow unqualified persons to operate or service generator.

LIFAN Power USA
2205 Industrial Park Road
Van Buren, AR 72956
866-471-7464
www.lifanpowerusa.com
8
Safety Instructions (continued)
WARNING!
Fuel and its vapors are extremely flammable and explosive.
Fire or explosion can cause severe burns or death.
WHEN ADDING OR DRAINING FUEL
Turn unit off and let it cool for at least three minutes before removing fuel cap. Loosen cap slowly in order to relieve
pressure in the fuel tank.
Fill or drain fuel tank outdoors. Do not excessively inhale fuel vapors.
Keep away from open flames or sparks and other sources of ignition.
Do NOT smoke while filling fuel tank.
Do NOT overfill tank. Allow space for fuel expansion.
WHEN TRANSPORTING OR REPAIRING EQUIPMENT
Transport unit with the fuel valve in the off position.
Repair unit with the fuel tank empty or the fuel valve in the off position.
Disconnect spark plug wire before transport or service.
WHEN STORING FUEL OR EQUIPMENT CONTAINING FUEL
Store away from furnaces, stoves, water heaters, clothes dryers or other appliances that have pilot light or other
ignition source because they can ignite fuel vapors.
WHEN STARTING EQUIPMENT
Ensure spark plug, muffler, air cleaner, and fuel cap are in place.
Do NOT crank engine with spark plug removed.
If fuels spills, wait until it evaporates before starting engine.
WHEN OPERATING EQUIPMENT
Do not choke carburetor to stop engine.
Do not tip engine or equipment at an angle, which causes fuel to spill.
This unit is not for use in marine applications.
CAUTION!
Excessively high operating speeds (engine revolutions) increase the risk of injury and damage to the unit.
Excessively low speeds impose a heavy load and will damage unit.
Do NOT adjust engine speed governor. Unit supplies correct voltage and frequency at designated speed.
Modifying unit in any way may be dangerous and will void warranty.

LIFAN Power USA
2205 Industrial Park Road
Van Buren, AR 72956
866-471-7464
www.lifanpowerusa.com
9
Safety Instructions (continued)
WARNING!
While engine is running temperature may exceed 150°F (65°C).
Server burns may occur.
Exhaust heat/gasses can ignite combustibles, structures or damage fuel tank causing a
fire.
Do NOT touch hot surfaces and do avoid exhaust gasses.
Allow unit to cool before touching.
Keep at least 6 ft. (183cm) clearance on all sides of unit including overhead clear.
Reflective exhaust heat may damage fuel tank causing fire.
Code of Federal Regulation(CFR) Title 36 Parks, Forests, and Public Property require equipment powered by an internal combustion
engine to have a spark arrester, maintained in working order, complying to USDA Forest service standard 5100-1c or later revision.
In the state of California a spark arrester is required under section 4442 of the California Public resources code.
WARNING!
Unintentional sparking can result in fire or electrical
shock.
WHEN TESTING FOR ENGINE SPARK
Do NOT check for spark with the spark plug removed.
Use approved spark plug tester.
WHEN REPAIRING OR ADJUSTING GENERATOR
Disconnect the spark plug wire from the spark plug and place the wire where it cannot contact spark plug.
CAUTION!
Improper use and care of this unit will cause damage and shorten its lifespan. Failure to follow these actions will void all
warranties.
Use unit only for appropriate and designated purposes.
The dealer or customer helpline (1-866-471-7464) can instruct you on intended uses.
Unit must be placed on a level surface.
Do NOT expose unit to extreme conditions. Excessive dust, moisture, and corrosive vapors will damage unit.
Cooling slots must be kept clear of debris.
Do not connect improperly operating devices to unit.
Shut off unit and take to a qualified service center if the unit fails to operate properly.

LIFAN Power USA
2205 Industrial Park Road
Van Buren, AR 72956
866-471-7464
www.lifanpowerusa.com
10

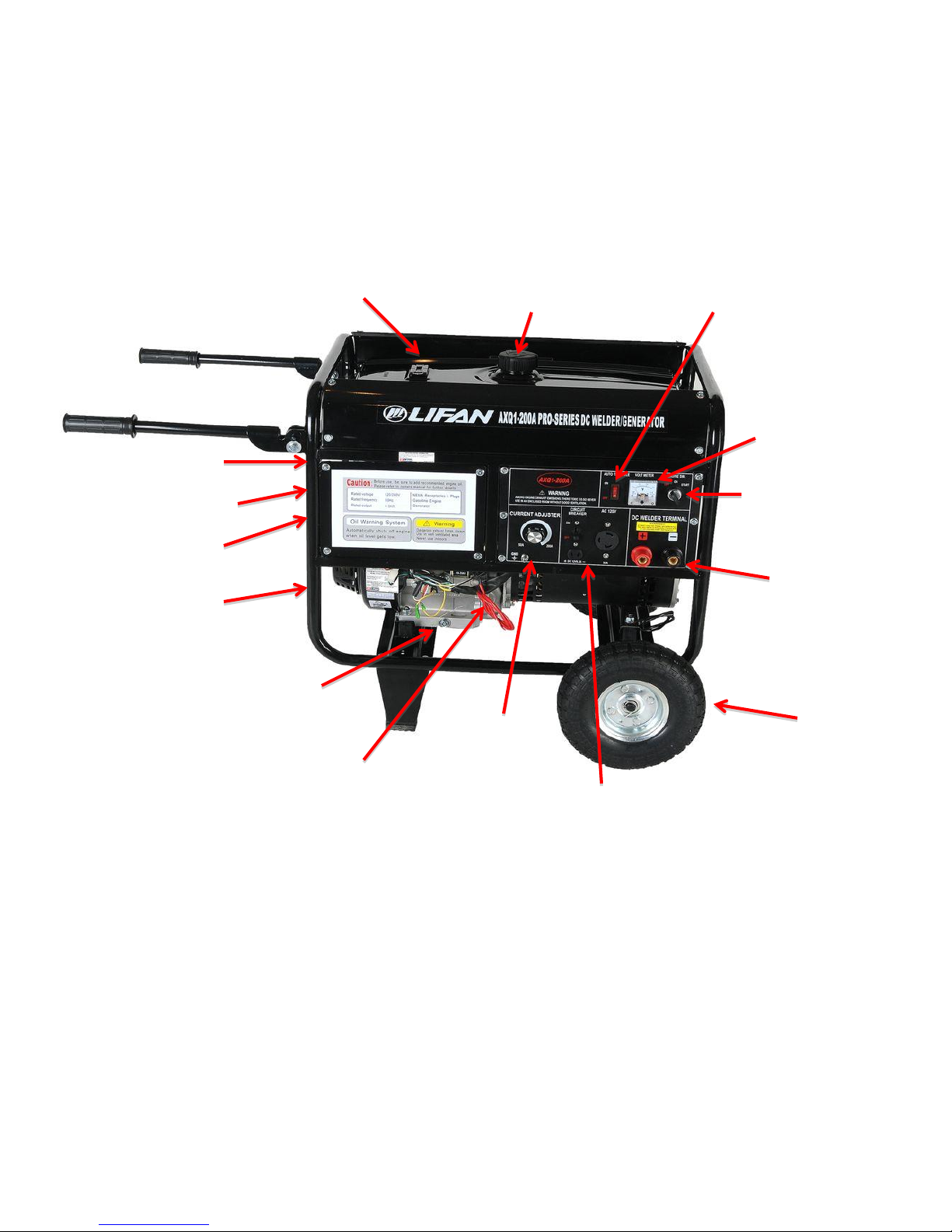

Controls and Features
Read this Owner’s Manual Completely and Carefully before Operating Generator.
Current Adjuster
DC Welder Terminal
Receptacles & Master
Circuit Breaker
Mobility Kit
Voltmeter
Fuel Tank Cap
Fuel Gauge
Engine Switch
Auto Throttle
Switch
Crankcase Oil Dipstick/
Oil Fill Hole Cap
Crankcase Oil
Drain Plug
Recoil Starting
Handle
Choke
Fuel Cock (Valve)
Air Cleaner
Current Adjuster
& Grounding Stud

LIFAN Power USA
2205 Industrial Park Road
Van Buren, AR 72956
866-471-7464
www.lifanpowerusa.com
11
Controls and Features (continued)
Legend
1. Fuel Gauge –Displays Current Fuel Level.
2. Fuel Tank –Vented Fuel Cap Must be Properly Installed at all times during
Operation.
3. Auto Throttle Switch –Power-On-Demand for Optimum Power Supply.
4. Voltmeter –Displays Current Voltage Level.
5. Engine Switch - Turn to “START” to Crank Engine & “OFF” to Shut Off Engine.
6. DC Welder Terminal –“RED” is Positive Terminal; “BLACK” is Negative Terminal.
7. Mobility Kit –Two Never-Go-Flat Foam Filled Tires with Two Support Legs and
Two Flip-up Handles.
8. Receptacles & Master Circuit Breaker –AC & DC Receptacles - See Product
Specifications; Double Pole Circuit Protector for Overload Protection.
9. Current Adjuster & Grounding Stud - DC Welder Current Adjuster; Always
connect generator to an Earth Grounding Source. Consult Local Energy
Jurisdiction for Code Requirements in your area.
10. Crankcase Oil Dipstick/Oil Fill Hole Cap –Check/Fill Engine Oil.
11. Crankcase Oil Drain Plug –Remove to Drain Oil from Crankcase.
12. Recoil Starting Handle –Pull Handle to Rotate Engine for Starting.
13. Fuel Cock (Valve) –Turn to “OFF” to Terminate Fuel Delivery to Engine
14. Air Cleaner –Check Maintenance Schedule for Service Intervals
15. Choke –Before starting cold generator, pull the choke pin outward from
generator to activate the choke lever. After allowing generator to run for a few
seconds, push pin inward toward generator.
AUTO IDLE CONTROL SWITCH: LF8500iE, LF7000iPL, & LF8500iEPL Models Only
This unit is equipped with an Auto Idle Control feature. The generator will automatically
switch to “Gas-Saving” mode when there is no power or load required. Upon demand,
the generator will enhance engine speed automatically to provide the correct electrical
power the connected device requires. The Auto Idle Control feature minimizes fuel
consumption and reduces noise levels.
Turn the AUTO IDLE CONTROL feature “OFF” when:
High Electrical Loads are connected simultaneously to reduce voltage changes.
The Equipment connected to the generator requires full power at start-up.
Example: Power Tools and other equipment with electric motors.
Generator is working at a constant rated power output

LIFAN Power USA
2205 Industrial Park Road
Van Buren, AR 72956
866-471-7464
www.lifanpowerusa.com
12
Pre-Operating Instructions: Assembly
Your LIFAN Power USA Generator/Welder Combination is packaged without fuel and oil.
Some assembly is required before operating your LIFAN Power USA Generator/Welder.
For further assistance in assembling your unitplease visit our website
(www.lifanpowerusa.com) or call 1-866-471-7464 between the hours of 9am-5pm
Monday-Friday.
BOX CONTENT:
Generator/Welder
Accessory Kit
o1 ea. - Spark Plug Removal Tool
o1 ea. - 12 Volt Power Cord with Plug & Alligator Clips
o1 ea. - Nema14-30 Male Twist Lock Plug
oRV Adapter Plug for 120 Volt 30amp Service
Owner’s Manual and Warranty Card
Wheel Kit
o2 ea. - Never-Go-Flat Foam Filled Wheels
o2 ea. - Heavy Duty Leg Supports (Shipped Stored Under Fuel Tank)
o1 ea. - Axle
o2 ea. - Folding Handle
oHardware Bag –See Assembly Diagram
UNPACKING THE GENERATOR/WELDER:
1. Set the Carton on a Flat, Rigid Surface.
2. Remove All Contents from Carton EXCEPT Generator/Welder.
3. Open Box Completely by Cutting Each Corner from Top to Bottom.
4. Leave Unit on the Remainder of the box until Wheel Kit is installed.
5. Locate all Box Contents and Place them Beside the Unit. (Some Items may be
Packed within the voids of the Generator itself)

LIFAN Power USA
2205 Industrial Park Road
Van Buren, AR 72956
866-471-7464
www.lifanpowerusa.com
13
Pre-Operating Instructions: Assembly
(continued)
WHEEL KIT INSTALLATION:
The Following Tools are needed to Install Wheel Kit:
Safety Glasses
8mm-14mm Wrench Set
8mm-14mm Ratchet & Socket Set
17mm Ratchet & Socket
Wheel Kit Installation Directions: Refer to Assembly Diagram.
NOTE: Install Wheel Kit BEFORE Filling the Unit with Fuel or Oil. Never Tip a Unit that
contains Fuel or Oil.
1. Attach Flip Up Handle to Mounting Bracket with Flange Bolt and Nut.
2. Attach other Flip Up Handle using Flange Bolt and Nut.
3. Tip Unit so Engine End is up.
4. Slide Axle through both Mounting Brackets.
5. Place a Wheel on Both Sides as shown in “Assembly Diagram.”
6. Securely Tighten Wheel Nuts with the 17mm Socket.
7. Tip the Alternator End of the Unit up.
8. Place the Support Legs under the Frame Brace as shown in “Assembly Diagram.”
9. Secure with the provided Cap Screws and Hex Nuts. Securely tighten using
12mm Ratchet and Socket.

LIFAN Power USA
2205 Industrial Park Road
Van Buren, AR 72956
866-471-7464
www.lifanpowerusa.com
14
Installation Points
Installation
Points
14
15
ASSEMBLY DIAGRAM
Energy Storm Portable models 3500 TO 8000 WATTS
1. Handle 2 pcs.
2. Flange bolt 8mm×45mm 2 pcs.
3. Nylon Washers.8mm 4 pcs.
4. Nut M8 12 pcs
5. Flange bolt 8mm×60mm 2 pcs
6. Axle 1 pc.
7. Cotter Pin 2 pcs
8. Tire & Wheel Assembly 2 pcs
9 Front Leg 2 pcs
10 Leg Skid Pad 2 pcs
11 Flat washer 6mm 2 pcs
12 Spring washer 6mm 2 pcs
13 Flange bolt 6mm×16mm 2 pcs
14 Battery hold down strap 1 pcs
15 12 volt Battery (not included) 1 pc.
16 Battery Box 5000- 8000 watt models
17 Battery Box 3500 watt models
16
17
Parts List
CAUTION! Assemble generator before adding fuel or oil.

LIFAN Power USA
2205 Industrial Park Road
Van Buren, AR 72956
866-471-7464
www.lifanpowerusa.com
15
Pre-Operating Instructions: Battery
Specifications
The Battery is NOT included with your Energy Storm Generator. These units require an
Acid Cell Battery. This battery is used in many applications, such as lawnmowers, ATV’s,
motorcycles, etc. and can be found at many retailers and dealers including where you
purchased this Power Equipment Product. Use the “Battery Specifications” chart below
to attain the specifications of the necessary battery. Or, use the “Cross Reference
Models” chart below to match up with the manufacturer’s model number with the
brand battery available at your local retailer.
BATTERY SPECIFICATIONS
Generator
Model
Length
(inch)
Width
(inch)
Amp
(hrs)
DC Voltage
(Volts)
AXQ1-200A
5.3125 in
3.1875 in
12
12V
CROSS REFERENCE MODELS
Generator Model
Manufacturer
Model Number
AXQ1-200A
Excide®
12N12A-4A-1
1. Battery leads consist of a Red (hot) lead that connects to the (+) battery post and is
connected to the (+) terminal on the starter solenoid and a Black lead which is
connected to the (-) negative battery terminal and the frame mounting bolt.
2. Connect the Red (hot) terminal to the battery.
3. Connect the Black (negative) terminal to the battery.
Warning
Follow all the battery manufactures’ warnings for
proper installing of your battery in order to prevent
damage to personnel or equipment.

LIFAN Power USA
2205 Industrial Park Road
Van Buren, AR 72956
866-471-7464
www.lifanpowerusa.com
16
Pre-Operating Instructions: Generator/Welder
Setup
CAUTION: Any attempt to start the unit before it has been properly serviced may result
in engine failure and void warranty.
ADD ENGINE OIL: Refer to the diagrams below.
1. Place unit on level surface.
2. Clean area around Oil Hole Dipstick/Plug & Unscrew Oil Hole Dipstick/Plug.
3. Fill with appropriate type and amount. Refer to Chart below for recommended
oil type based on Environmental temperature.
NOTE: Refer to “Product Specifications” section for universal recommended oil
type and oil amount.
4. Replace Oil Hole Dipstick/Plug and tighten securely.
WARNING!
Fuel and its vapors are extremely flammable and explosive.
Fire or explosion can cause severe burns or death.
WHEN ADDING FUEL
Turn unit off and let it cool for a minimum of three minutes before removing fuel cap. Turn and remove cap slowly in
order to relieve residual tank pressure.
Always fill the fuel tank with the unit outdoors.
DO NOT overfill tank. Allow room for fuel expansion.
Keep fuel away from sparks, open flames, heat, pilot lights, and other ignition sources.

LIFAN Power USA
2205 Industrial Park Road
Van Buren, AR 72956
866-471-7464
www.lifanpowerusa.com
17
Pre-Operating Instructions: Generator/Welder
Setup (continued)
ADD FUEL: Refer to Controls and Features section for diagrams.
1. Clean area around fuel cap, then remove fuel cap.
2. Pour fresh, clean regular automotive grade unleaded fuel with a minimum
octane rating of 85 into fuel tank. Do NOT mix fuel with oil. Fuel must have
ethanol blend of 15% or less. Pay close attention to the storage requirements of
these fuels. Do NOT overfill fuel tank.
3. Install the fuel cap. Rotate the fuel cap clockwise until it is in its locked position.
Wipe away any spilled fuel.
CAUTION: Alcohol-blended fuels (gasohol, ethanol, or methanol) will attract moisture,
which leads to separation and formation of acids during storage. Acidic gas can damage
the fuel system of an engine while in storage. To avoid engine problems, the fuel
system should be treated with a fuel stabilizer or drained if the generator will not be
started for thirty (30) days. If using a fuel stabilizer, follow the manufacture’s
recommended instructions for use. Always use stabilizer with a full tank of gasoline.
Always drain old fuel and use fresh fuel before next use. If you do not use a fuel
stabilizer, the fuel system must be drained and cleaned. Drain the fuel tank and start
the engine, allowing it to run until all fuel lines and carburetor are drained of fuel.
Before restarting the carburetor. Float bowl must be removed and cleaned of any
debris.
NEVER use chemical solvents or cleaners in the fuel tank for damage may occur.

LIFAN Power USA
2205 Industrial Park Road
Van Buren, AR 72956
866-471-7464
www.lifanpowerusa.com
18
Pre-Operating Instructions: Generator/Welder
Setup (continued)
CHECK AIR CLEANER ELEMENT:
Refer to “Air Cleaner Maintenance” in the Maintenance section of this Owner’s Manual
to ensure Air Cleaner Element is in operable condition.
GROUNDING THE GENERATOR: Connect the Ground Terminal on the generator to
an acceptable source of electrical ground, such as a copper-grounding stake, using
copper electrical wire with a minimum diameter of 16 gauge.

LIFAN Power USA
2205 Industrial Park Road
Van Buren, AR 72956
866-471-7464
www.lifanpowerusa.com
19
Operation of Generator/Welder
HOW TO USE YOUR GENERATOR/WELDER
GENERATOR/WELDER LOCATION:
WARNING!
Running Unit gives off carbon monoxide gas. It is odorless, colorless, and highly toxic.
Breathing carbon monoxide gas can leads to fainting, nausea or may result in death.
Only operate unit outdoors.
Prevent exhaust gas from entering, through windows doors or ventilation intakes, any confined areas.
DO NOT operate unit inside any enclosed or roofed areas. This includes the generator compartment of any recreational
vehicle (RV).
STARTING THE ENGINE: Refer to the Controls and Features section.
CAUTION!
Never start or shutoff the generator with electrical loads connected and in the operational mode (on switch activated).
Starting or shutting off the generator with electrical loads activated may result in damage to the generator.
1. Unplug all electrical loads from the generator.
2. Make sure the generator/welder is in a level position.
3. Open the fuel cock by turning the fuel cock to the “ON” position.
4. For cold engine starts only: Pull the choke pin to the engaged position per the
instruction label on the generator main frame.
PULL START (RECOIL) ONLY MODELS:
5. Place the On/Off switch in the “ON” (l) position.
6. Grasp starter handle and pull slowly until resistance is felt. Then pull the cord
rapidly with a full arm stroke. Allow the rope to return slowly. Do NOT allow the
rope to snap back against housing.
7. Once the engine runs for 3-5 seconds, push the choke pin in to disengage.

LIFAN Power USA
2205 Industrial Park Road
Van Buren, AR 72956
866-471-7464
www.lifanpowerusa.com
20
Operation of Generator/Welder
HOW TO USE YOUR GENERATOR/WELDER
(continued)
ELECTRIC/PULL (RECOIL) START MODELS:
5. Using provided key, turn the key switch to the “ON” position. Rotate the key one
more position to the “START” position in order to engage the starting motor.
Hold key switch in the “START” position until engine starts for NO MORE than 10
engine rotations. If the engine does NOT start repeat procedures beginning with
Step One (1).
6. Once the engine runs for 3-5 seconds, push the choke pin in to disengage.
NOTE (all models): If unit does not start within three pulls, check the crankcase oil
level. The engines “Low Oil Alarm System” may be activated and preventing the engine
from starting.
CONNECTING ELECTRICAL LOADS:
1. Ensure engine is started before plugging in any electrical appliance.
2. Plug in desired 120 Volt loads to the 120 Volt U-Ground. Always plug appliances
into the generator with appliance in its “OFF” position.
3. Plug in 12V DC load to the DC receptacle. DC and AC power may be used
simultaneously. Circuit Breaker may need to be re-set before using 12V
receptacle. When charging 12V batteries, insert the charging plug into the DC
socket and then connect the terminals to the battery. After charging is
complete, remove battery terminal first, then un-plug charging plug from
generator. Remove the ground wire of Car Batteries prior to charging and re-
connect after charging is complete to avoid short circuit or spark.
4. Do NOT connect 240 Volt loads to the 120 Volt receptacles.
5. Only connects single-phase 60 Hertz loads.
6. DO NOT OVERLOAD THE GENERATOR. FOLLOW THE PROVIDED “GENERATOR
WATTAGE REFERENCE WORKSHEET” TO DETERMINE THE RUNNING AND
STARTING WATTAGE OF YOUR EQUIPMENT, REFER TO THE PRODUCT
SPECIFICATIONS TO ENSURE YOUR GENERATOR WILL OPERATE THE DESIRED
EQUIPMENT.
NOTE: Use the running and starting wattage provided by the equipment manufacturer
if available. If not available, use provided “Generator Wattage Reference Worksheet.”
Table of contents
Other LIFAN Power USA Portable Generator manuals

LIFAN Power USA
LIFAN Power USA ESI-1000i Assembly instructions

LIFAN Power USA
LIFAN Power USA Platinum Series Assembly instructions

LIFAN Power USA
LIFAN Power USA PRO Series Assembly instructions

LIFAN Power USA
LIFAN Power USA ES3500 Assembly instructions

LIFAN Power USA
LIFAN Power USA ESI-1000i-CA User manual
Popular Portable Generator manuals by other brands

SMC Networks
SMC Networks SMCRPUPOE Specifications

Scheppach
Scheppach SG8000x Translation of original instruction manual

Edwards
Edwards Porta Power Safety & instruction manual

Powermate
Powermate PM0535000 owner's manual

Briggs & Stratton
Briggs & Stratton 030547-01 Operator's manual

DR
DR PRO-7500F owner's manual
