Lifely Agrumino Lemon User manual

powered by
Dev Guide
Lifely Agrumino Lemon

Table of contents
01. Introduction pag. 3
04. Installations and configurations pag. 12
4.1 CP210x USB Driver Installation
4.2 Install Lifely Agrumino Lemon on Arduino IDE
- procedure valid for Arduino IDE versions lower
than version 2.0
pag. 12
pag. 12
4.3 Installation of Lifely Agrumino Lemon libraries
on Arduino IDE
pag. 15
02. Hardware pag. 5
2.1 Lifely Agrumino Lemon rev4 (front-board) pag. 5
1Lifely Agrumino Lemon
2.2 Lifely Agrumino Lemon rev4 (back-board) pag. 6
2.3 Lifely Agrumino Lemon rev5 pag. 7
03. Pinout and Connector
3.1 I2C connector (Grove compatible)
3.2 External battery connector (*)
3.5 GPIO Connector (Grove compatible) (*)
3.3 Pump connector max. 3.3 V (*)
3.4 Water sensor level connector (generic IO)
pag. 9
pag. 9
pag. 10
pag. 10
pag. 11
pag. 8

07. FAQ and common errors pag. 20
2Lifely Agrumino Lemon
08. Tutorial with Arduino IDE (classic version) pag. 21
06. Using the Lifely library with Arduino IDE pag. 16
6.1 Examples in "QuickStart" pag. 16
pag. 17
pag. 18
pag. 18
pag. 19
05. Lifely Agrumino Lemon Program pag. 16
6.2 Examples in "Cloud"
6.3 Advanced examples
6.4 OTA flashing to update firmware examples
6.5 Diagnostics
09. Tutorial with Arduino IDE 2.0 pag. 27

3Lifely Agrumino Lemon
Introduction
This document is intended to provide help in installing and using
Lifely Agrumino Lemon. In addition, some example sketches will
be illustrated, which can be found in the "Examples in Arduino
IDE" category, subject to installation of the Lifely Agrumino
Lemon library (we recommend always using the latest
version).
1
IMPORTANT! Correct battery insertion
When using the battery, pay attention to its insertion: insert the
battery in the correct way, that is, with the silkscreen facing up
(see figure below). Incorrect insertion of the battery by reversing
the polarities would cause a short circuit.
Screen printing
facing upward

4Lifely Agrumino Lemon
SWITCH
OFF!
If you use rechargeable batteries, the charging circuit should
always be set to ON (see Figure 1).
If, however, you use non-rechargeable batteries, the charging
circuit must, of necessity, be set to OFF (see Figure 2). Failure to
set it to OFF would cause the device to short-circuit.
IMPORTANT! Activation/Deactivation of the charging
circuit.
Figure 1
RECHARGEABLE
BATTERY
SWITCH
ON!
Figure 2
NON-RECHARGEABLE
BATTERY

5Lifely Agrumino Lemon
Hardware
This section highlights the main components of the Lifely
Agrumino Lemon device.
2.1 Lifely Agrumino Lemon rev4 (front-board)
Led
Temperature sensor
User Custom Button
CHIP ESP8266
Battery ON-OFF (with
jumper and without
jumper)
Soil moisture sensor
Light sensor
Reset Button
(1)Battery recharge ON-OFF
(2)Power to I2C ON-OFF
Micro USB connector
recharge/programming
Battery holder
2

6Lifely Agrumino Lemon
2.2 Lifely Agrumino Lemon rev4 (back-board)
The I2C connector and GPIO connector are compatible with Grove
Systems.
Grove I2C e Grove Digital sono supportati out-of-the-box mentre
Grove Analog può essere utilizzato con un esterno Grove-I2C-
ADC.
Water sensor
level connector
(generic IO)
Pump connector (*)
I2C connector
(Grove compatible)
External battery
connector
GPIO Connector
(Grove
compatible) (*)

7Lifely Agrumino Lemon
2.3 Lifely Agrumino Lemon rev5
The rev5 version of the Lifely Agrumino Lemon device is perfectly
the same as the rev4 version, the only difference being that there
is no jumper. The latter is replaced by a toggle located in the
back-board, with an ON-OFF switch (see figure below).
We specify that the color is not indicative of the model version.
Back-board
Board Version
Switch Power
ON-OFF

8Lifely Agrumino Lemon
1I2C connector (Grove
compatible)
External battery
connector (*)
GPIO Connector (Grove
compatible) (*)
Pump connector
max. 3.3 V (*)
Water sensor level
connector (generic IO)
2
3
4
5
Pinout and Connector
1
2
3
4
5
In this section we are going to analyze, in more detail, the
connectors present in the back-board of Lifely Agrumino Lemon
(in the image below we have used a rev4 but it is identical to the
rev5). The connectors are as follows:
3

9Lifely Agrumino Lemon
3.1 I2C connector (Grove compatible)
SCL
SDA
VOUT (3.3V)
GND
3.2 External battery connector (*)
Connection of non-rechargeable battery is possible after
disabling charging circuit (see page 4).
BATT -
BATT + (max 6.0V)

10 Lifely Agrumino Lemon
3.3 Pump connector max. 3.3 V (*)
Software-activated irrigation pump connector.
MAX VOUT 3.3 V
GND
3.4 Water sensor level connector (generic IO)
GPIO_LIV_1
GND

11 Lifely Agrumino Lemon

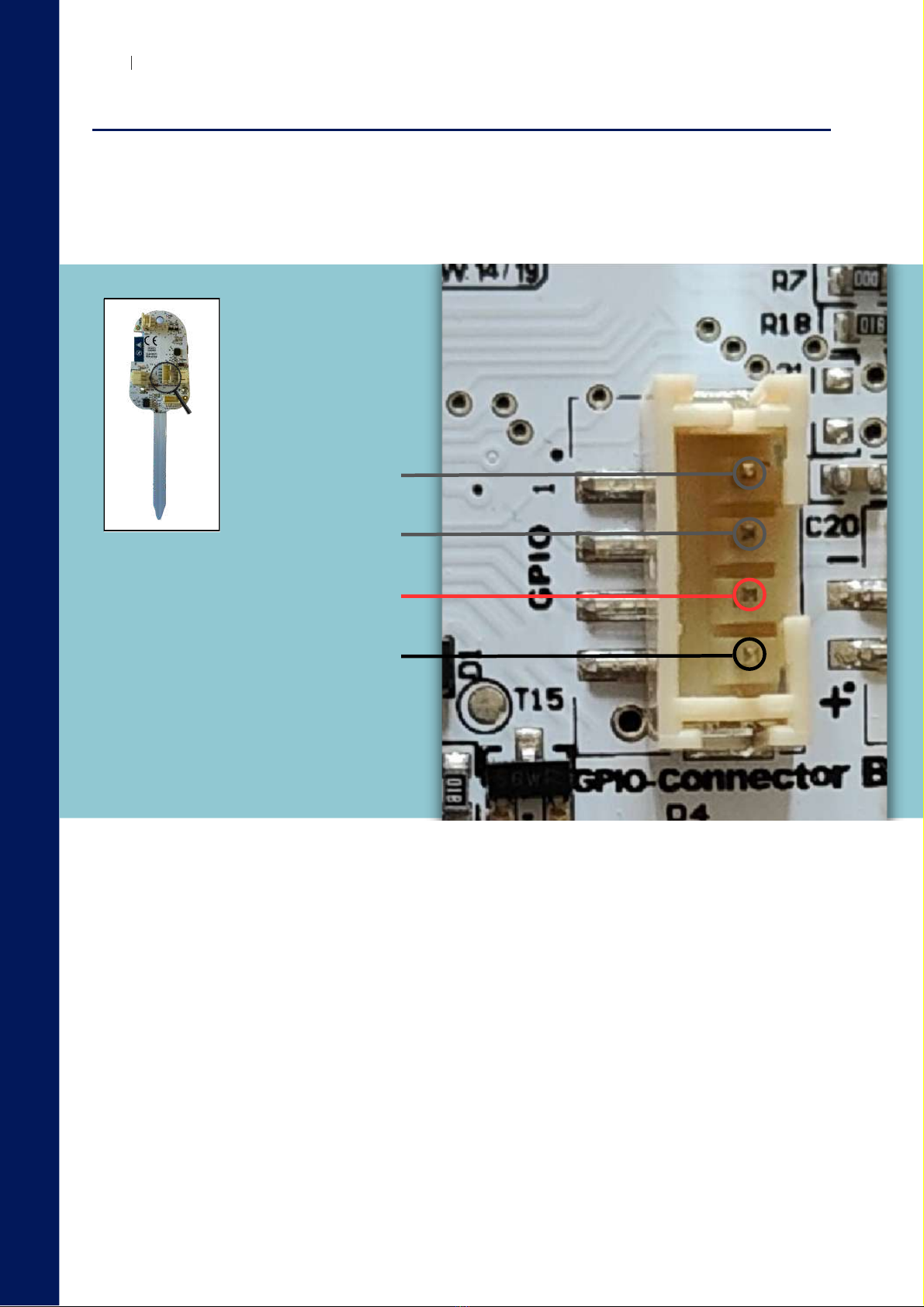

3.5 GPIO Connector (Grove compatible) (*)
GPIO_2
GPIO_1
VOUT (3.3V)
GND

12 Lifely Agrumino Lemon
Installations and configurations
4.1 CP210x USB Driver Installation
Modern Windows installations already have USB drivers for its
operation. On other platforms, such as Mac OS/Linux and
Android, if the serial device is not automatically recognized, you
can download the latest version of the official driver from this
link: CP2102 Driver.
4.2 Install Lifely Agrumino Lemon on Arduino IDE -
procedure valid for Arduino IDE versions lower than
version 2.0
If you have the Arduino IDE version 1.8.19 please follow this
procedure.
The Lifely Agrumino Lemon Core is an ESP8266 WiFi. The official
programming IDE is Arduino, thanks to the ESP8266 Core for
Arduino project. In addition, it is also possible to use other IDEs,
such as VSCode, using the Platformio extension. Lifely Agrumino
Lemon is officially part of Arduino's ESP8266 Core. Arduino allows
installation of packages using the Board Manager. The package is
available for Windows, Mac OS, and Linux (32- and 64-bit). Follow
the following steps to proceed with the installation:
4
1. Install the latest version of Arduino IDE lower than 2.0
available in the official Arduino website at the following link:
https://www.arduino.cc/en/software
2. Next, open Arduino Ide and click on
File → Preferences and in the URLs text box enter the following
url:
http://arduino.esp8266.com/stable/package_esp8266com_index.json

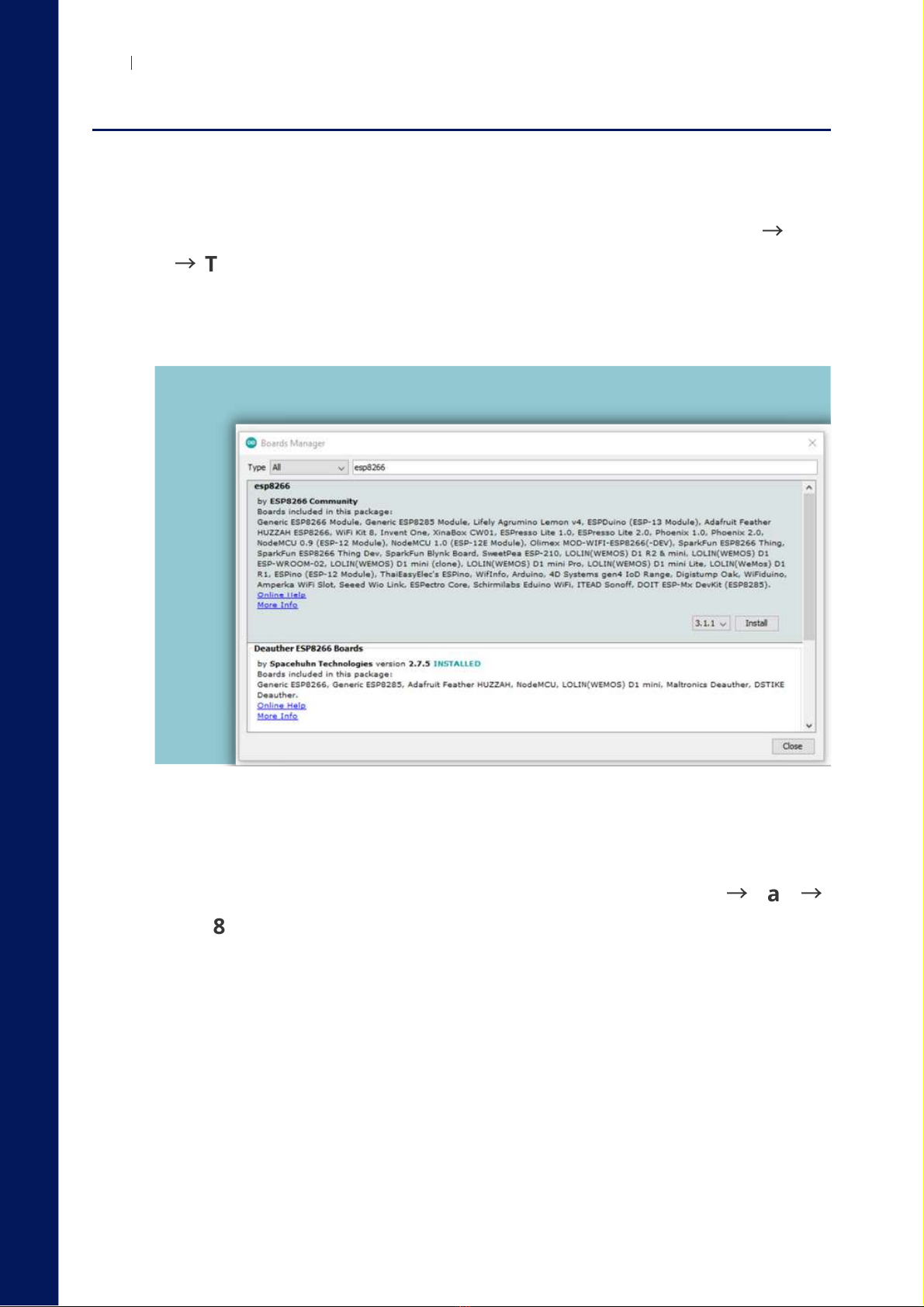

3. If there are additional configuration URLs of other tabs, simply
separate them with a comma. Open Tab Manager (Tools → Tab
→ Tab Manager and type Esp8266). At this point a screen like
the one in the image below will be visible.
13 Lifely Agrumino Lemon
Having reached this point, we install version 3.0.0 or later.
4. Select "Lifely Agrumino Lemon" via the menu Tools → Tab →
ESP8266 Boards and select Lifely Agrumino Lemon v4
(selection also valid for rev5).
If you have done everything correctly, at the bottom of the
Arduino IDE you should see Lifely Agrumino Lemon v4, as in
the spot highlighted in the following image.

14 Lifely Agrumino Lemon

15 Lifely Agrumino Lemon
4.3 Installation of Lifely Agrumino Lemon libraries on
Arduino IDE
To use Lifely Agrumino Lemon, you must install the Official
Library. You must do this directly from the library manager in
Arduino IDE.
To do this go to Tools → Library Management and then type in
"Lifely."
Installing the library will install some sample sketches, which are
useful to start using Lifely Agrumino Lemon without having to
write a single line of code.
A screen like the one in the figure will appear. Now you need to
install the latest library release, for example as in this case 1.4.4,
by simply pressing the Install button.
Always install the latest release of the library.

16 Lifely Agrumino Lemon
Lifely Agrumino Lemon
Program
The Lifely Agrumino Lemon board can be easily programmed: you
simply select an example sketch found in the examples folder and
then upload it by pressing the Upload button on the Arduino
IDE. In addition, you can freely write code to create your own
sketches.
From the Arduino IDE menu (Tools → Board) verify that you have
selected the correct "Lifely Agrumino Lemon v4" board.
Using the Lifely library with
Arduino IDE
This section will briefly present some Example Sketches. Note
that they are divided into the following folders: QuickStart,
Cloud, Advances examples, OTA and Diagnostics.
(File → Examples → Lifely Agrumino Lemon).
6.1 Examples in "QuickStart"
These Sketches display basic Agrumino data, such as reading
sensor data, saving data to flash memory, and controlling the
wifi connection.
AgruminoSample
Simple sketch to read every 30 seconds (configurable
parameter) all values from Lifely Agrumino Lemon and
display them in the serial monitor of Arduino IDE.
5
6

AgruminoBringUp
Sketch to test Lifely Agrumino Lemon and its FLASH
memory of the ESP8266 module. Specifically, it is possible
to read all sensor values and print them in the serial
monitor, as well as clean, read, write, and commit to the
memory to verify its integrity.
17 Lifely Agrumino Lemon
WifiClient (ESP8266 example)
Sample sketch to connect Lifely Agrumino Lemon to a WiFi
connection. You need to write STASSID and STAPSK with a
personal WiFi SSID and password.
6.2 Examples in "Cloud"
With these Sketches it is possible to send sensor data from the
Agrumino board to various Cloud platforms. All Sketches use
"deep sleep," a special power-saving mode.
AgruminoDweet
Sketch that reads all values from Lifely Agrumino Lemon
every hour and transmits them to the Dweet.io service
every 4 hours. It integrates FLASH management to collect
all data before transmitting it.
AgruminoThingSpeakHttpPost
Like the AgruminoDweet Sketch, but in this case the data is
sent to the cloud via Post Http.
AgruminoThingSpeakJsonPost
In this case all data are sent with one Json file.

18 Lifely Agrumino Lemon
AgruminoThingSpeakVeryEasy
Similar to the sketch in which data is sent to the server
with a direct connection.
AgruminoThingCloudWithPump
Sketch that sends all sensor data from the Lifely Agrumino
Lemon at the Thinger.io platform. Through the Thinger.io
Dashboard and this firmware, it will be possible to enable
or disable irrigation directly from the pump connector.
6.3 Advanced examples
Example sketch with Lifely Agrumino Lemon, using other sensors,
actuators, third-party boards such as OLED display, water pump, etc.
AgruminoOledSample
Data visualization by connecting an oled display.
6.4 OTA flashing to update firmware examples
Sketches that send sensor data to the cloud and at the same time
use Over The Air (OTA) updates.
AgruminoDweetWebOTA
This sketch is the same as AgruminoDweet, but integrates,
in addition, firmware updating via OTA using a web page.
Users can choose an update file from PC and upload it to
the board using the Lifely Agrumino Lemon address.

19 Lifely Agrumino Lemon
AgruminoDweetHttpOTA
This sketch is the same as AgruminoDweet, but it integrates
firmware updating via OTA using a remote HTTP server.
Whenever a binary file (.bin) is uploaded to the server, the
board automatically downloads it and the device is updated
totally autonomously.
6.5 Diagnostics
AgruminoLemonTesting
This sketch can be used to verify the operation of all
connectors and integrated sensors. Within the sketch folder
is an illustrative image of its use (fritzing diagram). The
path to the images is as follows:
\Arduino\libraries\Lifely_Agrumino_Lemon\examples\Diagnostic
s\AgruminoLemonTesting
