LIFEPLUS BLF-T05 User manual
Thank you for choosing our Evaporative Air Cooler. This user manual will provide
you with valuable information necessary for the proper care and maintenance
of your new product.
Please take a few moments to thoroughly read the instructions and familiarize
yourself with all the operational aspects of your new product.
EVAPORATIVE AIR COOLER
OWNER'S MANUAL
Please take a few minutes to read
this manual carefully.
Proper maintenance and operation of this
machine can provide better service.
INTRODUCTION
SECTION 1
PARTS & ACCESSORIES PAGES 6
SPECIFICATIONS PAGES 6
SAFETY INSTRUCTIONS PAGES 4
WORKING PRINCIPLE PAGES 5
SECTION 2
OPERATING INSTRUCTIONS PAGES 7
SECTION 3
CONTROL PANEL PAGES 8
SECTION 4
CLEANING / MAINTENANCE INSTRUCTIONS PAGES 10
FAULT AND MAINTENANCE PAGES 10
STORAGE PAGES 11
SECTION 5
TABLE OF CONTENTS
REMOTE CONTROL PAGES 9
-11
For your safety concerns, please make sure to follow the instructions above.
(1). This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the appliance by a person
responsible for their safety.
(2). Children should be supervised to ensure that they do not play with the appliance.
(3). Before any maintenance, make sure the machine is in the “off” state, and the power
is switched off.In order to avoid the electric shock, please connect the grounding socket
correctly, and guarantee the connection of the grounding device with the function of
automatic protection from faults.
(4). If the supply cord is damaged, it must be replaced by manufacturer, its service agent
or similarly qualified persons in order to avoid a hazard.
(5). Ensure that the fan is switched off from the supply mains before removing the guard.
(6). Unplug the appliance during filling and cleaning.
(7). Do not use any corrosive or solvent detergent for cleaning. It is recommended to use
wet cloth to wipe the machine instead of flushing the machine. Please avoid the machine
exposed to direct sunlight.
(8). It is strictly prohibited to use this machine in a circumstance with inflammable or
explosive gas.
SAFETY INSTRUCTIONS
!
(1). The draught fan does a suction to make a subpressure, at the same time the pump
carries the water to the distribution instrument to make the wet curtain moist.
(2). The hot air passes through the wet curtain, and the heat is absorbed by the
evaporating water, then the temperature comes down.
(3). The cool air is blown out by the fan. The unevaporated water would drop to the water
tank and form a circulation.
WORKING PRINCIPLE
Please open the window and the door when you are using this machine.
To keep fresh air circulating smoothly, the best way is to place it in front of the ventilation
corridors.
ATTENTION
- 4 - - 5 -
PARTS & ACCESSORIES
Evaporative Air Cooler Remote Control Ice Box X 3
EVAPORATIVE AIR COOLER
PRODUCT USE GUIDE
BLF-T05
Instruction
SPECIFICATIONS
Model No.
Rated Voltage 120V / 60Hz
BLF-T05
Power
Water Tank 3.5L
Product Size 10.4 X 10 X 26.7 inch
80W
- 6 - - 7 -
OPERATING INSTRUCTIONS

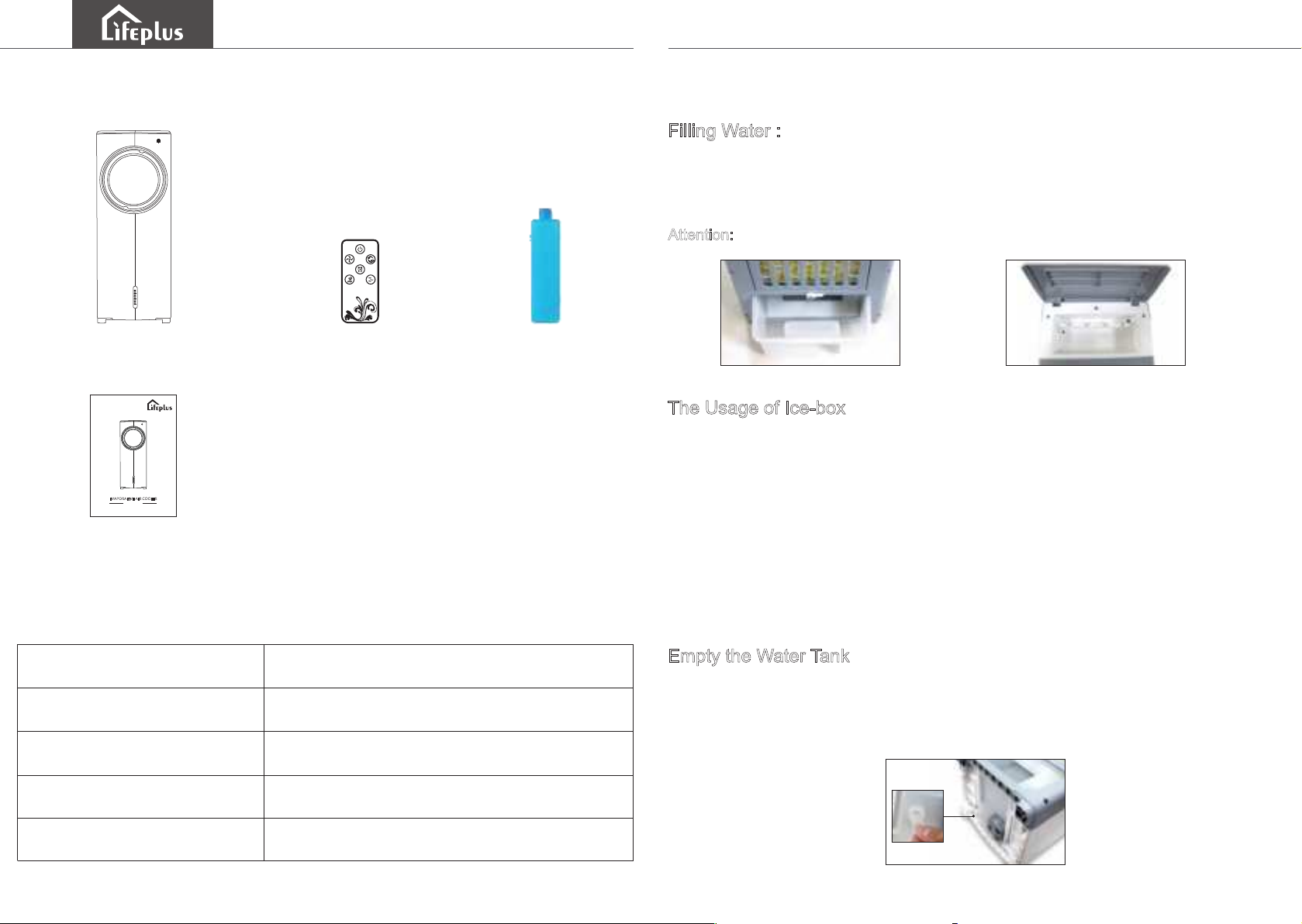

As shown in figure 1, the first way, pull out the tank from the back of the machine,filling
water until the highest water level.
As shown in figure2, the second way, open up cover plate, filling slowly with clean water.
Attention: Please do not exceed the maximum water level of the water tank.
Filling Water :
① If you use ice-box for the first time: open the lid, inject water up to the scale, then
tighten the lid.
② Set aside for 30-40minutes, till the water and ice crystal mix completely.
③ Put the icebox in the refrigerator's freezer room to stay for two hours.
④ Take the icebox out and put it into the air cooler's ice container in order to cool down
the water temperature.
⑤ After using it for a long time, the ice crystal turns to jelly, please put it in the refrigerator
again. It can be recycled and reused.
The Usage of Ice-box
The drain outlet is on the bottom, as shown in Figure 3. Loose the drain nut, and tilt the
machine body, the water tank can be completely emptied. The machine should be regularly
drained and cleaned. If it will not be used for a long time, please empty the water tank.
Empty the Water Tank
ON/OFF
TIMER
SPEED SWING
COOL MODE
Figure 1 Figure 2
Figure 3
ON/OFF
TIMER
SPEED SWING
COOL MODE
CONTROL PANEL
- 8 - - 9 -
Before using the remote control, you must remove the insulating film.
1. All functions performed with remote control work identically to the fan control panel.
2. Aim the remote control at the fan control panel to operate the fan.
REMOTE CONTROL
The remote control uses on button cell battery, type CR2025(3V). To remove the battery
carriage use your thumb to squeeze the release tab to the right and then pull the carriage
out. Place the battery into the carriage and slide the carriage back into the remote.
ON/OFF :
Press this button to open the air cooler ;
Press this button at any state to stop the operation.
SWING :
Press to control the left-right swing; Press again to stop
swinging.
SPEED :
Press to change the wind speed into Small / Middle / High.
NOTE:
Follow battery disposal instruction on battery packaging, or contact your local safety
council for safely disposal of batteries.
TIMER :
Press to set timing system. The timer range is from 1h-7h.
COOLING :
Press to open or close the cooling system.
MODE :
Press to change the wind type into Natural / Sleeping /
Normal Mode.
Power button. press this button to open the air cooler ;
Press this button at any state to stop the operation.
Press to set timing system.
The timer range is from 1h-7h.
Press to change the wind type into
Natural / Sleeping / Normal Mode.
Press to change the wind speed into
Small / Middle / High.
Press to control the left-right swing;
Press again to stop swinging.
Press to open or close the cooling system.
Notice: Do not open the cooling system when the water tank is empty.
CLEANING / MAINTENANCE INSTRUCTIONS
Warm prompt :
After long-time operation, dust accumulation on the pre-filters and the wet curtain would
affect the airflow and air purify. Please clean the machine regularly.
(1). Clean pre-filter
Turn off the power, loose the screws, then pull out the pre-filter, clean it with soft brush
and mild detergent, rinse by water and dry under the sunshine.
(2). Clean wet curtain
Turn off the power, loose the screws in the back-cover plate, take out the back-cover plate.
Loose the plastic nuts on the wet curtain, the side of wet pad can be emoved. clean it with
soft brush and mild detergent, rinse by water and dry under the sunshine, then install back
to the machine.If the dirt is hard to remove after long-term usage, please change a new
wet curtain.
(3). Clean the surface
Turn off the power, clean it with mild detergent and soft cloth. Notice: control panel shall
not be touched by water.
FAULT AND MAINTENANCE
- 10 - - 11 -
Possible results Solutions
"Failure"
phenomenon
(1). Water-pipe blockage.
(2). Without long-term water
cooling.
(3). Poor water quality to
produce scale make central
shaft stuck.
(1). Use a small brush to clean the pipe
and keep smooth water flow.
(2). Long time for cooling without water
cause pump damaged, need to
replace a new water-pump.
(3). Remove the shaft, clean the dirt on
the surface, add proper lubricating oil
insert it, and debug the shaft.
Water pump
doesn't work
(1). The fan blades are stuck.
(2). The filter is blocked.
(3). Fan blade is not fixed.
(4). Main control panel error.
(1). Check the fan blade.
(2). Clean or replace filter.
(3). Replace fan blade.
(4). Replace main control panel.
No wind or wind
speed is too slow
(1). Main control panel Button
is broken.
(2). The wiring of the motor
and control panel falls off.
(1). Replace main control panel.
(2). Replace a new wire to connect
the motor and control panel.
Motor is out
of control
(1). Drain valve is broken.
(2). Rubber band drop.
(1). Replace the drain valve.
(2). Add a new rubber band.
Drain valve
is leaking
Store the air cooler in a cool, dry location when not in use. To prevent dust and dirt
build-up, use the original packaging to repack the unit.
STORAGE
Things To Be Best With Lifeplus
E-mail: service@lifepluspro.com
EVAPORATIVE AIR COOLER
PRODUCT USE GUIDE
BLF-T05
